The project titled "WiFi Connect" is an Android application that allows sending text messages and files between two Android devices using their WiFi networks. The project was developed in Android using Java and focuses on sending text messages and files via WiFi. It includes five modules: 1) Client/Server socket programming, 2) WiFi on/off button, 3) Server and client socket Android applications, 4) WiFi demo, and 5) WiFi Direct demo.

1. Semester-IV Project Report Document
Project Title: WiFi Connect
Akash Rajguru(BSIT/11/10)
B.Sc. IT
Semester-IV
Introduction
The project titled Wifi Connect is an Android application to send text message and data(files) on
an wifi Ad hoc network . The project Wifi Connect is developed in Android platform by using
java as backend language , which mainly focuses on sending text message and data(files)
between two android devices using their wifi as a communication medium .
The Wifi Connect has five modules.
The basic idea behind implementing these modules is to understand some concepts such as:How two java programs communicates through java socket programming .
How to enable wifi through android application
How socket programming works in clientserver android application
How socket programming can be implemented is android app to send text message
from android application to server program running on different pcs.
How to send data (files ) between two android devices using wifi Direct.
The Wifi Connect modules
1.
2.
3.
4.
5.
ClientServer Socket Programming Module.
Wifi on off Button .
Server Socket & Client Socket android application .

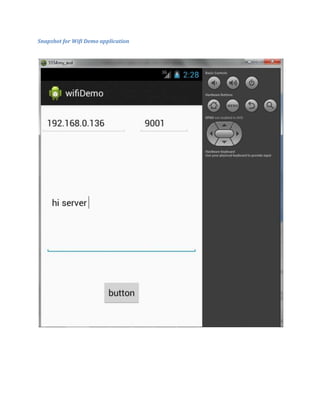

Wifi Demo .

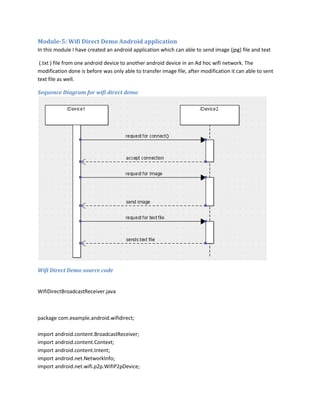

Wifi Direct Demo
Project functionality
The main aim of this project is to send data on wifi ad hoc network
Guidance taken from
Prashant Hinduja(HOD)
Jitendra Kumar

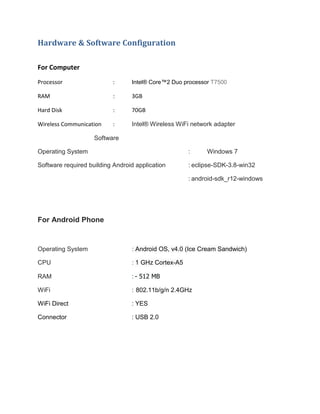

2. Hardware & Software Configuration
For Computer
Processor
:
Intel® Core™2 Duo processor T7500
RAM
:
3GB
Hard Disk
:
70GB
Wireless Communication
:
Intel® Wireless WiFi network adapter
Software
Operating System
:
Windows 7
Software required building Android application
: eclipse-SDK-3.8-win32
: android-sdk_r12-windows
For Android Phone
Operating System
: Android OS, v4.0 (Ice Cream Sandwich)
CPU
: 1 GHz Cortex-A5
RAM
: - 512 MB
WiFi
: 802.11b/g/n 2.4GHz
WiFi Direct
: YES
Connector
: USB 2.0

3. Socket Programming Module 1
Socket programming is most important concept which is going to be implemented in project. In this
module I have worked and learned the basics of socket programming. I have understood how client
server communicates through the socket programs. I have made a client server program which
communicates on two different Linux machines.
Class Diagram
Deployment Diagram
ServerSide.java
import java.awt.BorderLayout;
import java.awt.Button;
import java.awt.Frame;
import java.awt.List;
import java.awt.TextField;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.BufferedReader;
import java.io.BufferedWriter;

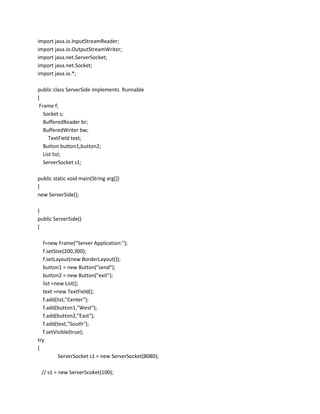

4. import java.io.InputStreamReader;
import java.io.OutputStreamWriter;
import java.net.ServerSocket;
import java.net.Socket;
import java.io.*;
public class ServerSide implements Runnable
{
Frame f;
Socket s;
BufferedReader br;
BufferedWriter bw;
TextField text;
Button button1,button2;
List list;
ServerSocket s1;
public static void main(String arg[])
{
new ServerSide();
}
public ServerSide()
{
f=new Frame("Server Application:");
f.setSize(200,300);
f.setLayout(new BorderLayout());
button1 = new Button("send");
button2 = new Button("exit");
list =new List();
text =new TextField();
f.add(list,"Center");
f.add(button1,"West");
f.add(button2,"East");
f.add(text,"South");
f.setVisible(true);
try
{
ServerSocket s1 = new ServerSocket(8080);
// s1 = new ServerScoket(100);

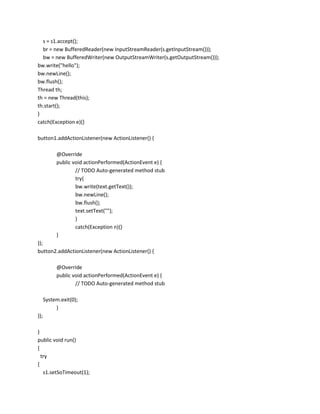

5. s = s1.accept();
br = new BufferedReader(new InputStreamReader(s.getInputStream()));
bw = new BufferedWriter(new OutputStreamWriter(s.getOutputStream()));
bw.write("hello");
bw.newLine();
bw.flush();
Thread th;
th = new Thread(this);
th.start();
}
catch(Exception e){}
button1.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
// TODO Auto-generated method stub
try{
bw.write(text.getText());
bw.newLine();
bw.flush();
text.setText("");
}
catch(Exception n){}
}
});
button2.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
// TODO Auto-generated method stub
System.exit(0);
}
});
}
public void run()
{
try
{
s1.setSoTimeout(1);

6. }
catch(Exception e){}
while(true)
{
try
{
list.addItem(br.readLine());
}
catch(Exception h){}
}
}
}
Snapshot
clinSide.java
import java.awt.BorderLayout;
import java.awt.Button;
import java.awt.Frame;
import java.awt.List;
import java.awt.TextField;

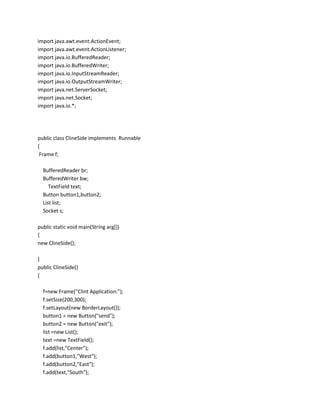

7. import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.InputStreamReader;
import java.io.OutputStreamWriter;
import java.net.ServerSocket;
import java.net.Socket;
import java.io.*;
public class ClineSide implements Runnable
{
Frame f;
BufferedReader br;
BufferedWriter bw;
TextField text;
Button button1,button2;
List list;
Socket s;
public static void main(String arg[])
{
new ClineSide();
}
public ClineSide()
{
f=new Frame("Clint Application:");
f.setSize(200,300);
f.setLayout(new BorderLayout());
button1 = new Button("send");
button2 = new Button("exit");
list =new List();
text =new TextField();
f.add(list,"Center");
f.add(button1,"West");
f.add(button2,"East");
f.add(text,"South");

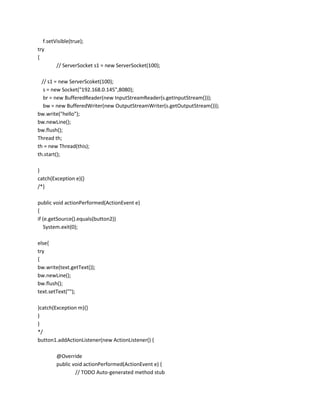

8. f.setVisible(true);
try
{
// ServerSocket s1 = new ServerSocket(100);
// s1 = new ServerScoket(100);
s = new Socket("192.168.0.145",8080);
br = new BufferedReader(new InputStreamReader(s.getInputStream()));
bw = new BufferedWriter(new OutputStreamWriter(s.getOutputStream()));
bw.write("hello");
bw.newLine();
bw.flush();
Thread th;
th = new Thread(this);
th.start();
}
catch(Exception e){}
/*}
public void actionPerformed(ActionEvent e)
{
if (e.getSource().equals(button2))
System.exit(0);
else{
try
{
bw.write(text.getText());
bw.newLine();
bw.flush();
text.setText("");
}catch(Exception m){}
}
}
*/
button1.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
// TODO Auto-generated method stub

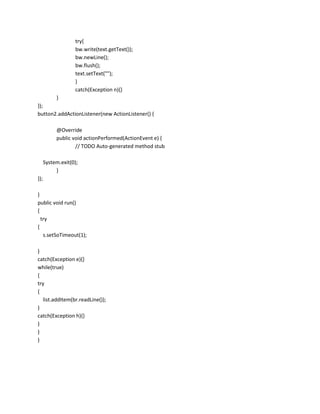

9. try{
bw.write(text.getText());
bw.newLine();
bw.flush();
text.setText("");
}
catch(Exception n){}
}
});
button2.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
// TODO Auto-generated method stub
System.exit(0);
}
});
}
public void run()
{
try
{
s.setSoTimeout(1);
}
catch(Exception e){}
while(true)
{
try
{
list.addItem(br.readLine());
}
catch(Exception h){}
}
}
}

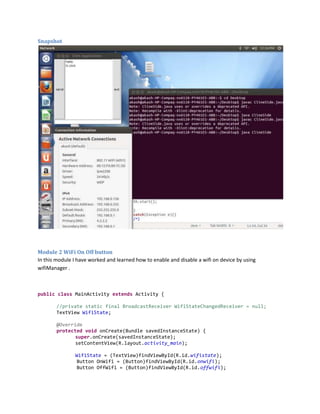

10. Snapshot
Module 2 WiFi On Off button
In this module I have worked and learned how to enable and disable a wifi on device by using
wifiManager .
public class MainActivity extends Activity {
//private static final BroadcastReceiver WifiStateChangedReceiver = null;
TextView WifiState;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
WifiState = (TextView)findViewById(R.id.wifistate);
Button OnWifi = (Button)findViewById(R.id.onwifi);
Button OffWifi = (Button)findViewById(R.id.offwifi);

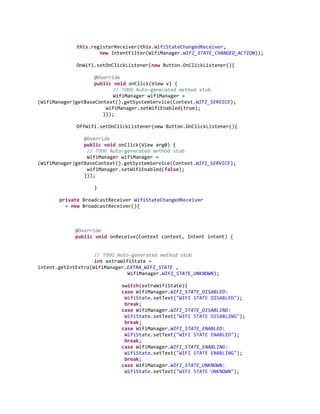

11. this.registerReceiver(this.WifiStateChangedReceiver,
new IntentFilter(WifiManager.WIFI_STATE_CHANGED_ACTION));
OnWifi.setOnClickListener(new Button.OnClickListener(){

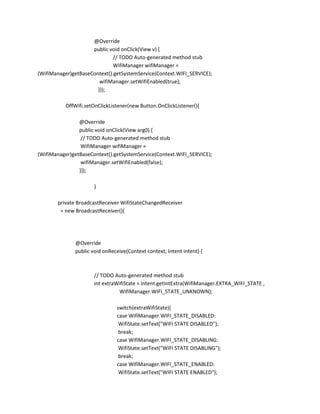

@Override
public void onClick(View v) {
// TODO Auto-generated method stub
WifiManager wifiManager =
(WifiManager)getBaseContext().getSystemService(Context.WIFI_SERVICE);
wifiManager.setWifiEnabled(true);
}});
OffWifi.setOnClickListener(new Button.OnClickListener(){
@Override
public void onClick(View arg0) {
// TODO Auto-generated method stub
WifiManager wifiManager =
(WifiManager)getBaseContext().getSystemService(Context.WIFI_SERVICE);
wifiManager.setWifiEnabled(false);
}});
}
private BroadcastReceiver WifiStateChangedReceiver
= new BroadcastReceiver(){
@Override
public void onReceive(Context context, Intent intent) {
// TODO Auto-generated method stub
int extraWifiState =
intent.getIntExtra(WifiManager.EXTRA_WIFI_STATE ,
WifiManager.WIFI_STATE_UNKNOWN);
switch(extraWifiState){
case WifiManager.WIFI_STATE_DISABLED:
WifiState.setText("WIFI STATE DISABLED");
break;
case WifiManager.WIFI_STATE_DISABLING:
WifiState.setText("WIFI STATE DISABLING");
break;
case WifiManager.WIFI_STATE_ENABLED:
WifiState.setText("WIFI STATE ENABLED");
break;
case WifiManager.WIFI_STATE_ENABLING:
WifiState.setText("WIFI STATE ENABLING");
break;
case WifiManager.WIFI_STATE_UNKNOWN:
WifiState.setText("WIFI STATE UNKNOWN");

12. break;
}
}};
}

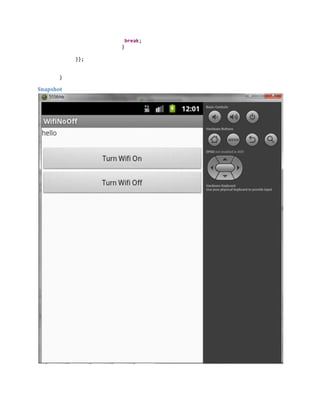

Snapshot

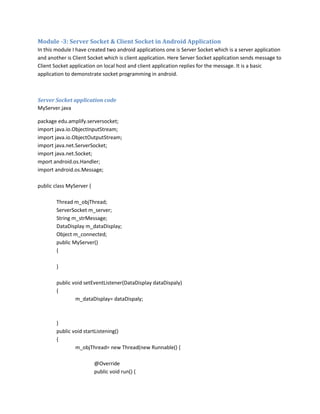

13. Module -3: Server Socket & Client Socket in Android Application
In this module I have created two android applications one is Server Socket which is a server application
and another is Client Socket which is client application. Here Server Socket application sends message to
Client Socket application on local host and client application replies for the message. It is a basic
application to demonstrate socket programming in android.
Server Socket application code
MyServer.java
package edu.amplify.serversocket;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.net.ServerSocket;
import java.net.Socket;
mport android.os.Handler;
import android.os.Message;
public class MyServer {
Thread m_objThread;
ServerSocket m_server;
String m_strMessage;
DataDisplay m_dataDisplay;
Object m_connected;
public MyServer()
{
}
public void setEventListener(DataDisplay dataDispaly)
{
m_dataDisplay= dataDispaly;
}
public void startListening()
{
m_objThread= new Thread(new Runnable() {
@Override
public void run() {

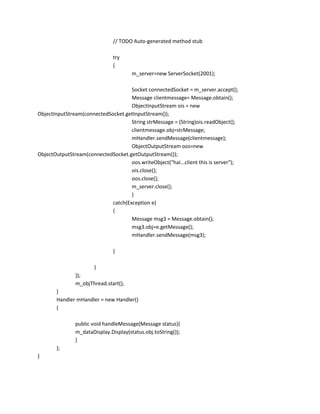

14. // TODO Auto-generated method stub
try
{
m_server=new ServerSocket(2001);
Socket connectedSocket = m_server.accept();
Message clientmessage= Message.obtain();
ObjectInputStream ois = new
ObjectInputStream(connectedSocket.getInputStream());
String strMessage = (String)ois.readObject();
clientmessage.obj=strMessage;
mHandler.sendMessage(clientmessage);
ObjectOutputStream oos=new
ObjectOutputStream(connectedSocket.getOutputStream());
oos.writeObject("hai...client this is server");
ois.close();
oos.close();
m_server.close();
}
catch(Exception e)
{
Message msg3 = Message.obtain();
msg3.obj=e.getMessage();
mHandler.sendMessage(msg3);
}
}
});
m_objThread.start();
}
Handler mHandler = new Handler()
{
public void handleMessage(Message status){
m_dataDisplay.Display(status.obj.toString());
}
};
}

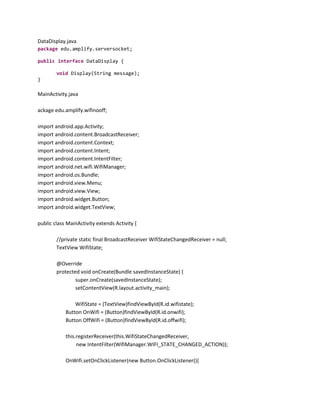

15. DataDisplay.java
package edu.amplify.serversocket;
public interface DataDisplay {
void Display(String message);
}
MainActivity.java
ackage edu.amplify.wifinooff;
import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
public class MainActivity extends Activity {
//private static final BroadcastReceiver WifiStateChangedReceiver = null;
TextView WifiState;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
WifiState = (TextView)findViewById(R.id.wifistate);
Button OnWifi = (Button)findViewById(R.id.onwifi);
Button OffWifi = (Button)findViewById(R.id.offwifi);
this.registerReceiver(this.WifiStateChangedReceiver,
new IntentFilter(WifiManager.WIFI_STATE_CHANGED_ACTION));
OnWifi.setOnClickListener(new Button.OnClickListener(){

16. @Override
public void onClick(View v) {
// TODO Auto-generated method stub
WifiManager wifiManager =
(WifiManager)getBaseContext().getSystemService(Context.WIFI_SERVICE);
wifiManager.setWifiEnabled(true);
}});
OffWifi.setOnClickListener(new Button.OnClickListener(){
@Override
public void onClick(View arg0) {
// TODO Auto-generated method stub
WifiManager wifiManager =
(WifiManager)getBaseContext().getSystemService(Context.WIFI_SERVICE);
wifiManager.setWifiEnabled(false);
}});
}
private BroadcastReceiver WifiStateChangedReceiver
= new BroadcastReceiver(){
@Override
public void onReceive(Context context, Intent intent) {
// TODO Auto-generated method stub
int extraWifiState = intent.getIntExtra(WifiManager.EXTRA_WIFI_STATE ,
WifiManager.WIFI_STATE_UNKNOWN);
switch(extraWifiState){
case WifiManager.WIFI_STATE_DISABLED:
WifiState.setText("WIFI STATE DISABLED");
break;
case WifiManager.WIFI_STATE_DISABLING:
WifiState.setText("WIFI STATE DISABLING");
break;
case WifiManager.WIFI_STATE_ENABLED:
WifiState.setText("WIFI STATE ENABLED");

17. break;
case WifiManager.WIFI_STATE_ENABLING:
WifiState.setText("WIFI STATE ENABLING");
break;
case WifiManager.WIFI_STATE_UNKNOWN:
WifiState.setText("WIFI STATE UNKNOWN");
break;
}
}};
}
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="edu.amplify.serversocket"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion="17" />
<uses-permission android:name="android.permission.INTERNET" />
<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
<activity
android:name="edu.amplify.serversocket.MainActivity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>

18. Client Socket application code
MainActivity.java
package edu.amplify.clintsocket;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.net.Socket;
import
import
import
import
import
import
import
android.os.Bundle;
android.os.Handler;
android.os.Message;
android.app.Activity;
android.view.Menu;
android.view.View;
android.widget.TextView;
public class MainActivity extends Activity {
TextView serverMessage;
Thread m_objThreadClient;
Socket clientSocket;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
serverMessage =(TextView)findViewById(R.id.textView1);
}
public void Start(View view)
{
m_objThreadClient=new Thread(new Runnable() {
public void run()
{
try
{
clientSocket= new Socket("127.0.0.1",2001);
ObjectOutputStream oos = new
ObjectOutputStream(clientSocket.getOutputStream());
oos.writeObject("Hellow Server....this client ");
Message serverMessage= Message.obtain();
ObjectInputStream ois =new
ObjectInputStream(clientSocket.getInputStream());
String strMessage = (String)ois.readObject();
serverMessage.obj=strMessage;
mHandler.sendMessage(serverMessage);
oos.close();
ois.close();
}
catch (Exception e)
{
// TODO Auto-generated catch block
e.printStackTrace();

19. }
}
});
m_objThreadClient.start();
}
Handler mHandler = new Handler() {
@Override
public void handleMessage(Message msg) {
messageDisplay(msg.obj.toString());
}
};
public void messageDisplay(String servermessage)
{
serverMessage.setText(""+servermessage);
}
}
AndroidMenifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="edu.amplify.clintsocket"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion="17" />
<uses-permission android:name="android.permission.INTERNET" />
<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
<activity
android:name="edu.amplify.clintsocket.MainActivity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>

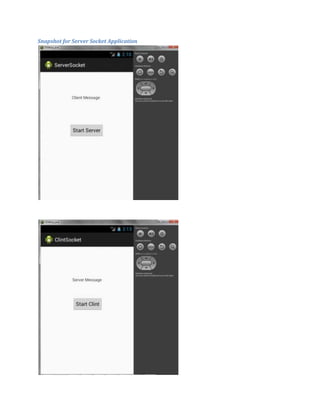

20. Snapshot for Server Socket Application

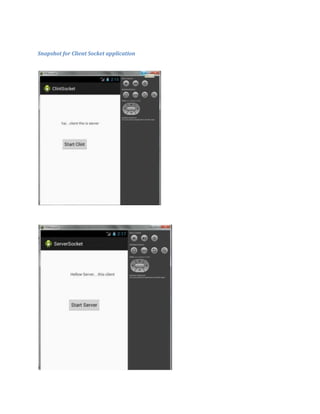

21. Snapshot for Client Socket application

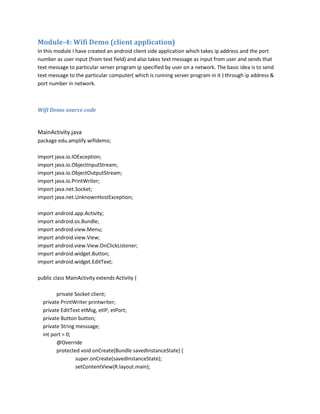

22. Module-4: Wifi Demo (client application)
In this module I have created an android client side application which takes ip address and the port
number as user input (from text field) and also takes text message as input from user and sends that
text message to particular server program ip specified by user on a network. The basic idea is to send
text message to the particular computer( which is running server program in it ) through ip address &
port number in network.
Wifi Demo source code
MainActivity.java
package edu.amplify.wifidemo;
import java.io.IOException;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.io.PrintWriter;
import java.net.Socket;
import java.net.UnknownHostException;
import android.app.Activity;
import android.os.Bundle;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
public class MainActivity extends Activity {
private Socket client;
private PrintWriter printwriter;
private EditText etMsg, etIP, etPort;
private Button button;
private String messsage;
int port = 0;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);

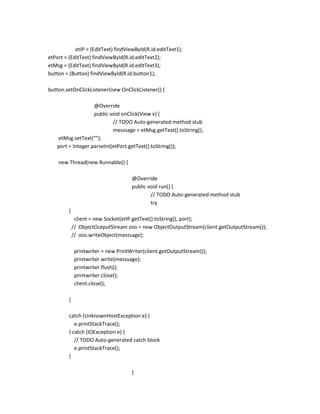

23. etIP = (EditText) findViewById(R.id.editText1);
etPort = (EditText) findViewById(R.id.editText2);
etMsg = (EditText) findViewById(R.id.editText3);
button = (Button) findViewById(R.id.button1);
button.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
messsage = etMsg.getText().toString();
etMsg.setText("");
port = Integer.parseInt(etPort.getText().toString());
new Thread(new Runnable() {
@Override
public void run() {
// TODO Auto-generated method stub
try
{
client = new Socket(etIP.getText().toString(), port);
// ObjectOutputStream oos = new ObjectOutputStream(client.getOutputStream());
// oos.writeObject(messsage);
printwriter = new PrintWriter(client.getOutputStream());
printwriter.write(messsage);
printwriter.flush();
printwriter.close();
client.close();
}
catch (UnknownHostException e) {
e.printStackTrace();
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}

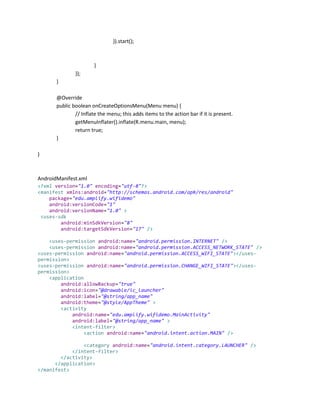

24. }).start();
}
});
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
}
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="edu.amplify.wifidemo"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion="17" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE"></usespermission>
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE"></usespermission>
<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
<activity
android:name="edu.amplify.wifidemo.MainActivity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>

25. Snapshot for Wifi Demo application

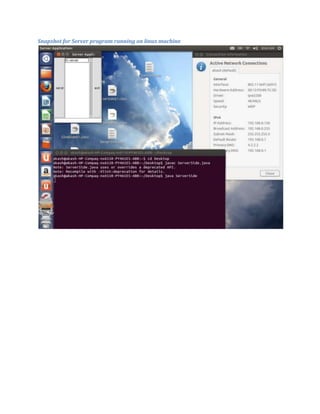

26. Snapshot for Server program running on linux machine

27. Module-5: Wifi Direct Demo Android application
In this module I have created an android application which can able to send image (jpg) file and text
(.txt ) file from one android device to another android device in an Ad hoc wifi network. The
modification done is before was only able to transfer image file, after modification it can able to sent
text file as well.
Sequence Diagram for wifi direct demo
Wifi Direct Demo source code
WifiDirectBroadcastReceiver.java
package com.example.android.wifidirect;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.net.NetworkInfo;
import android.net.wifi.p2p.WifiP2pDevice;

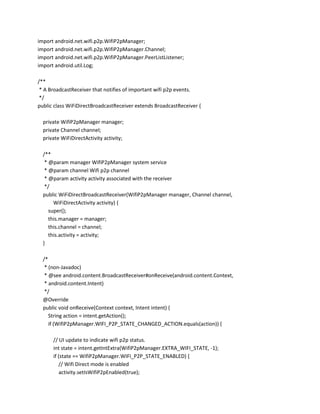

28. import android.net.wifi.p2p.WifiP2pManager;
import android.net.wifi.p2p.WifiP2pManager.Channel;
import android.net.wifi.p2p.WifiP2pManager.PeerListListener;
import android.util.Log;
/**
* A BroadcastReceiver that notifies of important wifi p2p events.
*/
public class WiFiDirectBroadcastReceiver extends BroadcastReceiver {
private WifiP2pManager manager;
private Channel channel;
private WiFiDirectActivity activity;
/**
* @param manager WifiP2pManager system service
* @param channel Wifi p2p channel
* @param activity activity associated with the receiver
*/
public WiFiDirectBroadcastReceiver(WifiP2pManager manager, Channel channel,
WiFiDirectActivity activity) {
super();
this.manager = manager;
this.channel = channel;
this.activity = activity;
}
/*
* (non-Javadoc)
* @see android.content.BroadcastReceiver#onReceive(android.content.Context,
* android.content.Intent)
*/
@Override
public void onReceive(Context context, Intent intent) {
String action = intent.getAction();
if (WifiP2pManager.WIFI_P2P_STATE_CHANGED_ACTION.equals(action)) {
// UI update to indicate wifi p2p status.
int state = intent.getIntExtra(WifiP2pManager.EXTRA_WIFI_STATE, -1);
if (state == WifiP2pManager.WIFI_P2P_STATE_ENABLED) {
// Wifi Direct mode is enabled
activity.setIsWifiP2pEnabled(true);

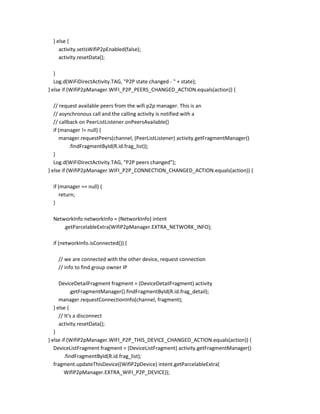

29. } else {
activity.setIsWifiP2pEnabled(false);
activity.resetData();
}
Log.d(WiFiDirectActivity.TAG, "P2P state changed - " + state);
} else if (WifiP2pManager.WIFI_P2P_PEERS_CHANGED_ACTION.equals(action)) {
// request available peers from the wifi p2p manager. This is an
// asynchronous call and the calling activity is notified with a
// callback on PeerListListener.onPeersAvailable()
if (manager != null) {
manager.requestPeers(channel, (PeerListListener) activity.getFragmentManager()
.findFragmentById(R.id.frag_list));
}
Log.d(WiFiDirectActivity.TAG, "P2P peers changed");
} else if (WifiP2pManager.WIFI_P2P_CONNECTION_CHANGED_ACTION.equals(action)) {
if (manager == null) {
return;
}
NetworkInfo networkInfo = (NetworkInfo) intent
.getParcelableExtra(WifiP2pManager.EXTRA_NETWORK_INFO);
if (networkInfo.isConnected()) {
// we are connected with the other device, request connection
// info to find group owner IP
DeviceDetailFragment fragment = (DeviceDetailFragment) activity
.getFragmentManager().findFragmentById(R.id.frag_detail);
manager.requestConnectionInfo(channel, fragment);
} else {
// It's a disconnect
activity.resetData();
}
} else if (WifiP2pManager.WIFI_P2P_THIS_DEVICE_CHANGED_ACTION.equals(action)) {
DeviceListFragment fragment = (DeviceListFragment) activity.getFragmentManager()
.findFragmentById(R.id.frag_list);
fragment.updateThisDevice((WifiP2pDevice) intent.getParcelableExtra(
WifiP2pManager.EXTRA_WIFI_P2P_DEVICE));

30. }
}
}

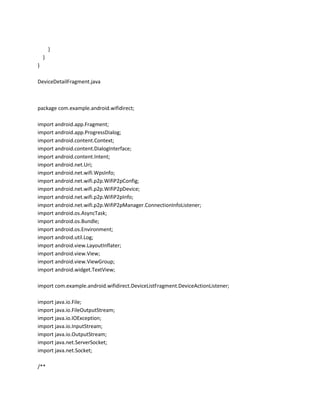

DeviceDetailFragment.java
package com.example.android.wifidirect;
import android.app.Fragment;
import android.app.ProgressDialog;
import android.content.Context;
import android.content.DialogInterface;
import android.content.Intent;
import android.net.Uri;
import android.net.wifi.WpsInfo;
import android.net.wifi.p2p.WifiP2pConfig;
import android.net.wifi.p2p.WifiP2pDevice;
import android.net.wifi.p2p.WifiP2pInfo;
import android.net.wifi.p2p.WifiP2pManager.ConnectionInfoListener;
import android.os.AsyncTask;
import android.os.Bundle;
import android.os.Environment;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
import com.example.android.wifidirect.DeviceListFragment.DeviceActionListener;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.ServerSocket;
import java.net.Socket;
/**

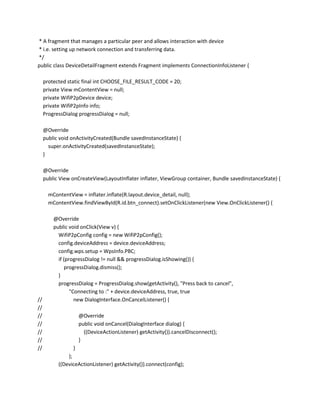

31. * A fragment that manages a particular peer and allows interaction with device
* i.e. setting up network connection and transferring data.
*/
public class DeviceDetailFragment extends Fragment implements ConnectionInfoListener {
protected static final int CHOOSE_FILE_RESULT_CODE = 20;
private View mContentView = null;
private WifiP2pDevice device;
private WifiP2pInfo info;
ProgressDialog progressDialog = null;
@Override
public void onActivityCreated(Bundle savedInstanceState) {
super.onActivityCreated(savedInstanceState);
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
mContentView = inflater.inflate(R.layout.device_detail, null);
mContentView.findViewById(R.id.btn_connect).setOnClickListener(new View.OnClickListener() {
//
//
//
//
//
//
//
@Override
public void onClick(View v) {
WifiP2pConfig config = new WifiP2pConfig();
config.deviceAddress = device.deviceAddress;
config.wps.setup = WpsInfo.PBC;
if (progressDialog != null && progressDialog.isShowing()) {
progressDialog.dismiss();
}
progressDialog = ProgressDialog.show(getActivity(), "Press back to cancel",
"Connecting to :" + device.deviceAddress, true, true
new DialogInterface.OnCancelListener() {
@Override
public void onCancel(DialogInterface dialog) {
((DeviceActionListener) getActivity()).cancelDisconnect();
}
}
);
((DeviceActionListener) getActivity()).connect(config);

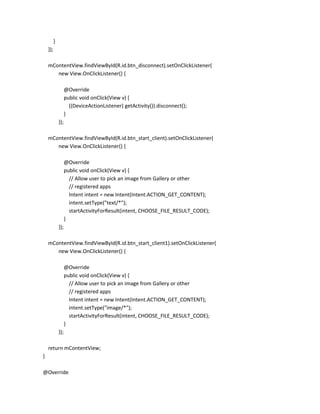

32. }
});
mContentView.findViewById(R.id.btn_disconnect).setOnClickListener(
new View.OnClickListener() {
@Override
public void onClick(View v) {
((DeviceActionListener) getActivity()).disconnect();
}
});
mContentView.findViewById(R.id.btn_start_client).setOnClickListener(
new View.OnClickListener() {
@Override
public void onClick(View v) {
// Allow user to pick an image from Gallery or other
// registered apps
Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
intent.setType("text/*");
startActivityForResult(intent, CHOOSE_FILE_RESULT_CODE);
}
});
mContentView.findViewById(R.id.btn_start_client1).setOnClickListener(
new View.OnClickListener() {
@Override
public void onClick(View v) {
// Allow user to pick an image from Gallery or other
// registered apps
Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
intent.setType("image/*");
startActivityForResult(intent, CHOOSE_FILE_RESULT_CODE);
}
});
return mContentView;
}
@Override

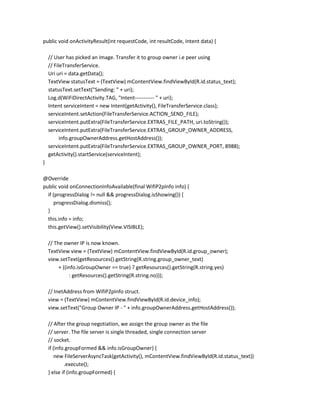

33. public void onActivityResult(int requestCode, int resultCode, Intent data) {
// User has picked an image. Transfer it to group owner i.e peer using
// FileTransferService.
Uri uri = data.getData();
TextView statusText = (TextView) mContentView.findViewById(R.id.status_text);
statusText.setText("Sending: " + uri);
Log.d(WiFiDirectActivity.TAG, "Intent----------- " + uri);
Intent serviceIntent = new Intent(getActivity(), FileTransferService.class);
serviceIntent.setAction(FileTransferService.ACTION_SEND_FILE);
serviceIntent.putExtra(FileTransferService.EXTRAS_FILE_PATH, uri.toString());
serviceIntent.putExtra(FileTransferService.EXTRAS_GROUP_OWNER_ADDRESS,
info.groupOwnerAddress.getHostAddress());
serviceIntent.putExtra(FileTransferService.EXTRAS_GROUP_OWNER_PORT, 8988);
getActivity().startService(serviceIntent);
}
@Override
public void onConnectionInfoAvailable(final WifiP2pInfo info) {
if (progressDialog != null && progressDialog.isShowing()) {
progressDialog.dismiss();
}
this.info = info;
this.getView().setVisibility(View.VISIBLE);
// The owner IP is now known.
TextView view = (TextView) mContentView.findViewById(R.id.group_owner);
view.setText(getResources().getString(R.string.group_owner_text)
+ ((info.isGroupOwner == true) ? getResources().getString(R.string.yes)
: getResources().getString(R.string.no)));
// InetAddress from WifiP2pInfo struct.
view = (TextView) mContentView.findViewById(R.id.device_info);
view.setText("Group Owner IP - " + info.groupOwnerAddress.getHostAddress());
// After the group negotiation, we assign the group owner as the file
// server. The file server is single threaded, single connection server
// socket.
if (info.groupFormed && info.isGroupOwner) {
new FileServerAsyncTask(getActivity(), mContentView.findViewById(R.id.status_text))
.execute();
} else if (info.groupFormed) {

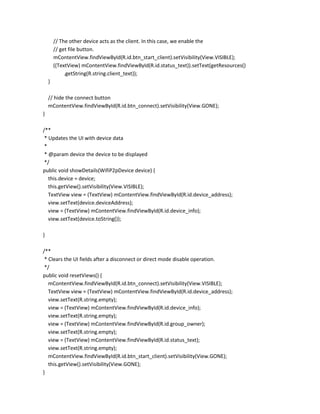

34. // The other device acts as the client. In this case, we enable the
// get file button.
mContentView.findViewById(R.id.btn_start_client).setVisibility(View.VISIBLE);
((TextView) mContentView.findViewById(R.id.status_text)).setText(getResources()
.getString(R.string.client_text));
}
// hide the connect button
mContentView.findViewById(R.id.btn_connect).setVisibility(View.GONE);
}
/**
* Updates the UI with device data
*
* @param device the device to be displayed
*/
public void showDetails(WifiP2pDevice device) {
this.device = device;
this.getView().setVisibility(View.VISIBLE);
TextView view = (TextView) mContentView.findViewById(R.id.device_address);
view.setText(device.deviceAddress);
view = (TextView) mContentView.findViewById(R.id.device_info);
view.setText(device.toString());
}
/**
* Clears the UI fields after a disconnect or direct mode disable operation.
*/
public void resetViews() {
mContentView.findViewById(R.id.btn_connect).setVisibility(View.VISIBLE);
TextView view = (TextView) mContentView.findViewById(R.id.device_address);
view.setText(R.string.empty);
view = (TextView) mContentView.findViewById(R.id.device_info);
view.setText(R.string.empty);

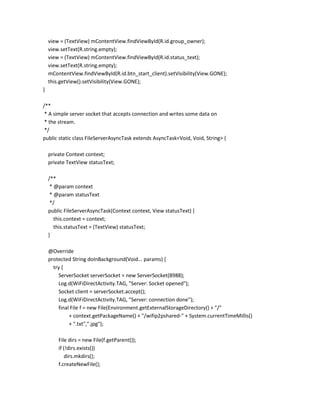

view = (TextView) mContentView.findViewById(R.id.group_owner);
view.setText(R.string.empty);
view = (TextView) mContentView.findViewById(R.id.status_text);
view.setText(R.string.empty);
mContentView.findViewById(R.id.btn_start_client).setVisibility(View.GONE);
this.getView().setVisibility(View.GONE);
}

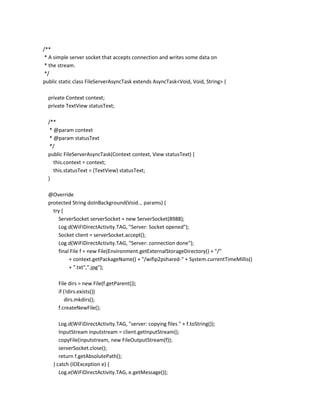

35. /**
* A simple server socket that accepts connection and writes some data on
* the stream.
*/
public static class FileServerAsyncTask extends AsyncTask<Void, Void, String> {
private Context context;
private TextView statusText;
/**
* @param context
* @param statusText
*/
public FileServerAsyncTask(Context context, View statusText) {
this.context = context;
this.statusText = (TextView) statusText;
}
@Override
protected String doInBackground(Void... params) {
try {
ServerSocket serverSocket = new ServerSocket(8988);
Log.d(WiFiDirectActivity.TAG, "Server: Socket opened");
Socket client = serverSocket.accept();
Log.d(WiFiDirectActivity.TAG, "Server: connection done");
final File f = new File(Environment.getExternalStorageDirectory() + "/"
+ context.getPackageName() + "/wifip2pshared-" + System.currentTimeMillis()
+ ".txt",".jpg");
File dirs = new File(f.getParent());
if (!dirs.exists())
dirs.mkdirs();
f.createNewFile();

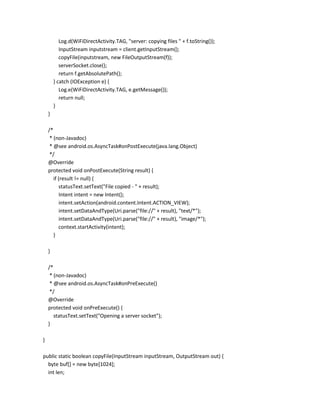

Log.d(WiFiDirectActivity.TAG, "server: copying files " + f.toString());
InputStream inputstream = client.getInputStream();
copyFile(inputstream, new FileOutputStream(f));
serverSocket.close();
return f.getAbsolutePath();
} catch (IOException e) {
Log.e(WiFiDirectActivity.TAG, e.getMessage());

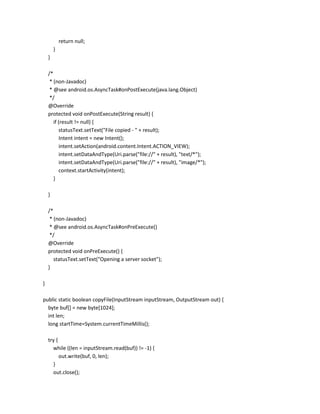

36. return null;
}
}
/*
* (non-Javadoc)
* @see android.os.AsyncTask#onPostExecute(java.lang.Object)
*/
@Override
protected void onPostExecute(String result) {
if (result != null) {
statusText.setText("File copied - " + result);
Intent intent = new Intent();
intent.setAction(android.content.Intent.ACTION_VIEW);
intent.setDataAndType(Uri.parse("file://" + result), "text/*");
intent.setDataAndType(Uri.parse("file://" + result), "image/*");
context.startActivity(intent);
}
}
/*
* (non-Javadoc)
* @see android.os.AsyncTask#onPreExecute()
*/
@Override
protected void onPreExecute() {
statusText.setText("Opening a server socket");
}
}
public static boolean copyFile(InputStream inputStream, OutputStream out) {
byte buf[] = new byte[1024];
int len;

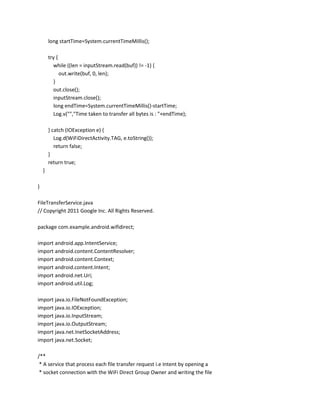

long startTime=System.currentTimeMillis();
try {
while ((len = inputStream.read(buf)) != -1) {
out.write(buf, 0, len);
}
out.close();

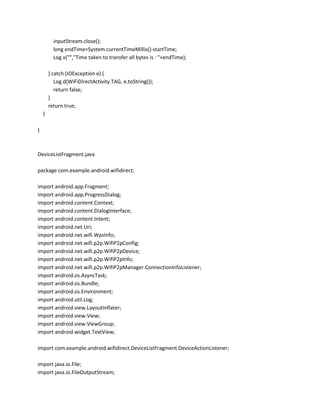

37. inputStream.close();
long endTime=System.currentTimeMillis()-startTime;
Log.v("","Time taken to transfer all bytes is : "+endTime);
} catch (IOException e) {
Log.d(WiFiDirectActivity.TAG, e.toString());
return false;
}
return true;
}
}
DeviceListFragment.java
package com.example.android.wifidirect;
import android.app.Fragment;
import android.app.ProgressDialog;
import android.content.Context;
import android.content.DialogInterface;
import android.content.Intent;
import android.net.Uri;
import android.net.wifi.WpsInfo;
import android.net.wifi.p2p.WifiP2pConfig;
import android.net.wifi.p2p.WifiP2pDevice;
import android.net.wifi.p2p.WifiP2pInfo;
import android.net.wifi.p2p.WifiP2pManager.ConnectionInfoListener;
import android.os.AsyncTask;
import android.os.Bundle;
import android.os.Environment;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
import com.example.android.wifidirect.DeviceListFragment.DeviceActionListener;
import java.io.File;
import java.io.FileOutputStream;

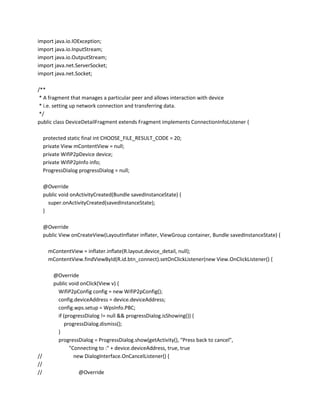

38. import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.ServerSocket;
import java.net.Socket;
/**
* A fragment that manages a particular peer and allows interaction with device
* i.e. setting up network connection and transferring data.
*/
public class DeviceDetailFragment extends Fragment implements ConnectionInfoListener {
protected static final int CHOOSE_FILE_RESULT_CODE = 20;
private View mContentView = null;
private WifiP2pDevice device;
private WifiP2pInfo info;
ProgressDialog progressDialog = null;
@Override
public void onActivityCreated(Bundle savedInstanceState) {
super.onActivityCreated(savedInstanceState);
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
mContentView = inflater.inflate(R.layout.device_detail, null);
mContentView.findViewById(R.id.btn_connect).setOnClickListener(new View.OnClickListener() {
//
//
//
@Override
public void onClick(View v) {
WifiP2pConfig config = new WifiP2pConfig();
config.deviceAddress = device.deviceAddress;
config.wps.setup = WpsInfo.PBC;
if (progressDialog != null && progressDialog.isShowing()) {
progressDialog.dismiss();
}
progressDialog = ProgressDialog.show(getActivity(), "Press back to cancel",
"Connecting to :" + device.deviceAddress, true, true
new DialogInterface.OnCancelListener() {
@Override

39. //
//
//
//
public void onCancel(DialogInterface dialog) {
((DeviceActionListener) getActivity()).cancelDisconnect();
}
}
);
((DeviceActionListener) getActivity()).connect(config);
}
});
mContentView.findViewById(R.id.btn_disconnect).setOnClickListener(
new View.OnClickListener() {
@Override
public void onClick(View v) {
((DeviceActionListener) getActivity()).disconnect();
}
});
mContentView.findViewById(R.id.btn_start_client).setOnClickListener(
new View.OnClickListener() {
@Override
public void onClick(View v) {
// Allow user to pick an image from Gallery or other
// registered apps
Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
intent.setType("text/*");
startActivityForResult(intent, CHOOSE_FILE_RESULT_CODE);
}
});
mContentView.findViewById(R.id.btn_start_client1).setOnClickListener(
new View.OnClickListener() {
@Override
public void onClick(View v) {
// Allow user to pick an image from Gallery or other
// registered apps
Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
intent.setType("image/*");
startActivityForResult(intent, CHOOSE_FILE_RESULT_CODE);

40. }
});
return mContentView;
}
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
// User has picked an image. Transfer it to group owner i.e peer using
// FileTransferService.
Uri uri = data.getData();
TextView statusText = (TextView) mContentView.findViewById(R.id.status_text);
statusText.setText("Sending: " + uri);
Log.d(WiFiDirectActivity.TAG, "Intent----------- " + uri);
Intent serviceIntent = new Intent(getActivity(), FileTransferService.class);
serviceIntent.setAction(FileTransferService.ACTION_SEND_FILE);
serviceIntent.putExtra(FileTransferService.EXTRAS_FILE_PATH, uri.toString());
serviceIntent.putExtra(FileTransferService.EXTRAS_GROUP_OWNER_ADDRESS,
info.groupOwnerAddress.getHostAddress());
serviceIntent.putExtra(FileTransferService.EXTRAS_GROUP_OWNER_PORT, 8988);
getActivity().startService(serviceIntent);
}
@Override
public void onConnectionInfoAvailable(final WifiP2pInfo info) {
if (progressDialog != null && progressDialog.isShowing()) {
progressDialog.dismiss();
}
this.info = info;
this.getView().setVisibility(View.VISIBLE);
// The owner IP is now known.
TextView view = (TextView) mContentView.findViewById(R.id.group_owner);
view.setText(getResources().getString(R.string.group_owner_text)
+ ((info.isGroupOwner == true) ? getResources().getString(R.string.yes)
: getResources().getString(R.string.no)));
// InetAddress from WifiP2pInfo struct.
view = (TextView) mContentView.findViewById(R.id.device_info);
view.setText("Group Owner IP - " + info.groupOwnerAddress.getHostAddress());

41. // After the group negotiation, we assign the group owner as the file
// server. The file server is single threaded, single connection server
// socket.
if (info.groupFormed && info.isGroupOwner) {
new FileServerAsyncTask(getActivity(), mContentView.findViewById(R.id.status_text))
.execute();
} else if (info.groupFormed) {
// The other device acts as the client. In this case, we enable the
// get file button.
mContentView.findViewById(R.id.btn_start_client).setVisibility(View.VISIBLE);
((TextView) mContentView.findViewById(R.id.status_text)).setText(getResources()
.getString(R.string.client_text));
}
// hide the connect button
mContentView.findViewById(R.id.btn_connect).setVisibility(View.GONE);
}
/**
* Updates the UI with device data
*
* @param device the device to be displayed
*/
public void showDetails(WifiP2pDevice device) {
this.device = device;
this.getView().setVisibility(View.VISIBLE);
TextView view = (TextView) mContentView.findViewById(R.id.device_address);
view.setText(device.deviceAddress);
view = (TextView) mContentView.findViewById(R.id.device_info);
view.setText(device.toString());
}
/**
* Clears the UI fields after a disconnect or direct mode disable operation.
*/
public void resetViews() {
mContentView.findViewById(R.id.btn_connect).setVisibility(View.VISIBLE);
TextView view = (TextView) mContentView.findViewById(R.id.device_address);
view.setText(R.string.empty);
view = (TextView) mContentView.findViewById(R.id.device_info);
view.setText(R.string.empty);

42. view = (TextView) mContentView.findViewById(R.id.group_owner);
view.setText(R.string.empty);
view = (TextView) mContentView.findViewById(R.id.status_text);
view.setText(R.string.empty);
mContentView.findViewById(R.id.btn_start_client).setVisibility(View.GONE);
this.getView().setVisibility(View.GONE);
}
/**
* A simple server socket that accepts connection and writes some data on
* the stream.
*/
public static class FileServerAsyncTask extends AsyncTask<Void, Void, String> {
private Context context;
private TextView statusText;
/**
* @param context
* @param statusText
*/
public FileServerAsyncTask(Context context, View statusText) {
this.context = context;
this.statusText = (TextView) statusText;
}
@Override
protected String doInBackground(Void... params) {
try {
ServerSocket serverSocket = new ServerSocket(8988);
Log.d(WiFiDirectActivity.TAG, "Server: Socket opened");
Socket client = serverSocket.accept();
Log.d(WiFiDirectActivity.TAG, "Server: connection done");
final File f = new File(Environment.getExternalStorageDirectory() + "/"
+ context.getPackageName() + "/wifip2pshared-" + System.currentTimeMillis()
+ ".txt",".jpg");
File dirs = new File(f.getParent());
if (!dirs.exists())
dirs.mkdirs();
f.createNewFile();

43. Log.d(WiFiDirectActivity.TAG, "server: copying files " + f.toString());
InputStream inputstream = client.getInputStream();
copyFile(inputstream, new FileOutputStream(f));
serverSocket.close();
return f.getAbsolutePath();
} catch (IOException e) {
Log.e(WiFiDirectActivity.TAG, e.getMessage());
return null;
}
}
/*
* (non-Javadoc)
* @see android.os.AsyncTask#onPostExecute(java.lang.Object)
*/
@Override
protected void onPostExecute(String result) {
if (result != null) {
statusText.setText("File copied - " + result);
Intent intent = new Intent();
intent.setAction(android.content.Intent.ACTION_VIEW);
intent.setDataAndType(Uri.parse("file://" + result), "text/*");
intent.setDataAndType(Uri.parse("file://" + result), "image/*");
context.startActivity(intent);
}
}
/*
* (non-Javadoc)
* @see android.os.AsyncTask#onPreExecute()
*/
@Override
protected void onPreExecute() {
statusText.setText("Opening a server socket");
}
}
public static boolean copyFile(InputStream inputStream, OutputStream out) {
byte buf[] = new byte[1024];
int len;

44. long startTime=System.currentTimeMillis();
try {
while ((len = inputStream.read(buf)) != -1) {
out.write(buf, 0, len);
}
out.close();
inputStream.close();
long endTime=System.currentTimeMillis()-startTime;
Log.v("","Time taken to transfer all bytes is : "+endTime);
} catch (IOException e) {
Log.d(WiFiDirectActivity.TAG, e.toString());
return false;
}
return true;
}
}
FileTransferService.java
// Copyright 2011 Google Inc. All Rights Reserved.
package com.example.android.wifidirect;
import android.app.IntentService;
import android.content.ContentResolver;
import android.content.Context;
import android.content.Intent;
import android.net.Uri;
import android.util.Log;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.InetSocketAddress;
import java.net.Socket;
/**
* A service that process each file transfer request i.e Intent by opening a
* socket connection with the WiFi Direct Group Owner and writing the file

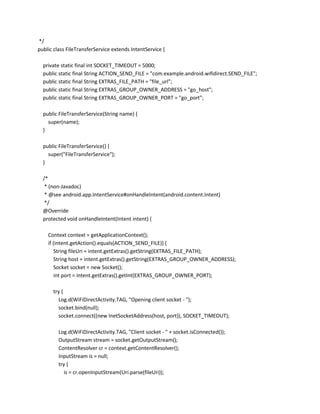

45. */
public class FileTransferService extends IntentService {
private static final int SOCKET_TIMEOUT = 5000;
public static final String ACTION_SEND_FILE = "com.example.android.wifidirect.SEND_FILE";
public static final String EXTRAS_FILE_PATH = "file_url";
public static final String EXTRAS_GROUP_OWNER_ADDRESS = "go_host";
public static final String EXTRAS_GROUP_OWNER_PORT = "go_port";
public FileTransferService(String name) {
super(name);
}
public FileTransferService() {
super("FileTransferService");
}
/*
* (non-Javadoc)
* @see android.app.IntentService#onHandleIntent(android.content.Intent)
*/
@Override
protected void onHandleIntent(Intent intent) {
Context context = getApplicationContext();
if (intent.getAction().equals(ACTION_SEND_FILE)) {
String fileUri = intent.getExtras().getString(EXTRAS_FILE_PATH);
String host = intent.getExtras().getString(EXTRAS_GROUP_OWNER_ADDRESS);
Socket socket = new Socket();
int port = intent.getExtras().getInt(EXTRAS_GROUP_OWNER_PORT);
try {
Log.d(WiFiDirectActivity.TAG, "Opening client socket - ");
socket.bind(null);
socket.connect((new InetSocketAddress(host, port)), SOCKET_TIMEOUT);
Log.d(WiFiDirectActivity.TAG, "Client socket - " + socket.isConnected());
OutputStream stream = socket.getOutputStream();
ContentResolver cr = context.getContentResolver();
InputStream is = null;
try {
is = cr.openInputStream(Uri.parse(fileUri));

46. } catch (FileNotFoundException e) {
Log.d(WiFiDirectActivity.TAG, e.toString());
}
DeviceDetailFragment.copyFile(is, stream);
Log.d(WiFiDirectActivity.TAG, "Client: Data written");
} catch (IOException e) {
Log.e(WiFiDirectActivity.TAG, e.getMessage());
} finally {
if (socket != null) {
if (socket.isConnected()) {
try {
socket.close();
} catch (IOException e) {
// Give up
e.printStackTrace();
}
}
}
}
}
}
}
WifiDirectActivity.java
package com.example.android.wifidirect;
import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.net.wifi.p2p.WifiP2pConfig;
import android.net.wifi.p2p.WifiP2pDevice;
import android.net.wifi.p2p.WifiP2pManager;
import android.net.wifi.p2p.WifiP2pManager.ActionListener;
import android.net.wifi.p2p.WifiP2pManager.Channel;
import android.net.wifi.p2p.WifiP2pManager.ChannelListener;
import android.os.Bundle;
import android.provider.Settings;
import android.util.Log;

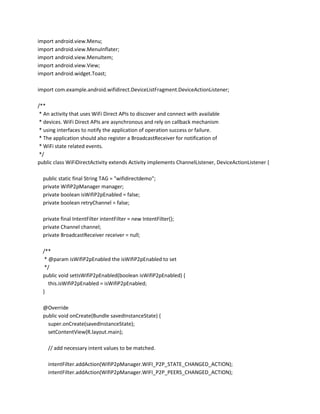

47. import android.view.Menu;
import android.view.MenuInflater;
import android.view.MenuItem;
import android.view.View;
import android.widget.Toast;
import com.example.android.wifidirect.DeviceListFragment.DeviceActionListener;
/**
* An activity that uses WiFi Direct APIs to discover and connect with available
* devices. WiFi Direct APIs are asynchronous and rely on callback mechanism
* using interfaces to notify the application of operation success or failure.
* The application should also register a BroadcastReceiver for notification of
* WiFi state related events.
*/
public class WiFiDirectActivity extends Activity implements ChannelListener, DeviceActionListener {
public static final String TAG = "wifidirectdemo";
private WifiP2pManager manager;
private boolean isWifiP2pEnabled = false;
private boolean retryChannel = false;
private final IntentFilter intentFilter = new IntentFilter();
private Channel channel;
private BroadcastReceiver receiver = null;
/**
* @param isWifiP2pEnabled the isWifiP2pEnabled to set
*/
public void setIsWifiP2pEnabled(boolean isWifiP2pEnabled) {
this.isWifiP2pEnabled = isWifiP2pEnabled;
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
// add necessary intent values to be matched.
intentFilter.addAction(WifiP2pManager.WIFI_P2P_STATE_CHANGED_ACTION);
intentFilter.addAction(WifiP2pManager.WIFI_P2P_PEERS_CHANGED_ACTION);

48. intentFilter.addAction(WifiP2pManager.WIFI_P2P_CONNECTION_CHANGED_ACTION);
intentFilter.addAction(WifiP2pManager.WIFI_P2P_THIS_DEVICE_CHANGED_ACTION);
manager = (WifiP2pManager) getSystemService(Context.WIFI_P2P_SERVICE);
channel = manager.initialize(this, getMainLooper(), null);
}
/** register the BroadcastReceiver with the intent values to be matched */
@Override
public void onResume() {
super.onResume();
receiver = new WiFiDirectBroadcastReceiver(manager, channel, this);
registerReceiver(receiver, intentFilter);
}
@Override
public void onPause() {
super.onPause();
unregisterReceiver(receiver);
}
/**
* Remove all peers and clear all fields. This is called on
* BroadcastReceiver receiving a state change event.
*/
public void resetData() {
DeviceListFragment fragmentList = (DeviceListFragment) getFragmentManager()
.findFragmentById(R.id.frag_list);
DeviceDetailFragment fragmentDetails = (DeviceDetailFragment) getFragmentManager()
.findFragmentById(R.id.frag_detail);
if (fragmentList != null) {
fragmentList.clearPeers();
}
if (fragmentDetails != null) {
fragmentDetails.resetViews();
}
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
MenuInflater inflater = getMenuInflater();
inflater.inflate(R.menu.action_items, menu);

49. return true;
}
/*
* (non-Javadoc)
* @see android.app.Activity#onOptionsItemSelected(android.view.MenuItem)
*/
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.atn_direct_enable:
if (manager != null && channel != null) {
// Since this is the system wireless settings activity, it's
// not going to send us a result. We will be notified by
// WiFiDeviceBroadcastReceiver instead.
startActivity(new Intent(Settings.ACTION_WIRELESS_SETTINGS));
} else {
Log.e(TAG, "channel or manager is null");
}
return true;
case R.id.atn_direct_discover:
if (!isWifiP2pEnabled) {
Toast.makeText(WiFiDirectActivity.this, R.string.p2p_off_warning,
Toast.LENGTH_SHORT).show();
return true;
}
final DeviceListFragment fragment = (DeviceListFragment) getFragmentManager()
.findFragmentById(R.id.frag_list);
fragment.onInitiateDiscovery();
manager.discoverPeers(channel, new WifiP2pManager.ActionListener() {
@Override
public void onSuccess() {
Toast.makeText(WiFiDirectActivity.this, "Discovery Initiated",
Toast.LENGTH_SHORT).show();
}
@Override
public void onFailure(int reasonCode) {

50. Toast.makeText(WiFiDirectActivity.this, "Discovery Failed : " + reasonCode,
Toast.LENGTH_SHORT).show();
}
});
return true;
default:
return super.onOptionsItemSelected(item);
}
}
@Override
public void showDetails(WifiP2pDevice device) {
DeviceDetailFragment fragment = (DeviceDetailFragment) getFragmentManager()
.findFragmentById(R.id.frag_detail);
fragment.showDetails(device);
}
@Override
public void connect(WifiP2pConfig config) {
manager.connect(channel, config, new ActionListener() {
@Override
public void onSuccess() {
// WiFiDirectBroadcastReceiver will notify us. Ignore for now.
}
@Override
public void onFailure(int reason) {
Toast.makeText(WiFiDirectActivity.this, "Connect failed. Retry.",
Toast.LENGTH_SHORT).show();
}
});
}
@Override
public void disconnect() {
final DeviceDetailFragment fragment = (DeviceDetailFragment) getFragmentManager()
.findFragmentById(R.id.frag_detail);
fragment.resetViews();
manager.removeGroup(channel, new ActionListener() {

51. @Override
public void onFailure(int reasonCode) {
Log.d(TAG, "Disconnect failed. Reason :" + reasonCode);
}
@Override
public void onSuccess() {
fragment.getView().setVisibility(View.GONE);
}
});
}
@Override
public void onChannelDisconnected() {
// we will try once more
if (manager != null && !retryChannel) {
Toast.makeText(this, "Channel lost. Trying again", Toast.LENGTH_LONG).show();
resetData();
retryChannel = true;
manager.initialize(this, getMainLooper(), this);
} else {
Toast.makeText(this,
"Severe! Channel is probably lost premanently. Try Disable/Re-Enable P2P.",
Toast.LENGTH_LONG).show();
}
}
@Override
public void cancelDisconnect() {
/*
* A cancel abort request by user. Disconnect i.e. removeGroup if
* already connected. Else, request WifiP2pManager to abort the ongoing
* request
*/
if (manager != null) {
final DeviceListFragment fragment = (DeviceListFragment) getFragmentManager()
.findFragmentById(R.id.frag_list);
if (fragment.getDevice() == null
|| fragment.getDevice().status == WifiP2pDevice.CONNECTED) {
disconnect();

52. } else if (fragment.getDevice().status == WifiP2pDevice.AVAILABLE
|| fragment.getDevice().status == WifiP2pDevice.INVITED) {
manager.cancelConnect(channel, new ActionListener() {
@Override
public void onSuccess() {
Toast.makeText(WiFiDirectActivity.this, "Aborting connection",
Toast.LENGTH_SHORT).show();
}
@Override
public void onFailure(int reasonCode) {
Toast.makeText(WiFiDirectActivity.this,
"Connect abort request failed. Reason Code: " + reasonCode,
Toast.LENGTH_SHORT).show();
}
});
}
}
}
}
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.example.android.wifidirect"
android:versionCode="1" android:versionName="1.0">
<uses-sdk android:minSdkVersion="14" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
<uses-permission android:name="android.permission.CHANGE_NETWORK_STATE" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<!-- Market filtering -->
<uses-feature android:name="android.hardware.wifi.direct"
android:required="true"/>
<application
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@android:style/Theme.Holo">

53. <activity
android:name=".WiFiDirectActivity"
android:label="@string/app_name" android:launchMode="singleTask">
<intent-filter>
<action
android:name="android.intent.action.MAIN" />
<category
android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<!-- Used for transferring files after a successful connection -->
<service android:enabled="true" android:name=".FileTransferService" />
</application>
</manifest>
Snapshots for Wifi Direct Demo application
