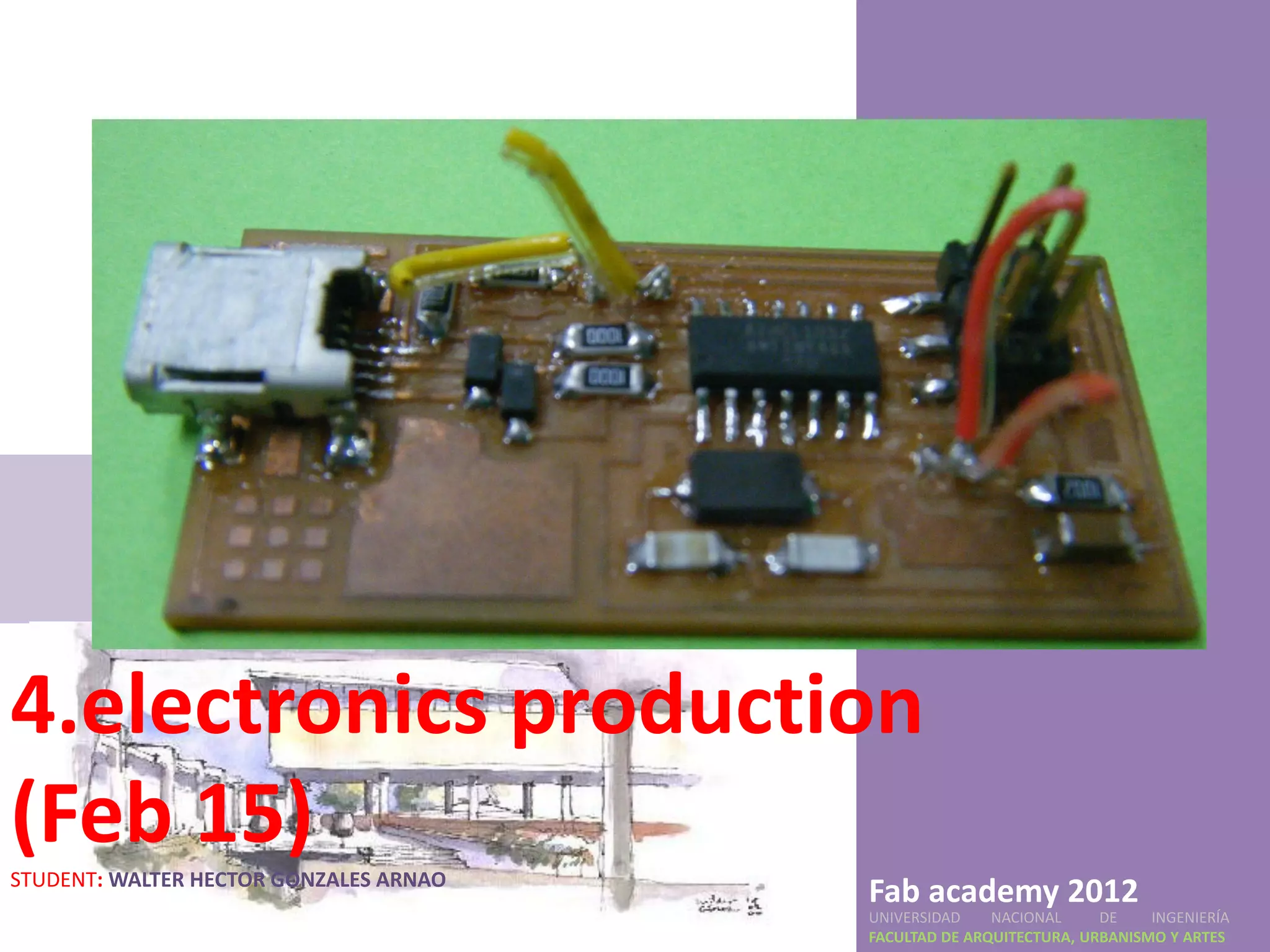

1. 4.electronics production
(Feb 15)
STUDENT: WALTER HECTOR GONZALES ARNAO
Fab academy 2012
UNIVERSIDAD NACIONAL DE INGENIERÍA
FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES

2. Fab

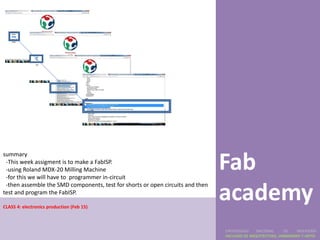

summary
-This week assigment is to make a FabISP.
-using Roland MDX-20 Milling Machine
-for this we will have to programmer in-circuit
academy
-then assemble the SMD components, test for shorts or open circuits and then
test and program the FabISP.
CLASS 4: electronics production (Feb 15)
UNIVERSIDAD NACIONAL DE INGENIERÍA
FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES

3. Fab academy

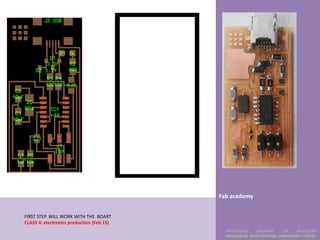

FIRST STEP. WILL WORK WITH THE BOART
CLASS 4: electronics production (Feb 15)
UNIVERSIDAD NACIONAL DE INGENIERÍA
FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES

4. Fab

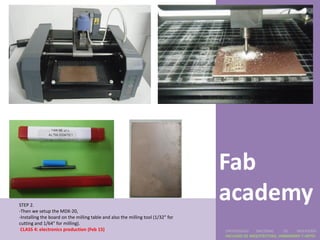

STEP 2.
-Then we setup the MDX-20,
academy
-Installing the board on the milling table and also the milling tool (1/32" for
cutting and 1/64" for milling).
CLASS 4: electronics production (Feb 15) UNIVERSIDAD NACIONAL DE INGENIERÍA
FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES

5. Fab
academy

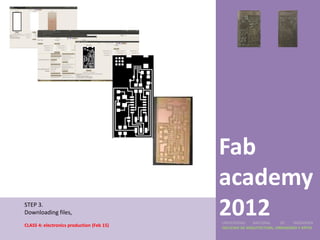

STEP 3.
Downloading files,
CLASS 4: electronics production (Feb 15)
2012
UNIVERSIDAD NACIONAL DE INGENIERÍA
FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES

6. Fab
academy

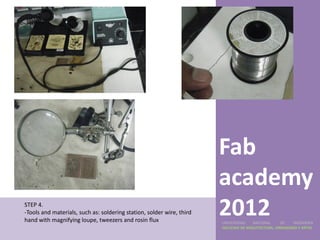

STEP 4.
-Tools and materials, such as: soldering station, solder wire, third
hand with magnifying loupe, tweezers and rosin flux
2012
UNIVERSIDAD NACIONAL DE INGENIERÍA
FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES

7. Fab
academy

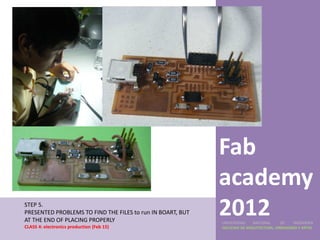

STEP 5.
PRESENTED PROBLEMS TO FIND THE FILES to run IN BOART, BUT
AT THE END OF PLACING PROPERLY
2012
UNIVERSIDAD NACIONAL DE INGENIERÍA
CLASS 4: electronics production (Feb 15) FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES

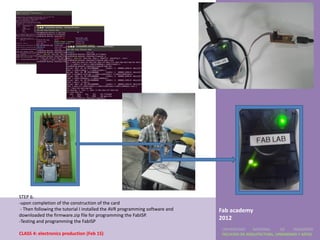

8. STEP 6.
-upon completion of the construction of the card
- Then following the tutorial I installed the AVR programming software and Fab academy
downloaded the firmware.zip file for programming the FabISP.
-Testing and programming the FabISP
2012
UNIVERSIDAD NACIONAL DE INGENIERÍA
CLASS 4: electronics production (Feb 15) FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES

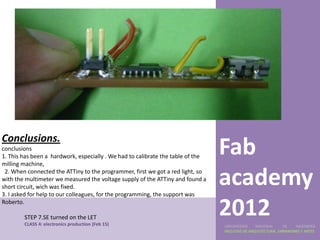

9. Conclusions.
conclusions
1. This has been a hardwork, especially . We had to calibrate the table of the
milling machine,
Fab
2. When connected the ATTiny to the programmer, first we got a red light, so
with the multimeter we measured the voltage supply of the ATTiny and found a
short circuit, wich was fixed.
3. I asked for help to our colleagues, for the programming, the support was
academy
Roberto.
STEP 7.SE turned on the LET
CLASS 4: electronics production (Feb 15)
2012
UNIVERSIDAD NACIONAL DE INGENIERÍA
FACULTAD DE ARQUITECTURA, URBANISMO Y ARTES
