1. NEWS
BLOCK

2. RouTing
NetIron

3. 40 GbE Enhancements for MLXe
FOR DATA CENTER CORE AND WAN EDGE
 Bridging the B/W and Economics gap between 10G
and 100G
 4-port 40 GbE module with uncompromised feature-set
 128 wire-speed 40GbE ports (MLXe-32)
 Based on software upgradeable network processors
 Supports 512K IPv4 routes or 128K IPv6 routes in h/w
 Supports all SDN/OpenFlow and Telemetry features
 Supports all IPv4/v6, MPLS, Multicast and VPLS
features
 QSFP+ optics: long-reach (LR) and short-reach (SR)

4. Module and Optics Price Reductions
Revised 100GbE Module and Optics Pricing
Reduce 100GbE
module price by
33%-40%
Reduce 100GbE
CFP optics price by
~40%-48%

5. New CES/CER models with 4x10GbE
1RU Switch & Router for scalable WAN and Data Center applications
 Flexible deployment options
 4-port 10 GbE with 24-port 1 GbE
copper or fiber—all wire-speed
 128K MAC, 32K IPv4 and 8K IPv6
routes for CES
 1.5M IPv4, 256K IPv6 and 128K
MAC for CER-RT
 Advanced multiservice features
 Including OpenFlow, IPv4, IPv6, L3
VPN, VRF, MPLS/VPLS, QoS
 Powerful routing and VPN
 Internet scale with deep packet
buffers ideal for peering, carrier
edge and enterprise border
WAN and DC Applications:
• Carrier Ethernet : Tier 2/3 SP, MSO
• RSP Mobile and DC Wholesale
• Inter-DC Border Connectivity
• Cloud and Internet Peering
• Highly-reliable Enterprise WAN
• Federal and National Agency WAN
• Business Video Builds E.g. IP CCTV

6. Firewall VPN
Build for Network Function Virtualization
Brocade Software Networking Portfolio
X86 COMPUTE
HYPERVISOR
NETWORK FUNCTIONS
Router L4-7 ADC
Networking with the
flexibility & economics
of software
Brocade Vyatta vRouter Brocade Virtual ADX

7. Enterprise NFV
Telco NFV
Competition

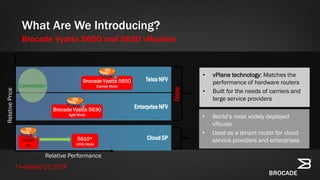

What Are We Introducing?
Brocade Vyatta 5650 and 5630 vRouters
Brocade Vyatta 5650
Express Mode
Brocade Vyatta 5630
Agile Mode
RelativePrice
Relative Performance
• vPlane technology: Matches the
performance of hardware routers
• Built for the needs of carriers and
large service providers
Cloud SP5400
VSE
• World’s most widely deployed
vRouter
• Used as a tenant router for cloud
service providers and enterprises
New
5610*
Utility Mode
*Available Q2 2014

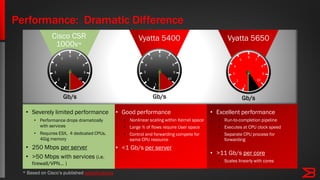

8. Performance: Dramatic Difference
Cisco CSR
1000v*
Vyatta 5650Vyatta 5400
Gb/s
5
10
1
2
3
4
6
8
7
9
Gb/s
5
5
10
1
2
3
4
6
8
7
9
Gb/s
• Excellent performance
• Run-to-completion pipeline
• Executes at CPU clock speed
• Separate CPU process for
forwarding
• >11 Gb/s per core
• Scales linearly with cores
• Good performance
• Nonlinear scaling within Kernel space
• Large % of flows require User space
• Control and forwarding compete for
same CPU resource
• <1 Gb/s per server
• Severely limited performance
• Performance drops dramatically
with services
• Requires ESX, 4 dedicated CPUs,
4Gig memory
• 250 Mbps per server
• >50 Mbps with services (i.e.
firewall/VPN… )
* Based on Cisco’s published specifications
5
10
1
2
3
4
6
8
7
9

9. campus
FastIron

10. Brocade ICX 6430
Brocade ICX 6450
Brocade FCX
Brocade ICX 6610
Access Edge
Brocade FastIron SX
Brocade MLXe
Brocade ICX 6610
Aggregation/Core
Brocade Mobility
1240 and 1250
Access Points
Brocade Mobility
6511 Access Point
Brocade Mobility
1220 and 650
Access Points
Brocade Mobility
RFS 9510 / 7000 /
6000 / 4000
Controllers
Brocade ICX 6650
TurboIron24
Brocade ICX 6610
FCX-E / FCX-I
Wireless ToR/EoA
NON-FABRIC DCCAMPUS
Brocade ICX 6650
Brocade Network Advisor

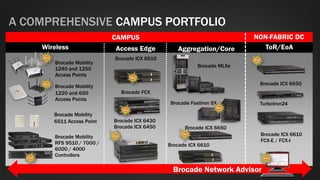

A COMPREHENSIVE CAMPUS PORTFOLIO
New
New
New
New
New
New
New
New
New
New

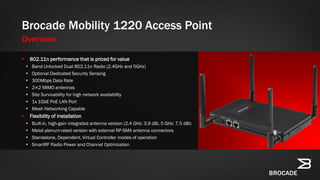

11.  802.11n performance that is priced for value
 Band Unlocked Dual 802.11n Radio (2.4GHz and 5GHz)
 Optional Dedicated Security Sensing
 300Mbps Data Rate
 2×2 MIMO antennas
 Site Survivability for high network availability
 1x 1GbE PoE LAN Port
 Mesh Networking Capable
 Flexibility of installation
 Built-in, high-gain integrated antenna version (2.4 GHz: 3.9 dBi, 5 GHz: 7.5 dBi)
 Metal plenum-rated version with external RP-SMA antenna connectors
 Standalone, Dependent, Virtual Controller modes of operation
 SmartRF Radio Power and Channel Optimization
Brocade Mobility 1220 Access Point
Overview

12. Brocade Mobility 1240 Access Point
Overview
• 802.11n performance and reliability
• Band Unlocked Dual Radio (2.4GHz and 5GHz)
• Optional Dedicated Security Sensing
• 3×3 MIMO for improved RF performance
• 450Mbps Data Rate 3 Spatial Stream radio
• Space Time Block Coding and Beamforming for Reliable Connectivity
• 802.11n Operation with Standard 802.3af
• USB Interface for Module Attachments
• Flexibility of installation
• Metal plenum-rated version with external RP-SMA antenna connectors
• Color coordinated antennas will be available (antennas sold separately)
• Standalone, Dependent, Virtual Controller modes of operation
• SmartRF Radio Power and Channel Optimization

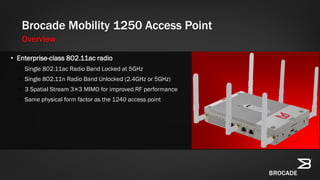

13. Brocade Mobility 1250 Access Point
Overview
• Enterprise-class 802.11ac radio
• Single 802.11ac Radio Band Locked at 5GHz
• Single 802.11n Radio Band Unlocked (2.4GHz or 5GHz)
• 3 Spatial Stream 3×3 MIMO for improved RF performance
• Same physical form factor as the 1240 access point

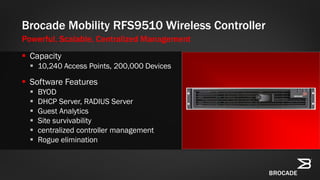

14.  Capacity
 10,240 Access Points, 200,000 Devices
 Software Features
 BYOD
 DHCP Server, RADIUS Server
 Guest Analytics
 Site survivability
 centralized controller management
 Rogue elimination
Brocade Mobility RFS9510 Wireless Controller
Powerful, Scalable, Centralized Management

15.  Extends ICX enterprise campus switching
portfolio
 Enterprise-class compact switch with
fanless operation
 Designed for classroom, hospitality, retail,
small branch and workgroup deployments

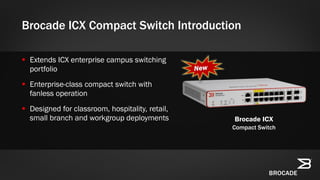

Brocade ICX Compact Switch Introduction
Brocade ICX
Compact Switch

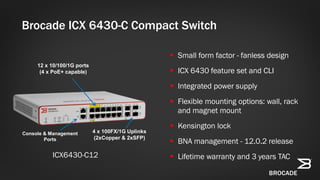

16. Brocade ICX 6430-C Compact Switch
 Small form factor - fanless design
 ICX 6430 feature set and CLI
 Integrated power supply
 Flexible mounting options: wall, rack
and magnet mount
 Kensington lock
 BNA management - 12.0.2 release
 Lifetime warranty and 3 years TAC
12 x 10/100/1G ports
(4 x PoE+ capable)
4 x 100FX/1G Uplinks
(2xCopper & 2xSFP)
Console & Management
Ports
ICX6430-C12

17.  New 510W DC Power Supply on
existing ICX6610
Part number : RPS16DC-E, RPS16DC-I
Software release : FastIron Release
7.3.00e
New DC Power Supply on ICX6610

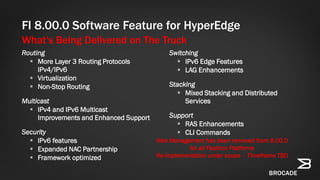

18. What’s Being Delivered on The Truck
FI 8.00.0 Software Feature for HyperEdge
Routing
 More Layer 3 Routing Protocols
IPv4/IPv6
 Virtualization
 Non-Stop Routing
Multicast
 IPv4 and IPv6 Multicast
Improvements and Enhanced Support
Security
 IPv6 features
 Expanded NAC Partnership
 Framework optimized
Switching
 IPv6 Edge Features
 LAG Enhancements
Stacking
 Mixed Stacking and Distributed
Services
Support
 RAS Enhancements
 CLI Commands
Web Management has been removed from 8.00.0
for all FastIron Platforms
Re-implementation under scope – Timeframe TBD

19. VCS fabric
VDX

20. Next Generation VDX Fixed Platforms
Leading performance
 Fixed 48 X 1/10Gbe SFP+, 10GBase-T ports , 4 X 40GbE QSFP+
 Single ASIC, Non-blocking, Cut through Architecture
 850ns / 3us any port to port latency
 From 40GbE to 160GbE Brocade Trunks
 24MB Deep buffers with Dynamic Buffering
 160K MAC, 32K ARP, 13K ACL, 1K port profiles
Advanced capabilities
 32 Flex Ports (FC/Ethernet/FCOE) (requires NOS 5.0)
 Advanced (IPv4, IPv6*) Layer 2/3 feature set
 Full IP storage support with DCB capabilities
 VCS Virtual Fabric support in ASIC
 VCS Gateway for VMware NSX in ASIC
 OpenFlow 1.3-ready
 ISSU-ready
Unparalleled Value
 Linear scalability options through Ports-on-Demand licensing
Brocade VDX 6740 and 6740T
Shipping Now

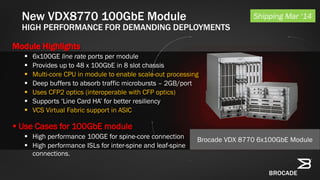

21. New VDX8770 100GbE Module
HIGH PERFORMANCE FOR DEMANDING DEPLOYMENTS
Module Highlights
 6x100GE line rate ports per module
 Provides up to 48 x 100GbE in 8 slot chassis
 Multi-core CPU in module to enable scale-out processing
 Deep buffers to absorb traffic microbursts – 2GB/port
 Uses CFP2 optics (interoperable with CFP optics)
 Supports ‘Line Card HA’ for better resiliency
 VCS Virtual Fabric support in ASIC
 Use Cases for 100GbE module
 High performance 100GE for spine-core connection
 High performance ISLs for inter-spine and leaf-spine
connections.
Shipping Mar ‘14
Brocade VDX 8770 6x100GbE Module

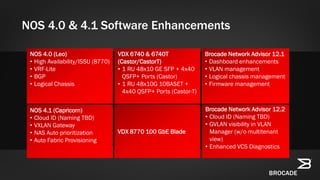

22. NOS 4.0 (Leo)
• High Availability/ISSU (8770)
• VRF-Lite
• BGP
• Logical Chassis
NOS 4.0 & 4.1 Software Enhancements
VDX 6740 & 6740T
(Castor/CastorT)
• 1 RU 48x10 GE SFP + 4x40
QSFP+ Ports (Castor)
• 1 RU 48x10G 10BASET +
4x40 QSFP+ Ports (Castor-T)
Brocade Network Advisor 12.1
• Dashboard enhancements
• VLAN management
• Logical chassis management
• Firmware management
NOS 4.1 (Capricorn)
• Cloud ID (Naming TBD)
• VXLAN Gateway
• NAS Auto prioritization
• Auto Fabric Provisioning
VDX 8770 100 GbE Blade
Brocade Network Advisor 12.2
• Cloud ID (Naming TBD)
• GVLAN visibility in VLAN
Manager (w/o multitenant
view)
• Enhanced VCS Diagnostics

23. ADC
ServerIron

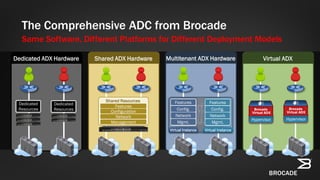

24. The Comprehensive ADC from Brocade
Same Software, Different Platforms for Different Deployment Models
Dedicated ADX Hardware
Dedicated
Resources
Dedicated
Resources
Shared ADX Hardware
Features
Configuration
Network
Management
Shared Resources
Multitenant ADX Hardware
Features
Config.
Network
Mgmt.
Features
Config.
Network
Mgmt.
Virtual Instance Virtual Instance
Virtual ADX
Hypervisor Hypervisor

25. Brocade Virtual ADX Application Delivery Switch
FULL COMPLEMENT OF ADC SOLUTIONS FROM PHYSICAL TO VIRTUAL
 L4-7 network function virtualization
 Dynamically provision and adapt network services
 Advanced ADX architecture
 OpenScript Engine and standard-based APIs
 On-demand service roll-out
 Dynamic Resource Management via Application
Resource Broker
 Load Balancing as a Service with OpenStack
INCREASING DATA CENTER
AGILITY AND EFFICIENCY

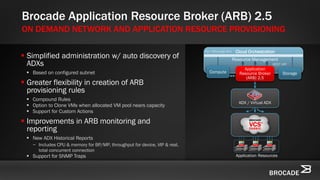

26. Cloud Orchestration
Brocade Application Resource Broker (ARB) 2.5
ON DEMAND NETWORK AND APPLICATION RESOURCE PROVISIONING
 Simplified administration w/ auto discovery of
ADXs
 Based on configured subnet
 Greater flexibility in creation of ARB
provisioning rules
 Compound Rules
 Option to Clone VMs when allocated VM pool nears capacity
 Support for Custom Actions
 Improvements in ARB monitoring and
reporting
 New ADX Historical Reports
− Includes CPU & memory for BP/MP, throughput for device, VIP & real,
total concurrent connection
 Support for SNMP Traps
Compute Network Storage
ADX / Virtual ADX
APP
OS
STORAGE
APP
OS
STORAGE
APP
OS
STORAGE
Application Resources
Resource Management
Application
Resource Broker
(ARB) 2.5
REST API
Std. Message Bus

27. NEWS
BLOCK
