iSCSI and CLEAR-Flow
•
1 like
•
581 views
MUK Extreme
Follow
iSCSI and CLEAR-Flow
Read less
Read more
Technology
Report
Share
Report
Share
1 of 7
Download now
Download to read offline
Recommended
Конференция Brocade. 2
Конференция Brocade. 2
SkillFactory
Конференция Brocade. 1. Новые тренды в сетях ЦОД: Программно-определяемые сет...
Конференция Brocade. 1. Новые тренды в сетях ЦОД: Программно-определяемые сет...
SkillFactory
Presentation comparing server io consolidation solution with i scsi, infini...
Presentation comparing server io consolidation solution with i scsi, infini...
xKinAnx
Storage Area Network (San)
Storage Area Network (San)
sankcomp
Brocade Ethernet Fabrics and the ODDC
Brocade Ethernet Fabrics and the ODDC
EMC Nederland
Конференция Brocade. 4. Развитие технологии Brocade VCS, новое поколение комм...
Конференция Brocade. 4. Развитие технологии Brocade VCS, новое поколение комм...
SkillFactory
Storage networks
Storage networks
Ahmed Nour
Mellanox Storage Solutions
Mellanox Storage Solutions
Mellanox Technologies
Recommended
Конференция Brocade. 2
Конференция Brocade. 2
SkillFactory
Конференция Brocade. 1. Новые тренды в сетях ЦОД: Программно-определяемые сет...
Конференция Brocade. 1. Новые тренды в сетях ЦОД: Программно-определяемые сет...
SkillFactory
Presentation comparing server io consolidation solution with i scsi, infini...
Presentation comparing server io consolidation solution with i scsi, infini...
xKinAnx
Storage Area Network (San)
Storage Area Network (San)
sankcomp
Brocade Ethernet Fabrics and the ODDC
Brocade Ethernet Fabrics and the ODDC
EMC Nederland
Конференция Brocade. 4. Развитие технологии Brocade VCS, новое поколение комм...
Конференция Brocade. 4. Развитие технологии Brocade VCS, новое поколение комм...
SkillFactory
Storage networks
Storage networks
Ahmed Nour
Mellanox Storage Solutions
Mellanox Storage Solutions
Mellanox Technologies
Dcna technology update
Dcna technology update
Ramana Rongala
InfiniBand Growth Trends - TOP500 (July 2015)
InfiniBand Growth Trends - TOP500 (July 2015)
Mellanox Technologies
Applying Hyper-scale Design Patterns to Routing
Applying Hyper-scale Design Patterns to Routing
Hannes Gredler
Mellanox's Technological Advantage
Mellanox's Technological Advantage
Mellanox Technologies
Announcing the Mellanox ConnectX-5 100G InfiniBand Adapter
Announcing the Mellanox ConnectX-5 100G InfiniBand Adapter
inside-BigData.com
uCPE and VNFs Explained
uCPE and VNFs Explained
Alan Percy
Cisco MDS Main Session EMC World 2015
Cisco MDS Main Session EMC World 2015
ldangelo0772
Erez Cohen & Aviram Bar Haim, Mellanox - Enhancing Your OpenStack Cloud With ...
Erez Cohen & Aviram Bar Haim, Mellanox - Enhancing Your OpenStack Cloud With ...
Cloud Native Day Tel Aviv
Storage Area networking and upcoming trends
Storage Area networking and upcoming trends
Deepanshu Lulla
Storage Area Network (SAN session Day-2)
Storage Area Network (SAN session Day-2)
Saroj Sahu
SAN
SAN
Information Technology
Fibre Channel over Ethernet (FCoE), iSCSI and the Converged Data Center
Fibre Channel over Ethernet (FCoE), iSCSI and the Converged Data Center
Stuart Miniman
Introduction To San
Introduction To San
prakashjjaya
Mellanox Approach to NFV & SDN
Mellanox Approach to NFV & SDN
Mellanox Technologies
#IBMEdge: Flash Storage Session
#IBMEdge: Flash Storage Session
Brocade
Is Your Network Ready?
Is Your Network Ready?
Brocade
MetroX™ – Mellanox Long Haul Solutions
MetroX™ – Mellanox Long Haul Solutions
Mellanox Technologies
Advancing Applications Performance With InfiniBand
Advancing Applications Performance With InfiniBand
Mellanox Technologies
Data Centre Design for Canadian Small & Medium Sized Businesses
Data Centre Design for Canadian Small & Medium Sized Businesses
Cisco Canada
Netapp Deduplication concepts
Netapp Deduplication concepts
Saroj Sahu
Network Virtualization using Shortest Path Bridging
Network Virtualization using Shortest Path Bridging
Motty Ben Atia
InfiniBand in the Enterprise Data Center.pdf
InfiniBand in the Enterprise Data Center.pdf
bui thequan
More Related Content
What's hot
Dcna technology update
Dcna technology update
Ramana Rongala
InfiniBand Growth Trends - TOP500 (July 2015)
InfiniBand Growth Trends - TOP500 (July 2015)
Mellanox Technologies
Applying Hyper-scale Design Patterns to Routing
Applying Hyper-scale Design Patterns to Routing
Hannes Gredler
Mellanox's Technological Advantage
Mellanox's Technological Advantage
Mellanox Technologies
Announcing the Mellanox ConnectX-5 100G InfiniBand Adapter
Announcing the Mellanox ConnectX-5 100G InfiniBand Adapter
inside-BigData.com
uCPE and VNFs Explained
uCPE and VNFs Explained
Alan Percy
Cisco MDS Main Session EMC World 2015
Cisco MDS Main Session EMC World 2015
ldangelo0772
Erez Cohen & Aviram Bar Haim, Mellanox - Enhancing Your OpenStack Cloud With ...
Erez Cohen & Aviram Bar Haim, Mellanox - Enhancing Your OpenStack Cloud With ...
Cloud Native Day Tel Aviv
Storage Area networking and upcoming trends
Storage Area networking and upcoming trends
Deepanshu Lulla
Storage Area Network (SAN session Day-2)
Storage Area Network (SAN session Day-2)
Saroj Sahu
SAN
SAN
Information Technology
Fibre Channel over Ethernet (FCoE), iSCSI and the Converged Data Center
Fibre Channel over Ethernet (FCoE), iSCSI and the Converged Data Center
Stuart Miniman
Introduction To San
Introduction To San
prakashjjaya
Mellanox Approach to NFV & SDN
Mellanox Approach to NFV & SDN
Mellanox Technologies
#IBMEdge: Flash Storage Session
#IBMEdge: Flash Storage Session
Brocade
Is Your Network Ready?
Is Your Network Ready?
Brocade
MetroX™ – Mellanox Long Haul Solutions
MetroX™ – Mellanox Long Haul Solutions
Mellanox Technologies
Advancing Applications Performance With InfiniBand
Advancing Applications Performance With InfiniBand
Mellanox Technologies
Data Centre Design for Canadian Small & Medium Sized Businesses
Data Centre Design for Canadian Small & Medium Sized Businesses
Cisco Canada
Netapp Deduplication concepts
Netapp Deduplication concepts
Saroj Sahu
What's hot
(20)
Dcna technology update
Dcna technology update
InfiniBand Growth Trends - TOP500 (July 2015)
InfiniBand Growth Trends - TOP500 (July 2015)
Applying Hyper-scale Design Patterns to Routing
Applying Hyper-scale Design Patterns to Routing
Mellanox's Technological Advantage
Mellanox's Technological Advantage
Announcing the Mellanox ConnectX-5 100G InfiniBand Adapter
Announcing the Mellanox ConnectX-5 100G InfiniBand Adapter
uCPE and VNFs Explained
uCPE and VNFs Explained
Cisco MDS Main Session EMC World 2015
Cisco MDS Main Session EMC World 2015
Erez Cohen & Aviram Bar Haim, Mellanox - Enhancing Your OpenStack Cloud With ...
Erez Cohen & Aviram Bar Haim, Mellanox - Enhancing Your OpenStack Cloud With ...
Storage Area networking and upcoming trends
Storage Area networking and upcoming trends
Storage Area Network (SAN session Day-2)
Storage Area Network (SAN session Day-2)
SAN
SAN
Fibre Channel over Ethernet (FCoE), iSCSI and the Converged Data Center
Fibre Channel over Ethernet (FCoE), iSCSI and the Converged Data Center
Introduction To San
Introduction To San
Mellanox Approach to NFV & SDN
Mellanox Approach to NFV & SDN
#IBMEdge: Flash Storage Session
#IBMEdge: Flash Storage Session
Is Your Network Ready?
Is Your Network Ready?
MetroX™ – Mellanox Long Haul Solutions
MetroX™ – Mellanox Long Haul Solutions
Advancing Applications Performance With InfiniBand
Advancing Applications Performance With InfiniBand
Data Centre Design for Canadian Small & Medium Sized Businesses
Data Centre Design for Canadian Small & Medium Sized Businesses
Netapp Deduplication concepts
Netapp Deduplication concepts
Similar to iSCSI and CLEAR-Flow
Network Virtualization using Shortest Path Bridging
Network Virtualization using Shortest Path Bridging
Motty Ben Atia
InfiniBand in the Enterprise Data Center.pdf
InfiniBand in the Enterprise Data Center.pdf
bui thequan
FC SAN vs iSCSI SAN: Which One is Right for Your Business? .pdf
FC SAN vs iSCSI SAN: Which One is Right for Your Business? .pdf
MaryJWilliams2
Unified Fabric: Data Centre Bridging and FCoE Implementation
Unified Fabric: Data Centre Bridging and FCoE Implementation
CSCJournals
Technology Brief: Flexible Blade Server IO
Technology Brief: Flexible Blade Server IO
IT Brand Pulse
E s switch_v6_ch01
E s switch_v6_ch01
gon77gonzalez
transforming_datacenter_core_with_dce_cisco_nexus.ppt
transforming_datacenter_core_with_dce_cisco_nexus.ppt
BalanjaneyaPrasad
Building Cost Effective and Scalable Core Networks
Building Cost Effective and Scalable Core Networks
Cisco Service Provider
SAN Review
SAN Review
Information Technology
Application Report
Application Report
IT Brand Pulse
Implementation of intelligent wide area network(wan)- report
Implementation of intelligent wide area network(wan)- report
Jatin Singh
Industry Brief: Streamlining Server Connectivity: It Starts at the Top
Industry Brief: Streamlining Server Connectivity: It Starts at the Top
IT Brand Pulse
F co e_netapp_v12
F co e_netapp_v12
aj4953
Avaya Fabric Connect: The Right Foundation for the Software-Defined Data Center
Avaya Fabric Connect: The Right Foundation for the Software-Defined Data Center
Avaya Inc.
iSCSi , FCSAN ,FC protocol stack and Infini band
iSCSi , FCSAN ,FC protocol stack and Infini band
Akash Gupta
Ieee ce.dcai
Ieee ce.dcai
Rama Subramanian
Arista_Advantage
Arista_Advantage
Ferris Samantha Watkins
Network scaling cost analysis: Cisco UCS and IBM Flex System
Network scaling cost analysis: Cisco UCS and IBM Flex System
Principled Technologies
1Running Head Network Design3Network DesignUn.docx
1Running Head Network Design3Network DesignUn.docx
eugeniadean34240
The next Trading Infrastructure
The next Trading Infrastructure
enyx_com
Similar to iSCSI and CLEAR-Flow
(20)
Network Virtualization using Shortest Path Bridging
Network Virtualization using Shortest Path Bridging
InfiniBand in the Enterprise Data Center.pdf
InfiniBand in the Enterprise Data Center.pdf
FC SAN vs iSCSI SAN: Which One is Right for Your Business? .pdf
FC SAN vs iSCSI SAN: Which One is Right for Your Business? .pdf
Unified Fabric: Data Centre Bridging and FCoE Implementation
Unified Fabric: Data Centre Bridging and FCoE Implementation
Technology Brief: Flexible Blade Server IO
Technology Brief: Flexible Blade Server IO
E s switch_v6_ch01
E s switch_v6_ch01
transforming_datacenter_core_with_dce_cisco_nexus.ppt
transforming_datacenter_core_with_dce_cisco_nexus.ppt
Building Cost Effective and Scalable Core Networks
Building Cost Effective and Scalable Core Networks
SAN Review
SAN Review
Application Report
Application Report
Implementation of intelligent wide area network(wan)- report
Implementation of intelligent wide area network(wan)- report
Industry Brief: Streamlining Server Connectivity: It Starts at the Top
Industry Brief: Streamlining Server Connectivity: It Starts at the Top
F co e_netapp_v12
F co e_netapp_v12
Avaya Fabric Connect: The Right Foundation for the Software-Defined Data Center
Avaya Fabric Connect: The Right Foundation for the Software-Defined Data Center
iSCSi , FCSAN ,FC protocol stack and Infini band
iSCSi , FCSAN ,FC protocol stack and Infini band
Ieee ce.dcai
Ieee ce.dcai
Arista_Advantage
Arista_Advantage
Network scaling cost analysis: Cisco UCS and IBM Flex System
Network scaling cost analysis: Cisco UCS and IBM Flex System
1Running Head Network Design3Network DesignUn.docx
1Running Head Network Design3Network DesignUn.docx
The next Trading Infrastructure
The next Trading Infrastructure
More from MUK Extreme
Extreme CloudIQ overview
Extreme CloudIQ overview
MUK Extreme
Extreme summit X portfolio
Extreme summit X portfolio
MUK Extreme
Extreme Wireless WiNG 2020
Extreme Wireless WiNG 2020
MUK Extreme
Extreme Management Center XMC
Extreme Management Center XMC
MUK Extreme
Extreme Networks AVB
Extreme Networks AVB
MUK Extreme
Extreme Automated Campus
Extreme Automated Campus
MUK Extreme
FortiSandbox
FortiSandbox
MUK Extreme
Здоровье важнее - Fortinet решения для удаленных сотрудников
Здоровье важнее - Fortinet решения для удаленных сотрудников
MUK Extreme
Fortinet Security Email gateway - FortiMail
Fortinet Security Email gateway - FortiMail
MUK Extreme
Wireless 5--bluetooth-beacon
Wireless 5--bluetooth-beacon
MUK Extreme
ExtremeManagement XMC (formerly NetSight)
ExtremeManagement XMC (formerly NetSight)
MUK Extreme
Extreme wireless WiNG
Extreme wireless WiNG
MUK Extreme
FortiGate - файрволы от Fortinet
FortiGate - файрволы от Fortinet
MUK Extreme
Extreme fabric connect
Extreme fabric connect
MUK Extreme
Fortinet ADN (Application Delivery Network)
Fortinet ADN (Application Delivery Network)
MUK Extreme
Extreme Wireless IdentiFi
Extreme Wireless IdentiFi
MUK Extreme
IXIA ThreatArmor
IXIA ThreatArmor
MUK Extreme
Summit x870
Summit x870
MUK Extreme
Hawkeye proactive-monitoring-ru-new
Hawkeye proactive-monitoring-ru-new
MUK Extreme
IXIA IxChariot
IXIA IxChariot
MUK Extreme
More from MUK Extreme
(20)
Extreme CloudIQ overview
Extreme CloudIQ overview
Extreme summit X portfolio
Extreme summit X portfolio
Extreme Wireless WiNG 2020
Extreme Wireless WiNG 2020
Extreme Management Center XMC
Extreme Management Center XMC
Extreme Networks AVB
Extreme Networks AVB
Extreme Automated Campus
Extreme Automated Campus
FortiSandbox
FortiSandbox
Здоровье важнее - Fortinet решения для удаленных сотрудников
Здоровье важнее - Fortinet решения для удаленных сотрудников
Fortinet Security Email gateway - FortiMail
Fortinet Security Email gateway - FortiMail
Wireless 5--bluetooth-beacon
Wireless 5--bluetooth-beacon
ExtremeManagement XMC (formerly NetSight)
ExtremeManagement XMC (formerly NetSight)
Extreme wireless WiNG
Extreme wireless WiNG
FortiGate - файрволы от Fortinet
FortiGate - файрволы от Fortinet
Extreme fabric connect
Extreme fabric connect
Fortinet ADN (Application Delivery Network)
Fortinet ADN (Application Delivery Network)
Extreme Wireless IdentiFi
Extreme Wireless IdentiFi
IXIA ThreatArmor
IXIA ThreatArmor
Summit x870
Summit x870
Hawkeye proactive-monitoring-ru-new
Hawkeye proactive-monitoring-ru-new
IXIA IxChariot
IXIA IxChariot
Recently uploaded
Injustice - Developers Among Us (SciFiDevCon 2024)
Injustice - Developers Among Us (SciFiDevCon 2024)
Allon Mureinik
08448380779 Call Girls In Greater Kailash - I Women Seeking Men
08448380779 Call Girls In Greater Kailash - I Women Seeking Men
Delhi Call girls
Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...
Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...
Neo4j
Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems
Mark Billinghurst
Breaking the Kubernetes Kill Chain: Host Path Mount
Breaking the Kubernetes Kill Chain: Host Path Mount
Puma Security, LLC
How to Remove Document Management Hurdles with X-Docs?
How to Remove Document Management Hurdles with X-Docs?
XfilesPro
Next-generation AAM aircraft unveiled by Supernal, S-A2
Next-generation AAM aircraft unveiled by Supernal, S-A2
Hyundai Motor Group
Benefits Of Flutter Compared To Other Frameworks
Benefits Of Flutter Compared To Other Frameworks
Softradix Technologies
IAC 2024 - IA Fast Track to Search Focused AI Solutions
IAC 2024 - IA Fast Track to Search Focused AI Solutions
Enterprise Knowledge
The Codex of Business Writing Software for Real-World Solutions 2.pptx
The Codex of Business Writing Software for Real-World Solutions 2.pptx
Malak Abu Hammad
Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget
Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget
Enjoy Anytime
Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx
Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx
null - The Open Security Community
The transition to renewables in India.pdf
The transition to renewables in India.pdf
Competition Advisory Services (India) LLP
Swan(sea) Song – personal research during my six years at Swansea ... and bey...
Swan(sea) Song – personal research during my six years at Swansea ... and bey...
Alan Dix
Maximizing Board Effectiveness 2024 Webinar.pptx
Maximizing Board Effectiveness 2024 Webinar.pptx
OnBoard
Transcript: #StandardsGoals for 2024: What’s new for BISAC - Tech Forum 2024
Transcript: #StandardsGoals for 2024: What’s new for BISAC - Tech Forum 2024
BookNet Canada
Install Stable Diffusion in windows machine
Install Stable Diffusion in windows machine
Padma Pradeep
Artificial intelligence in the post-deep learning era
Artificial intelligence in the post-deep learning era
Deakin University
AI as an Interface for Commercial Buildings
AI as an Interface for Commercial Buildings
Memoori
Unblocking The Main Thread Solving ANRs and Frozen Frames
Unblocking The Main Thread Solving ANRs and Frozen Frames
Sinan KOZAK
Recently uploaded
(20)
Injustice - Developers Among Us (SciFiDevCon 2024)
Injustice - Developers Among Us (SciFiDevCon 2024)
08448380779 Call Girls In Greater Kailash - I Women Seeking Men
08448380779 Call Girls In Greater Kailash - I Women Seeking Men
Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...
Neo4j - How KGs are shaping the future of Generative AI at AWS Summit London ...
Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems
Breaking the Kubernetes Kill Chain: Host Path Mount
Breaking the Kubernetes Kill Chain: Host Path Mount
How to Remove Document Management Hurdles with X-Docs?
How to Remove Document Management Hurdles with X-Docs?
Next-generation AAM aircraft unveiled by Supernal, S-A2
Next-generation AAM aircraft unveiled by Supernal, S-A2
Benefits Of Flutter Compared To Other Frameworks
Benefits Of Flutter Compared To Other Frameworks
IAC 2024 - IA Fast Track to Search Focused AI Solutions
IAC 2024 - IA Fast Track to Search Focused AI Solutions
The Codex of Business Writing Software for Real-World Solutions 2.pptx
The Codex of Business Writing Software for Real-World Solutions 2.pptx
Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget
Hyderabad Call Girls Khairatabad ✨ 7001305949 ✨ Cheap Price Your Budget
Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx
Making_way_through_DLL_hollowing_inspite_of_CFG_by_Debjeet Banerjee.pptx
The transition to renewables in India.pdf
The transition to renewables in India.pdf
Swan(sea) Song – personal research during my six years at Swansea ... and bey...
Swan(sea) Song – personal research during my six years at Swansea ... and bey...
Maximizing Board Effectiveness 2024 Webinar.pptx
Maximizing Board Effectiveness 2024 Webinar.pptx
Transcript: #StandardsGoals for 2024: What’s new for BISAC - Tech Forum 2024
Transcript: #StandardsGoals for 2024: What’s new for BISAC - Tech Forum 2024
Install Stable Diffusion in windows machine
Install Stable Diffusion in windows machine
Artificial intelligence in the post-deep learning era
Artificial intelligence in the post-deep learning era
AI as an Interface for Commercial Buildings
AI as an Interface for Commercial Buildings
Unblocking The Main Thread Solving ANRs and Frozen Frames
Unblocking The Main Thread Solving ANRs and Frozen Frames
iSCSI and CLEAR-Flow

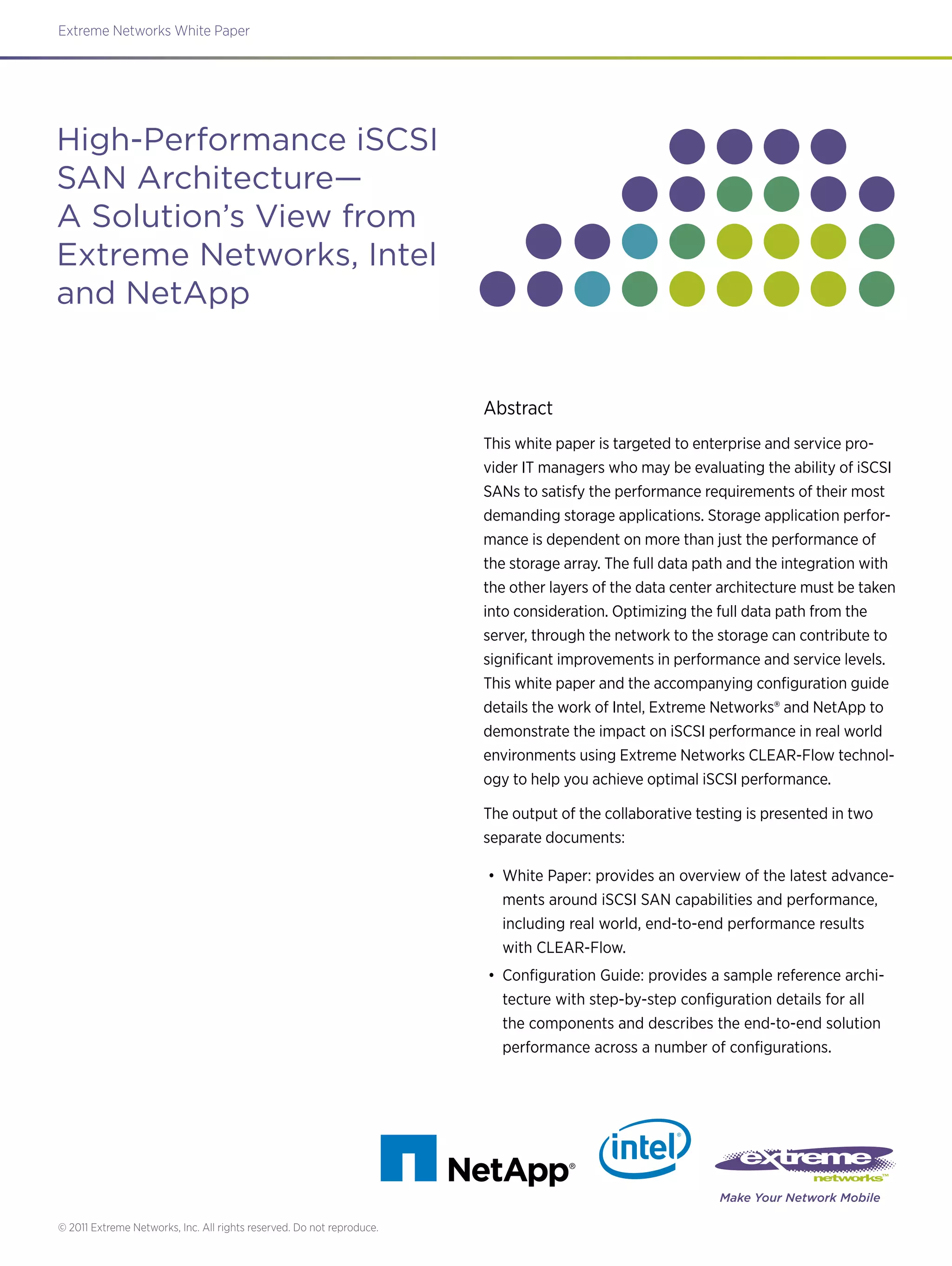

1.
Extreme Networks White
Paper © 2011 Extreme Networks, Inc. All rights reserved. Do not reproduce. Make Your Network Mobile Abstract This white paper is targeted to enterprise and service pro- vider IT managers who may be evaluating the ability of iSCSI SANs to satisfy the performance requirements of their most demanding storage applications. Storage application perfor- mance is dependent on more than just the performance of the storage array. The full data path and the integration with the other layers of the data center architecture must be taken into consideration. Optimizing the full data path from the server, through the network to the storage can contribute to significant improvements in performance and service levels. This white paper and the accompanying configuration guide details the work of Intel, Extreme Networks® and NetApp to demonstrate the impact on iSCSI performance in real world environments using Extreme Networks CLEAR-Flow technol- ogy to help you achieve optimal iSCSI performance. The output of the collaborative testing is presented in two separate documents: • White Paper: provides an overview of the latest advance- ments around iSCSI SAN capabilities and performance, including real world, end-to-end performance results with CLEAR-Flow. • Configuration Guide: provides a sample reference archi- tecture with step-by-step configuration details for all the components and describes the end-to-end solution performance across a number of configurations. High-Performance iSCSI SAN Architecture— A Solution’s View from Extreme Networks, Intel and NetApp

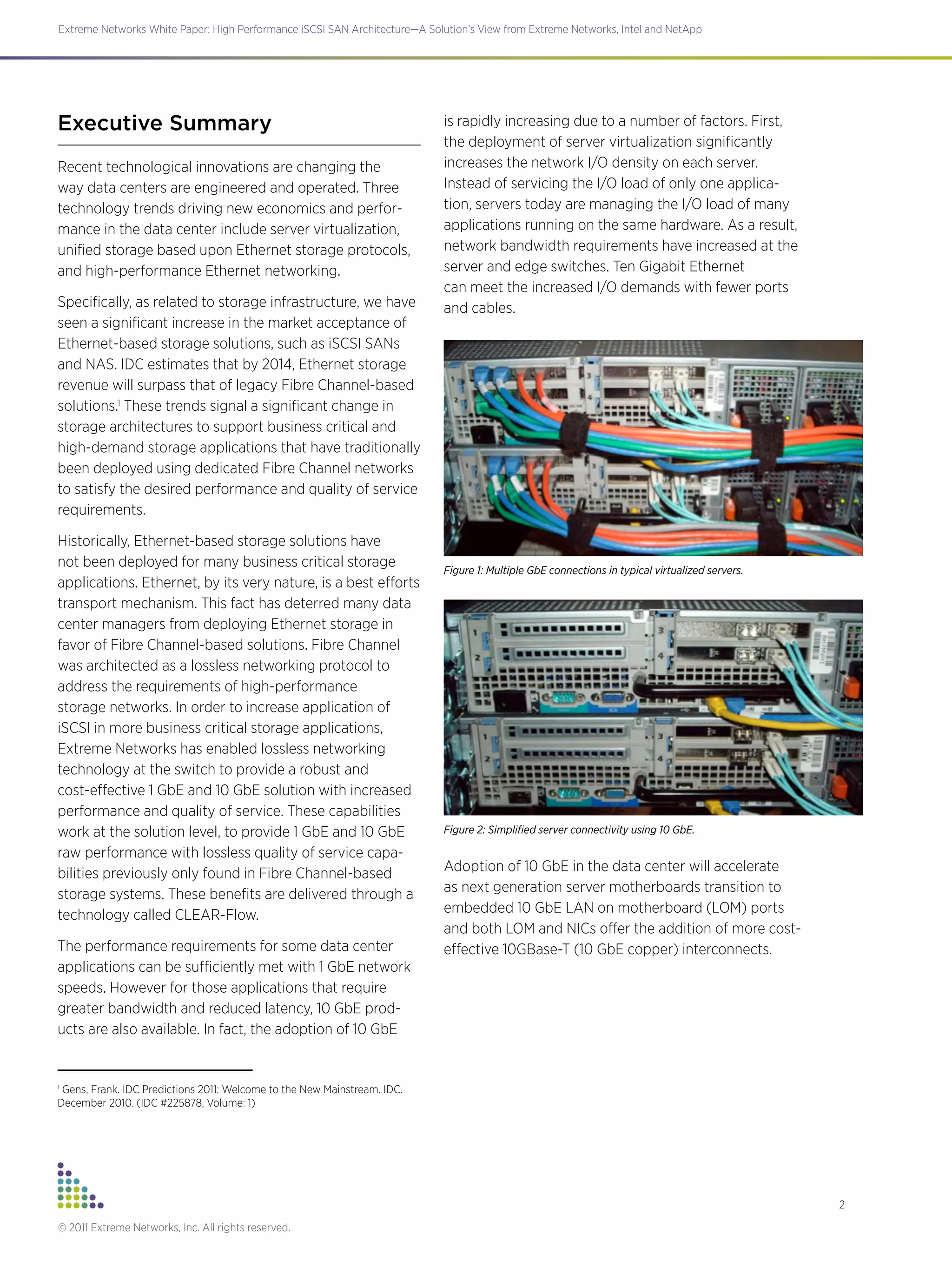

2.
2 Extreme Networks White
Paper: High Performance iSCSI SAN Architecture—A Solution’s View from Extreme Networks, Intel and NetApp © 2011 Extreme Networks, Inc. All rights reserved. Executive Summary Recent technological innovations are changing the way data centers are engineered and operated. Three technology trends driving new economics and perfor- mance in the data center include server virtualization, unified storage based upon Ethernet storage protocols, and high-performance Ethernet networking. Specifically, as related to storage infrastructure, we have seen a significant increase in the market acceptance of Ethernet-based storage solutions, such as iSCSI SANs and NAS. IDC estimates that by 2014, Ethernet storage revenue will surpass that of legacy Fibre Channel-based solutions.1 These trends signal a significant change in storage architectures to support business critical and high-demand storage applications that have traditionally been deployed using dedicated Fibre Channel networks to satisfy the desired performance and quality of service requirements. Historically, Ethernet-based storage solutions have not been deployed for many business critical storage applications. Ethernet, by its very nature, is a best efforts transport mechanism. This fact has deterred many data center managers from deploying Ethernet storage in favor of Fibre Channel-based solutions. Fibre Channel was architected as a lossless networking protocol to address the requirements of high-performance storage networks. In order to increase application of iSCSI in more business critical storage applications, Extreme Networks has enabled lossless networking technology at the switch to provide a robust and cost-effective 1 GbE and 10 GbE solution with increased performance and quality of service. These capabilities work at the solution level, to provide 1 GbE and 10 GbE raw performance with lossless quality of service capa- bilities previously only found in Fibre Channel-based storage systems. These benefits are delivered through a technology called CLEAR-Flow. The performance requirements for some data center applications can be sufficiently met with 1 GbE network speeds. However for those applications that require greater bandwidth and reduced latency, 10 GbE prod- ucts are also available. In fact, the adoption of 10 GbE is rapidly increasing due to a number of factors. First, the deployment of server virtualization significantly increases the network I/O density on each server. Instead of servicing the I/O load of only one applica- tion, servers today are managing the I/O load of many applications running on the same hardware. As a result, network bandwidth requirements have increased at the server and edge switches. Ten Gigabit Ethernet can meet the increased I/O demands with fewer ports and cables. Adoption of 10 GbE in the data center will accelerate as next generation server motherboards transition to embedded 10 GbE LAN on motherboard (LOM) ports and both LOM and NICs offer the addition of more cost- effective 10GBase-T (10 GbE copper) interconnects. 1 Gens, Frank. IDC Predictions 2011: Welcome to the New Mainstream. IDC. December 2010. (IDC #225878, Volume: 1) Figure 1: Multiple GbE connections in typical virtualized servers. Figure 2: Simplified server connectivity using 10 GbE.

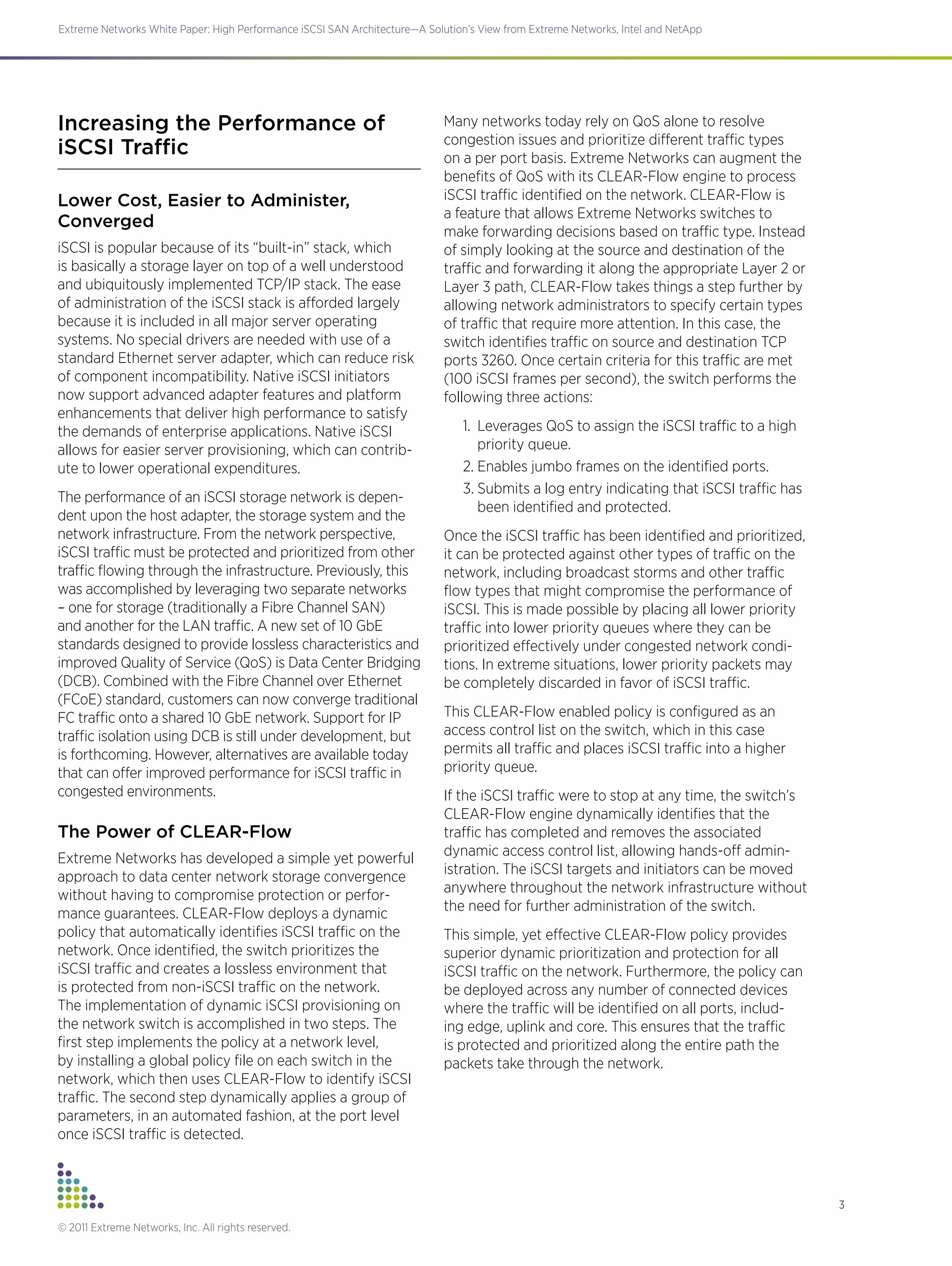

3.
3 Extreme Networks White
Paper: High Performance iSCSI SAN Architecture—A Solution’s View from Extreme Networks, Intel and NetApp © 2011 Extreme Networks, Inc. All rights reserved. Increasing the Performance of iSCSI Traffic Lower Cost, Easier to Administer, Converged iSCSI is popular because of its “built-in” stack, which is basically a storage layer on top of a well understood and ubiquitously implemented TCP/IP stack. The ease of administration of the iSCSI stack is afforded largely because it is included in all major server operating systems. No special drivers are needed with use of a standard Ethernet server adapter, which can reduce risk of component incompatibility. Native iSCSI initiators now support advanced adapter features and platform enhancements that deliver high performance to satisfy the demands of enterprise applications. Native iSCSI allows for easier server provisioning, which can contrib- ute to lower operational expenditures. The performance of an iSCSI storage network is depen- dent upon the host adapter, the storage system and the network infrastructure. From the network perspective, iSCSI traffic must be protected and prioritized from other traffic flowing through the infrastructure. Previously, this was accomplished by leveraging two separate networks – one for storage (traditionally a Fibre Channel SAN) and another for the LAN traffic. A new set of 10 GbE standards designed to provide lossless characteristics and improved Quality of Service (QoS) is Data Center Bridging (DCB). Combined with the Fibre Channel over Ethernet (FCoE) standard, customers can now converge traditional FC traffic onto a shared 10 GbE network. Support for IP traffic isolation using DCB is still under development, but is forthcoming. However, alternatives are available today that can offer improved performance for iSCSI traffic in congested environments. The Power of CLEAR-Flow Extreme Networks has developed a simple yet powerful approach to data center network storage convergence without having to compromise protection or perfor- mance guarantees. CLEAR-Flow deploys a dynamic policy that automatically identifies iSCSI traffic on the network. Once identified, the switch prioritizes the iSCSI traffic and creates a lossless environment that is protected from non-iSCSI traffic on the network. The implementation of dynamic iSCSI provisioning on the network switch is accomplished in two steps. The first step implements the policy at a network level, by installing a global policy file on each switch in the network, which then uses CLEAR-Flow to identify iSCSI traffic. The second step dynamically applies a group of parameters, in an automated fashion, at the port level once iSCSI traffic is detected. Many networks today rely on QoS alone to resolve congestion issues and prioritize different traffic types on a per port basis. Extreme Networks can augment the benefits of QoS with its CLEAR-Flow engine to process iSCSI traffic identified on the network. CLEAR-Flow is a feature that allows Extreme Networks switches to make forwarding decisions based on traffic type. Instead of simply looking at the source and destination of the traffic and forwarding it along the appropriate Layer 2 or Layer 3 path, CLEAR-Flow takes things a step further by allowing network administrators to specify certain types of traffic that require more attention. In this case, the switch identifies traffic on source and destination TCP ports 3260. Once certain criteria for this traffic are met (100 iSCSI frames per second), the switch performs the following three actions: 1. Leverages QoS to assign the iSCSI traffic to a high priority queue. 2. Enables jumbo frames on the identified ports. 3. Submits a log entry indicating that iSCSI traffic has been identified and protected. Once the iSCSI traffic has been identified and prioritized, it can be protected against other types of traffic on the network, including broadcast storms and other traffic flow types that might compromise the performance of iSCSI. This is made possible by placing all lower priority traffic into lower priority queues where they can be prioritized effectively under congested network condi- tions. In extreme situations, lower priority packets may be completely discarded in favor of iSCSI traffic. This CLEAR-Flow enabled policy is configured as an access control list on the switch, which in this case permits all traffic and places iSCSI traffic into a higher priority queue. If the iSCSI traffic were to stop at any time, the switch’s CLEAR-Flow engine dynamically identifies that the traffic has completed and removes the associated dynamic access control list, allowing hands-off admin- istration. The iSCSI targets and initiators can be moved anywhere throughout the network infrastructure without the need for further administration of the switch. This simple, yet effective CLEAR-Flow policy provides superior dynamic prioritization and protection for all iSCSI traffic on the network. Furthermore, the policy can be deployed across any number of connected devices where the traffic will be identified on all ports, includ- ing edge, uplink and core. This ensures that the traffic is protected and prioritized along the entire path the packets take through the network.

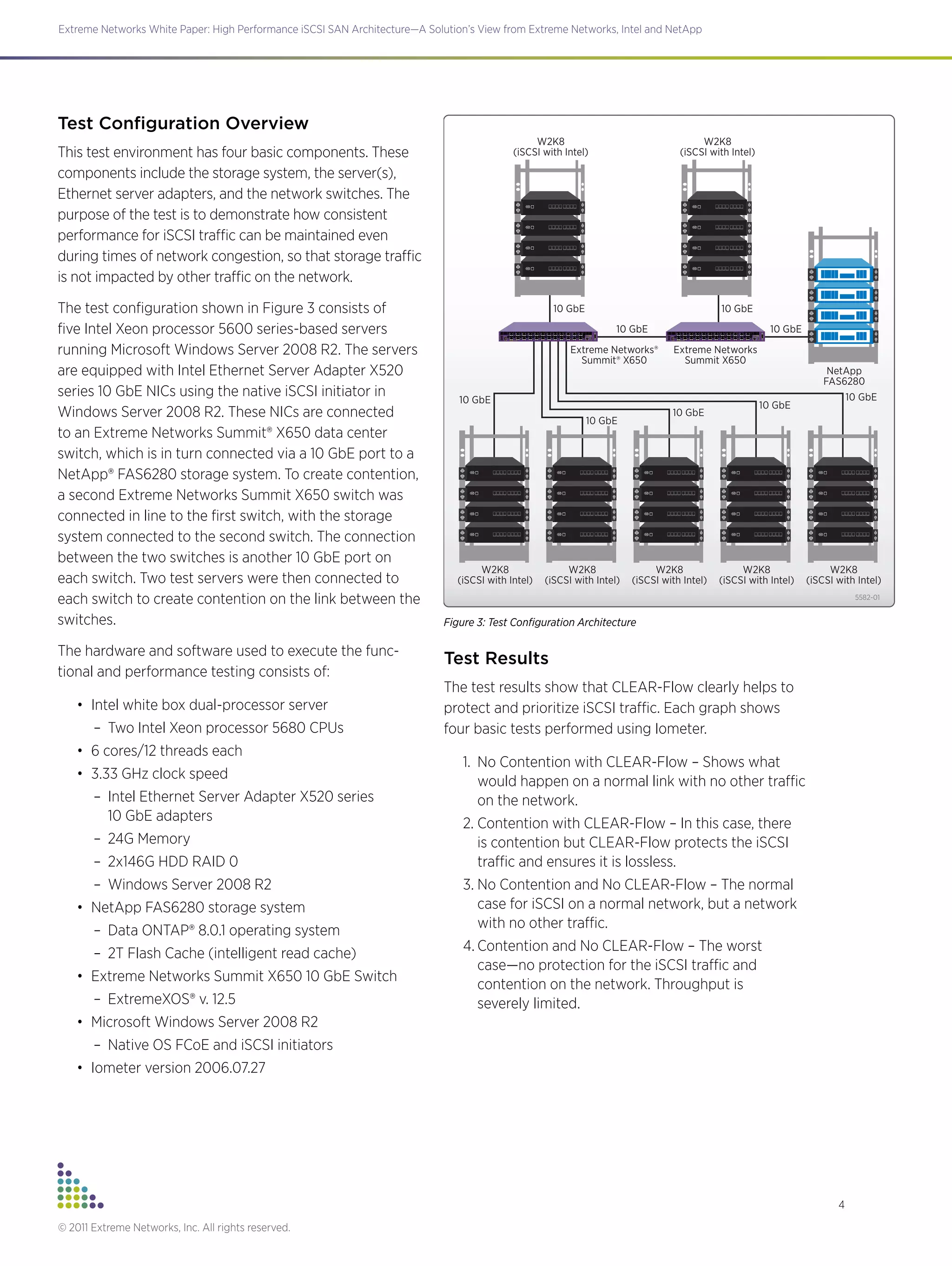

4.
4 Extreme Networks White
Paper: High Performance iSCSI SAN Architecture—A Solution’s View from Extreme Networks, Intel and NetApp © 2011 Extreme Networks, Inc. All rights reserved. Test Configuration Overview This test environment has four basic components. These components include the storage system, the server(s), Ethernet server adapters, and the network switches. The purpose of the test is to demonstrate how consistent performance for iSCSI traffic can be maintained even during times of network congestion, so that storage traffic is not impacted by other traffic on the network. The test configuration shown in Figure 3 consists of five Intel Xeon processor 5600 series-based servers running Microsoft Windows Server 2008 R2. The servers are equipped with Intel Ethernet Server Adapter X520 series 10 GbE NICs using the native iSCSI initiator in Windows Server 2008 R2. These NICs are connected to an Extreme Networks Summit® X650 data center switch, which is in turn connected via a 10 GbE port to a NetApp® FAS6280 storage system. To create contention, a second Extreme Networks Summit X650 switch was connected in line to the first switch, with the storage system connected to the second switch. The connection between the two switches is another 10 GbE port on each switch. Two test servers were then connected to each switch to create contention on the link between the switches. The hardware and software used to execute the func- tional and performance testing consists of: • Intel white box dual-processor server –– Two Intel Xeon processor 5680 CPUs • 6 cores/12 threads each • 3.33 GHz clock speed –– Intel Ethernet Server Adapter X520 series 10 GbE adapters –– 24G Memory –– 2x146G HDD RAID 0 –– Windows Server 2008 R2 • NetApp FAS6280 storage system –– Data ONTAP® 8.0.1 operating system –– 2T Flash Cache (intelligent read cache) • Extreme Networks Summit X650 10 GbE Switch –– ExtremeXOS® v. 12.5 • Microsoft Windows Server 2008 R2 –– Native OS FCoE and iSCSI initiators • Iometer version 2006.07.27 Test Results The test results show that CLEAR-Flow clearly helps to protect and prioritize iSCSI traffic. Each graph shows four basic tests performed using Iometer. 1. No Contention with CLEAR-Flow – Shows what would happen on a normal link with no other traffic on the network. 2. Contention with CLEAR-Flow – In this case, there is contention but CLEAR-Flow protects the iSCSI traffic and ensures it is lossless. 3. No Contention and No CLEAR-Flow – The normal case for iSCSI on a normal network, but a network with no other traffic. 4. Contention and No CLEAR-Flow – The worst case—no protection for the iSCSI traffic and contention on the network. Throughput is severely limited. 5582-01 W2K8 (iSCSI with Intel) W2K8 (iSCSI with Intel) W2K8 (iSCSI with Intel) W2K8 (iSCSI with Intel) W2K8 (iSCSI with Intel) W2K8 (iSCSI with Intel) W2K8 (iSCSI with Intel) NetApp FAS6280 Extreme Networks® Summit® X650 Extreme Networks Summit X650 10 GbE 10 GbE 10 GbE 10 GbE10 GbE 10 GbE 10 GbE 10 GbE 10 GbE Figure 3: Test Configuration Architecture

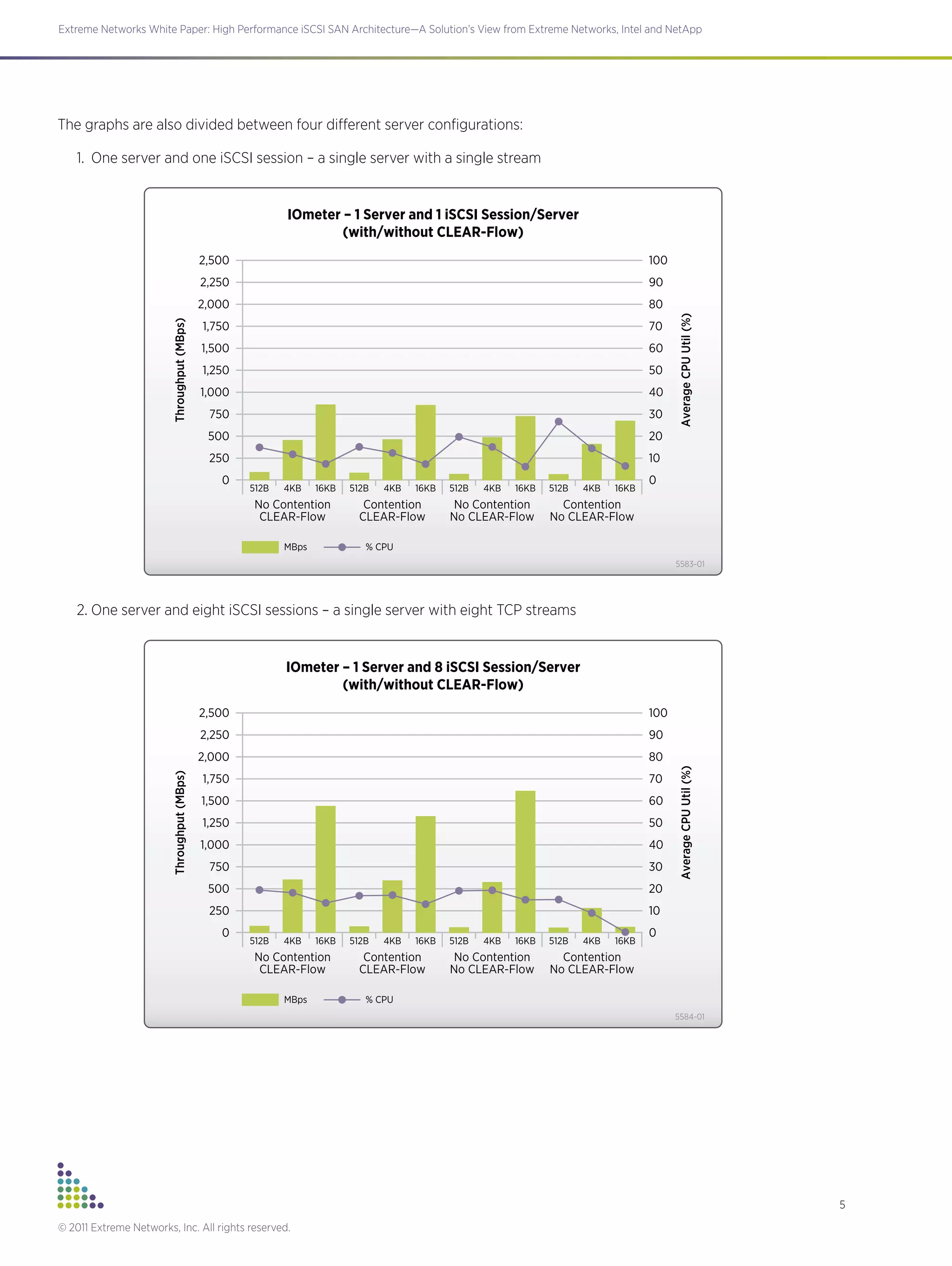

5.
5 Extreme Networks White
Paper: High Performance iSCSI SAN Architecture—A Solution’s View from Extreme Networks, Intel and NetApp © 2011 Extreme Networks, Inc. All rights reserved. The graphs are also divided between four different server configurations: 1. One server and one iSCSI session – a single server with a single stream 2. One server and eight iSCSI sessions – a single server with eight TCP streams 5583-01 IOmeter – 1 Server and 1 iSCSI Session/Server (with/without CLEAR-Flow) 2,500 2,250 2,000 1,750 1,500 1,250 1,000 750 500 250 No Contention CLEAR-Flow Contention CLEAR-Flow No Contention No CLEAR-Flow Contention No CLEAR-Flow 0 100 90 80 70 60 50 40 30 20 10 0 Throughput(MBps) AverageCPUUtil(%) 512B 4KB 16KB 512B 4KB 16KB 512B 4KB 16KB 512B 4KB 16KB MBps % CPU 5584-01 IOmeter – 1 Server and 8 iSCSI Session/Server (with/without CLEAR-Flow) 2,500 2,250 2,000 1,750 1,500 1,250 1,000 750 500 250 No Contention CLEAR-Flow Contention CLEAR-Flow No Contention No CLEAR-Flow Contention No CLEAR-Flow 0 100 90 80 70 60 50 40 30 20 10 0 Throughput(MBps) AverageCPUUtil(%) 512B 4KB 16KB 512B 4KB 16KB 512B 4KB 16KB 512B 4KB 16KB MBps % CPU

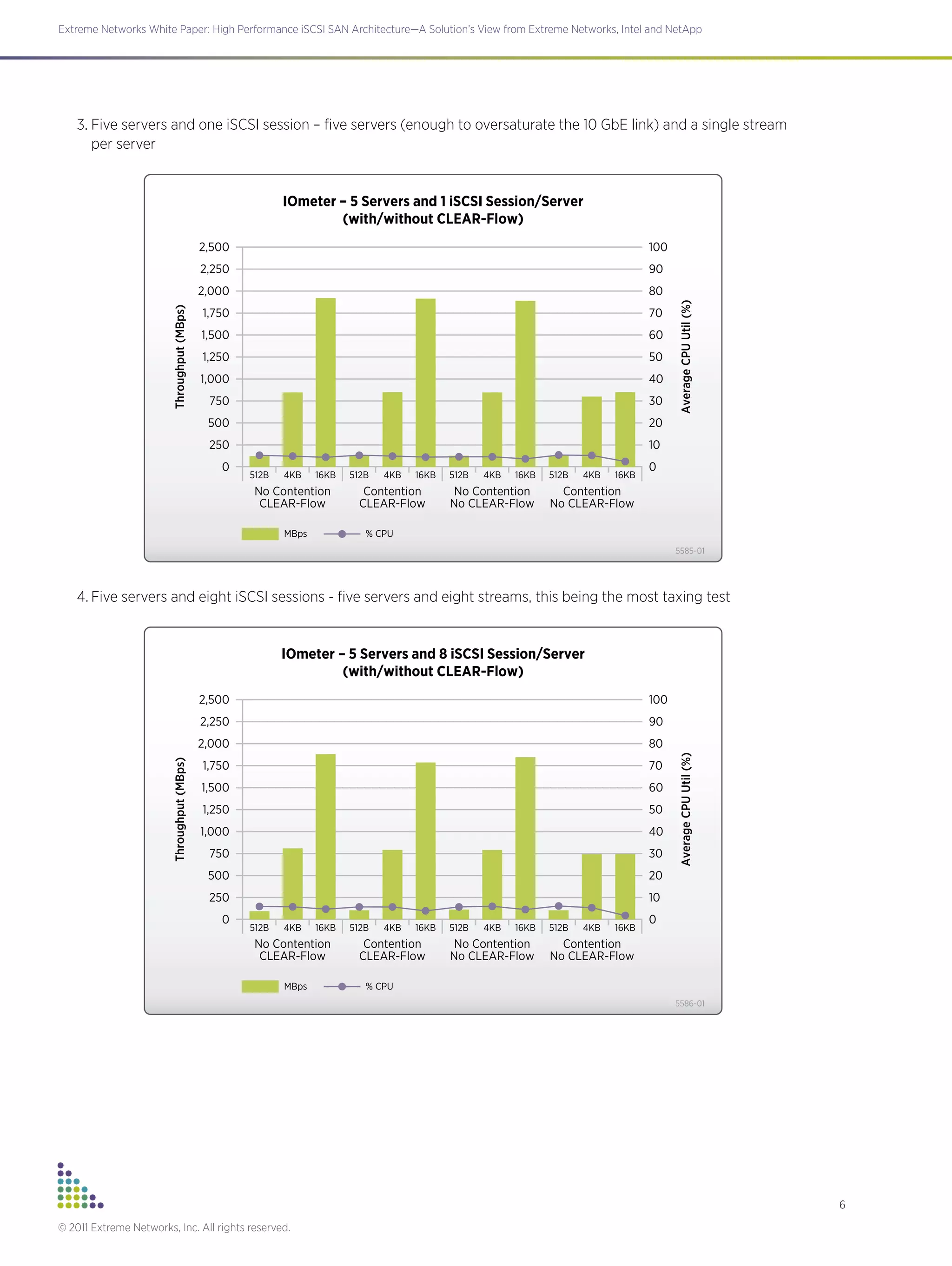

6.
6 Extreme Networks White
Paper: High Performance iSCSI SAN Architecture—A Solution’s View from Extreme Networks, Intel and NetApp © 2011 Extreme Networks, Inc. All rights reserved. 3. Five servers and one iSCSI session – five servers (enough to oversaturate the 10 GbE link) and a single stream per server 4. Five servers and eight iSCSI sessions - five servers and eight streams, this being the most taxing test 5585-01 IOmeter – 5 Servers and 1 iSCSI Session/Server (with/without CLEAR-Flow) 2,500 2,250 2,000 1,750 1,500 1,250 1,000 750 500 250 No Contention CLEAR-Flow Contention CLEAR-Flow No Contention No CLEAR-Flow Contention No CLEAR-Flow 0 100 90 80 70 60 50 40 30 20 10 0 Throughput(MBps) AverageCPUUtil(%) 512B 4KB 16KB 512B 4KB 16KB 512B 4KB 16KB 512B 4KB 16KB MBps % CPU 5586-01 IOmeter – 5 Servers and 8 iSCSI Session/Server (with/without CLEAR-Flow) 2,500 2,250 2,000 1,750 1,500 1,250 1,000 750 500 250 No Contention CLEAR-Flow Contention CLEAR-Flow No Contention No CLEAR-Flow Contention No CLEAR-Flow 0 100 90 80 70 60 50 40 30 20 10 0 Throughput(MBps) AverageCPUUtil(%) 512B 4KB 16KB 512B 4KB 16KB 512B 4KB 16KB 512B 4KB 16KB MBps % CPU

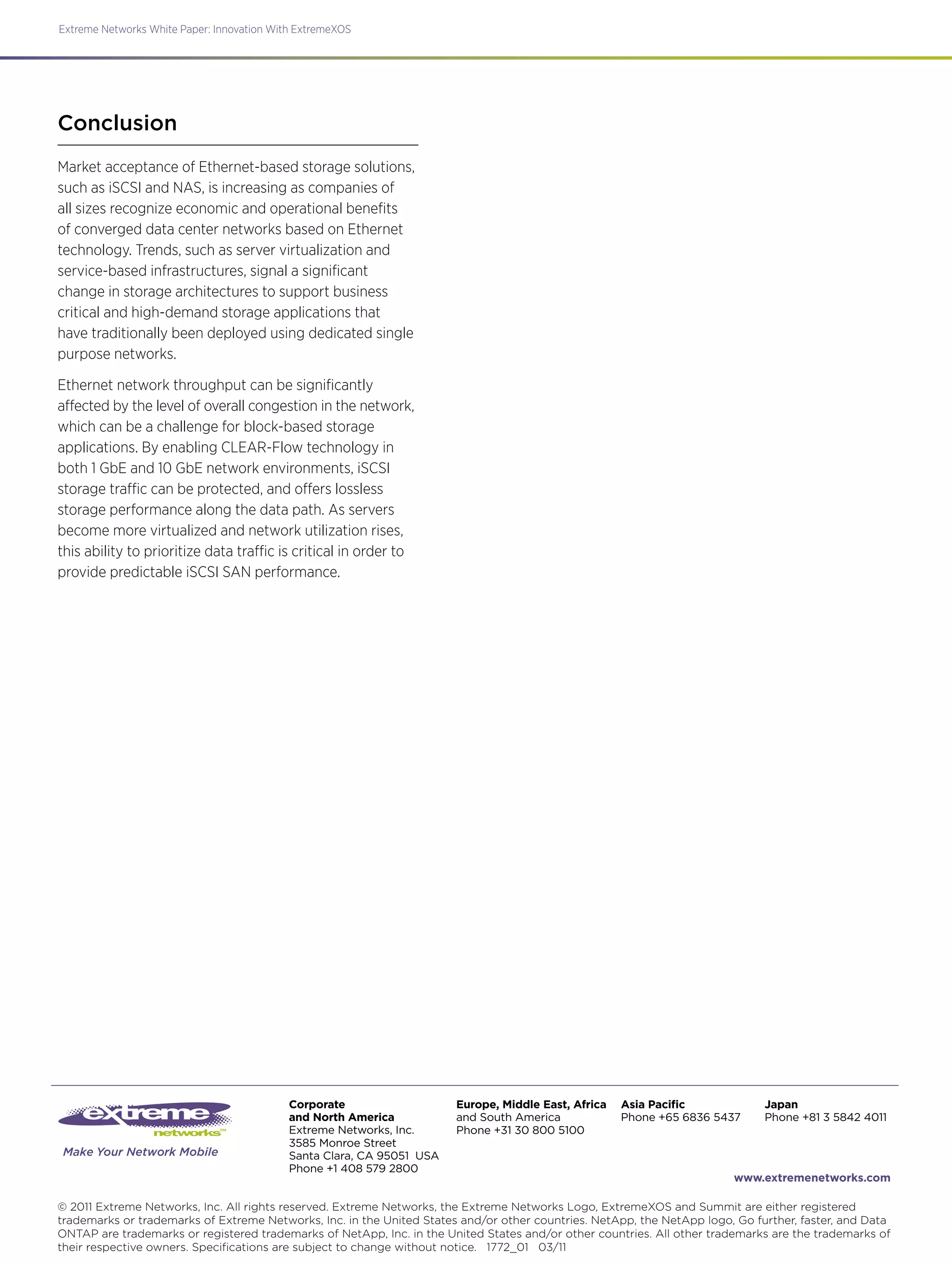

7.
Make Your Network
Mobile Extreme Networks White Paper: Innovation With ExtremeXOS © 2011 Extreme Networks, Inc. All rights reserved. Extreme Networks, the Extreme Networks Logo, ExtremeXOS and Summit are either registered trademarks or trademarks of Extreme Networks, Inc. in the United States and/or other countries. NetApp, the NetApp logo, Go further, faster, and Data ONTAP are trademarks or registered trademarks of NetApp, Inc. in the United States and/or other countries. All other trademarks are the trademarks of their respective owners. Specifications are subject to change without notice. 1772_01 03/11 www.extremenetworks.com Corporate and North America Extreme Networks, Inc. 3585 Monroe Street Santa Clara, CA 95051 USA Phone +1 408 579 2800 Europe, Middle East, Africa and South America Phone +31 30 800 5100 Asia Pacific Phone +65 6836 5437 Japan Phone +81 3 5842 4011 Conclusion Market acceptance of Ethernet-based storage solutions, such as iSCSI and NAS, is increasing as companies of all sizes recognize economic and operational benefits of converged data center networks based on Ethernet technology. Trends, such as server virtualization and service-based infrastructures, signal a significant change in storage architectures to support business critical and high-demand storage applications that have traditionally been deployed using dedicated single purpose networks. Ethernet network throughput can be significantly affected by the level of overall congestion in the network, which can be a challenge for block-based storage applications. By enabling CLEAR-Flow technology in both 1 GbE and 10 GbE network environments, iSCSI storage traffic can be protected, and offers lossless storage performance along the data path. As servers become more virtualized and network utilization rises, this ability to prioritize data traffic is critical in order to provide predictable iSCSI SAN performance.
