CCNA Discovery
Designing and Supporting Computer Networks

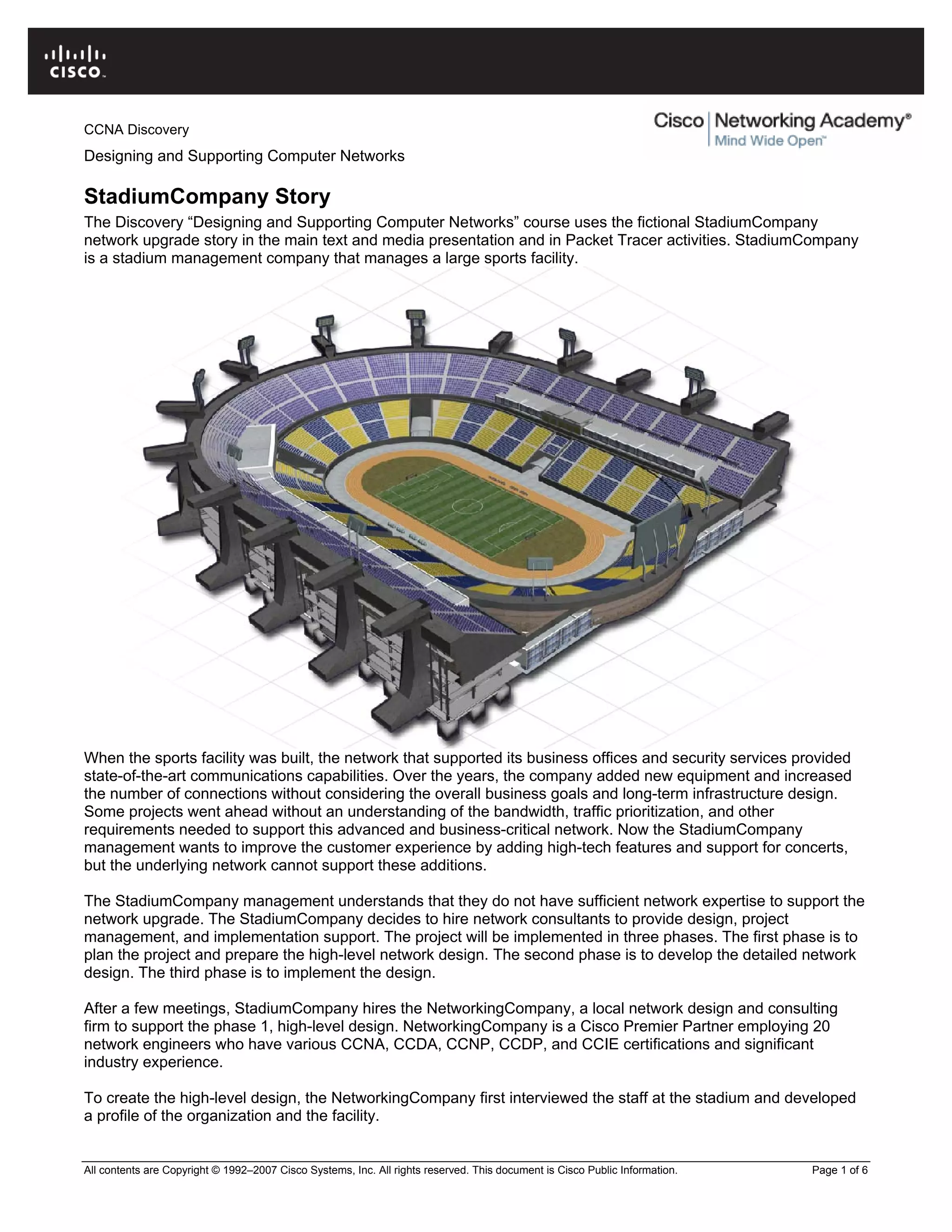

StadiumCompany Story
The Discovery “Designing and Supporting Computer Networks” course uses the fictional StadiumCompany
network upgrade story in the main text and media presentation and in Packet Tracer activities. StadiumCompany
is a stadium management company that manages a large sports facility.
When the sports facility was built, the network that supported its business offices and security services provided
state-of-the-art communications capabilities. Over the years, the company added new equipment and increased
the number of connections without considering the overall business goals and long-term infrastructure design.
Some projects went ahead without an understanding of the bandwidth, traffic prioritization, and other
requirements needed to support this advanced and business-critical network. Now the StadiumCompany
management wants to improve the customer experience by adding high-tech features and support for concerts,
but the underlying network cannot support these additions.
The StadiumCompany management understands that they do not have sufficient network expertise to support the
network upgrade. The StadiumCompany decides to hire network consultants to provide design, project
management, and implementation support. The project will be implemented in three phases. The first phase is to
plan the project and prepare the high-level network design. The second phase is to develop the detailed network
design. The third phase is to implement the design.
After a few meetings, StadiumCompany hires the NetworkingCompany, a local network design and consulting
firm to support the phase 1, high-level design. NetworkingCompany is a Cisco Premier Partner employing 20
network engineers who have various CCNA, CCDA, CCNP, CCDP, and CCIE certifications and significant
industry experience.
To create the high-level design, the NetworkingCompany first interviewed the staff at the stadium and developed
a profile of the organization and the facility.
All contents are Copyright © 1992–2007 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Page 1 of 6

CCNA Discovery

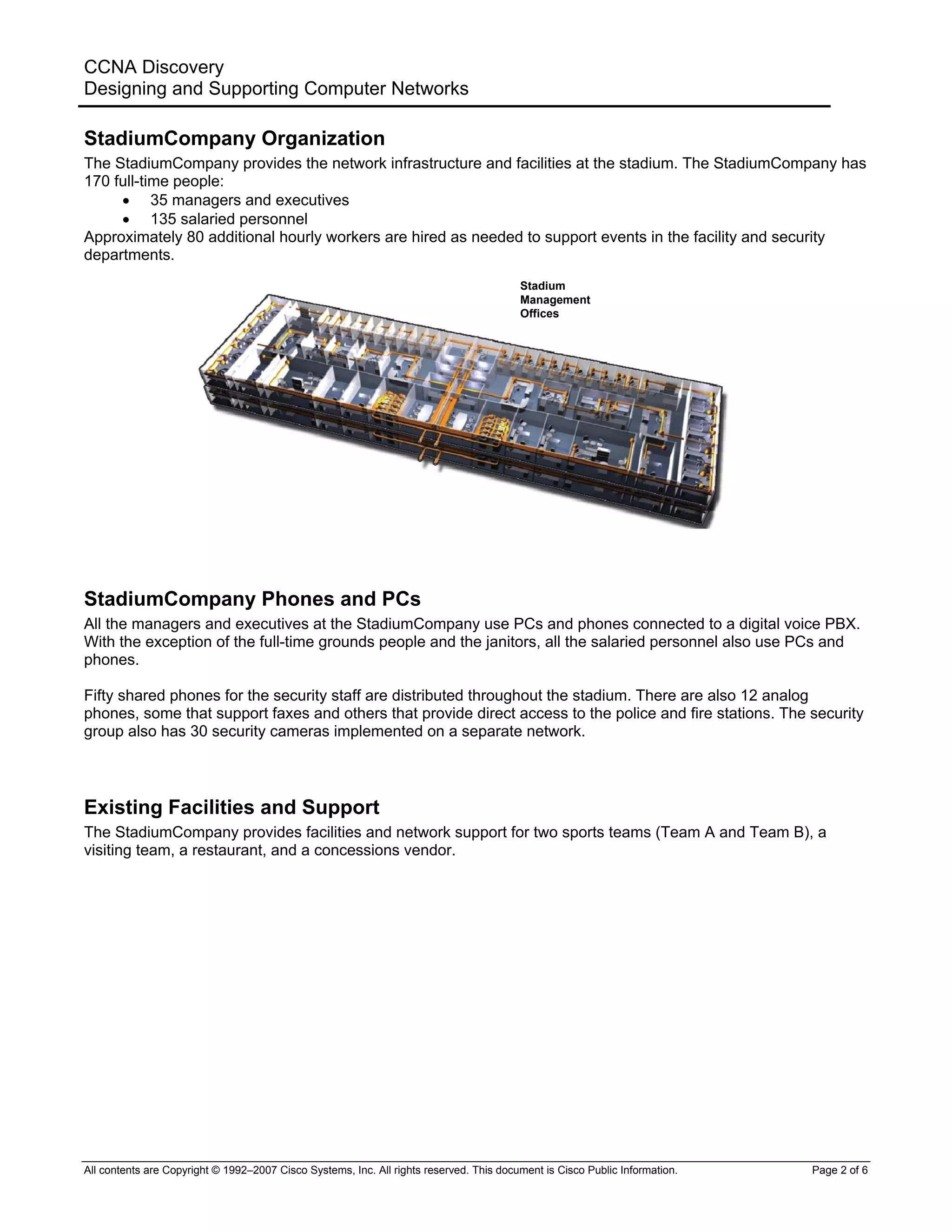

StadiumCompany Organization
The StadiumCompany provides the network infrastructure and facilities at the stadium. The StadiumCompany has
170 full-time people:
• 35 managers and executives
• 135 salaried personnel
Approximately 80 additional hourly workers are hired as needed to support events in the facility and security
departments.
Stadium
Management
Offices
StadiumCompany Phones and PCs
All the managers and executives at the StadiumCompany use PCs and phones connected to a digital voice PBX.
With the exception of the full-time grounds people and the janitors, all the salaried personnel also use PCs and
phones.
Fifty shared phones for the security staff are distributed throughout the stadium. There are also 12 analog
phones, some that support faxes and others that provide direct access to the police and fire stations. The security
group also has 30 security cameras implemented on a separate network.
Existing Facilities and Support
The StadiumCompany provides facilities and network support for two sports teams (Team A and Team B), a
visiting team, a restaurant, and a concessions vendor.

CCNA Discovery

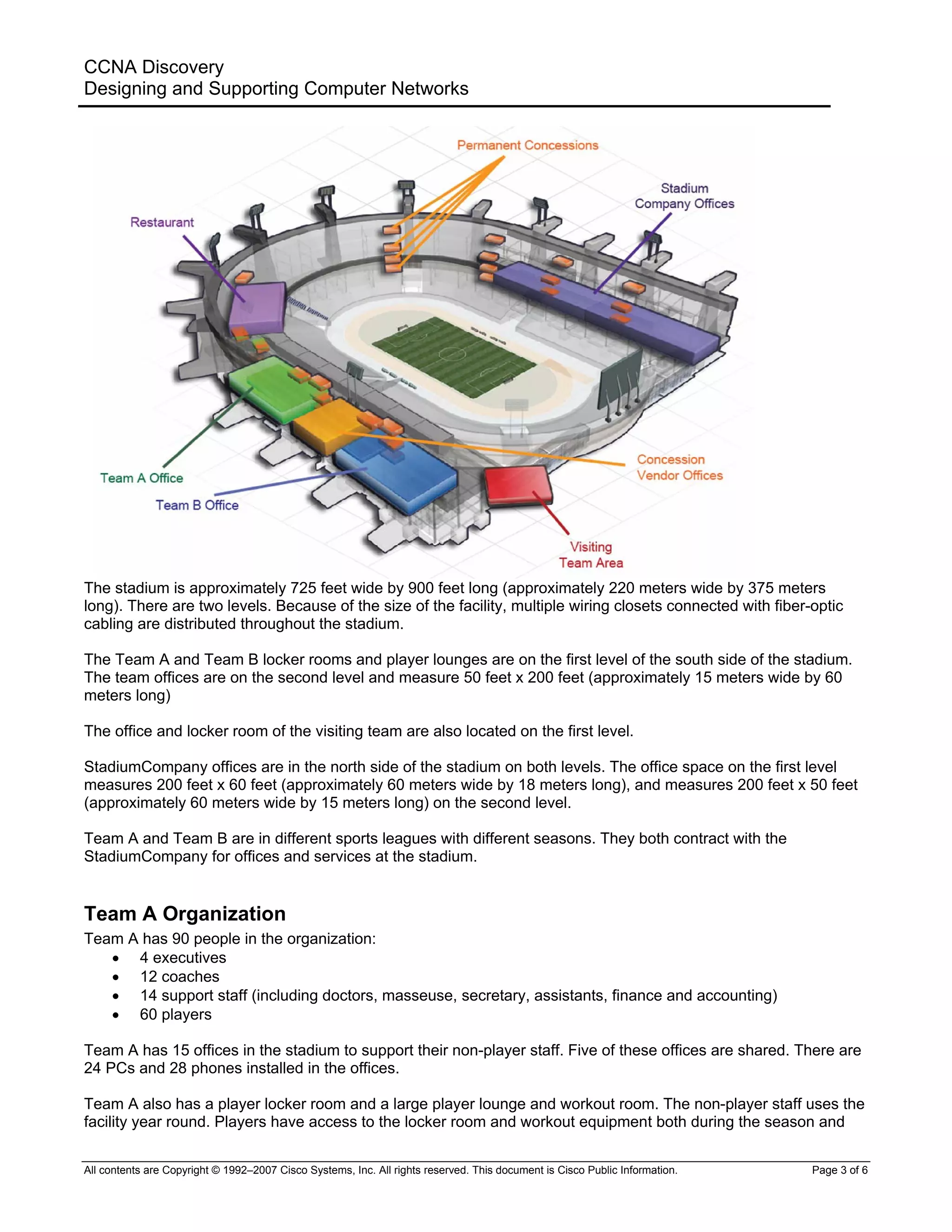

The stadium is approximately 725 feet wide by 900 feet long (approximately 220 meters wide by 375 meters
long). There are two levels. Because of the size of the facility, multiple wiring closets connected with fiber-optic
cabling are distributed throughout the stadium.
The Team A and Team B locker rooms and player lounges are on the first level of the south side of the stadium.
The team offices are on the second level and measure 50 feet x 200 feet (approximately 15 meters wide by 60
meters long)
The office and locker room of the visiting team are also located on the first level.
StadiumCompany offices are in the north side of the stadium on both levels. The office space on the first level
measures 200 feet x 60 feet (approximately 60 meters wide by 18 meters long), and measures 200 feet x 50 feet
(approximately 60 meters wide by 15 meters long) on the second level.
Team A and Team B are in different sports leagues with different seasons. They both contract with the
StadiumCompany for offices and services at the stadium.
Team A Organization
Team A has 90 people in the organization:
• 4 executives
• 12 coaches
• 14 support staff (including doctors, masseuse, secretary, assistants, finance and accounting)
• 60 players
Team A has 15 offices in the stadium to support their non-player staff. Five of these offices are shared. There are
24 PCs and 28 phones installed in the offices.
Team A also has a player locker room and a large player lounge and workout room. The non-player staff uses the
facility year round. Players have access to the locker room and workout equipment both during the season and

CCNA Discovery
the off-season. There are 5 phones in the locker room, and 15 phones in the player lounge. There are rumors that
Team A recently installed a wireless hub in the player lounge.
Team B Organization
Team B has 64 people in the organization:
• 4 executives
• 8 coaches
• 12 support staff (including doctors, masseuse, secretary, assistants, finance and accounting)
• 40 players
Team B has 12 offices in the stadium to support their non-player staff. Three of the offices are shared. There are
19 PCs and 22 phones installed in the offices. They also have a player locker room and a large player lounge.
The non-player staff uses the facility year round. Players have access to the locker room and workout equipment
both during the season and the off season. There are 5 phones in the locker room, and 15 phones in the player
lounge.
Visiting Team Support
The visiting team locker room and lounge has 10 phones. Each visiting team requires temporary support on the
game day and for a few days before the game. The visiting teams also contract with the StadiumCompany for
office support and services at the stadium.

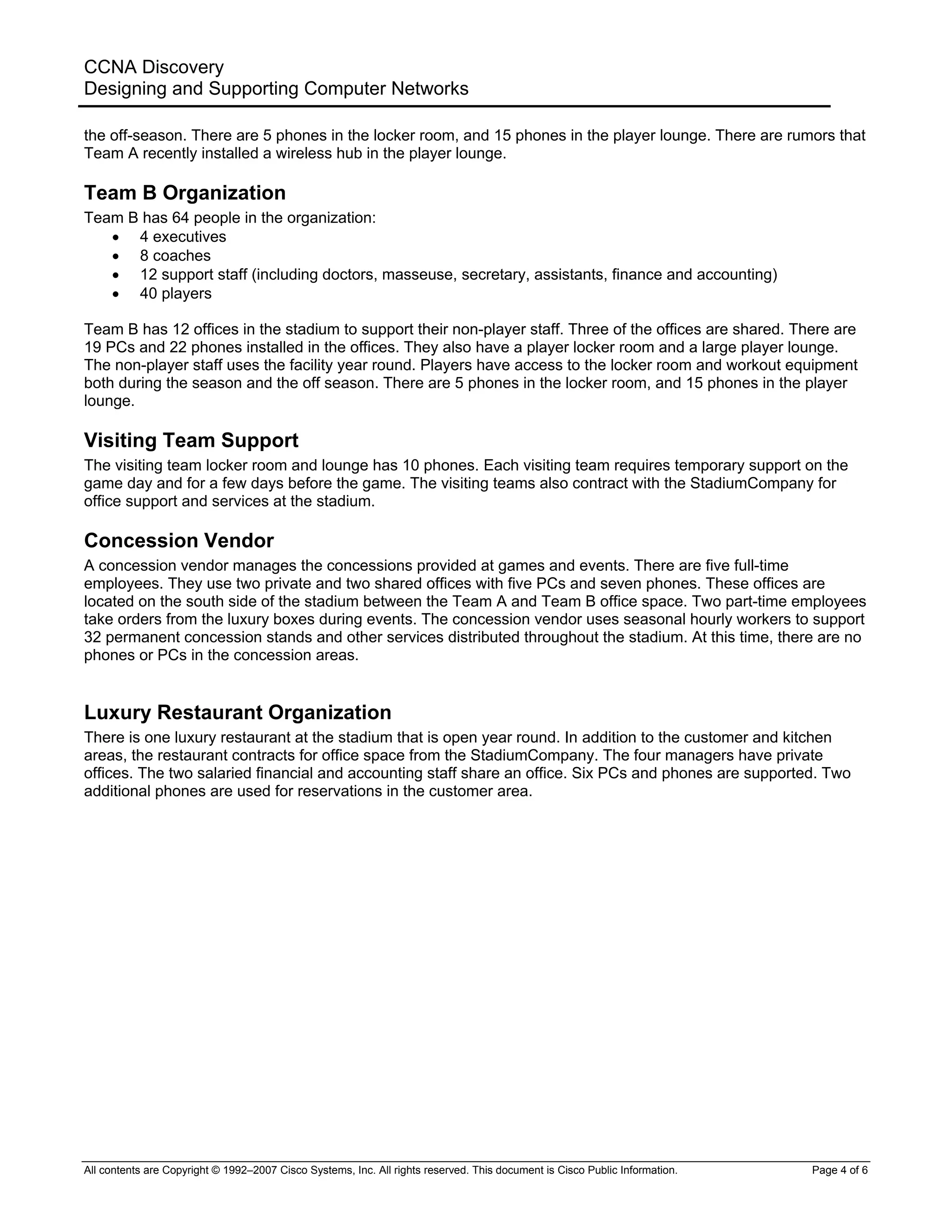

Concession Vendor
A concession vendor manages the concessions provided at games and events. There are five full-time
employees. They use two private and two shared offices with five PCs and seven phones. These offices are
located on the south side of the stadium between the Team A and Team B office space. Two part-time employees
take orders from the luxury boxes during events. The concession vendor uses seasonal hourly workers to support
32 permanent concession stands and other services distributed throughout the stadium. At this time, there are no
phones or PCs in the concession areas.
Luxury Restaurant Organization
There is one luxury restaurant at the stadium that is open year round. In addition to the customer and kitchen
areas, the restaurant contracts for office space from the StadiumCompany. The four managers have private
offices. The two salaried financial and accounting staff share an office. Six PCs and phones are supported. Two
additional phones are used for reservations in the customer area.

CCNA Discovery

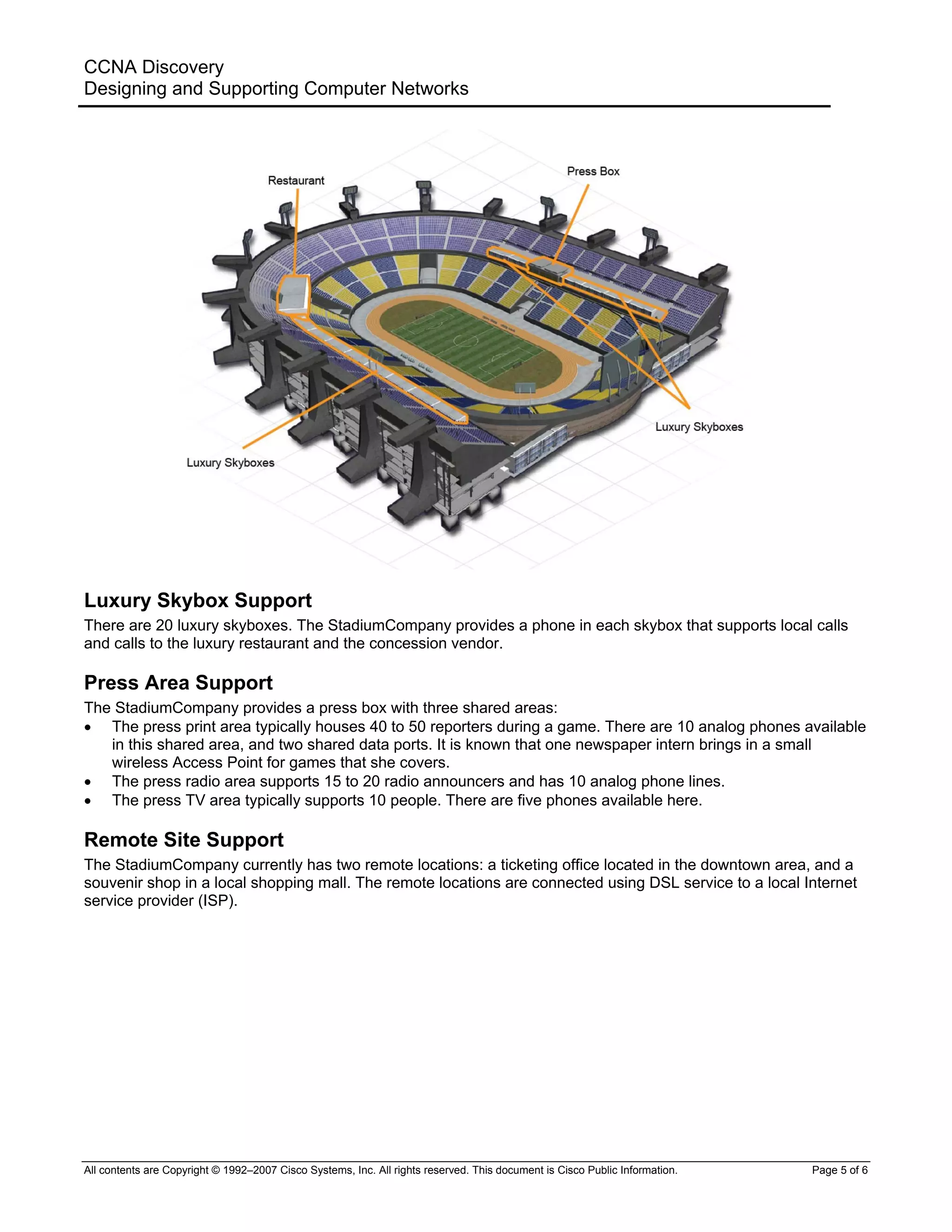

Luxury Skybox Support
There are 20 luxury skyboxes. The StadiumCompany provides a phone in each skybox that supports local calls
and calls to the luxury restaurant and the concession vendor.
Press Area Support
The StadiumCompany provides a press box with three shared areas:
• The press print area typically houses 40 to 50 reporters during a game. There are 10 analog phones available
in this shared area, and two shared data ports. It is known that one newspaper intern brings in a small
wireless Access Point for games that she covers.
• The press radio area supports 15 to 20 radio announcers and has 10 analog phone lines.
• The press TV area typically supports 10 people. There are five phones available here.
Remote Site Support
The StadiumCompany currently has two remote locations: a ticketing office located in the downtown area, and a
souvenir shop in a local shopping mall. The remote locations are connected using DSL service to a local Internet
service provider (ISP).

CCNA Discovery

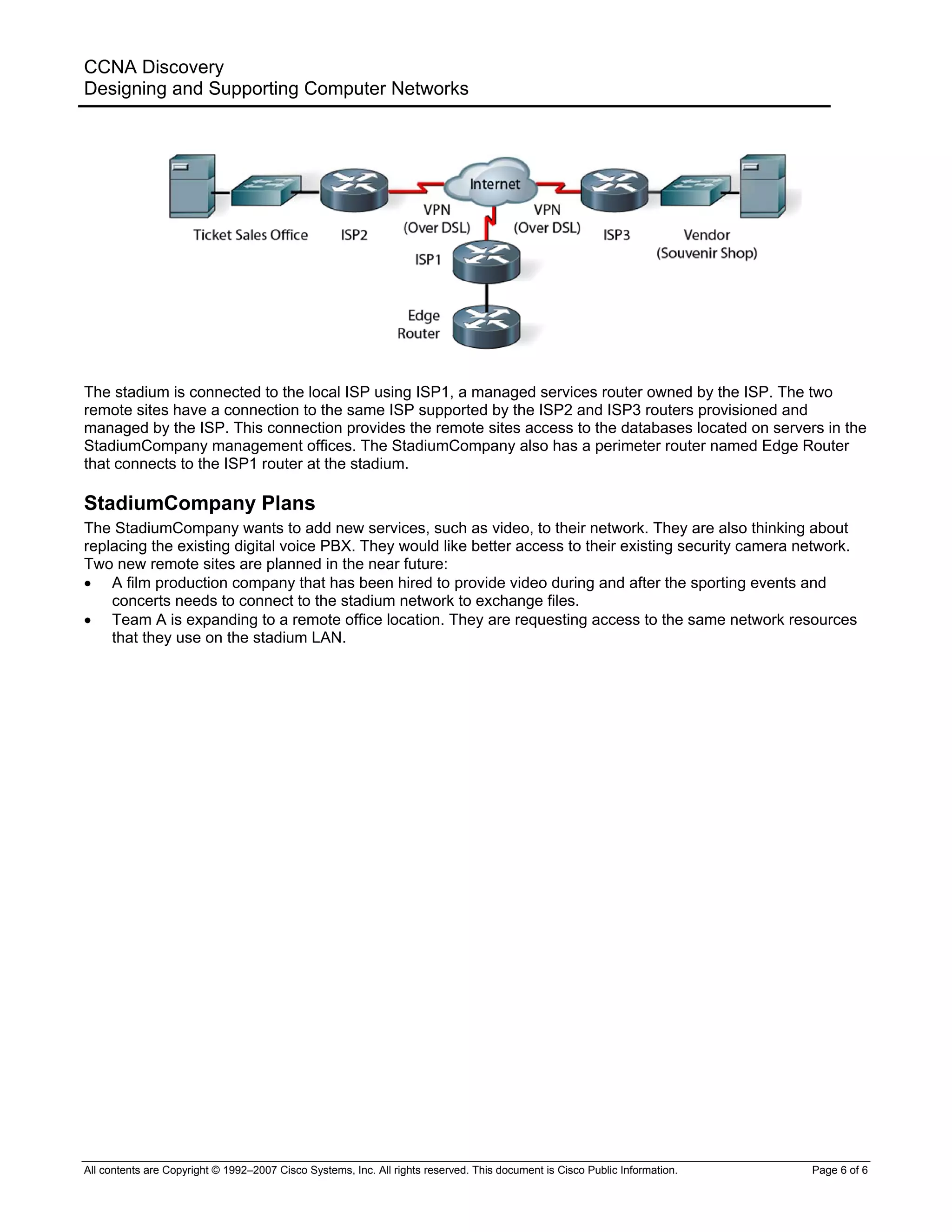

The stadium is connected to the local ISP using ISP1, a managed services router owned by the ISP. The two
remote sites have a connection to the same ISP supported by the ISP2 and ISP3 routers provisioned and
managed by the ISP. This connection provides the remote sites access to the databases located on servers in the
StadiumCompany management offices. The StadiumCompany also has a perimeter router named Edge Router
that connects to the ISP1 router at the stadium.
StadiumCompany Plans
The StadiumCompany wants to add new services, such as video, to their network. They are also thinking about
replacing the existing digital voice PBX. They would like better access to their existing security camera network.
Two new remote sites are planned in the near future:
• A film production company that has been hired to provide video during and after the sporting events and
concerts needs to connect to the stadium network to exchange files.
• Team A is expanding to a remote office location. They are requesting access to the same network resources
that they use on the stadium LAN.

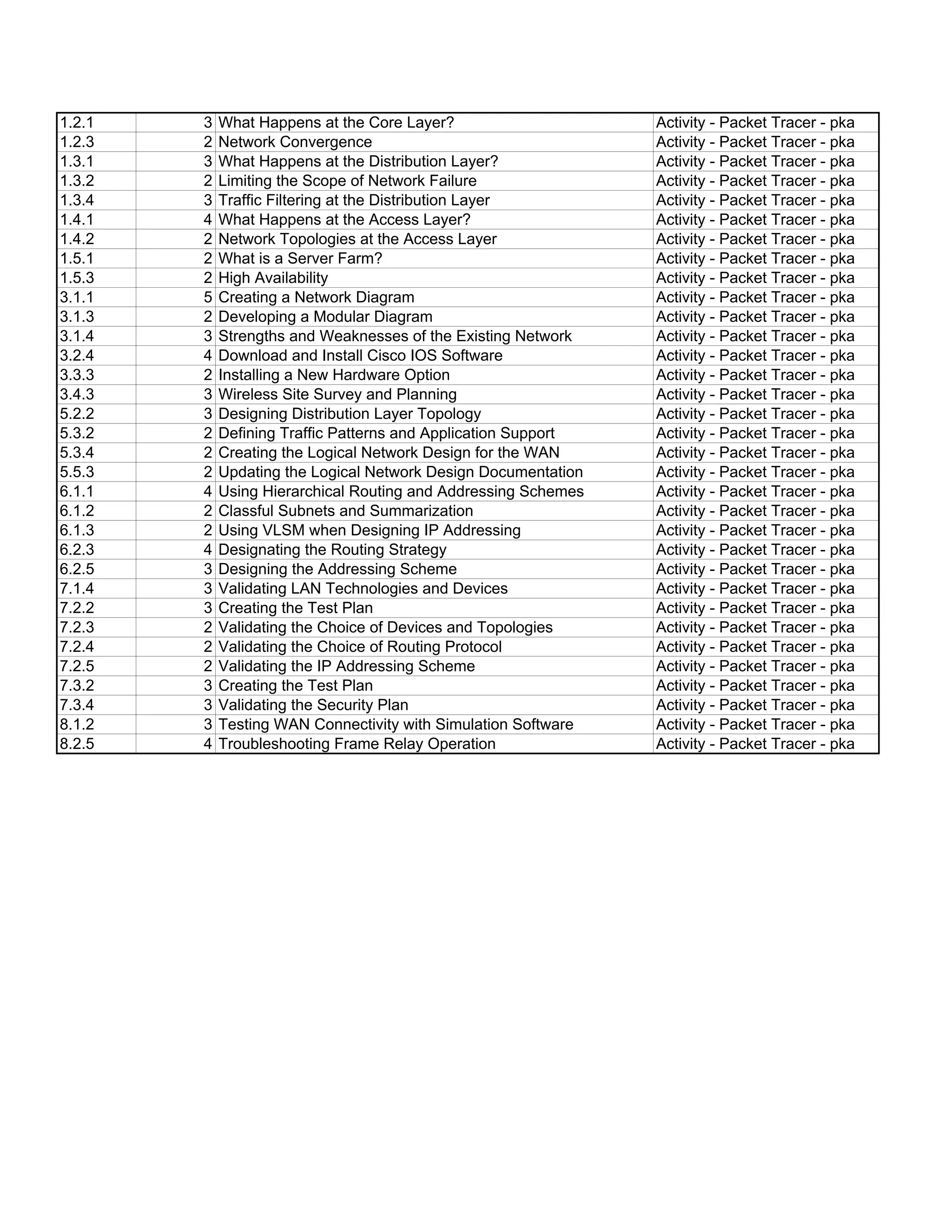

1.2.1 3 What Happens at the Core Layer? Activity - Packet Tracer - pka
1.2.3 2 Network Convergence Activity - Packet Tracer - pka
1.3.1 3 What Happens at the Distribution Layer? Activity - Packet Tracer - pka
1.3.2 2 Limiting the Scope of Network Failure Activity - Packet Tracer - pka
1.3.4 3 Traffic Filtering at the Distribution Layer Activity - Packet Tracer - pka
1.4.1 4 What Happens at the Access Layer? Activity - Packet Tracer - pka
1.4.2 2 Network Topologies at the Access Layer Activity - Packet Tracer - pka
1.5.1 2 What is a Server Farm? Activity - Packet Tracer - pka
1.5.3 2 High Availability Activity - Packet Tracer - pka
3.1.1 5 Creating a Network Diagram Activity - Packet Tracer - pka
3.1.3 2 Developing a Modular Diagram Activity - Packet Tracer - pka
3.1.4 3 Strengths and Weaknesses of the Existing Network Activity - Packet Tracer - pka
3.2.4 4 Download and Install Cisco IOS Software Activity - Packet Tracer - pka
3.3.3 2 Installing a New Hardware Option Activity - Packet Tracer - pka
3.4.3 3 Wireless Site Survey and Planning Activity - Packet Tracer - pka
5.2.2 3 Designing Distribution Layer Topology Activity - Packet Tracer - pka
5.3.2 2 Defining Traffic Patterns and Application Support Activity - Packet Tracer - pka
5.3.4 2 Creating the Logical Network Design for the WAN Activity - Packet Tracer - pka
5.5.3 2 Updating the Logical Network Design Documentation Activity - Packet Tracer - pka
6.1.1 4 Using Hierarchical Routing and Addressing Schemes Activity - Packet Tracer - pka
6.1.2 2 Classful Subnets and Summarization Activity - Packet Tracer - pka
6.1.3 2 Using VLSM when Designing IP Addressing Activity - Packet Tracer - pka
6.2.3 4 Designating the Routing Strategy Activity - Packet Tracer - pka
6.2.5 3 Designing the Addressing Scheme Activity - Packet Tracer - pka
7.1.4 3 Validating LAN Technologies and Devices Activity - Packet Tracer - pka

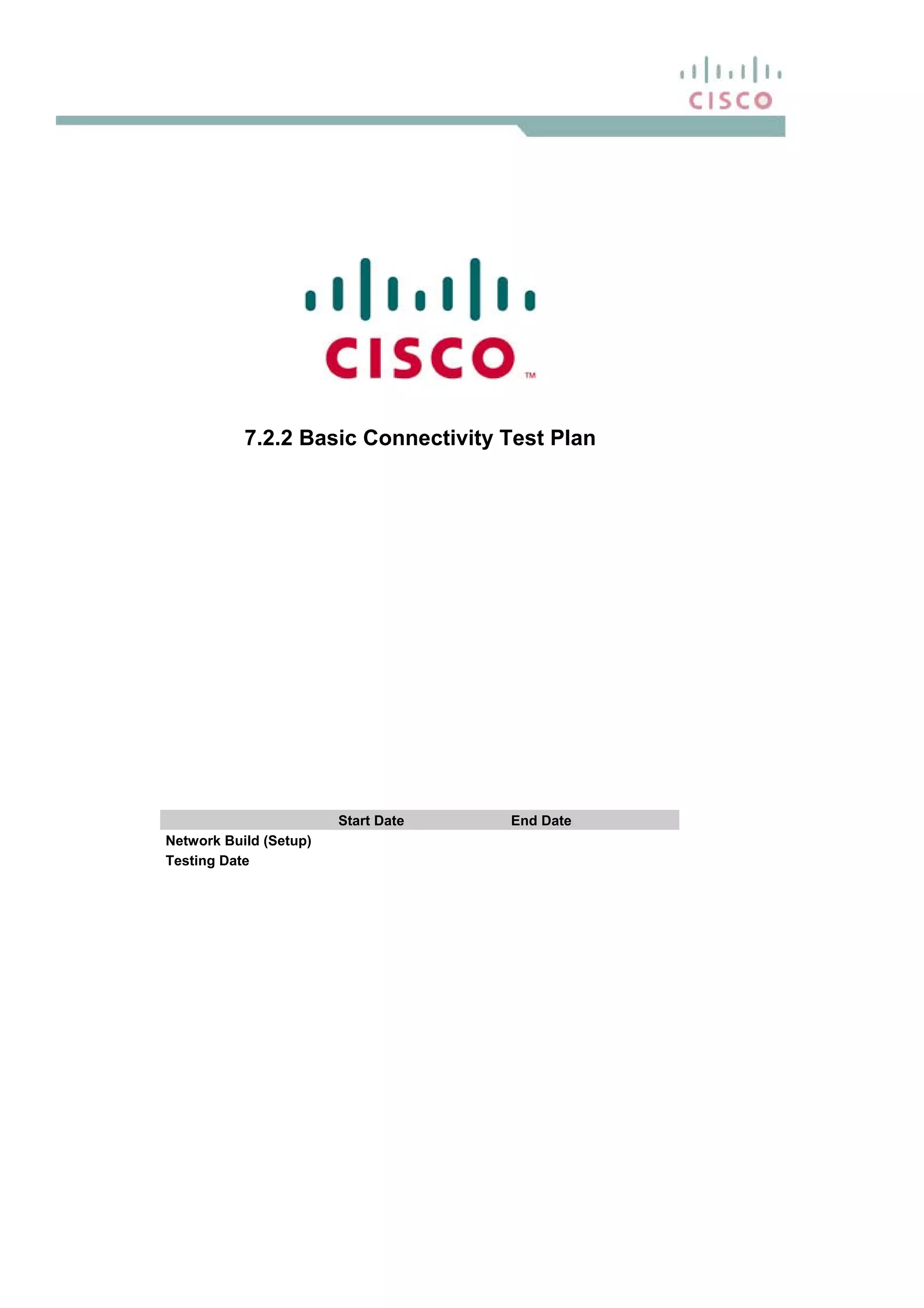

7.2.2 3 Creating the Test Plan Activity - Packet Tracer - pka
7.2.3 2 Validating the Choice of Devices and Topologies Activity - Packet Tracer - pka
7.2.4 2 Validating the Choice of Routing Protocol Activity - Packet Tracer - pka
7.2.5 2 Validating the IP Addressing Scheme Activity - Packet Tracer - pka
7.3.2 3 Creating the Test Plan Activity - Packet Tracer - pka
7.3.4 3 Validating the Security Plan Activity - Packet Tracer - pka
8.1.2 3 Testing WAN Connectivity with Simulation Software Activity - Packet Tracer - pka
8.2.5 4 Troubleshooting Frame Relay Operation Activity - Packet Tracer - pka

CCNA Discovery
1.2.1 Comparing Mesh Topologies
Objectives
• Compare the routing tables of a partial mesh topology with a full mesh topology
• Observe the convergence of the network when an interface is shut down and brought back up
• Examine the EIGRP packets in the Simulation Mode as the network converges
Background / Preparation
You have been provided with a partial mesh and a full mesh topology to examine in this exercise. The interfaces
have been addressed and EIGRP has been configured as the routing protocol. All necessary configuration
commands have been entered into the routers and the networks are fully functional.
Required file: Comparing Mesh Topologies.pka
Step 1: Compare the routing tables of the partial mesh and full mesh topology
a. Use the Inspect tool to examine the routing table on HQP and HQF.
b. Notice the difference in the number of routes in each table.
c. Record the routes to 192.168.0.204 network on HQP and the routes to the 172.16.3.196 network on HQF.
Routes to 192.168.0.204
_______________________________________________________________________________________
_______________________________________________________________________________________
Routes to 172.16.3.196
_______________________________________________________________________________________

CCNA Discovery
_______________________________________________________________________________________

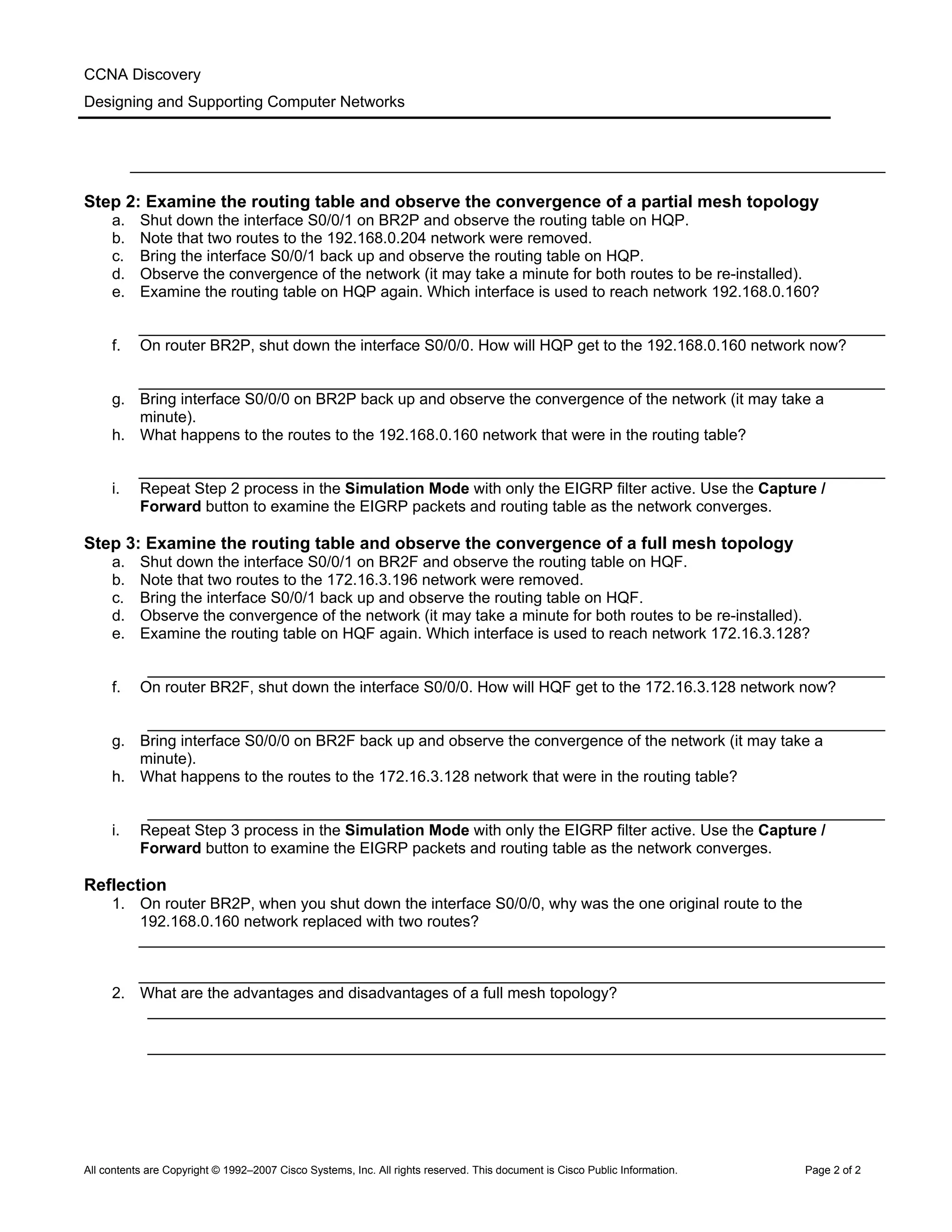

Step 2: Examine the routing table and observe the convergence of a partial mesh topology
a. Shut down the interface S0/0/1 on BR2P and observe the routing table on HQP.
b. Note that two routes to the 192.168.0.204 network were removed.
c. Bring the interface S0/0/1 back up and observe the routing table on HQP.
d. Observe the convergence of the network (it may take a minute for both routes to be re-installed).
e. Examine the routing table on HQP again. Which interface is used to reach network 192.168.0.160?
______________________________________________________________________________________
f. On router BR2P, shut down the interface S0/0/0. How will HQP get to the 192.168.0.160 network now?
______________________________________________________________________________________
g. Bring interface S0/0/0 on BR2P back up and observe the convergence of the network (it may take a
minute).
h. What happens to the routes to the 192.168.0.160 network that were in the routing table?
______________________________________________________________________________________
i. Repeat Step 2 process in the Simulation Mode with only the EIGRP filter active. Use the Capture /
Forward button to examine the EIGRP packets and routing table as the network converges.
Step 3: Examine the routing table and observe the convergence of a full mesh topology
a. Shut down the interface S0/0/1 on BR2F and observe the routing table on HQF.
b. Note that two routes to the 172.16.3.196 network were removed.
c. Bring the interface S0/0/1 back up and observe the routing table on HQF.
d. Observe the convergence of the network (it may take a minute for both routes to be re-installed).
e. Examine the routing table on HQF again. Which interface is used to reach network 172.16.3.128?
_____________________________________________________________________________________
f. On router BR2F, shut down the interface S0/0/0. How will HQF get to the 172.16.3.128 network now?
_____________________________________________________________________________________
g. Bring interface S0/0/0 on BR2F back up and observe the convergence of the network (it may take a
minute).
h. What happens to the routes to the 172.16.3.128 network that were in the routing table?
_____________________________________________________________________________________
i. Repeat Step 3 process in the Simulation Mode with only the EIGRP filter active. Use the Capture /
Forward button to examine the EIGRP packets and routing table as the network converges.
Reflection
1. On router BR2P, when you shut down the interface S0/0/0, why was the one original route to the
192.168.0.160 network replaced with two routes?
______________________________________________________________________________________
______________________________________________________________________________________
2. What are the advantages and disadvantages of a full mesh topology?
_____________________________________________________________________________________
_____________________________________________________________________________________

CCNA Discovery

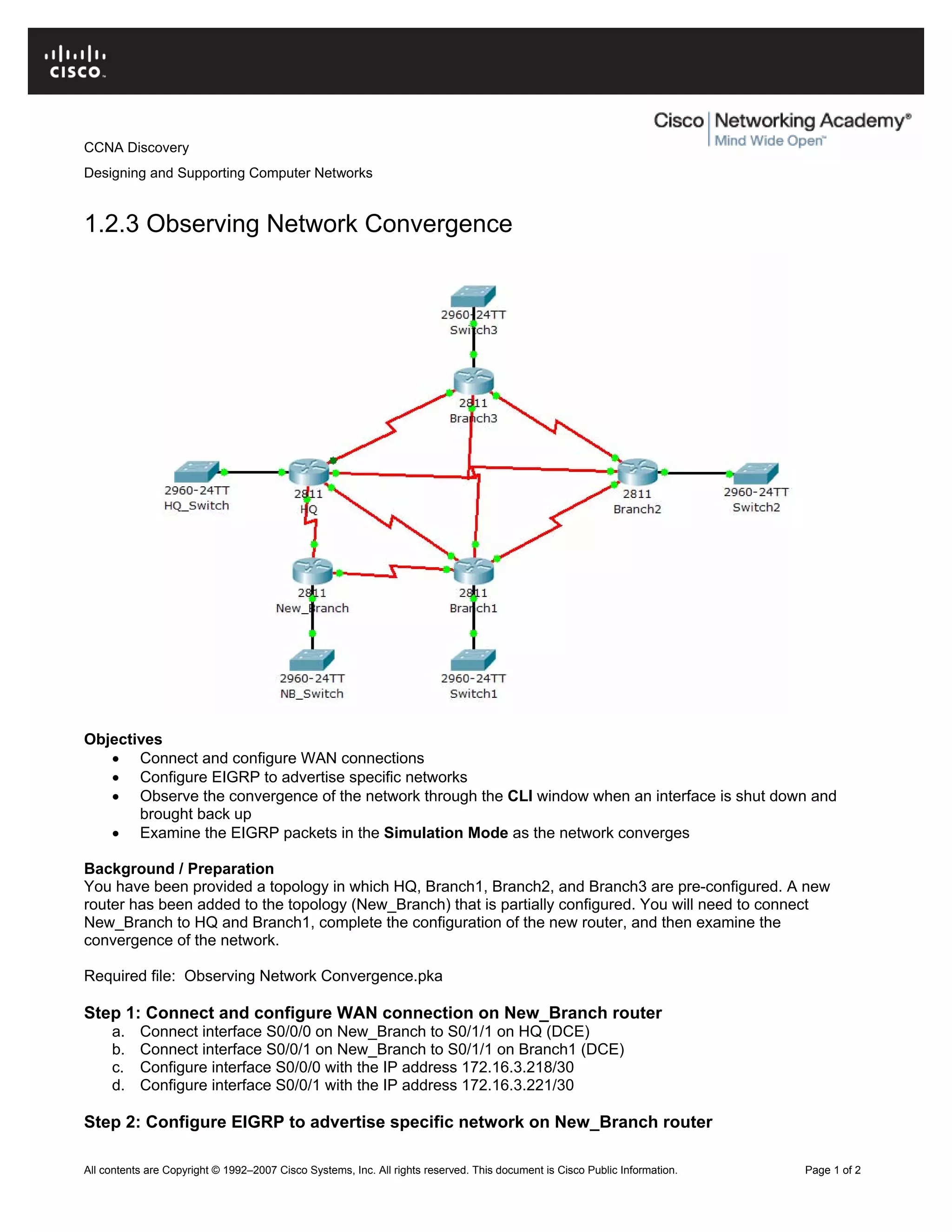

1.2.3 Observing Network Convergence
Objectives
• Connect and configure WAN connections
• Configure EIGRP to advertise specific networks
• Observe the convergence of the network through the CLI window when an interface is shut down and
brought back up
• Examine the EIGRP packets in the Simulation Mode as the network converges
You have been provided a topology in which HQ, Branch1, Branch2, and Branch3 are pre-configured. A new
router has been added to the topology (New_Branch) that is partially configured. You will need to connect
New_Branch to HQ and Branch1, complete the configuration of the new router, and then examine the
convergence of the network.
Required file: Observing Network Convergence.pka
Step 1: Connect and configure WAN connection on New_Branch router
a. Connect interface S0/0/0 on New_Branch to S0/1/1 on HQ (DCE)
b. Connect interface S0/0/1 on New_Branch to S0/1/1 on Branch1 (DCE)
c. Configure interface S0/0/0 with the IP address 172.16.3.218/30
d. Configure interface S0/0/1 with the IP address 172.16.3.221/30

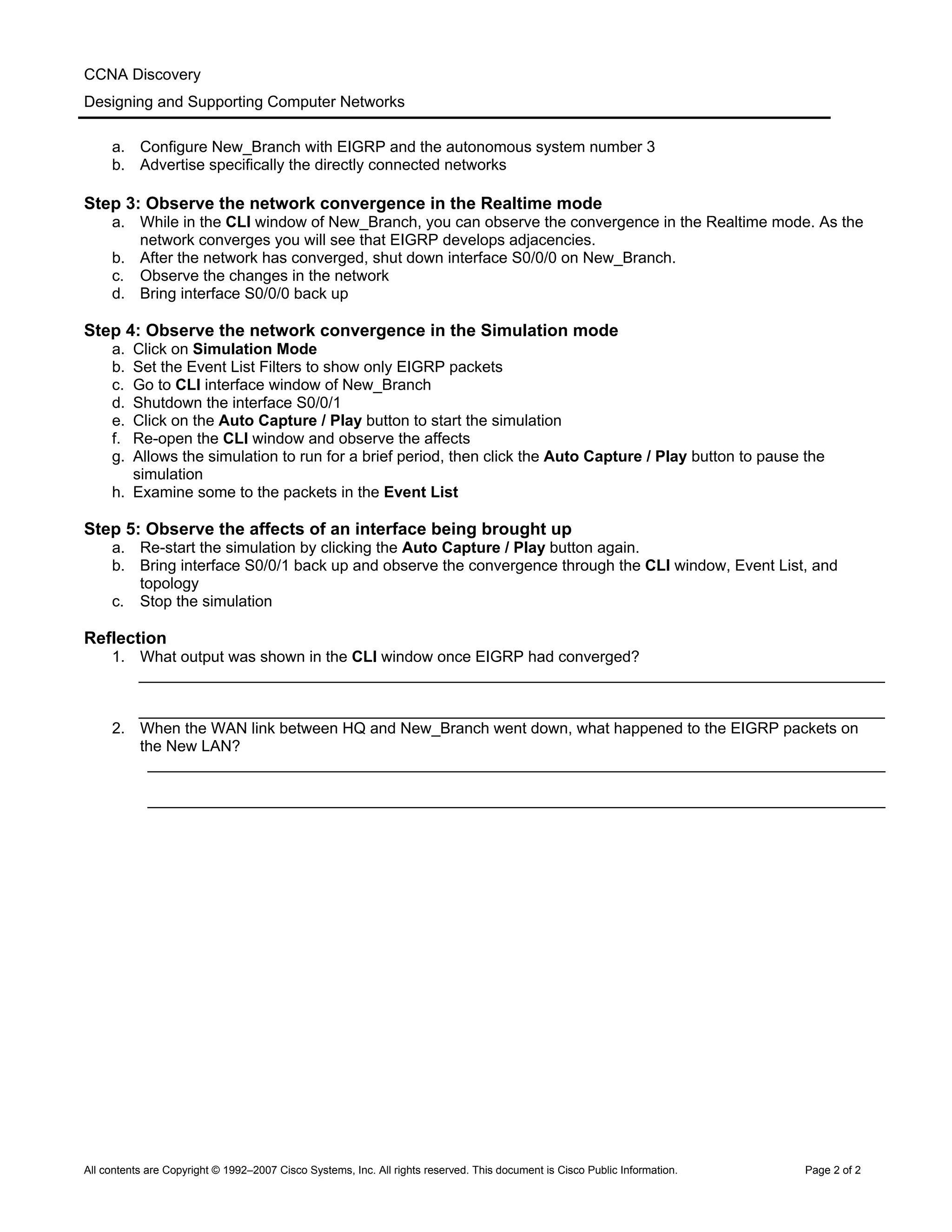

Step 2: Configure EIGRP to advertise specific network on New_Branch router

CCNA Discovery
a. Configure New_Branch with EIGRP and the autonomous system number 3
b. Advertise specifically the directly connected networks
Step 3: Observe the network convergence in the Realtime mode
a. While in the CLI window of New_Branch, you can observe the convergence in the Realtime mode. As the
network converges you will see that EIGRP develops adjacencies.
b. After the network has converged, shut down interface S0/0/0 on New_Branch.
c. Observe the changes in the network
d. Bring interface S0/0/0 back up
Step 4: Observe the network convergence in the Simulation mode
a. Click on Simulation Mode
b. Set the Event List Filters to show only EIGRP packets
c. Go to CLI interface window of New_Branch
d. Shutdown the interface S0/0/1
e. Click on the Auto Capture / Play button to start the simulation
f. Re-open the CLI window and observe the affects
g. Allows the simulation to run for a brief period, then click the Auto Capture / Play button to pause the
simulation
h. Examine some to the packets in the Event List
Step 5: Observe the affects of an interface being brought up
a. Re-start the simulation by clicking the Auto Capture / Play button again.
b. Bring interface S0/0/1 back up and observe the convergence through the CLI window, Event List, and
topology
c. Stop the simulation
Reflection
1. What output was shown in the CLI window once EIGRP had converged?
______________________________________________________________________________________
______________________________________________________________________________________
2. When the WAN link between HQ and New_Branch went down, what happened to the EIGRP packets on
the New LAN?
_____________________________________________________________________________________
_____________________________________________________________________________________

CCNA Discovery

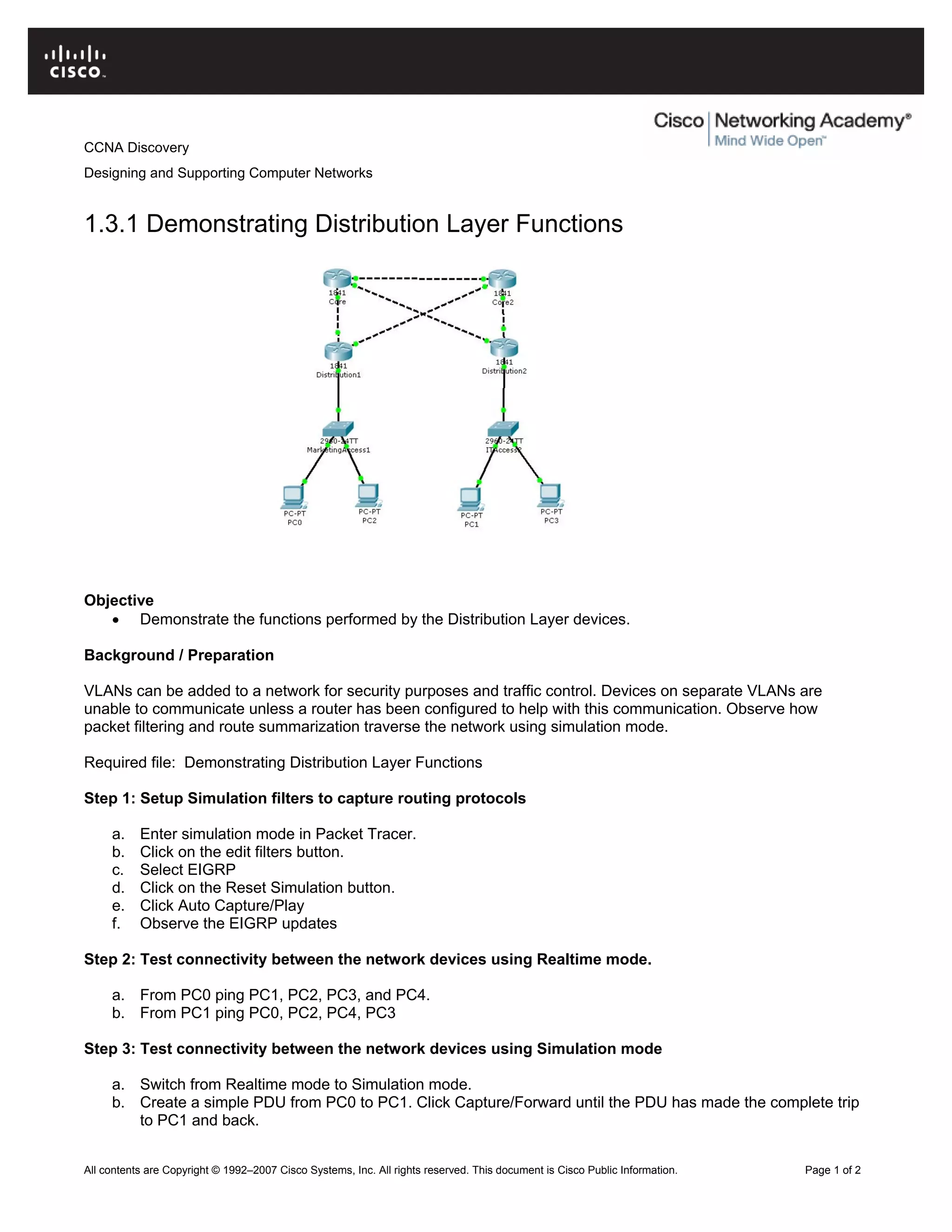

1.3.1 Demonstrating Distribution Layer Functions
Objective
• Demonstrate the functions performed by the Distribution Layer devices.
VLANs can be added to a network for security purposes and traffic control. Devices on separate VLANs are
unable to communicate unless a router has been configured to help with this communication. Observe how
packet filtering and route summarization traverse the network using simulation mode.
Required file: Demonstrating Distribution Layer Functions
Step 1: Setup Simulation filters to capture routing protocols
a. Enter simulation mode in Packet Tracer.
b. Click on the edit filters button.
c. Select EIGRP
d. Click on the Reset Simulation button.
e. Click Auto Capture/Play
f. Observe the EIGRP updates
Step 2: Test connectivity between the network devices using Realtime mode.
a. From PC0 ping PC1, PC2, PC3, and PC4.
b. From PC1 ping PC0, PC2, PC4, PC3
Step 3: Test connectivity between the network devices using Simulation mode
a. Switch from Realtime mode to Simulation mode.
b. Create a simple PDU from PC0 to PC1. Click Capture/Forward until the PDU has made the complete trip
to PC1 and back.

CCNA Discovery
c. In the event list view the PDU events.
d. Create another PDU from PC0 to PC2.

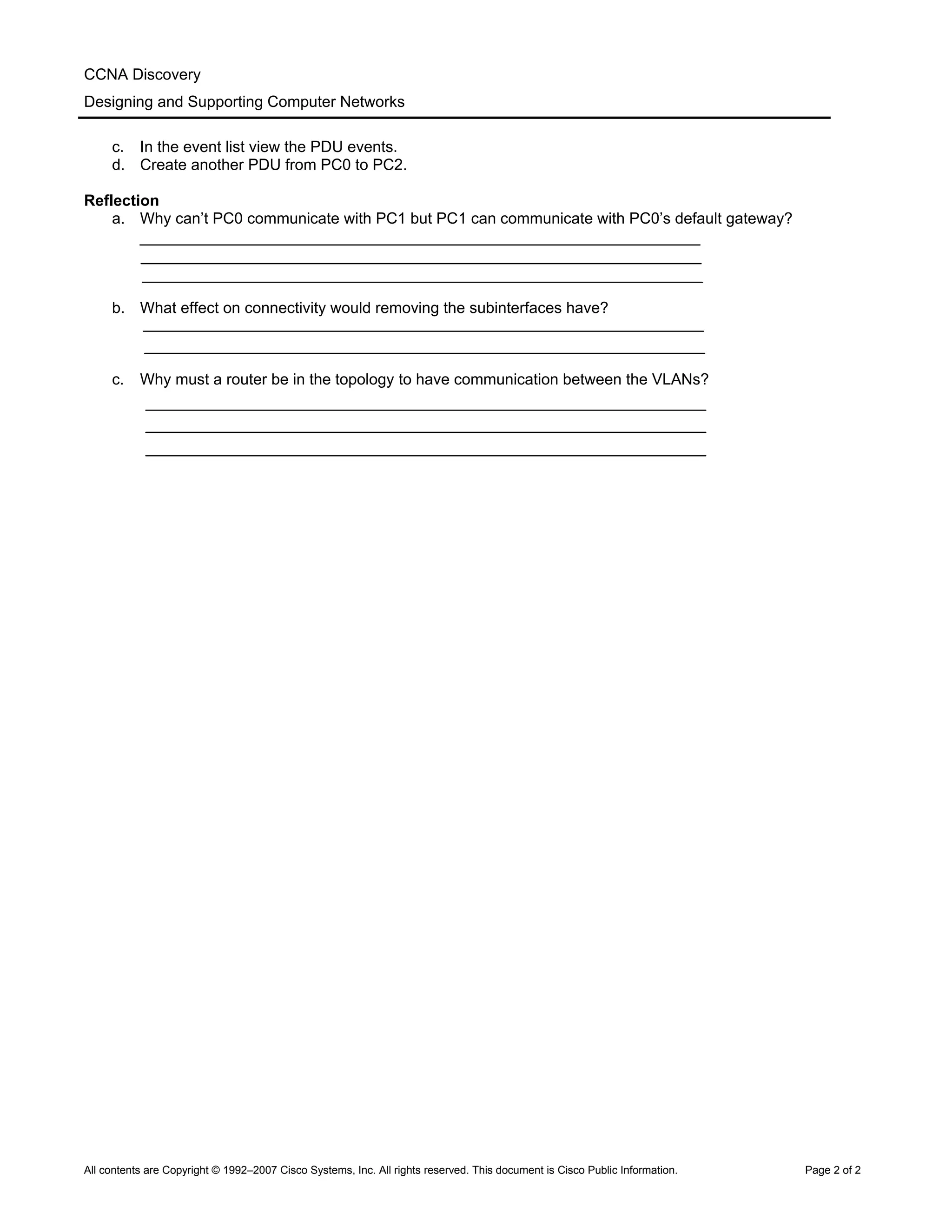

Reflection
a. Why can’t PC0 communicate with PC1 but PC1 can communicate with PC0’s default gateway?
b. What effect on connectivity would removing the subinterfaces have?
c. Why must a router be in the topology to have communication between the VLANs?

CCNA Discovery

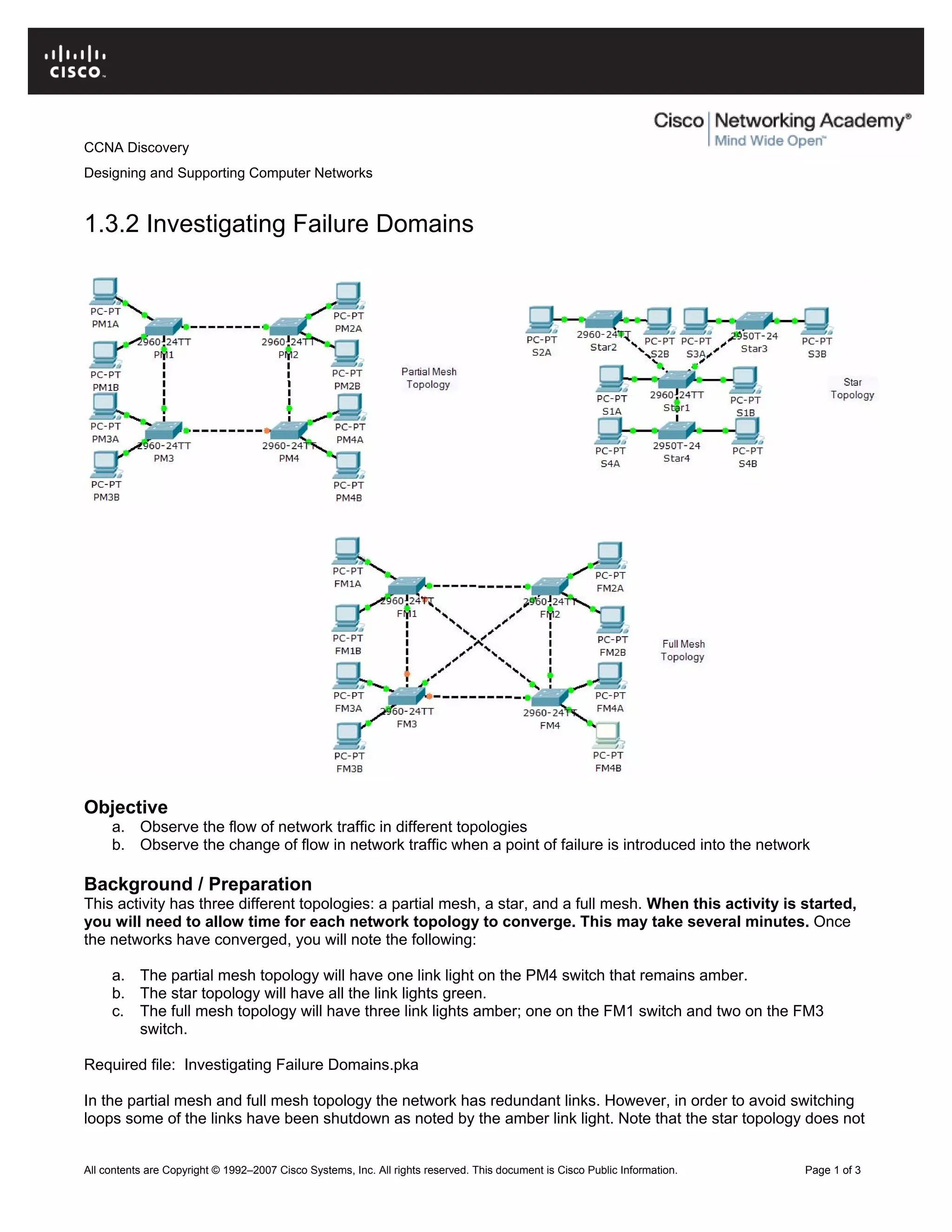

1.3.2 Investigating Failure Domains
Objective
a. Observe the flow of network traffic in different topologies
b. Observe the change of flow in network traffic when a point of failure is introduced into the network
This activity has three different topologies: a partial mesh, a star, and a full mesh. When this activity is started,
you will need to allow time for each network topology to converge. This may take several minutes. Once
the networks have converged, you will note the following:
a. The partial mesh topology will have one link light on the PM4 switch that remains amber.
b. The star topology will have all the link lights green.
c. The full mesh topology will have three link lights amber; one on the FM1 switch and two on the FM3
switch.
Required file: Investigating Failure Domains.pka
In the partial mesh and full mesh topology the network has redundant links. However, in order to avoid switching
loops some of the links have been shutdown as noted by the amber link light. Note that the star topology does not

CCNA Discovery

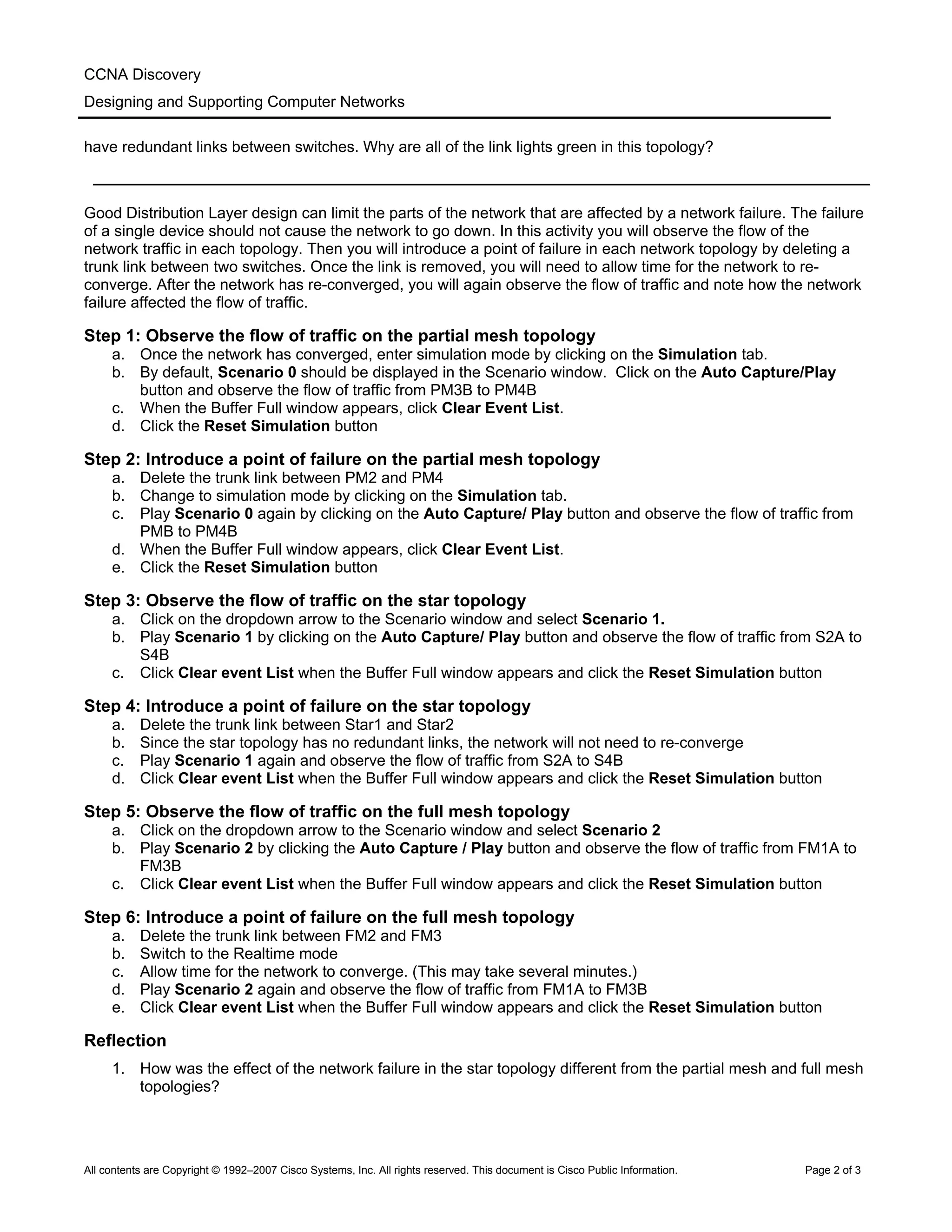

have redundant links between switches. Why are all of the link lights green in this topology?
___________________________________________________________________________
Good Distribution Layer design can limit the parts of the network that are affected by a network failure. The failure
of a single device should not cause the network to go down. In this activity you will observe the flow of the
network traffic in each topology. Then you will introduce a point of failure in each network topology by deleting a
trunk link between two switches. Once the link is removed, you will need to allow time for the network to re-
converge. After the network has re-converged, you will again observe the flow of traffic and note how the network
failure affected the flow of traffic.
Step 1: Observe the flow of traffic on the partial mesh topology
a. Once the network has converged, enter simulation mode by clicking on the Simulation tab.
b. By default, Scenario 0 should be displayed in the Scenario window. Click on the Auto Capture/Play
button and observe the flow of traffic from PM3B to PM4B
c. When the Buffer Full window appears, click Clear Event List.
d. Click the Reset Simulation button
Step 2: Introduce a point of failure on the partial mesh topology
a. Delete the trunk link between PM2 and PM4
b. Change to simulation mode by clicking on the Simulation tab.
c. Play Scenario 0 again by clicking on the Auto Capture/ Play button and observe the flow of traffic from
PMB to PM4B
d. When the Buffer Full window appears, click Clear Event List.
e. Click the Reset Simulation button
Step 3: Observe the flow of traffic on the star topology
a. Click on the dropdown arrow to the Scenario window and select Scenario 1.
b. Play Scenario 1 by clicking on the Auto Capture/ Play button and observe the flow of traffic from S2A to
S4B
c. Click Clear event List when the Buffer Full window appears and click the Reset Simulation button
Step 4: Introduce a point of failure on the star topology
a. Delete the trunk link between Star1 and Star2
b. Since the star topology has no redundant links, the network will not need to re-converge
c. Play Scenario 1 again and observe the flow of traffic from S2A to S4B
d. Click Clear event List when the Buffer Full window appears and click the Reset Simulation button
Step 5: Observe the flow of traffic on the full mesh topology
a. Click on the dropdown arrow to the Scenario window and select Scenario 2
b. Play Scenario 2 by clicking the Auto Capture / Play button and observe the flow of traffic from FM1A to
FM3B
c. Click Clear event List when the Buffer Full window appears and click the Reset Simulation button
Step 6: Introduce a point of failure on the full mesh topology
a. Delete the trunk link between FM2 and FM3
b. Switch to the Realtime mode
c. Allow time for the network to converge. (This may take several minutes.)
d. Play Scenario 2 again and observe the flow of traffic from FM1A to FM3B
e. Click Clear event List when the Buffer Full window appears and click the Reset Simulation button
Reflection
1. How was the effect of the network failure in the star topology different from the partial mesh and full mesh
topologies?

CCNA Discovery
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________
2. What effect did the removal of the link in the star topology have on the hosts that were attached to the
Star2 switch?
_______________________________________________________________________________________
_______________________________________________________________________________________
_______________________________________________________________________________________

CCNA Discovery

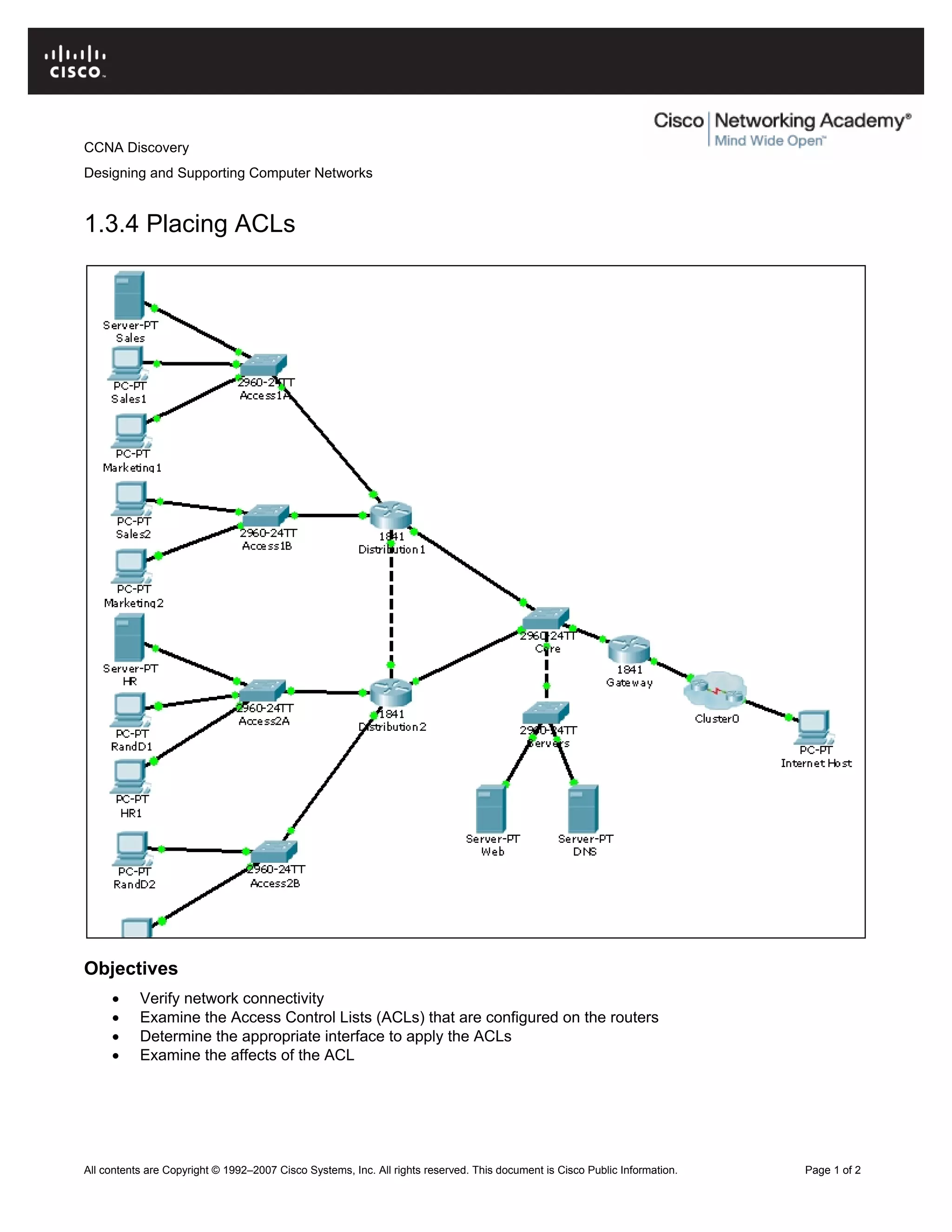

1.3.4 Placing ACLs
Objectives
• Verify network connectivity
• Examine the Access Control Lists (ACLs) that are configured on the routers
• Determine the appropriate interface to apply the ACLs
• Examine the affects of the ACL

CCNA Discovery

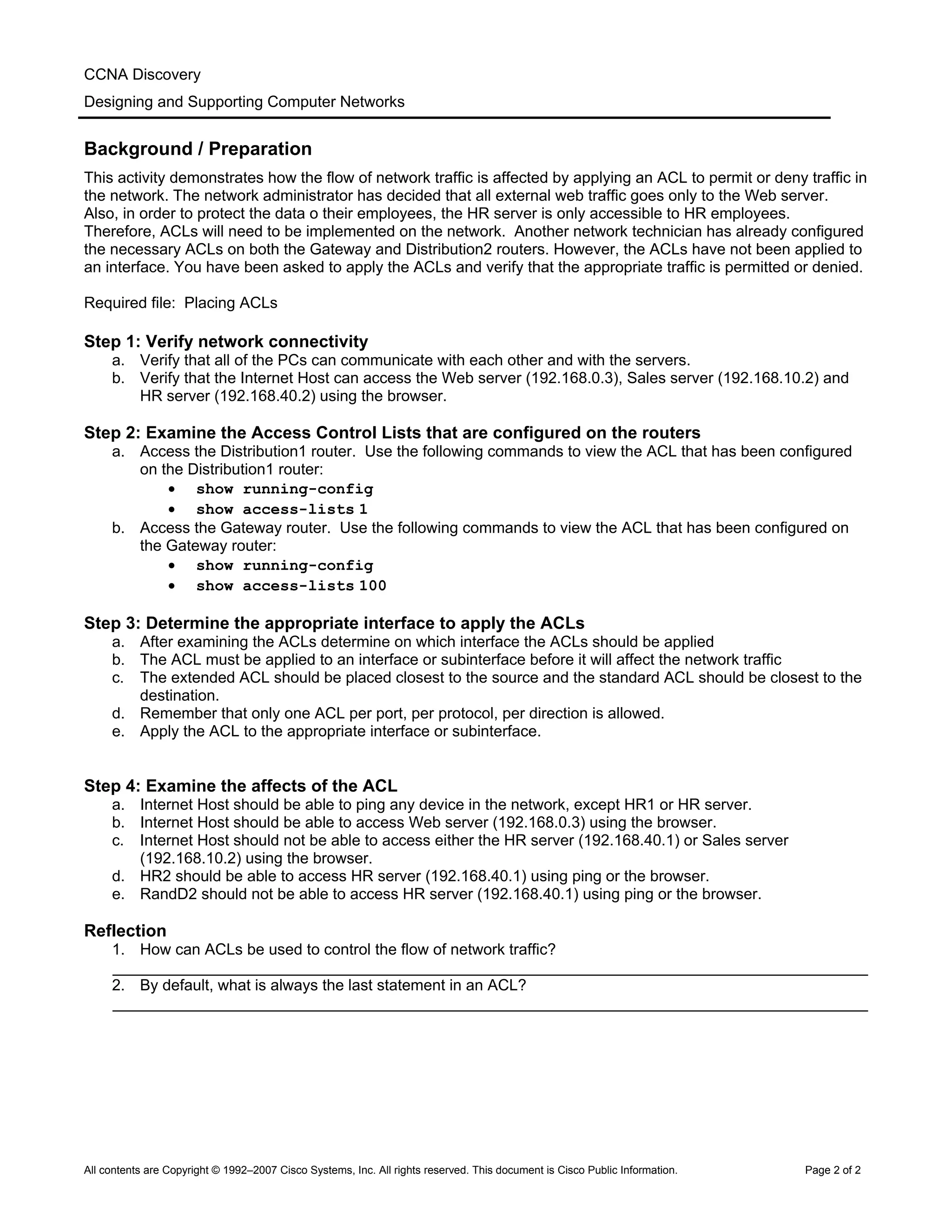

This activity demonstrates how the flow of network traffic is affected by applying an ACL to permit or deny traffic in
the network. The network administrator has decided that all external web traffic goes only to the Web server.
Also, in order to protect the data o their employees, the HR server is only accessible to HR employees.
Therefore, ACLs will need to be implemented on the network. Another network technician has already configured
the necessary ACLs on both the Gateway and Distribution2 routers. However, the ACLs have not been applied to
an interface. You have been asked to apply the ACLs and verify that the appropriate traffic is permitted or denied.
Required file: Placing ACLs
Step 1: Verify network connectivity
a. Verify that all of the PCs can communicate with each other and with the servers.
b. Verify that the Internet Host can access the Web server (192.168.0.3), Sales server (192.168.10.2) and
HR server (192.168.40.2) using the browser.
Step 2: Examine the Access Control Lists that are configured on the routers
a. Access the Distribution1 router. Use the following commands to view the ACL that has been configured
on the Distribution1 router:
• show running-config
• show access-lists 1
b. Access the Gateway router. Use the following commands to view the ACL that has been configured on
the Gateway router:
Step 3: Determine the appropriate interface to apply the ACLs
a. After examining the ACLs determine on which interface the ACLs should be applied
b. The ACL must be applied to an interface or subinterface before it will affect the network traffic
c. The extended ACL should be placed closest to the source and the standard ACL should be closest to the
destination.
d. Remember that only one ACL per port, per protocol, per direction is allowed.
e. Apply the ACL to the appropriate interface or subinterface.
Step 4: Examine the affects of the ACL
a. Internet Host should be able to ping any device in the network, except HR1 or HR server.
b. Internet Host should be able to access Web server (192.168.0.3) using the browser.
c. Internet Host should not be able to access either the HR server (192.168.40.1) or Sales server
(192.168.10.2) using the browser.
d. HR2 should be able to access HR server (192.168.40.1) using ping or the browser.
e. RandD2 should not be able to access HR server (192.168.40.1) using ping or the browser.
Reflection
1. How can ACLs be used to control the flow of network traffic?
_______________________________________________________________________________________
2. By default, what is always the last statement in an ACL?
_______________________________________________________________________________________

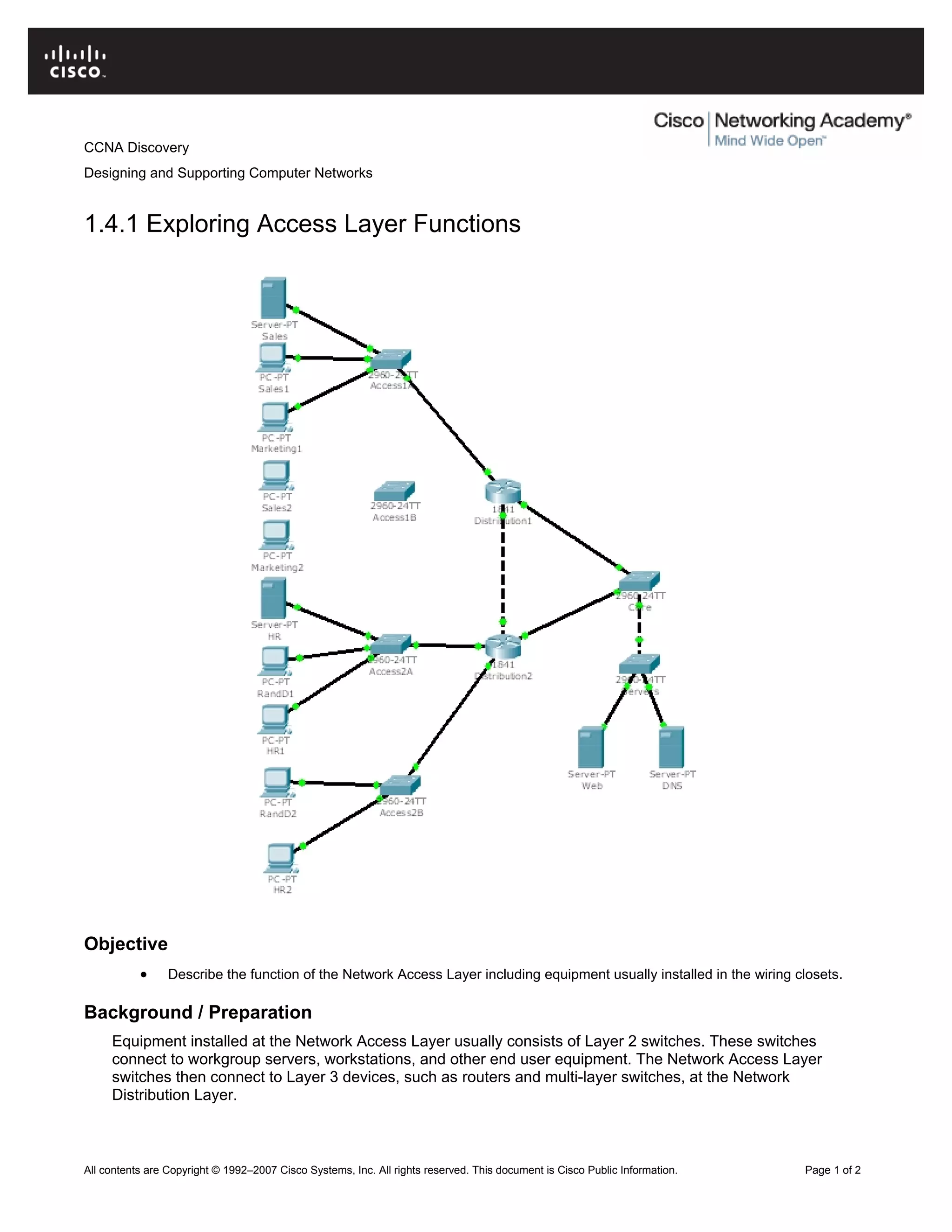

CCNA Discovery
1.4.1 Exploring Access Layer Functions
Objective
• Describe the function of the Network Access Layer including equipment usually installed in the wiring closets.
Equipment installed at the Network Access Layer usually consists of Layer 2 switches. These switches
connect to workgroup servers, workstations, and other end user equipment. The Network Access Layer
switches then connect to Layer 3 devices, such as routers and multi-layer switches, at the Network
Distribution Layer.

CCNA Discovery

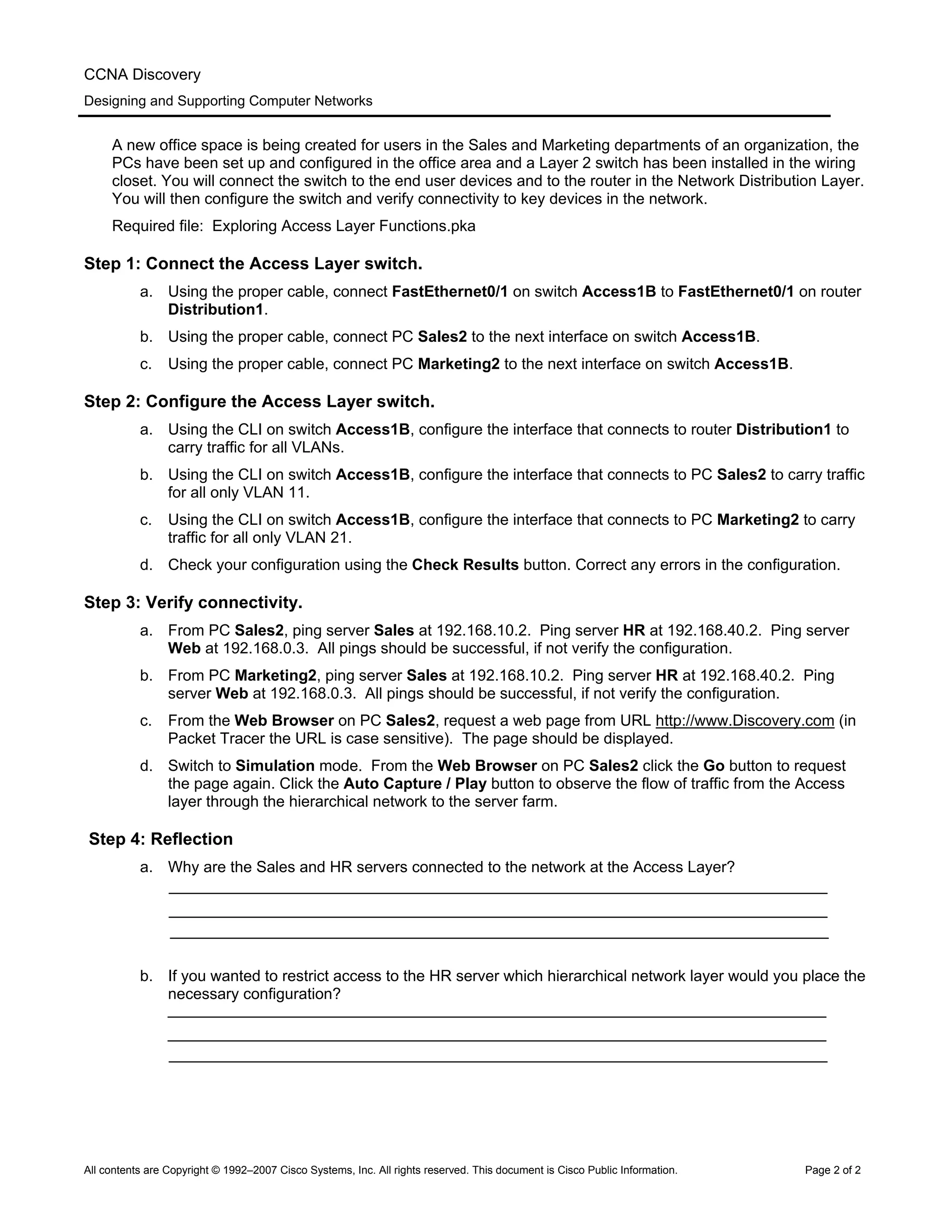

A new office space is being created for users in the Sales and Marketing departments of an organization, the
PCs have been set up and configured in the office area and a Layer 2 switch has been installed in the wiring
closet. You will connect the switch to the end user devices and to the router in the Network Distribution Layer.
You will then configure the switch and verify connectivity to key devices in the network.
Required file: Exploring Access Layer Functions.pka
Step 1: Connect the Access Layer switch.
a. Using the proper cable, connect FastEthernet0/1 on switch Access1B to FastEthernet0/1 on router
Distribution1.
b. Using the proper cable, connect PC Sales2 to the next interface on switch Access1B.
c. Using the proper cable, connect PC Marketing2 to the next interface on switch Access1B.
Step 2: Configure the Access Layer switch.
a. Using the CLI on switch Access1B, configure the interface that connects to router Distribution1 to
carry traffic for all VLANs.
b. Using the CLI on switch Access1B, configure the interface that connects to PC Sales2 to carry traffic
for all only VLAN 11.
c. Using the CLI on switch Access1B, configure the interface that connects to PC Marketing2 to carry
traffic for all only VLAN 21.
d. Check your configuration using the Check Results button. Correct any errors in the configuration.
Step 3: Verify connectivity.
a. From PC Sales2, ping server Sales at 192.168.10.2. Ping server HR at 192.168.40.2. Ping server
Web at 192.168.0.3. All pings should be successful, if not verify the configuration.
b. From PC Marketing2, ping server Sales at 192.168.10.2. Ping server HR at 192.168.40.2. Ping
server Web at 192.168.0.3. All pings should be successful, if not verify the configuration.
c. From the Web Browser on PC Sales2, request a web page from URL http://www.Discovery.com (in
Packet Tracer the URL is case sensitive). The page should be displayed.
d. Switch to Simulation mode. From the Web Browser on PC Sales2 click the Go button to request
the page again. Click the Auto Capture / Play button to observe the flow of traffic from the Access
layer through the hierarchical network to the server farm.
Step 4: Reflection
a. Why are the Sales and HR servers connected to the network at the Access Layer?
b. If you wanted to restrict access to the HR server which hierarchical network layer would you place the
necessary configuration?

CCNA Discovery

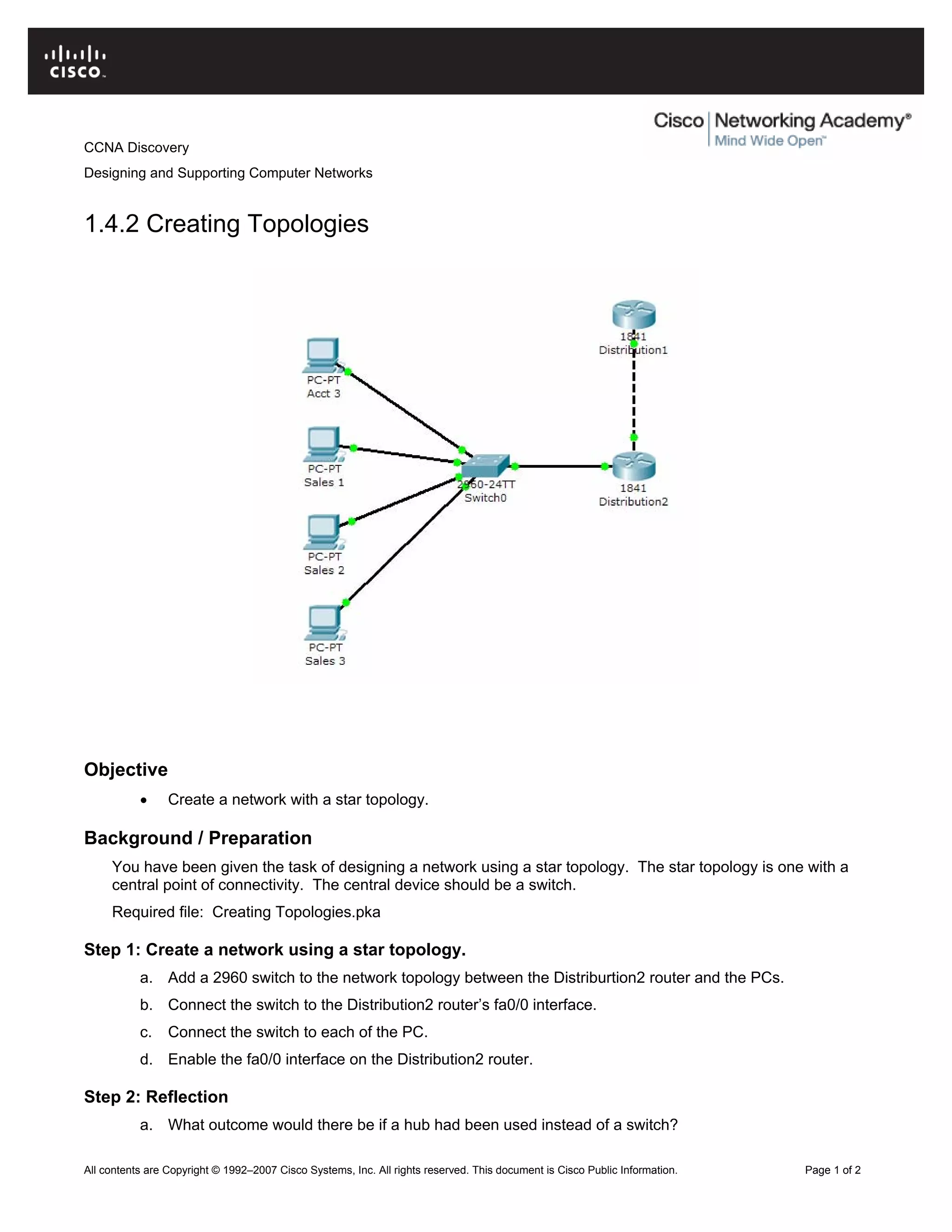

1.4.2 Creating Topologies
Objective
• Create a network with a star topology.
You have been given the task of designing a network using a star topology. The star topology is one with a
central point of connectivity. The central device should be a switch.
Required file: Creating Topologies.pka
Step 1: Create a network using a star topology.
a. Add a 2960 switch to the network topology between the Distriburtion2 router and the PCs.
b. Connect the switch to the Distribution2 router’s fa0/0 interface.
c. Connect the switch to each of the PC.
d. Enable the fa0/0 interface on the Distribution2 router.
Step 2: Reflection
a. What outcome would there be if a hub had been used instead of a switch?

CCNA Discovery
____________________________________________________________
____________________________________________________________

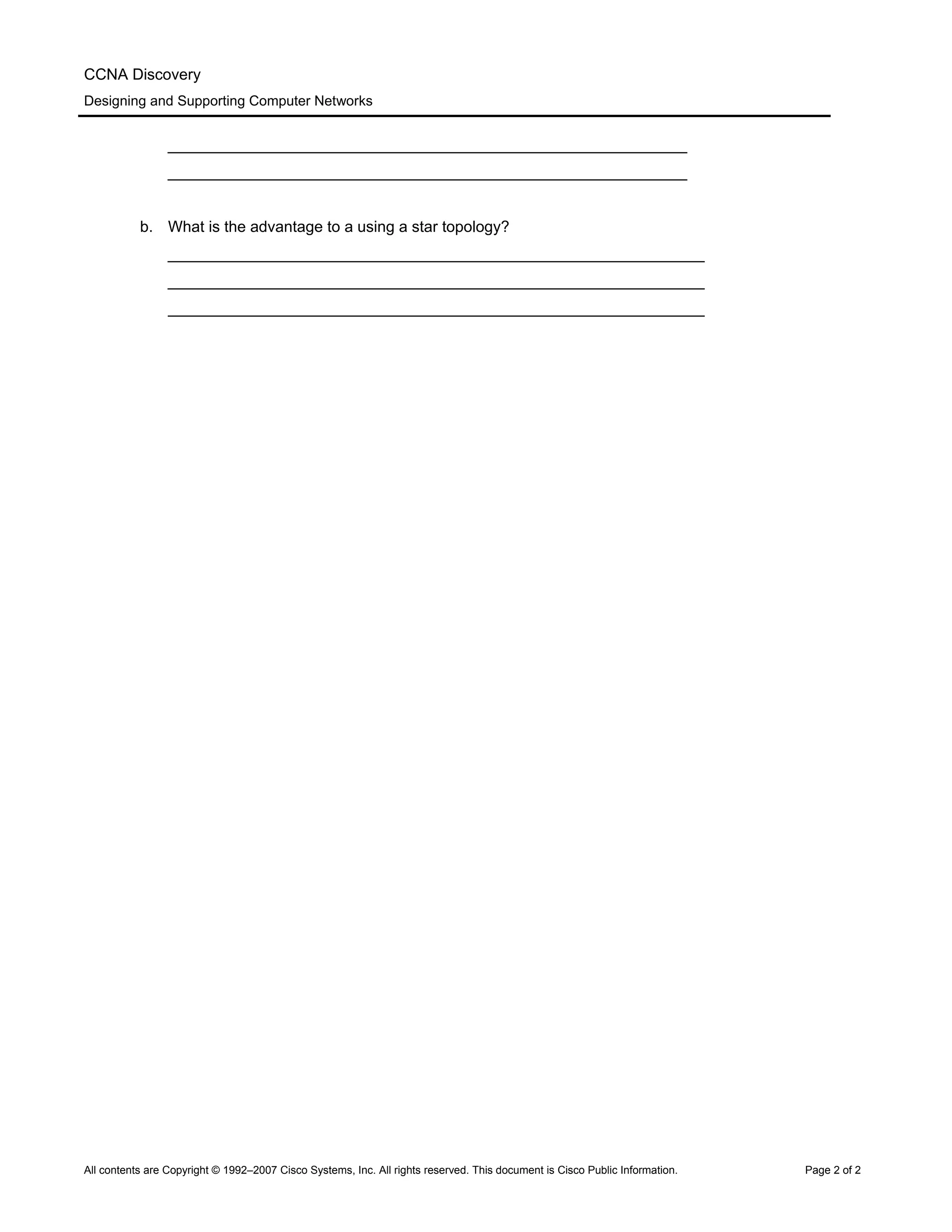

b. What is the advantage to a using a star topology?
______________________________________________________________
______________________________________________________________
______________________________________________________________

CCNA Discovery

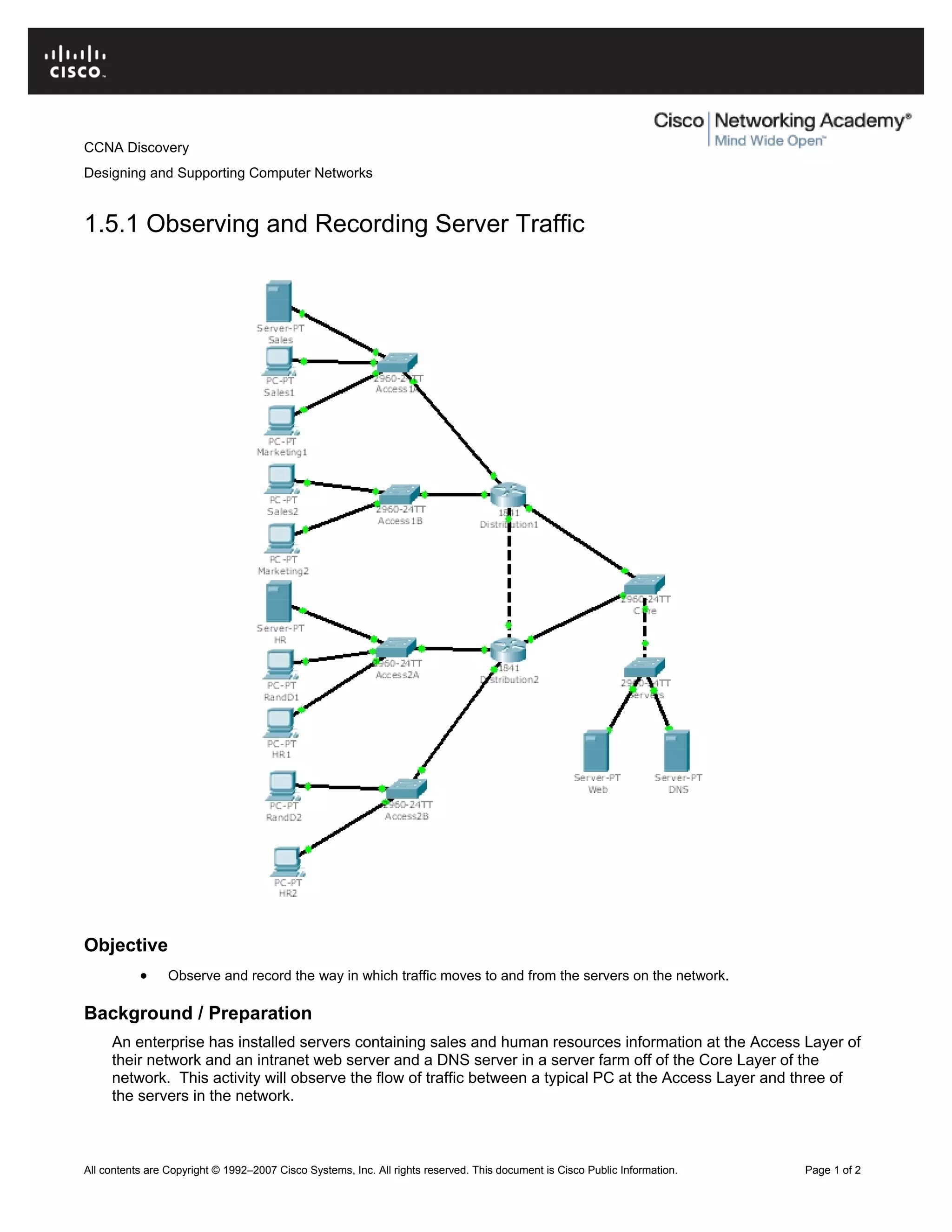

1.5.1 Observing and Recording Server Traffic
Objective
• Observe and record the way in which traffic moves to and from the servers on the network.
An enterprise has installed servers containing sales and human resources information at the Access Layer of
their network and an intranet web server and a DNS server in a server farm off of the Core Layer of the
network. This activity will observe the flow of traffic between a typical PC at the Access Layer and three of
the servers in the network.

CCNA Discovery

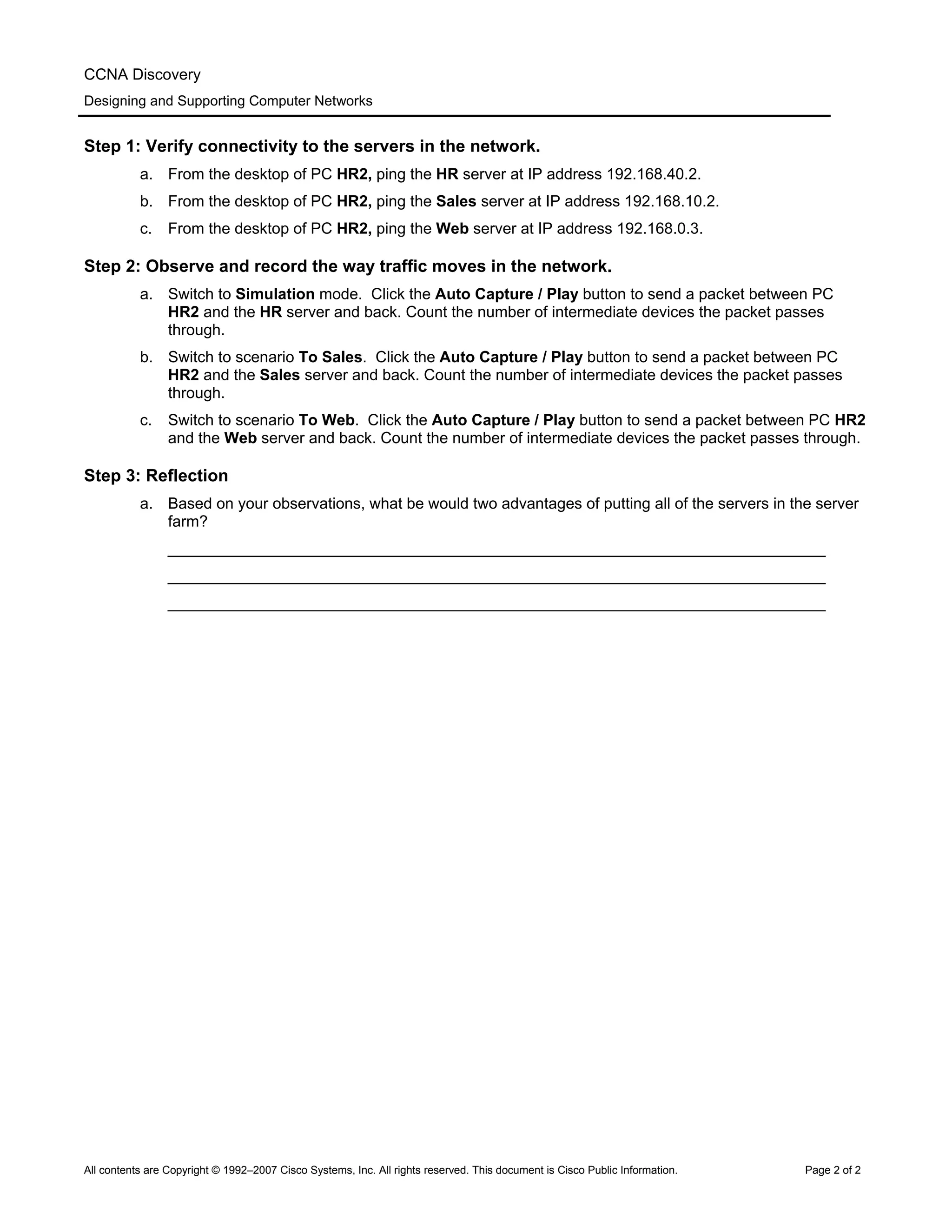

Step 1: Verify connectivity to the servers in the network.
a. From the desktop of PC HR2, ping the HR server at IP address 192.168.40.2.
b. From the desktop of PC HR2, ping the Sales server at IP address 192.168.10.2.
c. From the desktop of PC HR2, ping the Web server at IP address 192.168.0.3.
Step 2: Observe and record the way traffic moves in the network.
a. Switch to Simulation mode. Click the Auto Capture / Play button to send a packet between PC
HR2 and the HR server and back. Count the number of intermediate devices the packet passes
through.
b. Switch to scenario To Sales. Click the Auto Capture / Play button to send a packet between PC
HR2 and the Sales server and back. Count the number of intermediate devices the packet passes
through.
c. Switch to scenario To Web. Click the Auto Capture / Play button to send a packet between PC HR2
and the Web server and back. Count the number of intermediate devices the packet passes through.
Step 3: Reflection
a. Based on your observations, what be would two advantages of putting all of the servers in the server
farm?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery

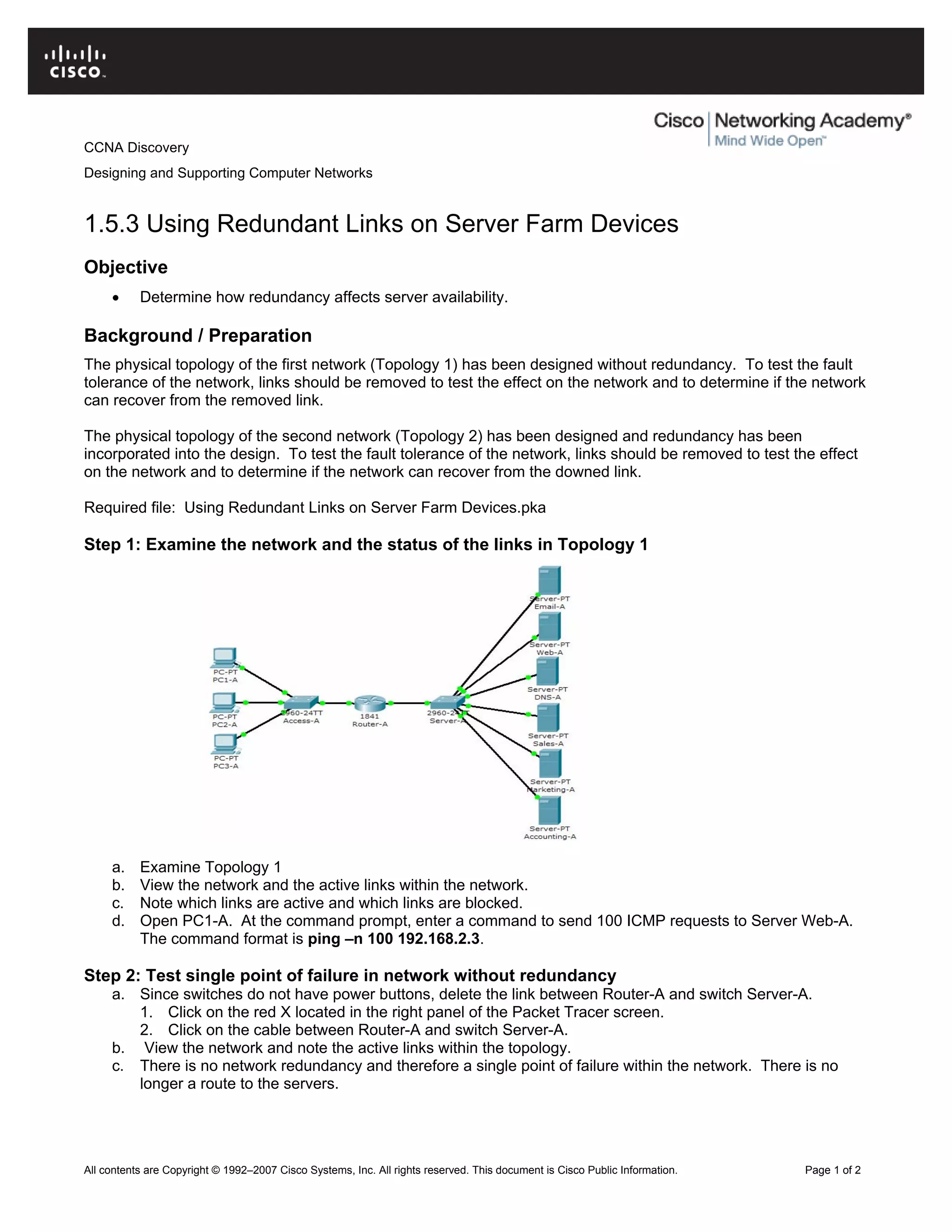

1.5.3 Using Redundant Links on Server Farm Devices
Objective
• Determine how redundancy affects server availability.
The physical topology of the first network (Topology 1) has been designed without redundancy. To test the fault
tolerance of the network, links should be removed to test the effect on the network and to determine if the network
can recover from the removed link.
The physical topology of the second network (Topology 2) has been designed and redundancy has been
incorporated into the design. To test the fault tolerance of the network, links should be removed to test the effect
on the network and to determine if the network can recover from the downed link.
Required file: Using Redundant Links on Server Farm Devices.pka
Step 1: Examine the network and the status of the links in Topology 1
a. Examine Topology 1
b. View the network and the active links within the network.
c. Note which links are active and which links are blocked.
d. Open PC1-A. At the command prompt, enter a command to send 100 ICMP requests to Server Web-A.
The command format is ping –n 100 192.168.2.3.
Step 2: Test single point of failure in network without redundancy
a. Since switches do not have power buttons, delete the link between Router-A and switch Server-A.
1. Click on the red X located in the right panel of the Packet Tracer screen.
2. Click on the cable between Router-A and switch Server-A.
b. View the network and note the active links within the topology.
c. There is no network redundancy and therefore a single point of failure within the network. There is no
longer a route to the servers.

CCNA Discovery

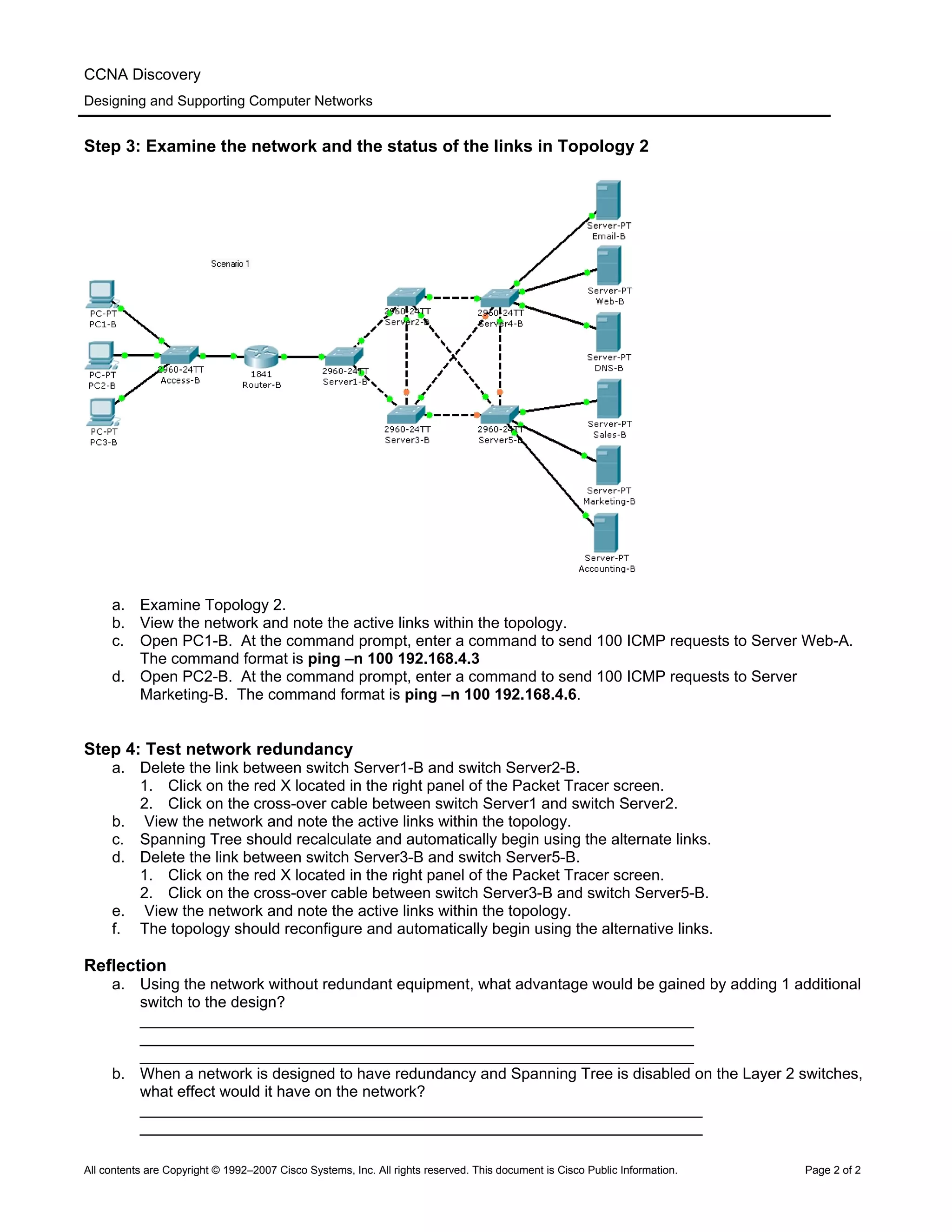

Step 3: Examine the network and the status of the links in Topology 2
a. Examine Topology 2.
c. Open PC1-B. At the command prompt, enter a command to send 100 ICMP requests to Server Web-A.
The command format is ping –n 100 192.168.4.3
d. Open PC2-B. At the command prompt, enter a command to send 100 ICMP requests to Server
Marketing-B. The command format is ping –n 100 192.168.4.6.
Step 4: Test network redundancy
a. Delete the link between switch Server1-B and switch Server2-B.
2. Click on the cross-over cable between switch Server1 and switch Server2.
c. Spanning Tree should recalculate and automatically begin using the alternate links.
d. Delete the link between switch Server3-B and switch Server5-B.
2. Click on the cross-over cable between switch Server3-B and switch Server5-B.
e. View the network and note the active links within the topology.
f. The topology should reconfigure and automatically begin using the alternative links.
Reflection
a. Using the network without redundant equipment, what advantage would be gained by adding 1 additional
switch to the design?
________________________________________________________________
________________________________________________________________
________________________________________________________________
b. When a network is designed to have redundancy and Spanning Tree is disabled on the Layer 2 switches,
what effect would it have on the network?
_________________________________________________________________
_________________________________________________________________

CCNA Discovery
3.1.1 Investigating Existing Network Devices
Objective
• Use router and switch commands to obtain information about an existing network.
You have been given the task of documenting a large campus network. When you arrive at the site you
discover that the network administrator is not available and he has the only keys to the wiring closets and the
cabinets containing the existing network documentation. Since information on the network is needed as soon
as possible, you decide to discover as much information as possible using router and switch commands.
You are given access to the administrator’s PC and are told that the Telnet access password for all devices is
cisco and the password to enter privileged exec mode is class.
Step 1: Discover and document the first device.
a. Access the Admin PC and issue the ipconfig command from the command prompt to discover the
default gateway.
b. Telnet to the IP address of the gateway device and enter privileged exec mode using the passwords
given above.
c. Issue IOS commands such as show running-config, show ip route, show interfaces, show ip
interface brief, show version and other commands to learn about the device.
d. Issue IOS commands such as show cdp neighbors and show cdp neighbors detail to discover
information about connected devices. It may take a few minutes for the network to converge. If you do
not see any neighboring devices initially, repeat the command until you do.
e. Document the information you gather in the appropriate table below.
f. Close the Telnet session by issuing the exit command.
Step 2: Discover the remaining devices.

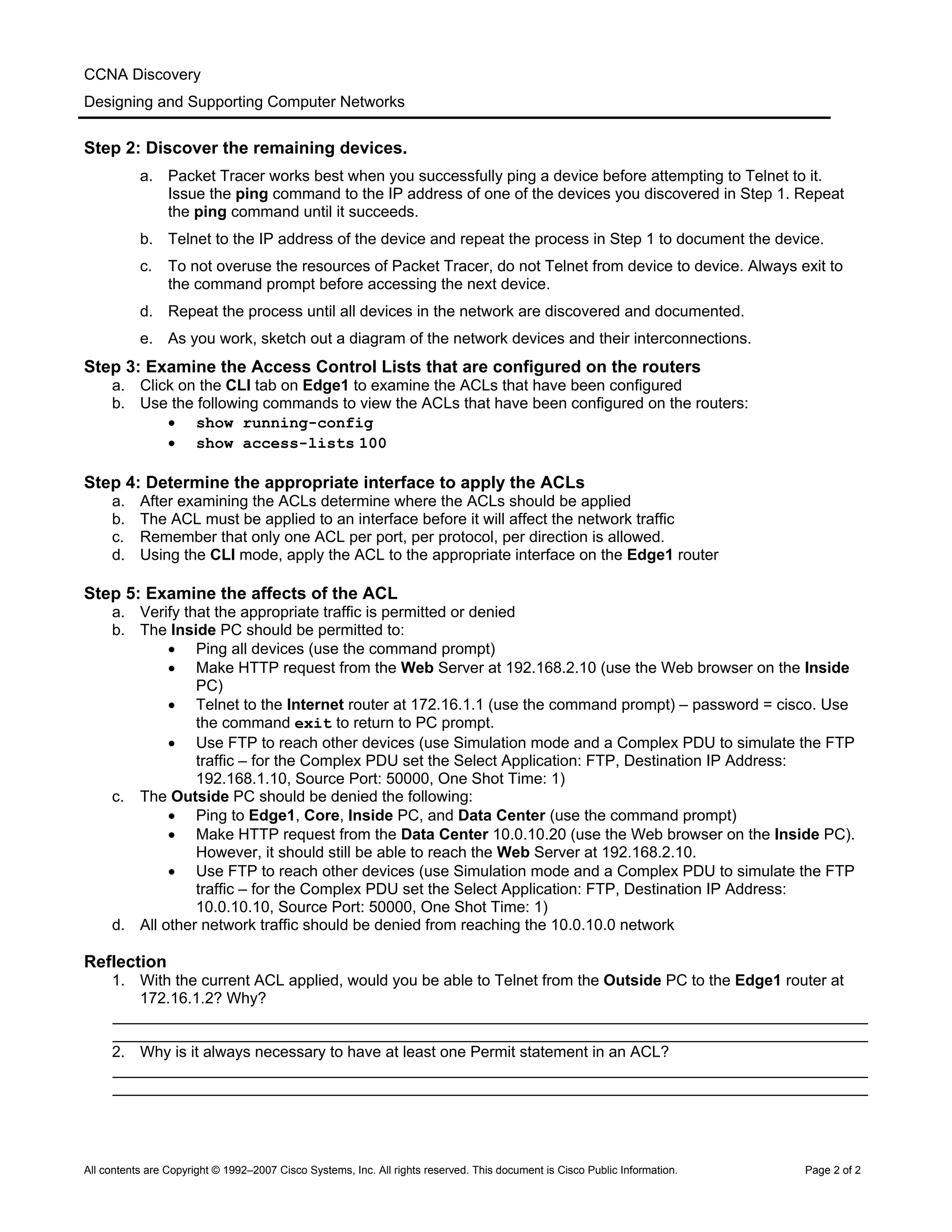

a. Packet Tracer works best when you successfully ping a device before attempting to Telnet to it.
Issue the ping command to the IP address of one of the devices you discovered in Step 1. Repeat
the ping command until it succeeds.
b. Telnet to the IP address of the device and repeat the process in Step 1 to document the device.
c. To not overuse the resources of Packet Tracer, do not Telnet from device to device. Always exit to
the command prompt before accessing the next device.
d. Repeat the process until all devices in the network are discovered and documented.

CCNA Discovery
e. As you work, sketch out a diagram of the network devices and their interconnections.
Device Tables:
Router
Hostname _________________________
Model _________________________ IOS version ______________________________

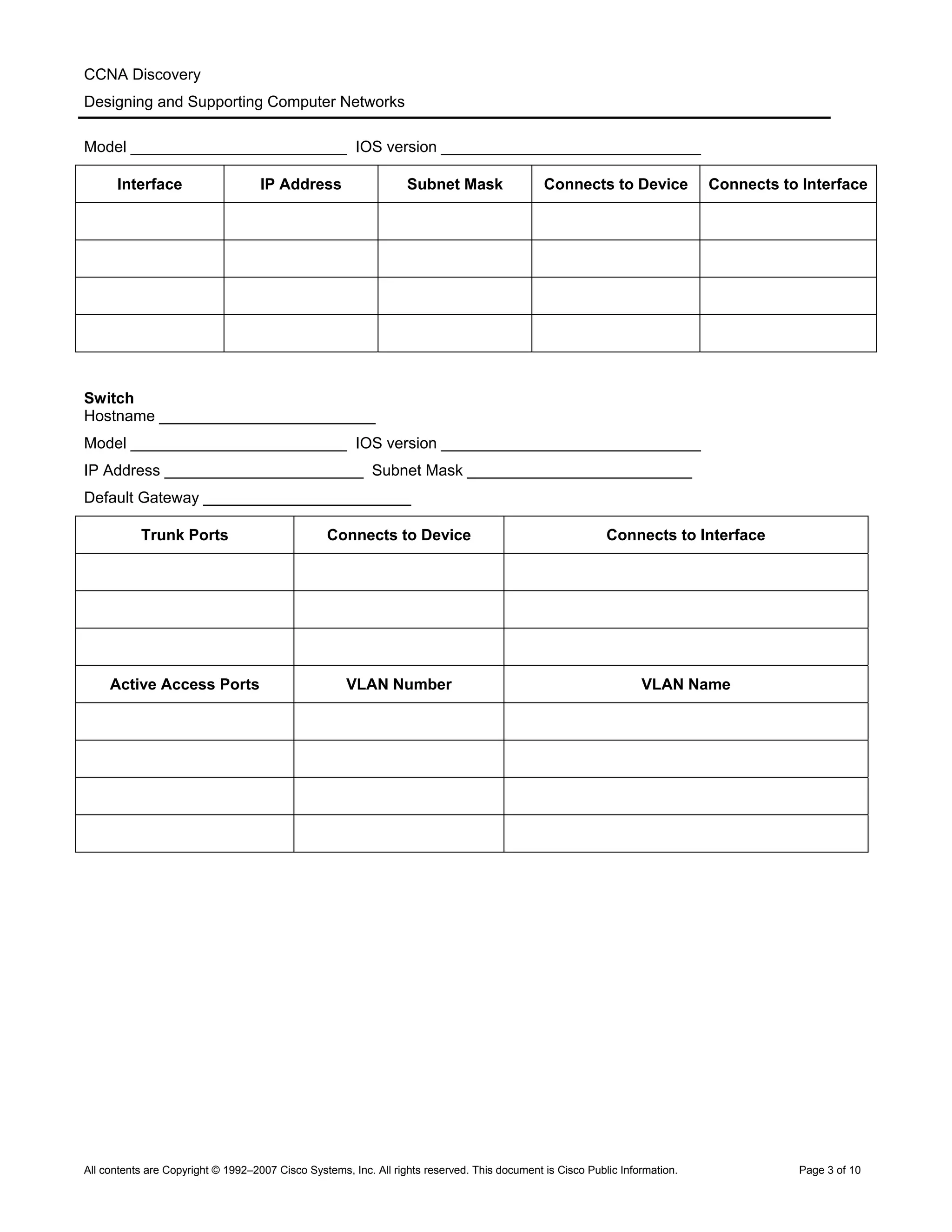

Interface IP Address Subnet Mask Connects to Device Connects to Interface
Router
Hostname _________________________
Router
Hostname _________________________
Router
Hostname _________________________

CCNA Discovery

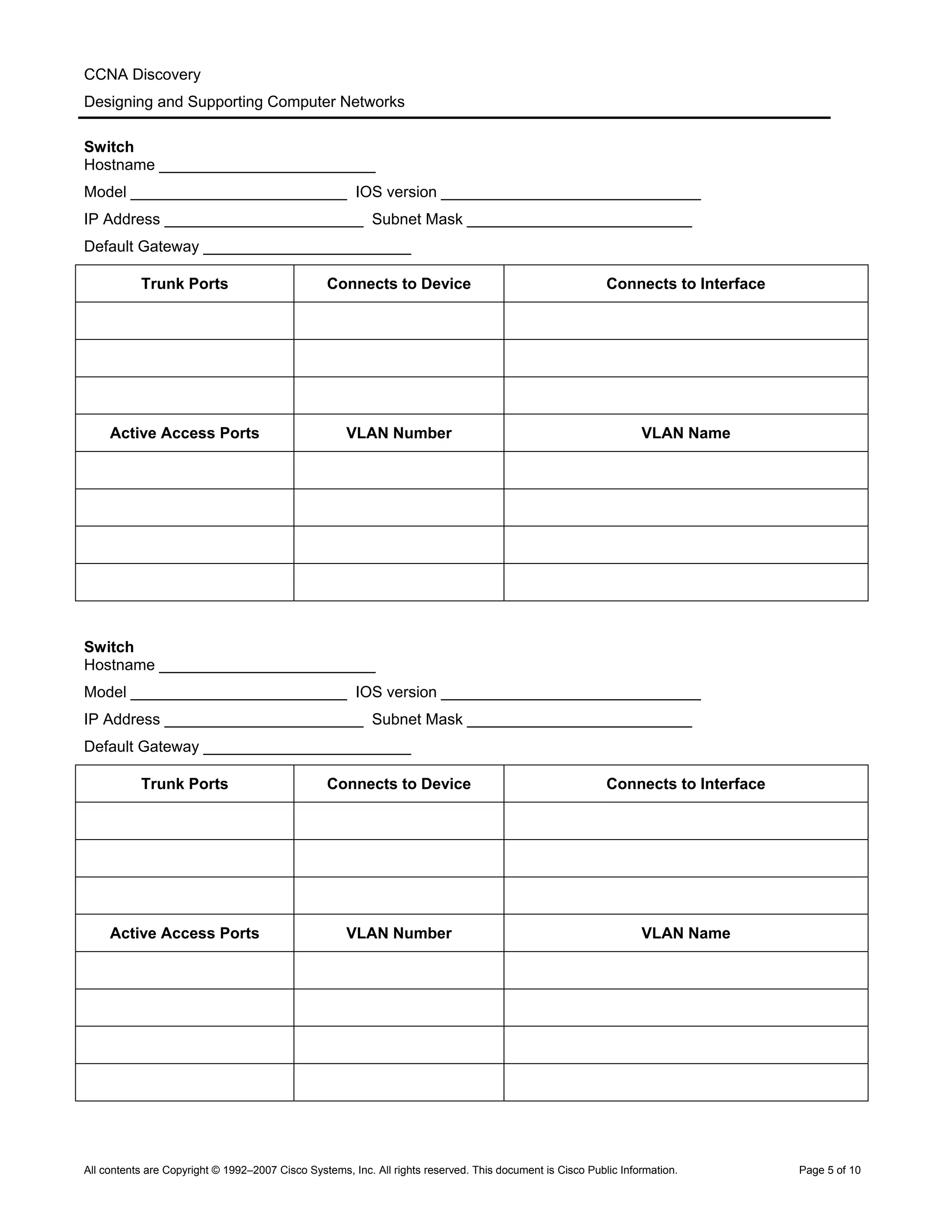

Switch
Hostname _________________________
IP Address _______________________ Subnet Mask __________________________
Default Gateway ________________________
Trunk Ports Connects to Device Connects to Interface
Active Access Ports VLAN Number VLAN Name

CCNA Discovery
Switch
Hostname _________________________
Default Gateway ________________________
Switch
Hostname _________________________
Default Gateway ________________________

CCNA Discovery
Network Diagram:

CCNA Discovery

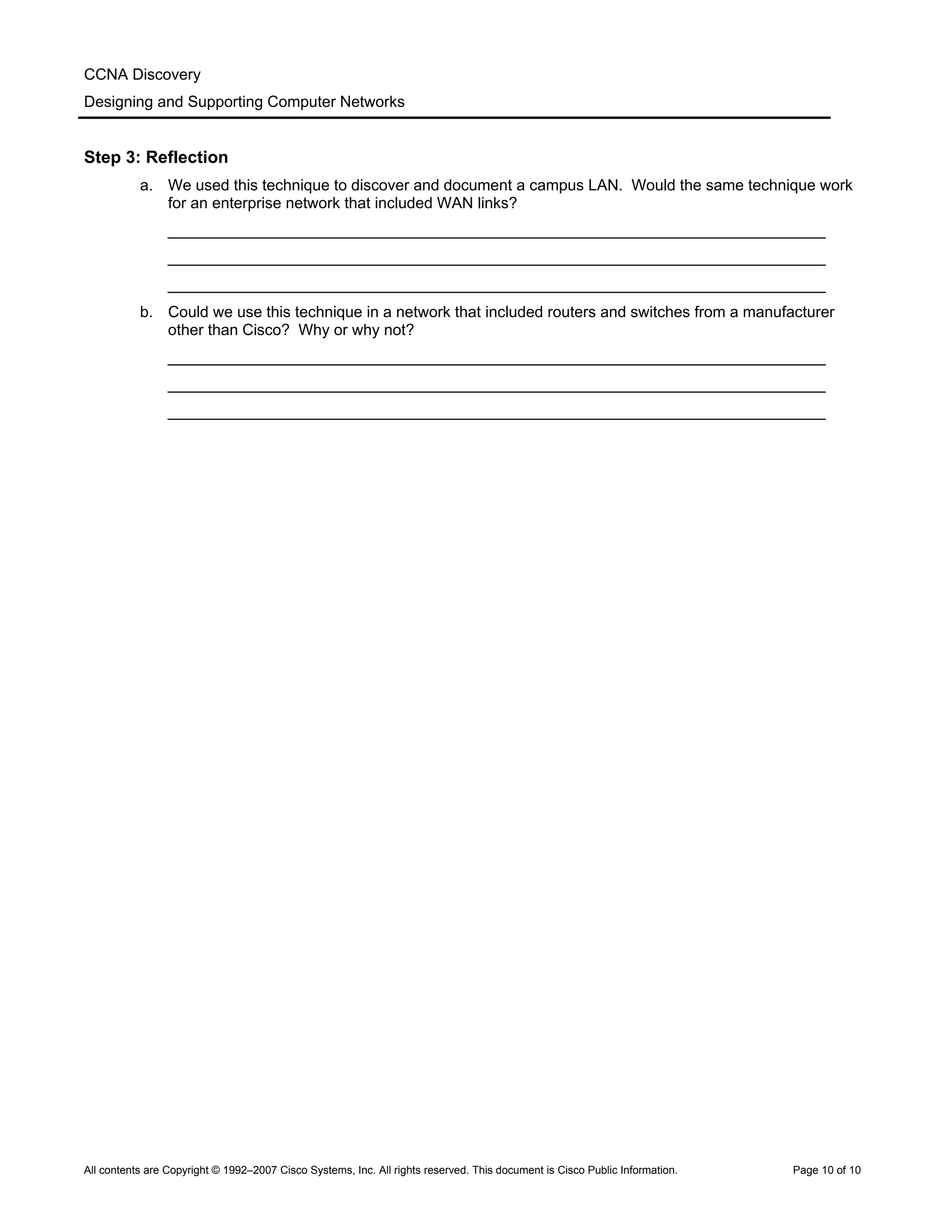

Step 3: Reflection
a. We used this technique to discover and document a campus LAN. Would the same technique work
for an enterprise network that included WAN links?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
b. Could we use this technique in a network that included routers and switches from a manufacturer
other than Cisco? Why or why not?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery

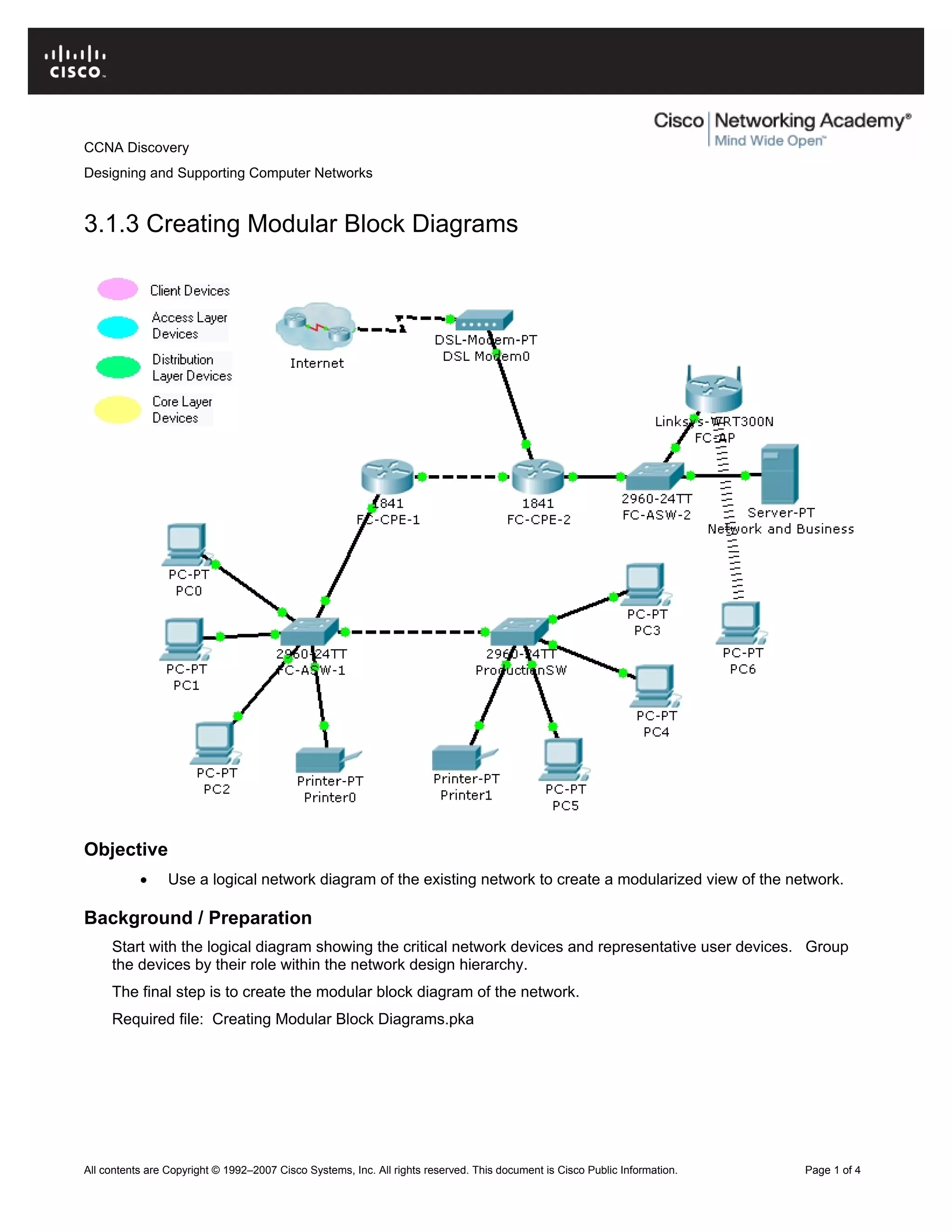

3.1.3 Creating Modular Block Diagrams
Objective
• Use a logical network diagram of the existing network to create a modularized view of the network.
Start with the logical diagram showing the critical network devices and representative user devices. Group
the devices by their role within the network design hierarchy.
The final step is to create the modular block diagram of the network.
Required file: Creating Modular Block Diagrams.pka

CCNA Discovery

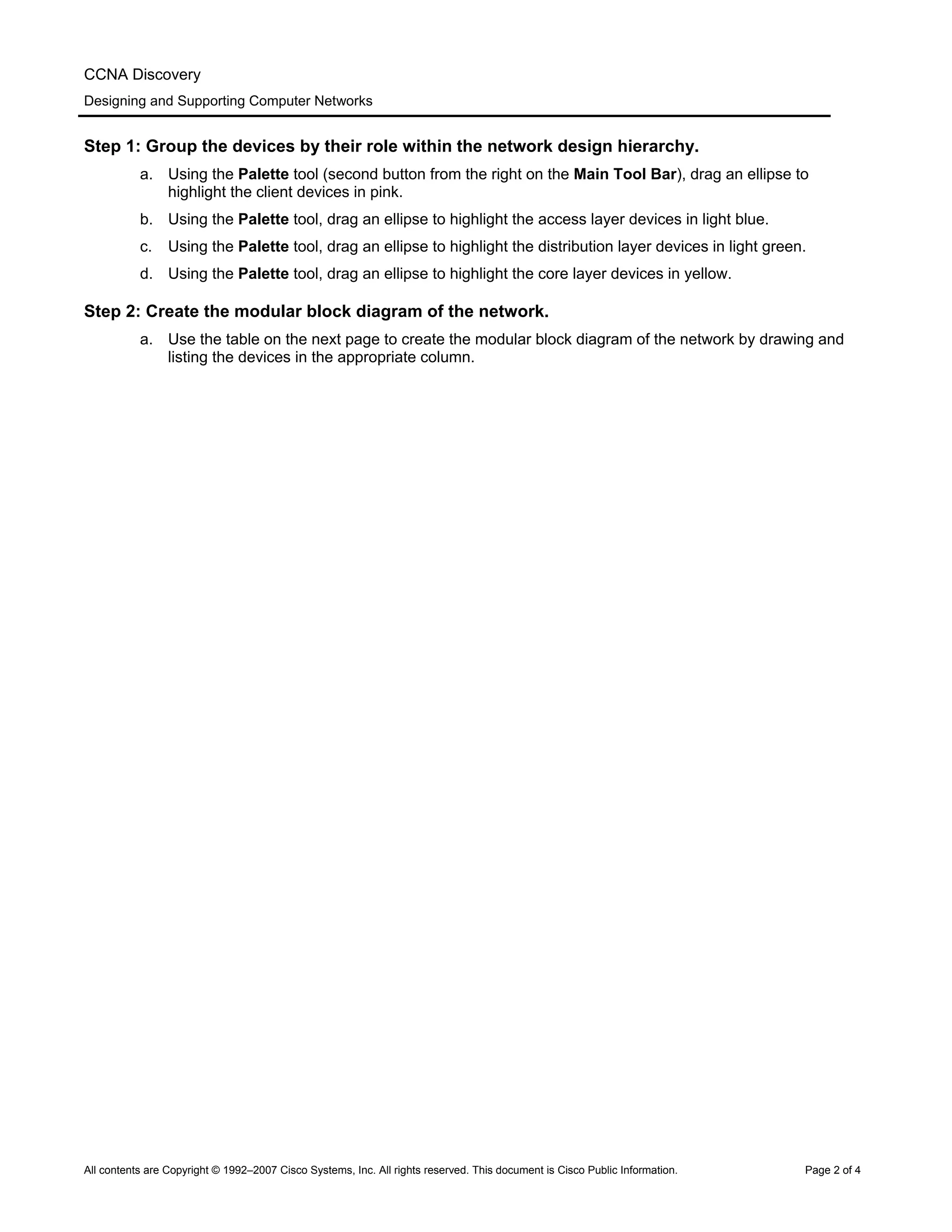

Step 1: Group the devices by their role within the network design hierarchy.
a. Using the Palette tool (second button from the right on the Main Tool Bar), drag an ellipse to
highlight the client devices in pink.
b. Using the Palette tool, drag an ellipse to highlight the access layer devices in light blue.
c. Using the Palette tool, drag an ellipse to highlight the distribution layer devices in light green.
d. Using the Palette tool, drag an ellipse to highlight the core layer devices in yellow.
Step 2: Create the modular block diagram of the network.
a. Use the table on the next page to create the modular block diagram of the network by drawing and
listing the devices in the appropriate column.

CCNA Discovery

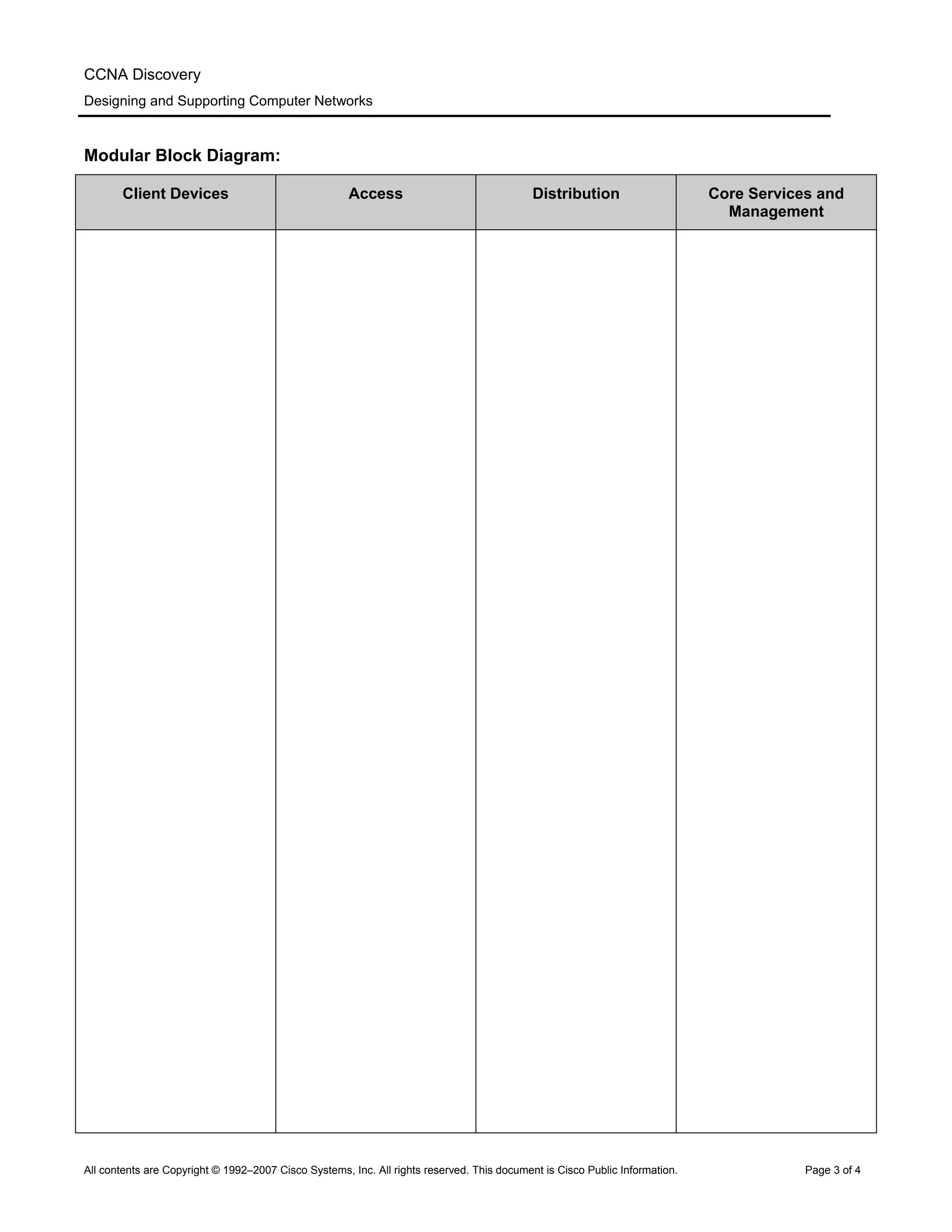

Modular Block Diagram:
Client Devices Access Distribution Core Services and
Management

CCNA Discovery

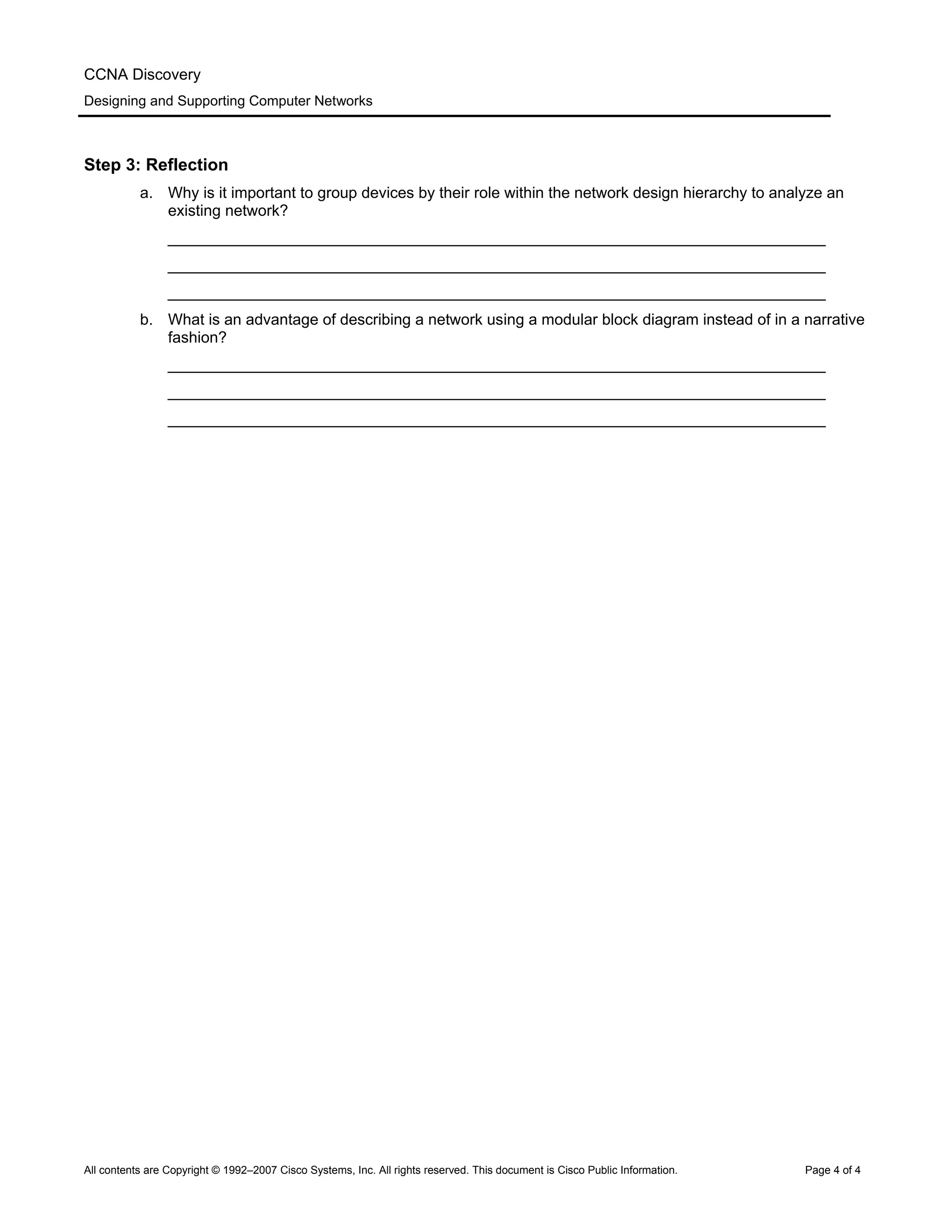

Step 3: Reflection
a. Why is it important to group devices by their role within the network design hierarchy to analyze an
existing network?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
b. What is an advantage of describing a network using a modular block diagram instead of in a narrative
fashion?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery

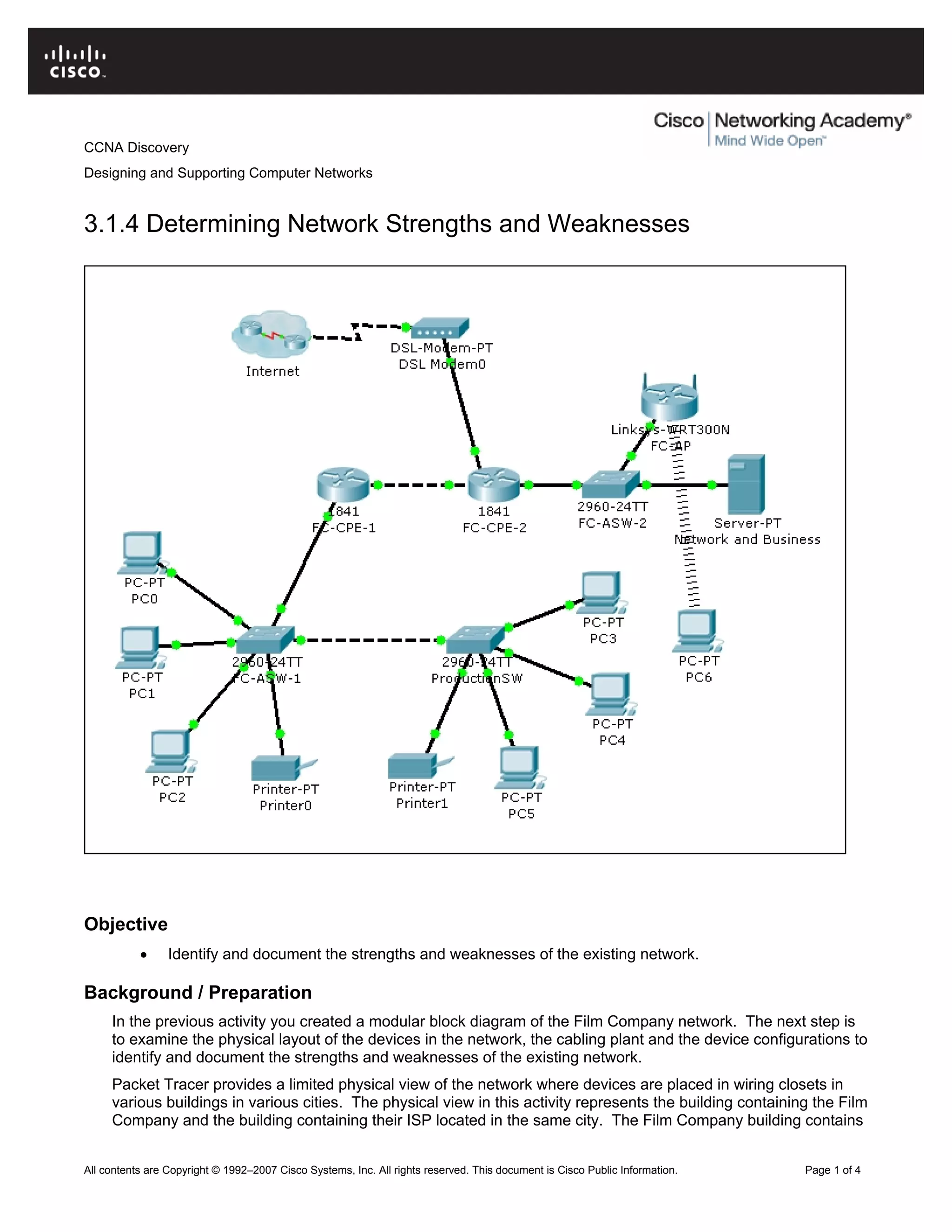

3.1.4 Determining Network Strengths and Weaknesses
Objective
• Identify and document the strengths and weaknesses of the existing network.
In the previous activity you created a modular block diagram of the Film Company network. The next step is
to examine the physical layout of the devices in the network, the cabling plant and the device configurations to
identify and document the strengths and weaknesses of the existing network.
Packet Tracer provides a limited physical view of the network where devices are placed in wiring closets in
various buildings in various cities. The physical view in this activity represents the building containing the Film
Company and the building containing their ISP located in the same city. The Film Company building contains

CCNA Discovery
a wiring closet containing the MDF and POP that serves the general office functions and a wiring closet for
the production area. Since all devices must be placed in wiring closets, wiring closets containing typical
clients devices used by the general office staff and the production staff have been placed in the approximate
center of their respective areas. There is a conference room that is also used by visitors with wireless laptop
computers that is represented by a wiring closet in its center. Assume all cabling in the Film Company
building is category 5 UTP.
Step 1: Examine the physical location of devices.
a. Switch from the Logical Workplace to the Physical Workplace, enter the Home City and note the
extent of the wireless coverage around the Film Company building.
b. Enter the Film Company building and note the extent of the wireless coverage within the building and
the location of the wiring closets and work areas.
c. Enter each of the wiring closets and note where the various client devices and network devices are
located.
Step 2: Examine the device configurations.
a. Switch from the Physical Workplace to the Logical Workplace.
b. Access each of the network devices in the Film Company network. Examine each device using
commands such as show running-config, show version, show interfaces and other commands.
c. Look for information on the speed of various links, passwords, traffic filtering and any other
information you can gather.
Step 3: Evaluate the network.
a. Based on your observations from Steps 1 and 2, rate the network in the areas listed in the table on
the next page on a scale of 1 (lowest) to 5 (highest).

CCNA Discovery
Network Ratings:
Lowest Highest
1 2 3 4 5
Hierarchical network design
Firewall location
Server location
Bandwidth
Quality of wiring
Network equipment suitability
Wireless security
Suitability for advanced services like IP phones or video
Redundancy and availability
Failure domain size
Physical security

CCNA Discovery
Step 4: Reflection
a. List the strengths of the existing network.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
b. List the weaknesses of the existing network.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery
3.2.4 Installing Cisco IOS Software
Objectives
• Verify the IOS image currently installed on the router
• Transfer a new IOS image to the Cisco router
• Verify that the new image is installed
• Specify an image boot order on the router
• Verify that the proper image is loaded when the router boots up
You have been asked to upgrade a Cisco 1841 router with the latest IOS image to support encryption. The
network administrator has informed you that the necessary IOS image has already been downloaded to the
Network_Server. It is your task to verify the current IOS image and install the new image through the TFTP server
that is installed on the network server. You will also need to configure the router to use the new IOS image.
Required file: Installing Cisco IOS Software
Step 1: Verify the IOS image currently installed on the router
a. Access the router through the CLI mode
b. Enter the privileged EXEC mode
c. Use the following command to verify current installed IOS:
Router#show flash
What is the file name of the IOS image? ___________________________________________________________
How many bytes of memory are available? ________________________________________________________
Step 2: Transfer the new IOS image to the Cisco router
a. It is always good to ping the tftp server before attempting to copy an IOS image from a server.
b. Enter the following command to test the connectivity between the router and the tftp server:
Router#ping 192.168.1.10
Note that the first ping may fail, if so repeat the ping. If the problem still persist, it will be necessary to
troubleshoot the problem.
c. On an actual network before beginning this upgrade you would copy the existing IOS file to the TFTP
server as a backup copy in case of problems.
d. Enter the following command begin the process of transferring the new IOS image to the router:
Router#copy tftp flash
e. You will be prompted to enter the address or name of the remote host. Enter the IP address of the
Network_Server (192.168.1.10) and press Enter.
f. You will now be prompted to enter the name of the file you wish to transfer. Enter the following IOS file
name:
c1841-ipbasek9-mz.124-12.bin

CCNA Discovery
g. You will be prompted for the destination filename. The default filename will appear in brackets as shown:
[c1841-ipbasek9-mz.124-12.bin]
h. Press Enter to accept the default name.

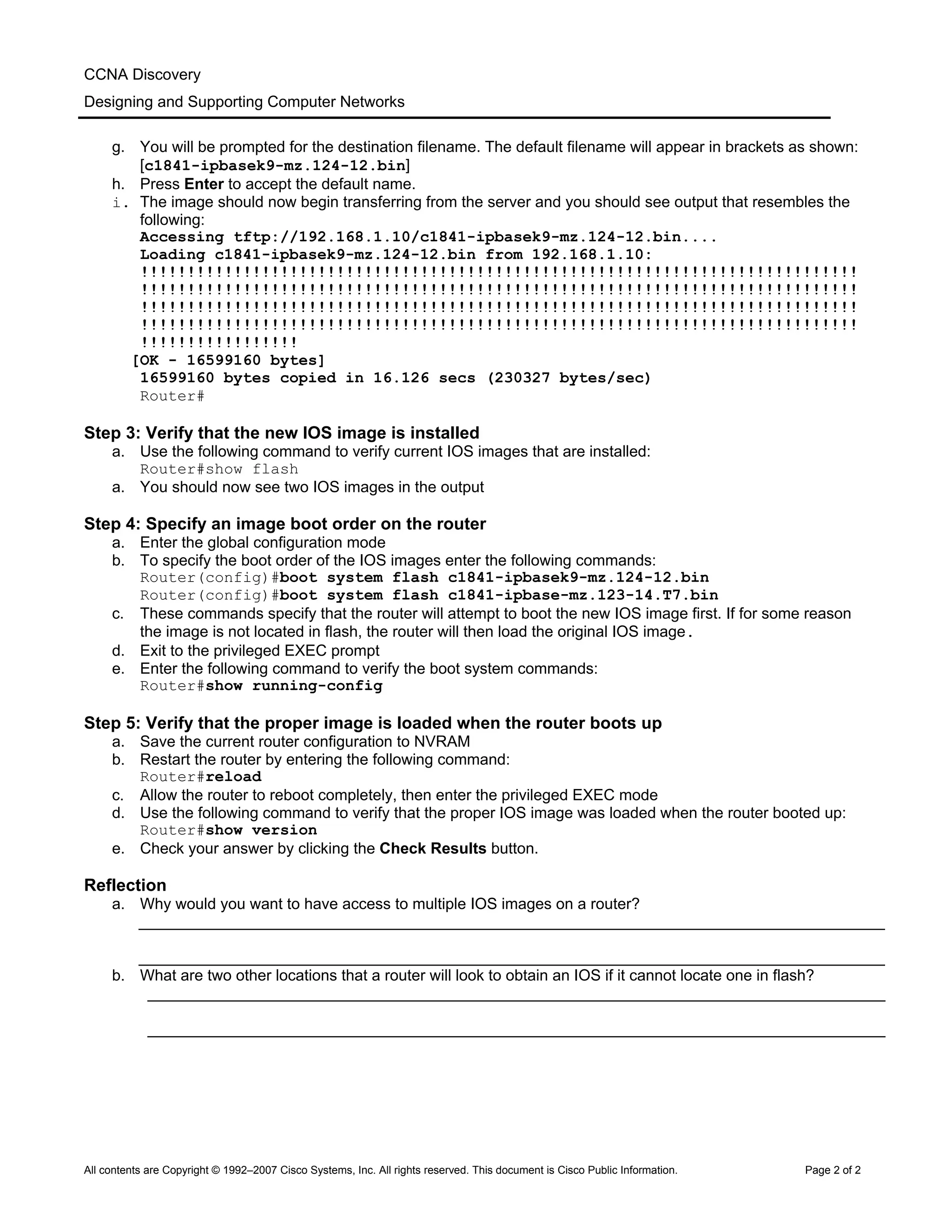

i. The image should now begin transferring from the server and you should see output that resembles the
following:
Accessing tftp://192.168.1.10/c1841-ipbasek9-mz.124-12.bin....
Loading c1841-ipbasek9-mz.124-12.bin from 192.168.1.10:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!
[OK - 16599160 bytes]
16599160 bytes copied in 16.126 secs (230327 bytes/sec)
Router#
Step 3: Verify that the new IOS image is installed
a. Use the following command to verify current IOS images that are installed:
Router#show flash
a. You should now see two IOS images in the output
Step 4: Specify an image boot order on the router
a. Enter the global configuration mode
b. To specify the boot order of the IOS images enter the following commands:
Router(config)#boot system flash c1841-ipbasek9-mz.124-12.bin
Router(config)#boot system flash c1841-ipbase-mz.123-14.T7.bin
c. These commands specify that the router will attempt to boot the new IOS image first. If for some reason
the image is not located in flash, the router will then load the original IOS image.
d. Exit to the privileged EXEC prompt
e. Enter the following command to verify the boot system commands:
Router#show running-config
Step 5: Verify that the proper image is loaded when the router boots up
a. Save the current router configuration to NVRAM
b. Restart the router by entering the following command:
Router#reload
c. Allow the router to reboot completely, then enter the privileged EXEC mode
d. Use the following command to verify that the proper IOS image was loaded when the router booted up:
Router#show version
e. Check your answer by clicking the Check Results button.
Reflection
a. Why would you want to have access to multiple IOS images on a router?
______________________________________________________________________________________
______________________________________________________________________________________
b. What are two other locations that a router will look to obtain an IOS if it cannot locate one in flash?
_____________________________________________________________________________________
_____________________________________________________________________________________

CCNA Discovery

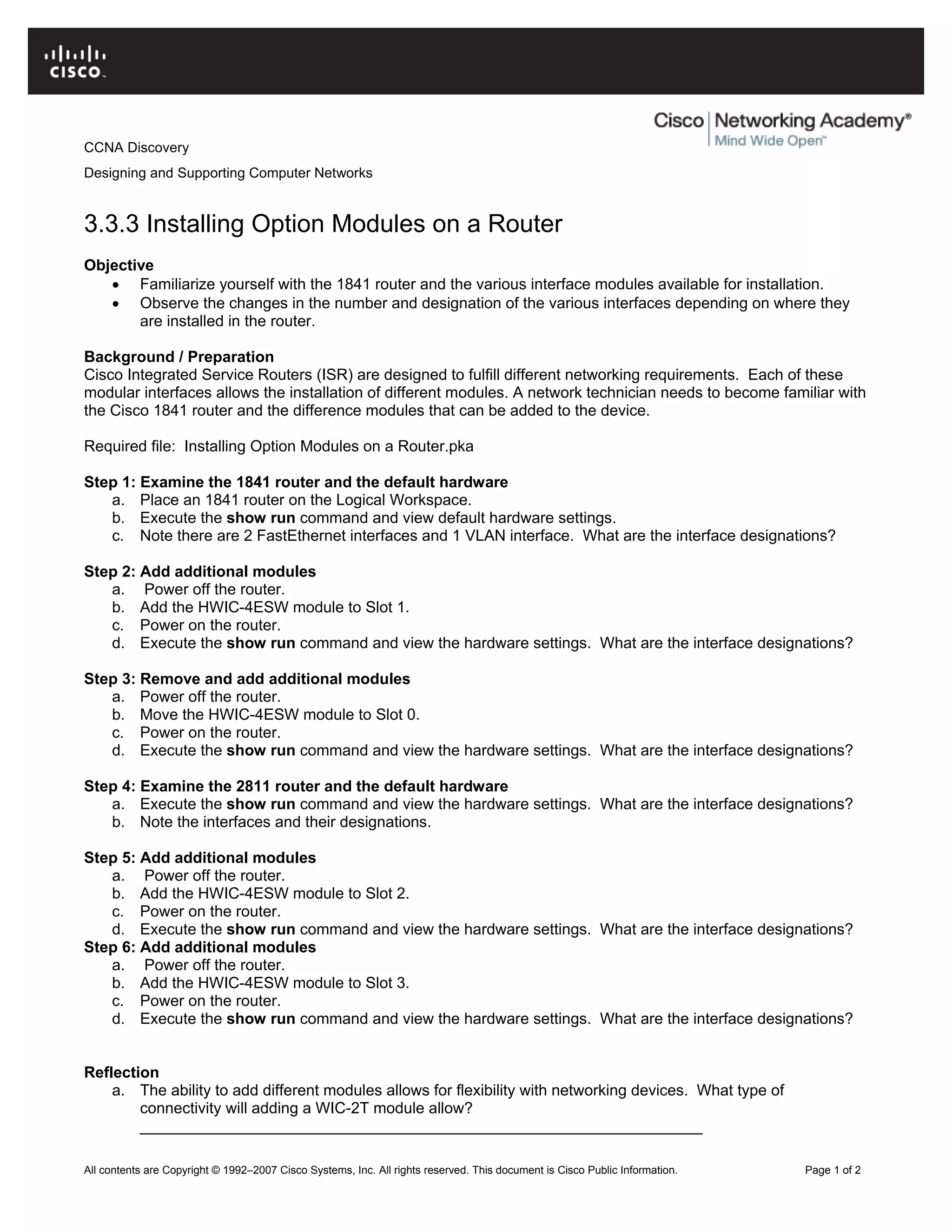

3.3.3 Installing Option Modules on a Router
Objective
• Familiarize yourself with the 1841 router and the various interface modules available for installation.
• Observe the changes in the number and designation of the various interfaces depending on where they
are installed in the router.
Cisco Integrated Service Routers (ISR) are designed to fulfill different networking requirements. Each of these
modular interfaces allows the installation of different modules. A network technician needs to become familiar with
the Cisco 1841 router and the difference modules that can be added to the device.
Required file: Installing Option Modules on a Router.pka
Step 1: Examine the 1841 router and the default hardware
a. Place an 1841 router on the Logical Workspace.
b. Execute the show run command and view default hardware settings.
c. Note there are 2 FastEthernet interfaces and 1 VLAN interface. What are the interface designations?
Step 2: Add additional modules
a. Power off the router.
b. Add the HWIC-4ESW module to Slot 1.
c. Power on the router.
d. Execute the show run command and view the hardware settings. What are the interface designations?
Step 3: Remove and add additional modules
b. Move the HWIC-4ESW module to Slot 0.
Step 4: Examine the 2811 router and the default hardware
a. Execute the show run command and view the hardware settings. What are the interface designations?
b. Note the interfaces and their designations.
Reflection
a. The ability to add different modules allows for flexibility with networking devices. What type of
connectivity will adding a WIC-2T module allow?
_________________________________________________________________

CCNA Discovery
_________________________________________________________________
_________________________________________________________________
b. What would happen to your existing configuration if you move a module from Slot 1 to Slot 2?
_________________________________________________________________
_________________________________________________________________
_________________________________________________________________

CCNA Discovery
3.4.3 Placing Wireless Access Points
Objective
• Use available tools to perform a wireless site survey.
A wireless network consists of one or more wireless access points to provide coverage for wireless clients in
an office environment. The goal of the site survey is to find the optimal number and placement of access
points to provide coverage where it is needed and, for security reasons, to minimize coverage where it is not
needed. We will use the tools available in Packet Tracer to simulate a site survey of a one story office
building with two access points installed in the ceiling.
The Linksys WRT300N wireless access routers are used to simulate access points installed in the ceiling, a
PC with a Linksys WMP300N interface installed is used to simulate a laptop computer with wireless capability.
Required file: Placing Wireless Access Points.pka
Step 1: Conduct the wireless site survey.
a. In the logical view of the network observe which access point the Wireless PC is associated with.
b. Access the Wireless PC and choose the PC Wireless button on the Desktop tab. Click the Connect
tab in the Linksys window and observe the signal strength from both access points. Minimize the
Wireless PC window.
c. Click the Physical Workplace tab in the upper left hand corner of the interface. Click on the Home
City to enter it. The crosshatch ovals represent areas of wireless coverage. Note the areas outside
of the Corporate Office that have coverage.
d. Click on the Corporate Office to enter it. Observe the areas of coverage inside the building and the
placement of the access points and the Wireless PC. In a real environment the wireless coverage
areas would be invisible. Mark the location of the access points on the Building Diagram below. Mark
the location if the Wireless PC and note the signal strength for each access point.

CCNA Discovery
e. Move the Wireless PC to different locations around the office. For each location, access the Wireless
PC window and click the Refresh button. Note on the Building Diagram, at each location, the access
points (if any) and their signal strength. Minimize the Wireless PC window.
f. Continue until the entire building is surveyed.
Step 2: Relocate the access points to their optimal location.
a. Move the access points to assure that all areas inside the building have wireless coverage and that
coverage outside of the building is minimized.
b. Verify your placement by spot checking key locations within the building using the techniques from
Step 1 and adjust the placement as needed.
Building Diagram:
Step 3: Reflection
a. If the coverage shown in the Physical view represents the maximum power output of the access
point, could the building be covered by a single access point?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
b. On real equipment, what else could be done to minimize coverage outside of the building?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery
c. What types of problems would you encounter when you have overlapping coverage of access points
using the same channel?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery

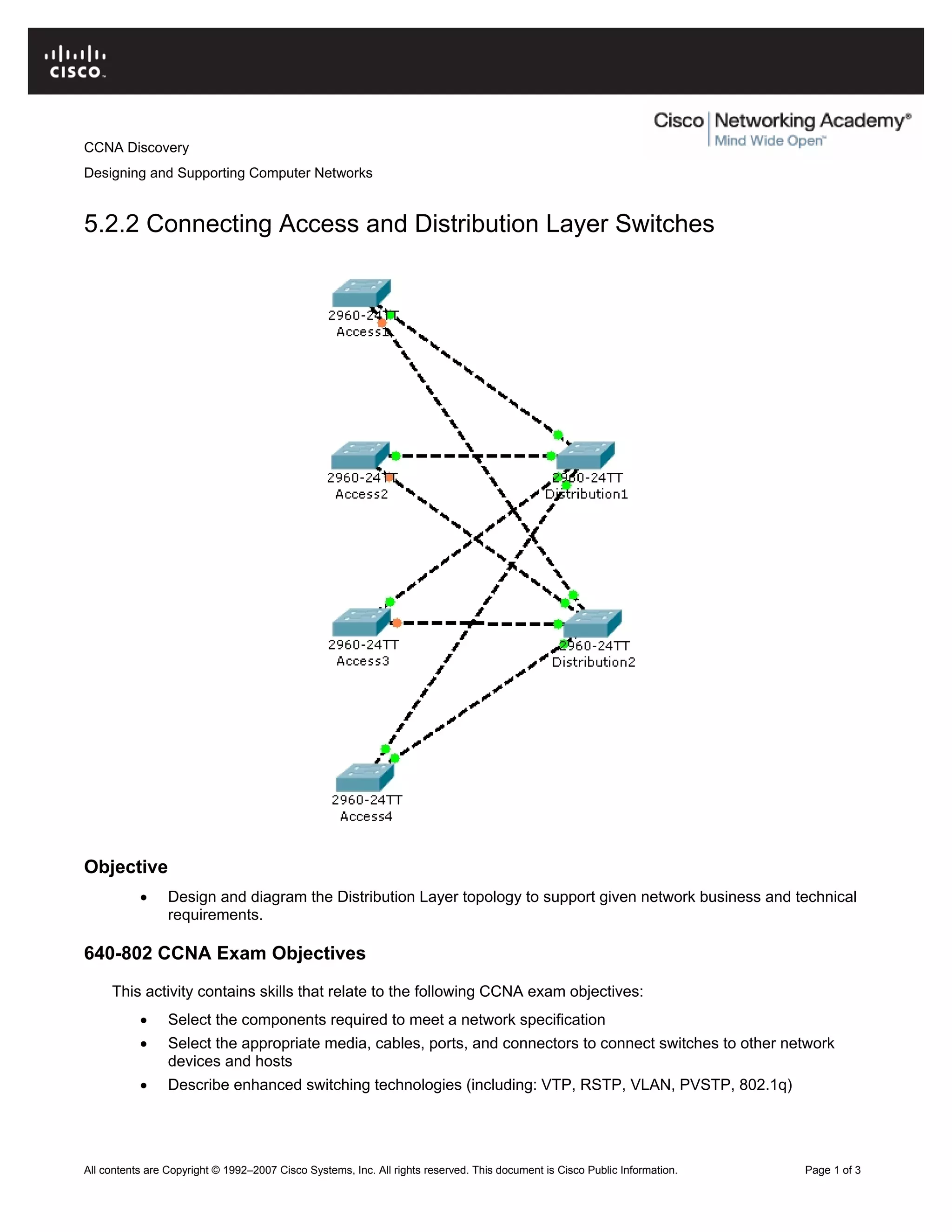

5.2.2 Connecting Access and Distribution Layer Switches
Objective
• Design and diagram the Distribution Layer topology to support given network business and technical
requirements.
640-802 CCNA Exam Objectives
This activity contains skills that relate to the following CCNA exam objectives:
• Select the components required to meet a network specification
• Select the appropriate media, cables, ports, and connectors to connect switches to other network
devices and hosts
• Describe enhanced switching technologies (including: VTP, RSTP, VLAN, PVSTP, 802.1q)

CCNA Discovery
Expected Results and Success Criteria
a. Before beginning this activity, read through the tasks you are expected to perform. What do you
expect the result of performing these tasks will be?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
b. Why do you think that network administrators use redundant links in their network?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
c. Why is Spanning Tree Protocol necessary where there are redundant links?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
Equipment installed at the Network Distribution Layer usually consists of multi-layer, modular switches that
connect to Layer 2 Access Layer switches through redundant links. These Distribution Layer switches then
connect to Core Layer devices, also through redundant links. Spanning Tree Protocol allows these redundant
connections without the problems associated with switching loops.
Packet Tracer only supports devices typically found in the CCNA academy lab bundle, not the type of
switches typically used at the Network Distribution Layer. We will use regular Layer 2 switches to represent
these switches as we connect the redundant links between the Access and Distribution Layer switches and
observe the operation of Spanning Tree Protocol.
Required file: Connecting Access and Distribution Layer Switches.pka
Step 1: Connect the Access Layer switches to the Distribution Layer switches.
a. Using the proper cables, connect the first interface on switch Access1 to the first interface on switch
Distribution1 and the second interface on switch Access1 to the first interface on switch
Distribution2.
b. Using the proper cables, connect the first interface on switch Access2 to the second interface on
switch Distribution1 and the second interface on switch Access2 to the second interface on switch
Distribution2.
c. Using the proper cables, connect the first interface on switch Access3 to the third interface on switch
Distribution1 and the second interface on switch Access3 to the third interface on switch
Distribution2.
d. Using the proper cables, connect the first interface on switch Access4 to the fourth interface on
switch Distribution1 and the second interface on switch Access4 to the fourth interface on switch
Distribution2.
e. Check your configuration using the Check Results button. Correct any errors in the configuration.

CCNA Discovery

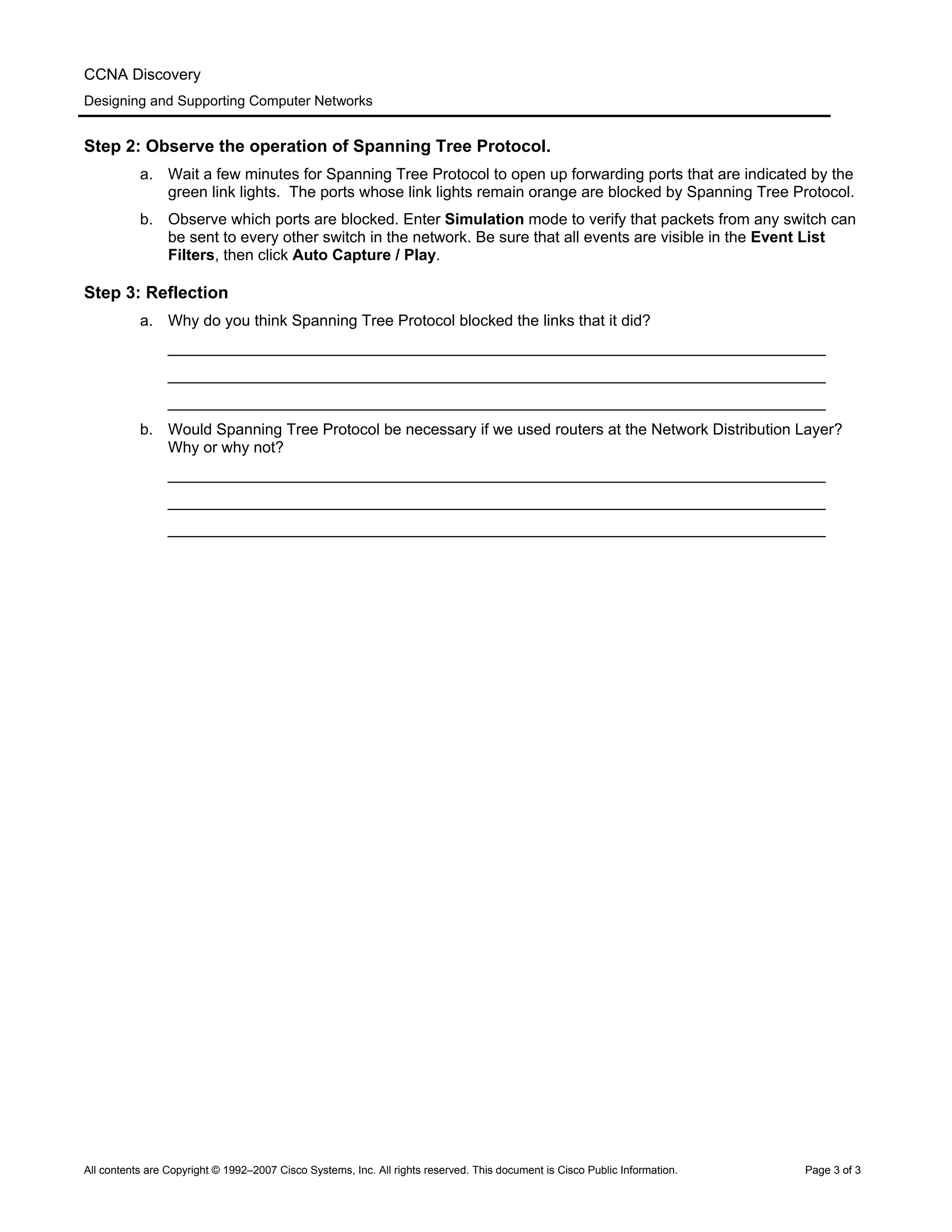

Step 2: Observe the operation of Spanning Tree Protocol.
a. Wait a few minutes for Spanning Tree Protocol to open up forwarding ports that are indicated by the
green link lights. The ports whose link lights remain orange are blocked by Spanning Tree Protocol.
b. Observe which ports are blocked. Enter Simulation mode to verify that packets from any switch can
be sent to every other switch in the network. Be sure that all events are visible in the Event List
Filters, then click Auto Capture / Play.
Step 3: Reflection
a. Why do you think Spanning Tree Protocol blocked the links that it did?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
b. Would Spanning Tree Protocol be necessary if we used routers at the Network Distribution Layer?
Why or why not?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery
5.3.2 Examining WAN Connections
Objective
The show commands are very powerful commands for troubleshooting and monitoring networks. They give a
static image of the network at a given time. The use of a variety of show commands will give a clear picture of
how the networking is communicating and transferring data.
The physical topology of the network has been designed using Frame Relay. To test the network connectivity,
use a variety of show commands.
Required file: Examining WAN Connections.pka
Step 1: Examine the configuration of Branch1 and Branch2.
a. Click on Branch1 and use various show commands to view the connectivity to the network.
b. Use the show running-configuration command to view the router configuration.
c. Use the show ip interface brief command to view the status of the interfaces.
d. Use the various show frame-relay map, show frame-relay pvc, and show frame-relay lmi commands
to see the status of the Frame-relay circuit.
e. Click on Branch 2 and use various show commands to view the connectivity to the network.
f. Use the show running-configuration command to view the router configuration.
g. Use the show ip interface brief command to view the status of the interfaces.
h. Use the various show frame-relay map, show frame-relay pvc, and show frame-relay lmi commands
to see the status of the Frame-relay circuit.
Step 2: Examine the configuration of Main.
a. Click on Main and use a variety of show commands to view the connectivity to the network.
b. Use the show running-configuration command to view the router configuration.
c. Use the show ip interface brief command to view the status of the interfaces.
d. To view the status of the frame-relay configurations use the show frame-relay lmi, show frame-relay
map, and show frame-relay pvc commands.

CCNA Discovery
Reflection
a. In what situations would it be beneficial to use the various show commands?
________________________________________________________________________________
________________________________________________________________________________
b. What beneficial information can be obtained from the various show commands?
________________________________________________________________________________
________________________________________________________________________________

CCNA Discovery
5.3.4 Observing Static and Dynamic Routing
Objective
Observe the network behavior using static and default routing only and compare it to the behavior of dynamic
routing.
In this exercise, you will observe what the adaptability of dynamic routing compared to static and default routing.
The Ticket Sales Office network is currently configured using static and default routing.
Required file: Observing Static and Dynamic Routing.pka
Step 1: Test Connectivity Using Static and Default Routing.
a. Open a Command Prompt on PC0.
b. Trace (tracert) a connection to the Edge1 FastEthernet 0/0 address. This should be successful.
Step 2: Bring down Frame Relay Network and Observe Routing.
a. On the BR2 router, shutdown the link to the Frame Relay network.
b. Perform a trace from PC0 again to the Edge1 FastEthernet 0/0 address. What happens this time?
__________________________________________________________________________________

CCNA Discovery

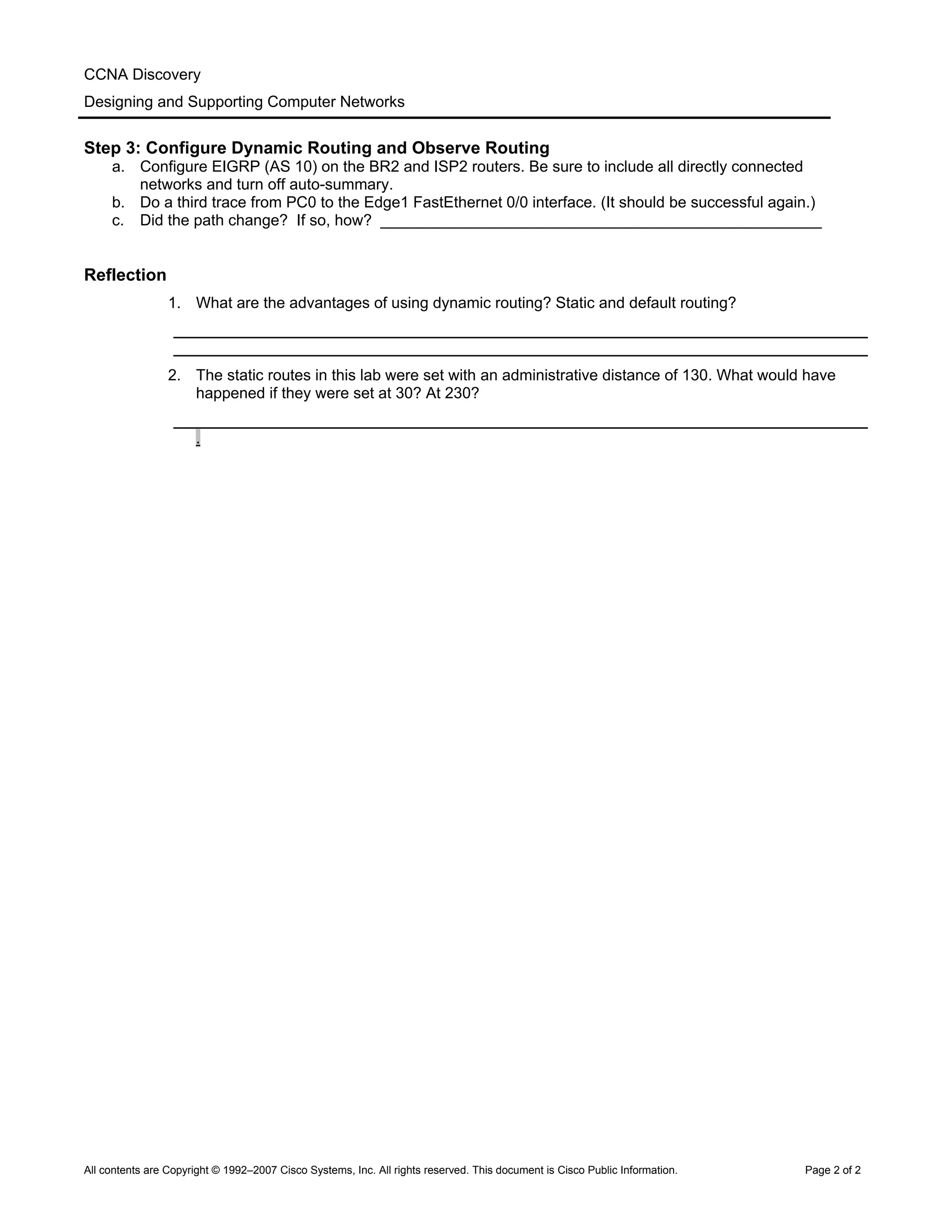

Step 3: Configure Dynamic Routing and Observe Routing
a. Configure EIGRP (AS 10) on the BR2 and ISP2 routers. Be sure to include all directly connected
networks and turn off auto-summary.
b. Do a third trace from PC0 to the Edge1 FastEthernet 0/0 interface. (It should be successful again.)
c. Did the path change? If so, how? ___________________________________________________
Reflection
1. What are the advantages of using dynamic routing? Static and default routing?
________________________________________________________________________________
________________________________________________________________________________
2. The static routes in this lab were set with an administrative distance of 130. What would have
happened if they were set at 30? At 230?
________________________________________________________________________________
.

CCNA Discovery

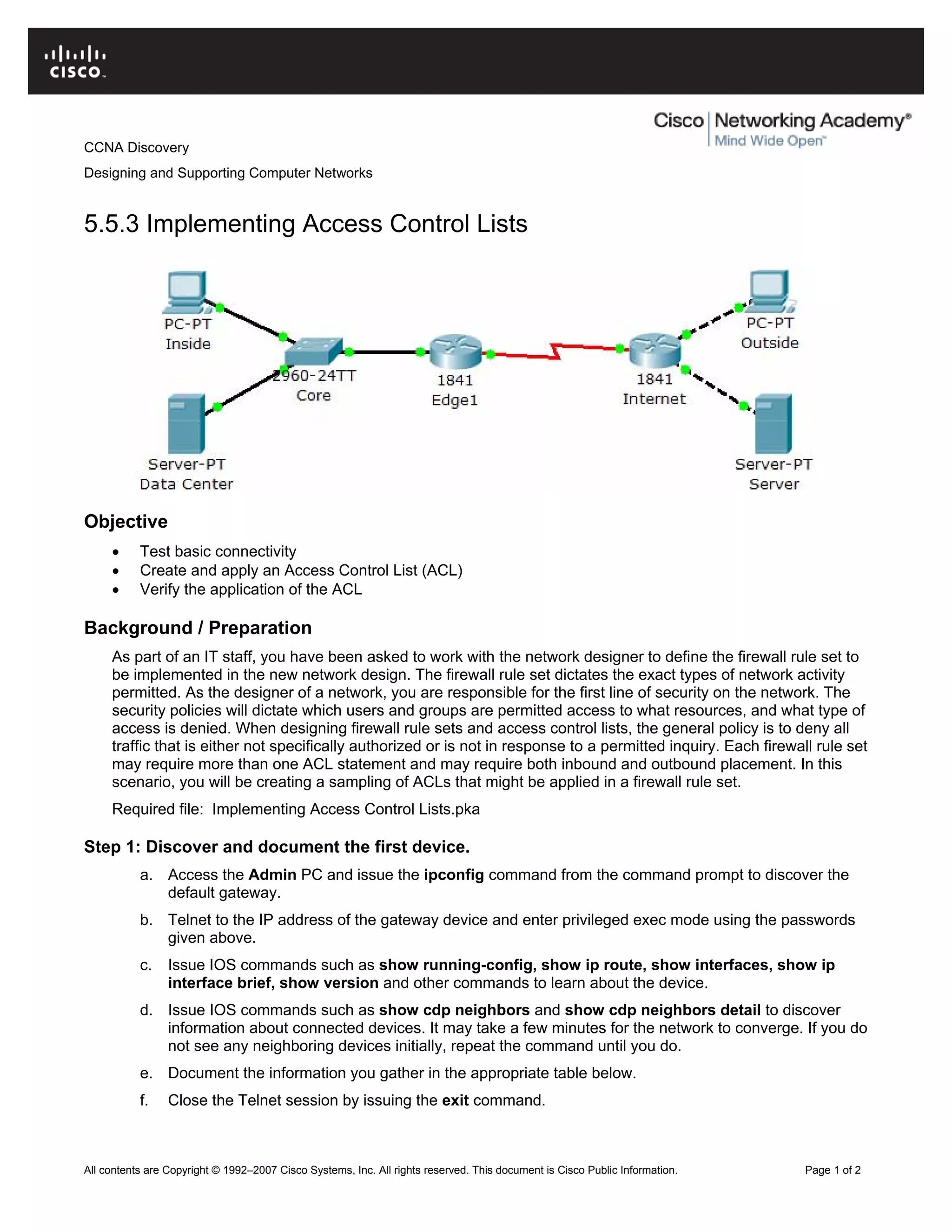

5.5.3 Implementing Access Control Lists
Objective
• Test basic connectivity
• Create and apply an Access Control List (ACL)
• Verify the application of the ACL
As part of an IT staff, you have been asked to work with the network designer to define the firewall rule set to
be implemented in the new network design. The firewall rule set dictates the exact types of network activity
permitted. As the designer of a network, you are responsible for the first line of security on the network. The
security policies will dictate which users and groups are permitted access to what resources, and what type of
access is denied. When designing firewall rule sets and access control lists, the general policy is to deny all
traffic that is either not specifically authorized or is not in response to a permitted inquiry. Each firewall rule set
may require more than one ACL statement and may require both inbound and outbound placement. In this
scenario, you will be creating a sampling of ACLs that might be applied in a firewall rule set.
Required file: Implementing Access Control Lists.pka
Step 1: Discover and document the first device.
a. Access the Admin PC and issue the ipconfig command from the command prompt to discover the
default gateway.
b. Telnet to the IP address of the gateway device and enter privileged exec mode using the passwords
given above.
c. Issue IOS commands such as show running-config, show ip route, show interfaces, show ip
interface brief, show version and other commands to learn about the device.
d. Issue IOS commands such as show cdp neighbors and show cdp neighbors detail to discover
information about connected devices. It may take a few minutes for the network to converge. If you do
not see any neighboring devices initially, repeat the command until you do.
e. Document the information you gather in the appropriate table below.
f. Close the Telnet session by issuing the exit command.

CCNA Discovery
Step 2: Discover the remaining devices.
a. Packet Tracer works best when you successfully ping a device before attempting to Telnet to it.
Issue the ping command to the IP address of one of the devices you discovered in Step 1. Repeat
the ping command until it succeeds.
b. Telnet to the IP address of the device and repeat the process in Step 1 to document the device.
c. To not overuse the resources of Packet Tracer, do not Telnet from device to device. Always exit to
the command prompt before accessing the next device.
d. Repeat the process until all devices in the network are discovered and documented.
e. As you work, sketch out a diagram of the network devices and their interconnections.
Step 3: Examine the Access Control Lists that are configured on the routers
a. Click on the CLI tab on Edge1 to examine the ACLs that have been configured
b. Use the following commands to view the ACLs that have been configured on the routers:
Step 4: Determine the appropriate interface to apply the ACLs
a. After examining the ACLs determine where the ACLs should be applied
b. The ACL must be applied to an interface before it will affect the network traffic
c. Remember that only one ACL per port, per protocol, per direction is allowed.
d. Using the CLI mode, apply the ACL to the appropriate interface on the Edge1 router
Step 5: Examine the affects of the ACL
a. Verify that the appropriate traffic is permitted or denied
b. The Inside PC should be permitted to:
• Ping all devices (use the command prompt)
• Make HTTP request from the Web Server at 192.168.2.10 (use the Web browser on the Inside
PC)
• Telnet to the Internet router at 172.16.1.1 (use the command prompt) – password = cisco. Use
the command exit to return to PC prompt.
• Use FTP to reach other devices (use Simulation mode and a Complex PDU to simulate the FTP
traffic – for the Complex PDU set the Select Application: FTP, Destination IP Address:
192.168.1.10, Source Port: 50000, One Shot Time: 1)
c. The Outside PC should be denied the following:
• Ping to Edge1, Core, Inside PC, and Data Center (use the command prompt)
• Make HTTP request from the Data Center 10.0.10.20 (use the Web browser on the Inside PC).
However, it should still be able to reach the Web Server at 192.168.2.10.
• Use FTP to reach other devices (use Simulation mode and a Complex PDU to simulate the FTP
traffic – for the Complex PDU set the Select Application: FTP, Destination IP Address:
10.0.10.10, Source Port: 50000, One Shot Time: 1)
d. All other network traffic should be denied from reaching the 10.0.10.0 network
Reflection
1. With the current ACL applied, would you be able to Telnet from the Outside PC to the Edge1 router at
172.16.1.2? Why?
_______________________________________________________________________________________
_______________________________________________________________________________________
2. Why is it always necessary to have at least one Permit statement in an ACL?
_______________________________________________________________________________________
_______________________________________________________________________________________

CCNA Discovery

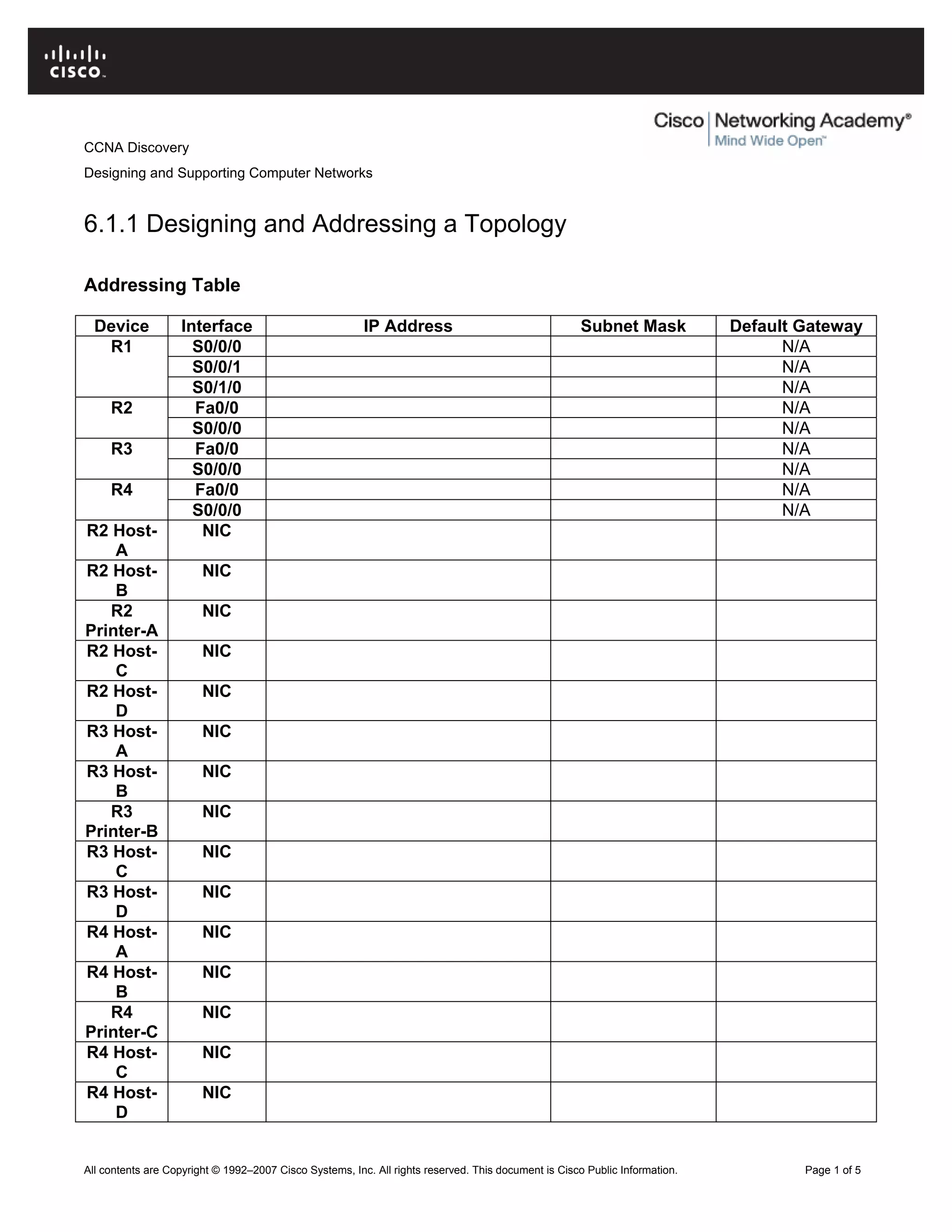

6.1.1 Designing and Addressing a Topology
Addressing Table
Device Interface IP Address Subnet Mask Default Gateway
S0/0/0 N/A
S0/0/1 N/A
R1
S0/1/0 N/A
Fa0/0 N/AR2
S0/0/0 N/A
Fa0/0 N/AR3
S0/0/0 N/A
Fa0/0 N/AR4
S0/0/0 N/A
R2 Host-
A
NIC
R2 Host-
B
NIC
R2
Printer-A
NIC
R2 Host-
C
NIC
R2 Host-
D
NIC
R3 Host-
A
NIC
R3 Host-
B
NIC
R3
Printer-B
NIC
R3 Host-
C
NIC
R3 Host-
D
NIC
R4 Host-
A
NIC
R4 Host-
B
NIC
R4
Printer-C
NIC
R4 Host-
C
NIC
R4 Host-
D
NIC

CCNA Discovery
Learning Objectives
• Determine the number of subnets needed.
• Determine the number of hosts needed for each LAN.
• Design a hierarchical addressing scheme.
• Assign addresses and subnet masks to device interfaces and hosts.
• Examine the use of the available network address space.
Introduction
In this lab, you have been given the IP addresses included in 192.168.8.0/22. Use this range of IP addresses to
subnet and provide the IP addressing for the network. The network has the following addressing requirements:
• The R2 LAN will require 120 host IP addresses.
• The WAN links between each of the routers will require an IP address for each end of the link.
Required file: Designing and Addressing a Topology.pka
Task 1: Examine the network requirements.
Examine the network requirements and answer the questions below. Keep in mind that IP addresses will be
needed for each LAN interface on each router.
1. How many subnets are needed?
2. What is the maximum number of IP addresses that are needed for a single subnet?
3. How many IP addresses are needed for each of the LANs?
4. How many IP addresses are needed for all of the connections between routers?
5. What is the total number of IP addresses that are needed?
At the end of this task your completion rate should be 0%.
Task 2: Design a hierarchical IP addressing scheme.
Step 1. Subnet 192.168.8.0/22.
Calculate the subnetworks based on the maximum number of IP addresses needed in the largest subnet. Keep
the number of hosts per subnet as close as possible to the maximum number of hosts required.
1. What is the subnet mask for each subnetwork?
2. How many usable IP addresses are there for each subnetwork?

CCNA Discovery

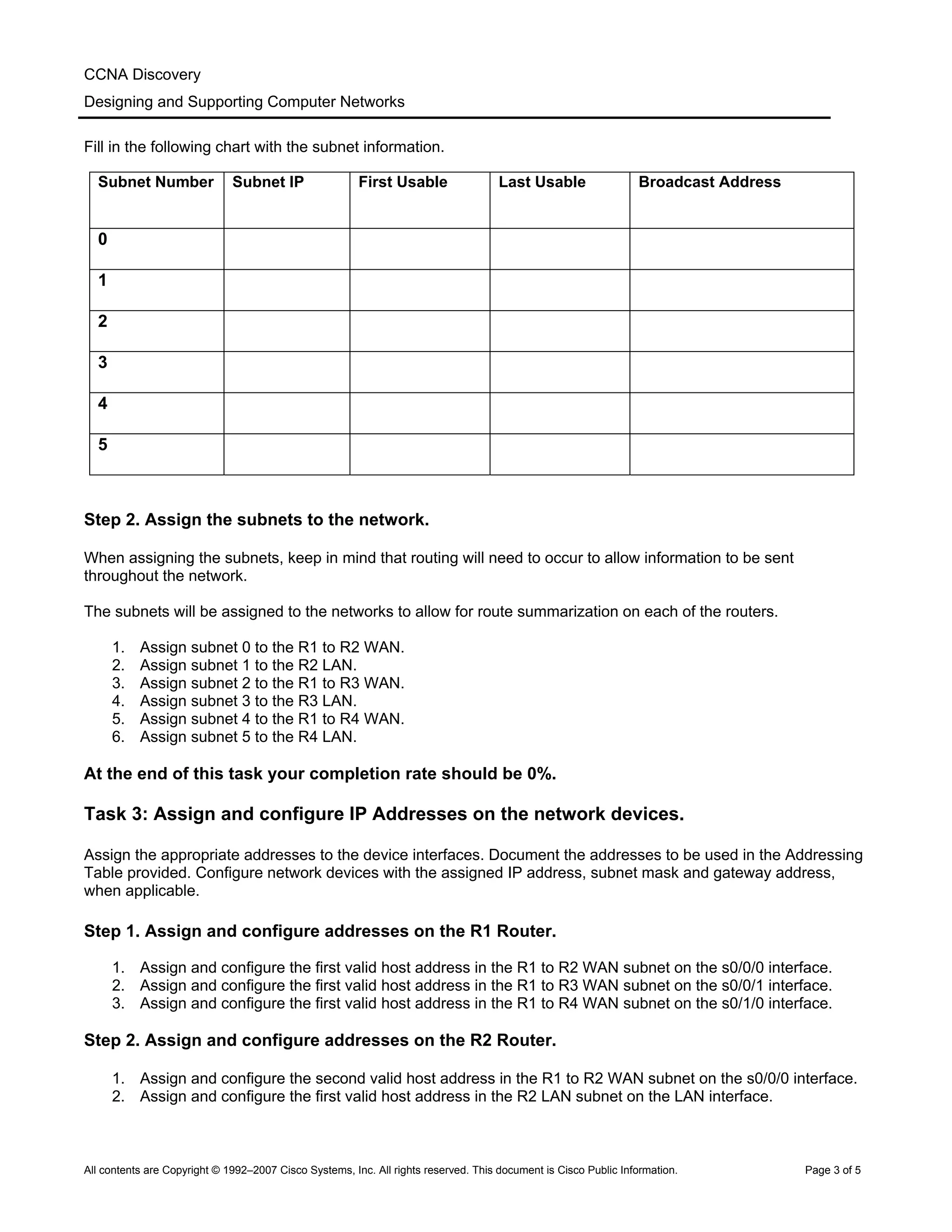

Fill in the following chart with the subnet information.
Subnet Number Subnet IP First Usable Last Usable Broadcast Address
0
1
2
3
4
5
Step 2. Assign the subnets to the network.
When assigning the subnets, keep in mind that routing will need to occur to allow information to be sent
throughout the network.
The subnets will be assigned to the networks to allow for route summarization on each of the routers.
1. Assign subnet 0 to the R1 to R2 WAN.
2. Assign subnet 1 to the R2 LAN.
Task 3: Assign and configure IP Addresses on the network devices.
Assign the appropriate addresses to the device interfaces. Document the addresses to be used in the Addressing
Table provided. Configure network devices with the assigned IP address, subnet mask and gateway address,
when applicable.
Step 1. Assign and configure addresses on the R1 Router.
1. Assign and configure the first valid host address in the R1 to R2 WAN subnet on the s0/0/0 interface.
1. Assign and configure the second valid host address in the R1 to R2 WAN subnet on the s0/0/0 interface.
2. Assign and configure the first valid host address in the R2 LAN subnet on the LAN interface.

CCNA Discovery
Step 5. Assign and configure addresses on the host devices (PCs and Printers) of R2.
1. Assign and configure the second valid host address in the R2 LAN subnet on R2 Host-A.
2. Assign and configure the third valid host address in the R2 LAN subnet onR2 Host-B.
3. Assign and configure the fourth valid host address in the R2 LAN subnet on Printer-A.
4. Assign and configure the fifth valid host address in the R2 LAN subnet on R2 Host-C.
5. Assign and configure the sixth valid host address in the R2 LAN subnet on R2 Host-D.
2. Assign and configure the third valid host address in the R3 LAN subnet on R3 Host-B.
3. Assign and configure the fourth valid host address in the R3 LAN subnet on Printer-B.
2. Assign and configure the third valid host address in the R4 LAN subnet on R4 Host-B.
3. Assign and configure the fourth valid host address in the R4 LAN subnet on Printer-C.
Task 4: Verify connectivity.
Check to see that all devices on directly connected networks can ping each other.
Task 5: Configure EIGRP routing protocol on each router.
Step 1. Configure EIGRP on router R1.
1. Configure EIGRP using autonomous system number 10.
2. Configure EIGRP to route for all three directly connected networks.
2. Configure EIGRP to route for both directly connected networks.

CCNA Discovery

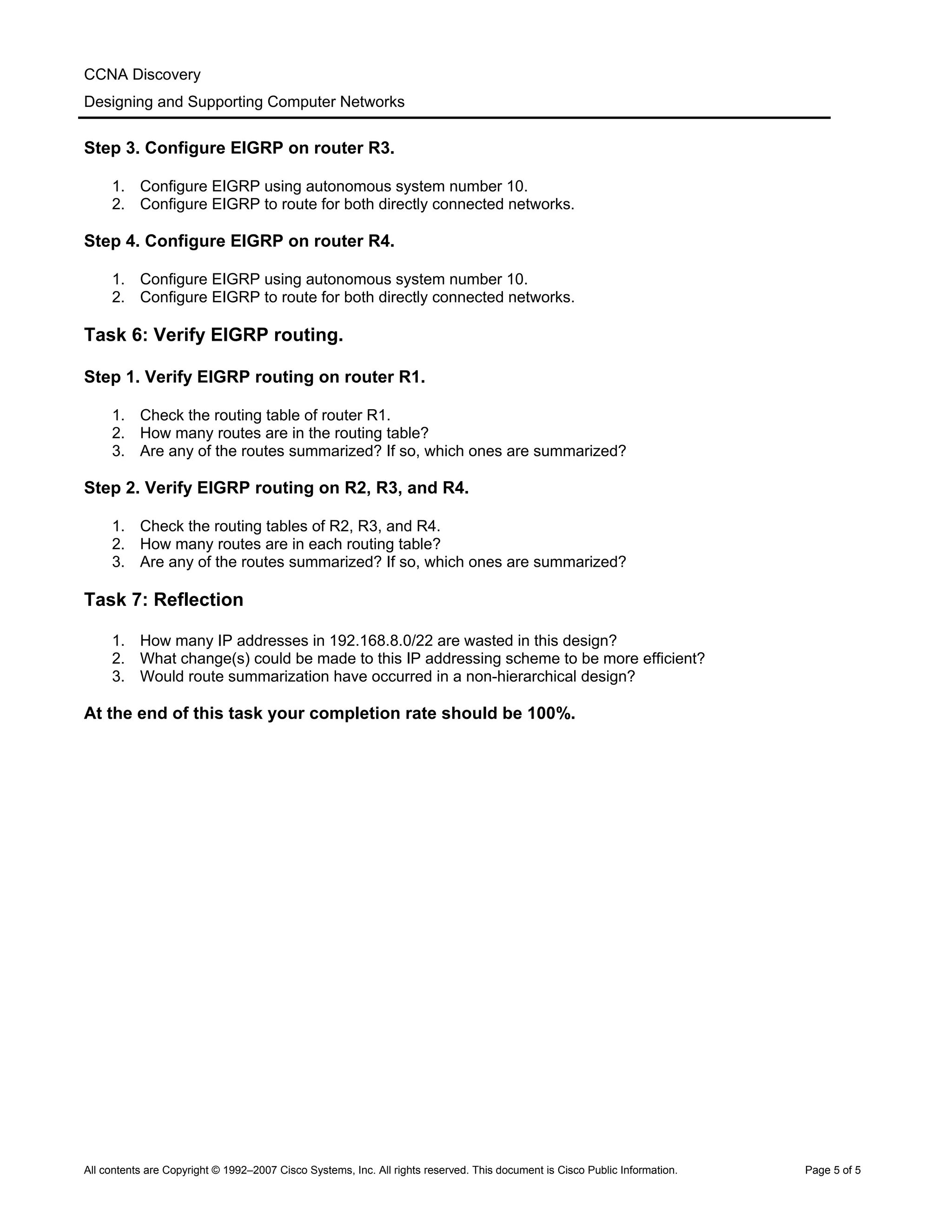

Task 6: Verify EIGRP routing.
Step 1. Verify EIGRP routing on router R1.
1. Check the routing table of router R1.
2. How many routes are in the routing table?
3. Are any of the routes summarized? If so, which ones are summarized?
Step 2. Verify EIGRP routing on R2, R3, and R4.
1. Check the routing tables of R2, R3, and R4.
2. How many routes are in each routing table?
3. Are any of the routes summarized? If so, which ones are summarized?
Task 7: Reflection
1. How many IP addresses in 192.168.8.0/22 are wasted in this design?
2. What change(s) could be made to this IP addressing scheme to be more efficient?
3. Would route summarization have occurred in a non-hierarchical design?

CCNA Discovery

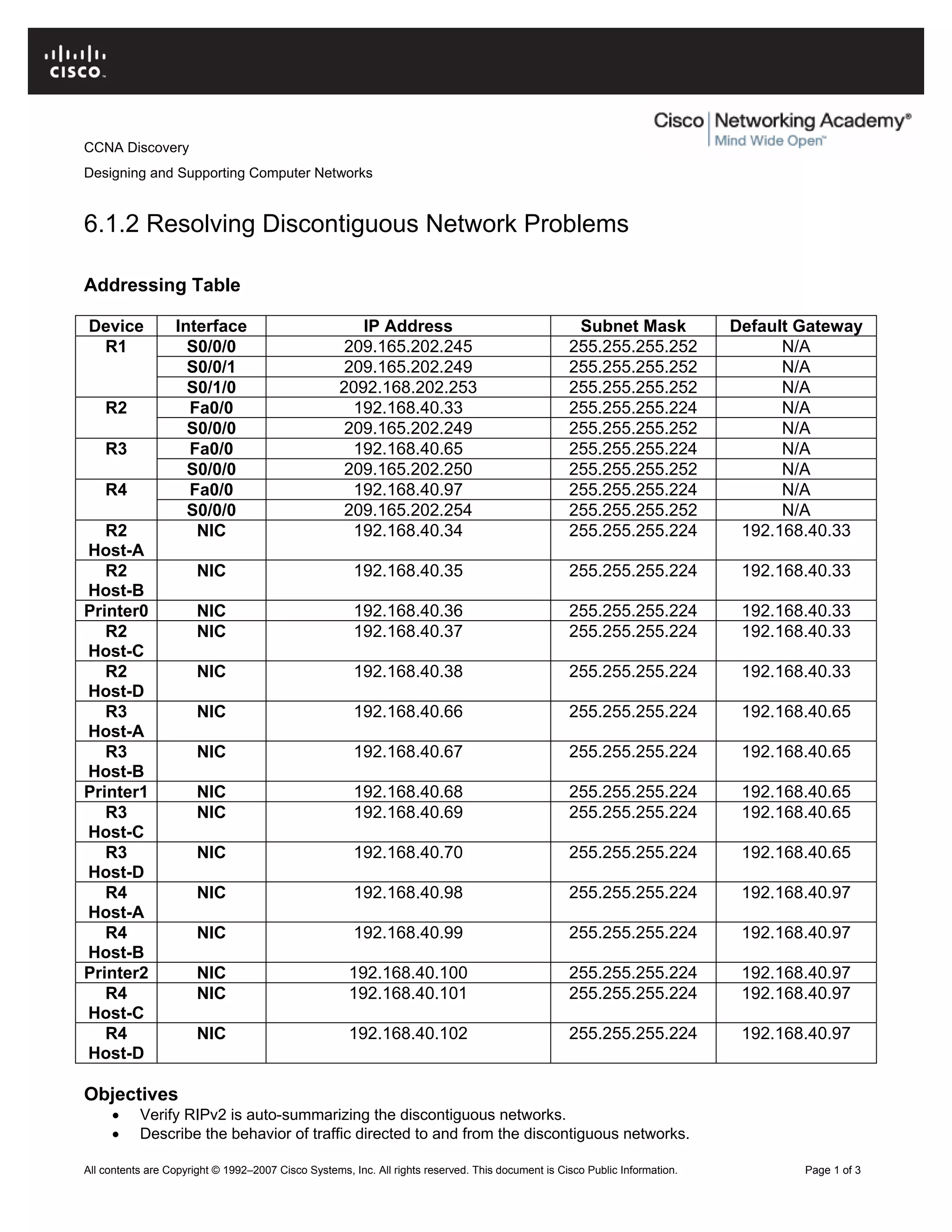

6.1.2 Resolving Discontiguous Network Problems
Addressing Table
S0/0/0 209.165.202.245 255.255.255.252 N/A
S0/0/1 209.165.202.249 255.255.255.252 N/A
R1
S0/1/0 2092.168.202.253 255.255.255.252 N/A
Fa0/0 192.168.40.33 255.255.255.224 N/AR2
S0/0/0 209.165.202.249 255.255.255.252 N/A
Fa0/0 192.168.40.65 255.255.255.224 N/AR3
S0/0/0 209.165.202.250 255.255.255.252 N/A
Fa0/0 192.168.40.97 255.255.255.224 N/AR4
S0/0/0 209.165.202.254 255.255.255.252 N/A
R2
Host-A
NIC 192.168.40.34 255.255.255.224 192.168.40.33
R2
Host-B
NIC 192.168.40.35 255.255.255.224 192.168.40.33
Printer0 NIC 192.168.40.36 255.255.255.224 192.168.40.33
R2
Host-C
NIC 192.168.40.37 255.255.255.224 192.168.40.33
R2
Host-D
NIC 192.168.40.38 255.255.255.224 192.168.40.33
R3
Host-A
NIC 192.168.40.66 255.255.255.224 192.168.40.65
R3
Host-B
NIC 192.168.40.67 255.255.255.224 192.168.40.65
Printer1 NIC 192.168.40.68 255.255.255.224 192.168.40.65
R3
Host-C
NIC 192.168.40.69 255.255.255.224 192.168.40.65
R3
Host-D
NIC 192.168.40.70 255.255.255.224 192.168.40.65
R4
Host-A
NIC 192.168.40.98 255.255.255.224 192.168.40.97
R4
Host-B
NIC 192.168.40.99 255.255.255.224 192.168.40.97
Printer2 NIC 192.168.40.100 255.255.255.224 192.168.40.97
R4
Host-C
NIC 192.168.40.101 255.255.255.224 192.168.40.97
R4
Host-D
NIC 192.168.40.102 255.255.255.224 192.168.40.97
Objectives
• Verify RIPv2 is auto-summarizing the discontiguous networks.
• Describe the behavior of traffic directed to and from the discontiguous networks.

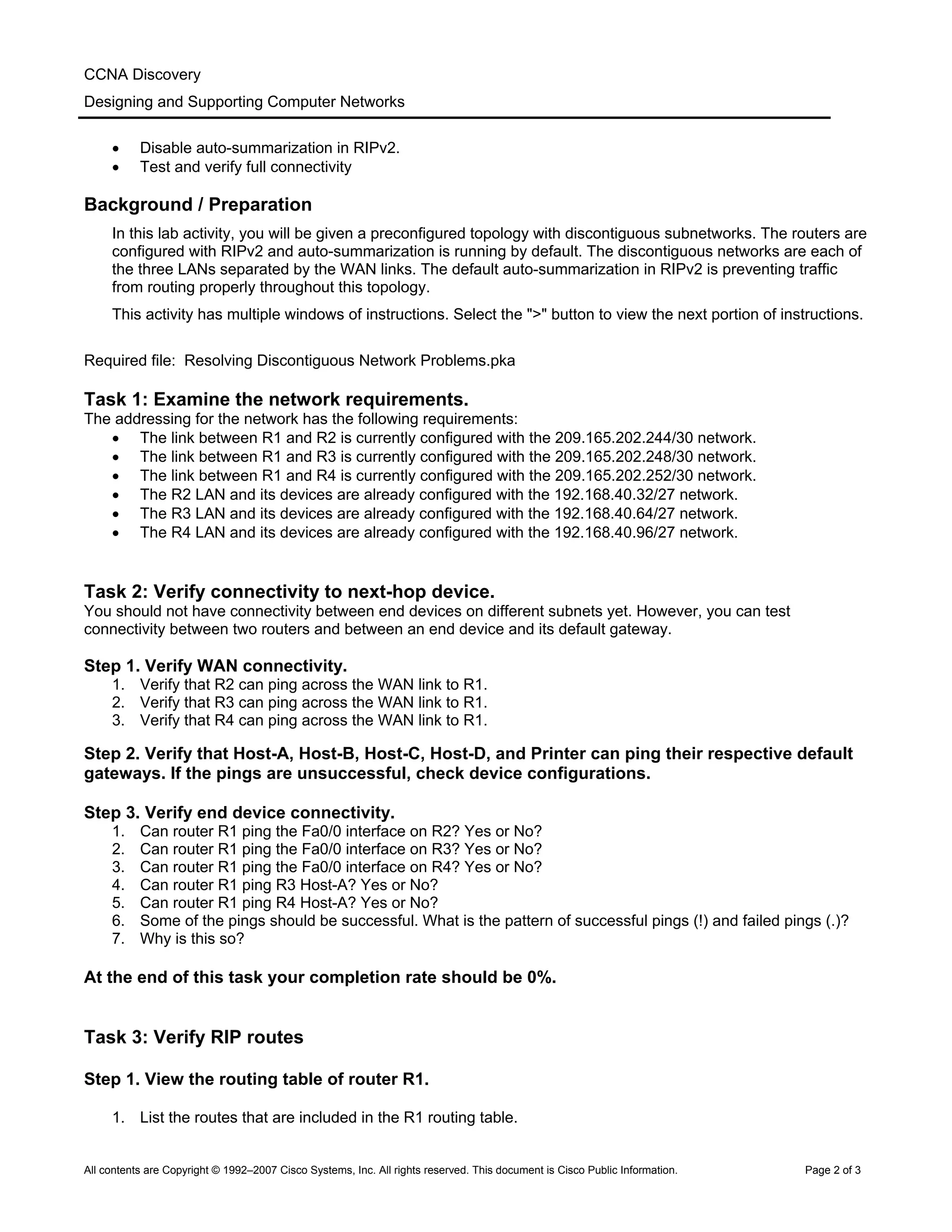

CCNA Discovery
• Disable auto-summarization in RIPv2.
• Test and verify full connectivity
In this lab activity, you will be given a preconfigured topology with discontiguous subnetworks. The routers are
configured with RIPv2 and auto-summarization is running by default. The discontiguous networks are each of
the three LANs separated by the WAN links. The default auto-summarization in RIPv2 is preventing traffic
from routing properly throughout this topology.
This activity has multiple windows of instructions. Select the ">" button to view the next portion of instructions.
Required file: Resolving Discontiguous Network Problems.pka
The addressing for the network has the following requirements:
• The link between R1 and R2 is currently configured with the 209.165.202.244/30 network.
• The R2 LAN and its devices are already configured with the 192.168.40.32/27 network.
Task 2: Verify connectivity to next-hop device.
You should not have connectivity between end devices on different subnets yet. However, you can test
connectivity between two routers and between an end device and its default gateway.
Step 1. Verify WAN connectivity.
1. Verify that R2 can ping across the WAN link to R1.
Step 2. Verify that Host-A, Host-B, Host-C, Host-D, and Printer can ping their respective default
gateways. If the pings are unsuccessful, check device configurations.
Step 3. Verify end device connectivity.
1. Can router R1 ping the Fa0/0 interface on R2? Yes or No?
4. Can router R1 ping R3 Host-A? Yes or No?
5. Can router R1 ping R4 Host-A? Yes or No?
6. Some of the pings should be successful. What is the pattern of successful pings (!) and failed pings (.)?
7. Why is this so?
Task 3: Verify RIP routes
Step 1. View the routing table of router R1.
1. List the routes that are included in the R1 routing table.

CCNA Discovery

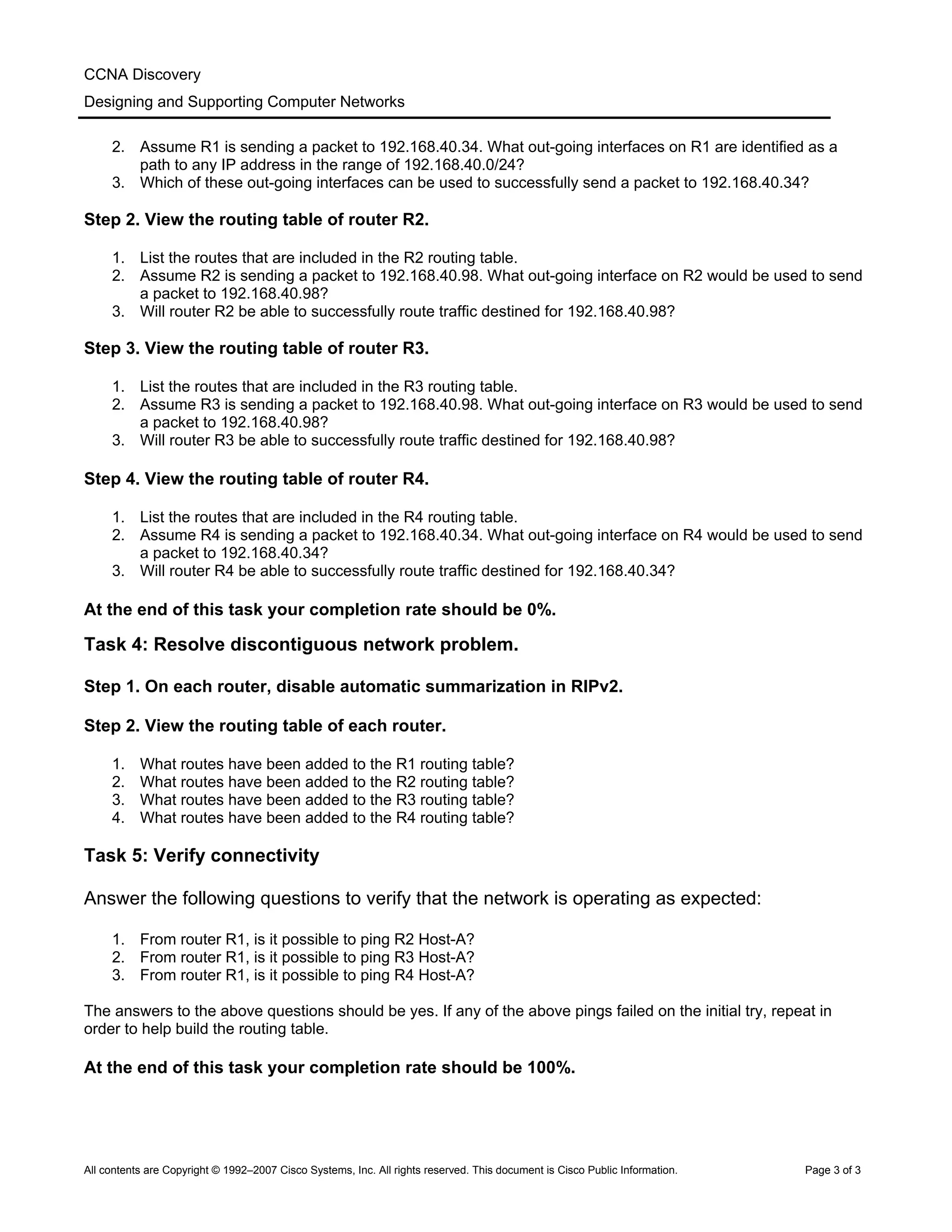

2. Assume R1 is sending a packet to 192.168.40.34. What out-going interfaces on R1 are identified as a
path to any IP address in the range of 192.168.40.0/24?
3. Which of these out-going interfaces can be used to successfully send a packet to 192.168.40.34?
2. Assume R2 is sending a packet to 192.168.40.98. What out-going interface on R2 would be used to send
a packet to 192.168.40.98?
3. Will router R2 be able to successfully route traffic destined for 192.168.40.98?
a packet to 192.168.40.98?
a packet to 192.168.40.34?
Task 4: Resolve discontiguous network problem.
Step 1. On each router, disable automatic summarization in RIPv2.
Step 2. View the routing table of each router.
1. What routes have been added to the R1 routing table?
Task 5: Verify connectivity
Answer the following questions to verify that the network is operating as expected:
1. From router R1, is it possible to ping R2 Host-A?
The answers to the above questions should be yes. If any of the above pings failed on the initial try, repeat in
order to help build the routing table.

CCNA Discovery

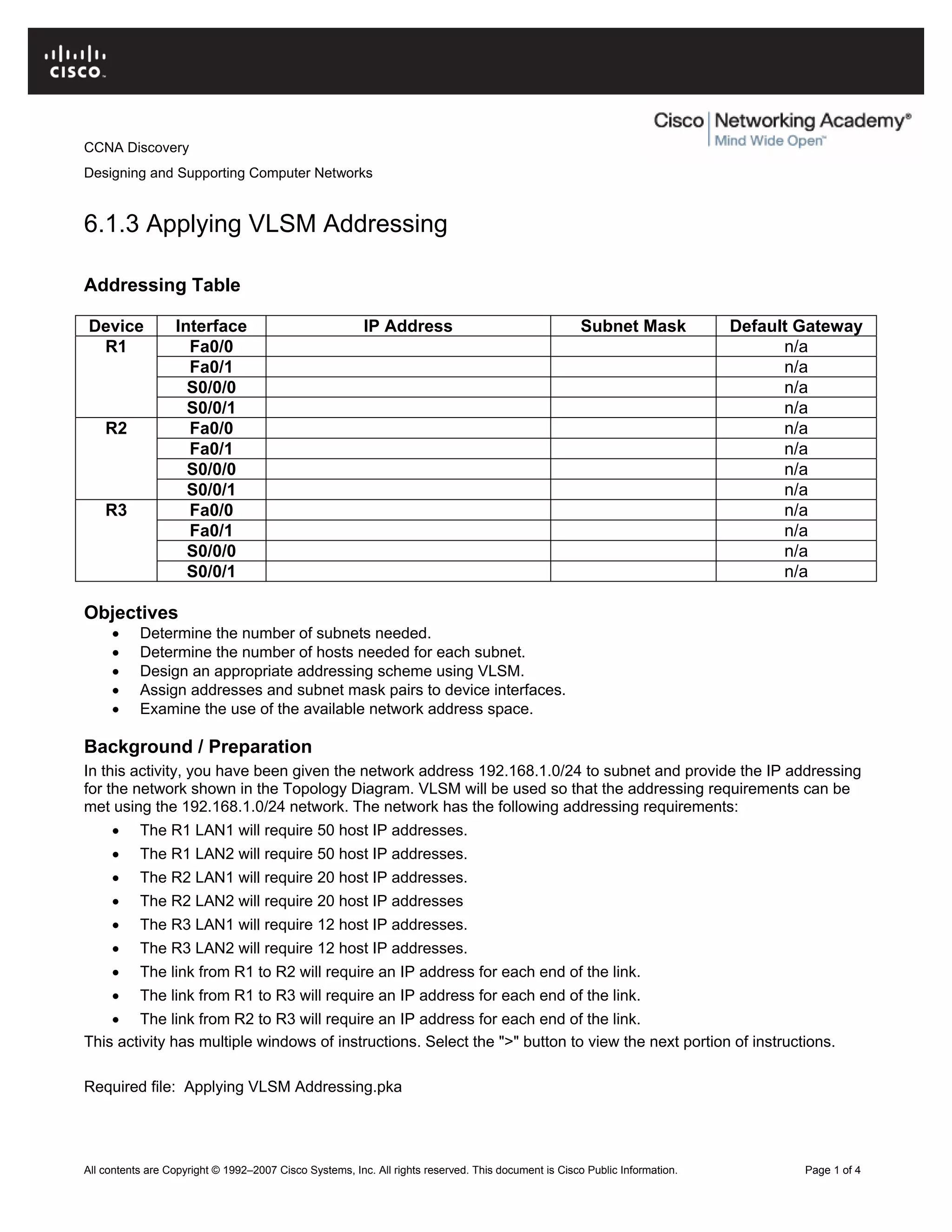

6.1.3 Applying VLSM Addressing
Addressing Table
Fa0/0 n/a
Fa0/1 n/a
S0/0/0 n/a
R1
S0/0/1 n/a
Fa0/0 n/a
Fa0/1 n/a
S0/0/0 n/a
R2
S0/0/1 n/a
Fa0/0 n/a
Fa0/1 n/a
S0/0/0 n/a
R3
S0/0/1 n/a
Objectives
• Determine the number of hosts needed for each subnet.
• Design an appropriate addressing scheme using VLSM.
• Assign addresses and subnet mask pairs to device interfaces.
• Examine the use of the available network address space.
In this activity, you have been given the network address 192.168.1.0/24 to subnet and provide the IP addressing
for the network shown in the Topology Diagram. VLSM will be used so that the addressing requirements can be
met using the 192.168.1.0/24 network. The network has the following addressing requirements:
• The R1 LAN1 will require 50 host IP addresses.
• The R2 LAN2 will require 20 host IP addresses
• The link from R1 to R2 will require an IP address for each end of the link.
This activity has multiple windows of instructions. Select the ">" button to view the next portion of instructions.
Required file: Applying VLSM Addressing.pka

CCNA Discovery

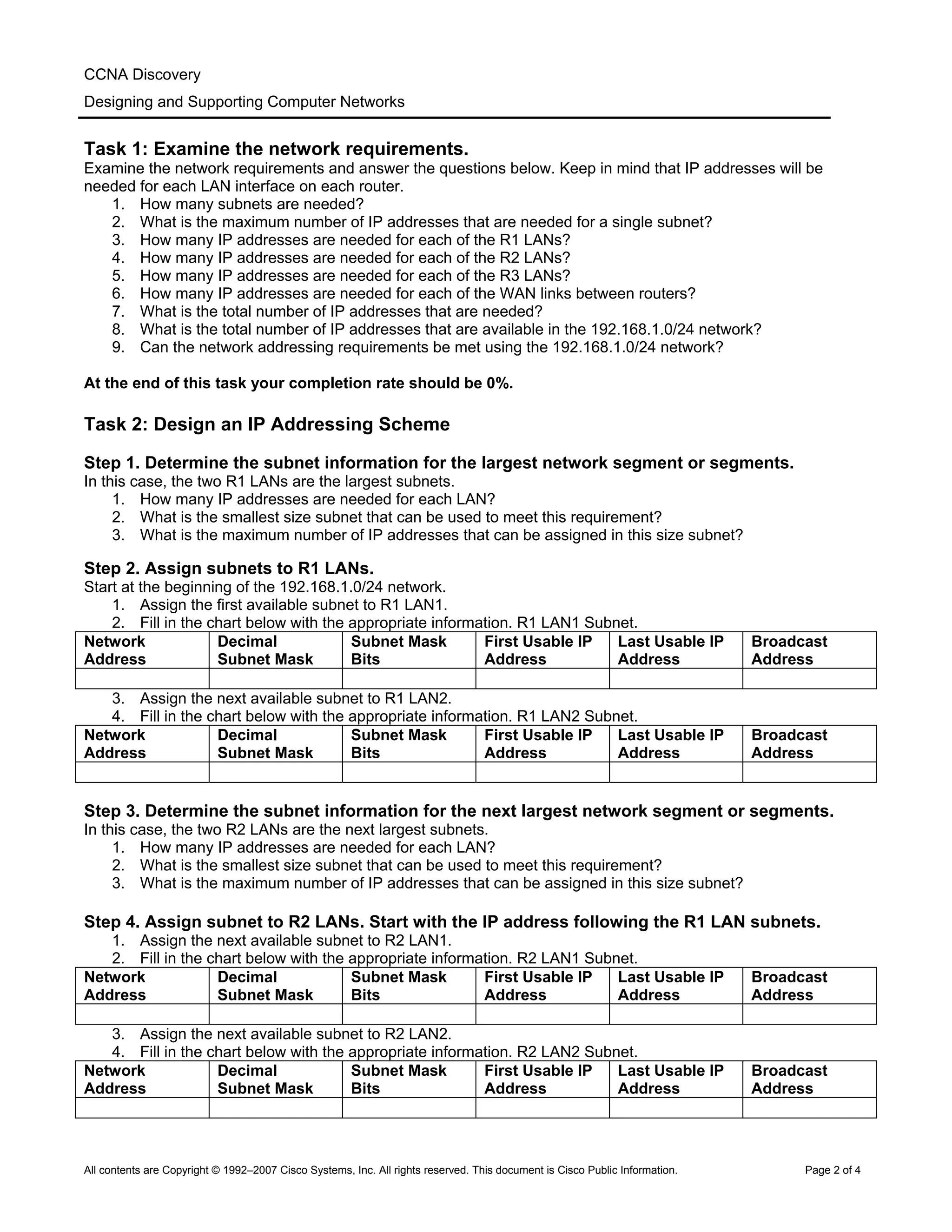

Examine the network requirements and answer the questions below. Keep in mind that IP addresses will be
needed for each LAN interface on each router.
3. How many IP addresses are needed for each of the R1 LANs?
6. How many IP addresses are needed for each of the WAN links between routers?
8. What is the total number of IP addresses that are available in the 192.168.1.0/24 network?
9. Can the network addressing requirements be met using the 192.168.1.0/24 network?
Task 2: Design an IP Addressing Scheme
Step 1. Determine the subnet information for the largest network segment or segments.
In this case, the two R1 LANs are the largest subnets.
1. How many IP addresses are needed for each LAN?
2. What is the smallest size subnet that can be used to meet this requirement?
3. What is the maximum number of IP addresses that can be assigned in this size subnet?
Step 2. Assign subnets to R1 LANs.
Start at the beginning of the 192.168.1.0/24 network.
1. Assign the first available subnet to R1 LAN1.
2. Fill in the chart below with the appropriate information. R1 LAN1 Subnet.
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address
3. Assign the next available subnet to R1 LAN2.
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address
Step 3. Determine the subnet information for the next largest network segment or segments.
In this case, the two R2 LANs are the next largest subnets.
Step 4. Assign subnet to R2 LANs. Start with the IP address following the R1 LAN subnets.
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address

CCNA Discovery

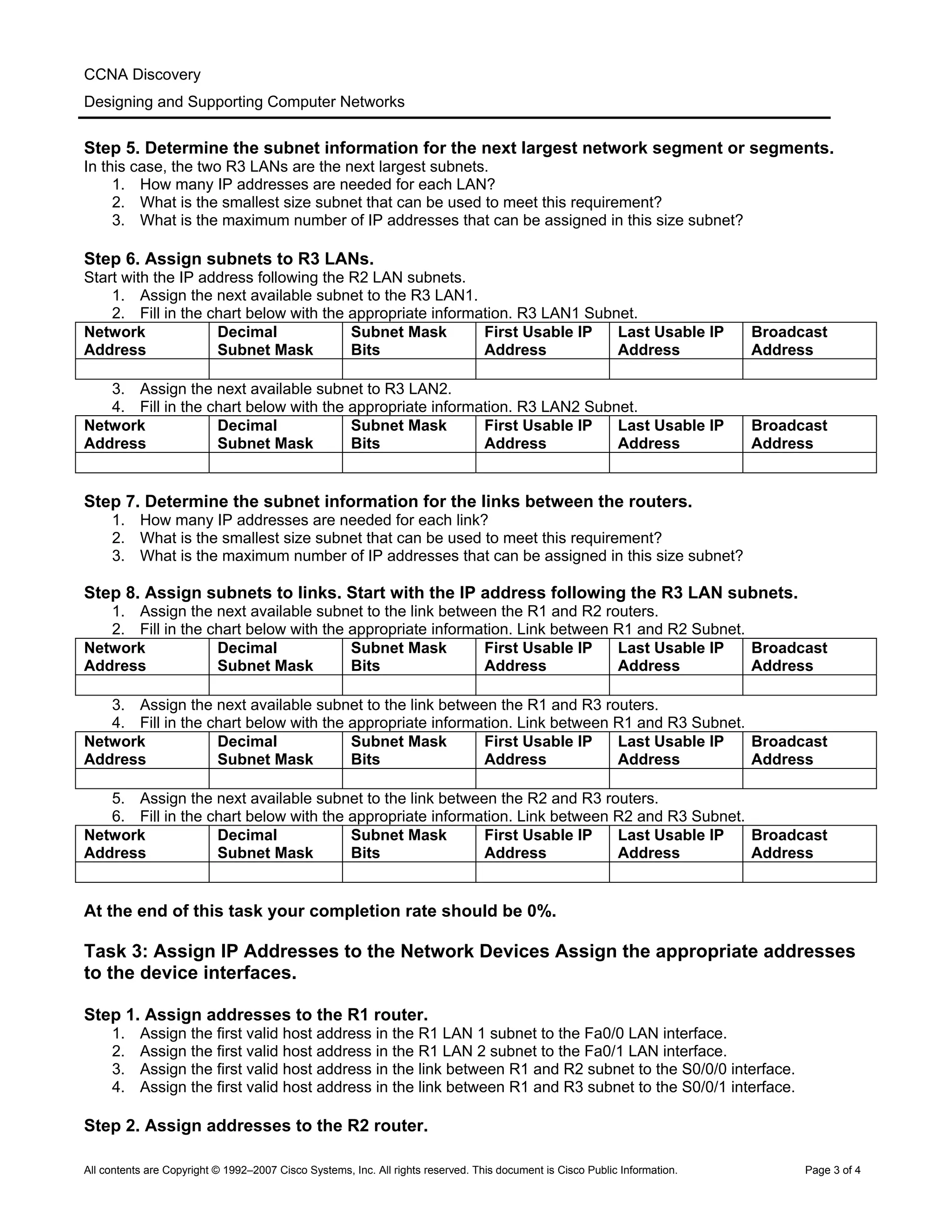

Step 5. Determine the subnet information for the next largest network segment or segments.
In this case, the two R3 LANs are the next largest subnets.
Step 6. Assign subnets to R3 LANs.
Start with the IP address following the R2 LAN subnets.
1. Assign the next available subnet to the R3 LAN1.
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address
Step 7. Determine the subnet information for the links between the routers.
1. How many IP addresses are needed for each link?
Step 8. Assign subnets to links. Start with the IP address following the R3 LAN subnets.
1. Assign the next available subnet to the link between the R1 and R2 routers.
2. Fill in the chart below with the appropriate information. Link between R1 and R2 Subnet.
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address
Network
Address
Decimal
Subnet Mask
Subnet Mask
Bits
First Usable IP
Address
Last Usable IP
Address
Broadcast
Address
Task 3: Assign IP Addresses to the Network Devices Assign the appropriate addresses
to the device interfaces.
Step 1. Assign addresses to the R1 router.
1. Assign the first valid host address in the R1 LAN 1 subnet to the Fa0/0 LAN interface.
3. Assign the first valid host address in the link between R1 and R2 subnet to the S0/0/0 interface.
4. Assign the first valid host address in the link between R1 and R3 subnet to the S0/0/1 interface.

CCNA Discovery

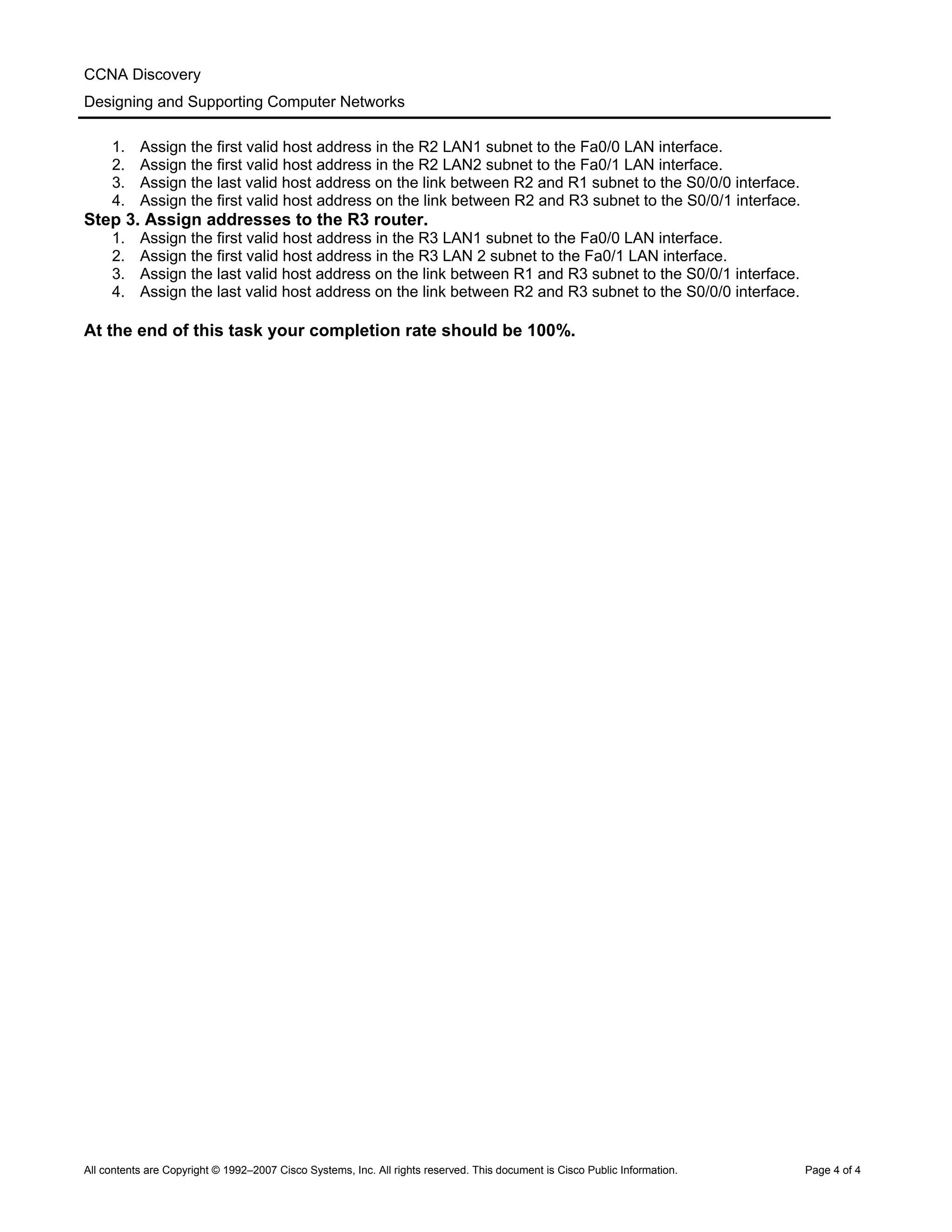

1. Assign the first valid host address in the R2 LAN1 subnet to the Fa0/0 LAN interface.
3. Assign the last valid host address on the link between R2 and R1 subnet to the S0/0/0 interface.
4. Assign the first valid host address on the link between R2 and R3 subnet to the S0/0/1 interface.

CCNA Discovery

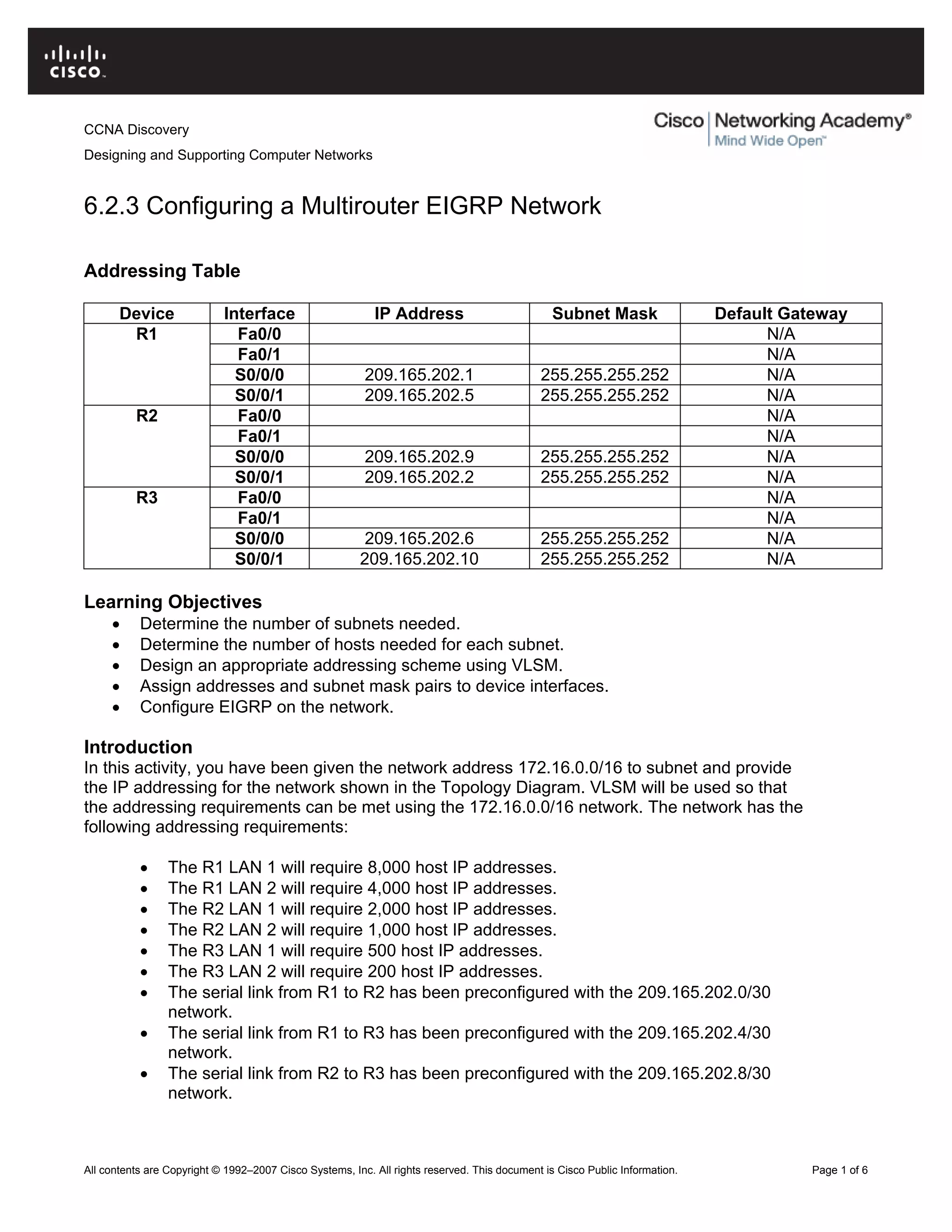

6.2.3 Configuring a Multirouter EIGRP Network
Addressing Table
Fa0/0 N/A
Fa0/1 N/A
S0/0/0 209.165.202.1 255.255.255.252 N/A
R1
S0/0/1 209.165.202.5 255.255.255.252 N/A
Fa0/0 N/A
Fa0/1 N/A
S0/0/0 209.165.202.9 255.255.255.252 N/A
R2
S0/0/1 209.165.202.2 255.255.255.252 N/A
Fa0/0 N/A
Fa0/1 N/A
S0/0/0 209.165.202.6 255.255.255.252 N/A
R3
S0/0/1 209.165.202.10 255.255.255.252 N/A
Learning Objectives
• Configure EIGRP on the network.
Introduction
In this activity, you have been given the network address 172.16.0.0/16 to subnet and provide
the IP addressing for the network shown in the Topology Diagram. VLSM will be used so that
the addressing requirements can be met using the 172.16.0.0/16 network. The network has the
following addressing requirements:
• The R1 LAN 1 will require 8,000 host IP addresses.
• The R3 LAN 1 will require 500 host IP addresses.
• The R3 LAN 2 will require 200 host IP addresses.
• The serial link from R1 to R2 has been preconfigured with the 209.165.202.0/30
network.
network.
network.

CCNA Discovery
Required file: Configuring a Multirouter EIGRP Network.pka
Task 1: Examine the Network Requirements.
Examine the network requirements and answer the questions below. Keep in mind that IP
addresses will be needed for each LAN interface on each router.
3. How many IP addresses are needed for the R1 LAN 1?
10. What is the total number of IP addresses that are available in the 172.16.0.0/16
network?
In this case, the R1 LAN 1 is the largest subnet.
Step 2. Assign the subnet to the R1 LAN 1.
1. Assign the first available subnet to the R1 LAN 1.
2. Fill in the chart below with the appropriate information.
R1 LAN 1 Subnet
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
192.168.

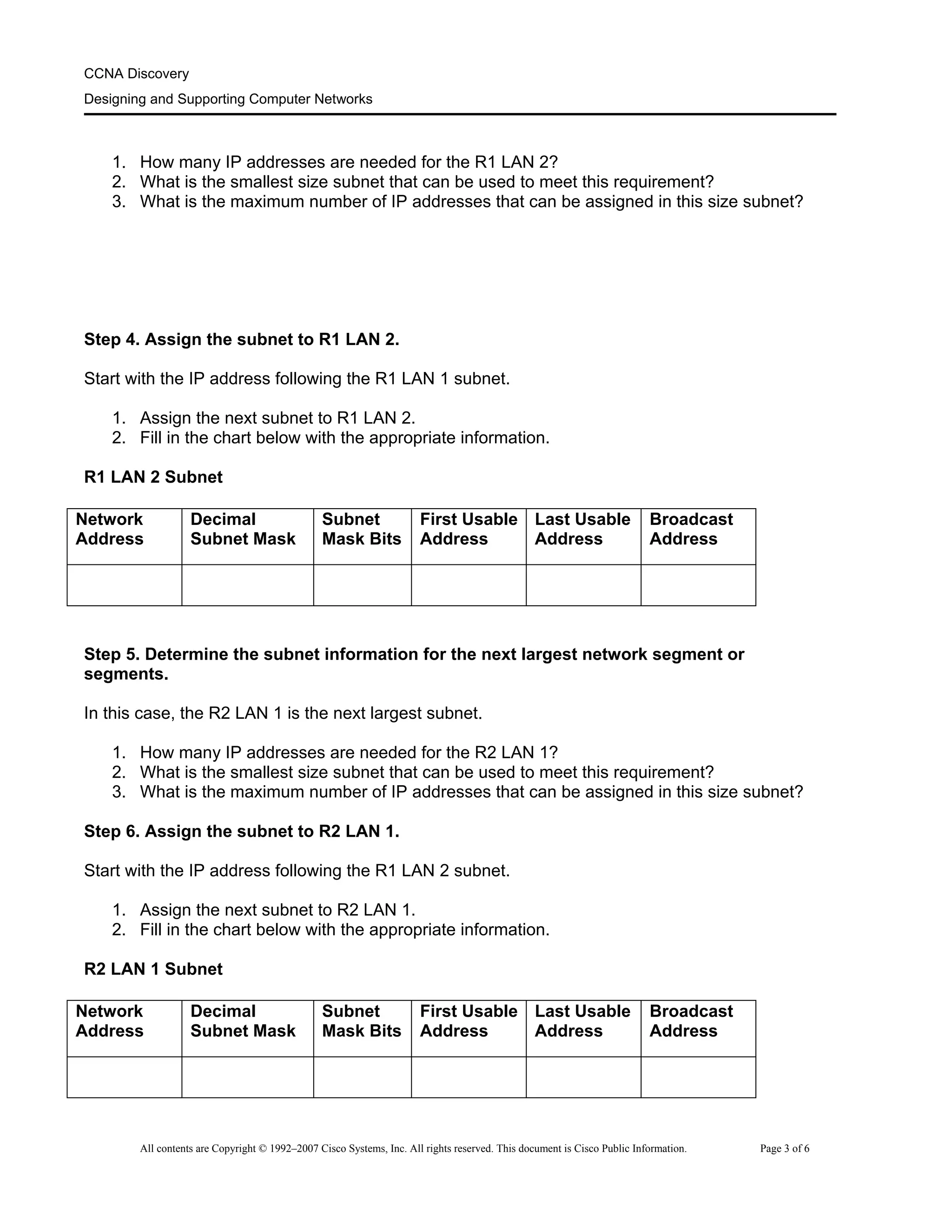

Step 3. Determine the subnet information for the next largest network segment or
segments.
In this case, the R1 LAN 2 is the next largest subnet.

CCNA Discovery
Step 4. Assign the subnet to R1 LAN 2.
Start with the IP address following the R1 LAN 1 subnet.
1. Assign the next subnet to R1 LAN 2.
R1 LAN 2 Subnet
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
segments.
R2 LAN 1 Subnet
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address

CCNA Discovery
segments.
R2 LAN 2 Subnet
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
segments.
R3 LAN 1 Subnet
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address

CCNA Discovery
segments.
3.
R3 LAN 2 Subnet
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
Task 3: Assign IP Addresses to the Network Devices
Assign the appropriate addresses to the device interfaces.
Step 1: Assign addresses to the R1 router.
1. Assign the first valid host address in the R1 LAN 1 subnet to the Fa0/0 LAN
interface.
interface.
interface.
interface.
interface.

CCNA Discovery
interface.

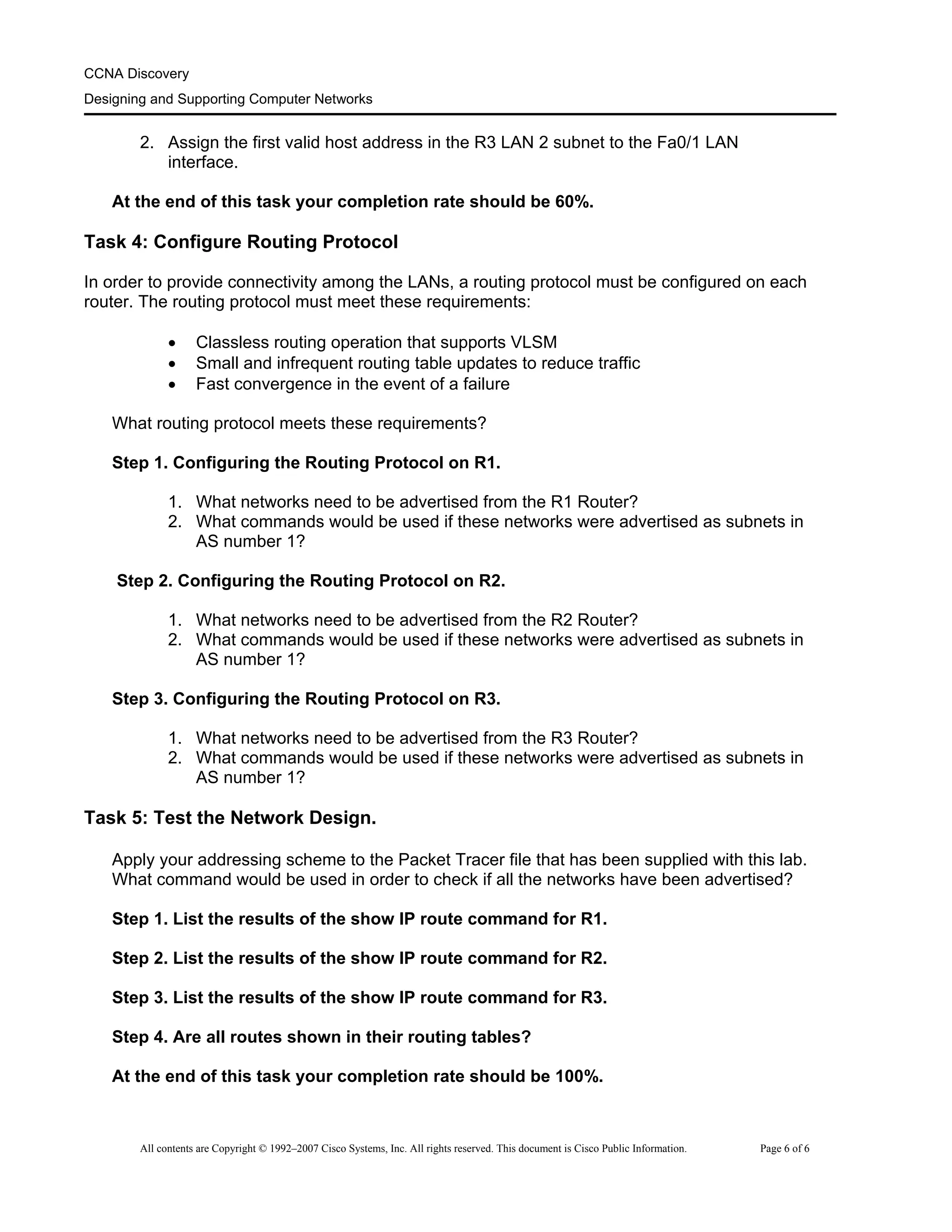

Task 4: Configure Routing Protocol
In order to provide connectivity among the LANs, a routing protocol must be configured on each
router. The routing protocol must meet these requirements:
• Classless routing operation that supports VLSM
• Small and infrequent routing table updates to reduce traffic
• Fast convergence in the event of a failure
What routing protocol meets these requirements?
Step 1. Configuring the Routing Protocol on R1.
1. What networks need to be advertised from the R1 Router?
2. What commands would be used if these networks were advertised as subnets in
AS number 1?
AS number 1?
AS number 1?
Task 5: Test the Network Design.
Apply your addressing scheme to the Packet Tracer file that has been supplied with this lab.
What command would be used in order to check if all the networks have been advertised?
Step 1. List the results of the show IP route command for R1.
Step 4. Are all routes shown in their routing tables?

CCNA Discovery

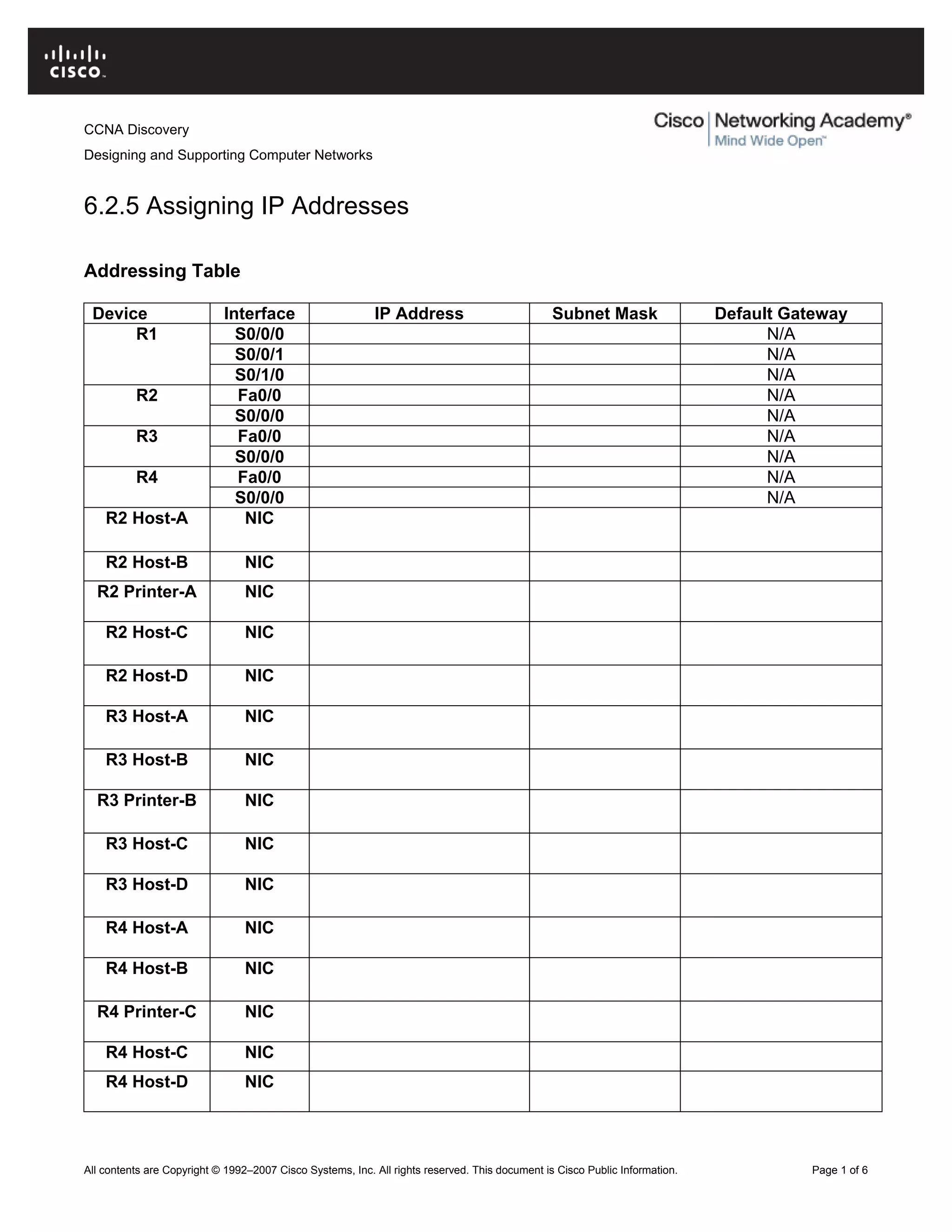

6.2.5 Assigning IP Addresses
Addressing Table
S0/0/0 N/A
S0/0/1 N/A
R1
S0/1/0 N/A
Fa0/0 N/AR2
S0/0/0 N/A
Fa0/0 N/AR3
S0/0/0 N/A
Fa0/0 N/AR4
S0/0/0 N/A
R2 Host-A NIC
R2 Host-B NIC
R2 Printer-A NIC
R2 Host-C NIC
R2 Host-D NIC
R3 Host-A NIC
R3 Host-B NIC
R3 Printer-B NIC
R3 Host-C NIC
R3 Host-D NIC
R4 Host-A NIC
R4 Host-B NIC
R4 Printer-C NIC
R4 Host-C NIC
R4 Host-D NIC

CCNA Discovery

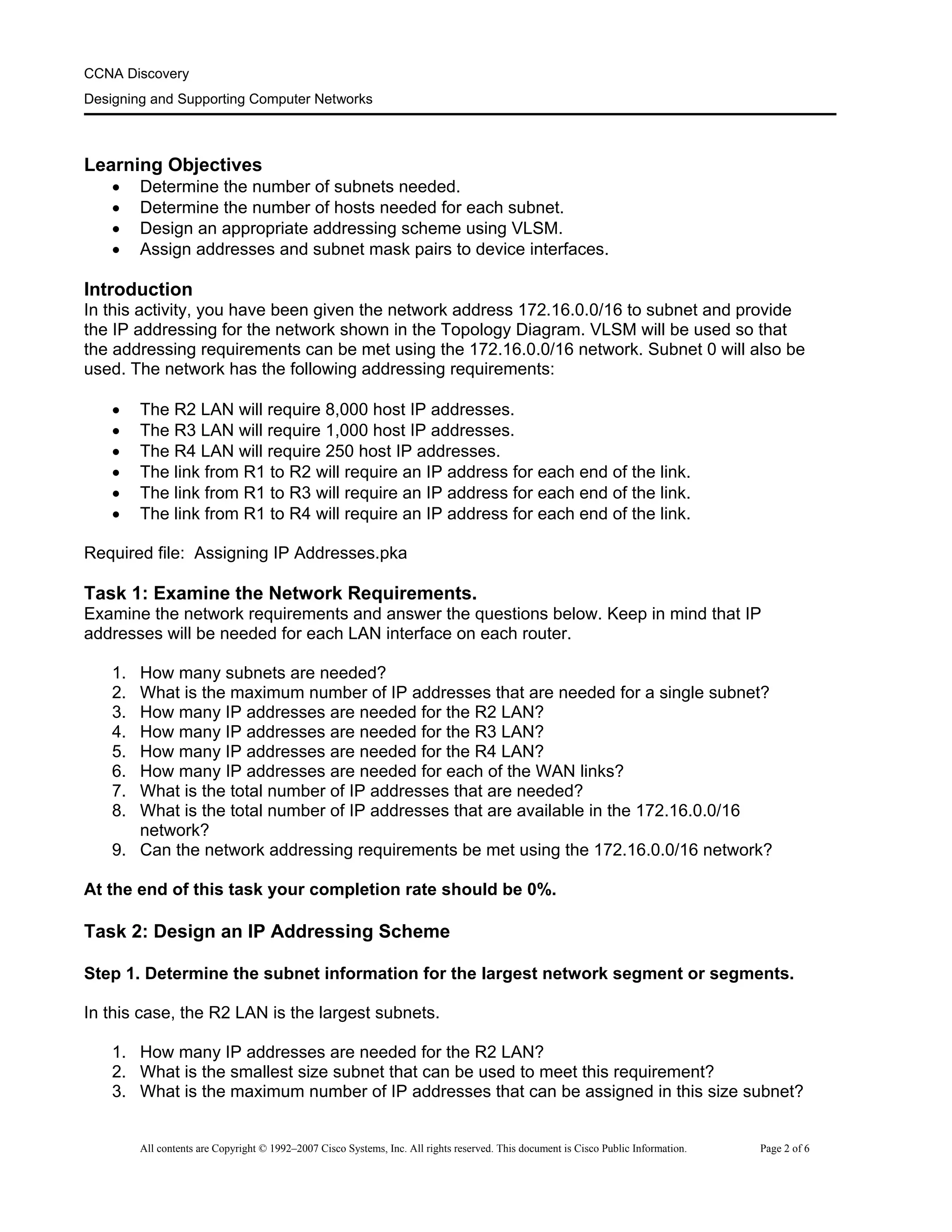

Learning Objectives
Introduction
In this activity, you have been given the network address 172.16.0.0/16 to subnet and provide
the IP addressing for the network shown in the Topology Diagram. VLSM will be used so that
the addressing requirements can be met using the 172.16.0.0/16 network. Subnet 0 will also be
used. The network has the following addressing requirements:
• The R2 LAN will require 8,000 host IP addresses.
• The R3 LAN will require 1,000 host IP addresses.
Required file: Assigning IP Addresses.pka
Task 1: Examine the Network Requirements.
Examine the network requirements and answer the questions below. Keep in mind that IP
addresses will be needed for each LAN interface on each router.
3. How many IP addresses are needed for the R2 LAN?
6. How many IP addresses are needed for each of the WAN links?
8. What is the total number of IP addresses that are available in the 172.16.0.0/16
network?
In this case, the R2 LAN is the largest subnets.

CCNA Discovery

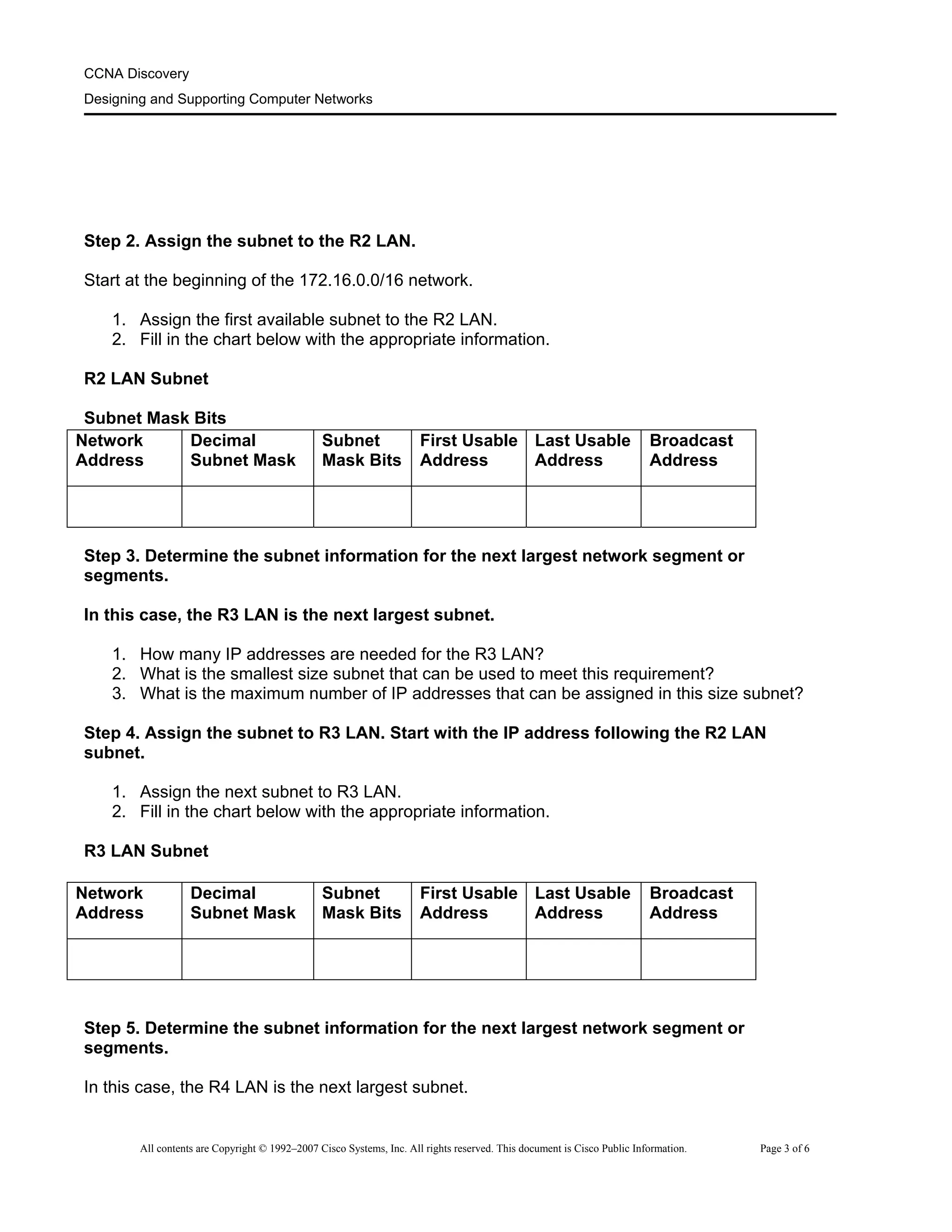

Step 2. Assign the subnet to the R2 LAN.
1. Assign the first available subnet to the R2 LAN.
R2 LAN Subnet
Subnet Mask Bits
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
segments.
In this case, the R3 LAN is the next largest subnet.
Step 4. Assign the subnet to R3 LAN. Start with the IP address following the R2 LAN
subnet.
1. Assign the next subnet to R3 LAN.
R3 LAN Subnet
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
segments.
In this case, the R4 LAN is the next largest subnet.

CCNA Discovery

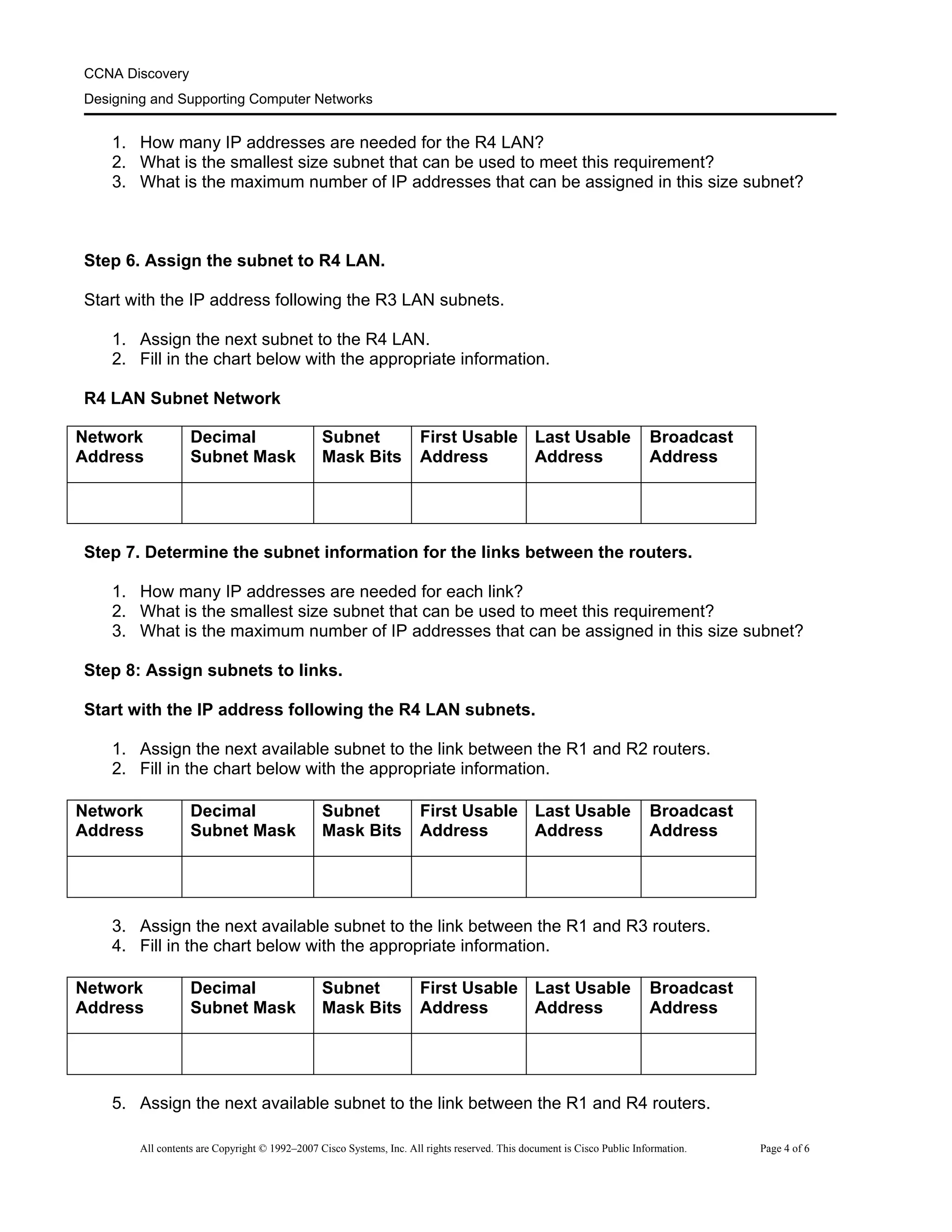

Step 6. Assign the subnet to R4 LAN.
1. Assign the next subnet to the R4 LAN.
R4 LAN Subnet Network
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
Step 7. Determine the subnet information for the links between the routers.
1. How many IP addresses are needed for each link?
Step 8: Assign subnets to links.
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address

CCNA Discovery
At
the end of this task your completion rate should be 0%.
Network
Address
Decimal
Subnet Mask
Subnet
Mask Bits
First Usable
Address
Last Usable
Address
Broadcast
Address
Task 3: Assign IP Addresses to the Network Devices
Assign the appropriate addresses to the device interfaces. Document the addresses to be used
in the Addressing Table provided under the Topology Diagram.
1. Assign the first valid host address in the link between R1 and R2 subnet to the s0/0/0
interface.
2. Assign the first valid host address in the link between R1 and R3 subnet to the
S0/0/1 interface.
3. Assign the first valid host address in the link between R1 and R4 subnet to the
S0/1/0 interface.
1. Assign the first valid host address in the R2 LAN subnet to the Fa0/0 LAN interface.
2. Assign the last valid host address on the link between R1 and R2 subnet to the
S0/0/0 interface
S0/0/0 interface.
S0/0/0 interface.
Step 5: Assign addresses to the host devices (PCs and Printer) of R2.
1. Assign the second valid host address in the R2 LAN subnet to R2 Host-A.
2. Assign the third valid host address in the R2 LAN subnet to R2 Host-B.
3. Assign the fourth valid host address in the R2 LAN subnet to R2 Printer-A.
4. Assign the fifth valid host address in the R2 LAN subnet to R2 Host-C.
5. Assign the sixth valid host address in the R2 LAN subnet to R2 Host-D.

CCNA Discovery

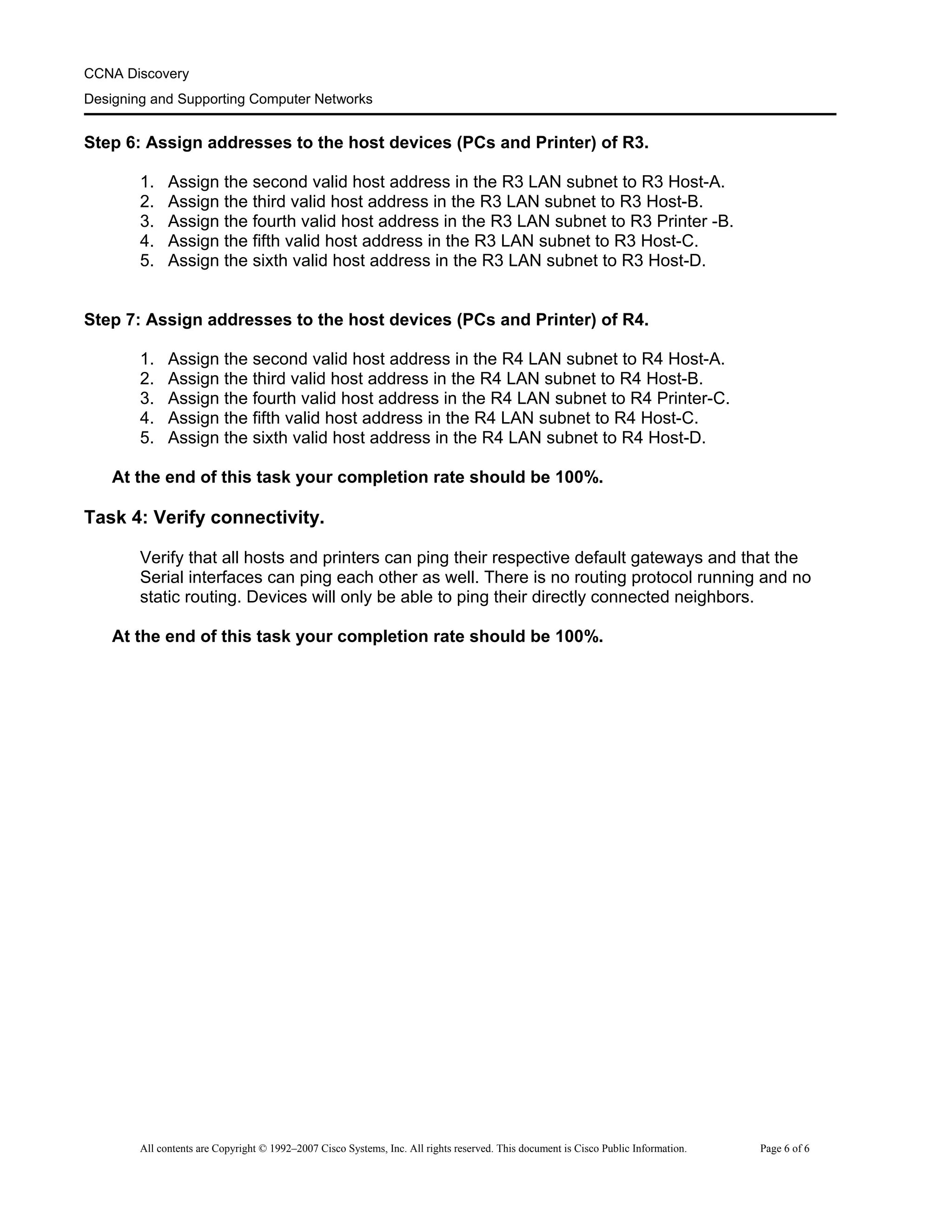

3. Assign the fourth valid host address in the R3 LAN subnet to R3 Printer -B.
3. Assign the fourth valid host address in the R4 LAN subnet to R4 Printer-C.
Task 4: Verify connectivity.
Verify that all hosts and printers can ping their respective default gateways and that the
Serial interfaces can ping each other as well. There is no routing protocol running and no
static routing. Devices will only be able to ping their directly connected neighbors.

CCNA Discovery

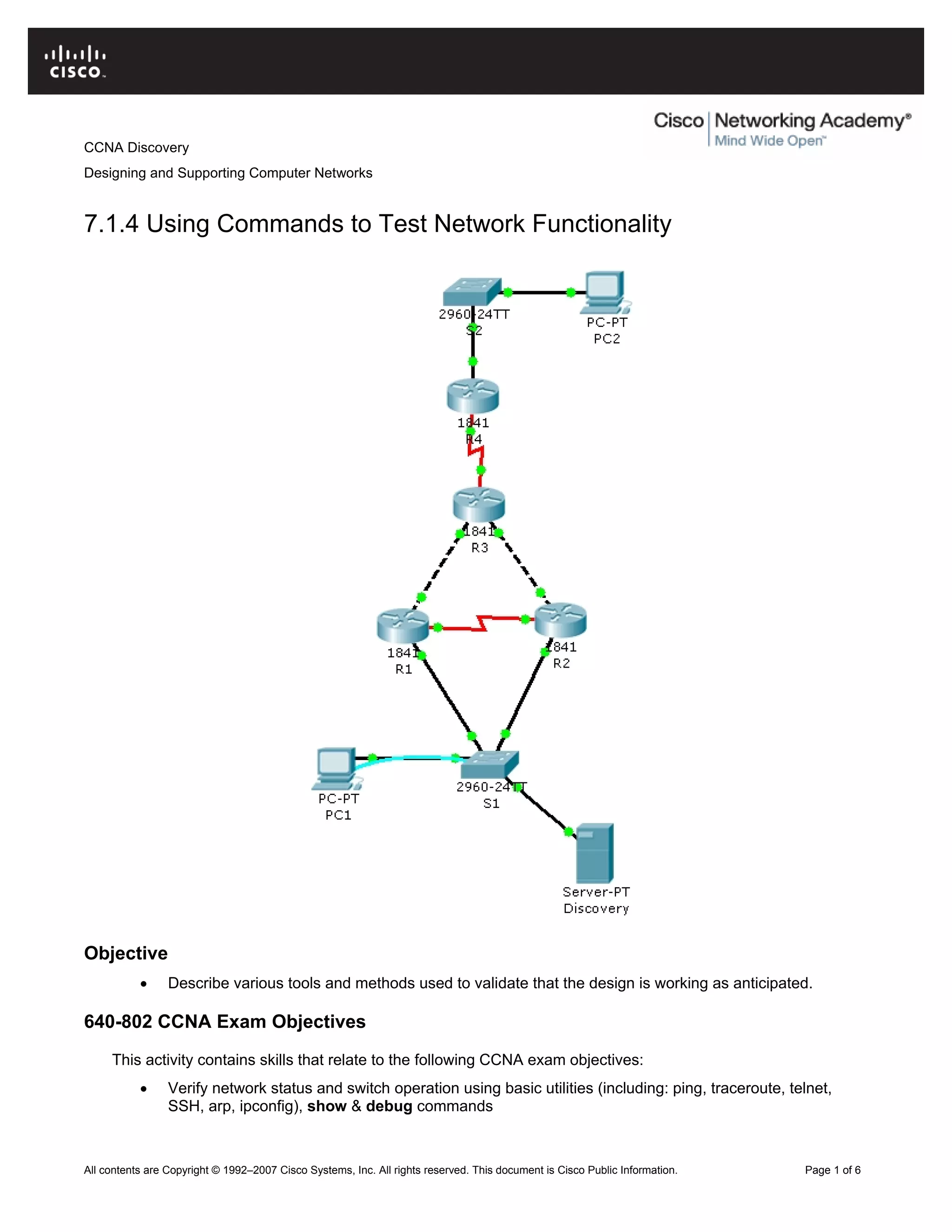

7.1.4 Using Commands to Test Network Functionality
Objective
• Describe various tools and methods used to validate that the design is working as anticipated.
640-802 CCNA Exam Objectives
This activity contains skills that relate to the following CCNA exam objectives:
• Verify network status and switch operation using basic utilities (including: ping, traceroute, telnet,
SSH, arp, ipconfig), show & debug commands

CCNA Discovery
• Verify device configuration and network connectivity using ping, traceroute, telnet, SSH or other
utilities
• Verify network connectivity (including: using ping, traceroute, and telnet or SSH)
Expected Results and Success Criteria
a. Before beginning this activity, read through the tasks you are expected to perform. What do you
expect the result of performing these tasks will be?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
b. Why do you think that it is important to verify the basic operation of the network even if it is just a
prototype of the proposed network?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
c. How can these techniques be used to document a prototype network that was designed by somebody
else?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
The router and switch IOS provides a number of commands in the CLI that provide detailed and summary
information about the configuration and operation of the device. These are known as show commands.
This activity will use Packet Tracer to practice using various show commands to explore the configuration of
routers and switches in a configured prototype network.
Required file: Using Commands to Test Network Functionality.pka
Step 1: Console to a switch and explore the configuration.
a. From PC1 establish a console connection to switch S1. Enter privileged exec mode, using the enable
secret password of class.
b. Issue the command show running-config and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
c. Issue the command show ip interface brief and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
d. Issue the command show version and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
e. Issue the command show cdp neighbors and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
f. Issue the command show cdp neighbors detail and list three additional pieces of information the
command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
g. Write down an IP address you can use to reach router R1.
____________________________________________________________________________
Step 2: Telnet to a router and explore the configuration.
a. From PC1 ping the IP address of router R1, telnet to router R1, the telnet password is cisco, and
enter privileged exec mode, the enable secret is class.
b. Issue the command show running-config and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
c. Issue the command show ip interface brief and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery
d. Issue the command show interface and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
e. Issue the command show version and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
f. Issue the command show ip route and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
g. Issue the command show ip protocols and list five pieces of information the command displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
h. Issue the command show ip eigrp neighbors and list five pieces of information the command
displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
i. Issue the command show ip eigrp topology and list five pieces of information the command
displays.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

CCNA Discovery
____________________________________________________________________________
j. Issue the command show cdp neighbors detail and write down IP addresses you can use to reach
neighboring devices.
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
Step 3: Explore the remaining network devices.
a. Repeat the above steps for the remaining routers and switch. Record the ip addresses assigned to
each device on the diagram below.
b. Verify the flow of traffic through the network by issuing the tracert command from PC1 to the various
devices in the network.
Step 4: Reflection
a. What are some other commands you can think of to discover more information about the network?
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
b. If the results of your testing are not as expected, what commands could be used to observe real-time
traffic flowing through a device?

CCNA Discovery
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________

7.2.2 Basic Connectivity Test Plan
Start Date End Date
Network Build (Setup)
Testing Date

Table of Contents
ATTENDEES 3
INTRODUCTION 4
EQUIPMENT 4
DESIGN AND TOPOLOGY DIAGRAM 5
TEST 1. DESCRIPTION: BASELINE CONNECTIVITY TEST 6
TEST 1. PROCEDURES: 6
TEST 1. EXPECTED RESULTS AND SUCCESS CRITERIA: 6
TEST 1. CONCLUSIONS 7
APPENDIX 8

Attendees
Name Company Position

Introduction
An introduction to the testing explaining briefly what the purpose of the test is, and what should
be observed. Include a brief description of testing goals. List all tests you intend to run.
For example:
The purpose of this test plan is to demonstrate that the basic connectivity and routing protocol are
configured correctly. This prototype network is used to test various aspects of the proposed design.
• Test 1: Baseline Connectivity Test
• Verify physical and IP connectivity between devices on the prototype network.
• Collect operational baselines.
• Demonstrate IP connectivity between devices on the same VLANs.
• Demonstrate the routing protocol operates correctly and that the web server is accessible
through the network.
Equipment
List all of the equipment needed to perform the tests. Be sure to include cables, optional
connectors or components, and software.
Qty. Req Model Any additional
options or
software required
Substitute IOS Software Rev.
2 2960 Layer 2
switch
none Any 2950 or 2960 model
switch
12.2 or above
2 1841 ISR
routers with 2
FastEthernet
ports and 2
Serial ports
none Any multilayer switch or
router with minimum 2
FastEthernet ports and
one serial port.
12.2 or above
2 Personal
Computer end-
devices
FastEthernet
NIC
At least one PC and any
other IP end-device
(camera, printer, etc.)
Windows, MAC or Linux
operating system.
1 Personal
Computer
Server
FastEthernet
NIC
Any PC with web server
software loaded
Windows, MAC, or
Linux operating system
6 Cat 5 or above
straight-
through patch
cables.
none none n/a
2 Cat 5 or above
cross-over
patch cables
none none n/a
2 V.35 DTE
Serial Cables
None None n/a
2 V.35 DCE
Serial Cables
None None n/a

Design and Topology Diagram
Place a copy of the prototype network topology in this section. This is the network as it should be
built to be able to perform the required tests. If this topology duplicates a section of the actual
network, include a reference topology showing the location within the existing or planned
network. Initial configurations for each device must be included in the Appendix.

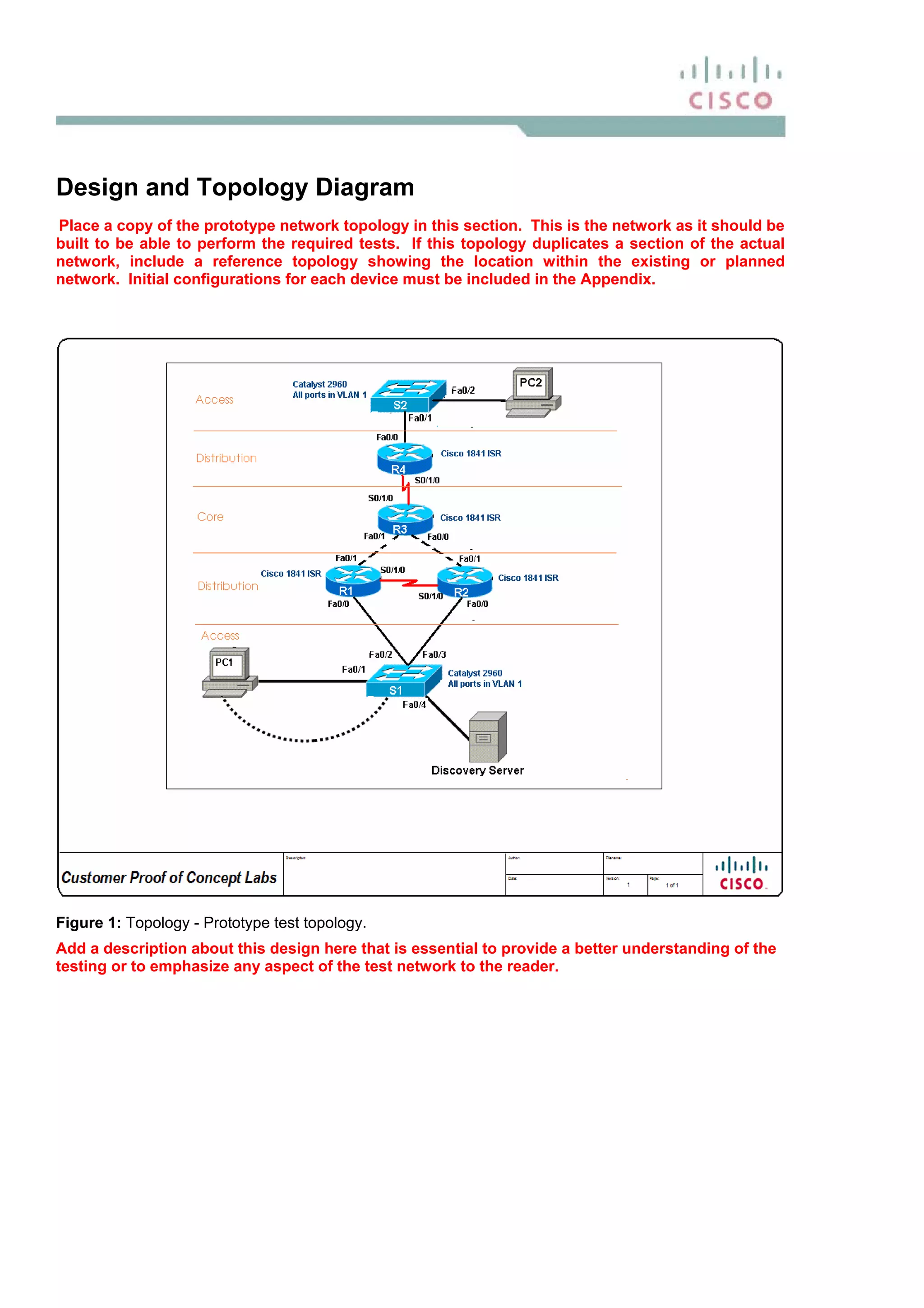

Figure 1: Topology - Prototype test topology.
Add a description about this design here that is essential to provide a better understanding of the
testing or to emphasize any aspect of the test network to the reader.

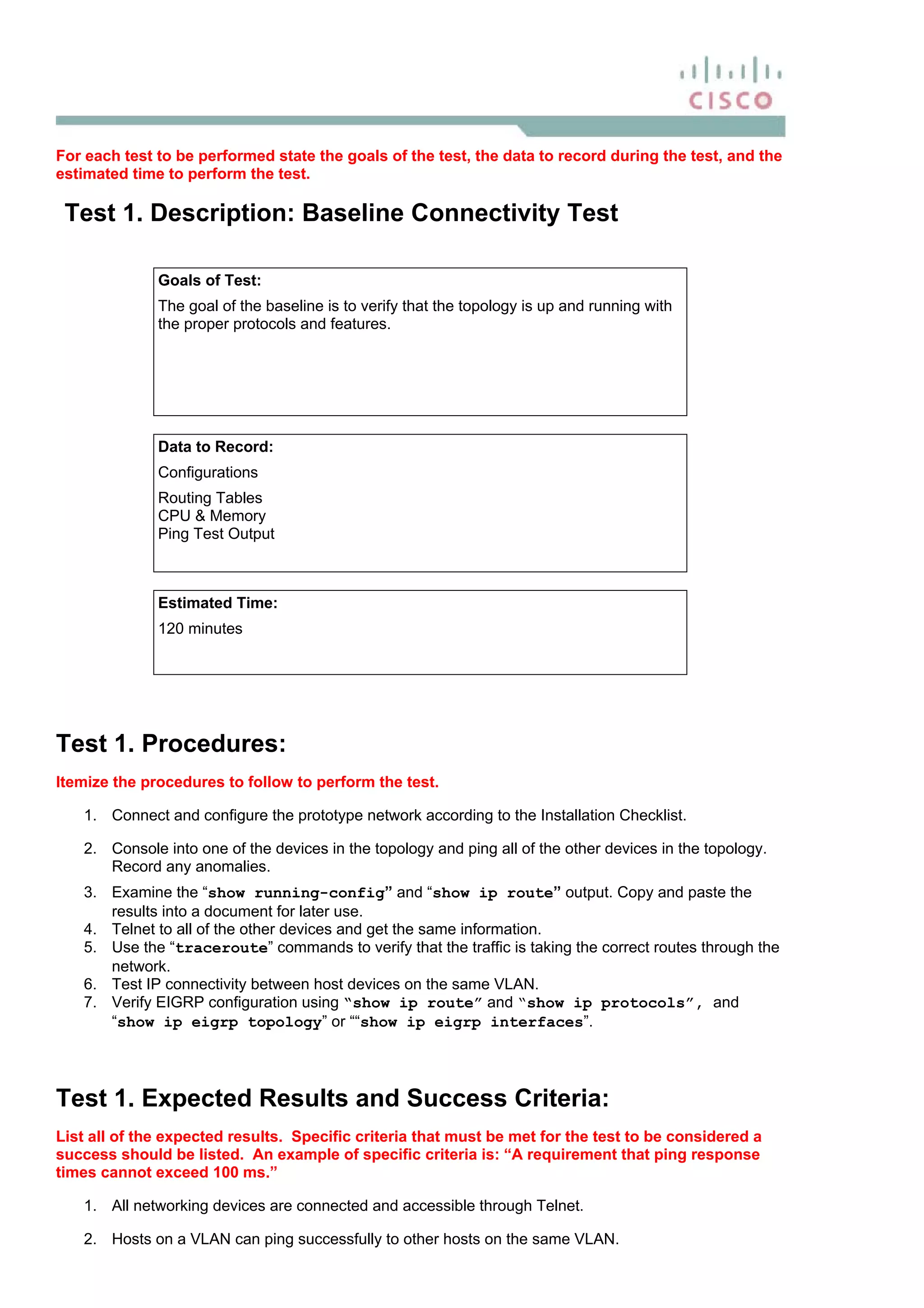

For each test to be performed state the goals of the test, the data to record during the test, and the
estimated time to perform the test.
Test 1. Description: Baseline Connectivity Test
Goals of Test:
The goal of the baseline is to verify that the topology is up and running with
the proper protocols and features.
Data to Record:
Configurations
Routing Tables
CPU & Memory
Ping Test Output
Estimated Time:
120 minutes
Test 1. Procedures:
Itemize the procedures to follow to perform the test.
1. Connect and configure the prototype network according to the Installation Checklist.
2. Console into one of the devices in the topology and ping all of the other devices in the topology.
Record any anomalies.
3. Examine the “show running-config” and “show ip route” output. Copy and paste the
results into a document for later use.
4. Telnet to all of the other devices and get the same information.
5. Use the “traceroute” commands to verify that the traffic is taking the correct routes through the
network.
6. Test IP connectivity between host devices on the same VLAN.
7. Verify EIGRP configuration using “show ip route” and “show ip protocols”, and
“show ip eigrp topology” or ““show ip eigrp interfaces”.
Test 1. Expected Results and Success Criteria:
List all of the expected results. Specific criteria that must be met for the test to be considered a
success should be listed. An example of specific criteria is: “A requirement that ping response
times cannot exceed 100 ms.”
1. All networking devices are connected and accessible through Telnet.
2. Hosts on a VLAN can ping successfully to other hosts on the same VLAN.

3. EIGRP routes are advertised correctly and are installed into the routing tables on all of the
routers.
4. Web pages stored on the Discovery Server are available to both PCs.
Test 1. Results and Conclusions
Record the results of the tests and the conclusions that can be drawn from the results.

Appendix
Record the starting configurations, any modifications, log file or command output, and any other
relevant documentation.

CCNA Discovery

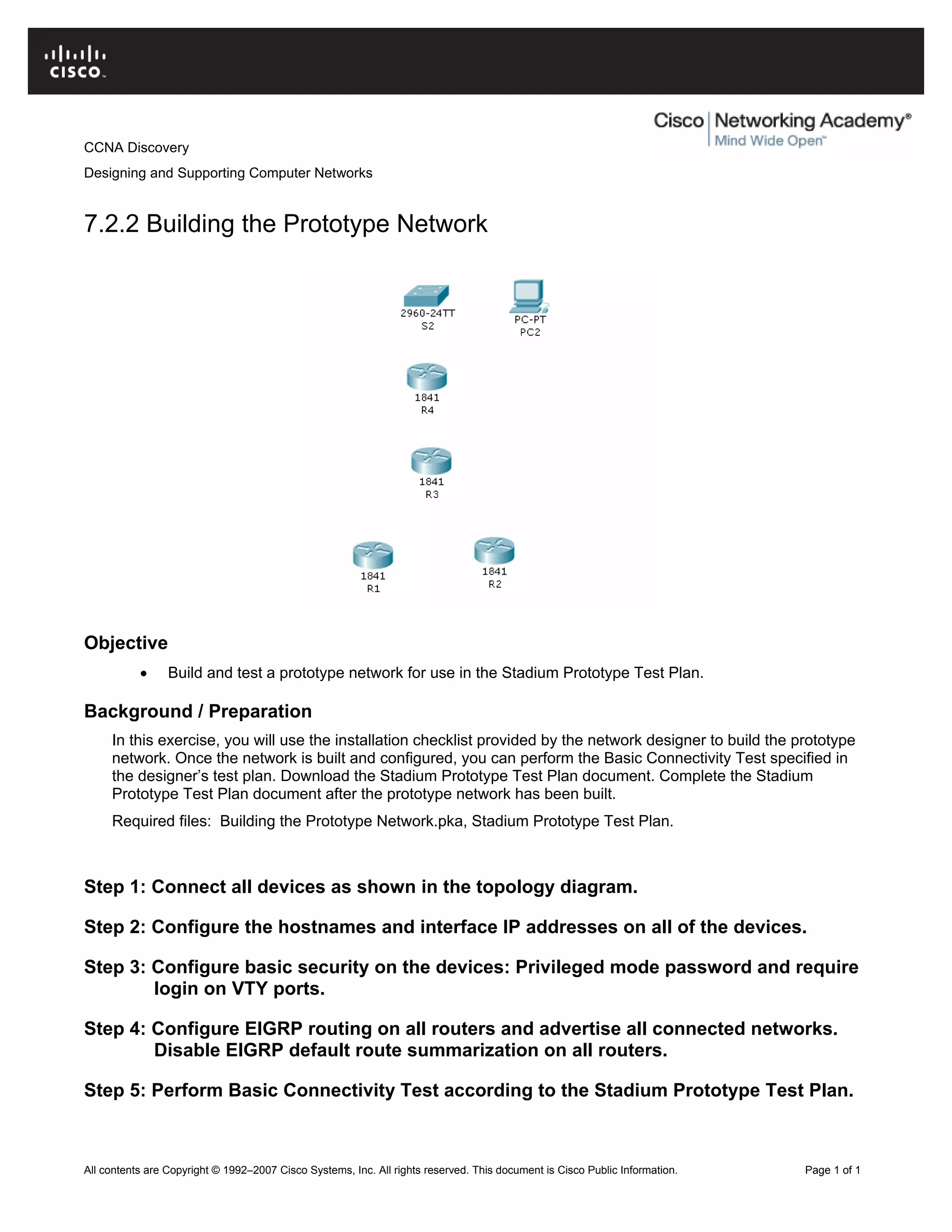

7.2.2 Building the Prototype Network
Objective
• Build and test a prototype network for use in the Stadium Prototype Test Plan.
In this exercise, you will use the installation checklist provided by the network designer to build the prototype
network. Once the network is built and configured, you can perform the Basic Connectivity Test specified in
the designer’s test plan. Download the Stadium Prototype Test Plan document. Complete the Stadium
Prototype Test Plan document after the prototype network has been built.
Required files: Building the Prototype Network.pka, Stadium Prototype Test Plan.
Step 1: Connect all devices as shown in the topology diagram.
Step 2: Configure the hostnames and interface IP addresses on all of the devices.
Step 3: Configure basic security on the devices: Privileged mode password and require
login on VTY ports.
Step 4: Configure EIGRP routing on all routers and advertise all connected networks.
Disable EIGRP default route summarization on all routers.
Step 5: Perform Basic Connectivity Test according to the Stadium Prototype Test Plan.

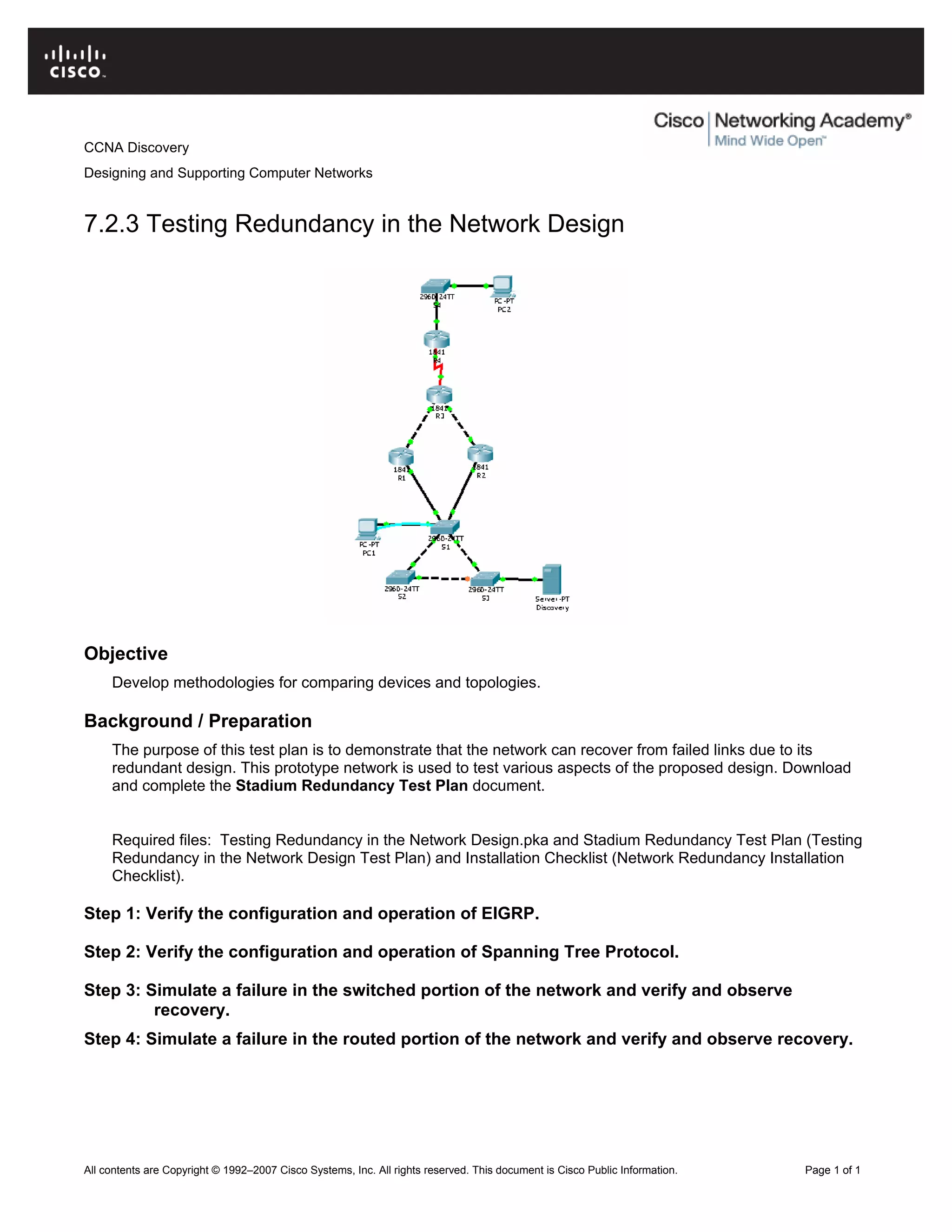

7.2.3 Testing Redundancy in the Network Design Test Plan
Start Date End Date
Testing Date

Table of Contents
ATTENDEES 3
INTRODUCTION 4
EQUIPMENT 4
TEST 1. NETWORK REDUNDANCY TEST 7
APPENDIX 10

Introduction
The purpose of this test plan is to demonstrate that the network can recover from failed links due to its
redundant design. This prototype network is used to test various aspects of the proposed design.
• Test 1: Network Redundancy Test
• Verify that redundant links allow successful recovery from failed links.
• Compare the operation of static routes with the operation of a dynamic routing protocol when a
link fails.
Equipment
options or
software required
4 2960 Layer 2
switch
switch
12.2 or above
4 1841 ISR
routers with 2
FastEthernet
ports and 2
Serial ports
one serial port.
12.2 or above
2 Personal
Computer end-
devices
FastEthernet
NIC
other IP end-device
operating system.
1 Personal
Computer
Server
FastEthernet
NIC
software loaded
Windows, MAC, or
6 Cat 5 or above
straight-
through patch
cables.
none none n/a
5 Cat 5 or above
cross-over
patch cables
none none n/a
1 V.35 DTE
Serial Cables
None None n/a
1 V.35 DCE
Serial Cables
None None n/a

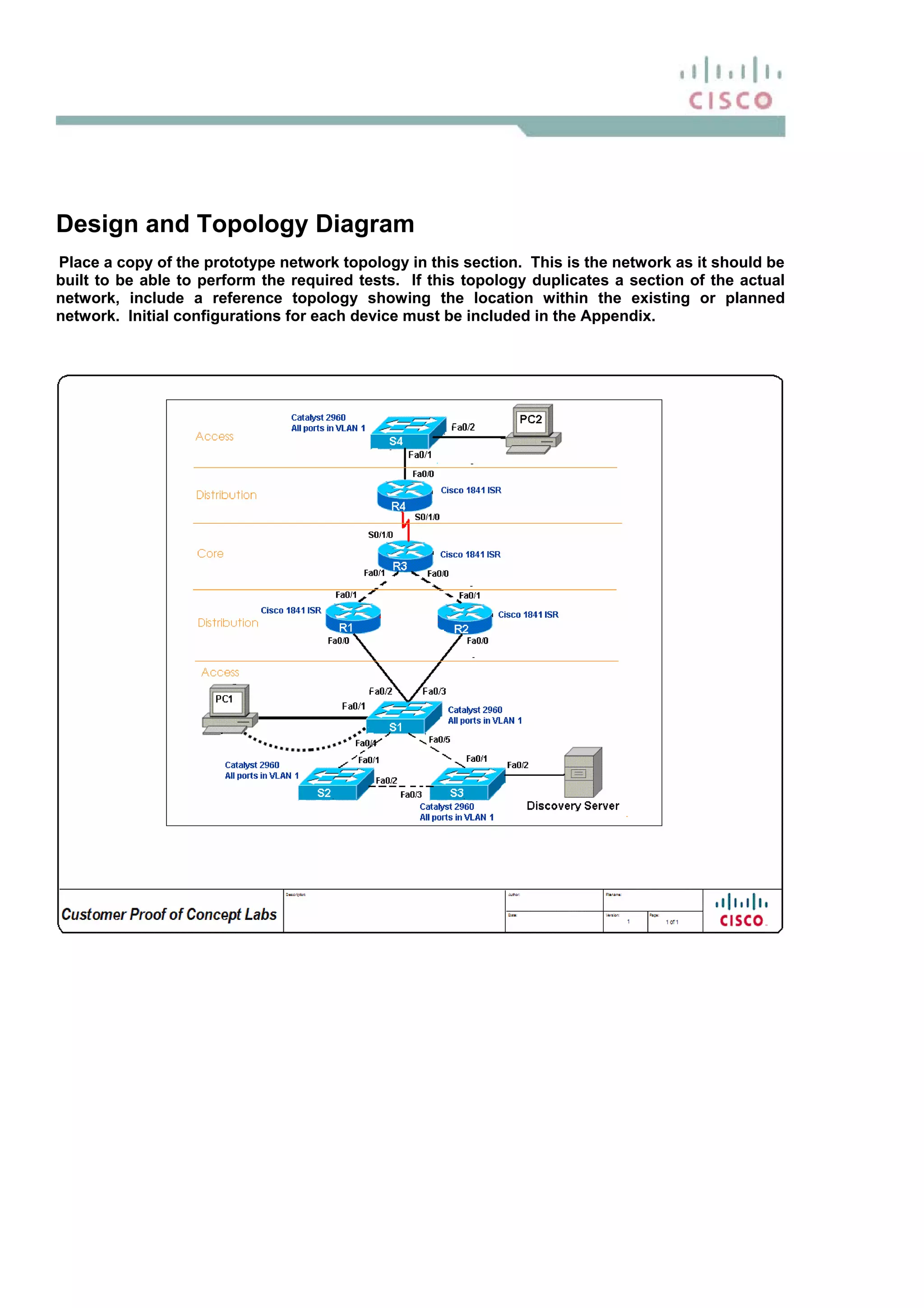

built to be able to perform the required tests. If this topology duplicates a section of the actual
network, include a reference topology showing the location within the existing or planned
network. Initial configurations for each device must be included in the Appendix.

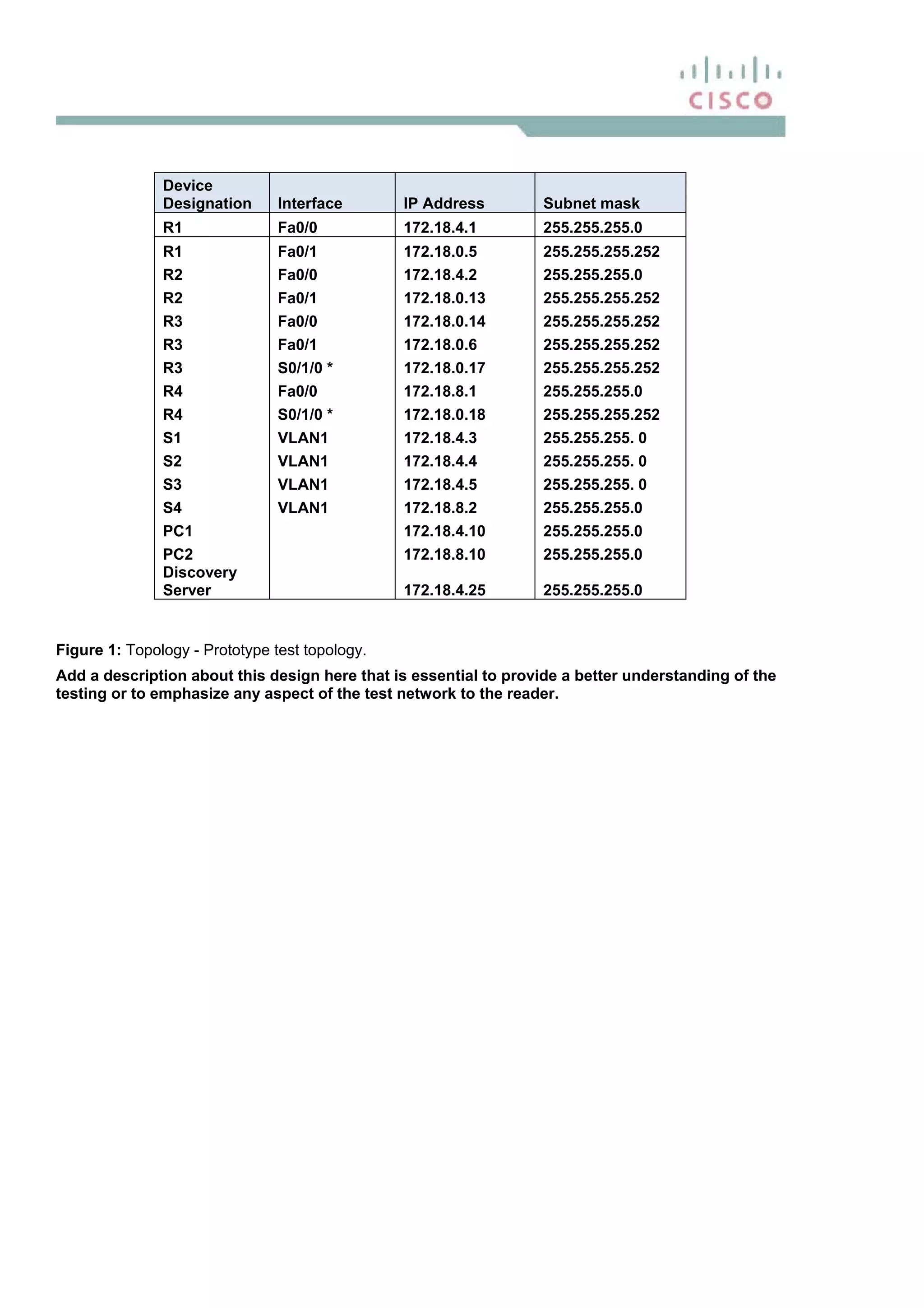

Device
Designation Interface IP Address Subnet mask
R1 Fa0/0 172.18.4.1 255.255.255.0
R1 Fa0/1 172.18.0.5 255.255.255.252
R2 Fa0/0 172.18.4.2 255.255.255.0
R2 Fa0/1 172.18.0.13 255.255.255.252
R3 Fa0/0 172.18.0.14 255.255.255.252
R3 Fa0/1 172.18.0.6 255.255.255.252
R3 S0/1/0 * 172.18.0.17 255.255.255.252
R4 Fa0/0 172.18.8.1 255.255.255.0
R4 S0/1/0 * 172.18.0.18 255.255.255.252
S1 VLAN1 172.18.4.3 255.255.255. 0
S2 VLAN1 172.18.4.4 255.255.255. 0
S3 VLAN1 172.18.4.5 255.255.255. 0
S4 VLAN1 172.18.8.2 255.255.255.0
PC1 172.18.4.10 255.255.255.0
PC2 172.18.8.10 255.255.255.0
Discovery
Server 172.18.4.25 255.255.255.0

Test 1. Description: Network Redundancy Test
Goals of Test:
The goal of the test is to verify network recovery after a failed link in both a
switched and a routed environment and to compare the speed of recovery.
Data to Record:
Configurations
Routing Tables
Spanning Tree Output
CPU & Memory
Ping Test Output
Trace Route Output
Estimated Time:
120 minutes
Test 1. Procedures:
Step 1: Verify the configuration and operation of EIGRP.
2. Telnet to router R1 and examine the show running-config, and show ip route output.
Copy and paste the results into a document for later use.
3. Telnet to all of the other routers and get the same information.
4. Use the tracert between PC1 and PC2 to verify the path that the traffic is taking through the
network.
5. Verify EIGRP configuration using show ip protocols, show ip eigrp topology, and
show ip eigrp interfaces.
6. Record the results of this step in the Test1: Results and Conclusions section of this test plan.
Step 2: Verify the configuration and operation of Spanning Tree Protocol.
1. Telnet to switch S1 and examine show running-config output. Copy and paste the results
into a document for later use.
2. Telnet to switches S2 and S3 and get the same information.
3. Wait a few seconds for the Spanning Tree topology to converge.

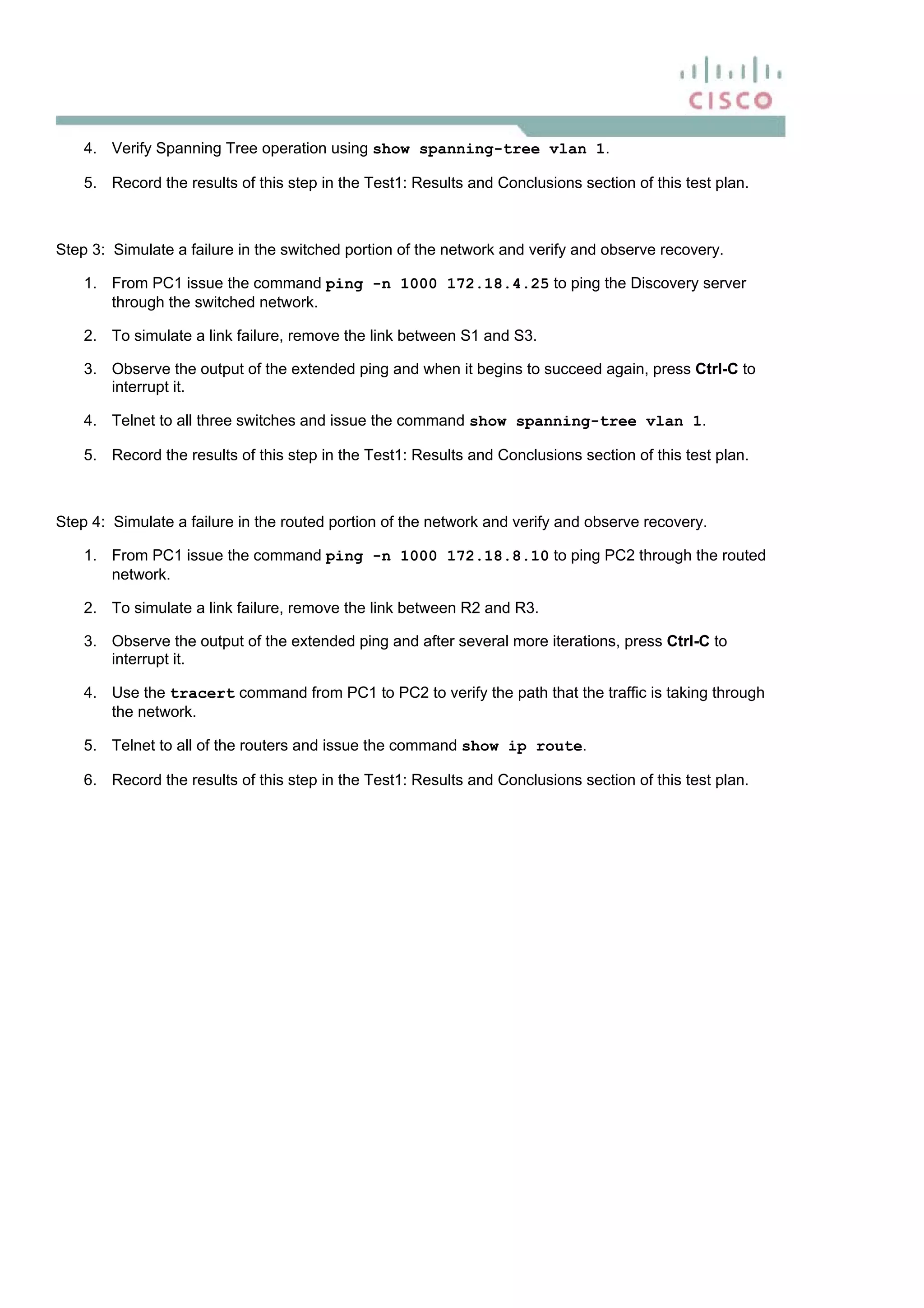

4. Verify Spanning Tree operation using show spanning-tree vlan 1.
Step 3: Simulate a failure in the switched portion of the network and verify and observe recovery.
1. From PC1 issue the command ping -n 1000 172.18.4.25 to ping the Discovery server
through the switched network.
2. To simulate a link failure, remove the link between S1 and S3.
3. Observe the output of the extended ping and when it begins to succeed again, press Ctrl-C to
interrupt it.
4. Telnet to all three switches and issue the command show spanning-tree vlan 1.
Step 4: Simulate a failure in the routed portion of the network and verify and observe recovery.
1. From PC1 issue the command ping -n 1000 172.18.8.10 to ping PC2 through the routed
network.
2. To simulate a link failure, remove the link between R2 and R3.
3. Observe the output of the extended ping and after several more iterations, press Ctrl-C to
interrupt it.
4. Use the tracert command from PC1 to PC2 to verify the path that the traffic is taking through
the network.
5. Telnet to all of the routers and issue the command show ip route.

1. Both the switched and routed portion of the network should automatically recover from the loss of
a redundant link.
2. The routed portion of the network should provide faster recovery after the failure of a redundant
link.

CCNA Discovery
7.2.3 Testing Redundancy in the Network Design
Objective
Develop methodologies for comparing devices and topologies.
The purpose of this test plan is to demonstrate that the network can recover from failed links due to its
redundant design. This prototype network is used to test various aspects of the proposed design. Download
and complete the Stadium Redundancy Test Plan document.
Required files: Testing Redundancy in the Network Design.pka and Stadium Redundancy Test Plan (Testing
Redundancy in the Network Design Test Plan) and Installation Checklist (Network Redundancy Installation
Checklist).
Step 2: Verify the configuration and operation of Spanning Tree Protocol.
Step 3: Simulate a failure in the switched portion of the network and verify and observe
recovery.
Step 4: Simulate a failure in the routed portion of the network and verify and observe recovery.

7.2.4 Routing Protocol Test Plan
Start Date End Date
Testing Date

Table of Contents
ATTENDEES 3
INTRODUCTION 4
EQUIPMENT 4
TEST 1. ROUTING PROTOCOL TEST 7
APPENDIX 10

Introduction
The purpose of this test plan is to demonstrate that the basic connectivity and routing protocol are
configured correctly. This prototype network is used to test various aspects of the proposed design.
• Test 1: Routing Protocol Test
• Verify that EIGRP recovers successfully from failed links.
• Compare the operation of static routes with the operation of a dynamic routing protocol when a
link fails.
Equipment
options or
software required
4 2960 Layer 2
switch
switch
12.2 or above
4 1841 ISR
routers with 2
FastEthernet
ports and 2
Serial ports
one serial port.
12.2 or above
2 Personal
Computer end-
devices
FastEthernet
NIC
other IP end-device
operating system.
1 Personal
Computer
Server
FastEthernet
NIC
software loaded
Windows, MAC, or
6 Cat 5 or above
straight-
through patch
cables.
none none n/a
5 Cat 5 or above
cross-over
patch cables
none none n/a
1 V.35 DTE
Serial Cables
None None n/a
1 V.35 DCE
Serial Cables
None None n/a

Test 1. Description: Routing Protocol Test
Goals of Test:
The goal of the test is to verify the expected operation of the EIGRP routing
protocol compared to static routes.
Data to Record:
Configurations
Routing Tables
CPU & Memory
Ping Test Output
Trace Route Output
Estimated Time:
120 minutes
Test 1. Procedures:
network.
5. Verify EIGRP configuration using show ip route, show ip protocols, show ip eigrp
topology, and show ip eigrp interfaces.
Step 2: Verify that EIGRP can recover from a routed link failure.
1. Telnet to Router R2.
2. Disable the link between R2 and R3 by shutting down interface fa0/1 on R2.
3. Wait a few seconds for the EIGRP topology to converge.
4. Examine the show ip route output. Copy and paste the results into a document for later use.

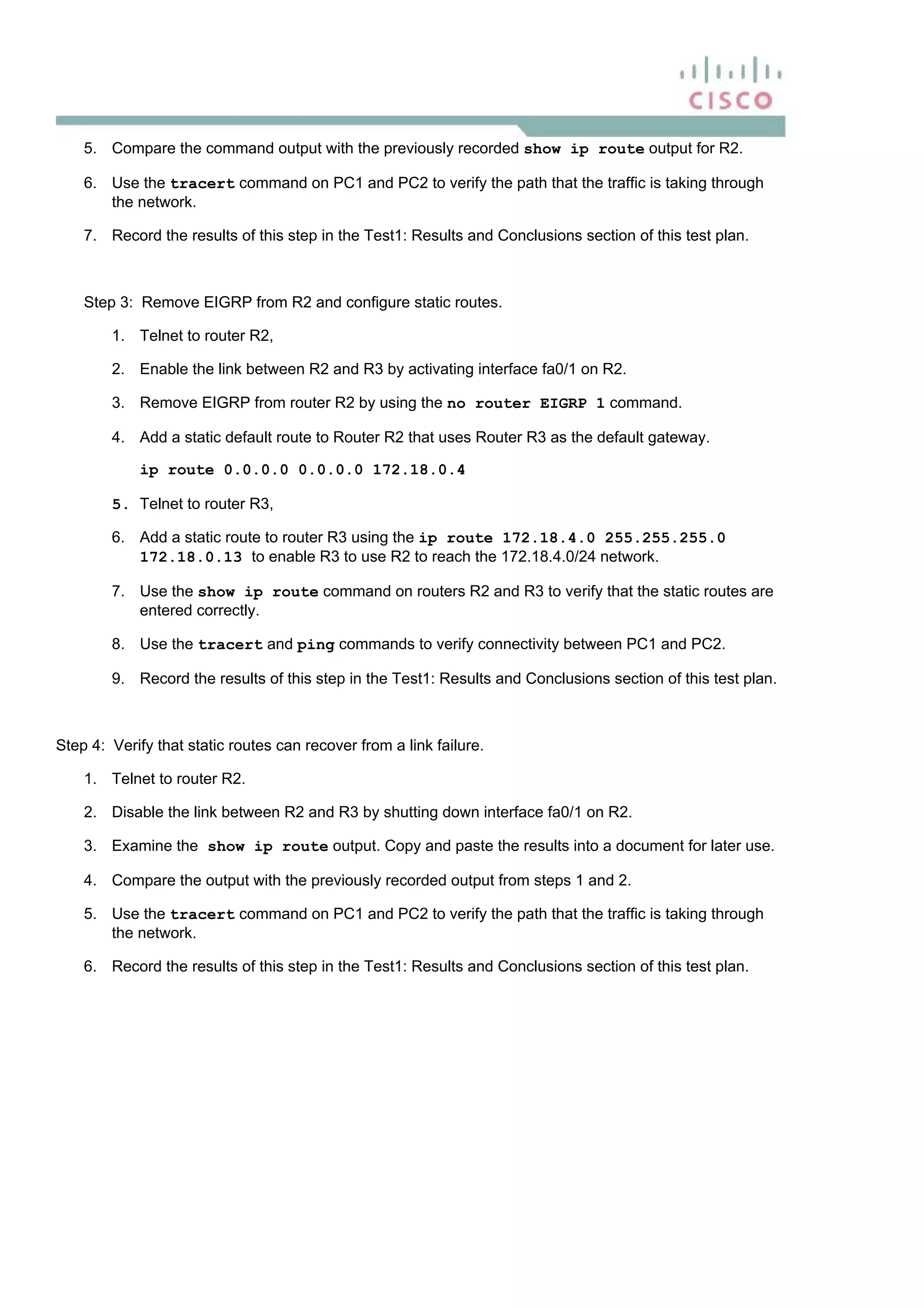

5. Compare the command output with the previously recorded show ip route output for R2.
6. Use the tracert command on PC1 and PC2 to verify the path that the traffic is taking through
the network.
Step 3: Remove EIGRP from R2 and configure static routes.
1. Telnet to router R2,
2. Enable the link between R2 and R3 by activating interface fa0/1 on R2.
3. Remove EIGRP from router R2 by using the no router EIGRP 1 command.
4. Add a static default route to Router R2 that uses Router R3 as the default gateway.
ip route 0.0.0.0 0.0.0.0 172.18.0.4
5. Telnet to router R3,
6. Add a static route to router R3 using the ip route 172.18.4.0 255.255.255.0
172.18.0.13 to enable R3 to use R2 to reach the 172.18.4.0/24 network.
7. Use the show ip route command on routers R2 and R3 to verify that the static routes are
entered correctly.
8. Use the tracert and ping commands to verify connectivity between PC1 and PC2.
Step 4: Verify that static routes can recover from a link failure.
1. Telnet to router R2.
2. Disable the link between R2 and R3 by shutting down interface fa0/1 on R2.
3. Examine the show ip route output. Copy and paste the results into a document for later use.
4. Compare the output with the previously recorded output from steps 1 and 2.
5. Use the tracert command on PC1 and PC2 to verify the path that the traffic is taking through
the network.

1. EIGRP recovers dynamically from the link failure and restores connectivity between PC1 and
PC2. This can be verified by the output of the show ip route command and a successful
trace route between PC1 and PC2.
2. Static routes in Router R2 and R3 do not recover from the link failure and connectivity between
PC1 and PC2 is not restored.

CCNA Discovery
7.2.4 Testing a Multi-Router Network with Redundant Links
Objective
Develop methodologies for selecting and testing the appropriate routing protocol based on network
requirements.
The purpose of this test plan is to demonstrate that the basic connectivity and routing protocol are configured
correctly. This prototype network is used to test various aspects of the proposed design. Download and
complete the Stadium Routing Protocol Test Plan document.
Required files: Testing a Multi-Router Network with Redundant Links.pka and Stadium Routing Protocol Test
Plan.
Step 2: Verify that EIGRP can recover from a routed link failure.
Step 3: Remove EIGRP from R2 and configure static routes.
Step 4: Verify that static routes can recover from a link failure..

7.2.5 Validating the IP Addressing Scheme Test Plan
Start Date End Date
Testing Date

Table of Contents
ATTENDEES 3
INTRODUCTION 4
EQUIPMENT 4
TEST 1. VALIDATING THE IP ADDRESSING SCHEME TEST 7
APPENDIX 10

Introduction
The purpose of this test plan is to validate the IP addressing scheme and to examine the content of the
core routing tables and test schemes to reduce the number of entries. This prototype network is used to
test various aspects of the proposed design.
• Test 1: Validating the IP Addressing Scheme Test
• Verify the IP address scheme and that all devices are fully reachable.
• Examine ways to reduce the size of the core routing tables by using route summarization.
Equipment
options or
software required
4 2960 Layer 2
switch
switch
12.2 or above
4 1841 ISR
routers with 2
FastEthernet
ports and 2
Serial ports
one serial port.
12.2 or above
2 Personal
Computer end-
devices
FastEthernet
NIC
other IP end-device
operating system.
1 Personal
Computer
Server
FastEthernet
NIC
software loaded
Windows, MAC, or
6 Cat 5 or above
straight-
through patch
cables.
none none n/a
1 Cat 5 or above
cross-over
patch cables
none none n/a
3 V.35 DTE
Serial Cables
None None n/a
3 V.35 DCE
Serial Cables
None None n/a

Device
Designation Interface IP Address Subnet mask
R1 Fa0/0 172.16.4.1 255.255.255.0
R1 Fa0/1 172.15.5.1 255.255.255.0
R1 S0/1/0 192.168.1.1 255.255.255.0
R2 Fa0/0 172.17.6.1 255.255.255.0
R2 Fa0/1 172.17.7.1 255.255.255.0
R2 S0/1/0 192.168.2.1 255.255.255.0
R3 S0/0/0 192.168.1.2 255.255.255.0
R3 S0/0/1 192.168.2.2 255.255.255.0
R3 S0/1/0 192.168.0.1 255.255.255.0
R4 Fa0/0 172.18.0.1 255.255.0.0
R4 S0/1/0 192.168.0.2 255.255.255.0
S1 VLAN1 172.16.4.3 255.255.255. 0
S2 VLAN1 172.16.5.2 255.255.255. 0
S3 VLAN1 172.17.6.2 255.255.255. 0
S4 VLAN1 172.17.7.2 255.255.255.0
PC1 172.18.4.10 255.255.255.0
PC2 172.18.0.10 255.255.0.0
Discovery
Server 172.18.4.25 255.255.255.0

Test 1. Description: Validating the IP Addressing Scheme
Test
Goals of Test:
The goal of the test is to verify the IP addressing scheme and summarize
routes to reduce the size of the core routing tables.
Data to Record:
Configurations
Routing Tables
CPU & Memory
Ping Test Output
Trace Route Output
Estimated Time:
120 minutes
Test 1. Procedures:
network.
5. Verify EIGRP configuration using show ip protocols, show ip eigrp topology, and
show ip eigrp interfaces.
Step 2: Configure the routers to allow automatic summarization.
1. Telnet to every router.
2. On each router, enter router configuration mode by issuing the command router eigrp 1.
3. Enter the command auto-summary to allow automatic summarization.

4. Exit configuration mode and save the running configuration.
5. Click the Power Cycle Devices button on the lower task bar to force the network to reconverge.
Step 3: Verify the configuration and operation of EIGRP for the summarized network.
1. Start a log file and record the show running-config, and show ip route output.
network.
4. On the routers, verify EIGRP configuration using show ip protocols, show ip eigrp
topology, and show ip eigrp interfaces.

1. All devices in the network should be reachable in both configurations.
2. With automatic summarization enabled, the size of the routing tables on the core router should be
reduced.

7.3.4 Testing ACLs
Start Date End Date
Testing Date

Table of Contents
ATTENDEES 3
INTRODUCTION 4
EQUIPMENT 4
TEST 1. DESCRIPTION: ACCESS CONTROL LISTS TEST 7
APPENDIX 10

Introduction
For example:
The purpose of this test plan is to add access control lists to the prototype network to secure unauthorized
access to the server farm and to demonstrate that the access control lists are configured correctly. This
revised prototype network is used to test various aspects of the proposed design.
• Test 1: Access Control Lists Test
• Verify full connectivity from all PCs to all servers.
• Plan access control lists to prevent unauthorized access to the server farm.
• Configure access control lists on Distribution Layer devices and apply them to the proper
interfaces in the proper direction.
• Verify proper operation of the access control lists by verifying that permitted traffic gets through
to the servers and unauthorized traffic is blocked.
Equipment
options or
software required
5 2960 Layer 2
switch
switch
12.2 or above
5 1841 ISR
routers with 2
FastEthernet
ports and 2
Serial ports
two serial port.
12.2 or above
3 Personal
Computer end-
devices
FastEthernet
NIC
other IP end-device
operating system.
6 Personal
Computer
Server
FastEthernet
NIC
and DNS software loaded
Windows, MAC, or
12 Cat 5 or above
straight-
through patch
cables.
none none n/a
6 Cat 5 or above
cross-over
patch cables
none none n/a
5 V.35 DTE
Serial Cables
None None n/a
5 V.35 DCE
Serial Cables
None None n/a

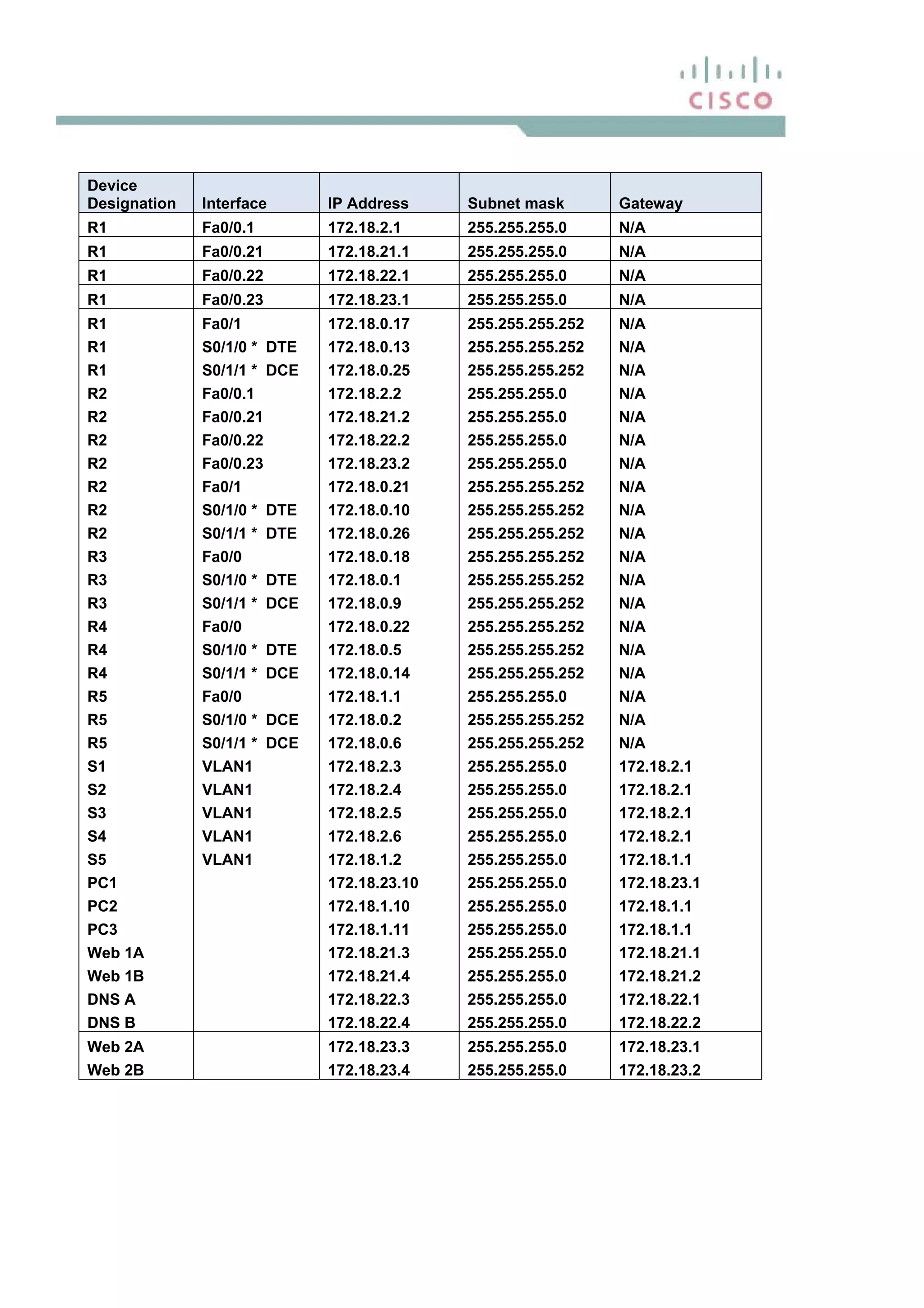

Device
Designation Interface IP Address Subnet mask Gateway
R1 Fa0/0.1 172.18.2.1 255.255.255.0 N/A
R1 Fa0/0.21 172.18.21.1 255.255.255.0 N/A
R1 Fa0/0.22 172.18.22.1 255.255.255.0 N/A
R1 Fa0/0.23 172.18.23.1 255.255.255.0 N/A
R1 Fa0/1 172.18.0.17 255.255.255.252 N/A
R1 S0/1/0 * DTE 172.18.0.13 255.255.255.252 N/A
R1 S0/1/1 * DCE 172.18.0.25 255.255.255.252 N/A
R2 Fa0/0.1 172.18.2.2 255.255.255.0 N/A
R2 Fa0/0.21 172.18.21.2 255.255.255.0 N/A
R2 Fa0/0.22 172.18.22.2 255.255.255.0 N/A
R2 Fa0/0.23 172.18.23.2 255.255.255.0 N/A
R2 Fa0/1 172.18.0.21 255.255.255.252 N/A
R2 S0/1/0 * DTE 172.18.0.10 255.255.255.252 N/A
R2 S0/1/1 * DTE 172.18.0.26 255.255.255.252 N/A
R3 Fa0/0 172.18.0.18 255.255.255.252 N/A
R3 S0/1/0 * DTE 172.18.0.1 255.255.255.252 N/A
R3 S0/1/1 * DCE 172.18.0.9 255.255.255.252 N/A
R4 Fa0/0 172.18.0.22 255.255.255.252 N/A
R4 S0/1/0 * DTE 172.18.0.5 255.255.255.252 N/A
R4 S0/1/1 * DCE 172.18.0.14 255.255.255.252 N/A
R5 Fa0/0 172.18.1.1 255.255.255.0 N/A
R5 S0/1/0 * DCE 172.18.0.2 255.255.255.252 N/A
R5 S0/1/1 * DCE 172.18.0.6 255.255.255.252 N/A
S1 VLAN1 172.18.2.3 255.255.255.0 172.18.2.1
S2 VLAN1 172.18.2.4 255.255.255.0 172.18.2.1
S3 VLAN1 172.18.2.5 255.255.255.0 172.18.2.1
S4 VLAN1 172.18.2.6 255.255.255.0 172.18.2.1
S5 VLAN1 172.18.1.2 255.255.255.0 172.18.1.1
PC1 172.18.23.10 255.255.255.0 172.18.23.1
PC2 172.18.1.10 255.255.255.0 172.18.1.1
PC3 172.18.1.11 255.255.255.0 172.18.1.1
Web 1A 172.18.21.3 255.255.255.0 172.18.21.1
Web 1B 172.18.21.4 255.255.255.0 172.18.21.2
DNS A 172.18.22.3 255.255.255.0 172.18.22.1
DNS B 172.18.22.4 255.255.255.0 172.18.22.2
Web 2A 172.18.23.3 255.255.255.0 172.18.23.1
Web 2B 172.18.23.4 255.255.255.0 172.18.23.2

Test 1. Description: Access Control Lists Test
Goals of Test:
The goal of the test is to verify that access control lists are properly
configured and applied to permit authorized traffic and to block unauthorized
traffic.
Data to Record:
Configurations
Router configurations
ACL information
Ping Test Output
Web page access information
Estimated Time:
120 minutes

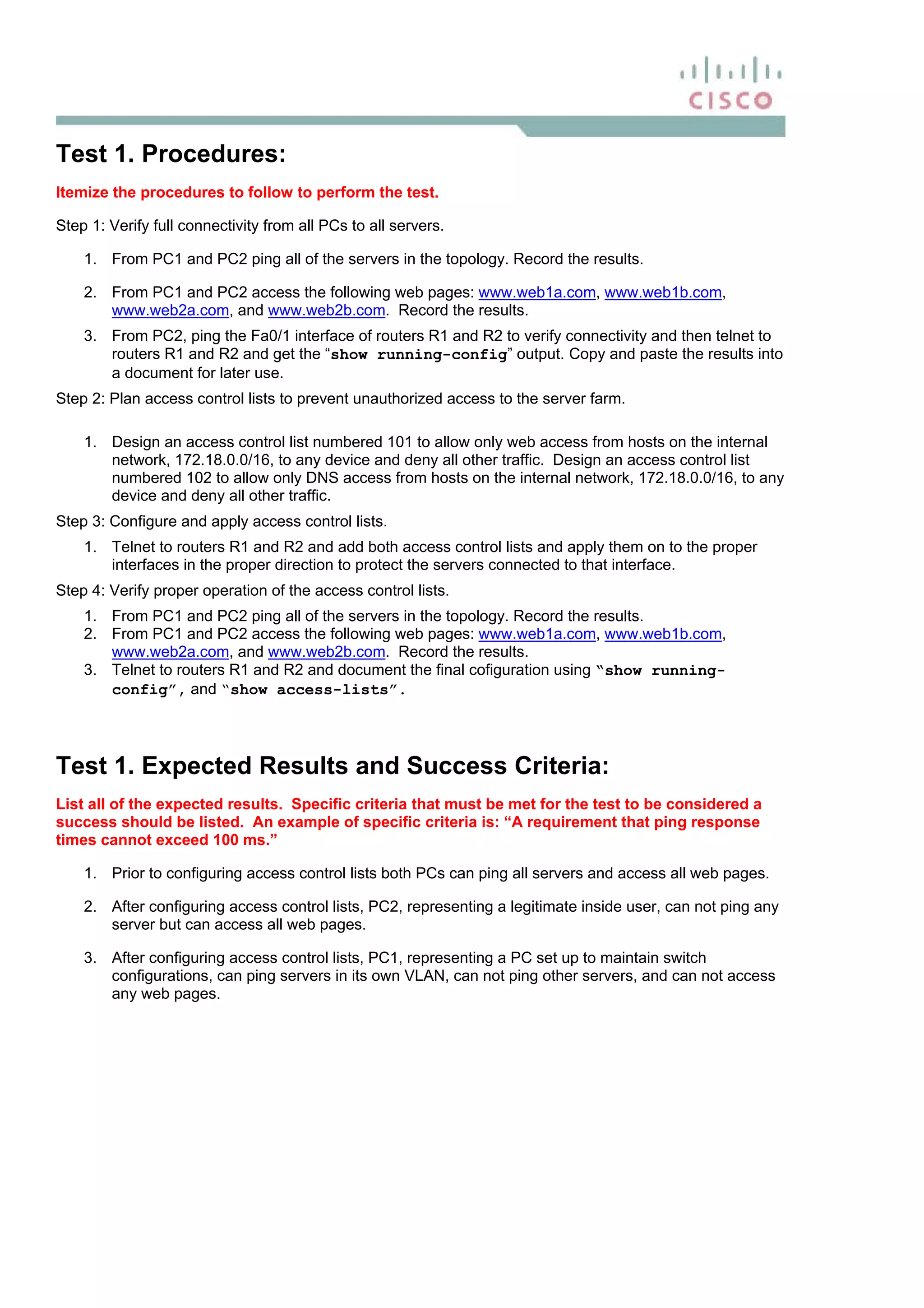

Test 1. Procedures:
Step 1: Verify full connectivity from all PCs to all servers.
1. From PC1 and PC2 ping all of the servers in the topology. Record the results.
2. From PC1 and PC2 access the following web pages: www.web1a.com, www.web1b.com,
www.web2a.com, and www.web2b.com. Record the results.
3. From PC2, ping the Fa0/1 interface of routers R1 and R2 to verify connectivity and then telnet to
routers R1 and R2 and get the “show running-config” output. Copy and paste the results into
a document for later use.
Step 2: Plan access control lists to prevent unauthorized access to the server farm.
1. Design an access control list numbered 101 to allow only web access from hosts on the internal
network, 172.18.0.0/16, to any device and deny all other traffic. Design an access control list
numbered 102 to allow only DNS access from hosts on the internal network, 172.18.0.0/16, to any
device and deny all other traffic.
Step 3: Configure and apply access control lists.
1. Telnet to routers R1 and R2 and add both access control lists and apply them on to the proper
interfaces in the proper direction to protect the servers connected to that interface.
Step 4: Verify proper operation of the access control lists.
1. From PC1 and PC2 ping all of the servers in the topology. Record the results.
2. From PC1 and PC2 access the following web pages: www.web1a.com, www.web1b.com,
www.web2a.com, and www.web2b.com. Record the results.
3. Telnet to routers R1 and R2 and document the final cofiguration using “show running-
config”, and “show access-lists”.
1. Prior to configuring access control lists both PCs can ping all servers and access all web pages.
2. After configuring access control lists, PC2, representing a legitimate inside user, can not ping any
server but can access all web pages.
3. After configuring access control lists, PC1, representing a PC set up to maintain switch
configurations, can ping servers in its own VLAN, can not ping other servers, and can not access
any web pages.

4. Test 1. Results and Conclusions

CCNA Discovery
7.3.4 Testing ACLs
Objective
Develop methodologies for comparing devices and topologies.
The purpose of this test plan is to add ACLs to the prototype network to secure unauthorized access to the
server farm and to demonstrate that the ACLs are configured correctly. Download and complete the Stadium
ACL Test Plan (Testing ACLs) document.
Required files: Testing ACLs.pka and Stadium ACL Test Plan (Testing ACLs).
Step 1: Verify full connectivity from all PCs to all servers.
Step 2: Plan ACLs to prevent unauthorized access to the server farm.
Step 3: Configure and apply ACLs.
Step 4: Verify proper operation of the ACLs.

CCNA Discovery
Designing and Supporting Computer Networks: Prototyping the WAN
8.1.2 Configuring a WAN Connection Using PPP
Objectives
• Simulate WAN connections
• Demonstrate the benefits of using simulation software
• Explore the effects of implementing new devices in a network topology
• Use simulation software to test new configurations
The XYZ Corporation is planning to expand soon. They are planning to open a new branch office that will connect
to the main company network through the ISP. This will require router R0 in the existing network to be upgraded
and new equipment be purchased and configured. They would also like to add some wireless connectivity to the
existing network. And finally, they wish to set up some basic security through using access control lists (ACLs).
The network administrator has provided you with a simulated model of the current network and a diagram of the
new expanded network. You have been asked to modify the existing simulation to verify that the new devices and
configurations will work as planned prior to purchasing new equipment and making changes to the live network.
Required file: Configuring a WAN Connection Using PPP.pka
Task 1
Step 1: Upgrade the WAN interfaces on router R0
a. Remove the NM-4A/S WAN module
b. Add a WIC-2T module in Slot0
c. Add a WIC-2T module in Slot1

CCNA Discovery

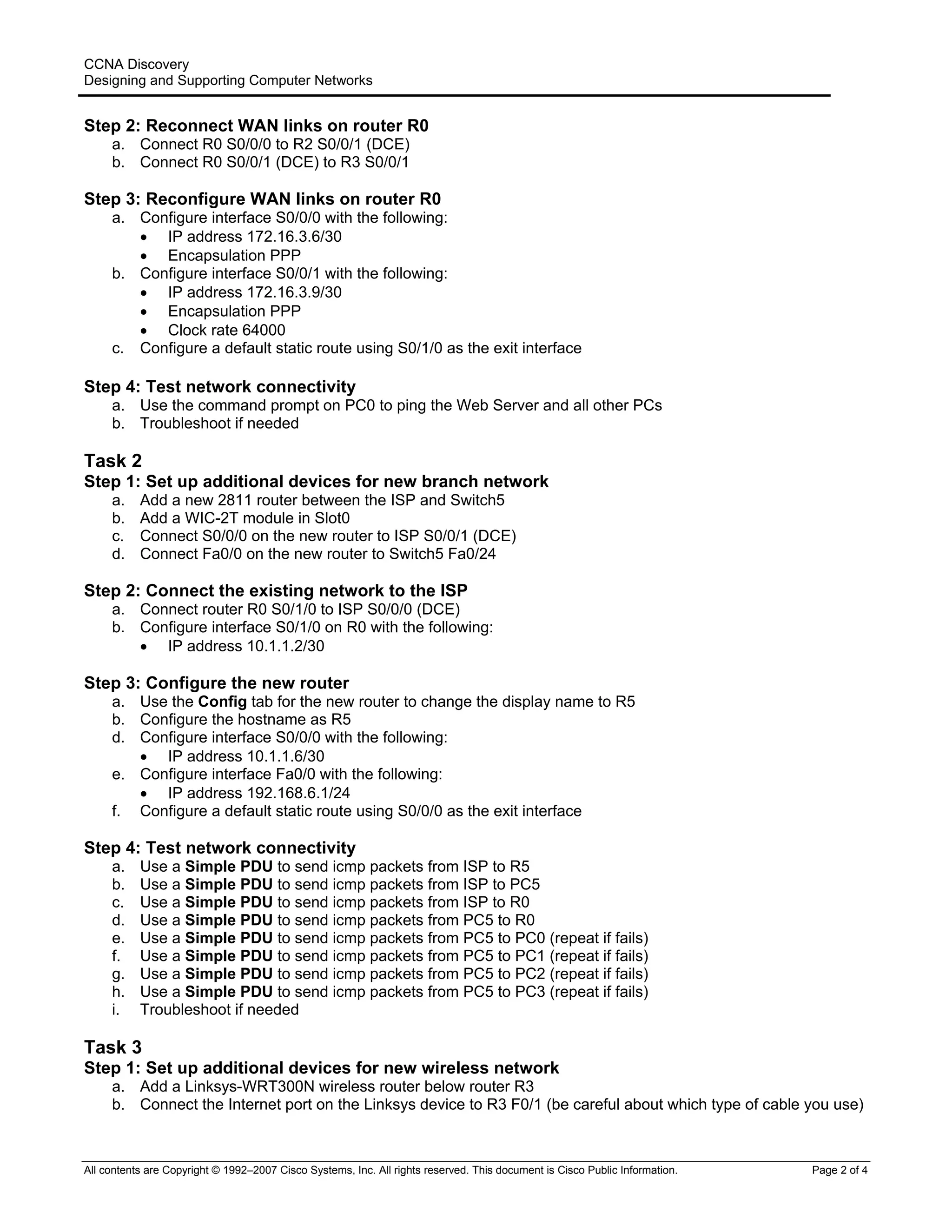

Step 2: Reconnect WAN links on router R0
a. Connect R0 S0/0/0 to R2 S0/0/1 (DCE)
b. Connect R0 S0/0/1 (DCE) to R3 S0/0/1
Step 3: Reconfigure WAN links on router R0
a. Configure interface S0/0/0 with the following:
• IP address 172.16.3.6/30
• Encapsulation PPP
b. Configure interface S0/0/1 with the following:
• IP address 172.16.3.9/30
• Encapsulation PPP
• Clock rate 64000
c. Configure a default static route using S0/1/0 as the exit interface
Step 4: Test network connectivity
a. Use the command prompt on PC0 to ping the Web Server and all other PCs
b. Troubleshoot if needed
Task 2
Step 1: Set up additional devices for new branch network
a. Add a new 2811 router between the ISP and Switch5
b. Add a WIC-2T module in Slot0
c. Connect S0/0/0 on the new router to ISP S0/0/1 (DCE)
d. Connect Fa0/0 on the new router to Switch5 Fa0/24
Step 2: Connect the existing network to the ISP
a. Connect router R0 S0/1/0 to ISP S0/0/0 (DCE)
b. Configure interface S0/1/0 on R0 with the following:
• IP address 10.1.1.2/30
Step 3: Configure the new router
a. Use the Config tab for the new router to change the display name to R5
b. Configure the hostname as R5
d. Configure interface S0/0/0 with the following:
• IP address 10.1.1.6/30
e. Configure interface Fa0/0 with the following:
• IP address 192.168.6.1/24
f. Configure a default static route using S0/0/0 as the exit interface
a. Use a Simple PDU to send icmp packets from ISP to R5
b. Use a Simple PDU to send icmp packets from ISP to PC5
c. Use a Simple PDU to send icmp packets from ISP to R0
d. Use a Simple PDU to send icmp packets from PC5 to R0
e. Use a Simple PDU to send icmp packets from PC5 to PC0 (repeat if fails)
f. Use a Simple PDU to send icmp packets from PC5 to PC1 (repeat if fails)
g. Use a Simple PDU to send icmp packets from PC5 to PC2 (repeat if fails)
h. Use a Simple PDU to send icmp packets from PC5 to PC3 (repeat if fails)
i. Troubleshoot if needed
Task 3
Step 1: Set up additional devices for new wireless network
a. Add a Linksys-WRT300N wireless router below router R3
b. Connect the Internet port on the Linksys device to R3 F0/1 (be careful about which type of cable you use)

CCNA Discovery
Step 2: Configure the new wireless network
a. On router R3 configure interface Fa0/1 with the following:
• IP address 192.168.7.1/24
b. On the wireless router configure the following:
• Change the display name to Wireless_Router4
• Configure the Internet interface with the a Default Gateway of 192.168.7.1 and an IP address of
192.168.7.2/24
• Configure the LAN interface with the IP address of 192.168.5.1/24
a. Use a Simple PDU to send icmp packets from PC4 to the wireless router (repeat if fails)
b. Use a Simple PDU to send icmp packets from PC4 to R3 (repeat if fails)
c. Use a Simple PDU to send icmp packets from PC4 to PC0 (repeat if fails)
d. Use a Simple PDU to send icmp packets from PC4 to PC1 (repeat if fails)
e. Use a Simple PDU to send icmp packets from PC4 to PC2 (repeat if fails)
f. Use a Simple PDU to send icmp packets from PC4 to PC3 (repeat if fails)
g. Use a Simple PDU to send icmp packets from PC4 to PC5 (repeat if fails)
Task 4
Company XYZ wishes to set up some basic security through using access control lists (ACLs). The ACL should
permit all www traffic to the Web Server. Permit any return traffic that originated in the 192.168.3.0 network. Allow
the ICMP protocol to receive echo replies and unreachable messages. The ACL should deny all other traffic.
Step 1: Set up basic security using access control lists (ACLs)
a. Add the following ACL to router R2
• access-list 100 permit tcp any 192.168.3.250 eq 80
• access-list 100 permit tcp any any established
• access-list 100 permit icmp any any echo-reply
• access-list 100 permit icmp any any unreachable
• access-list 100 deny ip any any
b. Apply the ACL to interface Fa0/0 on router R2
a. Verify that traffic originating from outside the 192.168.3.0 network is denied
• Use a Simple PDU to send icmp packets to PC2 from PC0 (should fail)
b. Verify that traffic originating from inside the 192.168.3.0 network is permitted
• Use a Simple PDU to send icmp packets from PC2 to PC0 (should be successful)
c. Verify that all www traffic is permitted to the Web Server
• On PC0, open the Web Browser and type 192.168.3.250 in as the URL (should display the server
web page)
web page)
web page)
web page)

CCNA Discovery

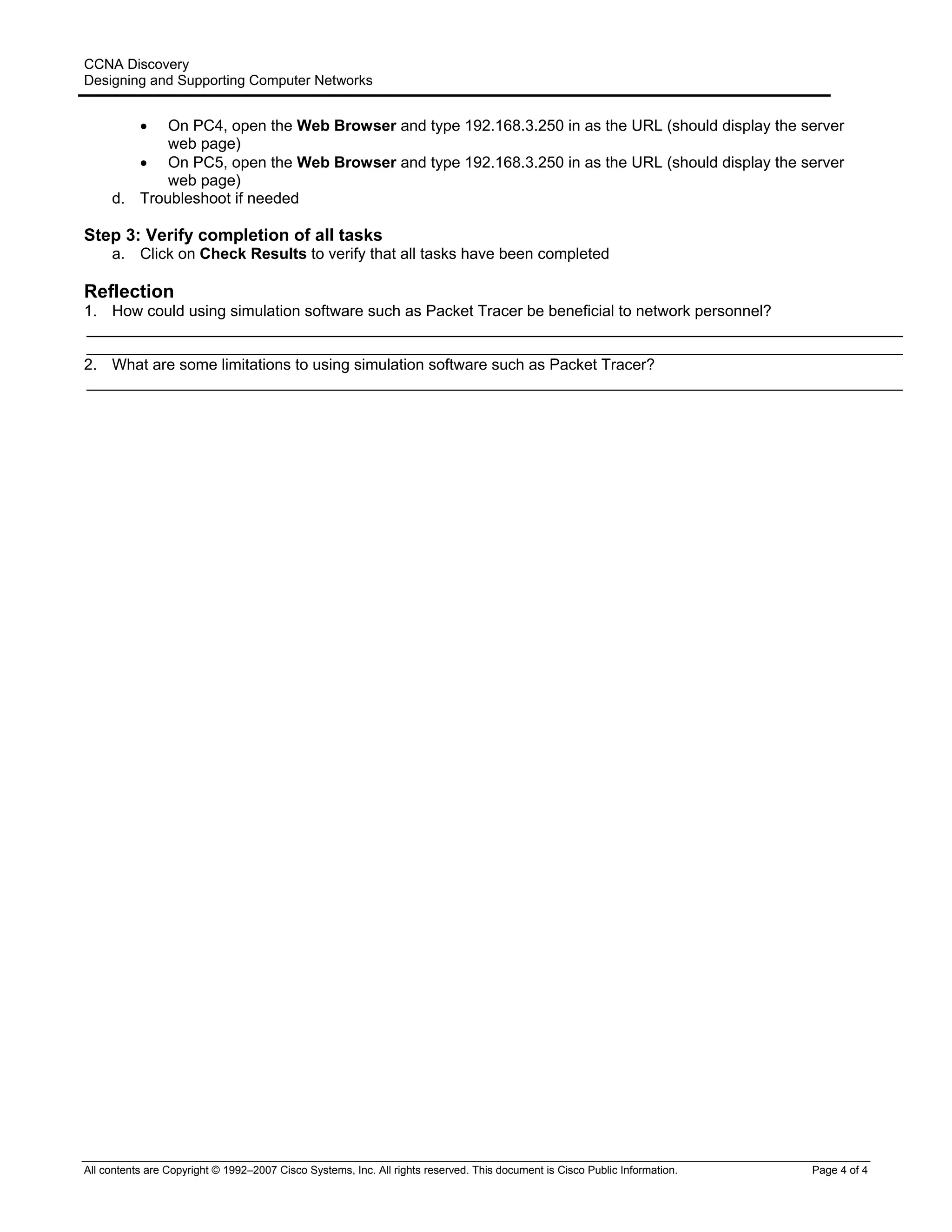

web page)
web page)
d. Troubleshoot if needed
Step 3: Verify completion of all tasks
a. Click on Check Results to verify that all tasks have been completed
Reflection
1. How could using simulation software such as Packet Tracer be beneficial to network personnel?
______________________________________________________________________________________________
______________________________________________________________________________________________
2. What are some limitations to using simulation software such as Packet Tracer?
______________________________________________________________________________________________

8.2.5.4 Stadium Redundancy Test Plan
Start Date End Date
Testing Date

Table of Contents
ATTENDEES ...................................................................................................................3
INTRODUCTION .............................................................................................................4
EQUIPMENT....................................................................................................................5
DESIGN AND TOPOLOGY DIAGRAM ...........................................................................6
TEST 1. DESCRIPTION: FRAME RELAY CONNECTIVITY TEST.................................8
TEST 1. RESULTS AND CONCLUSIONS......................................................................9
TEST 2. DESCRIPTION: FLOATING STATIC ROUTES CONFIGURATION TEST.....10
TEST 2. RESULTS AND CONCLUSIONS....................................................................11
TEST 3. DESCRIPTION: LINK FAILURE TEST ..........................................................12
TEST 3. RESULTS AND CONCLUSIONS....................................................................13
APPENDIX.....................................................................................................................14

Attendees
Name Company Position
NetworkingCompany Account Manager
NetworkingCompany Network Designer
NetworkingCompany System Engineer
Instructor note: Students can enter their own names in the roles they choose, or make up names for the
attendees.

Introduction
Purpose of this test:
Tests to run:
• Test 1: Frame Relay Connectivity Test
• Verify physical and IP connectivity between Edge2 and BR3 on the prototype network.
• Document operation.
• Test 2: Floating Static Route Configuration Test
• Demonstrate backup route interface configuration.
• Verify connectivity through backup route.
• Demonstrate backup static route configuration.
• Verify routing priority
• Test 3: Link Failure Test
• Demonstrate routing of traffic between separate Edge2 and BR3 with Frame network active.
• Demonstrate routing of traffic after Frame network is inactive.
• Demonstrate routing of traffic after Frame network is reactivated.
• Document operation.

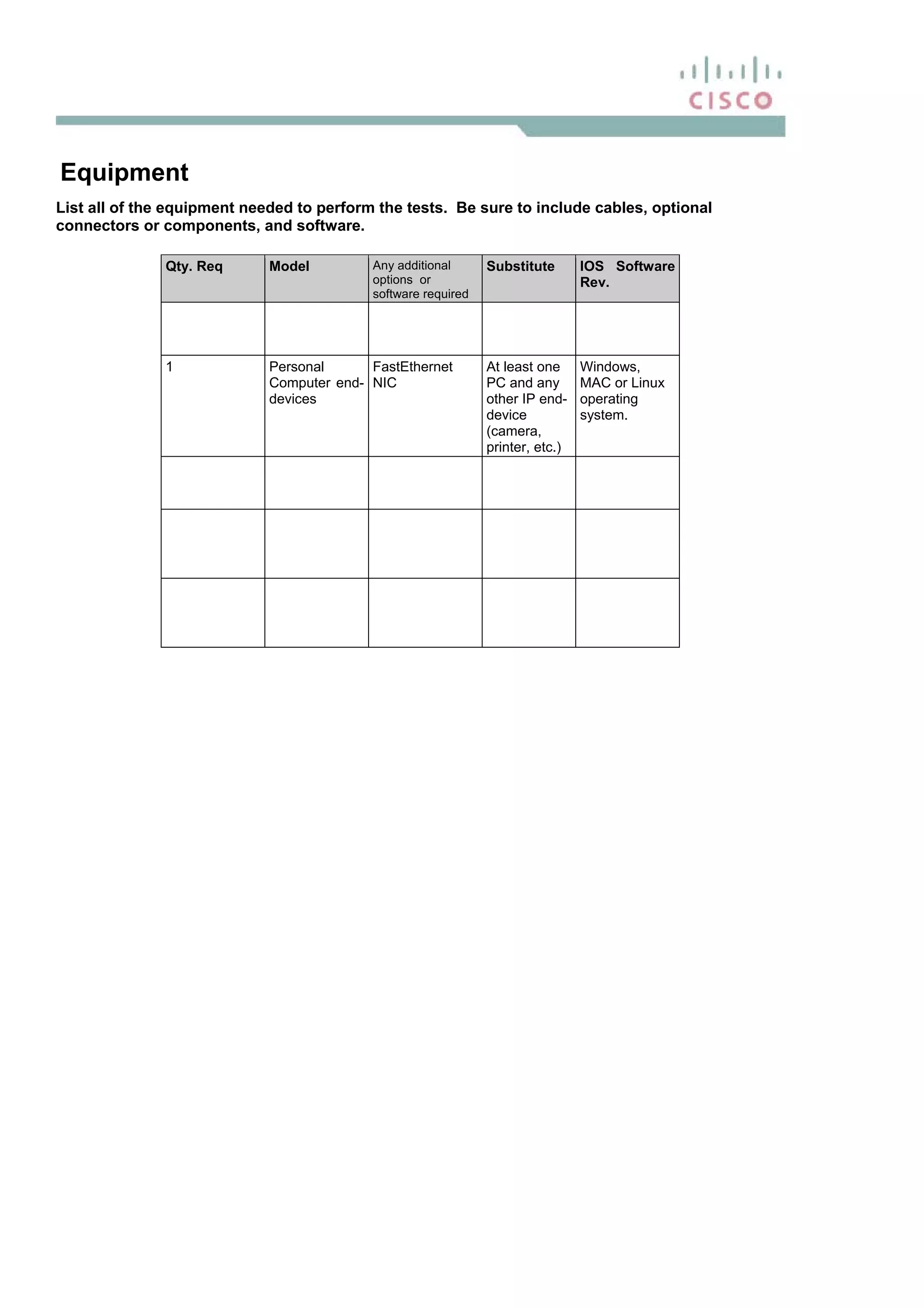

Equipment
options or
software required
Substitute IOS Software
Rev.
1 Personal
Computer end-
devices
FastEthernet
NIC
At least one
PC and any
other IP end-
device
(camera,
printer, etc.)
Windows,
MAC or Linux
operating
system.

built to be able to perform the required tests, including IP Addressing and DLCI information. If
this topology duplicates a section of the actual network, include a reference topology showing the
location within the existing or planned network. Initial configurations for each device must be
included in the Appendix.
IP Address Plan:
Device Name Interface IP Address Subnet Mask DLCI
Edge2 Serial 0/1/1 172.18.0.9 255.255.255.252 110
Edge2 Fa 0/1 172.18.0.249 255.255.255.252
BR3 Serial 0/1/0 172.18.0.10 255.255.255.252 100
BR3 Fa 0/0 172.18.225.249 255.255.255.252
BR3 Fa0/1 172.18.225.1 255.255.255.128
ISPX Fa0/0 172.18.225.250 255.255.255.252
ISPX Fa0/1 172.18.0.250 255.255.255.252

Additional Notes and Instructions:
Instructor note: Student records any other information that they think might be useful to the technicians
performing the tests. These might be things like: This test must show the routes automatically changing
for link states.
___________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
___________________________________________________________________________________
____________________________________________________________________________________

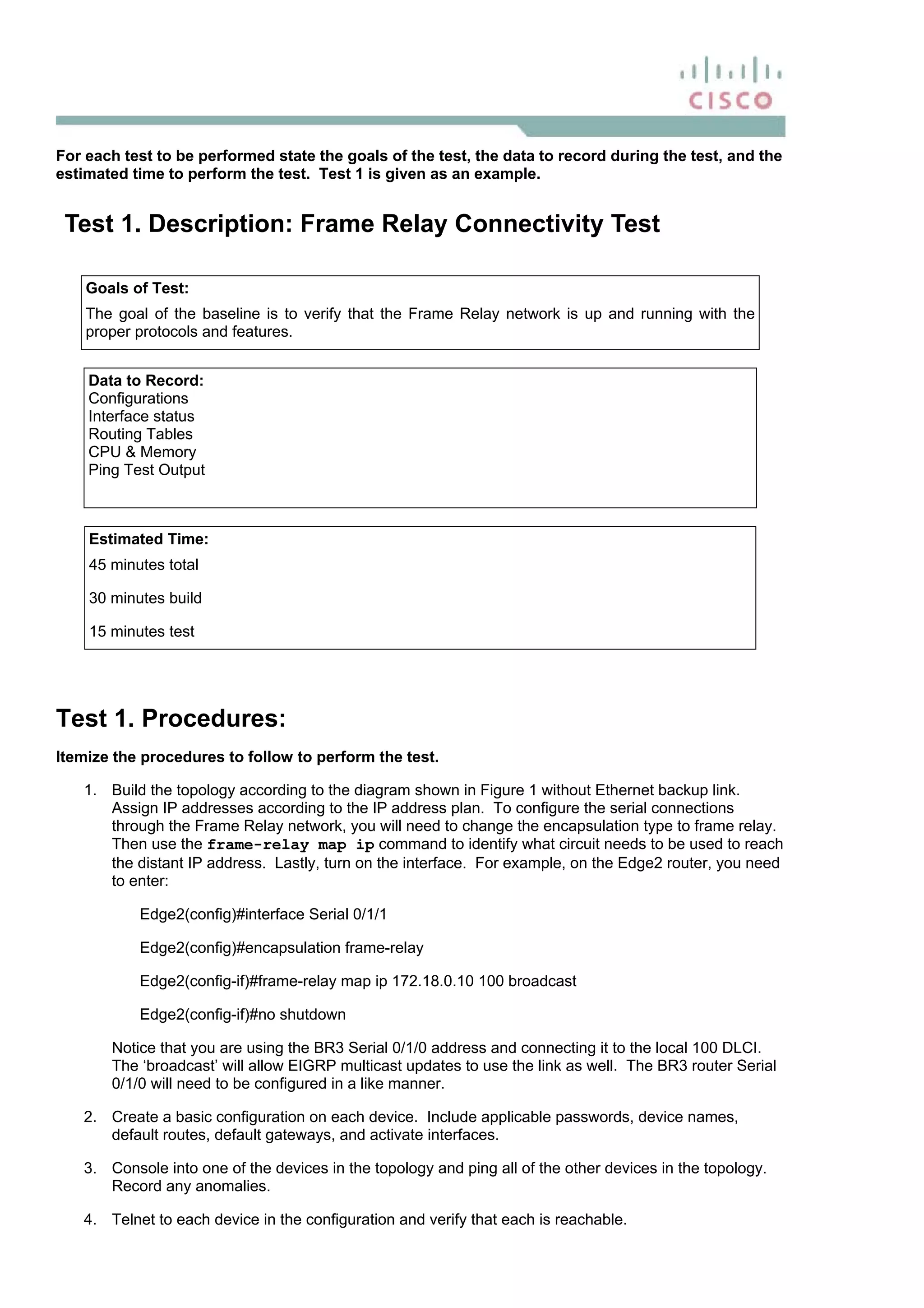

estimated time to perform the test. Test 1 is given as an example.
Test 1. Description: Frame Relay Connectivity Test
Goals of Test:
The goal of the baseline is to verify that the Frame Relay network is up and running with the
proper protocols and features.
Data to Record:
Configurations
Interface status
Routing Tables
CPU & Memory
Ping Test Output
Estimated Time:
45 minutes total
30 minutes build
15 minutes test
Test 1. Procedures:
1. Build the topology according to the diagram shown in Figure 1 without Ethernet backup link.
Assign IP addresses according to the IP address plan. To configure the serial connections
through the Frame Relay network, you will need to change the encapsulation type to frame relay.
Then use the frame-relay map ip command to identify what circuit needs to be used to reach
the distant IP address. Lastly, turn on the interface. For example, on the Edge2 router, you need
to enter:
Edge2(config)#interface Serial 0/1/1
Edge2(config)#encapsulation frame-relay
Edge2(config-if)#frame-relay map ip 172.18.0.10 100 broadcast
Edge2(config-if)#no shutdown
Notice that you are using the BR3 Serial 0/1/0 address and connecting it to the local 100 DLCI.
The ‘broadcast’ will allow EIGRP multicast updates to use the link as well. The BR3 router Serial
0/1/0 will need to be configured in a like manner.
2. Create a basic configuration on each device. Include applicable passwords, device names,
default routes, default gateways, and activate interfaces.
4. Telnet to each device in the configuration and verify that each is reachable.

5. Start a log file and get the “show running-config”, “show ip route”, “show processes
cpu sorted”, “show interfaces” and the first few lines of “show memory” . Save the log file
for later analysis. Repeat for all devices in the topology.
success should be listed.
1. All networking devices, except ISPX, are connected and accessible through Telnet.
2. Hosts can ping successfully to other hosts, except ISPX on the network.

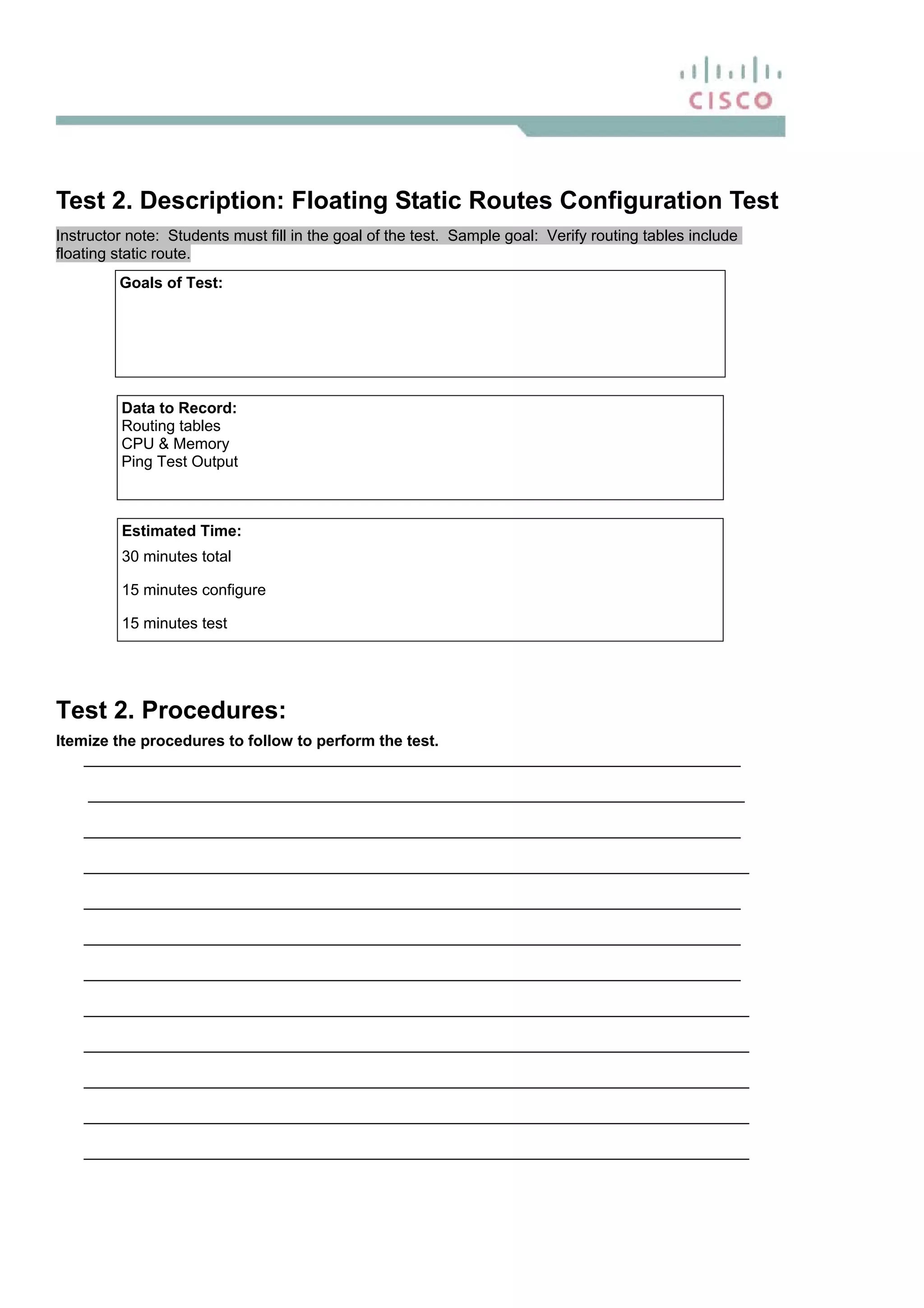

Test 2. Description: Floating Static Routes Configuration Test
Instructor note: Students must fill in the goal of the test. Sample goal: Verify routing tables include
floating static route.
Goals of Test:
Data to Record:
Routing tables
CPU & Memory
Ping Test Output
Estimated Time:
30 minutes total
15 minutes configure
15 minutes test
Test 2. Procedures:
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
_____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________

1. _________________________________________________________________________
2. _________________________________________________________________________
3. __________________________________________________________________________
.

Test 3. Description: Link Failure Test
Goals of Test:
Data to Record:
Router Configuration
IP Routing Table Information
CPU & Memory
Ping Test Output
Estimated Time:
20 minutes total
10 minutes configure
10 minutes test
Test 3. Procedures:
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
_____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________

1. _________________________________________________________________________
2. _________________________________________________________________________
3. __________________________________________________________________________

CCNA Discovery
Designing and Supporting Computer Networks: Prototyping the WAN

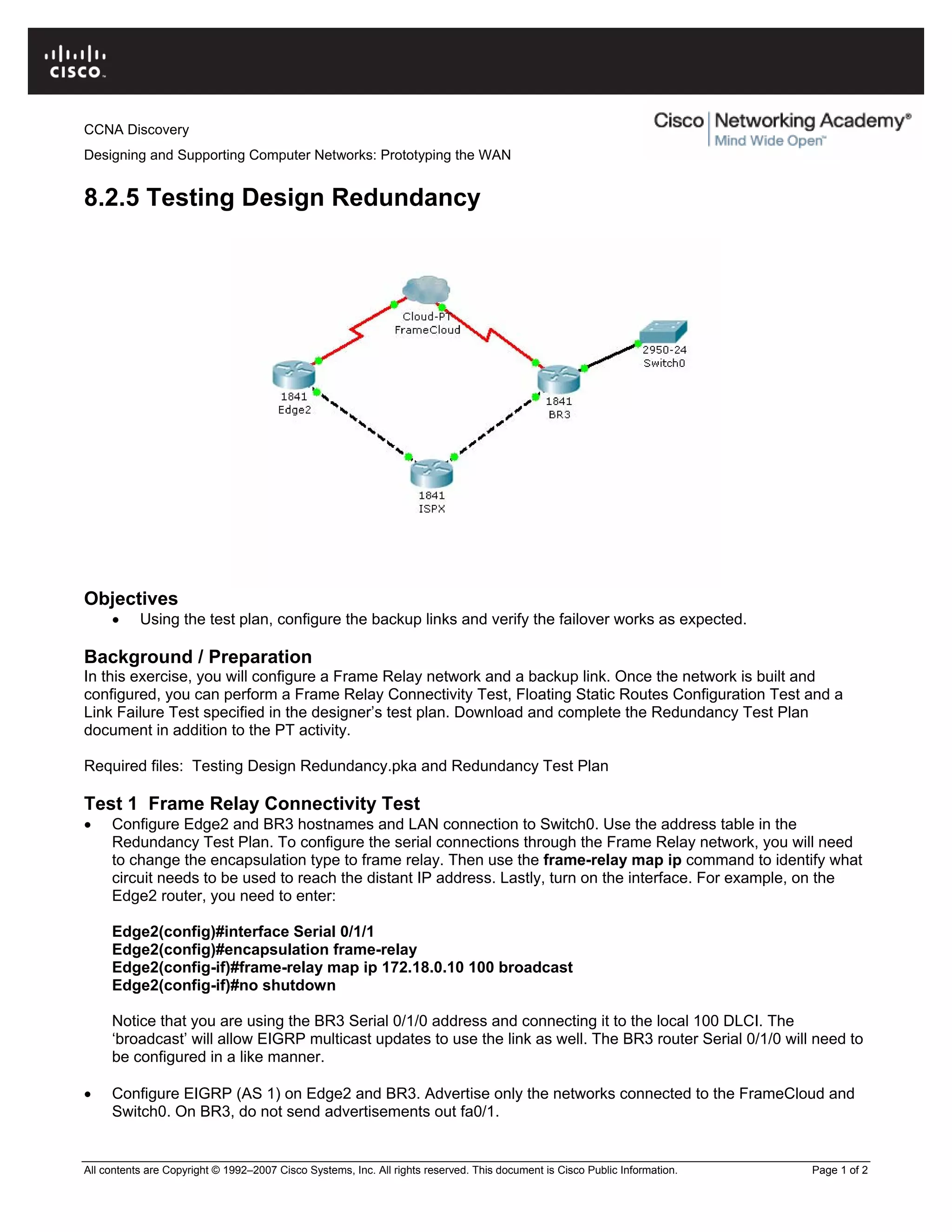

8.2.5 Testing Design Redundancy
Objectives
• Using the test plan, configure the backup links and verify the failover works as expected.
In this exercise, you will configure a Frame Relay network and a backup link. Once the network is built and
configured, you can perform a Frame Relay Connectivity Test, Floating Static Routes Configuration Test and a
Link Failure Test specified in the designer’s test plan. Download and complete the Redundancy Test Plan
document in addition to the PT activity.
Required files: Testing Design Redundancy.pka and Redundancy Test Plan
Test 1 Frame Relay Connectivity Test
• Configure Edge2 and BR3 hostnames and LAN connection to Switch0. Use the address table in the
Redundancy Test Plan. To configure the serial connections through the Frame Relay network, you will need
to change the encapsulation type to frame relay. Then use the frame-relay map ip command to identify what
circuit needs to be used to reach the distant IP address. Lastly, turn on the interface. For example, on the
Edge2 router, you need to enter:
Edge2(config)#interface Serial 0/1/1
Edge2(config)#encapsulation frame-relay
Edge2(config-if)#frame-relay map ip 172.18.0.10 100 broadcast
Edge2(config-if)#no shutdown
Notice that you are using the BR3 Serial 0/1/0 address and connecting it to the local 100 DLCI. The
‘broadcast’ will allow EIGRP multicast updates to use the link as well. The BR3 router Serial 0/1/0 will need to
be configured in a like manner.
• Configure EIGRP (AS 1) on Edge2 and BR3. Advertise only the networks connected to the FrameCloud and
Switch0. On BR3, do not send advertisements out fa0/1.

CCNA Discovery
Test 2 Floating Static Routes Configuration Test
• On Edge2, configure fa0/1 using the addressing given in the Test Plan.
• On Edge2, configure floating static routes (AD=130) to 172.18.225.0/25 and 172.18.225.248/30 through
the back-up network using the local interface argument.
• On BR3, configure fa0/0 using the addressing given in the Test Plan.
• On BR3, configure a floating default route (AD=130) through fa0/0.
Test 3 Link Failure Test
• On Edge2, shutdown interface s0/1/1 and wait a few seconds.
• From Edge2, ping 172.18.225.1. Troubleshoot until it is successful.
• On Edge2, turn interface s0/1/1 back on and wait a few seconds.
• From Edge2, ping 172.18.225.1. Ensure the path is back through the Frame network.

36579601 packet-tracer-manual

More Related Content

What's hot

Similar to 36579601 packet-tracer-manual

Recently uploaded

36579601 packet-tracer-manual
