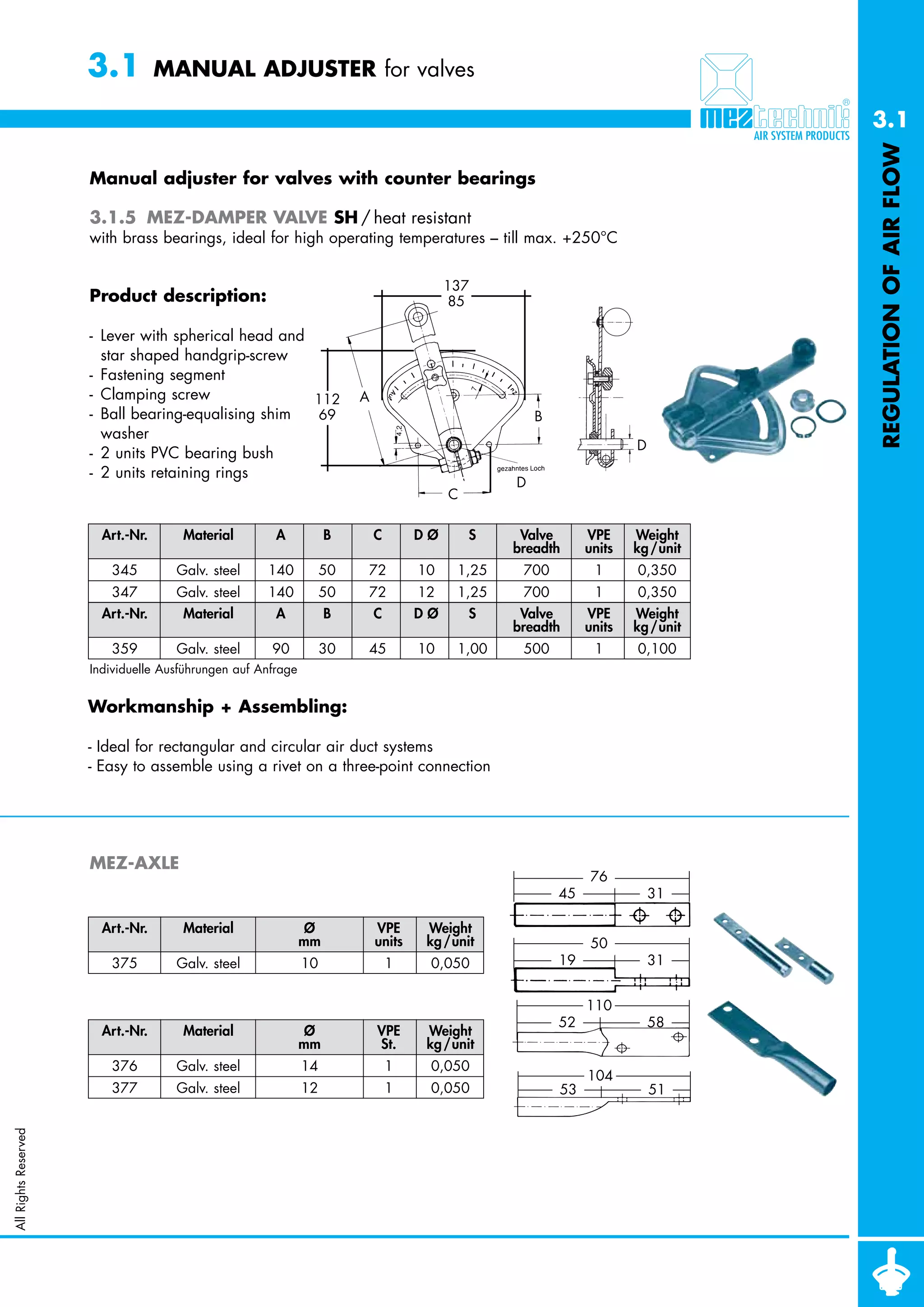

1. 3.1 MANUAL ADJUSTER for valves
3.1
REGULATION OF AIR FLOW
Manual adjuster for valves with counter bearings
3.1.5 MEZ-DAMPER VALVE SH / heat resistant
with brass bearings, ideal for high operating temperatures – till max. +250°C
137
Product description: 85
- Lever with spherical head and
star shaped handgrip-screw
- Fastening segment
- Clamping screw 112 A
- Ball bearing-equalising shim 69 B
washer
D
- 2 units PVC bearing bush
- 2 units retaining rings
D
C
Art.-Nr. Material A B C DØ S Valve VPE Weight
breadth units kg /unit
345 Galv. steel 140 50 72 10 1,25 700 1 0,350
347 Galv. steel 140 50 72 12 1,25 700 1 0,350
Art.-Nr. Material A B C DØ S Valve VPE Weight
breadth units kg /unit
359 Galv. steel 90 30 45 10 1,00 500 1 0,100
Individuelle Ausführungen auf Anfrage
Workmanship + Assembling:
- Ideal for rectangular and circular air duct systems
- Easy to assemble using a rivet on a three-point connection
MEZ-AXLE
76
45 31
Art.-Nr. Material Ø VPE Weight
mm units kg /unit 50
375 Galv. steel 10 1 0,050 19 31
110
52 58
Art.-Nr. Material Ø VPE Weight
mm St. kg /unit
376 Galv. steel 14 1 0,050
104
377 Galv. steel 12 1 0,050 53 51
