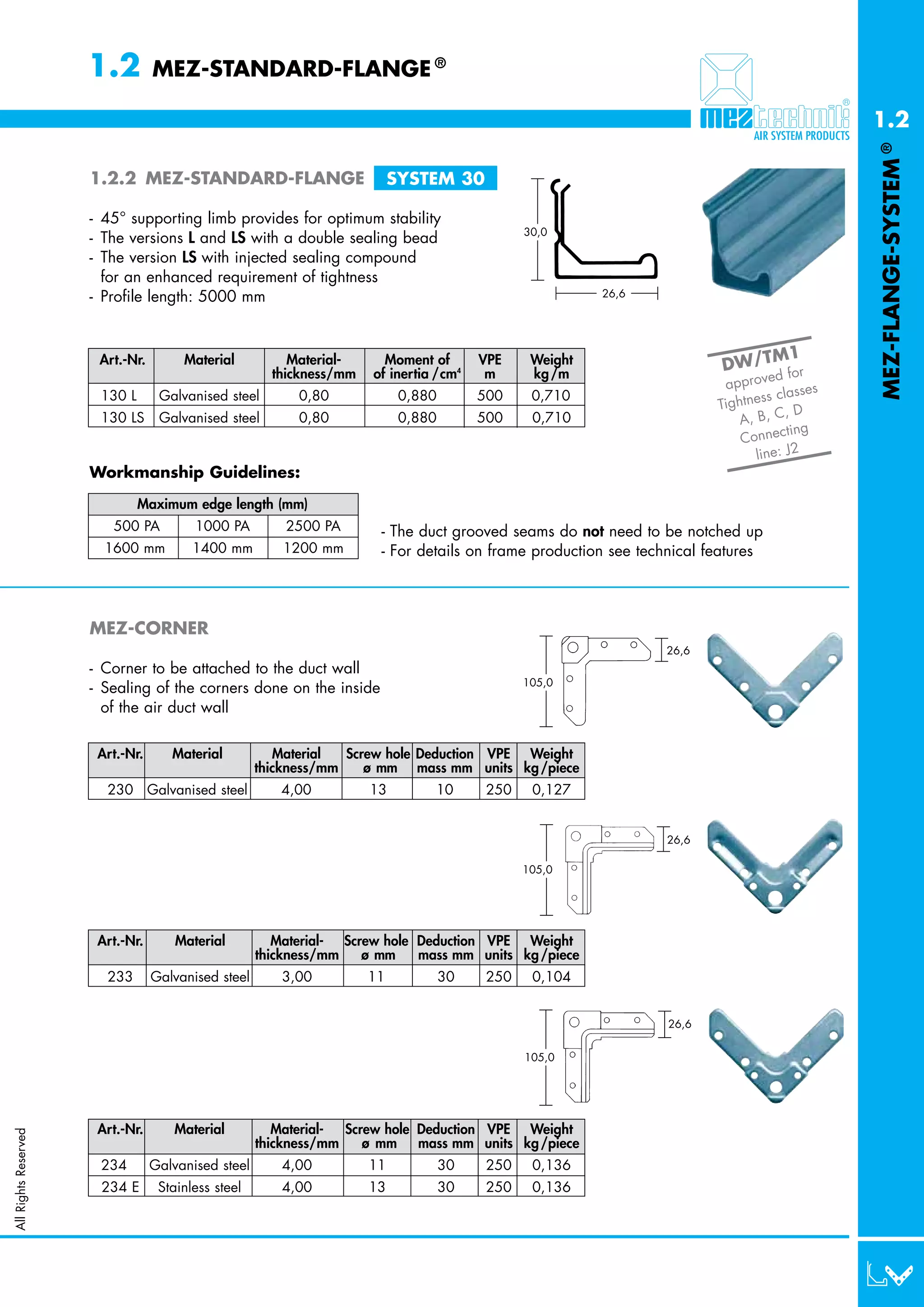

1.2.2 MEZ-STANDARD-FLANGE SYSTEM 30
- 45° supporting limb provides for optimum stability
30,0
- The versions L and LS with a double sealing bead
- The version LS with injected sealing compound
for an enhanced requirement of tightness
- Profile length: 5000 mm 26,6
M1
Art.-Nr. Material Material-
thickness/mm
Moment of
of inertia /cm4
VPE
m
Weight
kg /m
DW/T for
proved
ap es
130 LS Galvanised steel 0,80 0,880 500 0,710 ss class
Tightne D
,
130 LS Galvanised steel 0,80 0,880 500 0,710 A, B, C
g
Co nnectin
line: J2
Workmanship Guidelines:
Maximum edge length (mm)
0500 PA 1000 PA 2500 PA - The duct grooved seams do not need to be notched up
1600 mm 1400 mm 1200 mm - For details on frame production see technical features
MEZ-CORNER
26,6
- Corner to be attached to the duct wall
105,0
- Sealing of the corners done on the inside
of the air duct wall
Art.-Nr. Material Material Screw hole Deduction VPE Weight
thickness/mm ø mm mass mm units kg /piece
230 Galvanised steel 4,00 13 10 250 0,127
26,6
105,0
Art.-Nr. Material Material- Screw hole Deduction VPE Weight
thickness/mm ø mm mass mm units kg /piece
233 Galvanised steel 3,00 11 30 250 0,104
26,6
105,0
Art.-Nr. Material Material- Screw hole Deduction VPE Weight
All Rights Reserved
thickness/mm ø mm mass mm units kg /piece
234 a Galvanised steel 4,00 11 30 250 0,136
234 E Stainless steel 4,00 13 30 250 0,136

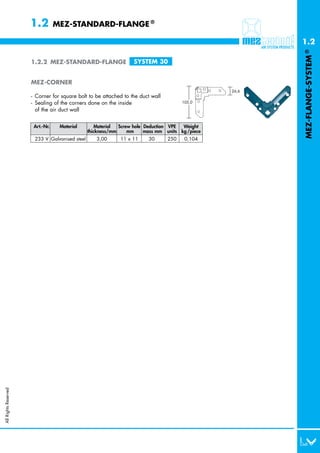

2. 1.2 MEZ-STANDARD-FLANGE ®
1.2
MEZ-FLANGE-SYSTEM ®
1.2.2 MEZ-STANDARD-FLANGE SYSTEM 30
MEZ-CORNER
26,6
- Corner for square bolt to be attached to the duct wall
- Sealing of the corners done on the inside 105,0
of the air duct wall
Art.-Nr. Material Material Screw hole Deduction VPE Weight
thickness/mm mm mass mm units kg /piece
233 V Galvanised steel 3,00 11 x 11 30 250 0,104
