SO-270 Proving Ring Penemometer
The SO-270 Proving Ring Penetrometer is used to determine the penetration resistance of soil layers. It includes a steel penetration rod and cone for penetrating the soil, along with an aluminum handle and wooden carrying case. Additional items like a moisture content test set, thin box, and hydraulic oil are required but not included in the set. The dimension of the penetrometer is 65 x 35 x 20 cm and it has a gross weight of 10 kg.
SO-270 Proving Ring Penemometer

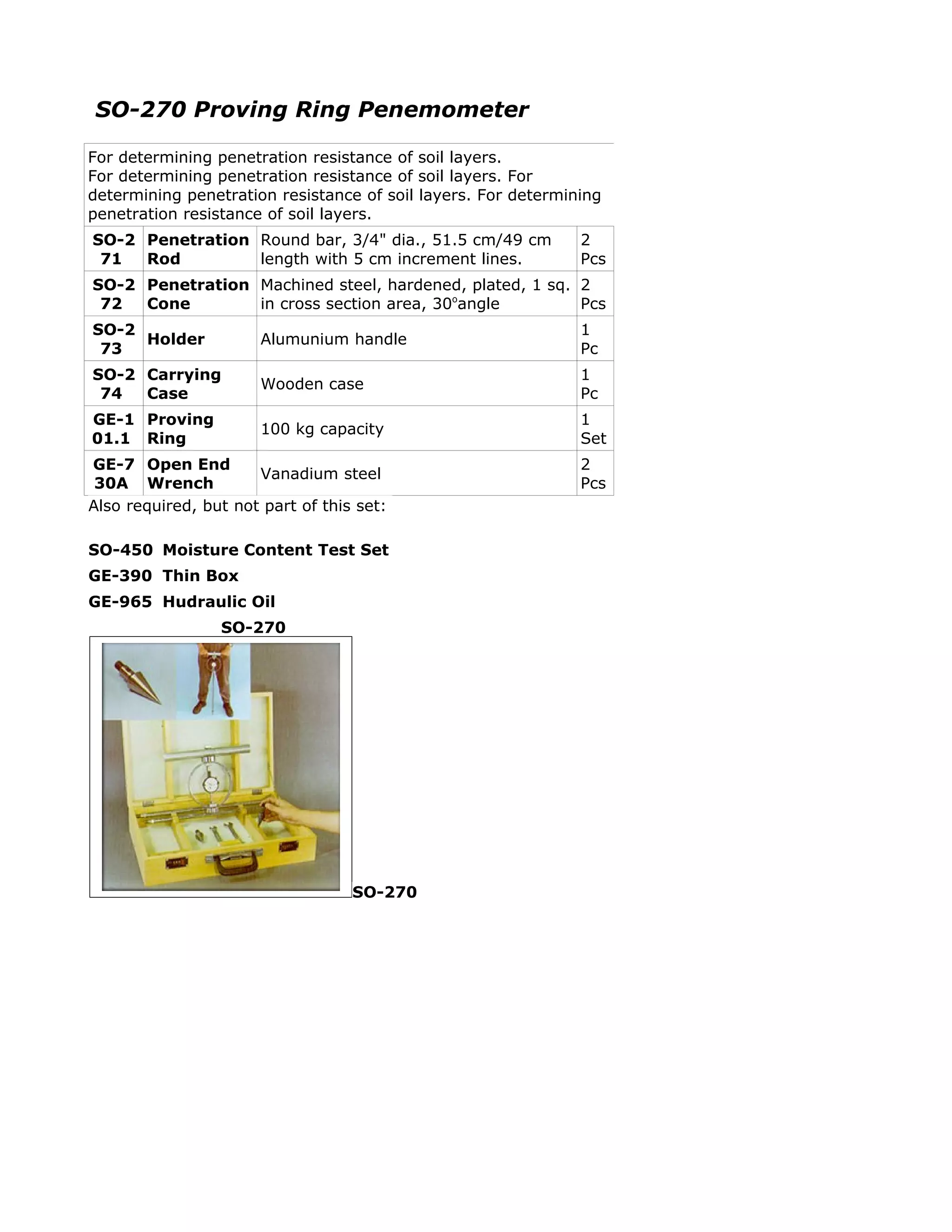

- 1. SO-270 Proving RingPenemometer For determining penetration resistance of soil layers. For determining penetration resistance of soil layers. For determining penetration resistance of soil layers. For determining penetration resistance of soil layers. SO-2 Penetration Round bar, 3/4" dia., 51.5 cm/49 cm 2 71 Rod length with 5 cm increment lines. Pcs SO-2 Penetration Machined steel, hardened, plated, 1 sq. 2 72 Cone in cross section area, 30oangle Pcs SO-2 1 Holder Alumunium handle 73 Pc SO-2 Carrying 1 Wooden case 74 Case Pc GE-1 Proving 1 100 kg capacity 01.1 Ring Set GE-7 Open End 2 Vanadium steel 30A Wrench Pcs Also required, but not part of this set: SO-450 Moisture Content Test Set GE-390 Thin Box GE-965 Hudraulic Oil SO-270 SO-270

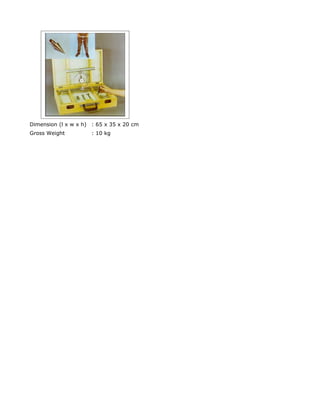

- 2. Dimension (l xw x h) : 65 x 35 x 20 cm Gross Weight : 10 kg
