This tutorial provides steps to create a 3-level hierarchical trust model consisting of a root CA, intermediate CA, and server and client certificates. It involves using OpenSSL commands to generate private keys, certificate signing requests, and self-signed certificates to establish the certificate hierarchy and populate browser and Java truststores. Key steps include generating root and intermediate CA certificates, signing certificate requests with the CAs, exporting certificates to .p12 and .jks formats, and importing certificates into browsers and Java truststores.

1. Tutorial to create 3-level Hierarchical Trust Model
Configuration:
//copy the openssl directory in any location, here we will copy in Desktop
// Set the path for openssl
Linux:
export PATH = $PATH:Path_of_openssl
Windows:
go to myComputer->right click on the myComputer icon->go to Properties->go to
Advanced tab->go to environment variable->in the user variables window click on new-
> write PATH on the variable name and write the path of the openssl/bin in the
variable value.
Windows vista:
go to myComputer->right click on the myComputer icon->go to Properties->go to
Advanced system settings->continue->go to Advanced tab->go to environment
variable-> in the user variables window click on new-> write PATH on the variable
name and write the path of the openssl/bin in the variable value.
//make the folder/directory in the C drive named ssl with heirarchy /usr/local/ssl and
copy the openssl.cnf file from openssl folder to the ssl directory.
Creation of ROOT CA:
//Create a folder/directory for ROOT CA in any location by below command , any
name can be given but here we are giving name RootCA and we are creating in Desktop.
mkdir RootCA
//check whether directory got created or not with the below command
Linux:
ls-l
Windows
dir
//go inside the directory with the below given command
cd RootCA

2. //make directories inside the ROOT CA directory with the help of below given
command to keep the certificates what we will be generating
mkdir certs crl newcerts private
//check whether directories got created or not with the below command
Linux:
ls-l
Windows
dir
//make an empty text file named as index.txt
Linux:
vim index.txt
Windows:
edit index.txt
or
Right click in the RootCA folder somewhere and create the new file named as index.txt
//make an text file named serial and write serial no inside it with the following command
Linux:
echo 01 > serial
Windows:
echo 01 > serial
//copy openssl.cnf file from openssl folder to RootCA folder
//generate a private key
openssl genrsa -des3 -out private/RootCA.key 1024
//create a self-signed certificate using private key
openssl req -new -x509 -nodes -sha1 -days 1825 -key private/RootCA.key -out
RootCA.pem

3. //do the following changes in openssl.cnf file which is inside RootCA folder
In openssl.cnf file change following:
basic constraints: FALSE to
basic constraints: TRUE
[ CA_default ]
dir = ./
certificate = $dir/RootCA.pem # The CA certificate
private_key = $dir/private/RootCA.key # The private key
Creation of CA:
// be inside the ROOT CA Directory and create directory /folder for CA, any name can
be given but here we are giving the name CA
mkdir CA
//go inside the CA directory with the following command
cd CA
// copy the openssl.cnf file from openssl folder to CA folder
// make the directories inside the CA directory to keep the certificates for CA
mkdir certs crl newcerts private
//check whether directories got created or not with the below command
Linux:
ls-l
Windows
dir
//make an empty text file named as index.txt

4. Linux:
vim index.txt
Windows:
edit index.txt
or
Right click in the CA folder somewhere and create the new file named as index.txt
//make an text file named serial and write serial no inside it with the following command
Linux:
echo 01 > serial
Windows:
echo 01 > serial
//generate the CA key:
openssl genrsa -des3 -out private/CAKey.pem 1024
//generate a signing request (valid for 1year)
openssl req -new -sha1 -key private/CAKey.pem -out CA.csr
//copy the sign request CA.csr from CA directory to the ROOT CA directory .
//come out of CA directory with the help of following command
cd ..
//now you will be in the ROOT CA directory so sign the request using the following
command
openssl ca -extensions v3_ca -days 365 -out CA.crt -in CA.csr -config openssl.cnf
//Copy CA.crt from Root CA to CA folder

5. //go inside the CA folder with the following command
cd CA
// do the changes in the openssl.cnf file which is inside the CA folder as suggested
below
[ CA_default ]
dir = ./
certificate = $dir/CA.crt # The CA certificate
private_key = $dir/private/CAKey.pem # The private key
Creation of server certificate:
//make sure you are in the CA folder and not in the Root CA
//create the private key
openssl genrsa -des3 -out server.key 1024
//generate a certificate sign request
openssl req -new -key server.key -out server.csr
//sign the request with the CA
openssl ca -config openssl.cnf -policy policy_anything -out server.crt -infiles server.csr
//Export the Private Key in the .P12 format certificate
openssl pkcs12 -export -in server.crt -inkey server.key -out server.p12
//import server.p12 file in personal tab in the IE browser.
//import CA.crt file in Intermediate Certification Authorities tab in the IE browser.

6. //import RootCA.pem file in Trusted Root Certification Authority tab in the IE
browser.
After importing all the certificates you will be able to see 3 level hierarchy as shown
below if you will try to view the certificate of end user usha.
//transform the pkcs12 to a JKS keystore file (server.jks)
java org.mortbay.jetty.security.PKCS12Import server.p12 server.jks
//check the content of keystore, use the following command:
keytool -v -list -keystore server.jks
Create of client certificate:
//Create directory for client
mkdir client
//Create the private key for client

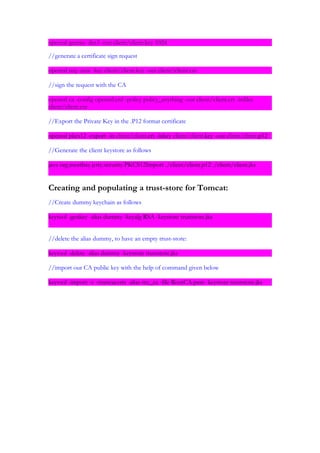

7. openssl genrsa -des3 -out client/client.key 1024
//generate a certificate sign request
openssl req -new -key client/client.key -out client/client.csr
//sign the request with the CA
openssl ca -config openssl.cnf -policy policy_anything -out client/client.crt -infiles
client/client.csr
//Export the Private Key in the .P12 format certificate
openssl pkcs12 -export -in client/client.crt -inkey client/client.key -out client/client.p12
//Generate the client keystore as follows
java org.mortbay.jetty.security.PKCS12Import ./client/client.p12 ./client/client.jks
Creating and populating a trust-store for Tomcat:
//Create dummy keychain as follows
keytool -genkey -alias dummy -keyalg RSA -keystore truststore.jks
//delete the alias dummy, to have an empty trust-store:
keytool -delete -alias dummy -keystore truststore.jks
//import our CA public key with the help of command given below
keytool -import -v -trustcacerts -alias my_ca -file RootCA.pem -keystore truststore.jks
