1. SMA Solar Technology AG2015 Wendy Truong, SMA Australia
INTRODUCTION TO COMMERCIAL
PRODUCTS

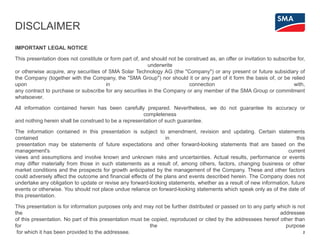

2. DISCLAIMER
IMPORTANT LEGAL NOTICE
This presentation does not constitute or form part of, and should not be construed as, an offer or invitation to subscribe for,
underwrite
or otherwise acquire, any securities of SMA Solar Technology AG (the "Company") or any present or future subsidiary of
the Company (together with the Company, the "SMA Group") nor should it or any part of it form the basis of, or be relied
upon in connection with,
any contract to purchase or subscribe for any securities in the Company or any member of the SMA Group or commitment
whatsoever.
All information contained herein has been carefully prepared. Nevertheless, we do not guarantee its accuracy or
completeness
and nothing herein shall be construed to be a representation of such guarantee.
The information contained in this presentation is subject to amendment, revision and updating. Certain statements
contained in this
presentation may be statements of future expectations and other forward-looking statements that are based on the
management's current
views and assumptions and involve known and unknown risks and uncertainties. Actual results, performance or events
may differ materially from those in such statements as a result of, among others, factors, changing business or other
market conditions and the prospects for growth anticipated by the management of the Company. These and other factors
could adversely affect the outcome and financial effects of the plans and events described herein. The Company does not
undertake any obligation to update or revise any forward-looking statements, whether as a result of new information, future
events or otherwise. You should not place undue reliance on forward-looking statements which speak only as of the date of
this presentation.
This presentation is for information purposes only and may not be further distributed or passed on to any party which is not
the addressee
of this presentation. No part of this presentation must be copied, reproduced or cited by the addressees hereof other than
for the purpose
for which it has been provided to the addressee. 2

3. AGENDA
3
1
2
3
Commercial Solar Inverters
Commercial Communication Products
Active Power Export Control
Earth Fault Alarm AS/NZS5033

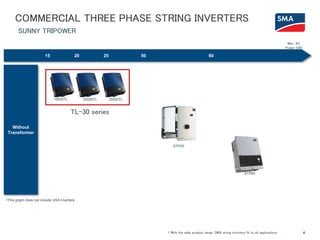

4. SUNNY TRIPOWER
Max. AC
Power (kW)
COMMERCIAL THREE PHASE STRING INVERTERS
41. With the wide product range, SMA string inverters fit to all applications
Without
Transformer
15 20 25 50 60
•This graph does not include USA inverters
STP60
STP50
20000TL 25000TL15000TL
TL-30 series

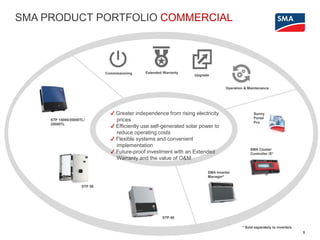

5. STP 15000/20000TL/
25000TL
Commissioning
* Sold separately to inverters
Extended Warranty
Upgrade
STP 60
SMA Cluster
Controller /S*
SMA Inverter
Manager*
Sunny
Portal
Pro
✔ Greater independence from rising electricity
prices
✔ Efficiently use self-generated solar power to
reduce operating costs
✔ Flexible systems and convenient
implementation
✔ Future-proof investment with an Extended
Warranty and the value of O&M
SMA PRODUCT PORTFOLIO COMMERCIAL
5
Operation & Maintenance
STP 50

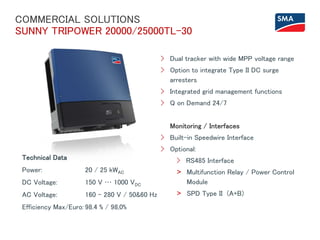

6. > Dual tracker with wide MPP voltage range
> Option to integrate Type II DC surge
arresters
> Integrated grid management functions
> Q on Demand 24/7
Monitoring / Interfaces
> Built-in Speedwire Interface
> Optional:
> RS485 Interface
> Multifunction Relay / Power Control
Module
> SPD Type II (A+B)
COMMERCIAL SOLUTIONS
SUNNY TRIPOWER 20000/25000TL-30
Technical Data
Power: 20 / 25 kWAC
DC Voltage: 150 V … 1000 VDC
AC Voltage: 160 – 280 V / 50&60 Hz
Efficiency Max/Euro: 98.4 % / 98,0%

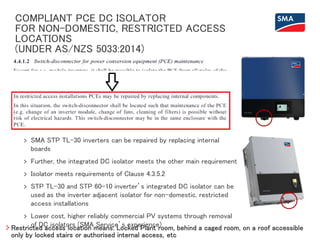

7. COMPLIANT PCE DC ISOLATOR
FOR NON-DOMESTIC, RESTRICTED ACCESS
LOCATIONS
(UNDER AS/NZS 5033:2014)
Restricted access location means: Locked Plant room, behind a caged room, on a roof accessible
only by locked stairs or authorised internal access, etc
> SMA STP TL-30 inverters can be repaired by replacing internal
boards
> Further, the integrated DC isolator meets the other main requirement
> Isolator meets requirements of Clause 4.3.5.2
> STP TL-30 and STP 60-10 inverter’s integrated DC isolator can be
used as the inverter adjacent isolator for non-domestic, restricted
access installations
> Lower cost, higher reliably commercial PV systems through removal
of DC isolators (SMA Service’s experience)

8. > 6x MPPT: 12 direct string inputs to reduce
installation time by 60%
> Option to integrate: II DC surge arresters & II
+ III AC surge arresters
> Integrated DC disconnector
> Integrated grid management functions
> Free-Standing inverter
> Copper & Aluminum AC conductors
Monitoring / Interfaces
> Integrated Web UI with WiFi capabilities
> Integrated sensor connections & data-logging
> Simple integration into SCADA/ Building
Manegement Systems (BMS)
> Modbus Sunspec compatiable
COMMERCIAL SOLUTIONS
SUNNY TRIPOWER 50000TL (CORE1)
Technical Data
Power: 50 kVA
DC Voltage: 150 V to 1000 V @400
Vac
DC MPPT Voltage: 500 V to 800 V
AC Voltage: 230/400V 50 Hz
Efficiency Max/Euro: >98 % / >98%

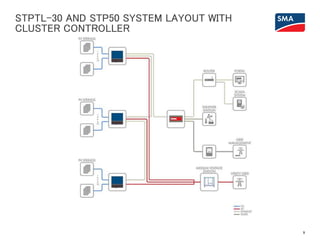

9. STPTL-30 AND STP50 SYSTEM LAYOUT WITH
CLUSTER CONTROLLER
9

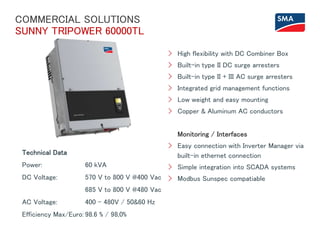

10. > High flexibility with DC Combiner Box
> Built-in type II DC surge arresters
> Built-in type II + III AC surge arresters
> Integrated grid management functions
> Low weight and easy mounting
> Copper & Aluminum AC conductors
Monitoring / Interfaces
> Easy connection with Inverter Manager via
built-in ethernet connection
> Simple integration into SCADA systems
> Modbus Sunspec compatiable
COMMERCIAL SOLUTIONS
SUNNY TRIPOWER 60000TL
Technical Data
Power: 60 kVA
DC Voltage: 570 V to 800 V @400 Vac
685 V to 800 V @480 Vac
AC Voltage: 400 - 480V / 50&60 Hz
Efficiency Max/Euro: 98.6 % / 98,0%

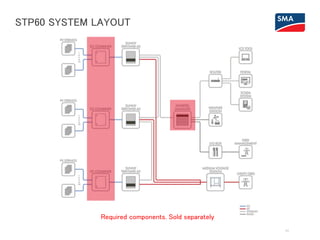

11. STP60 SYSTEM LAYOUT
11
Required components. Sold separately

12. 12

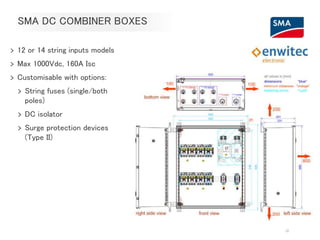

SMA DC COMBINER BOXES
> 12 or 14 string inputs models
> Max 1000Vdc, 160A Isc
> Customisable with options:
> String fuses (single/both
poles)
> DC isolator
> Surge protection devices
(Type II)

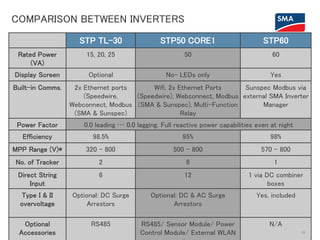

13. COMPARISON BETWEEN INVERTERS
13
STP TL-30 STP50 CORE1 STP60
Rated Power
(VA)
15, 20, 25 50 60
Display Screen Optional No- LEDs only Yes
Built-in Comms. 2x Ethernet ports
(Speedwire,
Webconnect, Modbus
(SMA & Sunspec)
Wifi, 2x Ethernet Ports
(Speedwire), Webconnect, Modbus
(SMA & Sunspec), Multi-Function
Relay
Sunspec Modbus via
external SMA Inverter
Manager
Power Factor 0.0 leading … 0.0 lagging. Full reactive power capabilities even at night
Efficiency 98.5% 95% 98%
MPP Range (V)* 320 – 800 500 – 800 570 - 800
No. of Tracker 2 6 1
Direct String
Input
6 12 1 via DC combiner
boxes
Type I & II
overvoltage
Optional: DC Surge
Arrestors
Optional: DC & AC Surge
Arrestors
Yes, included
Optional
Accessories
RS485 RS485/ Sensor Module/ Power
Control Module/ External WLAN
N/A

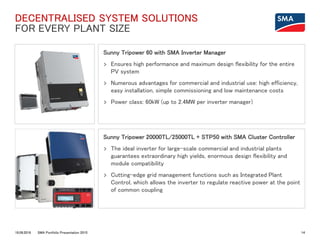

14. DECENTRALISED SYSTEM SOLUTIONS
FOR EVERY PLANT SIZE
Sunny Tripower 60 with SMA Inverter Manager
> Ensures high performance and maximum design flexibility for the entire
PV system
> Numerous advantages for commercial and industrial use: high efficiency,
easy installation, simple commissioning and low maintenance costs
> Power class: 60kW (up to 2.4MW per inverter manager)
18.09.2018 14
Sunny Tripower 20000TL/25000TL + STP50 with SMA Cluster Controller
> The ideal inverter for large-scale commercial and industrial plants
guarantees extraordinary high yields, enormous design flexibility and
module compatibility
> Cutting-edge grid management functions such as Integrated Plant
Control, which allows the inverter to regulate reactive power at the point
of common coupling
SMA Portfolio Presentation 2015

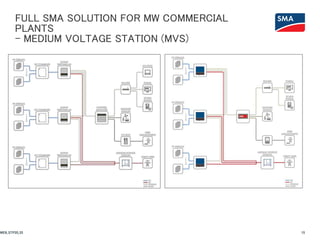

15. FULL SMA SOLUTION FOR MW COMMERCIAL
PLANTS
- MEDIUM VOLTAGE STATION (MVS)
15WEB_STP20_25

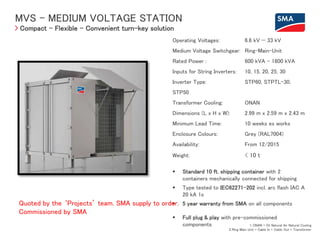

16. MVS – MEDIUM VOLTAGE STATION
1. ONAN = Oil Natural Air Natural Cooling
2. Ring Main Unit = Cable In + Cable Out + Transformer
Compact – Flexible – Convenient turn-key solution
Operating Voltages: 6.6 kV — 33 kV
Medium Voltage Switchgear: Ring-Main-Unit
Rated Power : 600 kVA - 1800 kVA
Inputs for String Inverters: 10, 15, 20, 25, 30
Inverter Type: STP60, STPTL-30,
STP50
Transformer Cooling: ONAN
Dimensions (L x H x W): 2.99 m x 2.59 m x 2.43 m
Minimum Lead Time: 10 weeks ex works
Enclosure Colours: Grey (RAL7004)
Availability: From 12/2015
Weight: < 10 t
 Standard 10 ft. shipping container with 2
containers mechanically connected for shipping
 Type tested to IEC62271-202 incl. arc flash IAC A
20 kA 1s
 5 year warranty from SMA on all components
 Full plug & play with pre-commissioned
components
Quoted by the ‘Projects’ team. SMA supply to order.
Commissioned by SMA

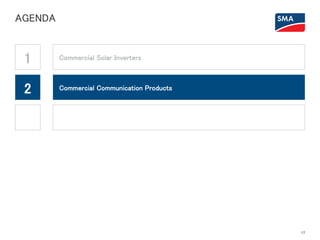

17. AGENDA
17
1
2
Commercial Solar Inverters
Commercial Communication Products
Active Power Export Control
Earth Fault Alarm AS/NZS5033

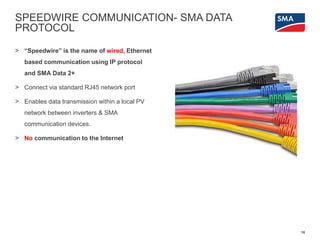

18. SPEEDWIRE COMMUNICATION- SMA DATA
PROTOCOL
> “Speedwire” is the name of wired, Ethernet
based communication using IP protocol
and SMA Data 2+
> Connect via standard RJ45 network port
> Enables data transmission within a local PV
network between inverters & SMA
communication devices.
> No communication to the Internet
18

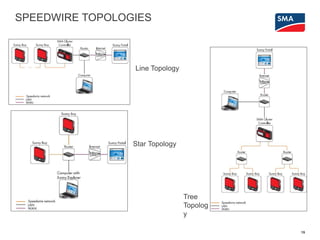

19. SPEEDWIRE TOPOLOGIES
19
Line Topology
Star Topology
Tree
Topolog
y

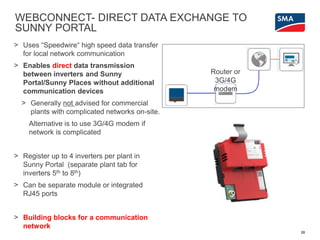

20. WEBCONNECT- DIRECT DATA EXCHANGE TO
SUNNY PORTAL
> Uses “Speedwire“ high speed data transfer
for local network communication
> Enables direct data transmission
between inverters and Sunny
Portal/Sunny Places without additional
communication devices
> Generally not advised for commercial
plants with complicated networks on-site.
Alternative is to use 3G/4G modem if
network is complicated
> Register up to 4 inverters per plant in
Sunny Portal (separate plant tab for
inverters 5th to 8th)
> Can be separate module or integrated
RJ45 ports
> Building blocks for a communication
network
20
Router or
3G/4G
modem

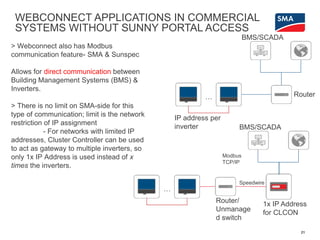

21. WEBCONNECT APPLICATIONS IN COMMERCIAL
SYSTEMS WITHOUT SUNNY PORTAL ACCESS
> Webconnect also has Modbus
communication feature- SMA & Sunspec
Allows for direct communication between
Building Management Systems (BMS) &
Inverters.
> There is no limit on SMA-side for this
type of communication; limit is the network
restriction of IP assignment
- For networks with limited IP
addresses, Cluster Controller can be used
to act as gateway to multiple inverters, so
only 1x IP Address is used instead of x
times the inverters.
21
…
BMS/SCADA
Router
IP address per
inverter
…
BMS/SCADA
Router/
Unmanage
d switch
1x IP Address
for CLCON
Speedwire
Modbus
TCP/IP

22. CLUSTER CONTROLLER & CLUSTER
CONTROLLER S
COMMUNICATION GATEWAY FOR STPTL-30 &
STP50
22
> Monitoring and control of large-scale PV
plants. Gateway/ Hub to the inverters:
> CLCON: 75 SMA inverters
> CLCON-S: 25 SMA inverters
> High speed 100Mbit/s
> Data logging on USB
> Advance visualization, monitoring and data
analysis via Sunny Portal
> Integrated analog, digital inputs, temp
sensors
> Supports MODBUS communication
> Requires additional 24V DC supply sold
separately

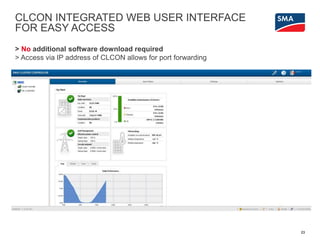

23. CLCON INTEGRATED WEB USER INTERFACE
FOR EASY ACCESS
> No additional software download required
> Access via IP address of CLCON allows for port forwarding
23

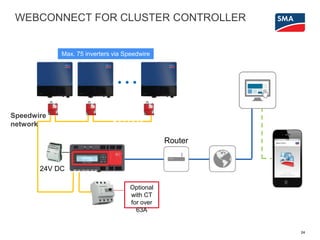

24. WEBCONNECT FOR CLUSTER CONTROLLER
24
Router
Optional
with CT
for over
63A
Max. 75 inverters via Speedwire
24V DC
Speedwire
network

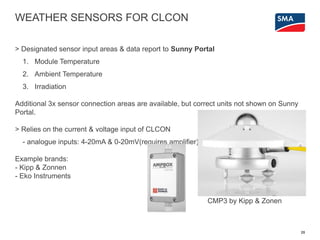

25. WEATHER SENSORS FOR CLCON
> Designated sensor input areas & data report to Sunny Portal
1. Module Temperature
2. Ambient Temperature
3. Irradiation
Additional 3x sensor connection areas are available, but correct units not shown on Sunny
Portal.
> Relies on the current & voltage input of CLCON
- analogue inputs: 4-20mA & 0-20mV(requires amplifier)
Example brands:
- Kipp & Zonnen
- Eko Instruments
25
CMP3 by Kipp & Zonen

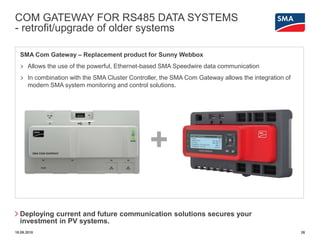

26. COM GATEWAY FOR RS485 DATA SYSTEMS
- retrofit/upgrade of older systems
18.09.2018 26
Deploying current and future communication solutions secures your
investment in PV systems.
SMA Com Gateway – Replacement product for Sunny Webbox
> Allows the use of the powerful, Ethernet-based SMA Speedwire data communication
> In combination with the SMA Cluster Controller, the SMA Com Gateway allows the integration of
modern SMA system monitoring and control solutions.
+

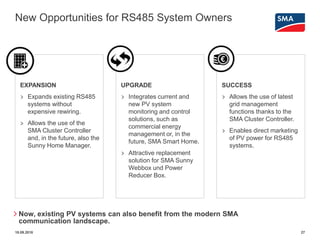

27. New Opportunities for RS485 System Owners
18.09.2018 27
Now, existing PV systems can also benefit from the modern SMA
communication landscape.
EXPANSION
> Expands existing RS485
systems without
expensive rewiring.
> Allows the use of the
SMA Cluster Controller
and, in the future, also the
Sunny Home Manager.
UPGRADE
> Integrates current and
new PV system
monitoring and control
solutions, such as
commercial energy
management or, in the
future, SMA Smart Home.
> Attractive replacement
solution for SMA Sunny
Webbox und Power
Reducer Box.
SUCCESS
> Allows the use of latest
grid management
functions thanks to the
SMA Cluster Controller.
> Enables direct marketing
of PV power for RS485
systems.

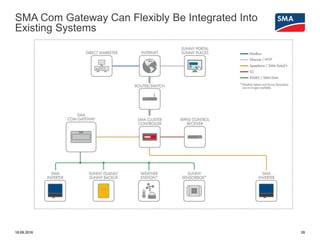

28. SMA Com Gateway Can Flexibly Be Integrated Into
Existing Systems
18.09.2018 28

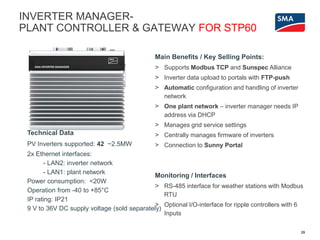

29. 29
Technical Data
PV Inverters supported: 42 ~2.5MW
2x Ethernet interfaces:
- LAN2: inverter network
- LAN1: plant network
Power consumption: <20W
Operation from -40 to +85°C
IP rating: IP21
9 V to 36V DC supply voltage (sold separately)
Main Benefits / Key Selling Points:
> Supports Modbus TCP and Sunspec Alliance
> Inverter data upload to portals with FTP-push
> Automatic configuration and handling of inverter
network
> One plant network – inverter manager needs IP
address via DHCP
> Manages grid service settings
> Centrally manages firmware of inverters
> Connection to Sunny Portal
Monitoring / Interfaces
> RS-485 interface for weather stations with Modbus
RTU
> Optional I/O-interface for ripple controllers with 6
Inputs
INVERTER MANAGER-
PLANT CONTROLLER & GATEWAY FOR STP60

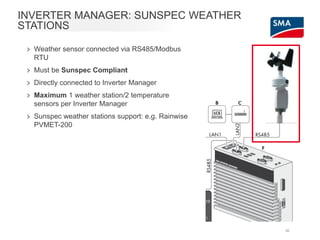

30. 30
INVERTER MANAGER: SUNSPEC WEATHER
STATIONS
> Weather sensor connected via RS485/Modbus
RTU
> Must be Sunspec Compliant
> Directly connected to Inverter Manager
> Maximum 1 weather station/2 temperature
sensors per Inverter Manager
> Sunspec weather stations support: e.g. Rainwise
PVMET-200

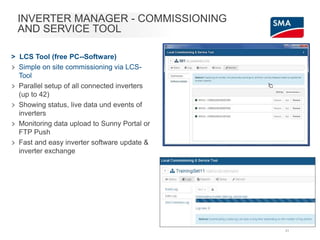

31. INVERTER MANAGER - COMMISSIONING
AND SERVICE TOOL
> LCS Tool (free PC--Software)
> Simple on site commissioning via LCS-
Tool
> Parallel setup of all connected inverters
(up to 42)
> Showing status, live data und events of
inverters
> Monitoring data upload to Sunny Portal or
FTP Push
> Fast and easy inverter software update &
inverter exchange
31

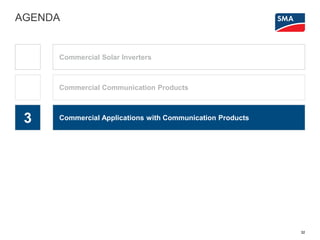

32. AGENDA
32
3
Commercial Solar Inverters
Commercial Communication Products
Commercial Applications with Communication Products
Active Power Export Control
Earth Fault Alarm AS/NZS5033

33. ACTIVE POWER EXPORT CONTROL
http://files.sma.de/dl/7680/ZeroRiskwithZeroExport_TI-en-11.pdf
http://files.sma.de/dl/17975/Wirkleistung_NAP_CC-TI-en-11.pdf
> Export limited solutions can reduce risk of
• Connection denial
• Certain utility requirements for systems greater than 30kVA
• Capacity downgrades
• NVD compliance
• Detailed Substation/Transformer loading and Reverse Power Flow calculations
by Utility
> Solution selection can be complicated depending on the requirements. However,
there are full SMA solutions and joint solutions to meet such requirements.
33

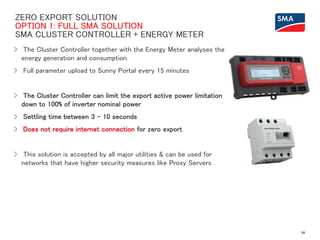

34. ZERO EXPORT SOLUTION
OPTION 1: FULL SMA SOLUTION
SMA CLUSTER CONTROLLER + ENERGY METER
> The Cluster Controller together with the Energy Meter analyses the
energy generation and consumption.
> Full parameter upload to Sunny Portal every 15 minutes
> The Cluster Controller can limit the export active power limitation
down to 100% of inverter nominal power
> Settling time between 3 – 10 seconds
> Does not require internet connection for zero export
> This solution is accepted by all major utilities & can be used for
networks that have higher security measures like Proxy Servers
34

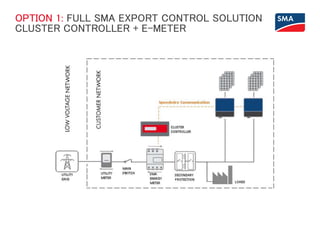

35. OPTION 1: FULL SMA EXPORT CONTROL SOLUTION
CLUSTER CONTROLLER + E-METER

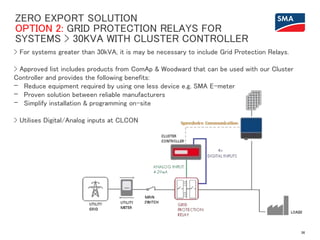

36. ZERO EXPORT SOLUTION
OPTION 2: GRID PROTECTION RELAYS FOR
SYSTEMS > 30KVA WITH CLUSTER CONTROLLER
> For systems greater than 30kVA, it is may be necessary to include Grid Protection Relays.
> Approved list includes products from ComAp & Woodward that can be used with our Cluster
Controller and provides the following benefits:
- Reduce equipment required by using one less device e.g. SMA E-meter
- Proven solution between reliable manufacturers
- Simplify installation & programming on-site
> Utilises Digital/Analog inputs at CLCON
36

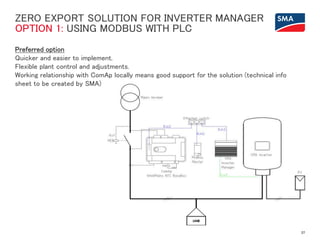

37. ZERO EXPORT SOLUTION FOR INVERTER MANAGER
OPTION 1: USING MODBUS WITH PLC
Preferred option
Quicker and easier to implement.
Flexible plant control and adjustments.
Working relationship with ComAp locally means good support for the solution (technical info
sheet to be created by SMA)
37

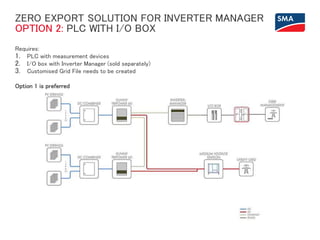

38. ZERO EXPORT SOLUTION FOR INVERTER MANAGER
OPTION 2: PLC WITH I/O BOX
Requires:
1. PLC with measurement devices
2. I/O box with Inverter Manager (sold separately)
3. Customised Grid File needs to be created
Option 1 is preferred

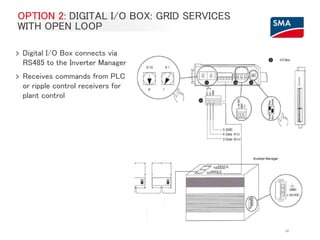

39. 39
OPTION 2: DIGITAL I/O BOX: GRID SERVICES
WITH OPEN LOOP
> Digital I/O Box connects via
RS485 to the Inverter Manager
> Receives commands from PLC
or ripple control receivers for
plant control

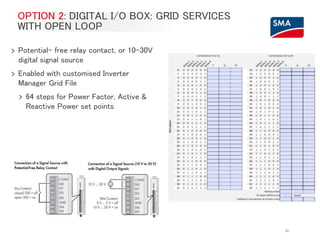

40. 40
OPTION 2: DIGITAL I/O BOX: GRID SERVICES
WITH OPEN LOOP
> Potential- free relay contact, or 10-30V
digital signal source
> Enabled with customised Inverter
Manager Grid File
> 64 steps for Power Factor, Active &
Reactive Power set points

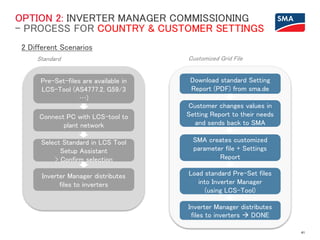

41. 41
Download standard Setting
Report (PDF) from sma.de
Customer changes values in
Setting Report to their needs
and sends back to SMA
SMA creates customized
parameter file + Settings
Report
Load standard Pre-Set files
into Inverter Manager
(using LCS-Tool)
Inverter Manager distributes
files to inverters  DONE
Customized Grid File
OPTION 2: INVERTER MANAGER COMMISSIONING
– PROCESS FOR COUNTRY & CUSTOMER SETTINGS
2 Different Scenarios
Pre-Set-files are available in
LCS-Tool (AS4777.2, G59/3
…)
Connect PC with LCS-tool to
plant network
Select Standard in LCS Tool
Setup Assistant
> Confirm selection
Inverter Manager distributes
files to inverters
Standard

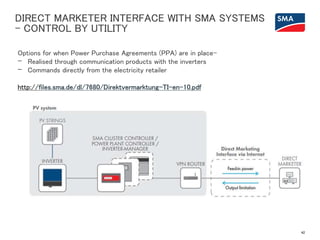

42. DIRECT MARKETER INTERFACE WITH SMA SYSTEMS
- CONTROL BY UTILITY
42
Options for when Power Purchase Agreements (PPA) are in place-
- Realised through communication products with the inverters
- Commands directly from the electricity retailer
http://files.sma.de/dl/7680/Direktvermarktung-TI-en-10.pdf

43. SOCIAL MEDIA
www.SMA.de/Newsroom
