VEMC, an ISO 9001:2008 certified company, offers a comprehensive range of electromechanical solutions including control panels for various applications such as fire fighting, HVAC, and diesel engines. The document outlines specifications for different types of control panels, highlighting their features, operation flexibility, and electrical protection mechanisms. Established in 1948, VEMC has evolved from supplying water utility pumps to handling turnkey projects and providing fluid and energy management solutions across diverse sectors.

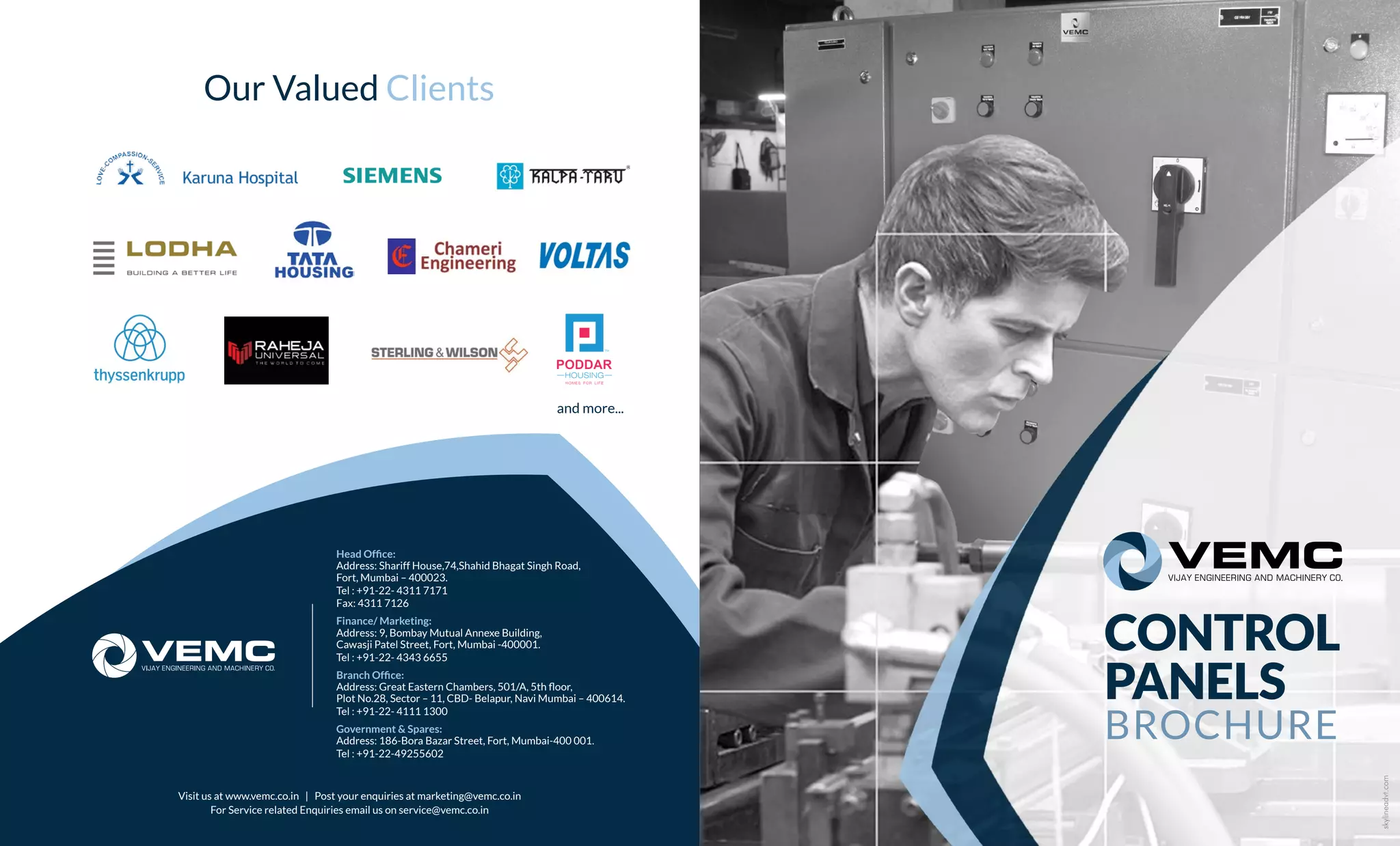

1. Our Valued Clients
and more...
CONTROL
PANELS
BROCHURE
skylineadvt.com
Head Office:
Address: Shariff House,74,Shahid Bhagat Singh Road,
Fort, Mumbai – 400023.
Tel : +91-22- 4311 7171
Fax: 4311 7126
Finance/ Marketing:
Address: 9, Bombay Mutual Annexe Building,
Cawasji Patel Street, Fort, Mumbai -400001.
Tel : +91-22- 4343 6655
Branch Office:
Address: Great Eastern Chambers, 501/A, 5th floor,
Plot No.28, Sector – 11, CBD- Belapur, Navi Mumbai – 400614.
Tel : +91-22- 4111 1300
Government & Spares:
Address: 186-Bora Bazar Street, Fort, Mumbai-400 001.
Tel : +91-22-49255602
Visit us at www.vemc.co.in | Post your enquiries at marketing@vemc.co.in
For Service related Enquiries email us on service@vemc.co.in

2. skylineadvt.com

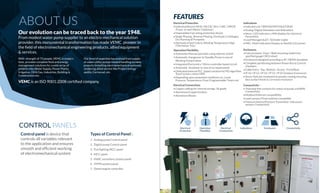

VEMC is an ISO 9001:2008 certified company.
FEATURES
Indications
•Indicators for TRIP/ON/OFF/FAULT/RUN
•Analog /Digital Ammeters and Voltmeters
•Neon / LED Indicators, HMI displays for electrical
Parameters
•Load Managers(L&T / Schinder make)
•MID : Multi-Indication Display on Backlit LCD screen
Connectivity –
• Potential free contacts for status of pumps and BMS
Connectivity
•Modbus/Ethernet compatibility
•Level sensors/Float switches compatible
•Pressure Switch/Pressure Transmitter /Ultrasonic
sensors Connectivity
Enclosures
•Fully enclosed , Floor / Wall mounting made from
specified gauge CRCA sheet
•Enclosures designed according to IP / NEMA standards
•Complete partitioning between Power Bus & Control
chambers
•Cable Entry : Top / Bottom , Access : Front/Rear
•IP 42 / IP 52 / IP 54 / IP 55 / IP 65 Outdoor Enclosures
•Seven Tank pre-treatment & powder coating ensuring
best surface finish & Corrosion resistance
Electrical Protection
•Individual Branch MCB / MCCB / SFU / HRC / MPCB
/Fuses or each Motor ( Optional )
•Dependable Fast acting protection device
•Single Phasing , Reverse Phasing, Overload, Lo Voltages,
Dry Running of Pumpsets
•Mechanical Seal Failure, Winding Temperature High
(Thermistor Trip )
Operation Flexibility
•Automatic/Manual operation using selector switch
•Automatic changeover to Standby Pump in case of
Working Pump Failure
•Integrated Electronics / Micro-controller based circuit
•Automatic shutdown in case of no requirement.
•Dedicated external PLC. Speed variation by PID algorithm
Touch screen, colour HMI.
•Depending upon presented conditions viz., Level,
Pressure, Temperature, Flow, Programmable Timers etc
Electrical Connections
•Copper cabling for internal wirings- ISI grade
•Aluminium/Copper busbars
•Aluminium Blocks
Our evolution can be traced back to the year 1948.
From modest water pump suppiler to an electro-mechanical solution
provider, this monumental transformation has made VEMC pioneer in
the field of electromechanical engineering products, allied equipment
& services.
VEMC is an ISO 9001:2008 certified company.
With strength of 75 people, VEMC in today’s
time, provides complete fluid and energy
management solutions for a wide array of
projects into Water Supply, Power Plants,
Irrigation, Oil & Gas, Industries, Building &
Construction etc.
Our level of expertise has evolved from supply
of water utility pumps toward handling turnkey
projects (installing electromechanical systems),
rendering allied service like Project energy
audits, Corrocoat, etc.
CONTROL PANELS
Control panel is device that
controls all variables relevant
to the application and ensures
smooth and efficient working
of electromechanical system
Types of Control Panel :
1. Analog pump Control panel
2. Digital pump Control panel
3. Fire fighting MCC panel
4. MCC panel
5. HVAC secondary system panel
6. HYPN system panel
7. Diesel engine controller
ABOUT US
Electrical
Protection
Operation
Flexibility
Indications
Electrical
Connections
Enclosures Connectivity

3. skylineadvt.com
3. FIRE FIGHTING CONTROL
PANELS
Overview: Motor control centre to control fire
pumps, that completely automates the fire fighting
system and makes it more reliable and safe. Control
panel is completely designed and build as per fire
fighting nomenclatures.
Application:
 Facilitates automatic operation of Hydrant /
Sprinkler / Jockey / Booster & Diesel engine pump
Specification:
 Incoming Control & Total Protection with MCCB /
MPCB / MCB / SFU / HRC Fuses
 Complete automation and control of fire fighting
system
 BAS/BMS related contacts incorporated in the
Panel
 Switchgear from L&T / Schneider Electric / Siemens
 Control Panels for DOL / Star Delta Motors upto
1000 HP
1. ANALOG CONTROL PANEL
Overview: Control panel that controls variables related
to application and works on integrated electronic circuit
and provides analog display of various parameter
Application:
 Automatic/Manual Control of Tank to tank,
Dewatering, Borewell.
 Involves wide selection of pump types viz. Submersible
pumps, Surface pumps, Vertical Inline pumps, Transfer
pump etc.
Specification: Incorporated with Voltmeter, Ammeter,
VSS, Auto/Manual Switch, Trip Indicator, Overload relay
& Push Buttons for manual Operation.
2. DIGITAL CONTROL PANEL
Overview: Control panel that controls variables
related to application and works on microcontroller and
provides digital display of various parameters.
Application:
 Automatic/Manual Control of Tank to tank,
Dewatering, Borewell.
 Involves wide selection of pump types viz.
Submersible pumps, Surface pumps, Vertical Inline
pumps, Transfer pump etc.
Specification: Microcontroller based Electrical control
panel Incorporated with HMI display, Push Buttons,
Auto operation based on Level & Programmed ON/OFF
Timers by Built-in Integrated Electronic Module along
with Neon Indicators.

4. skylineadvt.com

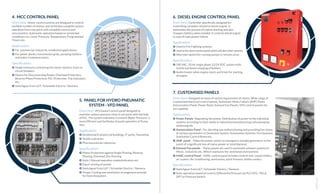

4. MCC CONTROL PANEL
Overview: Motor control centres are designed to control
multiple number of motors and facilitates complete system
operation form one point with complete control and
annunciation. Automatic operation based on presented
conditions viz., Level, Pressure, Temperature, Programmed
Timers etc.
Application:
 For commercial, industrial, residential applications.
 For power plants, transmission grids, pumping stations
and water treatment plants
Specification:
 Single enclosure containing the motor starters, fuses or
circuit breakers
 Device for Disconnecting Power, Overload Protection,
Reverse Phase Protection, PLC Protection, Trip Indicators
etc.
 Switchgear from L&T / Schneider Electric / Siemens
6. DIESEL ENGINE CONTROL PANEL
Overview: Controller specifically designed for
controlling variables related to diesel engine. It
automates the process of engine starting and also
chargers battery when needed. It controls diesel engine
in case of main power failure.
Application:
 Used in Fire Fighting systems
 Usedasfirealarmcontrolpanelwhichwillalertothersystems
 Alternate option for running pumps in remote areas
Specification:
 240 VAC, 50 Hz single phase 12/24 VDC system with
trickle and boost charging of battery
 Audio hooter when engine starts and trials for starting
of engine
5. PANEL FOR HYDRO PNEUMATIC
SYSTEM - VFD PANEL
Overview: VFD based Control panel designed to
maintain system pressure close to set point with the help
of PLC. The system maintains Constant Water Pressure, is
more Efficient and facilitates Smooth operation of Pump
sets.
Application:
 Residential/Commercial buildings, IT parks, Townships
 Textile industries
 Pharmaceuticals industries
Specification:
 Motor Protection against Single Phasing, Reverse
Phasing, Overload, Dry Running
 Auto / Manual operation modesIndicators etc.
 Equal running of pumps
 Switchgear from L&T / Schneider Electric / Siemens
 Proper Cooling and ventilation arrangement provide
for heat dissipation.
7. CUSTOMISED PANELS
Overview: Designed on basis of varied requirement of clients. Wide range of
Customised electrical control panels, Automatic Mains Failure (AMF) Panel,
Annunciation Panel, Power Panel, Exhaust Fan Panels, VFD control panels etc.
are supplied.
Application:
 Power Panels- Regulating the power, Distribution of power to the individual
systems according to their needs in industries/manufacturing units/pumping
stations/grids
 Annunciation Panel - For alarming any malfunctioning and providing live status
of various parameters in Generator System, Automation Systems, Fire Systems,
Substation Control Room etc.
 AMF panel - Make the power switch to emergency standby generators in the
event of a significant loss of mains power or total blackout.
 Exhaust Fan panels – These panels are used in automatic exhaust systems in
Mines , Industries etc. Which maintains the ventilated environment.
 HVAC control Panel - HVAC control panel includes control over Liquid chillers,
air coolers, Air conditioning, mortuaries, quick freezers, bottle coolers.
Specification:
 Switchgear from L&T / Schneider Electric / Siemens
 Auto operation based on Level & Differential Pressure by PLC-VFD , PID &
DPT or Pressure Switch
