The Crease Bend Tester B0012, produced by IDM Instruments, is designed to measure the bending resistance of creased board for carton boxes, aiding in quality improvement for corrugated converters. The device features a pneumatic sample clamp, motorized load bar, and a digital display for easy operation, with specifications including a maximum force range of 10,000 gf and adjustable creasing distance. It is essential for optimizing box performance during the folding process and requires a calibration weight for accurate testing.

1. Manufactured by IDM Instruments Pty. Ltd.
Email: idm@idminstruments.com.au
Phone: +61 397086885

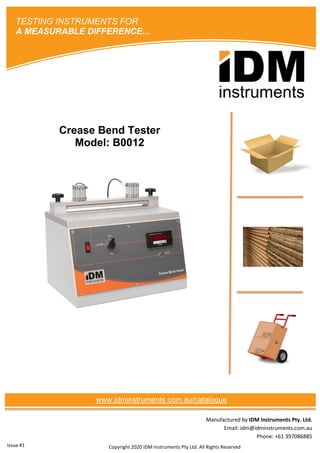

Crease Bend Tester
Model: B0012
Copyright 2020 IDM Instruments Pty Ltd. All Rights Reserved
TESTING INSTRUMENTS FOR
A MEASURABLE DIFFERENCE...
www.idminstruments.com.au/catalogue
Issue #1

2. Model B0012
Force Range 0 - 10,000 X 1 gf
Accuracy 1% F.S
Maximum Sample
Width
300 mm
Adjustable creasing
distance
10 mm – 110 mm
Product Description
Crease Bend Tester
B0012
The Crease Bend Tester is used to monitor scoring equipment to ensure box performance by measuring
the bending resistance of creased board at the crease at the time of folding. Samples are pneumatically
clamped down, and the maximum force required to bend the sample board is automatically measured.
The peak force measured is then displayed on the screen until the next test.
By measuring crease bends with, and against the grain of the board, corrugated converters can use the
Crease Bend Tester to aid in making adjustments to improve quality, ensuring the end user will have boxes
that run effectively on their production line.
Features
Copyright 2020 IDM Instruments Pty Ltd. All Rights Reserved
Applications
Carton Boxes Carton board
Printed board
Specifications
• Pneumatic sample clamp
• Motorised Load Bar
• Adjustable creasing distance
• Easy to operate
• Peak Memory function
• Quick and simple testing
• Digital display
• Calibration weight provided

3. Crease Bend Tester
B0012
Crease Bending – against grain
Crease Bending – with grain
500 g calibration weight provided
Checking Calibration with 500 g weight
• Air: 80 psi maximum
• Electrical: 220/240 VAC @ 50 HZ or
110 VAC @ 60 HZ
(please specify when ordering)
Connections
• Height: 360 mm
• Weight: 400 mm
• Depth: 350 mm
• Weight: 25 kg
Dimensions
Options
• RS232
IDM Instruments Pty Ltd.
10 - 11 Colrado Court, Hallam, Victoria 3803, Australia
Tel: +61 03 9708 6885 Fax: +61 3 9708 6770
idm@idminstruments.com.au
www.idminstruments.com.au
Worldwide Supply
Copyright 2020 IDM Instruments Pty Ltd. All Rights Reserved
