Archi Lite II
LED Strip Mounting
Profile Range
LED Lighting is Dedicated to the Manufacture and Wholesale of Quality LED Strip Lighting
Products and Accessories
A brand you can trust with over 12 years experience in the field of LED Lighting
www.ledlighting.com.au
sales@ledlighting.com.au
Where Quality Meets
Performance
A division of “Optic Fibre and LED Lighting Solutions”
PH: 612 9534 4404
Third Edition

2. Page 2
CRI(RA) ≥ 90 LED StripsCrisp Clean
Illumination Available on request
Quality Architectural LED Strip
Where quality meets performance
When Clarity
Matters

3. Page 3

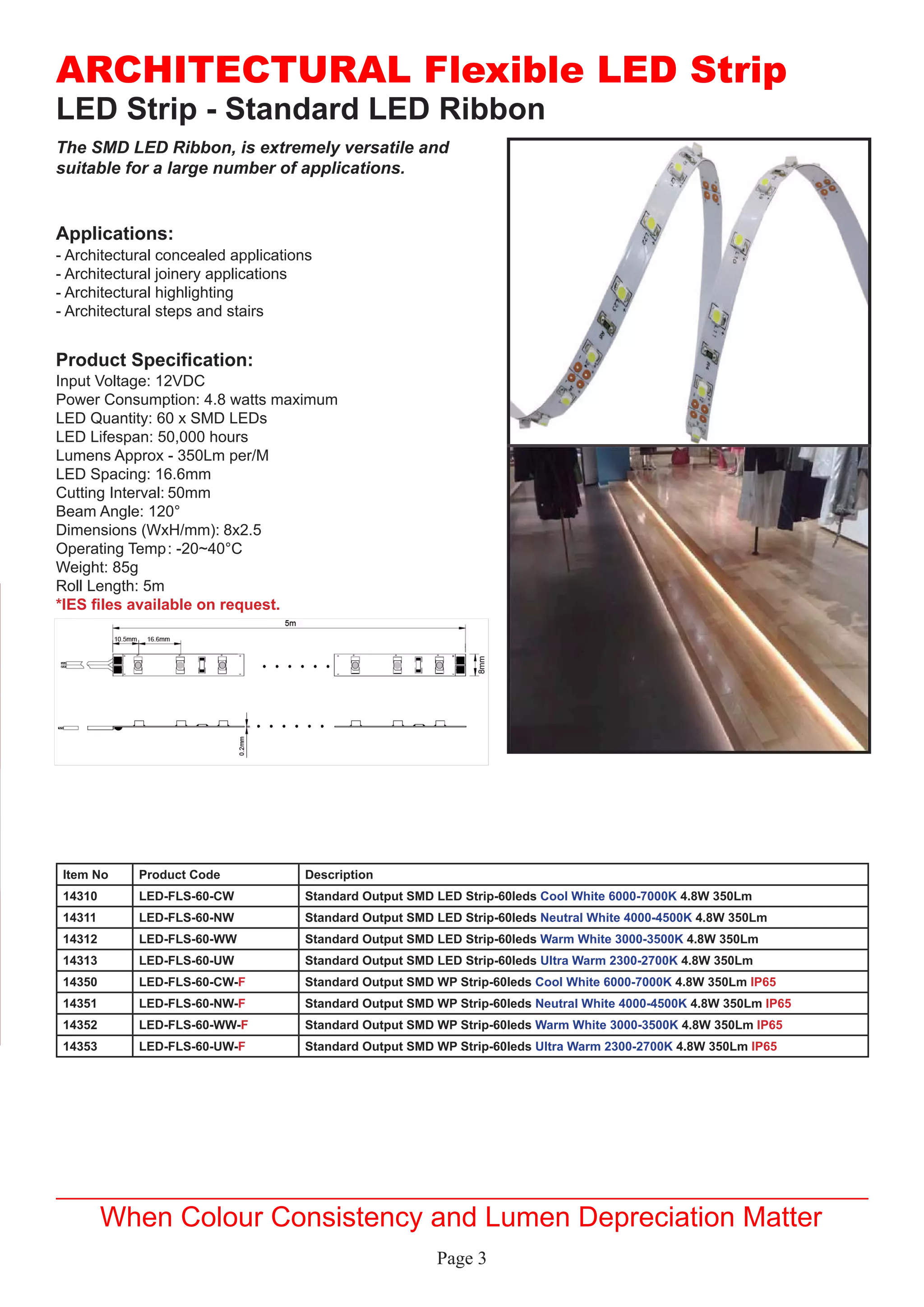

LED Strip - Standard LED Ribbon
Applications:
Product Specification:
- Architectural concealed applications
- Architectural joinery applications
- Architectural highlighting
- Architectural steps and stairs
Input Voltage: 12VDC
Power Consumption: 4.8 watts maximum
LED Quantity: 60 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens Approx - 350Lm per/M
LED Spacing: 16.6mm
Cutting Interval: 50mm
Beam Angle: 120°
Dimensions (WxH/mm): 8x2.5
Operating Temp : -20~40°C
Weight: 85g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
The SMD LED Ribbon, is extremely versatile and
suitable for a large number of applications.
Item No Product Code Description
14310 LED-FLS-60-CW Standard Output SMD LED Strip-60leds Cool White 6000-7000K 4.8W 350Lm
14311 LED-FLS-60-NW Standard Output SMD LED Strip-60leds Neutral White 4000-4500K 4.8W 350Lm
14312 LED-FLS-60-WW Standard Output SMD LED Strip-60leds Warm White 3000-3500K 4.8W 350Lm
14313 LED-FLS-60-UW Standard Output SMD LED Strip-60leds Ultra Warm 2300-2700K 4.8W 350Lm
14350 LED-FLS-60-CW-F Standard Output SMD WP Strip-60leds Cool White 6000-7000K 4.8W 350Lm IP65
14351 LED-FLS-60-NW-F Standard Output SMD WP Strip-60leds Neutral White 4000-4500K 4.8W 350Lm IP65
14352 LED-FLS-60-WW-F Standard Output SMD WP Strip-60leds Warm White 3000-3500K 4.8W 350Lm IP65
14353 LED-FLS-60-UW-F Standard Output SMD WP Strip-60leds Ultra Warm 2300-2700K 4.8W 350Lm IP65

4. Page 4

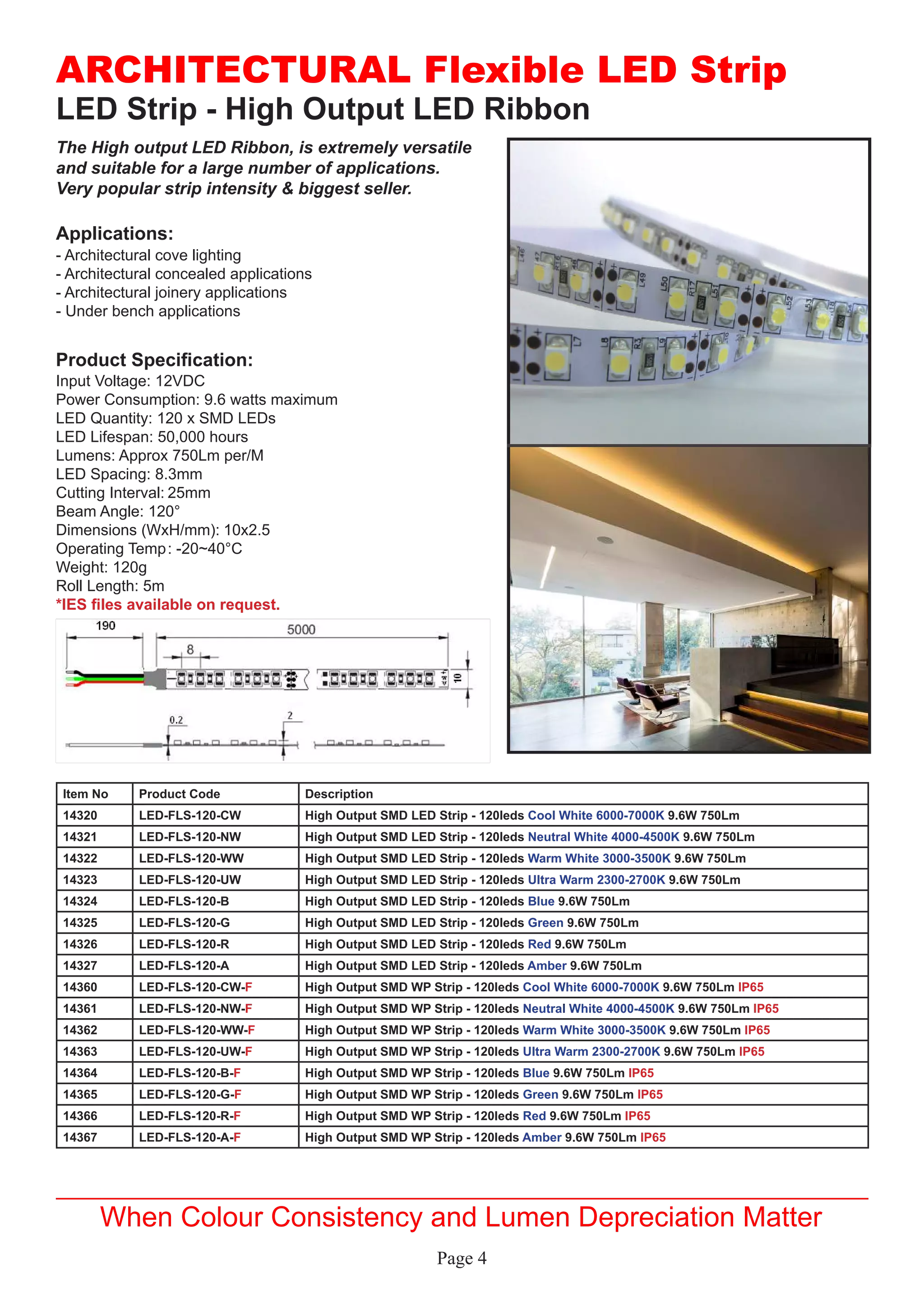

LED Strip - High Output LED Ribbon
Applications:
Product Specification:
- Architectural cove lighting
- Architectural concealed applications
- Architectural joinery applications
- Under bench applications
Input Voltage: 12VDC
Power Consumption: 9.6 watts maximum
LED Quantity: 120 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens: Approx 750Lm per/M
LED Spacing: 8.3mm
Cutting Interval: 25mm
Beam Angle: 120°
Dimensions (WxH/mm): 10x2.5
Operating Temp : -20~40°C
Weight: 120g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
The High output LED Ribbon, is extremely versatile
and suitable for a large number of applications.
Very popular strip intensity & biggest seller.
Item No Product Code Description
14320 LED-FLS-120-CW High Output SMD LED Strip - 120leds Cool White 6000-7000K 9.6W 750Lm
14321 LED-FLS-120-NW High Output SMD LED Strip - 120leds Neutral White 4000-4500K 9.6W 750Lm
14322 LED-FLS-120-WW High Output SMD LED Strip - 120leds Warm White 3000-3500K 9.6W 750Lm
14323 LED-FLS-120-UW High Output SMD LED Strip - 120leds Ultra Warm 2300-2700K 9.6W 750Lm
14324 LED-FLS-120-B High Output SMD LED Strip - 120leds Blue 9.6W 750Lm
14325 LED-FLS-120-G High Output SMD LED Strip - 120leds Green 9.6W 750Lm
14326 LED-FLS-120-R High Output SMD LED Strip - 120leds Red 9.6W 750Lm
14327 LED-FLS-120-A High Output SMD LED Strip - 120leds Amber 9.6W 750Lm
14360 LED-FLS-120-CW-F High Output SMD WP Strip - 120leds Cool White 6000-7000K 9.6W 750Lm IP65
14361 LED-FLS-120-NW-F High Output SMD WP Strip - 120leds Neutral White 4000-4500K 9.6W 750Lm IP65
14362 LED-FLS-120-WW-F High Output SMD WP Strip - 120leds Warm White 3000-3500K 9.6W 750Lm IP65
14363 LED-FLS-120-UW-F High Output SMD WP Strip - 120leds Ultra Warm 2300-2700K 9.6W 750Lm IP65
14364 LED-FLS-120-B-F High Output SMD WP Strip - 120leds Blue 9.6W 750Lm IP65
14365 LED-FLS-120-G-F High Output SMD WP Strip - 120leds Green 9.6W 750Lm IP65
14366 LED-FLS-120-R-F High Output SMD WP Strip - 120leds Red 9.6W 750Lm IP65
14367 LED-FLS-120-A-F High Output SMD WP Strip - 120leds Amber 9.6W 750Lm IP65

5. Page 5

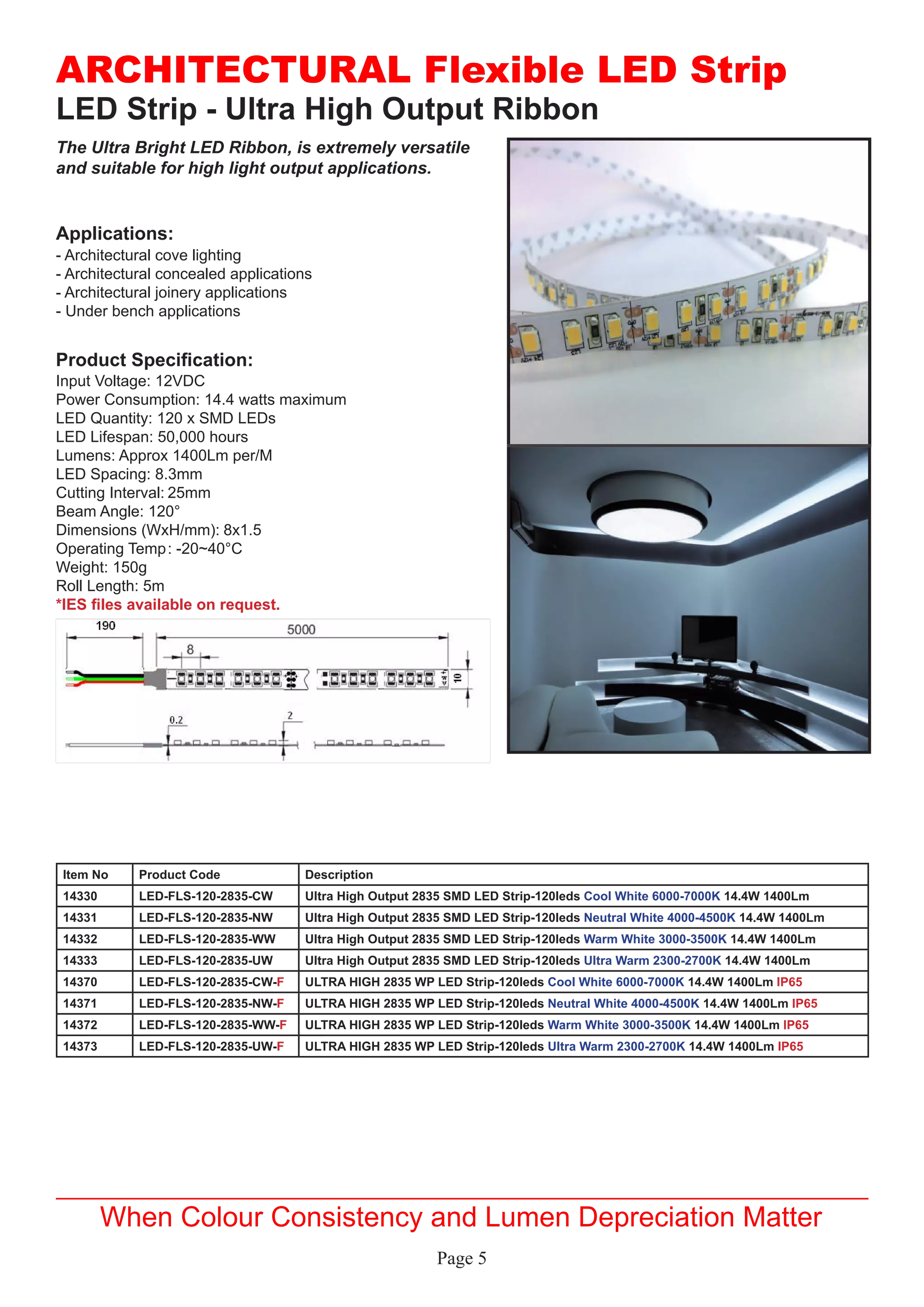

LED Strip - Ultra High Output Ribbon
Applications:
Product Specification:
- Architectural cove lighting
- Architectural concealed applications
- Architectural joinery applications
- Under bench applications
Input Voltage: 12VDC
Power Consumption: 14.4 watts maximum
LED Quantity: 120 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens: Approx 1400Lm per/M
LED Spacing: 8.3mm
Cutting Interval: 25mm
Beam Angle: 120°
Dimensions (WxH/mm): 8x1.5
Operating Temp : -20~40°C
Weight: 150g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
The Ultra Bright LED Ribbon, is extremely versatile
and suitable for high light output applications.
Item No Product Code Description
14330 LED-FLS-120-2835-CW Ultra High Output 2835 SMD LED Strip-120leds Cool White 6000-7000K 14.4W 1400Lm
14331 LED-FLS-120-2835-NW Ultra High Output 2835 SMD LED Strip-120leds Neutral White 4000-4500K 14.4W 1400Lm
14332 LED-FLS-120-2835-WW Ultra High Output 2835 SMD LED Strip-120leds Warm White 3000-3500K 14.4W 1400Lm
14333 LED-FLS-120-2835-UW Ultra High Output 2835 SMD LED Strip-120leds Ultra Warm 2300-2700K 14.4W 1400Lm
14370 LED-FLS-120-2835-CW-F ULTRA HIGH 2835 WP LED Strip-120leds Cool White 6000-7000K 14.4W 1400Lm IP65
14371 LED-FLS-120-2835-NW-F ULTRA HIGH 2835 WP LED Strip-120leds Neutral White 4000-4500K 14.4W 1400Lm IP65
14372 LED-FLS-120-2835-WW-F ULTRA HIGH 2835 WP LED Strip-120leds Warm White 3000-3500K 14.4W 1400Lm IP65
14373 LED-FLS-120-2835-UW-F ULTRA HIGH 2835 WP LED Strip-120leds Ultra Warm 2300-2700K 14.4W 1400Lm IP65

6. Page 6

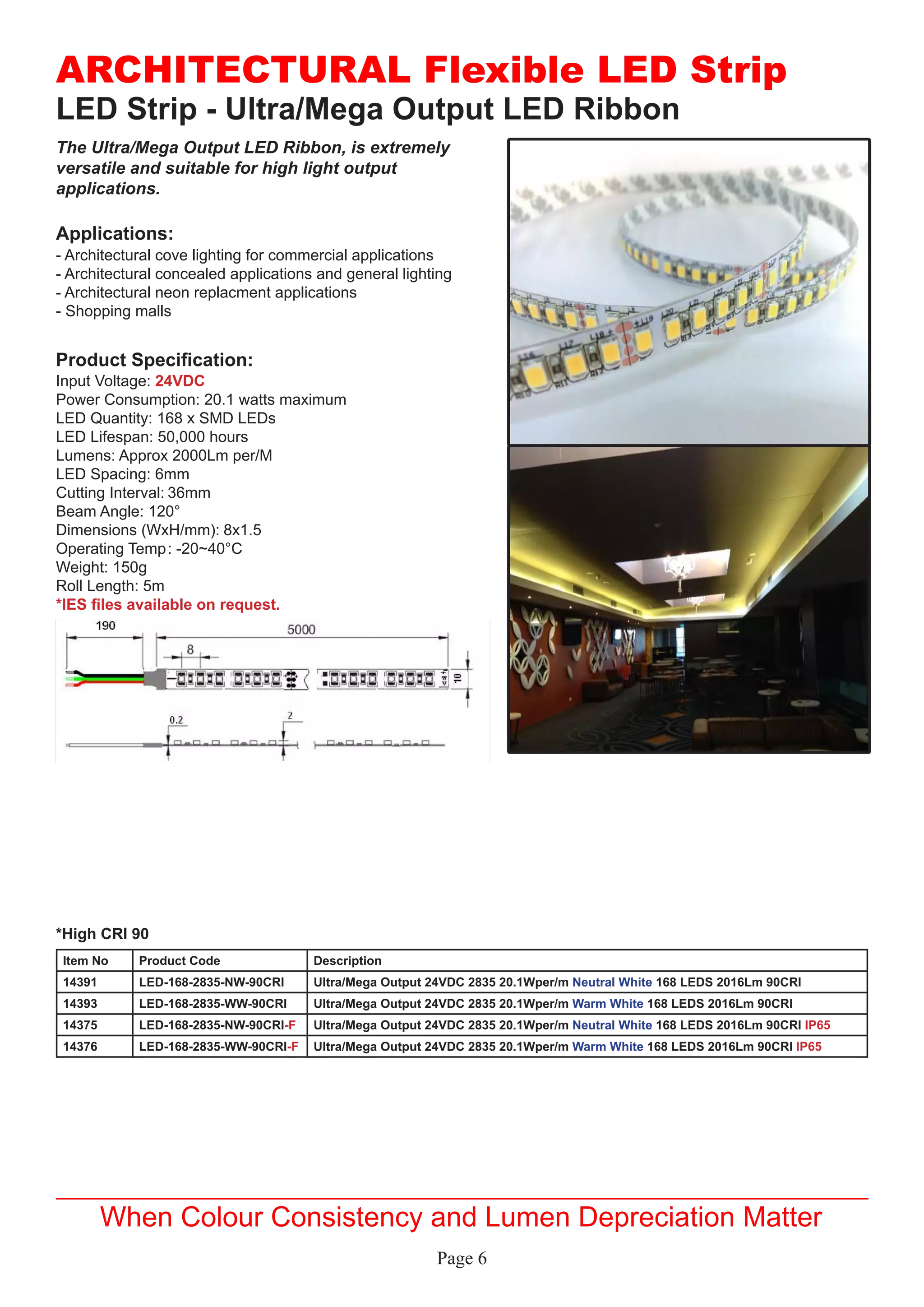

LED Strip - Ultra/Mega Output LED Ribbon
Applications:
Product Specification:
- Architectural cove lighting for commercial applications
- Architectural concealed applications and general lighting
- Architectural neon replacment applications
- Shopping malls
Input Voltage: 24VDC
Power Consumption: 20.1 watts maximum
LED Quantity: 168 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens: Approx 2000Lm per/M
LED Spacing: 6mm
Cutting Interval: 36mm
Beam Angle: 120°
Dimensions (WxH/mm): 8x1.5
Operating Temp : -20~40°C
Weight: 150g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
The Ultra/Mega Output LED Ribbon, is extremely
versatile and suitable for high light output
applications.
Item No Product Code Description
14391 LED-168-2835-NW-90CRI Ultra/Mega Output 24VDC 2835 20.1Wper/m Neutral White 168 LEDS 2016Lm 90CRI
14393 LED-168-2835-WW-90CRI Ultra/Mega Output 24VDC 2835 20.1Wper/m Warm White 168 LEDS 2016Lm 90CRI
14375 LED-168-2835-NW-90CRI-F Ultra/Mega Output 24VDC 2835 20.1Wper/m Neutral White 168 LEDS 2016Lm 90CRI IP65
14376 LED-168-2835-WW-90CRI-F Ultra/Mega Output 24VDC 2835 20.1Wper/m Warm White 168 LEDS 2016Lm 90CRI IP65
*High CRI 90

7. Page 7

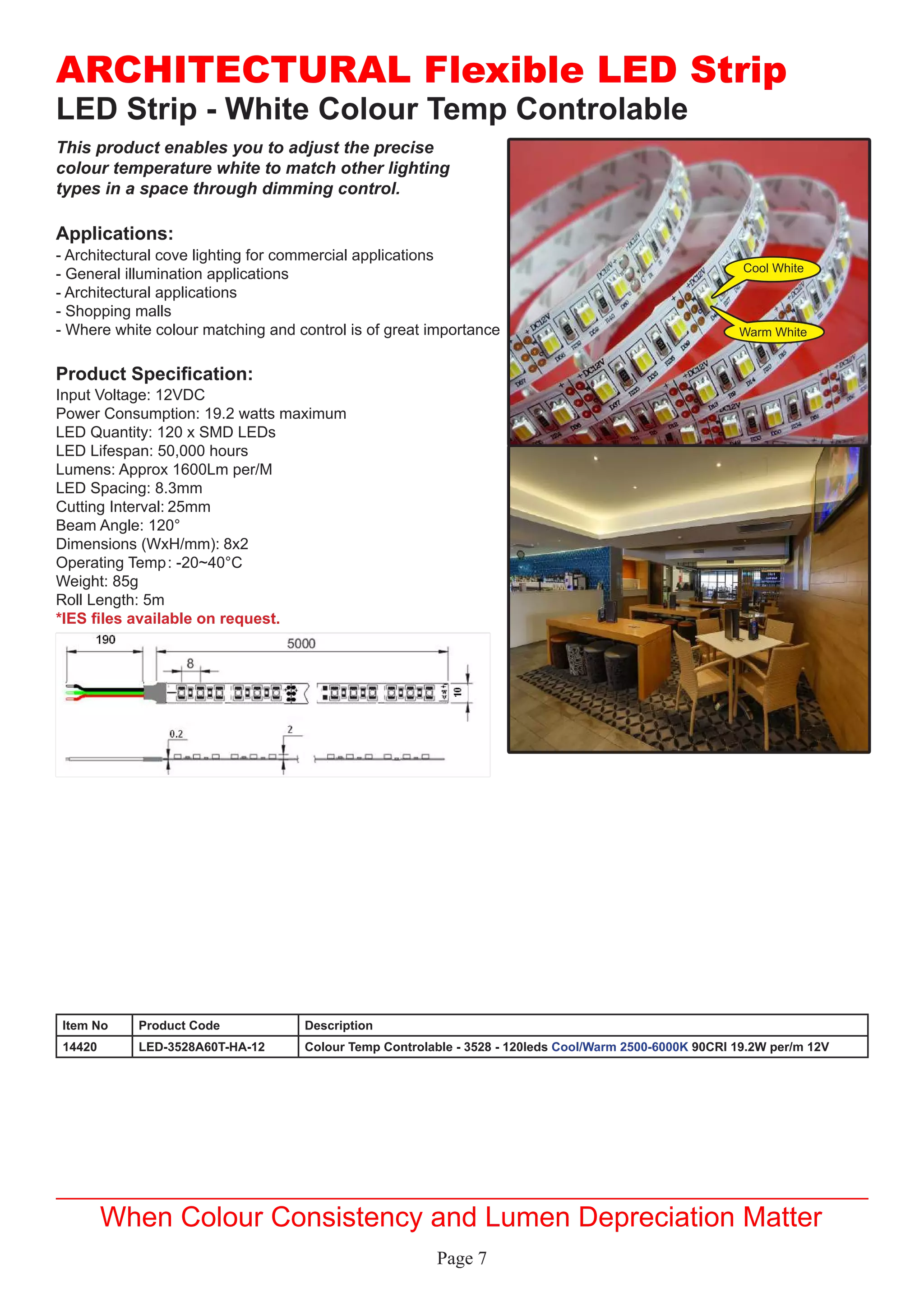

LED Strip - White Colour Temp Controlable
Item No Product Code Description
14420 LED-3528A60T-HA-12 Colour Temp Controlable - 3528 - 120leds Cool/Warm 2500-6000K 90CRI 19.2W per/m 12V
Applications:
Product Specification:
- Architectural cove lighting for commercial applications
- General illumination applications
- Architectural applications
- Shopping malls
- Where white colour matching and control is of great importance
Input Voltage: 12VDC
Power Consumption: 19.2 watts maximum
LED Quantity: 120 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens: Approx 1600Lm per/M
LED Spacing: 8.3mm
Cutting Interval: 25mm
Beam Angle: 120°
Dimensions (WxH/mm): 8x2
Operating Temp : -20~40°C
Weight: 85g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
Cool White
Warm White
This product enables you to adjust the precise
colour temperature white to match other lighting
types in a space through dimming control.

8. Page 8

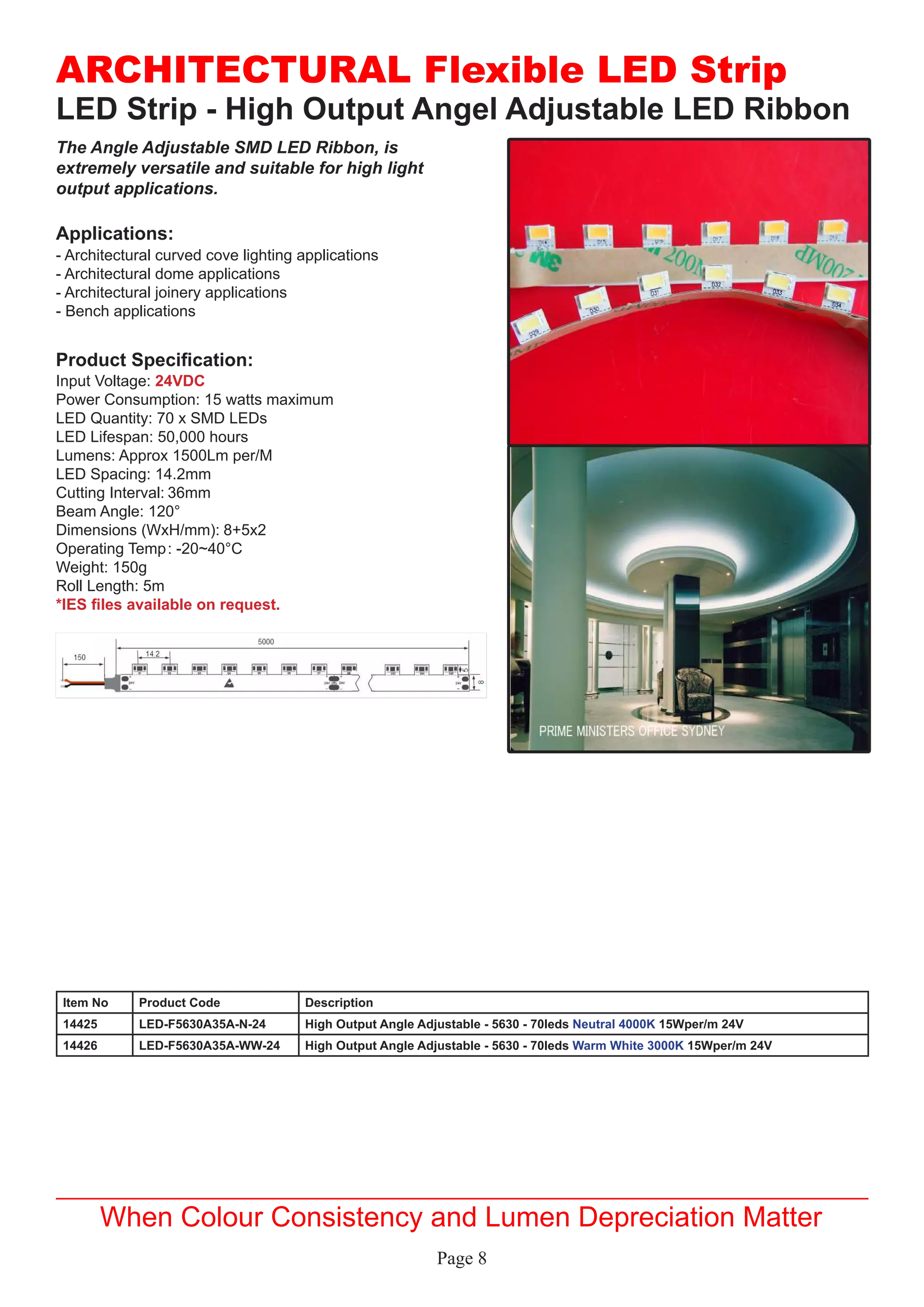

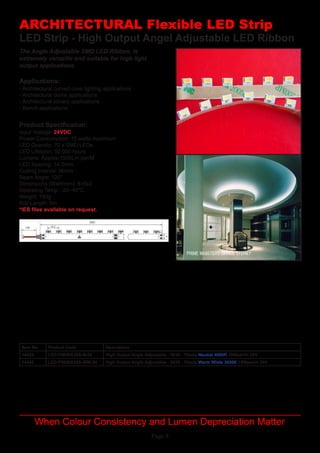

LED Strip - High Output Angel Adjustable LED Ribbon
Applications:
Product Specification:
- Architectural curved cove lighting applications
- Architectural dome applications
- Architectural joinery applications
- Bench applications
Input Voltage: 24VDC
Power Consumption: 15 watts maximum
LED Quantity: 70 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens: Approx 1500Lm per/M
LED Spacing: 14.2mm
Cutting Interval: 36mm
Beam Angle: 120°
Dimensions (WxH/mm): 8+5x2
Operating Temp : -20~40°C
Weight: 150g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
The Angle Adjustable SMD LED Ribbon, is
extremely versatile and suitable for high light
output applications.
Item No Product Code Description
14425 LED-F5630A35A-N-24 High Output Angle Adjustable - 5630 - 70leds Neutral 4000K 15Wper/m 24V
14426 LED-F5630A35A-WW-24 High Output Angle Adjustable - 5630 - 70leds Warm White 3000K 15Wper/m 24V

9. Page 9

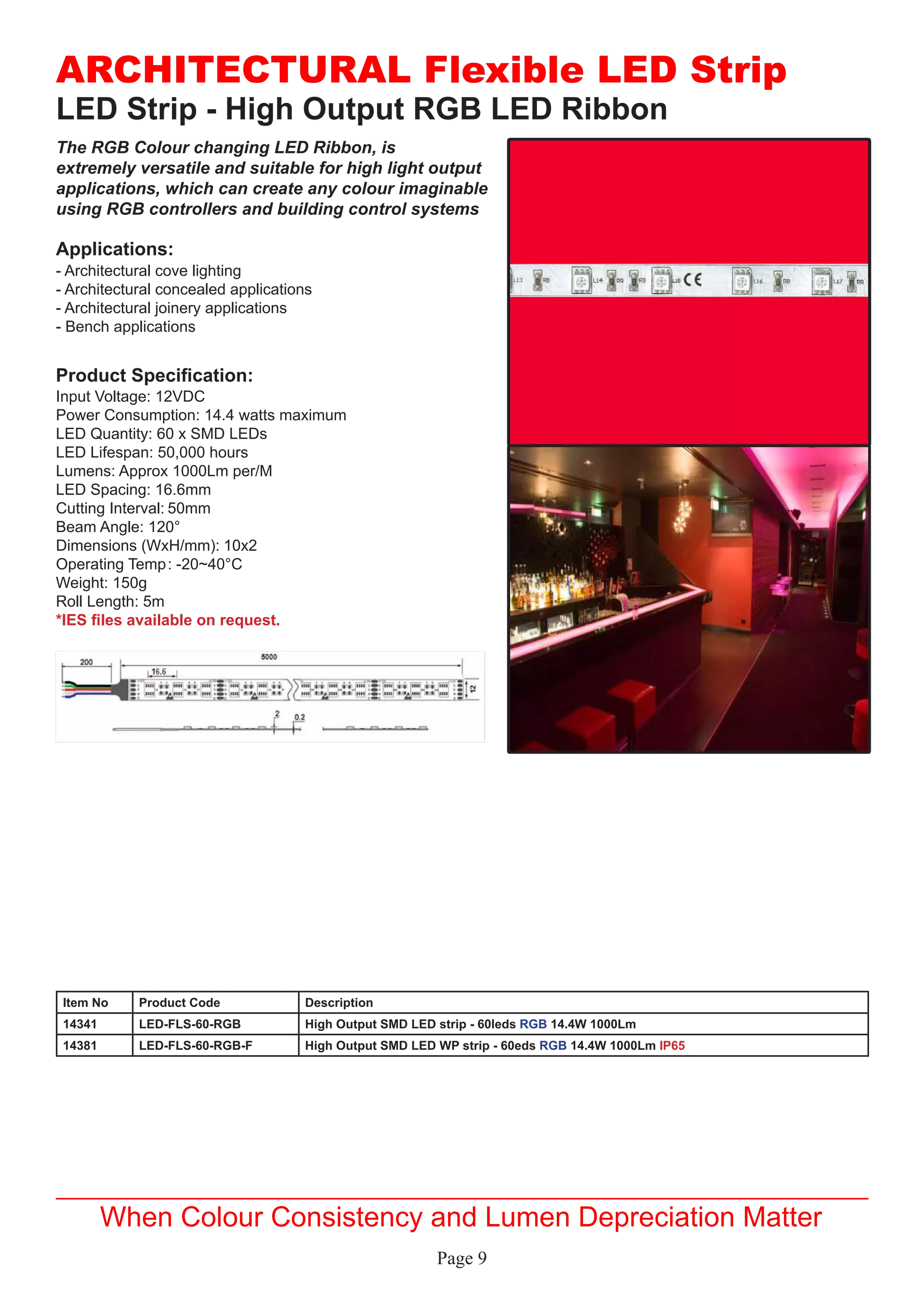

LED Strip - High Output RGB LED Ribbon
Applications:
Product Specification:
- Architectural cove lighting
- Architectural concealed applications
- Architectural joinery applications
- Bench applications
Input Voltage: 12VDC
Power Consumption: 14.4 watts maximum
LED Quantity: 60 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens: Approx 1000Lm per/M
LED Spacing: 16.6mm
Cutting Interval: 50mm
Beam Angle: 120°
Dimensions (WxH/mm): 10x2
Operating Temp : -20~40°C
Weight: 150g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
The RGB Colour changing LED Ribbon, is
extremely versatile and suitable for high light output
applications, which can create any colour imaginable
using RGB controllers and building control systems
Item No Product Code Description
14341 LED-FLS-60-RGB High Output SMD LED strip - 60leds RGB 14.4W 1000Lm
14381 LED-FLS-60-RGB-F High Output SMD LED WP strip - 60eds RGB 14.4W 1000Lm IP65

10. Page 10

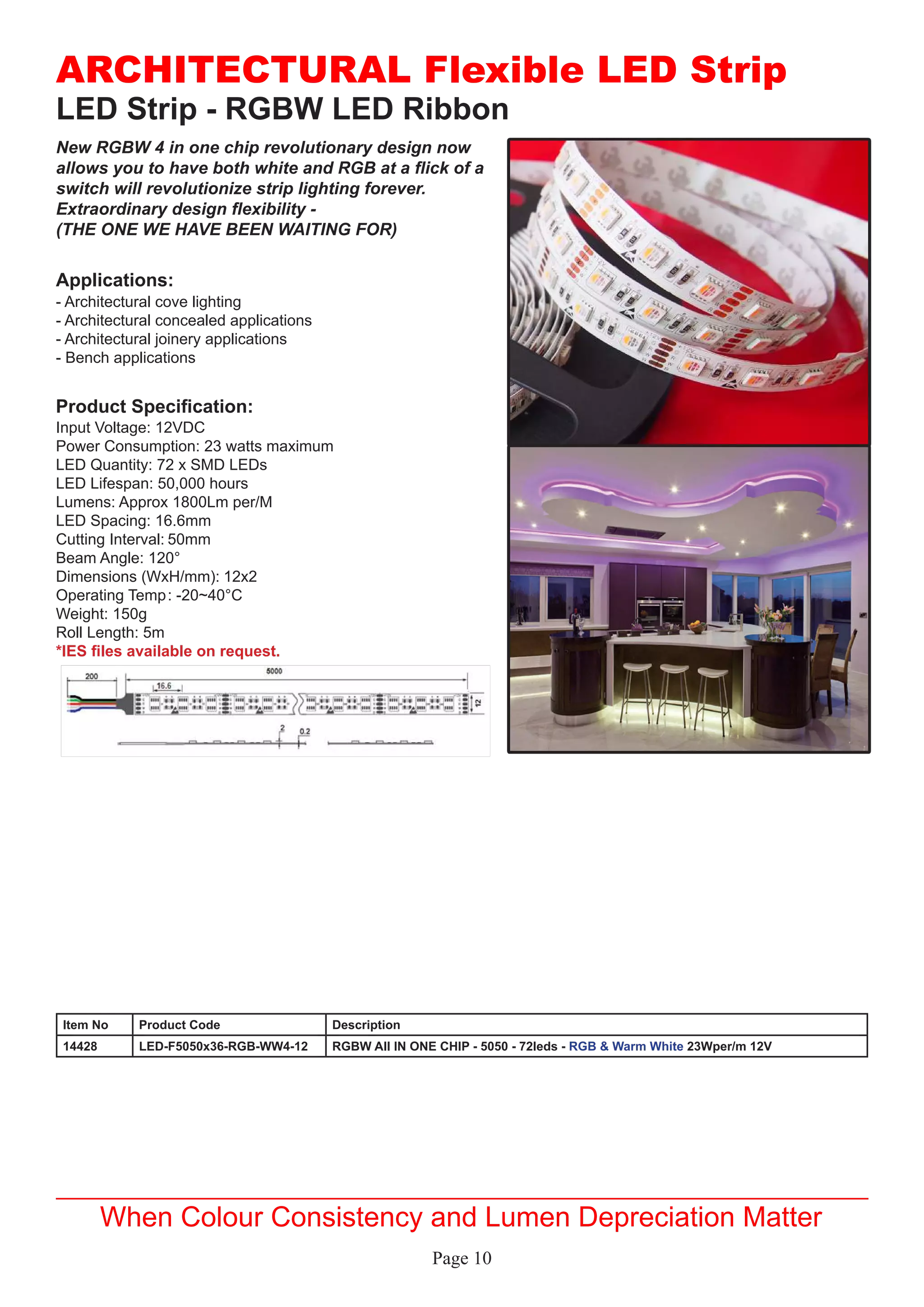

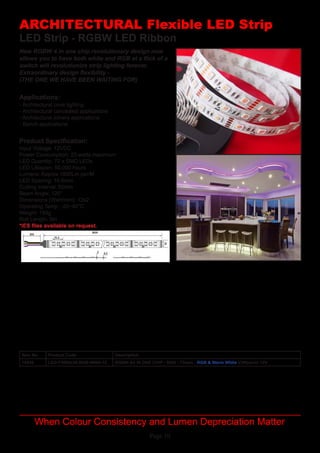

LED Strip - RGBW LED Ribbon
Applications:
Product Specification:
- Architectural cove lighting
- Architectural concealed applications
- Architectural joinery applications
- Bench applications
Input Voltage: 12VDC
Power Consumption: 23 watts maximum
LED Quantity: 72 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens: Approx 1800Lm per/M
LED Spacing: 16.6mm
Cutting Interval: 50mm
Beam Angle: 120°
Dimensions (WxH/mm): 12x2
Operating Temp : -20~40°C
Weight: 150g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
New RGBW 4 in one chip revolutionary design now
allows you to have both white and RGB at a flick of a
switch will revolutionize strip lighting forever.
Extraordinary design flexibility -
(THE ONE WE HAVE BEEN WAITING FOR)
Item No Product Code Description
14428 LED-F5050x36-RGB-WW4-12 RGBW All IN ONE CHIP - 5050 - 72leds - RGB & Warm White 23Wper/m 12V

11. Page 11

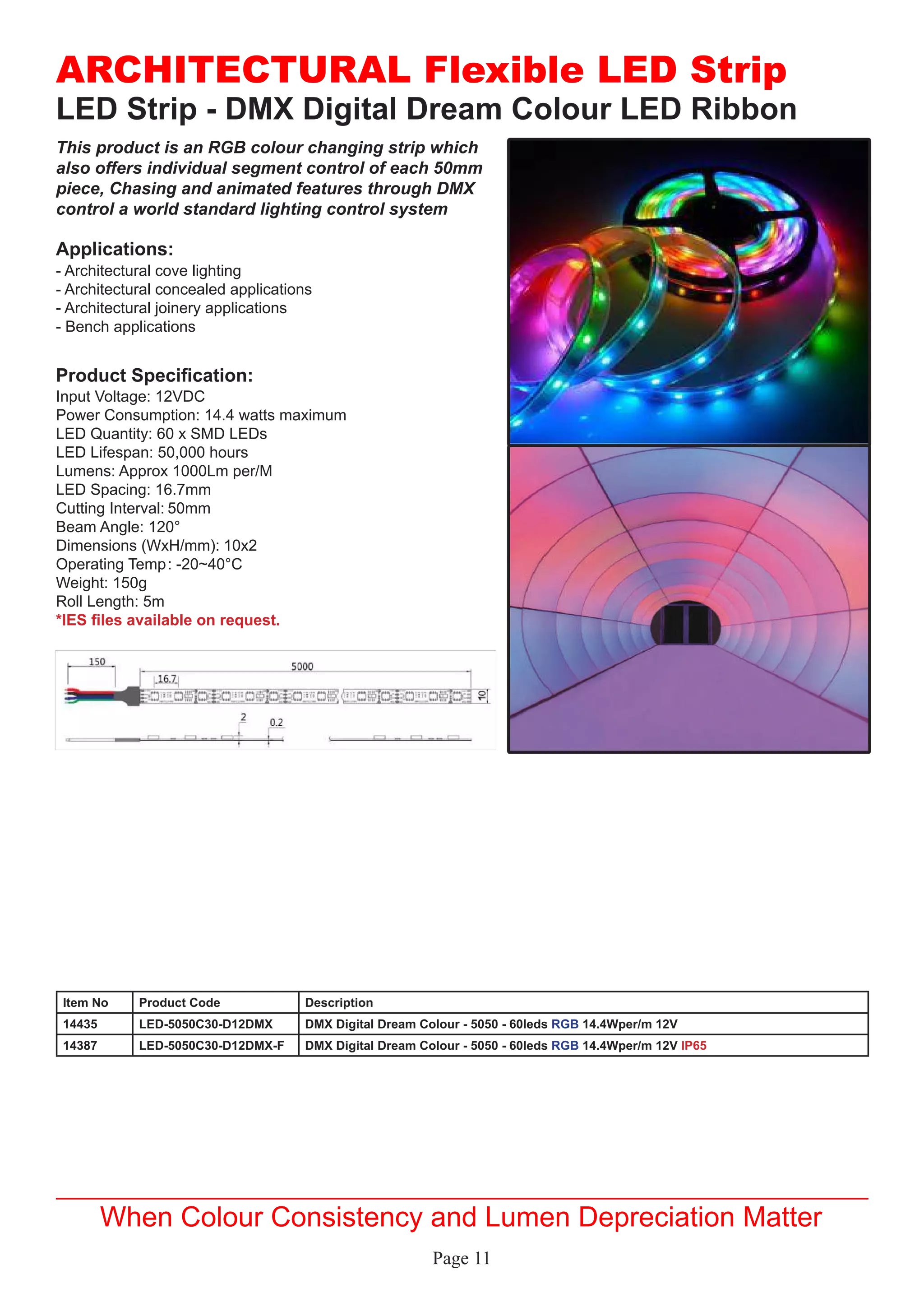

LED Strip - DMX Digital Dream Colour LED Ribbon
Applications:
Product Specification:
- Architectural cove lighting
- Architectural concealed applications
- Architectural joinery applications
- Bench applications
Input Voltage: 12VDC
Power Consumption: 14.4 watts maximum
LED Quantity: 60 x SMD LEDs
LED Lifespan: 50,000 hours
Lumens: Approx 1000Lm per/M
LED Spacing: 16.7mm
Cutting Interval: 50mm
Beam Angle: 120°
Dimensions (WxH/mm): 10x2
Operating Temp : -20~40°C
Weight: 150g
Roll Length: 5m
*IES files available on request.
ARCHITECTURAL Flexible LED Strip
When Colour Consistency and Lumen Depreciation Matter
This product is an RGB colour changing strip which
also offers individual segment control of each 50mm
piece, Chasing and animated features through DMX
control a world standard lighting control system
Item No Product Code Description
14435 LED-5050C30-D12DMX DMX Digital Dream Colour - 5050 - 60leds RGB 14.4Wper/m 12V
14387 LED-5050C30-D12DMX-F DMX Digital Dream Colour - 5050 - 60leds RGB 14.4Wper/m 12V IP65

12. Page 12

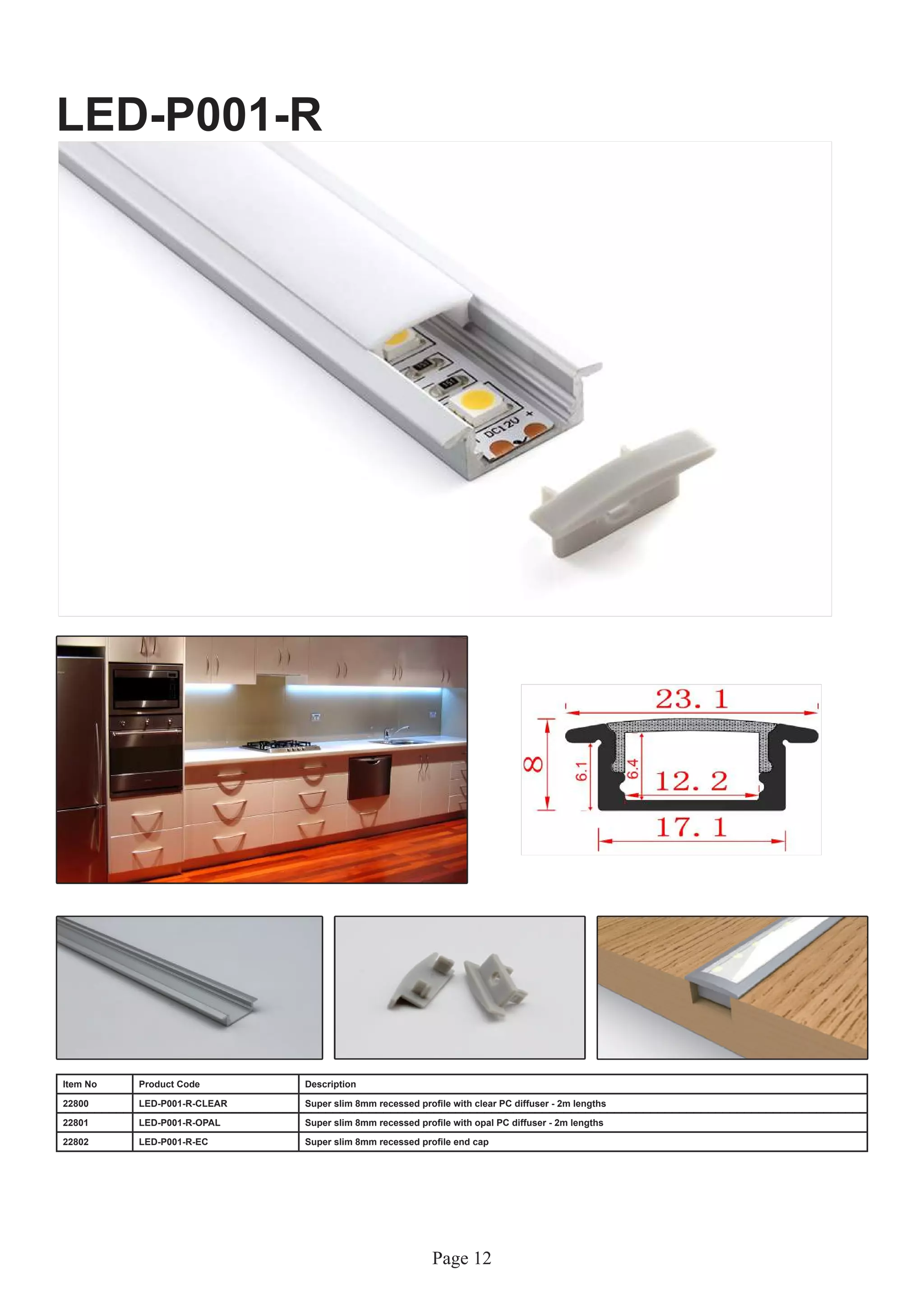

LED-P001-R
Item No Product Code Description
22800 LED-P001-R-CLEAR Super slim 8mm recessed profile with clear PC diffuser - 2m lengths
22801 LED-P001-R-OPAL Super slim 8mm recessed profile with opal PC diffuser - 2m lengths
22802 LED-P001-R-EC Super slim 8mm recessed profile end cap

13. Page 13

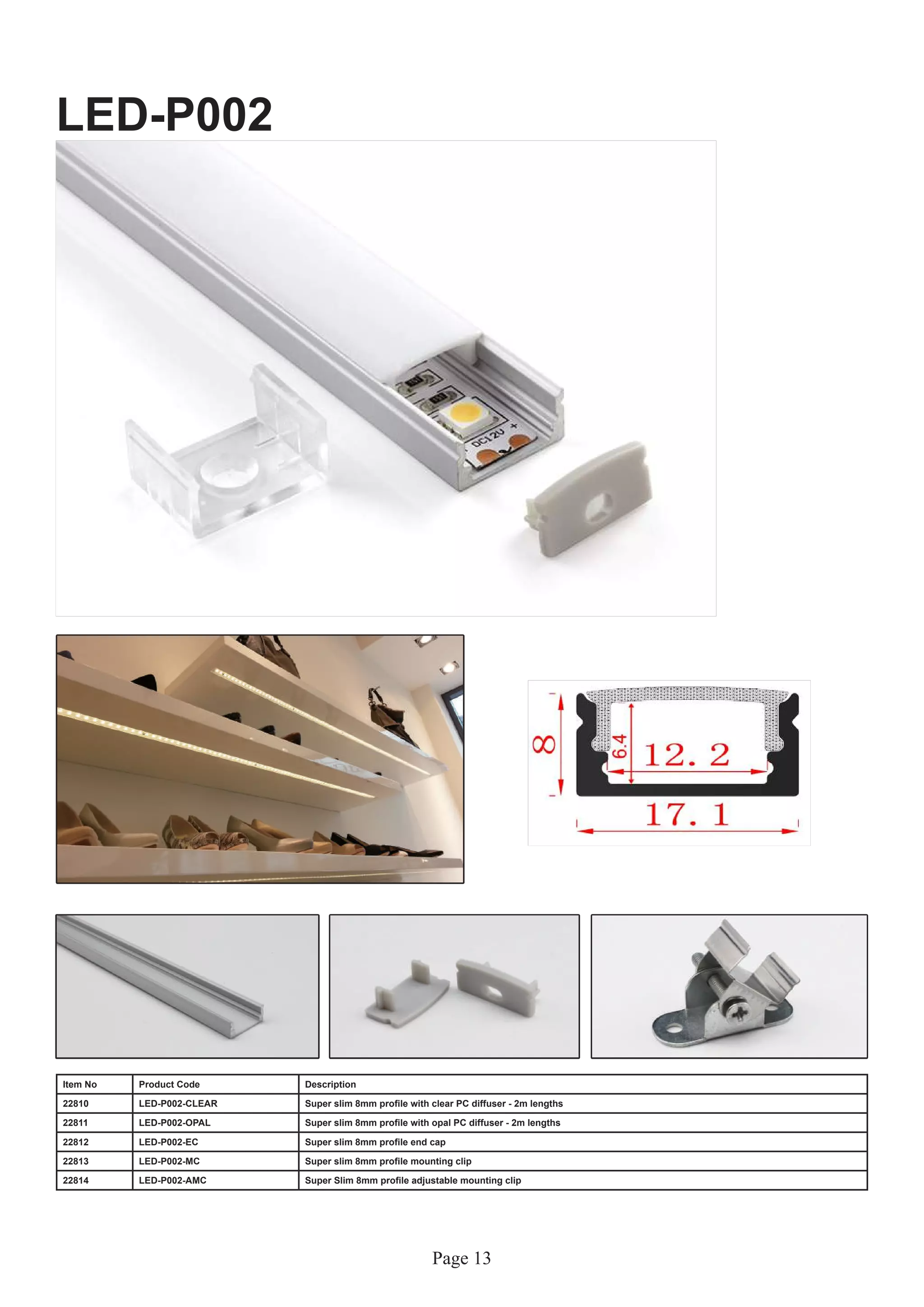

LED-P002
Item No Product Code Description
22810 LED-P002-CLEAR Super slim 8mm profile with clear PC diffuser - 2m lengths
22811 LED-P002-OPAL Super slim 8mm profile with opal PC diffuser - 2m lengths
22812 LED-P002-EC Super slim 8mm profile end cap
22813 LED-P002-MC Super slim 8mm profile mounting clip
22814 LED-P002-AMC Super Slim 8mm profile adjustable mounting clip

14. Page 14

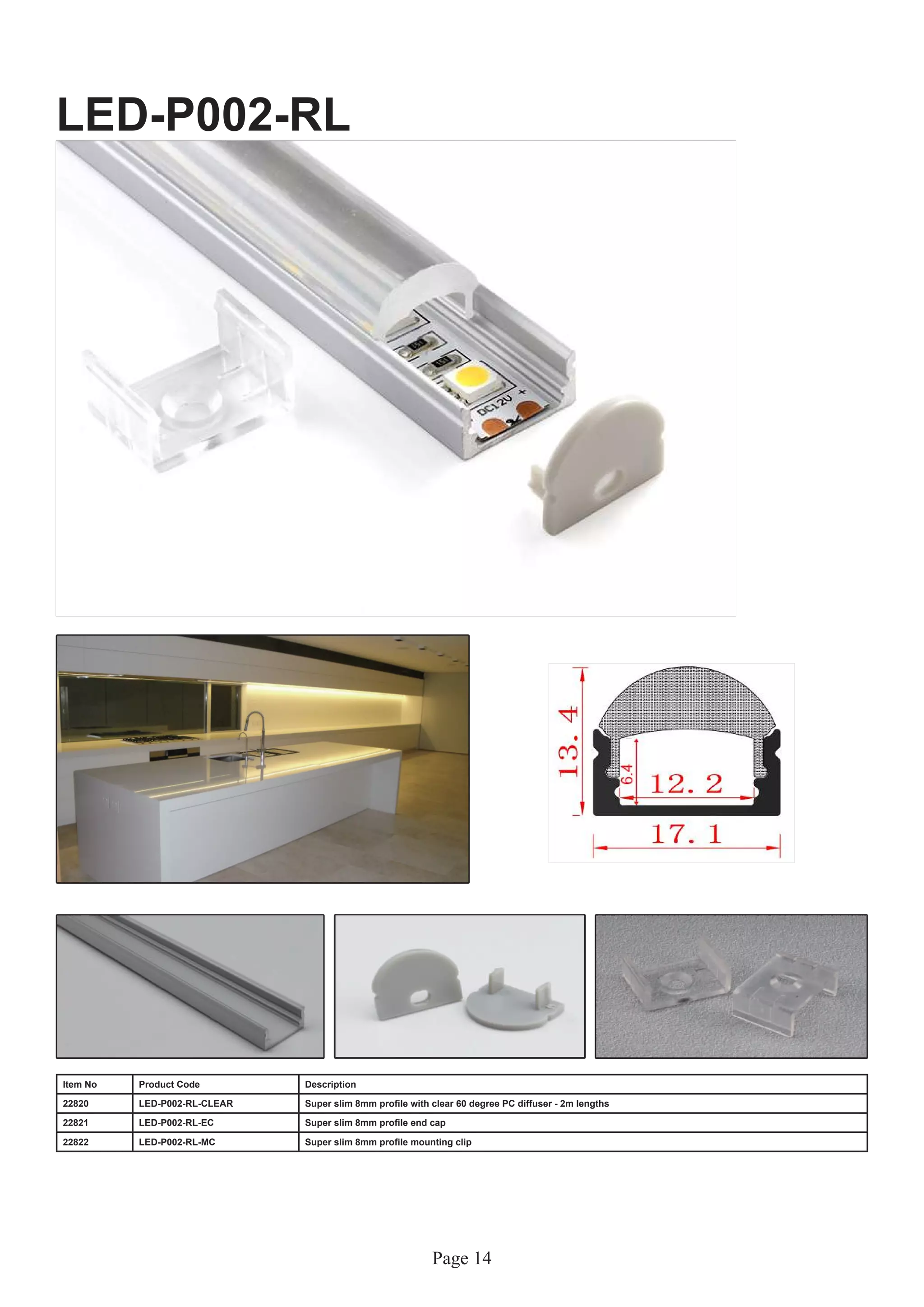

LED-P002-RL
Item No Product Code Description
22820 LED-P002-RL-CLEAR Super slim 8mm profile with clear 60 degree PC diffuser - 2m lengths
22821 LED-P002-RL-EC Super slim 8mm profile end cap
22822 LED-P002-RL-MC Super slim 8mm profile mounting clip

15. Page 15

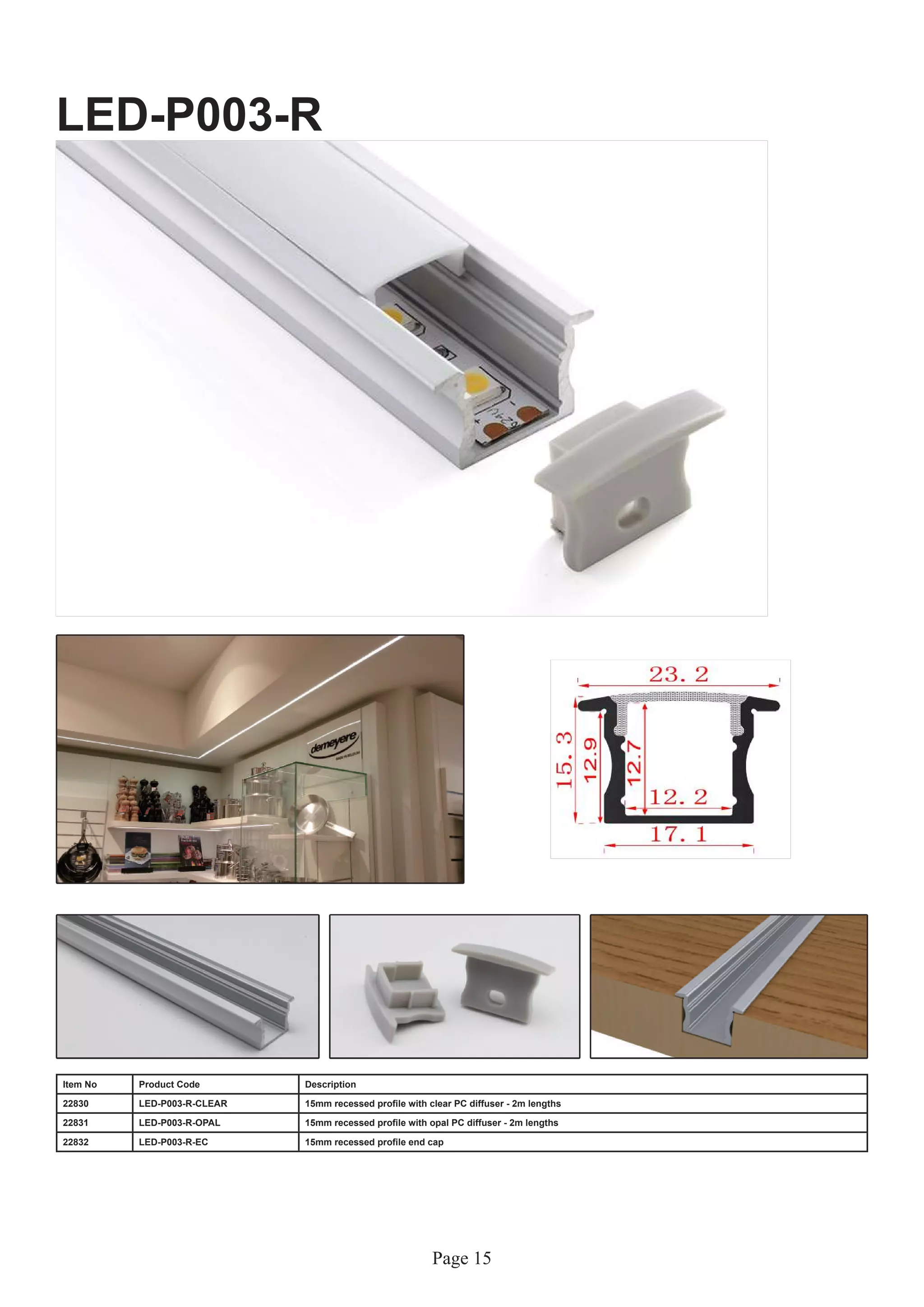

LED-P003-R
Item No Product Code Description
22830 LED-P003-R-CLEAR 15mm recessed profile with clear PC diffuser - 2m lengths
22831 LED-P003-R-OPAL 15mm recessed profile with opal PC diffuser - 2m lengths
22832 LED-P003-R-EC 15mm recessed profile end cap

16. Page 16

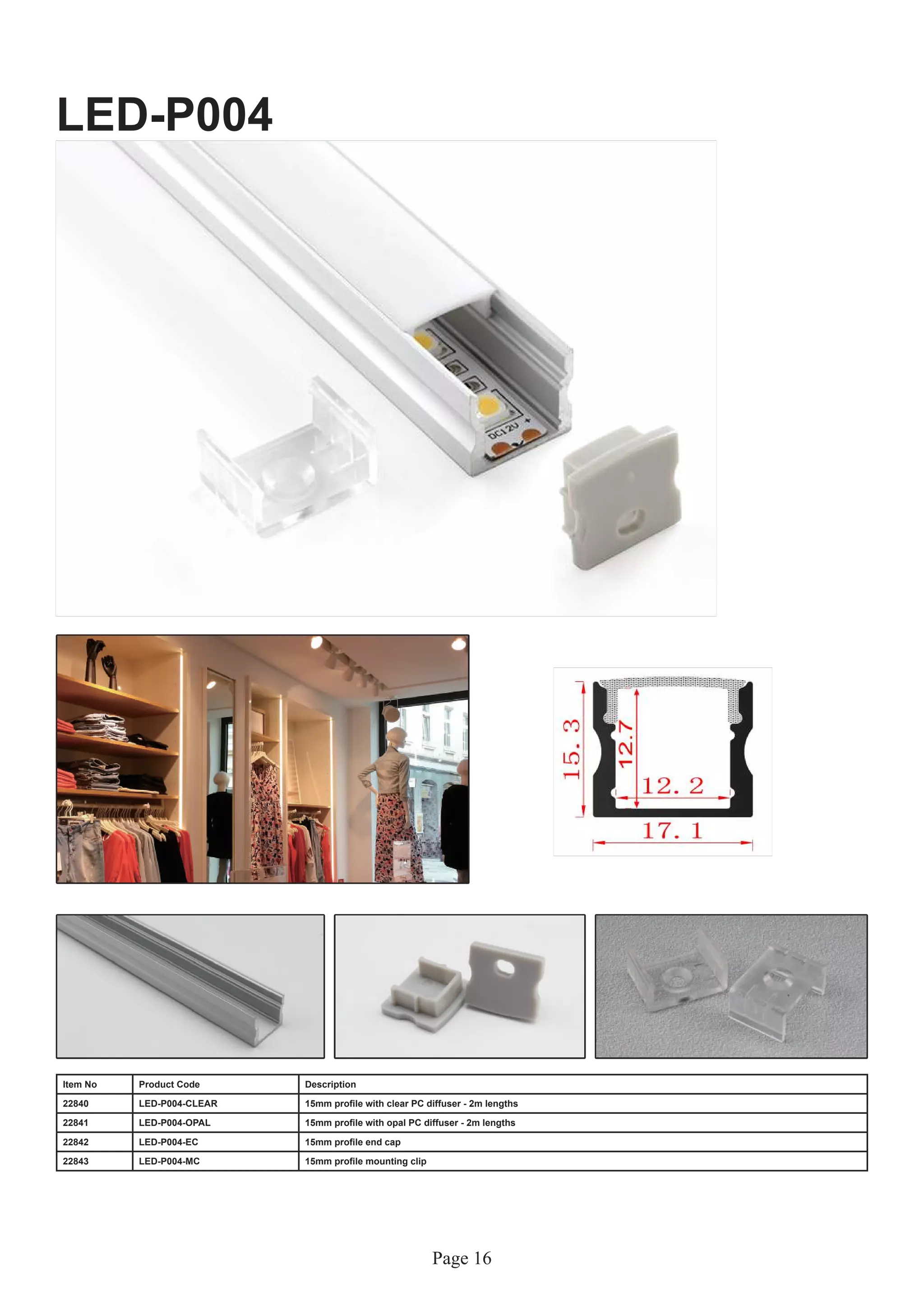

LED-P004
Item No Product Code Description
22840 LED-P004-CLEAR 15mm profile with clear PC diffuser - 2m lengths
22841 LED-P004-OPAL 15mm profile with opal PC diffuser - 2m lengths
22842 LED-P004-EC 15mm profile end cap
22843 LED-P004-MC 15mm profile mounting clip

17. Page 17

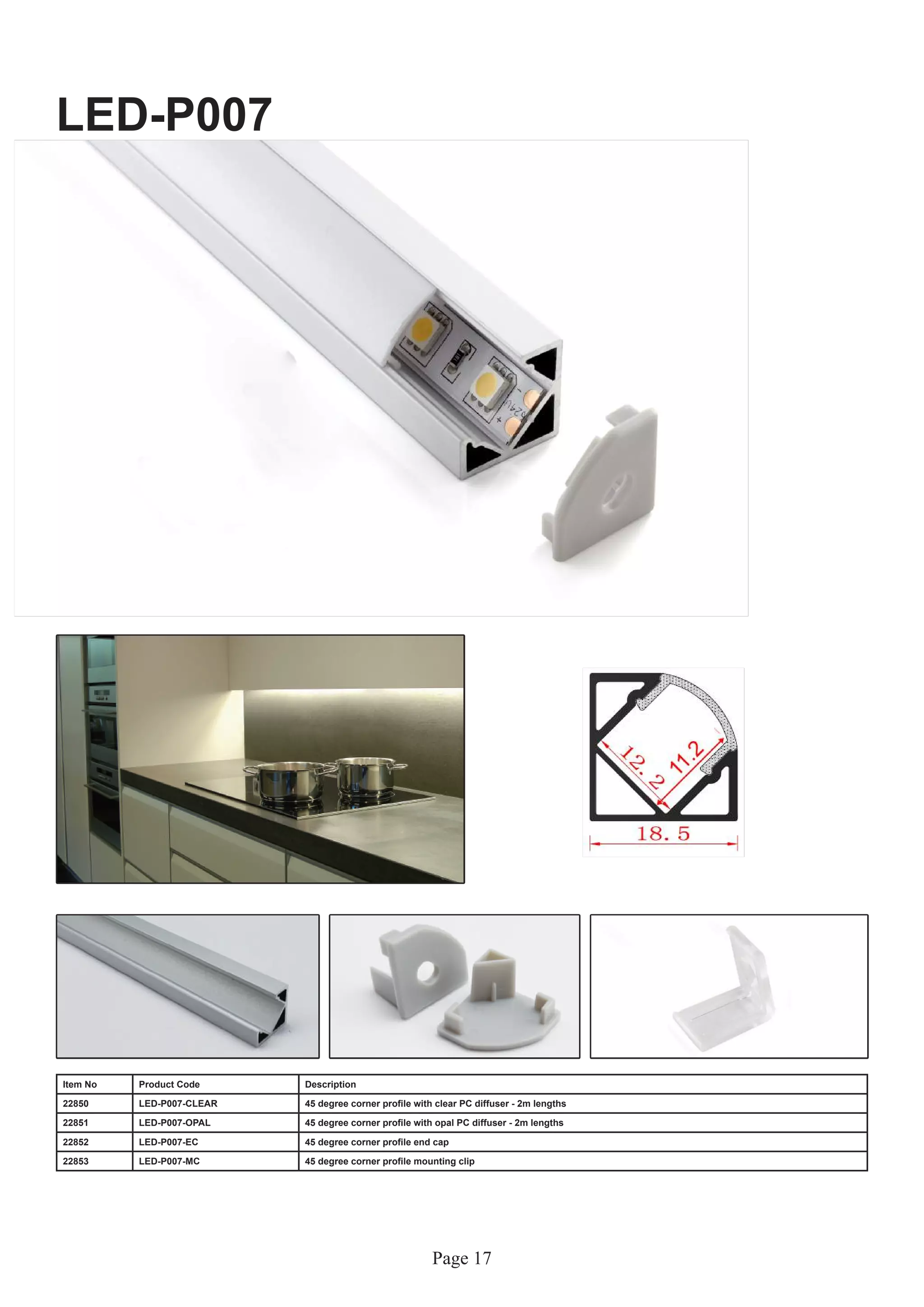

LED-P007
Item No Product Code Description
22850 LED-P007-CLEAR 45 degree corner profile with clear PC diffuser - 2m lengths
22851 LED-P007-OPAL 45 degree corner profile with opal PC diffuser - 2m lengths
22852 LED-P007-EC 45 degree corner profile end cap
22853 LED-P007-MC 45 degree corner profile mounting clip

18. Page 18

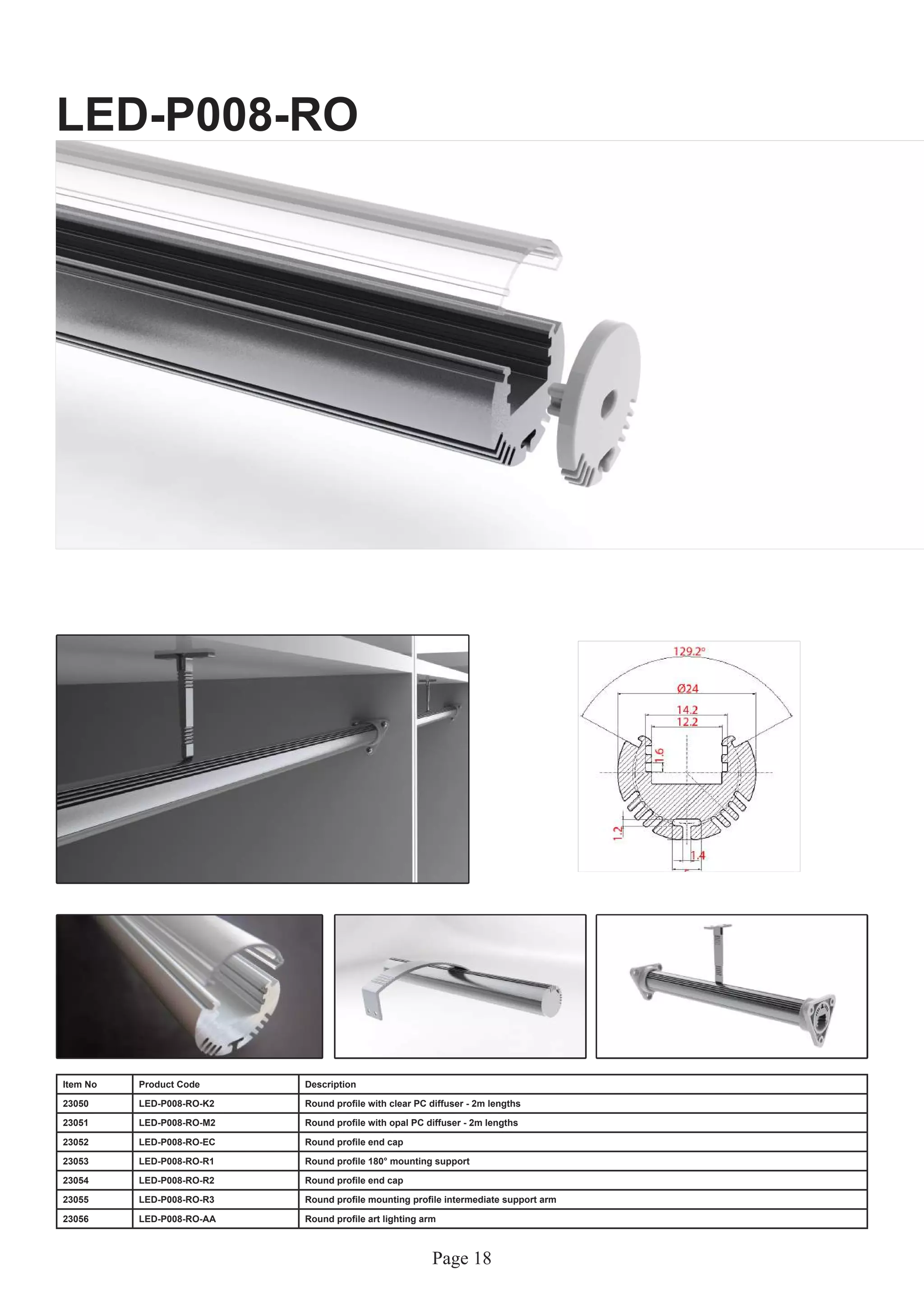

LED-P008-RO
Item No Product Code Description
23050 LED-P008-RO-K2 Round profile with clear PC diffuser - 2m lengths
23051 LED-P008-RO-M2 Round profile with opal PC diffuser - 2m lengths
23052 LED-P008-RO-EC Round profile end cap
23053 LED-P008-RO-R1 Round profile 180° mounting support
23054 LED-P008-RO-R2 Round profile end cap
23055 LED-P008-RO-R3 Round profile mounting profile intermediate support arm
23056 LED-P008-RO-AA Round profile art lighting arm

19. Page 19

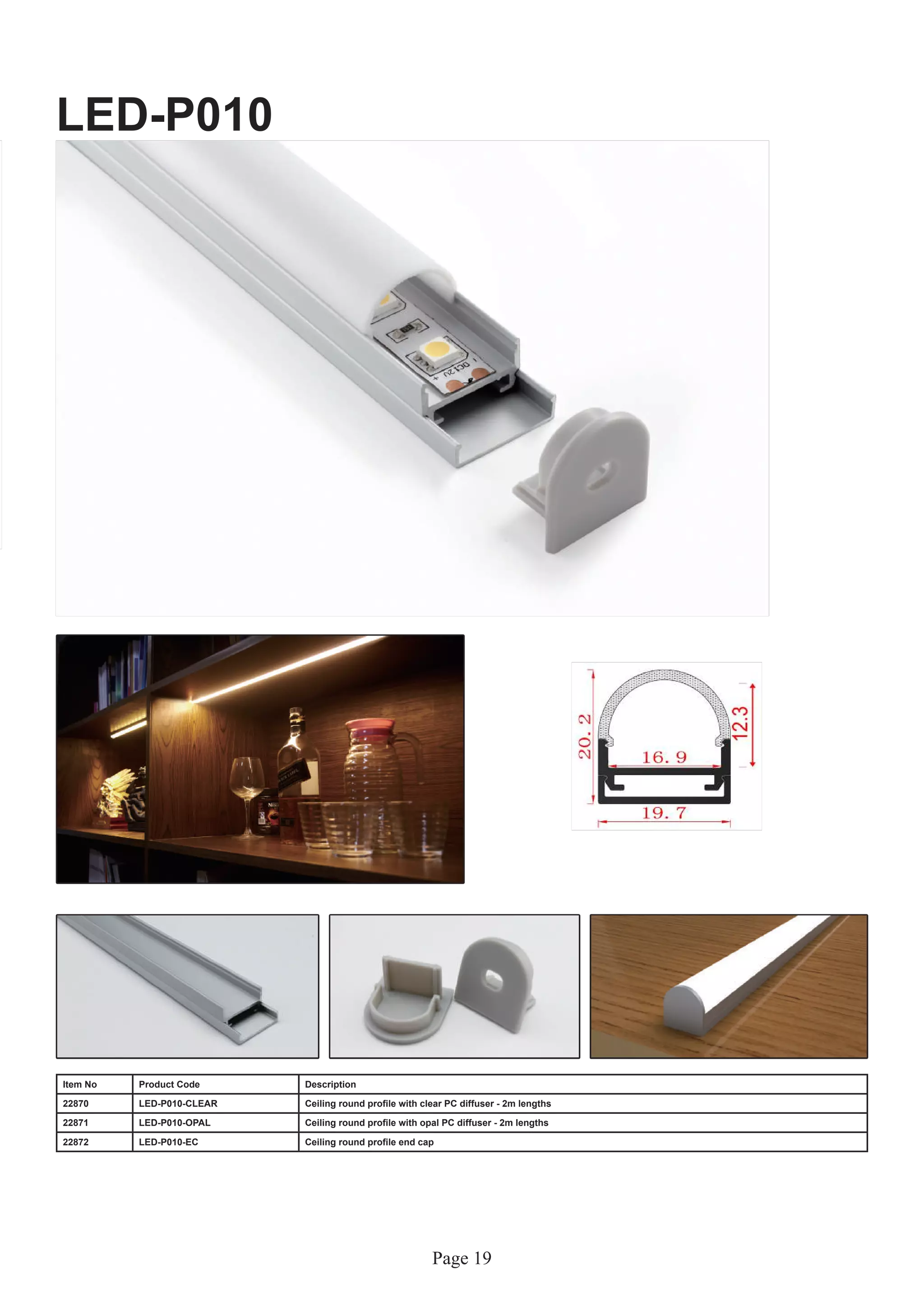

LED-P010
Item No Product Code Description
22870 LED-P010-CLEAR Ceiling round profile with clear PC diffuser - 2m lengths
22871 LED-P010-OPAL Ceiling round profile with opal PC diffuser - 2m lengths
22872 LED-P010-EC Ceiling round profile end cap

20. Page 20

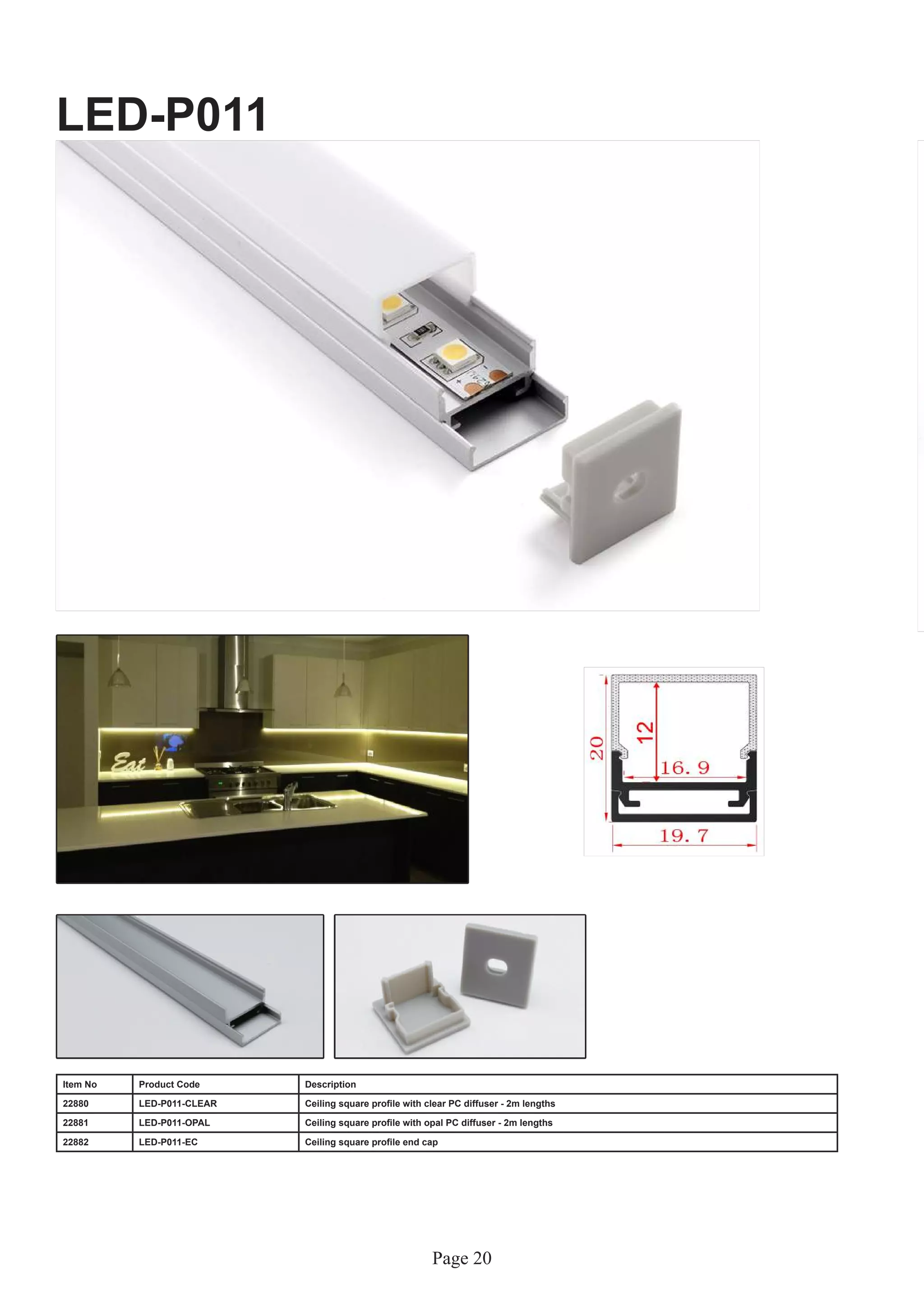

LED-P011
Item No Product Code Description
22880 LED-P011-CLEAR Ceiling square profile with clear PC diffuser - 2m lengths
22881 LED-P011-OPAL Ceiling square profile with opal PC diffuser - 2m lengths
22882 LED-P011-EC Ceiling square profile end cap

21. Page 21

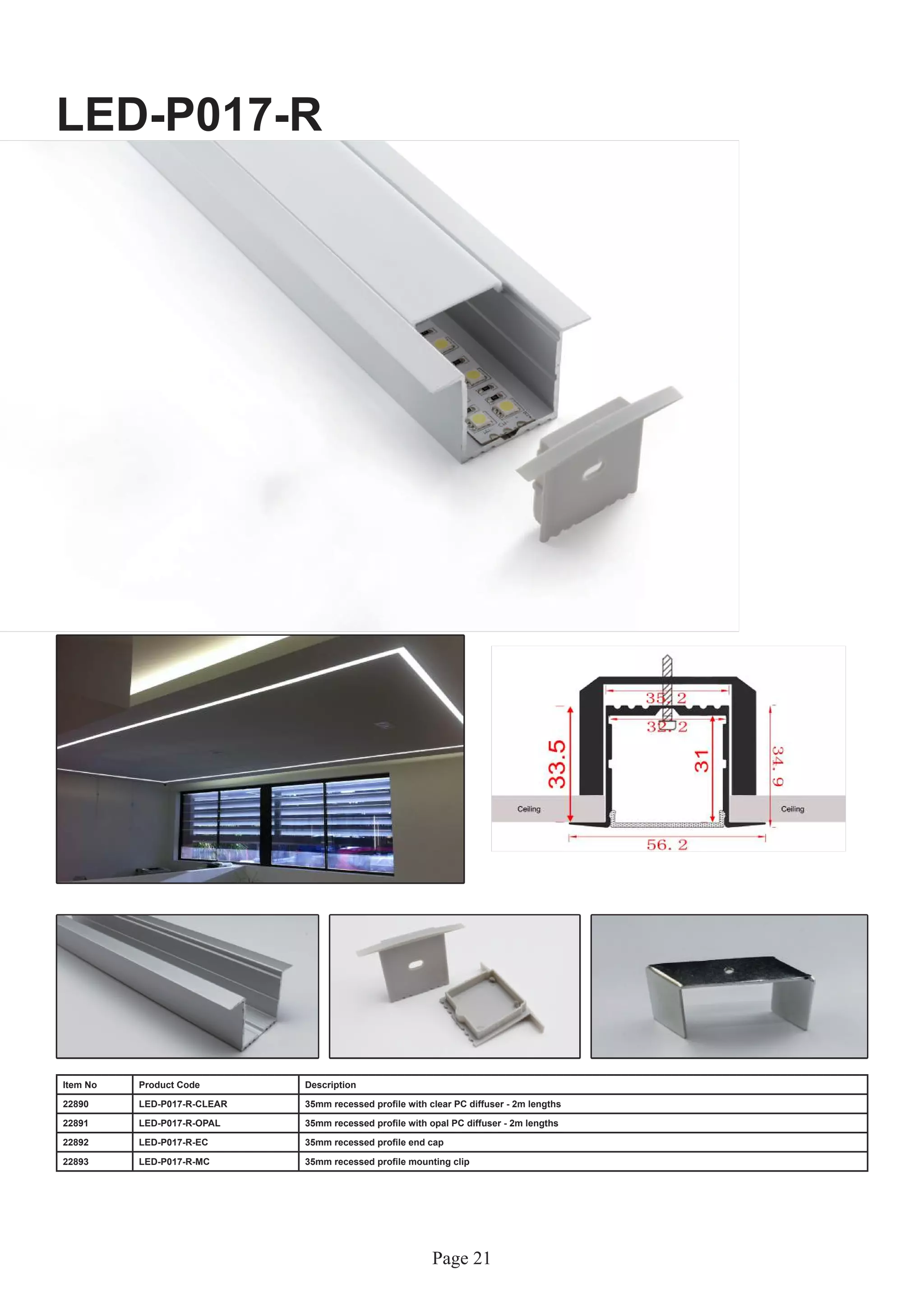

LED-P017-R
Item No Product Code Description
22890 LED-P017-R-CLEAR 35mm recessed profile with clear PC diffuser - 2m lengths
22891 LED-P017-R-OPAL 35mm recessed profile with opal PC diffuser - 2m lengths
22892 LED-P017-R-EC 35mm recessed profile end cap
22893 LED-P017-R-MC 35mm recessed profile mounting clip

22. Page 22

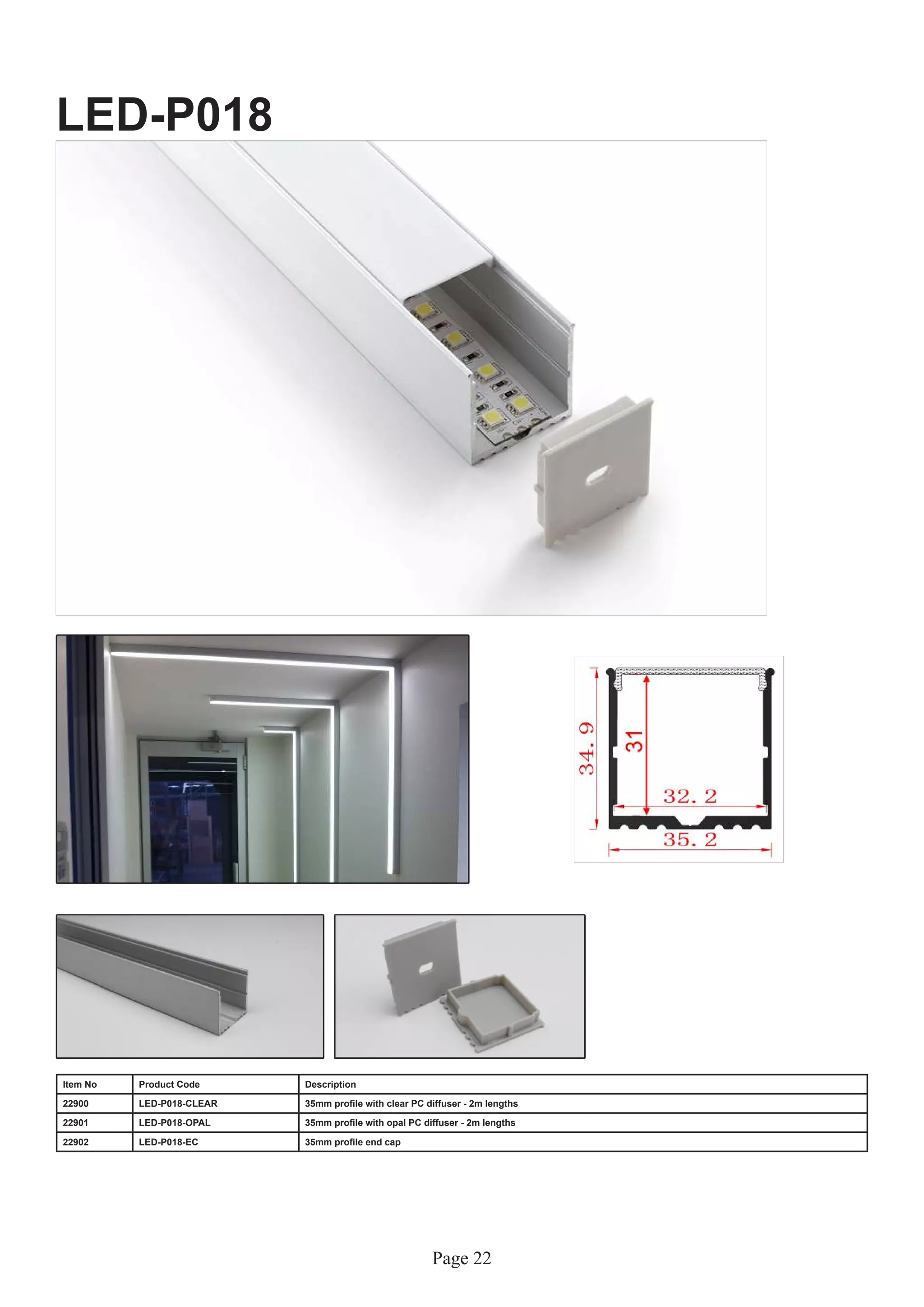

LED-P018
Item No Product Code Description
22900 LED-P018-CLEAR 35mm profile with clear PC diffuser - 2m lengths
22901 LED-P018-OPAL 35mm profile with opal PC diffuser - 2m lengths
22902 LED-P018-EC 35mm profile end cap

23. Page 23

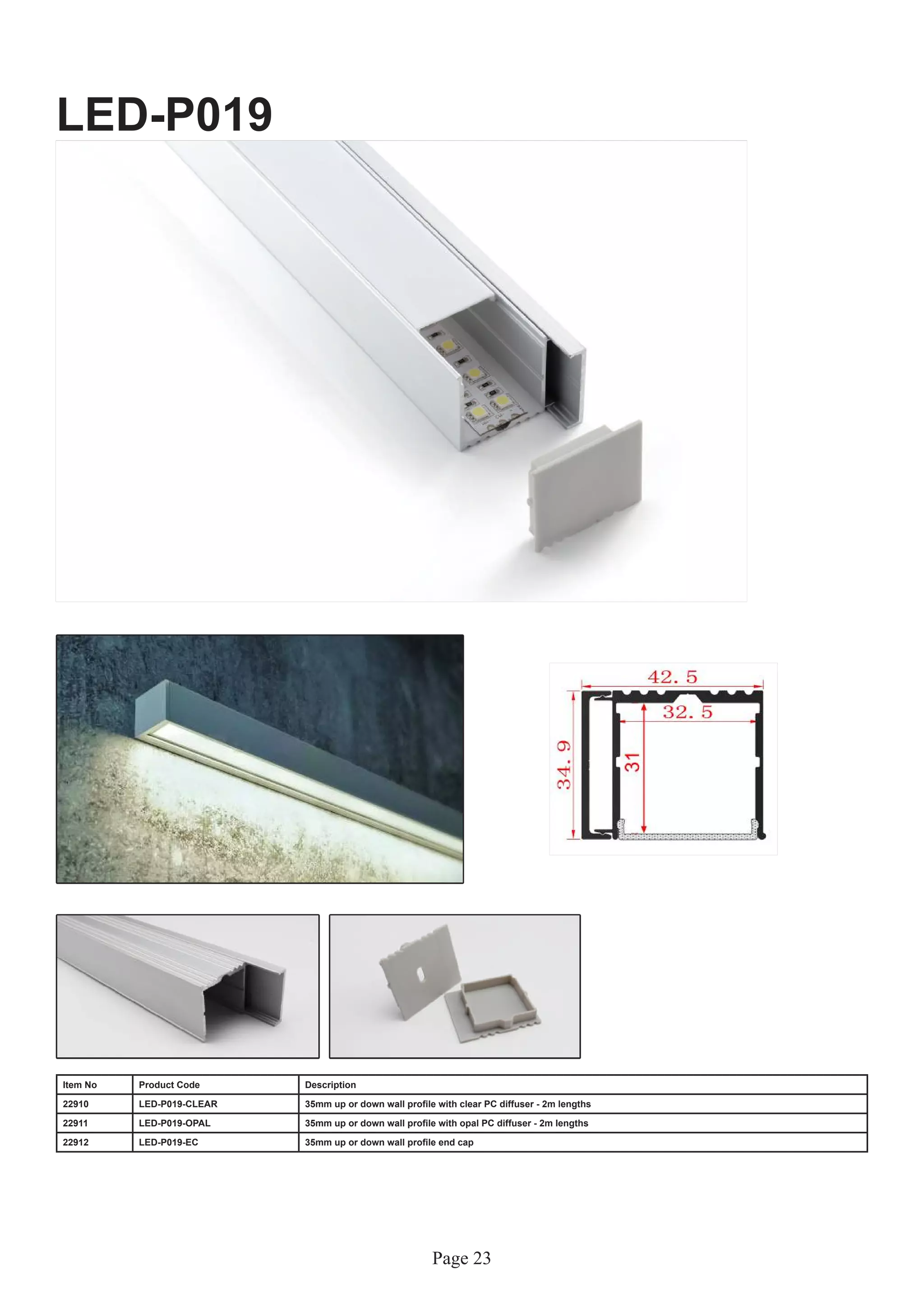

LED-P019
Item No Product Code Description
22910 LED-P019-CLEAR 35mm up or down wall profile with clear PC diffuser - 2m lengths
22911 LED-P019-OPAL 35mm up or down wall profile with opal PC diffuser - 2m lengths
22912 LED-P019-EC 35mm up or down wall profile end cap

24. Page 24

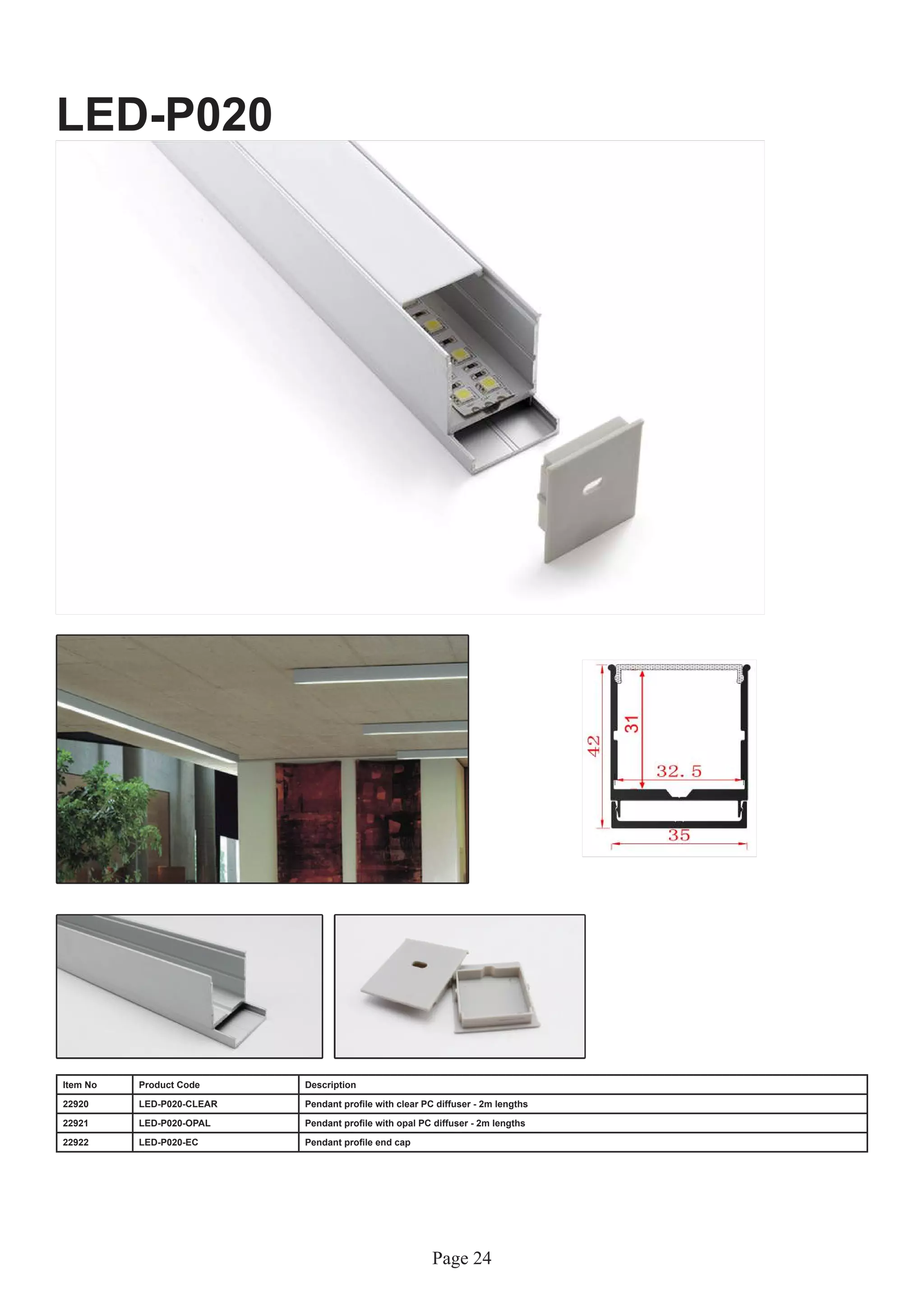

LED-P020
Item No Product Code Description
22920 LED-P020-CLEAR Pendant profile with clear PC diffuser - 2m lengths
22921 LED-P020-OPAL Pendant profile with opal PC diffuser - 2m lengths
22922 LED-P020-EC Pendant profile end cap

25. Page 25

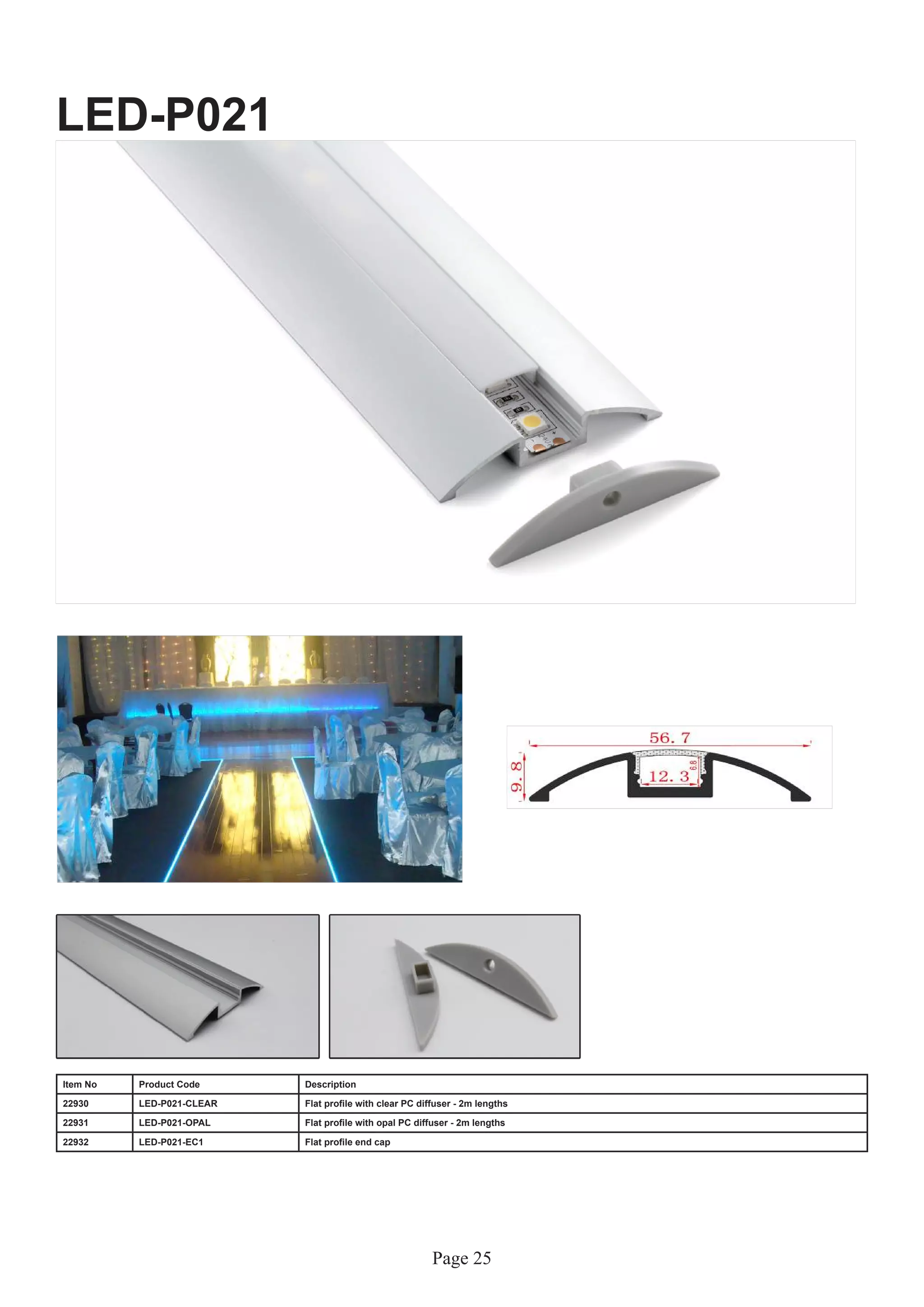

LED-P021
Item No Product Code Description
22930 LED-P021-CLEAR Flat profile with clear PC diffuser - 2m lengths
22931 LED-P021-OPAL Flat profile with opal PC diffuser - 2m lengths
22932 LED-P021-EC1 Flat profile end cap

26. Page 26

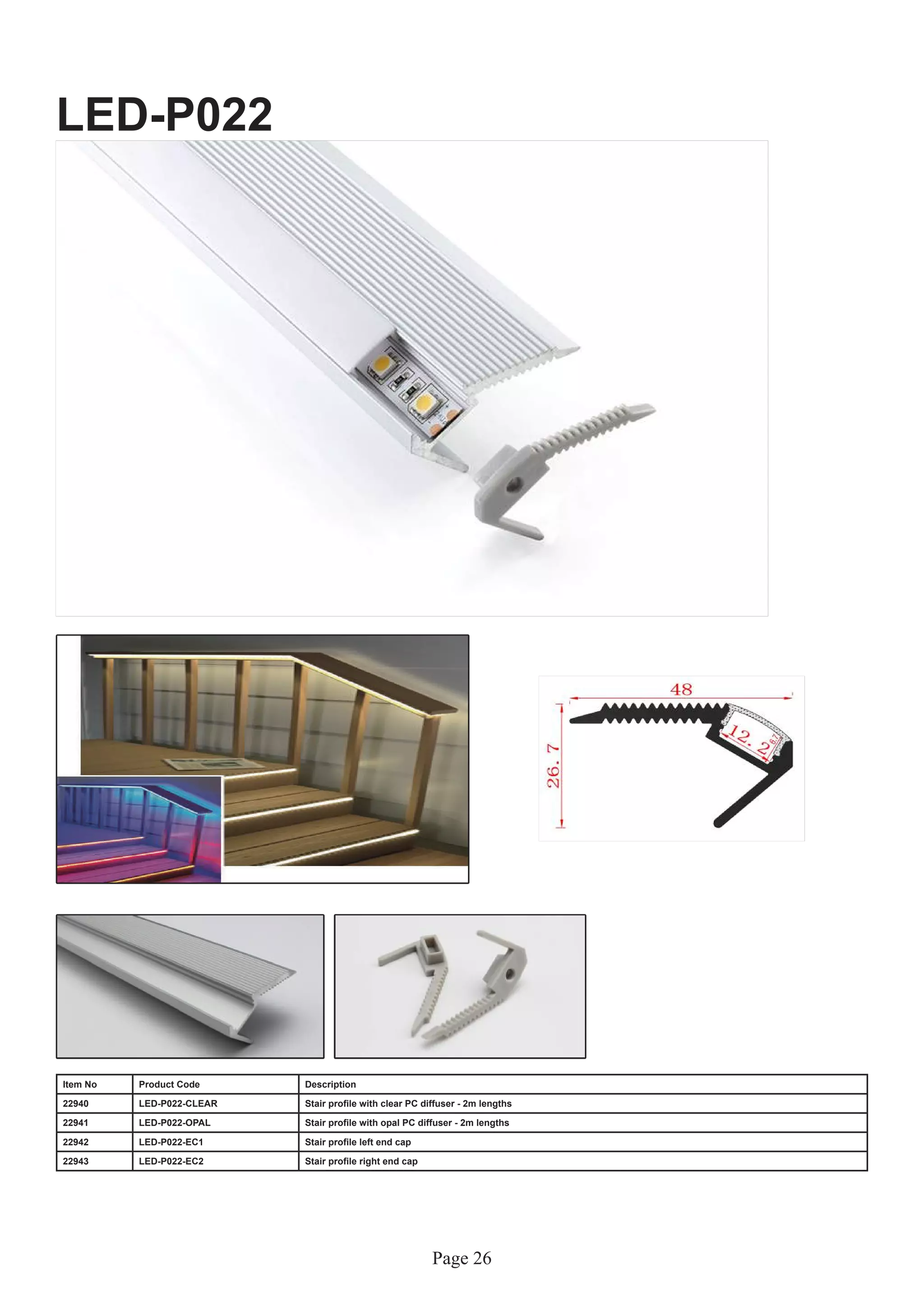

LED-P022
Item No Product Code Description
22940 LED-P022-CLEAR Stair profile with clear PC diffuser - 2m lengths
22941 LED-P022-OPAL Stair profile with opal PC diffuser - 2m lengths
22942 LED-P022-EC1 Stair profile left end cap
22943 LED-P022-EC2 Stair profile right end cap

27. Page 27

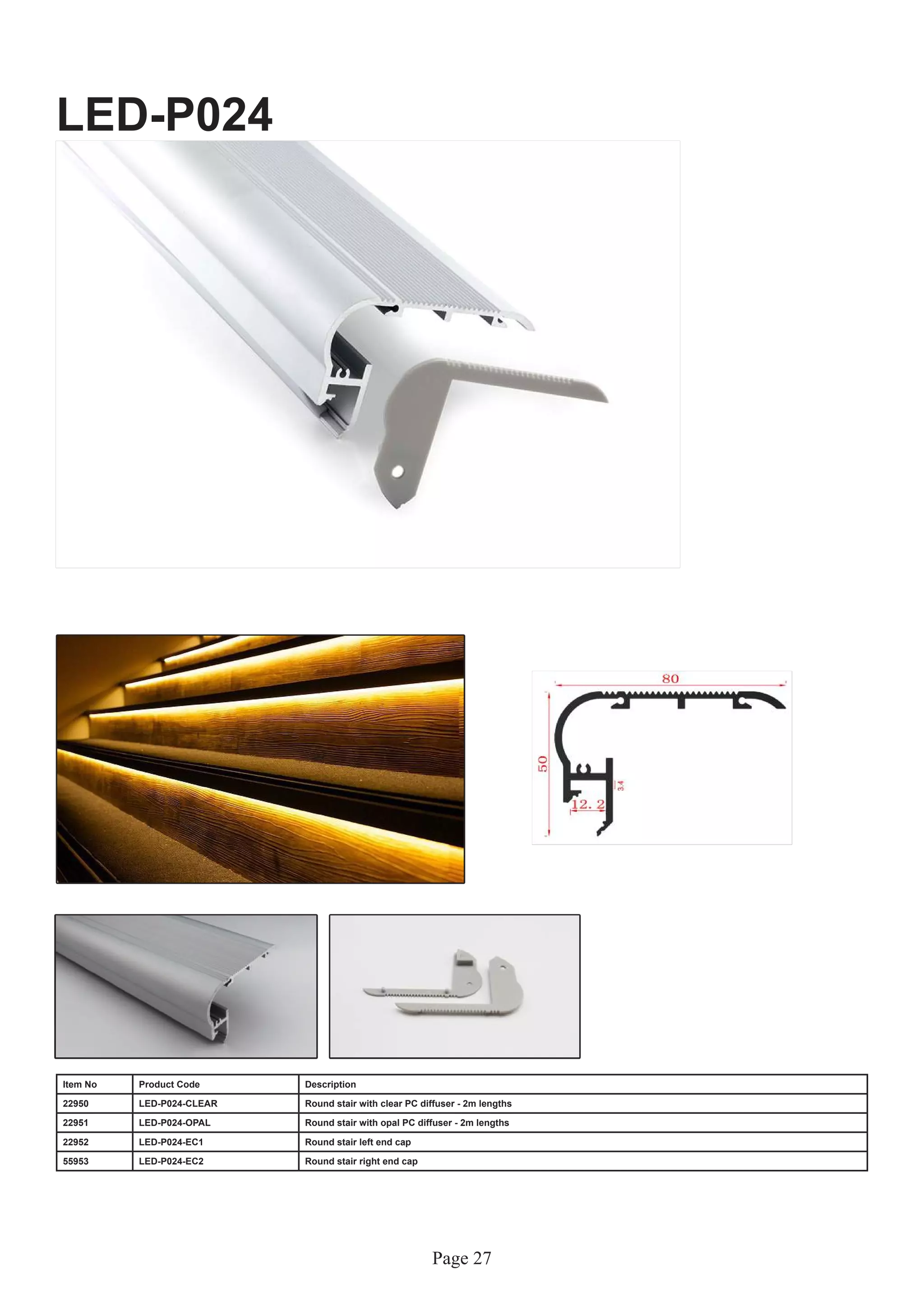

LED-P024
Item No Product Code Description
22950 LED-P024-CLEAR Round stair with clear PC diffuser - 2m lengths
22951 LED-P024-OPAL Round stair with opal PC diffuser - 2m lengths
22952 LED-P024-EC1 Round stair left end cap
55953 LED-P024-EC2 Round stair right end cap

28. Page 28

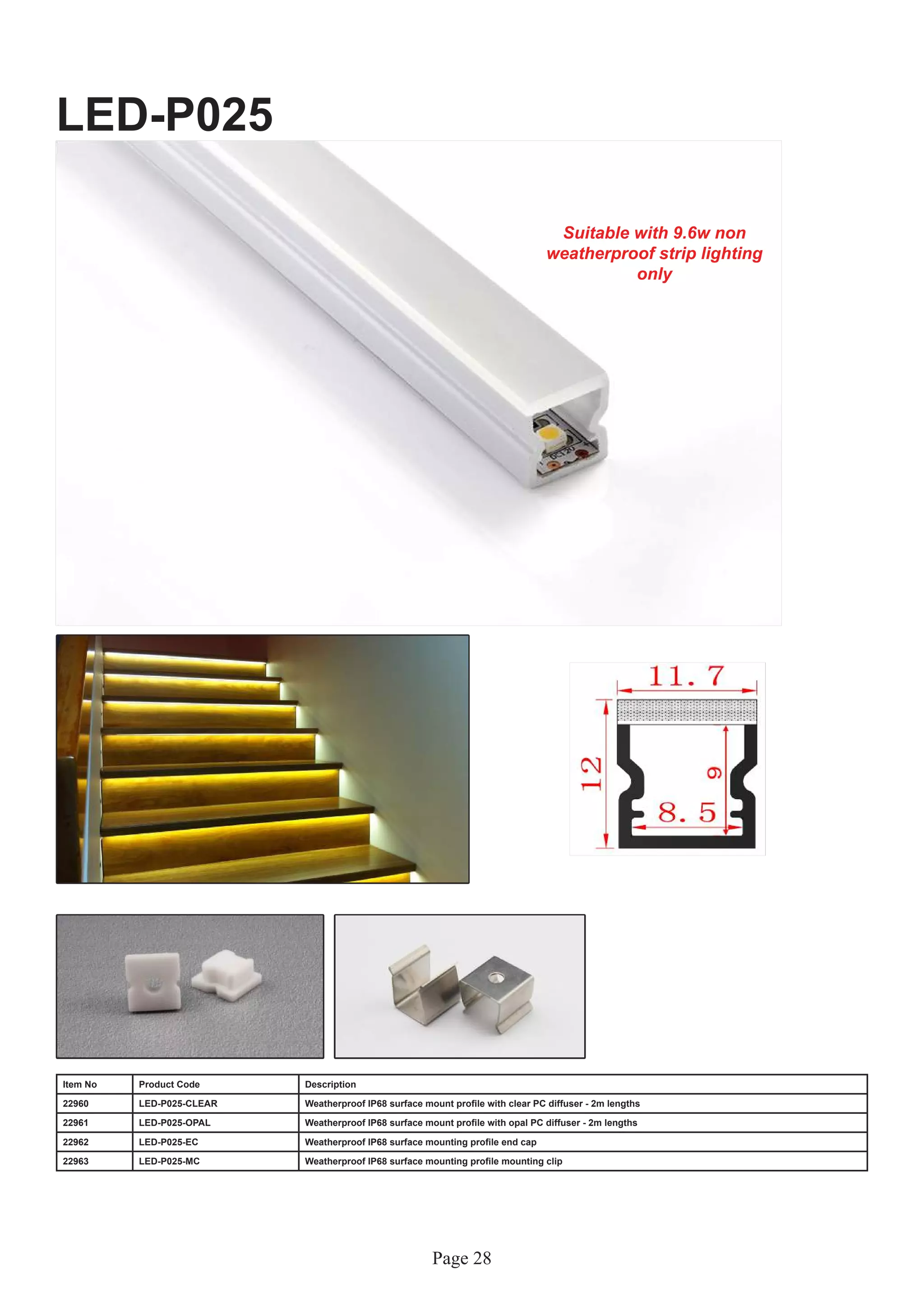

LED-P025
Item No Product Code Description
22960 LED-P025-CLEAR Weatherproof IP68 surface mount profile with clear PC diffuser - 2m lengths
22961 LED-P025-OPAL Weatherproof IP68 surface mount profile with opal PC diffuser - 2m lengths
22962 LED-P025-EC Weatherproof IP68 surface mounting profile end cap
22963 LED-P025-MC Weatherproof IP68 surface mounting profile mounting clip
Suitable with 9.6w non
weatherproof strip lighting
only

29. Page 29

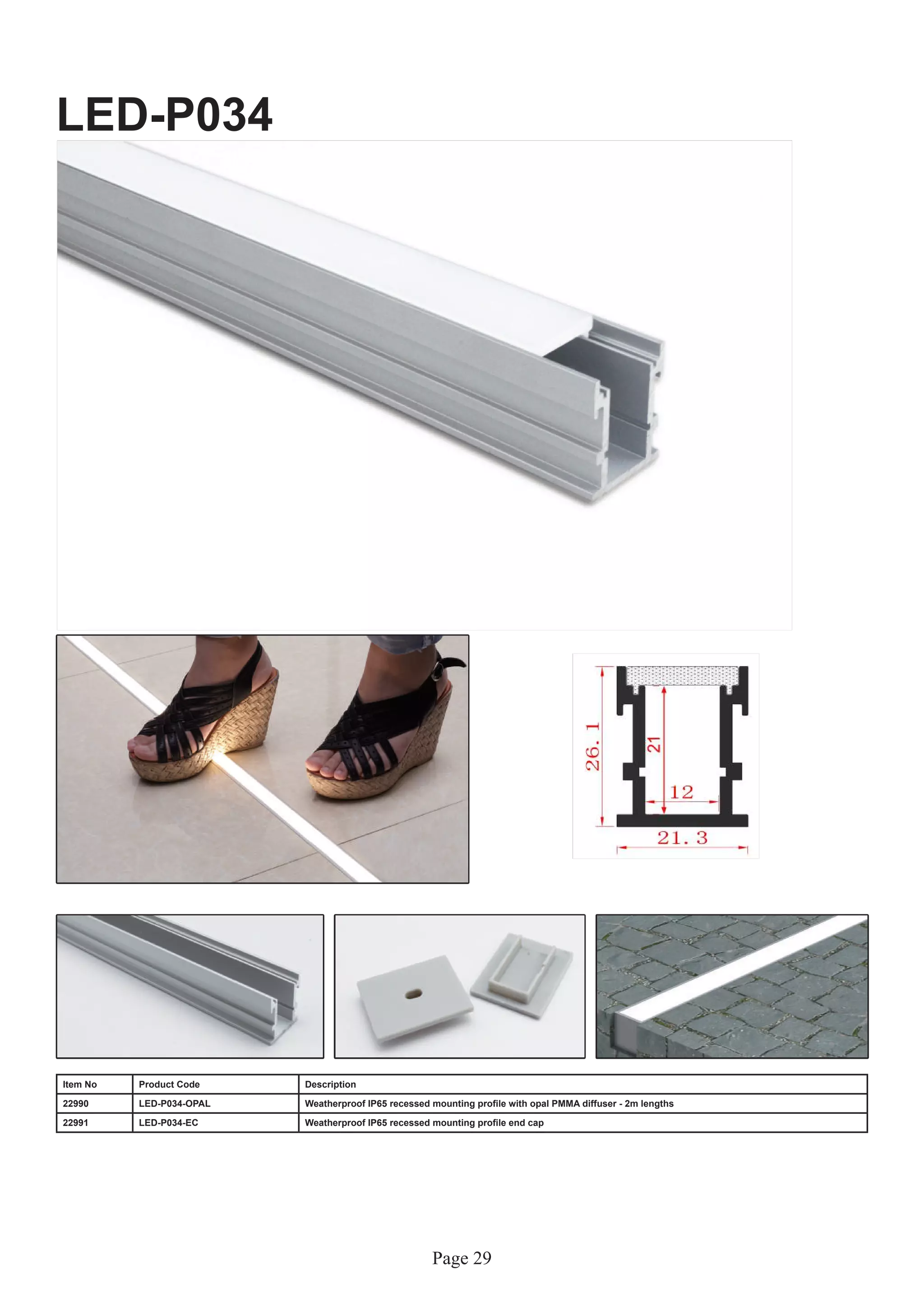

LED-P034
Item No Product Code Description
22990 LED-P034-OPAL Weatherproof IP65 recessed mounting profile with opal PMMA diffuser - 2m lengths
22991 LED-P034-EC Weatherproof IP65 recessed mounting profile end cap

30. Page 30

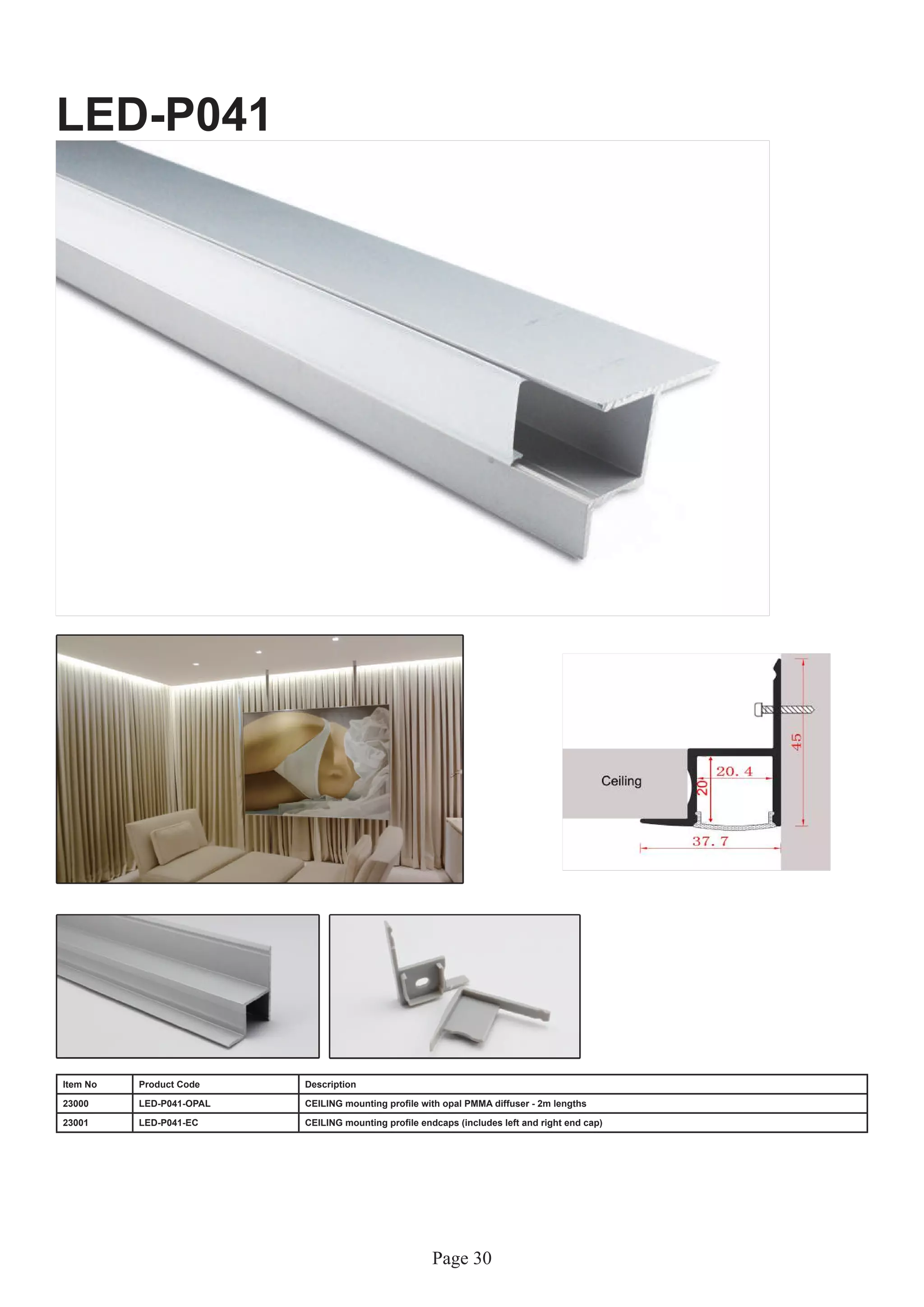

LED-P041
Item No Product Code Description
23000 LED-P041-OPAL CEILING mounting profile with opal PMMA diffuser - 2m lengths
23001 LED-P041-EC CEILING mounting profile endcaps (includes left and right end cap)

31. Page 31

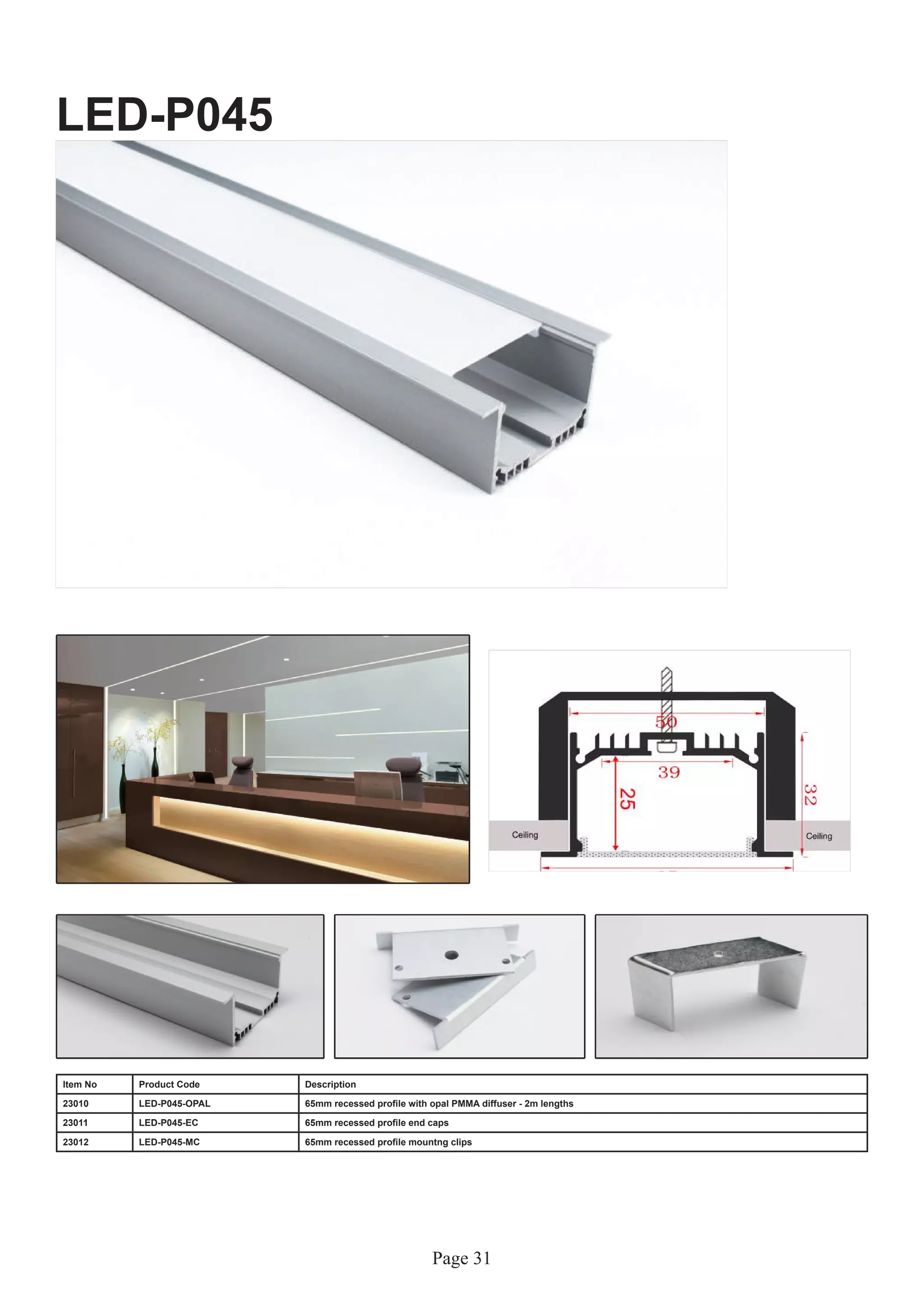

LED-P045
Item No Product Code Description
23010 LED-P045-OPAL 65mm recessed profile with opal PMMA diffuser - 2m lengths
23011 LED-P045-EC 65mm recessed profile end caps
23012 LED-P045-MC 65mm recessed profile mountng clips

32. Page 32

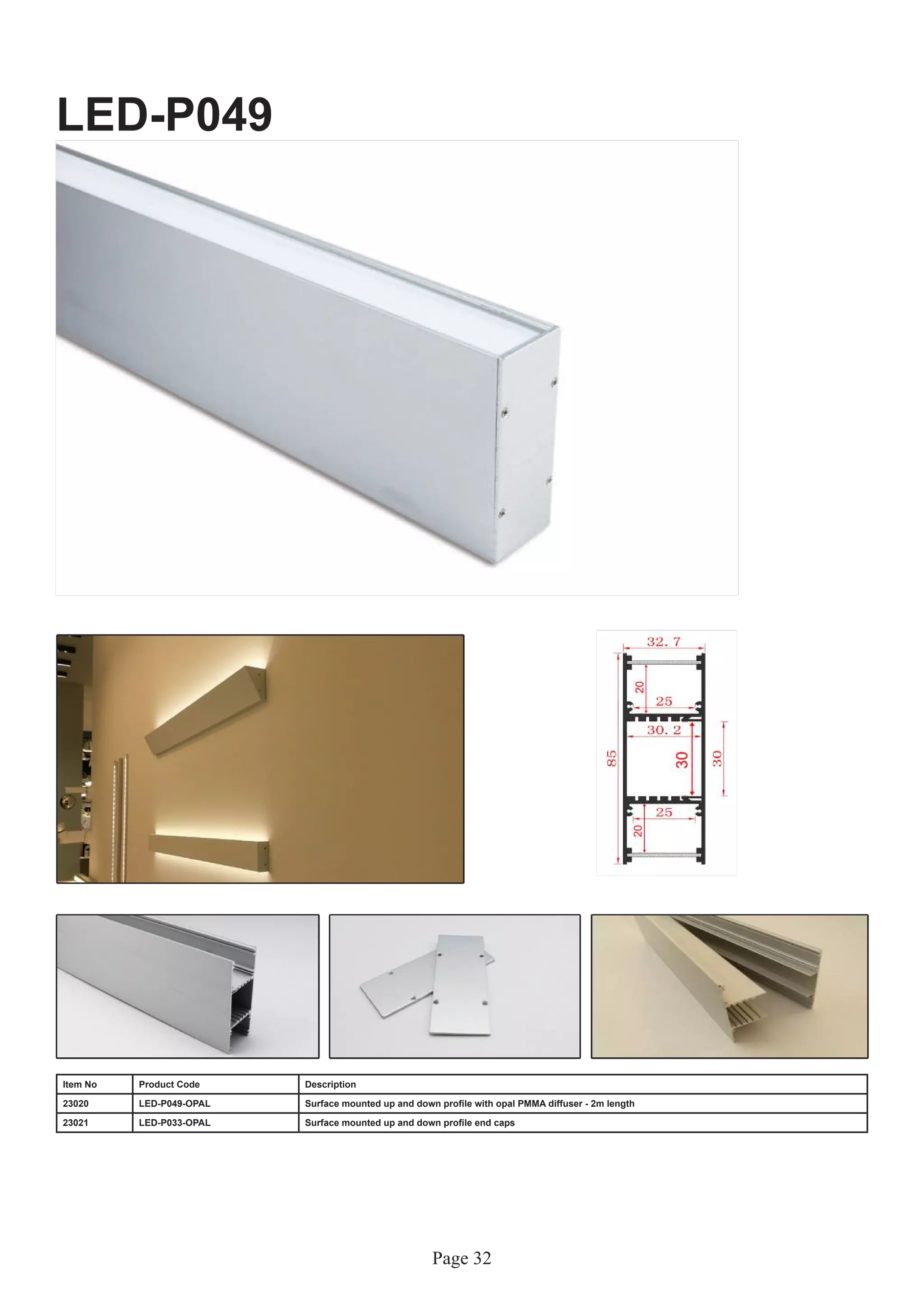

LED-P049
Item No Product Code Description
23020 LED-P049-OPAL Surface mounted up and down profile with opal PMMA diffuser - 2m length
23021 LED-P033-OPAL Surface mounted up and down profile end caps

33. Page 33

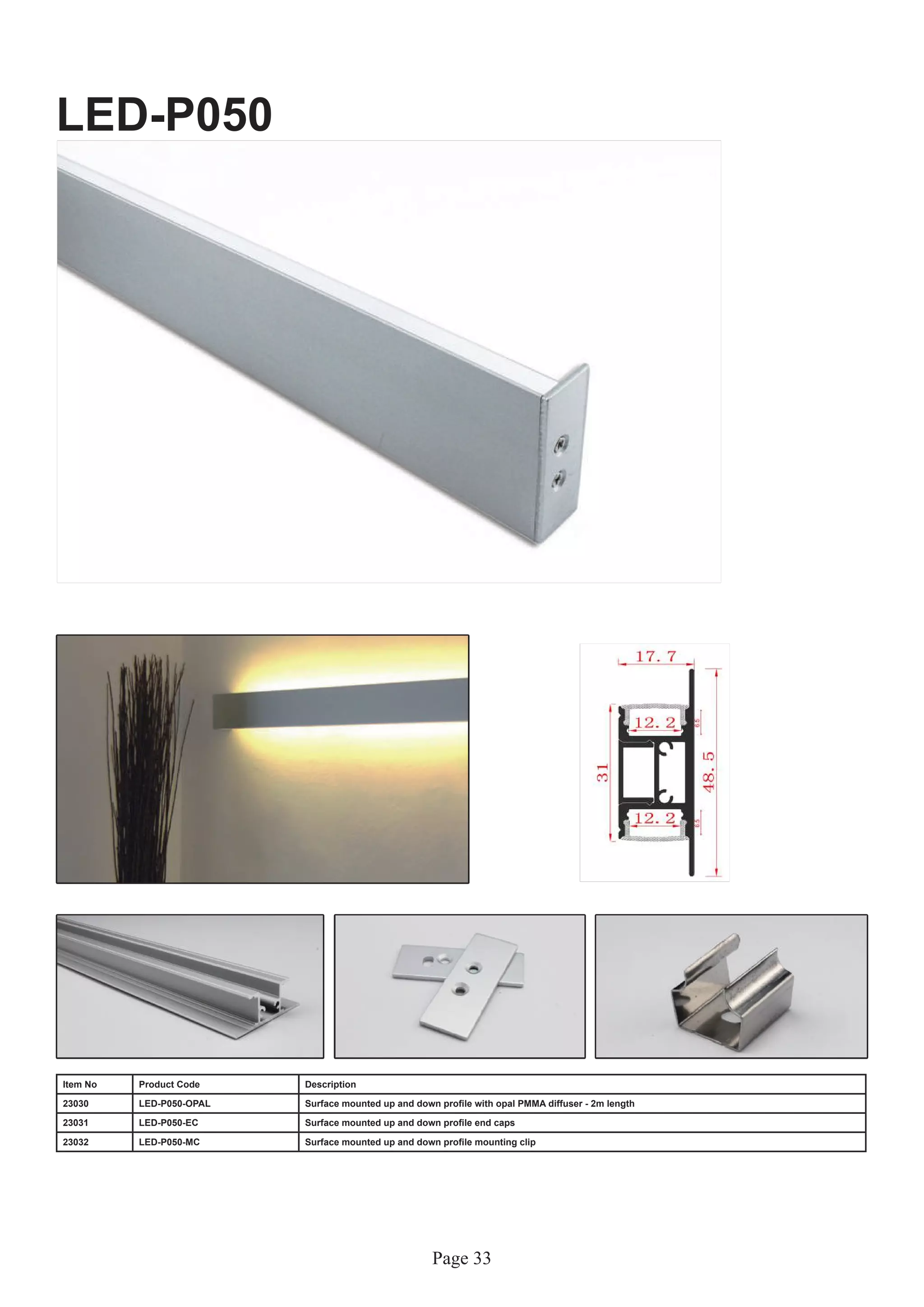

LED-P050
Item No Product Code Description
23030 LED-P050-OPAL Surface mounted up and down profile with opal PMMA diffuser - 2m length
23031 LED-P050-EC Surface mounted up and down profile end caps
23032 LED-P050-MC Surface mounted up and down profile mounting clip

34. Page 34

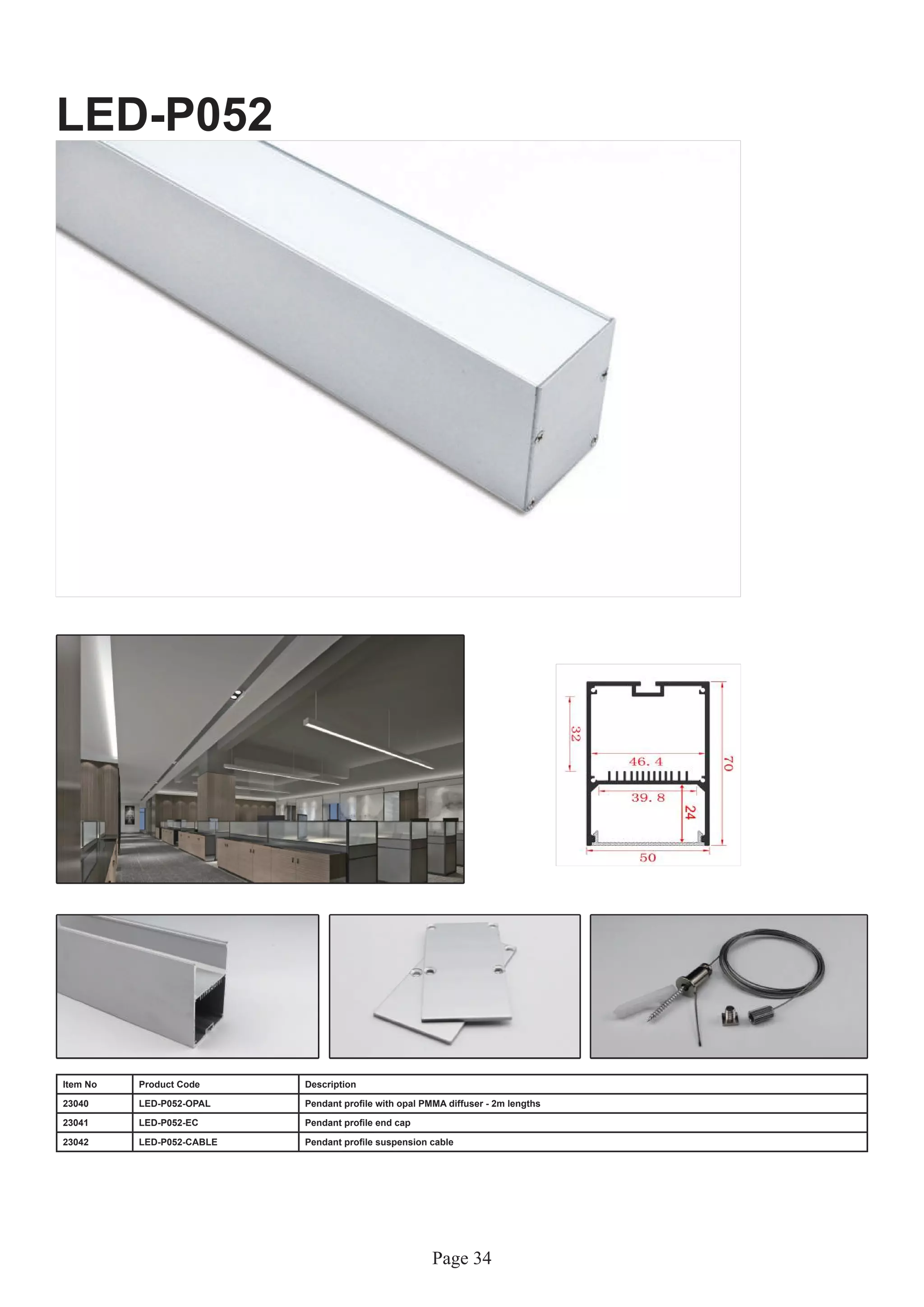

LED-P052
Item No Product Code Description
23040 LED-P052-OPAL Pendant profile with opal PMMA diffuser - 2m lengths
23041 LED-P052-EC Pendant profile end cap
23042 LED-P052-CABLE Pendant profile suspension cable

35. Page 35

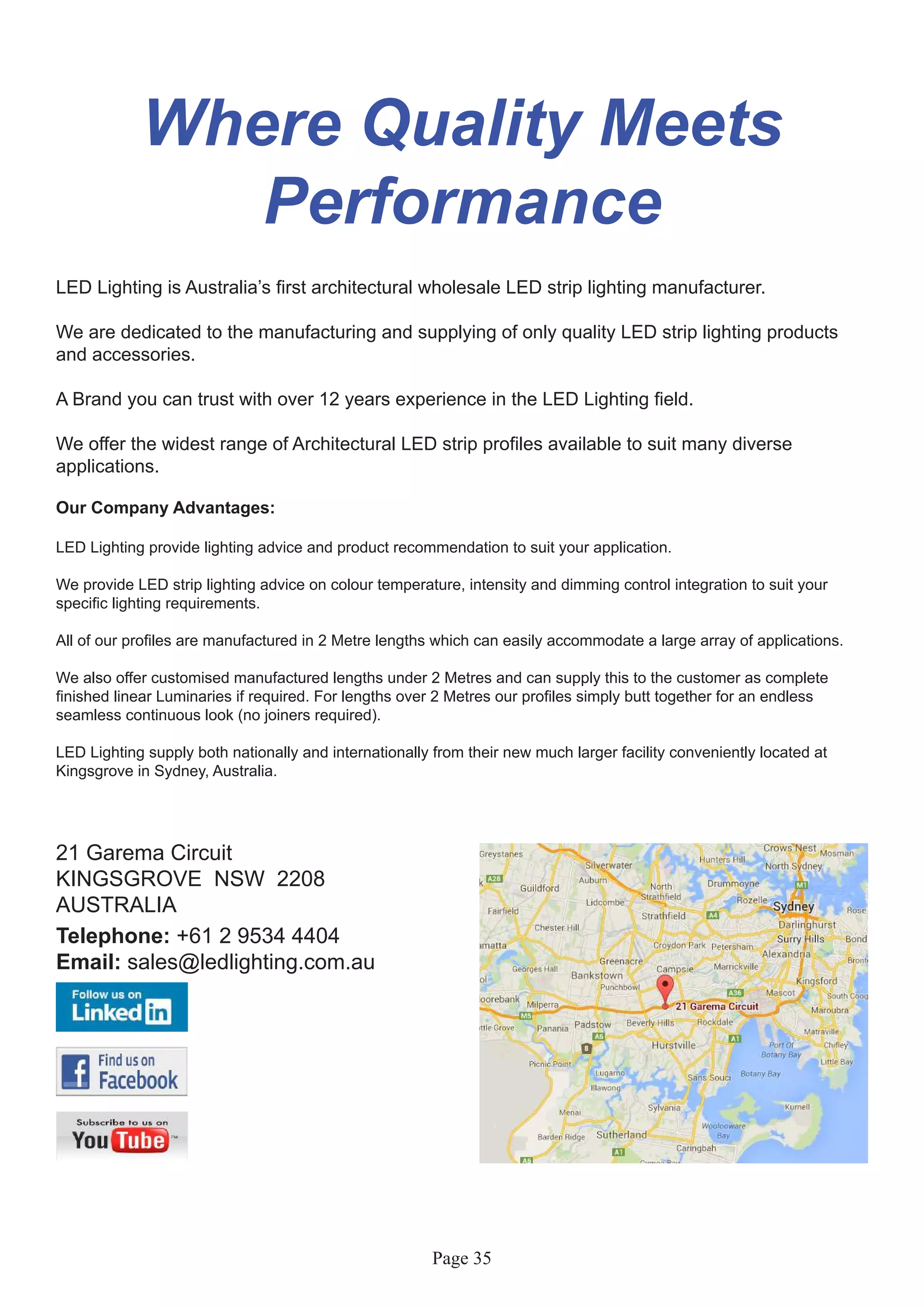

Where Quality Meets
Performance
LED Lighting is Australia’s first architectural wholesale LED strip lighting manufacturer.
We are dedicated to the manufacturing and supplying of only quality LED strip lighting products
and accessories.
A Brand you can trust with over 12 years experience in the LED Lighting field.
We offer the widest range of Architectural LED strip profiles available to suit many diverse
applications.
Our Company Advantages:
LED Lighting provide lighting advice and product recommendation to suit your application.
We provide LED strip lighting advice on colour temperature, intensity and dimming control integration to suit your
specific lighting requirements.
All of our profiles are manufactured in 2 Metre lengths which can easily accommodate a large array of applications.
We also offer customised manufactured lengths under 2 Metres and can supply this to the customer as complete
finished linear Luminaries if required. For lengths over 2 Metres our profiles simply butt together for an endless
seamless continuous look (no joiners required).
LED Lighting supply both nationally and internationally from their new much larger facility conveniently located at
Kingsgrove in Sydney, Australia.
21 Garema Circuit
KINGSGROVE NSW 2208
AUSTRALIA
Telephone: +61 2 9534 4404
Email: sales@ledlighting.com.au

36. Page 36
Optic Fibre & LED Lighting Solutions
A brand you can trust with over 12 years of
experience in the LED Lighting field
Web: www.ledlighting.com.au Enquiry: sales@ledlighting.com.au
