Sinapse Catalogue (1) SA

Sinapse Company Limited is a premier provider of LED lighting solutions that offer energy savings of 85% and last over 36,000 hours. They offer a wide range of indoor and outdoor LED lighting products including bulbs, downlights, spotlights, ceiling lights, street lights, and high bay lights. Working with customers, Sinapse designs LED solutions tailored to specific needs and provides consultancy on optimizing energy savings and costs.

Download to read offline

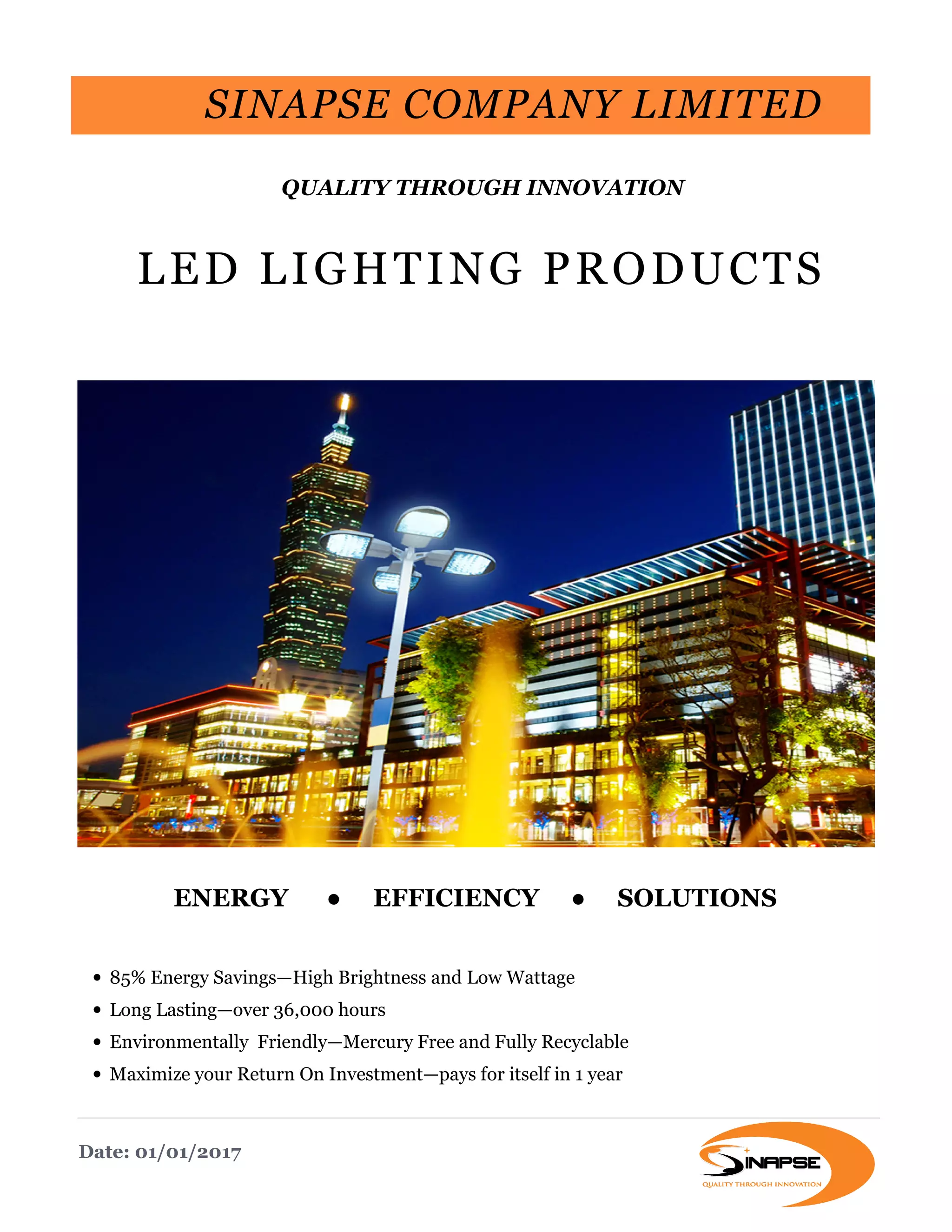

LED LIGHTING PRODUCTS ENERGY ● EFFICIENCY ● SOLUTIONS • 85% Energy Savings—High Brightness and Low Wattage • Long Lasting—over 36,000 hours • Environmentally Friendly—Mercury Free and Fully Recyclable • Maximize your Return On Investment—pays for itself in 1 year SINAPSE COMPANY LIMITED QUALITY THROUGH INNOVATION Date: 01/01/2017

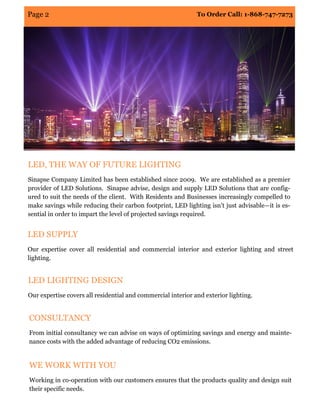

To Order Call: 1-868-747-7273Page 2 LED, THE WAY OF FUTURE LIGHTING Sinapse Company Limited has been established since 2009. We are established as a premier provider of LED Solutions. Sinapse advise, design and supply LED Solutions that are config- ured to suit the needs of the client. With Residents and Businesses increasingly compelled to make savings while reducing their carbon footprint, LED lighting isn’t just advisable—it is es- sential in order to impart the level of projected savings required. LED SUPPLY Our expertise cover all residential and commercial interior and exterior lighting and street lighting. LED LIGHTING DESIGN Our expertise covers all residential and commercial interior and exterior lighting. CONSULTANCY From initial consultancy we can advise on ways of optimizing savings and energy and mainte- nance costs with the added advantage of reducing CO2 emissions. WE WORK WITH YOU Working in co-operation with our customers ensures that the products quality and design suit their specific needs.

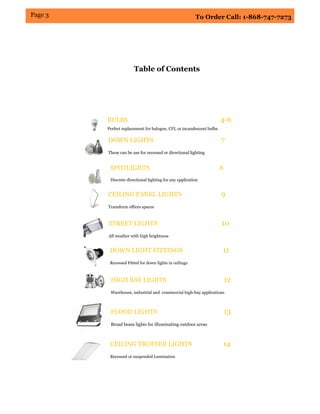

To Order Call: 1-868-747-7273Page 3 Table of Contents BULBS 4-6 Perfect replacement for halogen, CFL or incandescent bulbs DOWN LIGHTS 7 These can be use for recessed or directional lighting SPOTLIGHTS 8 Discrete directional lighting for any application CEILING PANEL LIGHTS 9 Transform offices spaces STREET LIGHTS 10 All weather with high brightness DOWN LIGHT FITTINGS 11 Recessed Fitted for down lights in ceilings HIGH BAY LIGHTS 12 Warehouse, industrial and commercial high-bay applications FLOOD LIGHTS 13 Broad beam lights for illuminating outdoor areas CEILING TROFFER LIGHTS 14 Recessed or suspended Luminaires

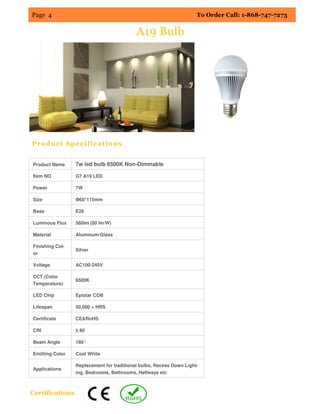

To Order Call: 1-868-747-7273Page 4 A19 Bulb Product Specifications Product Name 7w led bulb 6500K Non-Dimmable Item NO G7 A19 LED Power 7W Size Φ60*115mm Base E26 Luminous Flux 560lm (80 lm/W) Material Aluminum/Glass Finishing Col- or Silver Voltage AC100-240V CCT (Color Temperature) 6500K LED Chip Epistar COB Lifespan 50,000 + HRS Certificate CE&RoHS CRI ≥ 80 Beam Angle 180° Emitting Color Cool White Applications Replacement for traditional bulbs, Recess Down Light- ing, Bedrooms, Bathrooms, Hallways etc Certifications

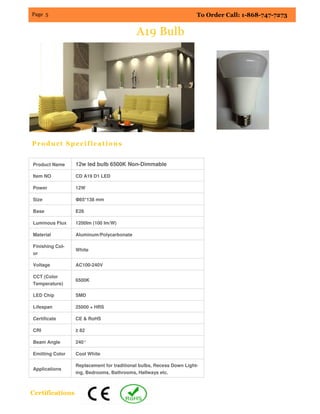

To Order Call: 1-868-747-7273Page 5 A19 Bulb Product Specifications Product Name 12w led bulb 6500K Non-Dimmable Item NO CD A19 D1 LED Power 12W Size Φ85*138 mm Base E26 Luminous Flux 1200lm (100 lm/W) Material Aluminum/Polycarbonate Finishing Col- or White Voltage AC100-240V CCT (Color Temperature) 6500K LED Chip SMD Lifespan 25000 + HRS Certificate CE & RoHS CRI ≥ 82 Beam Angle 240° Emitting Color Cool White Applications Replacement for traditional bulbs, Recess Down Light- ing, Bedrooms, Bathrooms, Hallways etc. Certifications
To Order Call: 1-868-747-7273Page 6 A19 Bulb Product Specifications Product Name 15w led bulb 6500K Non-Dimmable Item NO CD A19 D2 LED Power 15W Size Φ76*126 mm Base E26 Luminous Flux 1500lm (100 lm/W) Material Aluminum/Polycarbonate Finishing Col- or White Voltage AC100-240V CCT (Color Temperature) 6500K LED Chip SMD Lifespan 25000 + HRS Certificate CE & RoHS CRI ≥ 82 Beam Angle 240° Emitting Color Cool White Applications Replacement for traditional bulbs, Recess Down Light- ing, Bedrooms, Bathrooms, Hallways etc. Certifications

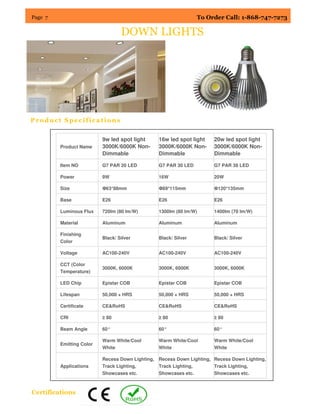

DOWN LIGHTS Page 7 To Order Call: 1-868-747-7273 Product Name 9w led spot light 3000K/6000K Non- Dimmable 16w led spot light 3000K/6000K Non- Dimmable 20w led spot light 3000K/6000K Non- Dimmable Item NO G7 PAR 20 LED G7 PAR 30 LED G7 PAR 38 LED Power 9W 16W 20W Size Φ63*88mm Φ89*115mm Φ120*135mm Base E26 E26 E26 Luminous Flux 720lm (80 lm/W) 1300lm (80 lm/W) 1400lm (70 lm/W) Material Aluminum Aluminum Aluminum Finishing Color Black/ Silver Black/ Silver Black/ Silver Voltage AC100-240V AC100-240V AC100-240V CCT (Color Temperature) 3000K, 6000K 3000K, 6000K 3000K, 6000K LED Chip Epistar COB Epistar COB Epistar COB Lifespan 50,000 + HRS 50,000 + HRS 50,000 + HRS Certificate CE&RoHS CE&RoHS CE&RoHS CRI ≥ 80 ≥ 80 ≥ 80 Beam Angle 60° 60° 60° Emitting Color Warm White/Cool White Warm White/Cool White Warm White/Cool White Applications Recess Down Lighting, Track Lighting, Showcases etc. Recess Down Lighting, Track Lighting, Showcases etc. Recess Down Lighting, Track Lighting, Showcases etc. Certifications Product Specifications

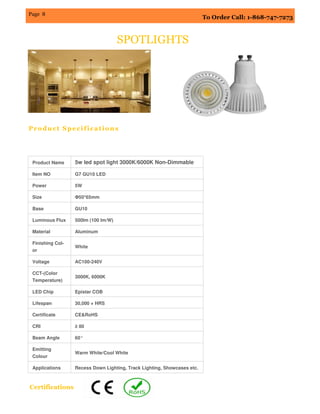

To Order Call: 1-868-747-7273 Page 8 SPOTLIGHTS Product Name 5w led spot light 3000K/6000K Non-Dimmable Item NO G7 GU10 LED Power 5W Size Φ50*65mm Base GU10 Luminous Flux 500lm (100 lm/W) Material Aluminum Finishing Col- or White Voltage AC100-240V CCT-(Color Temperature) 3000K, 6000K LED Chip Epistar COB Lifespan 30,000 + HRS Certificate CE&RoHS CRI ≥ 80 Beam Angle 60° Emitting Colour Warm White/Cool White Applications Recess Down Lighting, Track Lighting, Showcases etc. Product Specifications Certifications

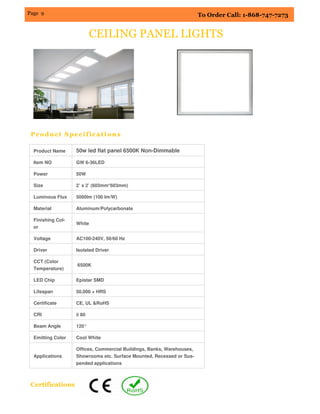

Page 9 To Order Call: 1-868-747-7273 CEILING PANEL LIGHTS Product Specifications Product Name 50w led flat panel 6500K Non-Dimmable Item NO GW 6-36LED Power 50W Size 2’ x 2’ (603mm*603mm) Luminous Flux 5000lm (100 lm/W) Material Aluminum/Polycarbonate Finishing Col- or White Voltage AC100-240V, 50/60 Hz Driver Isolated Driver CCT (Color Temperature) 6500K LED Chip Epistar SMD Lifespan 50,000 + HRS Certificate CE, UL &RoHS CRI ≥ 80 Beam Angle 120° Emitting Color Cool White Applications Offices, Commercial Buildings, Banks, Warehouses, Showrooms etc. Surface Mounted, Recessed or Sus- pended applications Certifications

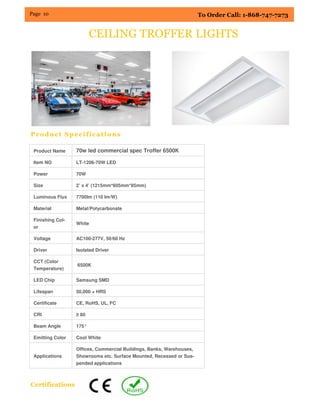

Page 10 To Order Call: 1-868-747-7273 CEILING TROFFER LIGHTS Product Specifications Product Name 70w led commercial spec Troffer 6500K Item NO LT-1206-70W LED Power 70W Size 2’ x 4’ (1215mm*605mm*85mm) Luminous Flux 7700lm (110 lm/W) Material Metal/Polycarbonate Finishing Col- or White Voltage AC100-277V, 50/60 Hz Driver Isolated Driver CCT (Color Temperature) 6500K LED Chip Samsung SMD Lifespan 50,000 + HRS Certificate CE, RoHS, UL, FC CRI ≥ 80 Beam Angle 175° Emitting Color Cool White Applications Offices, Commercial Buildings, Banks, Warehouses, Showrooms etc. Surface Mounted, Recessed or Sus- pended applications Certifications

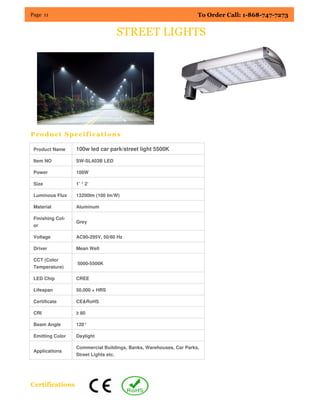

Page 11 To Order Call: 1-868-747-7273 Product Specifications Certifications STREET LIGHTS Product Name 100w led car park/street light 5500K Item NO SW-SL403B LED Power 100W Size 1’ * 2’ Luminous Flux 13200lm (100 lm/W) Material Aluminum Finishing Col- or Grey Voltage AC90-295V, 50/60 Hz Driver Mean Well CCT (Color Temperature) 5000-5500K LED Chip CREE Lifespan 50,000 + HRS Certificate CE&RoHS CRI ≥ 80 Beam Angle 120° Emitting Color Daylight Applications Commercial Buildings, Banks, Warehouses, Car Parks, Street Lights etc.

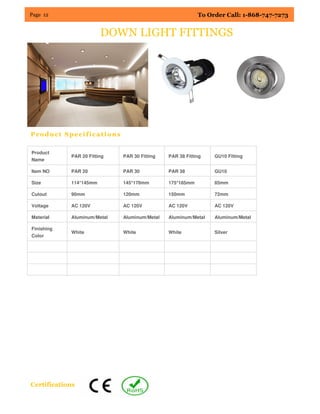

Page 12 To Order Call: 1-868-747-7273 Product Specifications Certifications DOWN LIGHT FITTINGS Product Name PAR 20 Fitting PAR 30 Fitting PAR 38 Fitting GU10 Fitting Item NO PAR 20 PAR 30 PAR 38 GU10 Size 114*145mm 145*170mm 175*185mm 85mm Cutout 90mm 120mm 150mm 72mm Voltage AC 120V AC 120V AC 120V AC 120V Material Aluminum/Metal Aluminum/Metal Aluminum/Metal Aluminum/Metal Finishing Color White White White Silver

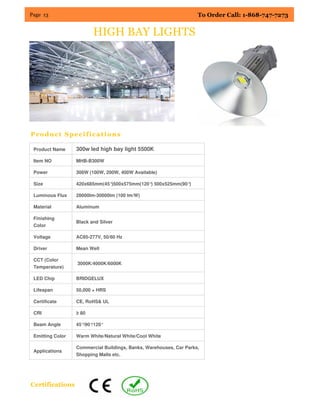

Page 13 To Order Call: 1-868-747-7273 Product Specifications Certifications HIGH BAY LIGHTS Product Name 300w led high bay light 5500K Item NO MHB-B300W Power 300W (100W, 200W, 400W Available) Size 420x685mm(45°)500x575mm(120°) 500x525mm(90°) Luminous Flux 28000lm-30000lm (100 lm/W) Material Aluminum Finishing Color Black and Silver Voltage AC85-277V, 50/60 Hz Driver Mean Well CCT (Color Temperature) 3000K/4000K/6000K LED Chip BRIDGELUX Lifespan 50,000 + HRS Certificate CE, RoHS& UL CRI ≥ 80 Beam Angle 45°/90°/120° Emitting Color Warm White/Natural White/Cool White Applications Commercial Buildings, Banks, Warehouses, Car Parks, Shopping Malls etc.

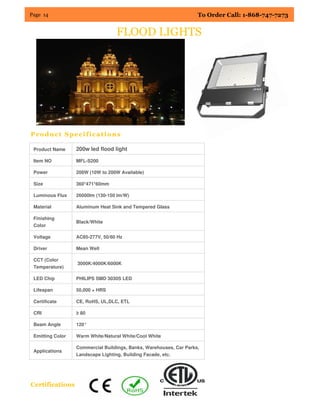

Page 14 To Order Call: 1-868-747-7273 Product Specifications Certifications FLOOD LIGHTS Product Name 200w led flood light Item NO MFL-S200 Power 200W (10W to 200W Available) Size 360*471*60mm Luminous Flux 26000lm (130-150 lm/W) Material Aluminum Heat Sink and Tempered Glass Finishing Color Black/White Voltage AC85-277V, 50/60 Hz Driver Mean Well CCT (Color Temperature) 3000K/4000K/6000K LED Chip PHILIPS SMD 3030S LED Lifespan 50,000 + HRS Certificate CE, RoHS, UL,DLC, ETL CRI ≥ 80 Beam Angle 120° Emitting Color Warm White/Natural White/Cool White Applications Commercial Buildings, Banks, Warehouses, Car Parks, Landscape Lighting, Building Facade, etc.

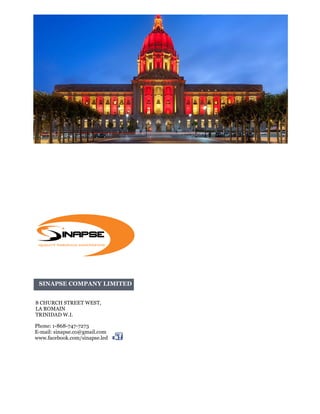

Phone: 1-868-747-7273 E-mail: sinapse.co@gmail.com www.facebook.com/sinapse.led 8 CHURCH STREET WEST, LA ROMAIN TRINIDAD W.I. SINAPSE COMPANY LIMITED
