Automatic Number Plate Recognition(ANPR)
We are building a python software for optical character Recognition of the license number plate using various Python libraries and importing various packages such as OpenCV, Matplotlib, numpy, imutils and Pytesseract for OCR(optical Character Recognition) of Number plate from image clicked. Let us discuss complete process step by step in this framework diagram shown above:
Step-1 Image will be taken by the camera(CCTV) or normal range cameras
Step-2 Selected image will be imported in our Software for pre-processing of our image and conversion of image into gray-scale for canny edge-detection
Step-3 We have installed OpenCV library for conversion of Coloured image to black and White image.
Step-4 We installed OpenCV package. Opencv(cv2) package is main package which we used in this project. This is image processing library.
Step-5 We have installed Imutils package. Imutils is a package used for modification of images . In this we use this package for change size of image.
Step-6 We have installed Pytesseract library. Pytesseract is a python library used for extracting text from image. This is an optical character recognition(OCR) tool for python.
Step-7 We have installed Matplotlib Library. In matplotlib library we use a package name pyplot. This library is used for plotting the images. % matplotlib inline is used for plot the image at same place.
Step-8 Image is read by the Imread() function and after reading the image we resize the image for further processing of image.
Step-9 Then our selected image is converted to gray-scale using below function.
# RGB to Gray scale conversion
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
plot_image(gray,"Grayscale Conversion")

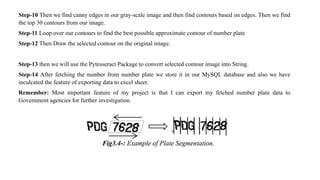

Step-10 Then we find canny edges in our gray-scale image and then find contours based on edges. Then we find the top 30 contours from our image.
Step-11 Loop over our contours to find the best possible approximate contour of number plate
Step-12 Then Draw the selected contour on the original image.
Step-13 then we will use the Pytesseract Package to convert selected contour image into String.

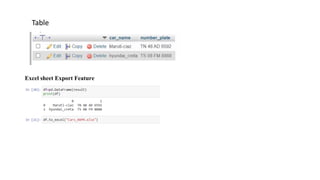

Step-14 After fetching the number from number plate we store it in our MySQL database and also we have inculcated the feature of exporting data to excel sheet.
Remember: Most important feature of my project is that I can export my fetched number plate data to Government agencies for further investigation.
Abstract: This Project describes a visual sensor system used in the field of robotics for identification and tracking of the colored object. The program is designed to capture an Object through a Camera. It describes image capturing and processing techniques, followed by an introduction to actual robotic application to trace the Object using the serial COM port of the PC. The whole system of making a robot to follow an object can be divided into four blocks: image acquisition, processing of image, decision-making and motion control.
Optical character recognition, usually abbreviated to OCR, is the mechanical or electronic conversion of scanned images of handwritten, typewritten or printed text into machine-encoded text.
It is a system that provides a full alphanumeric recognition of printed or handwritten characters at electronic speed by simply scanning the form. It is widely used as a form of data entry from some sort of original paper data source, whether documents, sales receipts, mail, or any number of printed records.
It is a common method of digitizing printed texts so that they can be electronically searched, stored more compactly, displayed on-line, and used in machine processes such as machine translation, text-to-speech and text mining.OCR is a field of research in pattern recognition, artificial intelligence and computer vision. More recently, the term Intelligent Character Recognition(ICR) has been used to describe the process of interpreting image data, in particular alphanumeric text .
Abstract: This Project describes a visual sensor system used in the field of robotics for identification and tracking of the colored object. The program is designed to capture an Object through a Camera. It describes image capturing and processing techniques, followed by an introduction to actual robotic application to trace the Object using the serial COM port of the PC. The whole system of making a robot to follow an object can be divided into four blocks: image acquisition, processing of image, decision-making and motion control.
Optical character recognition, usually abbreviated to OCR, is the mechanical or electronic conversion of scanned images of handwritten, typewritten or printed text into machine-encoded text.
It is a system that provides a full alphanumeric recognition of printed or handwritten characters at electronic speed by simply scanning the form. It is widely used as a form of data entry from some sort of original paper data source, whether documents, sales receipts, mail, or any number of printed records.
It is a common method of digitizing printed texts so that they can be electronically searched, stored more compactly, displayed on-line, and used in machine processes such as machine translation, text-to-speech and text mining.OCR is a field of research in pattern recognition, artificial intelligence and computer vision. More recently, the term Intelligent Character Recognition(ICR) has been used to describe the process of interpreting image data, in particular alphanumeric text .
Automated License Plate Recognition for Toll Booth ApplicationIJERA Editor
This paper describes the Smart Vehicle Screening System, which can be installed into a tollbooth for automated recognition of vehicle license plate information using a photograph of a vehicle. An automated system could then be implemented to control the payment of fees, parking areas, highways, bridges or tunnels, etc. There are considered an approach to identify vehicle through recognizing of it license plate using image fusion, neural networks and threshold techniques as well as some experimental results to recognize the license plate successfully.
Tracking number plate from vehicle usingijfcstjournal
In Traffic surveillance, Tracking of the number plate from the vehicle is an important task, which demands
intelligent solution. In this document, extraction and Recognization of number plate from vehicles image
has been done using Matlab. It is assumed that images of the vehicle have been captured from Digital
Camera. Alphanumeric Characters on plate has been Extracted and recognized using template images of
alphanumeric characters.
This paper presents a new algorithm in MATLAB which has been used to extract the number plate from the
vehicle in various luminance conditions. Extracted image of the number plate can be seen in a text file for
verification purpose. Number plate identification is helpful in finding stolen cars, car parking management
system and identification of vehicle in traffic.
This project is based on the real time processing through the image processing as well as embedded system. in which serial communication is playing a vital role.
I have used different module and servo motors and dc motors.
there is a robotic hand to grip the objects through the image processing we have provided eyes to machine.
Event Management System Vb Net Project Report.pdfKamal Acharya
In present era, the scopes of information technology growing with a very fast .We do not see any are untouched from this industry. The scope of information technology has become wider includes: Business and industry. Household Business, Communication, Education, Entertainment, Science, Medicine, Engineering, Distance Learning, Weather Forecasting. Carrier Searching and so on.
My project named “Event Management System” is software that store and maintained all events coordinated in college. It also helpful to print related reports. My project will help to record the events coordinated by faculties with their Name, Event subject, date & details in an efficient & effective ways.
In my system we have to make a system by which a user can record all events coordinated by a particular faculty. In our proposed system some more featured are added which differs it from the existing system such as security.
Automated License Plate Recognition for Toll Booth ApplicationIJERA Editor
This paper describes the Smart Vehicle Screening System, which can be installed into a tollbooth for automated recognition of vehicle license plate information using a photograph of a vehicle. An automated system could then be implemented to control the payment of fees, parking areas, highways, bridges or tunnels, etc. There are considered an approach to identify vehicle through recognizing of it license plate using image fusion, neural networks and threshold techniques as well as some experimental results to recognize the license plate successfully.
Tracking number plate from vehicle usingijfcstjournal
In Traffic surveillance, Tracking of the number plate from the vehicle is an important task, which demands
intelligent solution. In this document, extraction and Recognization of number plate from vehicles image
has been done using Matlab. It is assumed that images of the vehicle have been captured from Digital
Camera. Alphanumeric Characters on plate has been Extracted and recognized using template images of
alphanumeric characters.
This paper presents a new algorithm in MATLAB which has been used to extract the number plate from the
vehicle in various luminance conditions. Extracted image of the number plate can be seen in a text file for
verification purpose. Number plate identification is helpful in finding stolen cars, car parking management
system and identification of vehicle in traffic.
This project is based on the real time processing through the image processing as well as embedded system. in which serial communication is playing a vital role.
I have used different module and servo motors and dc motors.
there is a robotic hand to grip the objects through the image processing we have provided eyes to machine.
Event Management System Vb Net Project Report.pdfKamal Acharya
In present era, the scopes of information technology growing with a very fast .We do not see any are untouched from this industry. The scope of information technology has become wider includes: Business and industry. Household Business, Communication, Education, Entertainment, Science, Medicine, Engineering, Distance Learning, Weather Forecasting. Carrier Searching and so on.
My project named “Event Management System” is software that store and maintained all events coordinated in college. It also helpful to print related reports. My project will help to record the events coordinated by faculties with their Name, Event subject, date & details in an efficient & effective ways.
In my system we have to make a system by which a user can record all events coordinated by a particular faculty. In our proposed system some more featured are added which differs it from the existing system such as security.
Welcome to WIPAC Monthly the magazine brought to you by the LinkedIn Group Water Industry Process Automation & Control.
In this month's edition, along with this month's industry news to celebrate the 13 years since the group was created we have articles including
A case study of the used of Advanced Process Control at the Wastewater Treatment works at Lleida in Spain
A look back on an article on smart wastewater networks in order to see how the industry has measured up in the interim around the adoption of Digital Transformation in the Water Industry.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
4. Python Libraries
We are building a python software for optical character Recognition
of the license number plate using various Python libraries and
importing various packages such as OpenCV, Matplotlib, numpy,
imutils and Pytesseract for OCR(optical Character Recognition) of
Number plate from image clicked. Let us discuss complete process
step by step in this framework diagram shown above:
5. Analysis
Step-1 Image will be taken by the camera(CCTV) or normal range cameras
Step-2 Selected image will be imported in our Software for pre-processing of our
image and conversion of image into gray-scale for canny edge-detection
Step-3 We have installed OpenCV library for conversion of Coloured image to black
and White image.
Step-4 We installed OpenCV package. Opencv(cv2) package is main package which
we used in this project. This is image processing library.
Step-5 We have installed Imutils package. Imutils is a package used for modification
of images . In this we use this package for change size of image.
Step-6 We have installed Pytesseract library. Pytesseract is a python library used for
extracting text from image. This is an optical character recognition(OCR) tool for
python.
6. Step-7 We have installed Matplotlib Library. In matplotlib library we use a package name pyplot. This library is used for
plotting the images. % matplotlib inline is used for plot the image at same place.
Step-8 Image is read by the Imread() function and after reading the image we resize the image for further processing of
image.
Step-9 Then our selected image is converted to gray-scale using below function.
# RGB to Gray scale conversion
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
plot_image(gray,"Grayscale Conversion")
7. Step-10 Then we find canny edges in our gray-scale image and then find contours based on edges. Then we find
the top 30 contours from our image.
Step-11 Loop over our contours to find the best possible approximate contour of number plate
Step-12 Then Draw the selected contour on the original image.
Step-13 then we will use the Pytesseract Package to convert selected contour image into String.
Step-14 After fetching the number from number plate we store it in our MySQL database and also we have
inculcated the feature of exporting data to excel sheet.
Remember: Most important feature of my project is that I can export my fetched number plate data to
Government agencies for further investigation.

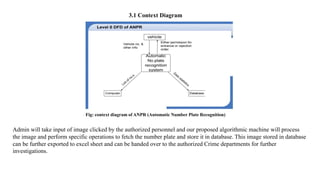

8. 3.1 Context Diagram
Admin will take input of image clicked by the authorized personnel and our proposed algorithmic machine will process
the image and perform specific operations to fetch the number plate and store it in database. This image stored in database
can be further exported to excel sheet and can be handed over to the authorized Crime departments for further
investigations.
Fig: context diagram of ANPR (Automatic Number Plate Recognition)
9. 3.2 DFD Level-1
Step-1 Admin will take input of image clicked by the authorized personnel and our proposed algorithmic machine will process the
image and perform specific operations to fetch the number plate and store it in database.
10. Step-2 Then image will be processed and number will be fetched and if the fetched number matches with the society database
then the gates will open
Else
User needs to register his vehicle to gain access to entry in society.
Step-3 Vehicle Authorization is complete and data is stored in database
3.3 Sequence diagram:

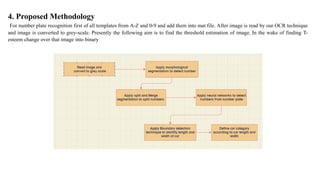

11. 4. Proposed Methodology
For number plate recognition first of all templates from A-Z and 0-9 and add them into mat file. After image is read by our OCR technique
and image is converted to grey-scale. Presently the following aim is to find the threshold estimation of image. In the wake of finding T-
esteem change over that image into binary
13. Automatic Number Plate Recognition algorithm (Algorithm Design)
The ANPR system consists of following steps:-
I. Vehicle image capture.
II. Preprocessing.
III. Number plate extraction.
IV. Character segmentation.
V. Character recognition
14. Original Image

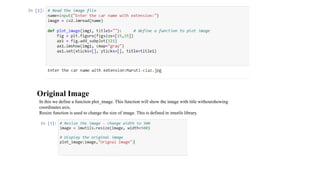

In this we define a function plot_image. This function will show the image with title withoutshowing
coordinates axis.
Resize function is used to change the size of image. This is defined in imutils library.
15. Grayscale and blur image
cvtColor function is used to convert the color of image. In this we convert original image to grayscale image. This function is also defined in
opencv library.
16. BilateralFilter method is used to blur the image. This remove the noise from image/
A bilateral filter is used for smoothening images and reducing noise, while preservingedges
BilateralFilter is highly effective in noise removal while keeping edges sharp. But theoperation is slower compared
to other filters
17.

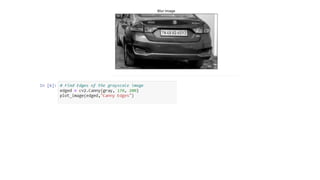

18. Canny Edge Detection
OpenCV puts all the above in single function, cv.canny() . This method is used for detection of edges of car. After appling this
function image will be seen like a drawing on black paperwith white color.

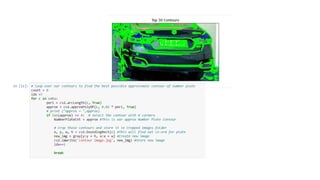

• Contours can be explained simply as a curve joining all the continuous points (along the boundary), having same color or
intensity. The contours are a useful tool for shape analysis and object detection and recognition.
• In OpenCV, finding contours is like finding white object from black background. So remember, object to be found should be
white and background should be black
19. Find Contours
There are three arguments in cv2.findContours() function, first one is source image, second is contour retrieval
mode, third is contour approximation method. And it outputs the image, contours and hierarchy. contours is a
Python list of all the contours in the image. Each individual contour is a Numpy array of (x,y) coordinates of
boundary points of the object.
21. Sort Contours
Now we are sorting the contours in reverse order areawise .
Cv2.contourArea method is used to find area of contours.
We took first 30 countous out of 981 countous according to their area.
This will decrease the time of ouput.
22.
23. Finding number plate
This is the main part of our project. Main logic is implemented in this loop.We
loop through all the contours and find perimeter of all contours using arcLength()
method. ApproxPolyDP method is used to detect the shape according to our
requirements

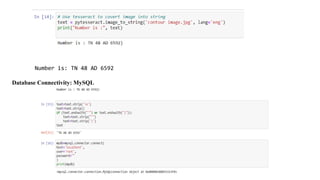

24. o Pytesseract library is used to convert image text to string .
There is a function name image_to_string defined in this
library. This will convert our image text to string.
o And then using print method we print this on screen
o Python-tesseract is an optical character recognition (OCR)
tool for python. That is, it will recognize and “read” the text
embedded in images.

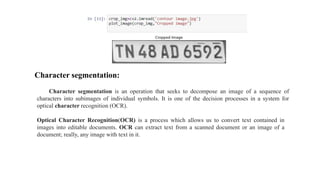

25. Character segmentation:
Character segmentation is an operation that seeks to decompose an image of a sequence of
characters into subimages of individual symbols. It is one of the decision processes in a system for
optical character recognition (OCR).
Optical Character Recognition(OCR) is a process which allows us to convert text contained in
images into editable documents. OCR can extract text from a scanned document or an image of a
document; really, any image with text in it.

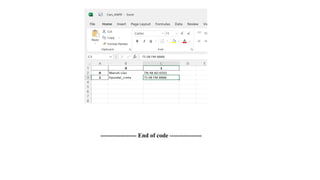

26. Number is: TN 48 AD 6592

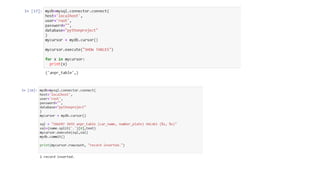

Database Connectivity: MySQL
31. Conclusion and Future Scope:
This was great experience to make this project. We learned a lot from this project . This project can be
extended to further level. Logic applied in this project can be make accurateusing machine learning.
As a future work the developed system would be concentrated upon increasing the accuracy of text
localization and graphics removal in caption text-Images. It can be evaluated using various other available
image databases and using various other classifiers.
------------------ Thank You----------------
