Data mining ,Data Preprocessing

1. 1
Data Preprocessing

2. 2

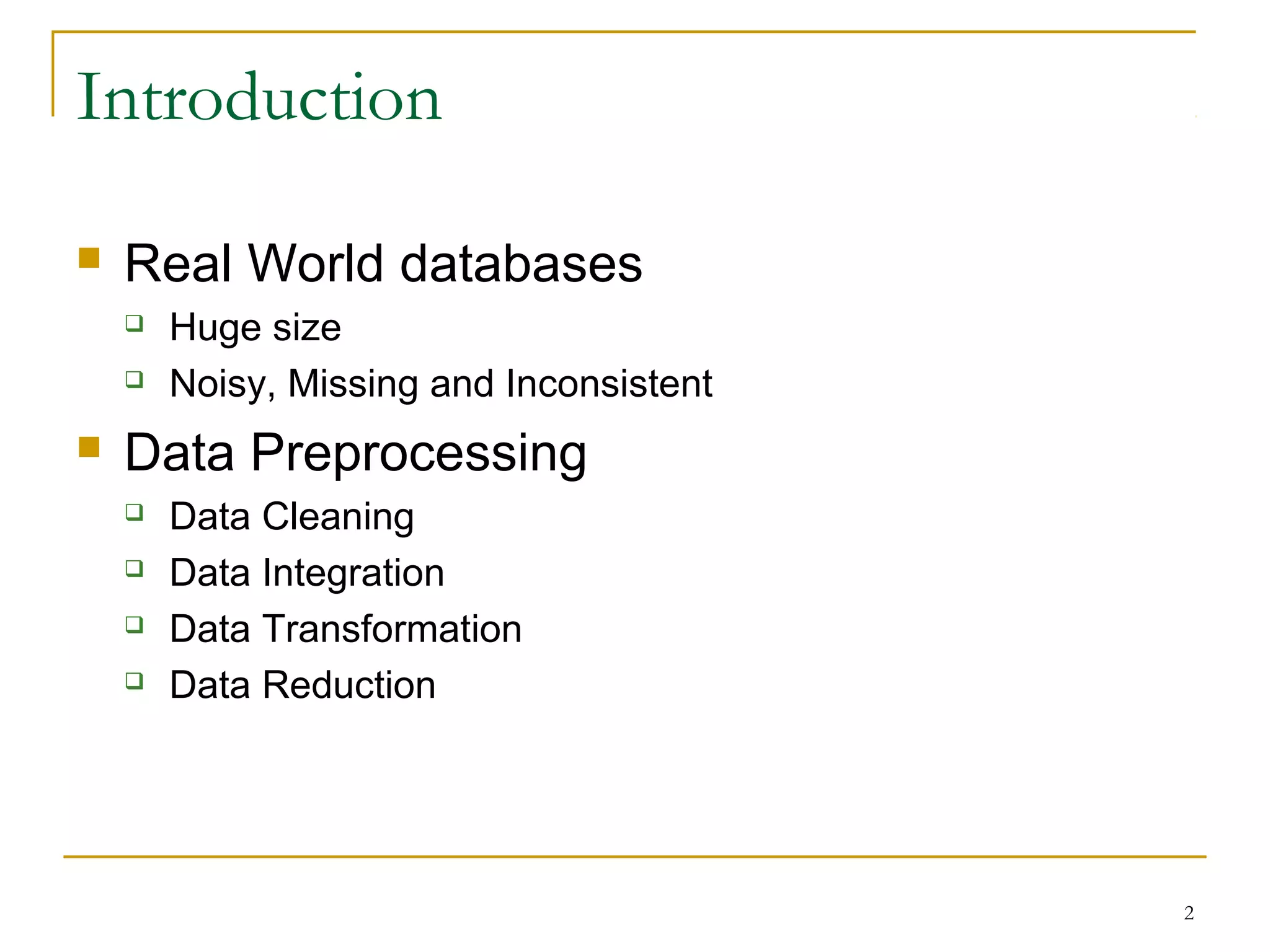

Introduction
 Real World databases
 Huge size
 Noisy, Missing and Inconsistent
 Data Preprocessing
 Data Cleaning
 Data Integration
 Data Transformation
 Data Reduction

3. 3
Need for Data Preprocessing
 Incomplete Data
 Lacking certain attributes of interest
 May not have been considered important during data entry
 Equipment Malfunctioning
 Deleted due to clashes with other data
 Only aggregate data maybe present

4. 4
Need for Data Preprocessing
 Noisy data
 Incorrect attribute values
 Errors or outliers e.g., Salary=“-10”
 Data collection instruments – faulty
 Data entry errors
 Transmission errors – limited buffer size
 Inconsistent
 Containing discrepancies in codes or names e.g., Age=“42”
Birthdate=“03/07/1997”
 Different data sources
 Functional dependency violation (e.g., modify some linked
data)
 Duplicate records also need data cleaning

5. 5
Need for Data Preprocessing
 Quality data
 Quality decisions must be based on quality data
 e.g., duplicate or missing data may cause incorrect or even
misleading statistics.
 Data warehouse needs consistent integration of quality data
 Data extraction, cleaning, and transformation
comprises the majority of the work of building a data
warehouse

6. 6
Major Tasks in Data Preprocessing
 Data cleaning
 Fill in missing values
 Smooth noisy data
 Identify or remove outliers
 Resolve inconsistencies
 Data integration
 Integration of multiple databases, data cubes, or files
 Attributes may have different names
 Eliminating redundancies
 Some attributes can be inferred from others

7. 7
Major Tasks in Data Preprocessing
 Data transformation
 Normalization and aggregation
 Data reduction
 Obtains reduced representation in volume but produces the same or
similar analytical results
 Data Aggregation
 Dimension Reduction
 Data Compression
 Numerosity Reduction
 Generalization
 Data discretization
 Part of data reduction but with particular importance, especially for
numerical data

8. 8
Forms of Data Preprocessing

9. 9
Data Cleaning
 Importance
 “Data cleaning is the number one problem in data
warehousing”—DCI survey
 Data cleaning tasks
 Fill in missing values
 Identify outliers and smooth out noisy data
 Correct inconsistent data
 Resolve redundancy caused by data integration

10. 10
Missing Data
 Data is not always available
 E.g., many tuples have no recorded value for several
attributes, such as customer income in sales data
 Missing data may need to be inferred.

11. 11
Handling Missing Data
 Ignore the tuple
 Usually done when class label is missing (assuming the task is
classification)—not effective when the percentage of missing
values per attribute varies considerably.
 Fill in the missing value manually
 Tedious + infeasible

12. 12
Handling Missing Data
 Fill in it automatically with
 a global constant : e.g., “unknown”, a new class
 the attribute mean
 the attribute mean for all samples belonging to the
same class: smarter
 the most probable value: inference-based such as
Bayesian formula or decision tree

13. 13
Noisy Data
 Noise: random error or variance in a measured
variable
 Binning
 first sort data and partition into bins
 then one can smooth by bin means, smooth by bin median, smooth by bin
boundaries, etc.
 Regression
 Smooth by fitting the data into regression functions
 Clustering
 Detect and remove outliers
 Combined computer and human inspection
 Detect suspicious values and check by human (e.g., deal with possible outliers)

14. 14
Binning
 Equal-width (distance) partitioning
 Divides the range into N intervals of equal size: uniform grid
 if A and B are the lowest and highest values of the attribute, the
width of intervals will be: W = (B –A)/N.
 The most straightforward, but outliers may dominate
 Skewed data is not handled well
 Equal-depth (frequency) partitioning
 Divides the range into N intervals, each containing approximately
same number of samples
 Good data scaling
 Managing categorical attributes can be tricky

15. 15
Binning
 Sorted data for price (in dollars): 4, 8, 9, 15, 21, 21, 24, 25, 26,
28, 29, 34
 Partition into equal-frequency (equi-depth) bins:
 Bin 1: 4, 8, 9, 15
 Bin 2: 21, 21, 24, 25
 Bin 3: 26, 28, 29, 34
 Smoothing by bin means:
 Bin 1: 9, 9, 9, 9
 Bin 2: 23, 23, 23, 23
 Bin 3: 29, 29, 29, 29
 Smoothing by bin boundaries:
 Bin 1: 4, 4, 4, 15
 Bin 2: 21, 21, 25, 25
 Bin 3: 26, 26, 26, 34

16. 16
Regression
x
y
y = x + 1
X1
Y1
Y1’

17. 17
Cluster Analysis

18. 18
Human Inspection
 Combined Computer and Human Inspection
 Outliers in Handwritten character recognition
 Surprise value
 Garbage / Outliers
 Human identification

19. 19
Inconsistent Data
 Data discrepancy detection
 Use metadata (e.g., domain, range, dependency)
 Check Functional dependency relationships
 Use commercial tools
 Data scrubbing: use simple domain knowledge to detect errors and
make corrections
 Data auditing: by analyzing data to discover rules and relationship to
detect violators (e.g., correlation and clustering to find outliers)
 Discrepancy detection and transformation

20. 20
Data Integration
 Data integration:
 Combines data from multiple sources into a coherent store
 Schema integration: e.g., A.cust-id ≡ B.cust-#
 Integrate metadata from different sources
 Entity identification problem:
 Identify real world entities from multiple data sources
 Other Issues
 Detecting redundancy (tuple level and attribute level)
 Detecting and resolving data value conflicts
 For the same real world entity, attribute values from different sources are different
 Possible reasons: different representations, different scales, e.g., metric vs.
British units

21. 21
Handling Redundancy
 Redundant data occur often during integration of multiple
databases
 Object identification: The same attribute or object may have
different names in different databases
 Derivable data: One attribute may be a “derived” attribute in
another table, e.g., annual revenue
 Redundant attributes may be detected by correlation analysis
 Careful integration - helps to reduce/avoid redundancies and
inconsistencies and improve mining speed and quality

22. 22
Correlation Analysis
 Correlation coefficient (also called Pearson’s product moment
coefficient)
where n is the number of tuples, and are the respective means
of A and B, σA and σB are the respective standard deviation of A and
B
 If rA,B > 0, A and B are positively correlated (A’s values increase
as B’s). The higher the value, the stronger the correlation.
 rA,B = 0: independent; rA,B < 0: negatively correlated
BAn
BBAA
r BA
σσ)1(
))((
,
−
−−
=
∑
A B

23. 23
Correlation Analysis
 Chi-square test
χ2
= ∑ i=1
c
∑ j=1
r
(oij – eij)2
/ eij
c – Number of possibilities for attribute 1; r – for attribute 2
eij =Expected Frequency : count(A=ai) x count(B=bj) / N
o – Observed Frequency
e – Expected Frequency
Compare χ2
value with table and decide
(r-1) x (c-1) : degrees of freedom

24. Chi-square test
Male Female Total
Fiction 250 (90) 200 (360) 450
Non-fiction 50 (210) 1000 (840) 1050
Total 300 1200 1500
24
χ2
= (250-90)2
/90 + (200-360)2
/360 +
(50-210)2
/210 + (1000-840)2
/840 = 507.93
Hypothesis: Gender and preferred reading are independent
507.83 > 10.83
So hypothesis is rejected
Conclusion: Gender and preferred_reading are strongly correlated

25. Chi-square test
Degrees of
freedom (df)
χ2
value
1 0.004 0.02 0.06 0.15 0.46 1.07 1.64 2.71 3.84 6.64 10.83
2 0.10 0.21 0.45 0.71 1.39 2.41 3.22 4.60 5.99 9.21 13.82
3 0.35 0.58 1.01 1.42 2.37 3.66 4.64 6.25 7.82 11.34 16.27
4 0.71 1.06 1.65 2.20 3.36 4.88 5.99 7.78 9.49 13.28 18.47
5 1.14 1.61 2.34 3.00 4.35 6.06 7.29 9.24 11.07 15.09 20.52
6 1.63 2.20 3.07 3.83 5.35 7.23 8.56 10.64 12.59 16.81 22.46
7 2.17 2.83 3.82 4.67 6.35 8.38 9.80 12.02 14.07 18.48 24.32
8 2.73 3.49 4.59 5.53 7.34 9.52 11.03 13.36 15.51 20.09 26.12
9 3.32 4.17 5.38 6.39 8.34 10.66 12.24 14.68 16.92 21.67 27.88
10 3.94 4.86 6.18 7.27 9.34 11.78 13.44 15.99 18.31 23.21 29.59
P value (Probability) 0.95 0.90 0.80 0.70 0.50 0.30 0.20 0.10 0.05 0.01 0.001
Non-significant Significant
25

26. 26
Data Transformation
1. Smoothing: remove noise from data – Binning, Clustering,
Regression
2. Normalization: scaled to fall within a small, specified range
 min-max normalization
 z-score normalization
 normalization by decimal scaling
1. Attribute/feature construction
 New attributes constructed from the given ones
1. Aggregation: summarization, data cube construction
2. Generalization: concept hierarchy climbing

27. 27
1. Smoothing
 Binning
 Equal-width (distance) partitioning
 Equal-depth (frequency) partitioning
 Clustering

28. 28
1. Smoothing
Regression and Log-Linear Models
 Linear regression: Data are modeled to fit a straight line
 Often uses the least-square method to fit the line
 Multiple regression: allows a response variable Y to be modeled
as a linear function of multidimensional feature vector
 Log-linear model: approximates multidimensional probability
distributions

29. 29
 Linear regression: Y = w X + b
 Two regression coefficients, w and b, specify the line and are to be
estimated by using the data at hand
 Using the least squares criterion to the known values of Y1, Y2, …, X1,
X2, ….
 Multiple regression: Y = b0 + b1 X1 + b2 X2.
 Many nonlinear functions can be transformed into the above
 Log-linear models:
 Approximation of joint probabilities
 Estimate the probability of each point in a multi-dimensional space from a
smaller subset of dimensions
1. Smoothing
Regression and Log-Linear Models

30. 30
2. Normalization
 Min-max normalization: to [new_minA, new_maxA]
 Ex. Let income range $12,000 to $98,000 normalized to [0.0,
1.0]. Then $73,600 is mapped to
 Z-score normalization (μ: mean, σ: standard deviation)
 Ex. Let μ = 54,000, σ = 16,000. Then for 73600
 Normalization by decimal scaling
716.00)00.1(
000,12000,98
000,12600,73
=+−
−
−
AAA
AA
A
minnewminnewmaxnew
minmax
minv
v _)__(' +−
−
−
=
A
Av
v
σ
µ−
='
j
v
v
10
'= Where j is the smallest integer such that Max(|ν’|) < 1
225.1
000,16
000,54600,73
=
−

31. 31
3. Attribute Construction
 New attributes are constructed from given attributes
 To improve accuracy and understanding of structure
 Area from height and width
 Product operator and ‘and’

32. 32
4. Aggregation
 Data Cubes
 Store Multi-dimensional aggregated information
 Each cell holds an aggregate data value
 Concept hierarchies – allow analysis at multiple
levels
 Provide fast access to pre-computed summarized
data

33. 33
A Sample 3D Data Cube
Total annual sales
of TV in U.S.A.Date
Product
Country
sum
sum
TV
VCR
PC
1Qtr 2Qtr 3Qtr 4Qtr
U.S.A
Canada
Mexico
sum

34. 34
4. Aggregation
Data Cube Aggregation
 The lowest level of abstraction
 Base Cuboid
 Highest level of abstraction
 Apex Cuboid
 Multiple levels
 Lattice of Cuboids

35. 35
Cube: A Lattice of Cuboids
time,item
time,item,location
time, item, location, supplier
all
time item location supplier
time,location
time,supplier
item,location
item,supplier
location,supplier
time,item,supplier
time,location,supplier
item,location,supplier
0-D(apex) cuboid
1-D cuboids
2-D cuboids
3-D cuboids
4-D(base) cuboid

36. 36
5. Generalization - Concept hierarchy
 Concept hierarchy formation
 Recursively reduce the data by collecting and replacing low
level concepts (such as numeric values for age) by higher
level concepts (such as young, middle-aged, or senior)
 Detail lost but more meaningful
 Mining becomes easier
 Several concept hierarchies can be defined for the
same attribute
