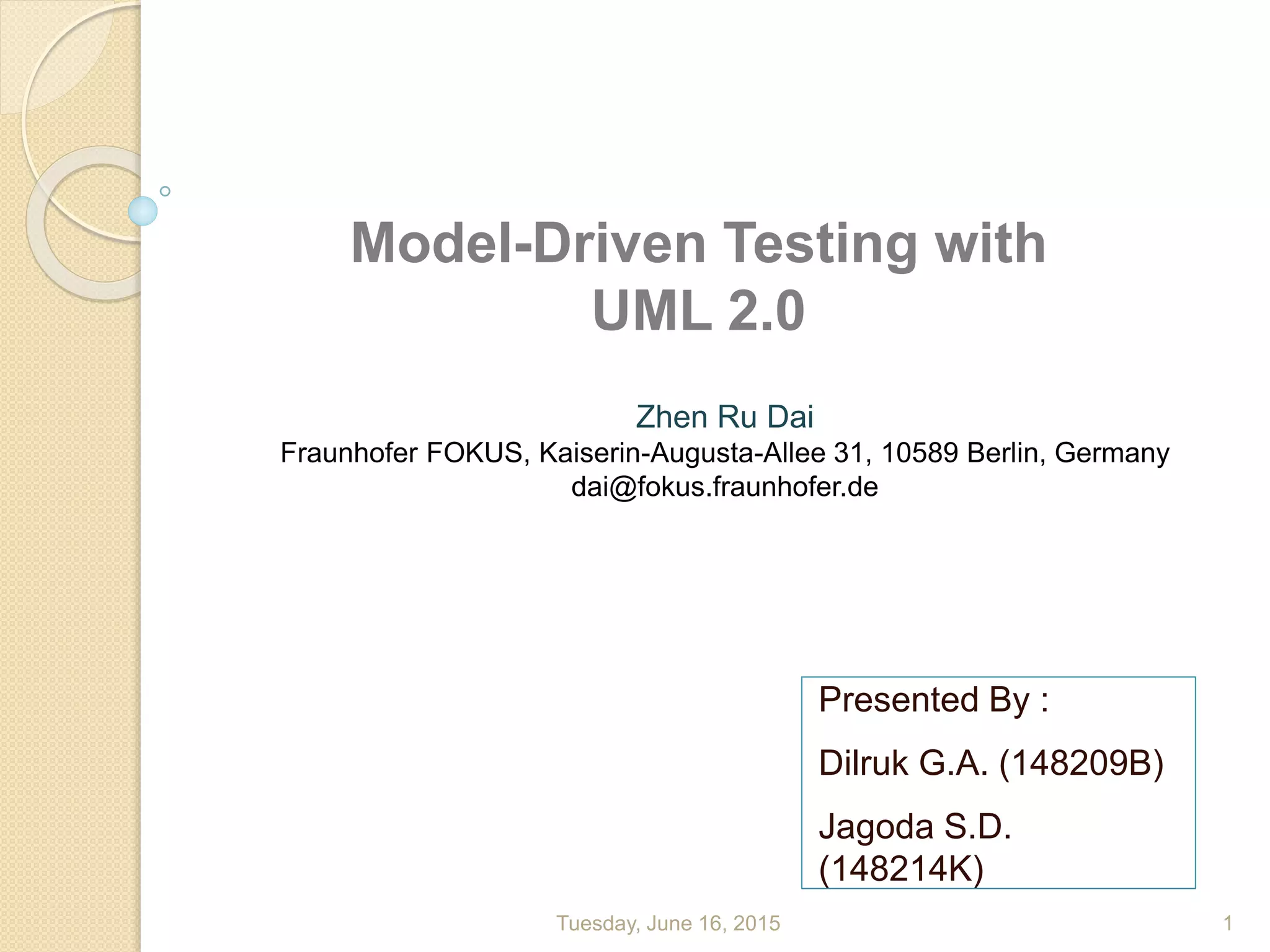

Model-Driven Testing with
UML 2.0
Zhen Ru Dai
Fraunhofer FOKUS, Kaiserin-Augusta-Allee 31, 10589 Berlin, Germany
dai@fokus.fraunhofer.de

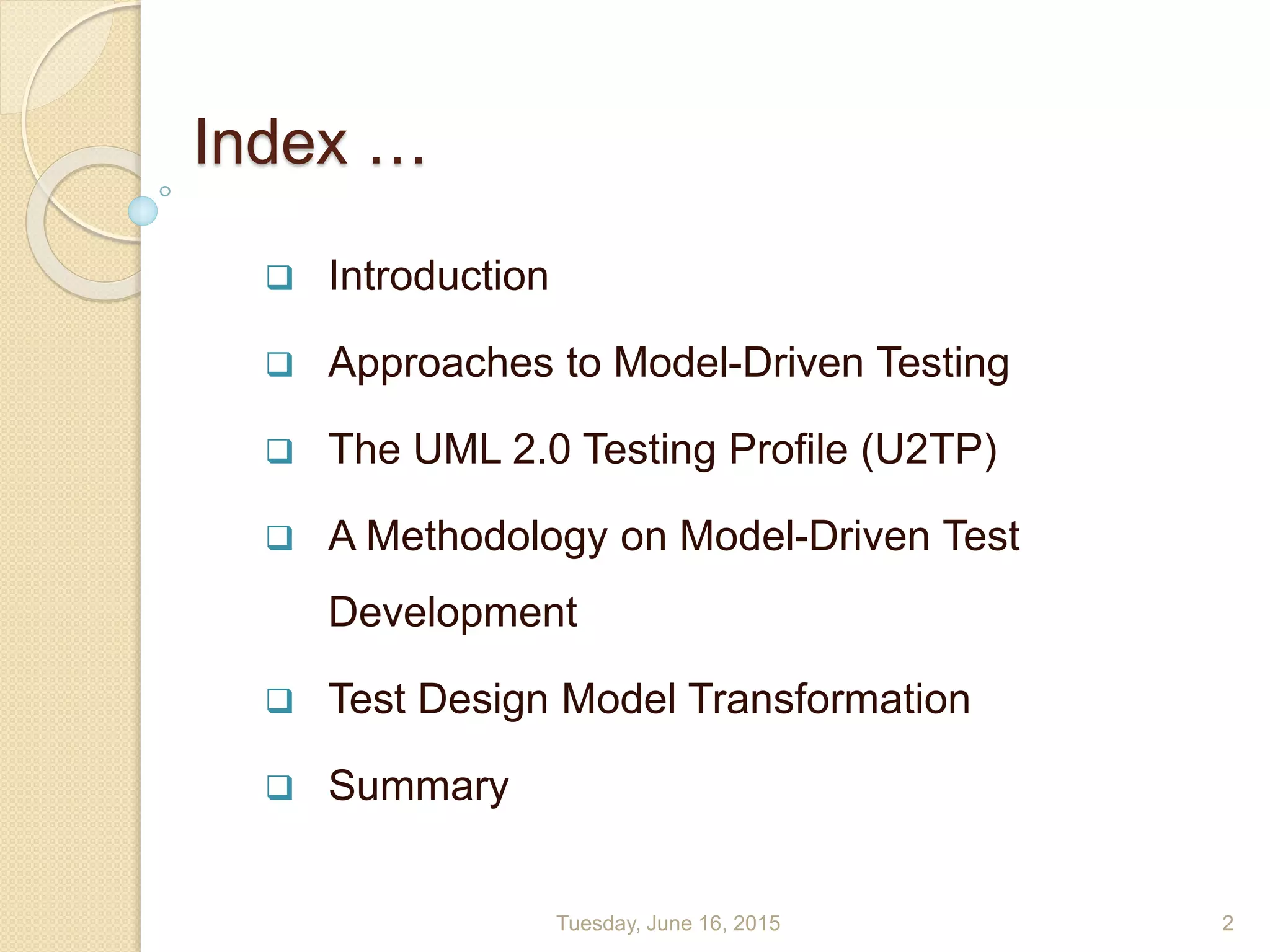

2. Index …
Introduction
Approaches to Model-Driven Testing
The UML 2.0 Testing Profile (U2TP)
A Methodology on Model-Driven Test
Development
Test Design Model Transformation
Summary
Tuesday, June 16, 2015 2
3. Introduction

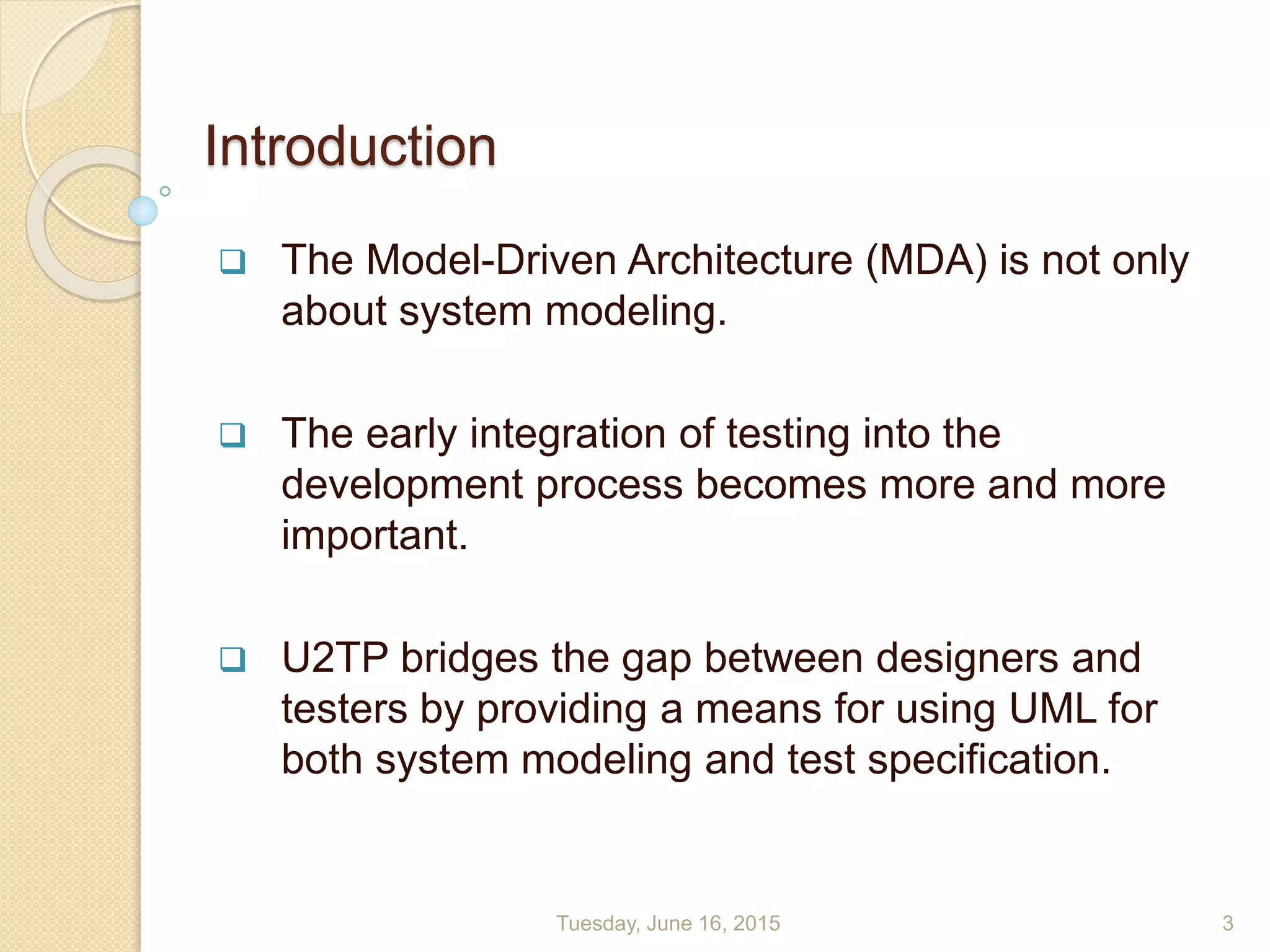

The Model-Driven Architecture (MDA) is not only
about system modeling.
The early integration of testing into the
development process becomes more and more
important.
U2TP bridges the gap between designers and
testers by providing a means for using UML for
both system modeling and test specification.
Tuesday, June 16, 2015 3

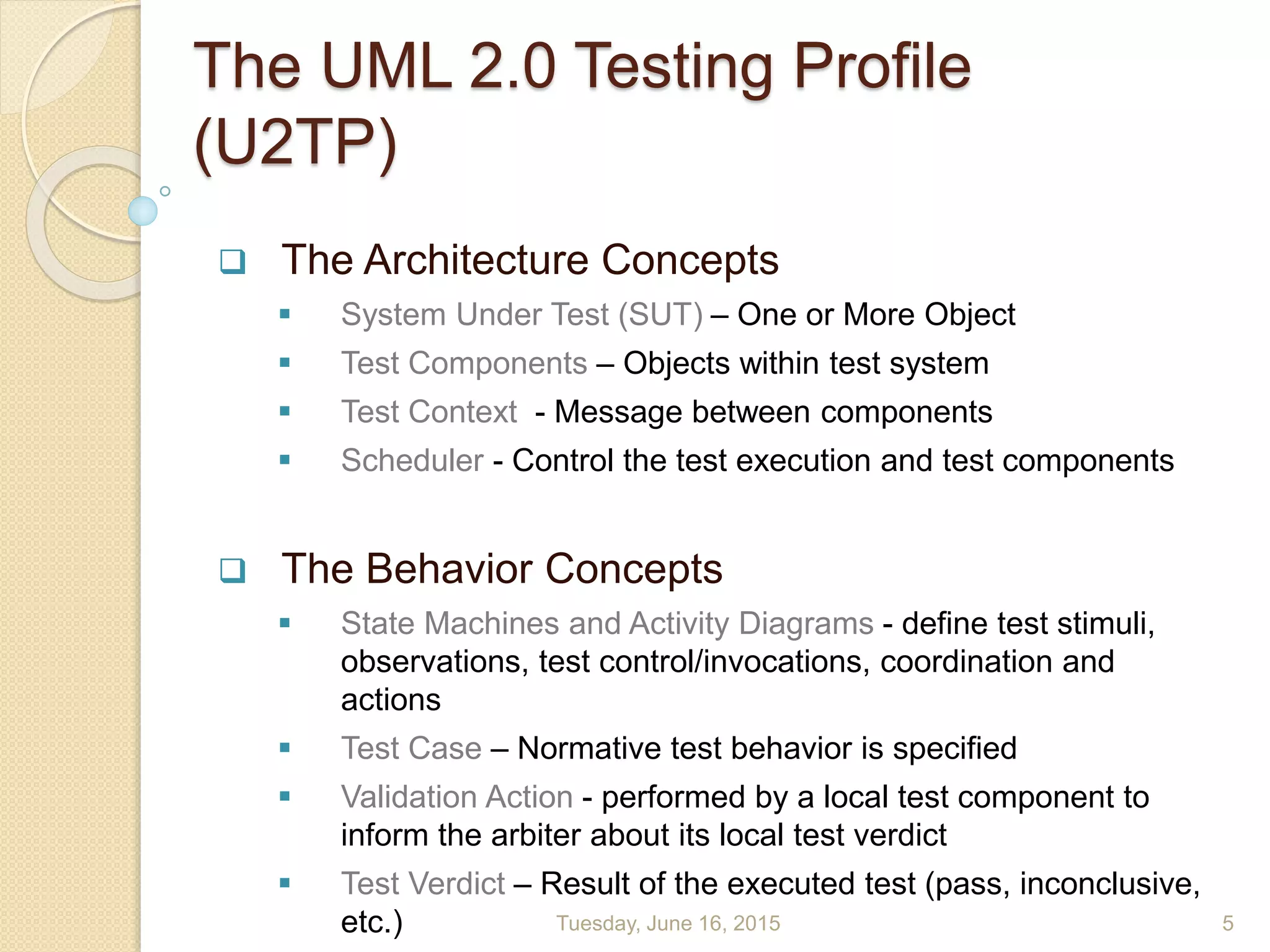

5. The UML 2.0 Testing Profile
(U2TP)
The Architecture Concepts
System Under Test (SUT) – One or More Object
Test Components – Objects within test system
Test Context - Message between components
Scheduler - Control the test execution and test components
The Behavior Concepts
State Machines and Activity Diagrams - define test stimuli,
observations, test control/invocations, coordination and
actions
Test Case – Normative test behavior is specified
Validation Action - performed by a local test component to
inform the arbiter about its local test verdict
Test Verdict – Result of the executed test (pass, inconclusive,
etc.) Tuesday, June 16, 2015 5

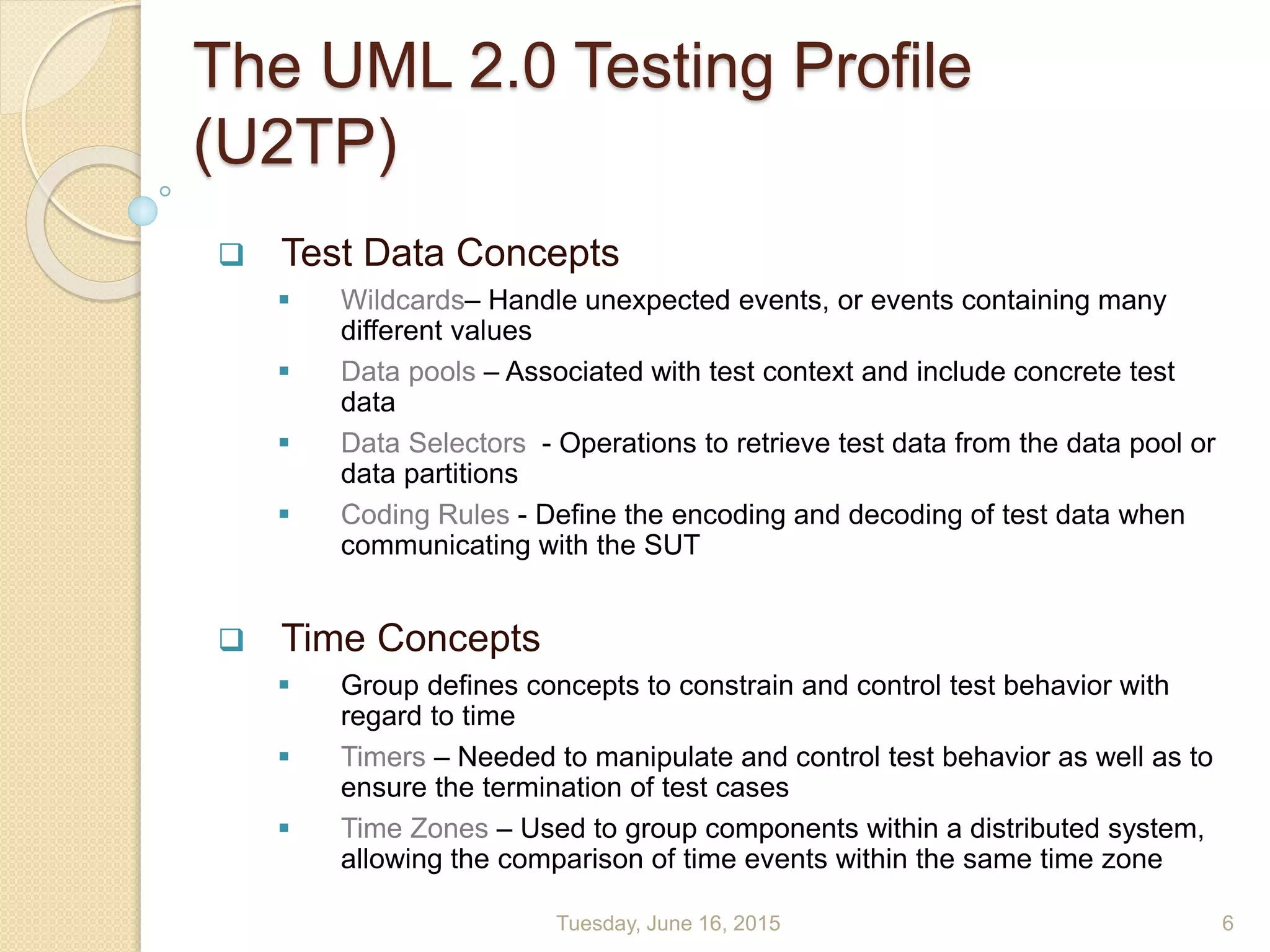

6. The UML 2.0 Testing Profile
(U2TP)
Test Data Concepts
Wildcards– Handle unexpected events, or events containing many
different values
Data pools – Associated with test context and include concrete test
data
Data Selectors - Operations to retrieve test data from the data pool or
data partitions
Coding Rules - Define the encoding and decoding of test data when
communicating with the SUT
Time Concepts
Group defines concepts to constrain and control test behavior with
regard to time
Timers – Needed to manipulate and control test behavior as well as to
ensure the termination of test cases
Time Zones – Used to group components within a distributed system,
allowing the comparison of time events within the same time zone
Tuesday, June 16, 2015 6

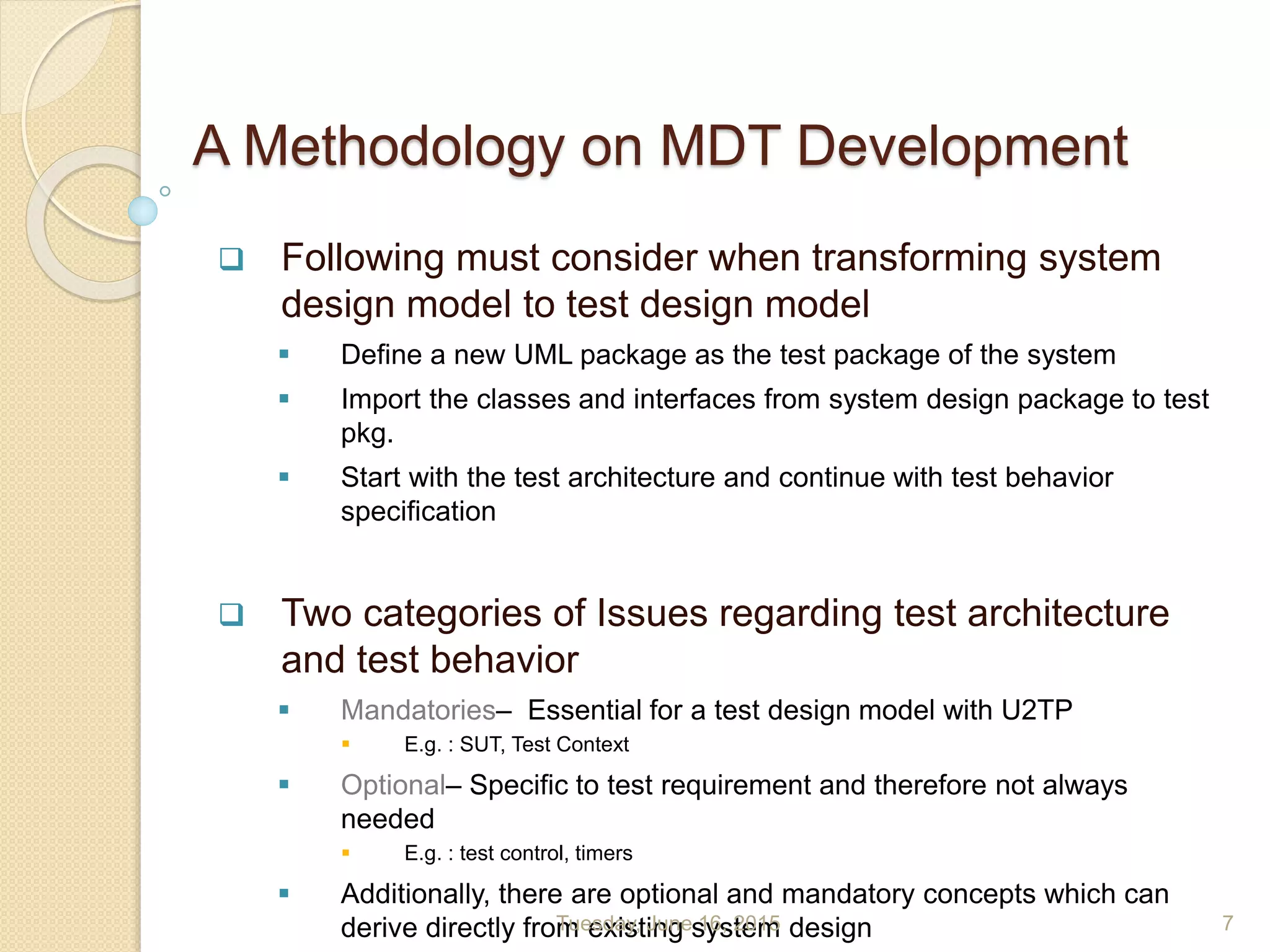

7. A Methodology on MDT Development
Following must consider when transforming system
design model to test design model
Define a new UML package as the test package of the system
Import the classes and interfaces from system design package to test
pkg.
Start with the test architecture and continue with test behavior
specification
Two categories of Issues regarding test architecture
and test behavior
Mandatories– Essential for a test design model with U2TP
E.g. : SUT, Test Context
Optional– Specific to test requirement and therefore not always
needed
E.g. : test control, timers
Additionally, there are optional and mandatory concepts which can
derive directly from existing system designTuesday, June 16, 2015 7

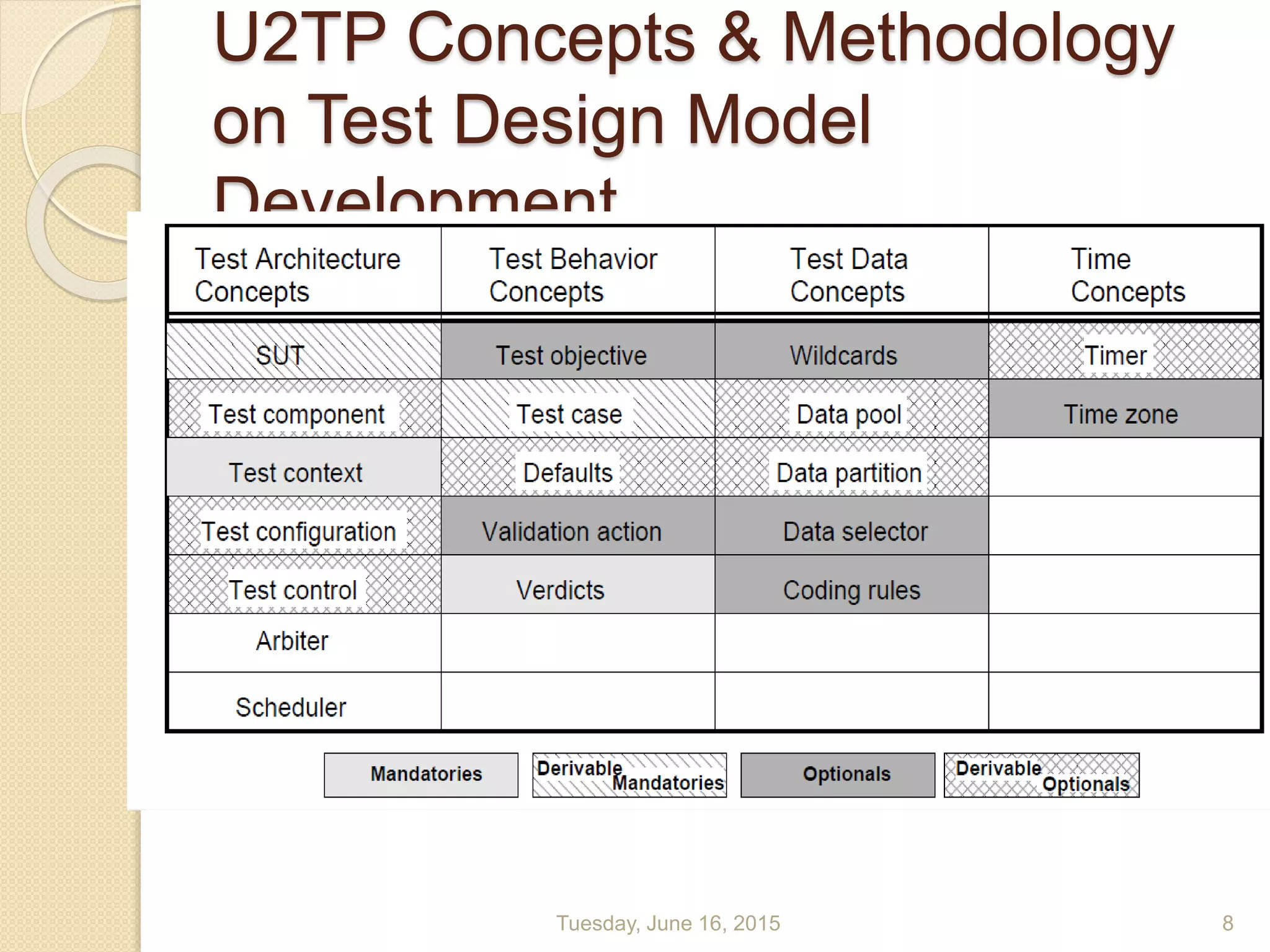

8. U2TP Concepts & Methodology
on Test Design Model
Development
Tuesday, June 16, 2015 8

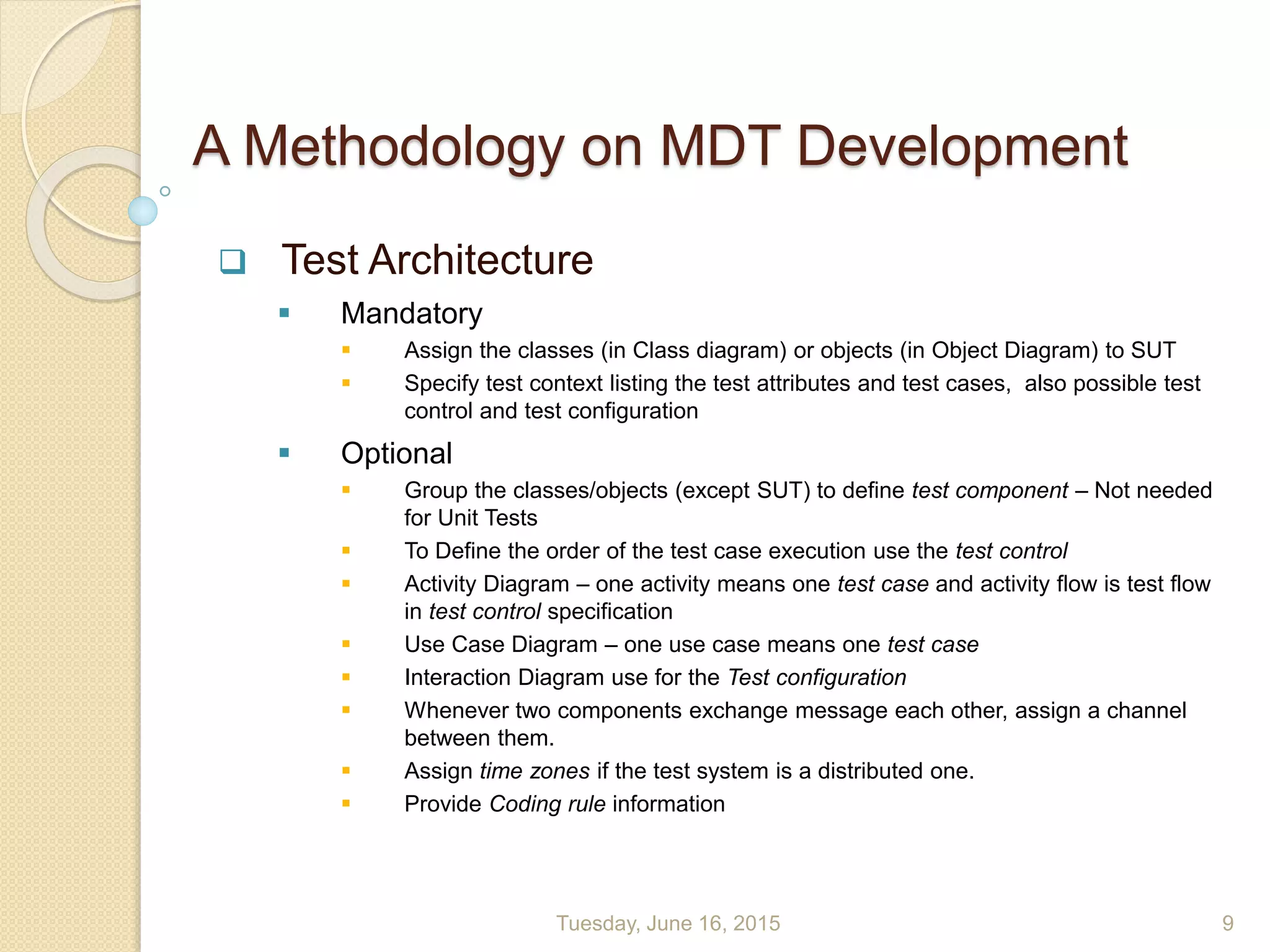

9. A Methodology on MDT Development
Test Architecture
Mandatory
Assign the classes (in Class diagram) or objects (in Object Diagram) to SUT
Specify test context listing the test attributes and test cases, also possible test
control and test configuration
Optional
Group the classes/objects (except SUT) to define test component – Not needed
for Unit Tests
To Define the order of the test case execution use the test control
Activity Diagram – one activity means one test case and activity flow is test flow
in test control specification
Use Case Diagram – one use case means one test case
Interaction Diagram use for the Test configuration
Whenever two components exchange message each other, assign a channel
between them.
Assign time zones if the test system is a distributed one.
Provide Coding rule information
Tuesday, June 16, 2015 9
10. A Methodology on MDT Development
Test Behavior
Mandatory

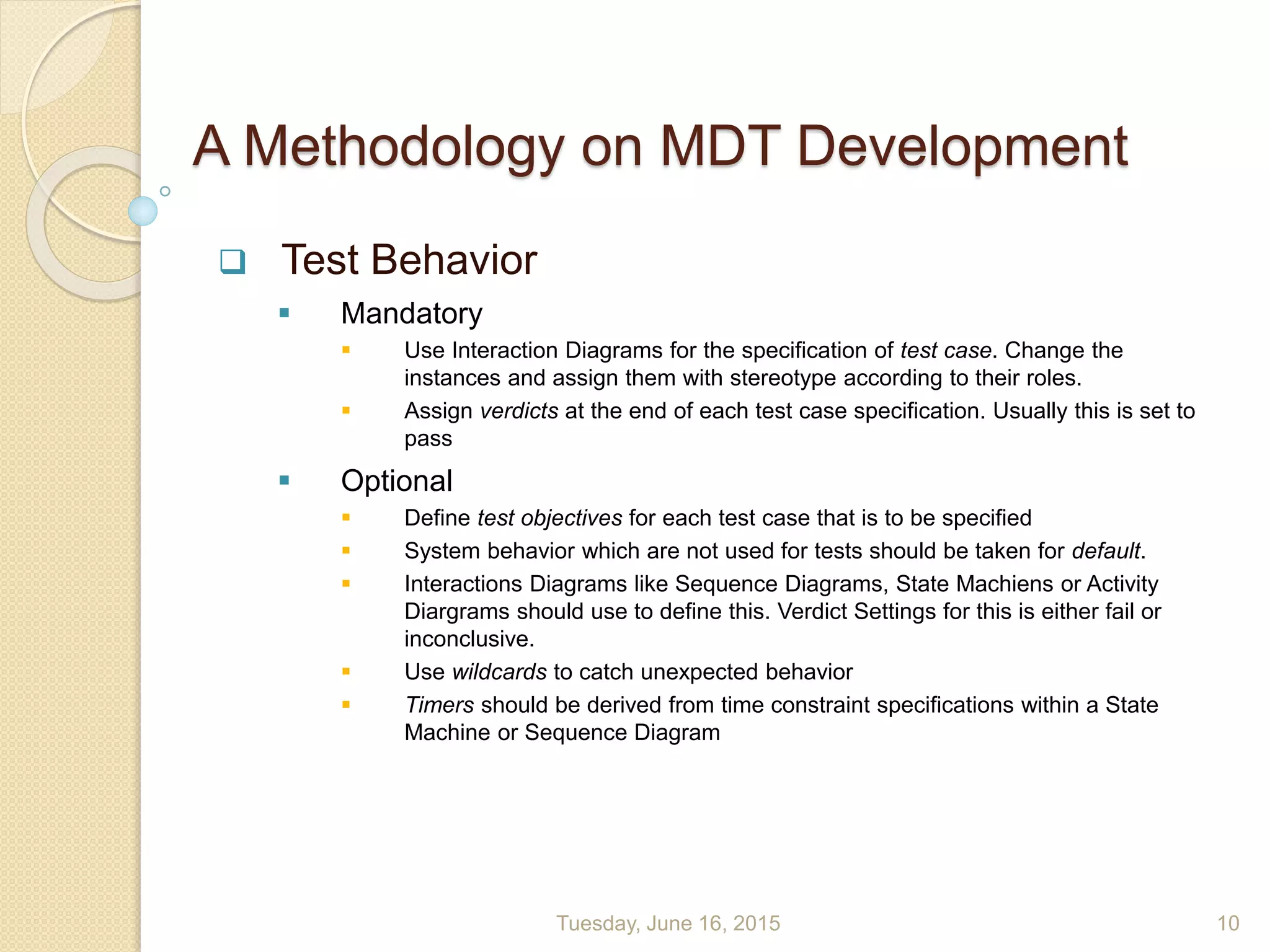

Use Interaction Diagrams for the specification of test case. Change the
instances and assign them with stereotype according to their roles.
Assign verdicts at the end of each test case specification. Usually this is set to
pass
Optional
Define test objectives for each test case that is to be specified
System behavior which are not used for tests should be taken for default.
Interactions Diagrams like Sequence Diagrams, State Machiens or Activity
Diargrams should use to define this. Verdict Settings for this is either fail or
inconclusive.
Use wildcards to catch unexpected behavior
Timers should be derived from time constraint specifications within a State
Machine or Sequence Diagram
Tuesday, June 16, 2015 10

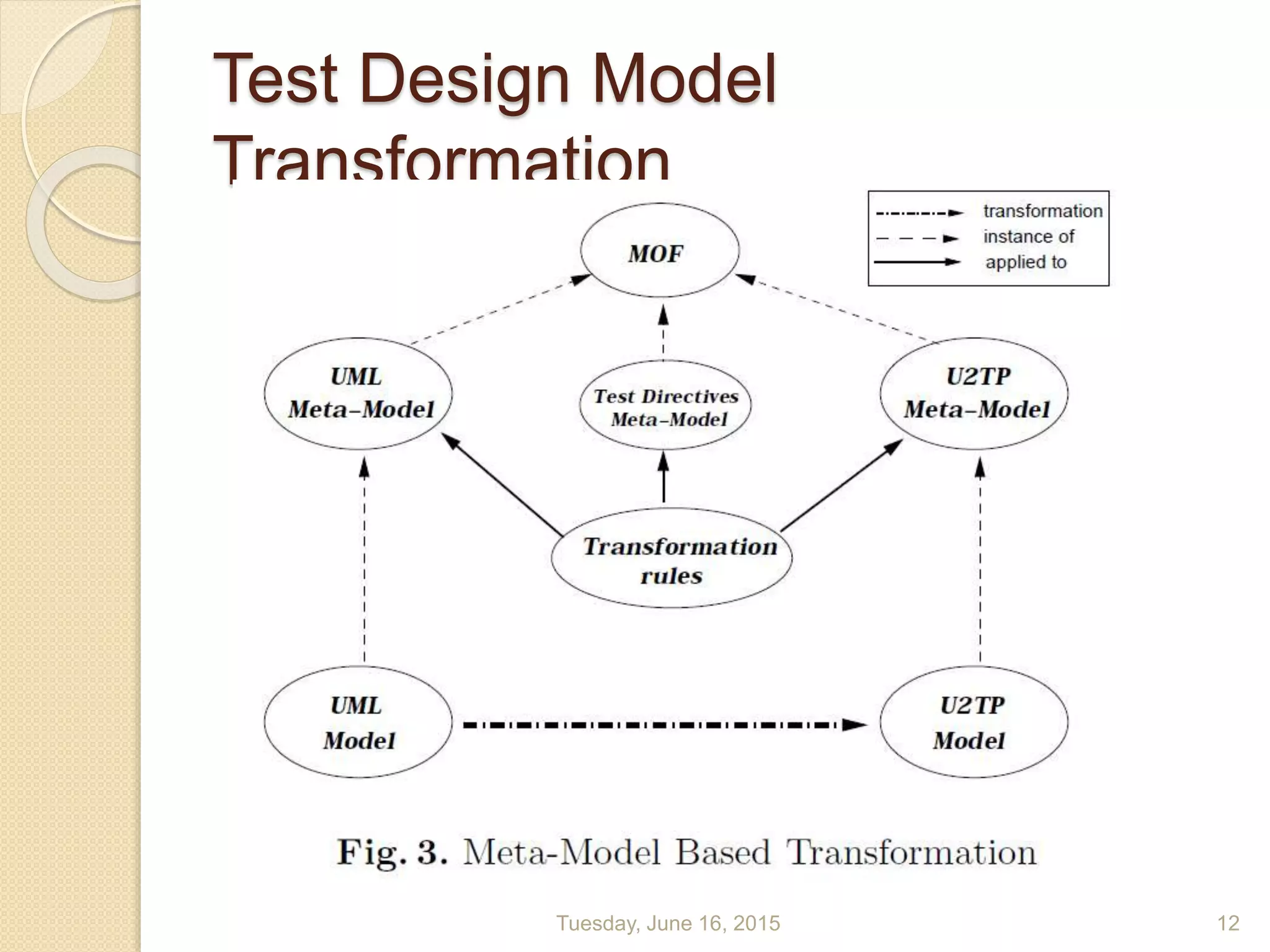

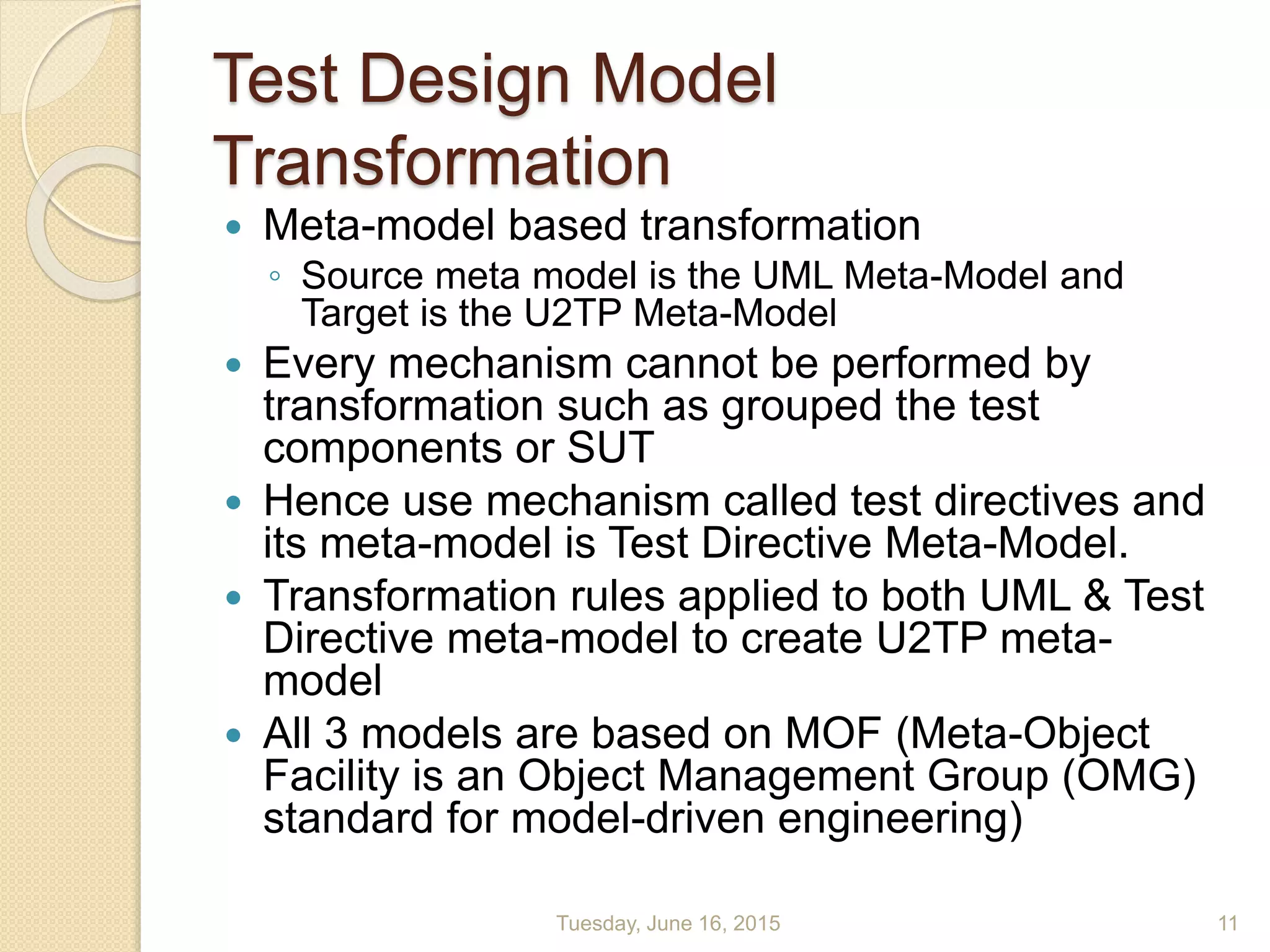

11. Test Design Model
Transformation

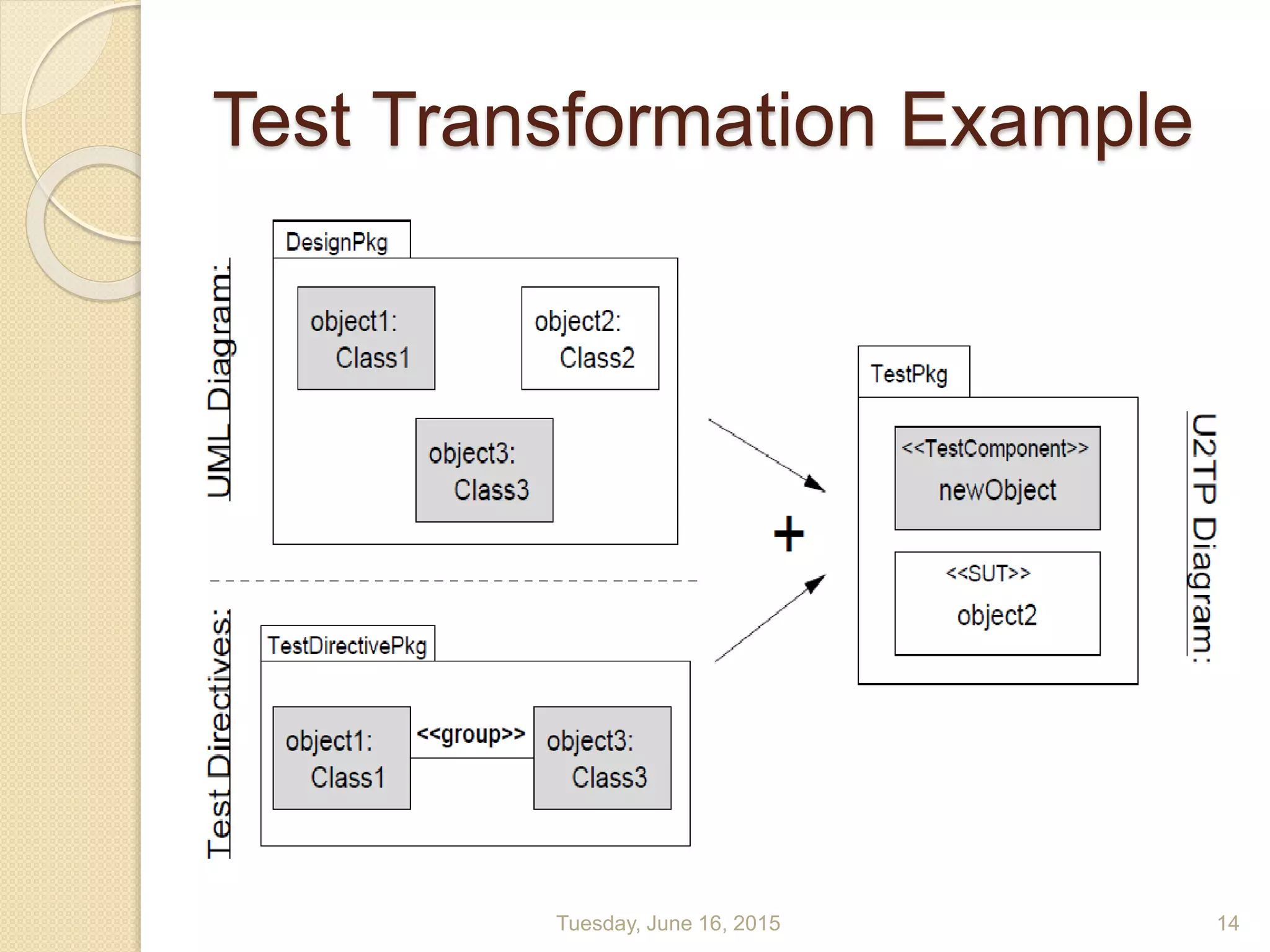

Meta-model based transformation
◦ Source meta model is the UML Meta-Model and
Target is the U2TP Meta-Model
Every mechanism cannot be performed by
transformation such as grouped the test
components or SUT
Hence use mechanism called test directives and
its meta-model is Test Directive Meta-Model.
Transformation rules applied to both UML & Test
Directive meta-model to create U2TP meta-
model
All 3 models are based on MOF (Meta-Object
Facility is an Object Management Group (OMG)
standard for model-driven engineering)
Tuesday, June 16, 2015 11
13. Test Design Model
Transformation

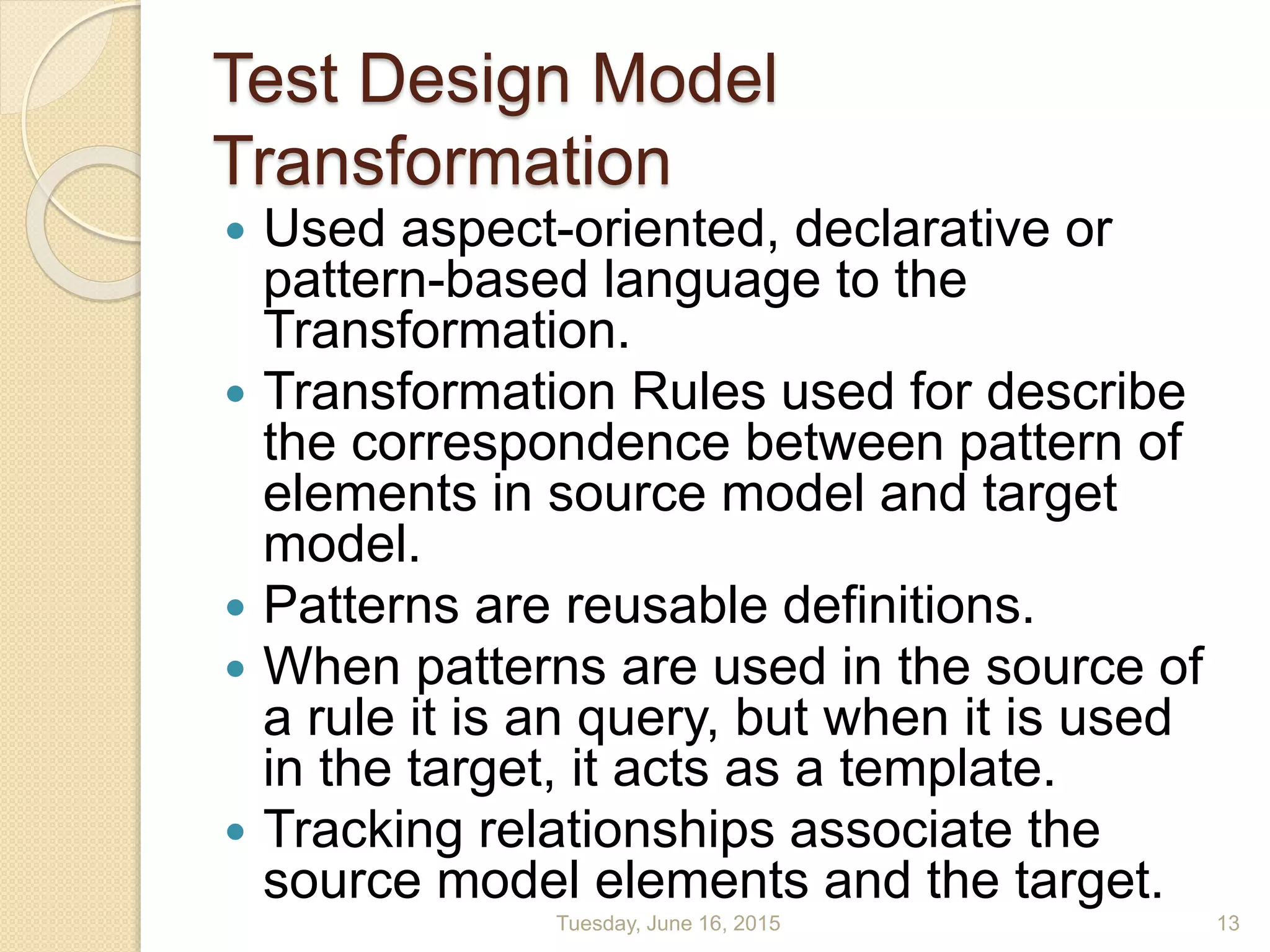

Used aspect-oriented, declarative or
pattern-based language to the
Transformation.
Transformation Rules used for describe
the correspondence between pattern of
elements in source model and target
model.
Patterns are reusable definitions.
When patterns are used in the source of
a rule it is an query, but when it is used
in the target, it acts as a template.
Tracking relationships associate the
source model elements and the target.
Tuesday, June 16, 2015 13

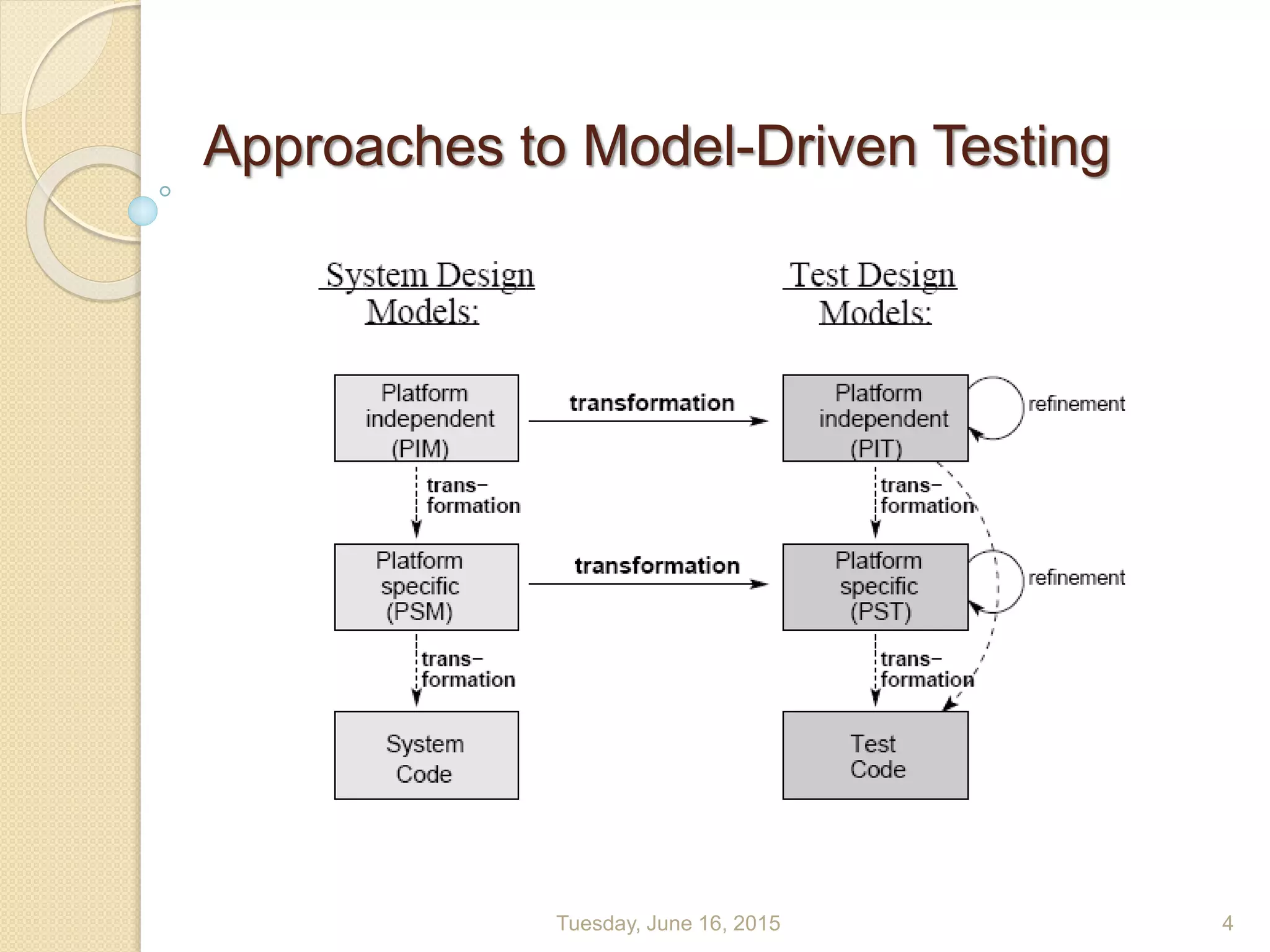

If I ask a question that how many of you aware about UML system modeling, probably all of you raised your hands saying we know. But when I ask how many of you aware about UML test profile and how to use UML for test modeling, most of you may not aware about this. So in this paper the main contribution is that describing a methodology for how to apply UML 2.0 Test profile concepts to an existing UML system design model effectively in order to retrieve a test design model.
So The MDA is not only about system modelling But also can be applied to test modelling.
As in the software development process steps, testing and test code generation is done at the last, but it is worth to have early integration of testing into development process. This allow reduction of time and cost.
So from the UML 2.0 version it was introduced UML test profile to model system testing, U2TP bridges ,..
platform independent system design models (PIM)
platform specific system design models (PSM)
platform independent test design model (PIT)
platform specific test design model (PST)
The UML 2.0 Testing Profile provides concepts to develop test specifications and test models for black-box testing. U2TP introduce four main logical concepts which are architeture concepts, behavir concepts, test data concepts and time concepts.
Together, these concepts define a modeling language for visualizing, specifying,analyzing, constructing and documenting a test system.
One or more objects can be identified as the System Under Test (SUT). Test components are objects within a test system
which can communicate with the SUT or other components to realize the test behavior. Test context …..
The scheduler controls the test execution and test components. It is responsible for the creation of test components, a synchronized
start of the different test components, and the detection of test case termination.
