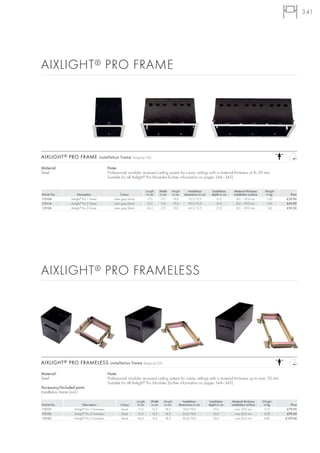

This document provides information on lighting frames and modules for the Aixlight® Pro recessed ceiling lighting system. It describes various round and flat installation frames made of steel that are suitable for different cavity ceiling thicknesses. It also lists bulb modules that can be used with the frames, including modules for QRB, ES111, and LED lights. Specifications like dimensions, weights, prices and material information are provided for each product.
This document provides product specifications for various lighting fixtures, including dimensions, materials, socket/bulb compatibility, and model numbers. It lists details for the PEMA SQUARE, NOVA WALL OUT, BOX-L E27, and several THEOS models. Recommended energy efficient bulbs are also provided for each fixture.
This document provides information on lighting frames and modules for the Aixlight® Pro recessed ceiling lighting system. It describes various round and flat installation frames made of steel that are suitable for different cavity ceiling thicknesses. It also lists bulb modules that can be used with the frames, including modules for QRB, ES111, and LED lights. Specifications like dimensions, weights, prices and material information are provided for each product.

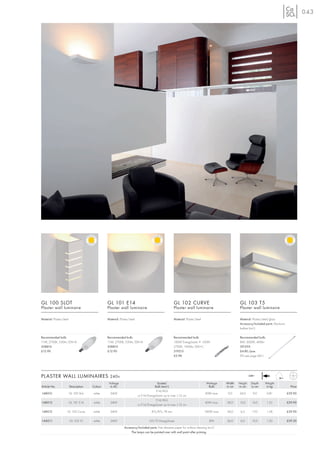

42. 043
GL 100 SLOT GL 101 E14 GL 102 CURVE GL 103 T5
Plaster wall luminaire Plaster wall luminaire Plaster wall luminaire Plaster wall luminaire
Material: Plaster/steel Material: Plaster/steel Material: Plaster/steel Material: Plaster/steel/glass
Accessory/Included parts: Electronic
ballast (incl.)
Recommended bulb: Recommended bulb: Recommended bulb: Recommended bulb:
11W, 2700K, 530lm, EEK=A 11W, 2700K, 530lm, EEK=A 100W EnergySaver ≙ 150W 8W, 3000K, 400lm
508810 508810 2700K, 1900lm, EEK=C 591293
£12.90 £12.90 519215 £4.80 /pce.
£2.98 (PU see page 661)
PLASTER WALL LUMINAIRES 240v 240~
Voltage Socket/ Wattage Width Height Depth Weight
Article No. Description Colour in AC Bulb (excl.) Bulb in cm in cm in cm in kg Price
E14/AGL
148010 GL 100 Slot white 240V 40W max. 9,0 24,0 9,0 0,81 £29.90
or E14/EnergySaver up to max. L:12 cm
E14/AGL
148013 GL 101 E14 white 240V 40W max. 28,0 13,0 14,0 1,25 £29.90
or E14/EnergySaver up to max. L:12 cm
148012 GL 102 Curve white 240V R7s/R7s, 78 mm 100W max. 36,0 6,5 17,0 1,58 £39.90
148011 GL 103 T5 white 240V G5/T5 EnergySaver 8W 36,0 6,0 10,0 1,30 £59.50
Accessory/Included parts: Fine abrasive paper for surface cleaning (incl.)
The lamps can be painted over with wall paint after priming.
43. 044
GL 104 | 148002 | £49.90 GL 105 | 148001 | £59.50
GL 104/105 E27 plaster ceiling luminaires 240~
Material: Recommended bulb:
Plaster/steel/glass 15W, 2700K, 800lm, EEK=A
508960
£9.90
Voltage Socket/ Wattage Ø Length Width Height Weight
Article No. Description Colour in AC Bulb (excl.) Bulb in cm in cm in cm in cm in kg Price
E27/AGL 2x 25W max.
148002 GL 104 E27 white 240V – 25,0 25,0 9,5 2,6 £49.90
or E27/EnergySaver or 2x 15W max. up to max. Ø/L:5/14 cm
E27/AGL 2x 25W max.
148001 GL 105 E27 white 240V 31,0 – – 8,0 2,3 £59.50
or E27/EnergySaver or 2x 15W max. up to max. Ø/L:5/14 cm
Accessory/Included parts: Fine abrasive paper for surface cleaning (incl)
The lamps can be painted over with wall paint after priming.
GL 108 flush | 148022 | £24.90 GL 108 overlying | 148022 | £24.90 GL 109 overlying | 148020 | £24.90 GL 110 overlying | 148021 | £24.90
GL Plaster recessed luminaires 12~
Material: Note: Recommended bulb: Recommeded transformer:
Plaster/steel Do not cover the rear side of the 35W, 2700K, 810cd, 40° FN Minitrafo 1, 10-60VA, 12~
lamp with insulating material! 536338 461060
Accessory/Included parts: The lamps can be painted over £1.90 £14.80
Transformer (excl.) with wall paint after priming.
Fine abrasive paper for surface
cleaning (incl.)
Voltage Socket/ Wattage Ø Length Width Depth Cut-out Installation depth Application Weight
Article No. Description Colour in AC Bulb (excl.) Bulb in cm in cm in cm in cm in cm in cm area in kg Price
148022 GL 108 Indi white 12V G5,3/MR16 35W max. – 14,0 14,0 13,0 12,0/12,0 12,0 Wall/Ceiling 0,68 £24.90
Only suitable for cavity ceilings and walls with a material thickness of max. 10-20 mm by overlying and 10-15 mm by flush installation.
The specification on the cut-out apply to overlying installation.
148020 GL 109 Horn white 12V G5,3/MR16 35W max. 13,0 – – 13,5 Ø 11,0 13,0 Ceiling 0,43 £24.90
148021 GL 110 MR16 white 12V G5,3/MR16 35W max. – 13,0 13,0 14,0 11,5/11,5 13,0 Ceiling 0,50 £24.90
Only suitable for cavity ceilings with a material thickness of max. 15 mm by overlying and 10-15 mm by flush installation.
47. 048

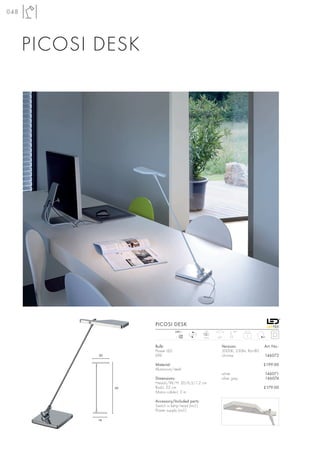

PICOSI DESK
PICOSI DESK
240~ LED 45°
mA LED 2
700 1pce. 60°
Bulb: Versions: Art. No.:
Power LED 3000K, 330lm, Ra>80
20 6W chrome 146072
Material: £199.00
Aluminium/steel
white 146071
Dimensions: silver grey 146074
Head-L/W/H: 20/6,5/1,2 cm
56 Rod-L: 52 cm £179.00
Mains cable-L: 2 m
Accessory/Included parts:
Switch in lamp head (incl.)
Power supply (incl.)
14
48. 049
CYGNIS
Series: Page 082
With the table lamp Cygnis our product designers followed the conceptual
formulation to create an high-class table lamp with the shape lines reduced to
the essentials for a simple, elegant living style.
Together with modern LED technology Cygnis captivates with its puristical
elegant design and high functionality. The ultra flat 6W LED surface machtes
the clear, geometrical shaped lines and provides a bright light output.
The switch of the 41 cm high, entirely aluminium produces designer lamp is
included in the connection lead. With the integrated LED driver in the mains
plug the lamp is ready for use with 240V.
CYGNIS Table lamp Design by CDC
240~ LED 120°
mA LED 1,0
400 1pce.
Bulb: Versions: Art. No.:
Planar LED (incl.) alu brushed
40,5
6W LED 4000K, 270lm 146046
Material: £199.00
Aluminium
Dimensions:
Product-L/W/H: 40,5/14/41 cm
41
Mains cable-L: 2 m
Accessory/Included parts:
Plug-in power supply (incl.)
Switch in mains cable (incl.)
Note:
Power supply: protection class II
prim.: 240V/50Hz
sec.: 15V/400mA
49. 050
240~ 90°

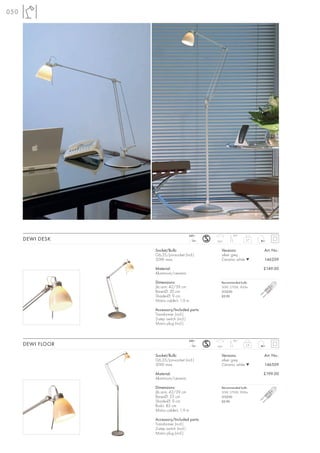

DEWI DESK 12~ 350°
3,7
Socket/Bulb: Versions: Art. No.:
G6,35/pin-socket (incl.) silver grey
50W max. Ceramic white ▼ 146209
Material: £149.00
Aluminium/ceramic
Dimensions: Recommended bulb:
Jib arm: 42/39 cm 50W, 2700K, 900lm
Base-Ø: 20 cm 512250
Shade-Ø: 9 cm £0.90
Mains cable-L: 1,9 m
Accessory/Included parts:
Transformer (incl.)
2-step switch (incl.)
Mains plug (incl.)
240~ 90°
DEWI FLOOR 12~ 350°
5,4
Socket/Bulb: Versions: Art. No.:
G6,35/pin-socket (incl.) silver grey
50W max. Ceramic white ▼ 146509
Material: £199.00
Aluminium/ceramic
Dimensions: Recommended bulb:
Jib arm: 42/39 cm 50W, 2700K, 900lm
Base-Ø: 23 cm 512250
Shade-Ø: 9 cm £0.90
Rod-L: 85 cm
Mains cable-L: 1,9 m
Accessory/Included parts:
Transformer (incl.)
2-step switch (incl.)
Mains plug (incl.)
50. 051
Ballast
WORK LIGHT FLOOR Design by CDC 240~
EEI=A2 18,7
Series: Page 063
Socket/Bulb: Versions: Art. No.:
2G11/TC-L EnergySaver (excl.) silver grey 157152
4x 55W
£620.00
Material:
Aluminium/plastic
Recommended bulb:
Dimensions: 55W, 4000K, 4800lm, EEK=A
W/H/D: 42/185/60 cm 508451
Base-L/B: 40/34,2 cm £9.90
Mains cable-L: 2 m
Accessory/Included parts: Recommended accessory:
Electronic ballast (incl.) Darklight Grid, ultra clean aluminium,
2 switches (incl.) high-gloss finished
Mains plug (incl.) L/W/H: 54,3/14/5 cm
Grid (excl.) 157154
£49.90
Note:
Two switches to operate the lamp According to DIN 5035-7 the Darklight grid is
with half or full luminous power. suitable for display work stations. It provides a
glare-free light and optimal illuminated work
place. Two grids are needed for one lamp.
51. 052
PENDANT LUMINAIRES
Linear fluorescent
and
grid luminaires for
display work
station
064 065 065 063 063
069 066 069 070 070 072 072
066 054 - 057 058 058 058 060, 061 060, 061
52. 053
Series Aixlight®
MR16
GU10
QRB111
ES111
076 076 076 076
079 079 079 078 078
Series Aixlight® R
QRB111
HQI-T
Series Aixlight® R2
QRB111
HQI-T
080 080 080 081 081 081 081
Series Grill
074 074 074
Single luminaires
and
light objects
086 087 096 083
091 092 092 092 093 093
091 095 091 095 095 084 084
089 100 100 104
084 084 089 089 087 107
102 102 099 103 099 100
108 108 108 108
Professional lamps
for the commercial
use
109 109 109 107
LED luminaires
082 073 073 108 104
53. 054

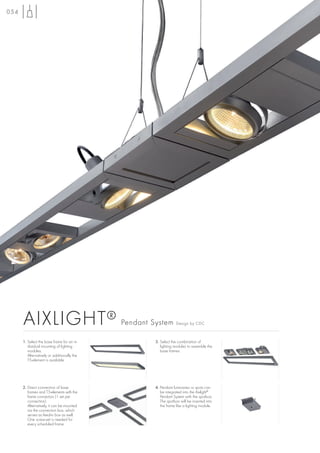

AIXLIGHT ® Pendant System Design by CDC
1. Select the base frame for an in- 3. Select the combination of
dividual mounting of lighting lighting modules to assemble the
modules. base frames.
Alternatively or additionally the
T5-element is available
2. Direct connection of base 4. Pendant luminaires or spots can
frames and T5-elements with the be integrated into the Aixlight®
frame connectors (1 set per Pendant System with the spotbox.
connection). The spotbox will be inserted into
Alternatively, it can be mounted the frame like a lighting module.
via the connection box, which
serves as feed-in box as well.
One screw-set is needed for
every scheduled frame.
