Global Induction Lighting is committed to using next generation lighting technology to achieve energy savings, reduce environmental impact, and improve quality of light while enabling sustainable growth. Their induction lamps can reduce energy consumption by 50-70% compared to traditional lighting, lower greenhouse gas emissions, and have a very long lifetime of over 100,000 hours which reduces maintenance costs and landfill waste. The lighting products are designed for both interior and exterior commercial and industrial applications.

1. L I G H T I N G TO DAY F O R A B R I G H T E R TO M O R R OW
www.globalinductionlighting.com

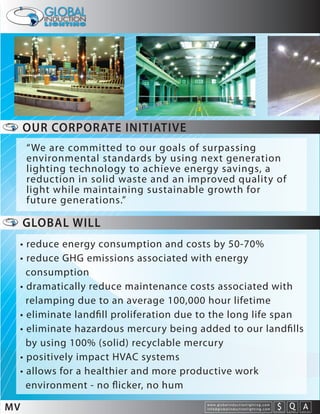

2. OUR CORPORATE INITIATIVE
“We are committed to our goals of surpassing
environmental standards by using next generation
lighting technology to achieve energy savings, a
reduction in solid waste and an improved quality of
light while maintaining sustainable growth for
future generations.”
GLOBAL WILL
• reduce energy consumption and costs by 50-70%
• reduce GHG emissions associated with energy
consumption
• dramatically reduce maintenance costs associated with
relamping due to an average 100,000 hour lifetime
• eliminate landfill proliferation due to the long life span
• eliminate hazardous mercury being added to our landfills
by using 100% (solid) recyclable mercury
• positively impact HVAC systems
• allows for a healthier and more productive work
environment - no flicker, no hum
MV w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

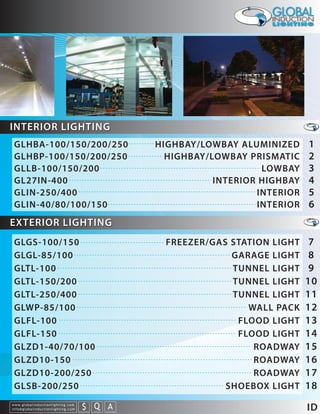

3. INTERIOR LIGHTING
GLHBA-100/150/200/250 HIGHBAY/LOWBAY ALUMINIZED 1
GLHBP-100/150/200/250 HIGHBAY/LOWBAY PRISMATIC 2
GLLB-100/150/200 LOWBAY 3
GL27IN-400 INTERIOR HIGHBAY 4
GLIN-250/400 INTERIOR 5
GLIN-40/80/100/150 INTERIOR 6
EXTERIOR LIGHTING
GLGS-100/150 FREEZER/GAS STATION LIGHT 7
GLGL-85/100 GARAGE LIGHT 8

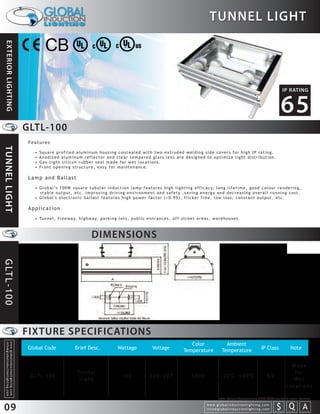

GLTL-100 TUNNEL LIGHT 9
GLTL-150/200 TUNNEL LIGHT 10

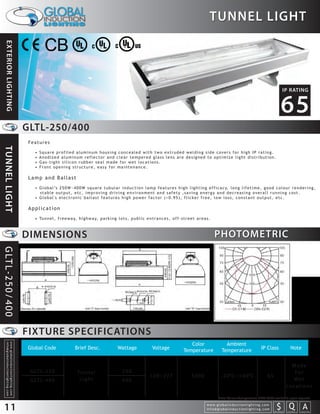

GLTL-250/400 TUNNEL LIGHT 11
GLWP-85/100 WALL PACK 12

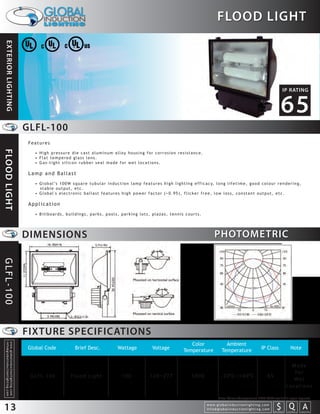

GLFL-100 FLOOD LIGHT 13

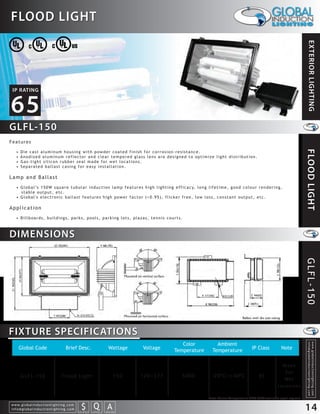

GLFL-150 FLOOD LIGHT 14

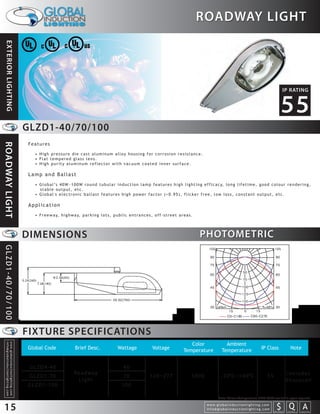

GLZD1-40/70/100 ROADWAY 15

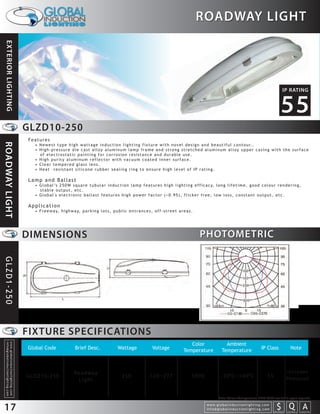

GLZD10-150 ROADWAY 16
GLZD10-200/250 ROADWAY 17

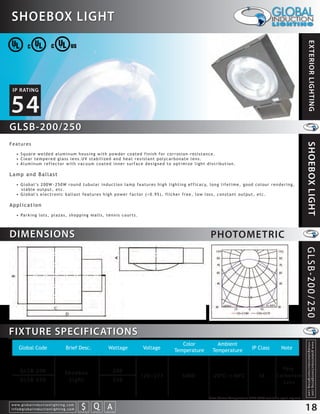

GLSB-200/250 SHOEBOX LIGHT 18
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
ID

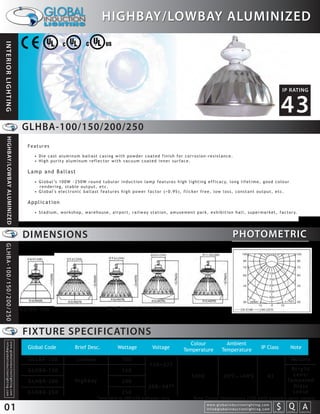

4. HIGHBAY/LOWBAY ALUMINIZED
INTERIOR LIGHTING
IP RATING
43
GLHBA-100/150/200/250
HIGHBAY/LOWBAY ALUMINIZED
Features
• Die cast aluminum ballast casing with powder coated finish for corrosion-resistance.
• High purity aluminum reflector with vacuum coated inner surface.
Lamp and Ballast
• G l o b a l ’s 1 0 0 W ~ 2 5 0 W r o u n d t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r
rendering, stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• S t a d i u m , w o r k s h o p , w a r e h o u s e , a i r p o r t , r a i l w a y s t a t i o n , a m u s e m e n t p a r k , e x h i b i t i o n h a l l , s u p e r m a r k e t , f a c t o r y.
DIMENSIONS PHOTOMETRIC
GLHBA-100/150/200/250
GLLBA-100 GLHBA-150/200/250
FIXTURE SPECIFICATIONS
Colour Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
GLLBA-100 Lowbay 100 No Lens
120~277
GLHBA-150 150 Acr ylic
5000 -20 C~+40 C 43 Lens/
GLHBA-200 Highbay 200 Te m p e r e d
208~347* Glass
GLHBA-250 250 Lense
*available in 200/250 wattages only Note: Colour Temperature 2720-6500 available upon request.
01 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

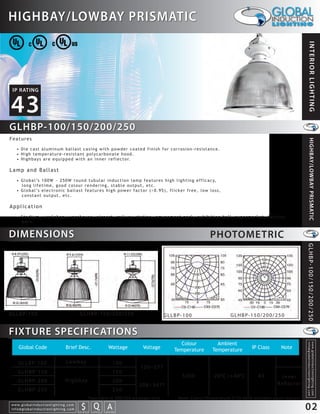

5. HIGHBAY/LOWBAY PRISMATIC
INTERIOR LIGHTING
IP RATING
43
GLHBP-100/150/200/250
Features
HIGHBAY/LOWBAY PRISMATIC
• Die cast aluminum ballast casing with powder coated finish for corrosion-resistance.
• High temperature-resistant polycarbonate hood.
• H i g h b a y s a r e e q u i p p e d w i t h a n i n n e r r e f l e c t o r.
Lamp and Ballast
• G l o b a l ’s 1 0 0 W ~ 2 5 0 W r o u n d t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y,
long lifetime, good colour rendering, stable output, etc.
• G l o b a l ’s e l e c t r o n i c b a l l a s t f e a t u r e s h i g h p o w e r f a c t o r ( > 0 . 9 5 ) , f l i c k e r f r e e , l o w l o s s ,
constant output, etc.
Application
• S t a d i u m , w o r k s h o p , w a r e h o u s e , a i r p o r t , r a i l w a y s t a t i o n , a m u s e m e n t p a r k , e x h i b i t i o n h a l l , s u p e r m a r k e t , f a c t o r y,
barn.
DIMENSIONS PHOTOMETRIC
GLHBP-100/150/200/250
GLLBP-100 GLHBP-150/200/250 GLLBP-100 GLHBP-150/200/250
FIXTURE SPECIFICATIONS
Colour Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
GLLBP-100 Lowbay 100
120~277
GLHBP-150 150
5000 -20 C~+40 C 43 Inner
GLHBP-200 Highbay 200
208~347* Re ector
GLHBP-250 250
*available in 200/250 wattages only Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
02

6. LOWBAY
INTERIOR LIGHTING
IP RATING
43
GLLB-100/150/200
Features
• Die cast aluminum ballast casing with powder coated finish for corrosion-resistance.
• High purity aluminum reflector with vacuum coated inner surface.
LOWBAY
Lamp and Ballast
• G l o b a l ’s 1 0 0 W ~ 2 0 0 W r o u n d t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r
rendering, stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Stadium, workshop, warehouse, airport, railway station, amusement park, exhibition hall, supermarket.
DIMENSIONS PHOTOMETRIC
GLLB-100/150/200
GLLB-100 GLLB-150/200 GLLB-100 GLLB-150/200
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
GLLB-100 100 Acr ylic
or
GLLB-150 Lowbay 150 120~277 5000 -20 C~+40 C 43
Prismatic
GLLB-200 200 Lens
Note: Colour Temperature 2720-6500 available upon request.
03 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

7. INTERIOR HIGHBAY
INTERIOR LIGHTING
IP RATING
20
GL27IN-400
Features
INTERIOR HIGHBAY
• Die cast aluminum ballast casing with powder coated finish for corrosion-resistance.
• Re f l e c t o r m a d e o f h i g h q u a l i t y a l u m i n u m p l a t e .
• Open structure for good ventilation and prolonged lifetime.
• Mounting: by hanging pole or “L” shape bracket.
Lamp and Ballast
• G l o b a l ’s 4 0 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc.
• G l o b a l ’s e l e c t r o n i c b a l l a s t f e a t u r e s h i g h p o w e r f a c t o r ( > 0 . 9 5 ) , f l i c k e r f r e e , l o w l o s s ,
constant output, etc.
Application
• Stadium, workshop, warehouse, airport, railway station, exhibition hall, supermarket.
DIMENSIONS PHOTOMETRIC
GL27IN-400
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Mounts
on
Indoor Hanging
GL27IN-400 400 120~277 5000 0 C~+40 C 20
Highbay Po l e
o r “ L”
Bracket
Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
04

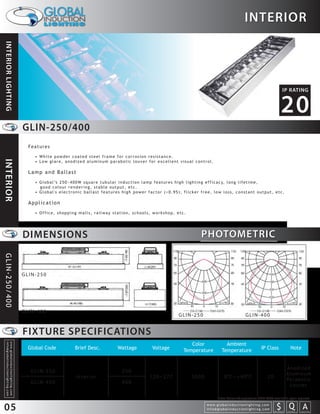

8. INTERIOR
INTERIOR LIGHTING
IP RATING
20
GLIN-250/400
Features
• White powder coated steel frame for corrosion resistance.
INTERIOR
• Low glare, anodized aluminum parabolic louver for excellent visual control.
Lamp and Ballast
• G l o b a l ’s 2 5 0 ~ 4 0 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e ,
good colour rendering, stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Office, shopping malls, railway station, schools, workshop, etc.
DIMENSIONS PHOTOMETRIC
GLIN-250/400
GLIN-250
GLIN-400
GLIN-250 GLIN-400
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Anodized
GLIN-250 250 Aluminum
Interior 120~277 5000 0 C~+40 C 20
Pa r a b o l i c
GLIN-400 400
Louver
Note: Colour Temperature 2720-6500 available upon request.
05 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

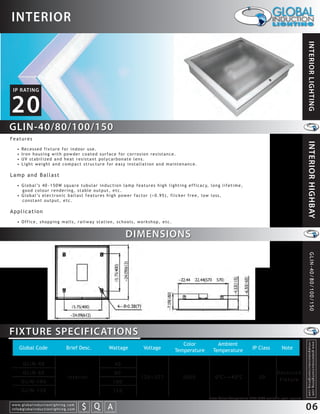

9. INTERIOR
INTERIOR LIGHTING
IP RATING
20
GLIN-40/80/100/150
Features
INTERIOR HIGHBAY
• Re c e s s e d f i x t u r e f o r i n d o o r u s e .
• Iron housing with powder coated surface for corrosion resistance.
• UV stabilized and heat resistant polycarbonate lens.
• Light weight and compact structure for easy installation and maintenance.
Lamp and Ballast
• G l o b a l ’s 4 0 ~ 1 5 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e ,
good colour rendering, stable output, etc.
• G l o b a l ’s e l e c t r o n i c b a l l a s t f e a t u r e s h i g h p o w e r f a c t o r ( > 0 . 9 5 ) , f l i c k e r f r e e , l o w l o s s ,
constant output, etc.
Application
• Office, shopping malls, railway station, schools, workshop, etc.
DIMENSIONS
GLIN-40/80/100/150
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
GLIN-40 40
GLIN-80 80 Recessed
Interior 120~277 5000 0 C~+40 C 20 Fi x t u r e
GLIN-100 100
GLIN-150 150
Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
06

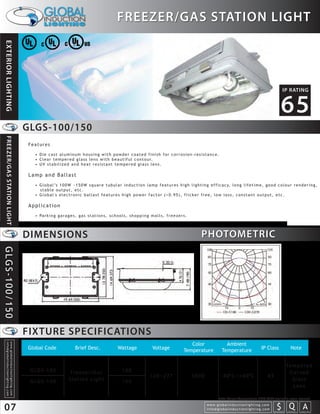

10. FREEZER/GAS STATION LIGHT
EXTERIOR LIGHTING
IP RATING
65
GLGS-100/150
FREEZER/GAS STATION LIGHT
Features
• Die cast aluminum housing with powder coated finish for corrosion-resistance.
• C l e a r t e m p e r e d g l a s s l e n s w i t h b e a u t i f u l c o n t o u r.
• UV stabilized and heat resistant tempered glass lens.
Lamp and Ballast
• G l o b a l ’s 1 0 0 W ~ 1 5 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Pa r k i n g g a r a g e s , g a s s t a t i o n s , s c h o o l s , s h o p p i n g m a l l s , f r e e z e r s .
DIMENSIONS PHOTOMETRIC
GLGS-100/150
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Te m p e r e d
G LG S - 1 0 0 Fr e e z e r / G a s 100 Cur ved
120~277 5000 -40 C~+40 C 43
G LG S - 1 5 0 Station Light 150 Glass
Lens
Note: Colour Temperature 2720-6500 available upon request.
07 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

11. GARAGE LIGHT
EXTERIOR LIGHTING
IP RATING
43
GLGL-85/100
Features
GARAGE LIGHT
• Die cast aluminum housing with powder coated finish for corrosion-resistance.
• UV stabilized polycarbonate lens.
• Separated control gear used to improve heat dispersion and extend lifetime of lighting fixture .
Lamp and Ballast
• G l o b a l ’s 8 5 W b a l l t y p e o r 1 0 0 W r o u n d t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e ,
good colour rendering, stable output, etc.
• G l o b a l ’s e l e c t r o n i c b a l l a s t f e a t u r e s h i g h p o w e r f a c t o r ( > 0 . 9 5 ) , f l i c k e r f r e e , l o w l o s s ,
constant output, etc.
Application
• Pa r k i n g g a r a g e s , g a s s t a t i o n s , w a r e h o u s e , e t c .
DIMENSIONS PHOTOMETRIC
GLGL-85/100
G LG L- 8 0
G LG L- 8 5
G LG L- 1 0 0
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
G LG L- 8 5 85 Separate
Garage
120~277 5000 -20 C~+40 C 43 Control
G LG L- 1 0 0 Light 100 Gear
Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
08

12. TUNNEL LIGHT
EXTERIOR LIGHTING
IP RATING
65
GLTL-100
Features
TUNNEL LIGHT
• Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating.
• Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution.
• Gas-tight silicon rubber seal made for wet locations.
• Front opening structure, easy for maintenance.
Lamp and Ballast
• G l o b a l ’s 1 0 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc, improving driving environment and safety ,saving energy and decreasing overall running cost.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Tu n n e l , f r e e w a y, h i g h w a y, p a r k i n g l o t s , p u b l i c e n t r a n c e s , o f f - s t r e e t a r e a s , w a r e h o u s e s .
DIMENSIONS
G LT L - 1 0 0
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Made
Tu n n e l Fo r
G LT L- 1 0 0 100 120~277 5000 -20 C~+40 C 65
Light We t
Locations
Note: Colour Temperature 2720-6500 available upon request.
09 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

13. TUNNEL LIGHT
EXTERIOR LIGHTING
IP RATING
65
GLTL-150/200
Features
TUNNEL LIGHT
• Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating.
• Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution.
• Gas-tight silicon rubber seal made for wet locations.
• Front opening structure, easy for maintenance.
Lamp and Ballast
• G l o b a l ’s 1 5 0 W ~ 2 0 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc, improving driving environment and safety ,saving energy and decreasing overall running cost.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Tu n n e l , f r e e w a y, h i g h w a y, p a r k i n g l o t s , p u b l i c e n t r a n c e s , o f f - s t r e e t a r e a s , w a r e h o u s e s .
DIMENSIONS PHOTOMETRIC
G LT L - 1 5 0 / 2 0 0
G LT S - 1 5 0 G LT S - 2 0 0
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Made
G LT L- 1 5 0 Tu n n e l 150 Fo r
120~277 5000 -20 C~+40 C 65
G LT L- 2 0 0 Light 200 We t
Locations
Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
10

14. TUNNEL LIGHT
EXTERIOR LIGHTING
IP RATING
65
GLTL-250/400
Features
TUNNEL LIGHT
• Square profiled aluminum housing concealed with two extruded welding side covers for high IP rating.
• Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution.
• Gas-tight silicon rubber seal made for wet locations.
• Front opening structure, easy for maintenance.
Lamp and Ballast
• G l o b a l ’s 2 5 0 W ~ 4 0 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc, improving driving environment and safety ,saving energy and decreasing overall running cost.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Tu n n e l , f r e e w a y, h i g h w a y, p a r k i n g l o t s , p u b l i c e n t r a n c e s , o f f - s t r e e t a r e a s .
DIMENSIONS PHOTOMETRIC
G LT L - 2 5 0 / 4 0 0
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Made
G LT L- 2 5 0 Tu n n e l 250 Fo r
120~277 5000 -20 C~+40 C 65
G LT L- 4 0 0 Light 400 We t
Locations
Note: Colour Temperature 2720-6500 available upon request.
11 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

15. WALL PACK
EXTERIOR LIGHTING
IP RATING
54
GLWP-85/100
Features
• Die cast aluminum housing with powder coated finish for corrosion-resistance.
WALL PACK
• Anodized aluminum reflector and prismatic glass lens.
• Gas-tight silicon rubber seal made for wet locations.
Lamp and Ballast
• G l o b a l ’s 8 5 W b a l l t y p e o r 1 0 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e ,
good colour rendering, stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Pa r k s , s h o p p i n g m a l l s , o u t l e t s , p l a z a s , c i t y h a l l s , h i s t o r i c a r e a s .
DIMENSIONS PHOTOMETRIC
G LW P - 8 5 / 1 0 0
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Made
G LW P - 8 5 85 Fo r
Wa l l Pa c k 120~277 5000 -20 C~+40 C 54
G LW P - 1 0 0 100 We t
Locations
Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
12

16. FLOOD LIGHT
EXTERIOR LIGHTING
IP RATING
65
GLFL-100
Features
FLOOD LIGHT
• High pressure die cast aluminum alloy housing for corrosion resistance.
• Flat tempered glass lens.
• Gas-tight silicon rubber seal made for wet locations.
Lamp and Ballast
• G l o b a l ’s 1 0 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Billboards, buildings, parks, pools, parking lots, plazas, tennis courts.
DIMENSIONS PHOTOMETRIC
GLFL-100
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Made
Fo r
G L F L- 1 0 0 Flood Light 100 120~277 5000 -20 C~+40 C 65
We t
Locations
Note: Colour Temperature 2720-6500 available upon request.
13 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

17. FLOOD LIGHT
EXTERIOR LIGHTING
IP RATING
65
GLFL-150
Features
FLOOD LIGHT
• Die cast aluminum housing with powder coated finish for corrosion-resistance.
• Anodized aluminum reflector and clear tempered glass lens are designed to optimize light distribution.
• Gas-tight silicon rubber seal made for wet locations.
• Separated ballast casing for easy installation.
Lamp and Ballast
• G l o b a l ’s 1 5 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Billboards, buildings, parks, pools, parking lots, plazas, tennis courts.
DIMENSIONS
GLFL-150
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Made
Fo r
G L F L- 1 5 0 Flood Light 150 120~277 5000 -20 C~+40 C 65
We t
Locations
Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
14

18. ROADWAY LIGHT
EXTERIOR LIGHTING
IP RATING
55
GLZD1-40/70/100
Features
ROADWAY LIGHT
• High pressure die cast aluminum alloy housing for corrosion resistance.
• Flat tempered glass lens.
• High purity aluminum reflector with vacuum coated inner surface.
Lamp and Ballast
• G l o b a l ’s 4 0 W ~ 1 0 0 W r o u n d t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• F r e e w a y, h i g h w a y, p a r k i n g l o t s , p u b l i c e n t r a n c e s , o f f - s t r e e t a r e a s .
DIMENSIONS PHOTOMETRIC
GLZD1-40/70/100
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
GLZD4-40 40
Roadway Includes
GLZD1-70 70 120~277 5000 -20 C~+40 C 55
Light Photocell
GLZD1-100 100
Note: Colour Temperature 2720-6500 available upon request.
15 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

19. ROADWAY LIGHT
EXTERIOR LIGHTING
IP RATING
54
GLZD10-150
ROADWAY LIGHT
Features
• Die cast aluminum ballast casing with powder coated finish for corrosion-resistance.
• Re f l e c t o r m a d e o f h i g h q u a l i t y a l u m i n u m p l a t e . C l e a r t e m p e r e d g l a s s l e n s w i t h t r a n s m i t t a n c e u p t o 9 0 % .
Lamp and Ballast
• G l o b a l ’s 1 5 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• F r e e w a y, h i g h w a y, p a r k i n g l o t s , p u b l i c e n t r a n c e s , o f f - s t r e e t a r e a s .
DIMENSIONS
GLZD10-150
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Roadway Includes
GLZD10-150 150 120~277 5000 -20 C~+40 C 54
Light Photocell
Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
16

20. ROADWAY LIGHT
EXTERIOR LIGHTING
IP RATING
55
GLZD10-250
Features
ROADWAY LIGHT
• N e w e s t t y p e h i g h w a t t a g e i n d u c t i o n l i g h t i n g f i x t u r e w i t h n o v e l d e s i g n a n d b e a u t i f u l c o n t o u r. .
• High-pressure die cast alloy aluminum lamp frame and strong stretched aluminum alloy upper casing with the surface
of electrostatic painting for corrosion resistance and durable use.
• High purity aluminum reflector with vacuum coated inner surface.
• Clear tempered glass lens.
• Heat –resistant silicone rubber sealing ring to ensure high level of IP rating.
Lamp and Ballast
• G l o b a l ’s 2 5 0 W s q u a r e t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• F r e e w a y, h i g h w a y, p a r k i n g l o t s , p u b l i c e n t r a n c e s , o f f - s t r e e t a r e a s .
DIMENSIONS PHOTOMETRIC
GLZD1-250
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
Roadway Includes
GLDZ10-250 250 120~277 5000 -20 C~+40 C 55
Light Photocell
Note: Colour Temperature 2720-6500 available upon request.
17 w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

21. SHOEBOX LIGHT
EXTERIOR LIGHTING
IP RATING
54
GLSB-200/250
Features
SHOEBOX LIGHT
• Square welded aluminum housing with powder coated finish for corrosion-resistance.
• Clear tempered glass lens.UV stabilized and heat resistant polycarbonate lens.
• Aluminum reflector with vacuum coated inner surface designed to optimize light distribution.
Lamp and Ballast
• G l o b a l ’s 2 0 0 W ~ 2 5 0 W r o u n d t u b u l a r i n d u c t i o n l a m p f e a t u r e s h i g h l i g h t i n g e f f i c a c y, l o n g l i f e t i m e , g o o d c o l o u r r e n d e r i n g ,
stable output, etc.
• Global's electronic ballast features high power factor (>0.95), flicker free, low loss, constant output, etc.
Application
• Pa r k i n g l o t s , p l a z a s , s h o p p i n g m a l l s , t e n n i s c o u r t s .
DIMENSIONS PHOTOMETRIC
GLSB-200/250
FIXTURE SPECIFICATIONS
Color Ambient
info@globalinductionlighting.com
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
Global Code Brief Desc. Wattage Voltage Temperature Temperature IP Class Note
GLSB-200 200 Po l y -
Shoebox
120~277 5000 -20 C~+40 C 54 Carbonate
GLSB-250 Light 250 Lens
Note: Colour Temperature 2720-6500 available upon request.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
18

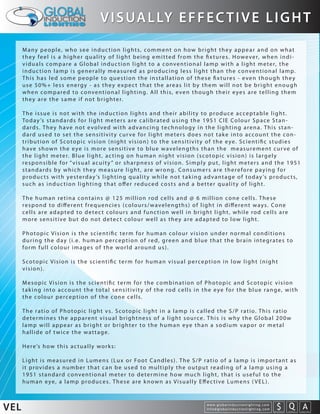

22. V I S UA L LY E F F E C T I V E L I G H T
VEL w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help

23. V I S UA L LY E F F E C T I V E L I G H T
U s i n g a c o n v e n t i o n a l l i g h t m e t e r o r s p e c t r o m e t e r, t h e l i g h t i s m e a s u r e d t o d e t e r m i n e t h e
photopic vision sensitivity cur ve. Using the same light source with a light meter calibrated
to the scotopic, the scotopic sensitivity cur ve is determined. The resulting readings form an
S / P r a t i o t h a t c a n b e e x p r e s s e d a s a s i n g l e n u m b e r.
The char t below gives a comparison of Global Induction Lamps S/P ratio compared to other
c o m m o n i n d u s t r i a l l a m p s . T h e s e g u r e s a r e b a s e d o n D a t a r e c i e v e d f r o m Fr a n c i s R u b e n s t e i n
of Berkley Labs.
S/P Ratio Example:
C o u r t e s y o f F r a n c i s R u b i n s t e i n - La w r e n c e B e r k l e y N a t i o n a l L i b r a r y Metal Halide - 400 watt has
Sun + Sky (CIE D65 Illuminant) 2 . 47 a manufacturers rating of
Sun (CIE D55 Illuminant) 2.28 56.9 lumens per watt. This
6 5 0 0 K G l o b a l I n d u c t i o n La m p 2.25 results in 400x56.9=22,760
5 0 0 0 K G l o b a l I n d u c t i o n La m p 1. 9 6
lumens x1.49 (S/P ratio)
410 0 K G l o b a l I n d u c t i o n La m p 1. 6 2
=33,912 Visually E ective
Metal Halide (Na/Sc) 1. 4 9
Lumens.
3 5 0 0 K G l o b a l I n d u c t i o n La m p 1. 4 6
Incandescent (2850K) 1. 41
White High Pressure Sodium (50W) 1. 14
Global Induction - 200 watt
Wa r m W h i t e F l u o r e s c e n t 1. 0
has a manufacturers rating
High Pressure Sodium (50W) 0.62 of 80 lumens per watt. This
High Pressure Sodium (35W) 0.4 results in 200x80=16,000
Lo w P r e s s u r e S o d i u m ( S OX ) 0.35 lumens x2.25 (S/P ratio)
0 0.5 1 1. 5 2 2.5 =36,000 Visually E ective
Scotopic/Photopic Ratio
Lumens.
5
The Lumen Maintenance
cur ve depicts the actual
lifetime of the Visually
E ective Lumens (light)
as compared to other
lighting scenarios. The
induction lamp outlasts
the competition
whether it is HID (MH of
HPS) or the newer T5 &
T8 anywhere from 3-5
t i m e s l o n g e r. A l l t h e
time while
maintaining an industry
leading lumen output.
w w w. g l o b a l i n d u c t i o n l i g h t i n g . c o m
info@globalinductionlighting.com S Q A
costs analysis estimates expert help
VEL
