Economic Analyses for
Transradial Procedures
Adhir Shroff, MD, MPH
Associate Professor of Medicine
University of Illinois – Chicago
Jesse Brown VA Medical Center
arshroff@uic.edu
2

The Value Equation in Healthcare

✓ ✓ ✓

Value

Superior
Outcomes

PatientCentered
Care

Efficiency

At Lower
Cost

The New Economics of Quality. Advisory Board 2011

Adhir Shroff, MD, MPH
Associate Professor of Medicine
3

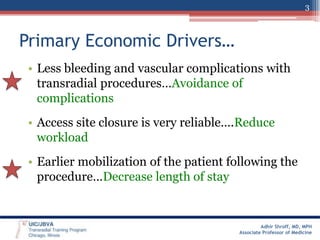

Primary Economic Drivers…
• Less bleeding and vascular complications with
transradial procedures…Avoidance of
complications
• Access site closure is very reliable….Reduce
workload
• Earlier mobilization of the patient following the
procedure…Decrease length of stay

Adhir Shroff, MD, MPH
Associate Professor of Medicine
Adhir Shroff, MD, MPH
Associate Professor of Medicine
5

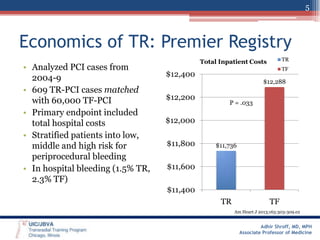

Economics of TR: Premier Registry
• Analyzed PCI cases from
2004-9
• 609 TR-PCI cases matched
with 60,000 TF-PCI
• Primary endpoint included
total hospital costs
• Stratified patients into low,
middle and high risk for
periprocedural bleeding
• In hospital bleeding (1.5% TR,
2.3% TF)

TR

Total Inpatient Costs

TF

$12,400
$12,200

$12,288
P = .033

$12,000
$11,800

$11,736

$11,600
$11,400
TR

TF
Am Heart J 2013;165:303-309.e2

Adhir Shroff, MD, MPH
Associate Professor of Medicine
6

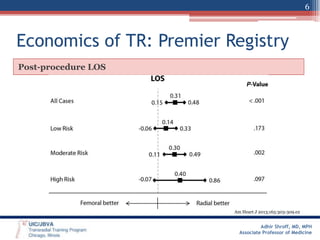

Economics of TR: Premier Registry
Post-procedure LOS

Am Heart J 2013;165:303-309.e2

Adhir Shroff, MD, MPH
Associate Professor of Medicine
7

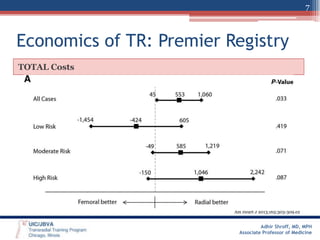

Economics of TR: Premier Registry
TOTAL Costs

Am Heart J 2013;165:303-309.e2

Adhir Shroff, MD, MPH
Associate Professor of Medicine
8

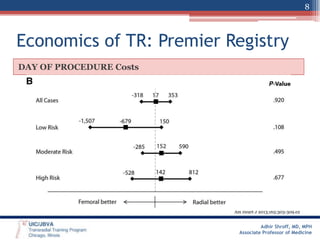

Economics of TR: Premier Registry
DAY OF PROCEDURE Costs

Am Heart J 2013;165:303-309.e2

Adhir Shroff, MD, MPH
Associate Professor of Medicine
9

Economics of TR: Premier Registry
POST PCI UNTIL DISCHARGE Costs

Am Heart J 2013;165:303-309.e2

Adhir Shroff, MD, MPH
Associate Professor of Medicine

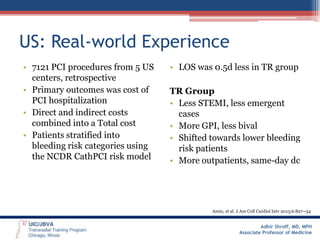

US: Real-world Experience
• 7121 PCI procedures from 5 US
centers, retrospective
• Primary outcomes was cost of
PCI hospitalization
• Direct and indirect costs
combined into a Total cost
• Patients stratified into
bleeding risk categories using
the NCDR CathPCI risk model

• LOS was 0.5d less in TR group
TR Group
• Less STEMI, less emergent
cases
• More GPI, less bival
• Shifted towards lower bleeding
risk patients
• More outpatients, same-day dc

Amin, et al. J Am Coll Cardiol Intv 2013;6:827–34

Adhir Shroff, MD, MPH
Associate Professor of Medicine

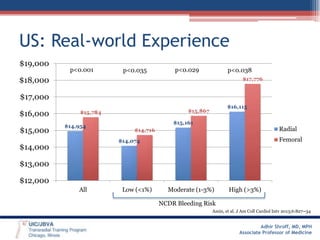

US: Real-world Experience
$19,000

p<0.001

p<0.035

p<0.029

p<0.038

$18,000

$17,776

$17,000
$16,000
$15,000

$14,954

$16,115

$15,867

$15,784

$15,161

Radial

$14,716

Femoral

$14,074

$14,000
$13,000
$12,000
All

Low (<1%)

Moderate (1-3%)

High (>3%)

NCDR Bleeding Risk
Amin, et al. J Am Coll Cardiol Intv 2013;6:827–34

Adhir Shroff, MD, MPH
Associate Professor of Medicine
12

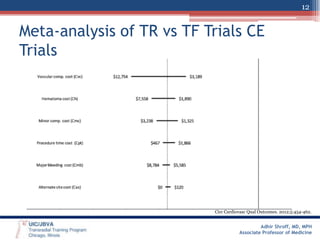

Meta-analysis of TR vs TF Trials CE
Trials

Circ Cardiovasc Qual Outcomes. 2012;5:454-462.

Adhir Shroff, MD, MPH
Associate Professor of Medicine
13

Meta-analysis of TR vs TF Trials CE Trials

Circ Cardiovasc Qual Outcomes. 2012;5:454-462.

Adhir Shroff, MD, MPH
Associate Professor of Medicine
14

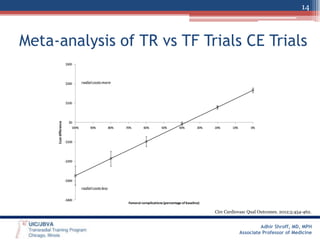

Meta-analysis of TR vs TF Trials CE Trials

Circ Cardiovasc Qual Outcomes. 2012;5:454-462.

Adhir Shroff, MD, MPH
Associate Professor of Medicine
Adhir Shroff, MD, MPH
Associate Professor of Medicine
16

Economics of TR: SD-DC
• 370 elective PCI patients
• 3 high-volume PCI centers in
France
▫ 52.3% patients with
multivessel coronary artery
disease
▫ 22.7% patients with
multilesion procedures
▫ 21.5% bifurcation lesions

• At 24hrs, no MACE
• At 1 month, 4 (1.9%)
readmitted
Catheterization and Cardiovascular Interventions 81:15–23 (2013)

Adhir Shroff, MD, MPH
Associate Professor of Medicine
17

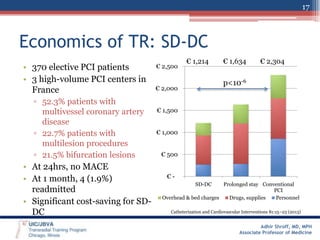

Economics of TR: SD-DC
• 370 elective PCI patients
• 3 high-volume PCI centers in
France
▫ 52.3% patients with
multivessel coronary artery
disease
▫ 22.7% patients with
multilesion procedures
▫ 21.5% bifurcation lesions

• At 24hrs, no MACE
• At 1 month, 4 (1.9%)
readmitted
• Significant cost-saving for SDDC

€ 2,500

€ 1,214

€ 1,634

€ 2,304

p<10-6

€ 2,000
€ 1,500
€ 1,000
€ 500

€SD-DC

Prolonged stay Conventional
PCI
Overhead & bed charges
Drugs, supplies
Personnel
Catheterization and Cardiovascular Interventions 81:15–23 (2013)

Adhir Shroff, MD, MPH
Associate Professor of Medicine
18

Same-Day PCI Discharge Program
EASY Trial
Same-day
discharge
(No infusion)
Uncomplicated
TR-PCI with
abciximab
bolus

8.9hrs
DC

C$1004

DC

C$3117

®
Overnight
stay
(+ infusion)

26.5 hrs

Average savings of C$2,113 per patient with same-day d/c
Circulation. 2008;118:S_1119

Adhir Shroff, MD, MPH
Associate Professor of Medicine
19

Outpatient PCI at UIHHSS: Costs
Payor Mix

Mean
Variable
Cost

Expenses that vary with volume:

Mean
Direct Fixed
Cost

Total

•

Cath lab staff labor

Expenses that do not vary with
volume:

•

Supplies: stents, medications, VCD

•

Admin staff salaries

•

Medications

•

Capital depreciation

Transfemoral
(n=5)

4/5 Government

Transradial
(n=8)

4/8 Government

Cost savings

1/5 Private

4/8 Private

$8,856

$3,858

$12,714

$7,478

$3,519

$10,997

$1,378

$338

$1,716

13%

Sample of OP-PCI cases from January 2011 – March 2011

Adhir Shroff, MD, MPH
Associate Professor of Medicine
Adhir Shroff, MD, MPH
Associate Professor of Medicine
PPCI for STEMI: Access Site and Clinical
Events
RIFLE-STEACS

J Am Coll Cardiol 2012;60:2481–9

RIVAL-STEMI

J Am Coll Cardiol 2012;60:2490–9

Adhir Shroff, MD, MPH
Associate Professor of Medicine
PPCI for STEMI: Access Site and LOS
RADIAL
Single Center (Greece)
Total LOS

FEMORAL

N=65

N=33

6 ± 3.2 d

7.1 ± 2.8 d

< 0.05

Deftereos S, et al. Hellenic J Cardiol 2011; 52: 111-117

Single Center (US)

N=46

N=104

Total LOS

3 (2-5) d

4 (3-5) d

0.112

Ibebuogu UN, et al. Am J Cardiol 2012;110:1262–1265

Meta-analysis
(Jang JS, et al)

From 8 trials, TR approach associated with
a 2.23 days shorter LOS

<0.001

Jang JS, et al. EuroIntervention 2012;8:501-510

Adhir Shroff, MD, MPH
Associate Professor of Medicine

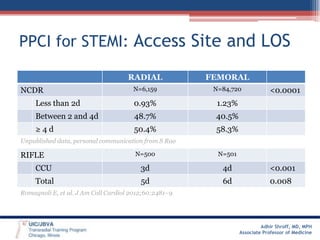

PPCI for STEMI: Access Site and LOS
RADIAL

FEMORAL

N=6,159

N=84,720

Less than 2d

0.93%

1.23%

Between 2 and 4d

48.7%

40.5%

≥4d

50.4%

58.3%

NCDR

<0.0001

Unpublished data, personal communication from S Rao
N=500

N=501

CCU

3d

4d

<0.001

Total

5d

6d

0.008

RIFLE

Romagnoli E, et al. J Am Coll Cardiol 2012;60:2481–9

Adhir Shroff, MD, MPH
Associate Professor of Medicine
24

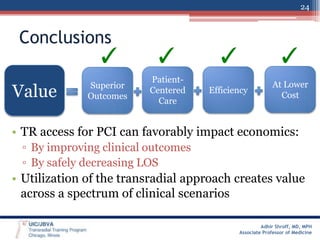

Conclusions

✓

Value

✓

✓

✓

Superior
Outcomes

PatientCentered
Care

Efficiency

At Lower
Cost

• TR access for PCI can favorably impact economics:
▫ By improving clinical outcomes
▫ By safely decreasing LOS

• Utilization of the transradial approach creates value
across a spectrum of clinical scenarios
Adhir Shroff, MD, MPH
Associate Professor of Medicine
25

arshroff@uic.edu
312-485-4511

Adhir Shroff, MD, MPH
Associate Professor of Medicine
Adhir Shroff, MD, MPH
Associate Professor of Medicine
Adhir Shroff, MD, MPH
Associate Professor of Medicine
