1) The university deployed IPv6 in a phased approach over many years, first running it in 1997 and now having a large dual-stack production network. 2) They took a dual-stack approach to allow existing IPv4 systems while gaining experience with IPv6. Managing the complexity of dual-stack has been the main challenge. 3) Early experiences included getting IPv6 connectivity, enabling core services like DNS and web servers, and porting internal software. Harder aspects involved multi-addressing, some application support, and security issues like rogue routers.

1. IPv6 campus deployment
experience
Tim Chown
University of Southampton
Irish IPv6 Summit, Dublin
19th May 2010

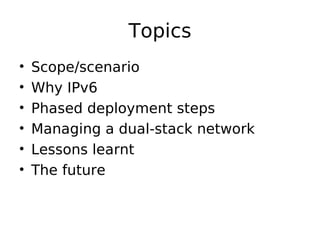

2. Topics
• Scope/scenario
• Why IPv6
• Phased deployment steps
• Managing a dual-stack network
• Lessons learnt
• The future

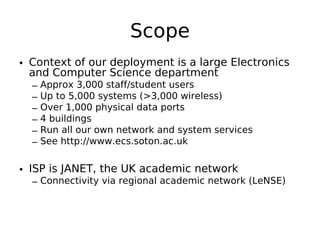

3. Scope
• Context of our deployment is a large Electronics
and Computer Science department
– Approx 3,000 staff/student users
– Up to 5,000 systems (>3,000 wireless)
– Over 1,000 physical data ports
– 4 buildings
– Run all our own network and system services
– See http://www.ecs.soton.ac.uk
• ISP is JANET, the UK academic network
– Connectivity via regional academic network (LeNSE)

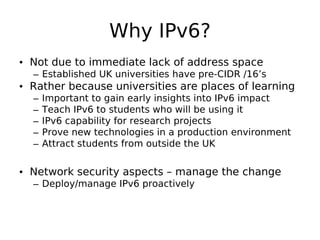

4. Why IPv6?
• Not due to immediate lack of address space
– Established UK universities have pre-CIDR /16’s
• Rather because universities are places of learning
– Important to gain early insights into IPv6 impact
– Teach IPv6 to students who will be using it
– IPv6 capability for research projects
– Prove new technologies in a production environment
– Attract students from outside the UK
• Network security aspects – manage the change
– Deploy/manage IPv6 proactively

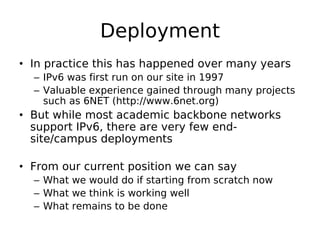

5. Deployment
• In practice this has happened over many years
– IPv6 was first run on our site in 1997
– Valuable experience gained through many projects
such as 6NET (http://www.6net.org)
• But while most academic backbone networks
support IPv6, there are very few end-
site/campus deployments
• From our current position we can say
– What we would do if starting from scratch now
– What we think is working well
– What remains to be done

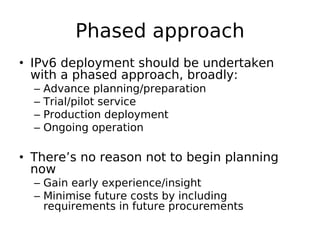

6. Phased approach
• IPv6 deployment should be undertaken
with a phased approach, broadly:
– Advance planning/preparation
– Trial/pilot service
– Production deployment
– Ongoing operation
• There’s no reason not to begin planning
now
– Gain early experience/insight
– Minimise future costs by including
requirements in future procurements

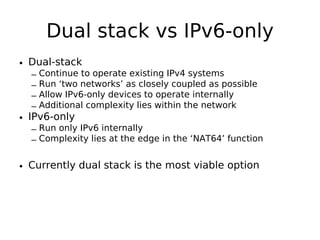

7. Dual stack vs IPv6-only
• Dual-stack
– Continue to operate existing IPv4 systems
– Run ‘two networks’ as closely coupled as possible
– Allow IPv6-only devices to operate internally
– Additional complexity lies within the network
• IPv6-only
– Run only IPv6 internally
– Complexity lies at the edge in the ‘NAT64’ function
• Currently dual stack is the most viable option

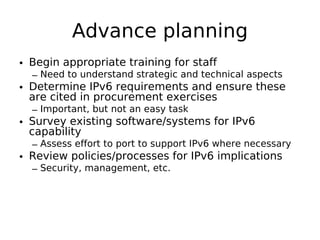

8. Advance planning
• Begin appropriate training for staff
– Need to understand strategic and technical aspects
• Determine IPv6 requirements and ensure these
are cited in procurement exercises
– Important, but not an easy task
• Survey existing software/systems for IPv6
capability
– Assess effort to port to support IPv6 where necessary
• Review policies/processes for IPv6 implications
– Security, management, etc.

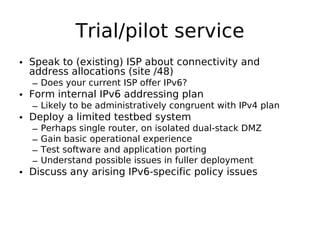

9. Trial/pilot service
• Speak to (existing) ISP about connectivity and
address allocations (site /48)
– Does your current ISP offer IPv6?
• Form internal IPv6 addressing plan
– Likely to be administratively congruent with IPv4 plan
• Deploy a limited testbed system
– Perhaps single router, on isolated dual-stack DMZ
– Gain basic operational experience
– Test software and application porting
– Understand possible issues in fuller deployment
• Discuss any arising IPv6-specific policy issues

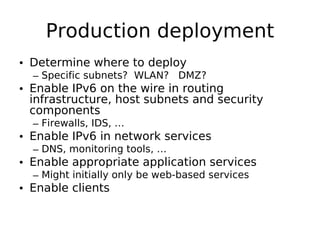

10. Production deployment
• Determine where to deploy
– Specific subnets? WLAN? DMZ?
• Enable IPv6 on the wire in routing
infrastructure, host subnets and security
components
– Firewalls, IDS, …
• Enable IPv6 in network services
– DNS, monitoring tools, …
• Enable appropriate application services
– Might initially only be web-based services
• Enable clients

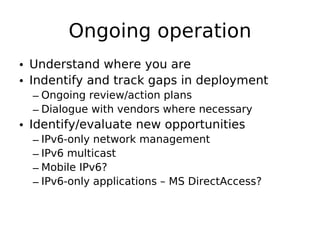

11. Ongoing operation
• Understand where you are
• Indentify and track gaps in deployment
– Ongoing review/action plans
– Dialogue with vendors where necessary
• Identify/evaluate new opportunities
– IPv6-only network management
– IPv6 multicast
– Mobile IPv6?
– IPv6-only applications – MS DirectAccess?

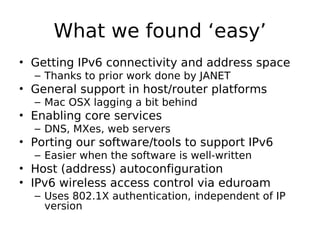

12. What we found ‘easy’
• Getting IPv6 connectivity and address space
– Thanks to prior work done by JANET
• General support in host/router platforms
– Mac OSX lagging a bit behind
• Enabling core services
– DNS, MXes, web servers
• Porting our software/tools to support IPv6
– Easier when the software is well-written
• Host (address) autoconfiguration
• IPv6 wireless access control via eduroam
– Uses 802.1X authentication, independent of IP
version

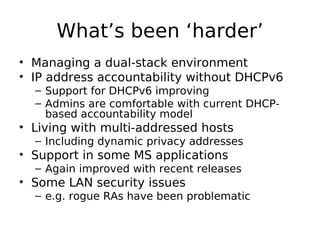

13. What’s been ‘harder’
• Managing a dual-stack environment
• IP address accountability without DHCPv6
– Support for DHCPv6 improving
– Admins are comfortable with current DHCP-
based accountability model
• Living with multi-addressed hosts
– Including dynamic privacy addresses
• Support in some MS applications
– Again improved with recent releases
• Some LAN security issues
– e.g. rogue RAs have been problematic

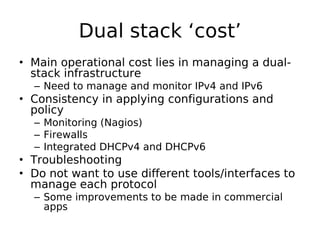

14. Dual stack ‘cost’
• Main operational cost lies in managing a dual-
stack infrastructure
– Need to manage and monitor IPv4 and IPv6
• Consistency in applying configurations and
policy
– Monitoring (Nagios)
– Firewalls
– Integrated DHCPv4 and DHCPv6
• Troubleshooting
• Do not want to use different tools/interfaces to
manage each protocol
– Some improvements to be made in commercial
apps

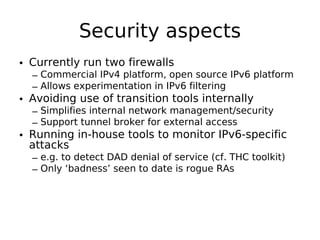

15. Security aspects
• Currently run two firewalls
– Commercial IPv4 platform, open source IPv6 platform
– Allows experimentation in IPv6 filtering
• Avoiding use of transition tools internally
– Simplifies internal network management/security
– Support tunnel broker for external access
• Running in-house tools to monitor IPv6-specific
attacks
– e.g. to detect DAD denial of service (cf. THC toolkit)
– Only ‘badness’ seen to date is rogue RAs

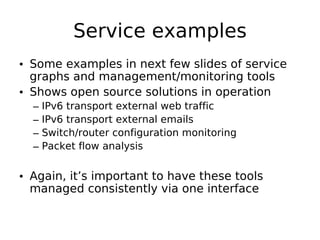

16. Service examples
• Some examples in next few slides of service
graphs and management/monitoring tools
• Shows open source solutions in operation
– IPv6 transport external web traffic
– IPv6 transport external emails
– Switch/router configuration monitoring
– Packet flow analysis
• Again, it’s important to have these tools
managed consistently via one interface

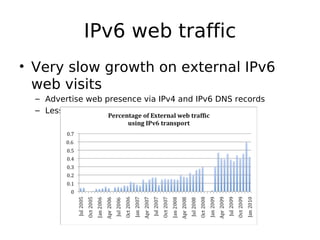

17. IPv6 web traffic
• Very slow growth on external IPv6
web visits
– Advertise web presence via IPv4 and IPv6 DNS records
– Less than 1% of IPv6 accesses are via 6to4

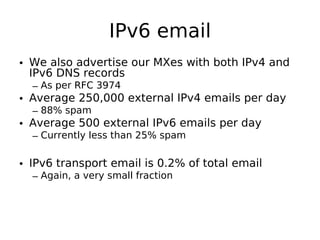

18. IPv6 email
• We also advertise our MXes with both IPv4 and
IPv6 DNS records
– As per RFC 3974
• Average 250,000 external IPv4 emails per day
– 88% spam
• Average 500 external IPv6 emails per day
– Currently less than 25% spam
• IPv6 transport email is 0.2% of total email
– Again, a very small fraction

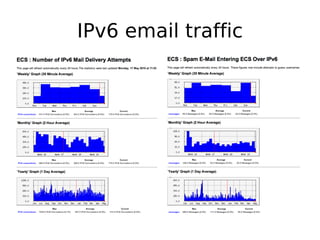

19. IPv6 email traffic

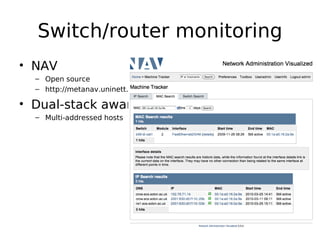

20. Switch/router monitoring
• NAV
– Open source
– http://metanav.uninett.no
• Dual-stack aware
– Multi-addressed hosts

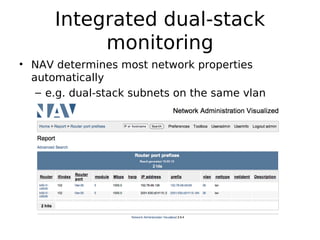

21. Integrated dual-stack
monitoring
• NAV determines most network properties
automatically
– e.g. dual-stack subnets on the same vlan

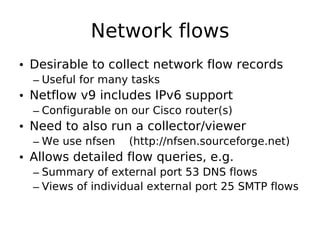

22. Network flows
• Desirable to collect network flow records
– Useful for many tasks
• Netflow v9 includes IPv6 support
– Configurable on our Cisco router(s)
• Need to also run a collector/viewer
– We use nfsen (http://nfsen.sourceforge.net)
• Allows detailed flow queries, e.g.
– Summary of external port 53 DNS flows
– Views of individual external port 25 SMTP flows

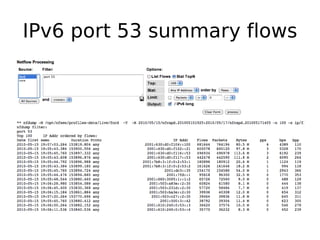

23. IPv6 port 53 summary flows

24. IPv6 port 25 individual flows

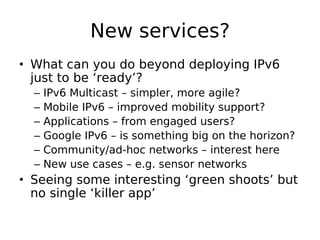

25. New services?
• What can you do beyond deploying IPv6
just to be ‘ready’?
– IPv6 Multicast – simpler, more agile?
– Mobile IPv6 – improved mobility support?
– Applications – from engaged users?
– Google IPv6 – is something big on the horizon?
– Community/ad-hoc networks – interest here
– New use cases – e.g. sensor networks
• Seeing some interesting ‘green shoots’ but
no single ‘killer app’

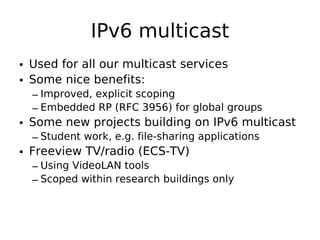

26. IPv6 multicast
• Used for all our multicast services
• Some nice benefits:
– Improved, explicit scoping
– Embedded RP (RFC 3956) for global groups
• Some new projects building on IPv6 multicast
– Student work, e.g. file-sharing applications
• Freeview TV/radio (ECS-TV)
– Using VideoLAN tools
– Scoped within research buildings only

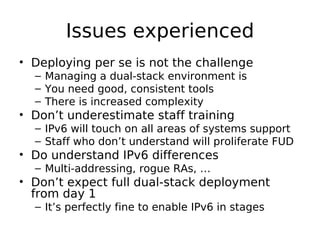

27. Issues experienced
• Deploying per se is not the challenge
– Managing a dual-stack environment is
– You need good, consistent tools
– There is increased complexity
• Don’t underestimate staff training
– IPv6 will touch on all areas of systems support
– Staff who don’t understand will proliferate FUD
• Do understand IPv6 differences
– Multi-addressing, rogue RAs, …
• Don’t expect full dual-stack deployment
from day 1
– It’s perfectly fine to enable IPv6 in stages

28. The future?
• Still some internal services left to make dual-stack
• Integrate IPv4 and IPv6 firewall functions
• DHCPv6 deployment
– Unless we can improve autoconfiguration
accountability, perhaps by wider use of 802.1X
• Wider use of external services
– IPv6 transport to root DNS
– Google IPv6 Programme
• Possibility of new IPv6-only devices
– These would put some focus on ‘NAT64’ solutions
• Plan for IPv6 deployment on wider campus network

29. Conclusions
• If you’re not actively planning for IPv6, begin now
– Checking capabilities in procurements as a minimum
– Consider security implications – IPv6 is in your network
anyway
• Dual stack IPv6 deployment is possible today
– Running here 4+ years without significant issues
– There are some missing bits, but you don’t have to dual-stack
everything from the outset
• Look for tools that offer integrated management of
IPv4/IPv6 networks
– Even if that might mean changing the tools you use
• Don’t forget training and awareness in your organisation
• Don’t expect huge IPv6 traffic volumes (yet)

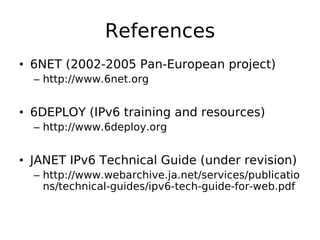

30. References
• 6NET (2002-2005 Pan-European project)
– http://www.6net.org
• 6DEPLOY (IPv6 training and resources)
– http://www.6deploy.org
• JANET IPv6 Technical Guide (under revision)
– http://www.webarchive.ja.net/services/publicatio
ns/technical-guides/ipv6-tech-guide-for-web.pdf
