Xitrum is an asynchronous and clustered Scala web framework and HTTP server built on top of Netty and Akka. It is feature-rich, easy to use, and high performance. Xitrum can scale to a cluster of servers using Akka Cluster and Hazelcast. It is used in production systems in various countries. The document provides information on Xitrum's architecture, features, annotations, and examples of actions and SockJS messaging.

1. Sept 06 2014

2. Ngoc Dao
https://github.com/ngocdaothanh
Takeharu Oshida
https://github.com/georgeOsdDev
http://mobilus.co.jp/

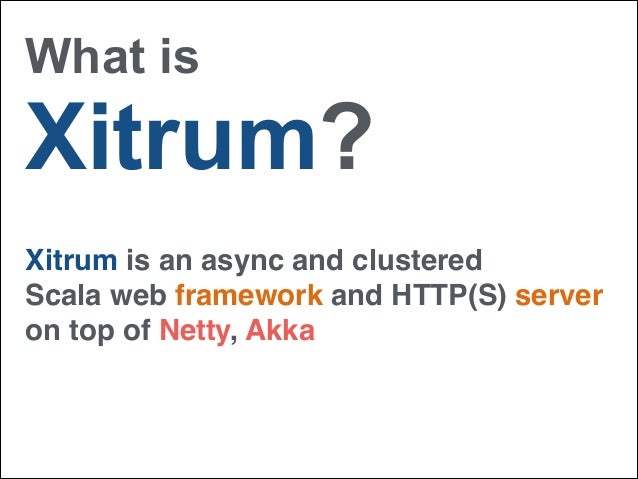

3. What is
Xitrum?
Xitrum is an async and clustered !
Scala web framework and HTTP(S) server !
on top of Netty, Akka

4. Why you should use
Xitrum?
• Featureful!
• Easy to use!
• High performance
Scala, Netty, and Akka are fast!
• Scalable
Can scale to a cluster of servers using
Akka cluster and/or Hazelcast

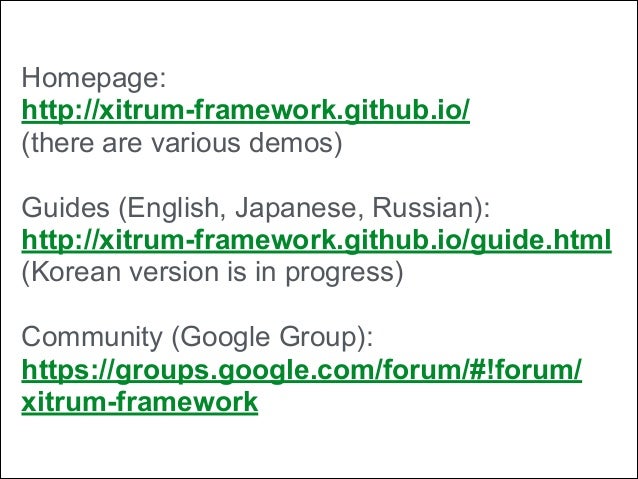

5. Homepage:
http://xitrum-framework.github.io/
(there are various demos)
Guides (English, Japanese, Russian):
http://xitrum-framework.github.io/guide.html
(Korean version is in progress)
!
Community (Google Group):
https://groups.google.com/forum/#!forum/
xitrum-framework

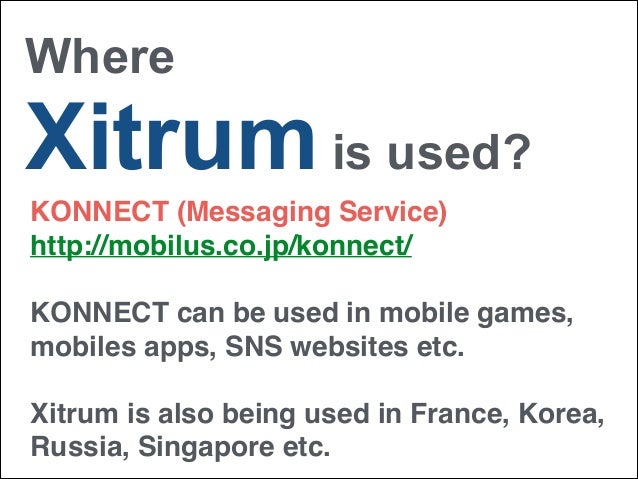

6. Where
Xitrum is used?

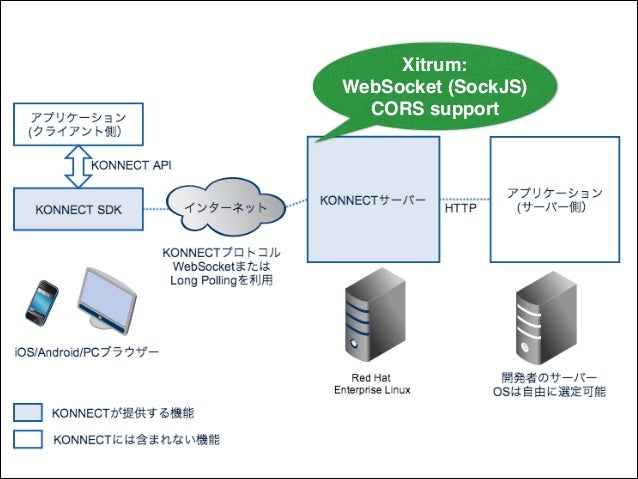

KONNECT (Messaging Service)!
http://mobilus.co.jp/konnect/!
!
KONNECT can be used in mobile games,
mobiles apps, SNS websites etc.
Xitrum is also being used in France, Korea,
Russia, Singapore etc.

7. Xitrum:!
WebSocket (SockJS)!
CORS support

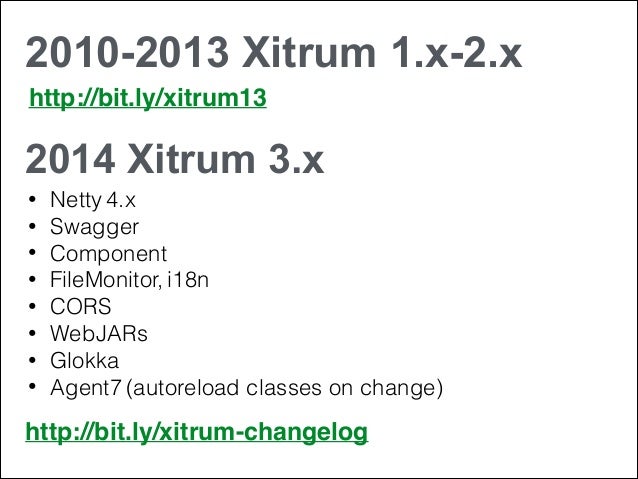

8. 2010-2013 Xitrum 1.x-2.x
http://bit.ly/xitrum13
2014 Xitrum 3.x
• Netty 4.x
• Swagger
• Component
• FileMonitor, i18n
• CORS
• WebJARs
• Glokka
• Agent7 (autoreload classes on change)
!
!
http://bit.ly/xitrum-changelog
!

9. How Xitrum
works?

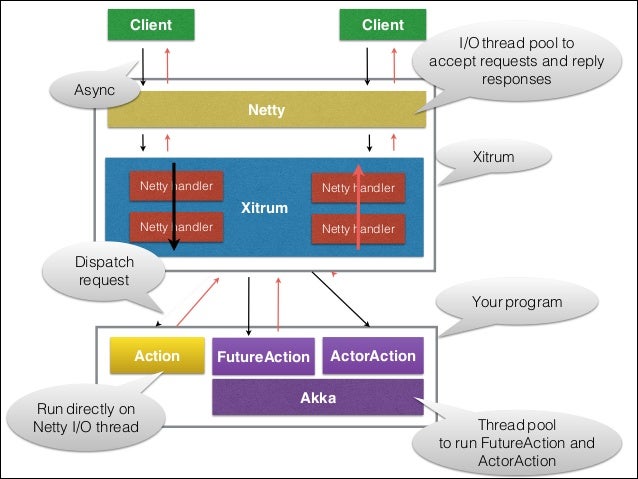

10. Client
Netty
Async
Dispatch
request
Action FutureAction ActorAction
Akka
Xitrum
I/O thread pool to
accept requests and reply
responses
Thread pool
to run FutureAction and
ActorAction
Client
Run directly on
Netty I/O thread
Netty handler
Netty handler
Netty handler
Netty handler
Xitrum
Your program

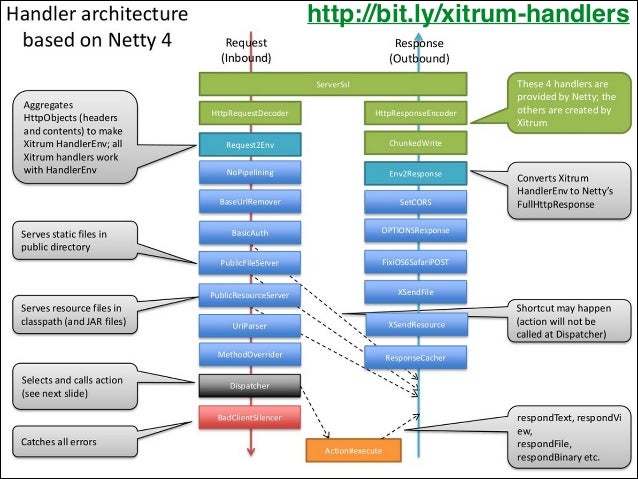

11. http://bit.ly/xitrum-handlers

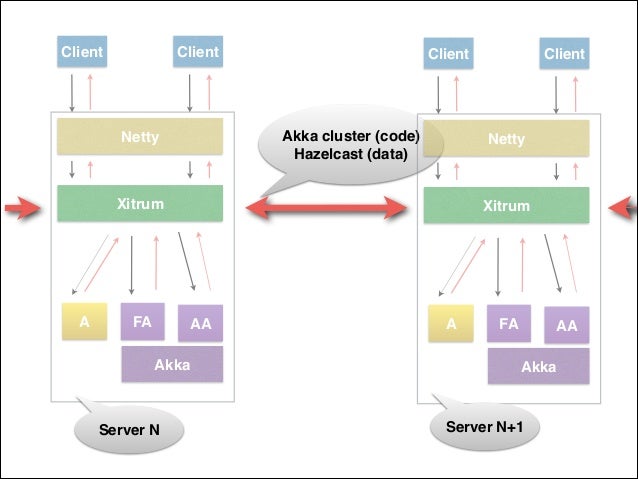

12. Client
Client Client
Akka cluster (code)!
Hazelcast (data)
Client
Netty
Xitrum
A FA AA
Akka
Netty
Xitrum
A FA AA
Akka
Server N Server N+1

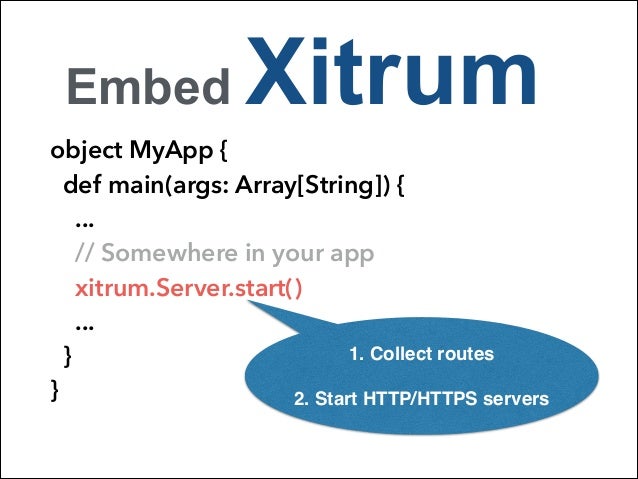

13. Embed Xitrum
object MyApp {
def main(args: Array[String]) {
...
// Somewhere in your app
xitrum.Server.start()
...
}
1. Collect routes!
}
!
2. Start HTTP/HTTPS servers

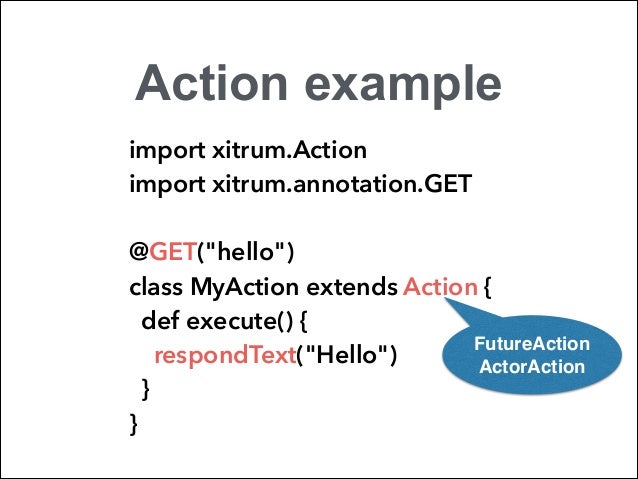

14. Action example
import xitrum.Action
import xitrum.annotation.GET
!
@GET("hello")
class MyAction extends Action {
def execute() {
respondText("Hello")
}
}
FutureAction!
ActorAction

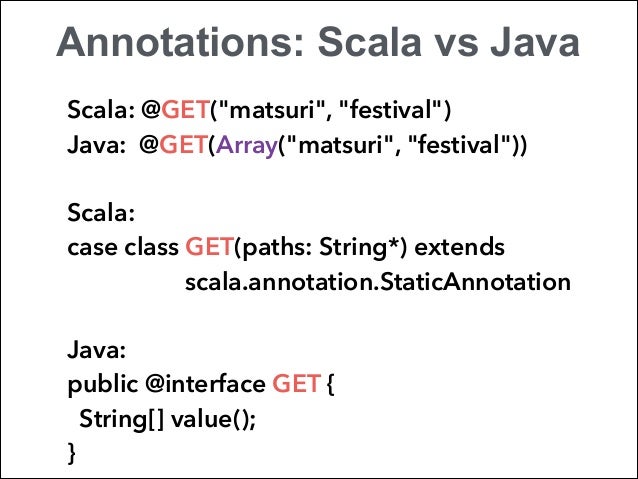

15. Annotations: Scala vs Java
Scala: @GET("matsuri", "festival")
Java: @GET(Array("matsuri", "festival"))
!
Scala:
case class GET(paths: String*) extends
scala.annotation.StaticAnnotation
!
Java:
public @interface GET {
String[] value();
}

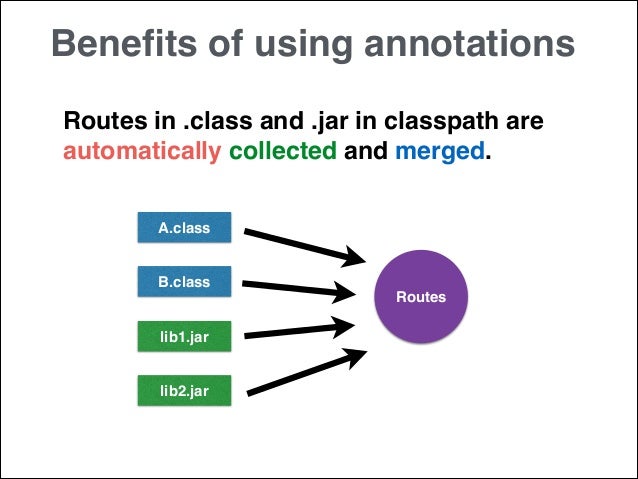

16. Benefits of using annotations
Routes in .class and .jar in classpath are
automatically collected and merged.
A.class
B.class
lib1.jar
lib2.jar
Routes

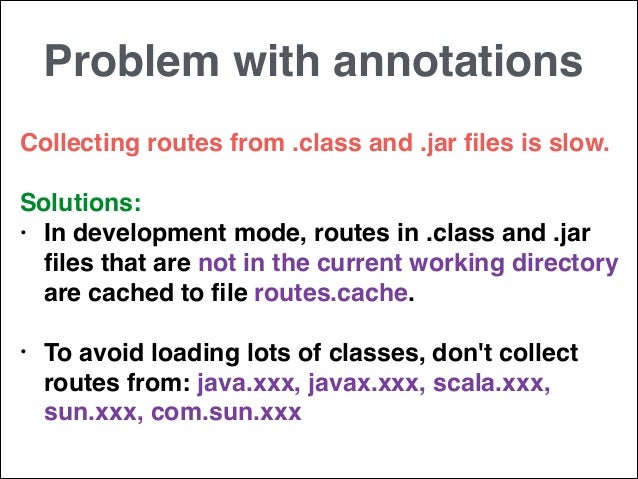

17. Problem with annotations
Collecting routes from .class and .jar files is slow.!
!
Solutions:!
• In development mode, routes in .class and .jar
files that are not in the current working directory
are cached to file routes.cache.
• To avoid loading lots of classes, don't collect
routes from: java.xxx, javax.xxx, scala.xxx,
sun.xxx, com.sun.xxx

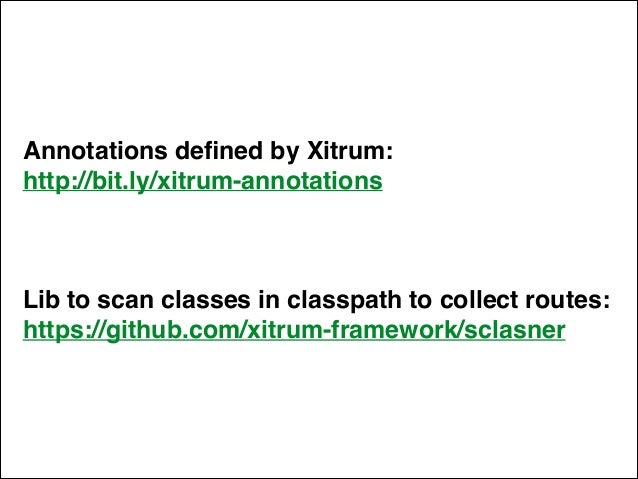

18. Annotations defined by Xitrum:!
http://bit.ly/xitrum-annotations!
!
Lib to scan classes in classpath to collect routes:!
https://github.com/xitrum-framework/sclasner

19. Demo overview
GET / GET /chat
username
password
login
Hello
!
Hello!
How are you?
Fine
message send
POST /login SockJS /connect
https://github.com/xitrum-framework/matsuri14

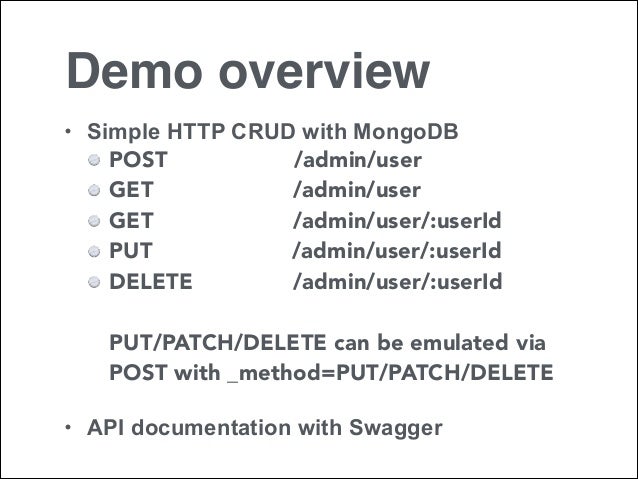

20. Demo overview
• Simple HTTP CRUD with MongoDB
POST /admin/user
GET /admin/user
GET /admin/user/:userId
PUT /admin/user/:userId
DELETE /admin/user/:userId
PUT/PATCH/DELETE can be emulated via
POST with _method=PUT/PATCH/DELETE
!
• API documentation with Swagger

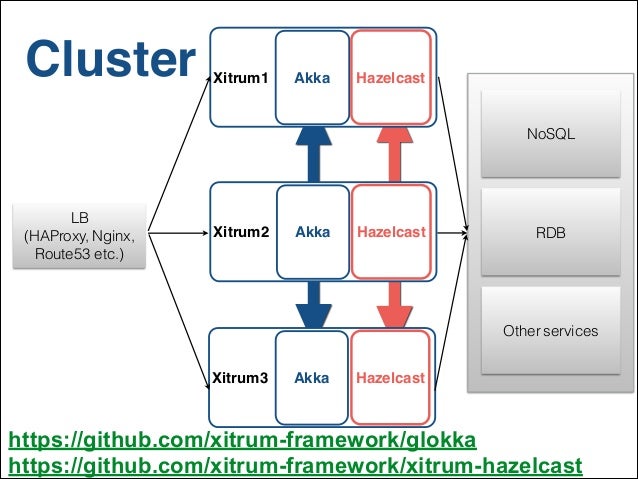

21. DB Cluseter
Xitrum1 Akka Hazelcast
Xitrum2 Akka Hazelcast
Xitrum3
Cluster
LB
(HAProxy, Nginx,
Route53 etc.)
NoSQL
RDB
Other services
Akka Hazelcast
https://github.com/xitrum-framework/glokka
https://github.com/xitrum-framework/xitrum-hazelcast

23. Getting started
with xitrum-new
skeleton
https://github.com/xitrum-framework/xitrum-new
https://github.com/xitrum-framework/xitrum-scalate

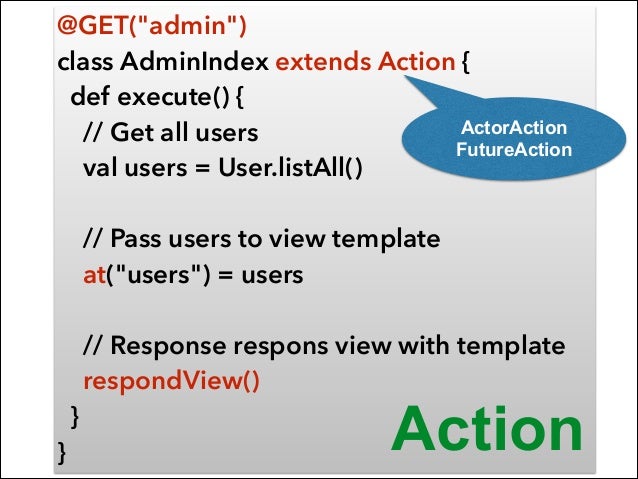

24. @GET("admin")
class AdminIndex extends Action {
def execute() {
// Get all users
val users = User.listAll()
// Pass users to view template
at("users") = users
!
// Response respons view with template
respondView()
}
}
ActorAction
FutureAction
Action

25. - import matsuri.demo.action._!
- import matsuri.demo.model.User!
!
div.row#usersTable!
table.table.table-striped#messageTable!
thead!
tr.bg-primary!

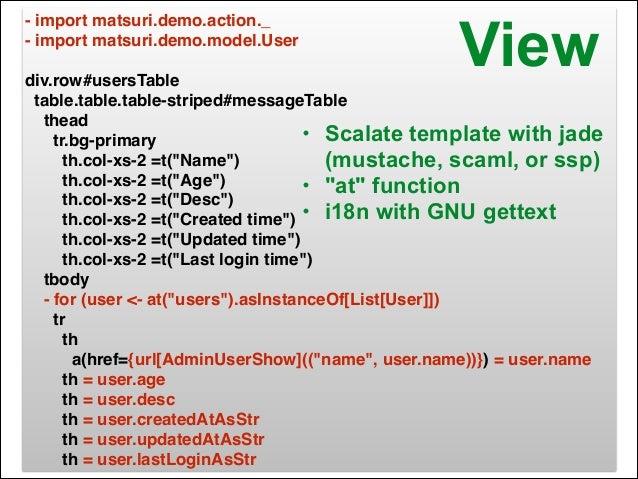

View
• Scalate template with jade
(mustache, scaml, or ssp)
• "at" function
• i18n with GNU gettext
th.col-xs-2 =t("Name")!
th.col-xs-2 =t("Age")!
th.col-xs-2 =t("Desc")!
th.col-xs-2 =t("Created time")!
th.col-xs-2 =t("Updated time")!
th.col-xs-2 =t("Last login time")!
tbody!
- for (user <- at("users").asInstanceOf[List[User]])!
tr!
th!
a(href={url[AdminUserShow](("name", user.name))}) = user.name!
th = user.age!
th = user.desc!
th = user.createdAtAsStr!
th = user.updatedAtAsStr!
th = user.lastLoginAsStr

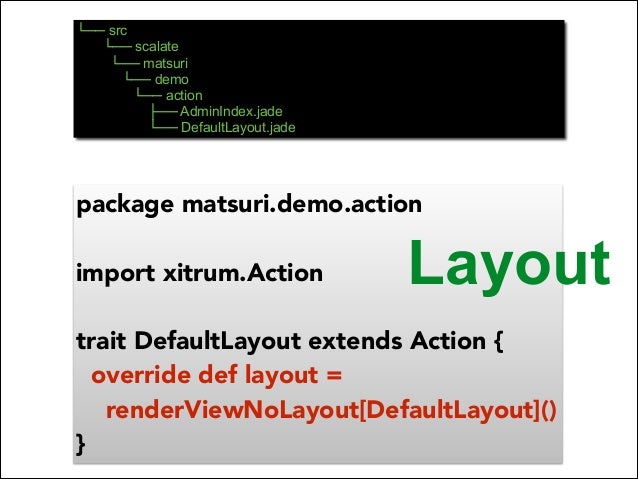

26. └── src
└── scalate
└── matsuri
└── demo
└── action
├── AdminIndex.jade
└── DefaultLayout.jade
package matsuri.demo.action
!
import xitrum.Action
!
trait DefaultLayout extends Action {
override def layout =
renderViewNoLayout[DefaultLayout]()
}
Layout

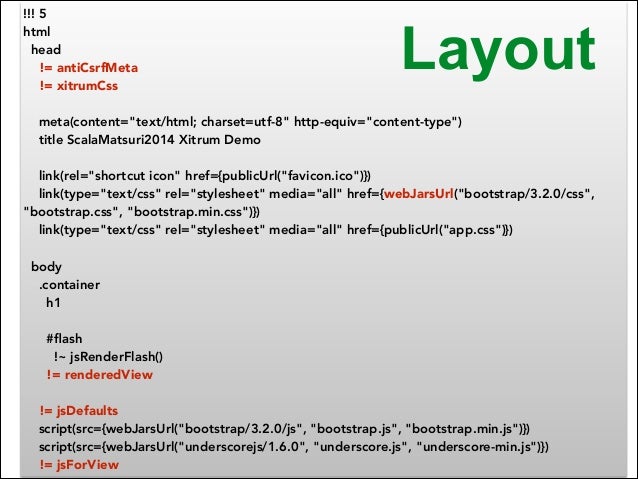

27. !!! 5
html
head
!= antiCsrfMeta
!= xitrumCss
!
meta(content="text/html; charset=utf-8" http-equiv="content-type")
title ScalaMatsuri2014 Xitrum Demo
!
link(rel="shortcut icon" href={publicUrl("favicon.ico")})
link(type="text/css" rel="stylesheet" media="all" href={webJarsUrl("bootstrap/3.2.0/css",
"bootstrap.css", "bootstrap.min.css")})
link(type="text/css" rel="stylesheet" media="all" href={publicUrl("app.css")})
!
body
.container
h1
!
#flash
!~ jsRenderFlash()
!= renderedView
Layout
!
!= jsDefaults
script(src={webJarsUrl("bootstrap/3.2.0/js", "bootstrap.js", "bootstrap.min.js")})
script(src={webJarsUrl("underscorejs/1.6.0", "underscore.js", "underscore-min.js")})
!= jsForView

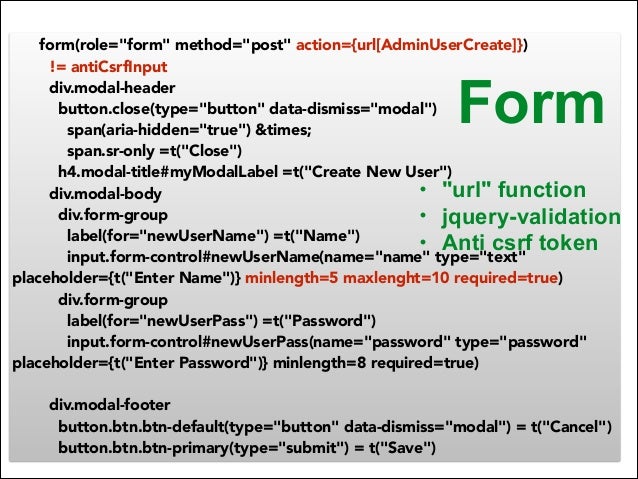

28. form(role="form" method="post" action={url[AdminUserCreate]})
!= antiCsrfInput
div.modal-header
button.close(type="button" data-dismiss="modal")
Form
span(aria-hidden="true") &times;
span.sr-only =t("Close")
h4.modal-title#myModalLabel =t("Create New User")
div.modal-body
div.form-group
label(for="newUserName") =t("Name")
input.form-control#newUserName(name="name" type="text"
• "url" function
• jquery-validation
• Anti csrf token
placeholder={t("Enter Name")} minlength=5 maxlenght=10 required=true)
div.form-group
label(for="newUserPass") =t("Password")
input.form-control#newUserPass(name="password" type="password"
placeholder={t("Enter Password")} minlength=8 required=true)
!
div.modal-footer
button.btn.btn-default(type="button" data-dismiss="modal") = t("Cancel")
button.btn.btn-primary(type="submit") = t("Save")

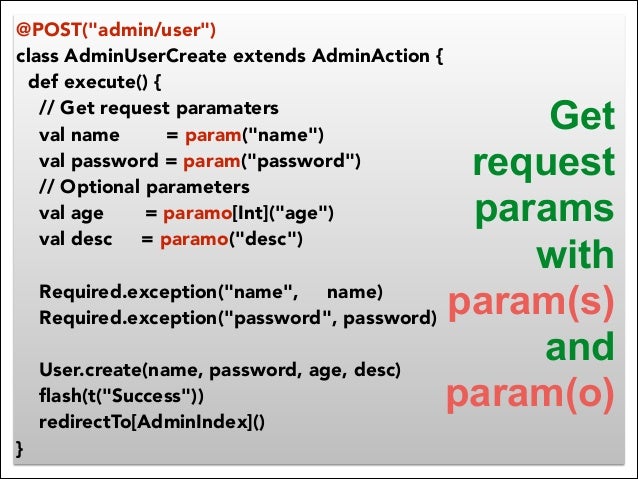

29. @POST("admin/user")
class AdminUserCreate extends AdminAction {
def execute() {
// Get request paramaters
val name = param("name")
val password = param("password")
// Optional parameters
val age = paramo[Int]("age")
val desc = paramo("desc")
!
Required.exception("name", name)
Required.exception("password", password)
!
User.create(name, password, age, desc)
flash(t("Success"))
redirectTo[AdminIndex]()
}
Get
request
params
with
param(s)
and
param(o)

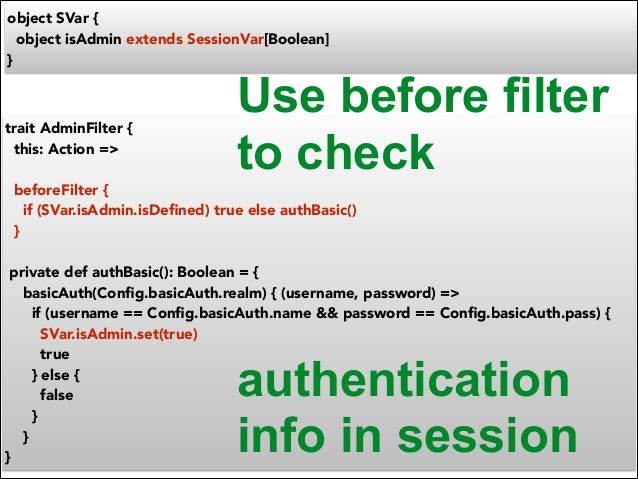

30. object SVar {
object isAdmin extends SessionVar[Boolean]
}
Use before filter
to check
trait AdminFilter {
this: Action =>
!
beforeFilter {
if (SVar.isAdmin.isDefined) true else authBasic()
}
!
private def authBasic(): Boolean = {
basicAuth(Config.basicAuth.realm) { (username, password) =>
if (username == Config.basicAuth.name && password == Config.basicAuth.pass) {
SVar.isAdmin.set(true)
true
} else {
false
}
}
}
authentication
info in session

31. @Swagger(
Swagger.Summary("Create User"),
Swagger.Response(200, "status = 0: success, 1: failed to create user"),
Swagger.Response(400, "Invalid request parameter"),
Swagger.StringForm("name"),
Swagger.StringForm("password"),
Swagger.OptIntForm("age"),
Swagger.OptStringForm("desc")
)
API
doc
• /xitrum/swagger
• /xitrum/swagger-ui
• Create test client with Swagger-codegen
https://github.com/wordnik/swagger-ui
https://github.com/wordnik/swagger-codegen
https://github.com/wordnik/swagger-spec

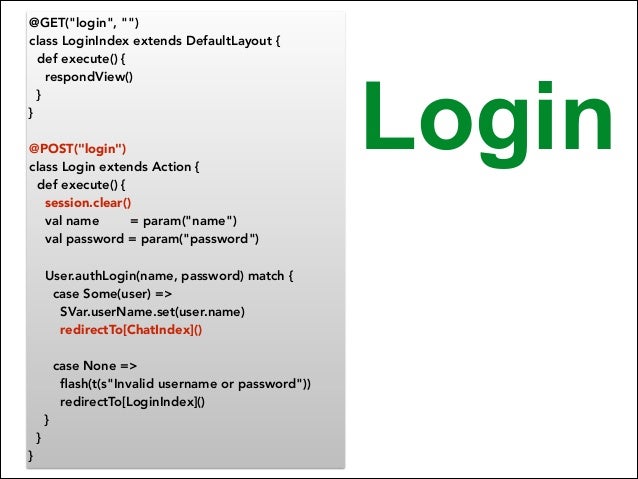

32. @GET("login", "")
class LoginIndex extends DefaultLayout {
def execute() {
respondView()
}
}
!
@POST("login")
class Login extends Action {
def execute() {
session.clear()
val name = param("name")
val password = param("password")
!
User.authLogin(name, password) match {
case Some(user) =>
SVar.userName.set(user.name)
redirectTo[ChatIndex]()
!
case None =>
flash(t(s"Invalid username or password"))
redirectTo[LoginIndex]()
}
}
}
Login

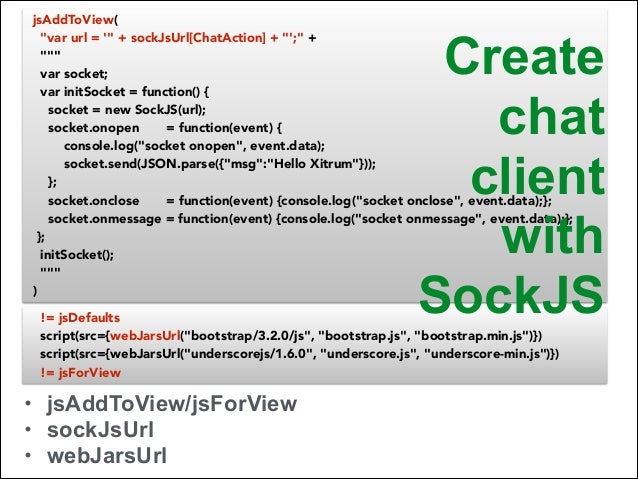

33. jsAddToView(
"var url = '" + sockJsUrl[ChatAction] + "';" +
"""
var socket;
var initSocket = function() {
socket = new SockJS(url);
socket.onopen = function(event) {
console.log("socket onopen", event.data);
socket.send(JSON.parse({"msg":"Hello Xitrum"}));
};
socket.onclose = function(event) {console.log("socket onclose", event.data);};
socket.onmessage = function(event) {console.log("socket onmessage", event.data);};
};
initSocket();
"""
)
!= jsDefaults
script(src={webJarsUrl("bootstrap/3.2.0/js", "bootstrap.js", "bootstrap.min.js")})
script(src={webJarsUrl("underscorejs/1.6.0", "underscore.js", "underscore-min.js")})
!= jsForView
• jsAddToView/jsForView
• sockJsUrl
• webJarsUrl
Create
chat
client
with
SockJS

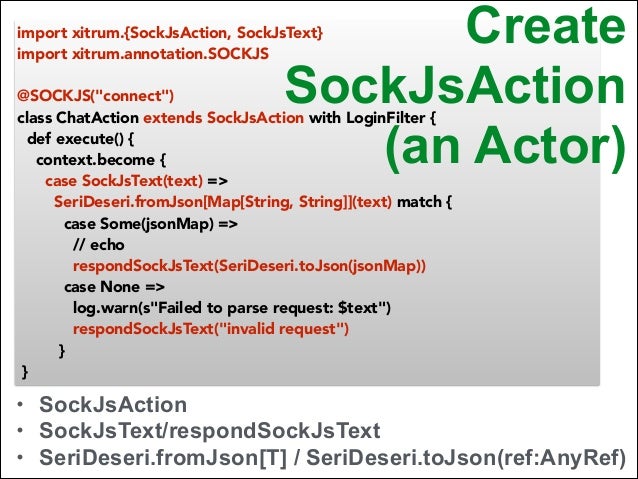

34. import xitrum.{SockJsAction, SockJsText}
import xitrum.annotation.SOCKJS
!
@SOCKJS("connect")
class ChatAction extends SockJsAction with LoginFilter {
def execute() {
context.become {
SockJsAction
(an Actor)
case SockJsText(text) =>
SeriDeseri.fromJson[Map[String, String]](text) match {
case Some(jsonMap) =>
// echo
respondSockJsText(SeriDeseri.toJson(jsonMap))
case None =>
log.warn(s"Failed to parse request: $text")
respondSockJsText("invalid request")
}
Create
}
• SockJsAction
• SockJsText/respondSockJsText
• SeriDeseri.fromJson[T] / SeriDeseri.toJson(ref:AnyRef)

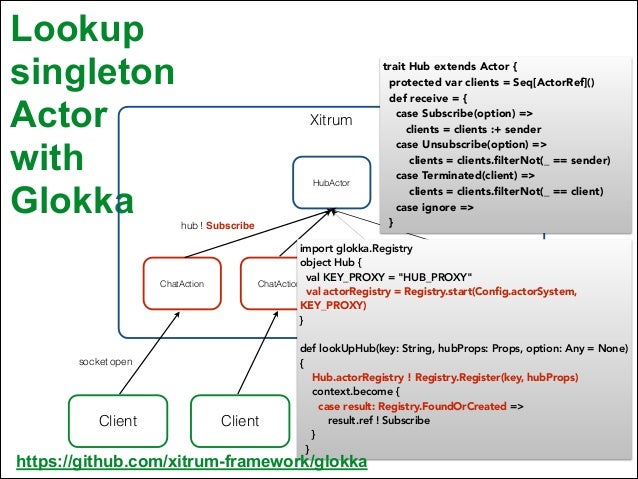

35. Lookup
singleton
Actor
with
Glokka
Xitrum
socket open
Client
HubActor
trait Hub extends Actor {
protected var clients = Seq[ActorRef]()
def receive = {
case Subscribe(option) =>
clients = clients :+ sender
case Unsubscribe(option) =>
clients = clients.filterNot(_ == sender)
case Terminated(client) =>
clients = clients.filterNot(_ == client)
case ignore =>
}
import glokka.Registry
object Hub {
val KEY_PROXY = "HUB_PROXY"
val actorRegistry = Registry.start(Config.actorSystem,
KEY_PROXY)
}
!
def lookUpHub(key: String, hubProps: Props, option: Any = None)
{
Hub.actorRegistry ! Registry.Register(key, hubProps)
context.become {
hub ! Subscribe
ChatAction ChatAction ChatAction ChatAction
case result: Registry.FoundOrCreated =>
result.ref ! Subscribe
}
}
Client Client Client
https://github.com/xitrum-framework/glokka

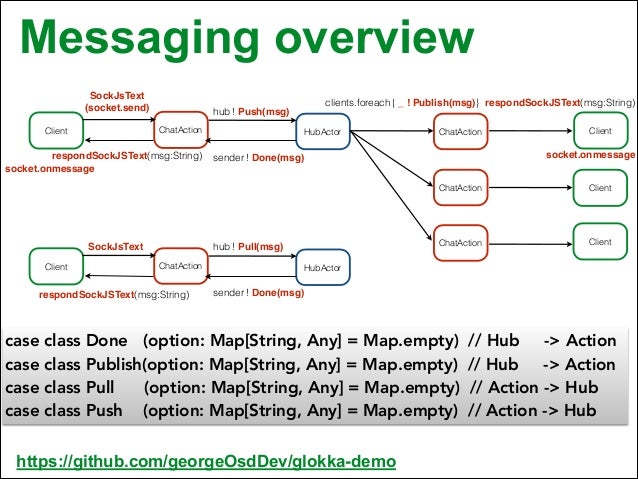

36. Messaging overview
SockJsText!
(socket.send) hub ! Push(msg)
clients.foreach { _ ! Publish(msg)} respondSockJSText(msg:String)
Client ChatAction HubActor
socket.onmessage
SockJsText hub ! Pull(msg)
case class Done (option: Map[String, Any] = Map.empty) // Hub -> Action
case class Publish(option: Map[String, Any] = Map.empty) // Hub -> Action
case class Pull (option: Map[String, Any] = Map.empty) // Action -> Hub
case class Push (option: Map[String, Any] = Map.empty) // Action -> Hub
https://github.com/georgeOsdDev/glokka-demo
ChatAction Client
ChatAction
ChatAction
Client
Client
respondSockJSText(msg:String) sender ! Done(msg)
Client ChatAction HubActor
respondSockJSText(msg:String) sender ! Done(msg)
socket.onmessage

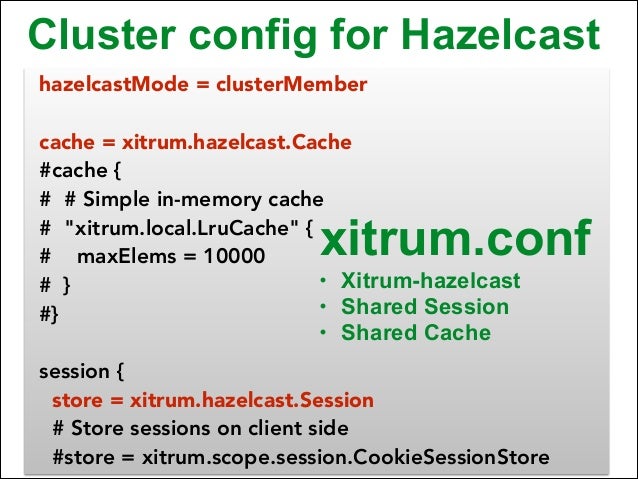

37. Cluster config for Hazelcast
hazelcastMode = clusterMember
!
cache = xitrum.hazelcast.Cache
#cache {
# # Simple in-memory cache
# "xitrum.local.LruCache" {
xitrum.conf
# maxElems = 10000
# }
• Xitrum-hazelcast
#}
• Shared Session
• Shared Cache
!
session {
store = xitrum.hazelcast.Session
# Store sessions on client side
#store = xitrum.scope.session.CookieSessionStore

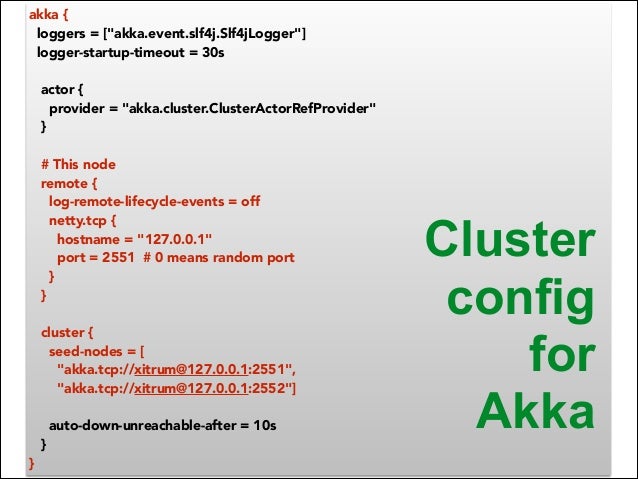

38. akka {
loggers = ["akka.event.slf4j.Slf4jLogger"]
logger-startup-timeout = 30s
!
actor {
provider = "akka.cluster.ClusterActorRefProvider"
}
!
# This node
remote {
log-remote-lifecycle-events = off
netty.tcp {
hostname = "127.0.0.1"
port = 2551 # 0 means random port
}
}
!
cluster {
seed-nodes = [
"akka.tcp://xitrum@127.0.0.1:2551",
"akka.tcp://xitrum@127.0.0.1:2552"]
!
auto-down-unreachable-after = 10s
}
}
Cluster
config
for
Akka

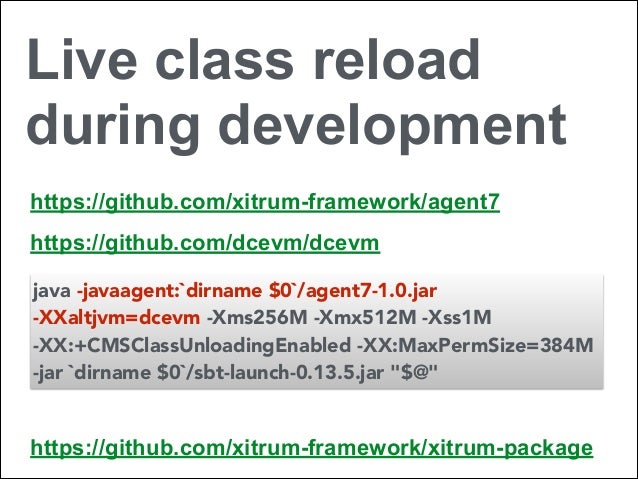

39. Live class reload
during development
https://github.com/xitrum-framework/agent7
https://github.com/dcevm/dcevm
java -javaagent:`dirname $0`/agent7-1.0.jar
-XXaltjvm=dcevm -Xms256M -Xmx512M -Xss1M
-XX:+CMSClassUnloadingEnabled -XX:MaxPermSize=384M
-jar `dirname $0`/sbt-launch-0.13.5.jar "$@"
https://github.com/xitrum-framework/xitrum-package

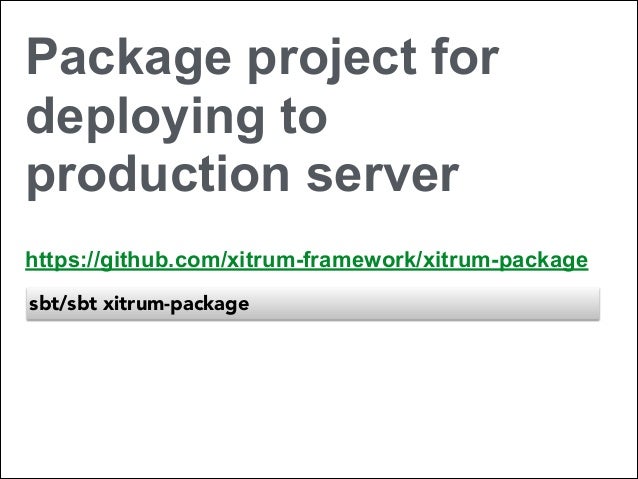

40. Package project for
deploying to
production server
https://github.com/xitrum-framework/xitrum-package
sbt/sbt xitrum-package

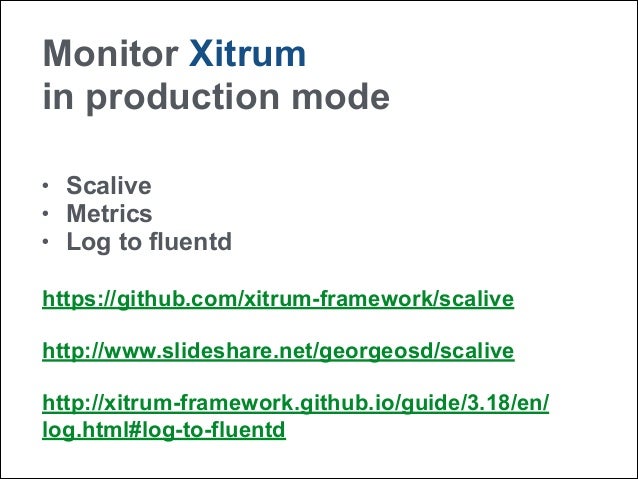

41. Monitor Xitrum
in production mode
• Scalive
• Metrics
• Log to fluentd
https://github.com/xitrum-framework/scalive
http://www.slideshare.net/georgeosd/scalive
http://xitrum-framework.github.io/guide/3.18/en/
log.html#log-to-fluentd

42. Thank
you!
