cardiac rhythm disorder

2.  The first step in any potential cardiac arrest
patient is to:
• Make sure the patient is truly unresponsive.
• Call for help: Call 911/activate Emergency Medical
Services (EMS).
 It is critical to make sure that the patient is truly
unresponsive and not just sleeping or having a
syncopal episode. Rescue breaths on a person
who is breathing are counterproductive.
 Performing chest compressions on a person with
a pulse is dangerous.

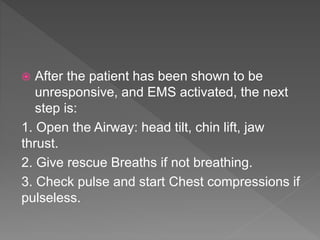

3.  After the patient has been shown to be
unresponsive, and EMS activated, the next
step is:
1. Open the Airway: head tilt, chin lift, jaw
thrust.
2. Give rescue Breaths if not breathing.
3. Check pulse and start Chest compressions if
pulseless.

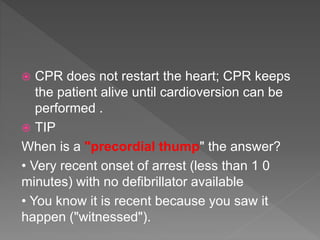

6.  CPR does not restart the heart; CPR keeps
the patient alive until cardioversion can be
performed .
 TIP
When is a "precordial thump" the answer?
• Very recent onset of arrest (less than 1 0
minutes) with no defibrillator available
• You know it is recent because you saw it
happen ("witnessed").

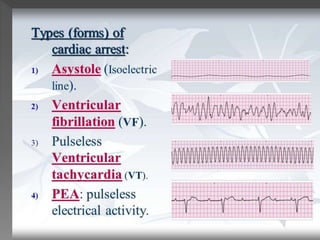

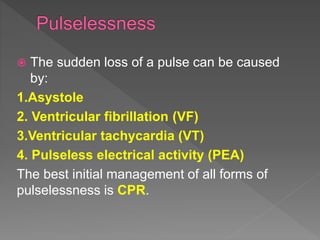

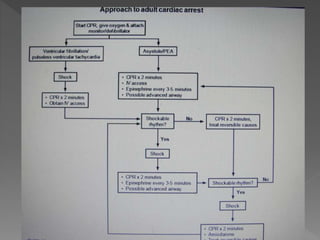

8.  The sudden loss of a pulse can be caused
by:
1.Asystole
2. Ventricular fibrillation (VF)
3.Ventricular tachycardia (VT)
4. Pulseless electrical activity (PEA)
The best initial management of all forms of
pulselessness is CPR.

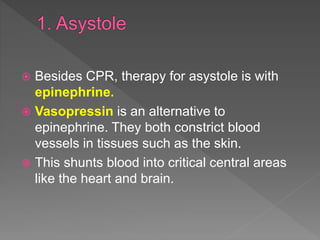

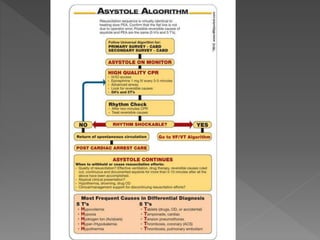

10.  Besides CPR, therapy for asystole is with
epinephrine.
 Vasopressin is an alternative to
epinephrine. They both constrict blood
vessels in tissues such as the skin.
 This shunts blood into critical central areas
like the heart and brain.

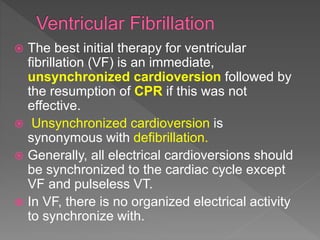

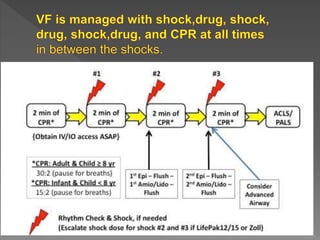

12.  The best initial therapy for ventricular
fibrillation (VF) is an immediate,
unsynchronized cardioversion followed by
the resumption of CPR if this was not
effective.
 Unsynchronized cardioversion is
synonymous with defibrillation.
 Generally, all electrical cardioversions should
be synchronized to the cardiac cycle except
VF and pulseless VT.
 In VF, there is no organized electrical activity
to synchronize with.

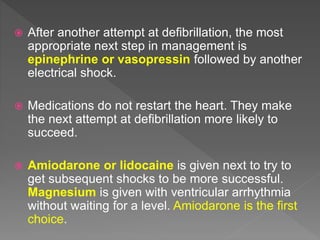

14.  After another attempt at defibrillation, the most
appropriate next step in management is
epinephrine or vasopressin followed by another
electrical shock.
 Medications do not restart the heart. They make
the next attempt at defibrillation more likely to
succeed.
 Amiodarone or lidocaine is given next to try to
get subsequent shocks to be more successful.
Magnesium is given with ventricular arrhythmia
without waiting for a level. Amiodarone is the first
choice.

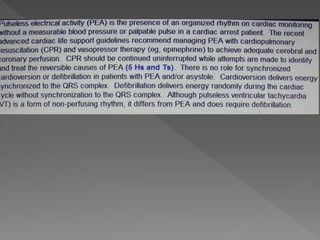

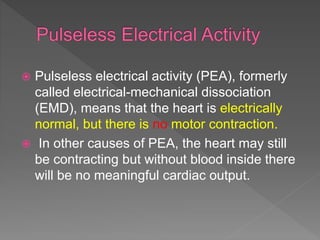

18.  Pulseless electrical activity (PEA), formerly
called electrical-mechanical dissociation
(EMD), means that the heart is electrically
normal, but there is no motor contraction.
 In other causes of PEA, the heart may still
be contracting but without blood inside there
will be no meaningful cardiac output.

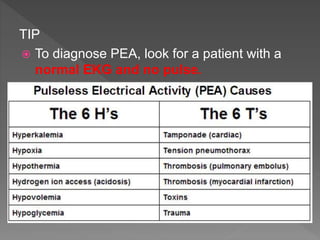

20. TIP

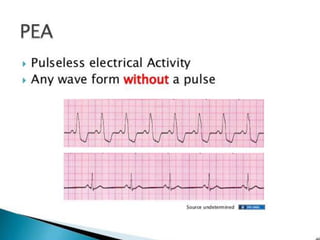

 To diagnose PEA, look for a patient with a
normal EKG and no pulse.

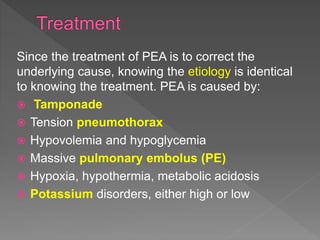

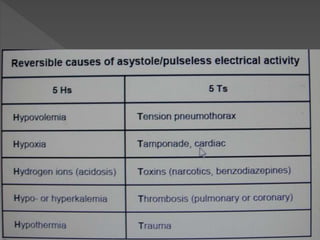

21. Since the treatment of PEA is to correct the
underlying cause, knowing the etiology is identical
to knowing the treatment. PEA is caused by:
 Tamponade
 Tension pneumothorax
 Hypovolemia and hypoglycemia
 Massive pulmonary embolus (PE)
 Hypoxia, hypothermia, metabolic acidosis
 Potassium disorders, either high or low

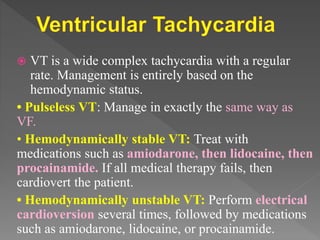

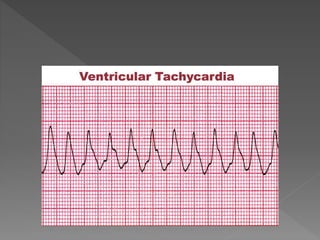

28.  VT is a wide complex tachycardia with a regular
rate. Management is entirely based on the
hemodynamic status.
• Pulseless VT: Manage in exactly the same way as
VF.
• Hemodynamically stable VT: Treat with
medications such as amiodarone, then lidocaine, then
procainamide. If all medical therapy fails, then
cardiovert the patient.
• Hemodynamically unstable VT: Perform electrical
cardioversion several times, followed by medications
such as amiodarone, lidocaine, or procainamide.

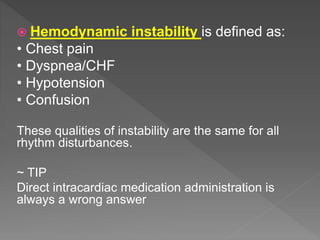

30.  Hemodynamic instability is defined as:
• Chest pain
• Dyspnea/CHF
• Hypotension
• Confusion
These qualities of instability are the same for all
rhythm disturbances.
~ TIP
Direct intracardiac medication administration is
always a wrong answer

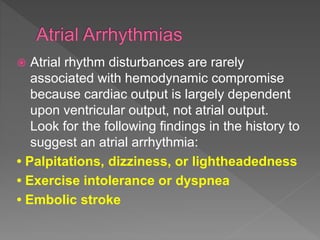

31.  Atrial rhythm disturbances are rarely
associated with hemodynamic compromise
because cardiac output is largely dependent
upon ventricular output, not atrial output.
Look for the following findings in the history to
suggest an atrial arrhythmia:
• Palpitations, dizziness, or lightheadedness
• Exercise intolerance or dyspnea
• Embolic stroke

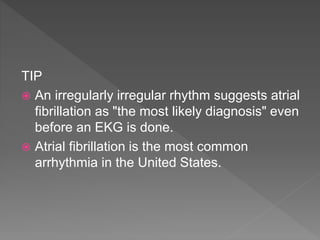

32. TIP
 An irregularly irregular rhythm suggests atrial
fibrillation as "the most likely diagnosis" even
before an EKG is done.
 Atrial fibrillation is the most common
arrhythmia in the United States.

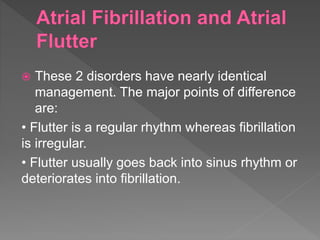

33.  These 2 disorders have nearly identical
management. The major points of difference
are:
• Flutter is a regular rhythm whereas fibrillation
is irregular.
• Flutter usually goes back into sinus rhythm or
deteriorates into fibrillation.

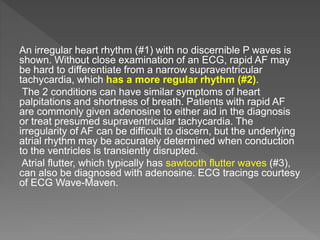

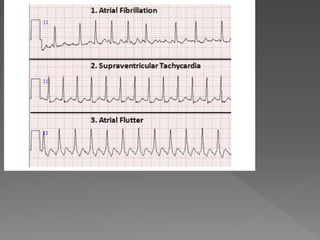

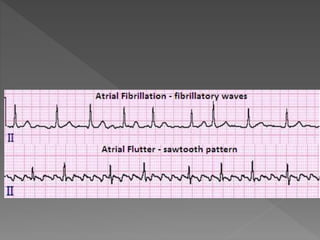

37. An irregular heart rhythm (#1) with no discernible P waves is
shown. Without close examination of an ECG, rapid AF may
be hard to differentiate from a narrow supraventricular
tachycardia, which has a more regular rhythm (#2).
The 2 conditions can have similar symptoms of heart
palpitations and shortness of breath. Patients with rapid AF
are commonly given adenosine to either aid in the diagnosis
or treat presumed supraventricular tachycardia. The
irregularity of AF can be difficult to discern, but the underlying
atrial rhythm may be accurately determined when conduction
to the ventricles is transiently disrupted.

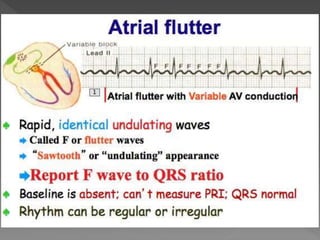

Atrial flutter, which typically has sawtooth flutter waves (#3),
can also be diagnosed with adenosine. ECG tracings courtesy
of ECG Wave-Maven.

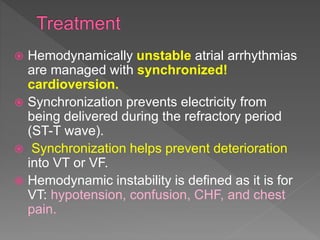

38.  Hemodynamically unstable atrial arrhythmias
are managed with synchronized!
cardioversion.
 Synchronization prevents electricity from
being delivered during the refractory period
(ST-T wave).
 Synchronization helps prevent deterioration
into VT or VF.
 Hemodynamic instability is defined as it is for
VT: hypotension, confusion, CHF, and chest
pain.

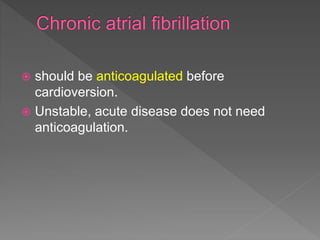

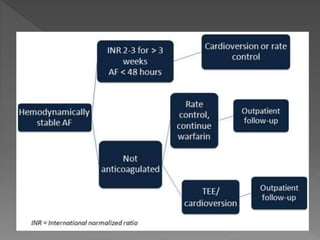

39.  should be anticoagulated before
cardioversion.
 Unstable, acute disease does not need
anticoagulation.

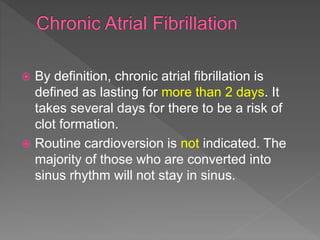

40.  By definition, chronic atrial fibrillation is
defined as lasting for more than 2 days. It
takes several days for there to be a risk of
clot formation.
 Routine cardioversion is not indicated. The
majority of those who are converted into
sinus rhythm will not stay in sinus.

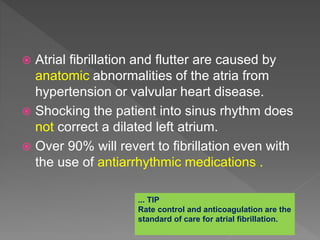

41.  Atrial fibrillation and flutter are caused by
anatomic abnormalities of the atria from
hypertension or valvular heart disease.
 Shocking the patient into sinus rhythm does
not correct a dilated left atrium.
 Over 90% will revert to fibrillation even with
the use of antiarrhythmic medications .
... TIP
Rate control and anticoagulation are the
standard of care for atrial fibrillation.

42.  The best initial therapy for fibrillation and flutter is to
control the rate with beta blockers, calcium channel
blockers, or digoxin.
 Once the rate is under 100 per minute, the most
appropriate next step is to give warfarin, dabigatran, or
rivaroxaban.
1. Slow the rate.
2. Anticoagulate. (Aspirin for low risk.)
 The calcium blockers used to control heart rate with atrial
arrhythmias are diltiazem and verapamil. These reliably
block the AV node. The other calcium channel blockers
control BP.

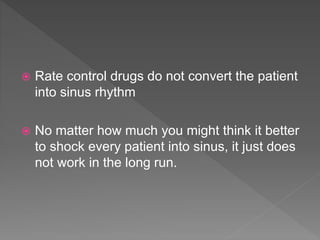

43.  Rate control drugs do not convert the patient
into sinus rhythm
 No matter how much you might think it better
to shock every patient into sinus, it just does
not work in the long run.

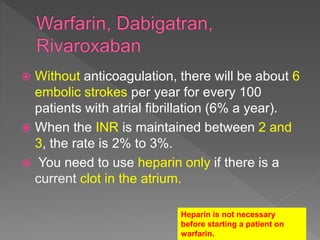

44.  Without anticoagulation, there will be about 6
embolic strokes per year for every 100
patients with atrial fibrillation (6% a year).
 When the INR is maintained between 2 and
3, the rate is 2% to 3%.
 You need to use heparin only if there is a
current clot in the atrium.
Heparin is not necessary
before starting a patient on
warfarin.

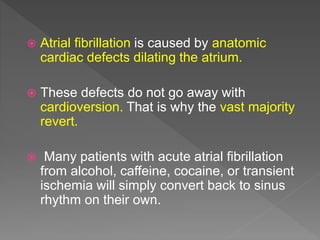

45.  Atrial fibrillation is caused by anatomic
cardiac defects dilating the atrium.
 These defects do not go away with
cardioversion. That is why the vast majority
revert.
 Many patients with acute atrial fibrillation
from alcohol, caffeine, cocaine, or transient
ischemia will simply convert back to sinus
rhythm on their own.

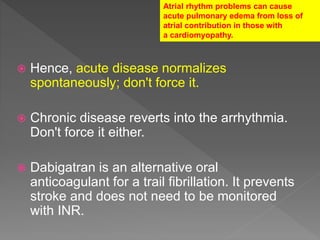

46.  Hence, acute disease normalizes
spontaneously; don't force it.
 Chronic disease reverts into the arrhythmia.
Don't force it either.
 Dabigatran is an alternative oral
anticoagulant for a trail fibrillation. It prevents
stroke and does not need to be monitored
with INR.
Atrial rhythm problems can cause
acute pulmonary edema from loss of
atrial contribution in those with
a cardiomyopathy.

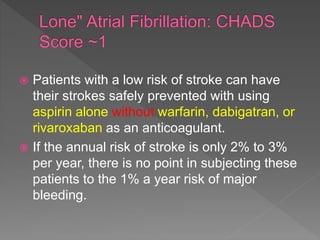

47.  Patients with a low risk of stroke can have
their strokes safely prevented with using
aspirin alone without warfarin, dabigatran, or
rivaroxaban as an anticoagulant.
 If the annual risk of stroke is only 2% to 3%
per year, there is no point in subjecting these
patients to the 1% a year risk of major
bleeding.

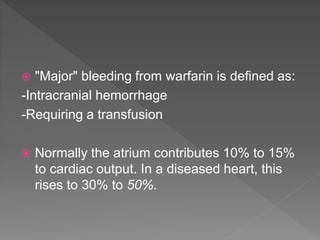

48.  "Major" bleeding from warfarin is defined as:
-Intracranial hemorrhage
-Requiring a transfusion
 Normally the atrium contributes 10% to 15%
to cardiac output. In a diseased heart, this
rises to 30% to 50%.

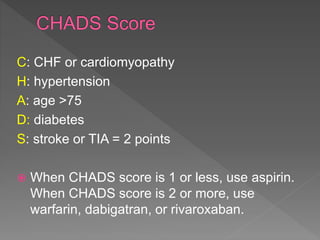

49. C: CHF or cardiomyopathy
H: hypertension
A: age >75
D: diabetes
S: stroke or TIA = 2 points
 When CHADS score is 1 or less, use aspirin.
When CHADS score is 2 or more, use
warfarin, dabigatran, or rivaroxaban.
