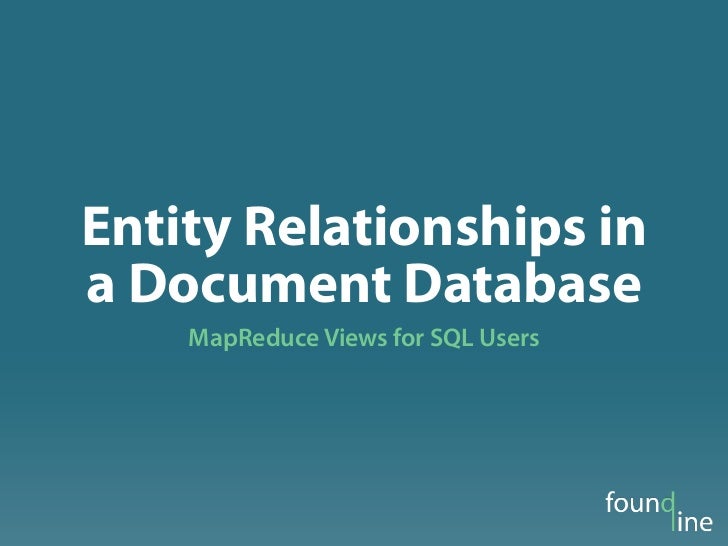

Entity Relationships ina Document Database    MapReduce Views for SQL Users
Entity:An object defined by its identityand a thread of continuity[1]             1. "Entity" Domain-driven Design Communi...
EntityRelationshipModel
Join vs. Collation
SQL Query JoiningPublishers and BooksSELECT  `publisher`.`id`,  `publisher`.`name`,  `book`.`title`FROM `publisher`FULL OU...
Joined Result Setpublisher.id publisher.name          book.title                              Building iPhone Apps with  o...
Joined Result Set     Publisher (“left”)publisher.id publisher.name          book.title                              Build...
Joined Result Set     Publisher (“left”)            Book “right”publisher.id publisher.name          book.title           ...
Collated Result Set      key            id                 value  ["oreilly",0]   "oreilly"        "OReilly Media"        ...
Collated Result Set    key            id                 value["oreilly",0]   "oreilly"        "OReilly Media"        Publ...
Collated Result Set    key            id                 value["oreilly",0]   "oreilly"        "OReilly Media"        Publ...
View Result SetsMade up of columns and rowsEvery row has the same three columns:  • key  • id  • valueColumns can contain ...
One to Many Relationships
Embedded Entities:Nest related entities within a document
Embedded EntitiesA single document represents the “one” entityNested entities (JSON Array) represents the “many” entitiesS...
Example: Publisherwith Nested Books{  "_id":"oreilly",  "collection":"publisher",  "name":"OReilly Media",  "books":[    {...
Map Functionfunction(doc) {  if ("publisher" == doc.collection) {    emit([doc._id, 0], doc.name);    for (var i in doc.bo...
Result Set     key            id                 value ["oreilly",0]   "oreilly"        "OReilly Media"                   ...
LimitationsOnly works if there aren’t a large number of related entities: • Too many nested entities can result in very la...
Related Documents:Reference an entity by its identifier
Related DocumentsA document representing the “one” entitySeparate documents for each “many” entityEach “many” entity refer...
Example: Publisher{    "_id":"oreilly",    "collection":"publisher",    "name":"OReilly Media"}
Example: Related Book{    "_id":"9780596155896",    "collection":"book",    "title":"CouchDB: The Definitive Guide",    "p...
Map Functionfunction(doc) {  if ("publisher" == doc.collection) {    emit([doc._id, 0], doc.name);  }  if ("book" == doc.c...
Result Set      key                   id              value["oreilly",0]   "oreilly"         "OReilly Media"              ...
LimitationsWhen retrieving the entity on the “right” side of the relationship,one cannot include any data from the entity ...
Many to Many Relationships
List of Keys:Reference entities by their identifiers
List of KeysA document representing each “many” entity on the “left” sideof the relationshipSeparate documents for each “m...
Books and Related Authors
Example: Book{    "_id":"9780596805029",    "collection":"book",    "title":"DocBook 5: The Definitive Guide"}
Example: Book{    "_id":"9781565920514",    "collection":"book",    "title":"Making TeX Work"}
Example: Book{    "_id":"9781565925809",    "collection":"book",    "title":"DocBook: The Definitive Guide"}
Example: Author{    "_id":"muellner",    "collection":"author",    "name":"Leonard Muellner",    "books":[      "978156592...
Example: Author{    "_id":"walsh",    "collection":"author",    "name":"Norman Walsh",    "books":[      "9780596805029", ...
Map Functionfunction(doc) {  if ("book" == doc.collection) {    emit([doc._id, 0], doc.title);  }  if ("author" == doc.col...
Result Set        key                   id                  value["9780596805029",0] "9780596805029" "DocBook 5: The Defini...
Authors and Related Books
Map Functionfunction(doc) {  if ("author" == doc.collection) {    emit([doc._id, 0], doc.name);    for (var i in doc.books...
Result Set      key              id              value["muellner",0]   "muellner"   "Leonard Muellner"["muellner",1]   "mu...
Including Docs  include_docs=true     key          id    value               doc (truncated)["muellner",0] "muellner" …   ...
Or, we can reverse the references…
Example: Author{    "_id":"muellner",    "collection":"author",    "name":"Leonard Muellner"}
Example: Author{    "_id":"walsh",    "collection":"author",    "name":"Norman Walsh"}
Example: Book{    "_id":"9780596805029",    "collection":"book",    "title":"DocBook 5: The Definitive Guide",    "authors...
Example: Book{    "_id":"9781565920514",    "collection":"book",    "title":"Making TeX Work",    "authors":[      "walsh"...
Example: Book{    "_id":"9781565925809",    "collection":"book",    "title":"DocBook: The Definitive Guide",    "authors":...
Map Functionfunction(doc) {  if ("author" == doc.collection) {    emit([doc._id, 0], doc.name);  }  if ("book" == doc.coll...
Result Set     key                id                  value["muellner",0] "muellner"     "Leonard Muellner"["muellner",1] ...
LimitationsQueries from the “right” side of the relationship cannot includeany data from entities on the “left” side of th...
Relationship Documents:Create a document to represent eachindividual relationship
Relationship DocumentsA document representing each “many” entity on the “left” sideof the relationshipSeparate documents f...
Example: Book{    "_id":"9780596805029",    "collection":"book",    "title":"DocBook 5: The Definitive Guide"}
Example: Book{    "_id":"9781565920514",    "collection":"book",    "title":"Making TeX Work"}
Example: Book{    "_id":"9781565925809",    "collection":"book",    "title":"DocBook: The Definitive Guide"}
Example: Author{    "_id":"muellner",    "collection":"author",    "name":"Leonard Muellner"}
Example: Author{    "_id":"walsh",    "collection":"author",    "name":"Norman Walsh"}
Example:Relationship Document{    "_id":"44005f2c",    "collection":"book-author",    "book":"9780596805029",    "author":...
Example:Relationship Document{    "_id":"44005f72",    "collection":"book-author",    "book":"9781565920514",    "author":...
Example:Relationship Document{    "_id":"44006720",    "collection":"book-author",    "book":"9781565925809",    "author":...
Example:Relationship Document{    "_id":"44006b0d",    "collection":"book-author",    "book":"9781565925809",    "author":...
Books and Related Authors
Map Functionfunction(doc) {  if ("book" == doc.collection) {    emit([doc._id, 0], doc.title);  }  if ("book-author" == do...
Result Set       key                 id                         value["9780596805029",0] "9780596805029" "DocBook 5: The D...
Including Docs  include_docs=true      key         id value               doc (truncated)["9780596805029",0] … …      {"ti...
Authors and Related Books
Map Functionfunction(doc) {  if ("author" == doc.collection) {    emit([doc._id, 0], doc.name);  }  if ("book-author" == d...
Result Set      key              id              value["muellner",0]   "muellner"   "Leonard Muellner"["muellner",1]   "44...
Including Docsinclude_docs=true     key       id value               doc (truncated)["muellner",0] …   …      {"name":"Leo...
LimitationsQueries can only contain data from the “left” or “right” side of therelationship (without the use of include_do...
Final Thoughts
Document Databases Comparedto Relational DatabasesDocument databases have no tables (and therefore no columns)Indexes (vie...
CaveatsNo referential integrityNo atomic transactions across document boundariesSome patterns may involve denormalized (i....
Additional TechniquesUse the startkey and endkey parameters to retrieve one entity andits related entities: startkey=["978...
Cheat Sheet                  Embedded     Related                 Relationship                                          Li...
http://oreilly.com/catalog/9781449303129/   http://oreilly.com/catalog/9781449303433/
Thank You                                  @BradleyHolt                             http://bradley-holt.com               ...
