JSON-LD and  MongoDBPowering Linked Web Apps    Gregg Kellogg  gregg@greggkellogg.net        @gkellogg
JSON-LD and Mongo• JSON-LD – graph expression in JSON• MongoDB – easily query JSON documents• Together – efficient graph qu...
Use Case• WebApps: Single Page Applications (SPAS)  • Use JSON as native object representation  • REST access to web servi...
JSON-LD                                         @graph   @context                         @id    JSON-based syntax to expr...

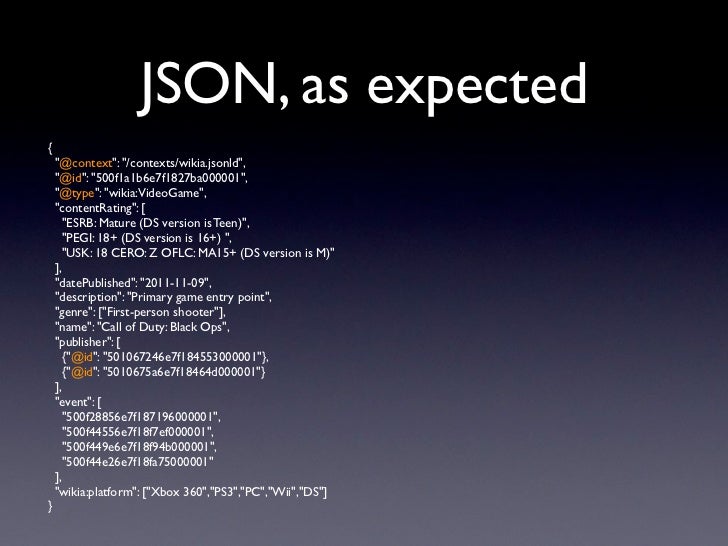

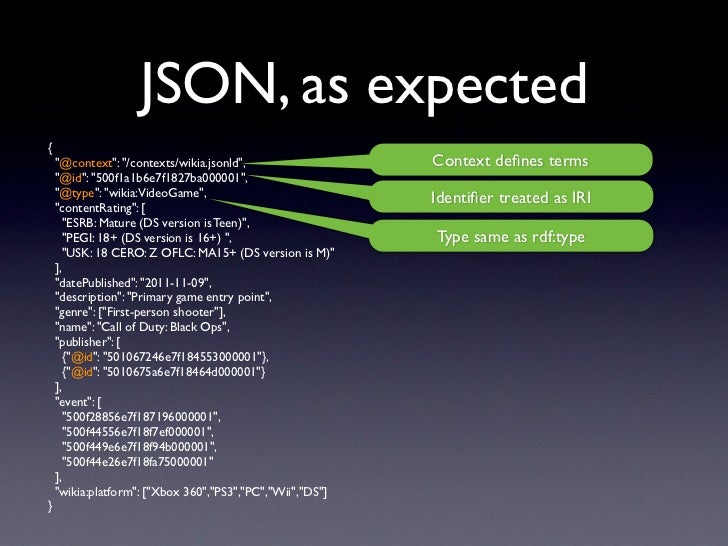

JSON, as expected{    "@context": "/contexts/wikia.jsonld",    "@id": "500f1a1b6e7f1827ba000001",    "@type": "wikia:Video...

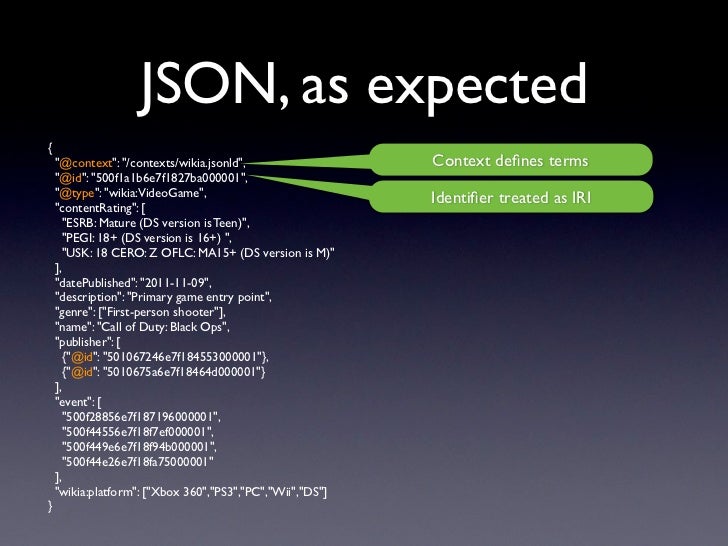

JSON, as expected{    "@context": "/contexts/wikia.jsonld",                  Context defines terms    "@id": "500f1a1b6e7f1...
JSON, as expected{    "@context": "/contexts/wikia.jsonld",                  Context defines terms    "@id": "500f1a1b6e7f1...
JSON, as expected{    "@context": "/contexts/wikia.jsonld",                  Context defines terms    "@id": "500f1a1b6e7f1...
JSON, as expected{    "@context": "/contexts/wikia.jsonld",                  Context defines terms    "@id": "500f1a1b6e7f1...

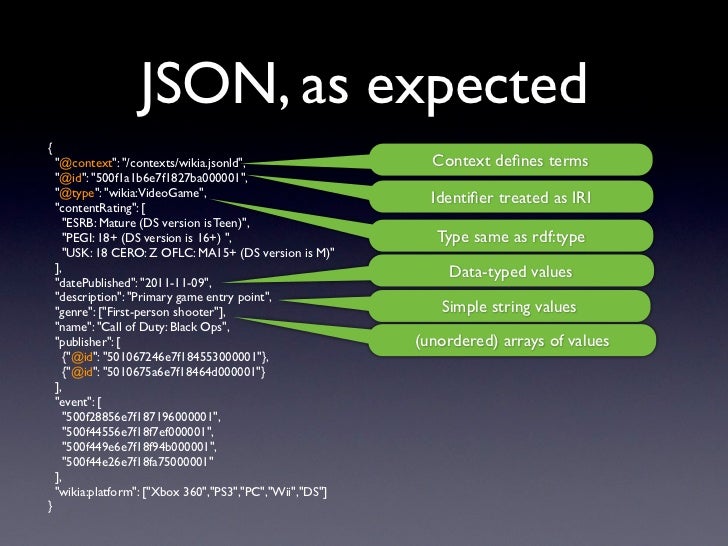

JSON, as expected{    "@context": "/contexts/wikia.jsonld",                  Context defines terms    "@id": "500f1a1b6e7f1...
JSON, as expected{    "@context": "/contexts/wikia.jsonld",                    Context defines terms    "@id": "500f1a1b6e7...
JSON, as expected{    "@context": "/contexts/wikia.jsonld",                          Context defines terms    "@id": "500f1...
JSON, as expected{    "@context": "/contexts/wikia.jsonld",                          Context defines terms    "@id": "500f1...
JSON-LD context{    "@context": "/contexts/wikia.jsonld",                  {    "@id": "500f1a1b6e7f1827ba000001",        ...

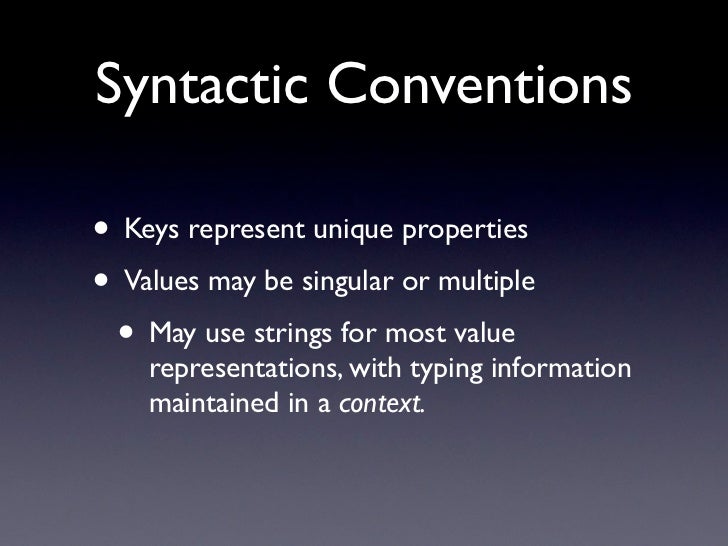

Syntactic Conventions• Keys represent unique properties• Values may be singular or multiple • May use strings for most val...

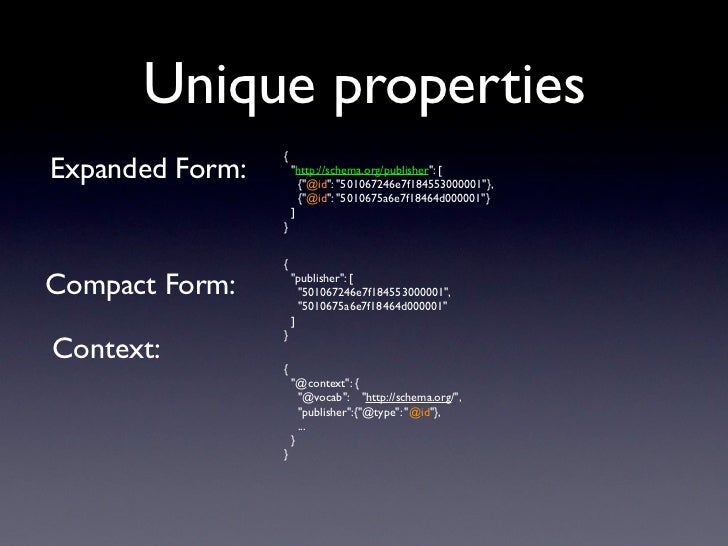

Unique properties                 {Expanded Form:       "http://schema.org/publisher": [                       {"@id": "50...

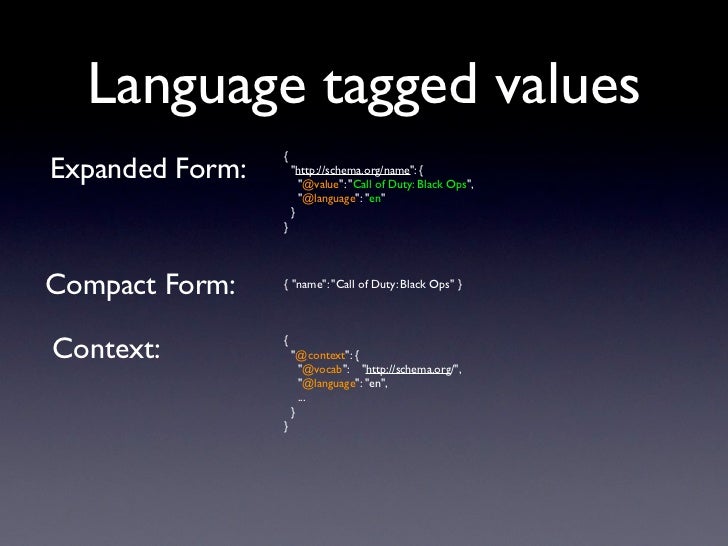

Language tagged values                 {Expanded Form:       "http://schema.org/name": {                       "@value": "...
Typed values                 {Expanded Form:       "http://schema.org/datePublished": {                       "@value": "2...

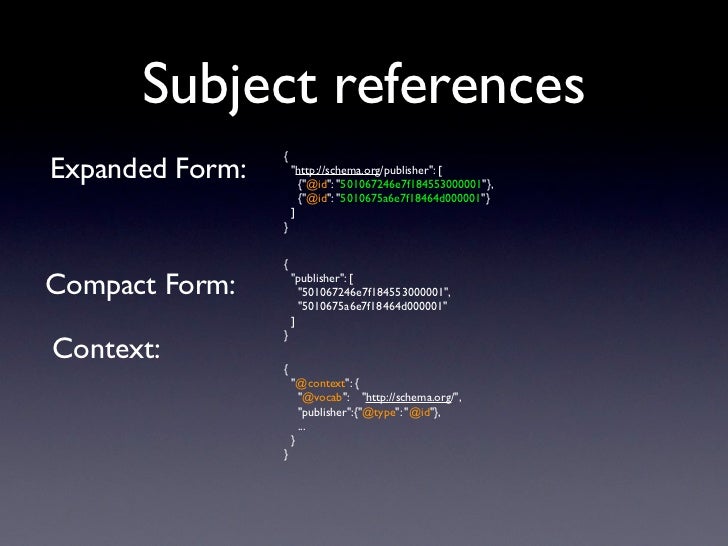

Subject references                 {Expanded Form:       "http://schema.org/publisher": [                       {"@id": "5...
Nesting     Flattened Form                                                    Nested Form:{                               ...
Nesting     Flattened Form                                                    Nested Form:{                               ...
Nesting     Flattened Form                                                    Nested Form:{                               ...
In-memory linking     Flattened Form                                 Linked Form:{     "@id": "500f1a1b6e7f1827ba000001", ...
Turtle Mapping{                                                        @prefix rdf: <http://www.w3.org/1999/02/22-rdf-synta...

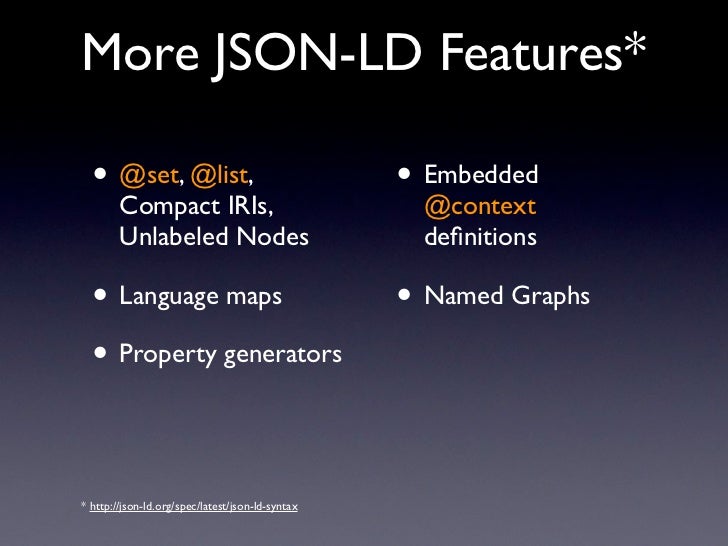

More JSON-LD Features*  • @set, @list,                                  • Embedded        Compact IRIs,                   ...
History•   2009 – Started as a way to project from the RDFa API    •   Developers want solutions to work within HTML      ...

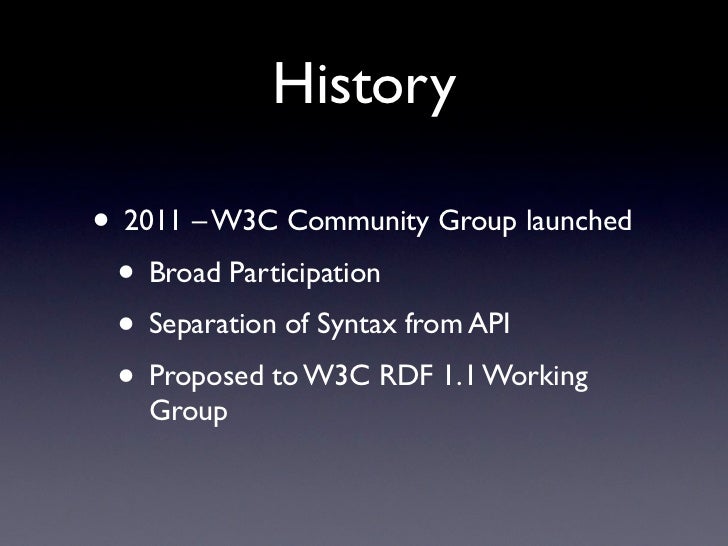

History• 2011 – W3C Community Group launched • Broad Participation • Separation of Syntax from API • Proposed to W3C RDF 1...
History• 2012 – RDF WG abandons other JSON  serialization efforts (RDF/JSON) • JSON-LD accepted as official work item • Com...

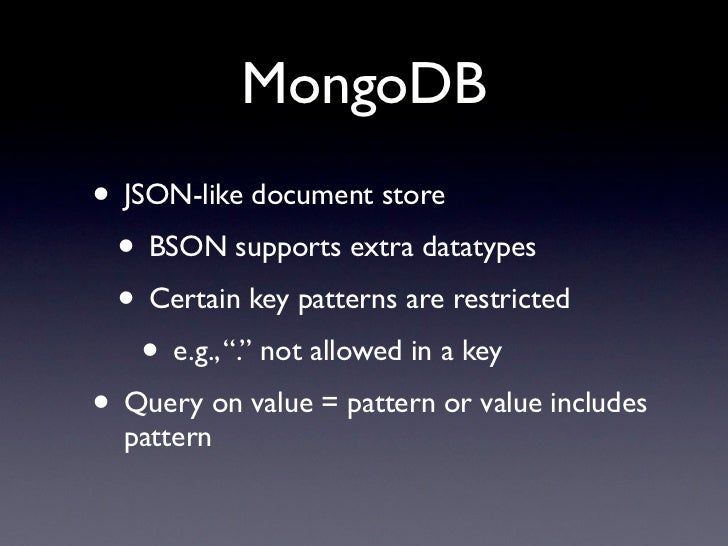

MongoDB• JSON-like document store • BSON supports extra datatypes • Certain key patterns are restricted    • e.g., “.” not...
Use CaseWikia Structured Data API

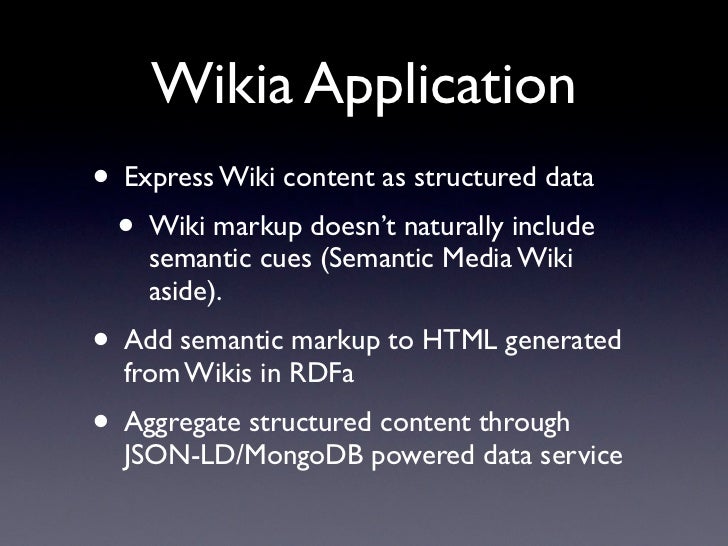

Wikia Application• Express Wiki content as structured data  • Wiki markup doesn’t naturally include    semantic cues (Sema...

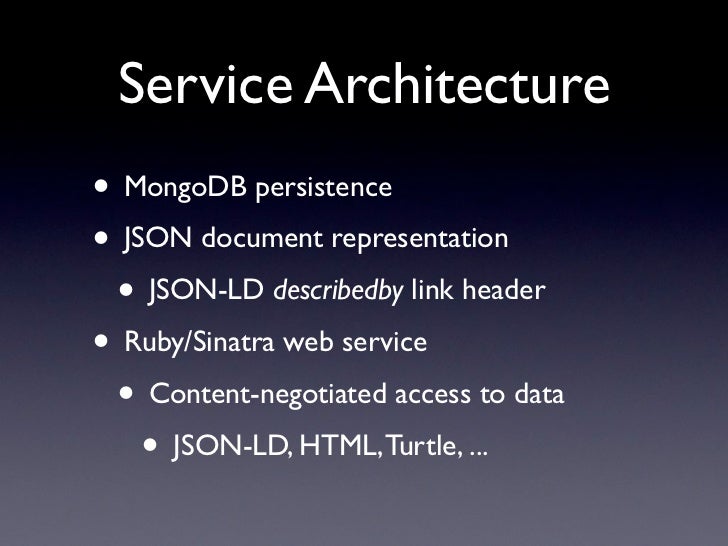

Service Architecture• MongoDB persistence• JSON document representation • JSON-LD describedby link header• Ruby/Sinatra we...

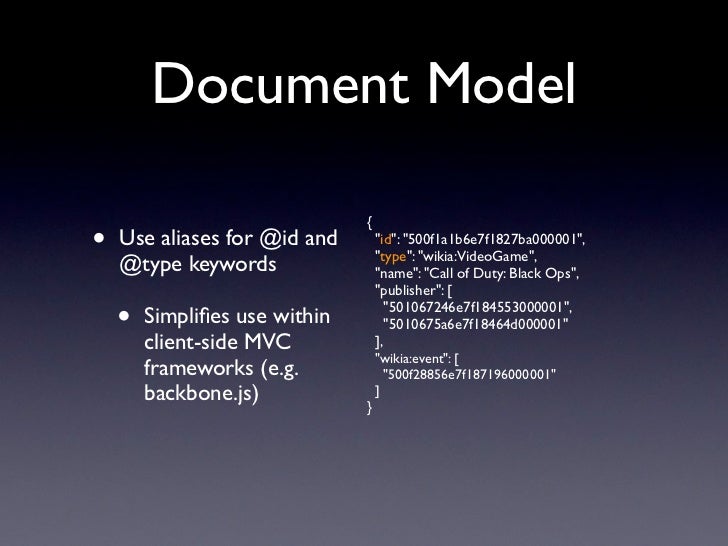

Document Model                               {•   Use aliases for @id and        "id": "500f1a1b6e7f1827ba000001",        ...
Document Model                         {                             "id": "500f1a1b6e7f1827ba000001",                    ...

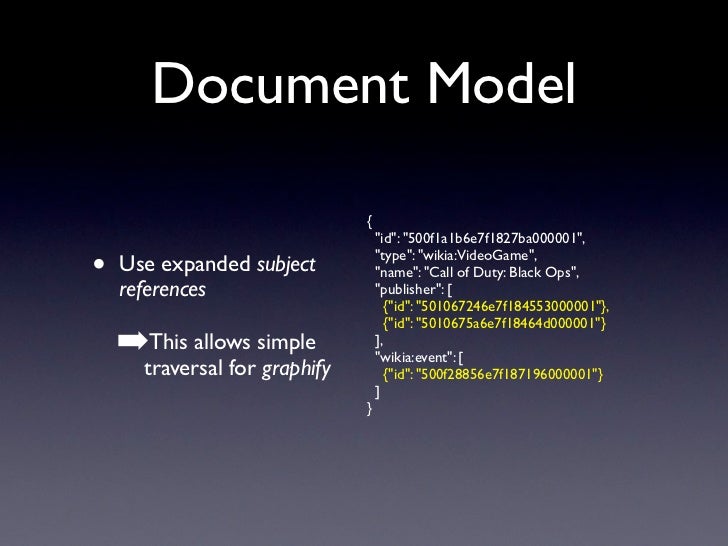

Document Model                               {                                   "id": "500f1a1b6e7f1827ba000001",•   Use ...

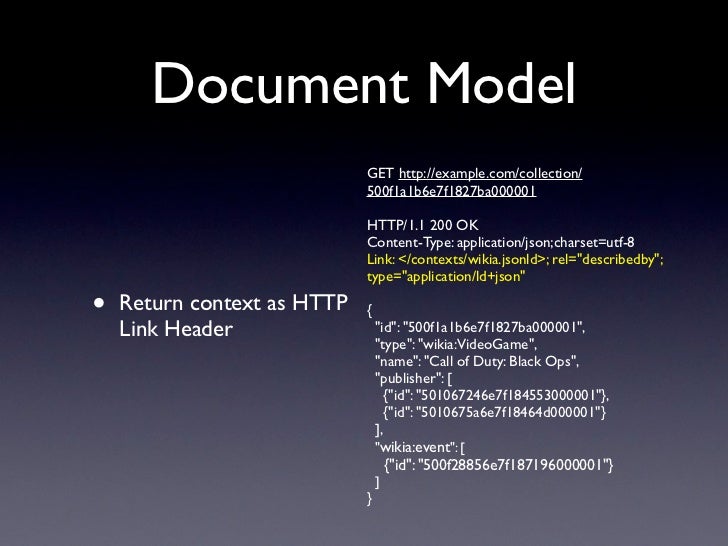

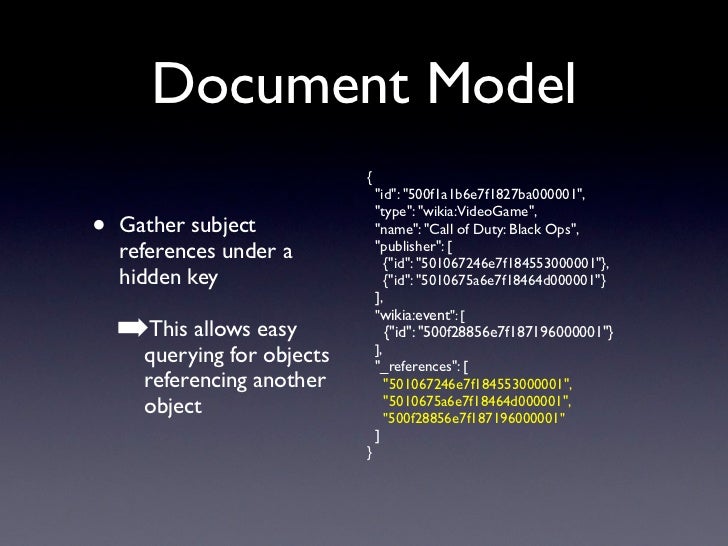

Document Model                             {                                 "id": "500f1a1b6e7f1827ba000001",•           ...
Document Model                             GET http://example.com/collection/                             500f1a1b6e7f1827...
Restful Endpoints                               GET http://example.com/collection/?                               withType...

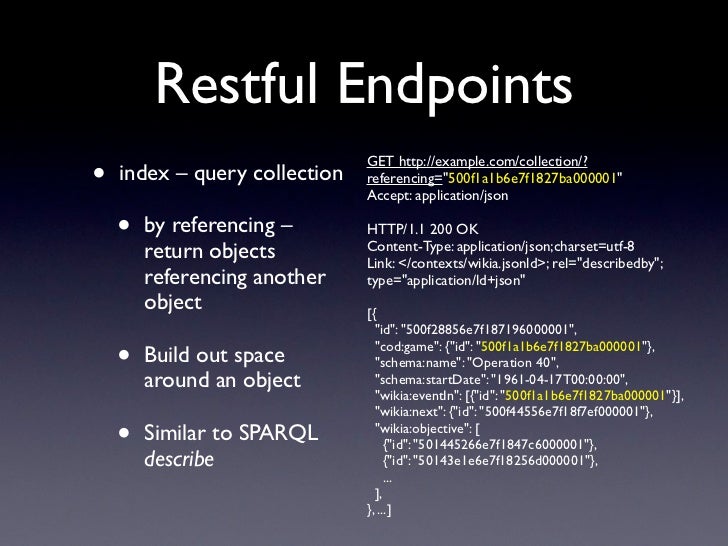

Restful Endpoints•                               GET http://example.com/collection/?    index – query collection   referen...
Restful Endpoints                          GET http://example.com/collection/                          500f1a1b6e7f1827ba0...
Restful Endpoints                               POST http://example.com/collection/                               Accept: ...
Restful Endpoints                             PUT http://example.com/collection/                             500f1a1b6e7f1...

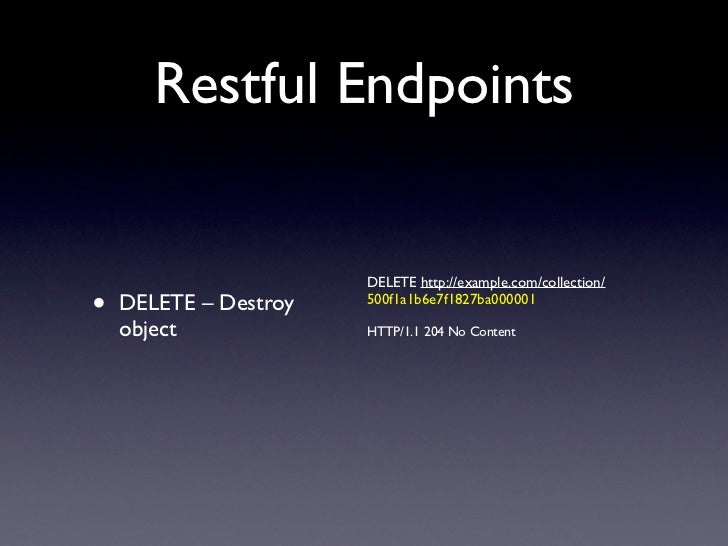

Restful Endpoints                       DELETE http://example.com/collection/•   DELETE – Destroy   500f1a1b6e7f1827ba0000...

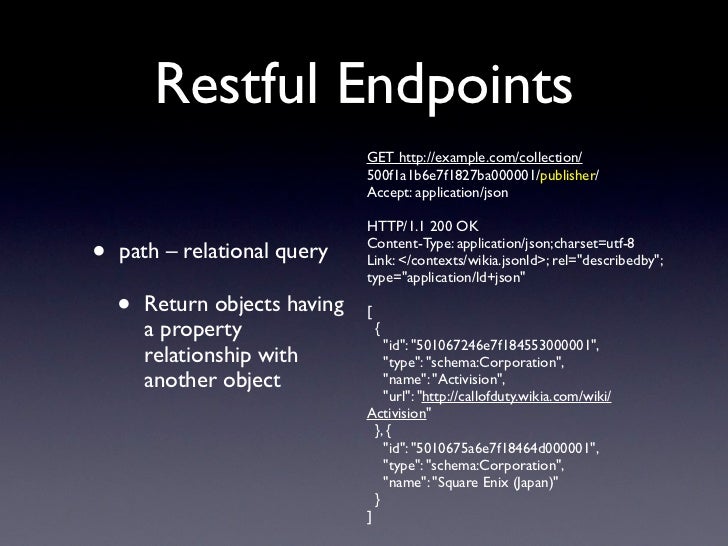

Restful Endpoints                                GET http://example.com/collection/                                500f1a1...
Restful Endpoints                              GET http://example.com/collection/                              500f1a1b6e7...
Working with data•   Application Structure    •   Ruby/Sinatra REST        service    •   JavaScript/Backbone.js        cl...
MVC Client      • Natural access from client-side MVC (e.g.,            backbone.js)                                      ...
MVC Client       • Natural access from client-side MVC (e.g.,             backbone.js)                                    ...

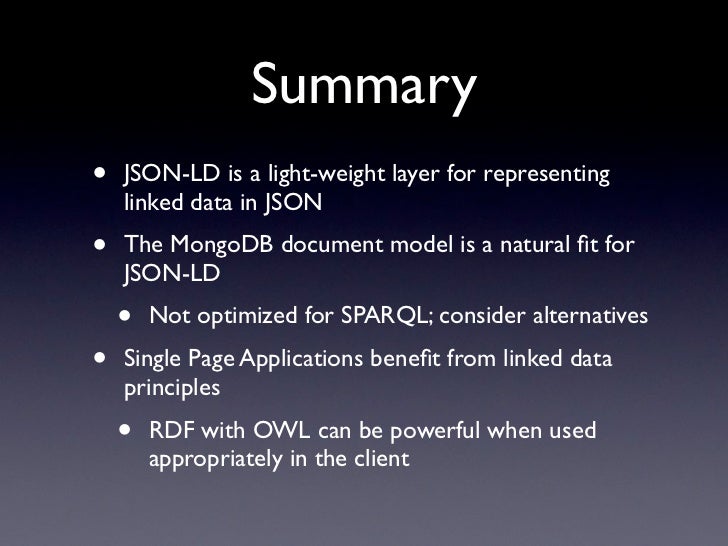

Summary•   JSON-LD is a light-weight layer for representing    linked data in JSON•   The MongoDB document model is a natu...

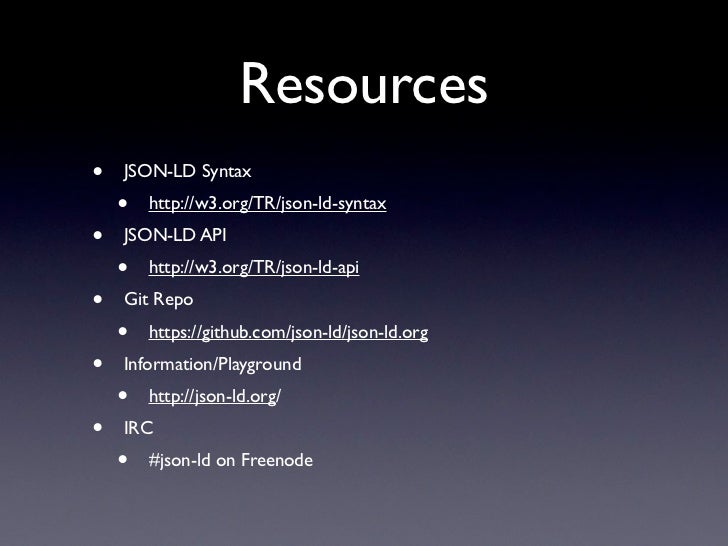

Resources•   JSON-LD Syntax    •   http://w3.org/TR/json-ld-syntax•   JSON-LD API    •   http://w3.org/TR/json-ld-api•   G...
More Information   json-ld.org              JavaScript                               Rubyrdf-comments@w3.org             P...
Upcoming SlideShare
Loading in …5
×

JSON-LD and MongoDB

35,588 views

Published on

Presented at NoSQL 2012 in San Jose. JSON-LD and MongoDB work well to bring the advantages of Linked Data and RDF to Single Page Applications.

Published in: Technology, Business
  • Here's How YOU Can Stake Out Your Personal Claim In Our EIGHT MILLION DOLLAR GOLDMINE... ■■■ http://ishbv.com/goldops777/pdf
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • Sex in your area is here: ♥♥♥ http://bit.ly/2Qu6Caa ♥♥♥
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • Dating for everyone is here: ♥♥♥ http://bit.ly/2Qu6Caa ♥♥♥
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • DOWNLOAD THAT BOOKS INTO AVAILABLE FORMAT (2019 Update) ......................................................................................................................... ......................................................................................................................... Download Full PDF EBOOK here { http://shorturl.at/mzUV6 } ......................................................................................................................... Download Full EPUB Ebook here { http://shorturl.at/mzUV6 } ......................................................................................................................... Download Full doc Ebook here { http://shorturl.at/mzUV6 } ......................................................................................................................... Download PDF EBOOK here { http://shorturl.at/mzUV6 } ......................................................................................................................... Download EPUB Ebook here { http://shorturl.at/mzUV6 } ......................................................................................................................... Download doc Ebook here { http://shorturl.at/mzUV6 } ......................................................................................................................... ......................................................................................................................... ................................................................................................................................... eBook is an electronic version of a traditional print book that can be read by using a personal computer or by using an eBook reader. (An eBook reader can be a software application for use on a computer such as Microsoft's free Reader application, or a book-sized computer that is used solely as a reading device such as Nuvomedia's Rocket eBook.) Users can purchase an eBook on diskette or CD, but the most popular method of getting an eBook is to purchase a downloadable file of the eBook (or other reading material) from a Web site (such as Barnes and Noble) to be read from the user's computer or reading device. Generally, an eBook can be downloaded in five minutes or less ......................................................................................................................... .............. Browse by Genre Available eBooks .............................................................................................................................. Art, Biography, Business, Chick Lit, Children's, Christian, Classics, Comics, Contemporary, Cookbooks, Manga, Memoir, Music, Mystery, Non Fiction, Paranormal, Philosophy, Poetry, Psychology, Religion, Romance, Science, Science Fiction, Self Help, Suspense, Spirituality, Sports, Thriller, Travel, Young Adult, Crime, Ebooks, Fantasy, Fiction, Graphic Novels, Historical Fiction, History, Horror, Humor And Comedy, ......................................................................................................................... ......................................................................................................................... .....BEST SELLER FOR EBOOK RECOMMEND............................................................. ......................................................................................................................... Blowout: Corrupted Democracy, Rogue State Russia, and the Richest, Most Destructive Industry on Earth,-- The Ride of a Lifetime: Lessons Learned from 15 Years as CEO of the Walt Disney Company,-- Call Sign Chaos: Learning to Lead,-- StrengthsFinder 2.0,-- Stillness Is the Key,-- She Said: Breaking the Sexual Harassment Story That Helped Ignite a Movement,-- Atomic Habits: An Easy &amp; Proven Way to Build Good Habits &amp; Break Bad Ones,-- Everything Is Figureoutable,-- What It Takes: Lessons in the Pursuit of Excellence,-- Rich Dad Poor Dad: What the Rich Teach Their Kids About Money That the Poor and Middle Class Do Not!,-- The Total Money Makeover: Classic Edition: A Proven Plan for Financial Fitness,-- Shut Up and Listen!: Hard Business Truths that Will Help You Succeed, ......................................................................................................................... .........................................................................................................................
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • We called it "operation mind control" - as we discovered a simple mind game that makes a girl become obsessed with you. (Aand it works even if you're not her type or she's already dating someone else) Here's how we figured it out... ●●● http://scamcb.com/unlockher/pdf
       Reply
    Are you sure you want to  Yes  No
    Your message goes here

JSON-LD and MongoDB

  1. 1. JSON-LD and MongoDBPowering Linked Web Apps Gregg Kellogg gregg@greggkellogg.net @gkellogg

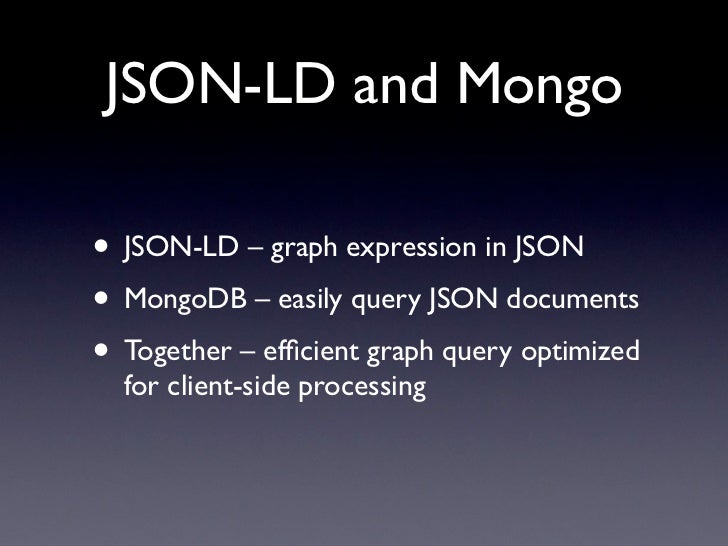

  2. 2. JSON-LD and Mongo• JSON-LD – graph expression in JSON• MongoDB – easily query JSON documents• Together – efficient graph query optimized for client-side processing

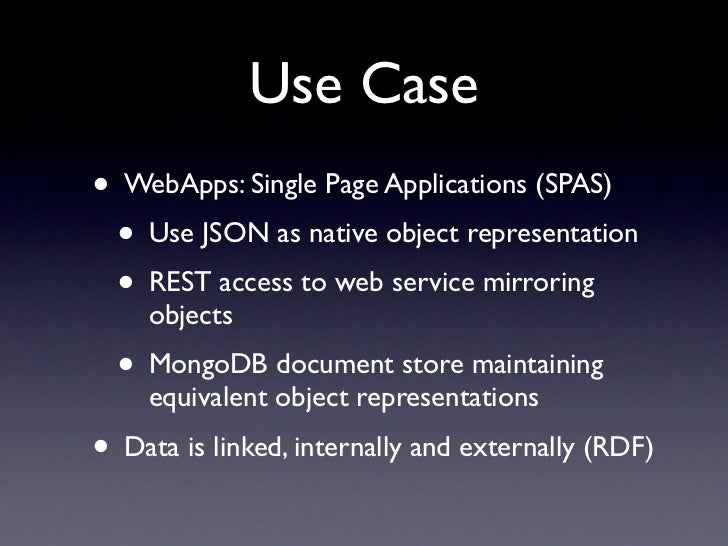

  3. 3. Use Case• WebApps: Single Page Applications (SPAS) • Use JSON as native object representation • REST access to web service mirroring objects • MongoDB document store maintaining equivalent object representations• Data is linked, internally and externally (RDF)
  4. 4. JSON-LD @graph @context @id JSON-based syntax to express linked data @language @value @list @vocab@type @set
  5. 5. JSON, as expected{ "@context": "/contexts/wikia.jsonld", "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], "name": "Call of Duty: Black Ops", "publisher": [ {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}
  6. 6. JSON, as expected{ "@context": "/contexts/wikia.jsonld", Context defines terms "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], "name": "Call of Duty: Black Ops", "publisher": [ {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}
  7. 7. JSON, as expected{ "@context": "/contexts/wikia.jsonld", Context defines terms "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", Identifier treated as IRI "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], "name": "Call of Duty: Black Ops", "publisher": [ {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}

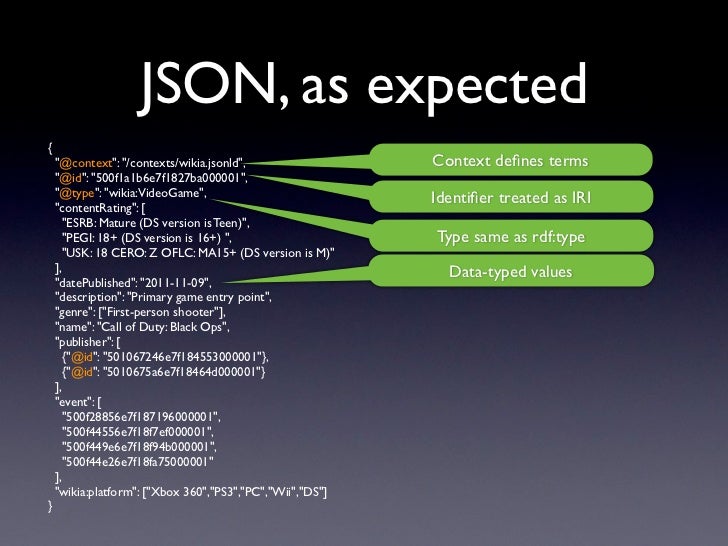

  8. 8. JSON, as expected{ "@context": "/contexts/wikia.jsonld", Context defines terms "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", Identifier treated as IRI "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", Type same as rdf:type "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], "name": "Call of Duty: Black Ops", "publisher": [ {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}

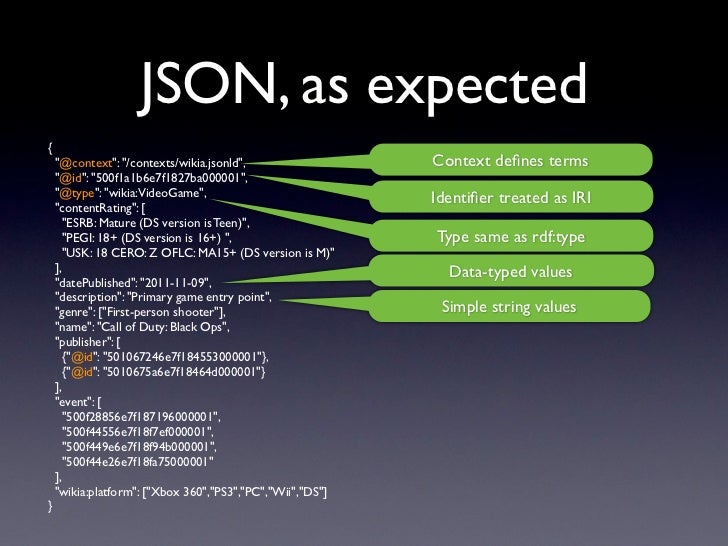

  9. 9. JSON, as expected{ "@context": "/contexts/wikia.jsonld", Context defines terms "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", Identifier treated as IRI "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", Type same as rdf:type "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], Data-typed values "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], "name": "Call of Duty: Black Ops", "publisher": [ {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}
  10. 10. JSON, as expected{ "@context": "/contexts/wikia.jsonld", Context defines terms "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", Identifier treated as IRI "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", Type same as rdf:type "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], Data-typed values "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], Simple string values "name": "Call of Duty: Black Ops", "publisher": [ {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}
  11. 11. JSON, as expected{ "@context": "/contexts/wikia.jsonld", Context defines terms "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", Identifier treated as IRI "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", Type same as rdf:type "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], Data-typed values "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], Simple string values "name": "Call of Duty: Black Ops", "publisher": [ (unordered) arrays of values {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}

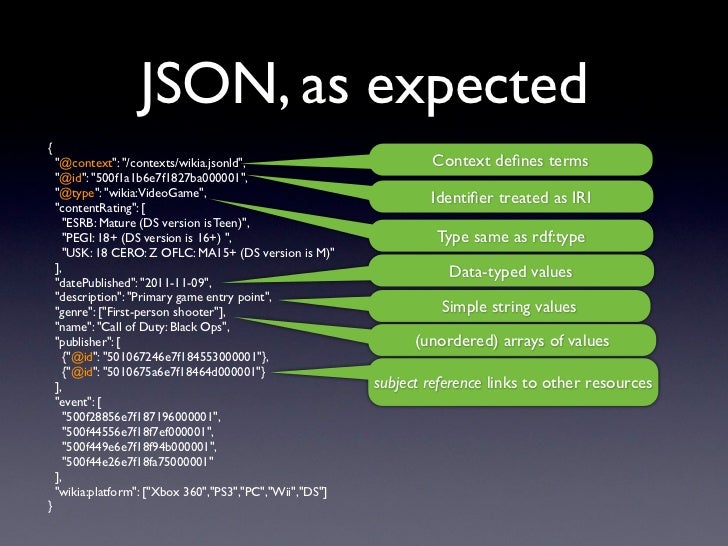

  12. 12. JSON, as expected{ "@context": "/contexts/wikia.jsonld", Context defines terms "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", Identifier treated as IRI "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", Type same as rdf:type "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], Data-typed values "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], Simple string values "name": "Call of Duty: Black Ops", "publisher": [ (unordered) arrays of values {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], subject reference links to other resources "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}

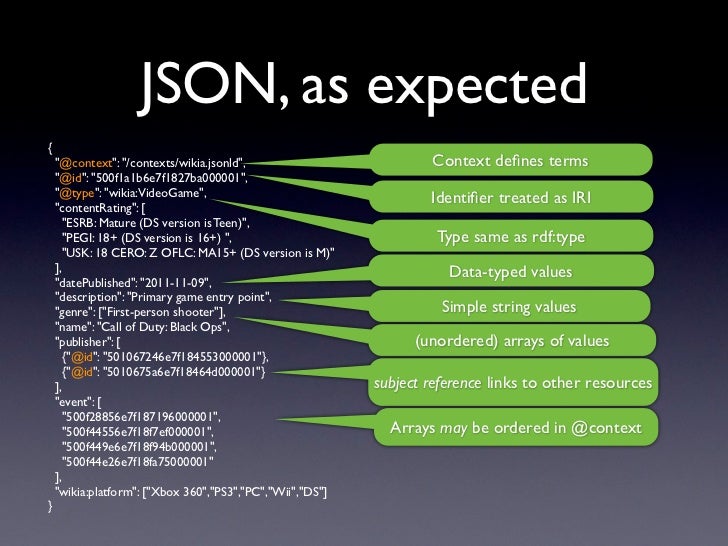

  13. 13. JSON, as expected{ "@context": "/contexts/wikia.jsonld", Context defines terms "@id": "500f1a1b6e7f1827ba000001", "@type": "wikia:VideoGame", Identifier treated as IRI "contentRating": [ "ESRB: Mature (DS version is Teen)", "PEGI: 18+ (DS version is 16+) ", Type same as rdf:type "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], Data-typed values "datePublished": "2011-11-09", "description": "Primary game entry point", "genre": ["First-person shooter"], Simple string values "name": "Call of Duty: Black Ops", "publisher": [ (unordered) arrays of values {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ], subject reference links to other resources "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", Arrays may be ordered in @context "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}

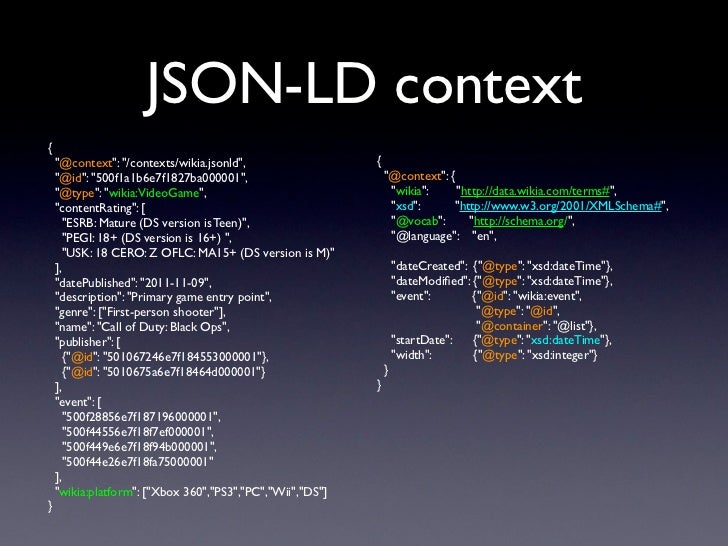

  14. 14. JSON-LD context{ "@context": "/contexts/wikia.jsonld", { "@id": "500f1a1b6e7f1827ba000001", "@context": { "@type": "wikia:VideoGame", "wikia": "http://data.wikia.com/terms#", "contentRating": [ "xsd": "http://www.w3.org/2001/XMLSchema#", "ESRB: Mature (DS version is Teen)", "@vocab": "http://schema.org/", "PEGI: 18+ (DS version is 16+) ", "@language": "en", "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" ], "dateCreated": {"@type": "xsd:dateTime"}, "datePublished": "2011-11-09", "dateModified": {"@type": "xsd:dateTime"}, "description": "Primary game entry point", "event": {"@id": "wikia:event", "genre": ["First-person shooter"], "@type": "@id", "name": "Call of Duty: Black Ops", "@container": "@list"}, "publisher": [ "startDate": {"@type": "xsd:dateTime"}, {"@id": "501067246e7f184553000001"}, "width": {"@type": "xsd:integer"} {"@id": "5010675a6e7f18464d000001"} } ], } "event": [ "500f28856e7f187196000001", "500f44556e7f18f7ef000001", "500f449e6e7f18f94b000001", "500f44e26e7f18fa75000001" ], "wikia:platform": ["Xbox 360","PS3","PC","Wii","DS"]}
  15. 15. Syntactic Conventions• Keys represent unique properties• Values may be singular or multiple • May use strings for most value representations, with typing information maintained in a context.
  16. 16. Unique properties {Expanded Form: "http://schema.org/publisher": [ {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ] } {Compact Form: "publisher": [ "501067246e7f184553000001", "5010675a6e7f18464d000001" ] }Context: { "@context": { "@vocab": "http://schema.org/", "publisher":{"@type": "@id"}, ... } }
  17. 17. Language tagged values {Expanded Form: "http://schema.org/name": { "@value": "Call of Duty: Black Ops", "@language": "en" } }Compact Form: { "name": "Call of Duty: Black Ops" }Context: { "@context": { "@vocab": "http://schema.org/", "@language": "en", ... } }

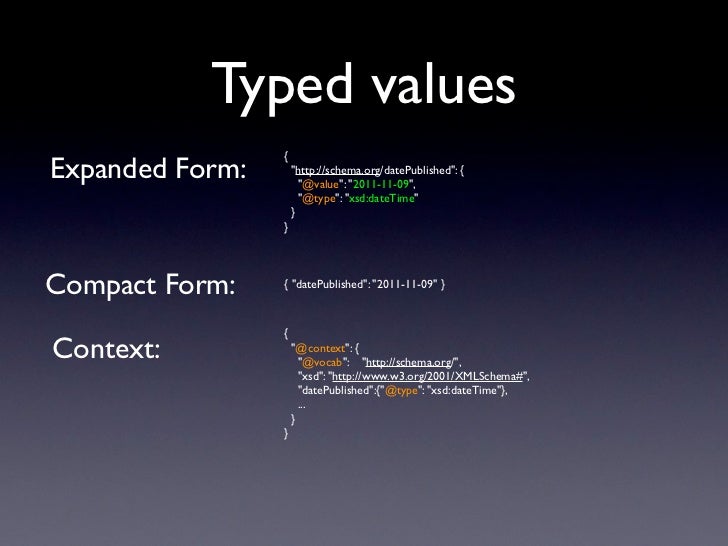

  18. 18. Typed values {Expanded Form: "http://schema.org/datePublished": { "@value": "2011-11-09", "@type": "xsd:dateTime" } }Compact Form: { "datePublished": "2011-11-09" } {Context: "@context": { "@vocab": "http://schema.org/", "xsd": "http://www.w3.org/2001/XMLSchema#", "datePublished":{"@type": "xsd:dateTime"}, ... } }
  19. 19. Subject references {Expanded Form: "http://schema.org/publisher": [ {"@id": "501067246e7f184553000001"}, {"@id": "5010675a6e7f18464d000001"} ] } {Compact Form: "publisher": [ "501067246e7f184553000001", "5010675a6e7f18464d000001" ] }Context: { "@context": { "@vocab": "http://schema.org/", "publisher":{"@type": "@id"}, ... } }

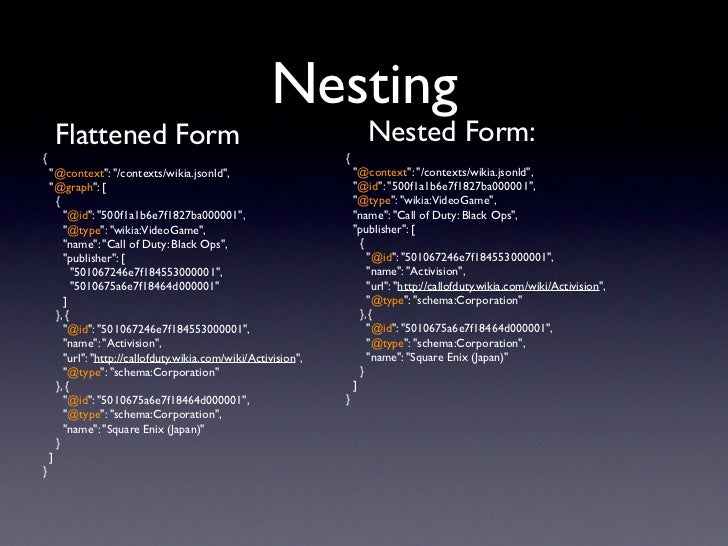

  20. 20. Nesting Flattened Form Nested Form:{ { "@context": "/contexts/wikia.jsonld", "@context": "/contexts/wikia.jsonld", "@graph": [ "@id": "500f1a1b6e7f1827ba000001", { "@type": "wikia:VideoGame", "@id": "500f1a1b6e7f1827ba000001", "name": "Call of Duty: Black Ops", "@type": "wikia:VideoGame", "publisher": [ "name": "Call of Duty: Black Ops", { "publisher": [ "@id": "501067246e7f184553000001", "501067246e7f184553000001", "name": "Activision", "5010675a6e7f18464d000001" "url": "http://callofduty.wikia.com/wiki/Activision", ] "@type": "schema:Corporation" }, { }, { "@id": "501067246e7f184553000001", "@id": "5010675a6e7f18464d000001", "name": "Activision", "@type": "schema:Corporation", "url": "http://callofduty.wikia.com/wiki/Activision", "name": "Square Enix (Japan)" "@type": "schema:Corporation" } }, { ] "@id": "5010675a6e7f18464d000001", } "@type": "schema:Corporation", "name": "Square Enix (Japan)" } ]}

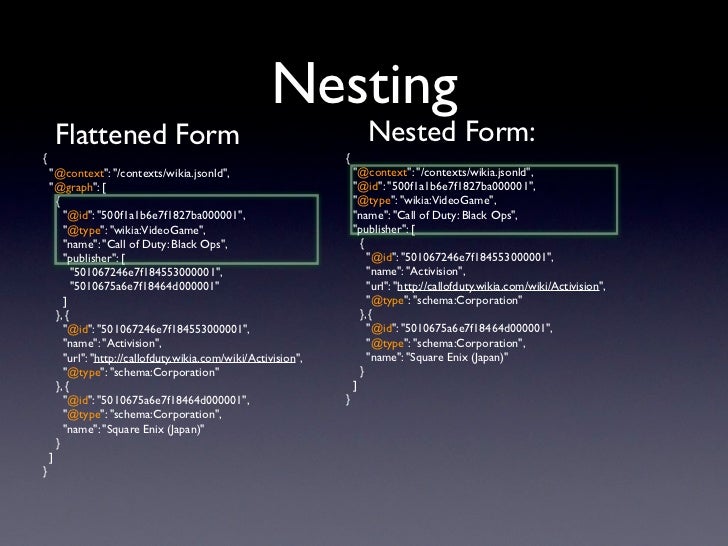

  21. 21. Nesting Flattened Form Nested Form:{ { "@context": "/contexts/wikia.jsonld", "@context": "/contexts/wikia.jsonld", "@graph": [ "@id": "500f1a1b6e7f1827ba000001", { "@type": "wikia:VideoGame", "@id": "500f1a1b6e7f1827ba000001", "name": "Call of Duty: Black Ops", "@type": "wikia:VideoGame", "publisher": [ "name": "Call of Duty: Black Ops", { "publisher": [ "@id": "501067246e7f184553000001", "501067246e7f184553000001", "name": "Activision", "5010675a6e7f18464d000001" "url": "http://callofduty.wikia.com/wiki/Activision", ] "@type": "schema:Corporation" }, { }, { "@id": "501067246e7f184553000001", "@id": "5010675a6e7f18464d000001", "name": "Activision", "@type": "schema:Corporation", "url": "http://callofduty.wikia.com/wiki/Activision", "name": "Square Enix (Japan)" "@type": "schema:Corporation" } }, { ] "@id": "5010675a6e7f18464d000001", } "@type": "schema:Corporation", "name": "Square Enix (Japan)" } ]}

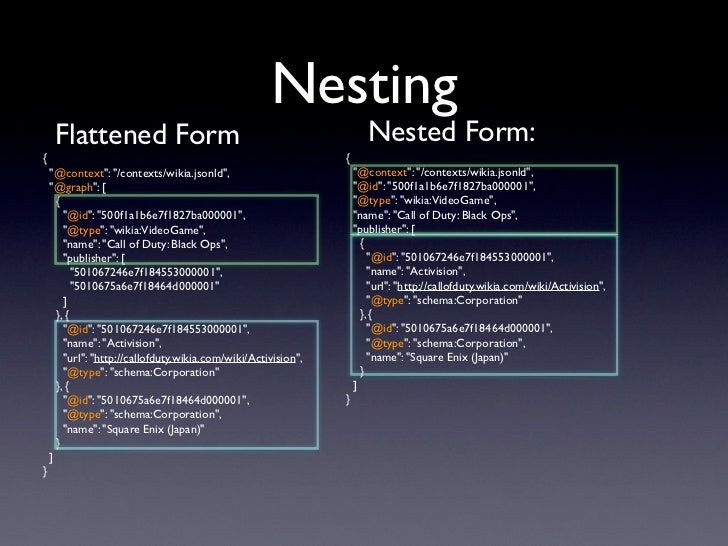

  22. 22. Nesting Flattened Form Nested Form:{ { "@context": "/contexts/wikia.jsonld", "@context": "/contexts/wikia.jsonld", "@graph": [ "@id": "500f1a1b6e7f1827ba000001", { "@type": "wikia:VideoGame", "@id": "500f1a1b6e7f1827ba000001", "name": "Call of Duty: Black Ops", "@type": "wikia:VideoGame", "publisher": [ "name": "Call of Duty: Black Ops", { "publisher": [ "@id": "501067246e7f184553000001", "501067246e7f184553000001", "name": "Activision", "5010675a6e7f18464d000001" "url": "http://callofduty.wikia.com/wiki/Activision", ] "@type": "schema:Corporation" }, { }, { "@id": "501067246e7f184553000001", "@id": "5010675a6e7f18464d000001", "name": "Activision", "@type": "schema:Corporation", "url": "http://callofduty.wikia.com/wiki/Activision", "name": "Square Enix (Japan)" "@type": "schema:Corporation" } }, { ] "@id": "5010675a6e7f18464d000001", } "@type": "schema:Corporation", "name": "Square Enix (Japan)" } ]}

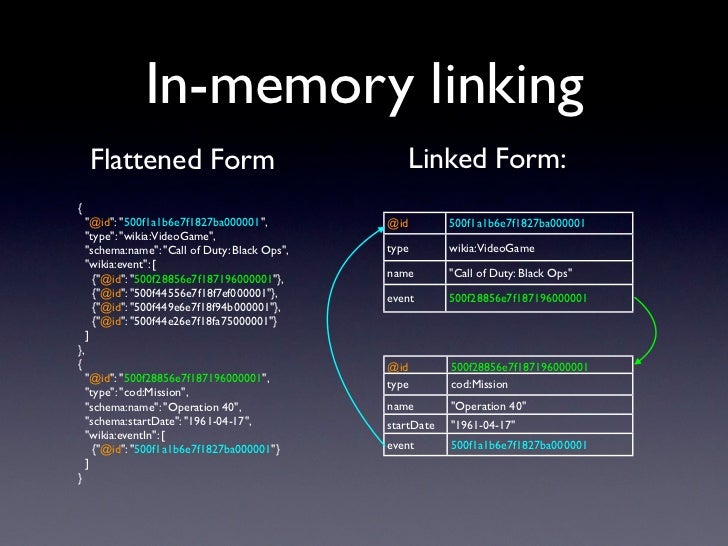

  23. 23. In-memory linking Flattened Form Linked Form:{ "@id": "500f1a1b6e7f1827ba000001", @id 500f1a1b6e7f1827ba000001 "type": "wikia:VideoGame", "schema:name": "Call of Duty: Black Ops", type wikia:VideoGame "wikia:event": [ {"@id": "500f28856e7f187196000001"}, name "Call of Duty: Black Ops" {"@id": "500f44556e7f18f7ef000001"}, event 500f28856e7f187196000001 {"@id": "500f449e6e7f18f94b000001"}, {"@id": "500f44e26e7f18fa75000001"} ]},{ @id 500f28856e7f187196000001 "@id": "500f28856e7f187196000001", type cod:Mission "type": "cod:Mission", "schema:name": "Operation 40", name "Operation 40" "schema:startDate": "1961-04-17", startDate "1961-04-17" "wikia:eventIn": [ {"@id": "500f1a1b6e7f1827ba000001"} event 500f1a1b6e7f1827ba000001 ]}
  24. 24. Turtle Mapping{ @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> . "@context": "/contexts/wikia.jsonld", @prefix schema: <http://schema.org/> . "@id": "500f1a1b6e7f1827ba000001", @prefix wikia: <http://data.wikia.com/terms#> . "@type": "wikia:VideoGame", @prefix xsd: <http://www.w3.org/2001/XMLSchema#> . "contentRating": [ "ESRB: Mature (DS version is Teen)", <500f1a1b6e7f1827ba000001> a wikia:VideoGame; "PEGI: 18+ (DS version is 16+) ", schema:contentRating "ESRB: Mature (DS version is Teen)"@en, "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)" "PEGI: 18+ (DS version is 16+) "@en, ], "USK: 18 CERO: Z OFLC: MA15+ (DS version is M)"@en; "datePublished": "2011-11-09", schema:datePublished: "2011-11-09"^^xsd:dateTime; "name": "Call of Duty: Black Ops", schema:name "Call of Duty: Black Ops"@en; "publisher": [ schema:publisher <501067246e7f184553000001>, {"@id": "501067246e7f184553000001"}, <5010675a6e7f18464d000001> . {"@id": "5010675a6e7f18464d000001"} wikia:event <500f28856e7f187196000001>, ], ...; "wikia:event": [ . {"@id": "500f28856e7f187196000001"}, ... ]}
  25. 25. More JSON-LD Features* • @set, @list, • Embedded Compact IRIs, @context Unlabeled Nodes definitions • Language maps • Named Graphs • Property generators* http://json-ld.org/spec/latest/json-ld-syntax

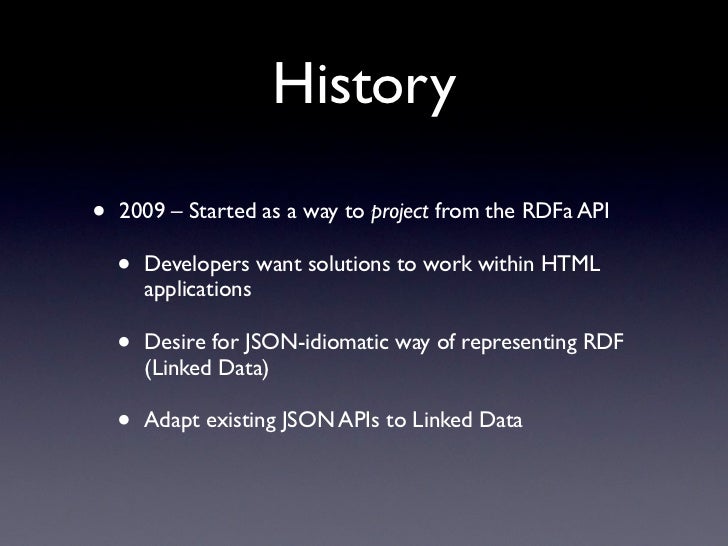

  26. 26. History• 2009 – Started as a way to project from the RDFa API • Developers want solutions to work within HTML applications • Desire for JSON-idiomatic way of representing RDF (Linked Data) • Adapt existing JSON APIs to Linked Data
  27. 27. History• 2011 – W3C Community Group launched • Broad Participation • Separation of Syntax from API • Proposed to W3C RDF 1.1 Working Group
  28. 28. History• 2012 – RDF WG abandons other JSON serialization efforts (RDF/JSON) • JSON-LD accepted as official work item • Community Group drafts final report • RDF WG publishes JSON-LD (Syntax and API) as FPWD
  29. 29. MongoDB• JSON-like document store • BSON supports extra datatypes • Certain key patterns are restricted • e.g., “.” not allowed in a key• Query on value = pattern or value includes pattern
  30. 30. Use CaseWikia Structured Data API
  31. 31. Wikia Application• Express Wiki content as structured data • Wiki markup doesn’t naturally include semantic cues (Semantic Media Wiki aside).• Add semantic markup to HTML generated from Wikis in RDFa• Aggregate structured content through JSON-LD/MongoDB powered data service
  32. 32. Service Architecture• MongoDB persistence• JSON document representation • JSON-LD describedby link header• Ruby/Sinatra web service • Content-negotiated access to data • JSON-LD, HTML, Turtle, ...
  33. 33. Document Model {• Use aliases for @id and "id": "500f1a1b6e7f1827ba000001", "type": "wikia:VideoGame", @type keywords "name": "Call of Duty: Black Ops", "publisher": [ • Simplifies use within "501067246e7f184553000001", "5010675a6e7f18464d000001" client-side MVC ], "wikia:event": [ frameworks (e.g. "500f28856e7f187196000001" backbone.js) ] }

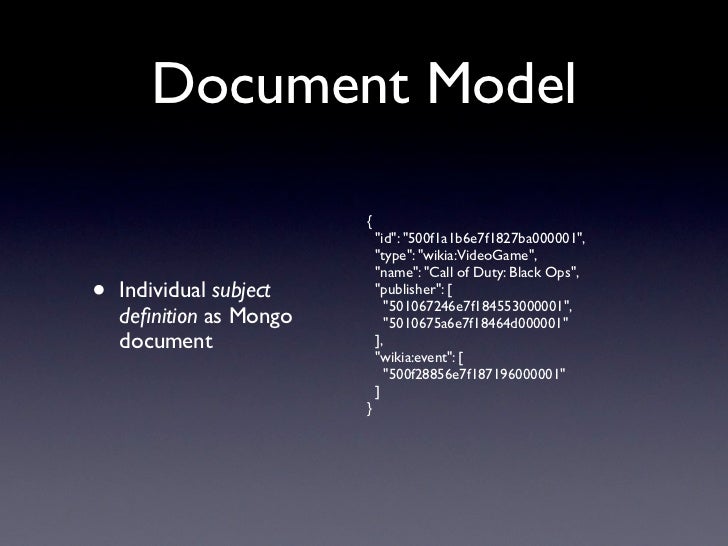

  34. 34. Document Model { "id": "500f1a1b6e7f1827ba000001", "type": "wikia:VideoGame", "name": "Call of Duty: Black Ops",• Individual subject "publisher": [ "501067246e7f184553000001", definition as Mongo "5010675a6e7f18464d000001" document ], "wikia:event": [ "500f28856e7f187196000001" ] }
  35. 35. Document Model { "id": "500f1a1b6e7f1827ba000001",• Use expanded subject "type": "wikia:VideoGame", "name": "Call of Duty: Black Ops", references "publisher": [ {"id": "501067246e7f184553000001"}, {"id": "5010675a6e7f18464d000001"} ➡This allows simple ], "wikia:event": [ traversal for graphify {"id": "500f28856e7f187196000001"} ] }
  36. 36. Document Model { "id": "500f1a1b6e7f1827ba000001",• "type": "wikia:VideoGame", Gather subject "name": "Call of Duty: Black Ops", "publisher": [ references under a {"id": "501067246e7f184553000001"}, hidden key {"id": "5010675a6e7f18464d000001"} ], "wikia:event": [ ➡This allows easy ], {"id": "500f28856e7f187196000001"} querying for objects "_references": [ referencing another "501067246e7f184553000001", "5010675a6e7f18464d000001", object "500f28856e7f187196000001" ] }
  37. 37. Document Model GET http://example.com/collection/ 500f1a1b6e7f1827ba000001 HTTP/1.1 200 OK Content-Type: application/json;charset=utf-8 Link: </contexts/wikia.jsonld>; rel="describedby"; type="application/ld+json"• Return context as HTTP { Link Header "id": "500f1a1b6e7f1827ba000001", "type": "wikia:VideoGame", "name": "Call of Duty: Black Ops", "publisher": [ {"id": "501067246e7f184553000001"}, {"id": "5010675a6e7f18464d000001"} ], "wikia:event": [ {"id": "500f28856e7f187196000001"} ] }

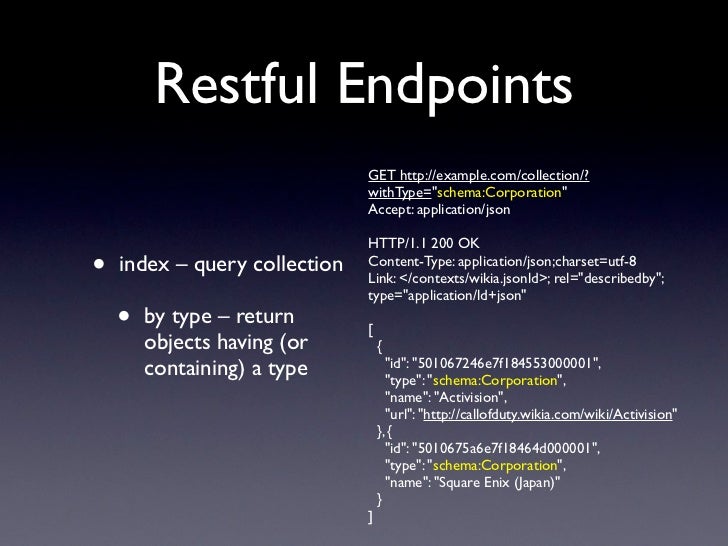

  38. 38. Restful Endpoints GET http://example.com/collection/? withType="schema:Corporation" Accept: application/json HTTP/1.1 200 OK• index – query collection Content-Type: application/json;charset=utf-8 Link: </contexts/wikia.jsonld>; rel="describedby"; type="application/ld+json" • by type – return [ objects having (or { containing) a type "id": "501067246e7f184553000001", "type": "schema:Corporation", "name": "Activision", "url": "http://callofduty.wikia.com/wiki/Activision" }, { "id": "5010675a6e7f18464d000001", "type": "schema:Corporation", "name": "Square Enix (Japan)" } ]
  39. 39. Restful Endpoints• GET http://example.com/collection/? index – query collection referencing="500f1a1b6e7f1827ba000001" Accept: application/json • by referencing – HTTP/1.1 200 OK return objects Content-Type: application/json;charset=utf-8 Link: </contexts/wikia.jsonld>; rel="describedby"; referencing another type="application/ld+json" object [{ "id": "500f28856e7f187196000001", • Build out space "cod:game": {"id": "500f1a1b6e7f1827ba000001"}, "schema:name": "Operation 40", around an object "schema:startDate": "1961-04-17T00:00:00", "wikia:eventIn": [{"id": "500f1a1b6e7f1827ba000001"}], "wikia:next": {"id": "500f44556e7f18f7ef000001"}, • Similar to SPARQL "wikia:objective": [ {"id": "501445266e7f1847c6000001"}, describe {"id": "50143e1e6e7f18256d000001"}, ... ], }, ...]

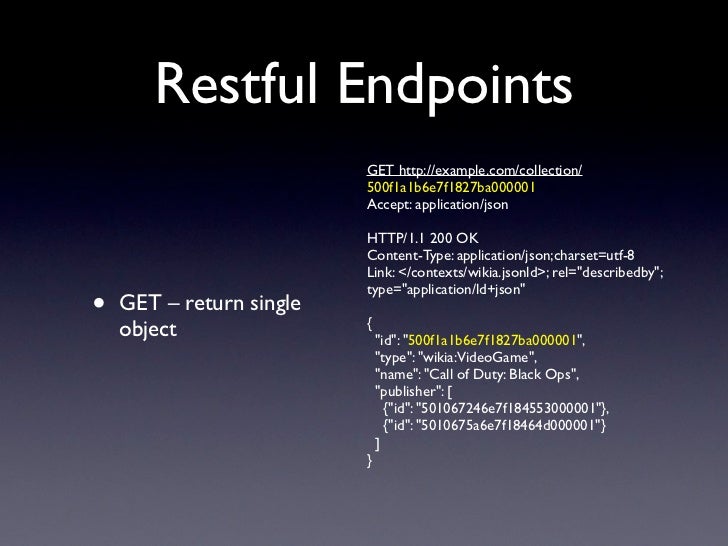

  40. 40. Restful Endpoints GET http://example.com/collection/ 500f1a1b6e7f1827ba000001 Accept: application/json HTTP/1.1 200 OK Content-Type: application/json;charset=utf-8 Link: </contexts/wikia.jsonld>; rel="describedby";• type="application/ld+json" GET – return single { object "id": "500f1a1b6e7f1827ba000001", "type": "wikia:VideoGame", "name": "Call of Duty: Black Ops", "publisher": [ {"id": "501067246e7f184553000001"}, {"id": "5010675a6e7f18464d000001"} ] }

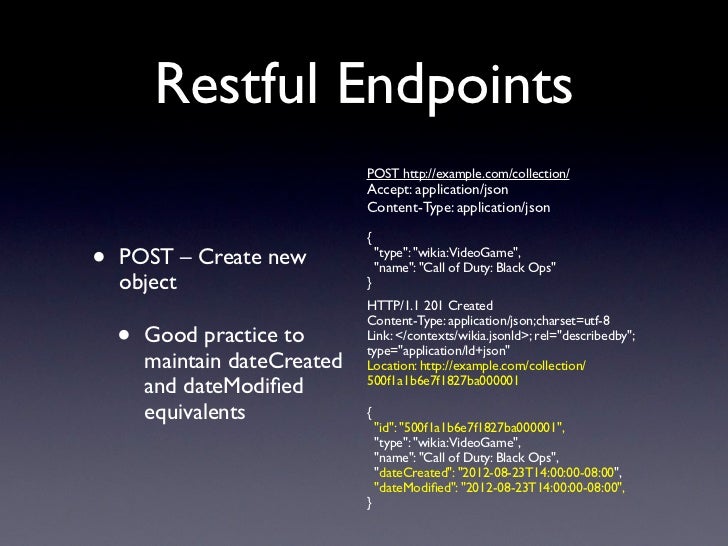

  41. 41. Restful Endpoints POST http://example.com/collection/ Accept: application/json Content-Type: application/json {• POST – Create new "type": "wikia:VideoGame", "name": "Call of Duty: Black Ops" object } HTTP/1.1 201 Created • Content-Type: application/json;charset=utf-8 Good practice to Link: </contexts/wikia.jsonld>; rel="describedby"; type="application/ld+json" maintain dateCreated Location: http://example.com/collection/ and dateModified 500f1a1b6e7f1827ba000001 equivalents { "id": "500f1a1b6e7f1827ba000001", "type": "wikia:VideoGame", "name": "Call of Duty: Black Ops", "dateCreated": "2012-08-23T14:00:00-08:00", "dateModified": "2012-08-23T14:00:00-08:00", }

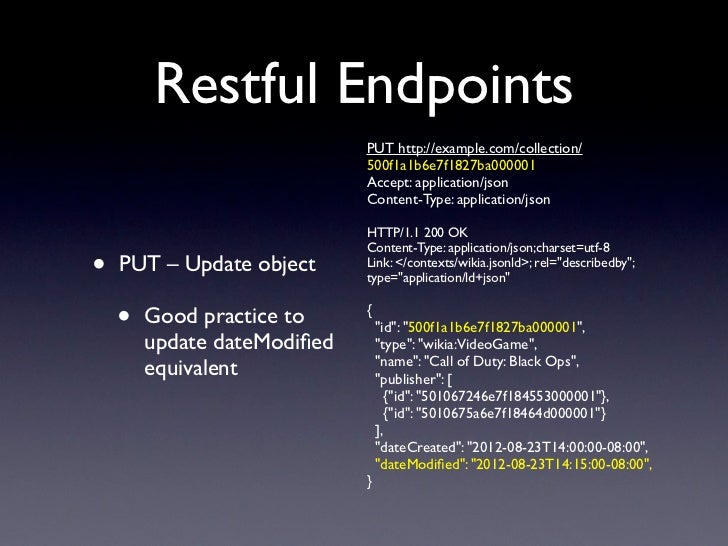

  42. 42. Restful Endpoints PUT http://example.com/collection/ 500f1a1b6e7f1827ba000001 Accept: application/json Content-Type: application/json HTTP/1.1 200 OK Content-Type: application/json;charset=utf-8• PUT – Update object Link: </contexts/wikia.jsonld>; rel="describedby"; type="application/ld+json" • Good practice to { "id": "500f1a1b6e7f1827ba000001", update dateModified "type": "wikia:VideoGame", "name": "Call of Duty: Black Ops", equivalent "publisher": [ {"id": "501067246e7f184553000001"}, {"id": "5010675a6e7f18464d000001"} ], "dateCreated": "2012-08-23T14:00:00-08:00", "dateModified": "2012-08-23T14:15:00-08:00", }
  43. 43. Restful Endpoints DELETE http://example.com/collection/• DELETE – Destroy 500f1a1b6e7f1827ba000001 object HTTP/1.1 204 No Content
  44. 44. Restful Endpoints GET http://example.com/collection/ 500f1a1b6e7f1827ba000001/publisher/ Accept: application/json HTTP/1.1 200 OK• path – relational query Content-Type: application/json;charset=utf-8 Link: </contexts/wikia.jsonld>; rel="describedby"; type="application/ld+json" • Return objects having [ a property { "id": "501067246e7f184553000001", relationship with "type": "schema:Corporation", another object "name": "Activision", "url": "http://callofduty.wikia.com/wiki/ Activision" }, { "id": "5010675a6e7f18464d000001", "type": "schema:Corporation", "name": "Square Enix (Japan)" } ]
  45. 45. Restful Endpoints GET http://example.com/collection/ 500f1a1b6e7f1827ba000001 Accept: application/ld+json HTTP/1.1 200 OK Content-Type: application/ld+json;charset=utf-8• GET – as explicit JSON- { "@context": "/contexts/wikia.jsonld", LD "id": "500f1a1b6e7f1827ba000001", "type": "wikia:VideoGame", "name": "Call of Duty: Black Ops", "publisher": [ {"id": "501067246e7f184553000001"}, {"id": "5010675a6e7f18464d000001"} ] }
  46. 46. Working with data• Application Structure • Ruby/Sinatra REST service • JavaScript/Backbone.js client {• Alias JSON-LD "@context": { "id": "@id", keywords for "type": "@type" convenience } }

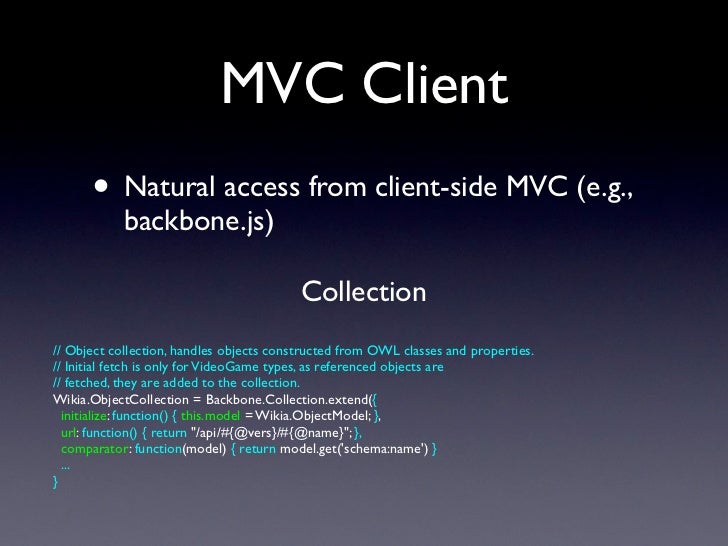

  47. 47. MVC Client • Natural access from client-side MVC (e.g., backbone.js) Collection// Object collection, handles objects constructed from OWL classes and properties.// Initial fetch is only for VideoGame types, as referenced objects are// fetched, they are added to the collection.Wikia.ObjectCollection = Backbone.Collection.extend({ initialize: function() { this.model = Wikia.ObjectModel; }, url: function() { return "/api/#{@vers}/#{@name}"; }, comparator: function(model) { return model.get(schema:name) } ...}

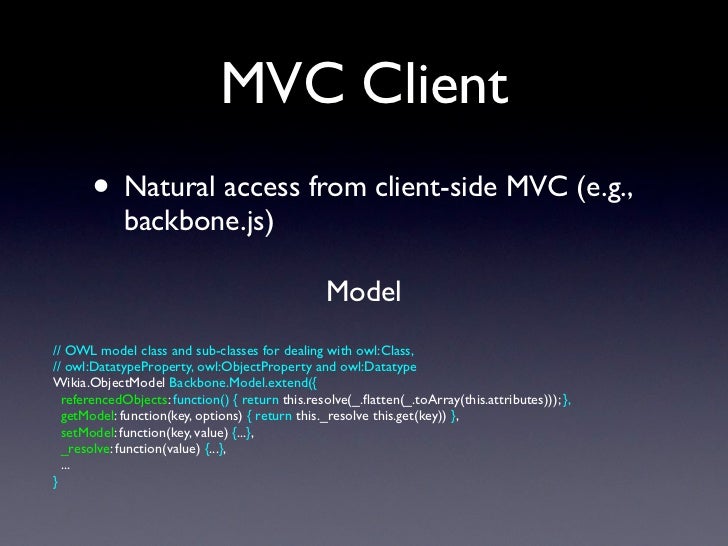

  48. 48. MVC Client • Natural access from client-side MVC (e.g., backbone.js) Model// OWL model class and sub-classes for dealing with owl:Class,// owl:DatatypeProperty, owl:ObjectProperty and owl:DatatypeWikia.ObjectModel Backbone.Model.extend({ referencedObjects: function() { return this.resolve(_.flatten(_.toArray(this.attributes))); }, getModel: function(key, options) { return this._resolve this.get(key)) }, setModel: function(key, value) {...}, _resolve: function(value) {...}, ...}
  49. 49. Summary• JSON-LD is a light-weight layer for representing linked data in JSON• The MongoDB document model is a natural fit for JSON-LD • Not optimized for SPARQL; consider alternatives• Single Page Applications benefit from linked data principles • RDF with OWL can be powerful when used appropriately in the client
  50. 50. Resources• JSON-LD Syntax • http://w3.org/TR/json-ld-syntax• JSON-LD API • http://w3.org/TR/json-ld-api• Git Repo • https://github.com/json-ld/json-ld.org• Information/Playground • http://json-ld.org/• IRC • #json-ld on Freenode
  51. 51. More Information json-ld.org JavaScript Rubyrdf-comments@w3.org Python PHP Java Gregg Kellogg gregg@greggkellogg.net http://greggkellogg.net/ @gkellogg

×
