© Blueinfy Solutions
iOS Attacks
© Blueinfy Solutions
Insecure Data Storage
© Blueinfy Solutions
Insecure Storage
• Why application needs to store data
– Ease of use for the user
– Popularity
– Comp...
© Blueinfy Solutions
Insecure Storage
• How attacker can gain access
– Wifi
– Default password after jail breaking (alpine...
© Blueinfy Solutions
Insecure Storage
• What information we usually find
– Authentication Credentials
– Authorization toke...
© Blueinfy Solutions

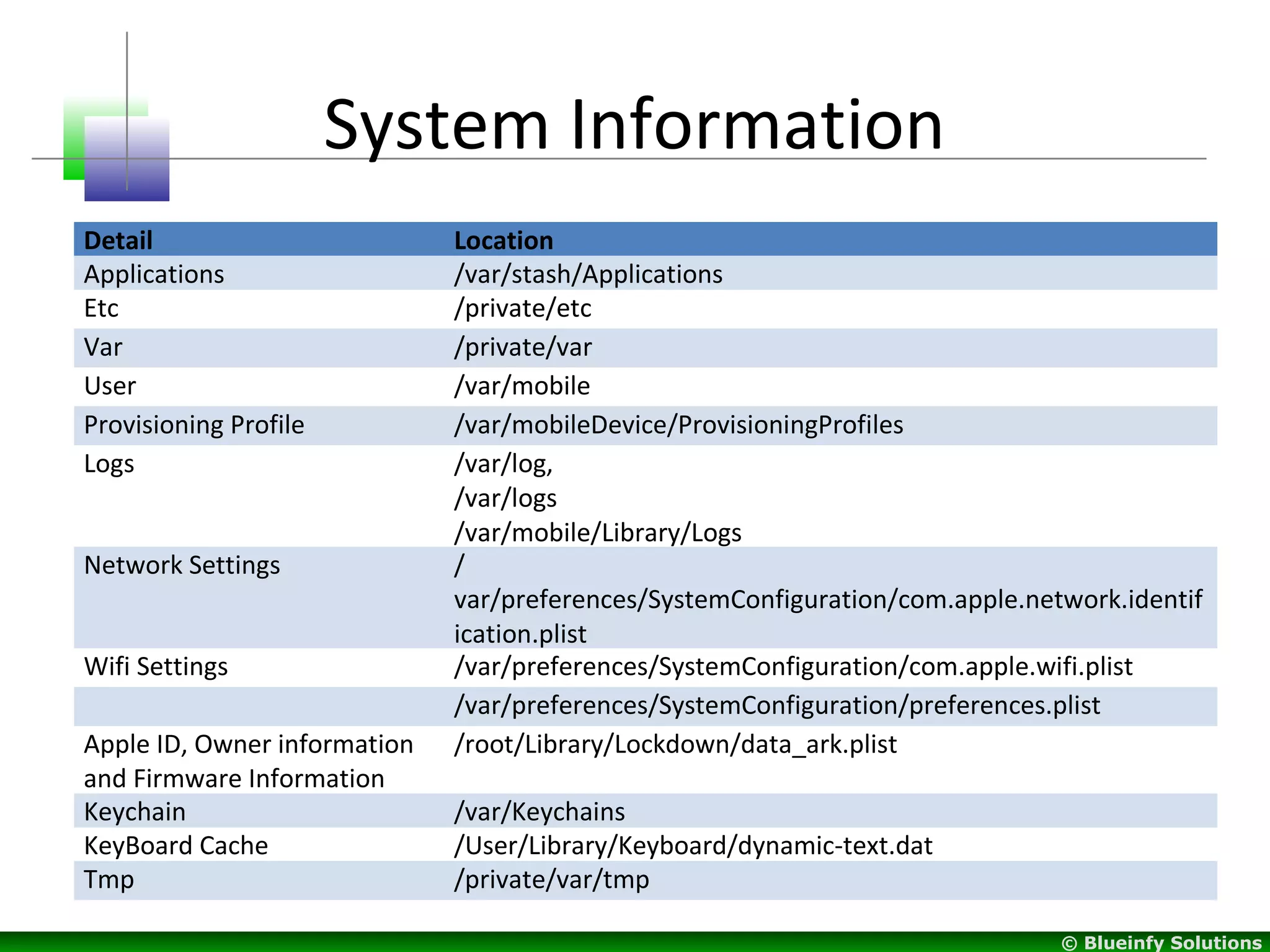

System Information
Detail Location
Applications /var/stash/Applications
Etc /private/etc
Var /private...
© Blueinfy Solutions
Application Information
Detail Location
Address Book /var/mobile/Library/AddressBook/AddressBook.sqli...
© Blueinfy Solutions
Default Services Information
Detail Location
Call History (Odd number is
for Outgoing calls, Even
num...
© Blueinfy Solutions

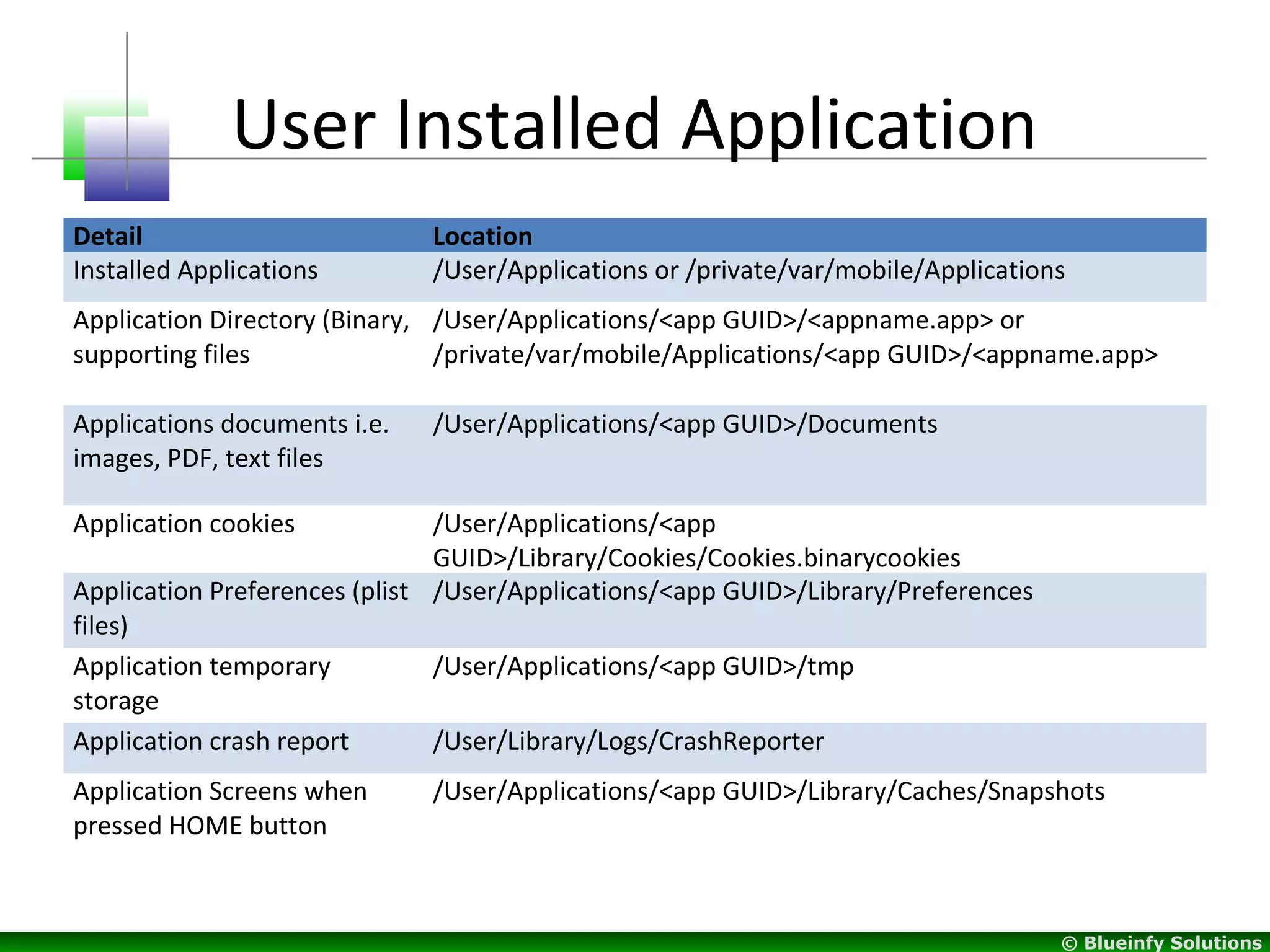

User Installed Application
Detail Location
Installed Applications /User/Applications or /private/var/...
© Blueinfy Solutions
Browser information
Detail Location
Browser Cookie /var/mobile/Library/Cookies/Cookies.binarycookies
...
© Blueinfy Solutions

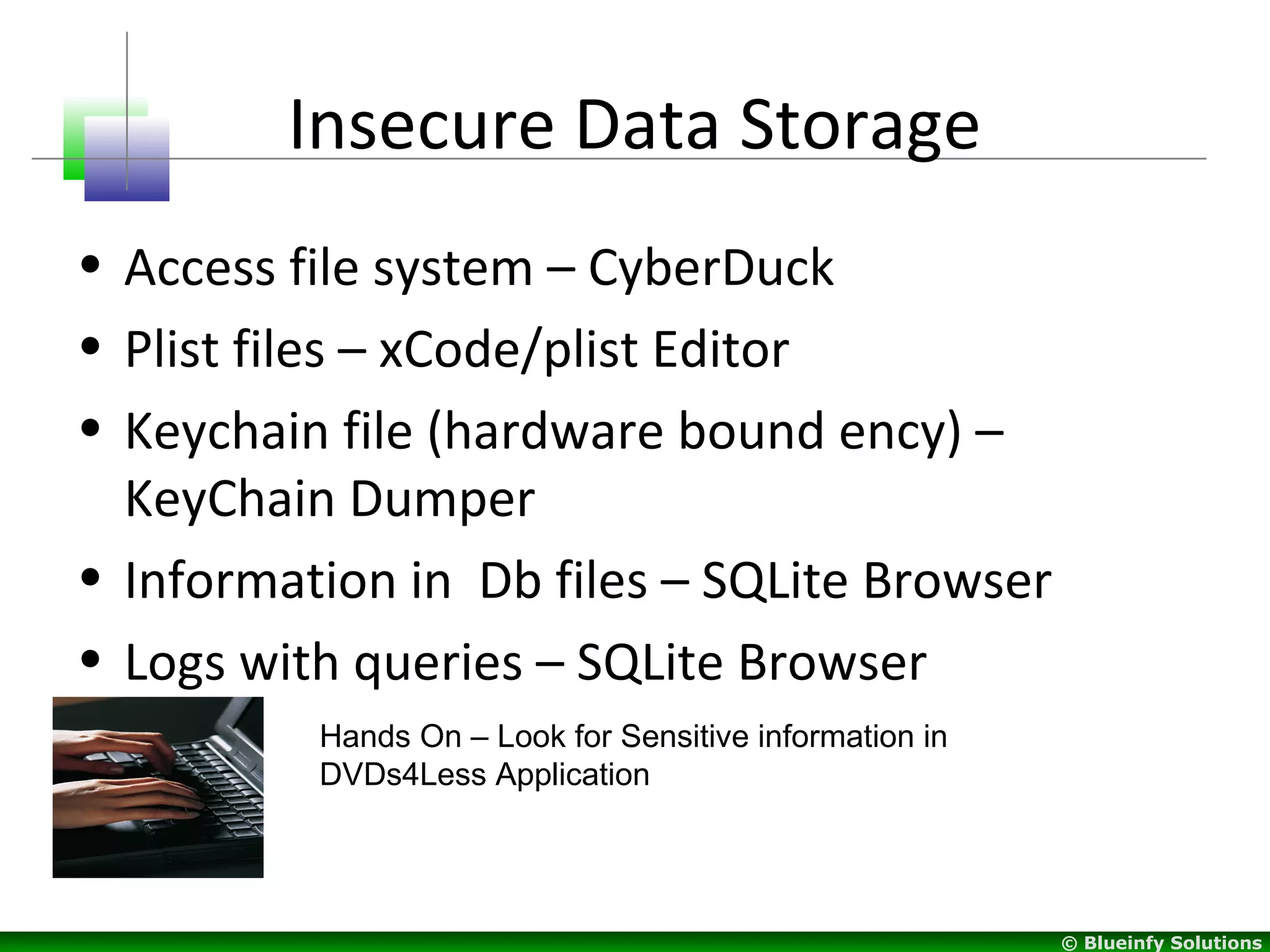

Insecure Data Storage
• Access file system – CyberDuck
• Plist files – xCode/plist Editor
• Keychain ...
© Blueinfy Solutions
Implementation
© Blueinfy Solutions

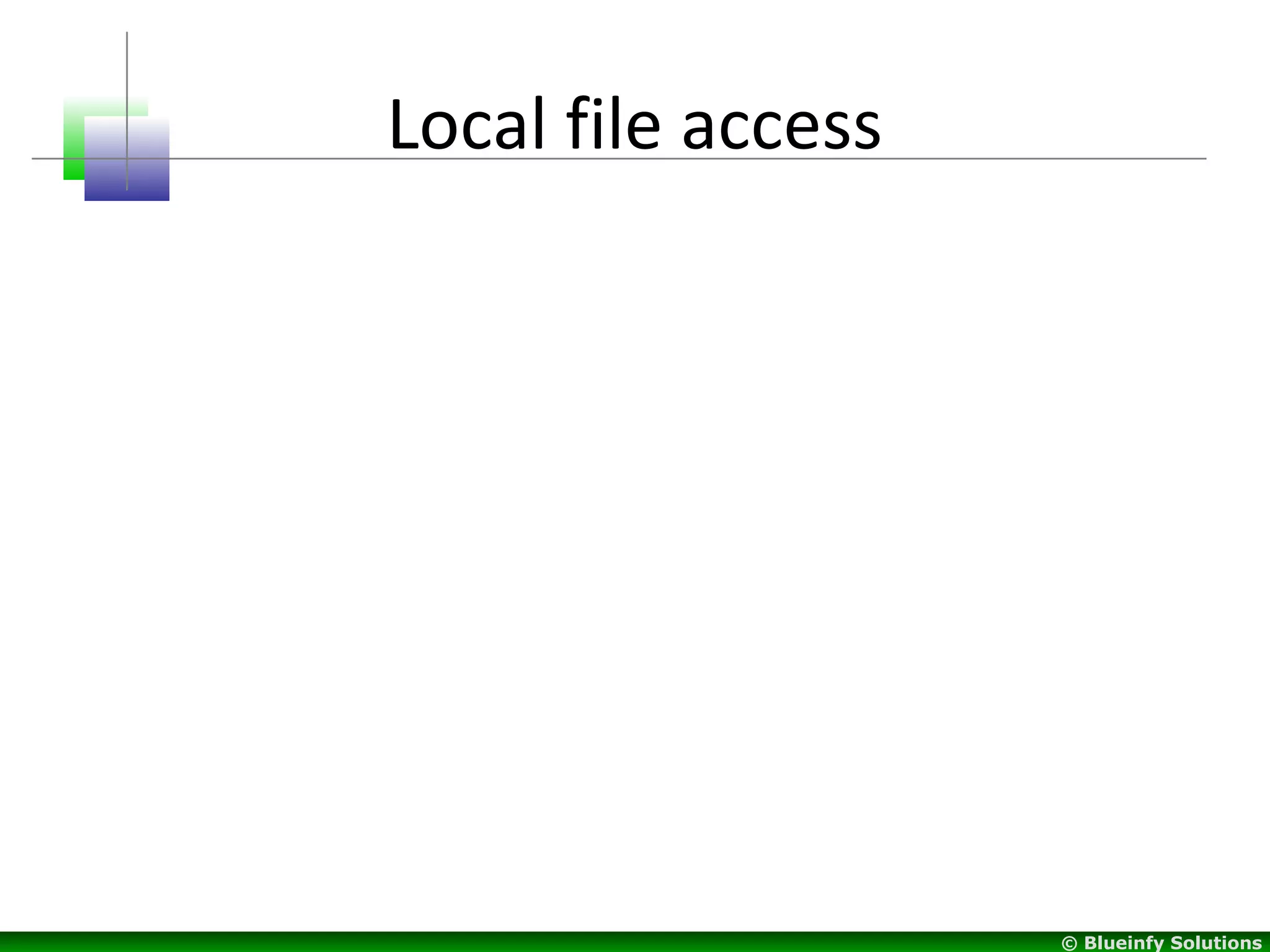

Local file access
© Blueinfy Solutions

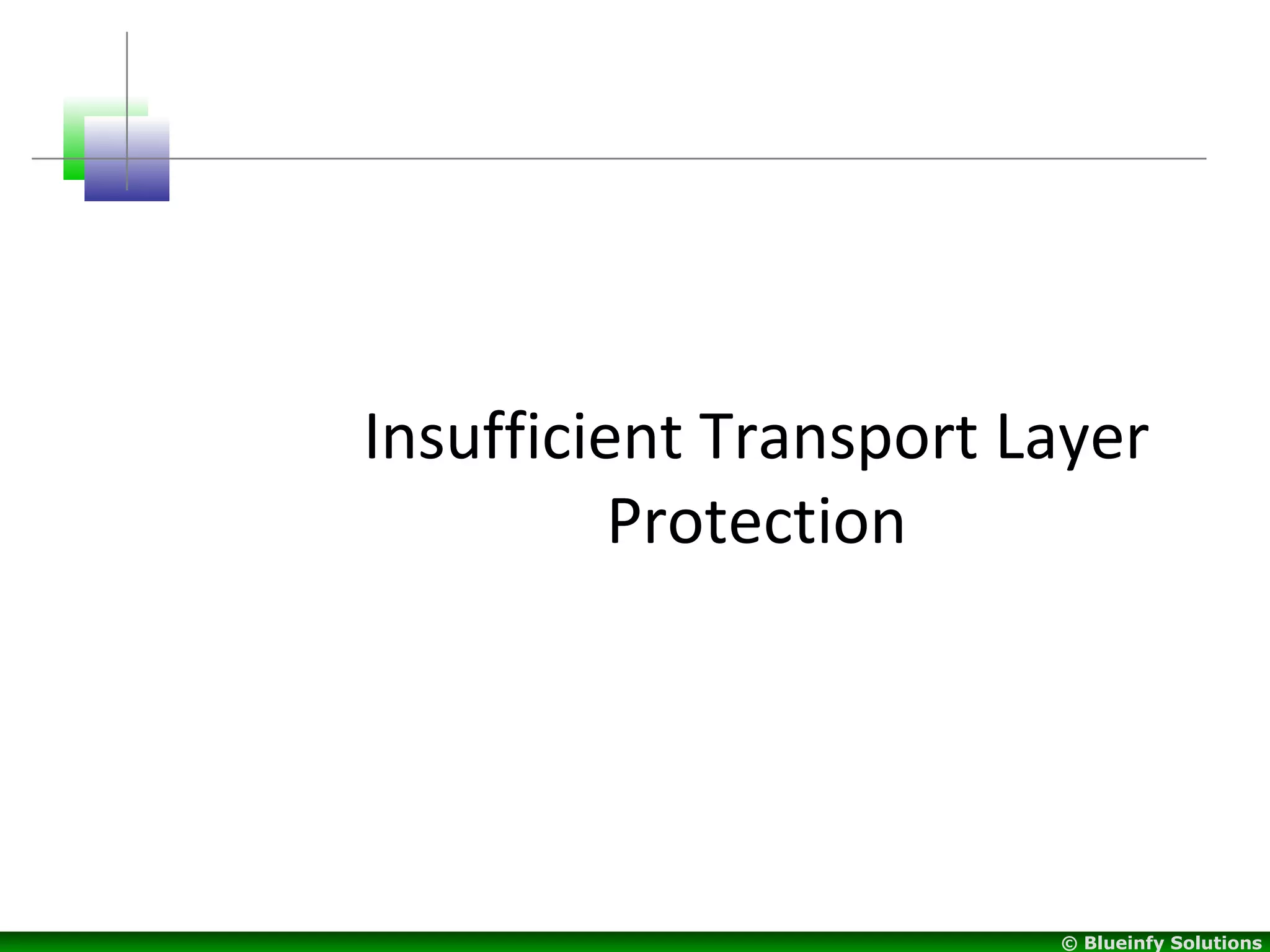

Insufficient Transport Layer
Protection
© Blueinfy Solutions

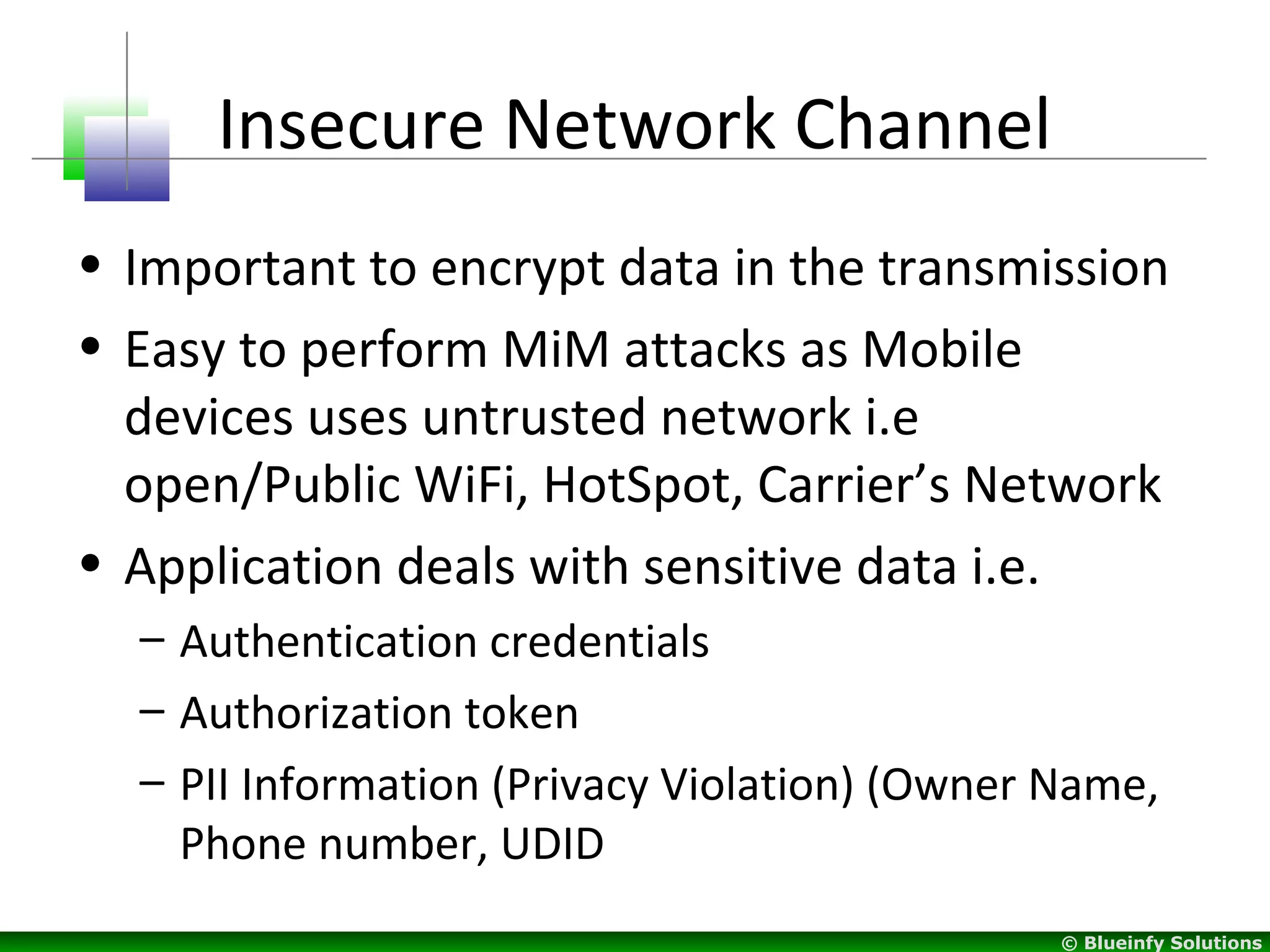

Insecure Network Channel
• Important to encrypt data in the transmission
• Easy to perform MiM attack...
© Blueinfy Solutions

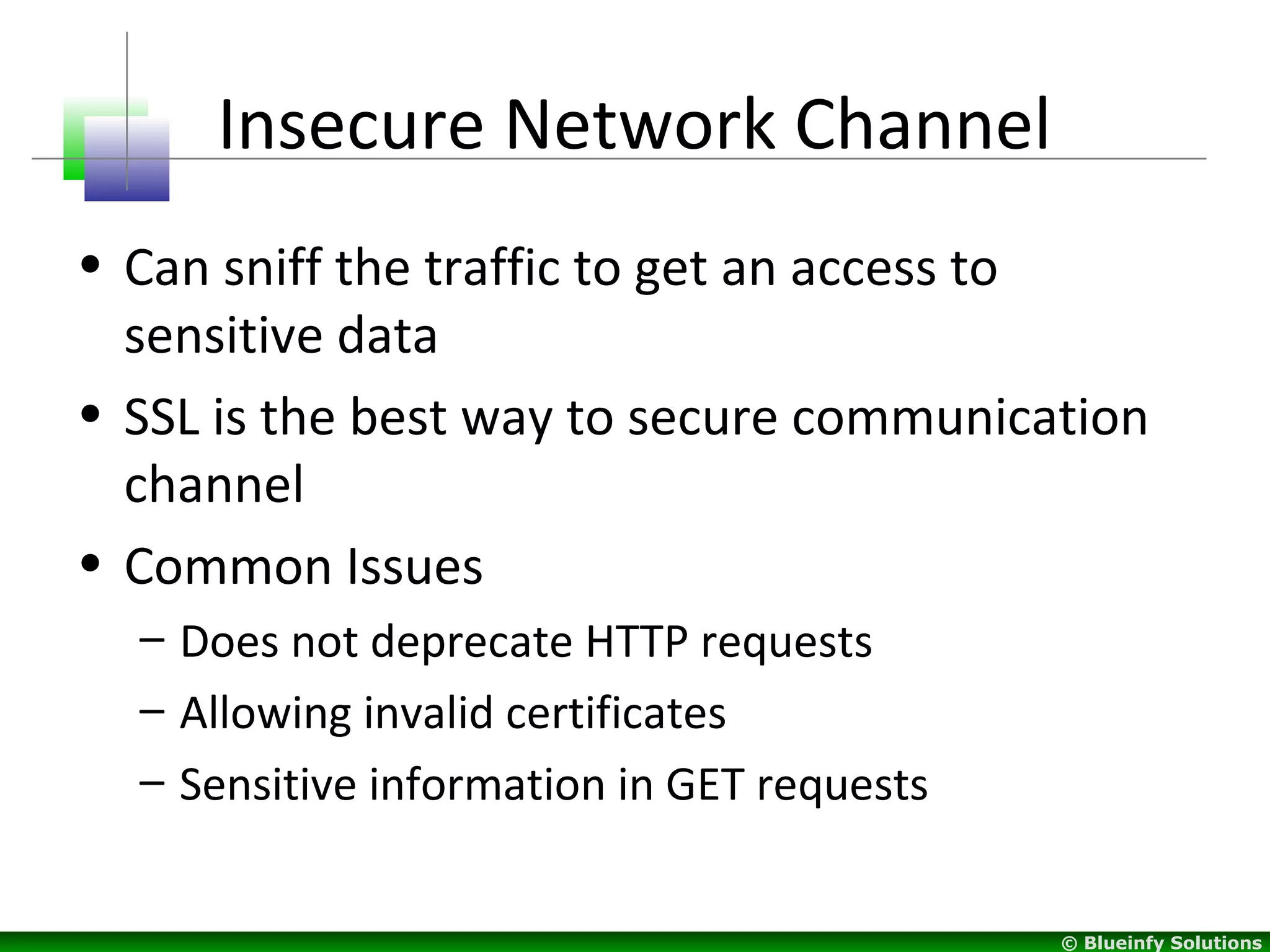

Insecure Network Channel
• Can sniff the traffic to get an access to
sensitive data
• SSL is the best...
© Blueinfy Solutions

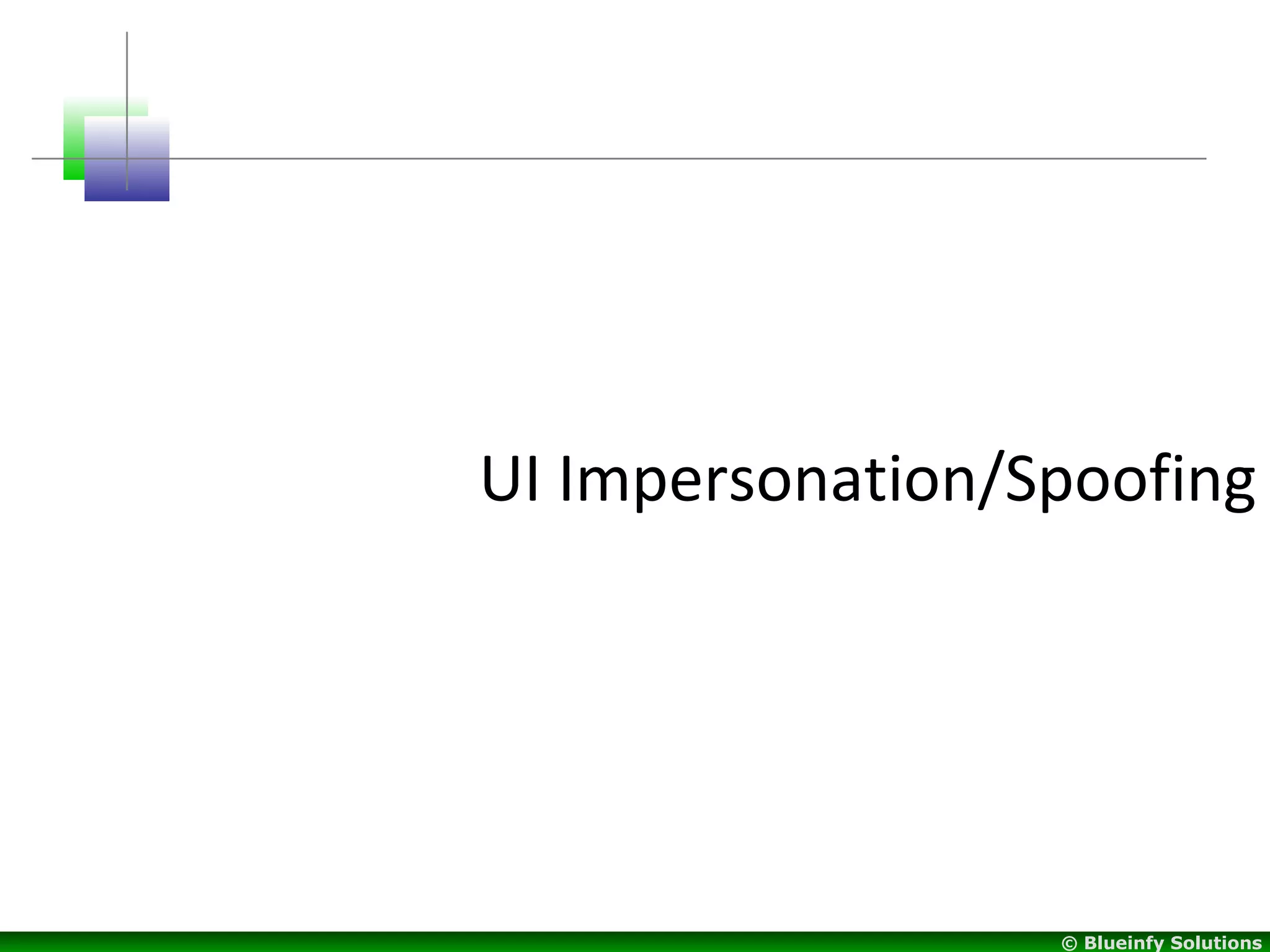

UI Impersonation/Spoofing
© Blueinfy Solutions

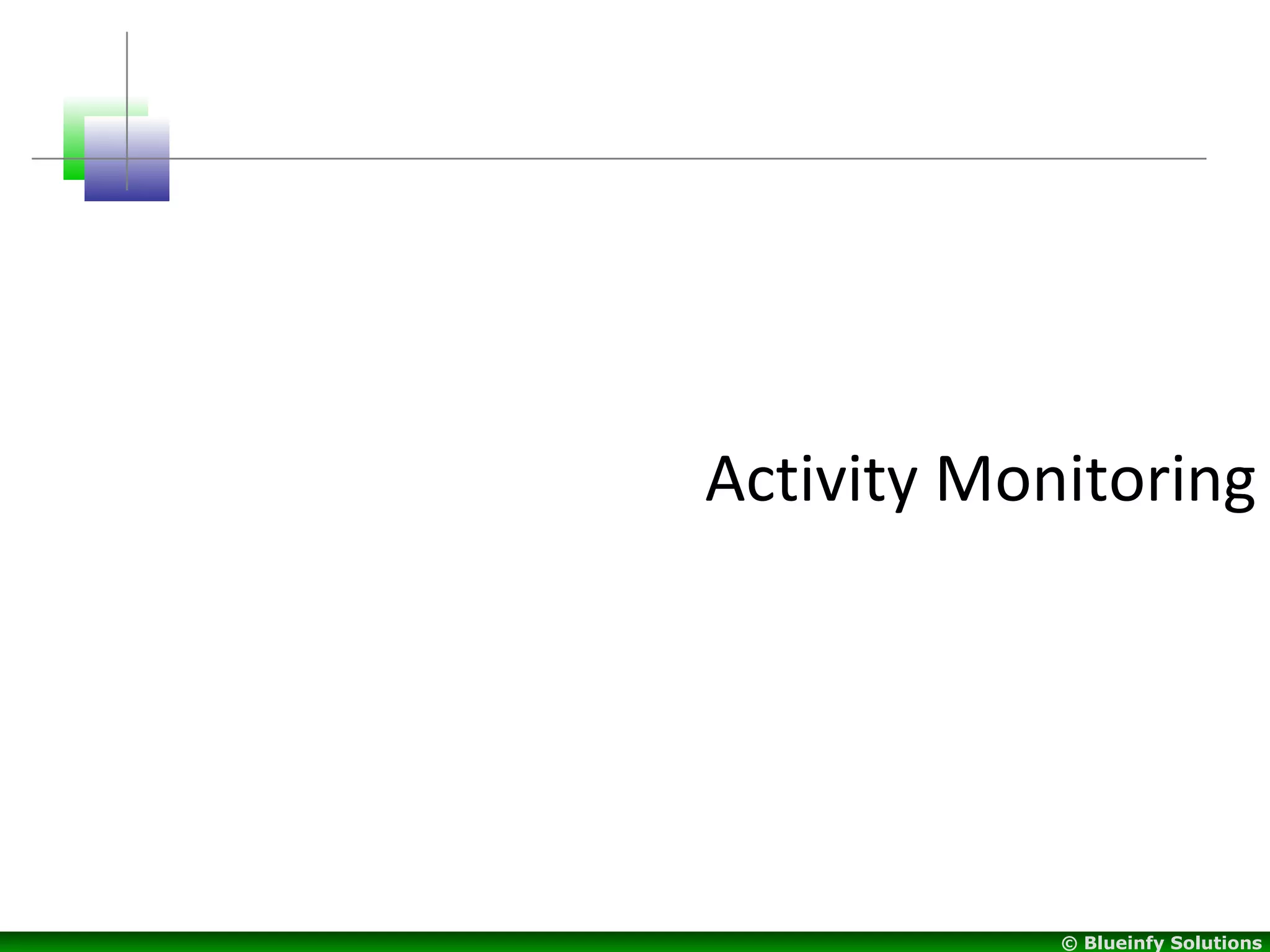

Activity Monitoring
© Blueinfy Solutions

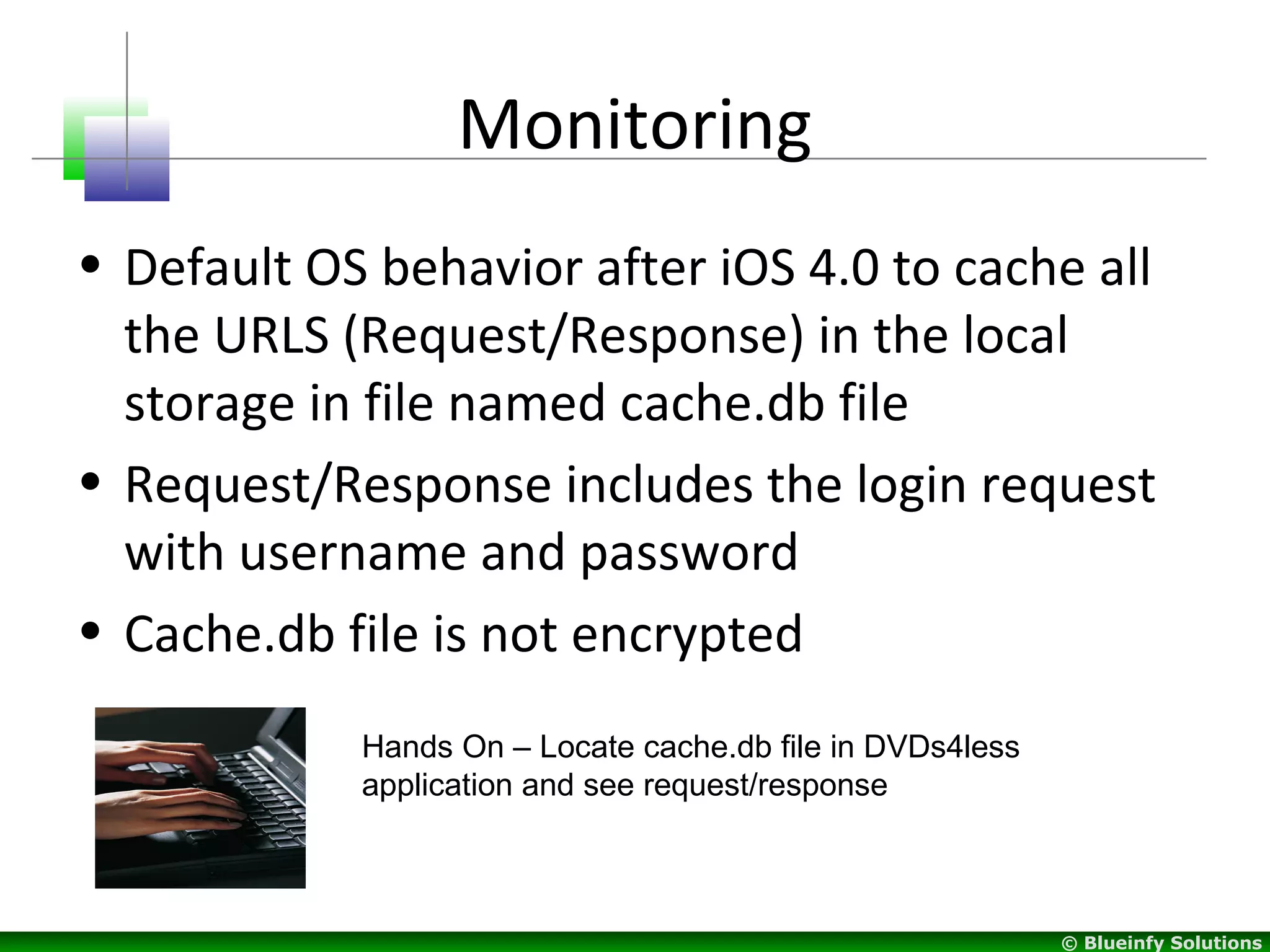

Monitoring
• Default OS behavior after iOS 4.0 to cache all
the URLS (Request/Response) in the local
...
© Blueinfy Solutions

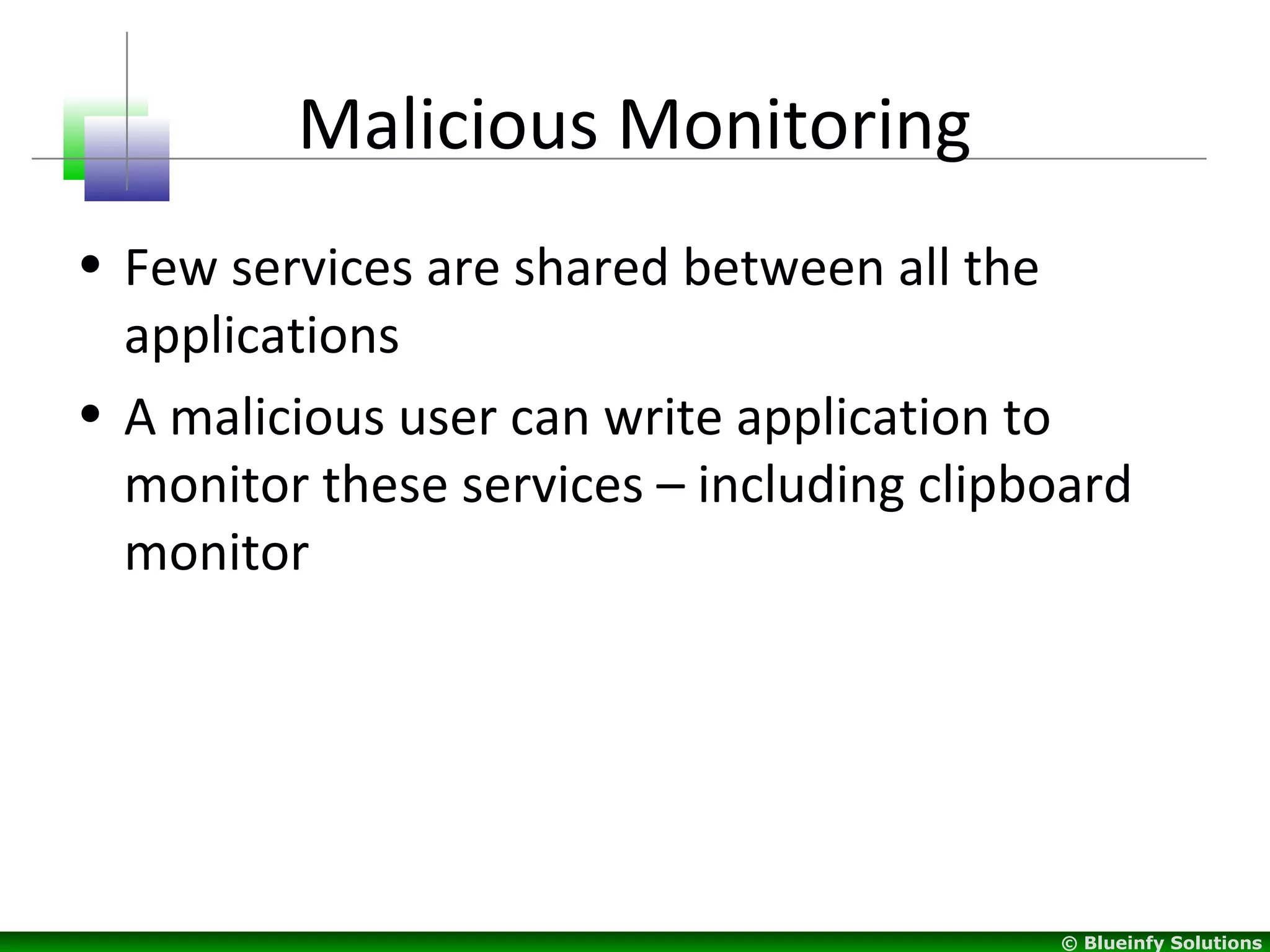

Malicious Monitoring
• Few services are shared between all the
applications
• A malicious user can wr...
© Blueinfy Solutions

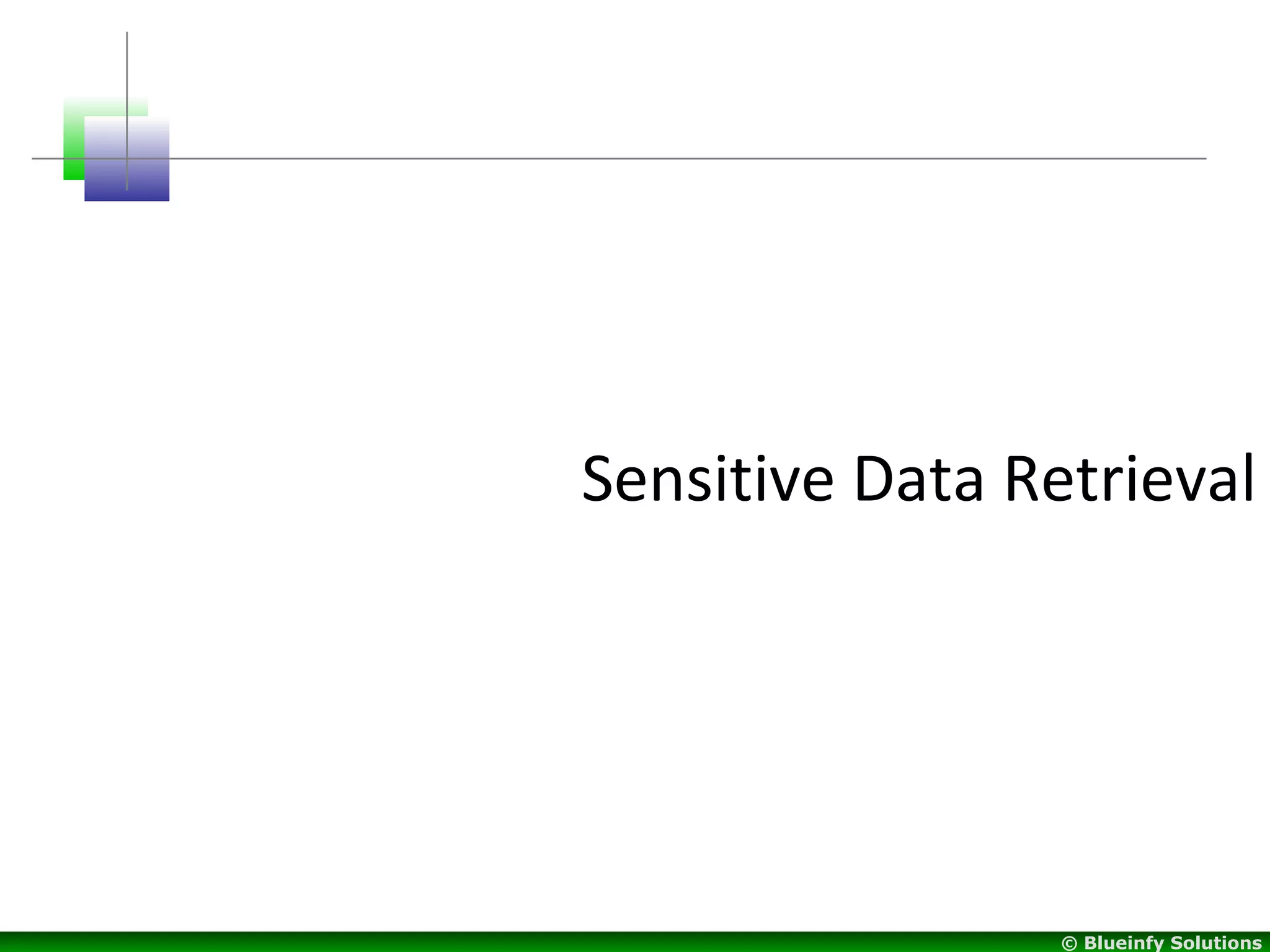

Sensitive Data Retrieval
© Blueinfy Solutions
PII Information Leakage
• Application usually have access to user’s
private information i.e. Owner Na...
© Blueinfy Solutions

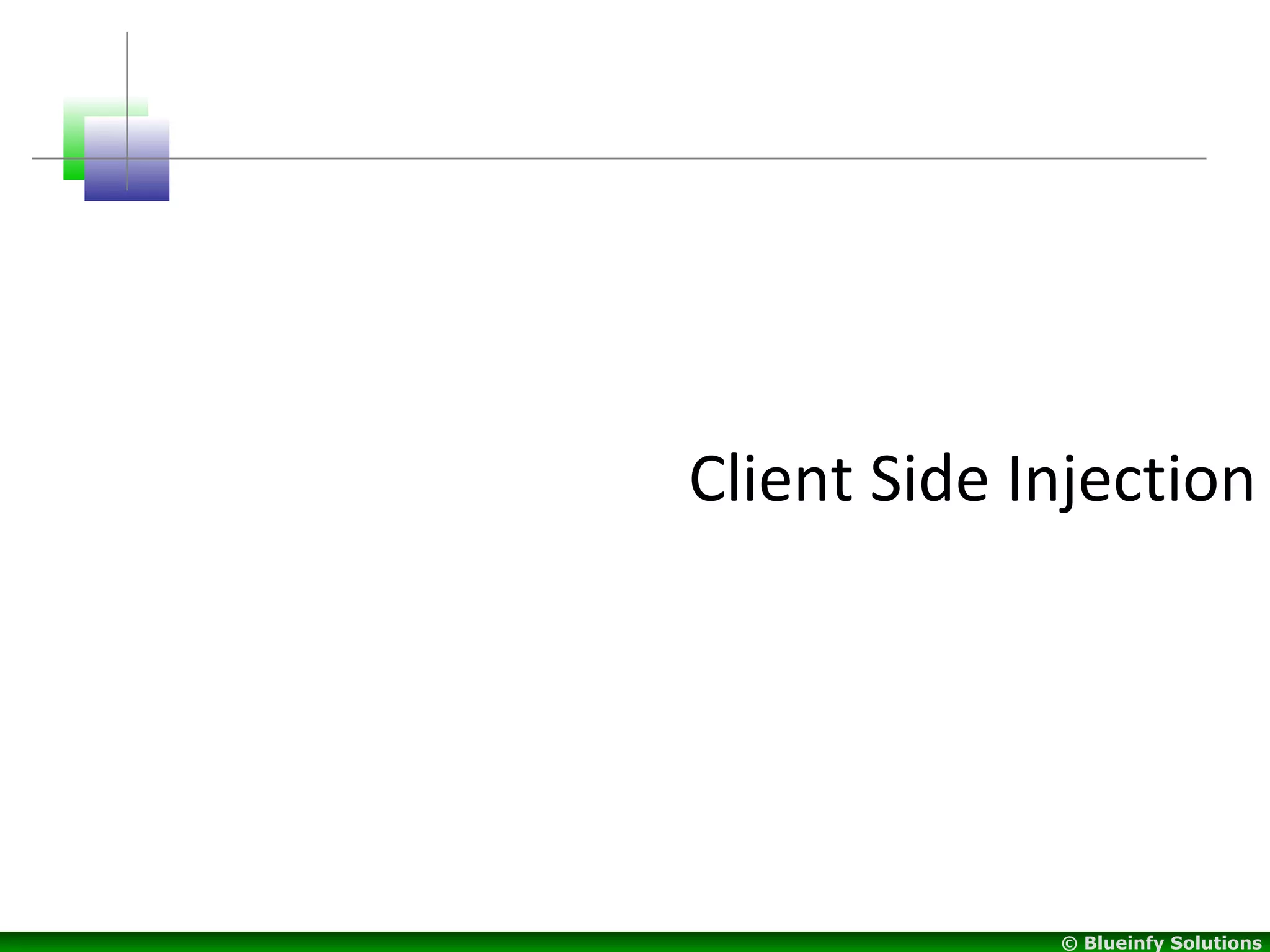

Client Side Injection
© Blueinfy Solutions

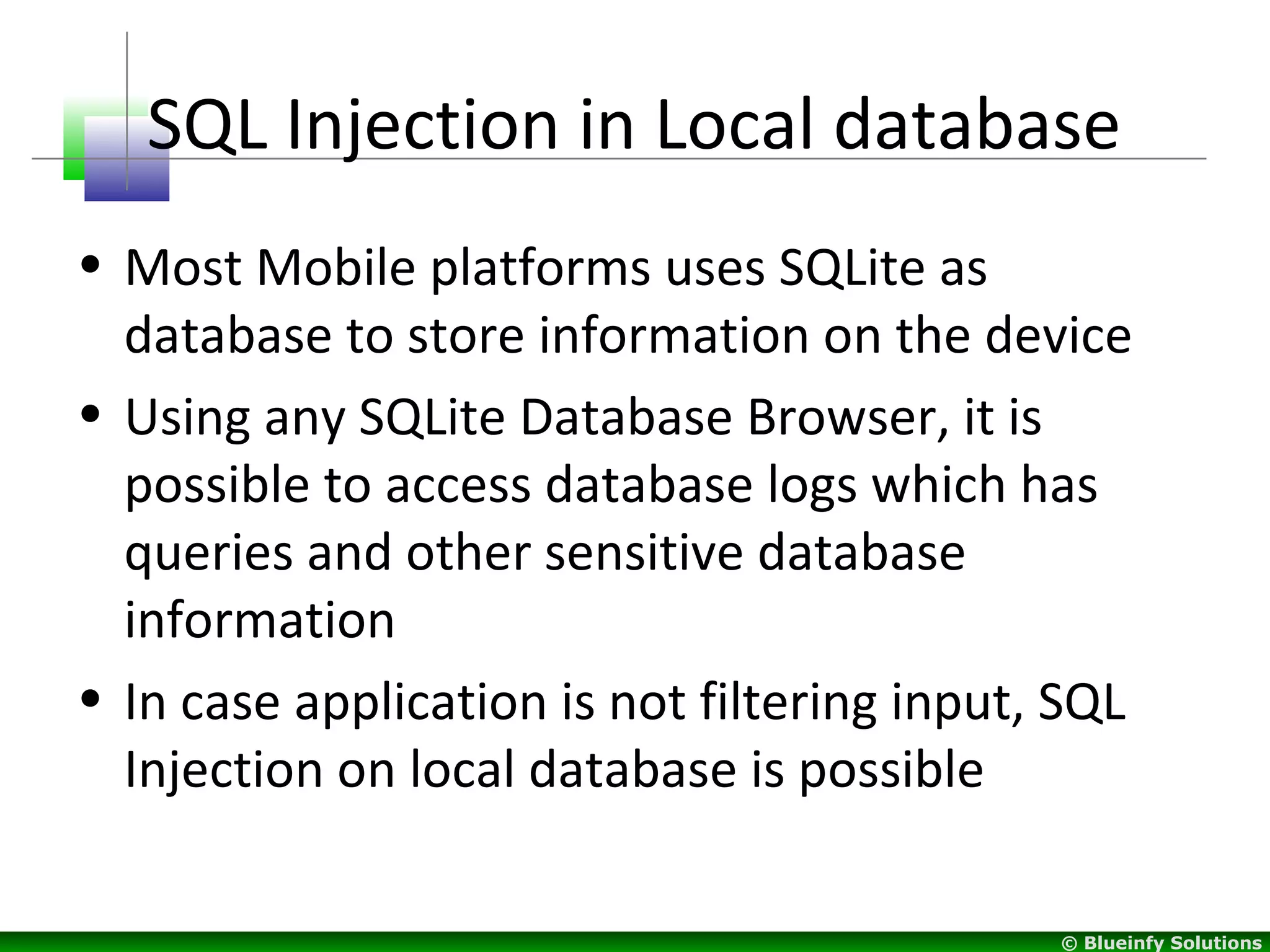

SQL Injection in Local database
• Most Mobile platforms uses SQLite as
database to store information ...
© Blueinfy Solutions

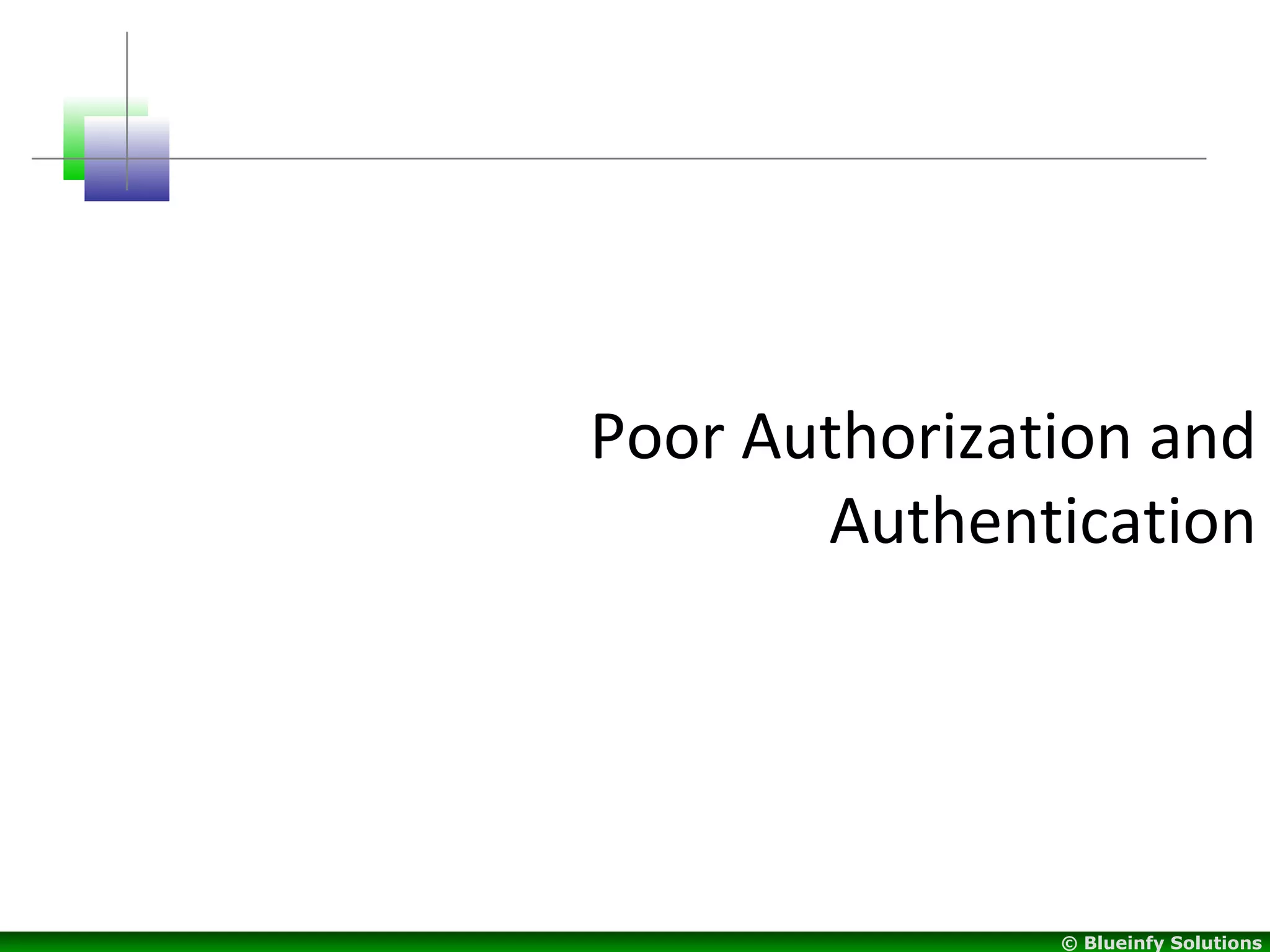

Poor Authorization and
Authentication
© Blueinfy Solutions
Authorization & Authentication
• No password complexity specially on mobile
• Hidden/No Logout button...
© Blueinfy Solutions

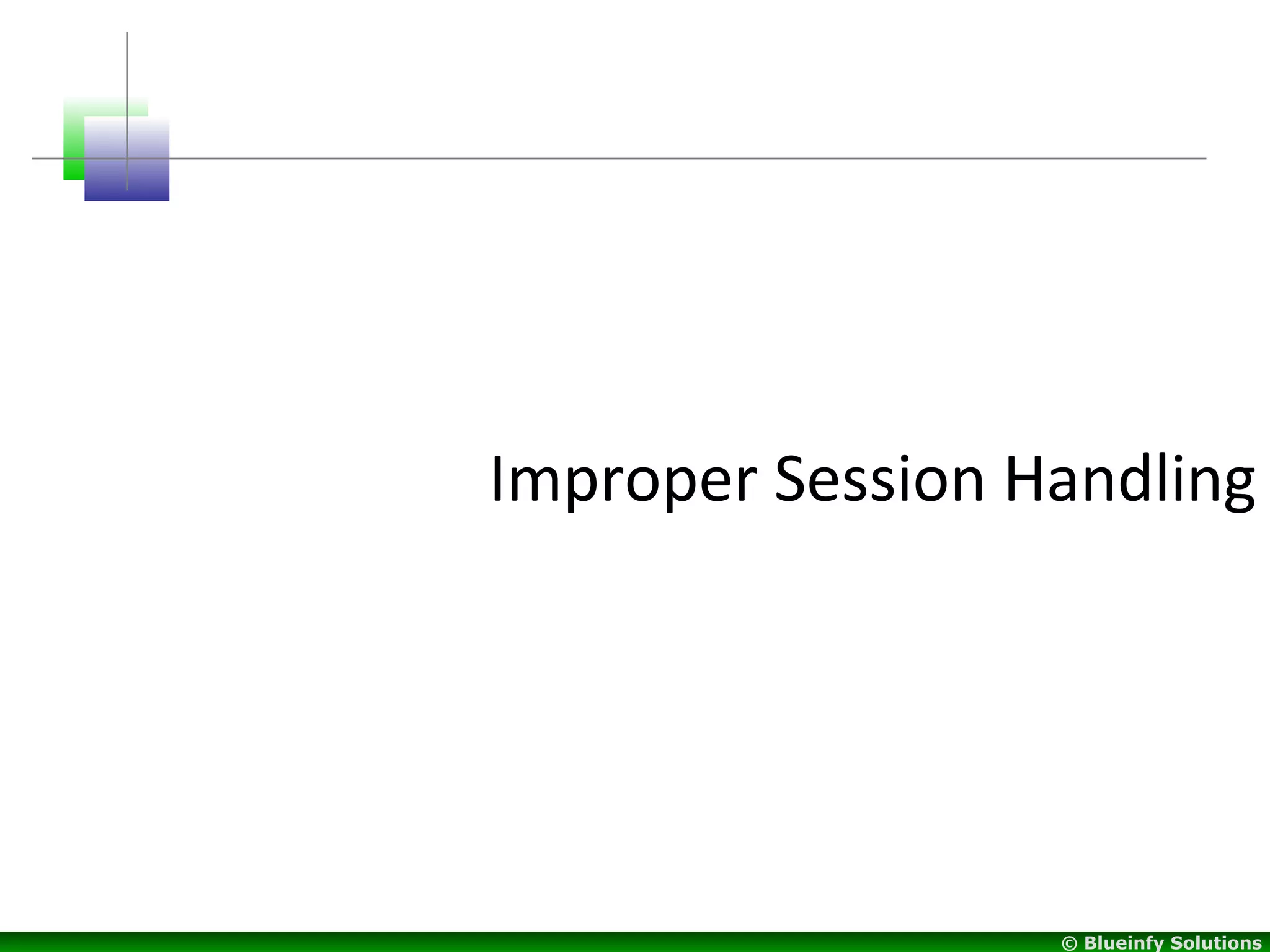

Improper Session Handling
© Blueinfy Solutions
Improper Session
• Session is key for any application for
authorization
• Application is sending sens...
© Blueinfy Solutions

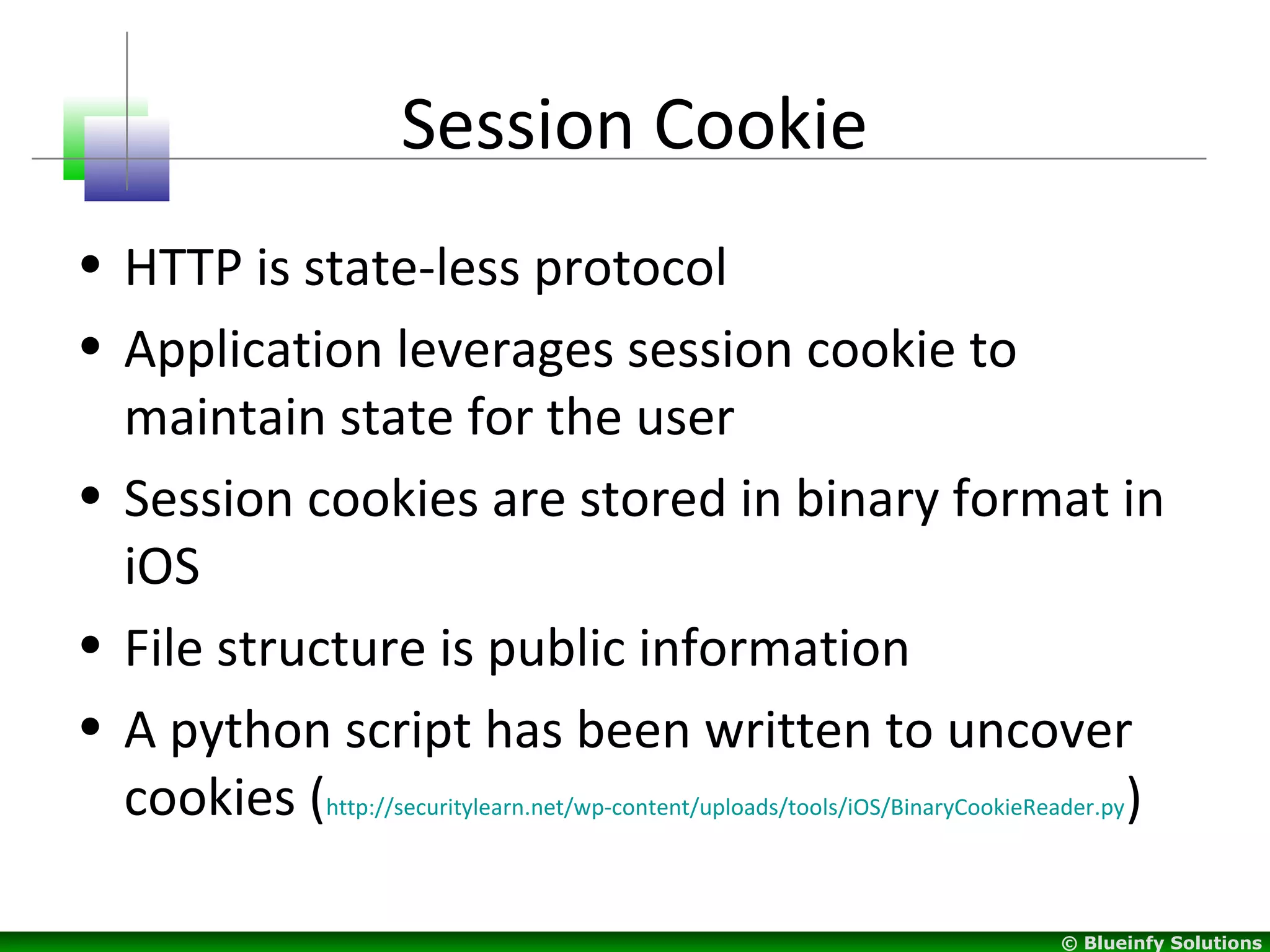

Session Cookie
• HTTP is state-less protocol
• Application leverages session cookie to
maintain state...
© Blueinfy Solutions

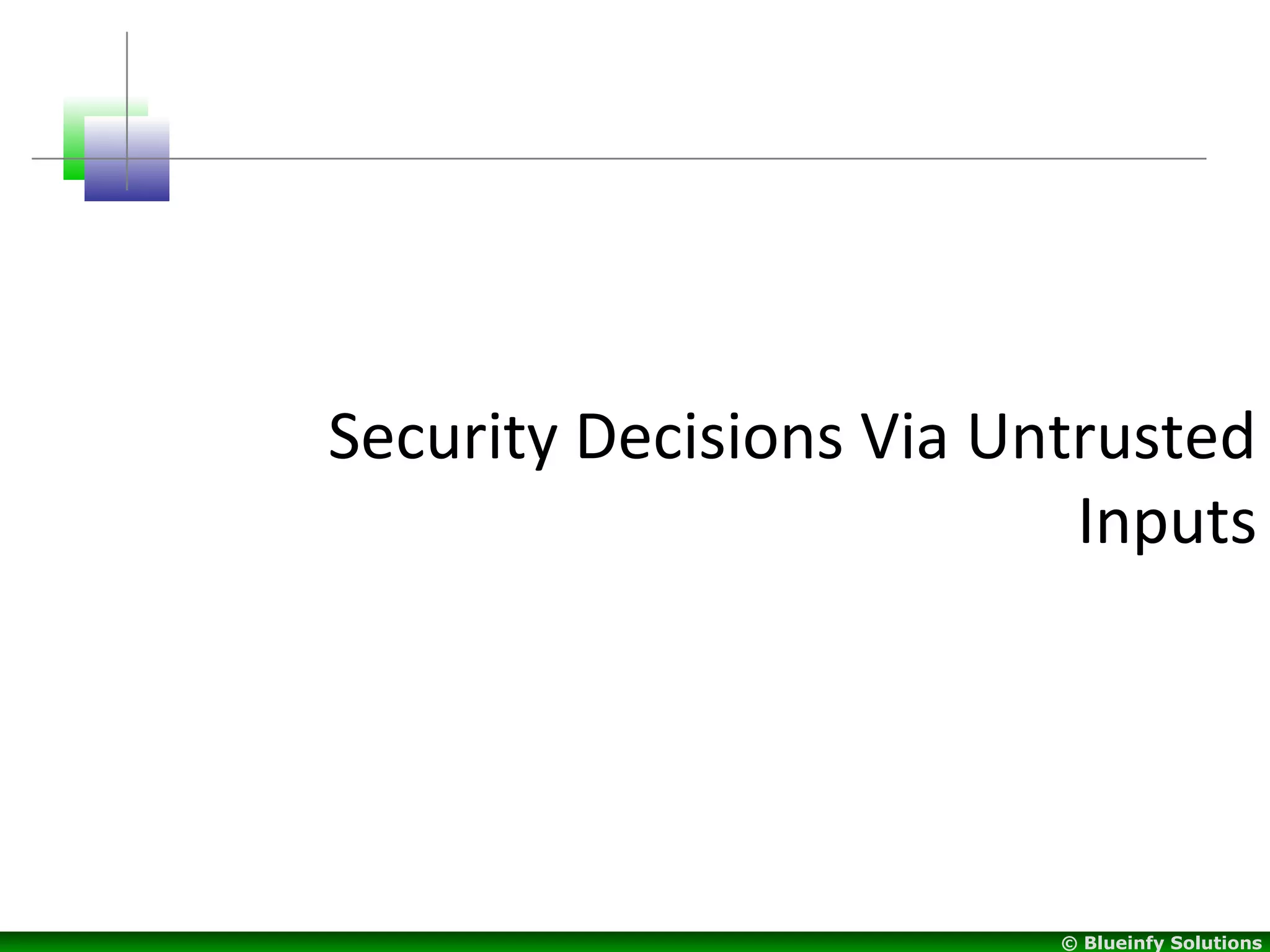

Security Decisions Via Untrusted
Inputs
© Blueinfy Solutions

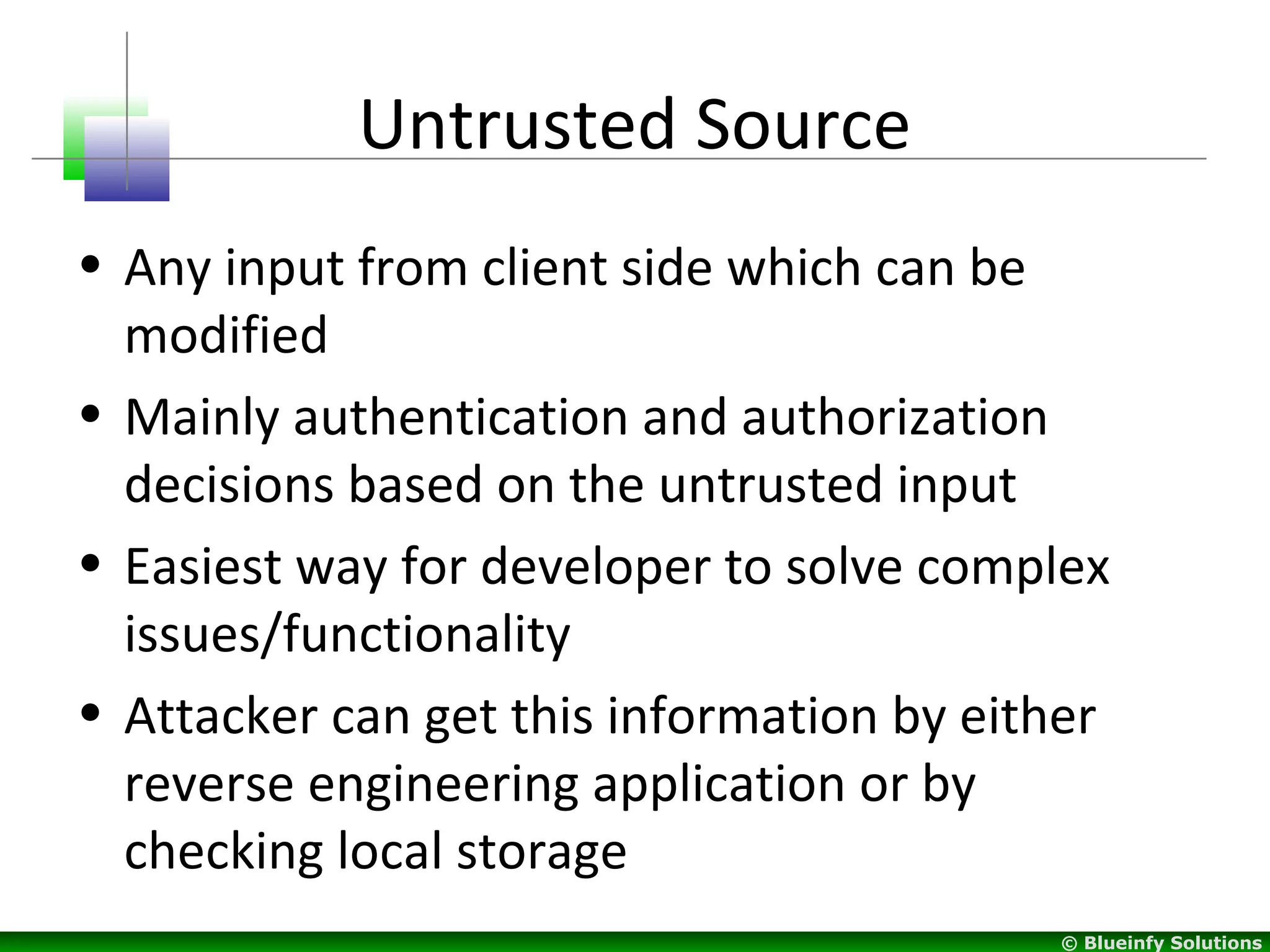

Untrusted Source
• Any input from client side which can be
modified
• Mainly authentication and autho...
© Blueinfy Solutions

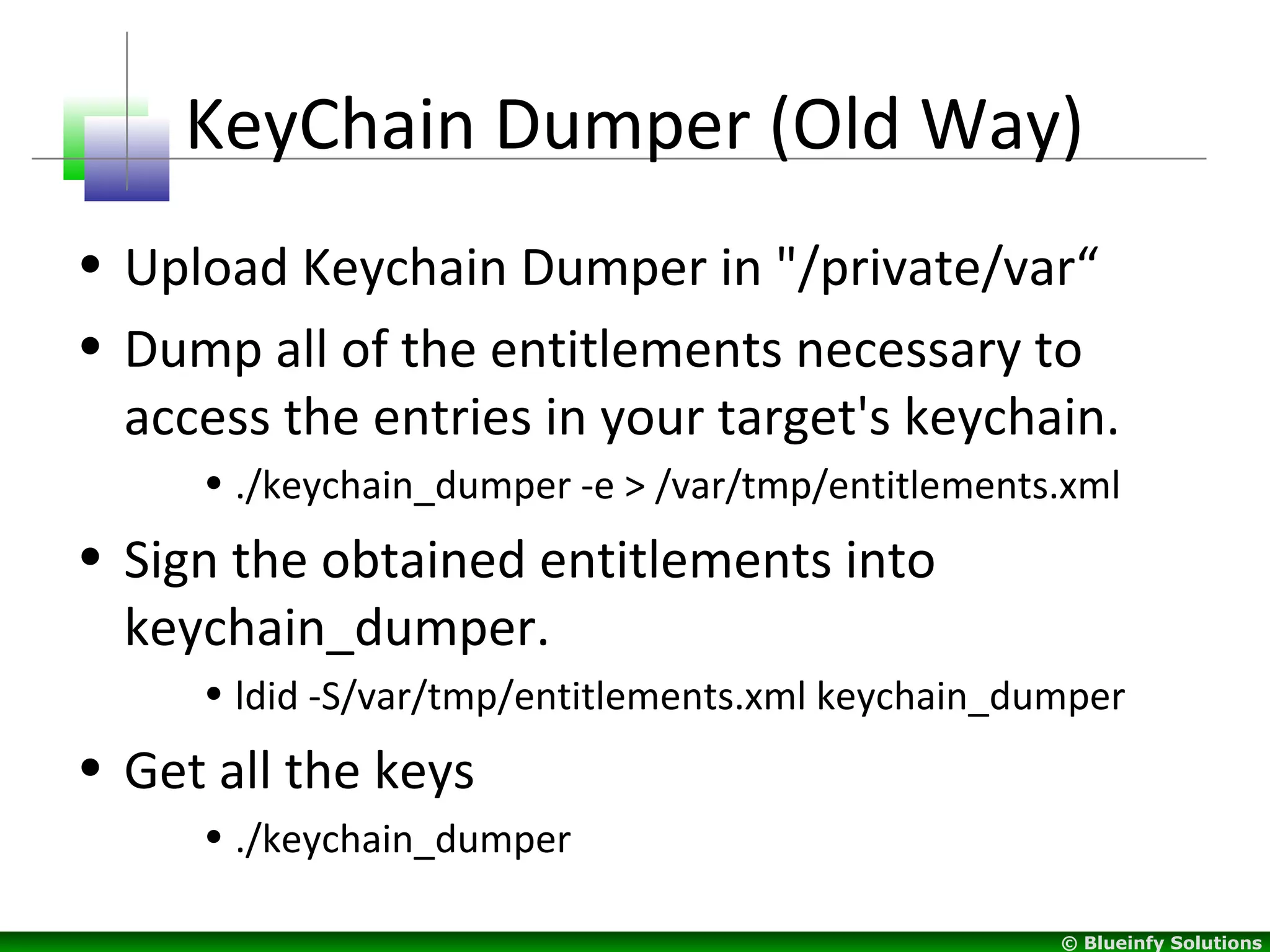

KeyChain Dumper (Old Way)
• Upload Keychain Dumper in "/private/var“
• Dump all of the entitlements n...
© Blueinfy Solutions

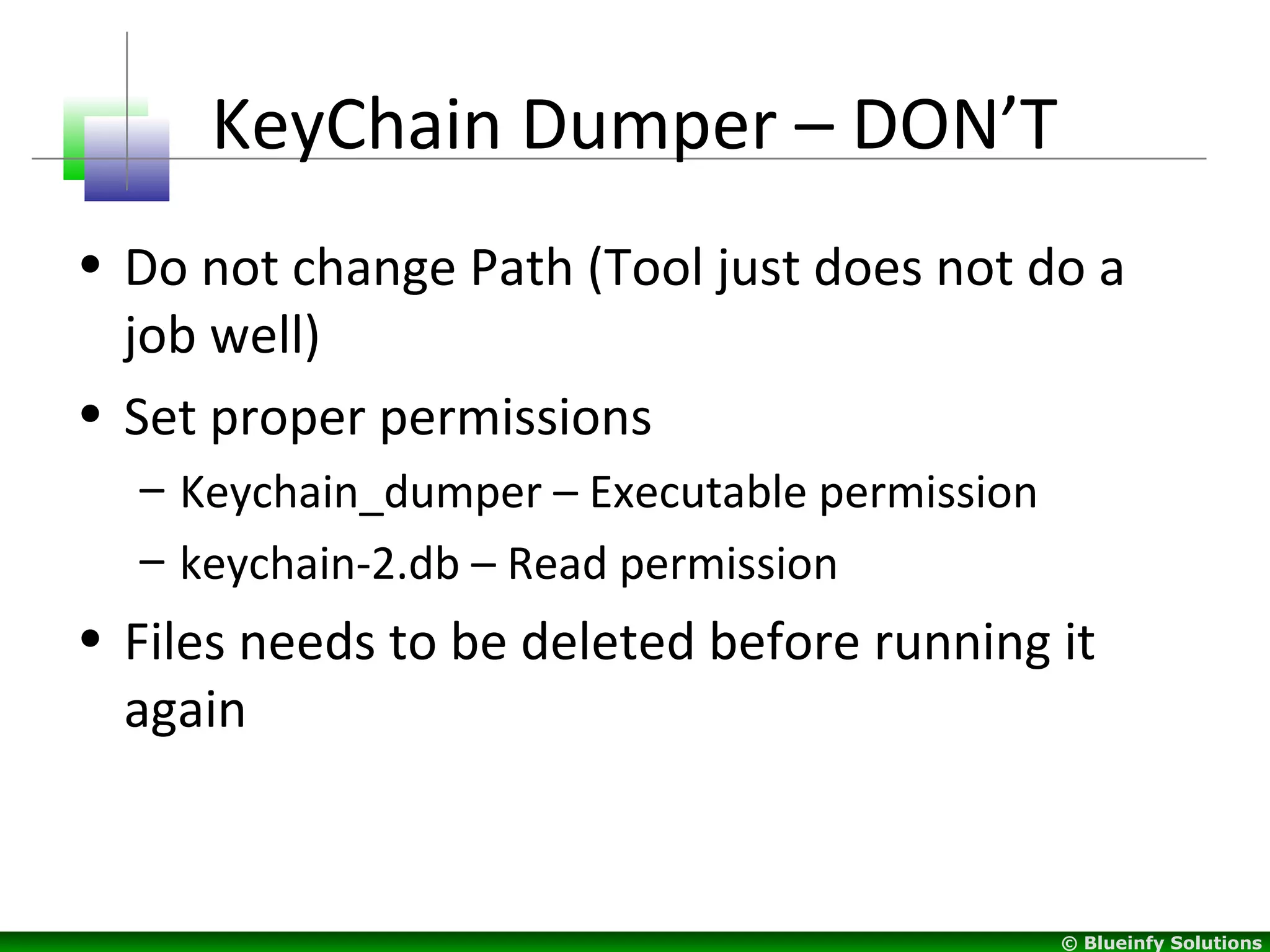

KeyChain Dumper – DON’T
• Do not change Path (Tool just does not do a
job well)
• Set proper permissi...
© Blueinfy Solutions

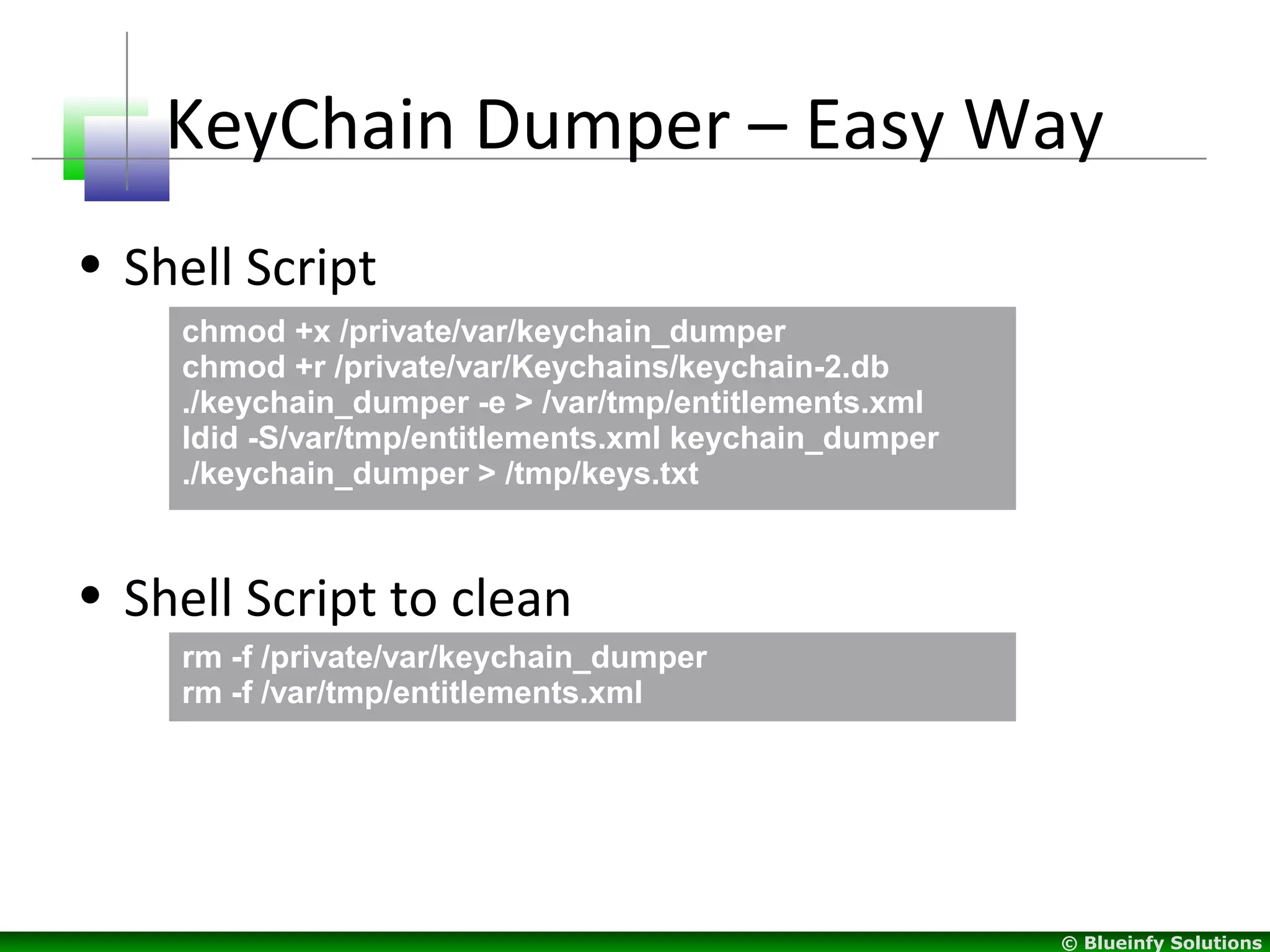

KeyChain Dumper – Easy Way
• Shell Script
• Shell Script to clean
chmod +x /private/var/keychain_dump...
© Blueinfy Solutions

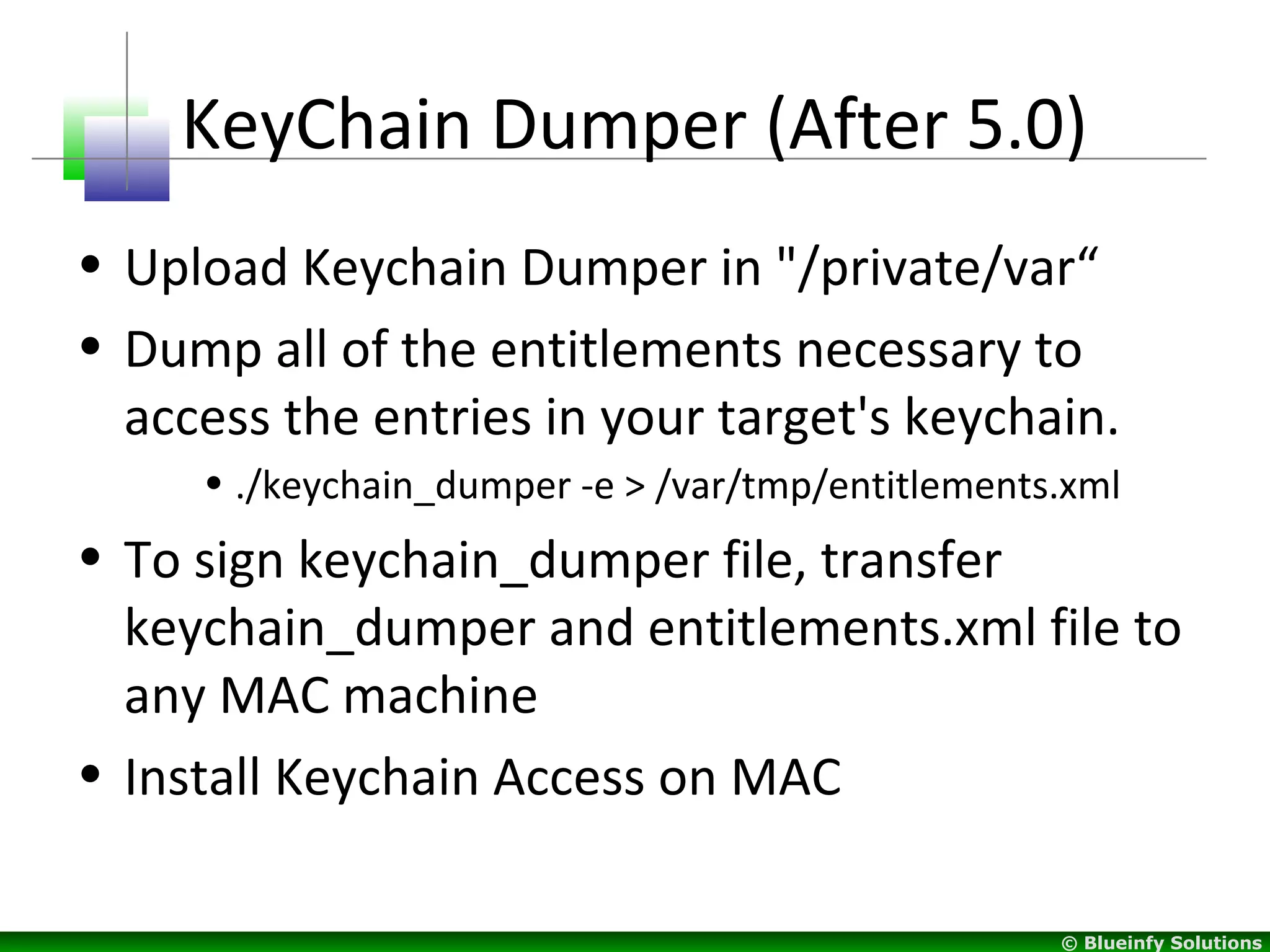

KeyChain Dumper (After 5.0)
• Upload Keychain Dumper in "/private/var“
• Dump all of the entitlements...
© Blueinfy Solutions

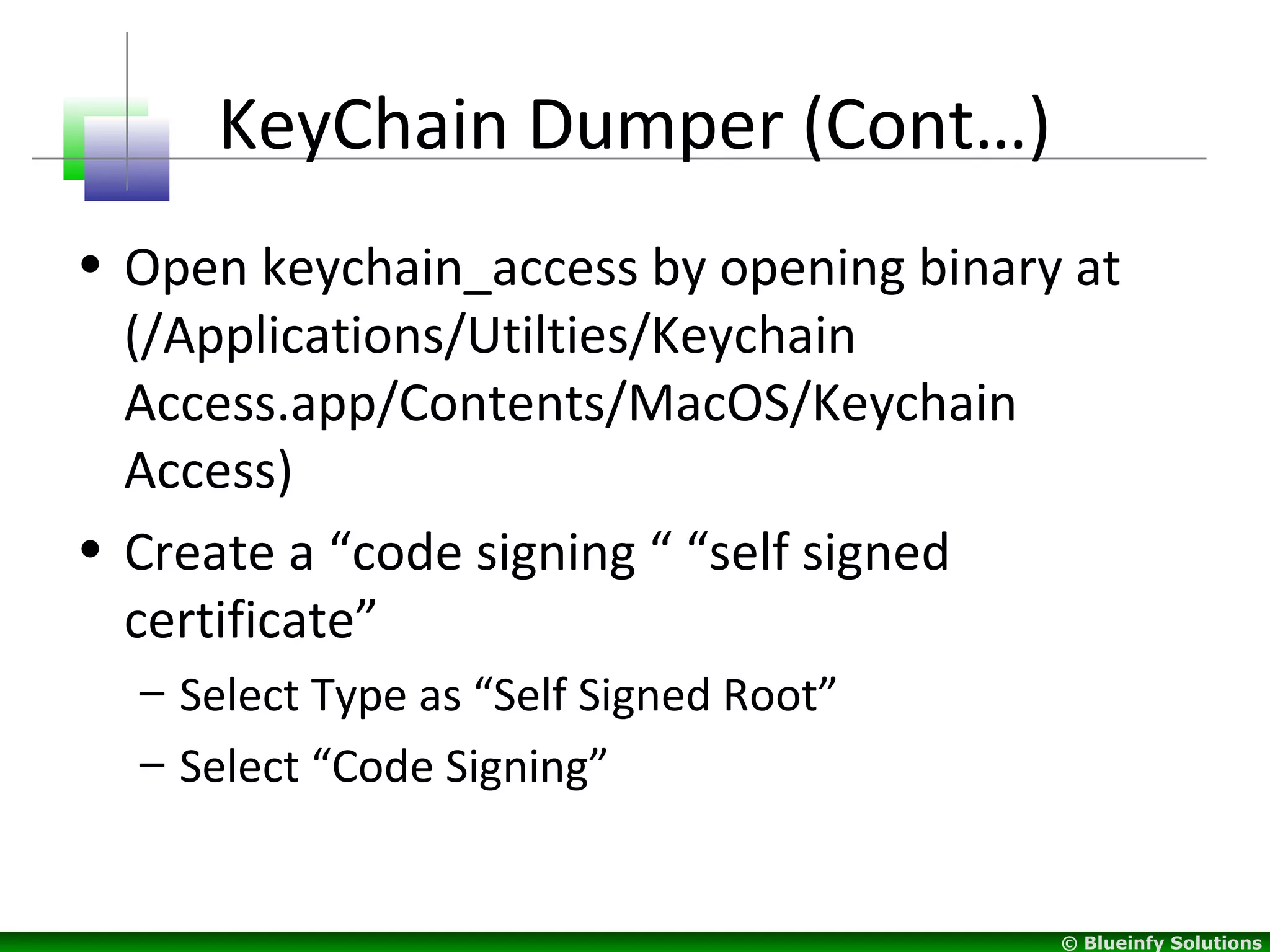

KeyChain Dumper (Cont…)
• Open keychain_access by opening binary at
(/Applications/Utilties/Keychain
...
© Blueinfy Solutions
KeyChain Dumper (Cont…)
• Sign keychain_dumper file using codesign
command
# codesign -fs "Test" --en...
© Blueinfy Solutions

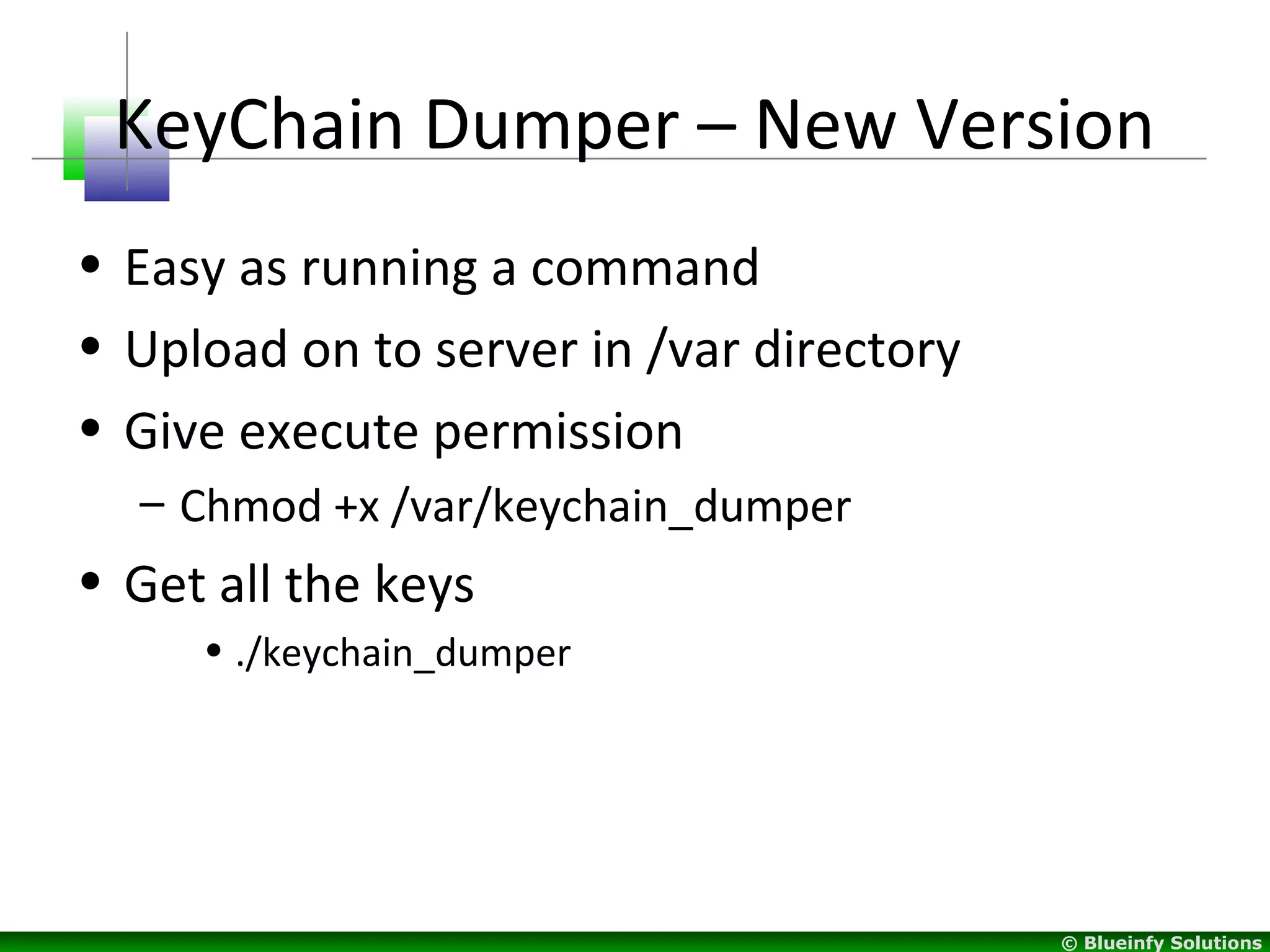

KeyChain Dumper – New Version
• Easy as running a command
• Upload on to server in /var directory
• G...
© Blueinfy Solutions

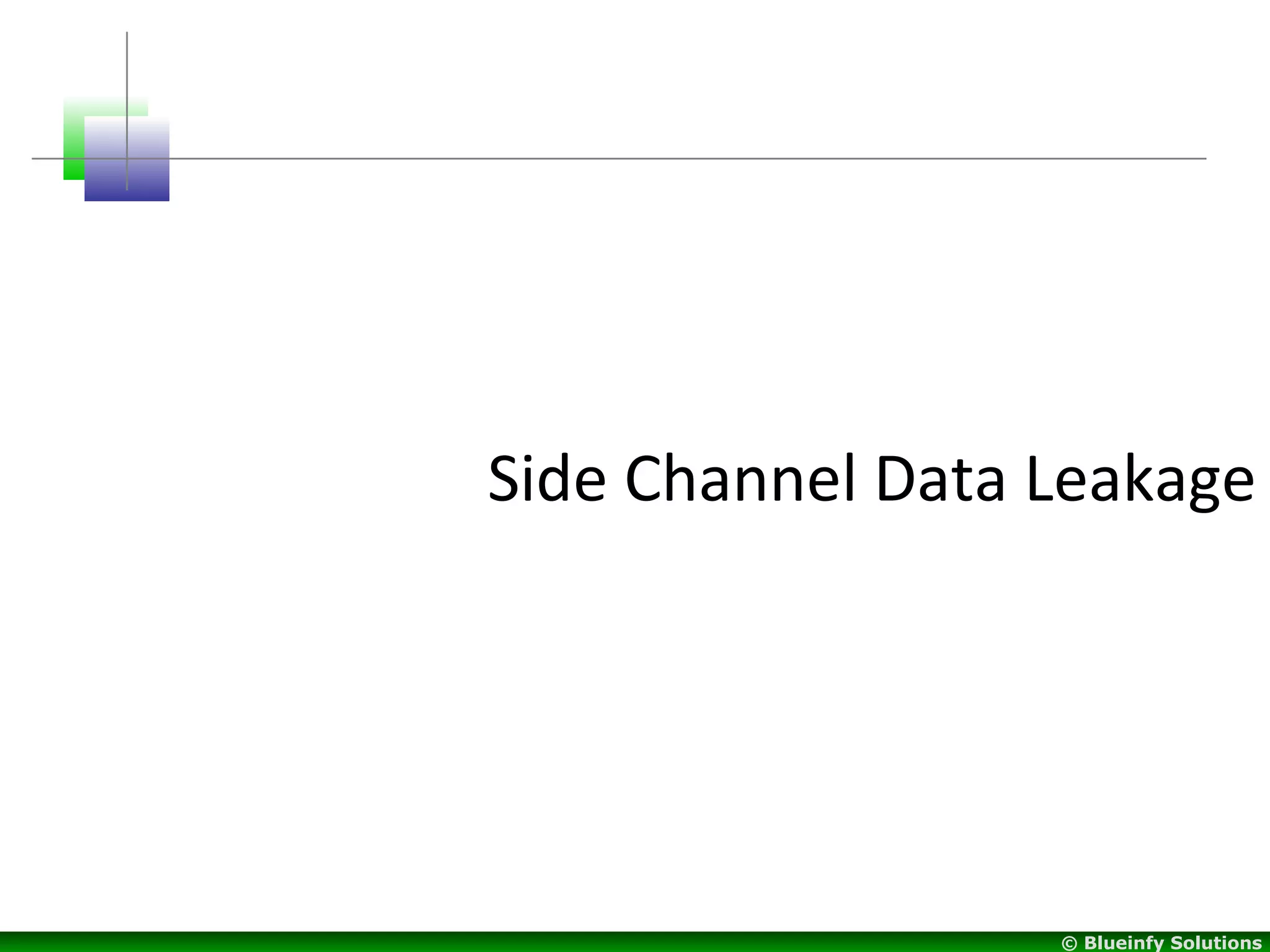

Side Channel Data Leakage
© Blueinfy Solutions

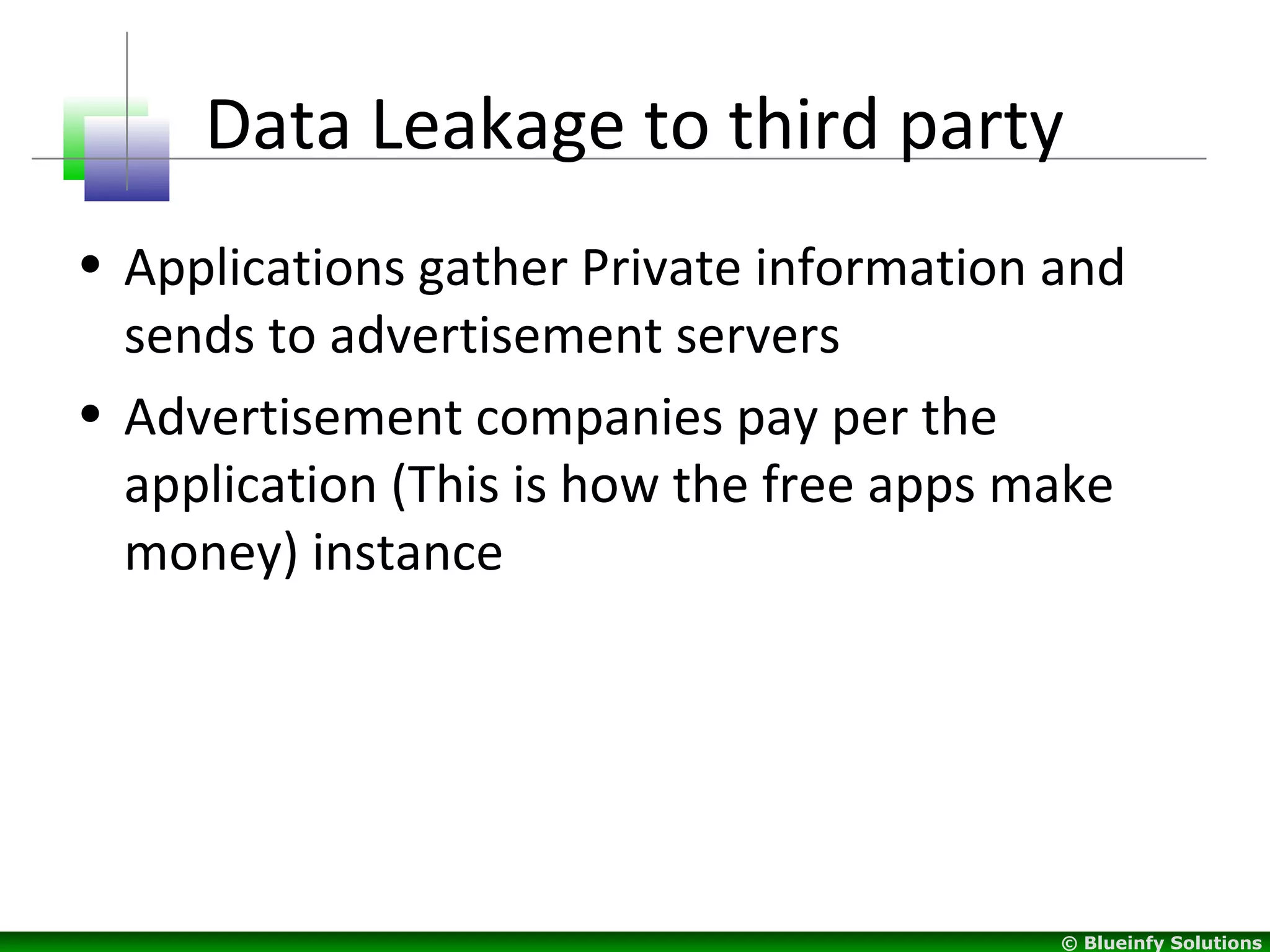

Data Leakage to third party
• Applications gather Private information and
sends to advertisement serv...
© Blueinfy Solutions

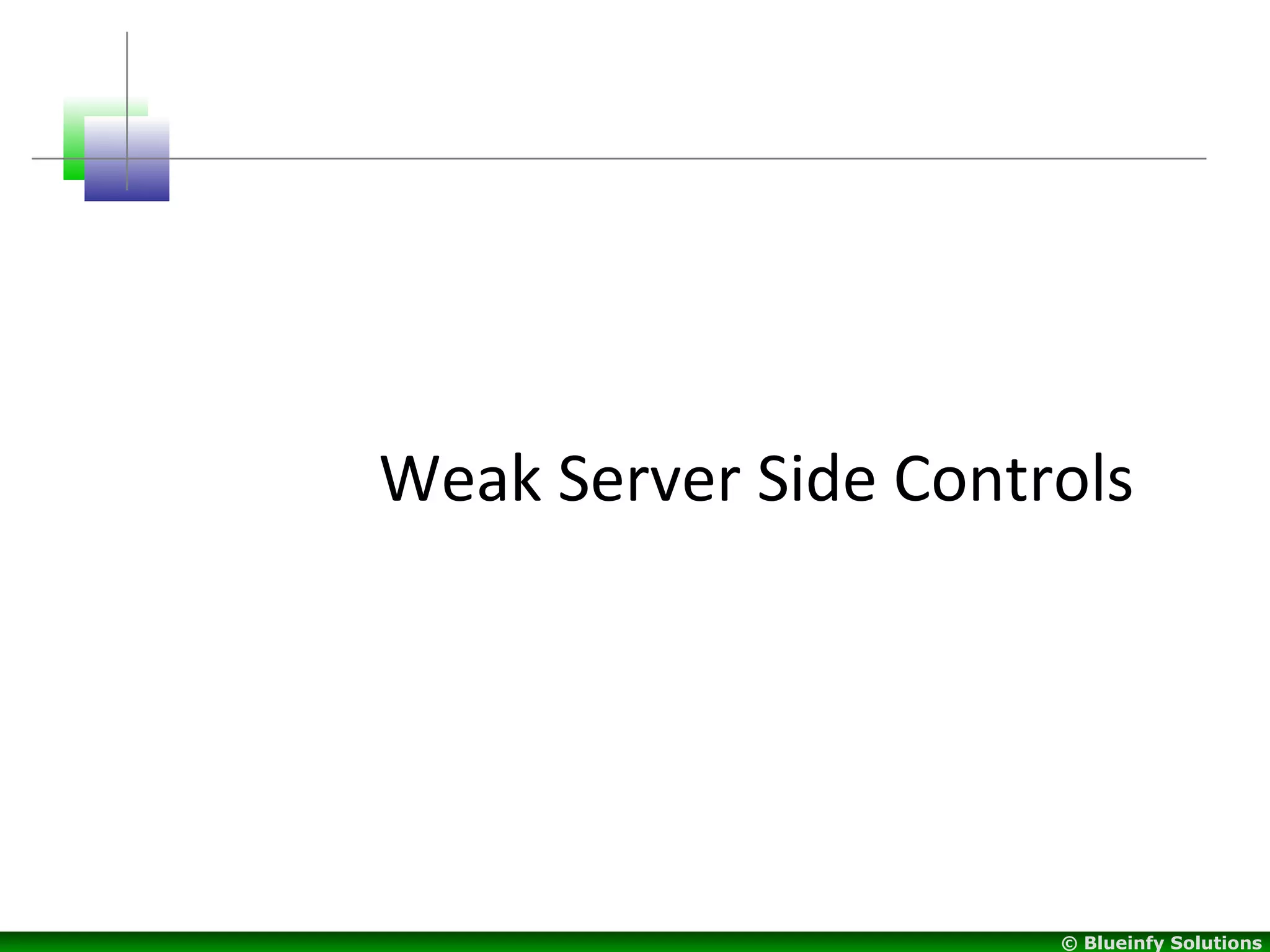

Weak Server Side Controls
© Blueinfy Solutions

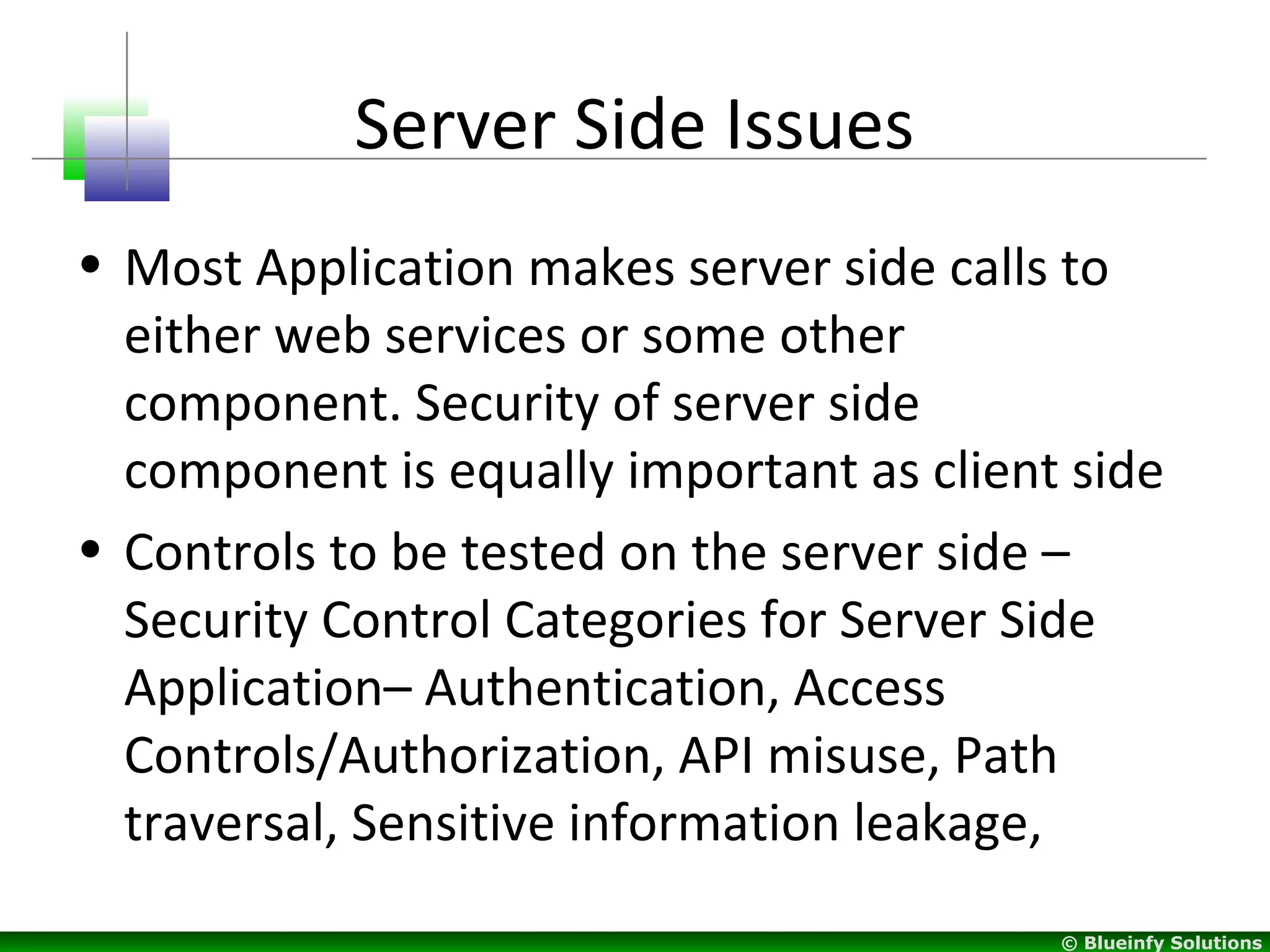

Server Side Issues
• Most Application makes server side calls to
either web services or some other
co...
© Blueinfy Solutions
Server Side Issues
Error handling, Session management, Protocol
abuse, Input validations, XSS, CSRF, ...
© Blueinfy Solutions

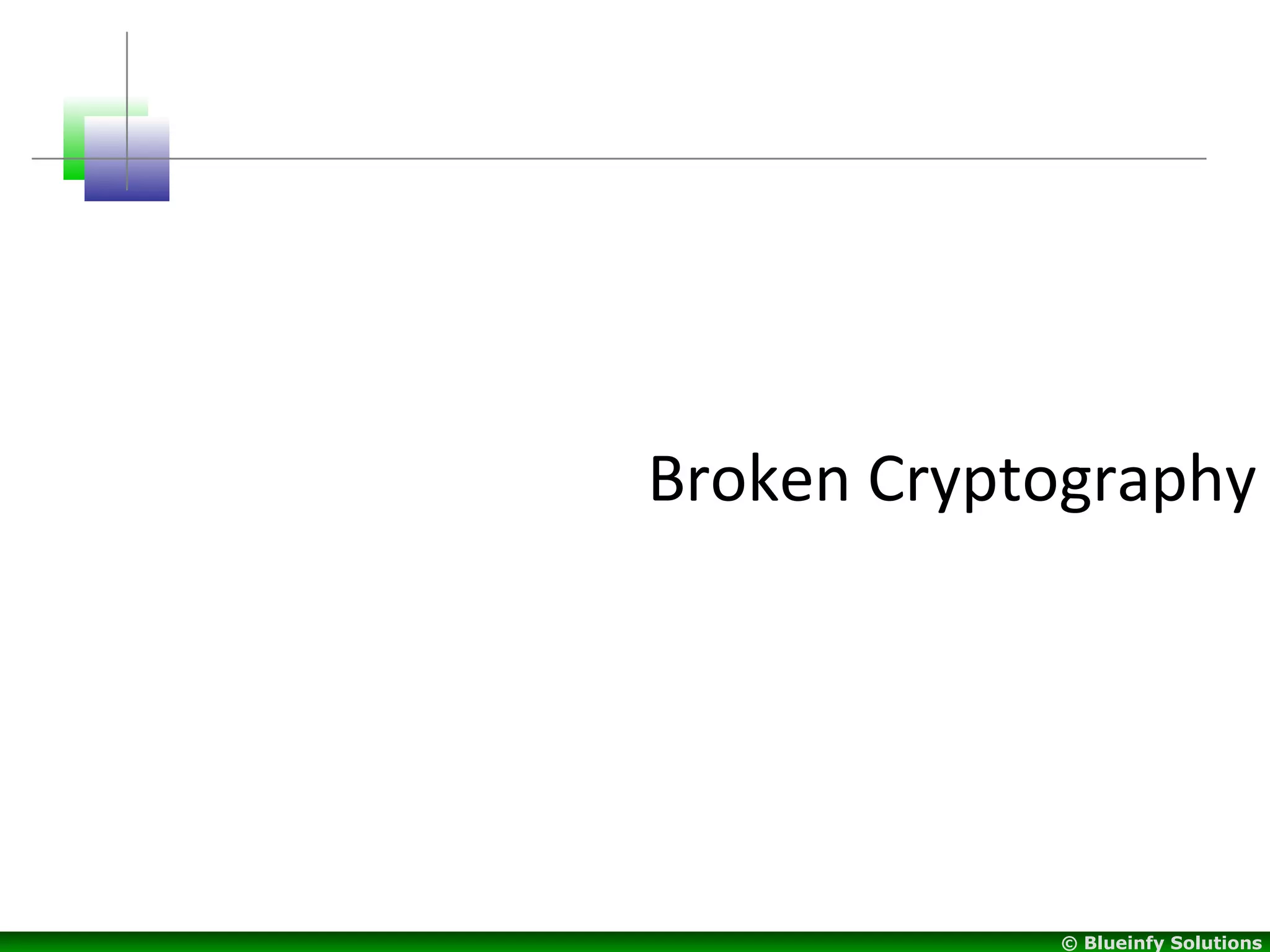

Broken Cryptography
© Blueinfy Solutions

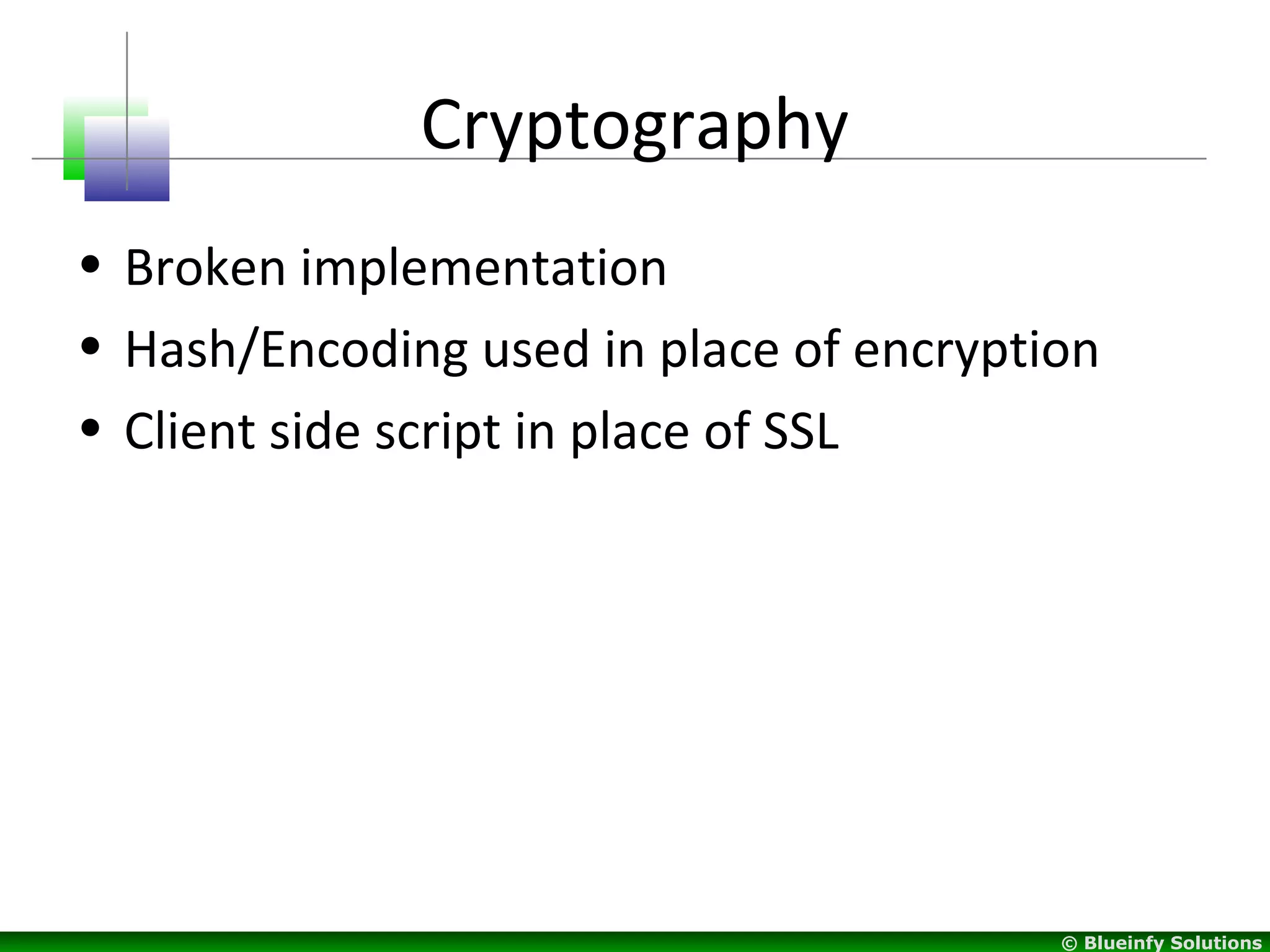

Cryptography
• Broken implementation
• Hash/Encoding used in place of encryption
• Client side script...
© Blueinfy Solutions

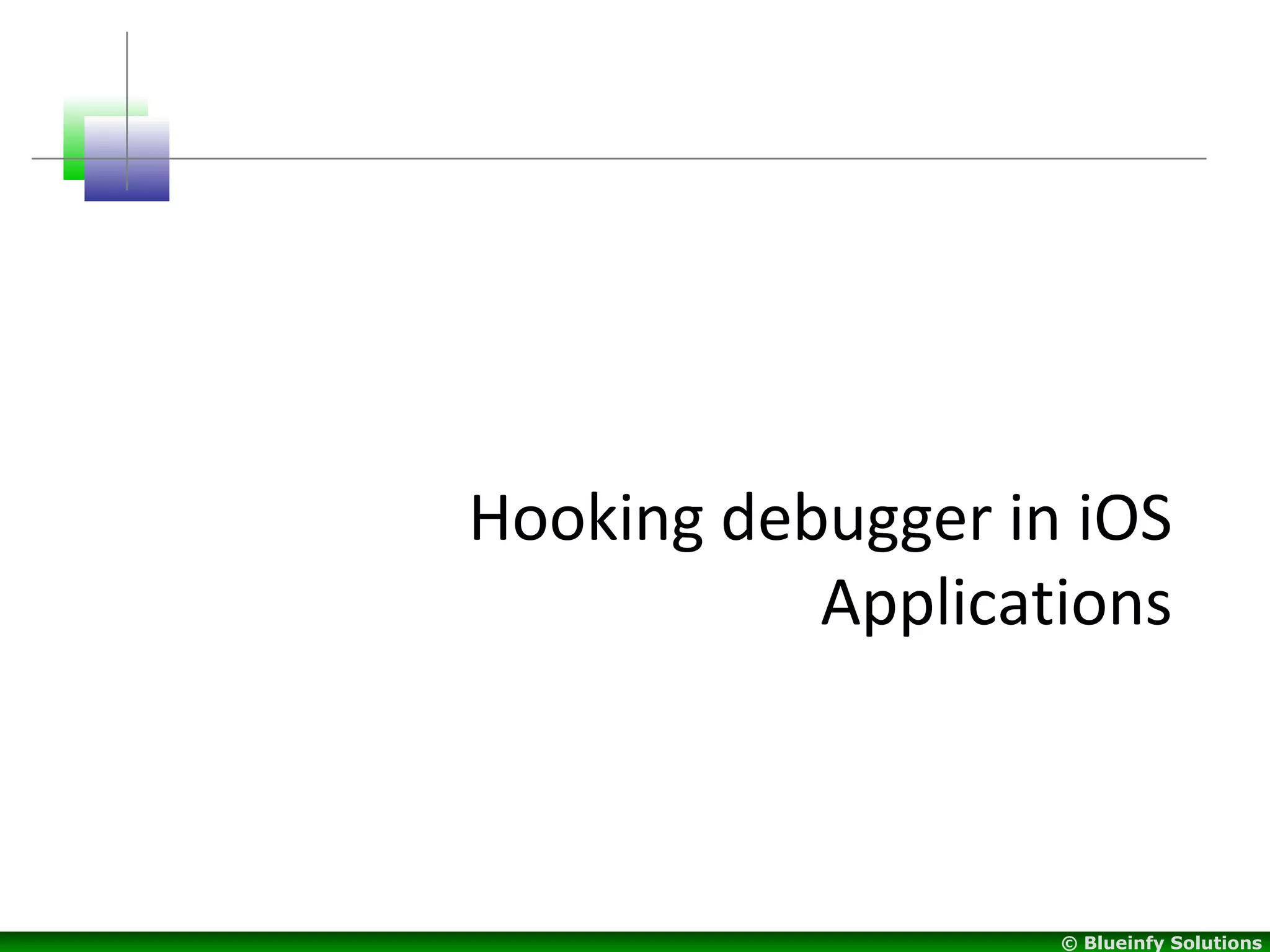

Hooking debugger in iOS
Applications
© Blueinfy Solutions

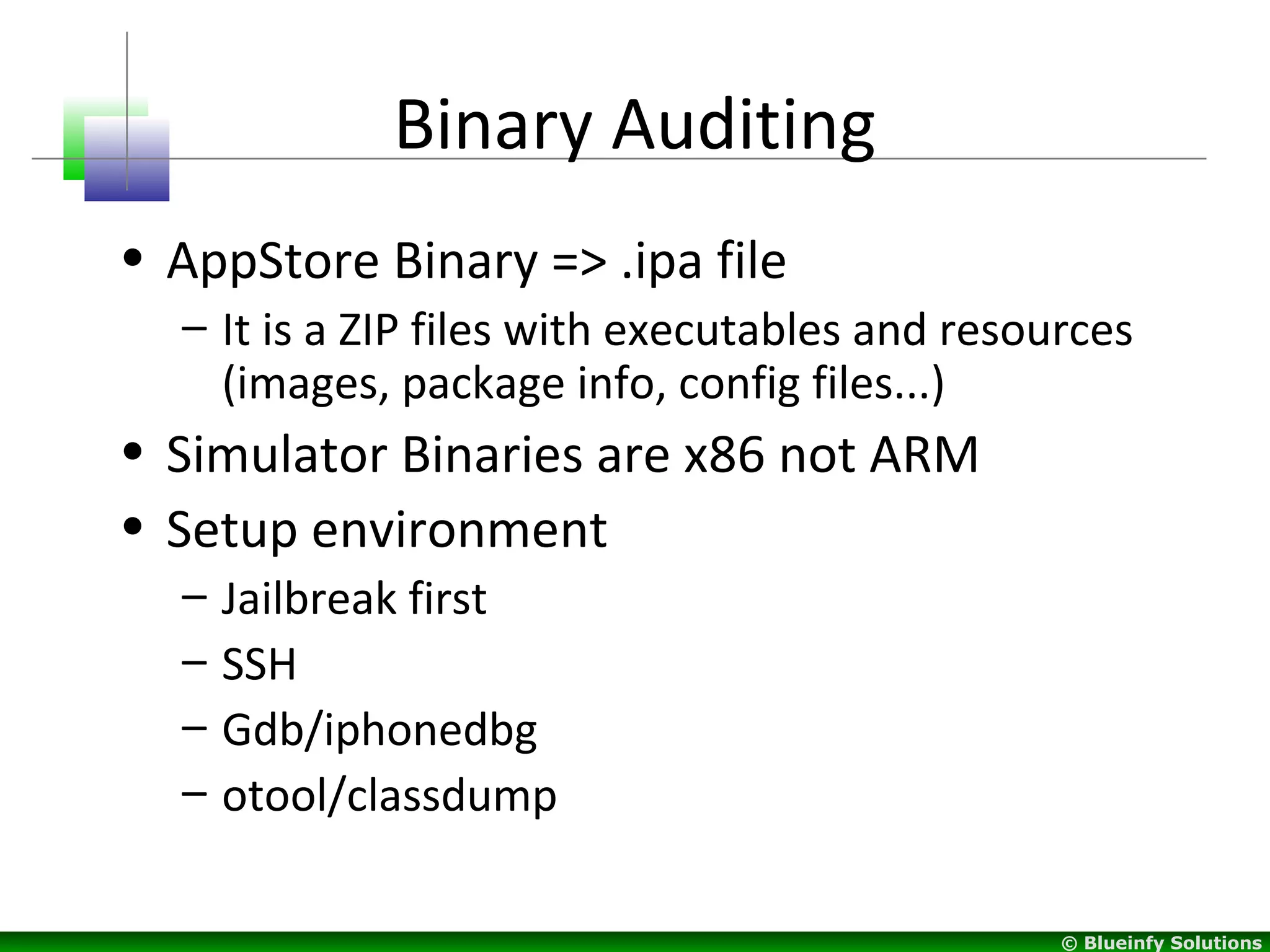

Binary Auditing
• AppStore Binary => .ipa file
– It is a ZIP files with executables and resources
(im...
© Blueinfy Solutions

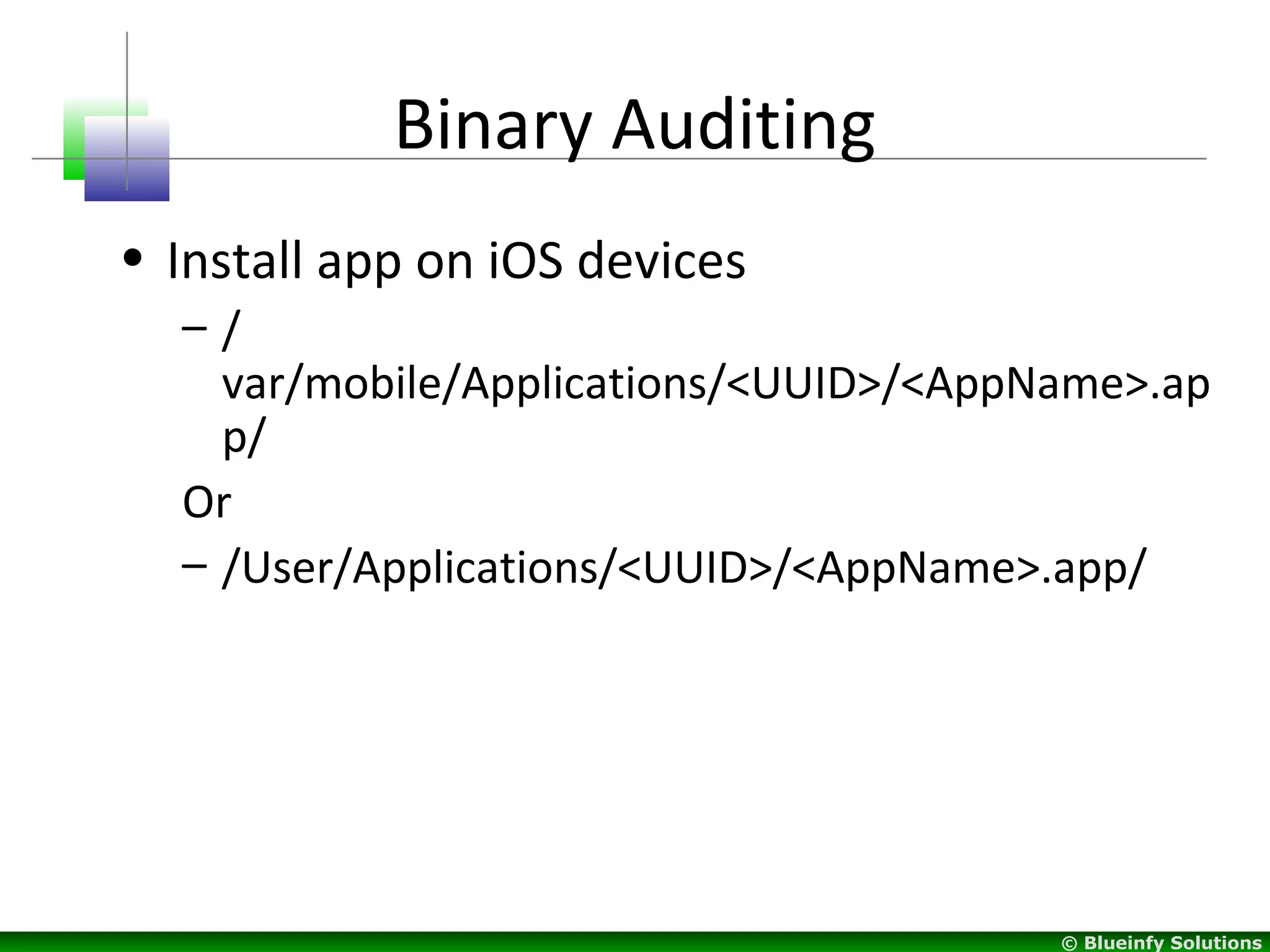

Binary Auditing
• Install app on iOS devices
– /
var/mobile/Applications/<UUID>/<AppName>.ap
p/
Or
– ...
© Blueinfy Solutions
Binary Auditing
• Look at the directory
© Blueinfy Solutions

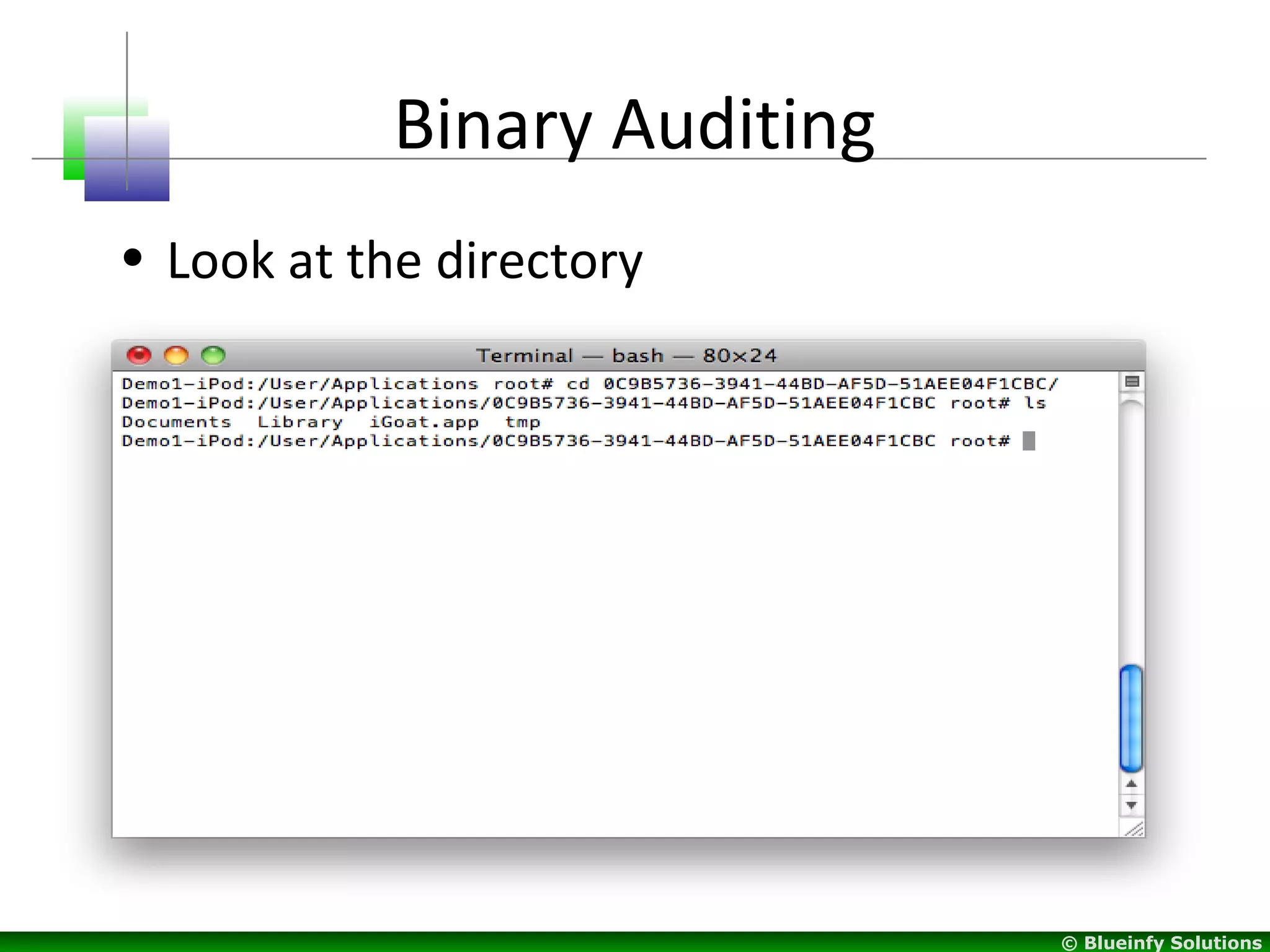

Binary Auditing
• Look at the directory
© Blueinfy Solutions
Binary Auditing
• Look at the directory
© Blueinfy Solutions

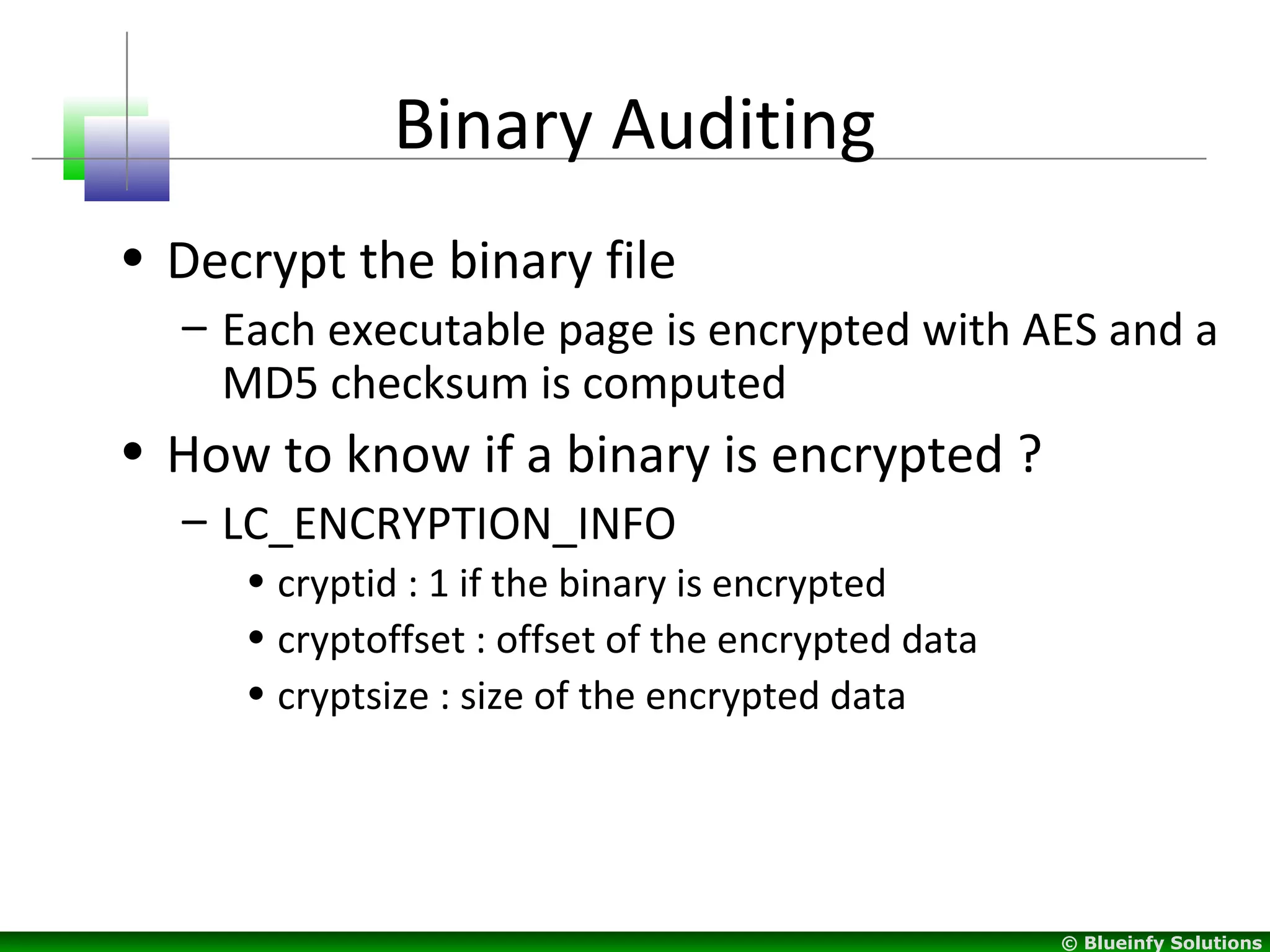

Binary Auditing
• Decrypt the binary file
– Each executable page is encrypted with AES and a
MD5 chec...
© Blueinfy Solutions

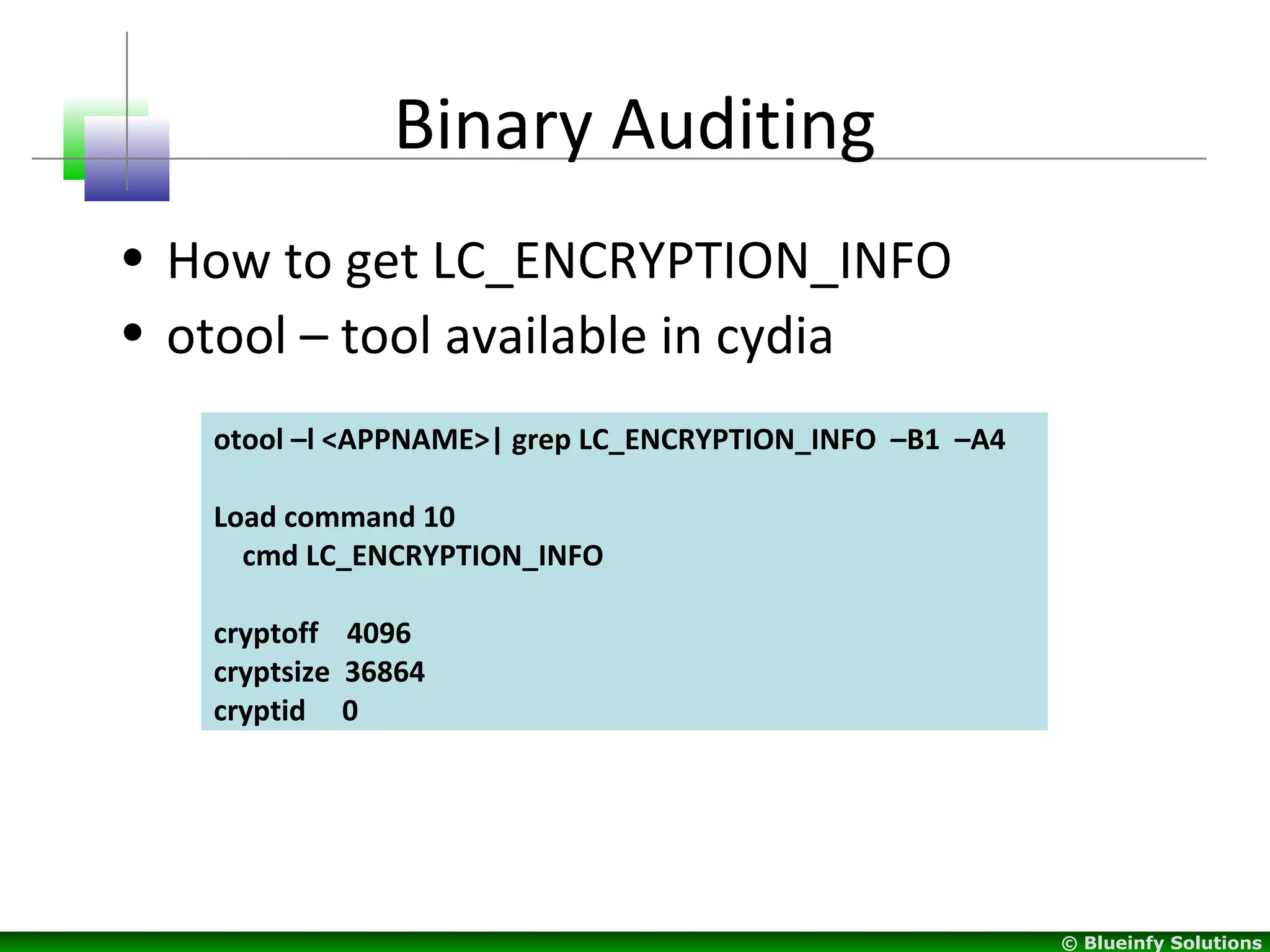

Binary Auditing
• How to get LC_ENCRYPTION_INFO
• otool – tool available in cydia
otool –l <APPNAME>|...
© Blueinfy Solutions

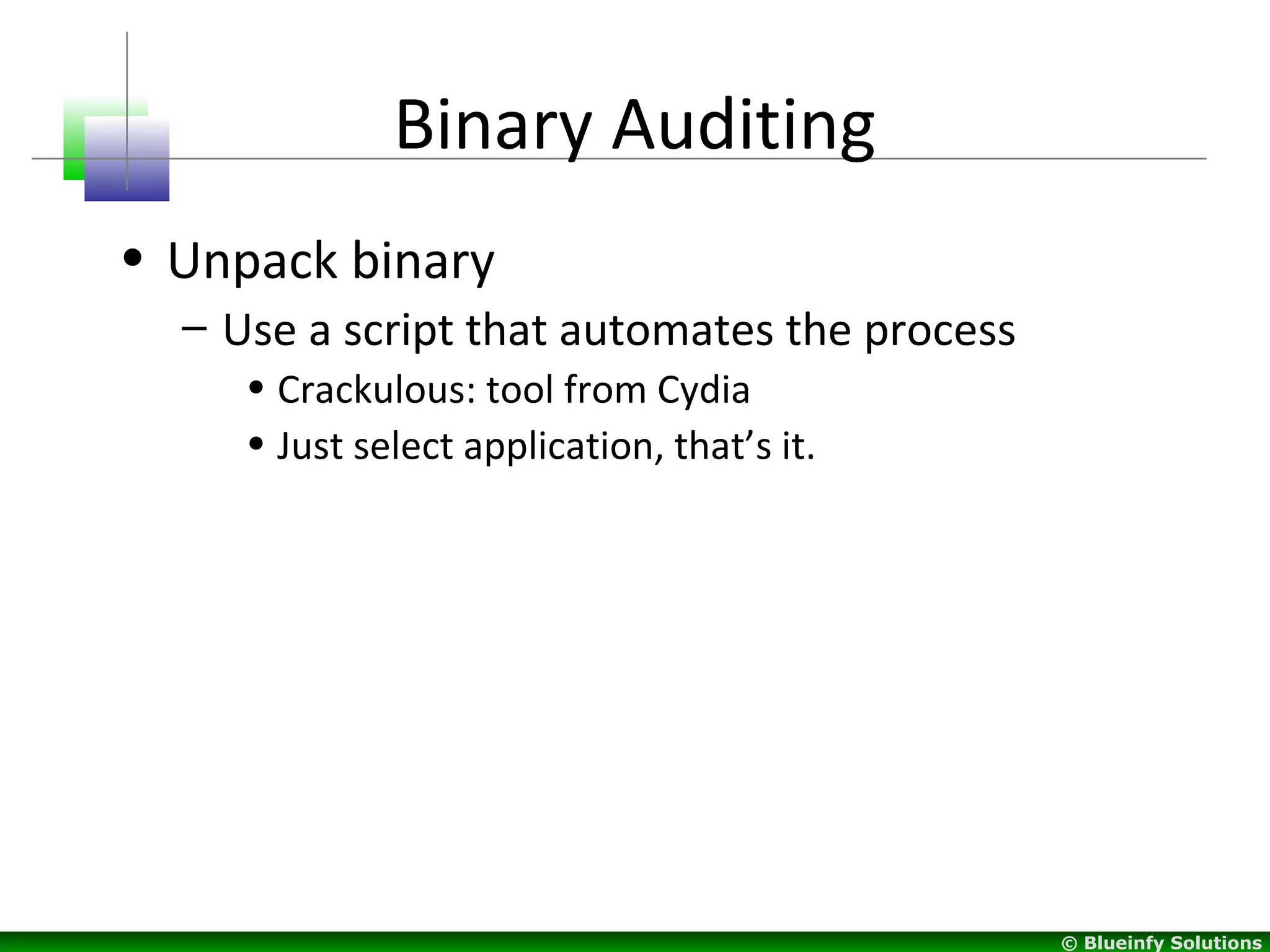

Binary Auditing
• Unpack binary
– Use a script that automates the process
• Crackulous: tool from Cyd...
© Blueinfy Solutions
Binary Auditing
• Manual method
– Launch GDB
– Set a breakpoint
– Run the application
– Extract the u...
© Blueinfy Solutions
Binary Auditing
• Look at the binary, open in IDAPro and resolve
obj_msgSend calls
• Backtrace calls ...
© Blueinfy Solutions

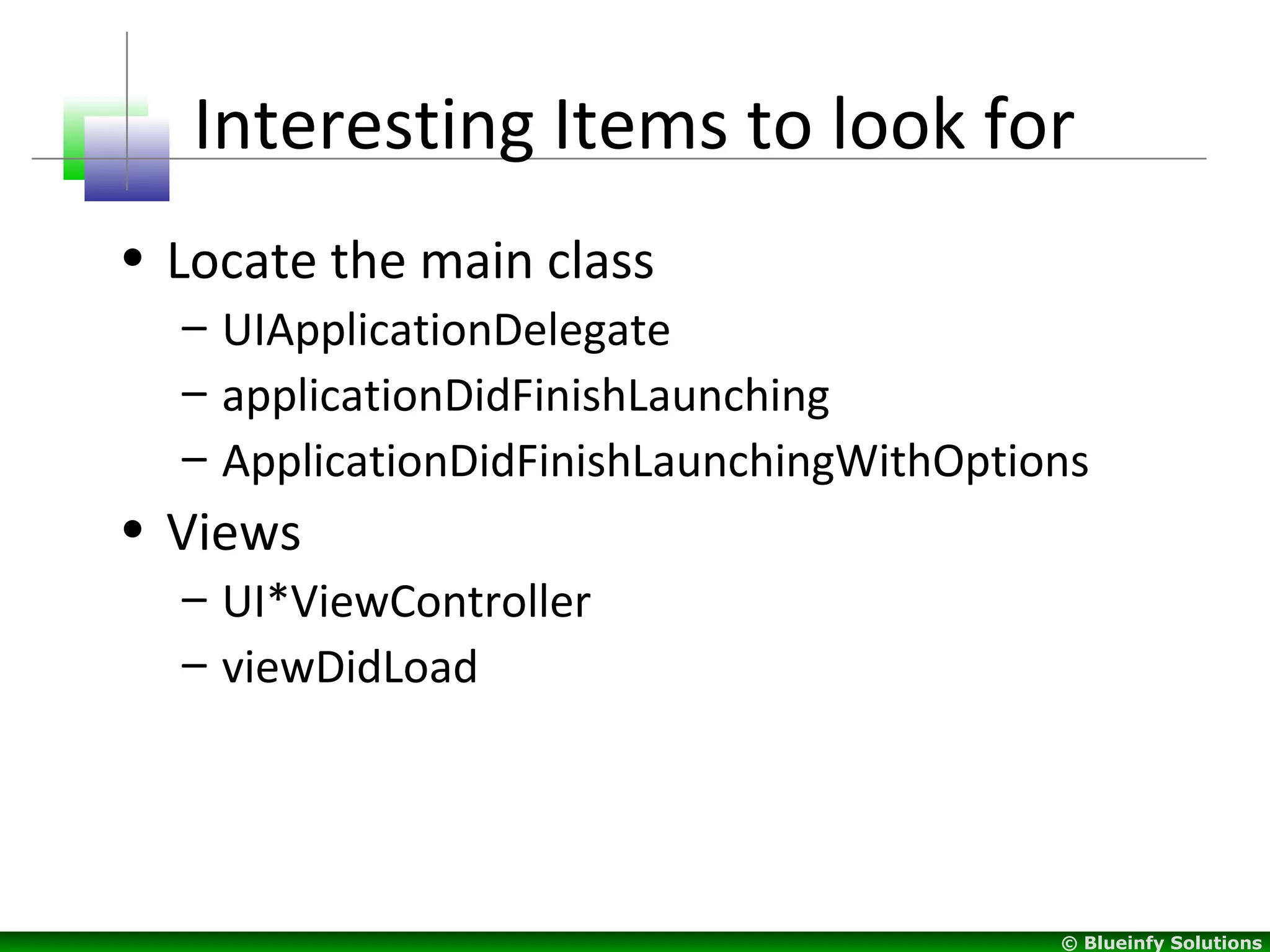

Interesting Items to look for
• Locate the main class
– UIApplicationDelegate
– applicationDidFinishL...
© Blueinfy Solutions

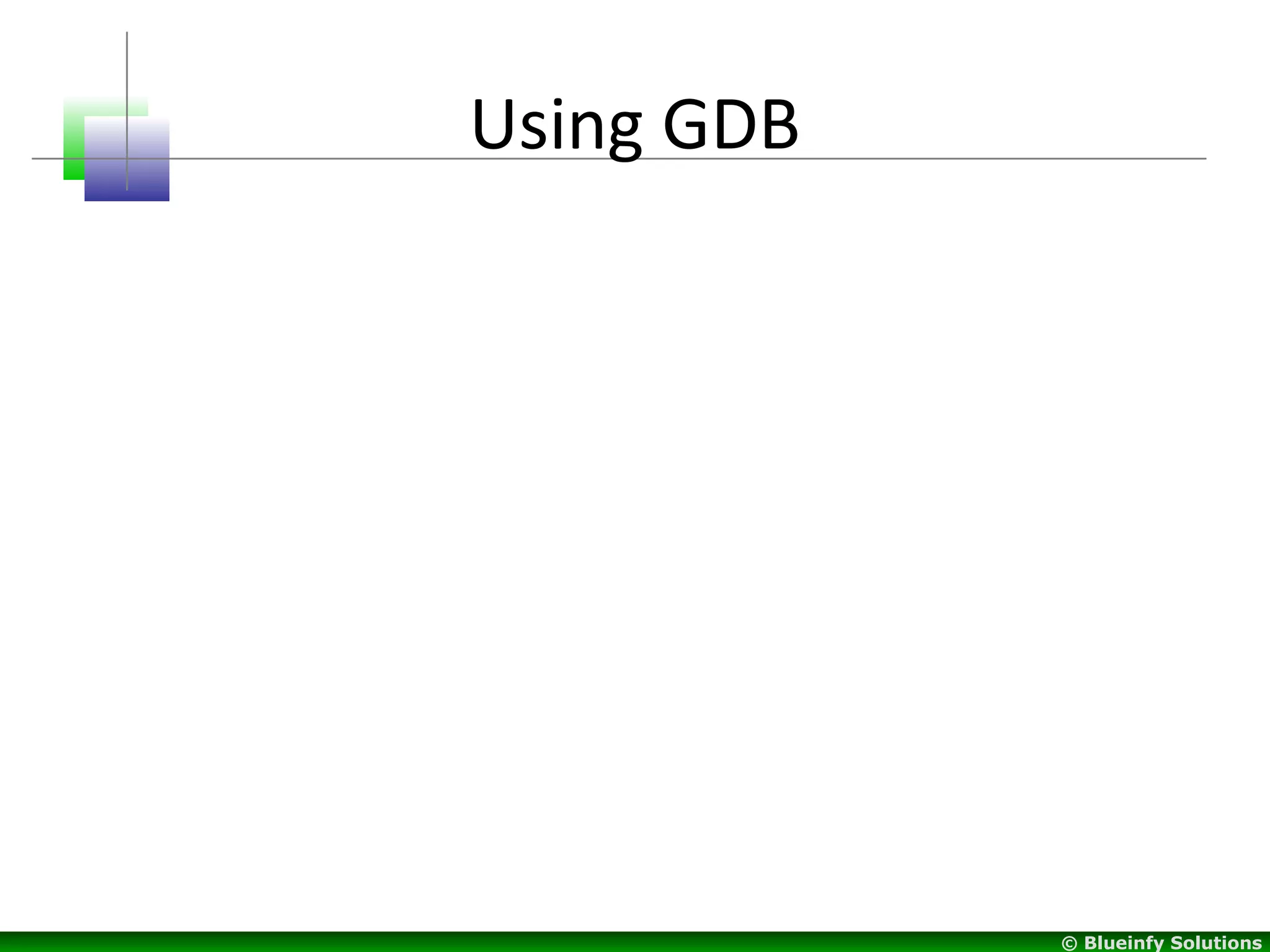

Using GDB
© Blueinfy Solutions
Interesting Items to look for
• HTTP(S)
• NSURL
• Sockets
– CFSocketCreate
• UIPasteBoard
• Location ...
© Blueinfy Solutions

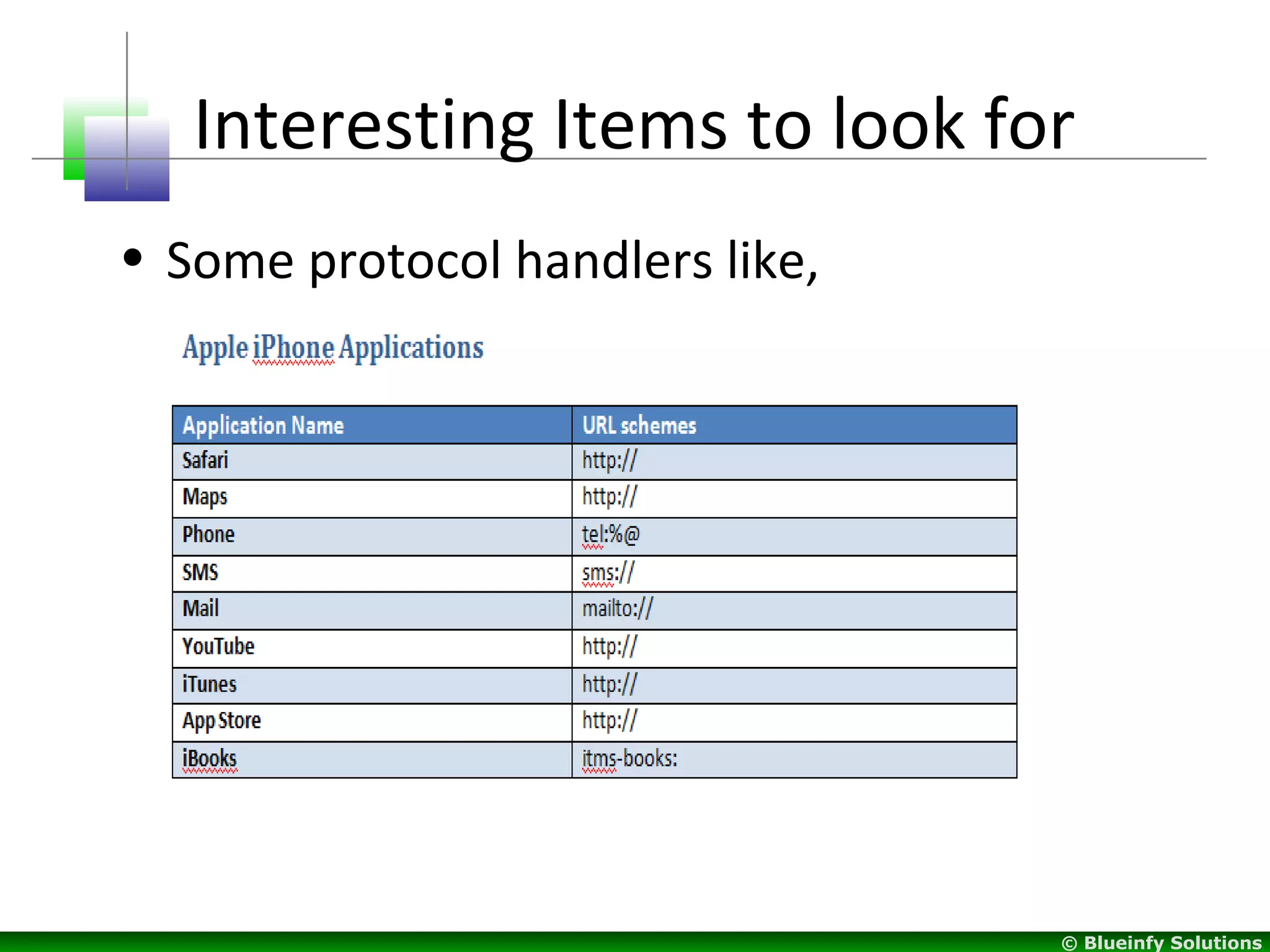

Interesting Items to look for
• Some protocol handlers like,
© Blueinfy Solutions

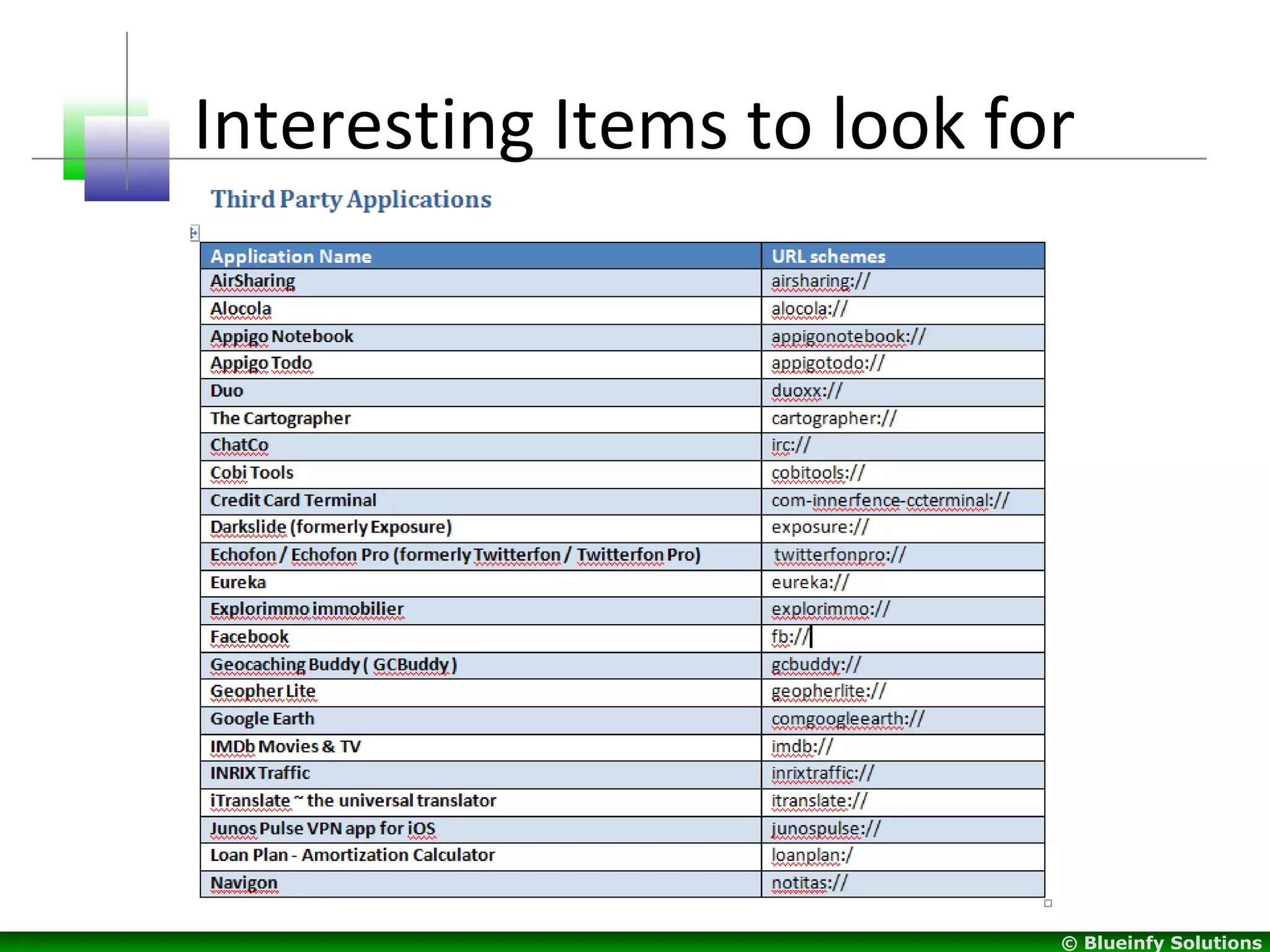

Interesting Items to look for
© Blueinfy Solutions

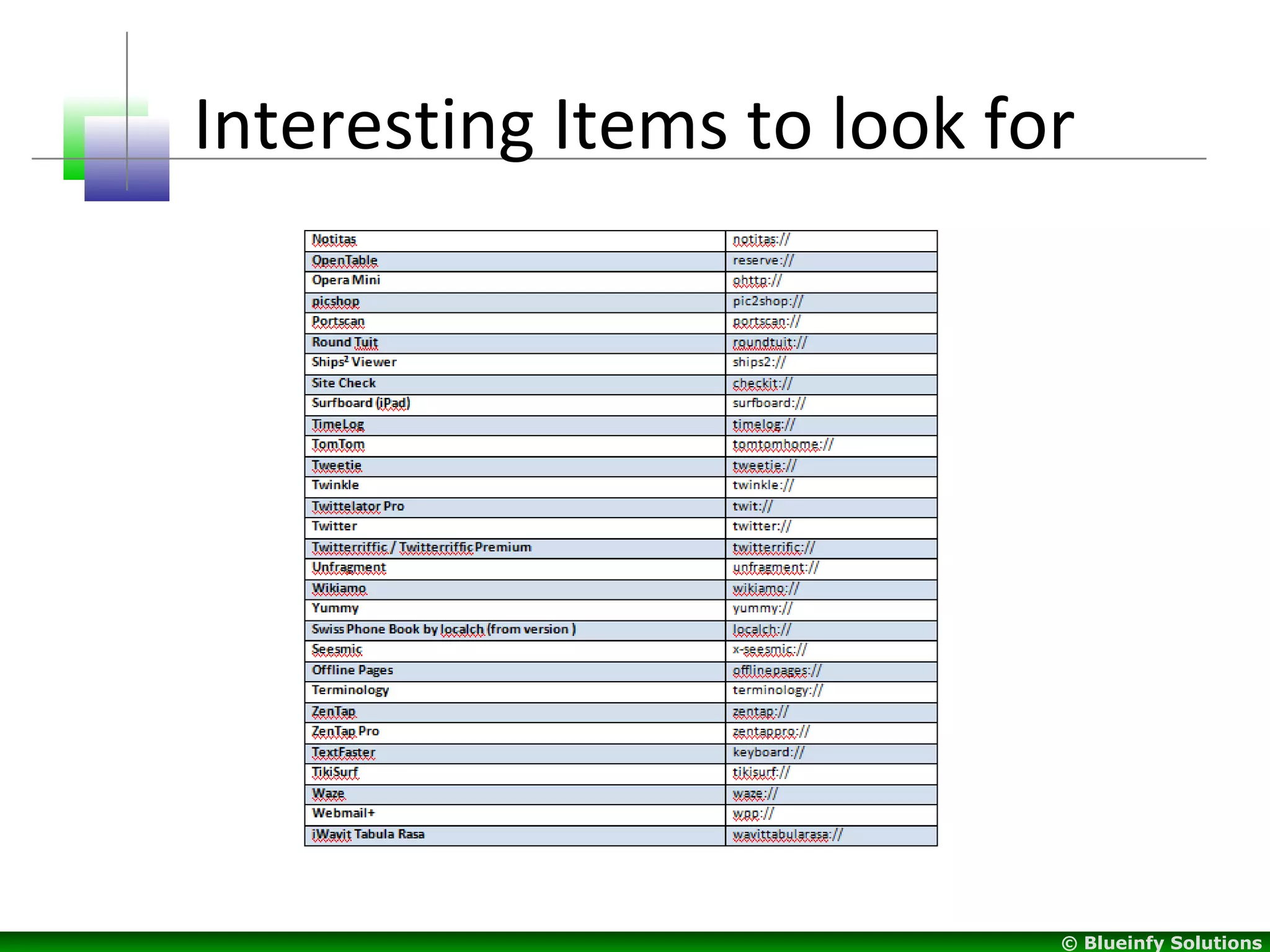

Interesting Items to look for
© Blueinfy Solutions

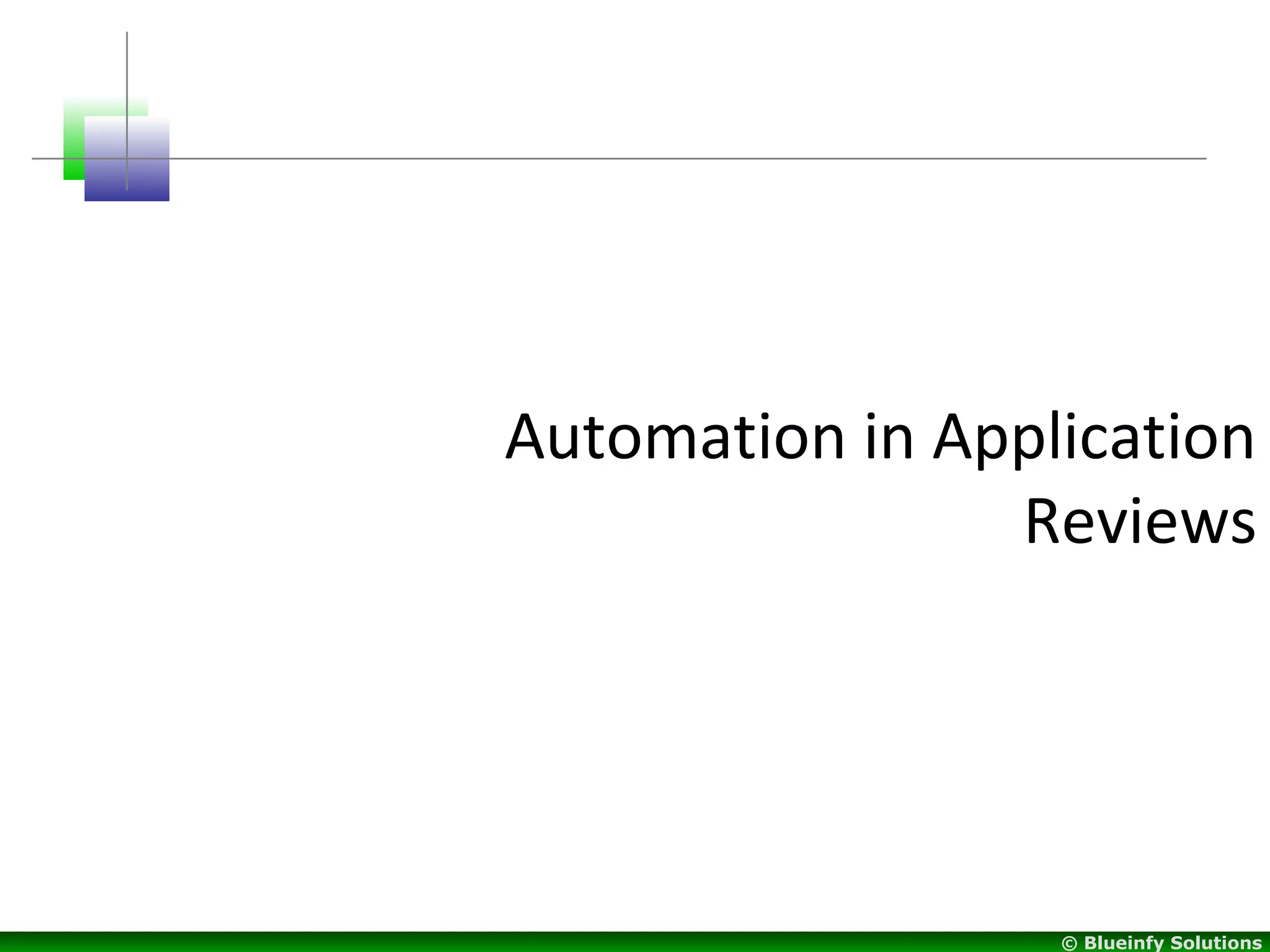

Automation in Application
Reviews
© Blueinfy Solutions
Snoop-it
• The only tool today to automate iOS
application reviews
• Very handy and gives perfect poi...
© Blueinfy Solutions
Conclusion
