User friendly UI applications which use home control protocols (DLNA, Zigbee, Z-Wave, etc.) are essential to promote OSGi to Smart Home and HEMS markets. These applications are developed by creative …

User friendly UI applications which use home control protocols (DLNA, Zigbee, Z-Wave, etc.) are essential to promote OSGi to Smart Home and HEMS markets. These applications are developed by creative application developers with various UI libraries, as applications on mobile platforms including Android and Windows Mobile. Therefore, best practice is to integrate OSGi with mobile platforms, that is, to run UI on mobile platforms and export OSGi's home control features to them. In order for application developers to use features of OSGi bundles easily, we developed OSGi UI Bridge by exploiting R-OSGi which allows calling OSGi methods from UI platforms as if they were called as Java local methods. To evaluate the feasibility, we measured overheads in RPC between a mobile UI application and an OSGi bundle, and developed example applications on an Android platform. We found that the overheads are acceptable when small numbers of bundles are used, and practical DLNA applications such as DMC and DMP can be implemented by calling methods of DLNA OSGi bundle from mobile platform.

Published in: Technology, Education
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
3,145
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
192
Comments
0
Likes
1
Embeds 0
No embeds

Report content
Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel
No notes for slide

Transcript

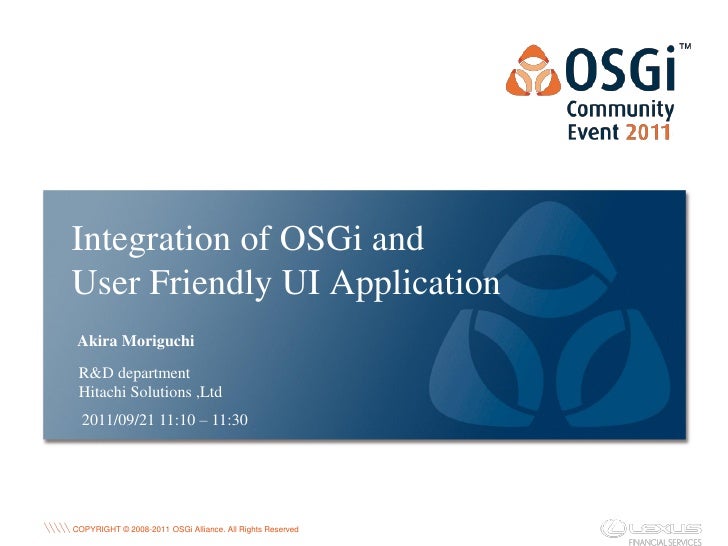

  • 1. Integration of OSGi andUser Friendly UI Application Akira Moriguchi R&D department Hitachi Solutions ,Ltd 2011/09/21 11:10 – 11:30 OSGi Alliance Marketing © 2008-2010 . 1 PageCOPYRIGHT © 2008-2011 OSGi Alliance. All Rights Reserved All Rights Reserved
  • 2. Outline1. Introduction2. Problems in existing methods3. Mobile R-OSGi4. Evaluation5. Summary Page 2 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 3. 1-1 Introduction ・ OSGi is the most promising application platform for Home Gateway (HGW). - remote management, software modularity and strong access control ・ User-friendly UI applications are essential to Smart Home services. - However, OSGi HGW has no UI. ・ Mobile platforms provide UI APIs and many documents. Therefore, developers can produce various user-friendly applications. ⇒ Integration of OSGi with mobile UI applications is required. ・ An example of OSGi and mobile UI integration End-User DLNA bundle runs control Renderer (DMR) (1) Select a video displayed on UI control control (2) Play a selected video OSGi HGW Mobile Device Server as Controller(DMC) (DMS) Page 3 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 4. 1-2 Purpose of this study・ There are various mobile platforms such as J2ME, Android, andWindows Phone.・What we want to do : - To provide an easy way to call OSGi methods from various mobile platforms Many developers produce various UI applications Control via Use OSGi DLNA, Zigbee, methods Z-wave Various Mobile Devices OSGi HGW (J2ME, Android, Windows Phone, etc) Home Devices Page 4 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 5. Outline1. Introduction2. Problems in existing methods3. Mobile R-OSGi4. Evaluation5. Summary Page 5 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 6. 2-1 Web API・ UI applications call methods of OSGi bundles using XML over HTTP. generate and send XML parse XML messages and messages call methods of bundles XML message Control via UI Web API Bundle DLNA, Zigbee, Application DLNA Zigbee Z-wave Z-wave Bundle Bundle BundleVarious Mobile Platform(J2ME Windows Phone, OSGi Framework Android, etc.) Java VM Home Mobile Devices HGW Device・ Problem - Developers can not use all of OSGi methods. - Web API can be called only with primitive parameters (int, char, etc.) . - Implementations of XML parsing and generation are troublesome. Page 6 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 7. 2-2 R-OSGi・ R-OSGi is a technology enabling bundles to call methods of remote bundles the same as calling local methods. parse RPC messages generate RPC messages and call methods of bundles on behalf of UI application Control via UI Application RPC DLNA, Zigbee, DLNA Zigbee Z-wave Z-wave (Bundle) Bundle Bundle Bundle R-OSGi Bundle R-OSGi Bundle OSGi Framework OSGi Framework Java VM Java VM Home Devices Mobile Device HGW・ Problem - R-OSGi can’t run on mobile devices without Java VM. Page 7 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 8. Outline1. Introduction2. Problems in existing methods3. Mobile R-OSGi4. Evaluation5. Summary Page 8 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 9. 3-1 Idea : Mobile R-OSGi・ Mobile R-OSGi enables developers of non-Java platform applications to useremote OSGi methods as same way of using local methods. UI Application Java method RPC DLNA Zigbee Z-wave R-OSGi Bundle Bundle BundleJ2ME Device J2ME R-OSGi Bundle OSGi Framework HGW UI Application Java VM Dalvik method C# method Mobile Device Mobile R-OSGiWithout Java VM Non-Java Platform Page 9 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 10. 3-2 Requirements of Mobile R-OSGi・ To realize Mobile R-OSGi, dependencies to Java need to be removed from R-OSGi.・ The Architecture of R-OSGi bundle: - Proxy Generator dynamically generates Proxy Class. - Proxy Class has the same interface as the remote bundle and handles RPC. UI Application(Bundle) 1. request 5. return value 3. local method call 1.R-OSGi Bundle generate Bundle and load 4. RPC Proxy Generator Proxy Classa a a a R-OSGi Bundle 2. generate and load Mobile Device with Java VM HGW ・ Dependencies to Java : (a) Proxy Class is composed of Java byte code. (b) Parameters and return values are transferred over RPC using Java serialization format. Page 10 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 11. 3-3 The Architecture of Mobile R-OSGi・ Extended Proxy Generator and Object Convertor are needed for each mobileplatform. (a) Extended Proxy Generator: generates the mobile platform binary of Proxy Class. (b) Object Convertor : converts serialization format of objects into the mobile platform format. UI Application (b) convert parameters 1. request and return value 5. return value 3. local method call 1. Mobile R-OSGi generate Bundle and load 4. RPC Proxy Generator Proxy Class a Object Convertor a a R-OSGi Bundle 2. generate and load Extend (a) The mobile Add platform binary HGW Mobile Device Without Java VM Page 11 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 12. Outline1. Introduction2. Problems in existing methods3. Mobile R-OSGi4. Evaluation5. Summary Page 12 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 13. 4-1 Experimental Setup・ Environment Laptop PC Home Android Use OSGi as HGW Devices (ODROID-7) functions Control - CPU : Cortex-A8 1Ghz - CPU : Intel Core i5 2.40Ghz - Memory : 512MB - Memory : 2.98GB - OS : Android ver 2.2 - OS : Windows XP - Runtime : J2SE1.4.2・ Evaluation items :(1) To confirm that OSGi method calls from mobile applications workwithout problems(2) To measure overheads in RPC between mobile UI applications and OSGi bundles Page 13 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 14. 4-2 Implementation for evaluation・ For feasibility studies, we implemented Mobile R-OSGi for Android(a) Proxy Generator : (1) Converts generated Java bytecode into Dalvik bytecode using Android Dex convertor included in Android SDK (2) loads Dalvik bytecode using DexClassLoader, which is the classloader for Dalvik(b) Object Convertor ⇒ This is not needed for Android, because Java and Dalvik have the same serialization format. Page 14 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 15. 4-3 Running a UI application using methods of bundles ・ We developed a UI application that works as DMC by calling DLNA bundle - UI application calls “Browse” and “Play” methods of DLNA bundle - “Browse” is the method for getting list of contents stored on DMS - “Play” is the method for playing contents on DMR - UI application process : (1) displays the list of contents stored on PC (DMS) by “Browse” method call (2) sends a content selected by users to TV (DMR) by “Play” method call DLNA Bundle Call “dlna.browse;” Browse Call “dlna.play;” Play R-OSGi Bundle OSGi Framework Java VM Android PC TV (DMC) (HGW and DMS) (DMR) Page 15 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 16. 4-4 Measurement of Overheads in RPC(1) Setup ・ Proxy class generation and loading - 450 ms/service(2) Method Call ・ Comparison of processing times between RPC and local method call - The overheads are less than 10 ms. Call Remote Call Local Overhead Method [ms] Method [ms] [ms] Method A 13 8 5 Method B 75 72 3 Method C 703 694 9 ⇒ It has no problem in practical use. Page 16 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 17. Outline1. Introduction2. Problems in existing methods3. Mobile R-OSGi4. Evaluation5. Summary Page 17 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 18. 5. Summary and future works・ Conclusion - We proposed Mobile R-OSGi that enables UI applications on various mobile platforms to use home control features on OSGi using local method calls, and evaluated Mobile R-OSGi for Android. - Mobile R-OSGi realized an mobile application using home control features, which satisfies the following features : - Mobile developers can use OSGi methods in the same way as using Dalvik local methods. - The overheads in RPC are acceptable.・ Future works - To develop Mobile R-OSGi for other mobile platforms such as Windows Phone - To enhance security in order to prevent malicious mobile applications using home control features Page 18 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
  • 19. Thank you ! Akira Moriguchi Hitachi Solutions, Ltd.DLNA is a registered trademark of Digital Living Network Alliance.Android is a registered trademark of Google Inc.Zigbee is a registered trademark of Zigbee AllianceZ-wave is a registered trademark of Zensys Inc.All other trademarks or registered trademarks are the property of their respective owners. Page 19 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved

×
