1. • Cognizant 20-20 Insights

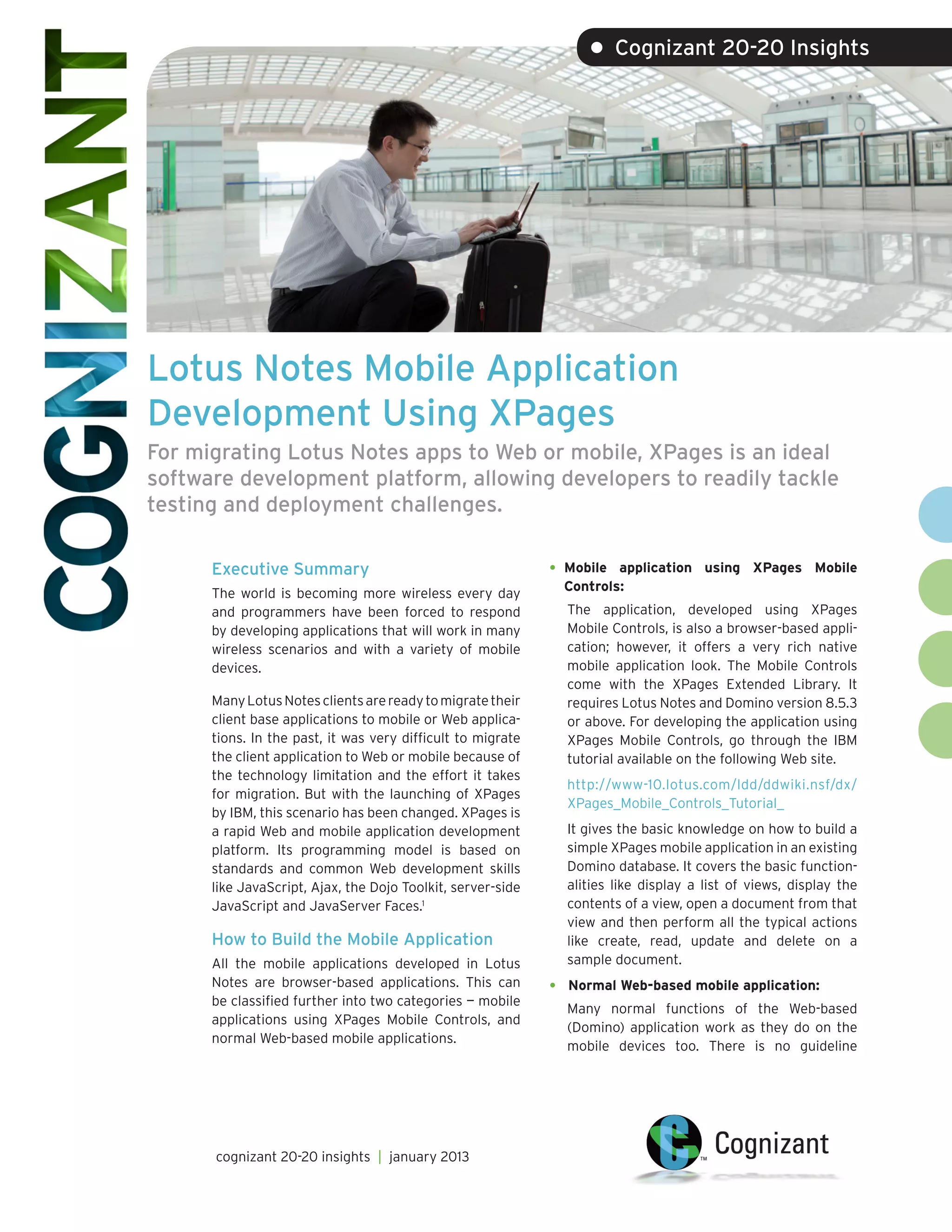

Lotus Notes Mobile Application
Development Using XPages
For migrating Lotus Notes apps to Web or mobile, XPages is an ideal
software development platform, allowing developers to readily tackle
testing and deployment challenges.
Executive Summary • Mobile application using XPages Mobile
Controls:
The world is becoming more wireless every day
and programmers have been forced to respond The application, developed using XPages
by developing applications that will work in many Mobile Controls, is also a browser-based appli-
wireless scenarios and with a variety of mobile cation; however, it offers a very rich native
devices. mobile application look. The Mobile Controls
come with the XPages Extended Library. It
Many Lotus Notes clients are ready to migrate their requires Lotus Notes and Domino version 8.5.3
client base applications to mobile or Web applica- or above. For developing the application using
tions. In the past, it was very difficult to migrate XPages Mobile Controls, go through the IBM
the client application to Web or mobile because of tutorial available on the following Web site.
the technology limitation and the effort it takes
http://www-10.lotus.com/ldd/ddwiki.nsf/dx/
for migration. But with the launching of XPages
XPages_Mobile_Controls_Tutorial_
by IBM, this scenario has been changed. XPages is
a rapid Web and mobile application development It gives the basic knowledge on how to build a
platform. Its programming model is based on simple XPages mobile application in an existing
standards and common Web development skills Domino database. It covers the basic function-
like JavaScript, Ajax, the Dojo Toolkit, server-side alities like display a list of views, display the
JavaScript and JavaServer Faces.1 contents of a view, open a document from that
view and then perform all the typical actions
How to Build the Mobile Application like create, read, update and delete on a
All the mobile applications developed in Lotus sample document.
Notes are browser-based applications. This can • Normal Web-based mobile application:
be classified further into two categories — mobile
Many normal functions of the Web-based
applications using XPages Mobile Controls, and
(Domino) application work as they do on the
normal Web-based mobile applications.
mobile devices too. There is no guideline
cognizant 20-20 insights | january 2013

2. available indicating which function/code works the actual device is necessary before launching
for mobile and which does not work. However, an application into production. However, from
most of the Web design elements work on the the simulators the developers can at least get a
mobile devices. Developers need to consider good idea of size and alignment. For an iPhone
the following two points while designing the simulator, go to http://testiphone.com.
application for mobile.
• Device available but connectivity is an issue:
>> Size: The mobile and iPad devices come If the development application is within a
with different screen sizes. So while design- firewall (as with an intranet), then the developer
ing the application developers must test the can request the client to put the development
application on the different devices. Devel- application outside the firewall so that it can be
opers also need to make sure that the ap- accessed from mobile devices.
plication is easy to navigate and the user
should not have to scroll too much.
• Web browser: The developer can even test the
application functionality on the system’s Web
>> Speed: Mobile/iPad devices have slower browser. This, again, is not foolproof, so testing
Internet speeds compared to PCs. So the on the actual device is still necessary.
content should be very concise. For exam-
ple, avoid creating unnecessary fields in the Deployment of Mobile Application
forms and remove unnecessary columns In Lotus Notes, most of the applications are
from the views for mobile. hosted on the intranet server. So while converting
Another point developers should keep in mind is the Notes application to mobile, the developer
the login page and authorization. Almost all the has to come up with the deployment plan before
companies use a single sign-on for the Internet starting the designing phase. Most clients do not
application. So developers must verify that the agree to move the application outside the firewall.
single sign-on works on the mobile devices as well. So the developer has to decide well in advance
how to deploy the application. There are several
Testing possible approaches:
Testing a mobile application is sometimes a • Move the entire application outside the
challenge for developers. The primary reasons firewall (DMZ environment): This opens the
are unavailability of devices and connectivity. application over the Internet; hence, most
If one or both of these factors is an issue, then clients don’t abide this option for security
developers can use the following methods. reasons.
• Simulators: Many mobile simulators are • Access the intranet through VPN: This is a
available on the Internet. Developers can use the secured option. The developer just needs to
simulator for testing mobile applications. The make sure that the client’s mobile devices have
simulators are not 100% reliable so testing on VPN connectivity (see Figure 1).
Access Through VPN
Domino Server
Within Firewall
Wireless
Devices
Internet
Firewall
Figure 1
cognizant 20-20 insights 2

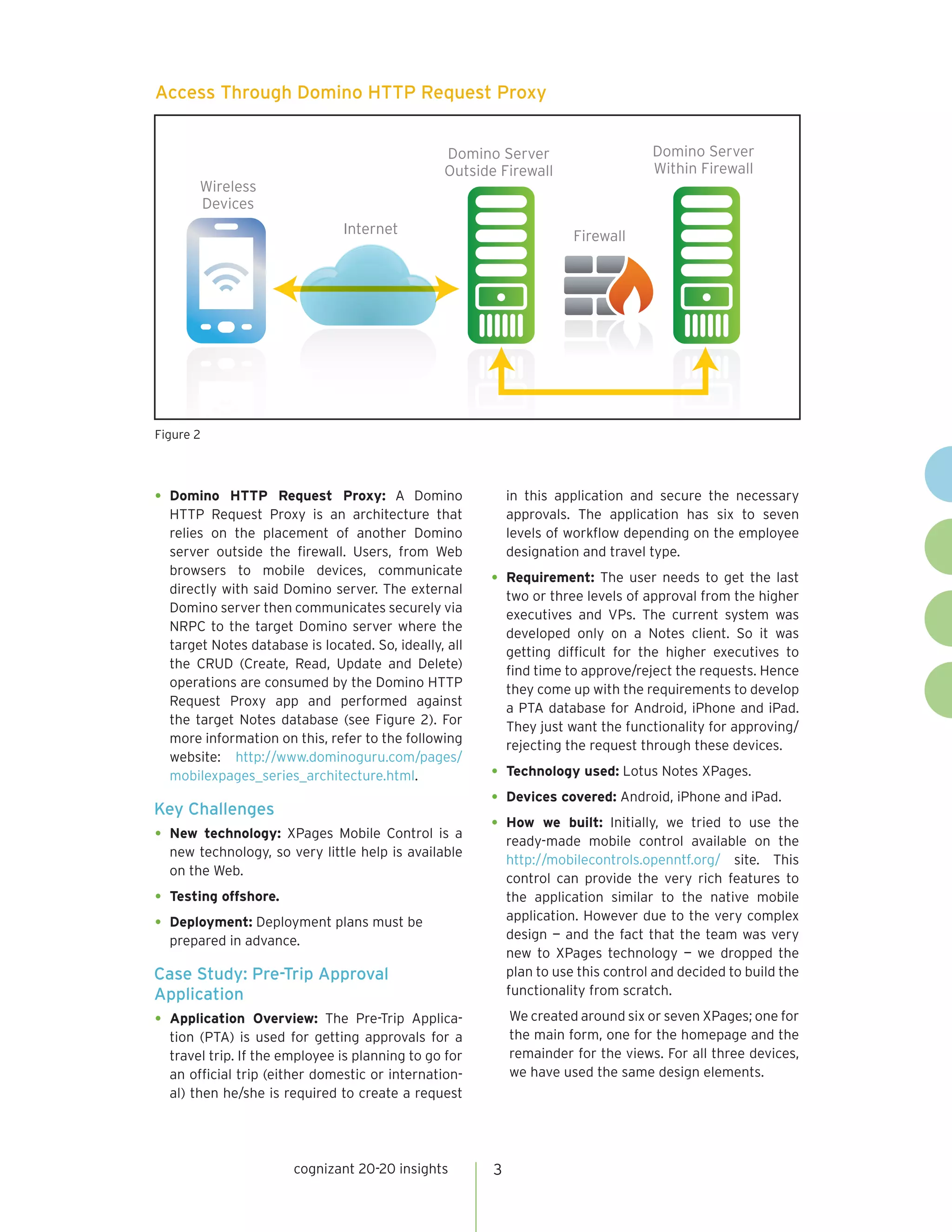

3. Access Through Domino HTTP Request Proxy
Domino Server Domino Server
Outside Firewall Within Firewall
Wireless
Devices
Internet Firewall
Figure 2
• Domino HTTP Request Proxy: A Domino in this application and secure the necessary
HTTP Request Proxy is an architecture that approvals. The application has six to seven
relies on the placement of another Domino levels of workflow depending on the employee
server outside the firewall. Users, from Web designation and travel type.
browsers to mobile devices, communicate
directly with said Domino server. The external
• Requirement: The user needs to get the last
two or three levels of approval from the higher
Domino server then communicates securely via
executives and VPs. The current system was
NRPC to the target Domino server where the
developed only on a Notes client. So it was
target Notes database is located. So, ideally, all
getting difficult for the higher executives to
the CRUD (Create, Read, Update and Delete)
find time to approve/reject the requests. Hence
operations are consumed by the Domino HTTP
they come up with the requirements to develop
Request Proxy app and performed against
a PTA database for Android, iPhone and iPad.
the target Notes database (see Figure 2). For
They just want the functionality for approving/
more information on this, refer to the following
rejecting the request through these devices.
website: http://www.dominoguru.com/pages/
mobilexpages_series_architecture.html. • Technology used: Lotus Notes XPages.
Key Challenges
• Devices covered: Android, iPhone and iPad.
• How we built: Initially, we tried to use the
• New technology: XPages Mobile Control is a
ready-made mobile control available on the
new technology, so very little help is available
http://mobilecontrols.openntf.org/ site. This
on the Web.
control can provide the very rich features to
• Testing offshore. the application similar to the native mobile
application. However due to the very complex
• Deployment: Deployment plans must be design — and the fact that the team was very
prepared in advance.
new to XPages technology — we dropped the
Case Study: Pre-Trip Approval plan to use this control and decided to build the
Application functionality from scratch.
• Application Overview: The Pre-Trip Applica- We created around six or seven XPages; one for
tion (PTA) is used for getting approvals for a the main form, one for the homepage and the
travel trip. If the employee is planning to go for remainder for the views. For all three devices,
an official trip (either domestic or internation- we have used the same design elements.
al) then he/she is required to create a request
cognizant 20-20 insights 3

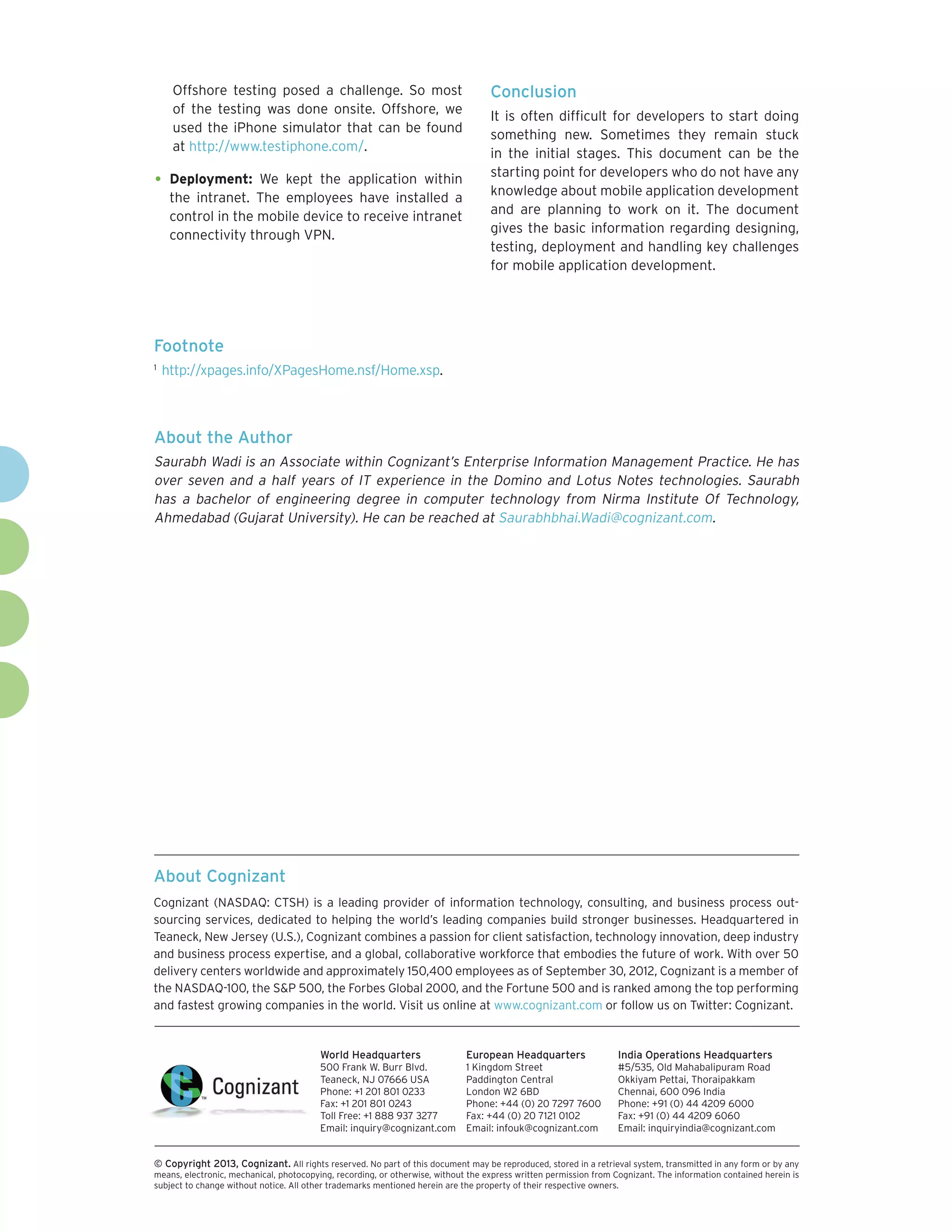

4. Offshore testing posed a challenge. So most Conclusion
of the testing was done onsite. Offshore, we
It is often difficult for developers to start doing
used the iPhone simulator that can be found
something new. Sometimes they remain stuck
at http://www.testiphone.com/.
in the initial stages. This document can be the
starting point for developers who do not have any
• Deployment: We kept the application within
knowledge about mobile application development
the intranet. The employees have installed a
control in the mobile device to receive intranet and are planning to work on it. The document
connectivity through VPN. gives the basic information regarding designing,
testing, deployment and handling key challenges
for mobile application development.
Footnote
1
http://xpages.info/XPagesHome.nsf/Home.xsp.
