Contract Versioning, Compatibility and
Composability
Kjell-Sverre Jerijærvi, Jean-Jacques Dubray




In the recent weeks, ...
production drastically limiting SOA’s benefits and Return-On-Investment fueling comments from some
analysts who have been ...
The problem is less about which contract elements one needs, but how to facilitate the expression of
compatibility between...
A new version of a contract that continues to support consumers designed to work with the old version
of the contract is c...
Compatibility is defined by a stated versioning scheme:

          Major versions: incompatible (breaking change)
      ...
Composite Service      Incompatible Schema Service                      X

Composite Service      Compatible Service      ...
Web Services Extensibility Guidelines
The principles of forwards compatibility have been well documented (see also this re...
##other makes it illegal to extend the schema using elements from the
          targetNamespace.

          The processCon...
These rules ensure that every consumer is in the position to use XML schema validation for the elements
that it is bound t...
Fig 4. Versioning and User Extension Compatibility

With Web Services technologies, the fact that one may use different en...
Compatibility & Composability
The compatibility scenarios defined earlier can be combined into these strategies as defined...
“safe” changes, both functional and non-functional. As Nicolai M. Josuttis shows in the book SOA in
Practice even adding a...
breaking changes must still be a new minor version. Note that even if you judge a code change to be
safe, we still recomme...
Services approach, the problem is exactly the same. REST is of course slightly better equipped to provide
a normalized sol...
Enterprise
                                    Enterprise
     Data
                                      Data
    Model  ...
you really want to create a message type (or resource representation) that reflects the enterprise data
model both semanti...
You will typically end up with some services that require 5-6 major active service versions, especially for
popular servic...
Interoperability
The economy is getting more and more globalized and outsourcing seems to be the standard these days.
The ...
XSD nillable            Some nillable schema components might not be supported by a platform,
                        whil...
Conclusion


In this article we have defined a versioning strategy which focuses on reuse by enabling services to
evolve t...
Upcoming SlideShare
Loading in...5
×

Contract Versioning

951
-1

Published on

Published in: Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
951
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
36
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Contract Versioning

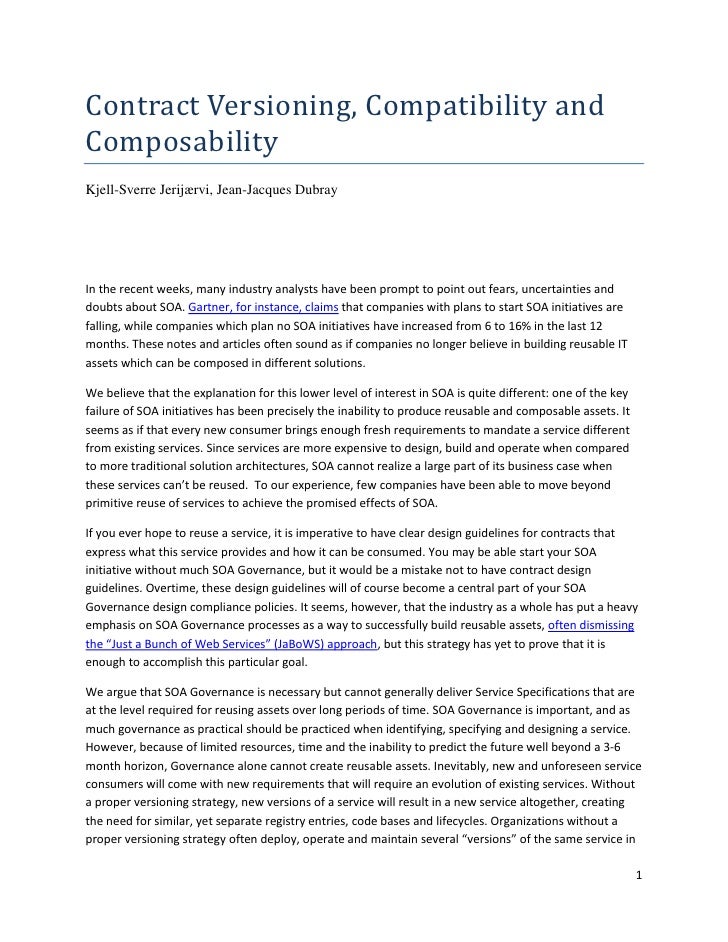

  1. 1. Contract Versioning, Compatibility and Composability Kjell-Sverre Jerijærvi, Jean-Jacques Dubray In the recent weeks, many industry analysts have been prompt to point out fears, uncertainties and doubts about SOA. Gartner, for instance, claims that companies with plans to start SOA initiatives are falling, while companies which plan no SOA initiatives have increased from 6 to 16% in the last 12 months. These notes and articles often sound as if companies no longer believe in building reusable IT assets which can be composed in different solutions. We believe that the explanation for this lower level of interest in SOA is quite different: one of the key failure of SOA initiatives has been precisely the inability to produce reusable and composable assets. It seems as if that every new consumer brings enough fresh requirements to mandate a service different from existing services. Since services are more expensive to design, build and operate when compared to more traditional solution architectures, SOA cannot realize a large part of its business case when these services can’t be reused. To our experience, few companies have been able to move beyond primitive reuse of services to achieve the promised effects of SOA. If you ever hope to reuse a service, it is imperative to have clear design guidelines for contracts that express what this service provides and how it can be consumed. You may be able start your SOA initiative without much SOA Governance, but it would be a mistake not to have contract design guidelines. Overtime, these design guidelines will of course become a central part of your SOA Governance design compliance policies. It seems, however, that the industry as a whole has put a heavy emphasis on SOA Governance processes as a way to successfully build reusable assets, often dismissing the “Just a Bunch of Web Services” (JaBoWS) approach, but this strategy has yet to prove that it is enough to accomplish this particular goal. We argue that SOA Governance is necessary but cannot generally deliver Service Specifications that are at the level required for reusing assets over long periods of time. SOA Governance is important, and as much governance as practical should be practiced when identifying, specifying and designing a service. However, because of limited resources, time and the inability to predict the future well beyond a 3-6 month horizon, Governance alone cannot create reusable assets. Inevitably, new and unforeseen service consumers will come with new requirements that will require an evolution of existing services. Without a proper versioning strategy, new versions of a service will result in a new service altogether, creating the need for similar, yet separate registry entries, code bases and lifecycles. Organizations without a proper versioning strategy often deploy, operate and maintain several “versions” of the same service in 1
