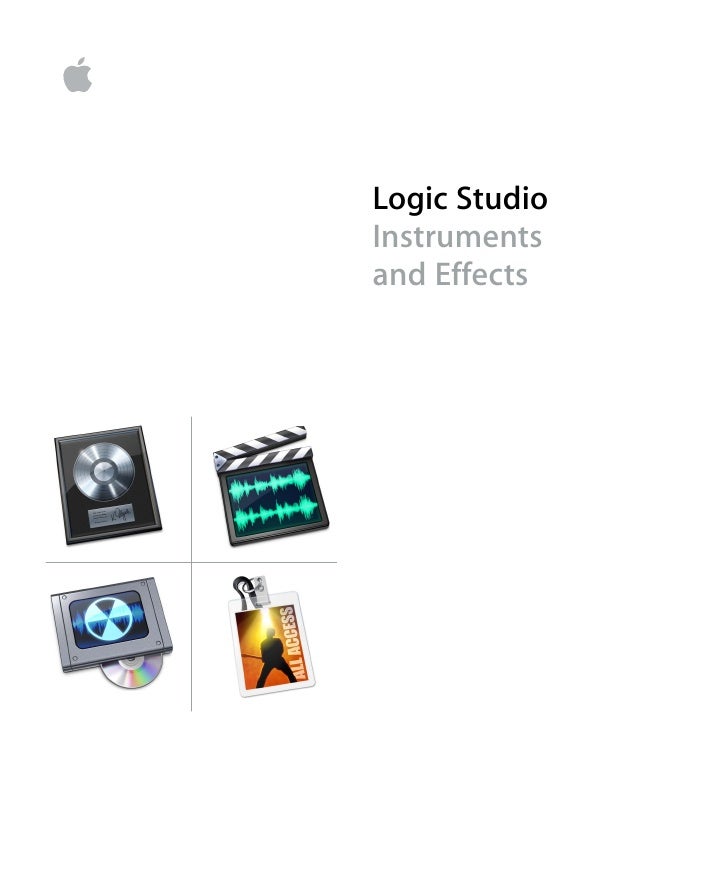

Logic Studio
Instruments
and Effects
 Apple Inc.                                                Apple, the Apple logo, Bonjour, Final Cut, Final Cut Pro,
© 20...
Contents
             1




Preface     11   Introduction to the Logic Studio Plug-ins
            11   Logic Pro Effects ...
76    Noise Gate
                78    Silver Compressor
                79    Silver Gate
                79    Surround ...
147   Rotor Cabinet
             148   Scanner Vibrato
             149   Spreader
             150   Tremolo

Chapter 10 ...
Chapter 15   205   EVOC 20 PolySynth
                 206   Vocoder Basics
                 206   What Is a Vocoder?
     ...
285   The LFOs
             287   The Envelopes (ENV 1 to ENV 3)
             291   The Square
             293   The Vect...
Chapter 23   359   EVD6
                 359   About the EVD6
                 360   The EVD6 Parameters
                 ...
511   Programming: Quick Start Guide
              511   Approaches to Programming
              511   Basics
            ...
Introduction to the




                                                                                             Prefa...
Effect category                  Included effects
                                      Â
     Dynamic                    ...
Effect category                  Included effects
                                 Â
Reverb                               ...
Soundtrack Pro Effects
     The following table outlines the effects included with Soundtrack Pro.

     Note: Effects inc...
Effect category                  Included effects
                                 Â PlatinumVerb (p. 164)
Reverb
        ...
Effect category                  Included effects
                                      Â
     Filter                     ...
MainStage Instruments and Effects
The following tables outline the effects and instruments included with MainStage.

Note:...
Effect category                  Included effects
                                      Â
     Modulation                 ...
1
    Amp Modeling
1




    You can add the sound of a guitar and bass amplifier to your
    audio recordings and softwar...
Bass Amp Parameters




     Â Model pop-up menu: Choose from among nine different amplifier models. The
       choices ar...
 Mid Frequency slider: Sets the center frequency of the mid band (between 200 Hz
                    and 3000 Hz).
      ...
 The Microphone Position section is where you set the position of the microphone on
       the speaker.
     Â The Microp...
Speaker type          Description
US 1x10 open back     Not much resonance in the low frequency range. Suitable for use wi...
 Master knob: Sets the output volume of the amplifier (going to the speaker).
       Typically, for tube amplifiers, incr...
When you select either button, the graphic speaker display reflects the current setting.

Microphone Type Parameters
 Con...
2
    Delay
2




    Delay effects store the input signal—and hold it for a short
    time—before sending it to the effec...
Delay Designer
     Delay Designer is a multi-tap delay. Each tap is an independent delay. Unlike simple
     delay effect...
 Tap display: This blue “view screen” display features a graphic representation of all
  taps. You can see, and edit, the...
 Identification bar: Includes an identification letter for each tap, along with handles
         that allow you to move t...
Note: The Autozoom button needs to be turned off for this to work. When you zoom in
   on a small group of taps, the overv...
3 To finish creating taps, click the Last Tap button.
        This adds the final tap, ending tap recording, and assigning...
Deleting Taps
  To delete a tap, simply select it and press the Delete or Backspace key. You can also
  select a tap in th...
m Click the downward pointing arrow in the Tap field of the Tap parameter bar, and
       choose the desired tap letter fr...
The Tap Parameter Bar
The Tap parameter bar shows the current numeric values for every parameter of the
selected tap. You ...
Editing Taps
        You can edit taps both graphically, using the main Tap display, and numerically, using
        the Ta...
If you have multiple taps selected, the values of all selected taps will be increased or
decreased relative to other taps....
Editing the Filter Cutoff Parameters in the Tap Display
     While the steps outlined above apply for most graphically edi...
Editing the Pan Parameter in the Tap Display
The way that the Pan parameter is represented in the Pan view is entirely dep...
By default, the stereo spread is set to 100%. To adjust this, click drag on either side of
     the dot. As you do so, the...
Note: The first time you edit a filter or pitch transpose parameter, the respective
module will automatically turn on. Thi...
Activating Sync Mode
       Sync mode is turned on or off by clicking the Sync button in the Sync section.




       An o...
Setting the Swing Value
  The Swing value determines how close to the absolute grid position every second grid
  increment...
The Master Section
       The Master section incorporates parameters for two global functions: delay feedback
       and d...
The Mix Sliders
Use the Mix sliders to adjust the level of the dry input signal and the (post-processing)
wet signal.

Wor...
Echo
     This simple echo effect always synchronizes the delay time to the project tempo,
     allowing you to quickly cr...
Stereo Delay
The Stereo Delay works much like the Tape Delay (see below), but allows you to set the
Delay, Feedback, and M...
Tape Delay
     The Tape Delay simulates the warm sound of vintage tape echo machines, with the
     convenience of easy d...
 Smooth: Evens out the LFO and flutter effect.
 Dry and Wet: These individually control the amount of original and effec...
3
    Distortion
3




    You can use Distortion effects to recreate the sound of analog
    or digital distortion, and t...
Bitcrusher
     The Bitcrusher is a low resolution digital distortion effect. You can use it to emulate the
     sound of ...
Clip Distortion
Clip Distortion is a nonlinear distortion effect that produces unpredictable spectra. You
can use it to si...
 Input Gain field and slider (extended parameter): Sets the amount of gain applied to
       the input signal.
     Â Out...
Distortion II
Distortion II emulates the distortion effect section of a Hammond B3 organ. You can
use it on musical instru...
Overdrive
     The Overdrive effect emulates the distortion produced by a field effect transistor (FET),
     which is com...
Phase Distortion
The Phase Distortion effect is based on a modulated delay line, similar to a chorus or
flanger effect (fo...
