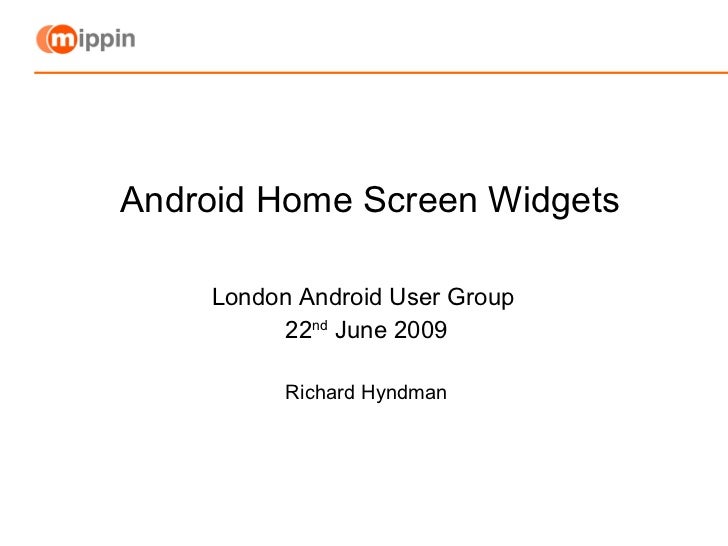

Android Home Screen Widgets London Android User Group 22 nd June 2009 Richard Hyndman

Widgets

BatteryWidget If you want to follow along I’ll be using BatteryWidget as an example: http://batterywidget.googlecode.com Or http://geekyouup.com/batterywidget.zip

If you want to follow along I’ll be using

BatteryWidget as an example:

How? To create an App Widget, you need 3 things: AppWidgetProviderInfo xml Describes the metadata for an App Widget, such as layout, update frequency, and the AppWidgetProvider class. Defined in XML. AppWidgetProvider class implementation Defines the basic methods that allow you to programmatically interface with the App Widget, based on broadcast events. Through it, you will receive broadcasts when the App Widget is updated, enabled, disabled and deleted. View layout xml Defines the initial layout for the App Widget, defined in XML.

To create an App Widget, you need 3 things:

AppWidgetProviderInfo xml

Describes the metadata for an App Widget, such as layout, update frequency, and the AppWidgetProvider class. Defined in XML.

AppWidgetProvider class implementation

Defines the basic methods that allow you to programmatically interface with the App Widget, based on broadcast events. Through it, you will receive broadcasts when the App Widget is updated, enabled, disabled and deleted.

View layout xml

Defines the initial layout for the App Widget, defined in XML.

The AppWidgetProvider This tells Android O/S that your application includes a Widget and wants updates, also that the widget is defined in the file xml/widget_def.xml Declare the AppWidgetProvider class in your application's AndroidManifest.xml file.

AppWidgetProviderInfo XML file that defines the widget size and update frequency BatteryWidget/res/xml/widget_def.xml To calculate sizes: Minimum size in dip = (Number of cells * 74dip) - 2dip initalLayout: The layout resource xml that is used when the widget loads Don’t update more than necessary, battery life issues At the update interval, your AppWidgetProvider.onUpdate() method is called

XML file that defines the widget size and update frequency

BatteryWidget/res/xml/widget_def.xml

To calculate sizes: Minimum size in dip = (Number of cells * 74dip) - 2dip

initalLayout: The layout resource xml that is used when the widget loads

Don’t update more than necessary, battery life issues

At the update interval, your AppWidgetProvider.onUpdate() method is called

What is a DIP? Android documentation mentions dip’s or dp’s instead of pixels for layout, but what it is a DIP? One DIP is one pixel on a 160 dpi screen (for example a 240x320, 1.5"x2" screen is approx 1dip=1px) On a 106 dpi screen the density is 0.75; 1dip = 1.333px

Android documentation mentions dip’s or dp’s instead of pixels for layout, but what it is a DIP?

One DIP is one pixel on a 160 dpi screen

(for example a 240x320, 1.5"x2" screen is approx 1dip=1px)

On a 106 dpi screen the density is 0.75;

1dip = 1.333px

AppWidgetProvider Class BatteryWidget/src/com.geekyouup.android.widgets.battery.BatteryWidget Problem: When your Widgets AppWidgetProvider.onUpdate(..) method is called the response is subject to the ANR (Application Not Responding) timer. If your time runs out then the user gets the “Force Close or Wait” dialog, this is not good. Solution: If you need some time, start a service to process your update. It is much easier than you may think. A service just needs an onStart() method. (see BatteryWidget.java UpdateService inner class)

BatteryWidget/src/com.geekyouup.android.widgets.battery.BatteryWidget

Problem: When your Widgets AppWidgetProvider.onUpdate(..) method is called the response is subject to the ANR (Application Not Responding) timer. If your time runs out then the user gets the “Force Close or Wait” dialog, this is not good.

Solution: If you need some time, start a service to process your update. It is much easier than you may think. A service just needs an onStart() method. (see BatteryWidget.java UpdateService inner class)

RemoteViews Problem: If Widget views aren’t dynamic and have no associated Activity, how can you update them? How can the BatteryWidget’s percentage change? Solution: RemoteViews! When an event triggers an update, you can attach to the Widget’s view remotely and update it using the RemoteViews methods

Problem: If Widget views aren’t dynamic and have no associated Activity, how can you update them? How can the BatteryWidget’s percentage change?

Solution: RemoteViews!

When an event triggers an update, you can attach to the Widget’s view remotely and update it using the RemoteViews methods

Widget Interactions Problem: If the Widget has no associated Activity, how can you make it interactive? Solution: PendingIntents! When using RemoteViews to update the widget layout, you can set PendingIntents on elements. For example using setOnClickPendingIntent() on the BatteryWidget starts an Activity Touch

Problem: If the Widget has no associated Activity, how can you make it interactive?

Solution: PendingIntents!

When using RemoteViews to update the widget layout, you can set PendingIntents on elements. For example using setOnClickPendingIntent() on the BatteryWidget starts an Activity

BatteryWidget Events For the sake of efficiency and good coding practise the BatteryWidget does not poll the battery state. It registers as a Receiver for the Intent: Intent. ACTION_BATTERY_CHANGED This intent can only be registered for in code, not as usual in the AndroidManifest.xml When the intent fires in BatteryInfo.java it includes extra data: intent.getIntExtra("level", 0) intent.getIntExtra("status“) which describe the current charge and charging states

For the sake of efficiency and good coding practise the BatteryWidget does not poll the battery state. It registers as a Receiver for the Intent: Intent. ACTION_BATTERY_CHANGED

This intent can only be registered for in code, not as usual in the AndroidManifest.xml

Display / GPS / Wifi Display Settings Intent defineIntent2 = new Intent("com.android.settings.DISPLAY_SETTINGS"); defineIntent2.addCategory("android.intent.category.DEFAULT"); startActivity(defineIntent2); GPS Settings, how to do it properly? Intent defineIntent2 = new Intent("android.settings.LOCATION_SOURCE_SETTINGS"); defineIntent2.addCategory("android.intent.category.DEFAULT"); startActivity(defineIntent2); Wireless Settings WifiManager wifiManager = (WifiManager) getSystemService(WIFI_SERVICE); boolean enabled = wifiManager.isWifiEnabled(); wifiManager.setWifiEnabled(! enabled );

Display Settings

Intent defineIntent2 = new Intent("com.android.settings.DISPLAY_SETTINGS");

defineIntent2.addCategory("android.intent.category.DEFAULT");

startActivity(defineIntent2);

GPS Settings, how to do it properly?

Intent defineIntent2 = new Intent("android.settings.LOCATION_SOURCE_SETTINGS");

defineIntent2.addCategory("android.intent.category.DEFAULT");

startActivity(defineIntent2);

Wireless Settings

WifiManager wifiManager = (WifiManager) getSystemService(WIFI_SERVICE);

boolean enabled = wifiManager.isWifiEnabled();

wifiManager.setWifiEnabled(! enabled );

ImageView Touch Feedback Problem : It is important to provide feedback to the user when a button is pressed, but on a widget that can be tricky as the view isn’t dynamic. Solution : Selector <selector xmlns:android= &quot;http://schemas.android.com/apk/res/android&quot; > <item android:state_pressed= &quot;true&quot; android:drawable= &quot;@drawable/edit_sel&quot; /> <item android:drawable= &quot;@drawable/edit&quot; /> </selector> When an image changes state to pressed, the appropriate image will be shown, given the impression of tactile feedback

Problem : It is important to provide feedback to the user when a button is pressed, but on a widget that can be tricky as the view isn’t dynamic.

Solution : Selector

<selector xmlns:android= &quot;http://schemas.android.com/apk/res/android&quot; >

<item android:state_pressed= &quot;true&quot; android:drawable= &quot;@drawable/edit_sel&quot; />

<item android:drawable= &quot;@drawable/edit&quot; />

</selector>

When an image changes state to pressed, the appropriate image will be shown, given the impression of tactile feedback

Links Battery Widget Source Code http://batterywidget.googlecode.com Jeff Sharkey’s Blog Post, ‘Introducing Home Screen Widgets’ includes full source code http://android-developers.blogspot.com/2009/04/introducing-home-screen-widgets-and.html Jeff Sharkey’s Weather Forecast Widget http://jsharkey.org/blog/2009/04/24/forecast-widget-for-android-15-with-source/ Android Developer Guide - AppWidgets http://developer.android.com/guide/topics/appwidgets/index.html

Battery Widget Source Code

http://batterywidget.googlecode.com

Jeff Sharkey’s Blog Post, ‘Introducing Home Screen Widgets’ includes full source code

http://android-developers.blogspot.com/2009/04/introducing-home-screen-widgets-and.html

Jeff Sharkey’s Weather Forecast Widget

http://jsharkey.org/blog/2009/04/24/forecast-widget-for-android-15-with-source/

Android Developer Guide - AppWidgets

http://developer.android.com/guide/topics/appwidgets/index.html
