Pimp My Data Grid
Brian Oliver
Senior Principal Solutions Architect (brian.oliver@oracle.com)

O...

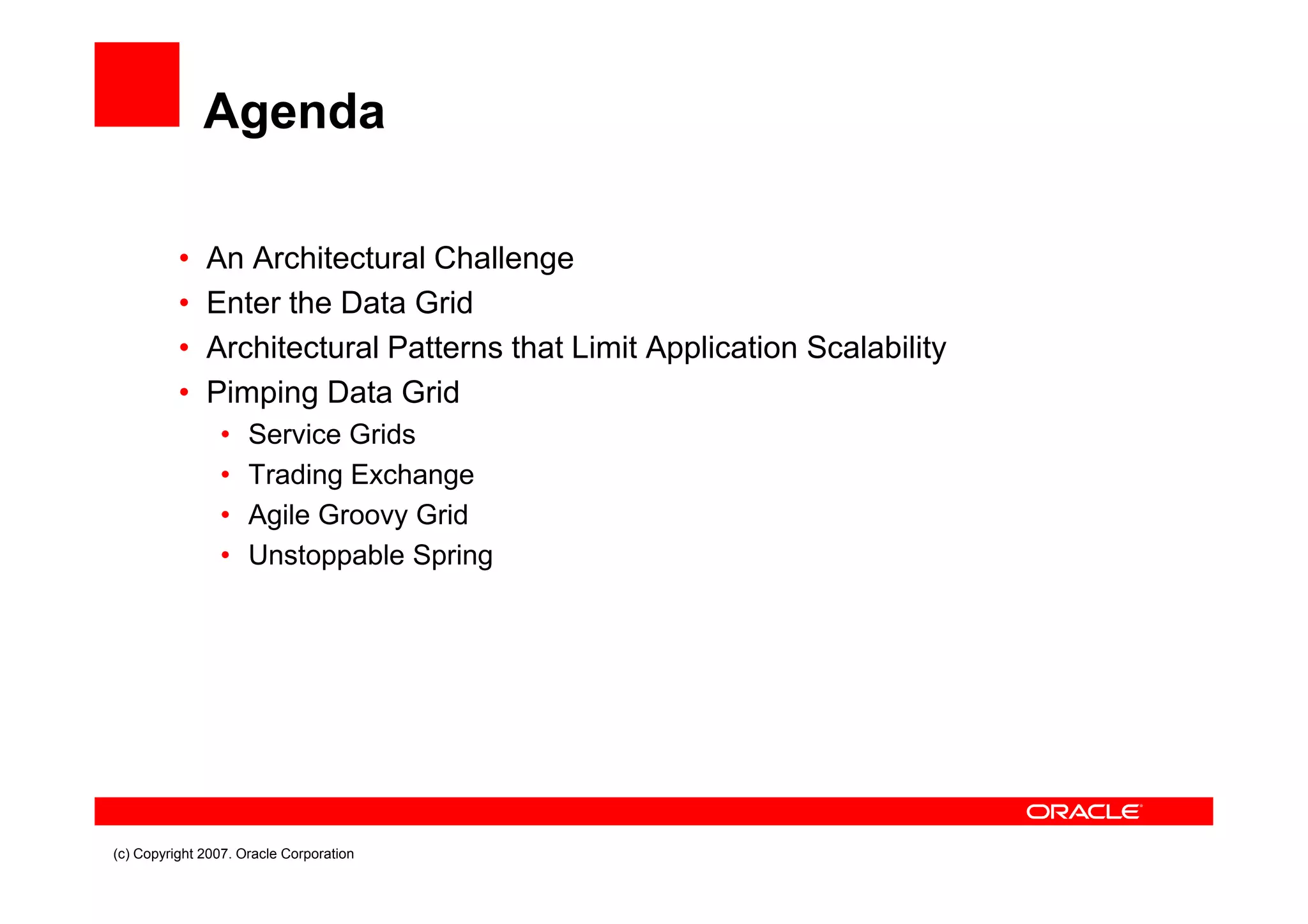

Agenda

          •   An Architectural Challenge
          •   Enter the Data Grid
          •   Architectural Patterns th...

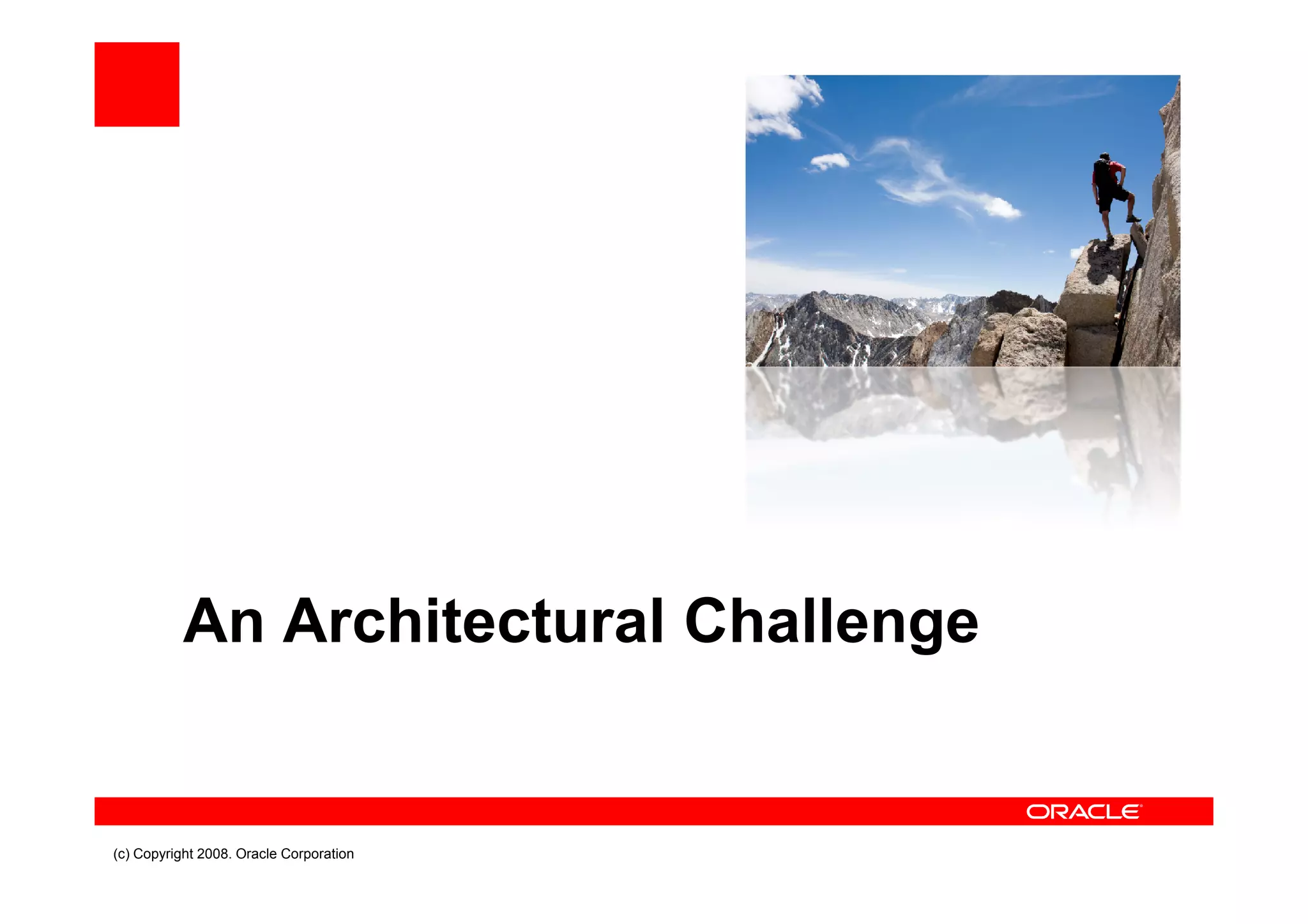

An Architectural Challenge


(c) Copyright 2008. Oracle Corporation

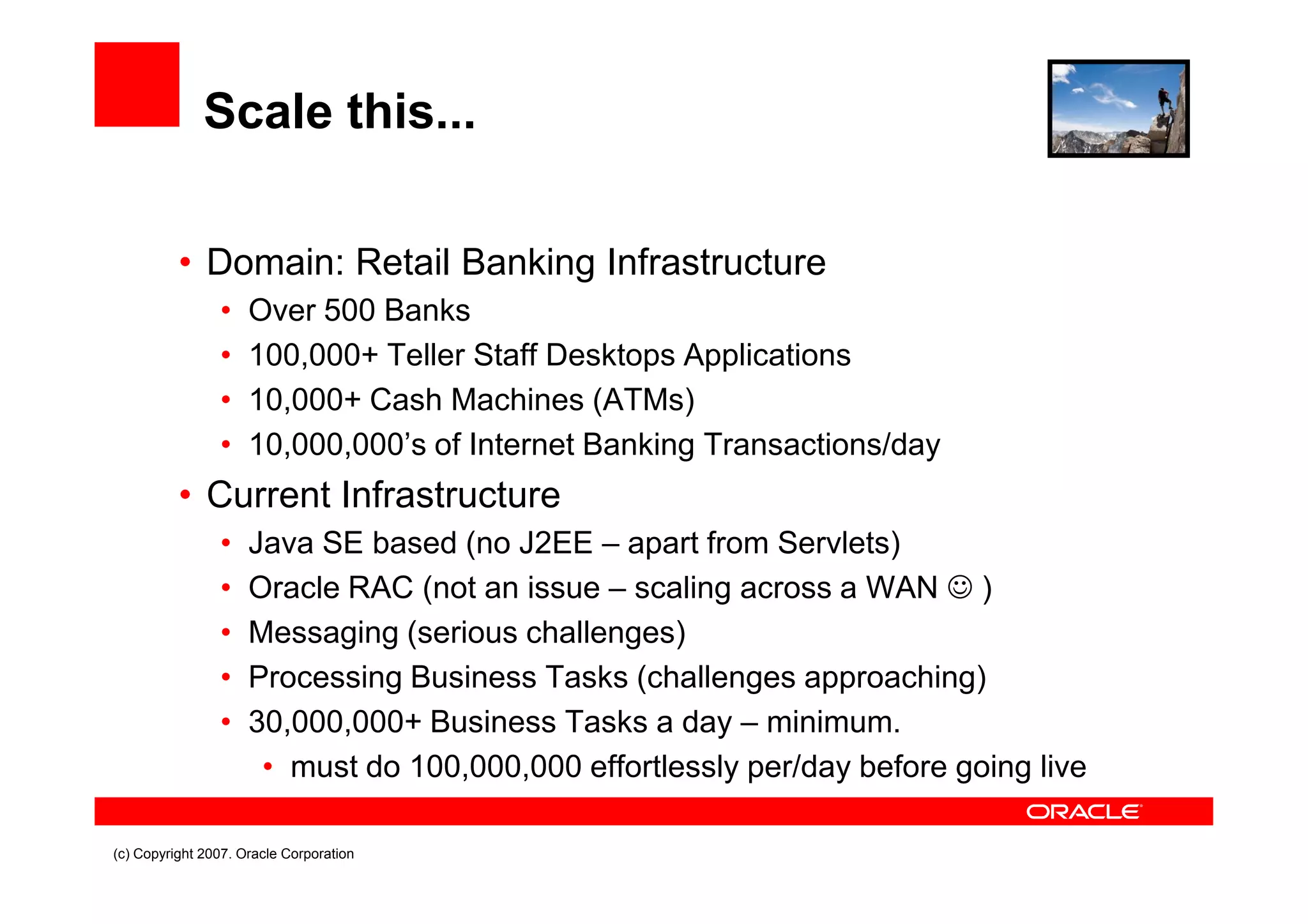

Scale this...

          • Domain: Retail Banking Infrastructure
                •    Over 500 Banks
                •    ...
Scale this...

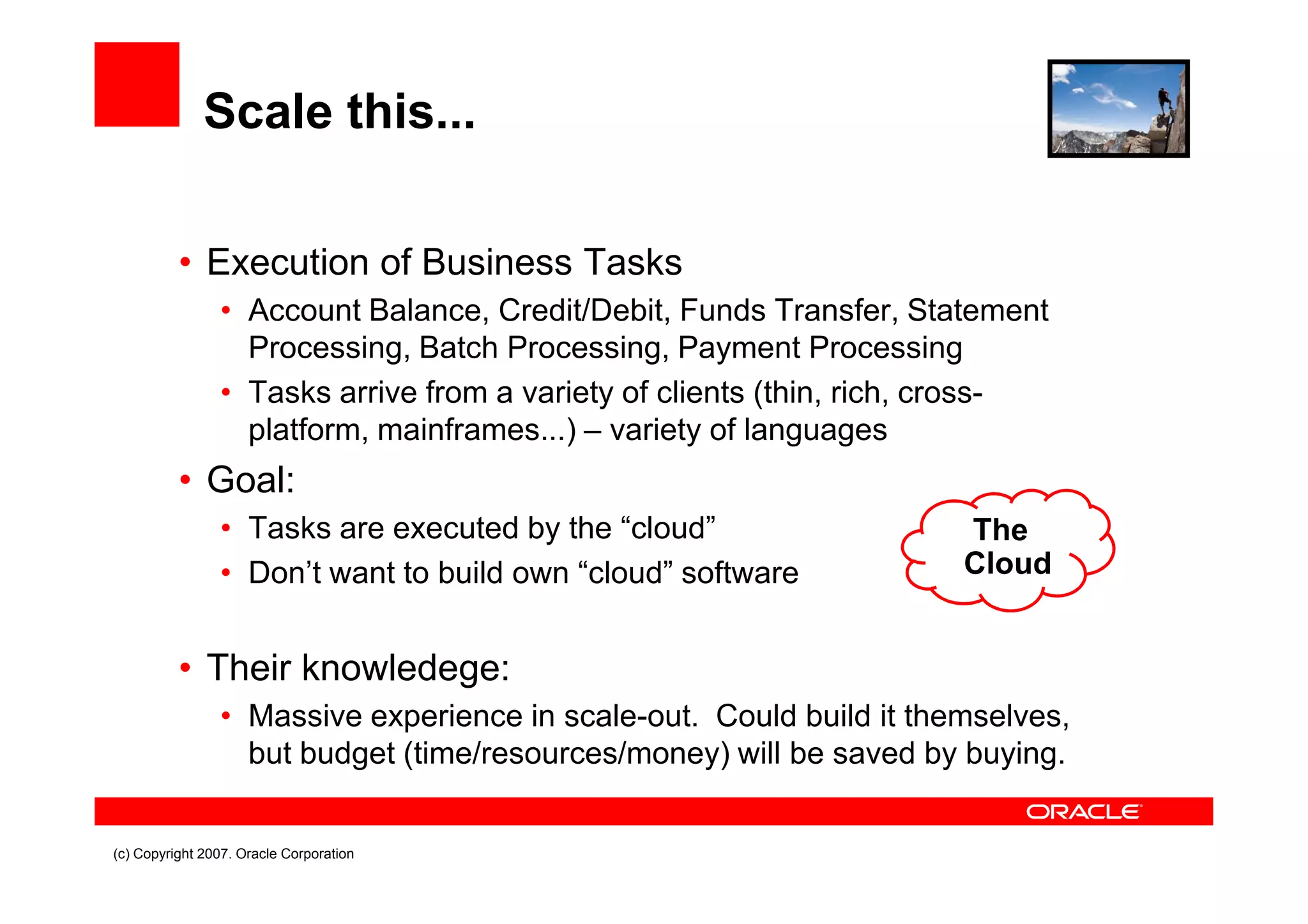

          • Execution of Business Tasks
                • Account Balance, Credit/Debit, Funds Transfer, St...

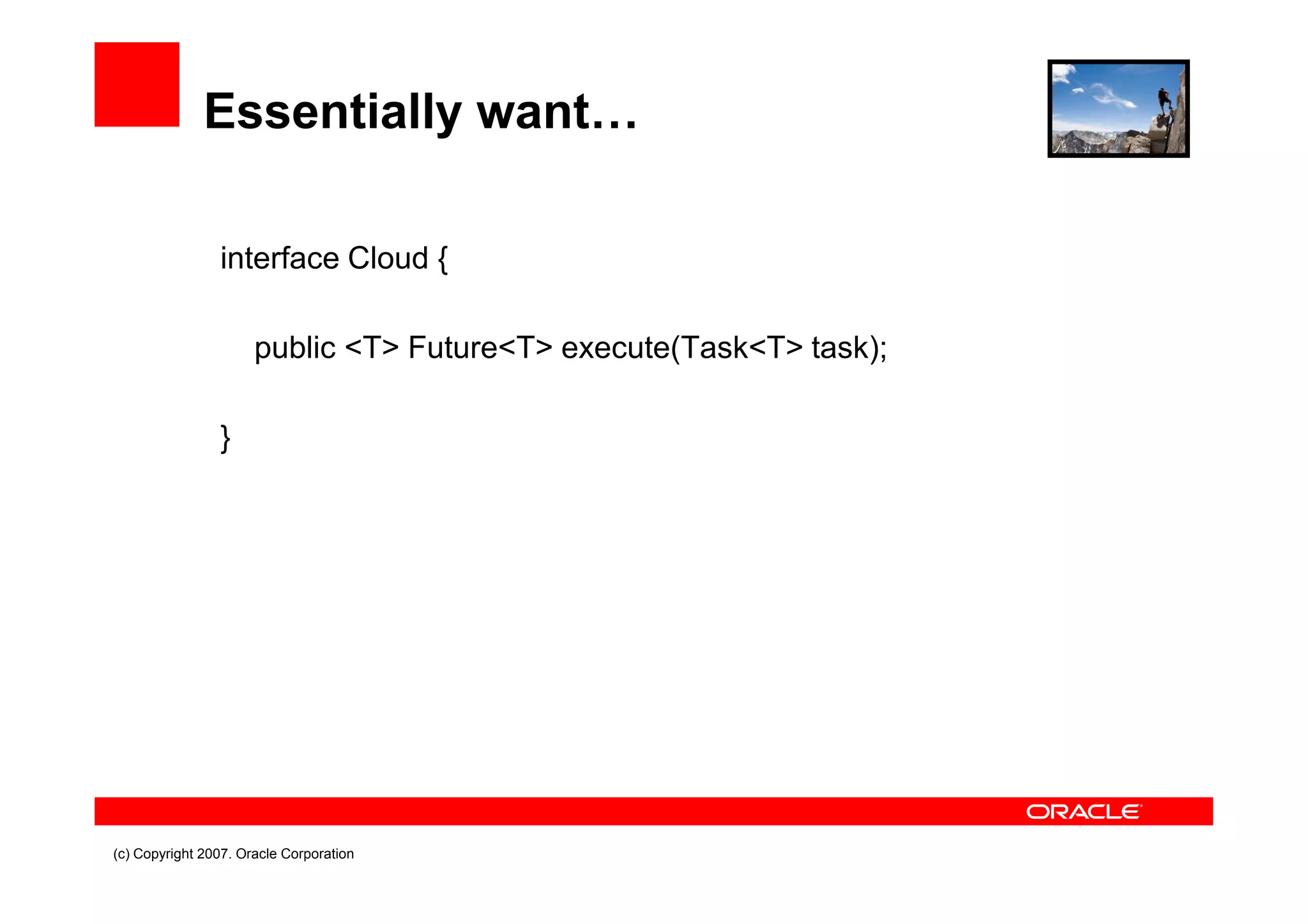

Essentially want…

                interface Cloud {

                      public <T> Future<T> execute(Task<T> task);

 ...

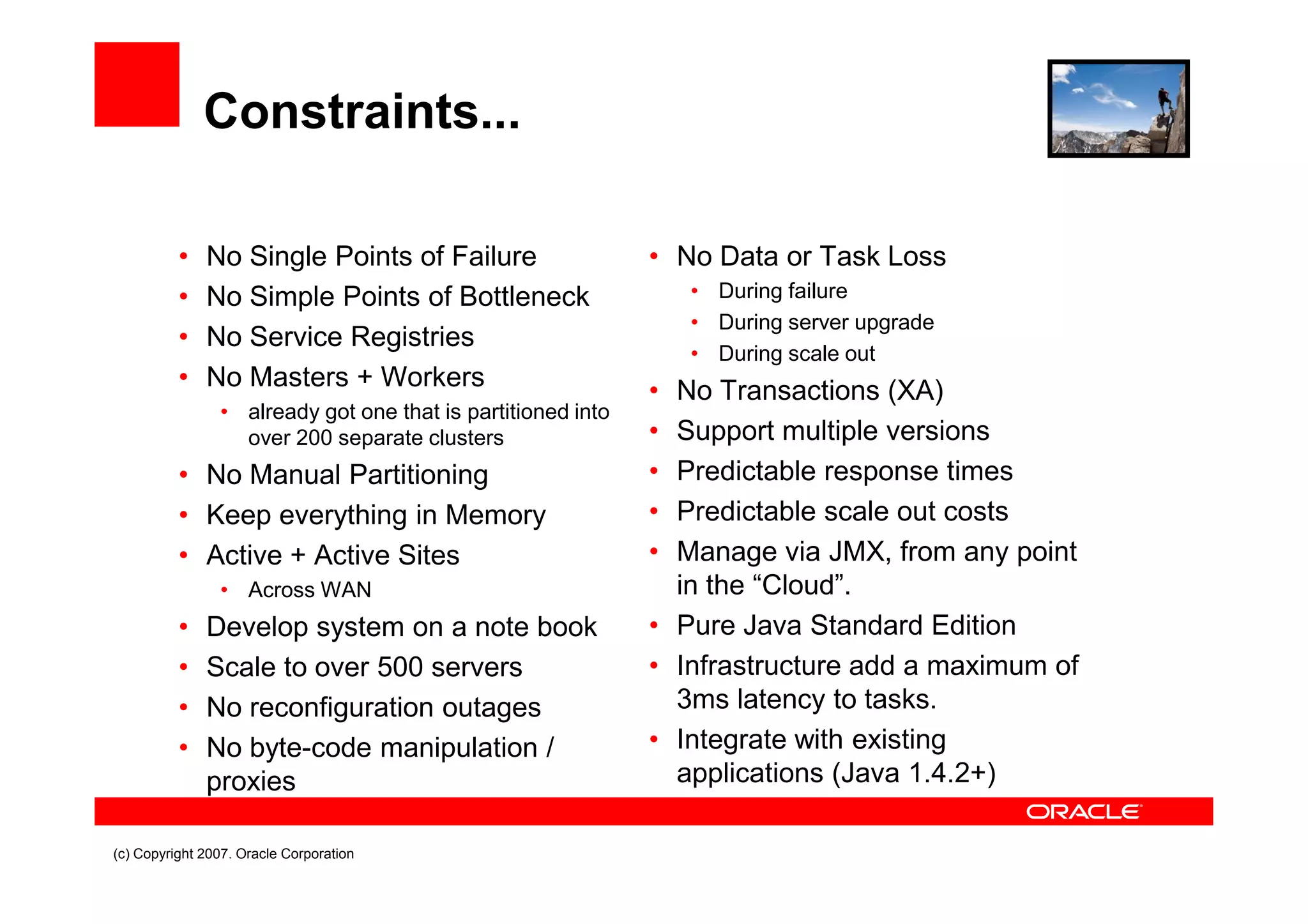

Constraints...

          •   No Single Points of Failure                    • No Data or Task Loss
          •   No Simpl...
Enter the Data Grid


(c) Copyright 2008. Oracle Corporation

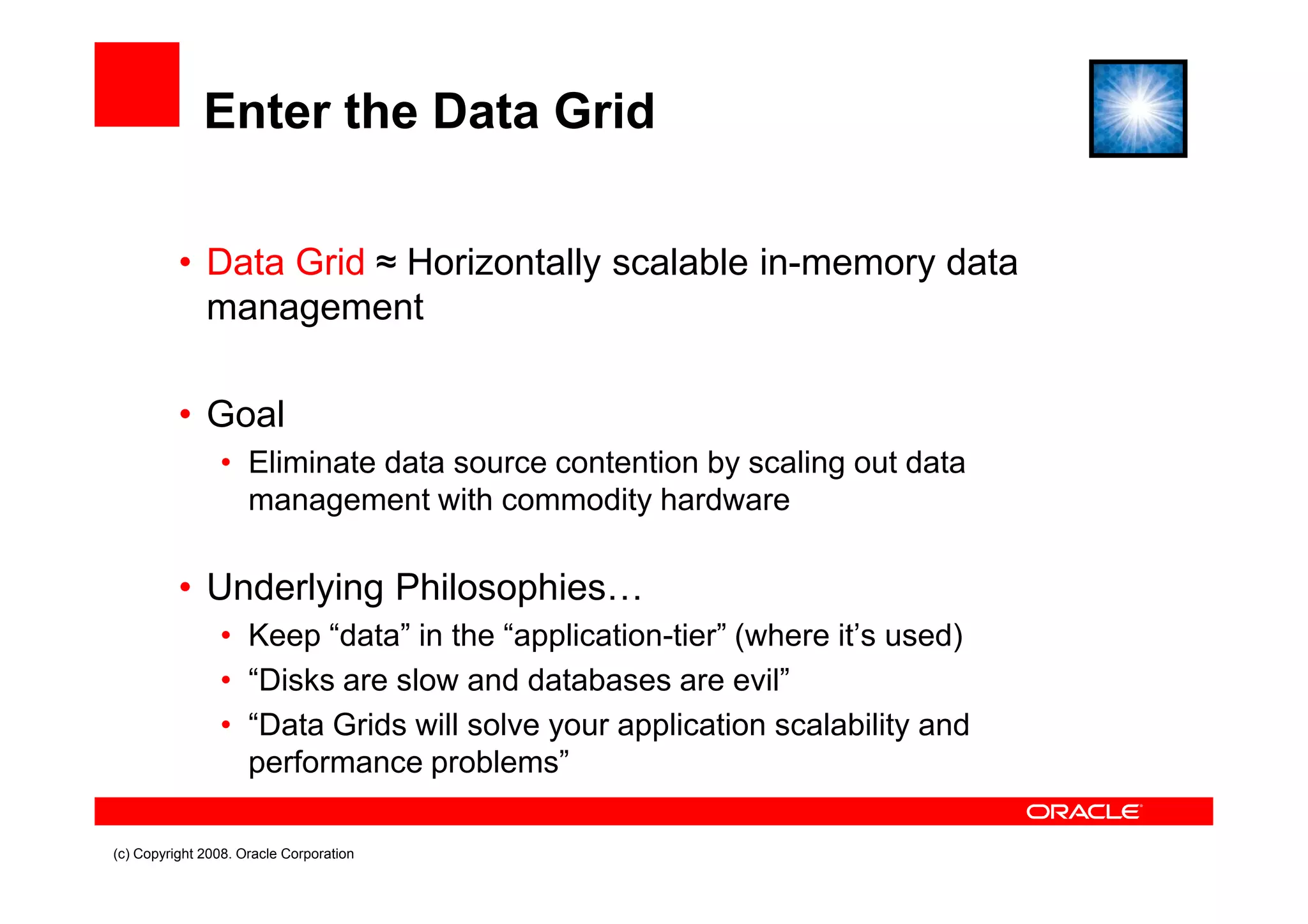

Enter the Data Grid

          • Data Grid ≈ Horizontally scalable in-memory data
            management

          • Goal...

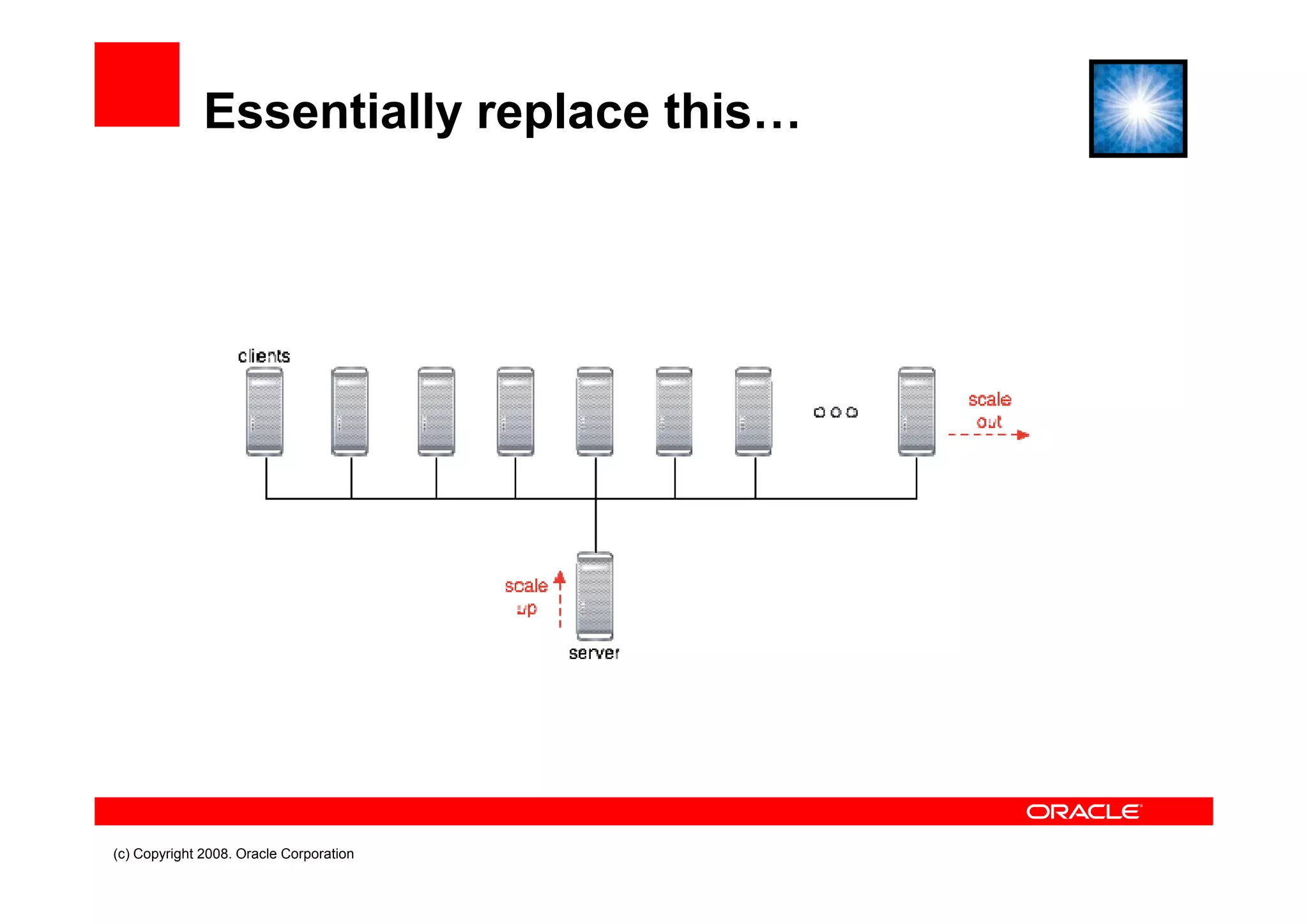

Essentially replace this…




(c) Copyright 2008. Oracle Corporation

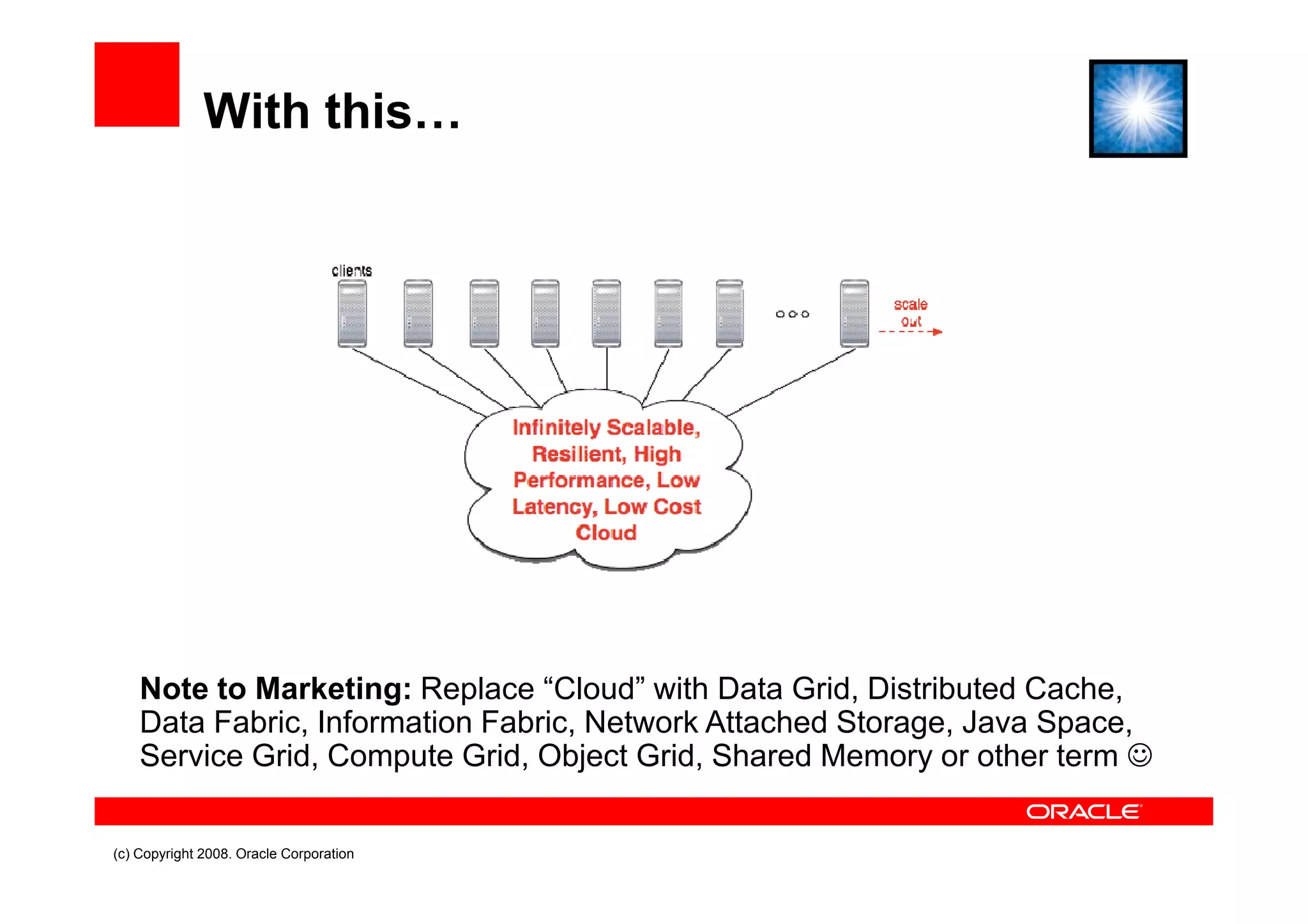

With this…




    Note to Marketing: Replace “Cloud” with Data Grid, Distributed Cache,
    Data Fabric, Information Fabr...
Success!




(c) Copyright 2008. Oracle Corporation
“What’s inside the Cloud?”




(c) Copyright 2008. Oracle Corporation
Architectural Patterns that Limit
          Scalability

(c) Copyright 2008. Oracle Corporation

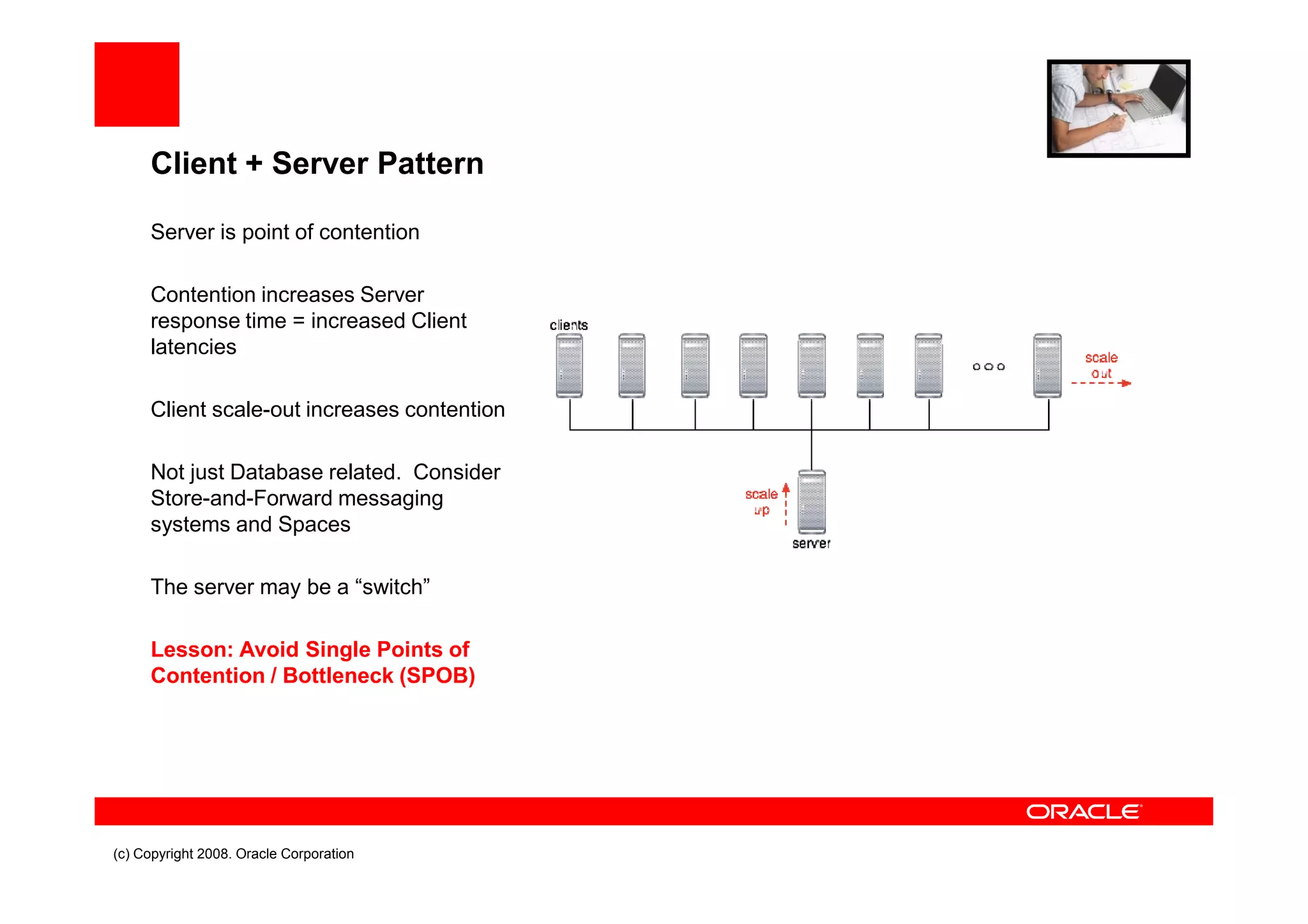

Client + Server Pattern

     Server is point of contention

     Contention increases Server
     response time = increas...

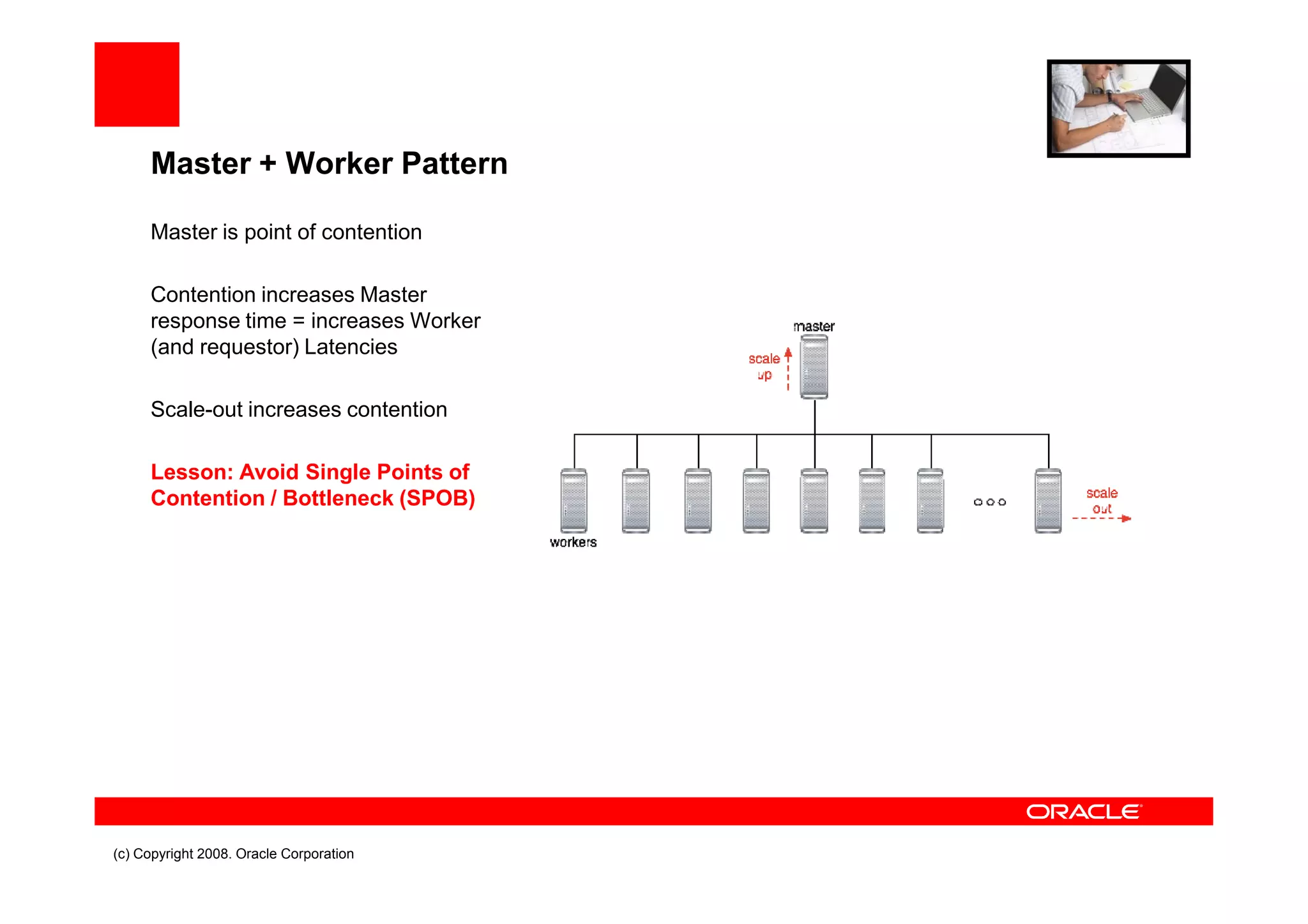

Master + Worker Pattern

     Master is point of contention

     Contention increases Master
     response time = increas...

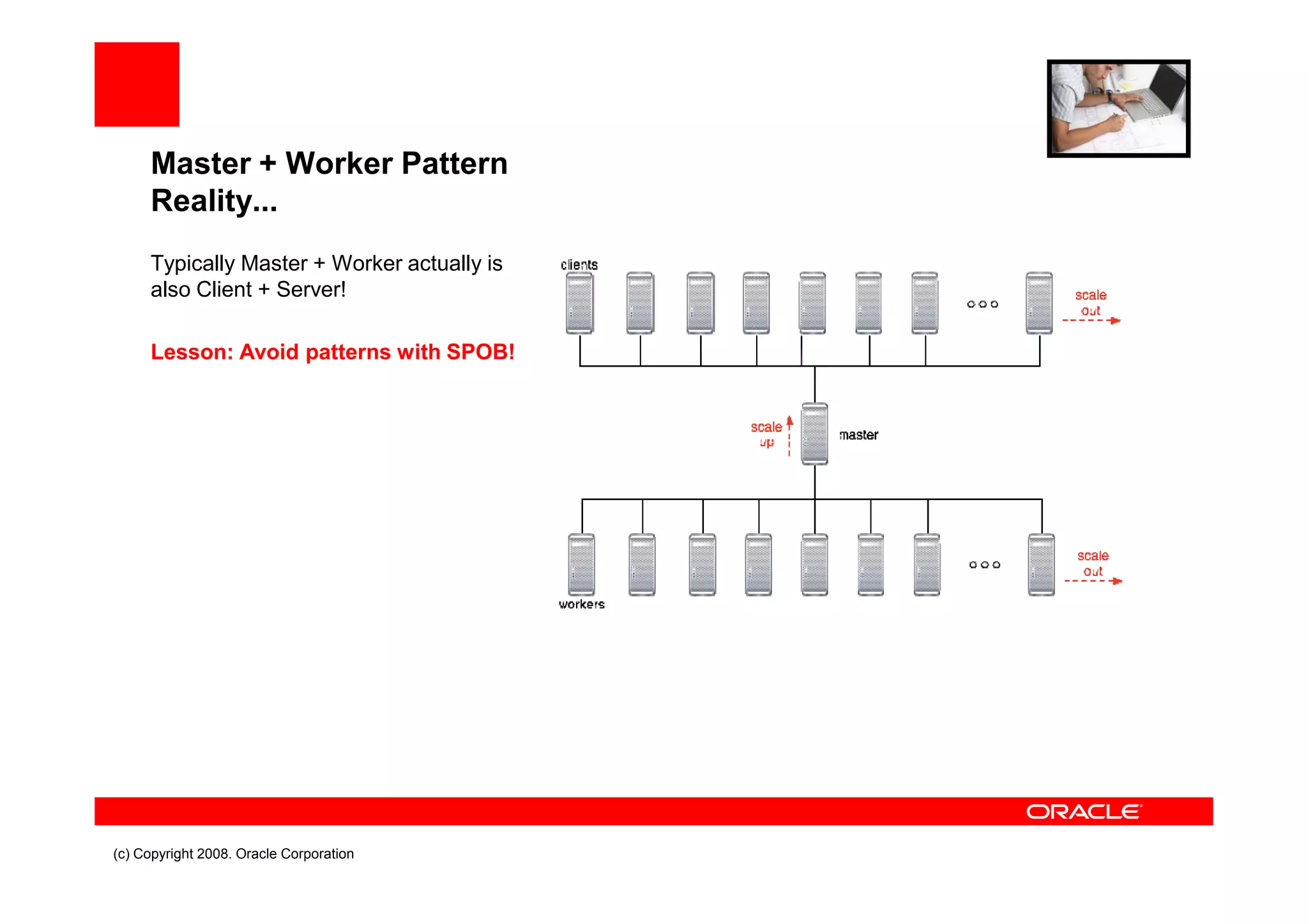

Master + Worker Pattern
     Reality...
     Typically Master + Worker actually is
     also Client + Server!

     Lesson...

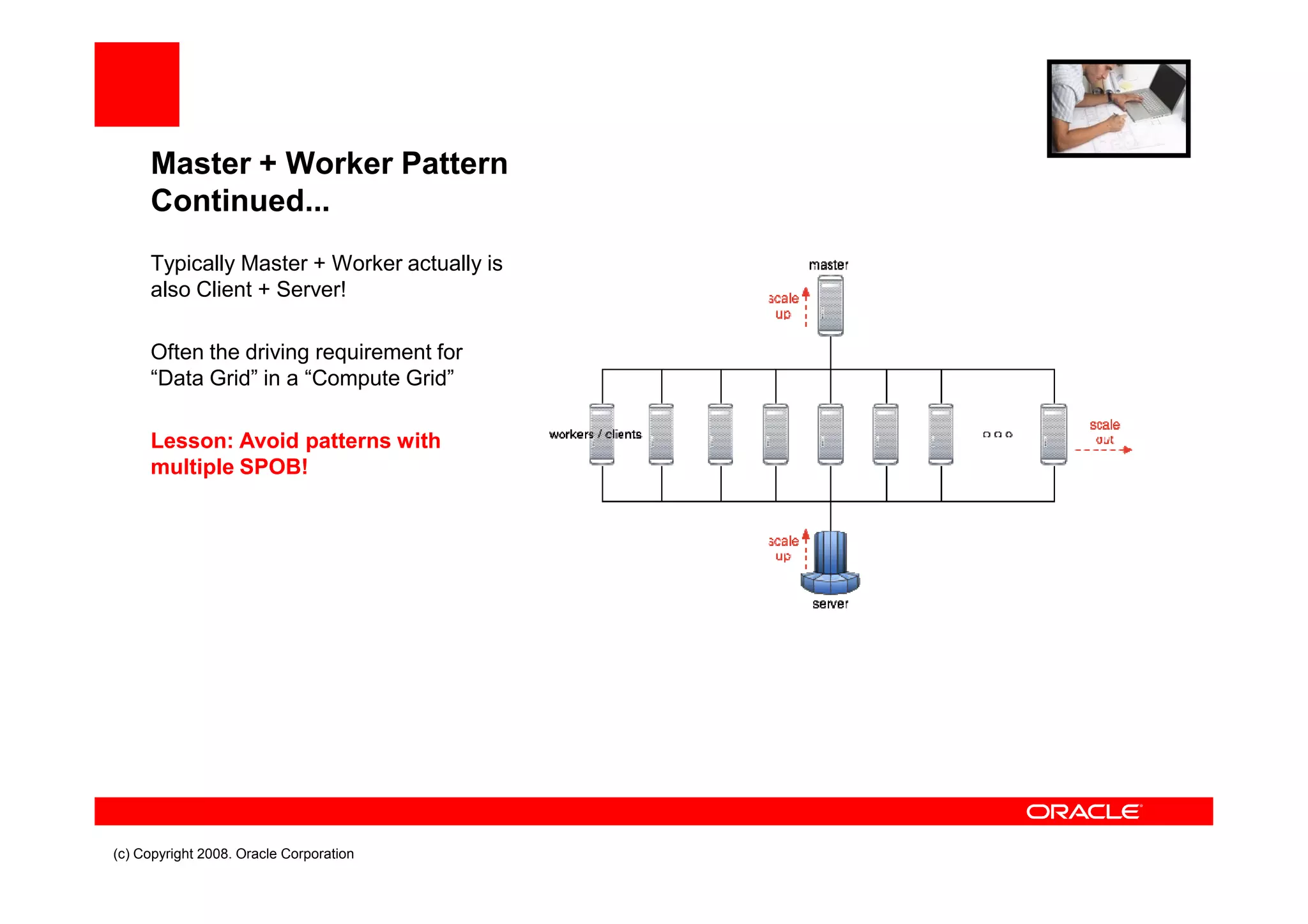

Master + Worker Pattern
     Continued...
     Typically Master + Worker actually is
     also Client + Server!

     Ofte...

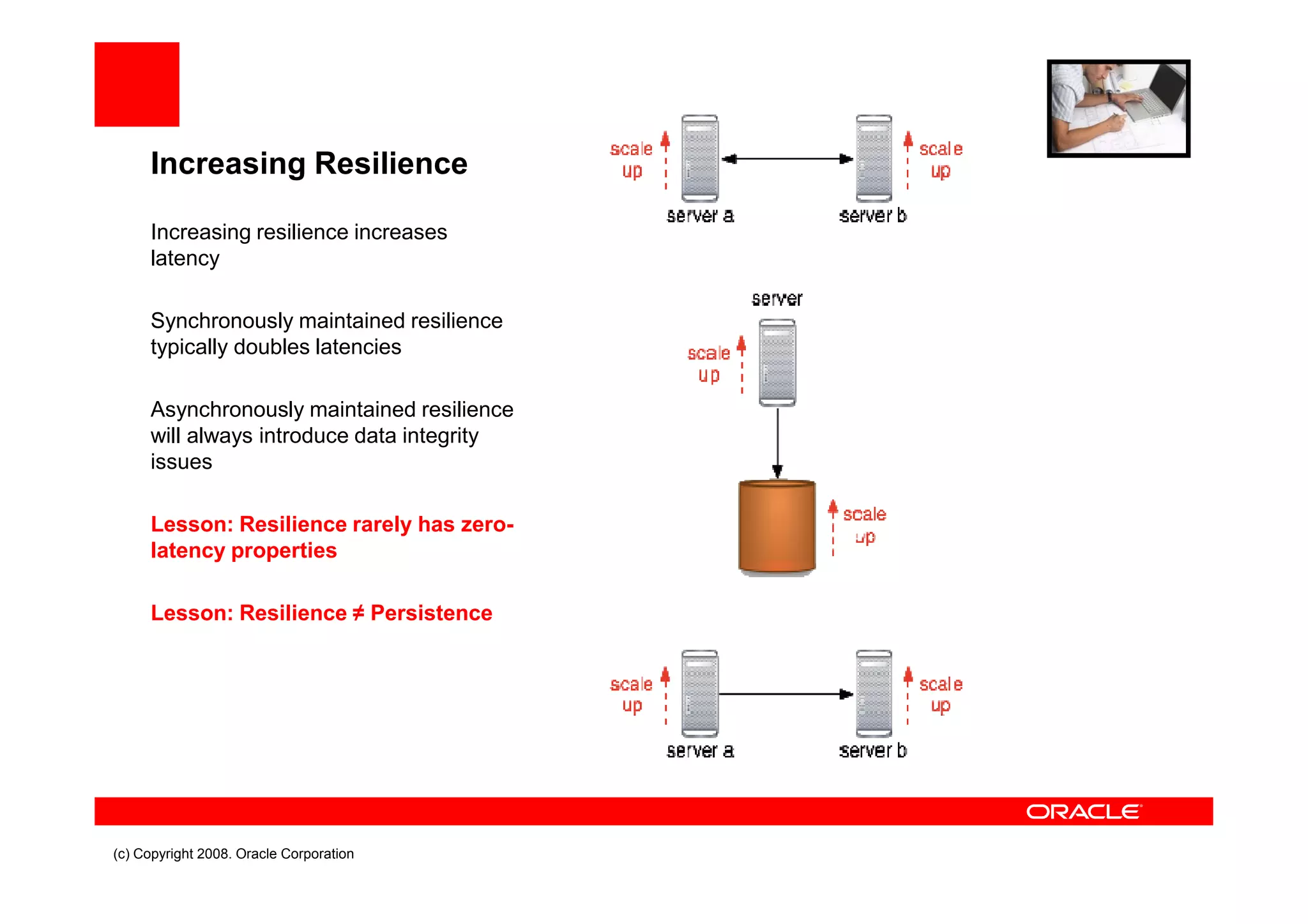

Increasing Resilience

     Increasing resilience increases
     latency

     Synchronously maintained resilience
     ty...

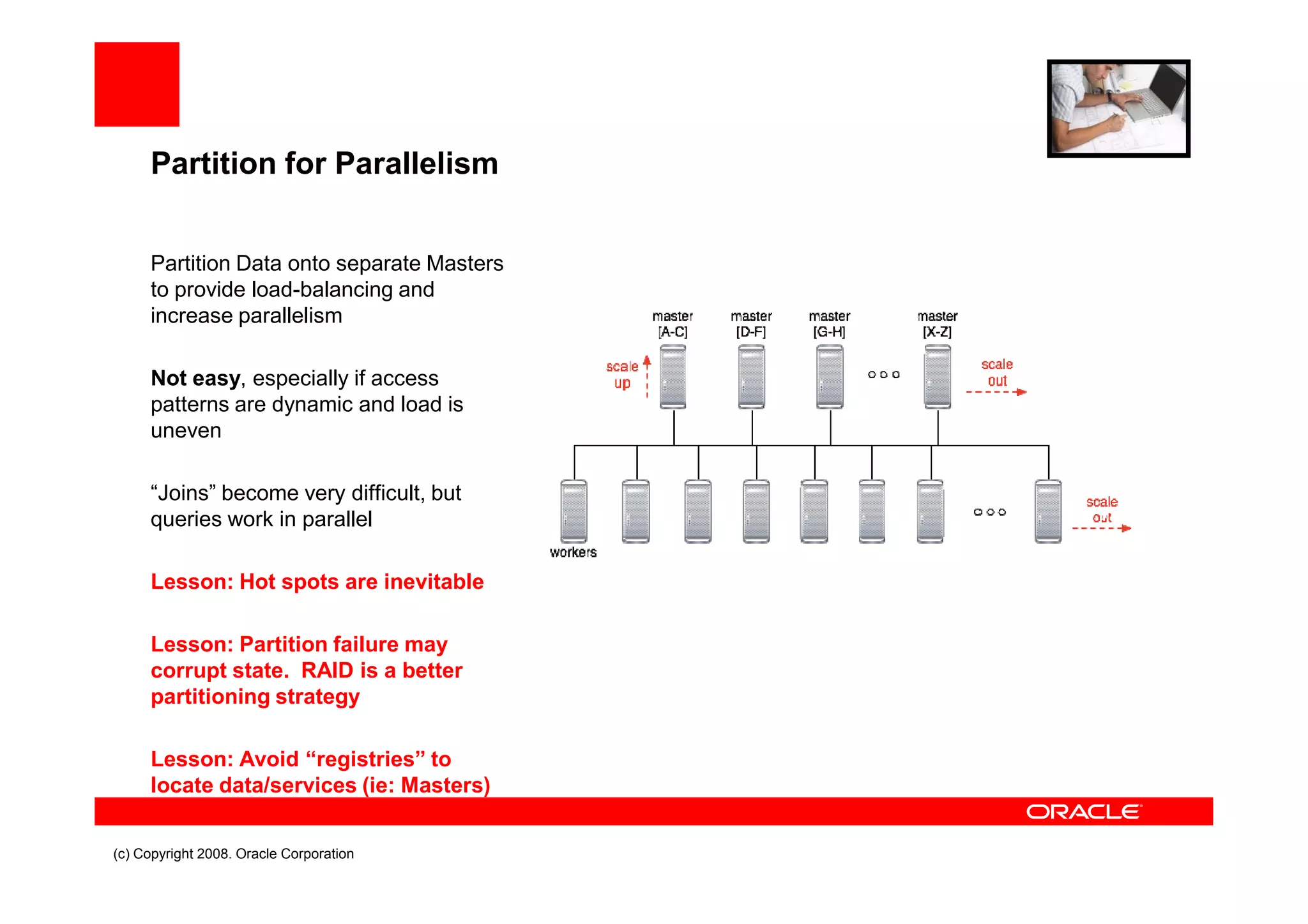

Partition for Parallelism


     Partition Data onto separate Masters
     to provide load-balancing and
     increase par...

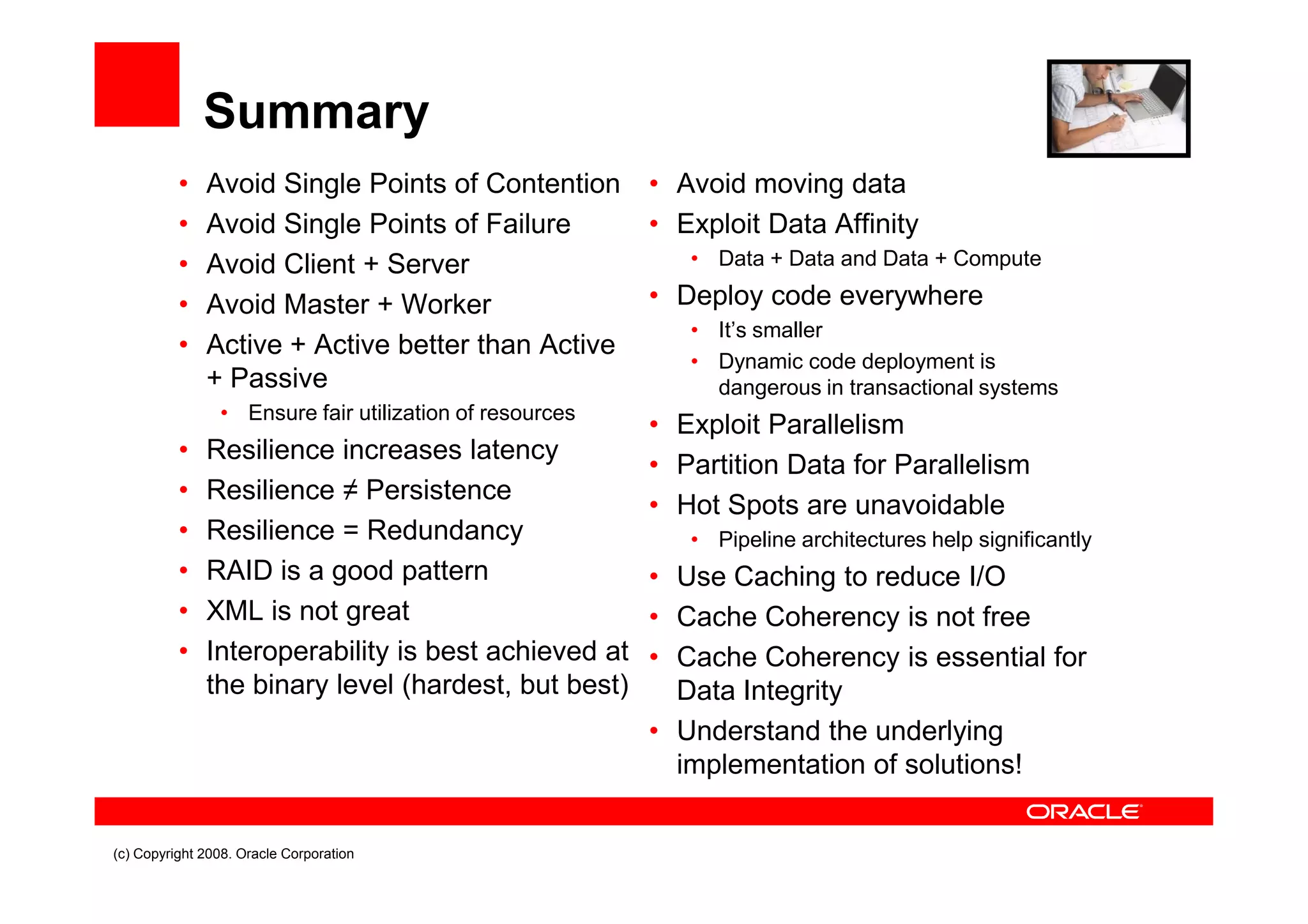

Summary
          •   Avoid Single Points of Contention          • Avoid moving data
          •   Avoid Single Points of ...

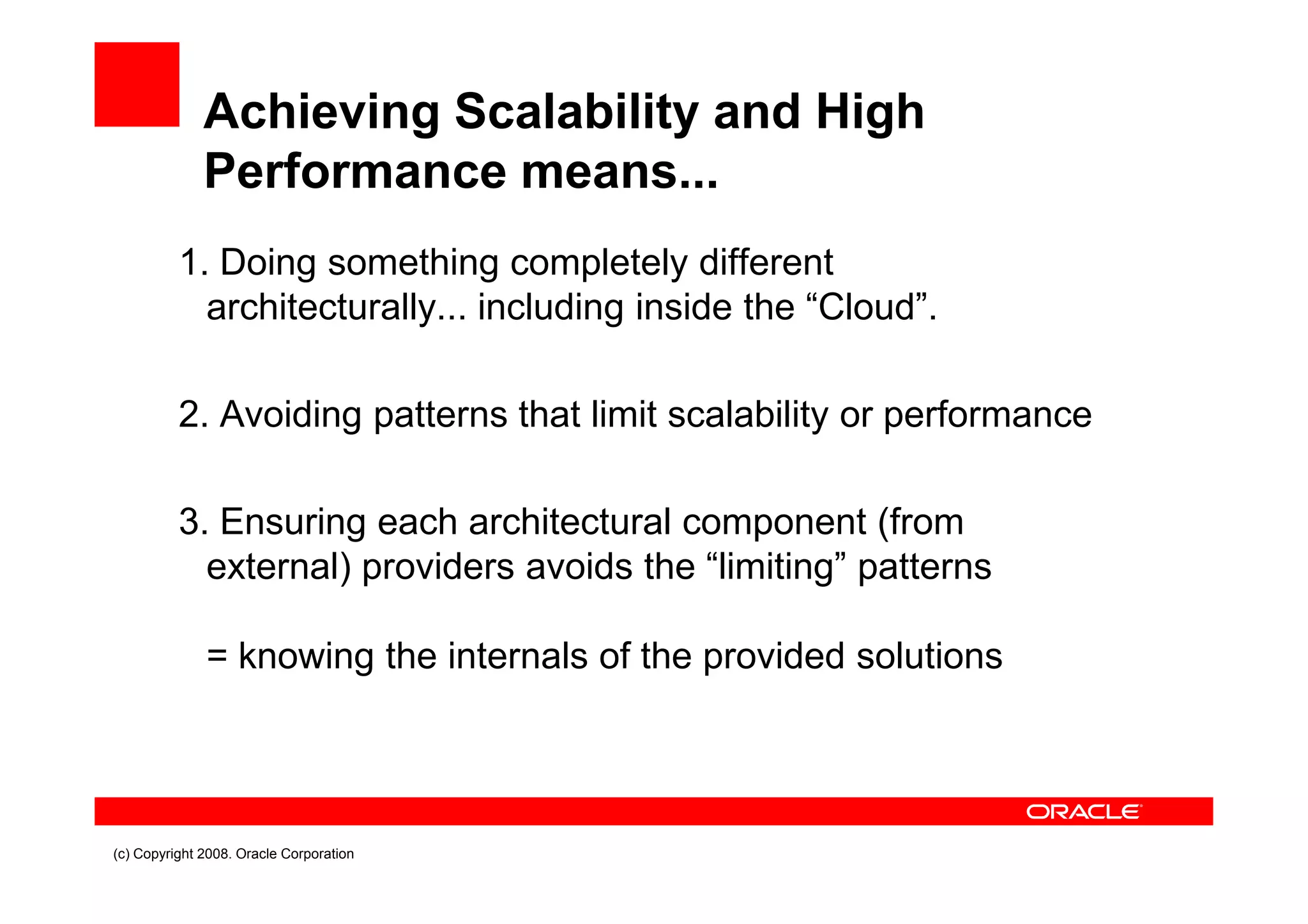

Achieving Scalability and High
              Performance means...
          1. Doing something completely different
      ...
What about Coherence?


(c) Copyright 2007. Oracle Corporation

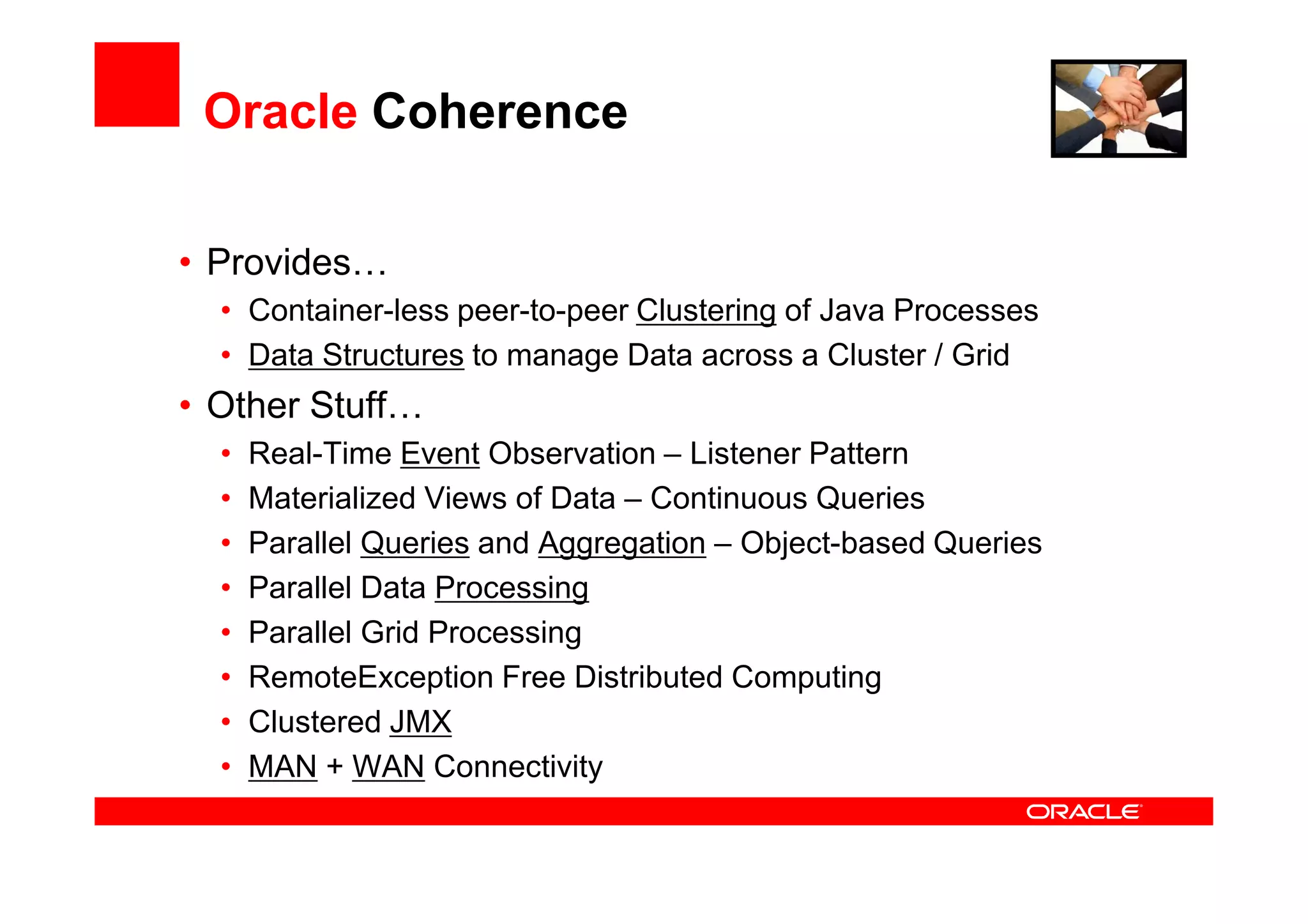

Oracle Coherence

• Provides…
  • Container-less peer-to-peer Clustering of Java Processes
  • Data Structures to manage D...

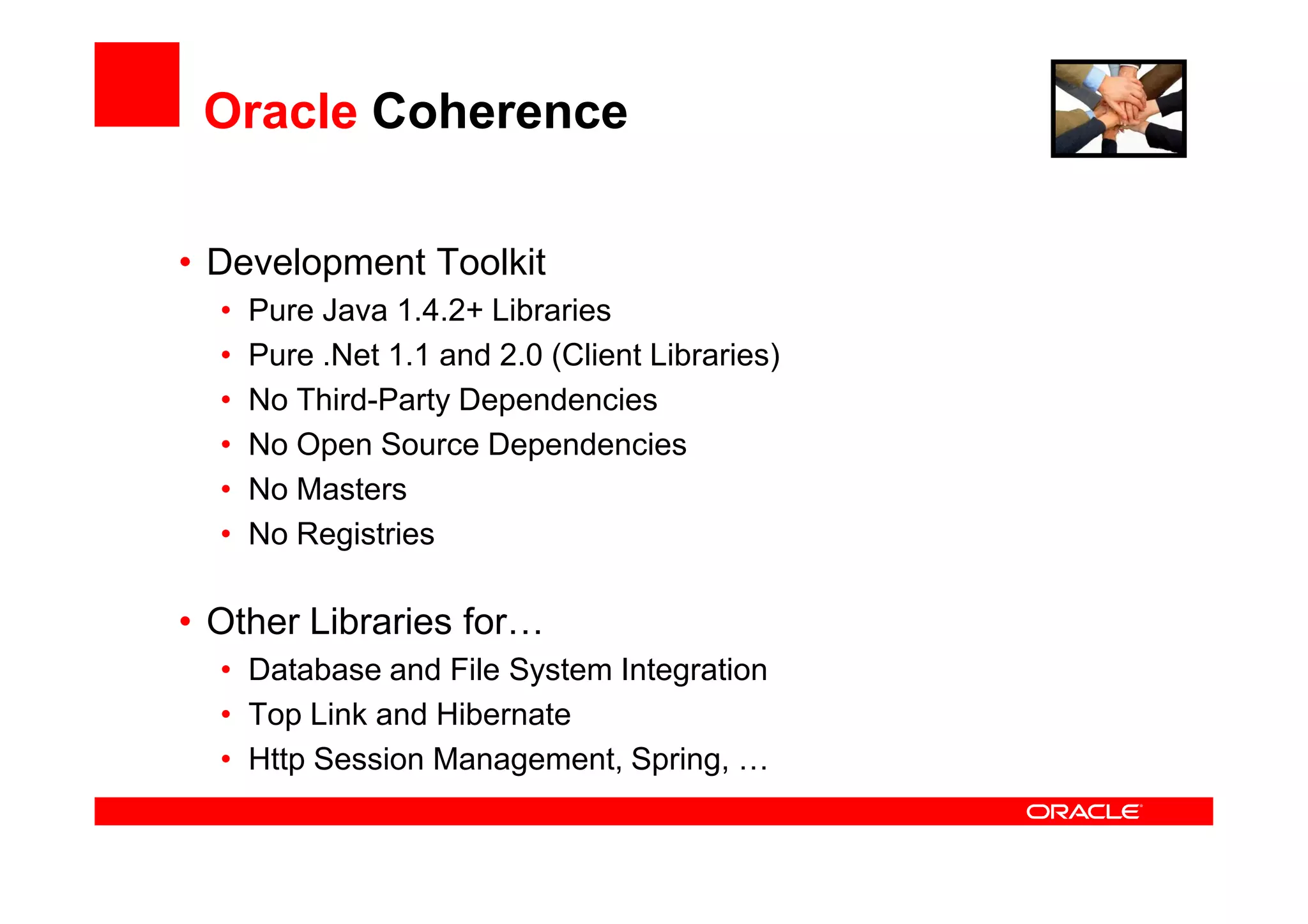

Oracle Coherence

• Development Toolkit
  •   Pure Java 1.4.2+ Libraries
  •   Pure .Net 1.1 and 2.0 (Client Libraries)
  ...
Oracle Coherence

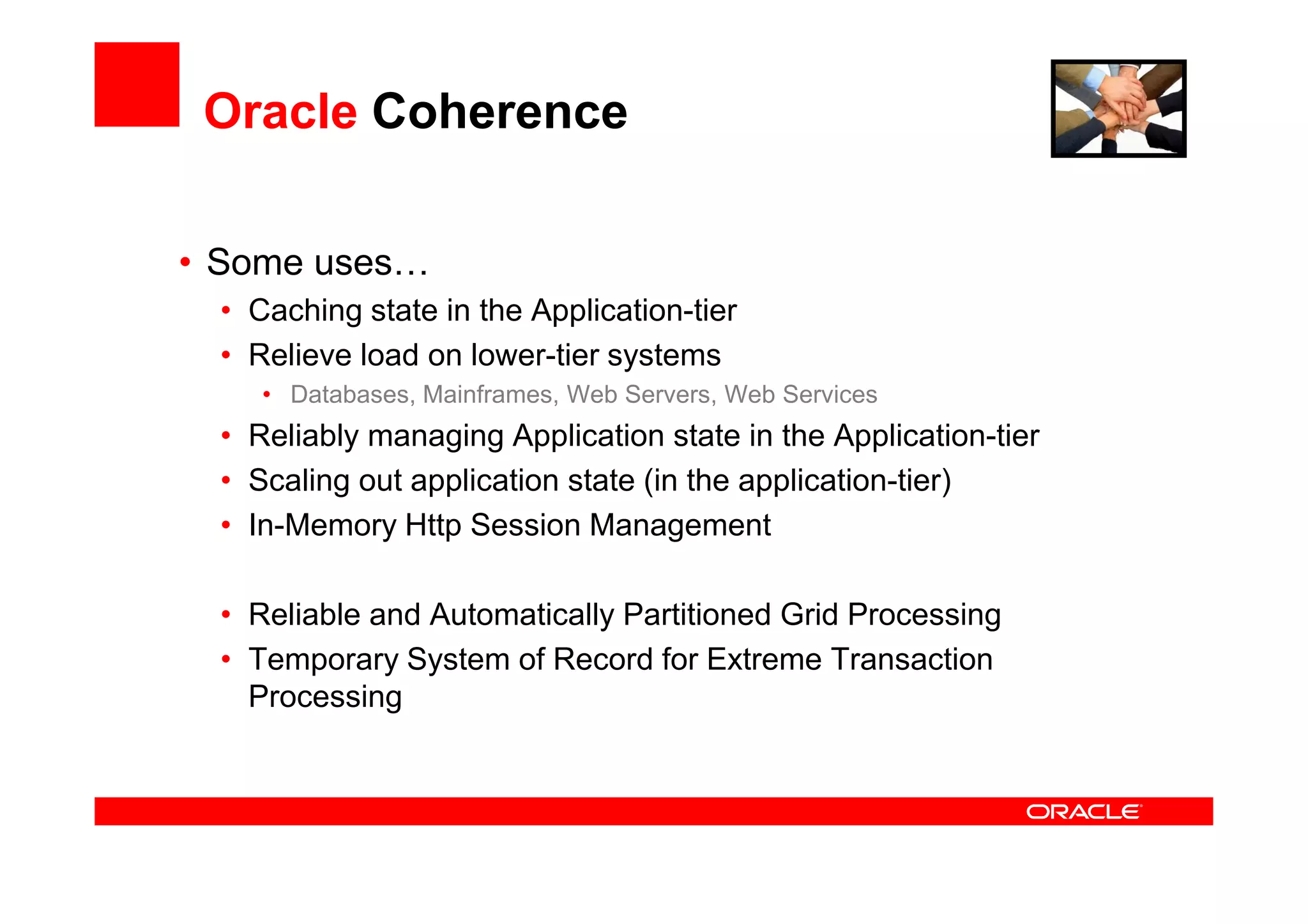

• Some uses…
 • Caching state in the Application-tier
 • Relieve load on lower-tier systems
    • Databa...

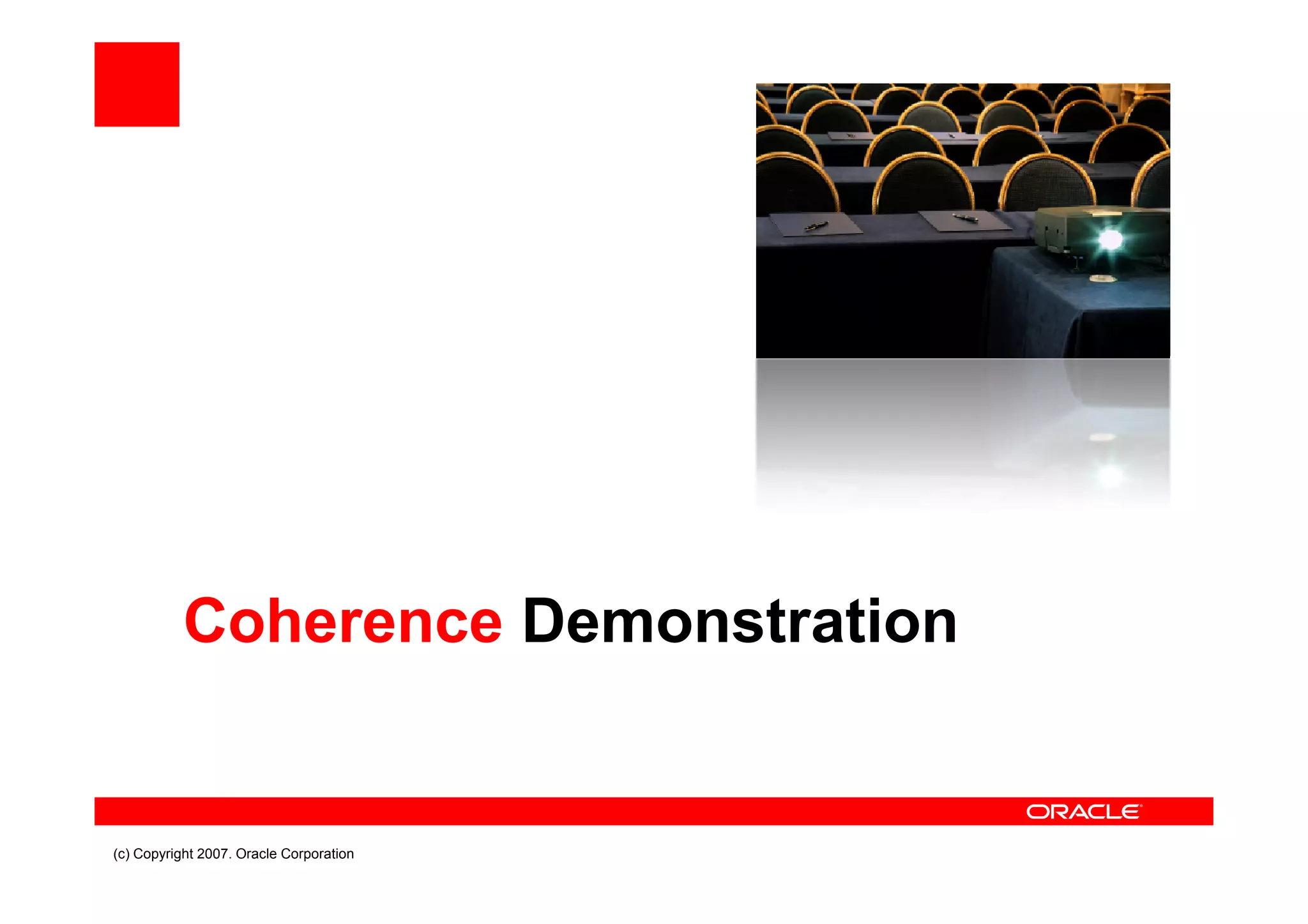

Coherence Demonstration


(c) Copyright 2007. Oracle Corporation

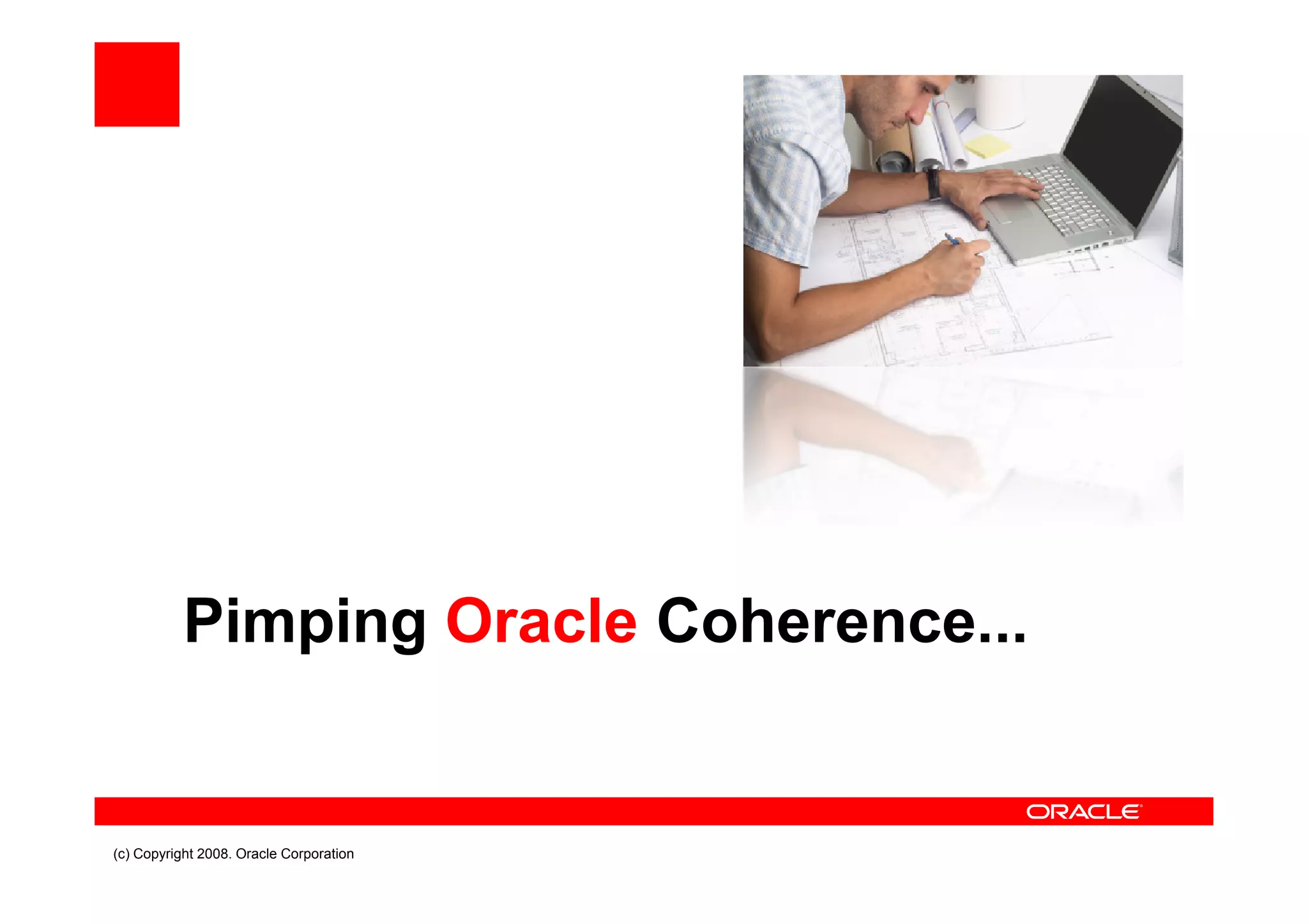

Pimping Oracle Coherence...


(c) Copyright 2008. Oracle Corporation

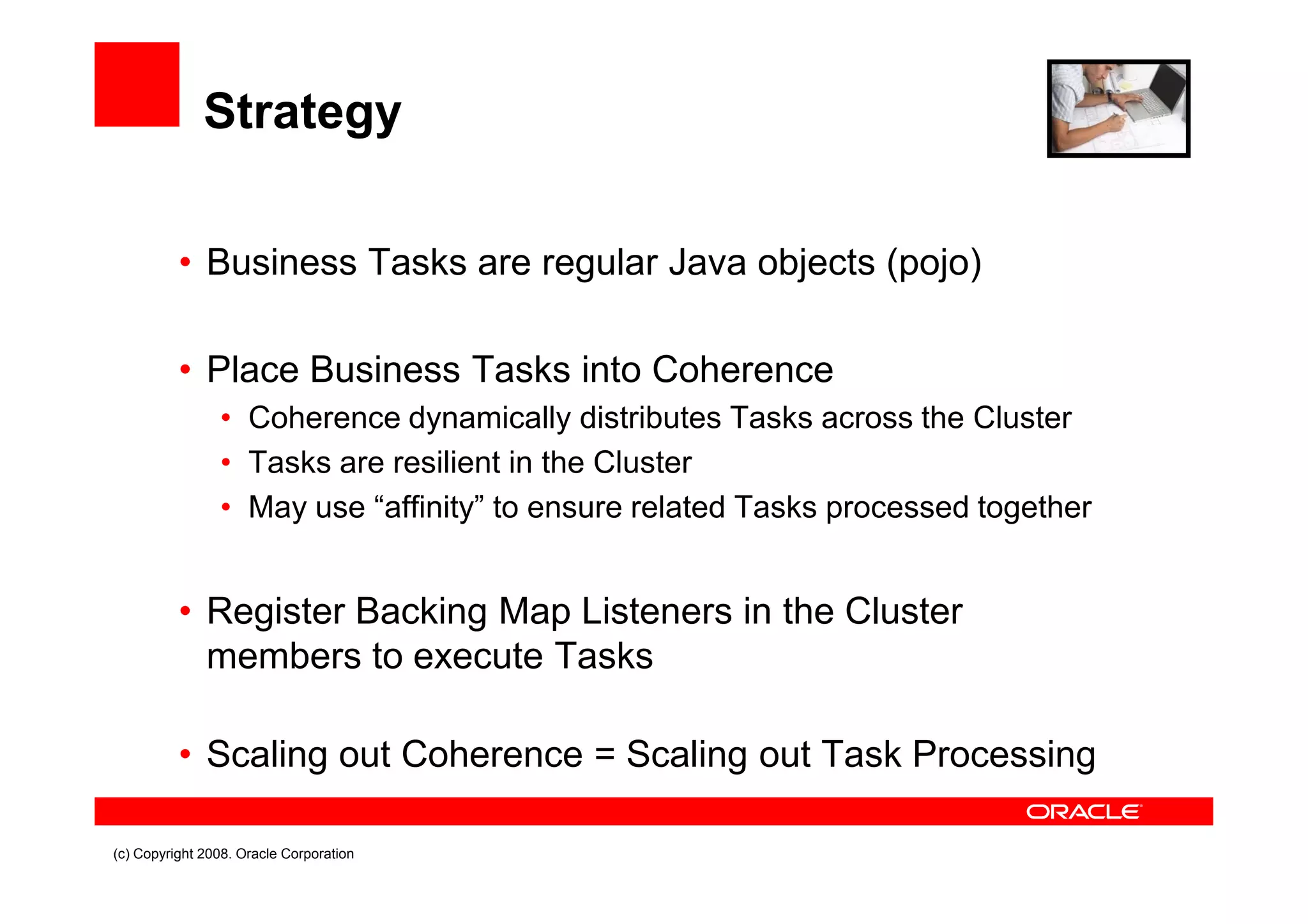

Strategy

          • Business Tasks are regular Java objects (pojo)

          • Place Business Tasks into Coherence
    ...

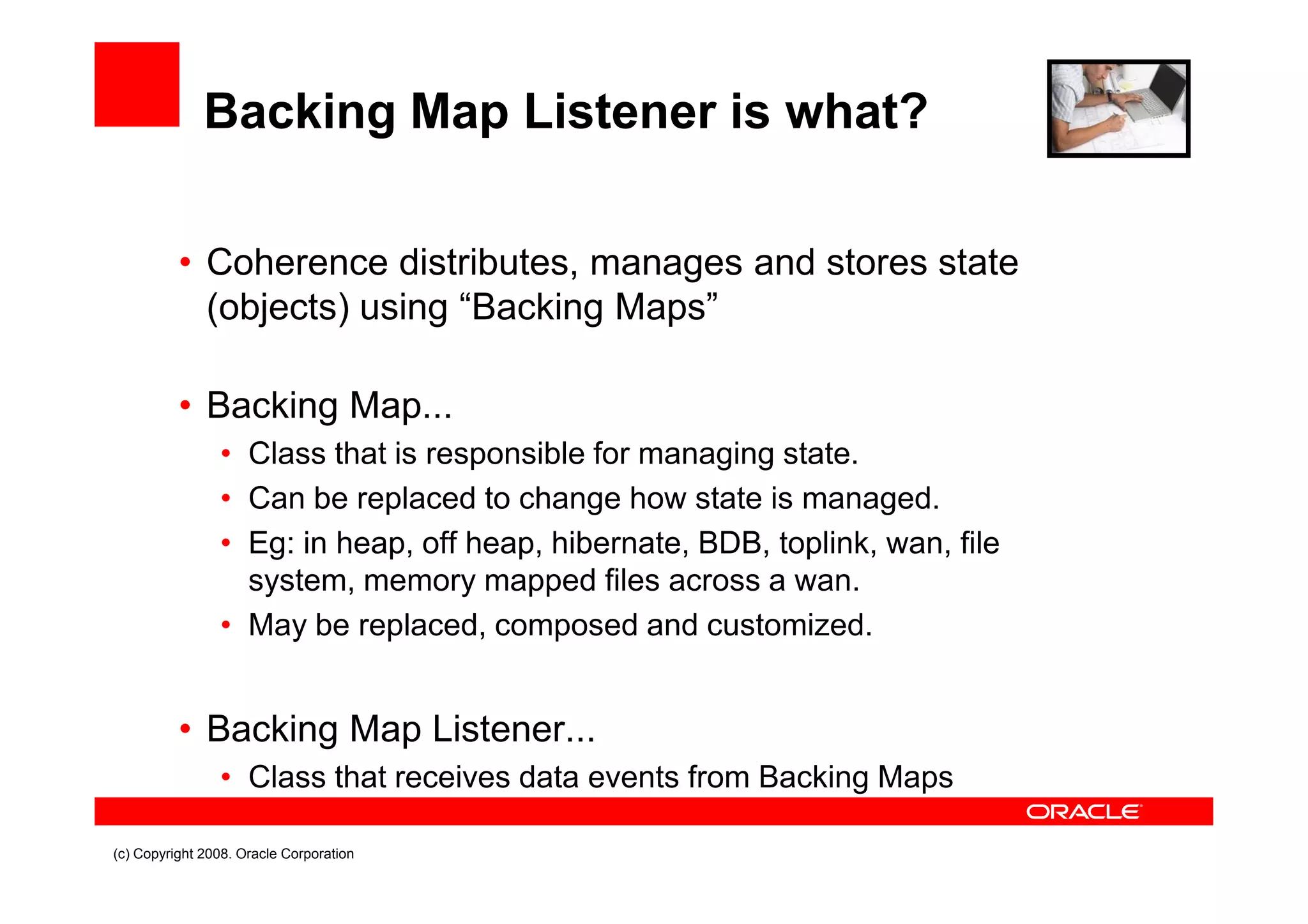

Backing Map Listener is what?

          • Coherence distributes, manages and stores state
            (objects) using “Ba...

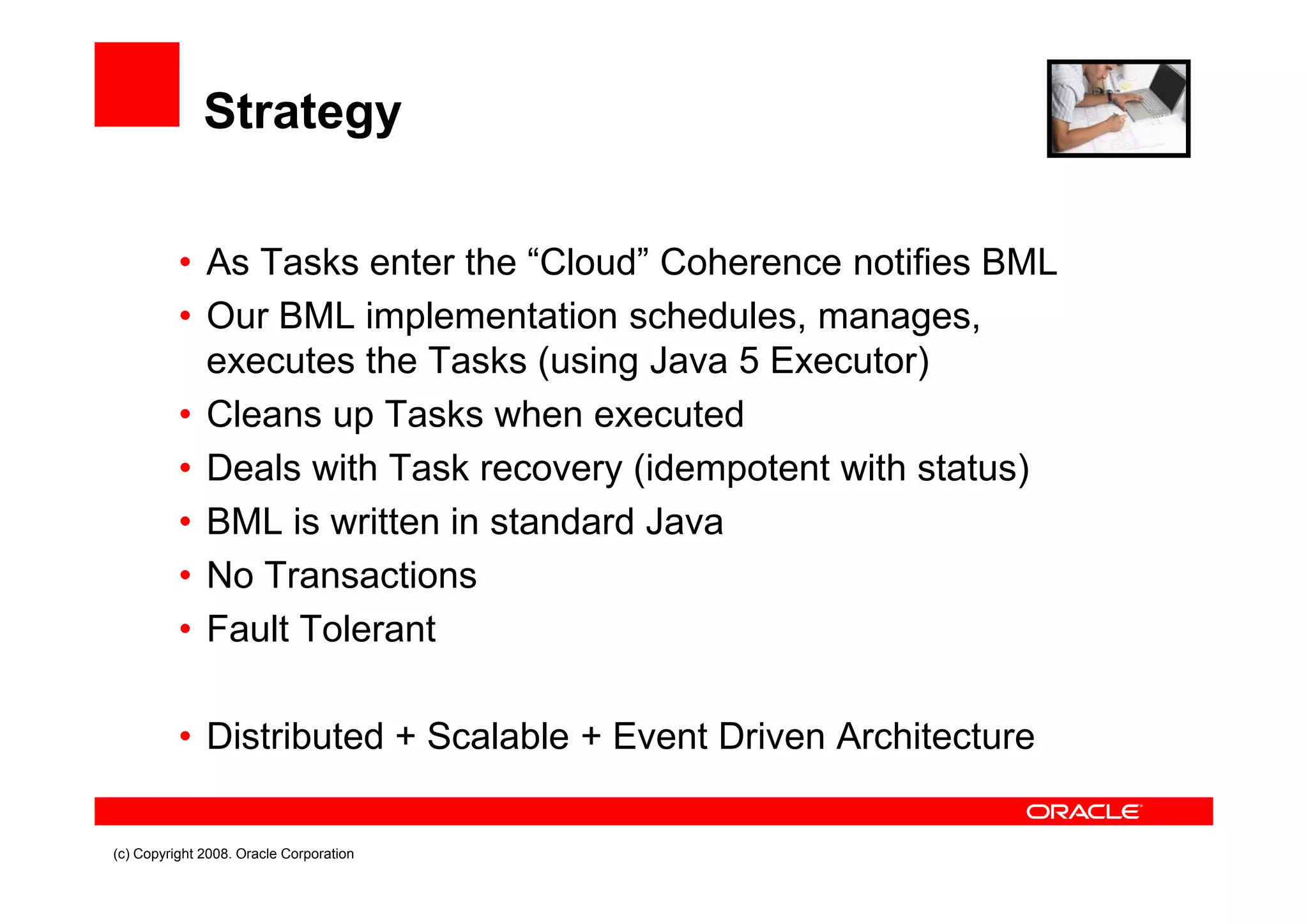

Strategy

          • As Tasks enter the “Cloud” Coherence notifies BML
          • Our BML implementation schedules, mana...

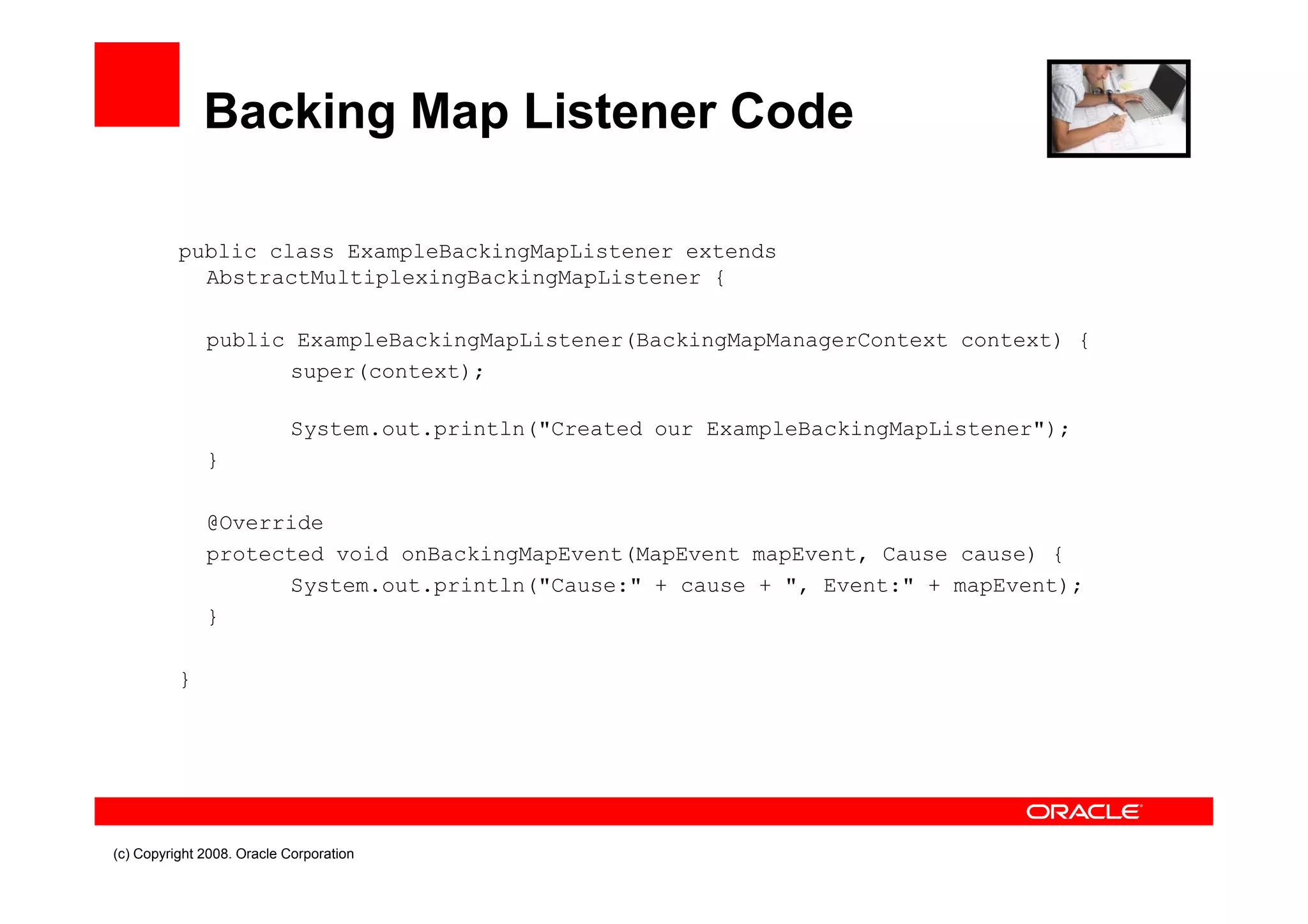

Backing Map Listener Code

          public class ExampleBackingMapListener extends
            AbstractMultiplexingBackin...
Backing Map Listener

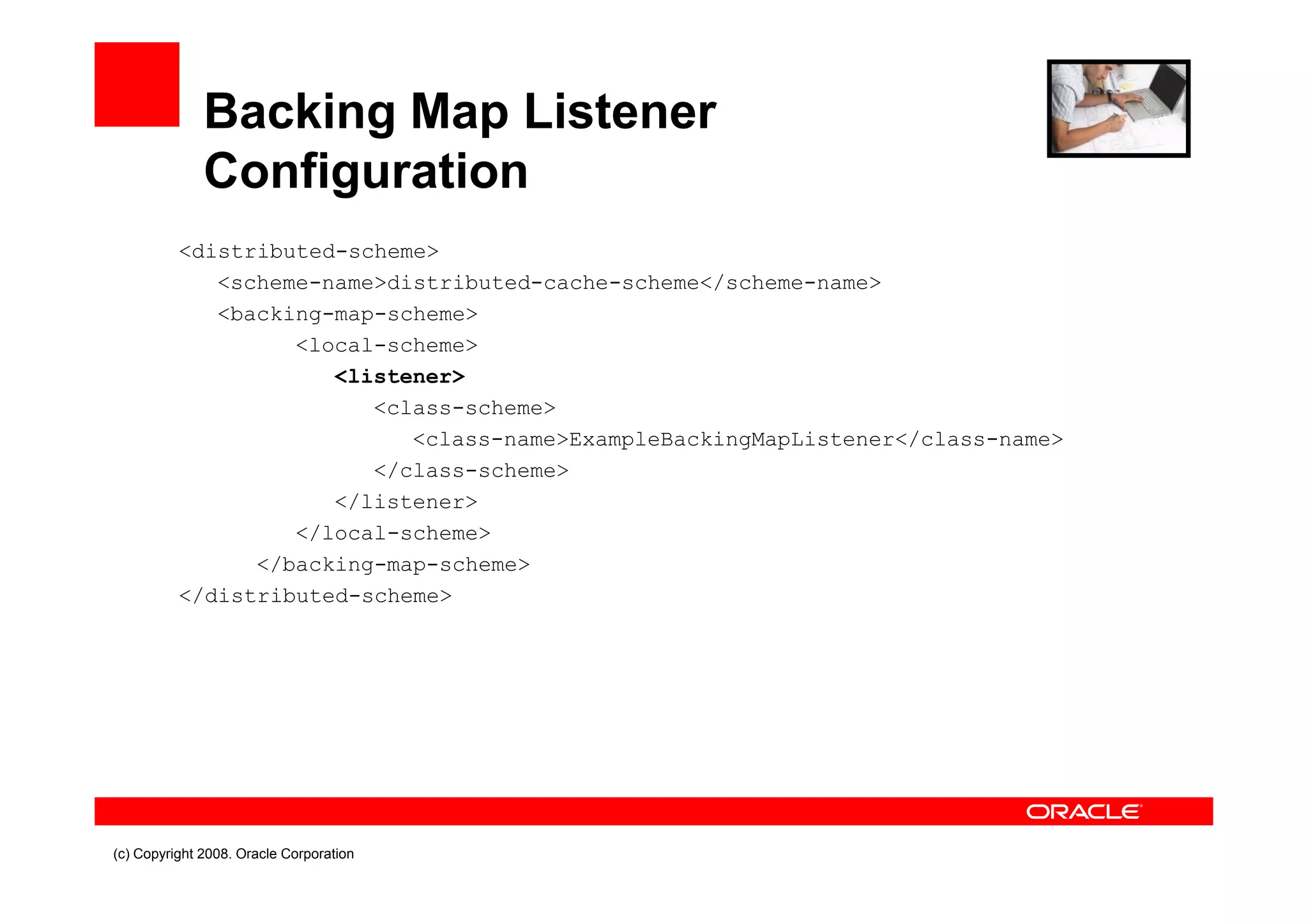

              Configuration
          <distributed-scheme>
             <scheme-name>distributed-cach...

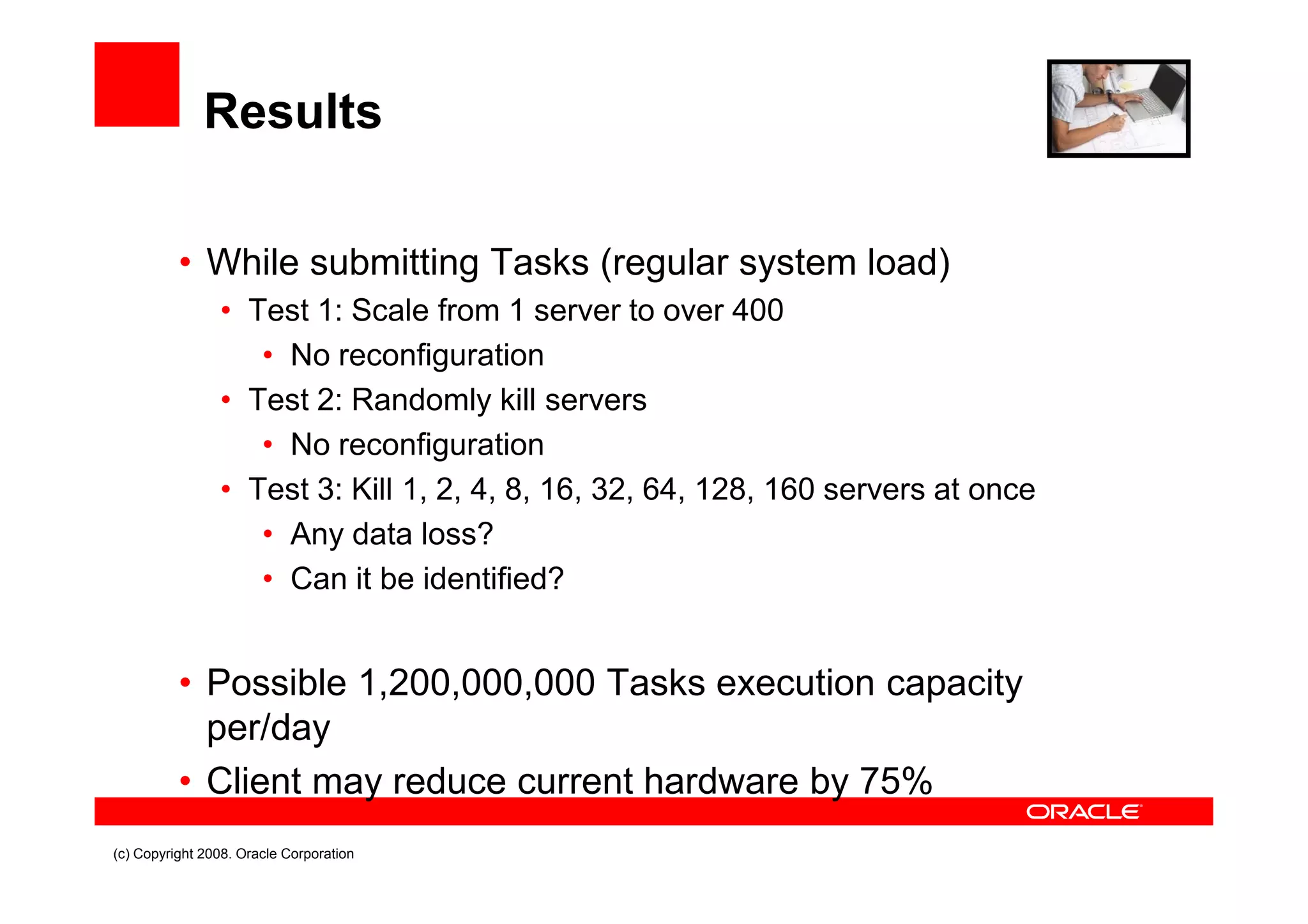

Results

          • While submitting Tasks (regular system load)
                • Test 1: Scale from 1 server to over 40...
Trading Exchange


(c) Copyright 2008. Oracle Corporation

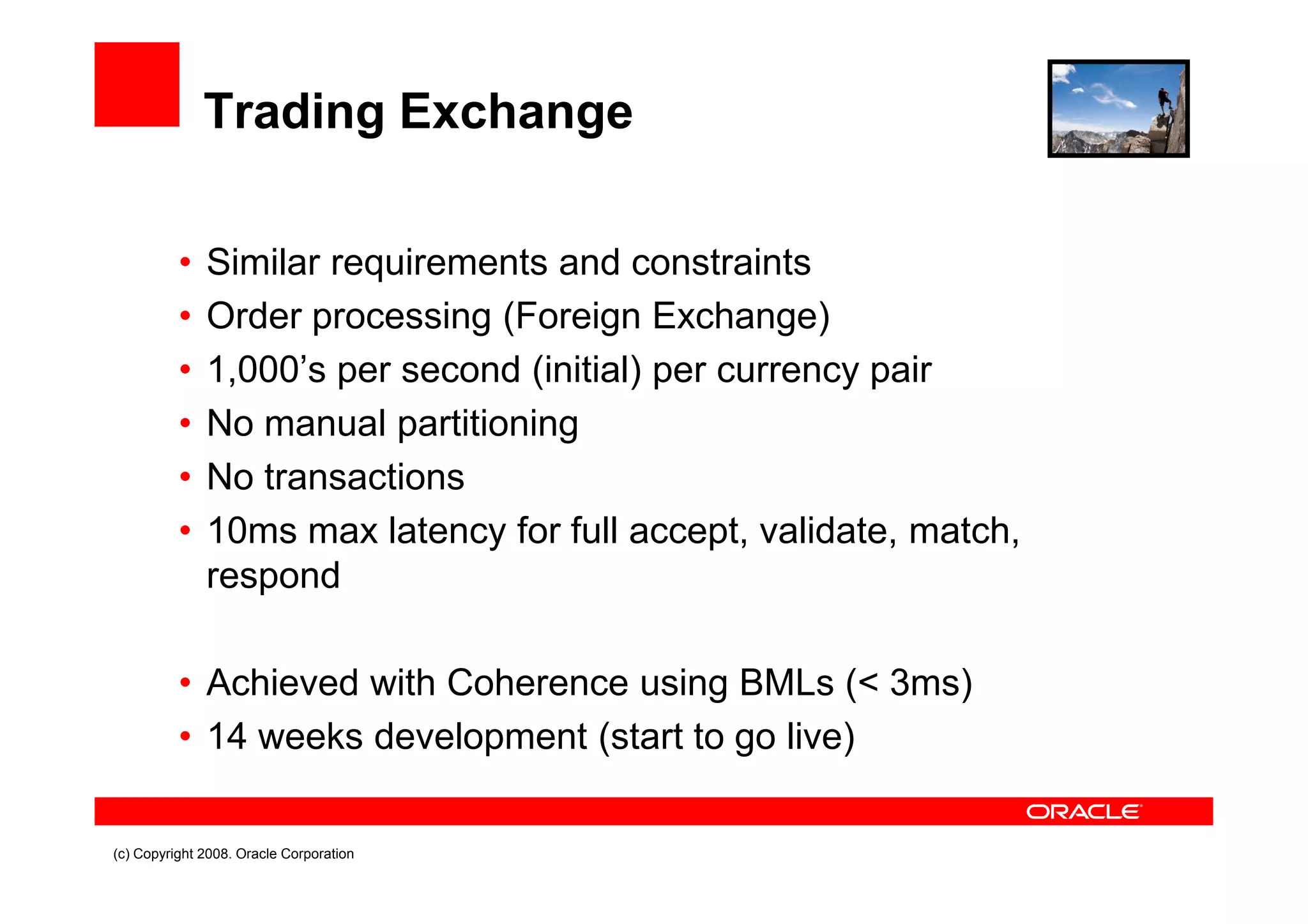

Trading Exchange

          •   Similar requirements and constraints
          •   Order processing (Foreign Exchange)
   ...

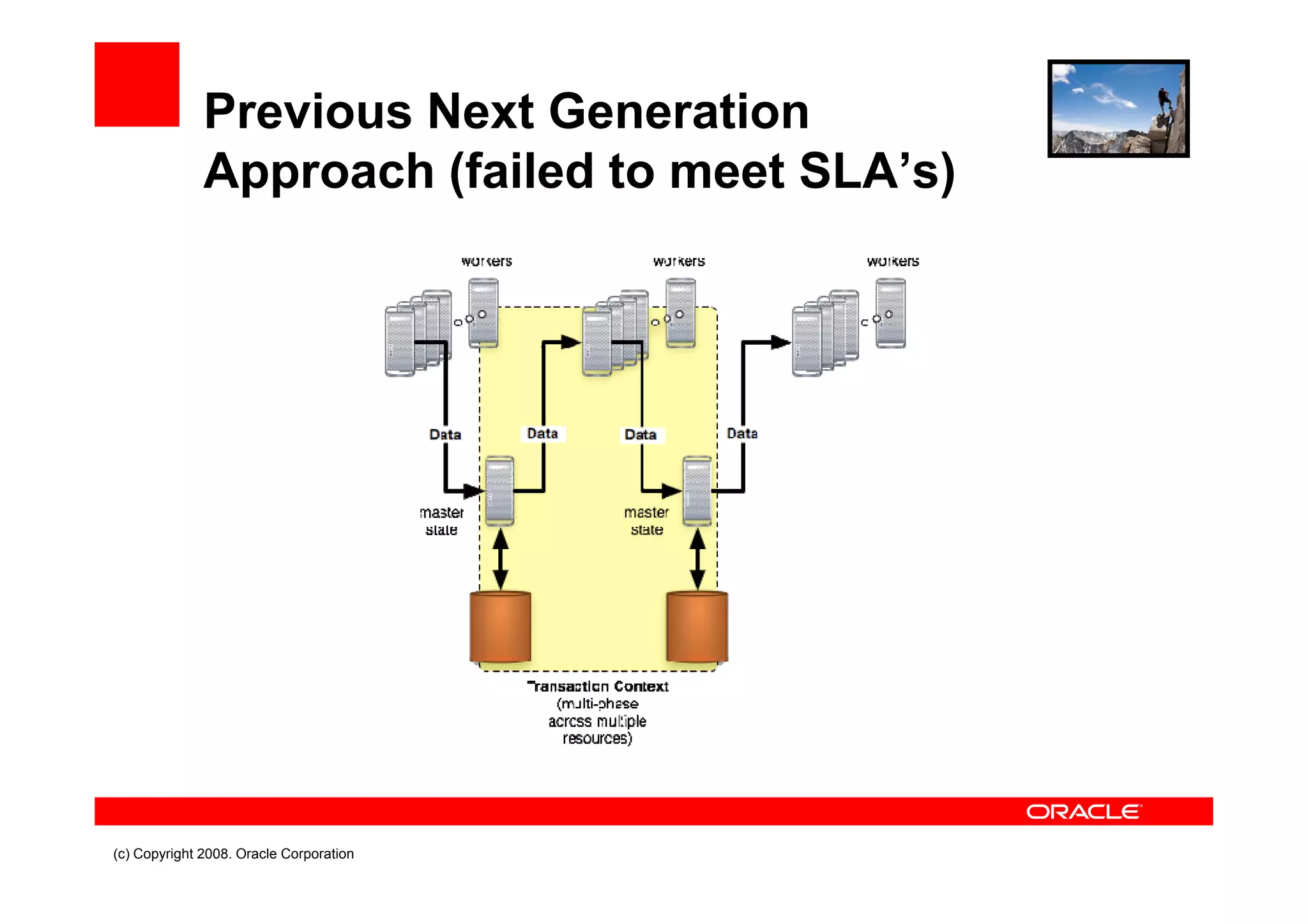

Previous Next Generation
              Approach (failed to meet SLA’s)




(c) Copyright 2008. Oracle Corporation

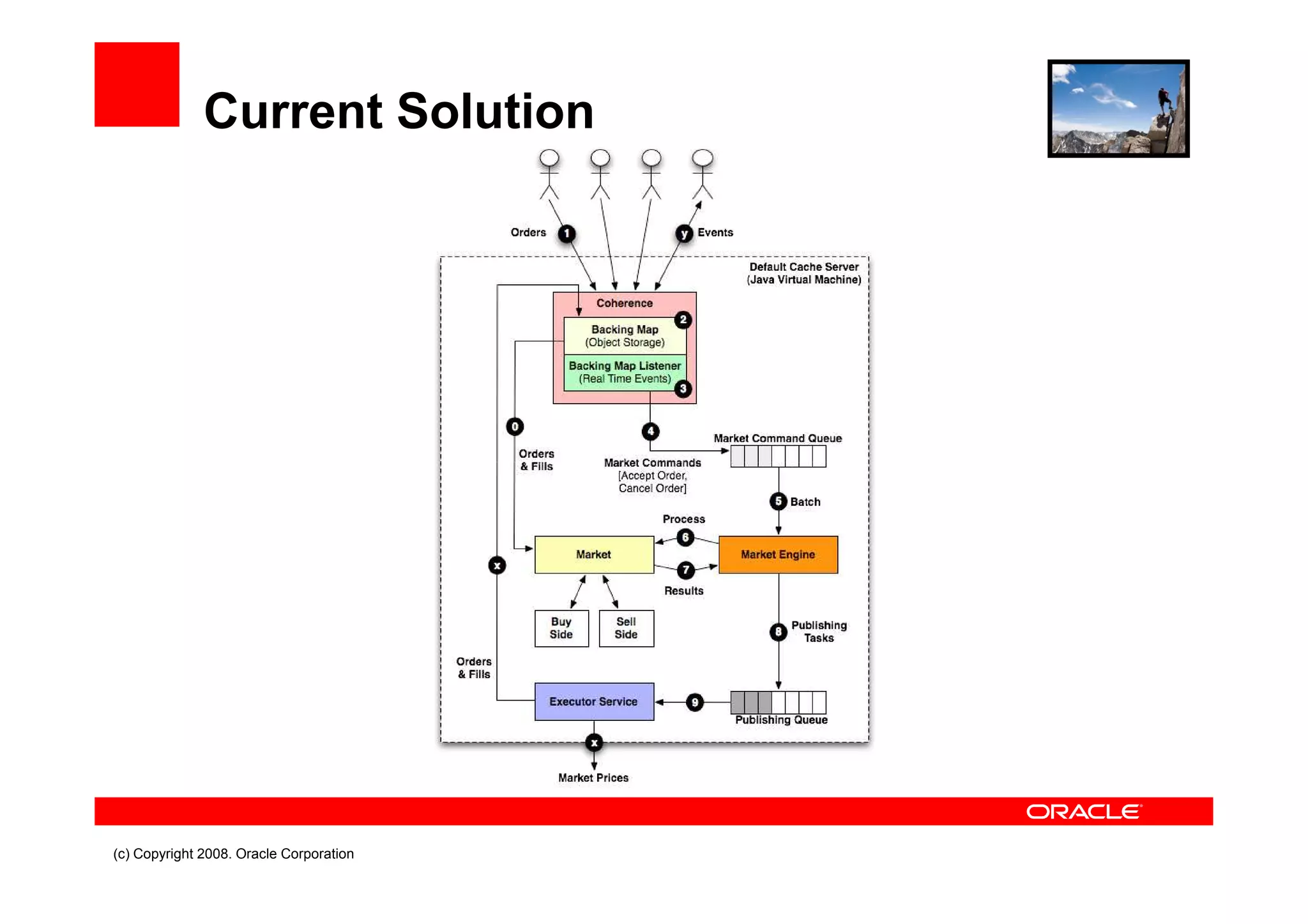

Current Solution




(c) Copyright 2008. Oracle Corporation
Pimp my Data Grid


(c) Copyright 2008. Oracle Corporation

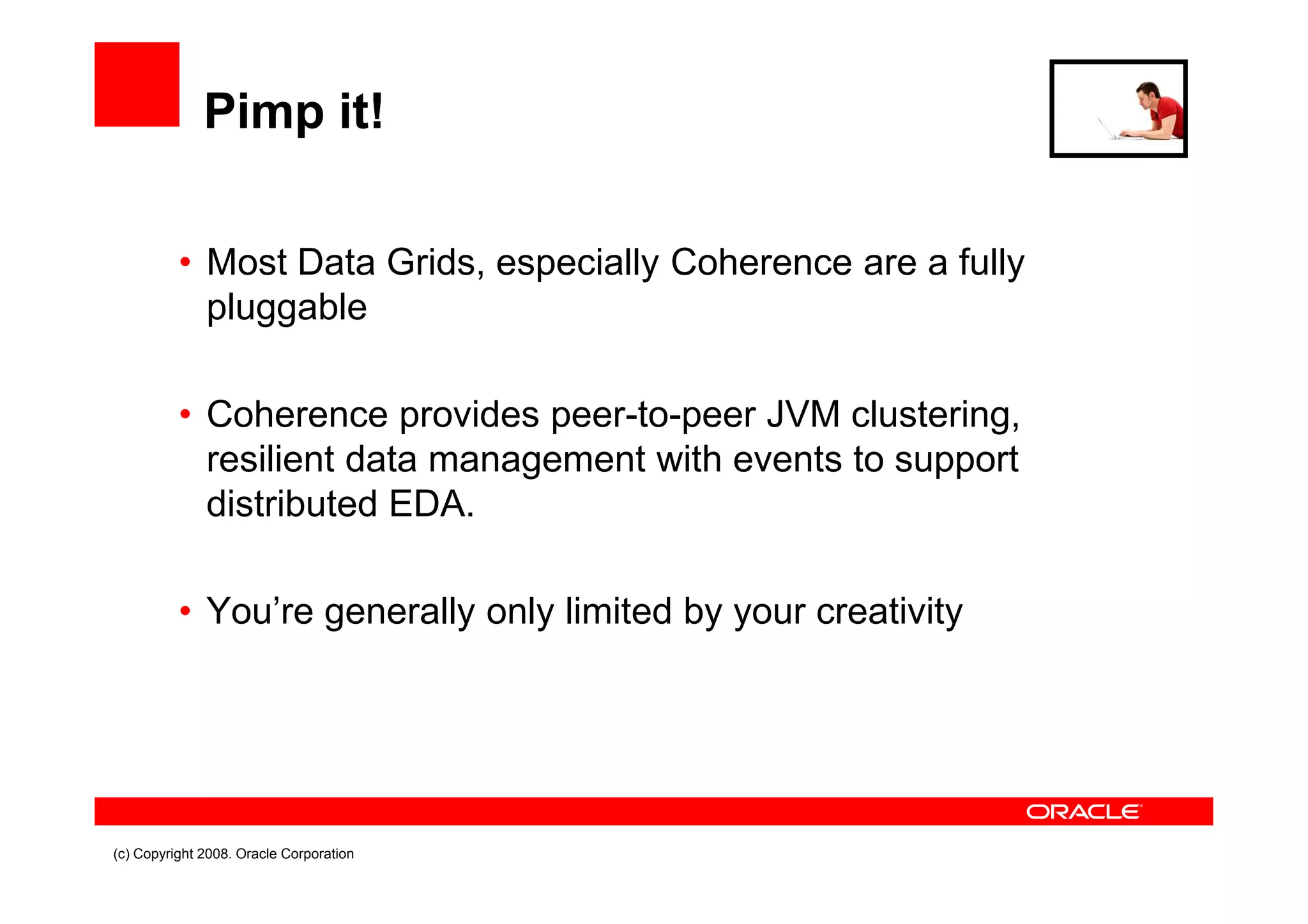

Pimp it!

          • Most Data Grids, especially Coherence are a fully
            pluggable

          • Coherence provi...

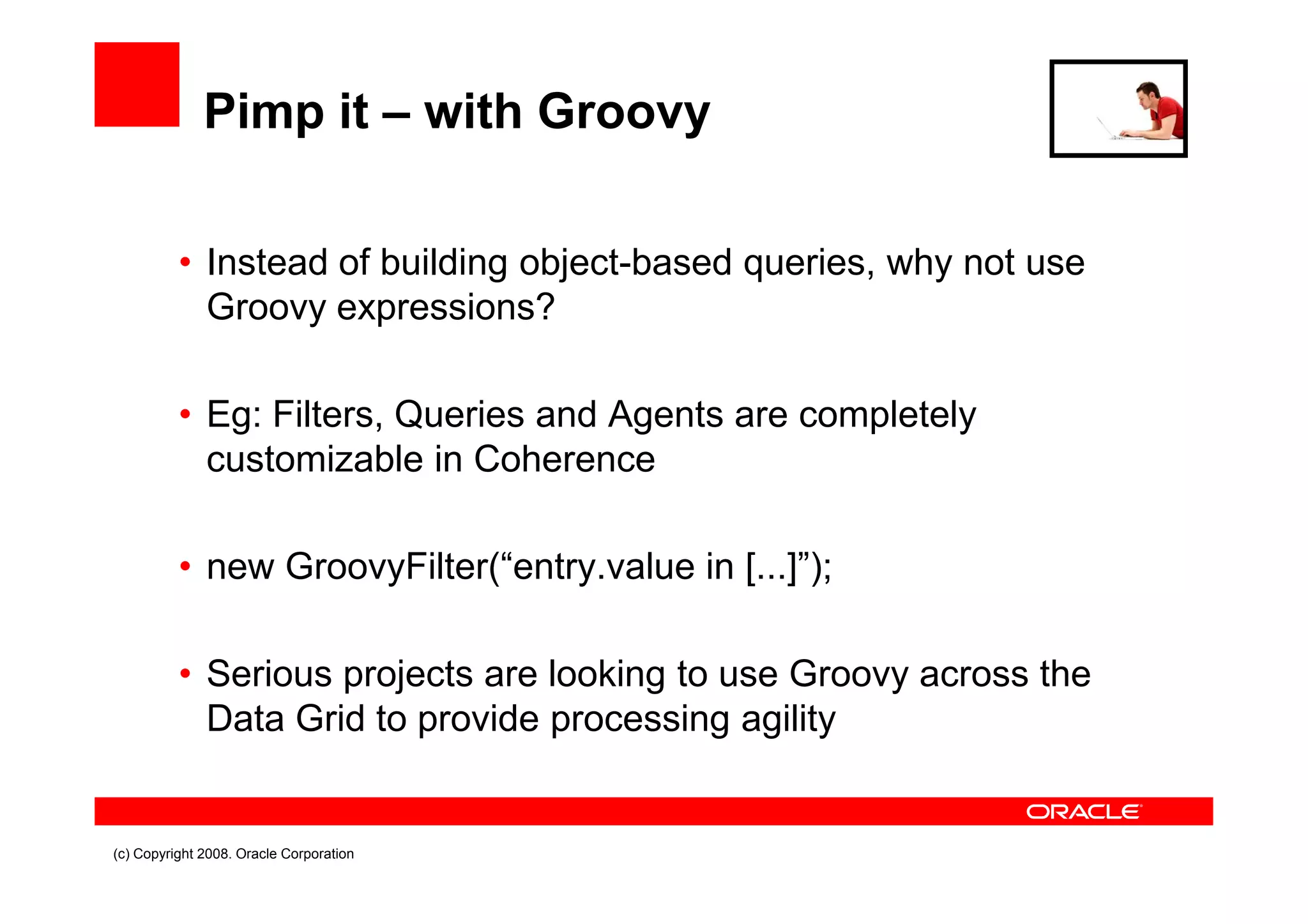

Pimp it – with Groovy

          • Instead of building object-based queries, why not use
            Groovy expressions?

...

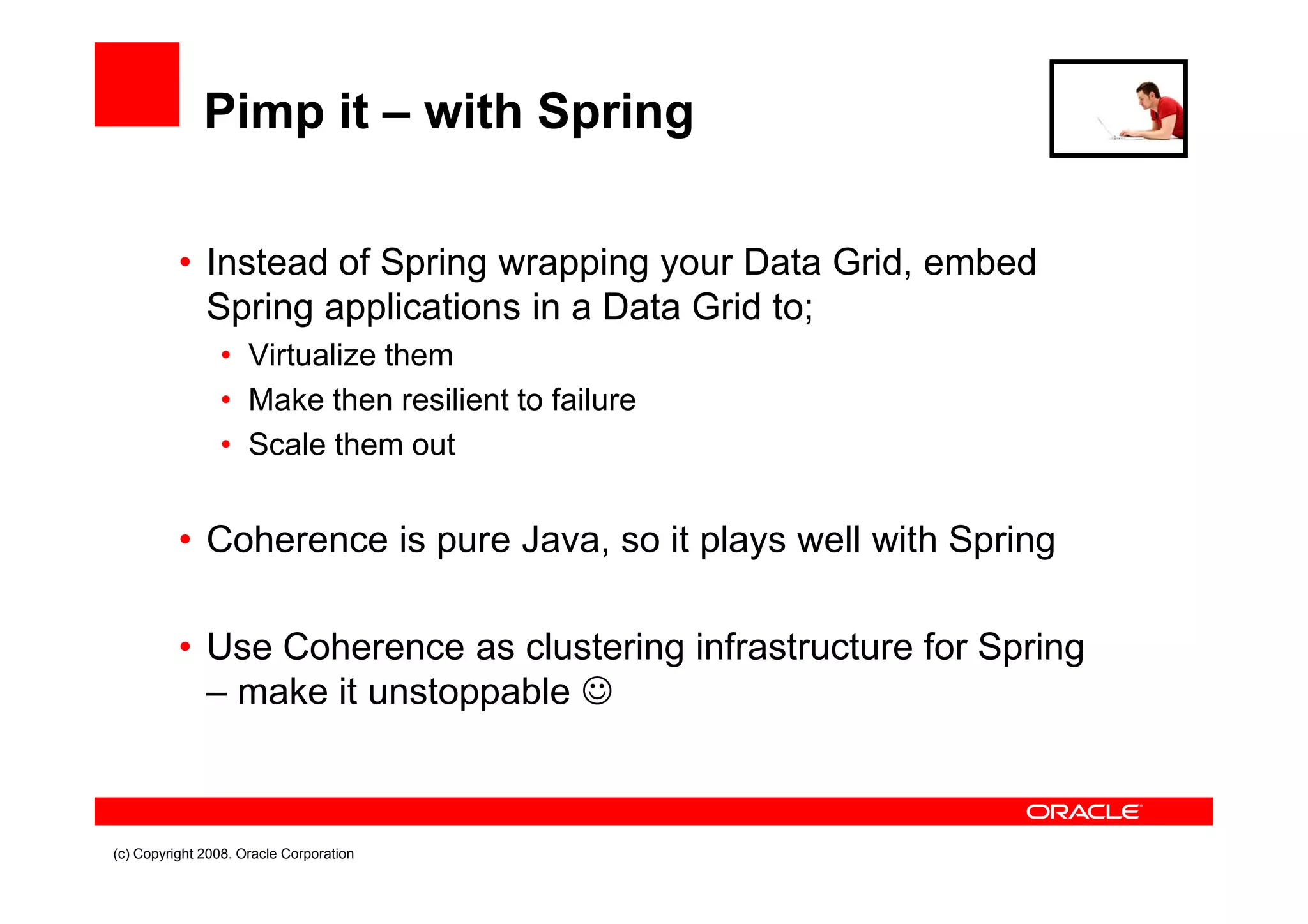

Pimp it – with Spring

          • Instead of Spring wrapping your Data Grid, embed
            Spring applications in a D...
Getting
          Oracle Coherence

(c) Copyright 2008. Oracle Corporation

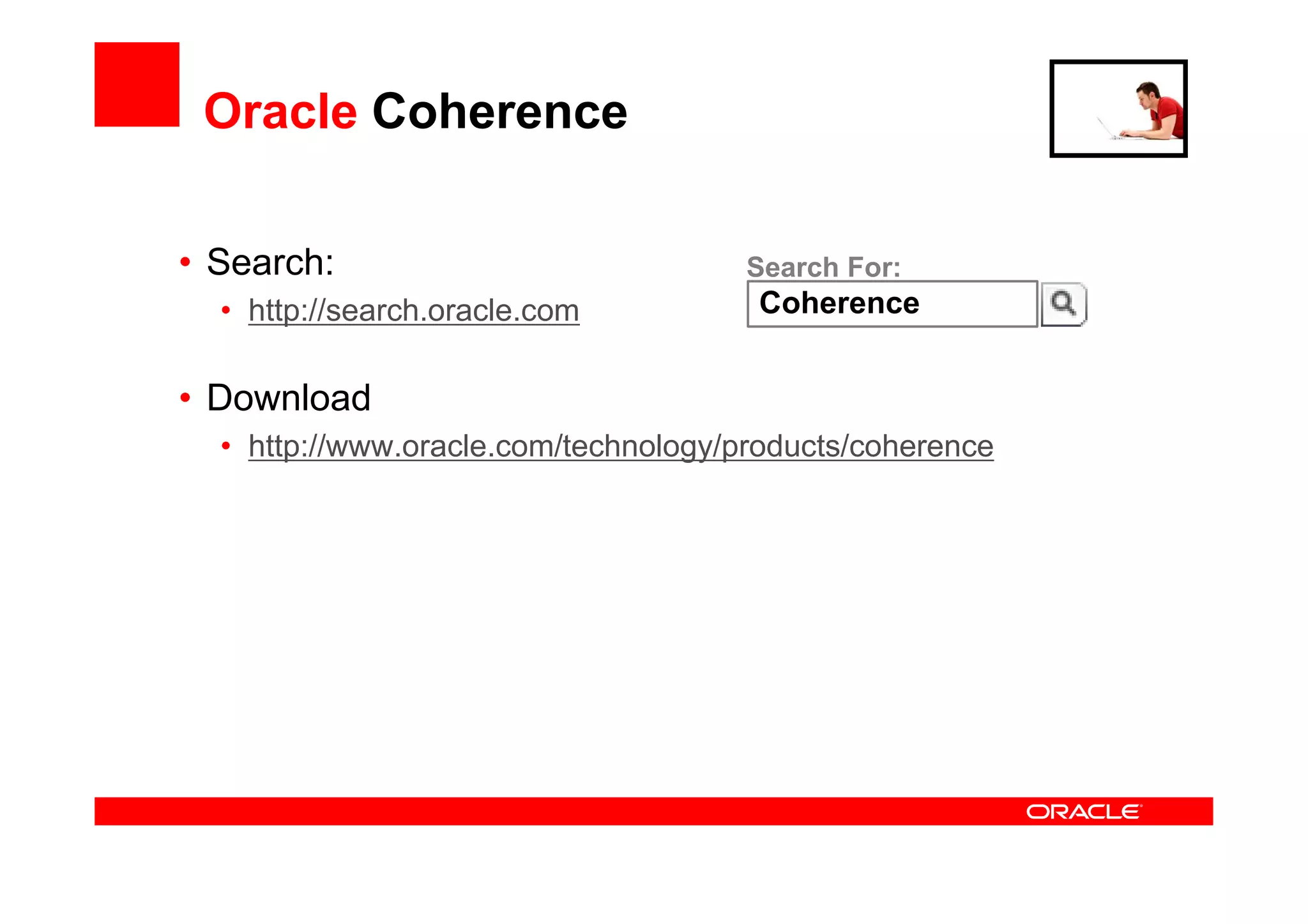

Oracle Coherence

• Search:                             Search For:
  • http://search.oracle.com          Coherence


• Do...
Thanks


(c) Copyright 2007. Oracle Corporation
Appendix


(c) Copyright 2008. Oracle Corporation

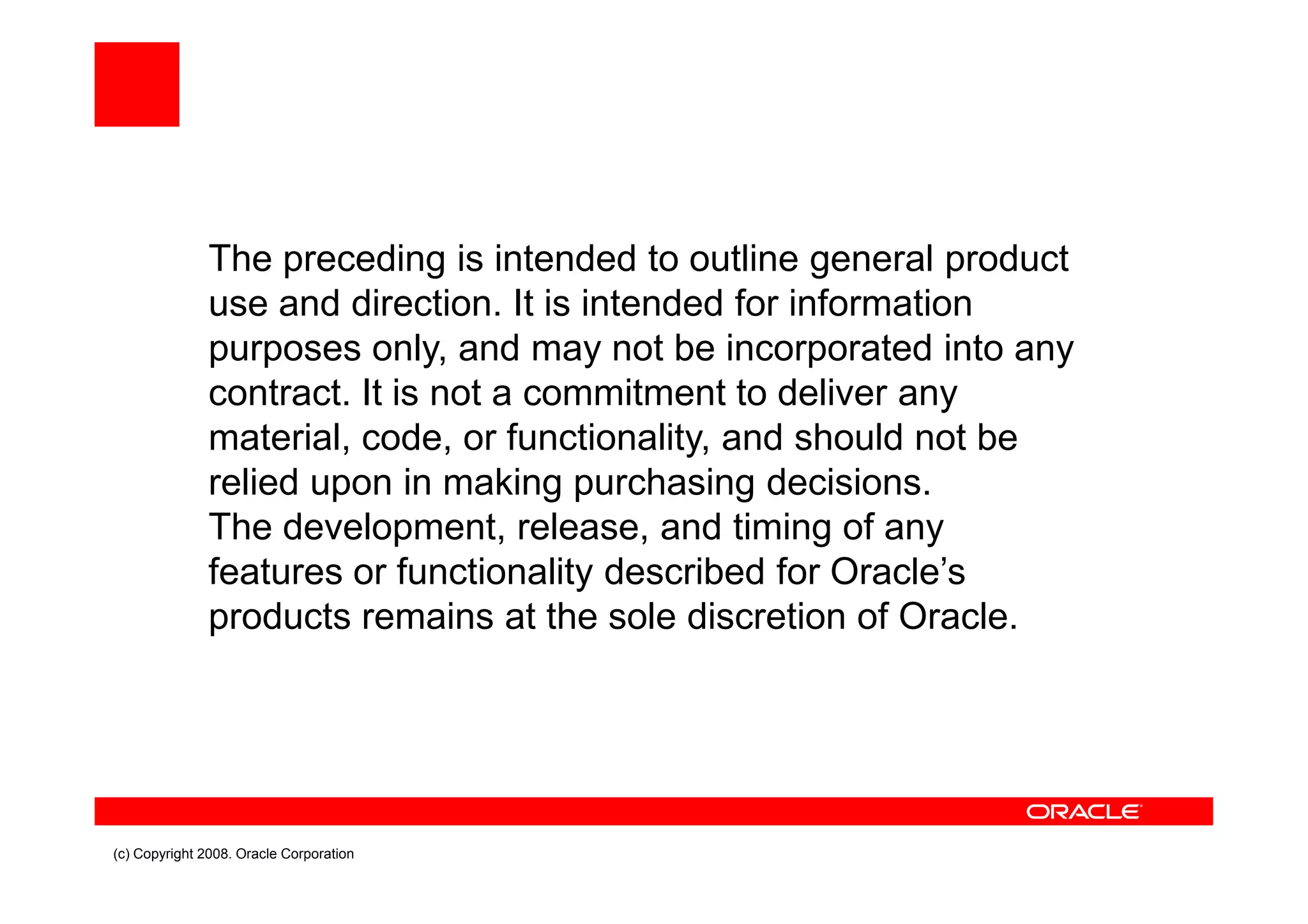

The preceding is intended to outline general product
              use and direction. It is intended for information
     ...
Brian Oliver  Pimp My Data Grid
Brian Oliver  Pimp My Data Grid
Brian Oliver  Pimp My Data Grid
