EclipseLink JPA
in GlassFish™
Doug Clarke
Director of Product Management
Oracle

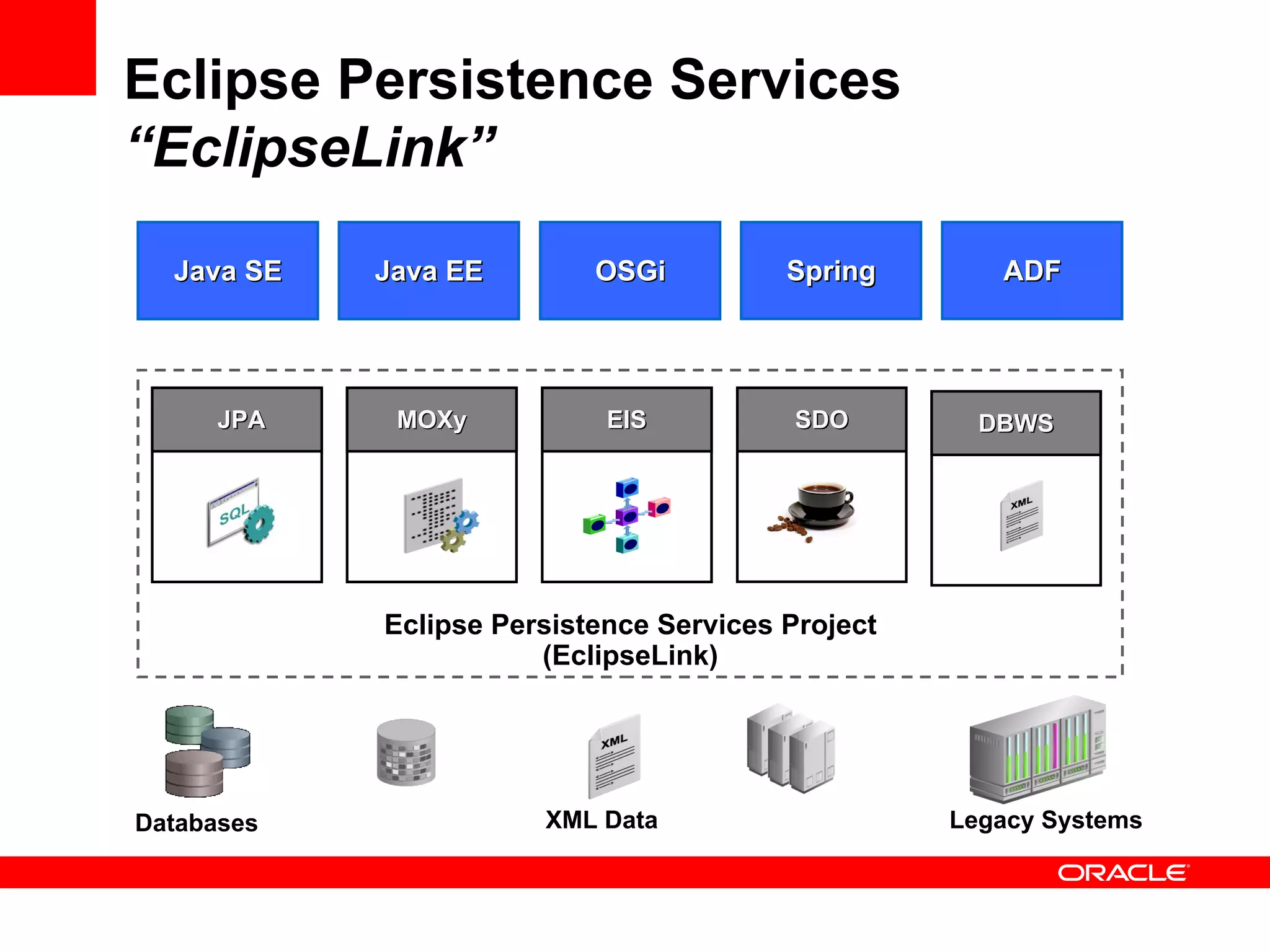

Eclipse Persistence Services
“EclipseLink”

  Java SE   Java EE        OSGi          Spring       ADF




      JPA    MOXy           EIS           SDO        DBWS




            Eclipse Persistence Services Project
                       (EclipseLink)




Databases              XML Data                    Legacy Systems
History of EclipseLink




                            TopLink
                           Essentials




1996                                    2008
Significance of EclipseLink

• First comprehensive open source persistence solution
   • Object-Relational and much more
• Based upon product with 12 years of commercial
  usage
• Shared infrastructure
  • Easily share the same domain model with multiple
    persistence technologies
  • Leverage metadata for multiple services
• Important part of the GlassFish and Eclipse
 Ecosystems
EclipseLink JPA

• JPA 1.0 compliant implementation
• Java EE, Java SE, Web, Spring, and OSGi
• Any JDBC/SQL compliant database
   • Advanced database extensions: stored procedures, native SQL, …
• Key infrastructure:
   •   Caching, Locking, Query Framework, Mapping, …
   •   JDBC connection pooling
   •   Diagnostics: Logging, Profiling
   •   DDL Generation
   •   Customization callbacks
• Highly Extensible
• … plus many valuable advanced features

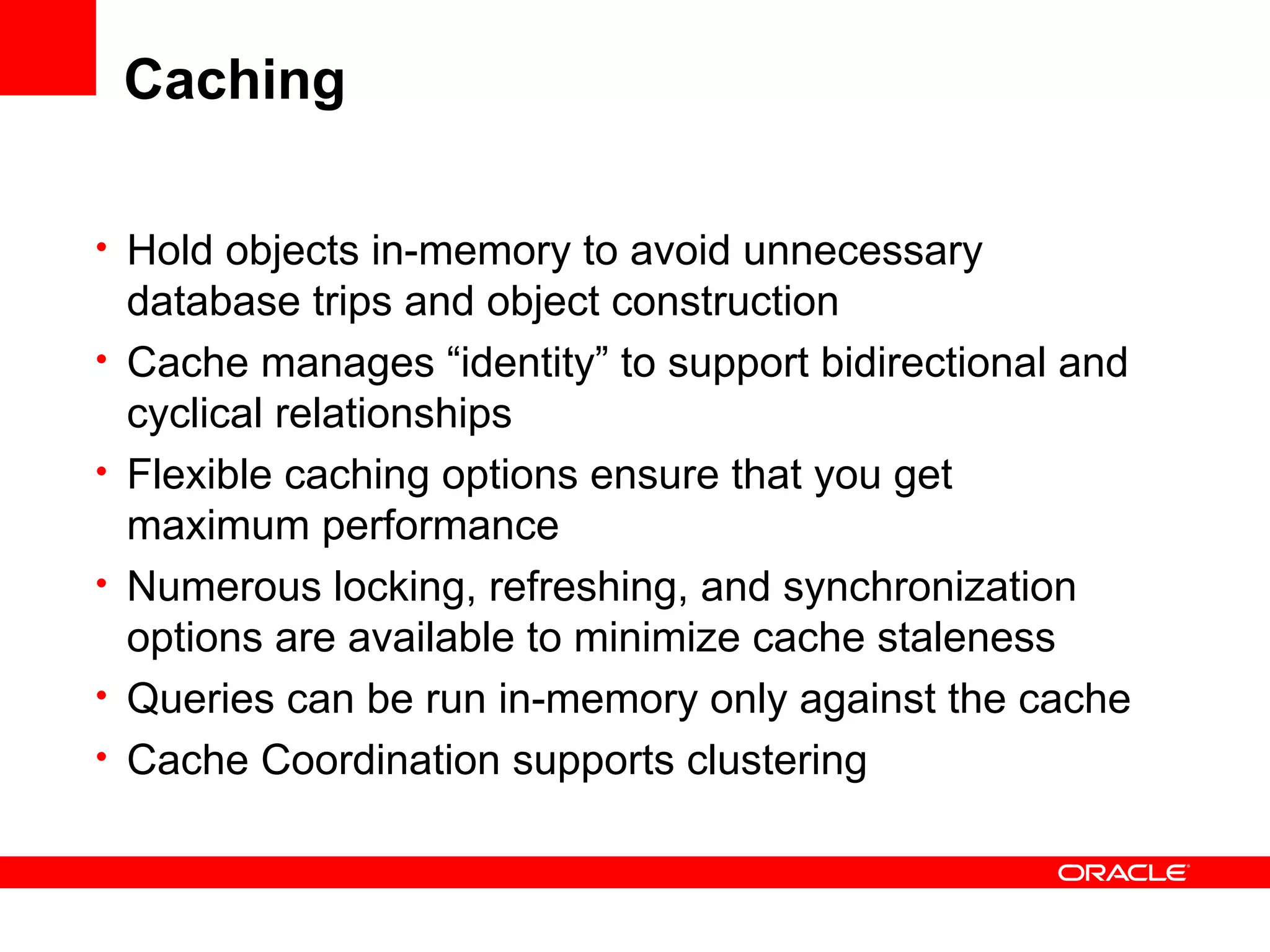

Caching

• Hold objects in-memory to avoid unnecessary
    database trips and object construction
•   Cache manages “identity” to support bidirectional and
    cyclical relationships
•   Flexible caching options ensure that you get
    maximum performance
•   Numerous locking, refreshing, and synchronization
    options are available to minimize cache staleness
•   Queries can be run in-memory only against the cache
•   Cache Coordination supports clustering
Cache Configuration

• Cache Shared (L2)/Isolated (L1 only)
   • Entity cache—not data cache
• <property
      name=“eclipselink.cache.shared.default“
      value=quot;truequot;/>
• Cache Type & Size
   • Soft/Hard Weak       @Cache(type = CacheType.HARD_WEAK,
                                 size = 500,
   • Weak                        isolated = true,
   • Full                        coordinationType =
   • None                        INVALIDATE_CHANGED_OBJECTS)
• <property
      name=“eclipselink.cache.type.default“
      value=quot;Fullquot;/>
EclipseLink JPA Caching




EntityManager   EntityManagerFactory

  L1 Cache            L2 Cache
                      (Shared )

                                       Cache Coordination
Minimize stale cache

• Configure the cache relative to application data’s
 usage
  • Is the data shared between users/processes?
  • Is the data volatile?
     • Only through JPA application?
     • Through direct DB modification?
• Ensure you protect any data that can be concurrently
 modified with a locking strategy
  • Must handle optimistic lock failures on flush/commit
• Use query refreshing to minimize optimistic lock
 failures
Leveraging the Shared Cache: Reading
        Client-1                                Client-2
           1                                      5

    EntityManager-1                   EntityManager-2

L1 Cache                       L1 Cache



           2                                      6
                                                           3
EntityManagerFactory
L2 Cache                Connection Pool                    7
                                   Connection
                                 Connection
                       4 8      Connection
                               Connection
                             Connection
Leveraging the Shared Cache: Writing
                                              Client-2
                                                1

                                    EntityManager-2

                             L1 Cache




                                                2

EntityManagerFactory                                     3
L2 Cache               Connection Pool
                                 Connection
                       4       Connection
                              Connection
                             Connection
                           Connection
Leveraging the Shared Cache: Writing




EntityManagerFactory
L2 Cache               Connection Pool
                               Connection
                             Connection
                            Connection
                           Connection
                         Connection
Advanced Mappings

• @Converter
• @BasicMap and @BasicCollection
• Mapping to database structures
  • @StructConverter – Structs, ADTs
  • XML types, PL/SQL Records
• Mapping features
  • Private Owned
  • Join/Batch Fetch
  • Returning
Advanced Mapping Example


@Entity
@Cache(type=SOFT_WEAK, coordinationType=SEND_OBJECT_CHANGES)
@Converter(name=“money”, converterClass=MoneyConverter.class)
@OptimisticLocking(type=CHANGED_COLUMNS)
public class Employee {
  @Id
  private int id;

    private String name;

    @OneToMany(mappedBy=“owner”)
    private List<PhoneNumbers> phones;
    @Convert(“money”)
    private Money salary
    …
}
Advanced Querying

• Support for supplying customizing queries
   • Native SQL
   • @NamedStoredProcQuery
• Graph Loading Optimizations
  • Join and Batch Fetch – multi-level
• Cache Usage: In-memory
• Result caching

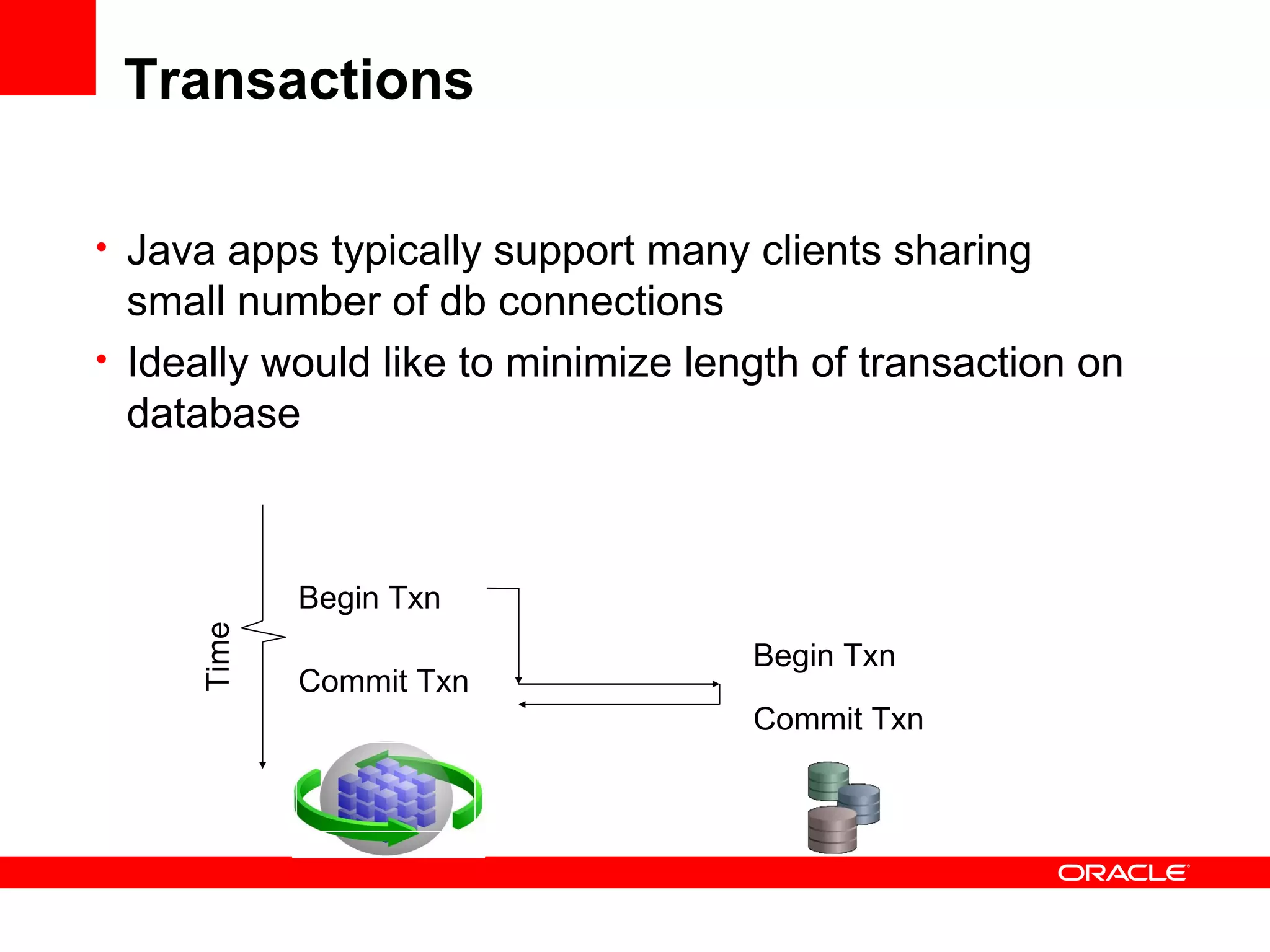

Transactions

• Java apps typically support many clients sharing
  small number of db connections
• Ideally would like to minimize length of transaction on
  database



            Begin Txn
     Time




                                    Begin Txn
            Commit Txn
                                    Commit Txn
Transaction Features

• Minimizes database interactions
  • Only the minimal updates are sent to the database
• Respect database integrity
   • Orders INSERT, UPDATE and DELETE statements
• JTA and RESOURCE_LOCAL support
• Attribute-level change tracking
• EntityManager flush SQL prior to commit
• Bulk Update and Delete
   • Cached entities effected
Concurrency Protection - Locking

• Optimistic concurrency included in JPA 1.0, but no
  support for pessimistic locking is specified
• EclipseLink has advanced optimistic locking
  strategies
  • Numeric, Timestamp, All fields, Selected fields, Changed field
• EntityManager lock() method can be used with
  optimistic locking, and error handling
• EclipseLink supports pessimistic locking through
  query hints

   query.setHint(PESSIMISTIC_LOCK, LockNoWait);
Weaving

• EclipseLink makes use of Weaving (ASM) to
 introduce additional functionality into the JPA entity
 classes
  • Needed for M:1 and 1:1 lazy fetching
  • Integrated with Java EE compliant App Servers and Spring
    2.0
  • Available for Java SE using JDK/JRE’s –javaagent:
  • Optional
  • Static weaving also supported
     • Weaving of .class files before deployment
JPA Configuration Options

• Annotations
   • JPA
   • EclipseLink
• ORM.XML
  • JPA
  • EclipseLink
  • JPA + EclipseLink
• Defaults – Configuration by Exception
Database Platform

XML:
<properties>
<property
     name=“eclipselink.target-databasequot;
      value=quot;Derbyquot;/>
</properties>

API:
 properties.put(
  EclipseLinkProperties.TARGET_DATABASE,
  TargetDatabase.ORACLE);
Target Database Platform

• TargetDatabase (org.eclipse.persistence.jpa.config)
   • Auto (Default)
   • Oracle, Oracle8i, Oracle9i, Oracle10g, Oracle11, TimesTen
   • DB2, DB2Mainframe
   • Derby, JavaDB, MySQL
   • Informix
   • HSQL, PointBase
   • PostgreSQL
   • SQLAnyWhere
   • SQLServer, DBase
   • Sybase
Server Platform

• Enables simplified configuration of the target
  application server
• Used to enable integration with:
  • JTA transaction manager
  • Logging
  • JDBC connection un-wrapping

• <property name=“eclipselink.target-serverquot;
   value=“SunAS9quot;/>
Target Server Options

• TargetServer (org.eclipse.persistence.jpa.config)
   • None (Default)
   • OC4J, OC4J_10_1_3, OC4J_11_1_1
   • SunAS9
   • WebSphere
   • WebSphere_6_1
   • WebLogic, WebLogic_9, WebLogic_10
   • JBoss
JDBC Connection Settings

<properties>
...
<property name=“eclipselink.jdbc.driver”
  value=“oracle.jdbc.Driver”/>

<property name=“eclipselink.jdbc.url”
  value=“jdbc:oracle:thin:@localhost:1521:XE”/>

<property name=“eclipselink.jdbc.user” value=“scott”/>

<property name=“eclipselink.jdbc.password”
  value=“tiger”/>
Logging

<properties>
  ...

 <property
     name=“eclipselink.logging.levelquot;
     value=quot;FINEquot;/>
 ...

</properties>
DDL Generation

• Standard enables it but does not currently dictate that
  providers support it
• Mapping metadata specifies how DDL should be
  generated
• Vendors may offer differing levels of support,
  including:
  • Generating DDL to a file only
  • Generating and executing DDL in DB
  • Dropping existing tables before creating new ones
DDL Generation

<properties>
  ...
  <property
      name=“eclipselink.ddl-generationquot;
      value=quot;create-tablesquot;/>
  ...
</properties>

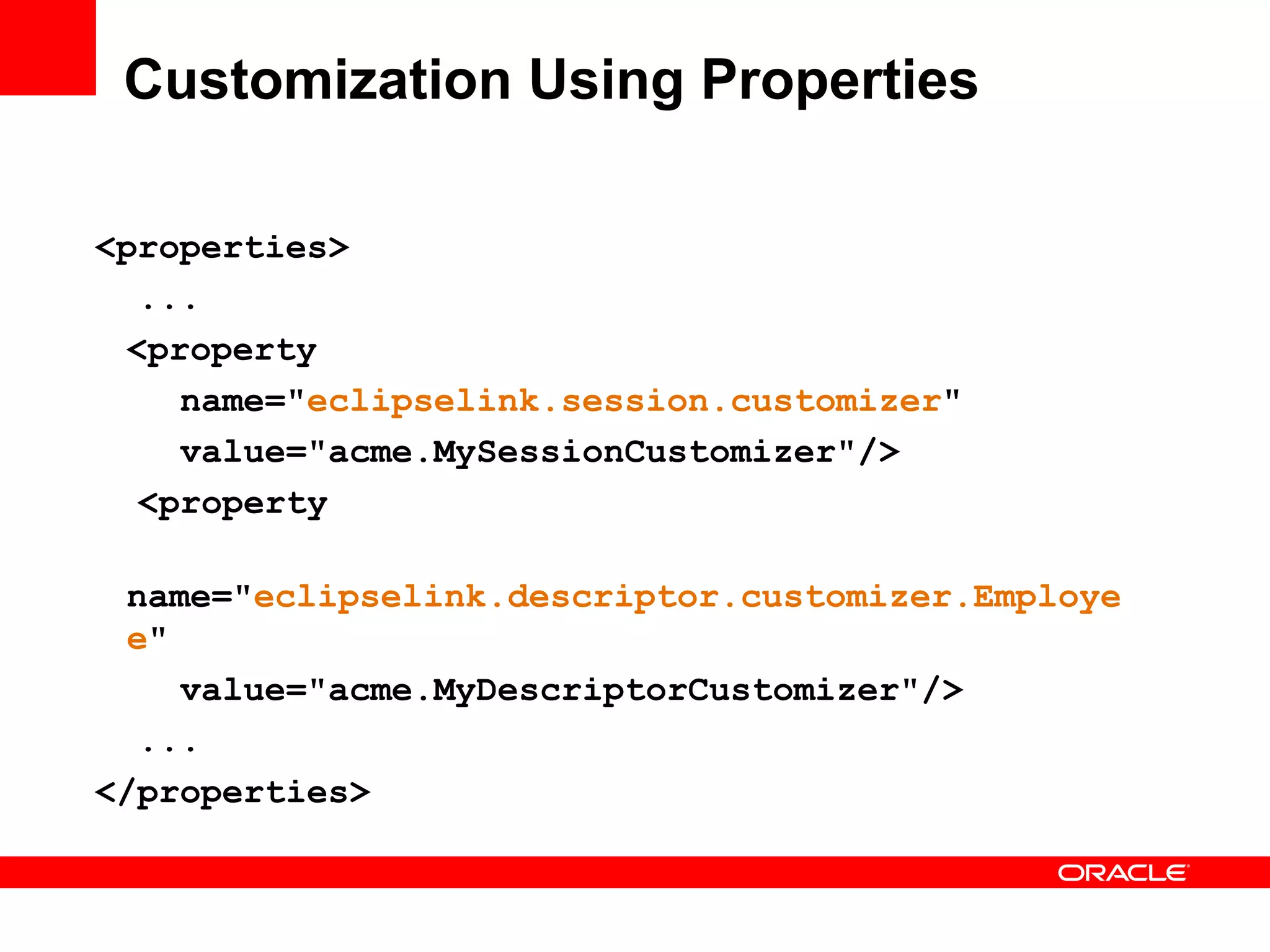

Customization Using Properties

<properties>
  ...
 <property
    name=quot;eclipselink.session.customizerquot;
    value=quot;acme.MySessionCustomizerquot;/>
  <property

 name=quot;eclipselink.descriptor.customizer.Employe
 equot;
    value=quot;acme.MyDescriptorCustomizerquot;/>
  ...
</properties>
Descriptor & Session Customizers


public class MySessionCustomizer
                implements SessionCustomizer {

    public void customize(Session session) {
       session.setProfiler(new PerformanceProfiler());
    }
}

public class MyDescriptorCustomizer
                implements DescriptorCustomizer {

    public void customize(ClassDescriptor desc) {
      desc.disableCacheHits();
    }
}
Performance and Tuning

• Highly configurable and tunable
   • Guiding principle – minimize and optimize database
     interactions
   • No two applications are the same, EclipseLink allows for
     decisions on what specific behavior needs to be configurable
     depending on situation
• Flexibility of EclipseLink allows efficient business
  models and relational schemas to be used
• Leverages underlying performance tuning features
  •   Java, JDBC and the underlying database technology
  •   Batch Writing
  •   Parameter Binding
  •   Statement Caching

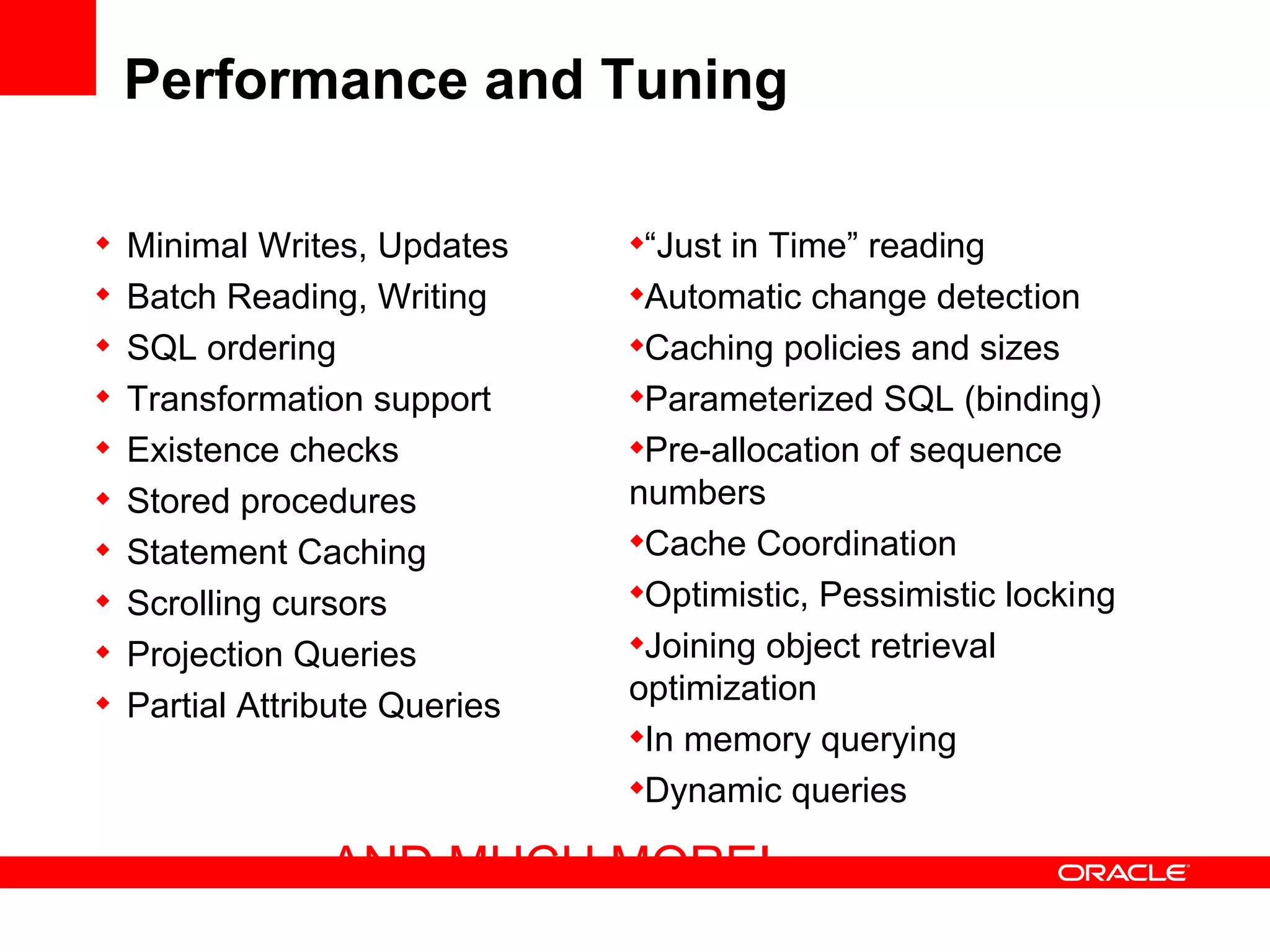

Performance and Tuning


    Minimal Writes, Updates     
                                 “Just in Time” reading

    Batch Reading, Writing      
                                 Automatic change detection

    SQL ordering                
                                 Caching policies and sizes

    Transformation support      
                                 Parameterized SQL (binding)

    Existence checks            
                                 Pre-allocation of sequence

    Stored procedures           numbers

    Statement Caching           
                                 Cache Coordination

    Scrolling cursors           
                                 Optimistic, Pessimistic locking

    Projection Queries          
                                 Joining object retrieval

    Partial Attribute Queries   optimization
                                
                                 In memory querying
                                
                                 Dynamic queries

                 AND MUCH MORE!
EclipseLink Status

• Incubating Technology Project
  •   Initial contribution of Oracle TopLink complete
  •   Full documentation available on Wiki
  •   Producing Monthly Milestone builds
  •   Milestones included in GlassFish V3 Milestones
• 1.0 release planned for July 2008
  • JPA 1.0, SDO 2.1, JAXB
  • Simplified XML and annotation config of advanced features
  • Packaged for Java SE/EE and OSGi bundles
• Beyond 1.0
  •   JPA 2.0 (Reference Implementation)
  •   Database Web Services
  •   Data Access Service (DAS) 1.0
  •   and much more …
Getting Started with EclipseLink JPA


• EclipseLink Project
 http://www.eclipse.org/eclipselink
 Eclipse newsgroup: eclipse.technology.eclipselink

• GlassFish V3
 https://glassfish.dev.java.net/

• Open Source JPA Tools
  • NetBeans—http://www.netbeans.org

  • Dali JPA Tools—http://www.eclipse.org/dali
Orcale Presentation

More Related Content

What's hot

GlassFish REST Administration Backend
GlassFish REST Administration BackendGlassFish REST Administration Backend
GlassFish REST Administration BackendArun Gupta

AAI 1713-Introduction to Java EE 7
AAI 1713-Introduction to Java EE 7AAI 1713-Introduction to Java EE 7
AAI 1713-Introduction to Java EE 7Kevin Sutter

Weblogic server administration
Weblogic server administrationWeblogic server administration
Weblogic server administrationbispsolutions

Lecture 2: Servlets
Lecture 2:  ServletsLecture 2:  Servlets
Lecture 2: ServletsFahad Golra

Weblogic 11g admin basic with screencast
Weblogic 11g admin basic with screencastWeblogic 11g admin basic with screencast
Weblogic 11g admin basic with screencastRajiv Gupta

Weblogic Server
Weblogic ServerWeblogic Server
Weblogic Serveracsvianabr

Shopzilla On Concurrency
Shopzilla On ConcurrencyShopzilla On Concurrency
Shopzilla On ConcurrencyRodney Barlow

The Java EE 7 Platform: Productivity++ & Embracing HTML5
The Java EE 7 Platform: Productivity++ & Embracing HTML5The Java EE 7 Platform: Productivity++ & Embracing HTML5
The Java EE 7 Platform: Productivity++ & Embracing HTML5Arun Gupta

JPA and Coherence with TopLink Grid
JPA and Coherence with TopLink GridJPA and Coherence with TopLink Grid
JPA and Coherence with TopLink GridJames Bayer

Running your Java EE 6 applications in the Cloud
Running your Java EE 6 applications in the CloudRunning your Java EE 6 applications in the Cloud
Running your Java EE 6 applications in the CloudArun Gupta

The Java EE 7 Platform: Productivity & HTML5 at JavaOne Latin America 2012
The Java EE 7 Platform: Productivity & HTML5 at JavaOne Latin America 2012The Java EE 7 Platform: Productivity & HTML5 at JavaOne Latin America 2012
The Java EE 7 Platform: Productivity & HTML5 at JavaOne Latin America 2012Arun Gupta

GlassFish & Java EE Business Update @ CEJUG
GlassFish & Java EE Business Update @ CEJUGGlassFish & Java EE Business Update @ CEJUG
GlassFish & Java EE Business Update @ CEJUGArun Gupta


What's hot (20)

Java EE 8
Java EE 8Java EE 8
Java EE 8

Servlet programming
Servlet programmingServlet programming
Servlet programming

WebLogic for DBAs
WebLogic for DBAsWebLogic for DBAs
WebLogic for DBAs

Hadoop 101
Hadoop 101Hadoop 101
Hadoop 101

GlassFish REST Administration Backend
GlassFish REST Administration BackendGlassFish REST Administration Backend
GlassFish REST Administration Backend

Jdbc
JdbcJdbc
Jdbc

AAI 1713-Introduction to Java EE 7
AAI 1713-Introduction to Java EE 7AAI 1713-Introduction to Java EE 7
AAI 1713-Introduction to Java EE 7

Weblogic server administration
Weblogic server administrationWeblogic server administration
Weblogic server administration

Lecture 2: Servlets
Lecture 2:  ServletsLecture 2:  Servlets
Lecture 2: Servlets

Java EE 7 overview
Java EE 7 overviewJava EE 7 overview
Java EE 7 overview

Weblogic 11g admin basic with screencast
Weblogic 11g admin basic with screencastWeblogic 11g admin basic with screencast
Weblogic 11g admin basic with screencast

Weblogic Server
Weblogic ServerWeblogic Server
Weblogic Server

Shopzilla On Concurrency
Shopzilla On ConcurrencyShopzilla On Concurrency
Shopzilla On Concurrency

The Java EE 7 Platform: Productivity++ & Embracing HTML5
The Java EE 7 Platform: Productivity++ & Embracing HTML5The Java EE 7 Platform: Productivity++ & Embracing HTML5
The Java EE 7 Platform: Productivity++ & Embracing HTML5

JPA and Coherence with TopLink Grid
JPA and Coherence with TopLink GridJPA and Coherence with TopLink Grid
JPA and Coherence with TopLink Grid

Running your Java EE 6 applications in the Cloud
Running your Java EE 6 applications in the CloudRunning your Java EE 6 applications in the Cloud
Running your Java EE 6 applications in the Cloud

The Java EE 7 Platform: Productivity & HTML5 at JavaOne Latin America 2012
The Java EE 7 Platform: Productivity & HTML5 at JavaOne Latin America 2012The Java EE 7 Platform: Productivity & HTML5 at JavaOne Latin America 2012
The Java EE 7 Platform: Productivity & HTML5 at JavaOne Latin America 2012

GlassFish & Java EE Business Update @ CEJUG
GlassFish & Java EE Business Update @ CEJUGGlassFish & Java EE Business Update @ CEJUG
GlassFish & Java EE Business Update @ CEJUG

Basi Dati F2
Basi Dati F2Basi Dati F2
Basi Dati F2

Jdbc introduction
Jdbc introductionJdbc introduction
Jdbc introduction


Similar to Orcale Presentation

Java EE 6 workshop at Dallas Tech Fest 2011
Java EE 6 workshop at Dallas Tech Fest 2011Java EE 6 workshop at Dallas Tech Fest 2011
Java EE 6 workshop at Dallas Tech Fest 2011Arun Gupta

Solving the C20K problem: Raising the bar in PHP Performance and Scalability
Solving the C20K problem: Raising the bar in PHP Performance and ScalabilitySolving the C20K problem: Raising the bar in PHP Performance and Scalability
Solving the C20K problem: Raising the bar in PHP Performance and ScalabilityZendCon

Application Architecture Trends
Application Architecture TrendsApplication Architecture Trends
Application Architecture TrendsSrini Penchikala

GlassFish REST Administration Backend at JavaOne India 2012
GlassFish REST Administration Backend at JavaOne India 2012GlassFish REST Administration Backend at JavaOne India 2012
GlassFish REST Administration Backend at JavaOne India 2012Arun Gupta

OOW09 Ebs Tuning Final
OOW09 Ebs Tuning FinalOOW09 Ebs Tuning Final
OOW09 Ebs Tuning Finaljucaab

Centralized logging for (java) applications with the elastic stack made easy
Centralized logging for (java) applications with the elastic stack   made easyCentralized logging for (java) applications with the elastic stack   made easy
Centralized logging for (java) applications with the elastic stack made easyfelixbarny

Running your Java EE applications in the Cloud
Running your Java EE applications in the CloudRunning your Java EE applications in the Cloud
Running your Java EE applications in the CloudArun Gupta

Technic4
Technic4Technic4
Technic4hjue

WebLogic Developer Webcast 1: JPA 2.0
WebLogic Developer Webcast 1: JPA 2.0WebLogic Developer Webcast 1: JPA 2.0
WebLogic Developer Webcast 1: JPA 2.0Jeffrey West

Oracle WebLogic 12c New Multitenancy features
Oracle WebLogic 12c New Multitenancy featuresOracle WebLogic 12c New Multitenancy features
Oracle WebLogic 12c New Multitenancy featuresMichel Schildmeijer

X Aware Ajax World V1
X Aware Ajax World V1X Aware Ajax World V1
X Aware Ajax World V1rajivmordani

Running your Java EE 6 applications in the Cloud @ Silicon Valley Code Camp 2010
Running your Java EE 6 applications in the Cloud @ Silicon Valley Code Camp 2010Running your Java EE 6 applications in the Cloud @ Silicon Valley Code Camp 2010
Running your Java EE 6 applications in the Cloud @ Silicon Valley Code Camp 2010Arun Gupta

New Features of Java7 SE
New Features of Java7 SENew Features of Java7 SE
New Features of Java7 SEdogangoko

Haj 4308-open jpa, eclipselink, and the migration toolkit
Haj 4308-open jpa, eclipselink, and the migration toolkitHaj 4308-open jpa, eclipselink, and the migration toolkit
Haj 4308-open jpa, eclipselink, and the migration toolkitKevin Sutter

The Very Very Latest in Database Development - Oracle Open World 2012
The Very Very Latest in Database Development - Oracle Open World 2012The Very Very Latest in Database Development - Oracle Open World 2012
The Very Very Latest in Database Development - Oracle Open World 2012Lucas Jellema

Introduction to Web Application Clustering
Introduction to Web Application ClusteringIntroduction to Web Application Clustering
Introduction to Web Application ClusteringPiyush Katariya

Elastic and Cloud-ready Applications with Payara Micro
Elastic and Cloud-ready Applications with Payara MicroElastic and Cloud-ready Applications with Payara Micro
Elastic and Cloud-ready Applications with Payara MicroOndrej Mihályi

Elastic and Cloud-ready Applications with Payara Micro
Elastic and Cloud-ready Applications with Payara MicroElastic and Cloud-ready Applications with Payara Micro
Elastic and Cloud-ready Applications with Payara MicroPayara


Similar to Orcale Presentation (20)

EclipseLink JPA
EclipseLink JPAEclipseLink JPA
EclipseLink JPA

Java EE 6 workshop at Dallas Tech Fest 2011
Java EE 6 workshop at Dallas Tech Fest 2011Java EE 6 workshop at Dallas Tech Fest 2011
Java EE 6 workshop at Dallas Tech Fest 2011

Solving the C20K problem: Raising the bar in PHP Performance and Scalability
Solving the C20K problem: Raising the bar in PHP Performance and ScalabilitySolving the C20K problem: Raising the bar in PHP Performance and Scalability
Solving the C20K problem: Raising the bar in PHP Performance and Scalability

Application Architecture Trends
Application Architecture TrendsApplication Architecture Trends
Application Architecture Trends

GlassFish REST Administration Backend at JavaOne India 2012
GlassFish REST Administration Backend at JavaOne India 2012GlassFish REST Administration Backend at JavaOne India 2012
GlassFish REST Administration Backend at JavaOne India 2012

OOW09 Ebs Tuning Final
OOW09 Ebs Tuning FinalOOW09 Ebs Tuning Final
OOW09 Ebs Tuning Final

Centralized logging for (java) applications with the elastic stack made easy
Centralized logging for (java) applications with the elastic stack   made easyCentralized logging for (java) applications with the elastic stack   made easy
Centralized logging for (java) applications with the elastic stack made easy

Running your Java EE applications in the Cloud
Running your Java EE applications in the CloudRunning your Java EE applications in the Cloud
Running your Java EE applications in the Cloud

Technic4
Technic4Technic4
Technic4

WebLogic Developer Webcast 1: JPA 2.0
WebLogic Developer Webcast 1: JPA 2.0WebLogic Developer Webcast 1: JPA 2.0
WebLogic Developer Webcast 1: JPA 2.0

Oracle WebLogic 12c New Multitenancy features
Oracle WebLogic 12c New Multitenancy featuresOracle WebLogic 12c New Multitenancy features
Oracle WebLogic 12c New Multitenancy features

X Aware Ajax World V1
X Aware Ajax World V1X Aware Ajax World V1
X Aware Ajax World V1

Running your Java EE 6 applications in the Cloud @ Silicon Valley Code Camp 2010
Running your Java EE 6 applications in the Cloud @ Silicon Valley Code Camp 2010Running your Java EE 6 applications in the Cloud @ Silicon Valley Code Camp 2010
Running your Java EE 6 applications in the Cloud @ Silicon Valley Code Camp 2010

New Features of Java7 SE
New Features of Java7 SENew Features of Java7 SE
New Features of Java7 SE

Haj 4308-open jpa, eclipselink, and the migration toolkit
Haj 4308-open jpa, eclipselink, and the migration toolkitHaj 4308-open jpa, eclipselink, and the migration toolkit
Haj 4308-open jpa, eclipselink, and the migration toolkit

The Very Very Latest in Database Development - Oracle Open World 2012
The Very Very Latest in Database Development - Oracle Open World 2012The Very Very Latest in Database Development - Oracle Open World 2012
The Very Very Latest in Database Development - Oracle Open World 2012

The Very Very Latest In Database Development - Lucas Jellema - Oracle OpenWor...
The Very Very Latest In Database Development - Lucas Jellema - Oracle OpenWor...The Very Very Latest In Database Development - Lucas Jellema - Oracle OpenWor...
The Very Very Latest In Database Development - Lucas Jellema - Oracle OpenWor...

Introduction to Web Application Clustering
Introduction to Web Application ClusteringIntroduction to Web Application Clustering
Introduction to Web Application Clustering

Elastic and Cloud-ready Applications with Payara Micro
Elastic and Cloud-ready Applications with Payara MicroElastic and Cloud-ready Applications with Payara Micro
Elastic and Cloud-ready Applications with Payara Micro

Elastic and Cloud-ready Applications with Payara Micro
Elastic and Cloud-ready Applications with Payara MicroElastic and Cloud-ready Applications with Payara Micro
Elastic and Cloud-ready Applications with Payara Micro


More from Sanjeev Kulkarni

Jfreereport and Charts an essential Report generation tool for Java Developers
Jfreereport and Charts an essential Report generation tool for Java DevelopersJfreereport and Charts an essential Report generation tool for Java Developers
Jfreereport and Charts an essential Report generation tool for Java DevelopersSanjeev Kulkarni

H2 Database New generation embeded database
H2 Database New generation embeded databaseH2 Database New generation embeded database
H2 Database New generation embeded databaseSanjeev Kulkarni


More from Sanjeev Kulkarni (7)

Gooogle Web Toolkit
Gooogle Web ToolkitGooogle Web Toolkit
Gooogle Web Toolkit

Jfreereport and Charts an essential Report generation tool for Java Developers
Jfreereport and Charts an essential Report generation tool for Java DevelopersJfreereport and Charts an essential Report generation tool for Java Developers
Jfreereport and Charts an essential Report generation tool for Java Developers

H2 Database New generation embeded database
H2 Database New generation embeded databaseH2 Database New generation embeded database
H2 Database New generation embeded database

Only In India
Only In IndiaOnly In India
Only In India

The Woman
The Woman The Woman
The Woman

Sweet Girl...
Sweet Girl...Sweet Girl...
Sweet Girl...

What is meant by Love???
What is meant by Love???What is meant by Love???
What is meant by Love???


Recently uploaded

Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Farhan Tariq

Generative Artificial Intelligence: How generative AI works.pdf
Generative Artificial Intelligence: How generative AI works.pdfGenerative Artificial Intelligence: How generative AI works.pdf
Generative Artificial Intelligence: How generative AI works.pdfIngrid Airi González

Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24
Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24
Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24Mark Goldstein

Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)
Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)
Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)Mark Simos

All These Sophisticated Attacks, Can We Really Detect Them - PDF
All These Sophisticated Attacks, Can We Really Detect Them - PDFAll These Sophisticated Attacks, Can We Really Detect Them - PDF
All These Sophisticated Attacks, Can We Really Detect Them - PDFMichael Gough

Français Patch Tuesday - Avril
Français Patch Tuesday - AvrilFrançais Patch Tuesday - Avril
Français Patch Tuesday - AvrilIvanti

QMMS Lesson 2 - Using MS Excel Formula.pdf
QMMS Lesson 2 - Using MS Excel Formula.pdfQMMS Lesson 2 - Using MS Excel Formula.pdf
QMMS Lesson 2 - Using MS Excel Formula.pdfROWELL MARQUINA

Decarbonising Buildings: Making a net-zero built environment a reality
Decarbonising Buildings: Making a net-zero built environment a realityDecarbonising Buildings: Making a net-zero built environment a reality
Decarbonising Buildings: Making a net-zero built environment a realityIES VE

Varsha Sewlal- Cyber Attacks on Critical Critical Infrastructure
Varsha Sewlal- Cyber Attacks on Critical Critical InfrastructureVarsha Sewlal- Cyber Attacks on Critical Critical Infrastructure
Varsha Sewlal- Cyber Attacks on Critical Critical Infrastructureitnewsafrica

QCon London: Mastering long-running processes in modern architectures
QCon London: Mastering long-running processes in modern architecturesQCon London: Mastering long-running processes in modern architectures
QCon London: Mastering long-running processes in modern architecturesBernd Ruecker

Design pattern talk by Kaya Weers - 2024 (v2)
Design pattern talk by Kaya Weers - 2024 (v2)Design pattern talk by Kaya Weers - 2024 (v2)
Design pattern talk by Kaya Weers - 2024 (v2)Kaya Weers

Generative AI - Gitex v1Generative AI - Gitex v1.pptx
Generative AI - Gitex v1Generative AI - Gitex v1.pptxGenerative AI - Gitex v1Generative AI - Gitex v1.pptx
Generative AI - Gitex v1Generative AI - Gitex v1.pptxfnnc6jmgwh

Potential of AI (Generative AI) in Business: Learnings and Insights
Potential of AI (Generative AI) in Business: Learnings and InsightsPotential of AI (Generative AI) in Business: Learnings and Insights
Potential of AI (Generative AI) in Business: Learnings and InsightsRavi Sanghani

Infrared simulation and processing on Nvidia platforms
Infrared simulation and processing on Nvidia platformsInfrared simulation and processing on Nvidia platforms
Infrared simulation and processing on Nvidia platformsYoss Cohen

Modern Roaming for Notes and Nomad – Cheaper Faster Better Stronger
Modern Roaming for Notes and Nomad – Cheaper Faster Better StrongerModern Roaming for Notes and Nomad – Cheaper Faster Better Stronger
Modern Roaming for Notes and Nomad – Cheaper Faster Better Strongerpanagenda

Kuma Meshes Part I - The basics - A tutorial
Kuma Meshes Part I - The basics - A tutorialKuma Meshes Part I - The basics - A tutorial
Kuma Meshes Part I - The basics - A tutorialJoão Esperancinha

Glenn Lazarus- Why Your Observability Strategy Needs Security Observability
Glenn Lazarus- Why Your Observability Strategy Needs Security ObservabilityGlenn Lazarus- Why Your Observability Strategy Needs Security Observability
Glenn Lazarus- Why Your Observability Strategy Needs Security Observabilityitnewsafrica

MuleSoft Online Meetup Group - B2B Crash Course: Release SparkNotes
MuleSoft Online Meetup Group - B2B Crash Course: Release SparkNotesMuleSoft Online Meetup Group - B2B Crash Course: Release SparkNotes
MuleSoft Online Meetup Group - B2B Crash Course: Release SparkNotesManik S Magar

Microsoft 365 Copilot: How to boost your productivity with AI – Part two: Dat...
Microsoft 365 Copilot: How to boost your productivity with AI – Part two: Dat...Microsoft 365 Copilot: How to boost your productivity with AI – Part two: Dat...
Microsoft 365 Copilot: How to boost your productivity with AI – Part two: Dat...Nikki Chapple


Recently uploaded (20)

Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...

Generative Artificial Intelligence: How generative AI works.pdf
Generative Artificial Intelligence: How generative AI works.pdfGenerative Artificial Intelligence: How generative AI works.pdf
Generative Artificial Intelligence: How generative AI works.pdf

How Tech Giants Cut Corners to Harvest Data for A.I.
How Tech Giants Cut Corners to Harvest Data for A.I.How Tech Giants Cut Corners to Harvest Data for A.I.
How Tech Giants Cut Corners to Harvest Data for A.I.

Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24
Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24
Arizona Broadband Policy Past, Present, and Future Presentation 3/25/24

Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)
Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)
Tampa BSides - The No BS SOC (slides from April 6, 2024 talk)

All These Sophisticated Attacks, Can We Really Detect Them - PDF
All These Sophisticated Attacks, Can We Really Detect Them - PDFAll These Sophisticated Attacks, Can We Really Detect Them - PDF
All These Sophisticated Attacks, Can We Really Detect Them - PDF

Français Patch Tuesday - Avril
Français Patch Tuesday - AvrilFrançais Patch Tuesday - Avril
Français Patch Tuesday - Avril

QMMS Lesson 2 - Using MS Excel Formula.pdf
QMMS Lesson 2 - Using MS Excel Formula.pdfQMMS Lesson 2 - Using MS Excel Formula.pdf
QMMS Lesson 2 - Using MS Excel Formula.pdf

Decarbonising Buildings: Making a net-zero built environment a reality
Decarbonising Buildings: Making a net-zero built environment a realityDecarbonising Buildings: Making a net-zero built environment a reality
Decarbonising Buildings: Making a net-zero built environment a reality

Varsha Sewlal- Cyber Attacks on Critical Critical Infrastructure
Varsha Sewlal- Cyber Attacks on Critical Critical InfrastructureVarsha Sewlal- Cyber Attacks on Critical Critical Infrastructure
Varsha Sewlal- Cyber Attacks on Critical Critical Infrastructure

QCon London: Mastering long-running processes in modern architectures
QCon London: Mastering long-running processes in modern architecturesQCon London: Mastering long-running processes in modern architectures
QCon London: Mastering long-running processes in modern architectures

Design pattern talk by Kaya Weers - 2024 (v2)
Design pattern talk by Kaya Weers - 2024 (v2)Design pattern talk by Kaya Weers - 2024 (v2)
Design pattern talk by Kaya Weers - 2024 (v2)

Generative AI - Gitex v1Generative AI - Gitex v1.pptx
Generative AI - Gitex v1Generative AI - Gitex v1.pptxGenerative AI - Gitex v1Generative AI - Gitex v1.pptx
Generative AI - Gitex v1Generative AI - Gitex v1.pptx

Potential of AI (Generative AI) in Business: Learnings and Insights
Potential of AI (Generative AI) in Business: Learnings and InsightsPotential of AI (Generative AI) in Business: Learnings and Insights
Potential of AI (Generative AI) in Business: Learnings and Insights

Infrared simulation and processing on Nvidia platforms
Infrared simulation and processing on Nvidia platformsInfrared simulation and processing on Nvidia platforms
Infrared simulation and processing on Nvidia platforms

Modern Roaming for Notes and Nomad – Cheaper Faster Better Stronger
Modern Roaming for Notes and Nomad – Cheaper Faster Better StrongerModern Roaming for Notes and Nomad – Cheaper Faster Better Stronger
Modern Roaming for Notes and Nomad – Cheaper Faster Better Stronger

Kuma Meshes Part I - The basics - A tutorial
Kuma Meshes Part I - The basics - A tutorialKuma Meshes Part I - The basics - A tutorial
Kuma Meshes Part I - The basics - A tutorial

Glenn Lazarus- Why Your Observability Strategy Needs Security Observability
Glenn Lazarus- Why Your Observability Strategy Needs Security ObservabilityGlenn Lazarus- Why Your Observability Strategy Needs Security Observability
Glenn Lazarus- Why Your Observability Strategy Needs Security Observability

MuleSoft Online Meetup Group - B2B Crash Course: Release SparkNotes
MuleSoft Online Meetup Group - B2B Crash Course: Release SparkNotesMuleSoft Online Meetup Group - B2B Crash Course: Release SparkNotes
MuleSoft Online Meetup Group - B2B Crash Course: Release SparkNotes

Microsoft 365 Copilot: How to boost your productivity with AI – Part two: Dat...
Microsoft 365 Copilot: How to boost your productivity with AI – Part two: Dat...Microsoft 365 Copilot: How to boost your productivity with AI – Part two: Dat...
Microsoft 365 Copilot: How to boost your productivity with AI – Part two: Dat...


Orcale Presentation

  • 1.
  • 2. EclipseLink JPA in GlassFish™ Doug Clarke Director of Product Management Oracle
  • 3. Eclipse Persistence Services “EclipseLink” Java SE Java EE OSGi Spring ADF JPA MOXy EIS SDO DBWS Eclipse Persistence Services Project (EclipseLink) Databases XML Data Legacy Systems
  • 4. History of EclipseLink TopLink Essentials 1996 2008
  • 5. Significance of EclipseLink • First comprehensive open source persistence solution • Object-Relational and much more • Based upon product with 12 years of commercial usage • Shared infrastructure • Easily share the same domain model with multiple persistence technologies • Leverage metadata for multiple services • Important part of the GlassFish and Eclipse Ecosystems
  • 6. EclipseLink JPA • JPA 1.0 compliant implementation • Java EE, Java SE, Web, Spring, and OSGi • Any JDBC/SQL compliant database • Advanced database extensions: stored procedures, native SQL, … • Key infrastructure: • Caching, Locking, Query Framework, Mapping, … • JDBC connection pooling • Diagnostics: Logging, Profiling • DDL Generation • Customization callbacks • Highly Extensible • … plus many valuable advanced features
  • 7. Caching • Hold objects in-memory to avoid unnecessary database trips and object construction • Cache manages “identity” to support bidirectional and cyclical relationships • Flexible caching options ensure that you get maximum performance • Numerous locking, refreshing, and synchronization options are available to minimize cache staleness • Queries can be run in-memory only against the cache • Cache Coordination supports clustering
  • 8. Cache Configuration • Cache Shared (L2)/Isolated (L1 only) • Entity cache—not data cache • <property name=“eclipselink.cache.shared.default“ value=quot;truequot;/> • Cache Type & Size • Soft/Hard Weak @Cache(type = CacheType.HARD_WEAK, size = 500, • Weak isolated = true, • Full coordinationType = • None INVALIDATE_CHANGED_OBJECTS) • <property name=“eclipselink.cache.type.default“ value=quot;Fullquot;/>
  • 9. EclipseLink JPA Caching EntityManager EntityManagerFactory L1 Cache L2 Cache (Shared ) Cache Coordination
  • 10. Minimize stale cache • Configure the cache relative to application data’s usage • Is the data shared between users/processes? • Is the data volatile? • Only through JPA application? • Through direct DB modification? • Ensure you protect any data that can be concurrently modified with a locking strategy • Must handle optimistic lock failures on flush/commit • Use query refreshing to minimize optimistic lock failures
  • 11. Leveraging the Shared Cache: Reading Client-1 Client-2 1 5 EntityManager-1 EntityManager-2 L1 Cache L1 Cache 2 6 3 EntityManagerFactory L2 Cache Connection Pool 7 Connection Connection 4 8 Connection Connection Connection
  • 12. Leveraging the Shared Cache: Writing Client-2 1 EntityManager-2 L1 Cache 2 EntityManagerFactory 3 L2 Cache Connection Pool Connection 4 Connection Connection Connection Connection
  • 13. Leveraging the Shared Cache: Writing EntityManagerFactory L2 Cache Connection Pool Connection Connection Connection Connection Connection
  • 14. Advanced Mappings • @Converter • @BasicMap and @BasicCollection • Mapping to database structures • @StructConverter – Structs, ADTs • XML types, PL/SQL Records • Mapping features • Private Owned • Join/Batch Fetch • Returning
  • 15. Advanced Mapping Example @Entity @Cache(type=SOFT_WEAK, coordinationType=SEND_OBJECT_CHANGES) @Converter(name=“money”, converterClass=MoneyConverter.class) @OptimisticLocking(type=CHANGED_COLUMNS) public class Employee { @Id private int id; private String name; @OneToMany(mappedBy=“owner”) private List<PhoneNumbers> phones; @Convert(“money”) private Money salary … }
  • 16. Advanced Querying • Support for supplying customizing queries • Native SQL • @NamedStoredProcQuery • Graph Loading Optimizations • Join and Batch Fetch – multi-level • Cache Usage: In-memory • Result caching
  • 17. Transactions • Java apps typically support many clients sharing small number of db connections • Ideally would like to minimize length of transaction on database Begin Txn Time Begin Txn Commit Txn Commit Txn
  • 18. Transaction Features • Minimizes database interactions • Only the minimal updates are sent to the database • Respect database integrity • Orders INSERT, UPDATE and DELETE statements • JTA and RESOURCE_LOCAL support • Attribute-level change tracking • EntityManager flush SQL prior to commit • Bulk Update and Delete • Cached entities effected
  • 19. Concurrency Protection - Locking • Optimistic concurrency included in JPA 1.0, but no support for pessimistic locking is specified • EclipseLink has advanced optimistic locking strategies • Numeric, Timestamp, All fields, Selected fields, Changed field • EntityManager lock() method can be used with optimistic locking, and error handling • EclipseLink supports pessimistic locking through query hints query.setHint(PESSIMISTIC_LOCK, LockNoWait);
  • 20. Weaving • EclipseLink makes use of Weaving (ASM) to introduce additional functionality into the JPA entity classes • Needed for M:1 and 1:1 lazy fetching • Integrated with Java EE compliant App Servers and Spring 2.0 • Available for Java SE using JDK/JRE’s –javaagent: • Optional • Static weaving also supported • Weaving of .class files before deployment
  • 21. JPA Configuration Options • Annotations • JPA • EclipseLink • ORM.XML • JPA • EclipseLink • JPA + EclipseLink • Defaults – Configuration by Exception
  • 22. Database Platform XML: <properties> <property name=“eclipselink.target-databasequot; value=quot;Derbyquot;/> </properties> API: properties.put( EclipseLinkProperties.TARGET_DATABASE, TargetDatabase.ORACLE);
  • 23. Target Database Platform • TargetDatabase (org.eclipse.persistence.jpa.config) • Auto (Default) • Oracle, Oracle8i, Oracle9i, Oracle10g, Oracle11, TimesTen • DB2, DB2Mainframe • Derby, JavaDB, MySQL • Informix • HSQL, PointBase • PostgreSQL • SQLAnyWhere • SQLServer, DBase • Sybase
  • 24. Server Platform • Enables simplified configuration of the target application server • Used to enable integration with: • JTA transaction manager • Logging • JDBC connection un-wrapping • <property name=“eclipselink.target-serverquot; value=“SunAS9quot;/>
  • 25. Target Server Options • TargetServer (org.eclipse.persistence.jpa.config) • None (Default) • OC4J, OC4J_10_1_3, OC4J_11_1_1 • SunAS9 • WebSphere • WebSphere_6_1 • WebLogic, WebLogic_9, WebLogic_10 • JBoss
  • 26. JDBC Connection Settings <properties> ... <property name=“eclipselink.jdbc.driver” value=“oracle.jdbc.Driver”/> <property name=“eclipselink.jdbc.url” value=“jdbc:oracle:thin:@localhost:1521:XE”/> <property name=“eclipselink.jdbc.user” value=“scott”/> <property name=“eclipselink.jdbc.password” value=“tiger”/>
  • 27. Logging <properties> ... <property name=“eclipselink.logging.levelquot; value=quot;FINEquot;/> ... </properties>
  • 28. DDL Generation • Standard enables it but does not currently dictate that providers support it • Mapping metadata specifies how DDL should be generated • Vendors may offer differing levels of support, including: • Generating DDL to a file only • Generating and executing DDL in DB • Dropping existing tables before creating new ones
  • 29. DDL Generation <properties> ... <property name=“eclipselink.ddl-generationquot; value=quot;create-tablesquot;/> ... </properties>
  • 30. Customization Using Properties <properties> ... <property name=quot;eclipselink.session.customizerquot; value=quot;acme.MySessionCustomizerquot;/> <property name=quot;eclipselink.descriptor.customizer.Employe equot; value=quot;acme.MyDescriptorCustomizerquot;/> ... </properties>
  • 31. Descriptor & Session Customizers public class MySessionCustomizer implements SessionCustomizer { public void customize(Session session) { session.setProfiler(new PerformanceProfiler()); } } public class MyDescriptorCustomizer implements DescriptorCustomizer { public void customize(ClassDescriptor desc) { desc.disableCacheHits(); } }
  • 32. Performance and Tuning • Highly configurable and tunable • Guiding principle – minimize and optimize database interactions • No two applications are the same, EclipseLink allows for decisions on what specific behavior needs to be configurable depending on situation • Flexibility of EclipseLink allows efficient business models and relational schemas to be used • Leverages underlying performance tuning features • Java, JDBC and the underlying database technology • Batch Writing • Parameter Binding • Statement Caching
  • 33. Performance and Tuning  Minimal Writes, Updates  “Just in Time” reading  Batch Reading, Writing  Automatic change detection  SQL ordering  Caching policies and sizes  Transformation support  Parameterized SQL (binding)  Existence checks  Pre-allocation of sequence  Stored procedures numbers  Statement Caching  Cache Coordination  Scrolling cursors  Optimistic, Pessimistic locking  Projection Queries  Joining object retrieval  Partial Attribute Queries optimization  In memory querying  Dynamic queries AND MUCH MORE!
  • 34. EclipseLink Status • Incubating Technology Project • Initial contribution of Oracle TopLink complete • Full documentation available on Wiki • Producing Monthly Milestone builds • Milestones included in GlassFish V3 Milestones • 1.0 release planned for July 2008 • JPA 1.0, SDO 2.1, JAXB • Simplified XML and annotation config of advanced features • Packaged for Java SE/EE and OSGi bundles • Beyond 1.0 • JPA 2.0 (Reference Implementation) • Database Web Services • Data Access Service (DAS) 1.0 • and much more …
  • 35. Getting Started with EclipseLink JPA • EclipseLink Project http://www.eclipse.org/eclipselink Eclipse newsgroup: eclipse.technology.eclipselink • GlassFish V3 https://glassfish.dev.java.net/ • Open Source JPA Tools • NetBeans—http://www.netbeans.org • Dali JPA Tools—http://www.eclipse.org/dali
