The document describes zero-knowledge query planning for an iterator-based implementation of link traversal-based query execution. It discusses generating all possible query execution plans from the triple patterns in a query and selecting the optimal plan using heuristics without actually executing the plans. The key heuristics explored are using a seed triple pattern containing a URI as the first pattern, avoiding vocabulary terms as seeds, and placing filtering patterns close to the seed pattern. Evaluation involves generating all plans and executing each repeatedly to estimate costs and benefits for plan selection.

1. Zero-Knowledge
Query Planning
for an Iterator Implementation of
Link Traversal Based Query Execution
Olaf Hartig
http://olafhartig.de/foaf.rdf#olaf
@olafhartig
Database and Information Systems Research Group
Humboldt-Universität zu Berlin

2. Iterator Based Execution Plan

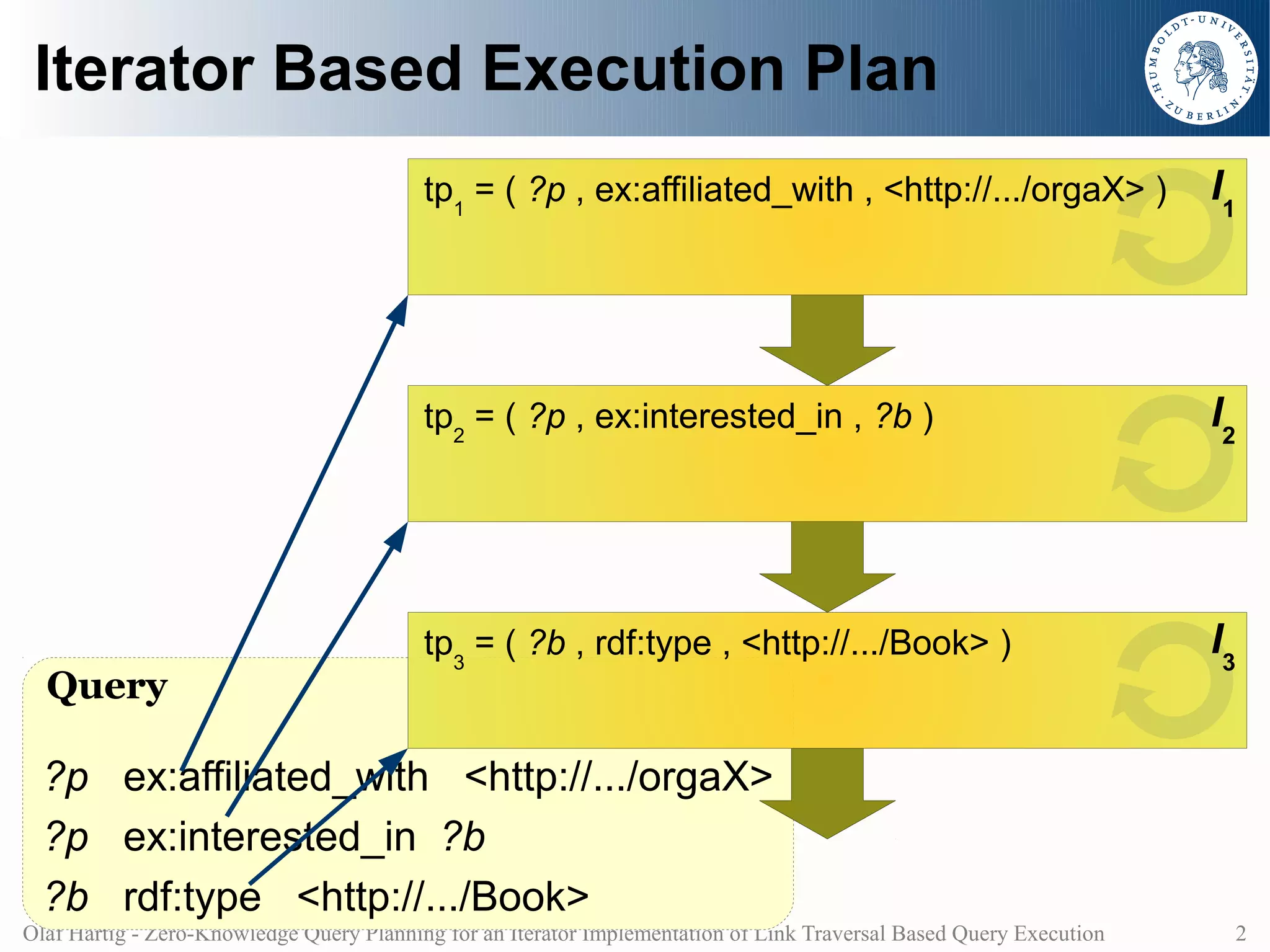

tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
tp2 = ( ?p , ex:interested_in , ?b ) I2
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
Query
?p ex:affiliated_with <http://.../orgaX>
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 2

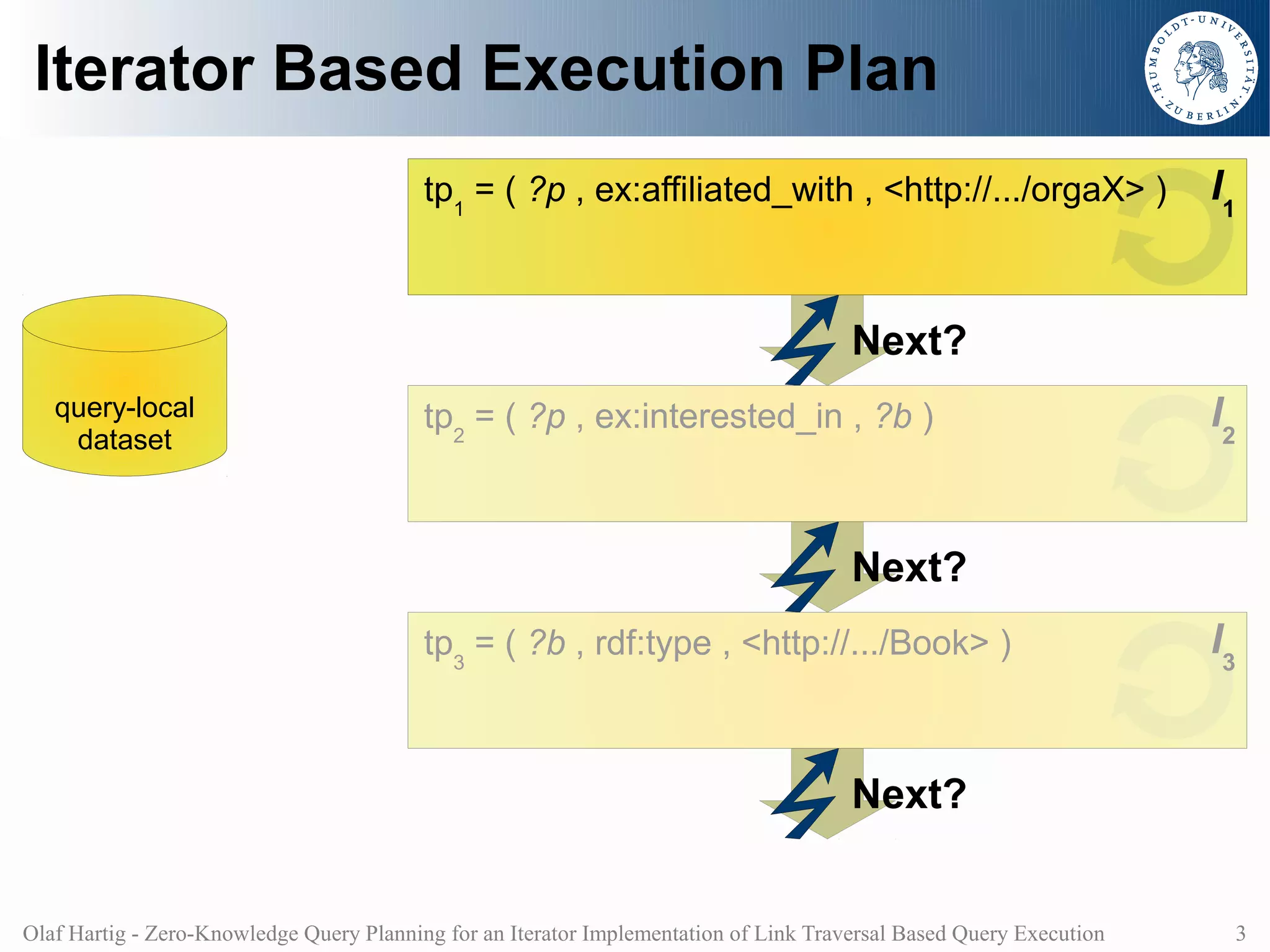

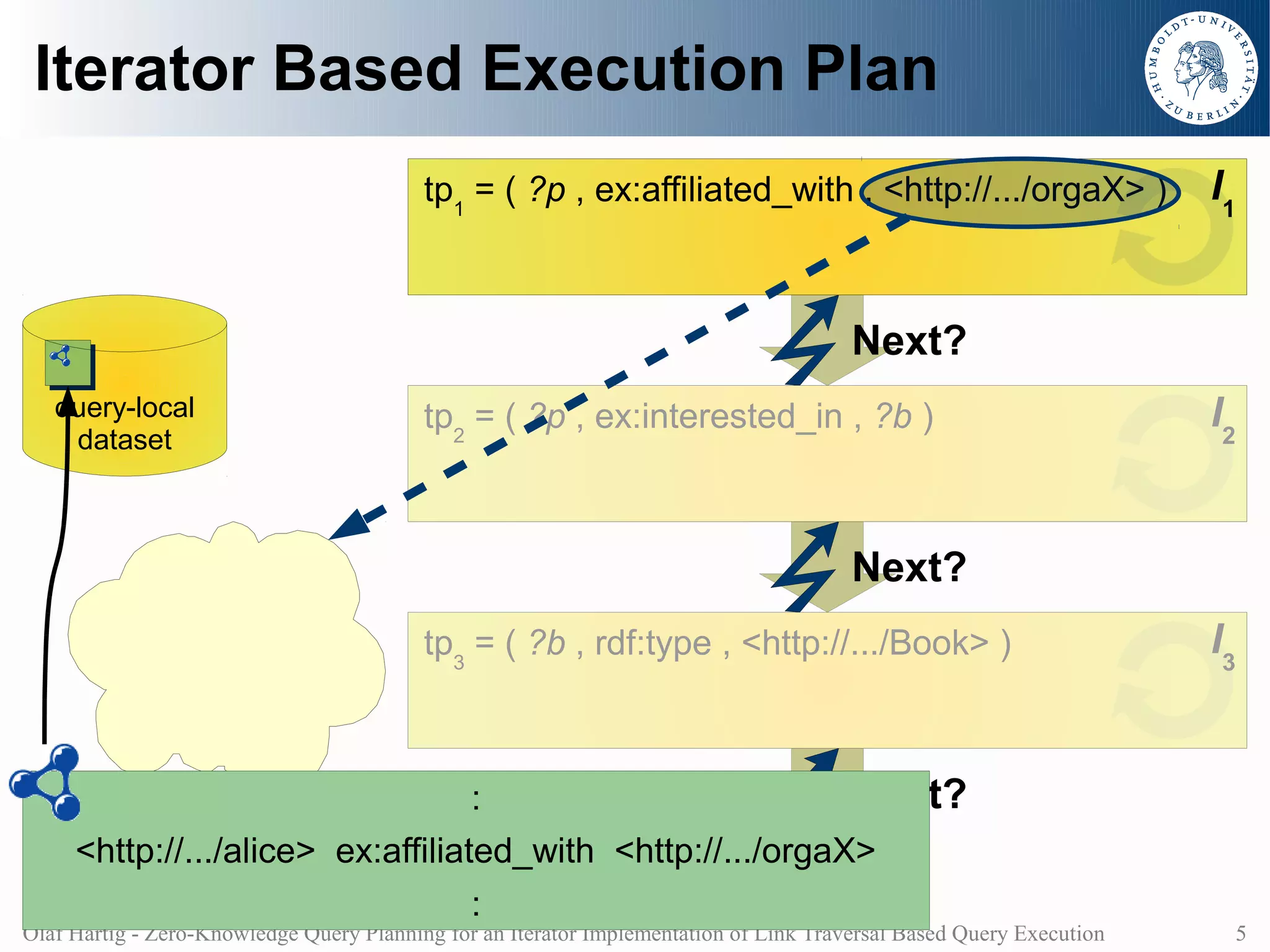

3. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
Next?
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
Next?
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
Next?
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 3

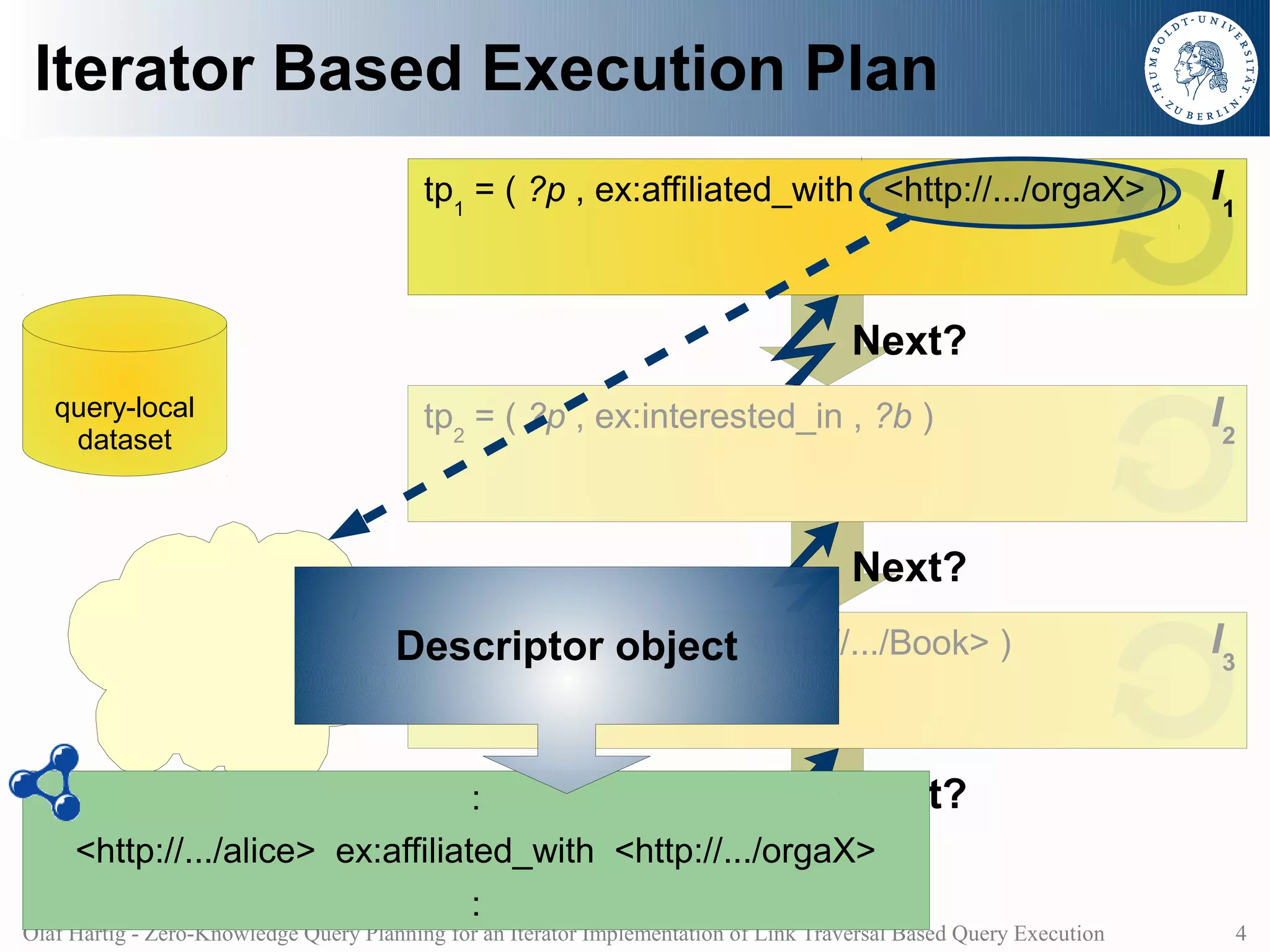

4. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
Next?
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
Next?
Descriptor object <http://.../Book> )
tp3 = ( ?b , rdf:type , I3
: Next?
<http://.../alice> ex:affiliated_with <http://.../orgaX>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 4

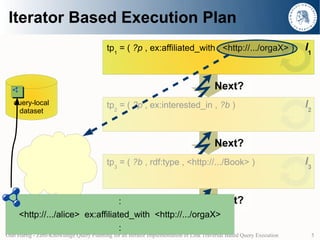

5. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
Next?
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
Next?
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
: Next?
<http://.../alice> ex:affiliated_with <http://.../orgaX>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 5

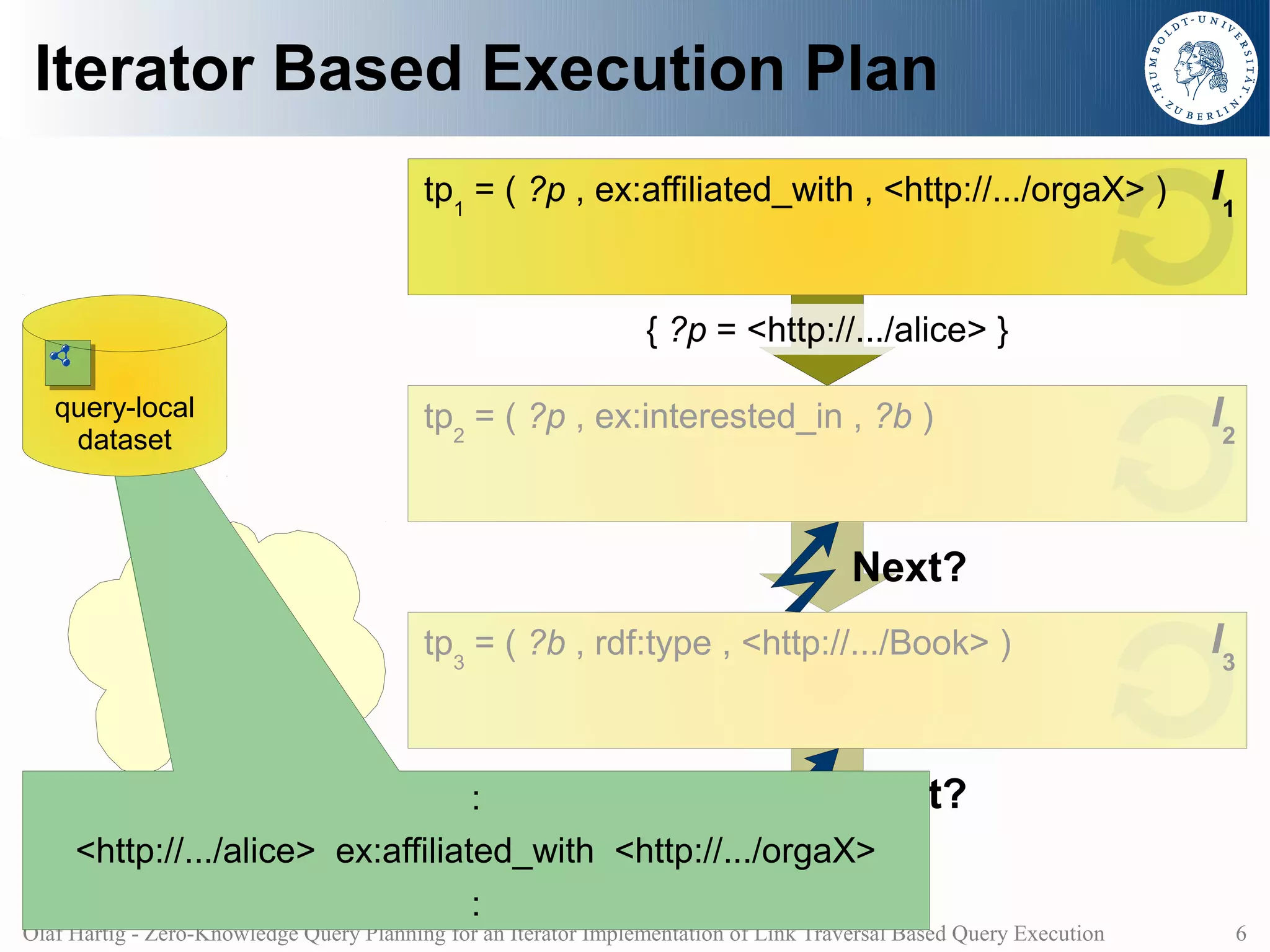

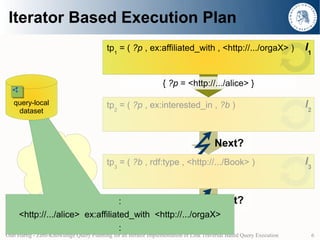

6. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
{ ?p = <http://.../alice> }
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
Next?
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
: Next?
<http://.../alice> ex:affiliated_with <http://.../orgaX>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 6

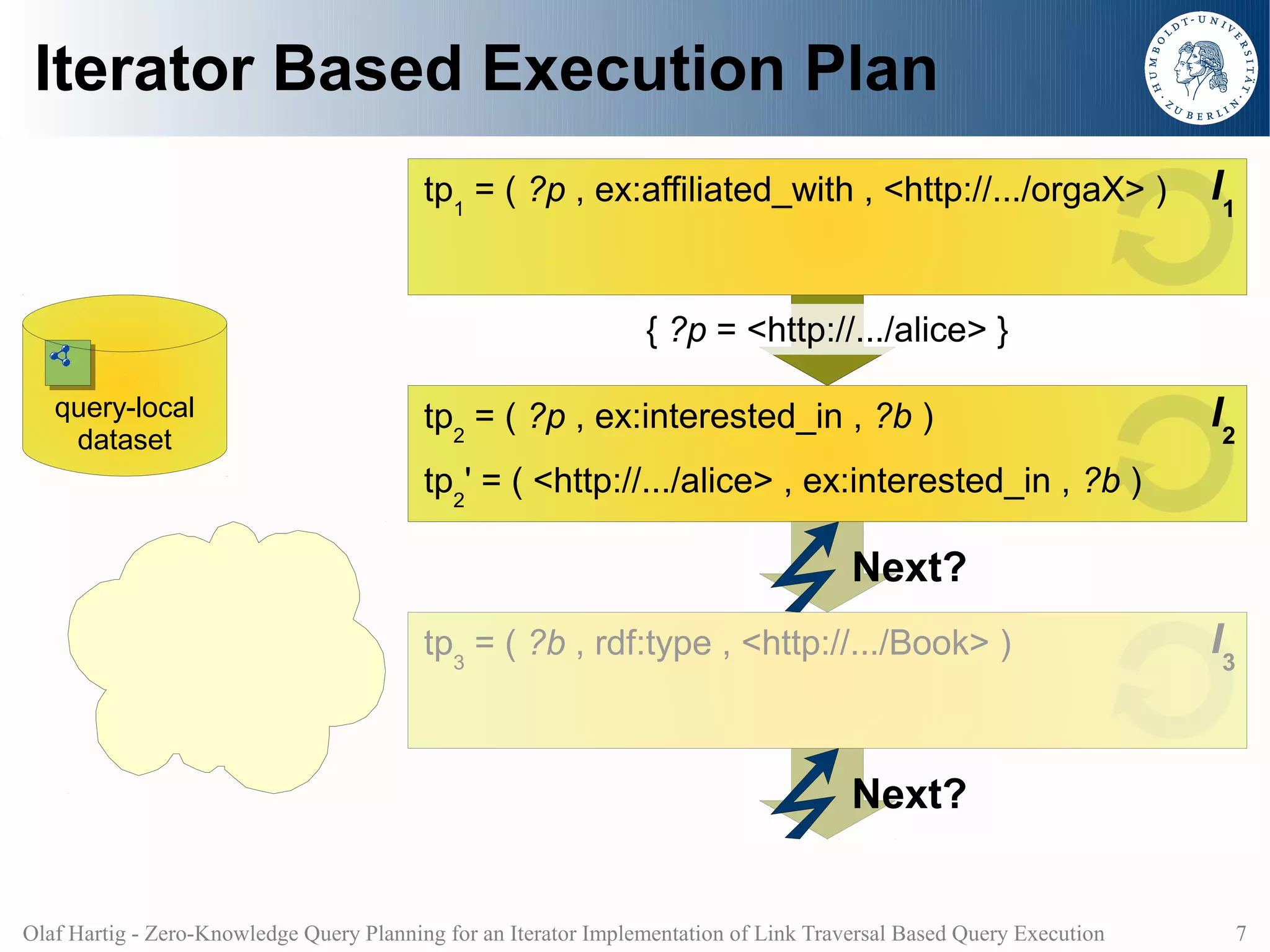

7. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
{ ?p = <http://.../alice> }
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
tp2' = ( <http://.../alice> , ex:interested_in , ?b )
Next?
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
Next?
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 7

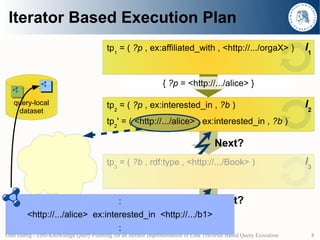

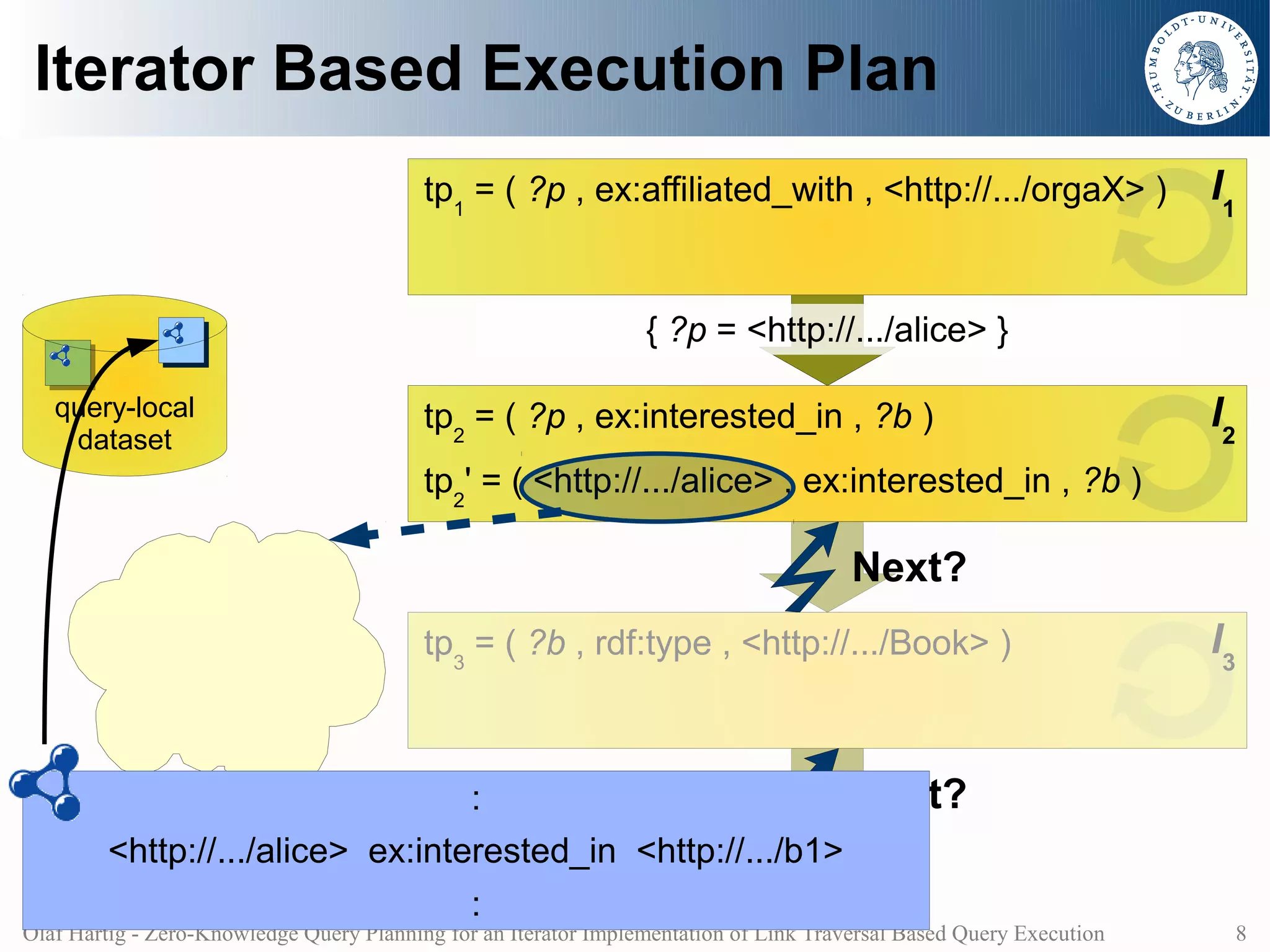

8. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
{ ?p = <http://.../alice> }
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
tp2' = ( <http://.../alice> , ex:interested_in , ?b )
Next?
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
: Next?
<http://.../alice> ex:interested_in <http://.../b1>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 8

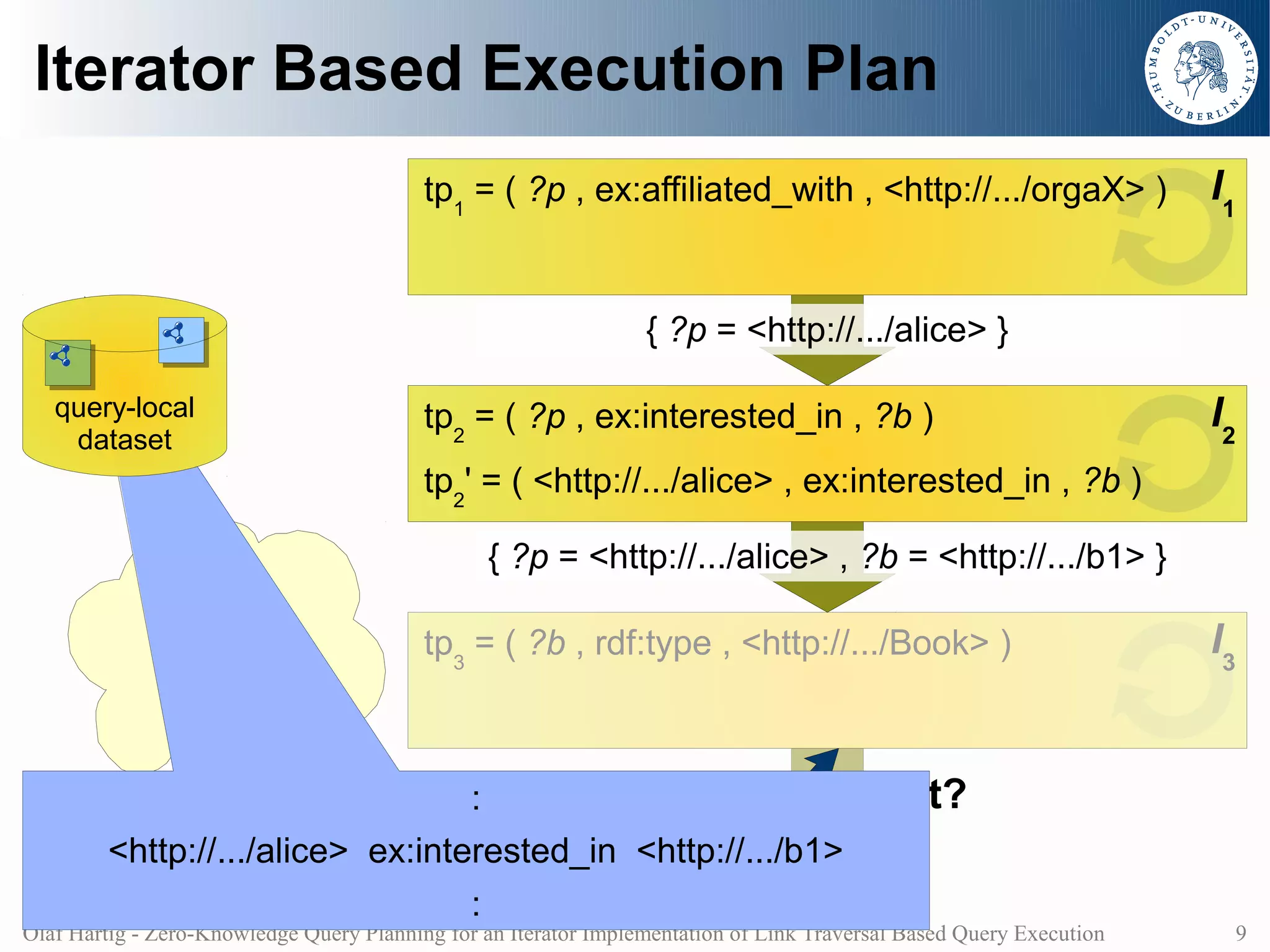

9. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
{ ?p = <http://.../alice> }
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
tp2' = ( <http://.../alice> , ex:interested_in , ?b )
{ ?p = <http://.../alice> , ?b = <http://.../b1> }
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
: Next?
<http://.../alice> ex:interested_in <http://.../b1>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 9

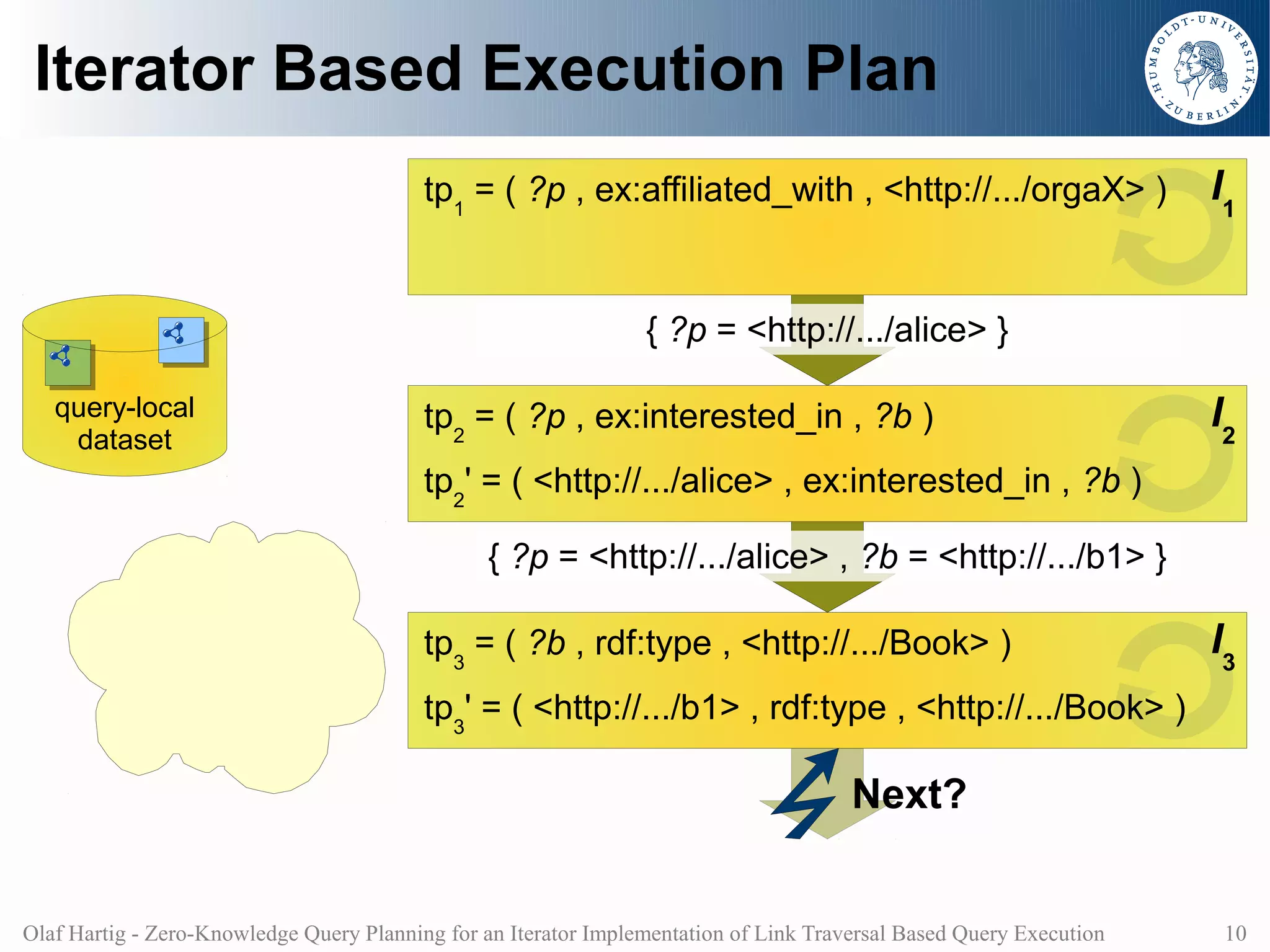

10. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
{ ?p = <http://.../alice> }
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
tp2' = ( <http://.../alice> , ex:interested_in , ?b )
{ ?p = <http://.../alice> , ?b = <http://.../b1> }
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
tp3' = ( <http://.../b1> , rdf:type , <http://.../Book> )
Next?
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 10

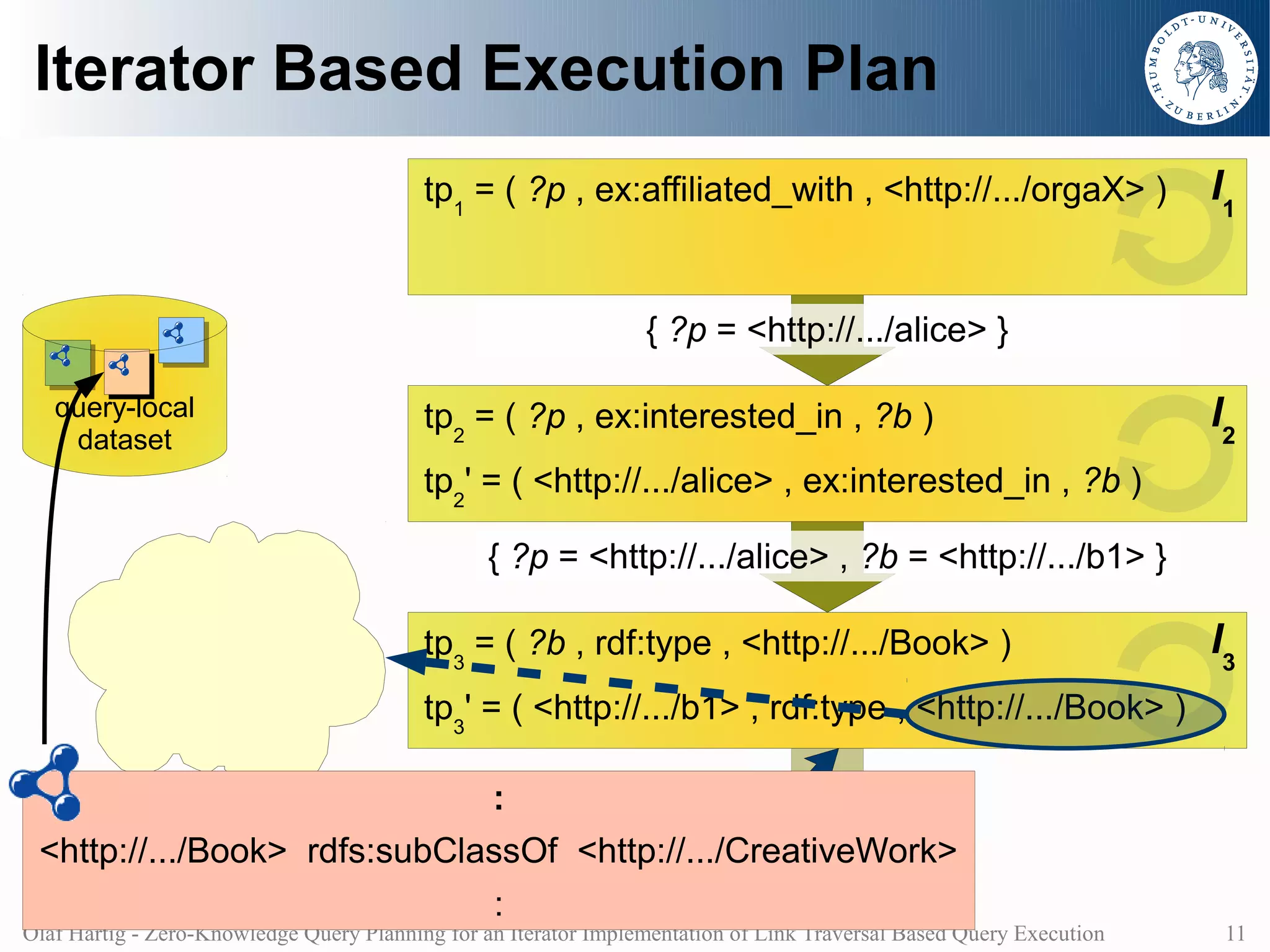

11. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
{ ?p = <http://.../alice> }
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
tp2' = ( <http://.../alice> , ex:interested_in , ?b )
{ ?p = <http://.../alice> , ?b = <http://.../b1> }
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
tp3' = ( <http://.../b1> , rdf:type , <http://.../Book> )
: Next?
<http://.../Book> rdfs:subClassOf <http://.../CreativeWork>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 11

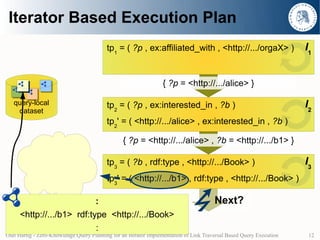

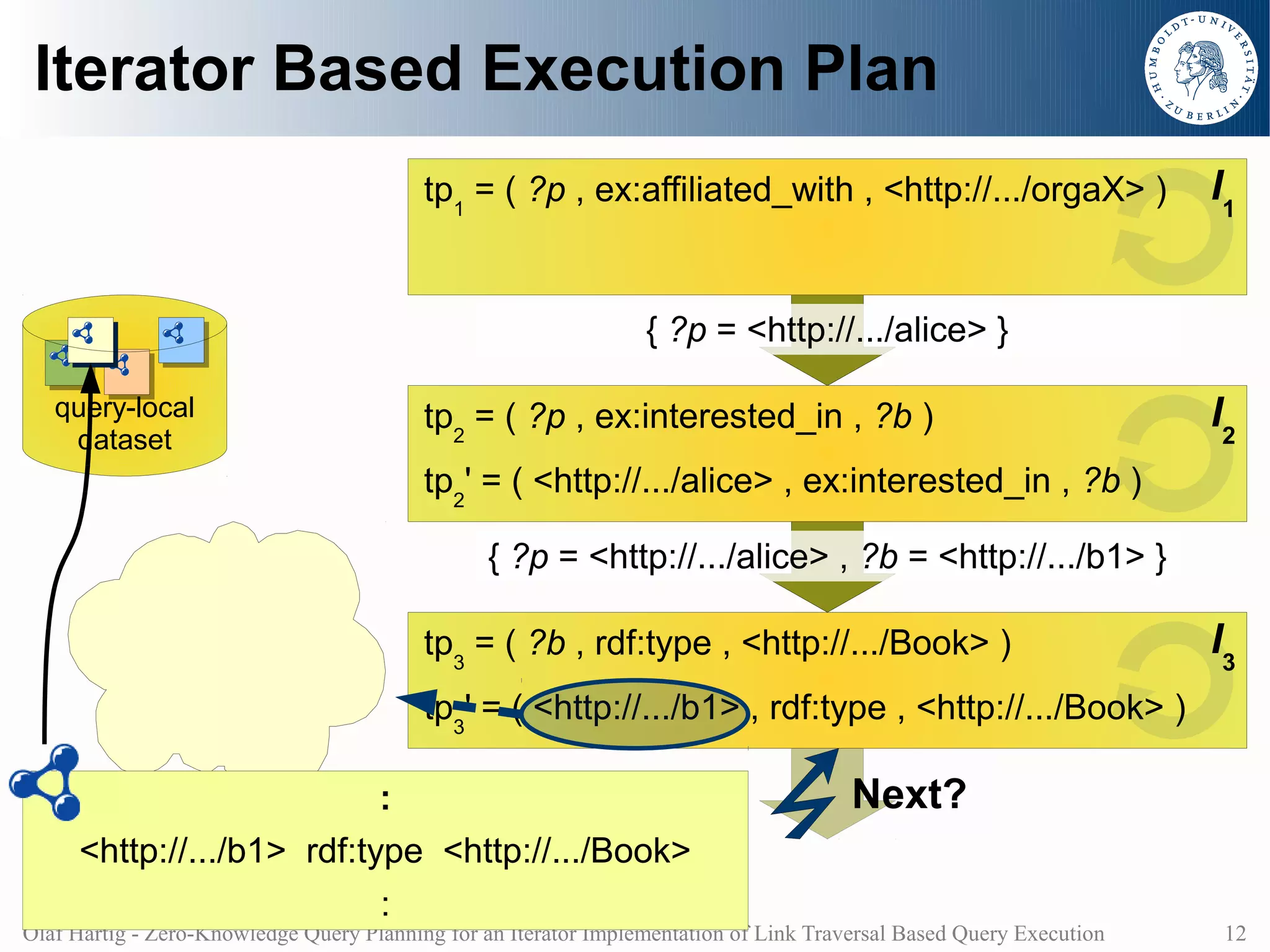

12. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
{ ?p = <http://.../alice> }
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
tp2' = ( <http://.../alice> , ex:interested_in , ?b )
{ ?p = <http://.../alice> , ?b = <http://.../b1> }
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
tp3' = ( <http://.../b1> , rdf:type , <http://.../Book> )
: Next?
<http://.../b1> rdf:type <http://.../Book>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 12

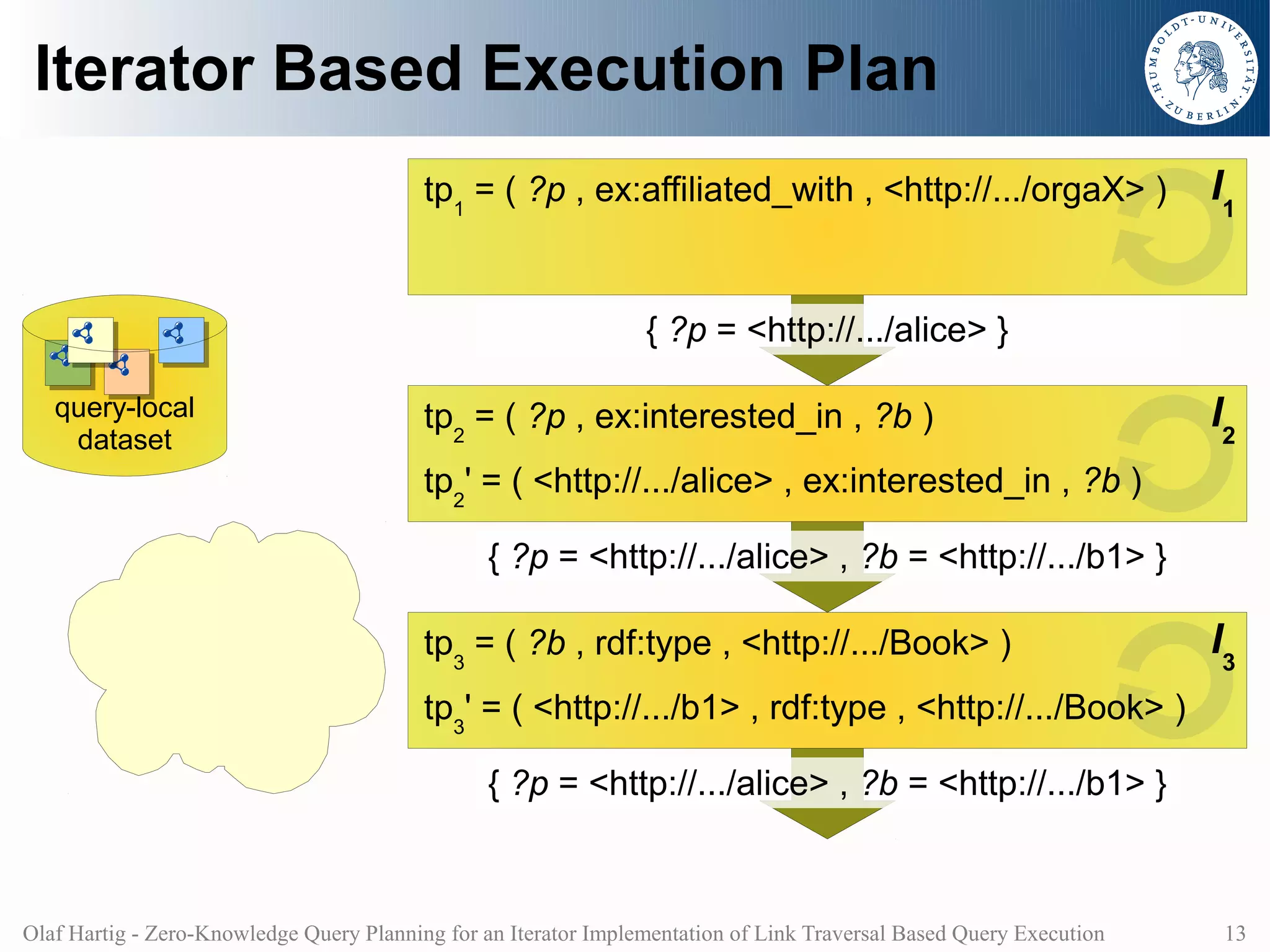

13. Iterator Based Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX> ) I1
{ ?p = <http://.../alice> }
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
tp2' = ( <http://.../alice> , ex:interested_in , ?b )
{ ?p = <http://.../alice> , ?b = <http://.../b1> }
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
tp3' = ( <http://.../b1> , rdf:type , <http://.../Book> )
{ ?p = <http://.../alice> , ?b = <http://.../b1> }
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 13

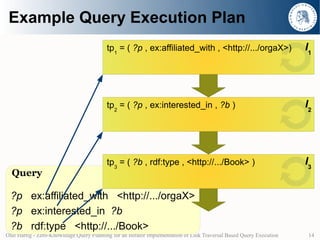

14. Example Query Execution Plan
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I1
tp2 = ( ?p , ex:interested_in , ?b ) I2
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
Query
?p ex:affiliated_with <http://.../orgaX>
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 14

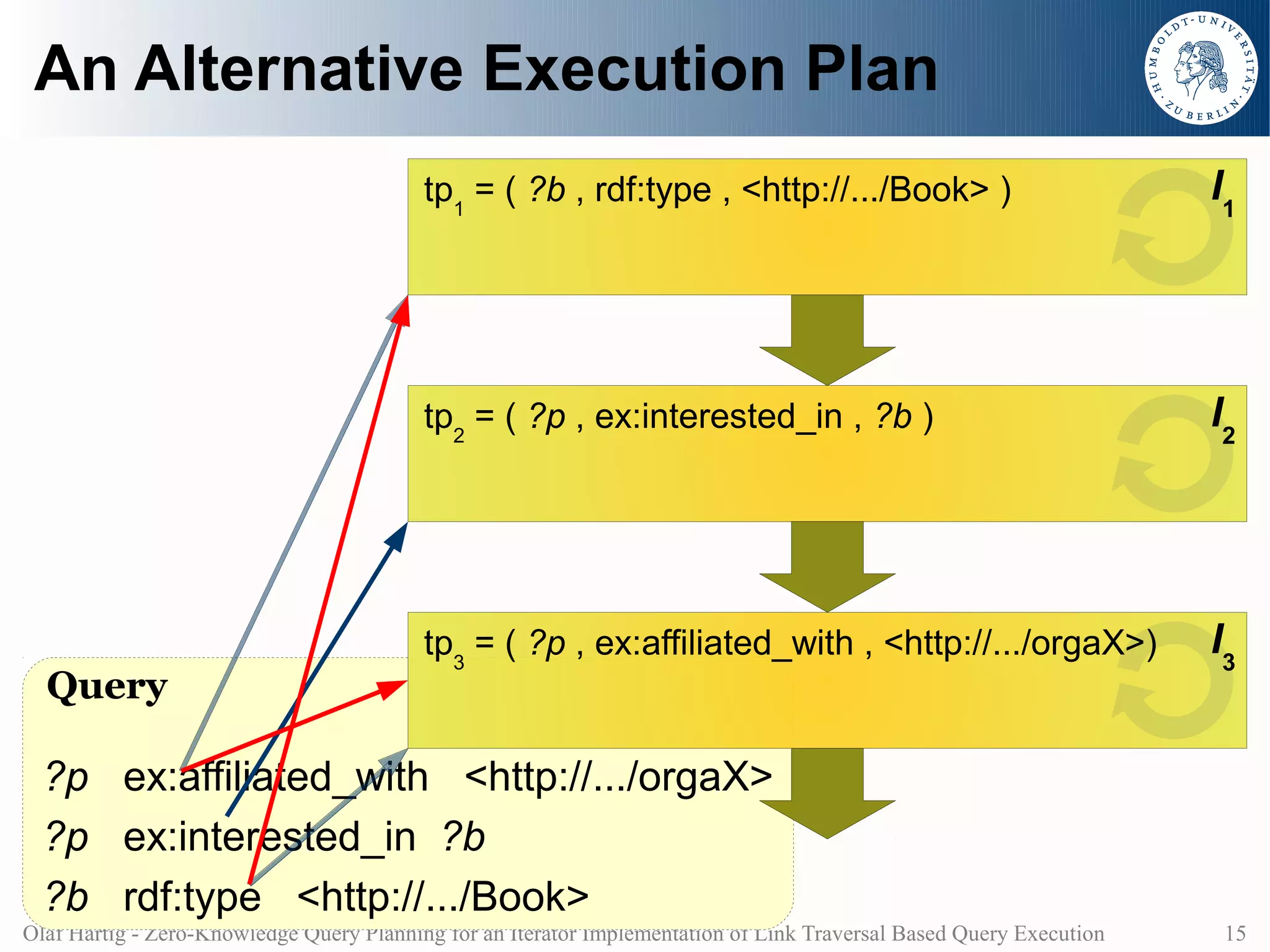

15. An Alternative Execution Plan
tp1 = ( ?b , rdf:type , <http://.../Book> ) I1
tp2 = ( ?p , ex:interested_in , ?b ) I2
tp3 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I3
Query
?p ex:affiliated_with <http://.../orgaX>
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 15

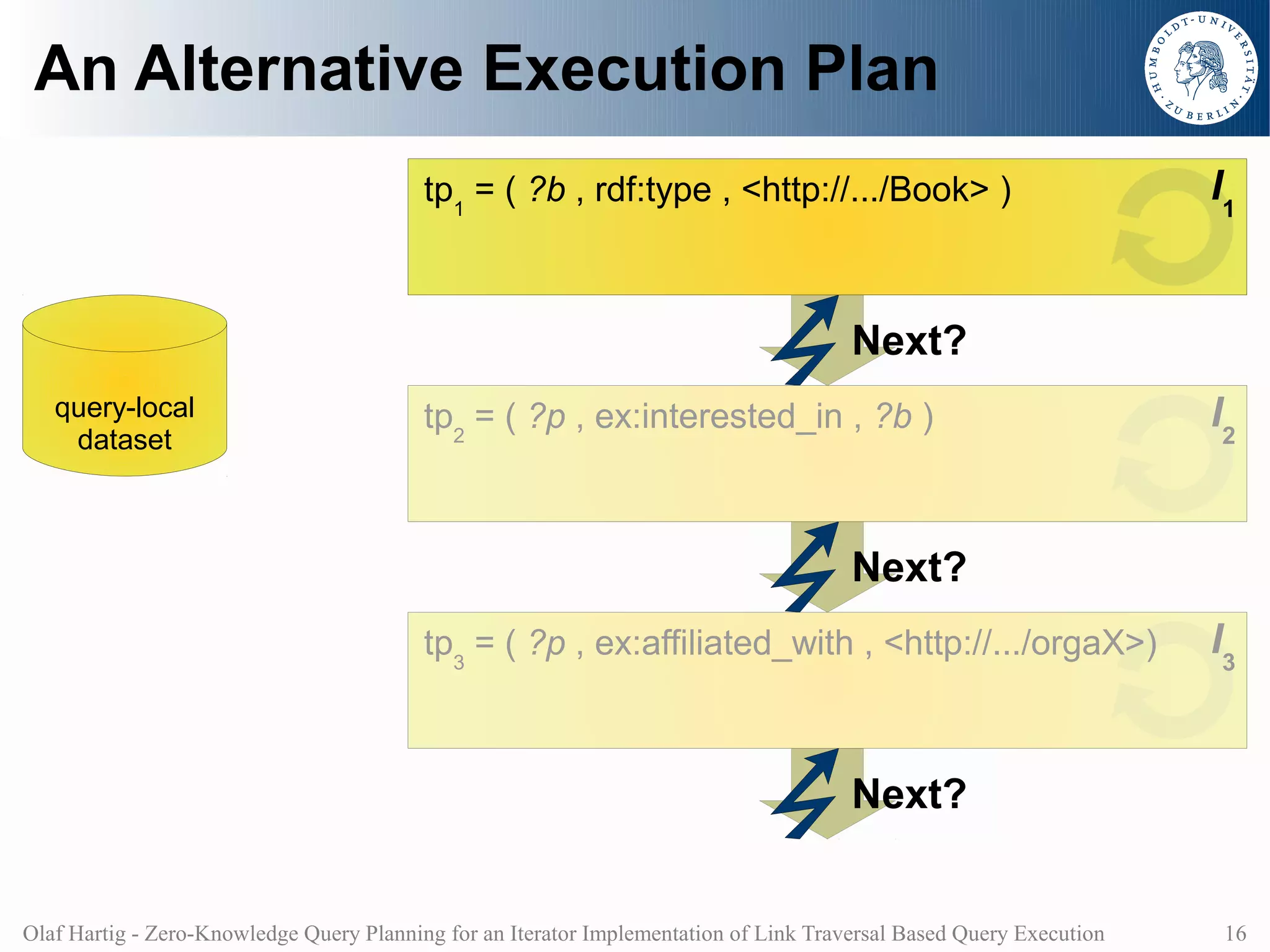

16. An Alternative Execution Plan
tp1 = ( ?b , rdf:type , <http://.../Book> ) I1
Next?
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
Next?
tp3 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I3
Next?
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 16

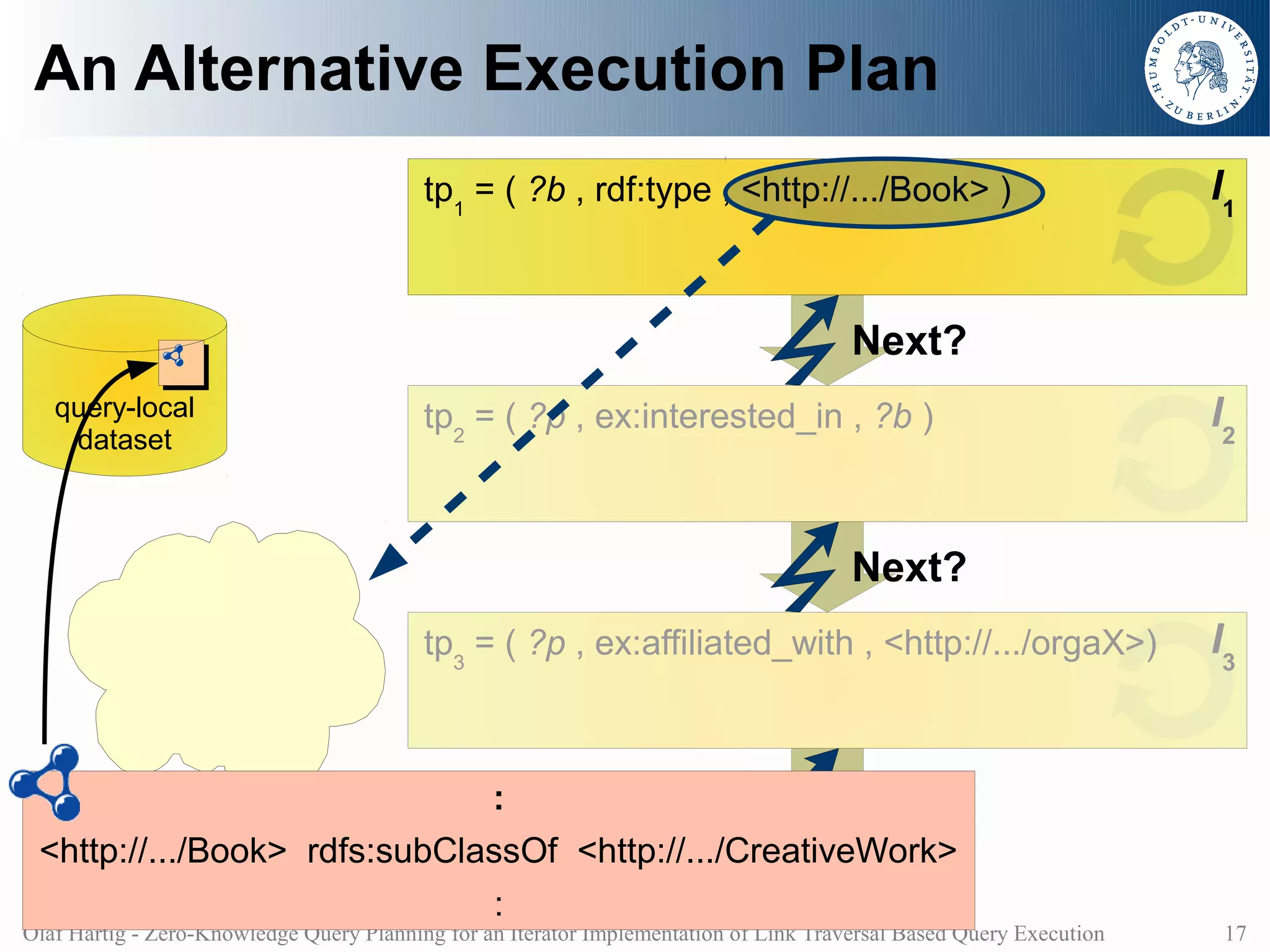

17. An Alternative Execution Plan
tp1 = ( ?b , rdf:type , <http://.../Book> ) I1
Next?
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
Next?
tp3 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I3
: Next?
<http://.../Book> rdfs:subClassOf <http://.../CreativeWork>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 17

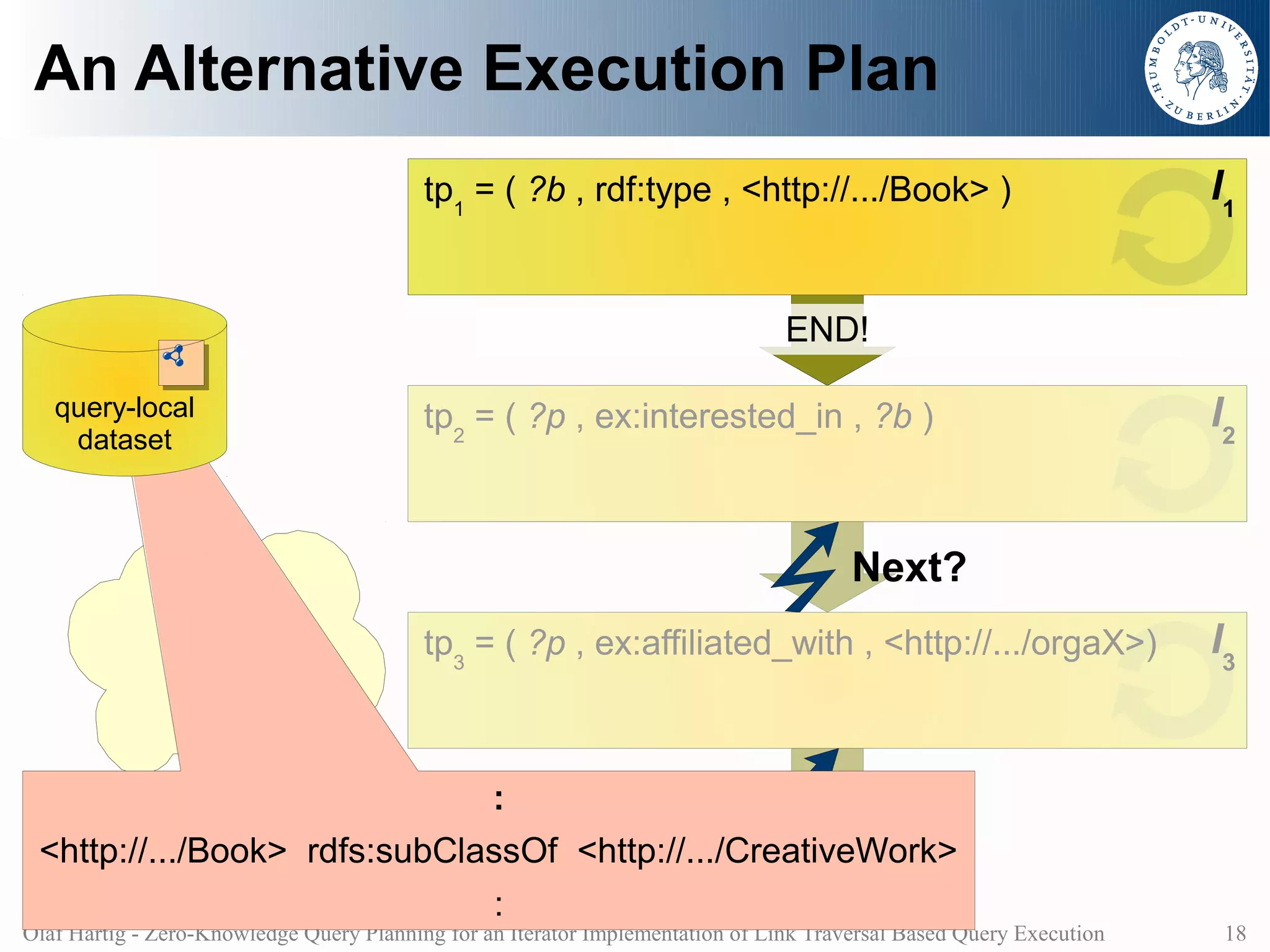

18. An Alternative Execution Plan
tp1 = ( ?b , rdf:type , <http://.../Book> ) I1
END!
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
Next?
tp3 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I3
: Next?
<http://.../Book> rdfs:subClassOf <http://.../CreativeWork>
:
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 18

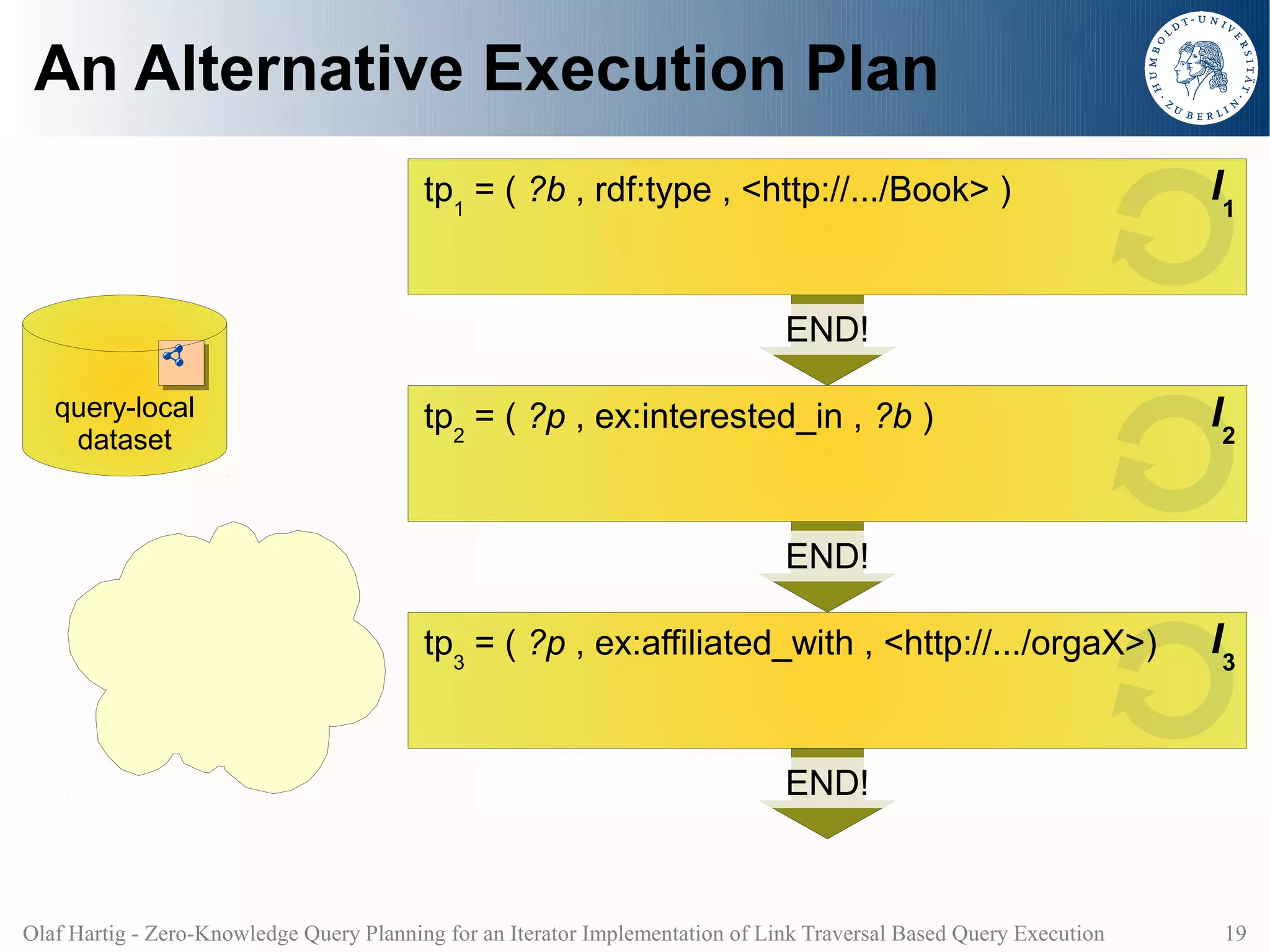

19. An Alternative Execution Plan
tp1 = ( ?b , rdf:type , <http://.../Book> ) I1
END!
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
END!
tp3 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I3
END!
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 19

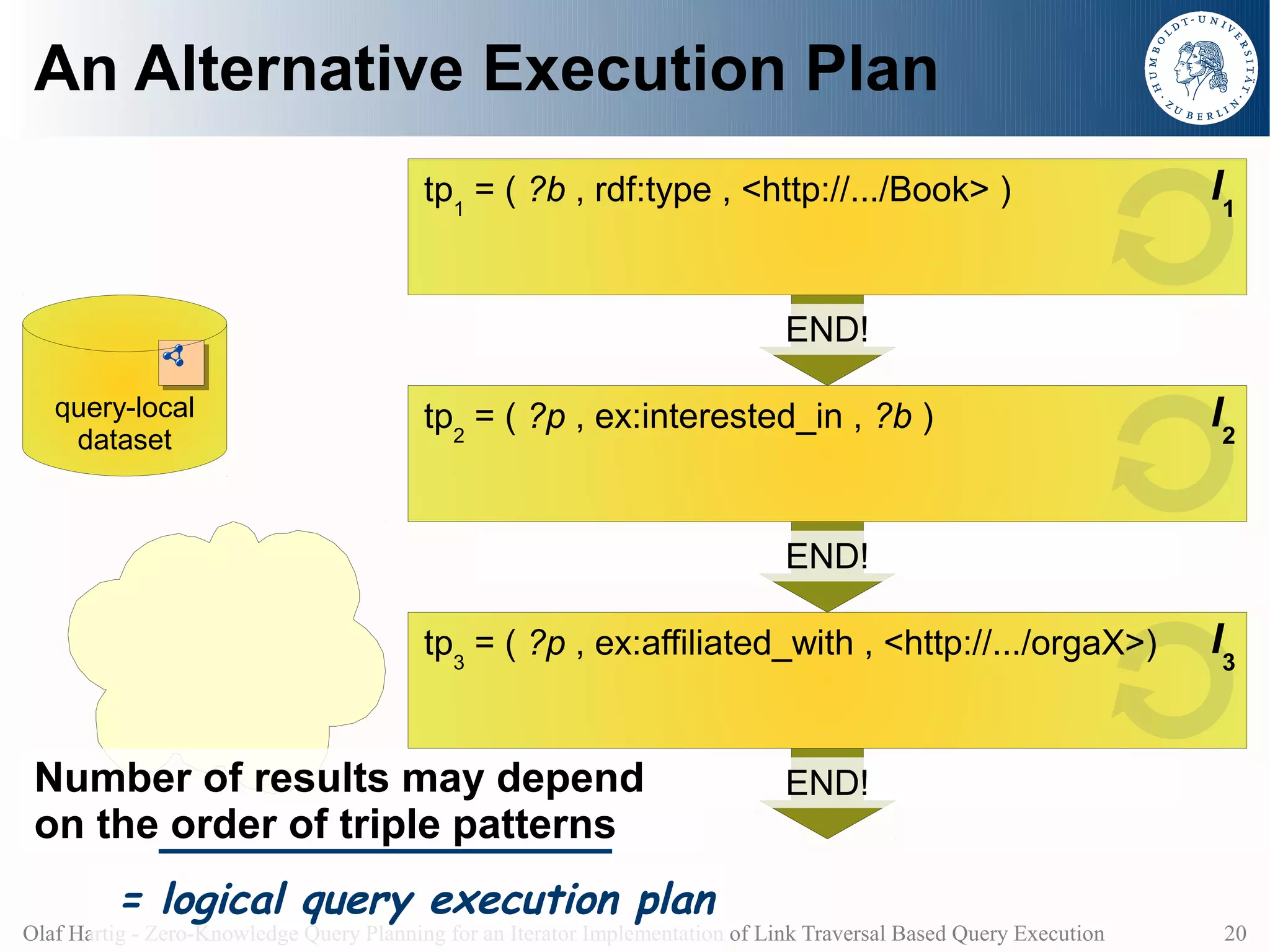

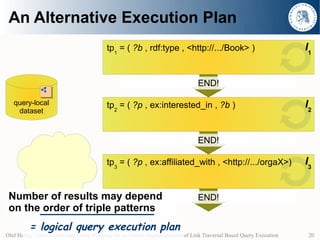

20. An Alternative Execution Plan
tp1 = ( ?b , rdf:type , <http://.../Book> ) I1
END!
query-local tp2 = ( ?p , ex:interested_in , ?b ) I2
dataset
END!
tp3 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I3
Number of results may depend END!
on the order of triple patterns

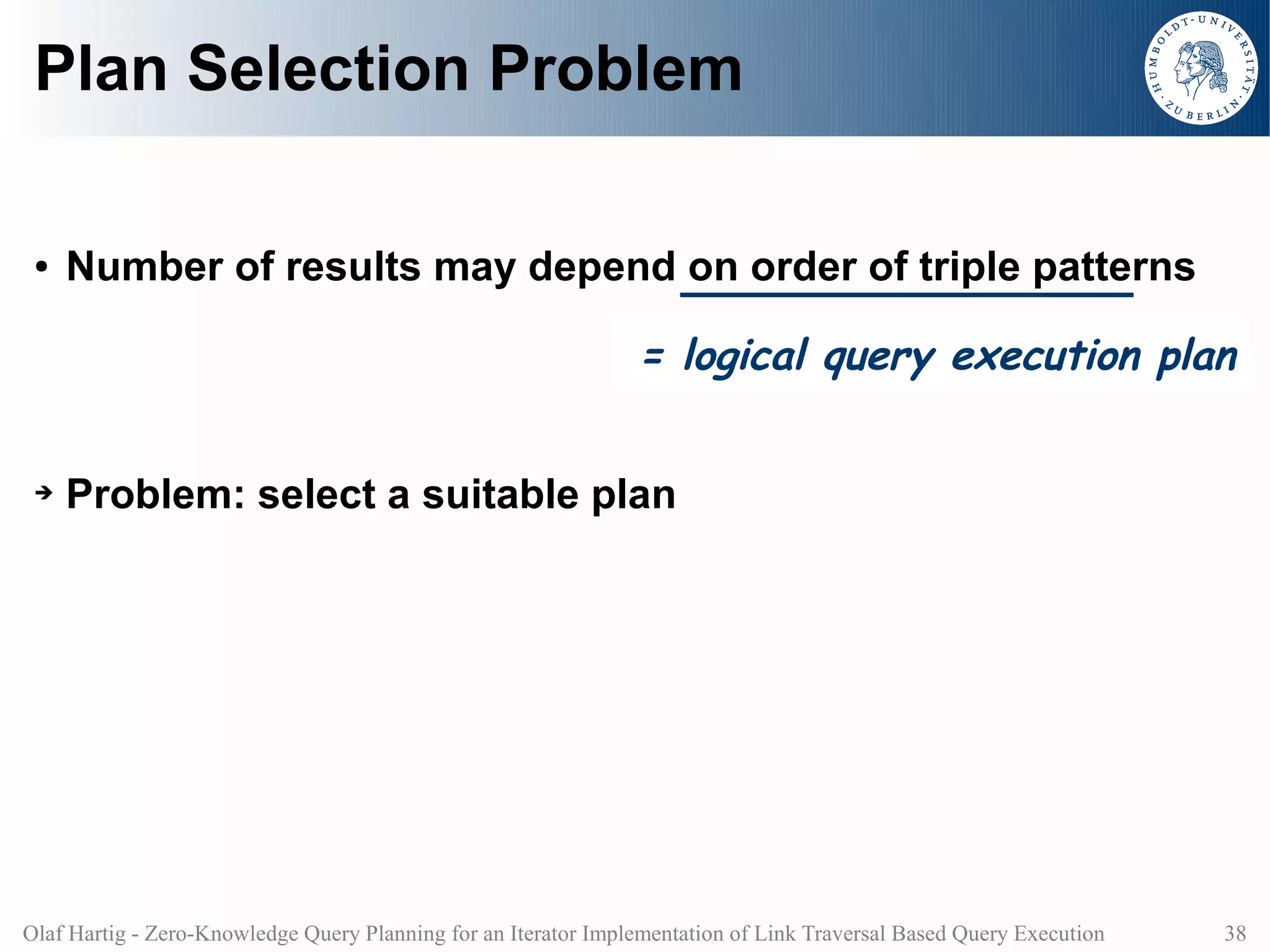

= logical query execution plan
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 20

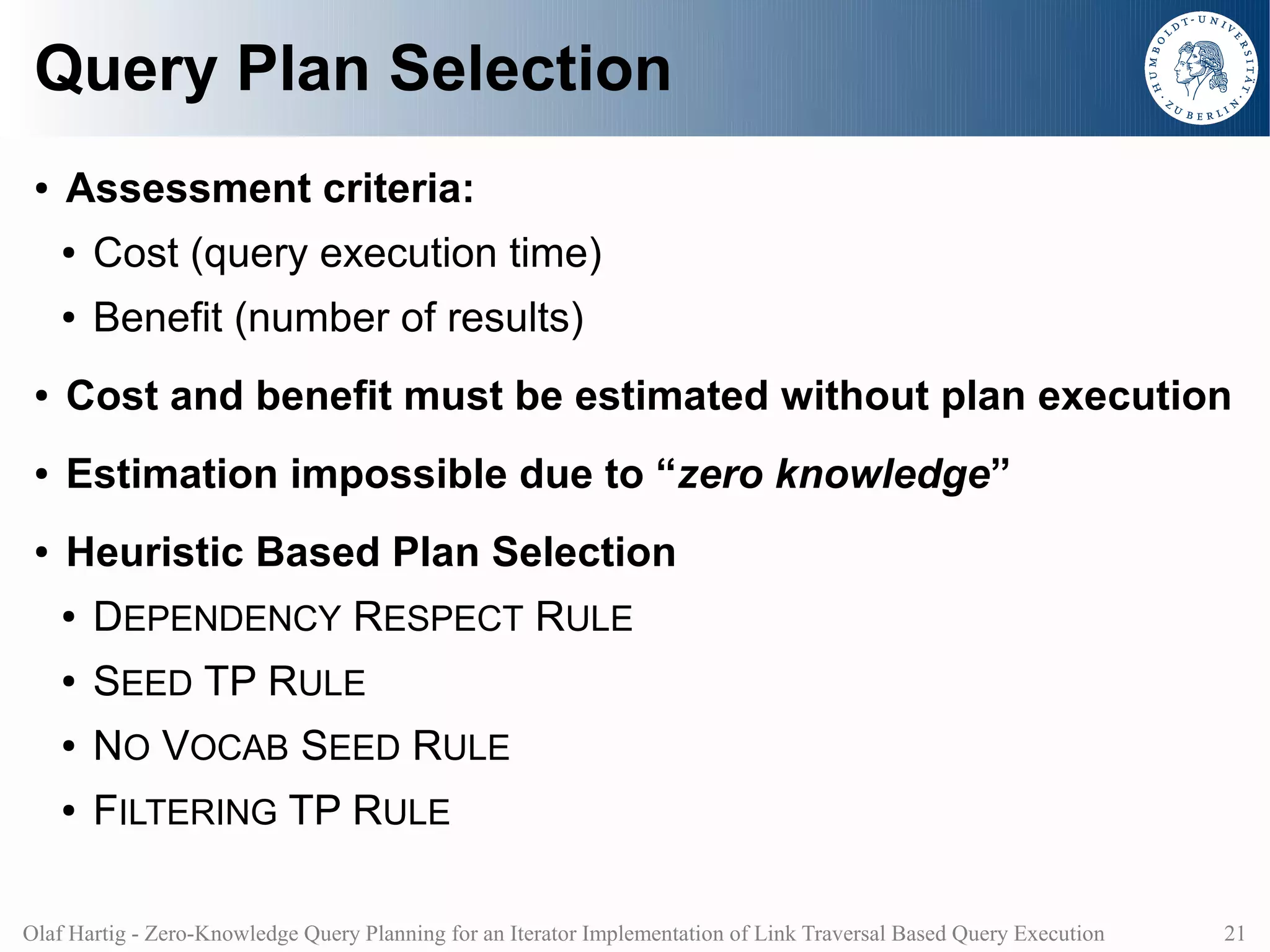

21. Query Plan Selection
● Assessment criteria:
● Cost (query execution time)
● Benefit (number of results)
● Cost and benefit must be estimated without plan execution
● Estimation impossible due to “zero knowledge”
● Heuristic Based Plan Selection
● DEPENDENCY RESPECT RULE
● SEED TP RULE
● NO VOCAB SEED RULE
● FILTERING TP RULE
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 21

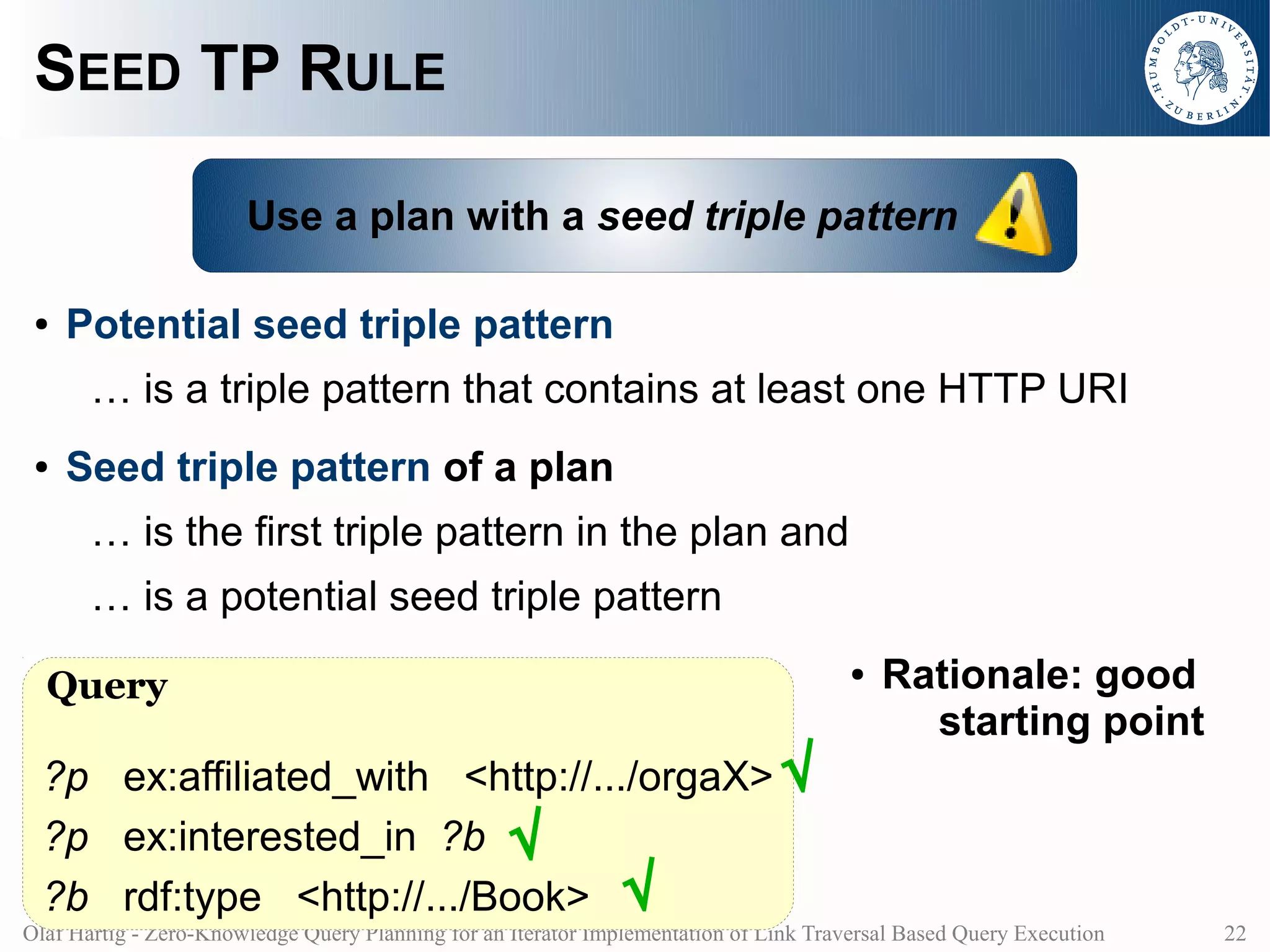

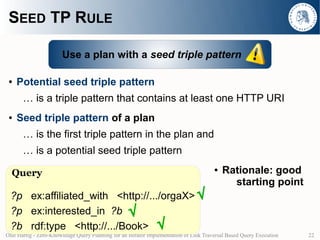

22. SEED TP RULE
Use a plan with a seed triple pattern
● Potential seed triple pattern
… is a triple pattern that contains at least one HTTP URI
● Seed triple pattern of a plan
… is the first triple pattern in the plan and
… is a potential seed triple pattern
Query ● Rationale: good
starting point
?p ex:affiliated_with <http://.../orgaX> √
?p ex:interested_in ?b √
?b rdf:type <http://.../Book> √
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 22

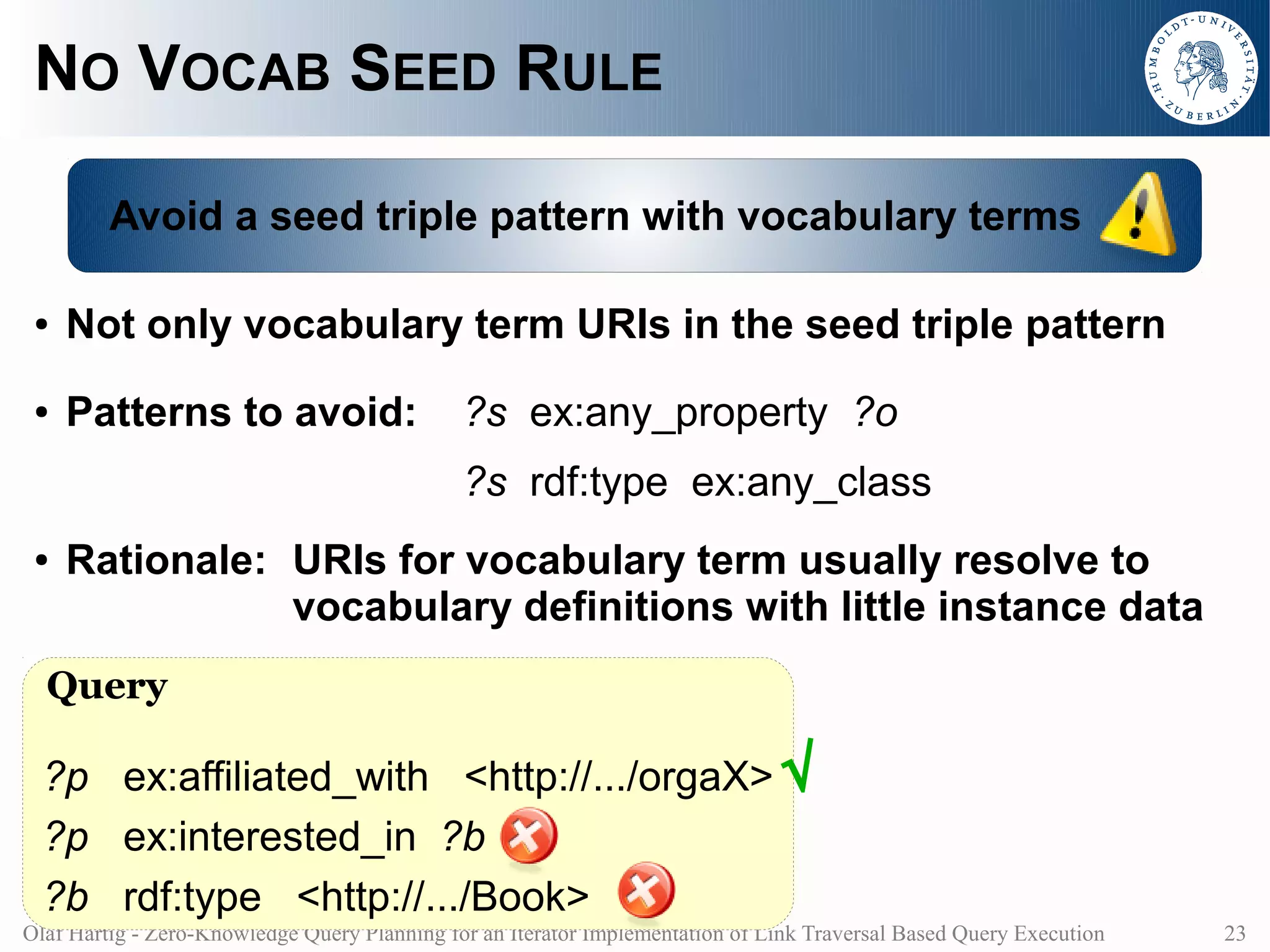

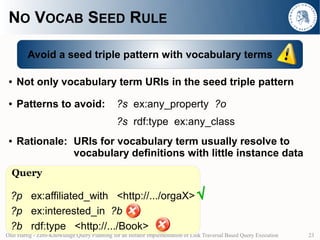

23. NO VOCAB SEED RULE
Avoid a seed triple pattern with vocabulary terms
● Not only vocabulary term URIs in the seed triple pattern
● Patterns to avoid: ?s ex:any_property ?o
?s rdf:type ex:any_class
● Rationale: URIs for vocabulary term usually resolve to
vocabulary definitions with little instance data
Query
?p ex:affiliated_with <http://.../orgaX> √
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 23

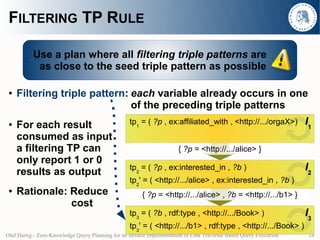

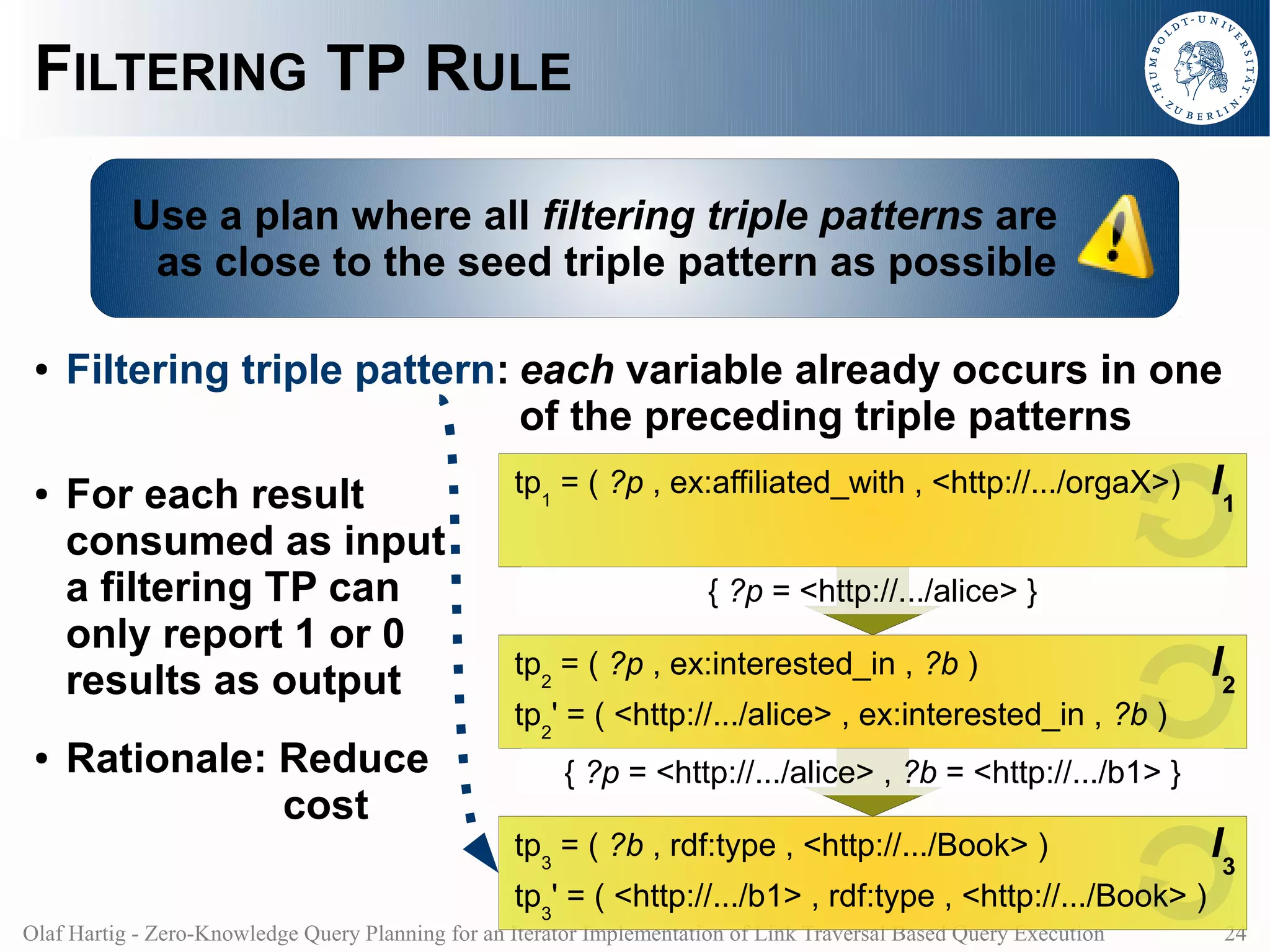

24. FILTERING TP RULE
Use a plan where all filtering triple patterns are
as close to the seed triple pattern as possible
● Filtering triple pattern: each variable already occurs in one
of the preceding triple patterns
● For each result tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I1
consumed as input
a filtering TP can { ?p = <http://.../alice> }
only report 1 or 0
results as output tp2 = ( ?p , ex:interested_in , ?b ) I2
tp2' = ( <http://.../alice> , ex:interested_in , ?b )
● Rationale: Reduce { ?p = <http://.../alice> , ?b = <http://.../b1> }
cost
tp3 = ( ?b , rdf:type , <http://.../Book> ) I3
tp3' = ( <http://.../b1> , rdf:type , <http://.../Book> )
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 24

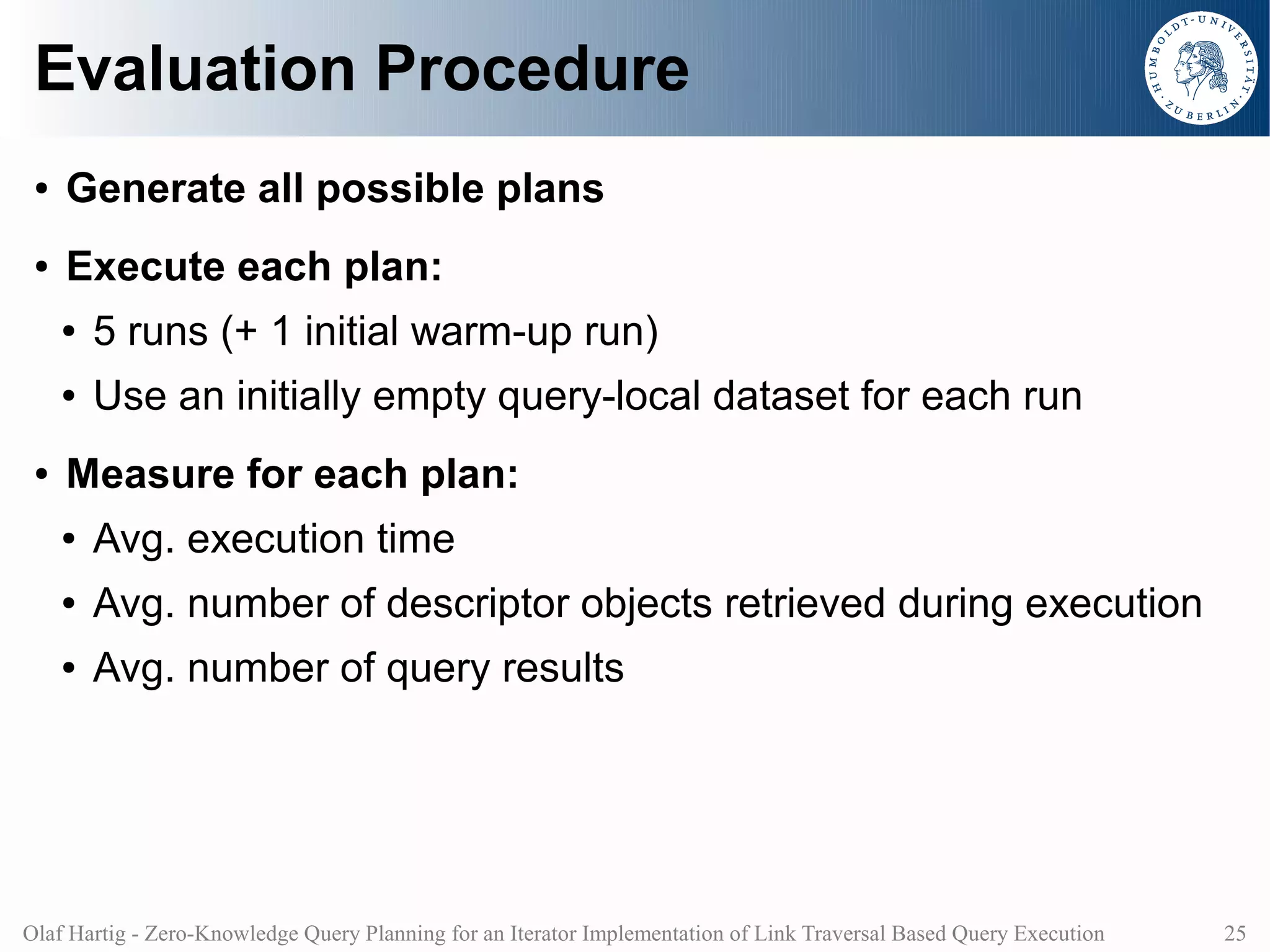

25. Evaluation Procedure
● Generate all possible plans
● Execute each plan:
● 5 runs (+ 1 initial warm-up run)
● Use an initially empty query-local dataset for each run
● Measure for each plan:
● Avg. execution time
● Avg. number of descriptor objects retrieved during execution
● Avg. number of query results
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 25

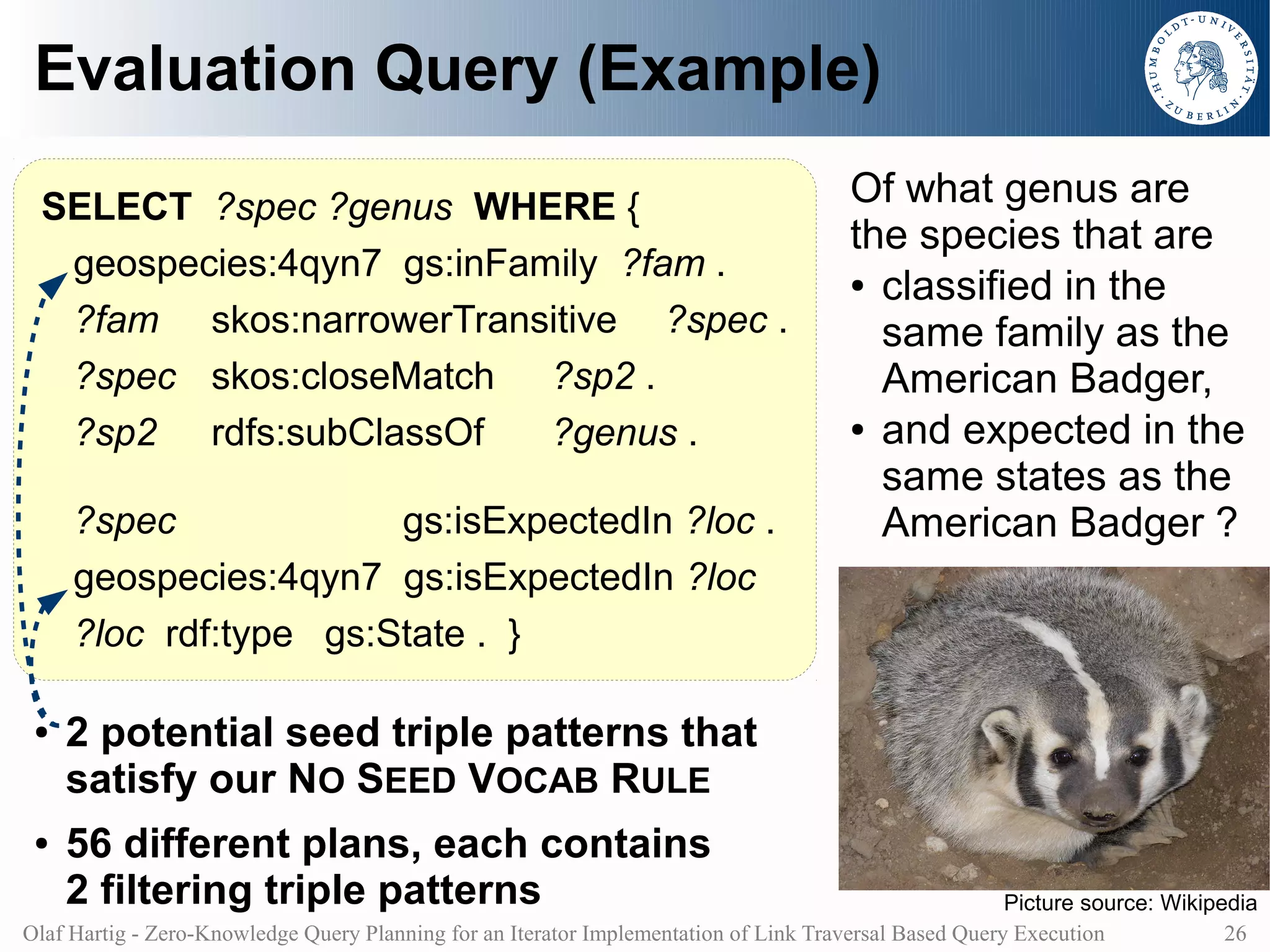

26. Evaluation Query (Example)
SELECT ?spec ?genus WHERE { Of what genus are
the species that are
geospecies:4qyn7 gs:inFamily ?fam . ● classified in the
?fam skos:narrowerTransitive ?spec . same family as the
?spec skos:closeMatch ?sp2 . American Badger,
● and expected in the
?sp2 rdfs:subClassOf ?genus .
same states as the
?spec gs:isExpectedIn ?loc . American Badger ?
geospecies:4qyn7 gs:isExpectedIn ?loc
?loc rdf:type gs:State . }
● 2 potential seed triple patterns that
satisfy our NO SEED VOCAB RULE
● 56 different plans, each contains
2 filtering triple patterns Picture source: Wikipedia
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 26

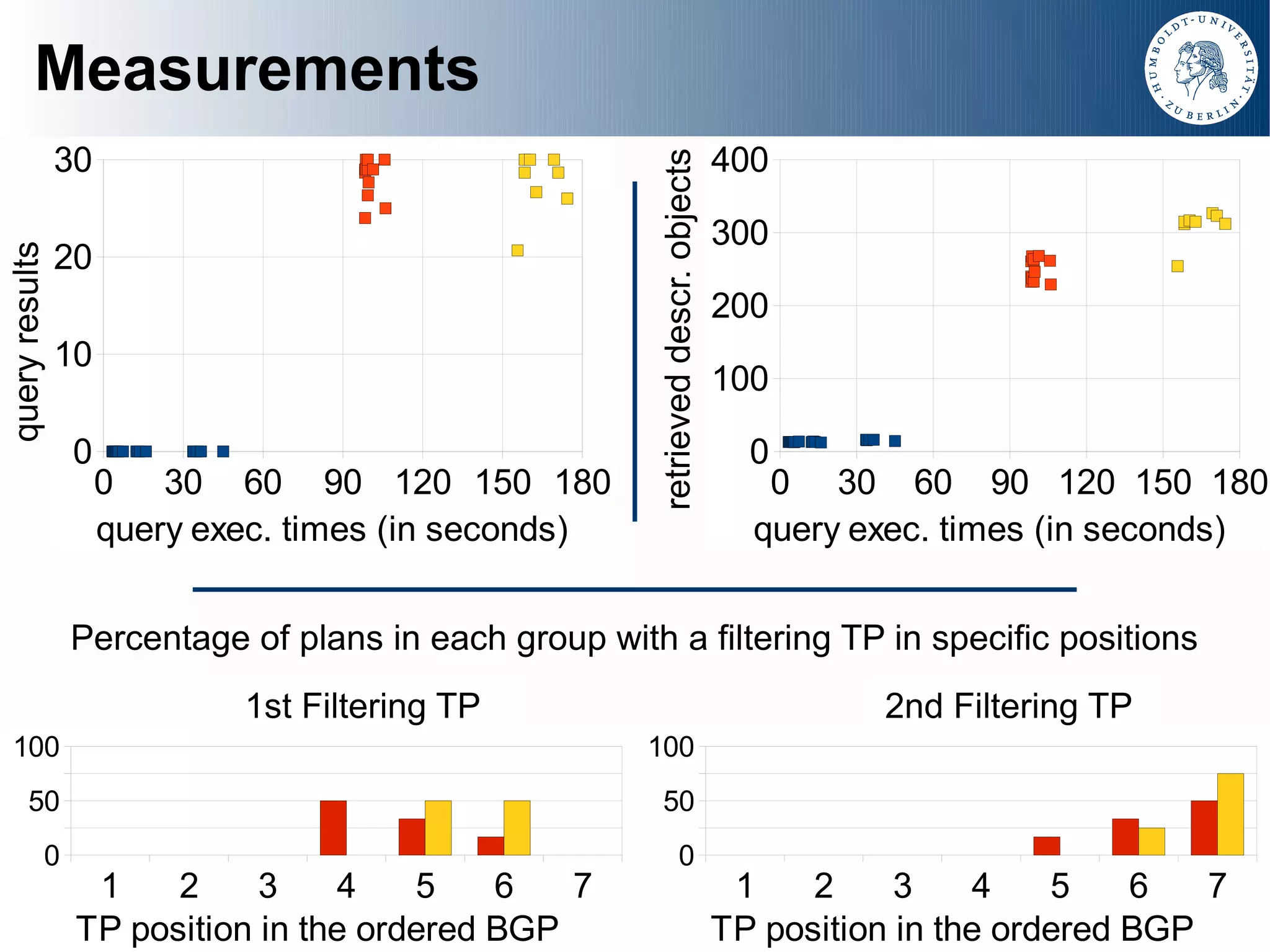

27. Measurements
30 400
retrieved descr. objects
300
20
query results
200
10
100
0 0
0 30 60 90 120 150 180 0 30 60 90 120 150 180
query exec. times (in seconds) query exec. times (in seconds)
Percentage of plans in each group with a filtering TP in specific positions
1st Filtering TP 2nd Filtering TP
100 100
50 50
0 0
1 2 3 4 5 6 7 1 2 3 4 5 6 7
Olaf Hartig position in the ordered an Iterator Implementation of Link Traversal Based Query Execution BGP 27
TP - Zero-Knowledge Query Planning for BGP TP position in the ordered

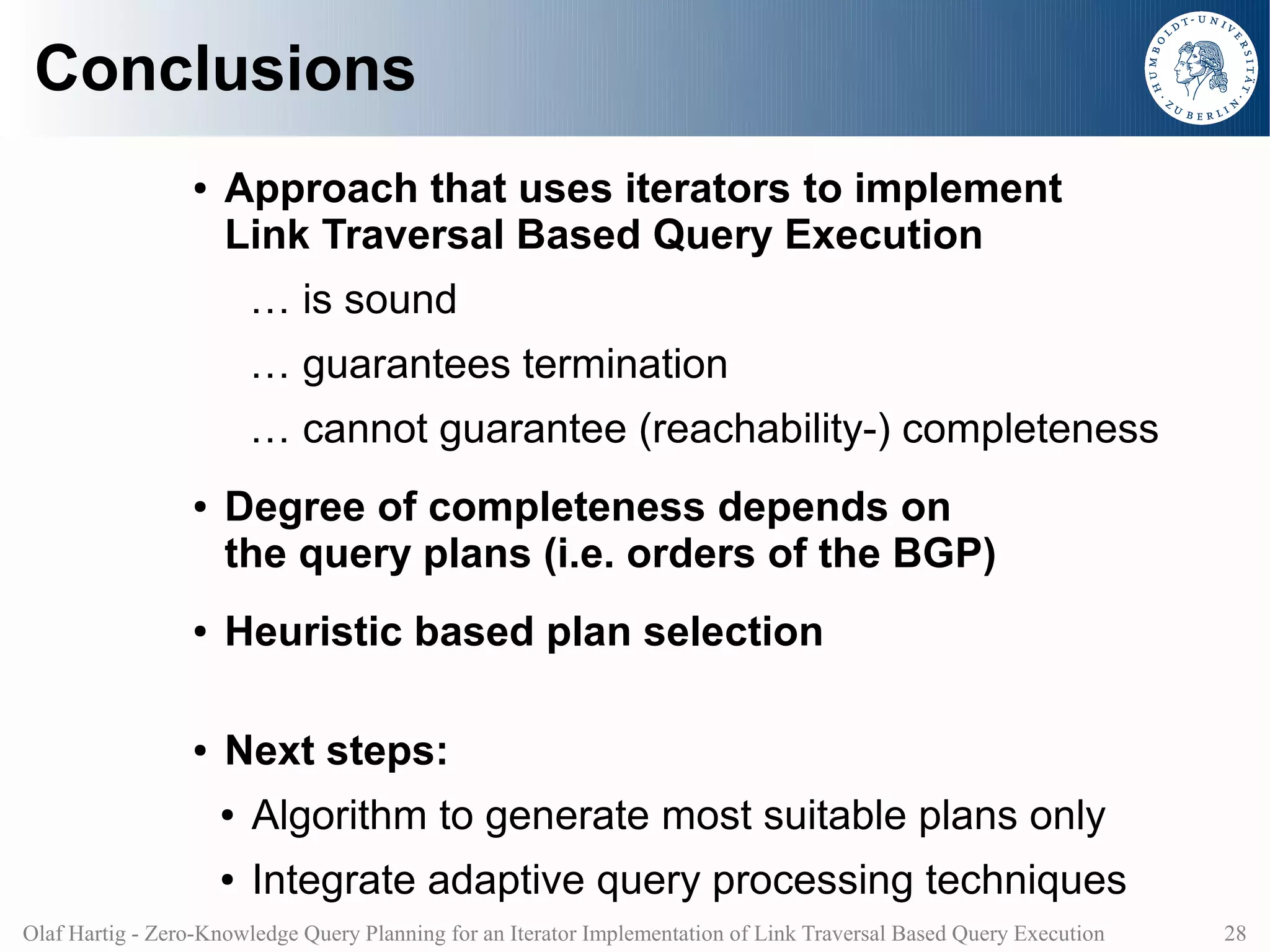

28. Conclusions
● Approach that uses iterators to implement
Link Traversal Based Query Execution
… is sound
… guarantees termination
… cannot guarantee (reachability-) completeness
● Degree of completeness depends on
the query plans (i.e. orders of the BGP)
● Heuristic based plan selection
● Next steps:
● Algorithm to generate most suitable plans only
● Integrate adaptive query processing techniques
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 28

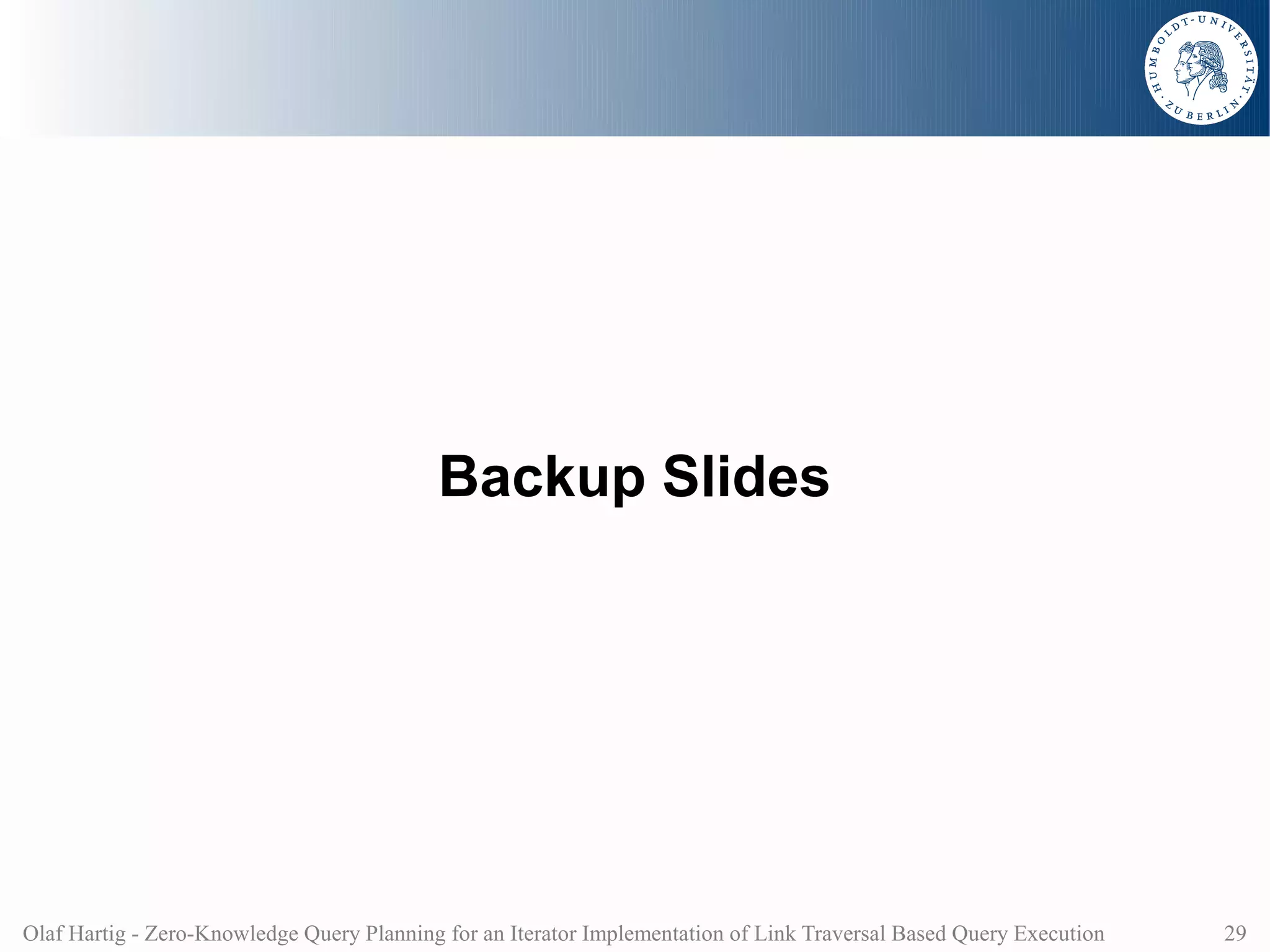

29. Backup Slides
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 29

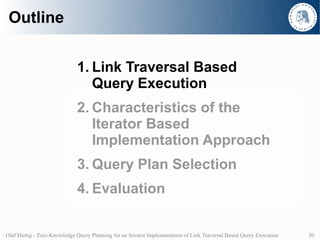

30. Outline
1. Link Traversal Based
Query Execution
2. Characteristics of the
Iterator Based
Implementation Approach
3. Query Plan Selection
4. Evaluation
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 30

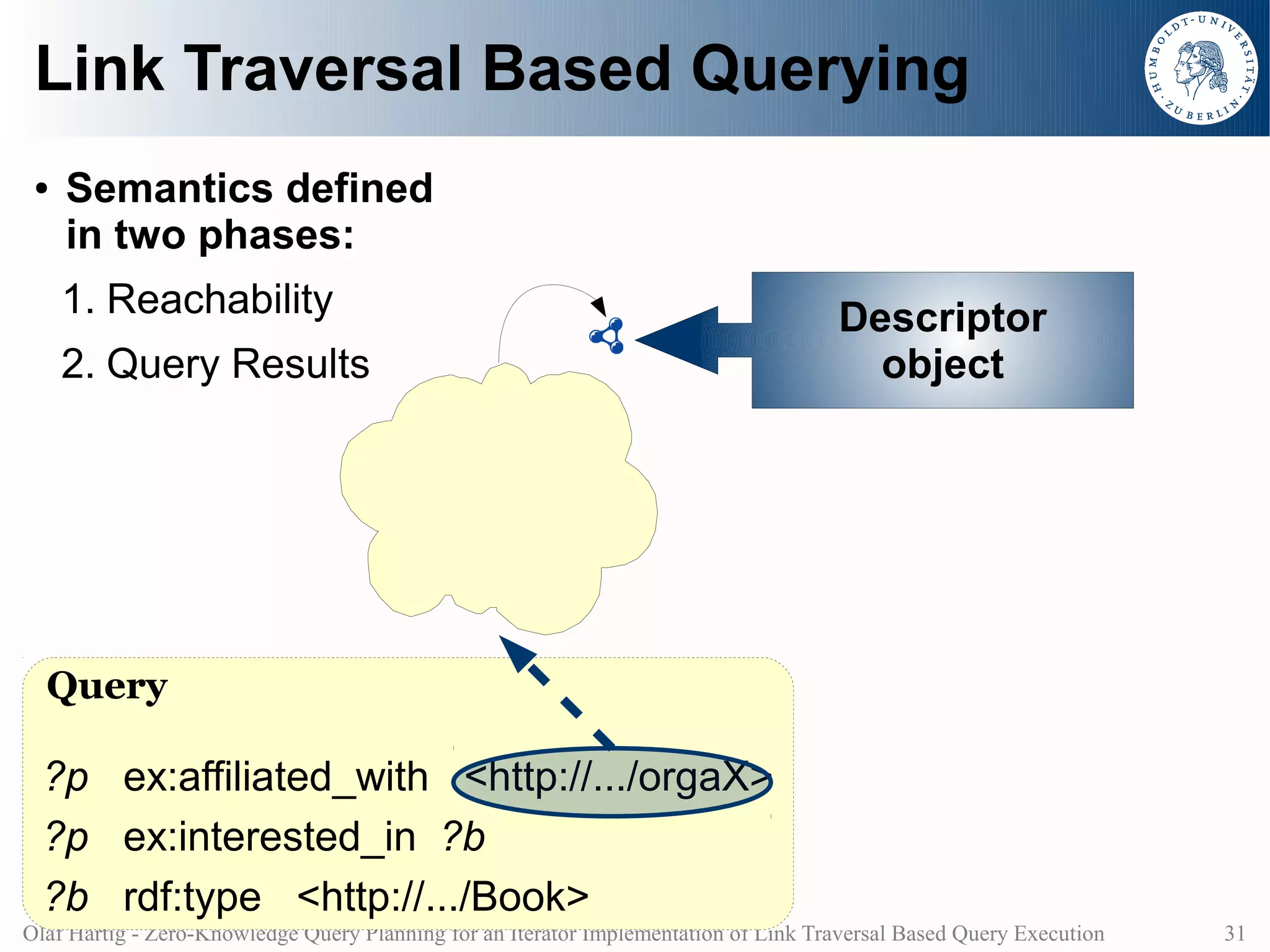

31. Link Traversal Based Querying
● Semantics defined
in two phases:
1. Reachability Descriptor
2. Query Results object
Query
?p ex:affiliated_with <http://.../orgaX>
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 31

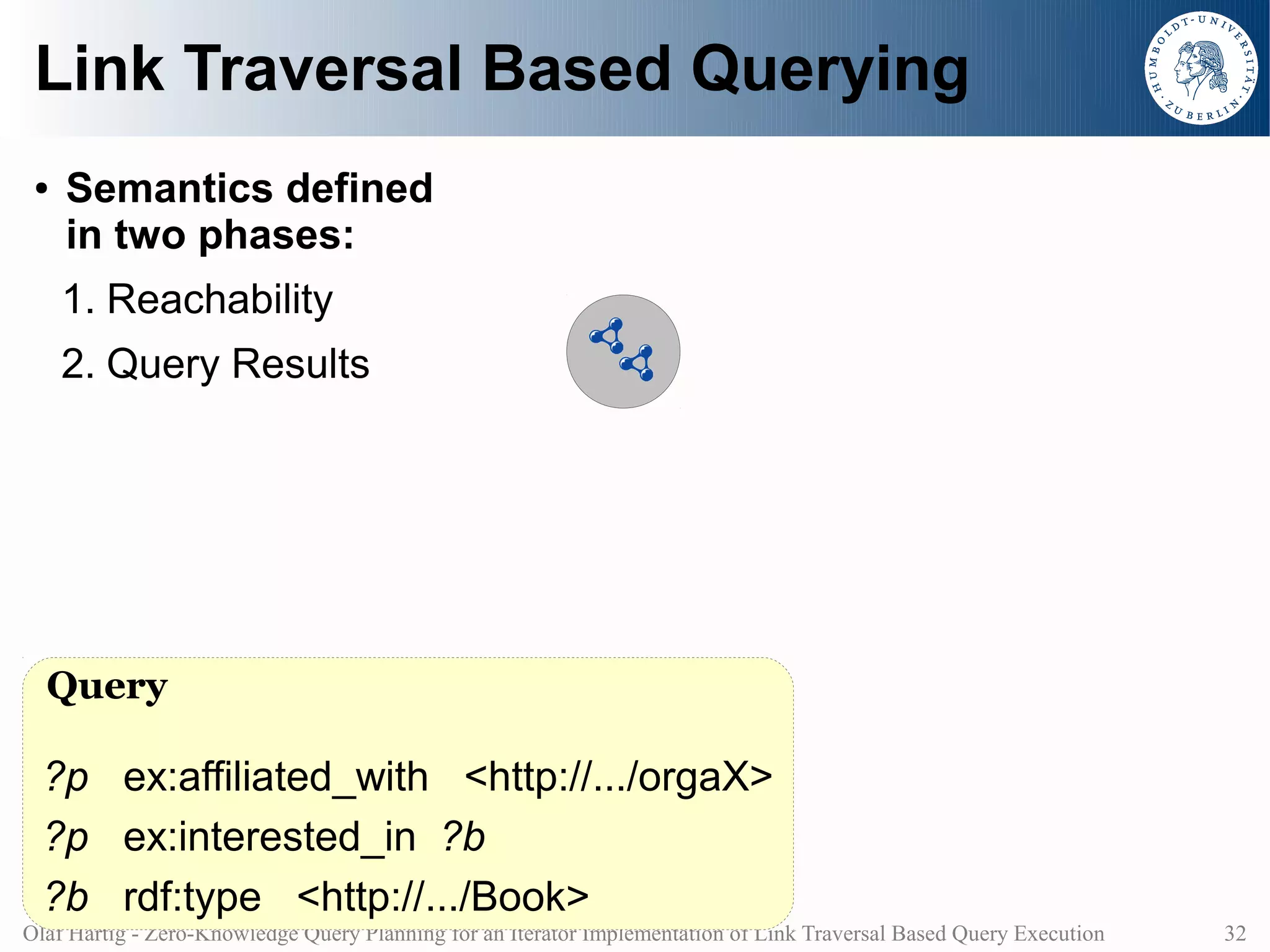

32. Link Traversal Based Querying
● Semantics defined
in two phases:
1. Reachability
2. Query Results
Query
?p ex:affiliated_with <http://.../orgaX>
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 32

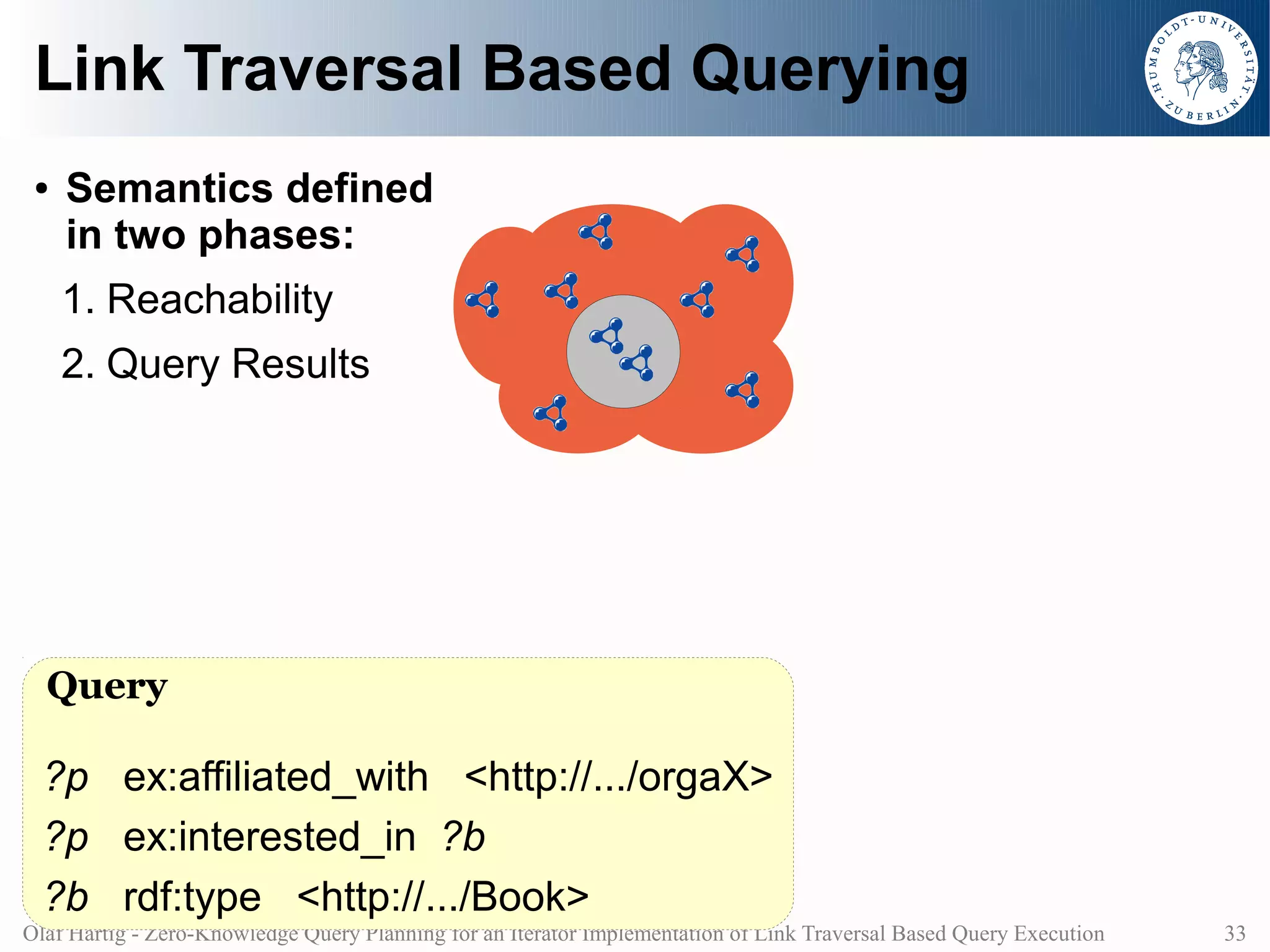

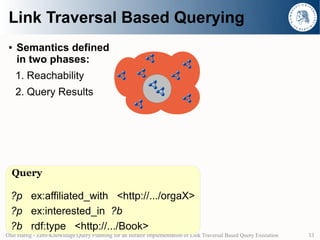

33. Link Traversal Based Querying
● Semantics defined
in two phases:
1. Reachability
2. Query Results
Query
?p ex:affiliated_with <http://.../orgaX>
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 33

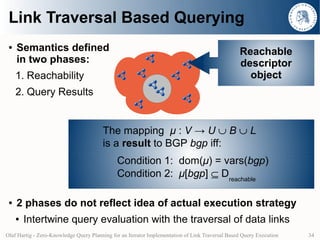

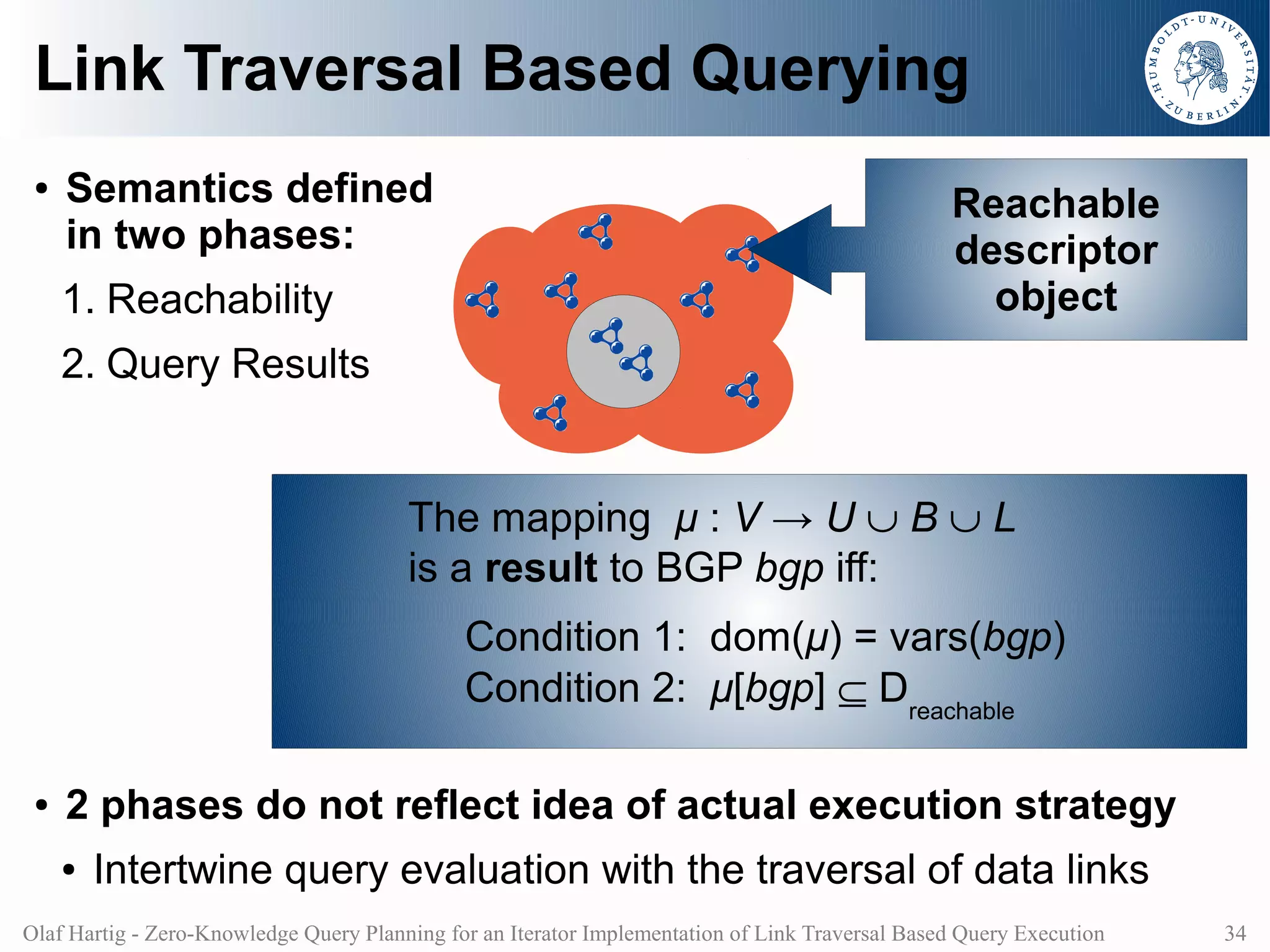

34. Link Traversal Based Querying
● Semantics defined Reachable
in two phases: descriptor
1. Reachability object
2. Query Results
The mapping μ : V → U  B  L
is a result to BGP bgp iff:
Condition 1: dom(μ) = vars(bgp)
Condition 2: μ[bgp]  Dreachable
● 2 phases do not reflect idea of actual execution strategy
● Intertwine query evaluation with the traversal of data links
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 34

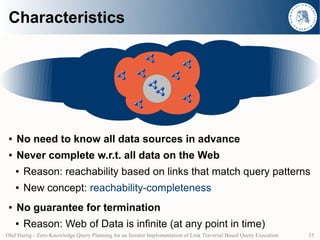

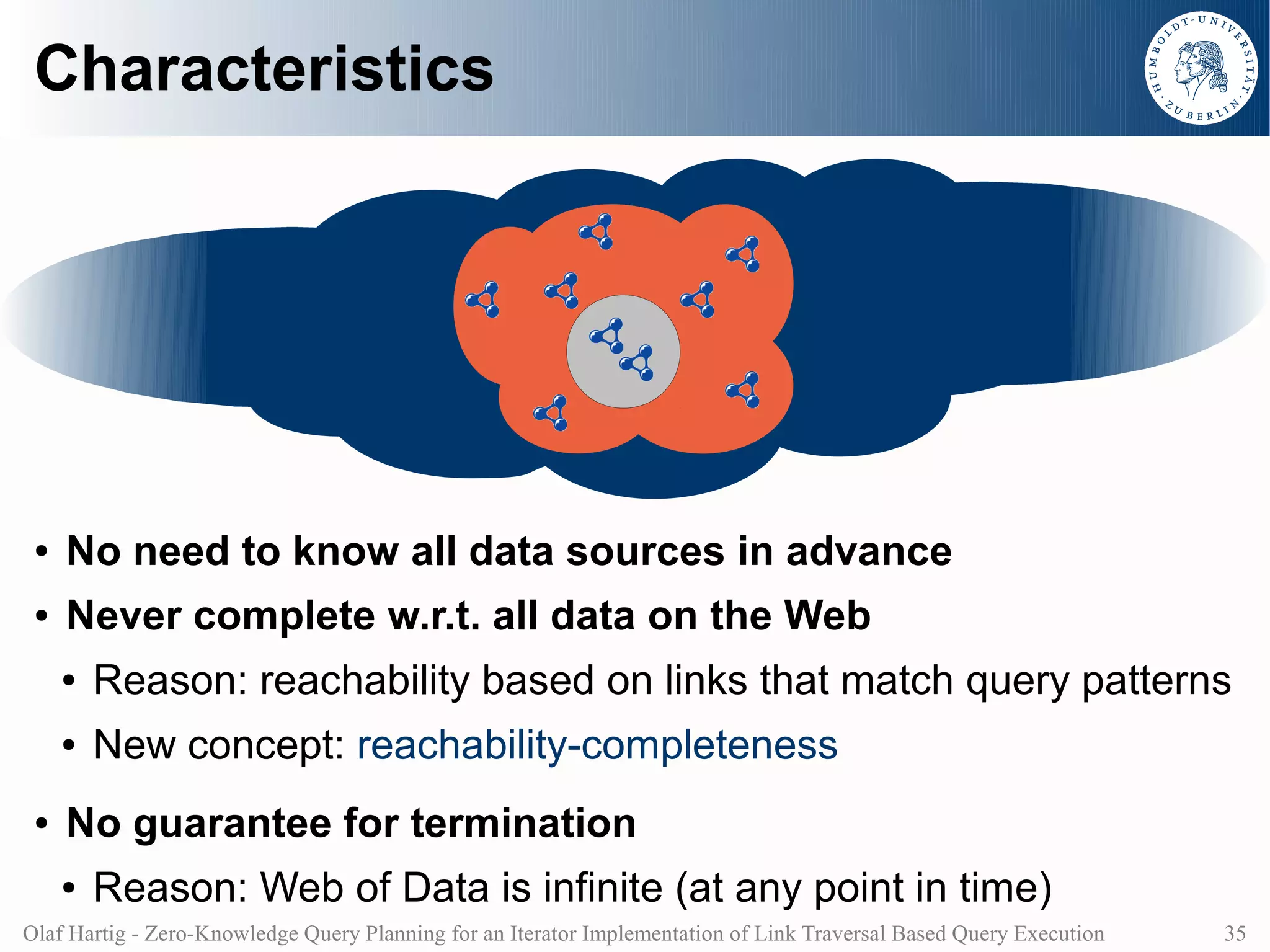

35. Characteristics
● No need to know all data sources in advance
● Never complete w.r.t. all data on the Web
● Reason: reachability based on links that match query patterns
● New concept: reachability-completeness
● No guarantee for termination
● Reason: Web of Data is infinite (at any point in time)
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 35

36. Outline
1. Characteristics of the
Implementation Approach
2. Query Plan Selection
3. Evaluation
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 36

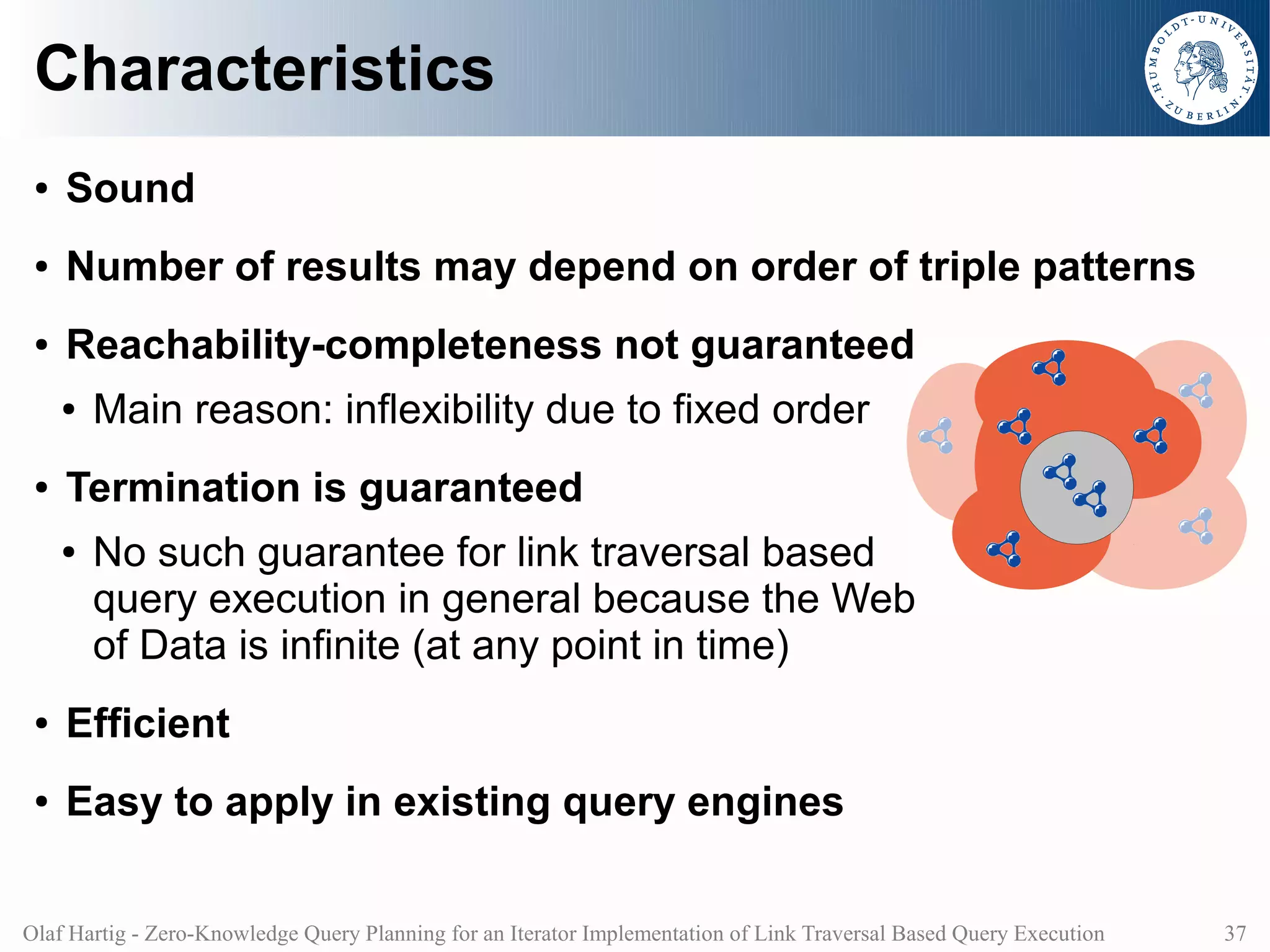

37. Characteristics
● Sound
● Number of results may depend on order of triple patterns
● Reachability-completeness not guaranteed
● Main reason: inflexibility due to fixed order
● Termination is guaranteed
● No such guarantee for link traversal based
query execution in general because the Web
of Data is infinite (at any point in time)
● Efficient
● Easy to apply in existing query engines
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 37

38. Plan Selection Problem
● Number of results may depend on order of triple patterns
= logical query execution plan
➔ Problem: select a suitable plan
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 38

39. Outline
1. Link Traversal Based
Query Execution
2. Characteristics of the
Iterator Based
Implementation Approach
3. Query Plan Selection
4. Evaluation
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 39

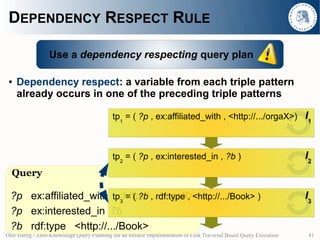

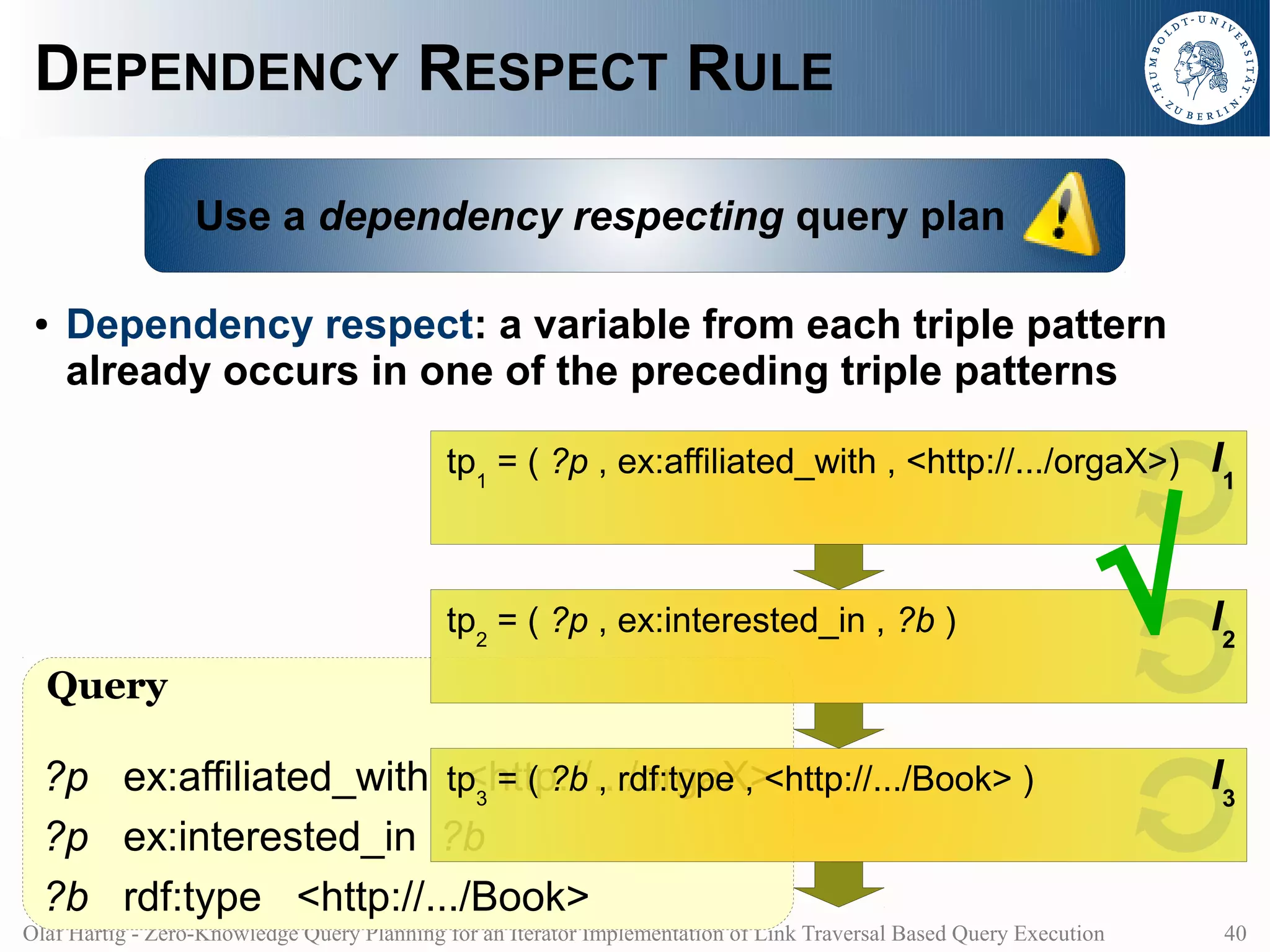

40. DEPENDENCY RESPECT RULE
Use a dependency respecting query plan
● Dependency respect: a variable from each triple pattern
already occurs in one of the preceding triple patterns
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I1
Query
tp2 = ( ?p , ex:interested_in , ?b ) √ I2
?p ex:affiliated_with tp3 = ( ?b , rdf:type , <http://.../Book> )
<http://.../orgaX> I3
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 40

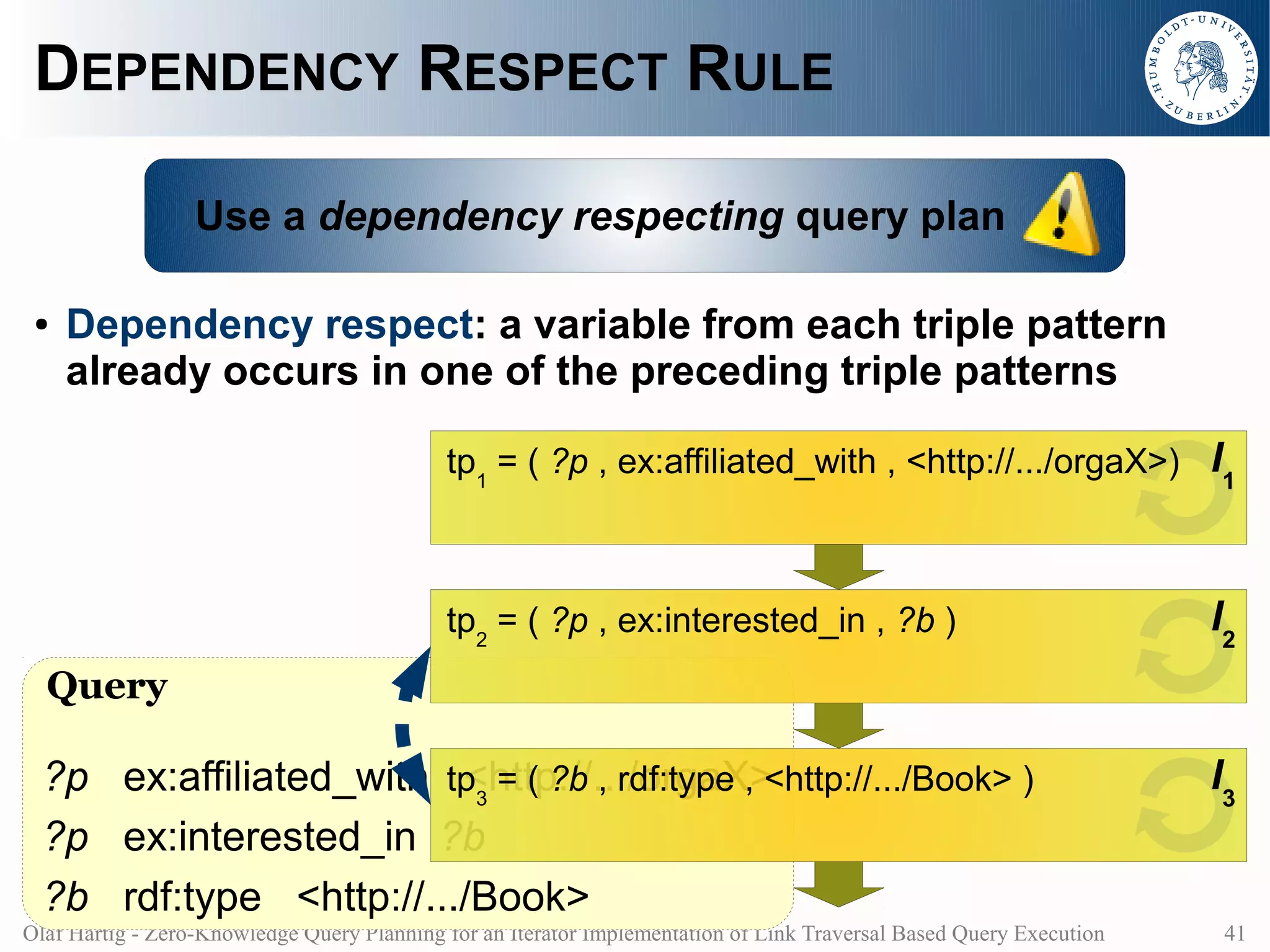

41. DEPENDENCY RESPECT RULE
Use a dependency respecting query plan
● Dependency respect: a variable from each triple pattern
already occurs in one of the preceding triple patterns
tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I1
tp2 = ( ?p , ex:interested_in , ?b ) I2
Query
?p ex:affiliated_with tp3 = ( ?b , rdf:type , <http://.../Book> )
<http://.../orgaX> I3
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 41

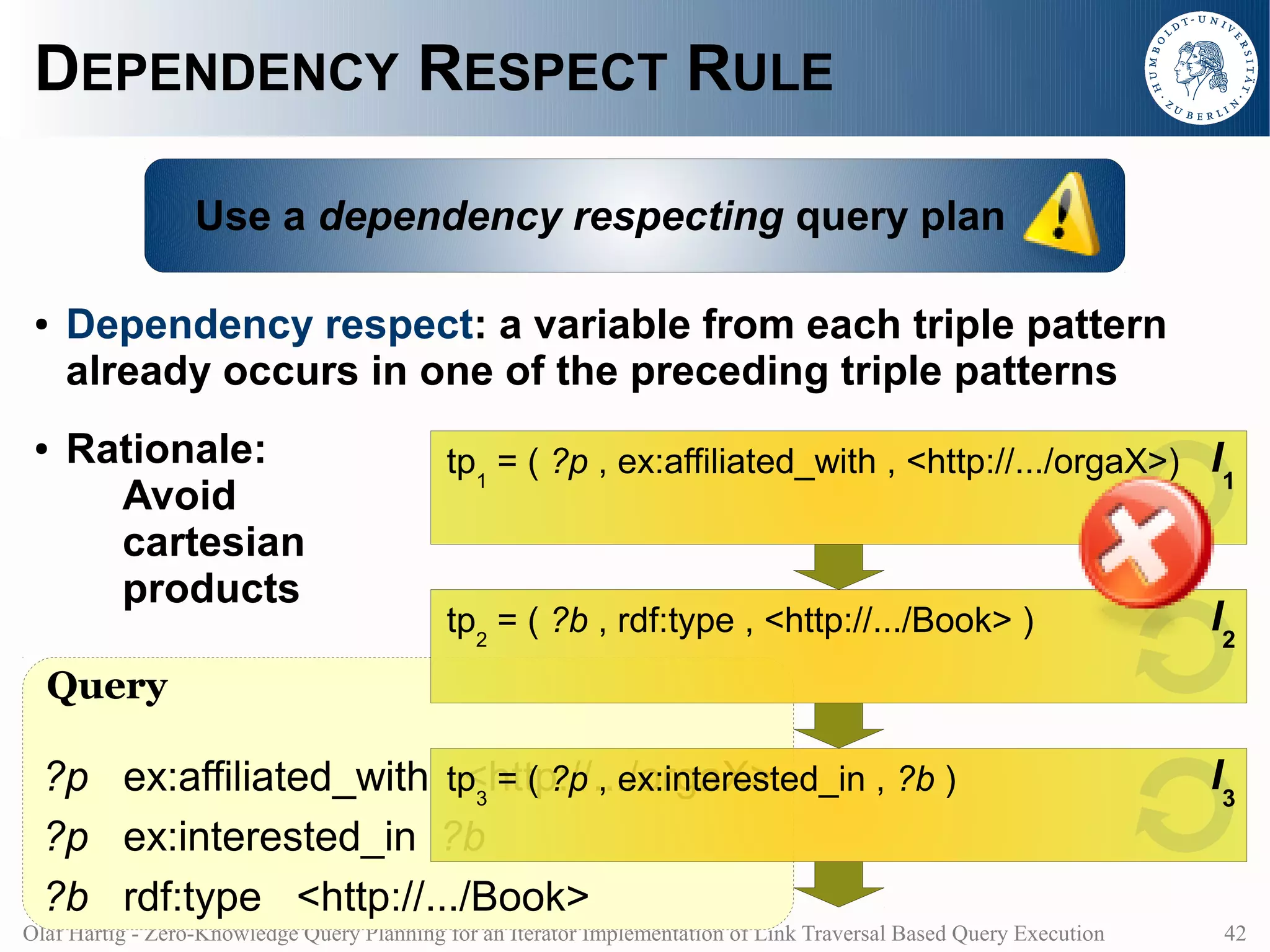

42. DEPENDENCY RESPECT RULE
Use a dependency respecting query plan
● Dependency respect: a variable from each triple pattern
already occurs in one of the preceding triple patterns
● Rationale: tp1 = ( ?p , ex:affiliated_with , <http://.../orgaX>) I1
Avoid
cartesian
products
tp2 = ( ?b , rdf:type , <http://.../Book> ) I2
Query
?p ex:affiliated_with tp3 = ( ?p , ex:interested_in , ?b )
<http://.../orgaX> I3
?p ex:interested_in ?b
?b rdf:type <http://.../Book>
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 42

43. These slides have been created by
Olaf Hartig
http://olafhartig.de
This work is licensed under a
Creative Commons Attribution-Share Alike 3.0 License
(http://creativecommons.org/licenses/by-sa/3.0/)
Olaf Hartig - Zero-Knowledge Query Planning for an Iterator Implementation of Link Traversal Based Query Execution 43
