Zentyal Customization (templates, hooks, LDAP)
The document discusses various customization options for Zentyal including modifying templates, using hooks, and integrating with LDAP. Templates allow customizing configuration files, hooks define custom actions on module events, and LDAP enables central user management and integration with external applications. Examples provided include adding a hidden folder in Samba and blocking traffic from a specific country using a firewall hook to add GeoIP rules.
Zentyal Customization (templates, hooks, LDAP)
- 1. How to customizeZentyal (hooks, templates and LDAP) Zentyal Summit 2011 12th November Carlos Pérez-Aradros <cperez@zentyal.com> Linux small business server
- 2. Linux small businessserver Zentyal... Easy to use Good integration Versatile ...but sometimes you need Some specific customization Integration with external apps www.zentyal.com © eBox Technologies S.L. 2011
- 3. Linux small businessserver Customization options Modify source code Add new logic or functionality Breaks on upgrade Upstream! Templates Change configuration files written by Zentyal Hooks Define custom actions (scripts) on module events LDAP Integrate external applications www.zentyal.com © eBox Technologies S.L. 2011
- 4. Linux small businessserver Customization options Modify source code Add new logic or functionality Breaks on upgrade Templates Change configuration files written by Zentyal Hooks Define custom actions (scripts) on module events LDAP Integrate external applications www.zentyal.com © eBox Technologies S.L. 2011
- 5. Linux small businessserver Templates (I) Zentyal uses templates to write system configurations files Modify templates to: Adjust parameters to adapt Zentyal to your requirements Add/remove configuration options www.zentyal.com © eBox Technologies S.L. 2011
- 6. Linux small businessserver Templates (II) Mason as template processor www.zentyal.com © eBox Technologies S.L. 2011
- 7. Linux small businessserver Templates (III) Default templates location: /usr/share/zentyal/stubs/<module>/<template>.mas Custom templates: /etc/zentyal/stubs/<module>/<template>.mas www.zentyal.com © eBox Technologies S.L. 2011
- 8. Linux small businessserver Templates (IV) Default stub /usr/share/zentyal/stubs/network/resolv.conf.mas T Conf file /etc/resolv.conf T Custom stub /etc/zentyal/stubs/network/resolv.conf.mas www.zentyal.com © eBox Technologies S.L. 2011

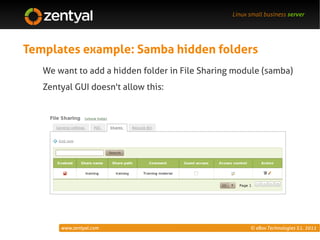

- 9. Linux small businessserver Templates example: Samba hidden folders We want to add a hidden folder in File Sharing module (samba) Zentyal GUI doesn't allow this: www.zentyal.com © eBox Technologies S.L. 2011
- 10. Linux small businessserver Templates example: Samba hidden folders Copy and edit default template: mkdir -p /etc/zentyal/stubs/samba/ cp /usr/share/zentyal/stubs/samba/smb.conf.mas /etc/zentyal/stubs/samba/ Write custom configuration www.zentyal.com © eBox Technologies S.L. 2011
- 11. Linux small businessserver Customization options Modify source code Add new logic or functionality Breaks on upgrade Templates Change configuration files written by Zentyal Hooks Define custom actions (scripts) on module events LDAP Integrate external applications www.zentyal.com © eBox Technologies S.L. 2011
- 12. Linux small businessserver Hooks (I) Execute actions (scripts) during Zentyal save changes process Create hook scripts to: Watch for changes in any module Add custom scripts before/after module actions www.zentyal.com © eBox Technologies S.L. 2011
- 13. Linux small businessserver Hooks (II): paths Before saving changes /etc/zentyal/pre-save/ After saving changes /etc/zentyal/post-save/ /etc/zentyal/hooks/ Before saving module configuration <module>.presetconf After saving module configuration <module>.postsetconf Before restarting the service <module>.preservice After restarting the service <module>.postservice www.zentyal.com © eBox Technologies S.L. 2011
- 14. Linux small businessserver one time for each module Hooks (III) pre-save .presetconf Write conf files .postsetconf .preservice Restart daemons .postservice hook post-save Zentyal action www.zentyal.com © eBox Technologies S.L. 2011
- 15. Linux small businessserver Hooks Example: Firewall We want to block traffic from a specific country (using GeoIP) Zentyal GUI does not allow this kind of rules If we add the rule by hand: Firewall module restart will delete it Solution: Add the rule after firewall restart (postservice hook) www.zentyal.com © eBox Technologies S.L. 2011
- 16. Linux small businessserver Hooks Example: Firewall Setup GeoIP sudo apt-get install module-assistant sudo module-assistant a-i xtables-addons wget http://sourceforge.net/projects/xtables- addons/files/Xtables-addons/1.38/xtables-addons-1.38.tar.xz sudo ./xt_geoip_dl sudo ./xt_geoip_build *.csv sudo mkdir /var/geoip && sudo cp -r LE /var/geoip www.zentyal.com © eBox Technologies S.L. 2011
- 17. Linux small businessserver Hooks Example: Firewall Create the hook /etc/zentyal/hooks/firewall.postservice #!/bin/sh sudo iptables -I INPUT -m geoip --src-cc KP -j ACCEPT Don't forget to make it executable! chmod +x /etc/zentyal/hooks/firewall.postservice www.zentyal.com © eBox Technologies S.L. 2011
- 18. Linux small businessserver Hooks: Future (3.0) Users operations hooks create modify delete Backup pre-backup post-backup www.zentyal.com © eBox Technologies S.L. 2011
- 19. Linux small businessserver Customization options Modify source code Add new logic or functionality Breaks on upgrade Templates Change configuration files written by Zentyal Hooks Define custom actions (scripts) on module events LDAP Integrate external applications www.zentyal.com © eBox Technologies S.L. 2011
- 20. Linux small businessserver LDAP Integration (I) Zentyal provides great Users and Groups management LDAP integration: Central point for users management Centralized authentication Distributed: master / slave architecture www.zentyal.com © eBox Technologies S.L. 2011
- 21. Linux small businessserver LDAP Integration (II) Integrate third apps with Zentyal Users and Groups www.zentyal.com © eBox Technologies S.L. 2011

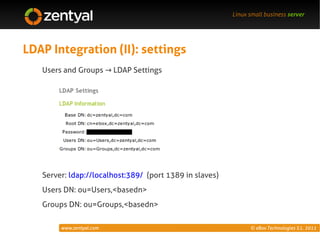

- 22. Linux small businessserver LDAP Integration (II): settings Users and Groups → LDAP Settings Server: ldap://localhost:389/ (port 1389 in slaves) Users DN: ou=Users,<basedn> Groups DN: ou=Groups,<basedn> www.zentyal.com © eBox Technologies S.L. 2011
- 23. Linux small businessserver LDAP Integration (III): filters uid=cperez,ou=Users,dc=zentyal,dc=com uid: cperez Base DN: ou=Users,dc=zentyal,dc=com loginShell: /usr/sbin/nologin uidNumber: 2002 Filter: (uid=*) gidNumber: 1901 homeDirectory: /home/cperez objectClass: inetOrgPerson objectClass: posixAccount objectClass: passwordHolder cn=developers,ou=Groups,dc=zentyal,dc=com givenName: Carlos cn: developers userPassword: {SHA}... gidNumber: 2005 eboxSha1Password: {SHA}... objectClass: posixGroup eboxMd5Password: {MD5}... memberUid: cperez eboxDigestPassword: {MD5}... memberUid: jsalamero eboxRealmPassword: {MD5}... memberUid: ejhernandez cn:; Carlos Pérez-Aradros Herce memberUid: jacalvo memberUid: jamor sn:; Pérez-Aradros Herce ... www.zentyal.com © eBox Technologies S.L. 2011 c
- 24. Linux small businessserver LDAP Integration example: Wordpress www.zentyal.com © eBox Technologies S.L. 2011
- 25. Linux small businessserver LDAP Integration example: Wordpress Look for a LDAP Auth backend www.zentyal.com © eBox Technologies S.L. 2011
- 26. Linux small businessserver LDAP Integration example: Wordpress www.zentyal.com © eBox Technologies S.L. 2011
- 27. Linux small businessserver In summary Modify source code Add new logic or functionality Breaks on upgrade Upstream! Templates Change configuration files written by Zentyal Hooks Define custom actions (scripts) on module events LDAP Integrate external applications www.zentyal.com © eBox Technologies S.L. 2011
- 28. Linux small businessserver Get help Zentyal Support Forum http://forum.zentyal.org Users and Developers mailing lists https://lists.zentyal.com/cgi-bin/mailman/listinfo/zentyal-devel https://lists.zentyal.com/cgi-bin/mailman/listinfo/zentyal-users IRC #zentyal at freenode.net Official support and training http://www.zentyal.com/en/services/ Contribute! www.zentyal.com © eBox Technologies S.L. 2011

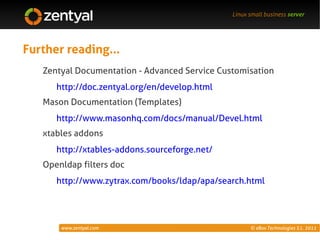

- 29. Linux small businessserver Further reading... Zentyal Documentation - Advanced Service Customisation http://doc.zentyal.org/en/develop.html Mason Documentation (Templates) http://www.masonhq.com/docs/manual/Devel.html xtables addons http://xtables-addons.sourceforge.net/ Openldap filters doc http://www.zytrax.com/books/ldap/apa/search.html www.zentyal.com © eBox Technologies S.L. 2011
- 30. Linux small businessserver www.zentyal.com ? © eBox Technologies S.L. 2011
