This document describes the features and installation process of the Zend CMS open source project. It includes modules for content, channels, and layouts. The CMS uses Zend Framework 2, Node.js, and NoSQL databases. It describes setting up the skeleton application, adding modules, and configuring routing, controllers, models, and views to develop an album inventory application as an example. It also covers user authentication, permissions, and developing backend interfaces for managing users, tags, layouts, media, and options.

1. Zend Lab
leonguyen.com

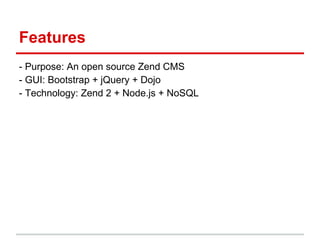

2. Features
- Purpose: An open source Zend CMS
- GUI: Bootstrap + jQuery + Dojo
- Technology: Zend 2 + Node.js + NoSQL

3. Modules
- Content:
+ News, Media (Photo-Video|Infographic-Mindmap), Slide
+ Products-Cart, Vote-Survey-Chat, Form+App
- Channel:
+ Web, Tablet, Mobile, Email, SMS, Print

4. Design
- Logo & Icon
- Color scheme & Pattern
- Typography
- Elements

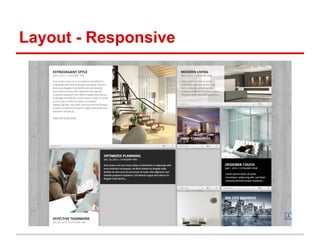

5. Layout - Responsive

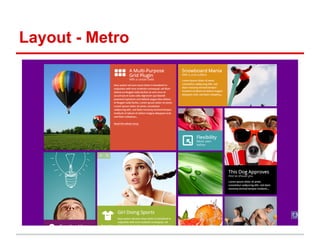

6. Layout - Metro

7. Zend Core

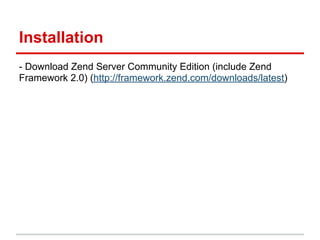

8. Installation
- Download Zend Server Community Edition (include Zend
Framework 2.0) (http://framework.zend.com/downloads/latest)

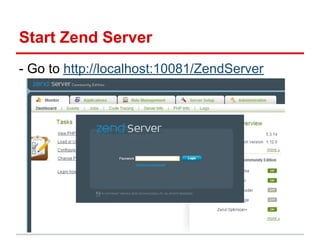

9. Start Zend Server
- Go to http://localhost:10081/ZendServer

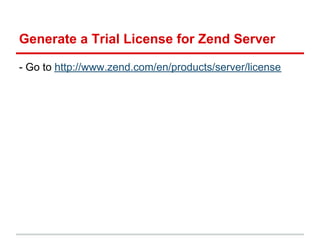

10. Generate a Trial License for Zend Server
- Go to http://www.zend.com/en/products/server/license

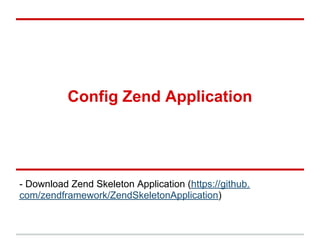

11. Config Zend Application
- Download Zend Skeleton Application (https://github.
com/zendframework/ZendSkeletonApplication)

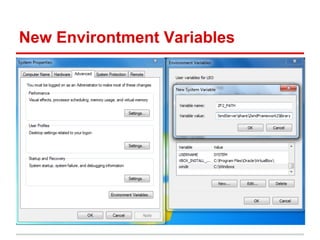

12. New Environtment Variables

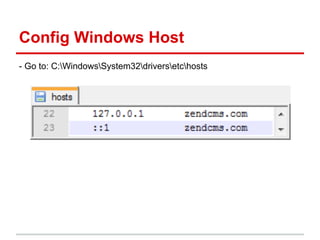

13. Config Windows Host
- Go to: C:WindowsSystem32driversetchosts

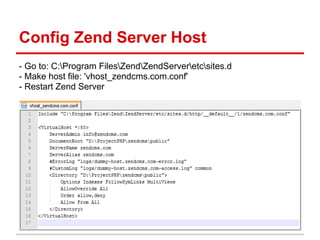

14. Config Zend Server Host
- Go to: C:Program FilesZendZendServeretcsites.d
- Make host file: 'vhost_zendcms.com.conf'
- Restart Zend Server

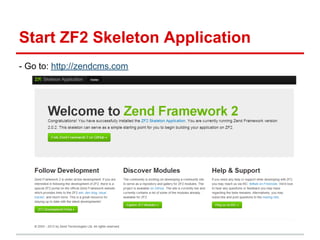

15. Start ZF2 Skeleton Application
- Go to: http://zendcms.com

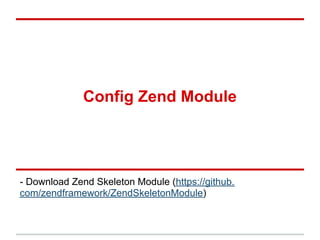

16. Config Zend Module
- Download Zend Skeleton Module (https://github.
com/zendframework/ZendSkeletonModule)

17. Add Skeleton Module
- Go to: <Source Path>zendcmsmodule
- Extract to: 'ZendSkeletonModule'

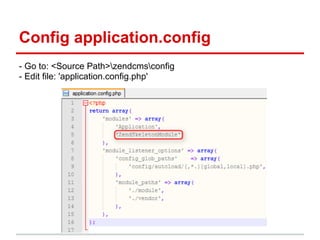

18. Config application.config
- Go to: <Source Path>zendcmsconfig
- Edit file: 'application.config.php'

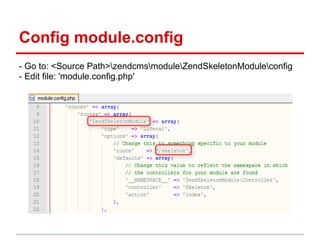

19. Config module.config
- Go to: <Source Path>zendcmsmoduleZendSkeletonModuleconfig
- Edit file: 'module.config.php'

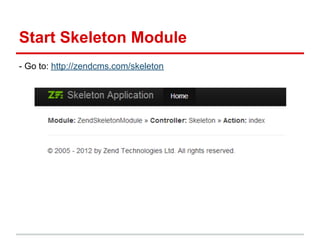

20. Start Skeleton Module
- Go to: http://zendcms.com/skeleton

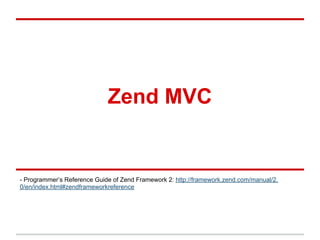

21. Zend MVC
- Programmer’s Reference Guide of Zend Framework 2: http://framework.zend.com/manual/2.
0/en/index.html#zendframeworkreference

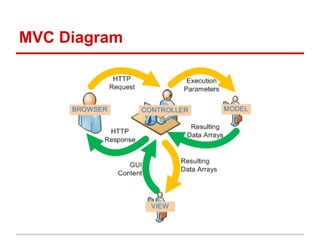

22. MVC Diagram

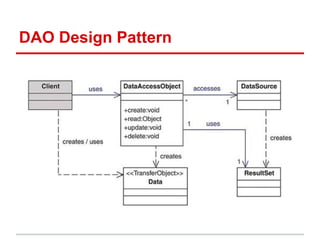

23. DAO Design Pattern

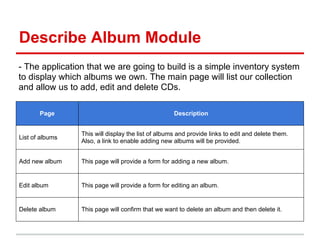

24. Describe Album Module
- The application that we are going to build is a simple inventory system
to display which albums we own. The main page will list our collection
and allow us to add, edit and delete CDs.
Page Description
List of albums
This will display the list of albums and provide links to edit and delete them.
Also, a link to enable adding new albums will be provided.
Add new album This page will provide a form for adding a new album.
Edit album This page will provide a form for editing an album.
Delete album This page will confirm that we want to delete an album and then delete it.

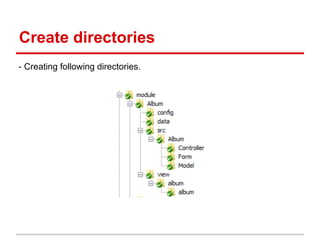

25. Create directories
- Creating following directories.

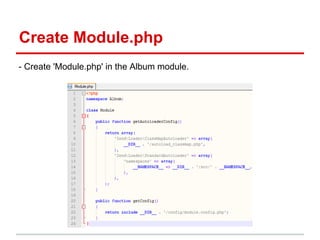

26. Create Module.php
- Create 'Module.php' in the Album module.

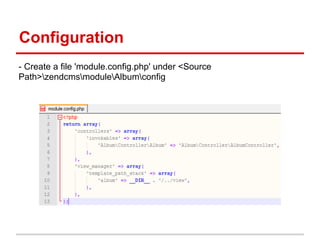

27. Configuration
- Create a file 'module.config.php' under <Source
Path>zendcmsmoduleAlbumconfig

28. Config application.config
- Go to: <Source Path>zendcmsconfig
- Edit file: 'application.config.php'

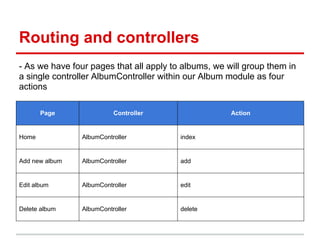

29. Routing and controllers
- As we have four pages that all apply to albums, we will group them in
a single controller AlbumController within our Album module as four
actions
Page Controller Action
Home AlbumController index
Add new album AlbumController add
Edit album AlbumController edit
Delete album AlbumController delete

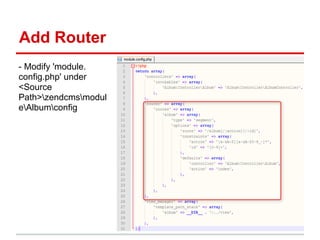

30. Add Router
- Modify 'module.
config.php' under
<Source
Path>zendcmsmodul
eAlbumconfig

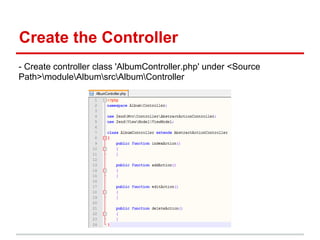

31. Create the Controller
- Create controller class 'AlbumController.php' under <Source
Path>moduleAlbumsrcAlbumController

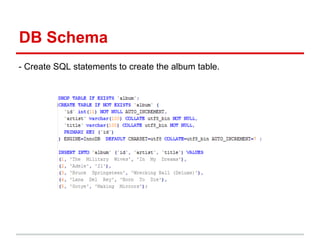

32. DB Schema
- Create SQL statements to create the album table.

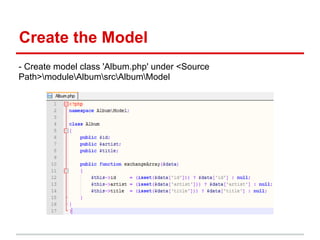

33. Create the Model
- Create model class 'Album.php' under <Source
Path>moduleAlbumsrcAlbumModel

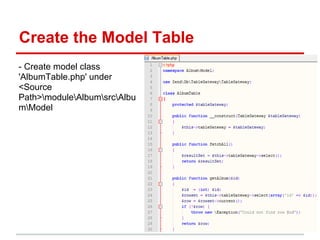

34. Create the Model Table
- Create model class
'AlbumTable.php' under
<Source
Path>moduleAlbumsrcAlbu
mModel

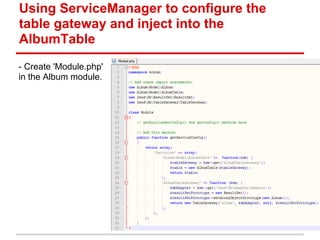

35. Using ServiceManager to configure the
table gateway and inject into the
AlbumTable
- Create 'Module.php'
in the Album module.

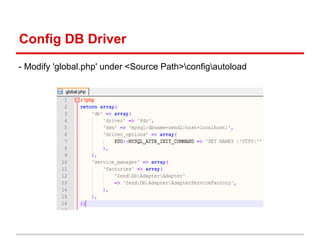

36. Config DB Driver
- Modify 'global.php' under <Source Path>configautoload

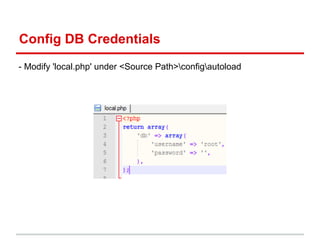

37. Config DB Credentials
- Modify 'local.php' under <Source Path>configautoload

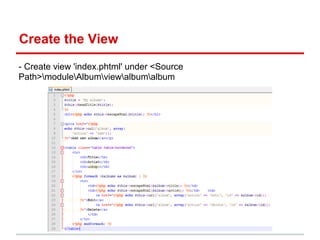

38. Create the View
- Create view 'index.phtml' under <Source
Path>moduleAlbumviewalbumalbum

39. Open Album
- Go to: http://zendcms.com/album

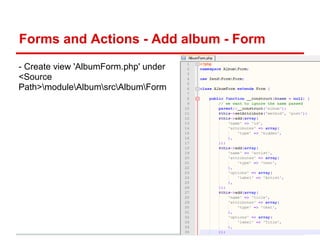

40. Forms and Actions - Add album - Form
- Create view 'AlbumForm.php' under
<Source
Path>moduleAlbumsrcAlbumForm

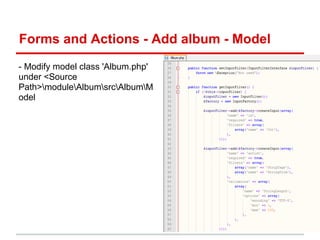

41. Forms and Actions - Add album - Model
- Modify model class 'Album.php'
under <Source
Path>moduleAlbumsrcAlbumM
odel

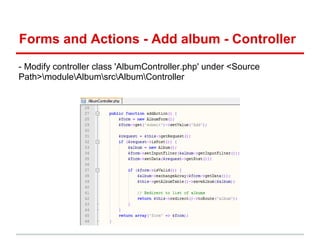

42. Forms and Actions - Add album - Controller
- Modify controller class 'AlbumController.php' under <Source
Path>moduleAlbumsrcAlbumController

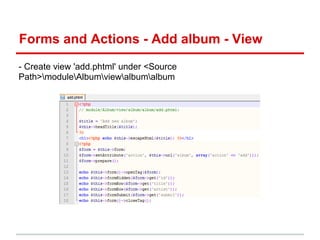

43. Forms and Actions - Add album - View
- Create view 'add.phtml' under <Source
Path>moduleAlbumviewalbumalbum

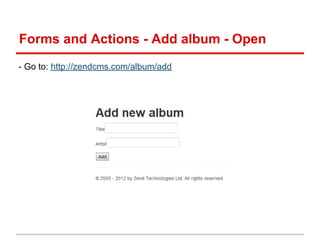

44. Forms and Actions - Add album - Open
- Go to: http://zendcms.com/album/add

45. Forms and Actions - Edit album - Controller
- Modify controller class
'AlbumController.php' under
<Source
Path>moduleAlbumsrcAlbumC
ontroller

46. Forms and Actions - Edit album - Model
- Modify model class 'Album.php' under <Source
Path>moduleAlbumsrcAlbumModel

47. Forms and Actions - Edit album - View
- Create view 'edit.phtml' under <Source
Path>moduleAlbumviewalbumalbum

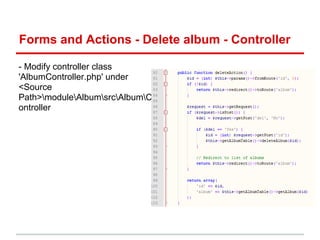

48. Forms and Actions - Delete album - Controller
- Modify controller class
'AlbumController.php' under
<Source
Path>moduleAlbumsrcAlbumC
ontroller

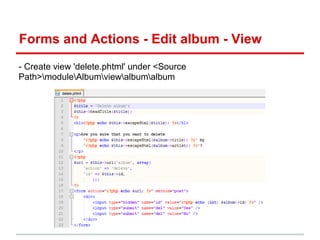

49. Forms and Actions - Edit album - View
- Create view 'delete.phtml' under <Source
Path>moduleAlbumviewalbumalbum

50. Zend Authentication

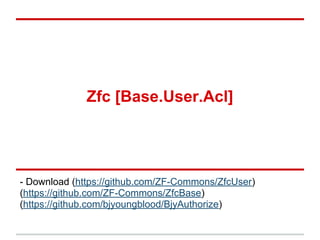

51. Zfc [Base.User.Acl]
- Download (https://github.com/ZF-Commons/ZfcUser)
(https://github.com/ZF-Commons/ZfcBase)
(https://github.com/bjyoungblood/BjyAuthorize)

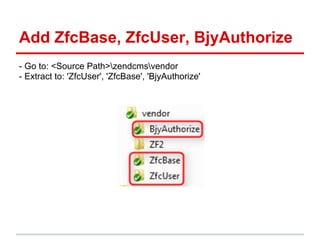

52. Add ZfcBase, ZfcUser, BjyAuthorize
- Go to: <Source Path>zendcmsvendor
- Extract to: 'ZfcUser', 'ZfcBase', 'BjyAuthorize'

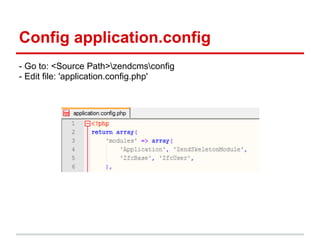

53. Config application.config
- Go to: <Source Path>zendcmsconfig
- Edit file: 'application.config.php'

54. Make database.local
- Go to: <Source Path>zendcmsconfigautoload
- Create file: 'database.local.php'

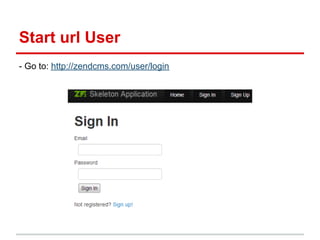

55. Start url User
- Go to: http://zendcms.com/user/login

56. DB List
Star:
1) User (u)
2) Tag (t): Page, Menu, Category
3) Post (p): Article, Products, Banner
4) Meta (m): Media
5) Option (o): Configuration

57. Table List
1) u: uId, uName, uPass, uEmail, uDesc
2) t: tId, tName, tDesc
3) p: pId, uId, pTitle, pContent
4) m: mId, pId, mKey, mValue
5) o: oId, oKey, oValue

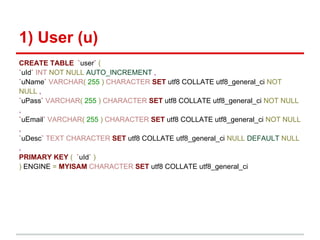

58. 1) User (u)
CREATE TABLE `user` (
`uId` INT NOT NULL AUTO_INCREMENT ,
`uName` VARCHAR( 255 ) CHARACTER SET utf8 COLLATE utf8_general_ci NOT
NULL ,
`uPass` VARCHAR( 255 ) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL
,
`uEmail` VARCHAR( 255 ) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL
,
`uDesc` TEXT CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL
,
PRIMARY KEY ( `uId` )
) ENGINE = MYISAM CHARACTER SET utf8 COLLATE utf8_general_ci

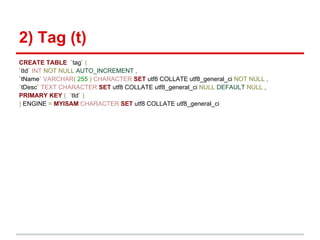

59. 2) Tag (t)
CREATE TABLE `tag` (
`tId` INT NOT NULL AUTO_INCREMENT ,
`tName` VARCHAR( 255 ) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL ,
`tDesc` TEXT CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL ,
PRIMARY KEY ( `tId` )
) ENGINE = MYISAM CHARACTER SET utf8 COLLATE utf8_general_ci

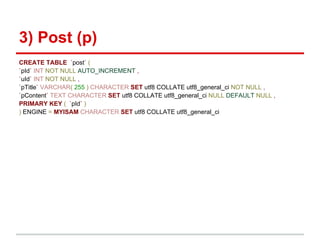

60. 3) Post (p)
CREATE TABLE `post` (
`pId` INT NOT NULL AUTO_INCREMENT ,
`uId` INT NOT NULL ,
`pTitle` VARCHAR( 255 ) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL ,
`pContent` TEXT CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL ,
PRIMARY KEY ( `pId` )
) ENGINE = MYISAM CHARACTER SET utf8 COLLATE utf8_general_ci

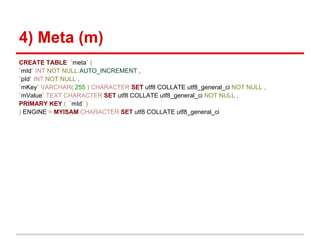

61. 4) Meta (m)
CREATE TABLE `meta` (
`mId` INT NOT NULL AUTO_INCREMENT ,
`pId` INT NOT NULL ,
`mKey` VARCHAR( 255 ) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL ,
`mValue` TEXT CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL ,
PRIMARY KEY ( `mId` )
) ENGINE = MYISAM CHARACTER SET utf8 COLLATE utf8_general_ci

62. 5) Option (o)
CREATE TABLE `option` (
`oId` INT NOT NULL AUTO_INCREMENT ,
`oKey` VARCHAR( 255 ) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL ,
`oValue` TEXT CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL ,
PRIMARY KEY ( `oId` )
) ENGINE = MYISAM CHARACTER SET utf8 COLLATE utf8_general_ci

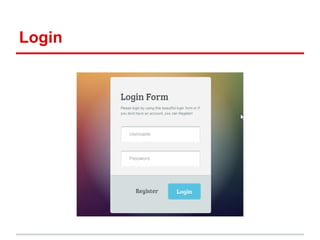

63. Login

64. Back-end
I) User Manager (Permission)
II) Tag Manager (Grid hierachy)
III) Layout Manager (Row added elements)
Star: 1) Header, 2) Content, 3) Footer, 4) Top, 5) Bottom
IV) Media Manager
V) Option Manager
Pyramid: Navigation (Circle -> Menu) -> Datatable (Search-Filter,
Action,Grid-Edit) -> Form (Main Input,Desc Grid) + Custom

65. Github
- Go to: https://github.com/leonguyen/zendcms
