Yang Lu presents the WuKong framework for integrated testing. WuKong aims to manage, write, and run various test cases including web UI, HTTP, web services, RPC, database, and mobile testing. It uses plugins, annotations, and APIs to inject dependencies and run test cases. WuKong test cases can be run in Eclipse, Maven, or via the WuKong runner. The demo shows logging into a web app and managing/watching test cases.

1. WuKong - Framework for
Integrated Test
Yang Lu

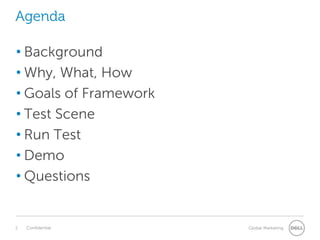

2. Agenda
• Background
• Why, What, How
• Goals of Framework
• Test Scene
• Run Test
• Demo
• Questions

3. Background
• WuKong, also known as the Monkey King, is a main character in
the Chinese classical novel Journey to the West.
• WuKong last release was Hestia.
• Wukong, is a Framework for Integrated Test.

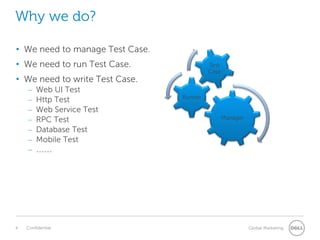

4. Why we do?
• We need to manage Test Case.
• We need to run Test Case.
• We need to write Test Case.
– Web UI Test
– Http Test
– Web Service Test
– RPC Test
– Database Test
– Mobile Test
– ……
Manager
Runner
Test
Case

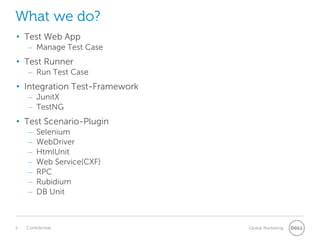

5. What we do?
• Test Web App
– Manage Test Case
• Test Runner
– Run Test Case
• Integration Test-Framework
– JunitX
– TestNG
• Test Scenario-Plugin
– Selenium
– WebDriver
– HtmlUnit
– Web Service(CXF)
– RPC
– Rubidium
– DB Unit

6. How we do? – Integration Test Framework
Plugin Http
Plugin
Framework Junit4
Runner TestNGWuKong API WuKong Impl
Module Manager Report ……
Test Engine Web App Mobile App ……
Test Case TestCase1 TestCase2 ……
Service
Plugin
Web
Plugin
DB Plugin Mobile Plugin
Runner
Test Case

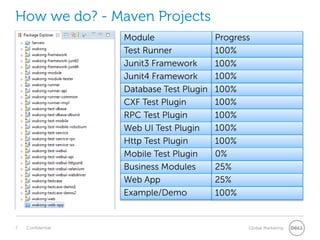

7. ProgressModule
Test Runner
Junit3 Framework
Junit4 Framework
100%
Database Test Plugin
CXF Test Plugin
RPC Test Plugin
Web UI Test Plugin
Http Test Plugin
Mobile Test Plugin
Business Modules
Web App
How we do? - Maven Projects
100%
100%
100%
100%
100%
100%
100%
0%
25%
25%
Example/Demo 100%

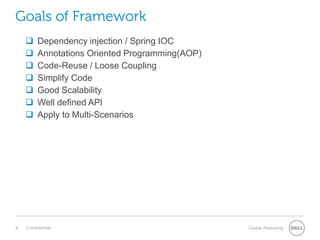

8. Goals of Framework
 Dependency injection / Spring IOC
 Annotations Oriented Programming(AOP)
 Code-Reuse / Loose Coupling
 Simplify Code
 Good Scalability
 Well defined API
 Apply to Multi-Scenarios

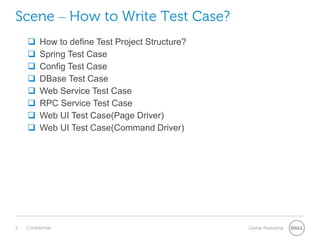

9. Scene – How to Write Test Case?
 How to define Test Project Structure?
 Spring Test Case
 Config Test Case
 DBase Test Case
 Web Service Test Case
 RPC Service Test Case
 Web UI Test Case(Page Driver)
 Web UI Test Case(Command Driver)

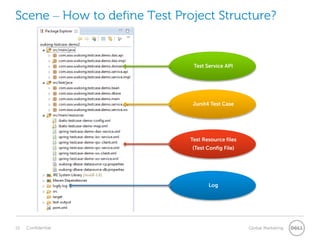

10. Scene – How to define Test Project Structure?
Test Resource files
(Test Config File)
Junit4 Test Case
Test Service API
Log

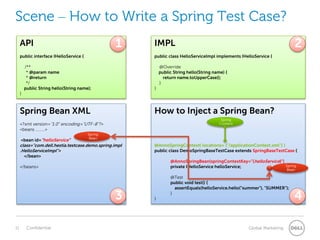

11. Scene – How to Write a Spring Test Case?
API
public interface IHelloService {
/**
* @param name
* @return
*/
public String hello(String name);
}
IMPL
public class HelloServiceImpl implements IHelloService {
@Override
public String hello(String name) {
return name.toUpperCase();
}
}
How to Inject a Spring Bean?
@AnnoSpringContext( locations= {"/applicationContext.xml"} )
public class DemoSpringBaseTestCase extends SpringBaseTestCase {
@AnnoSpringBean(springContextKey="{helloService}")
private IHelloService helloService;
@Test
public void test() {
assertEquals(helloService.hello("summer"), "SUMMER");
}
}
Spring Bean XML
<?xml version="1.0" encoding="UTF-8"?>
<beans ……>
<bean id="helloService"
class="com.dell.hestia.testcase.demo.spring.impl
.HelloServiceImpl">
</bean>
</beans>
4
2
3
1
Spring
Content
Spring
Bean
Spring
Bean

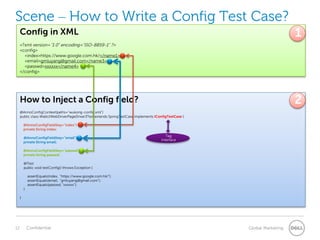

12. Scene – How to Write a Config Test Case?
Config in XML
<?xml version="1.0" encoding="ISO-8859-1" ?>
<config>
<index>https://www.google.com.hk/</name1>
<email>gmluyang@gmail.com</name3>
<passwd>xxxxxx</name4>
</config>
How to Inject a Config field?
@AnnoConfigContext(paths="wukong-config.xml")
public class WebUIWebDriverPageDriver3Test extends SpringTestCase implements IConfigTestCase {
@AnnoConfigField(key="index")
private String index;
@AnnoConfigField(key="email")
private String email;
@AnnoConfigField(key="passwd")
private String passwd;
@Test
public void testConfig() throws Exception {
assertEquals(index, "https://www.google.com.hk/");
assertEquals(email, "gmluyang@gmail.com");
assertEquals(passwd, "xxxxxx");
}
}
2
1
Tag
Interface

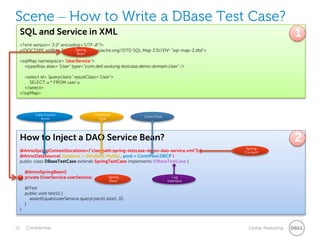

13. Scene – How to Write a DBase Test Case?
SQL and Service in XML
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE sqlMap PUBLIC "-//ibatis.apache.org//DTD SQL Map 2.0//EN“ "sql-map-2.dtd">
<sqlMap namespace="UserService">
<typeAlias alias="User" type="com.dell.wukong.testcase.demo.domain.User" />
<select id="queryUsers" resultClass="User">
SELECT u.* FROM user u
</select>
</sqlMap>
How to Inject a DAO Service Bean?
@AnnoSpringContext(locations={"classpath:spring-testcase-demo-dao-service.xml"})
@AnnoDataSource( database = DataBase.MySQL, pool = ConnPool.DBCP )
public class DBaseTestCase extends SpringTestCase implements IDBaseTestCase {
@AnnoSpringBean()
private IUserService userService;
@Test
public void test1() {
assertEquals(userService.queryUsers().size(), 0);
}
}
2
1
Data Source
Anno
Database
type
Conn Pool
Tag
Interface
Spring
Bean
Spring
Bean
Spring
Content

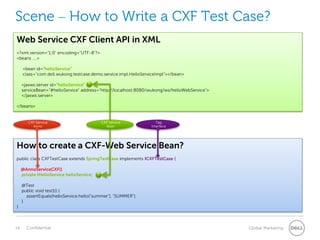

14. Scene – How to Write a CXF Test Case?
How to create a CXF-Web Service Bean?
public class CXFTestCase extends SpringTestCase implements ICXFTestCase {
@AnnoServiceCXF()
private IHelloService helloService;
@Test
public void test1() {
assertEquals(helloService.hello("summer"), "SUMMER");
}
}
Tag
Interface
CXF Service
Anno
Web Service CXF Client API in XML
<?xml version="1.0" encoding="UTF-8"?>
<beans …>
<bean id="helloService"
class="com.dell.wukong.testcase.demo.service.impl.HelloServiceImpl"></bean>
<jaxws:server id="helloService"
serviceBean="#helloService" address="http://localhost:8080/wukong/ws/helloWebService">
</jaxws:server>
</beans>
CXF Service
Bean

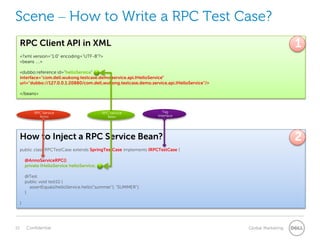

15. Scene – How to Write a RPC Test Case?
RPC Client API in XML
<?xml version="1.0" encoding="UTF-8"?>
<beans …>
<dubbo:reference id="helloService"
interface="com.dell.wukong.testcase.demo.service.api.IHelloService"
url="dubbo://127.0.0.1:20880/com.dell.wukong.testcase.demo.service.api.IHelloService"/>
</beans>
How to Inject a RPC Service Bean?
public class RPCTestCase extends SpringTestCase implements IRPCTestCase {
@AnnoServiceRPC()
private IHelloService helloService;
@Test
public void test1() {
assertEquals(helloService.hello("summer"), "SUMMER");
}
}
2
1
Tag
Interface
RPC Service
Anno
RPC Service
Bean

16. TestCase base on WebDriverTestCase base on HttpUnit
Scene – Write a Web UI Test Case By Page Driver
public class WebUIHtmlUnitPageDriverTest extends SpringTestCase implements
IWebUIHttpUnitTestCase {
public static String index = "https://www.google.com.hk/";
@AnnoBrowser(browser=Browser.FIREFOX)
private IBrowser browser;
@Test
public void testLogin() throws Exception {
// indexPage
IPage indexPage = this.browser.getPage(index);
// loginPage
IPage loginPage = indexPage.onClick("gbi4s1");
loginPage.setHtmlInputValue("Email", "gmluyang@gmail.com");
loginPage.setHtmlInputValue(“Passwd”, "*");
// loginedPage
IPage loginedPage = loginPage.onClick("signIn");
// assertEquals
assertEquals(true, loginedPage.isElementTextContent("gbi4t", "Yang Lu"));
}
}
public class WebUIHtmlUnitPageDriverTest extends SpringTestCase
implements IWebUIWebDriverTestCase {
public static String index = "https://www.google.com.hk/";
@ AnnoBrowser(browser=Browser.FIREFOX)
private IBrowser browser;
@Test
public void testLogin() throws Exception {
// indexPage
IPage indexPage = this.browser.getPage(index);
// loginPage
IPage loginPage = indexPage.onClick("gbi4s1");
loginPage.setHtmlInputValue("Email", "gmluyang@gmail.com");
loginPage.setHtmlInputValue("Passwd", "*");
// loginedPage
IPage loginedPage = loginPage.onClick("signIn");
// assertEquals
assertEquals(true, loginedPage.isElementTextContent("gbi4t", "Yang Lu"));
}
}
AnnoBrowser AnnoBrowser
Program to an interface and Annotation, not an implementation
1
2
3
1
2
3

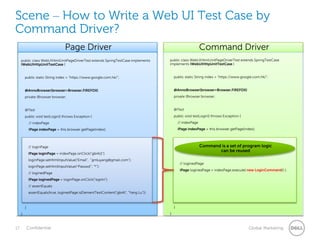

17. Command DriverPage Driver
Scene – How to Write a Web UI Test Case by
Command Driver?
public class WebUIHtmlUnitPageDriverTest extends SpringTestCase implements
IWebUIHttpUnitTestCase {
public static String index = "https://www.google.com.hk/";
@AnnoBrowser(browser=Browser.FIREFOX)
private IBrowser browser;
@Test
public void testLogin() throws Exception {
// indexPage
IPage indexPage = this.browser.getPage(index);
}
}
public class WebUIHtmlUnitPageDriverTest extends SpringTestCase
implements IWebUIHttpUnitTestCase {
public static String index = "https://www.google.com.hk/";
@AnnoBrowser(browser=Browser.FIREFOX)
private IBrowser browser;
@Test
public void testLogin() throws Exception {
// indexPage
IPage indexPage = this.browser.getPage(index);
}
}
// loginedPage
IPage loginedPage = indexPage.execute( new LoginCommand() );
Command is a set of program logic
can be reused
// loginPage
IPage loginPage = indexPage.onClick("gbi4s1");
loginPage.setHtmlInputValue("Email", "gmluyang@gmail.com");
loginPage.setHtmlInputValue(“Passwd”, "*");
// loginedPage
IPage loginedPage = loginPage.onClick("signIn");
// assertEquals
assertEquals(true, loginedPage.isElementTextContent("gbi4t", "Yang Lu"));

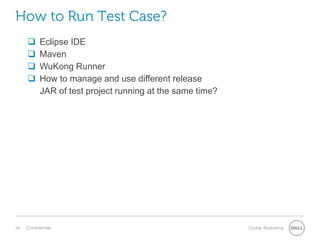

18. How to Run Test Case?
 Eclipse IDE
 Maven
 WuKong Runner
 How to manage and use different release
JAR of test project running at the same time?

19. How to Run Test Case? – Eclipse IDE
Local Debug

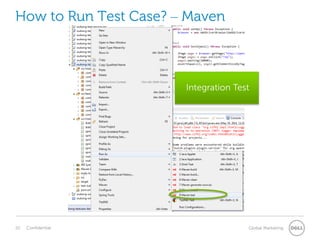

20. How to Run Test Case? – Maven
Integration Test

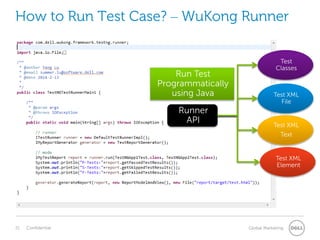

21. How to Run Test Case? – WuKong Runner
Test
Classes
Test XML
File
Test XML
Element
Test XML
Text
Runner
API
Run Test
Programmatically
using Java

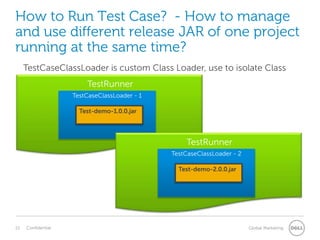

22. How to Run Test Case? - How to manage
and use different release JAR of one project
running at the same time?
TestRunner
TestCaseClassLoader is custom Class Loader, use to isolate Class
TestCaseClassLoader - 1
Test-demo-1.0.0.jar
TestRunner
TestCaseClassLoader - 2
Test-demo-2.0.0.jar

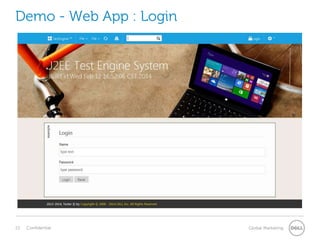

23. Demo - Web App : Login

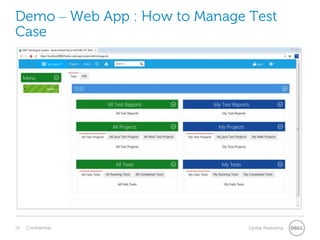

24. Demo – Web App : How to Manage Test
Case

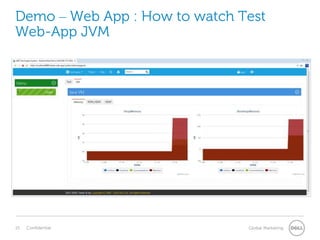

25. Demo – Web App : How to watch Test
Web-App JVM

26. Questions

27. Thank you
