1. Javascript Design Patterns.
AMD & commonJS.
RequireJS
Marc Torrent Vernetta

2. Javascript Design Patterns

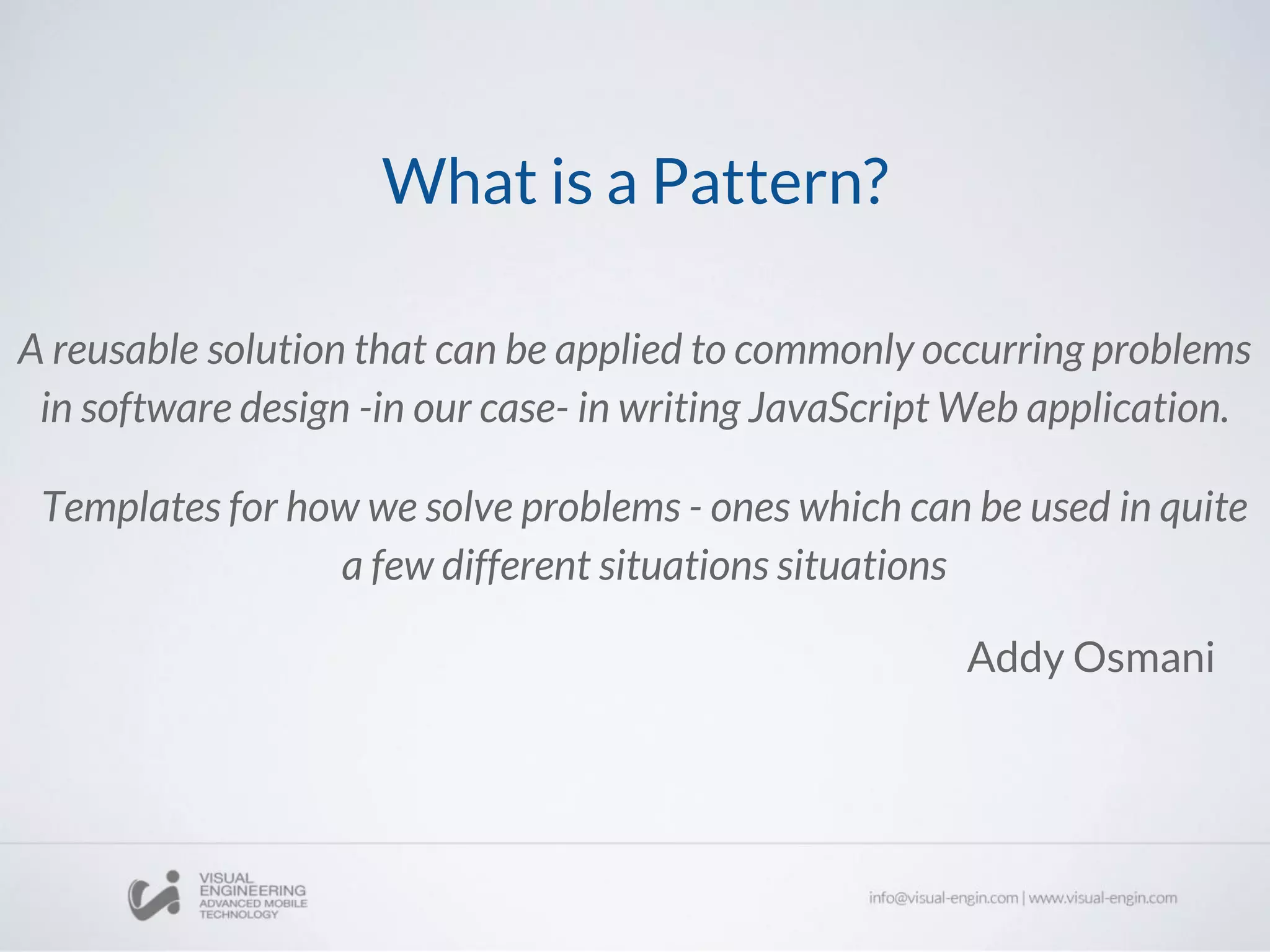

3. A reusable solution that can be applied to commonly occurring problems
in software design -in our case- in writing JavaScript Web application.
What is a Pattern?
Templates for how we solve problems - ones which can be used in quite
a few different situations situations
Addy Osmani

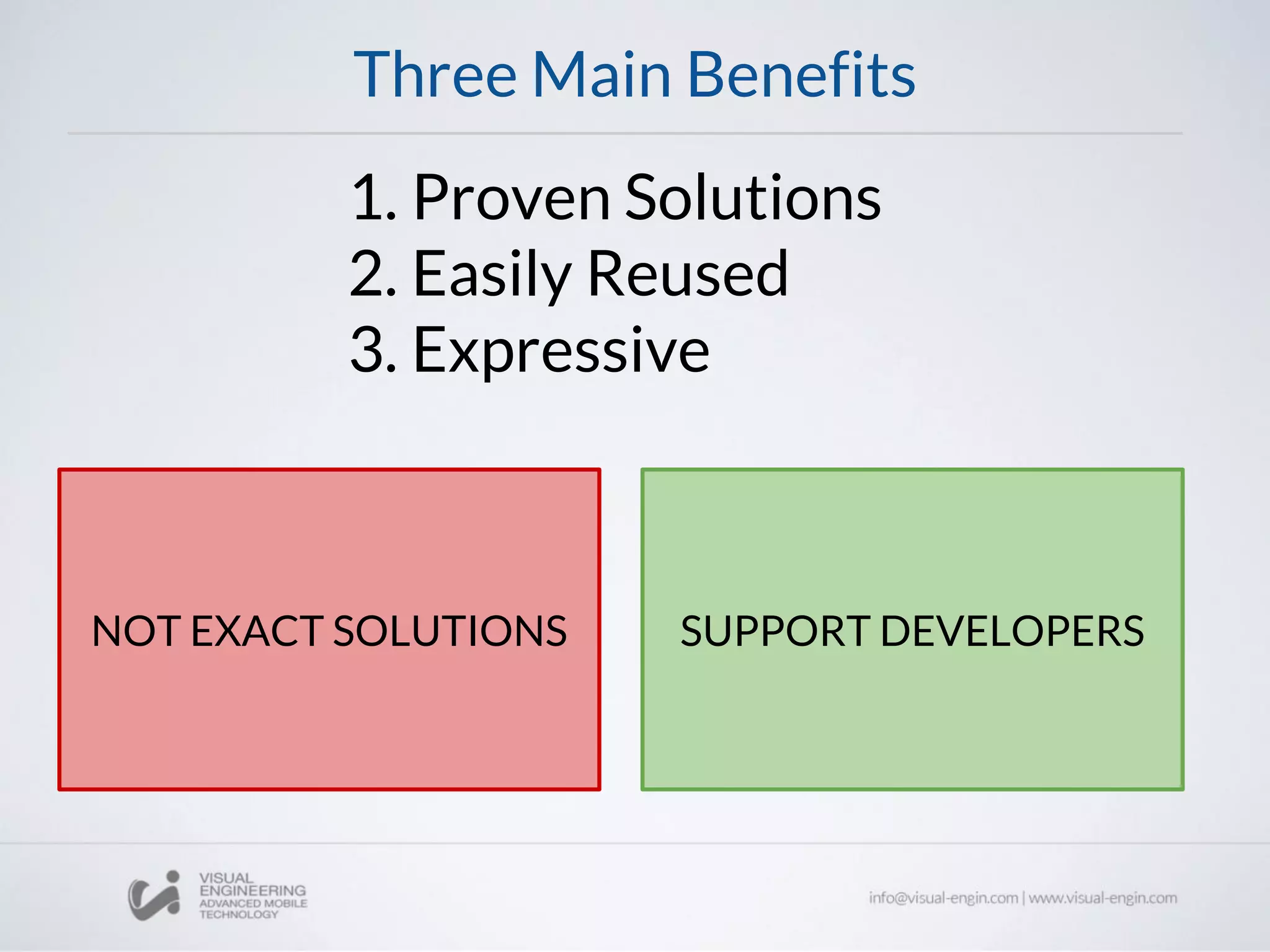

4. Three Main Benefits
1. Proven Solutions
2. Easily Reused
3. Expressive
NOT EXACT SOLUTIONS SUPPORT DEVELOPERS

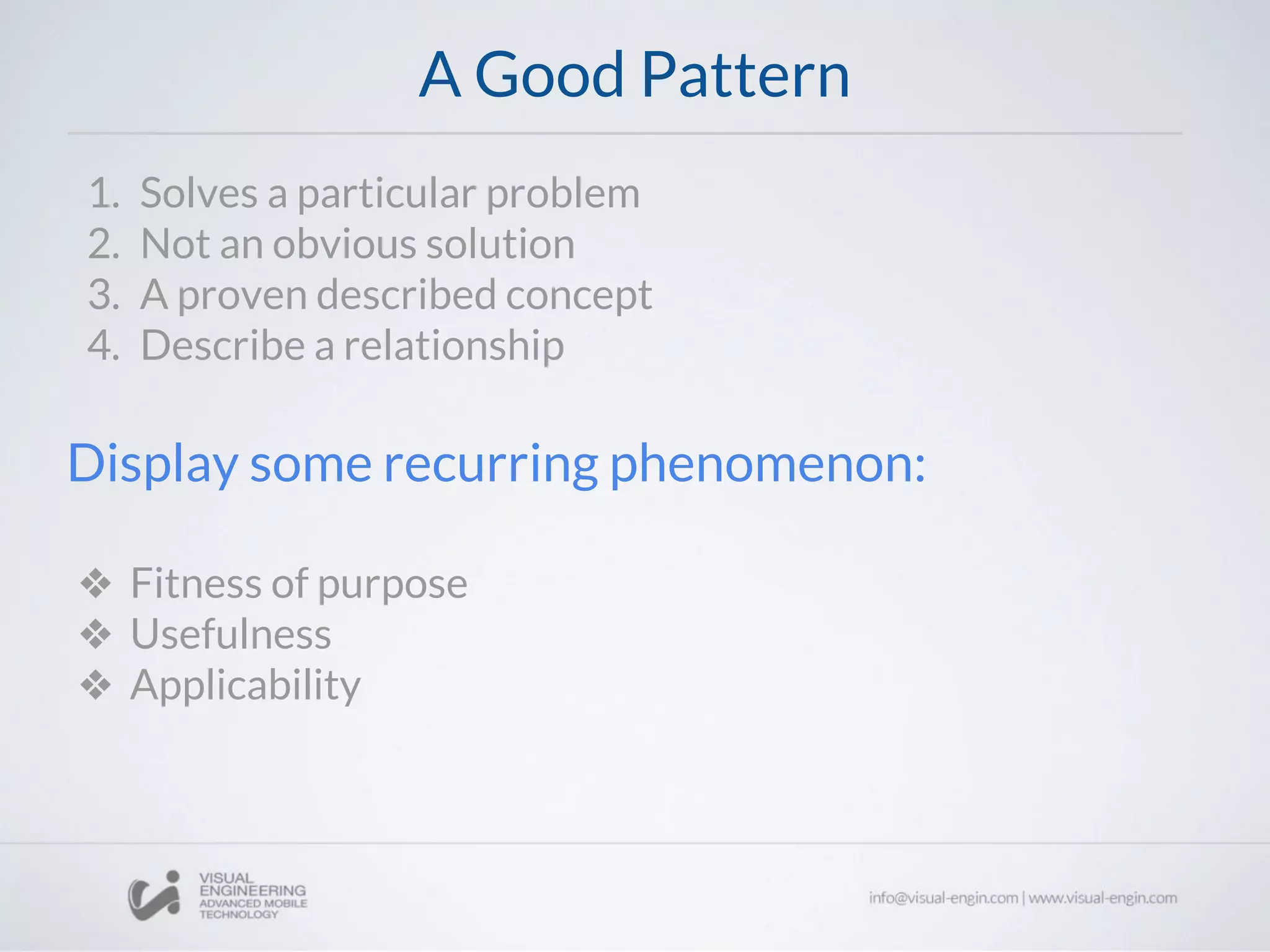

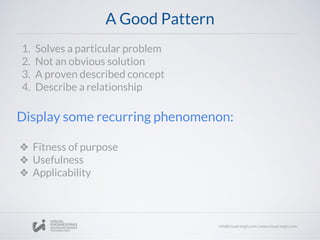

5. A Good Pattern
1. Solves a particular problem
2. Not an obvious solution
3. A proven described concept
4. Describe a relationship
Display some recurring phenomenon:
❖ Fitness of purpose
❖ Usefulness
❖ Applicability

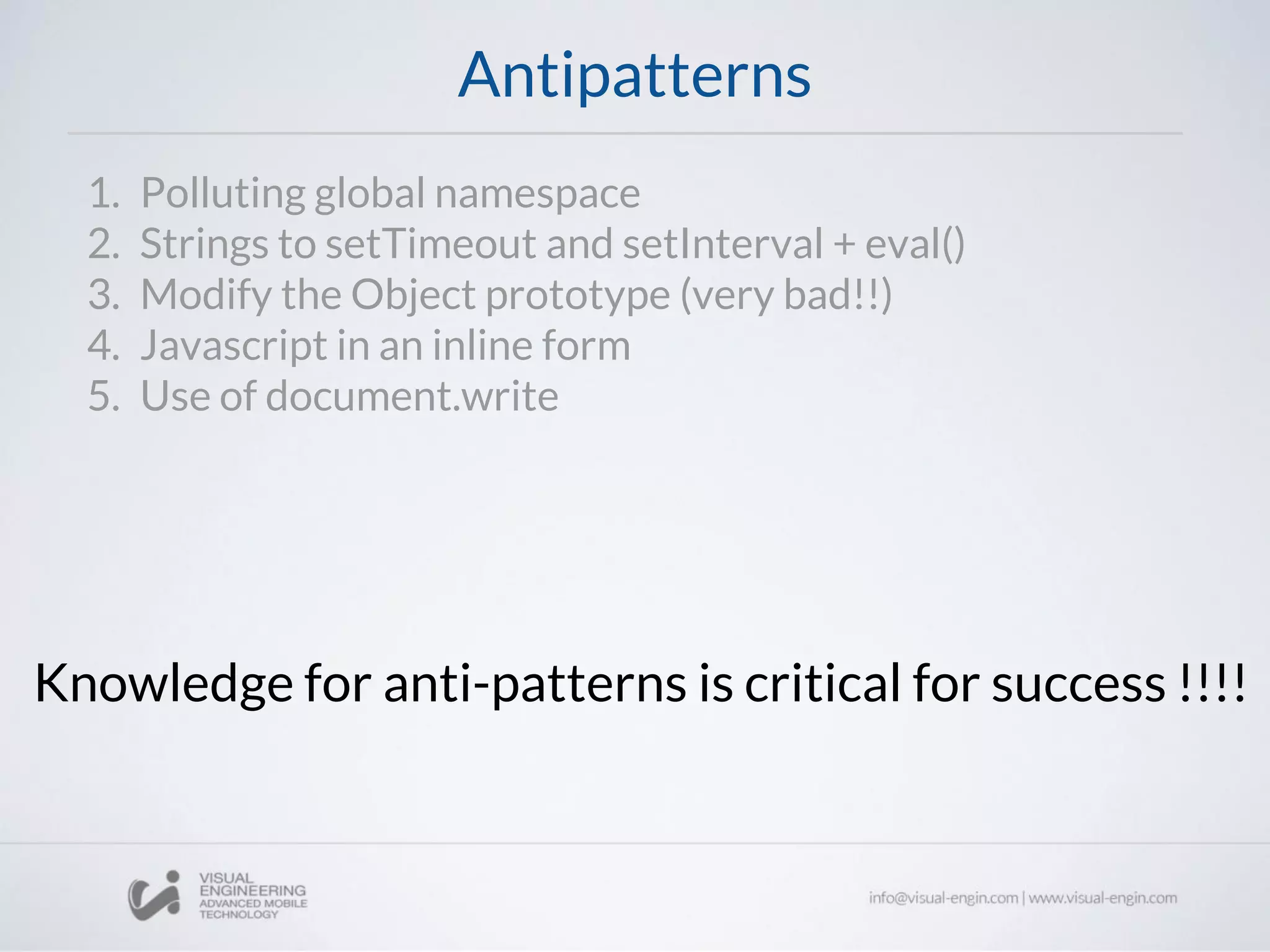

6. Antipatterns
1. Polluting global namespace
2. Strings to setTimeout and setInterval + eval()
3. Modify the Object prototype (very bad!!)
4. Javascript in an inline form
5. Use of document.write
Knowledge for anti-patterns is critical for success !!!!

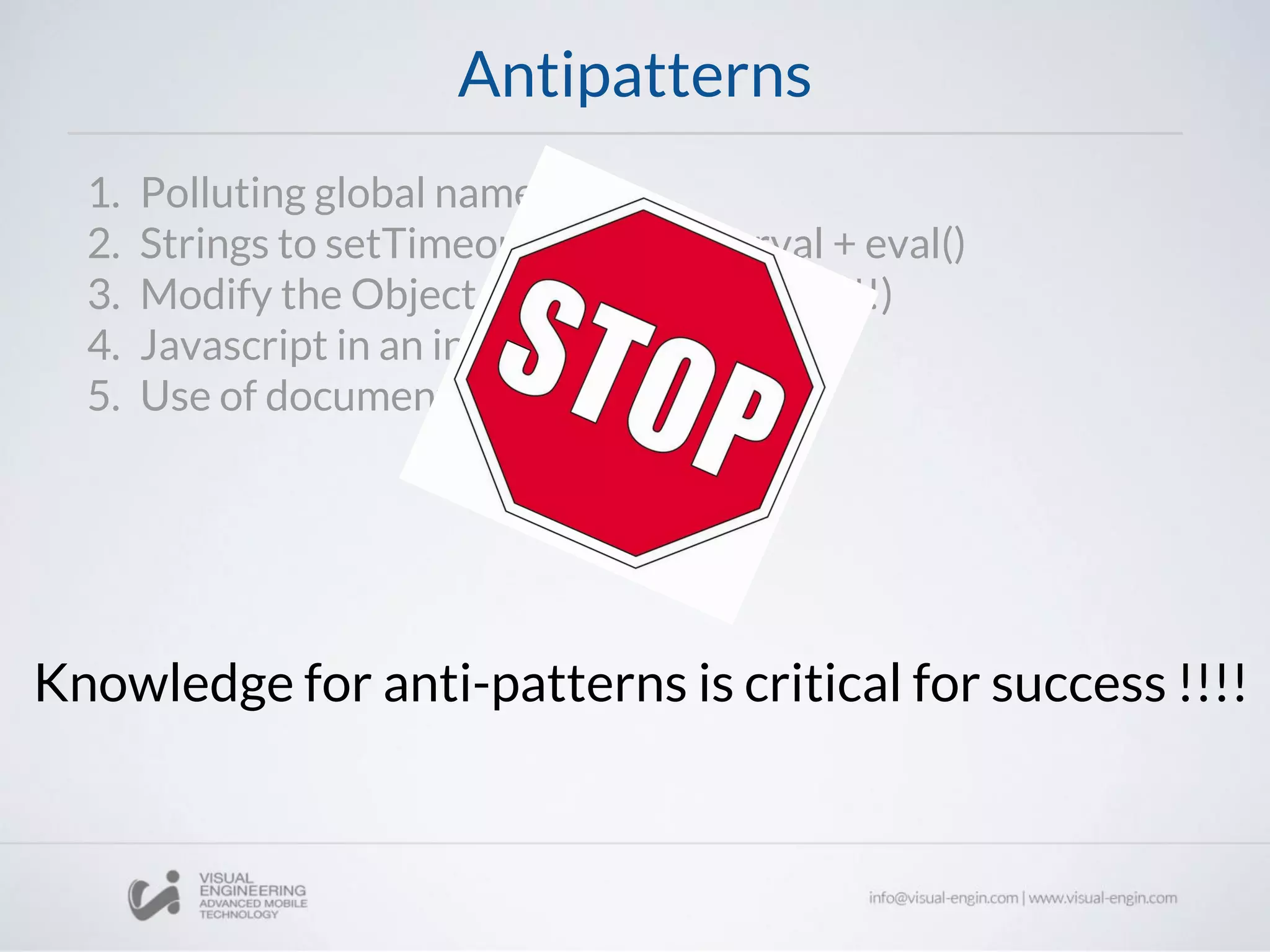

7. Antipatterns
1. Polluting global namespace
2. Strings to setTimeout and setInterval + eval()
3. Modify the Object prototype (very bad!!)
4. Javascript in an inline form
5. Use of document.write
Knowledge for anti-patterns is critical for success !!!!

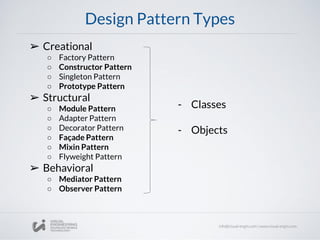

8. Design Pattern Types
➢ Creational
○ Factory Pattern
○ Constructor Pattern
○ Singleton Pattern
○ Prototype Pattern
➢ Structural
○ Module Pattern
○ Adapter Pattern
○ Decorator Pattern
○ Façade Pattern
○ Mixin Pattern
○ Flyweight Pattern
➢ Behavioral
○ Mediator Pattern
○ Observer Pattern
- Classes
- Objects

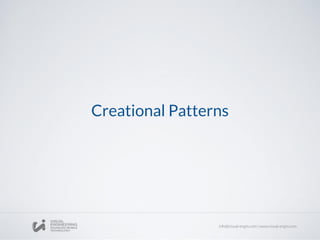

9. Creational Patterns

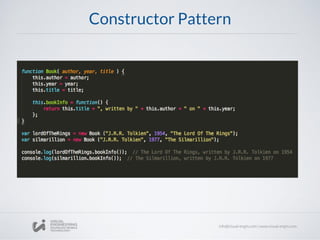

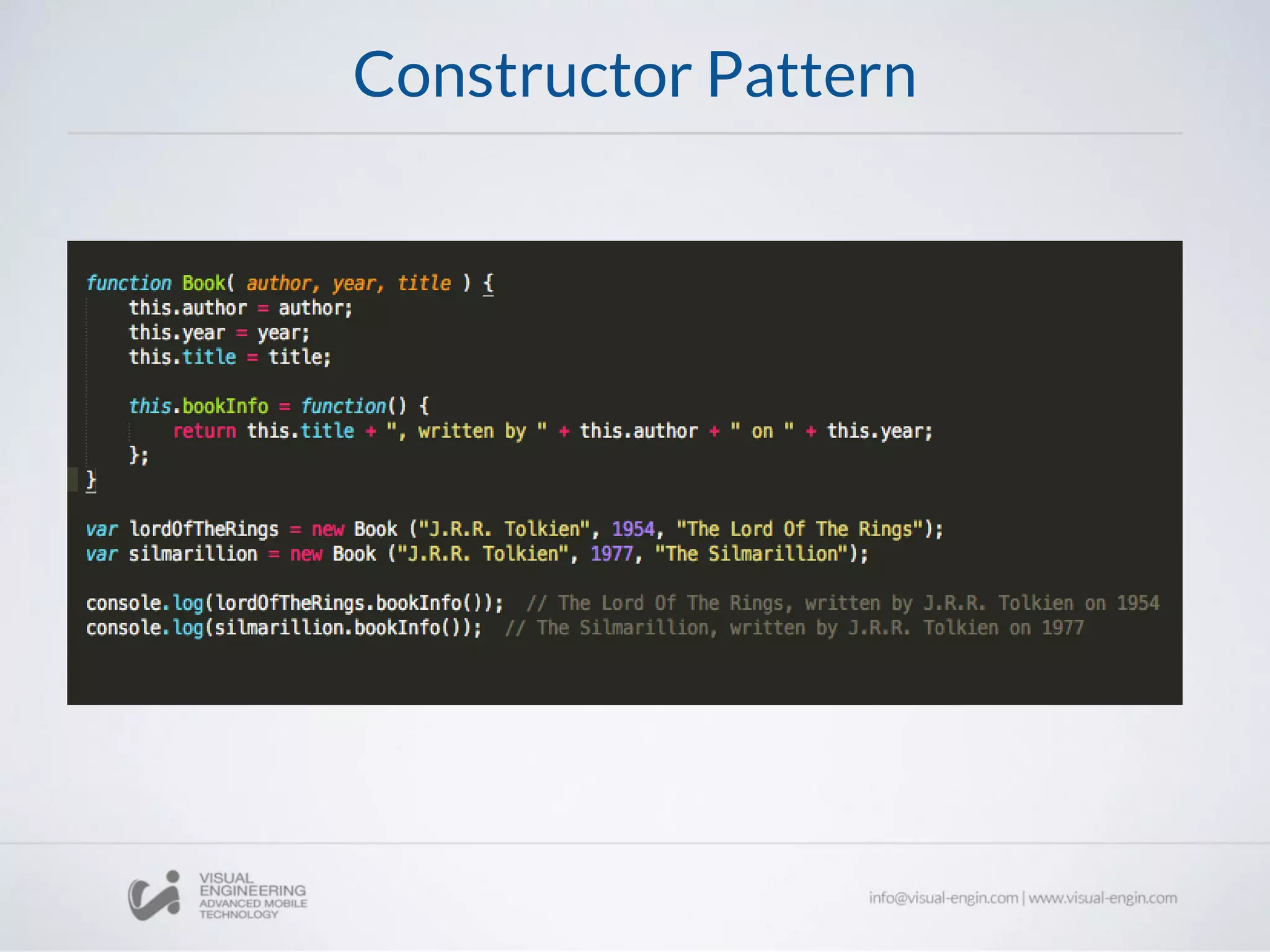

10. Constructor Pattern

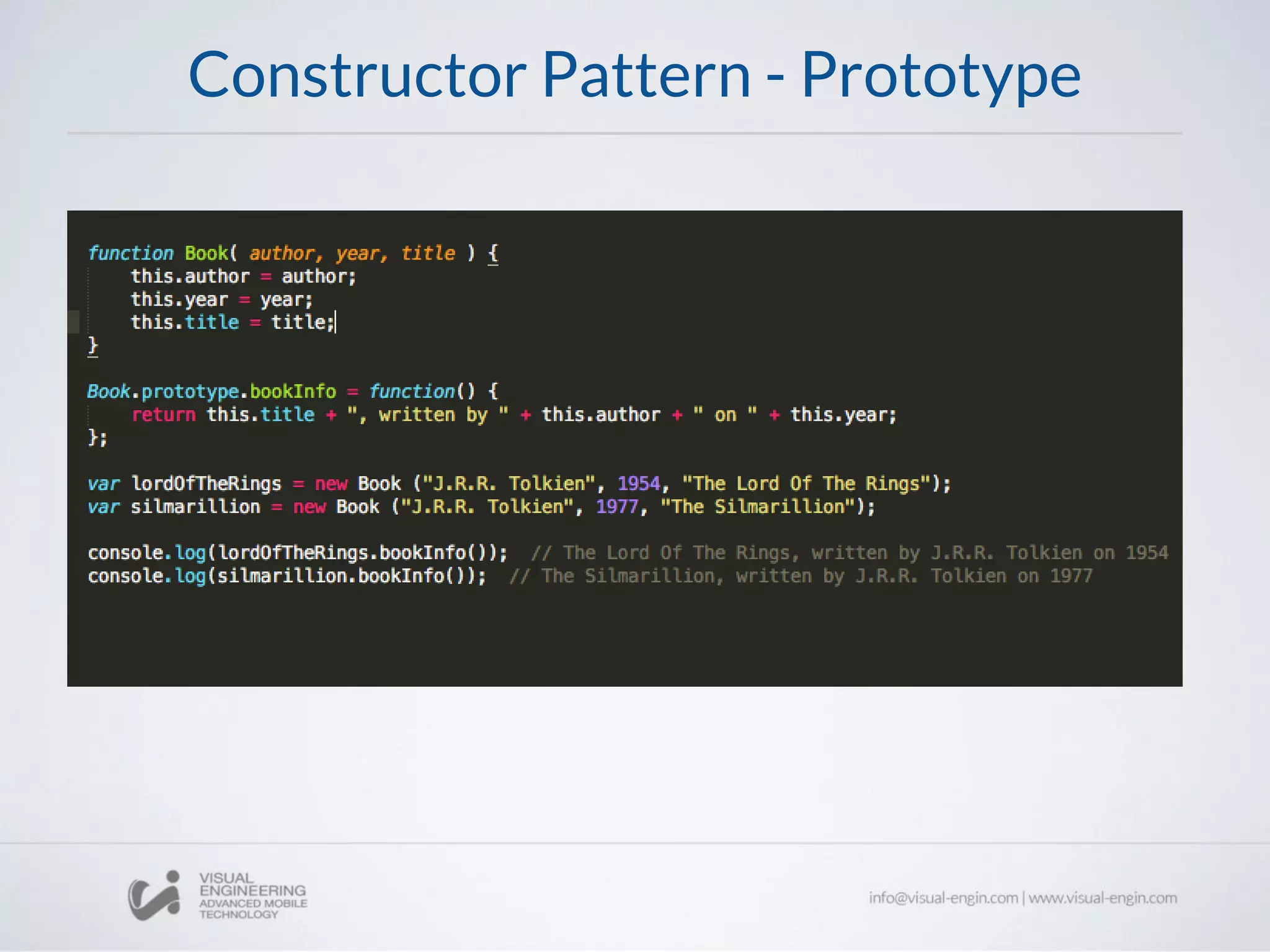

11. Constructor Pattern - Prototype

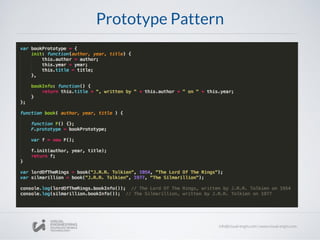

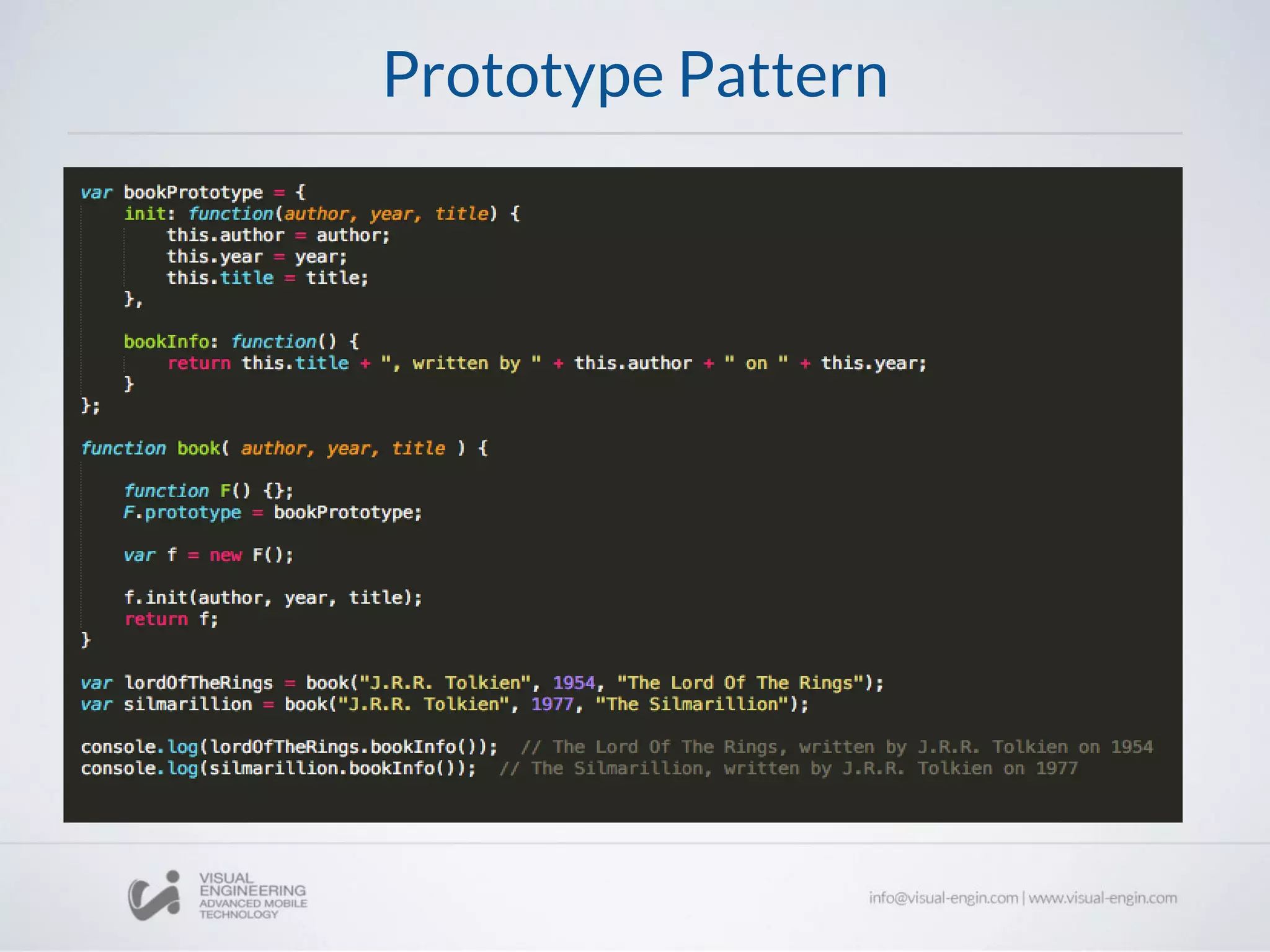

12. Prototype Pattern

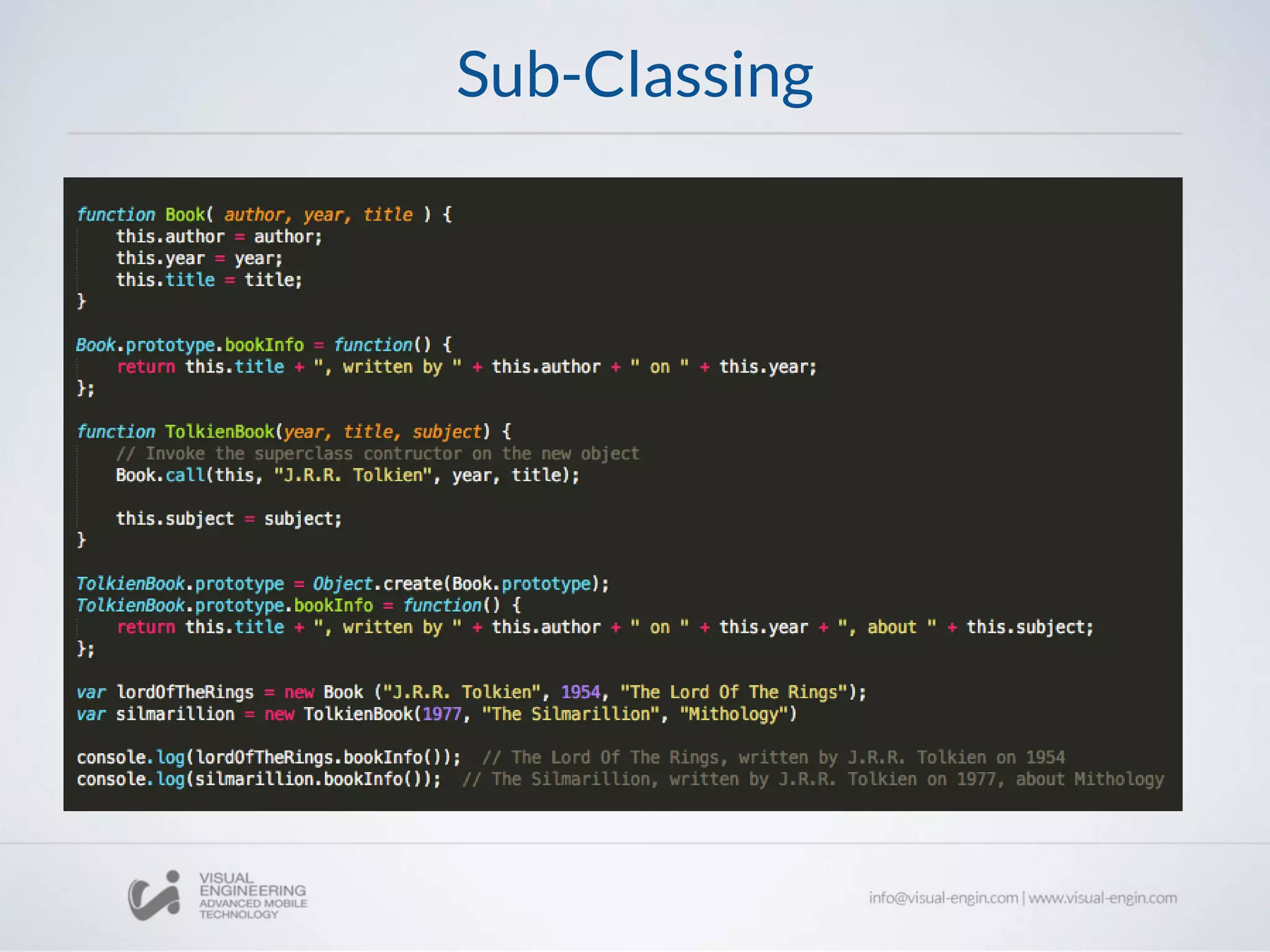

13. Sub-Classing

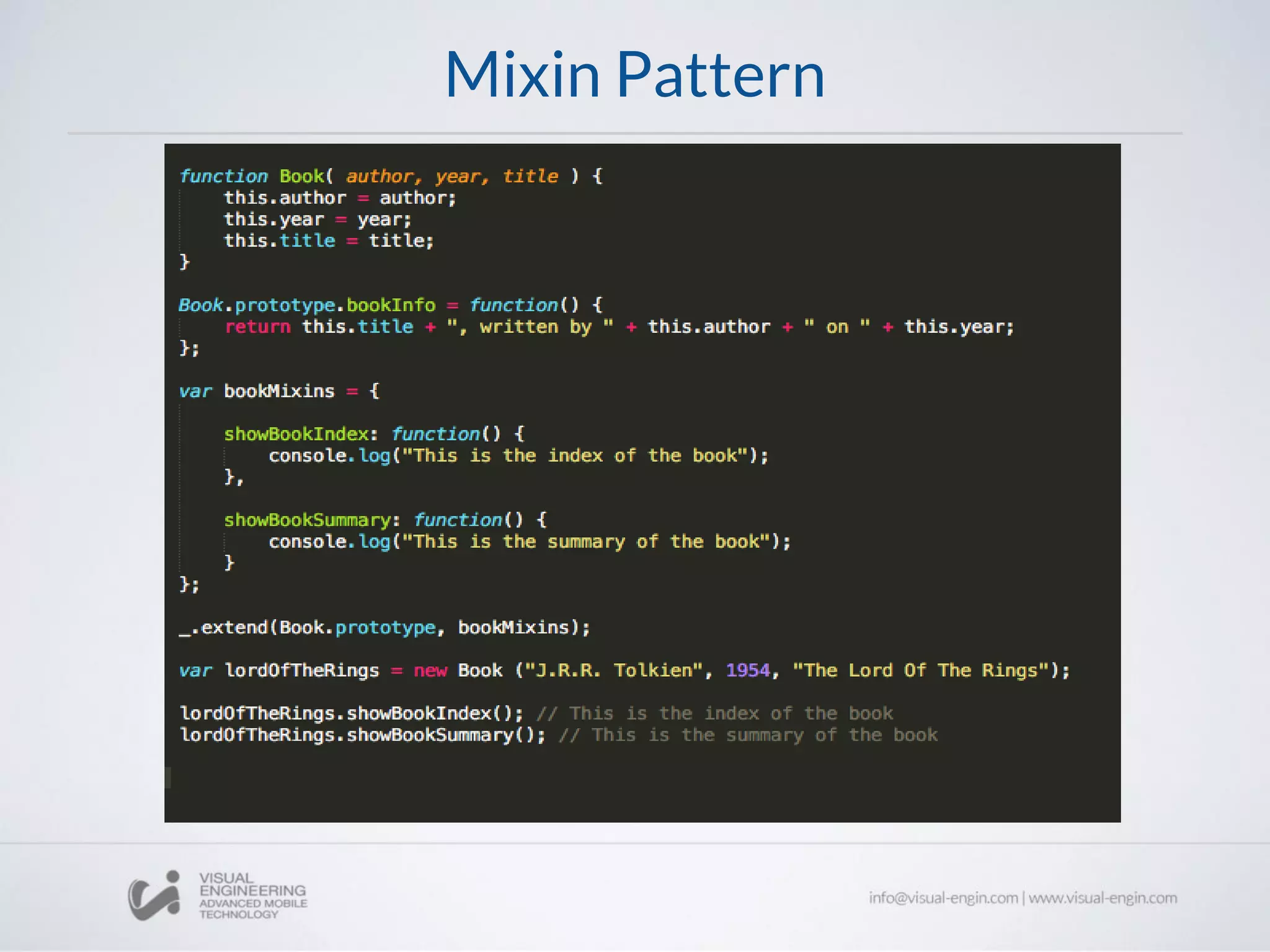

14. Mixin Pattern

15. Structural Patterns

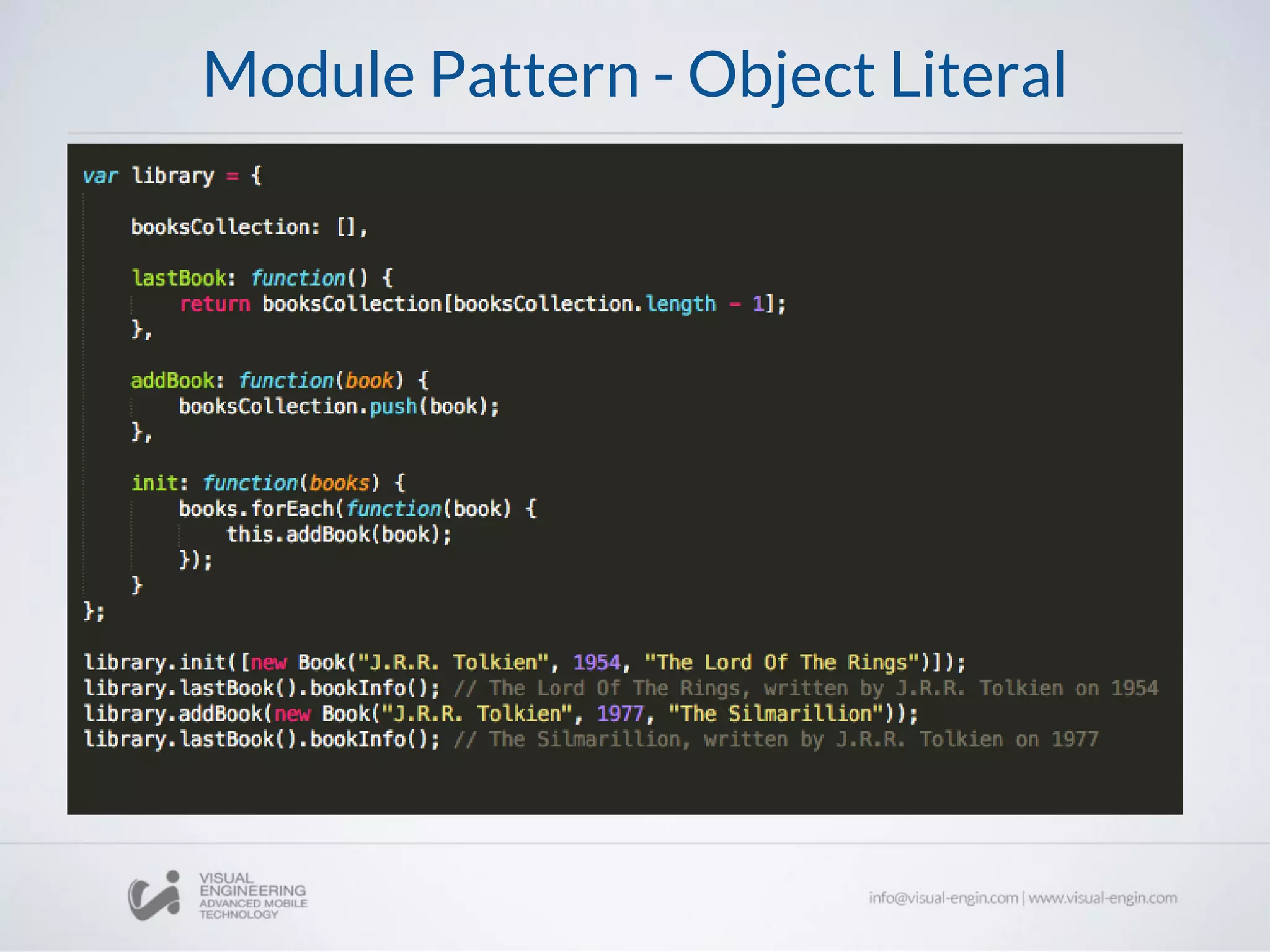

16. Module Pattern - Object Literal

17. Module Pattern - IIFE

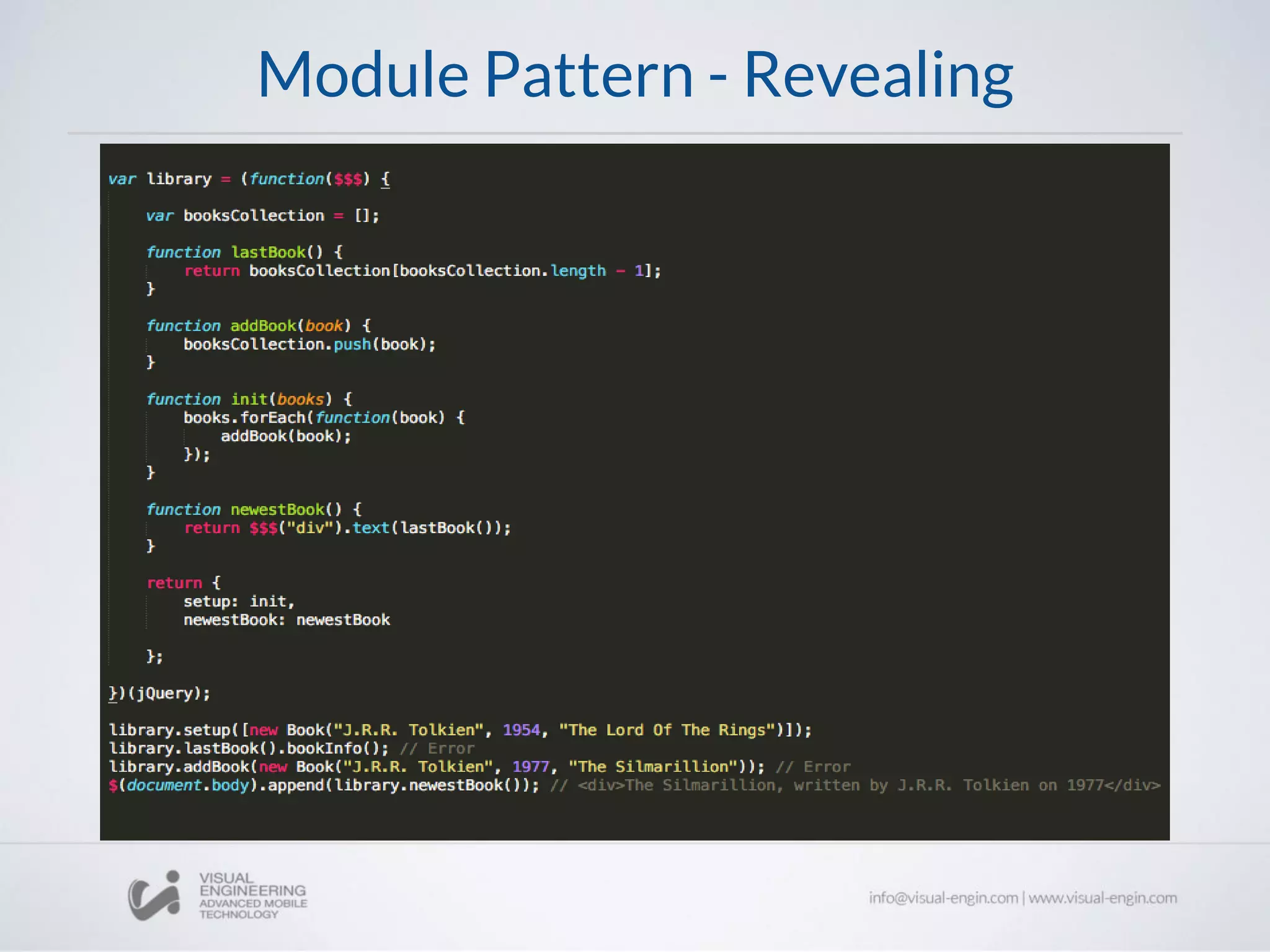

18. Module Pattern - Revealing

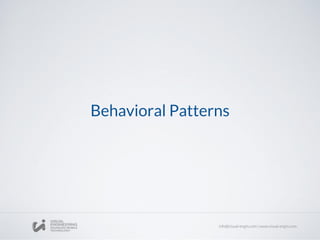

19. Behavioral Patterns

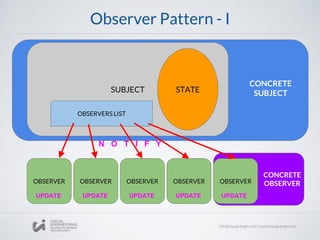

20. Observer Pattern - I
SUBJECT STATE
OBSERVERS LIST
OBSERVER OBSERVER OBSERVER OBSERVER OBSERVER
N O T I F Y
CONCRETE
SUBJECT
CONCRETE
OBSERVER
UPDATEUPDATEUPDATEUPDATEUPDATE

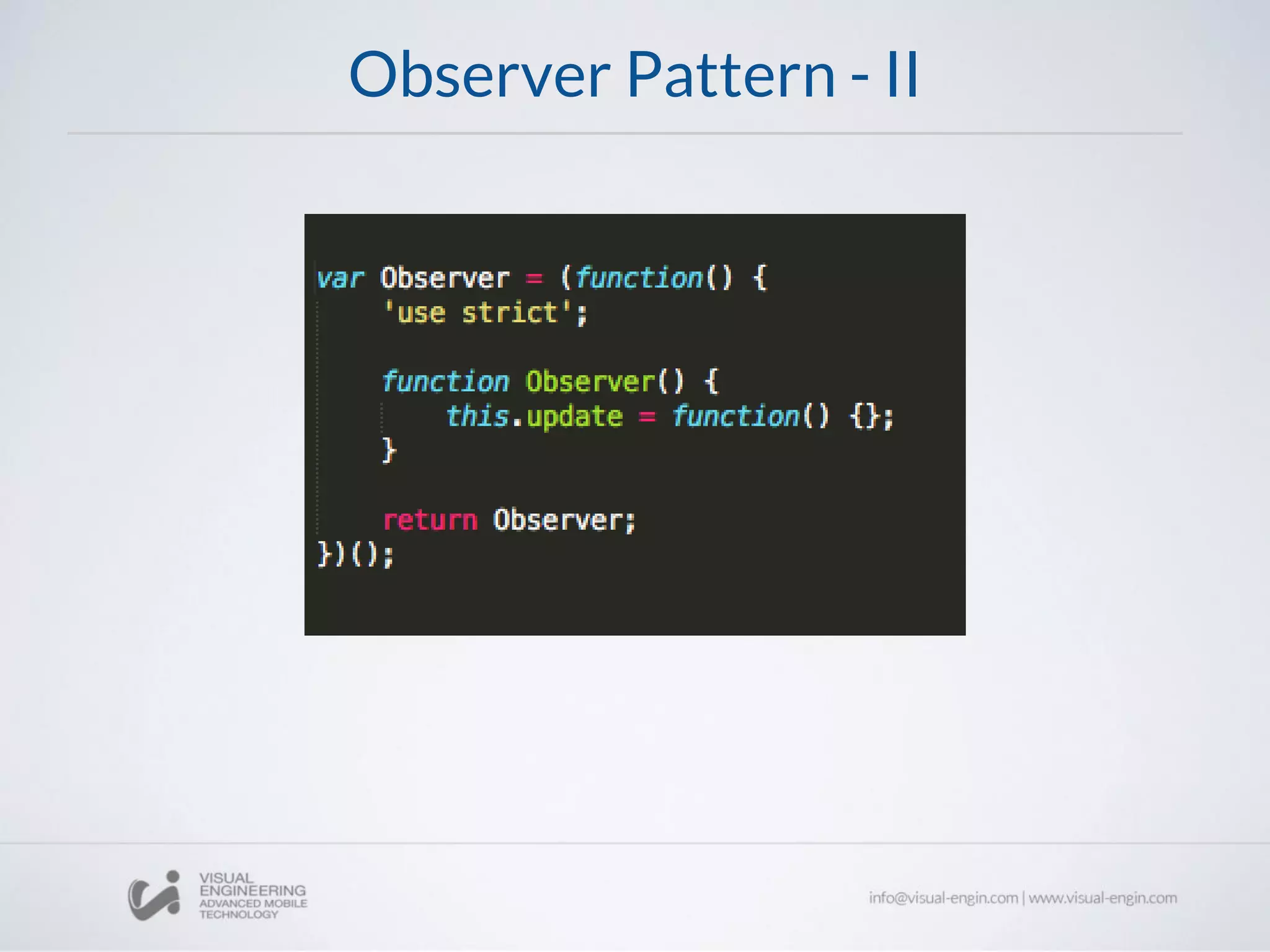

21. Observer Pattern - II

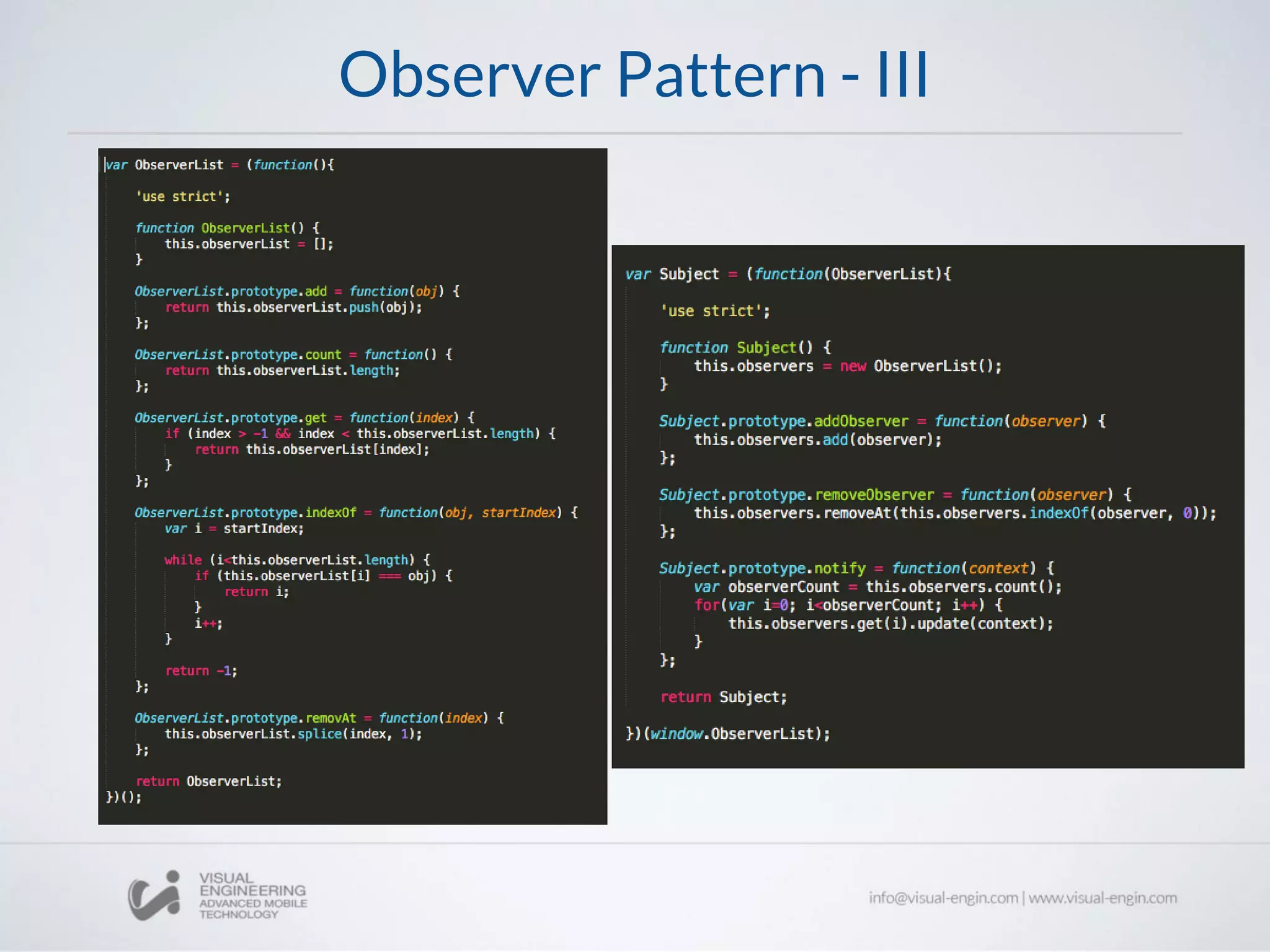

22. Observer Pattern - III

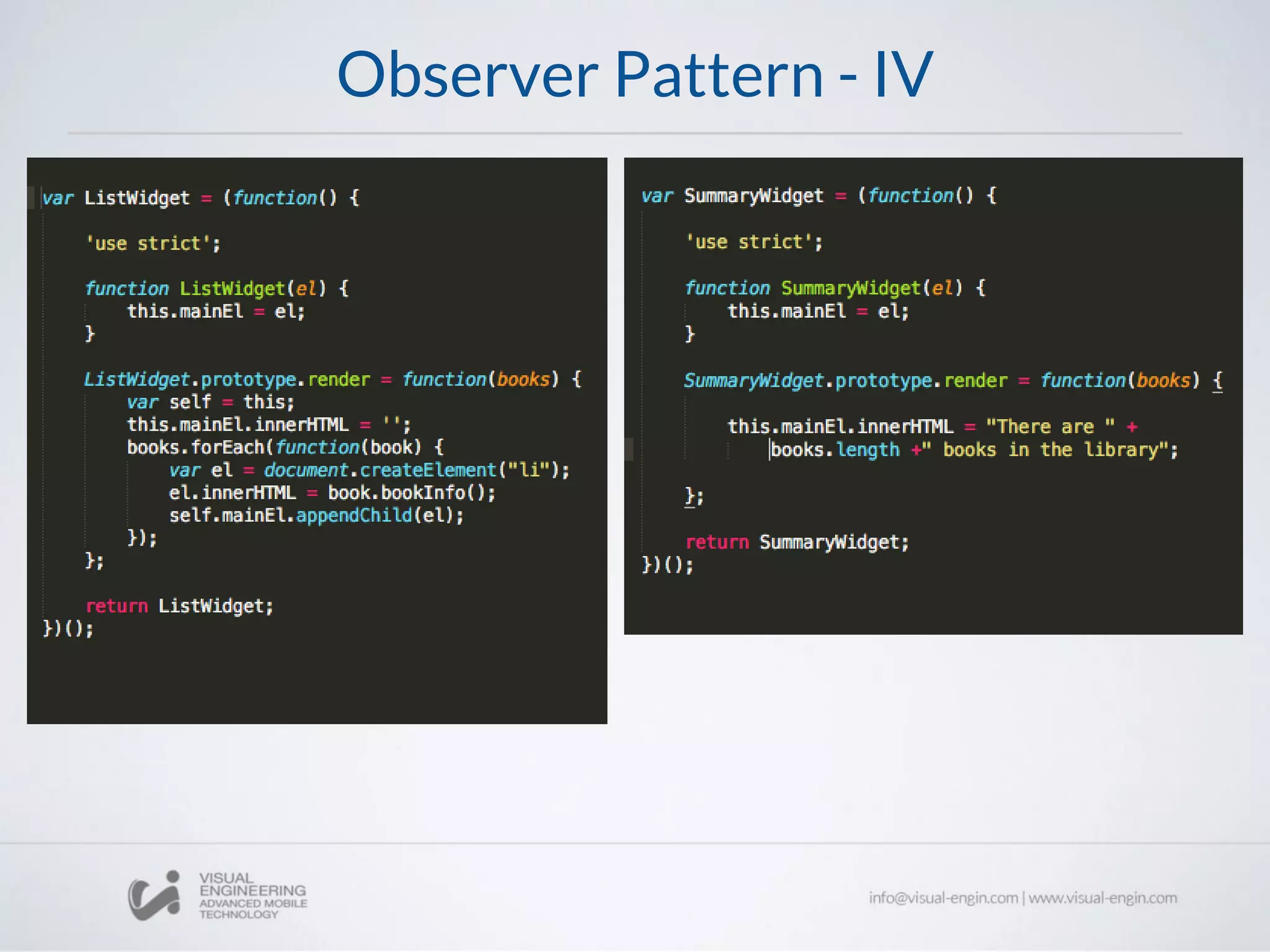

23. Observer Pattern - IV

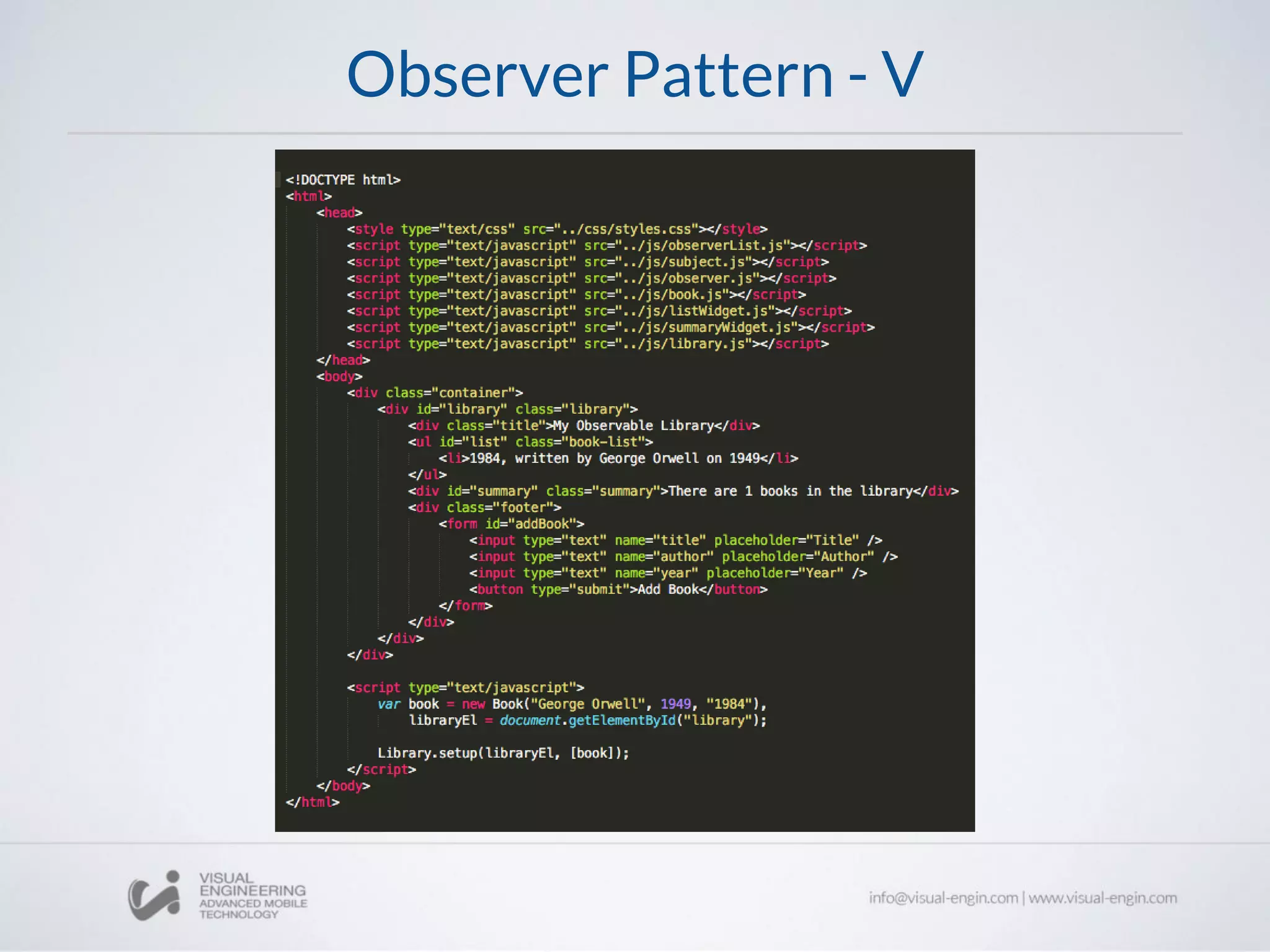

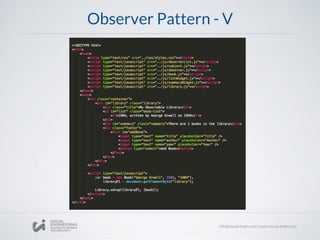

24. Observer Pattern - V

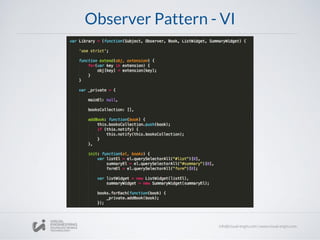

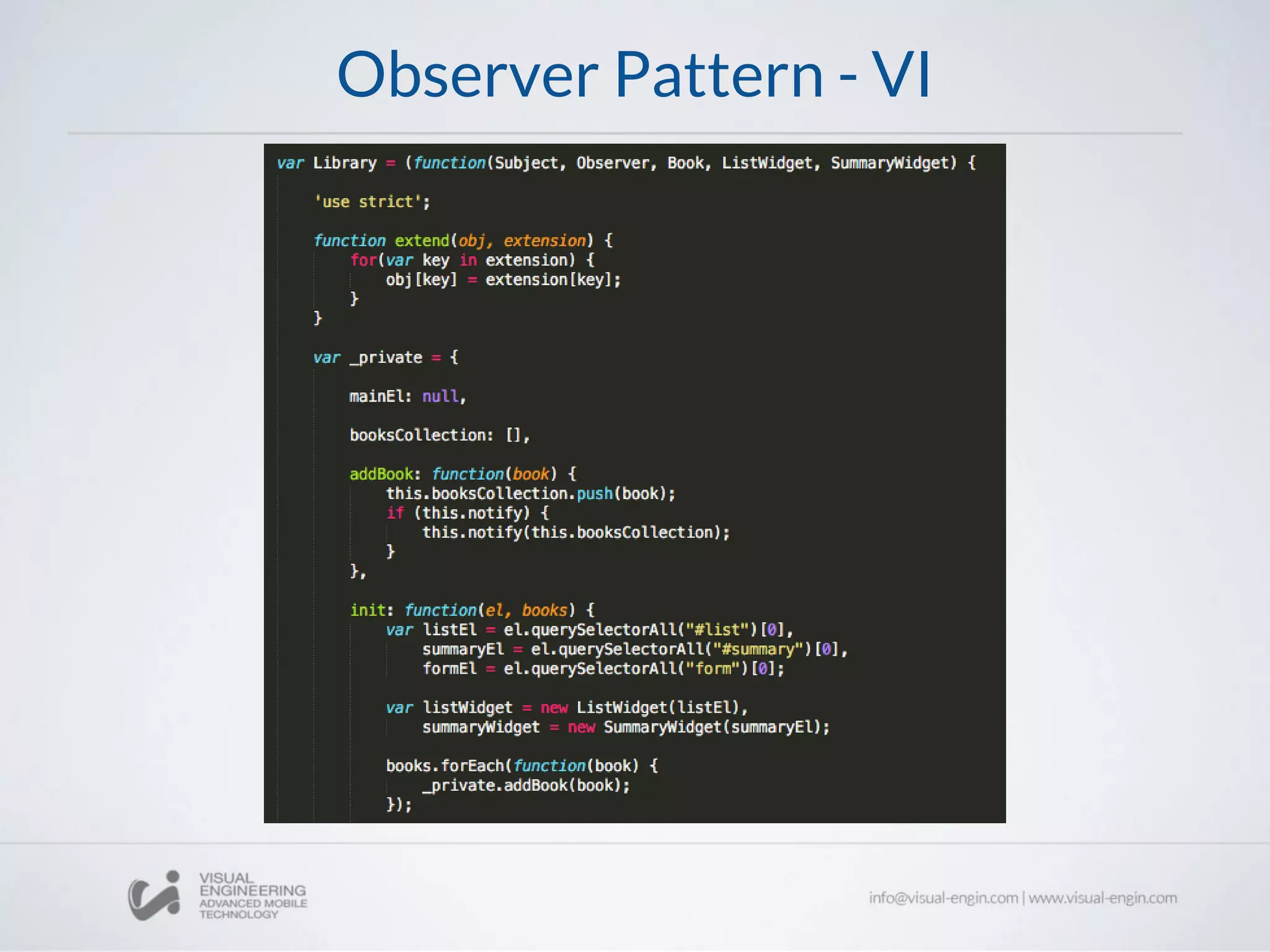

25. Observer Pattern - VI

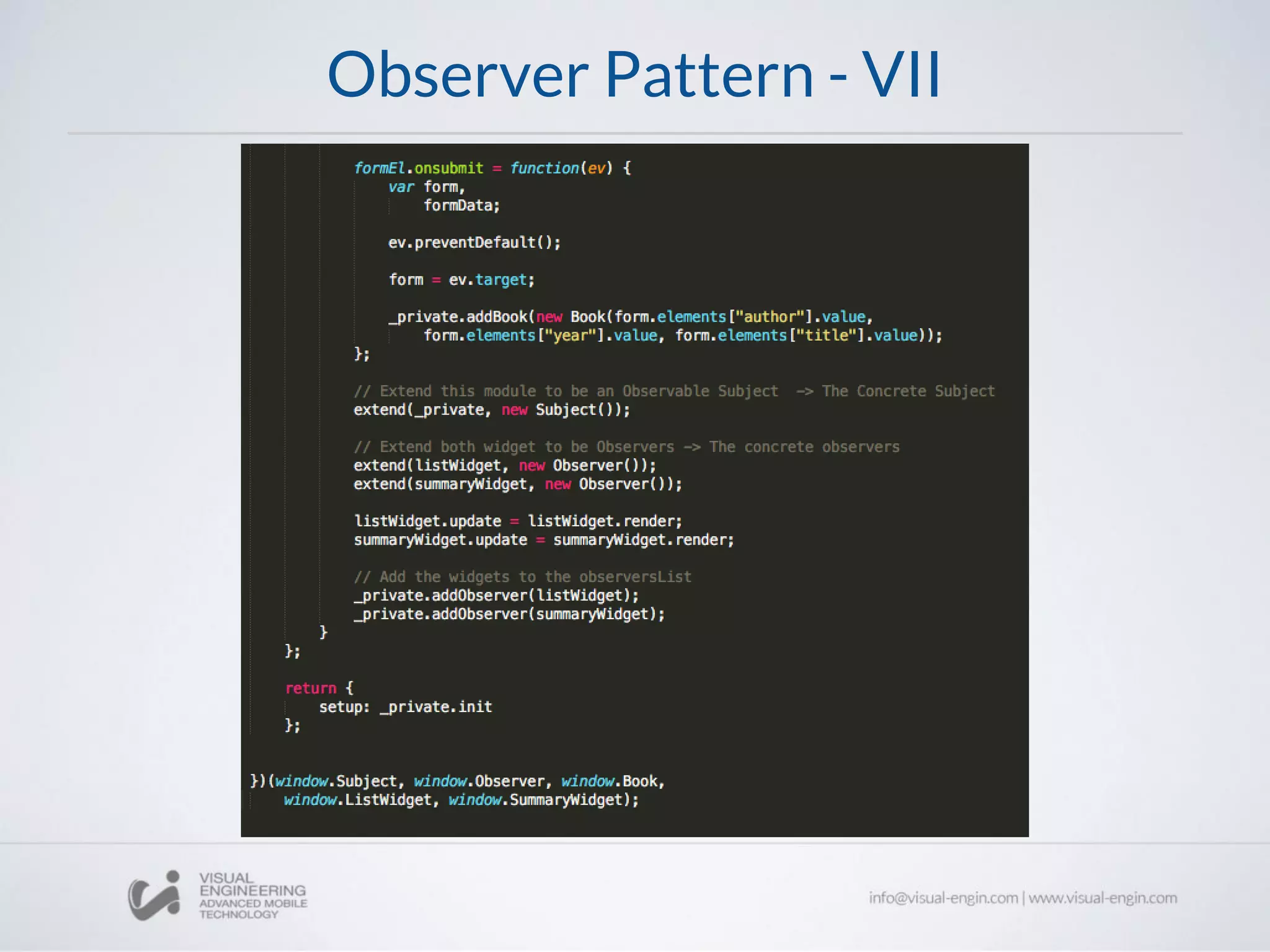

26. Observer Pattern - VII

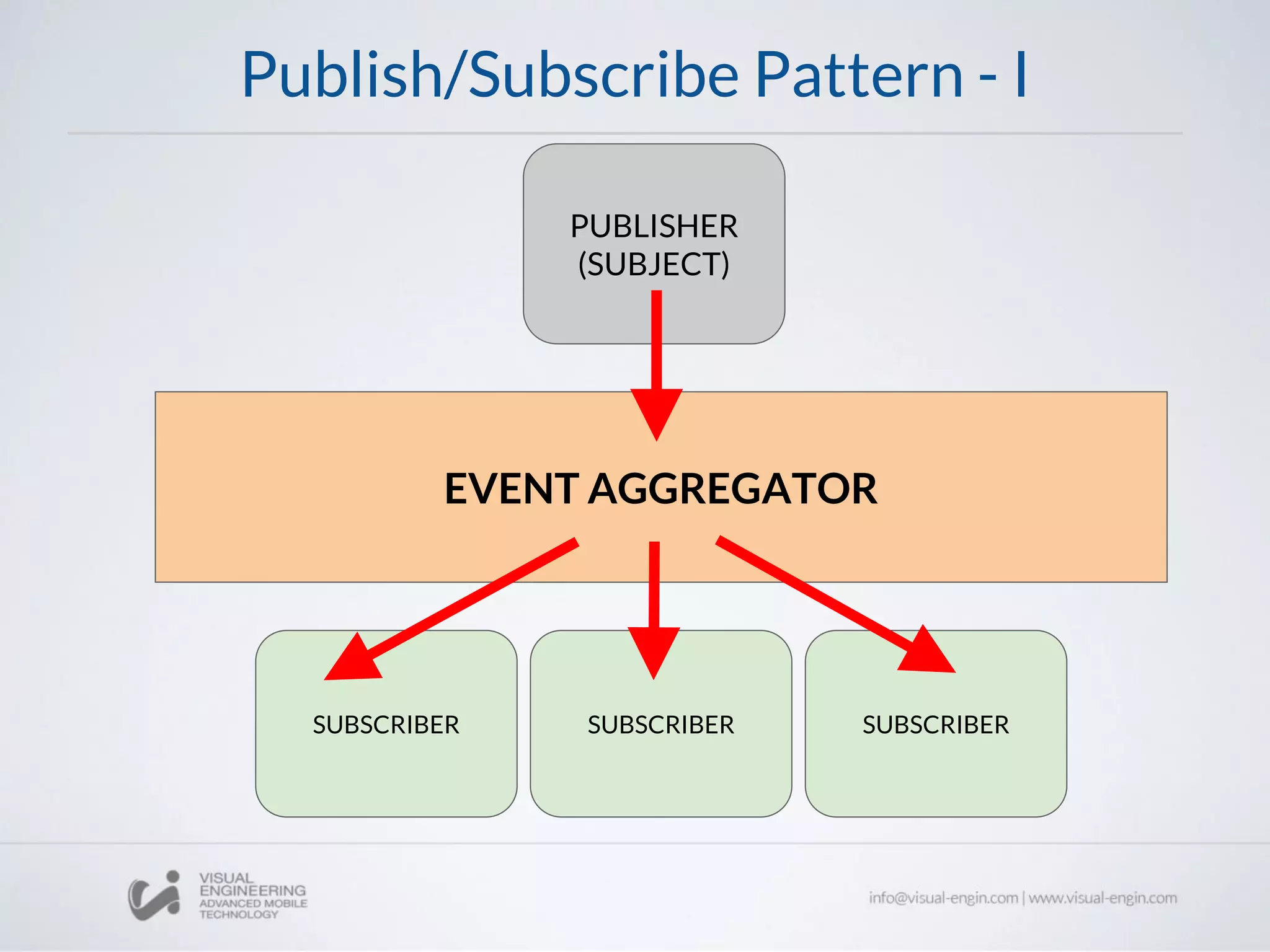

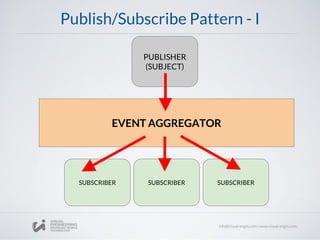

27. Publish/Subscribe Pattern - I
PUBLISHER
(SUBJECT)
SUBSCRIBER
EVENT AGGREGATOR
SUBSCRIBER SUBSCRIBER

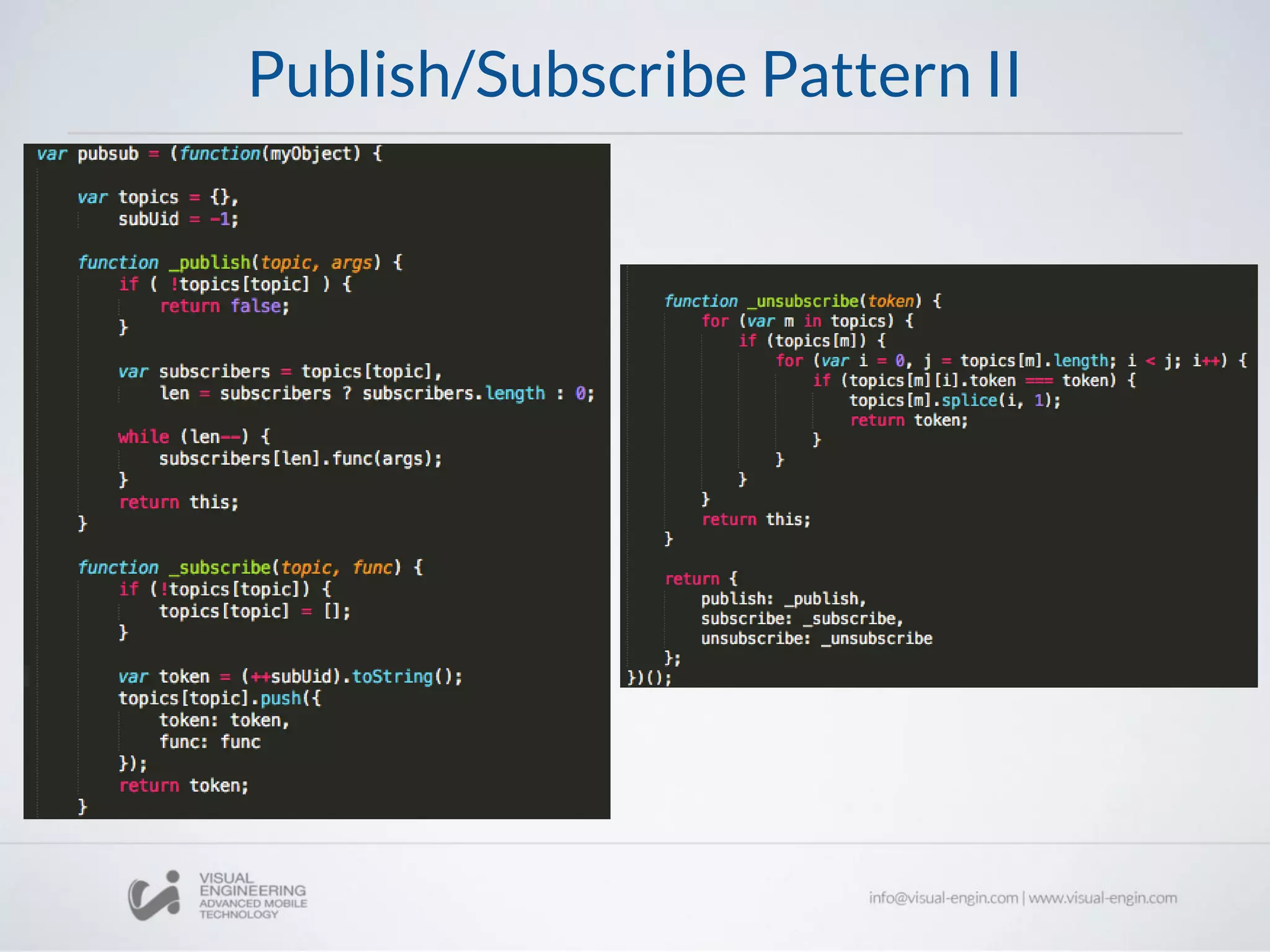

28. Publish/Subscribe Pattern II

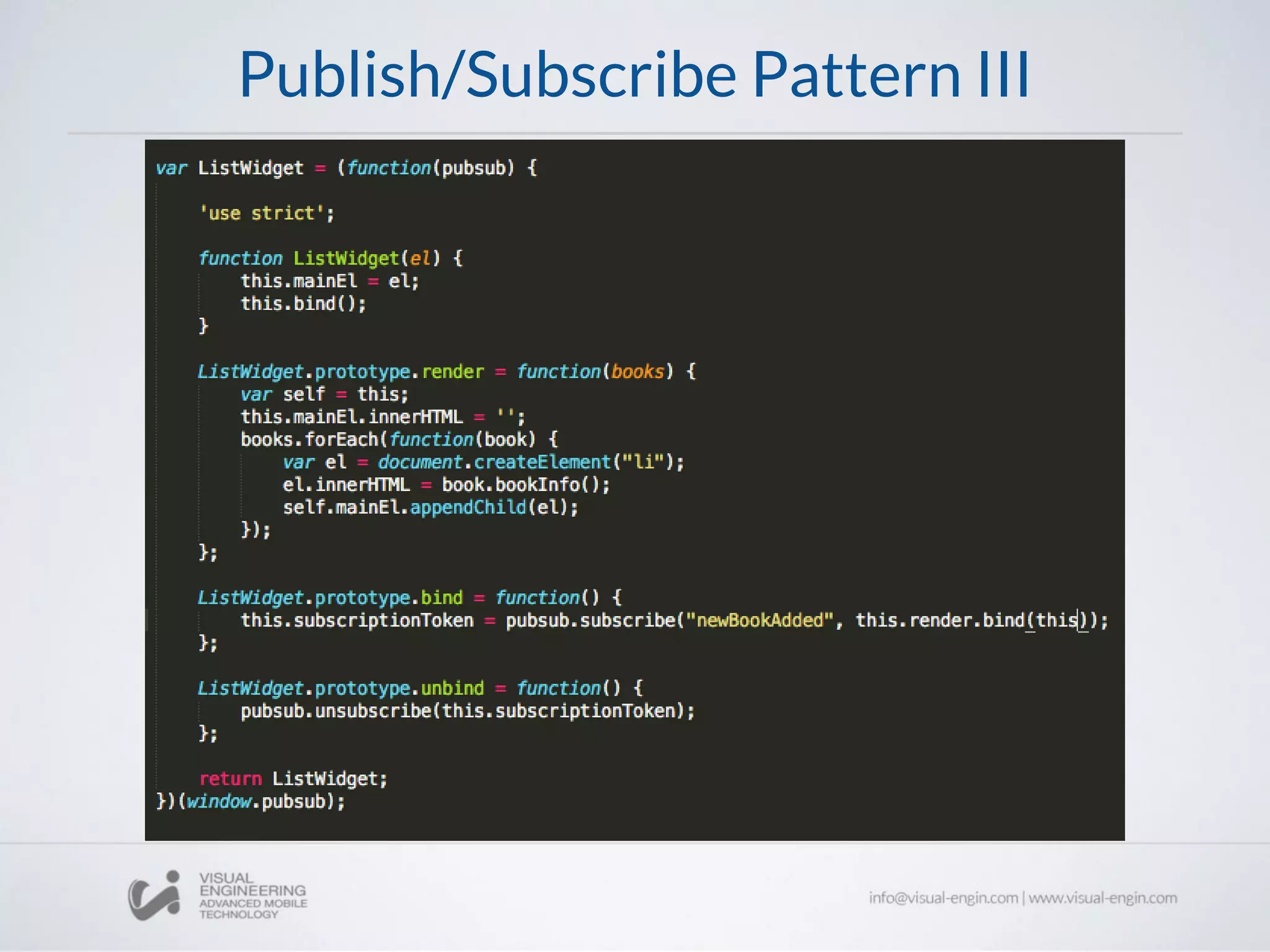

29. Publish/Subscribe Pattern III

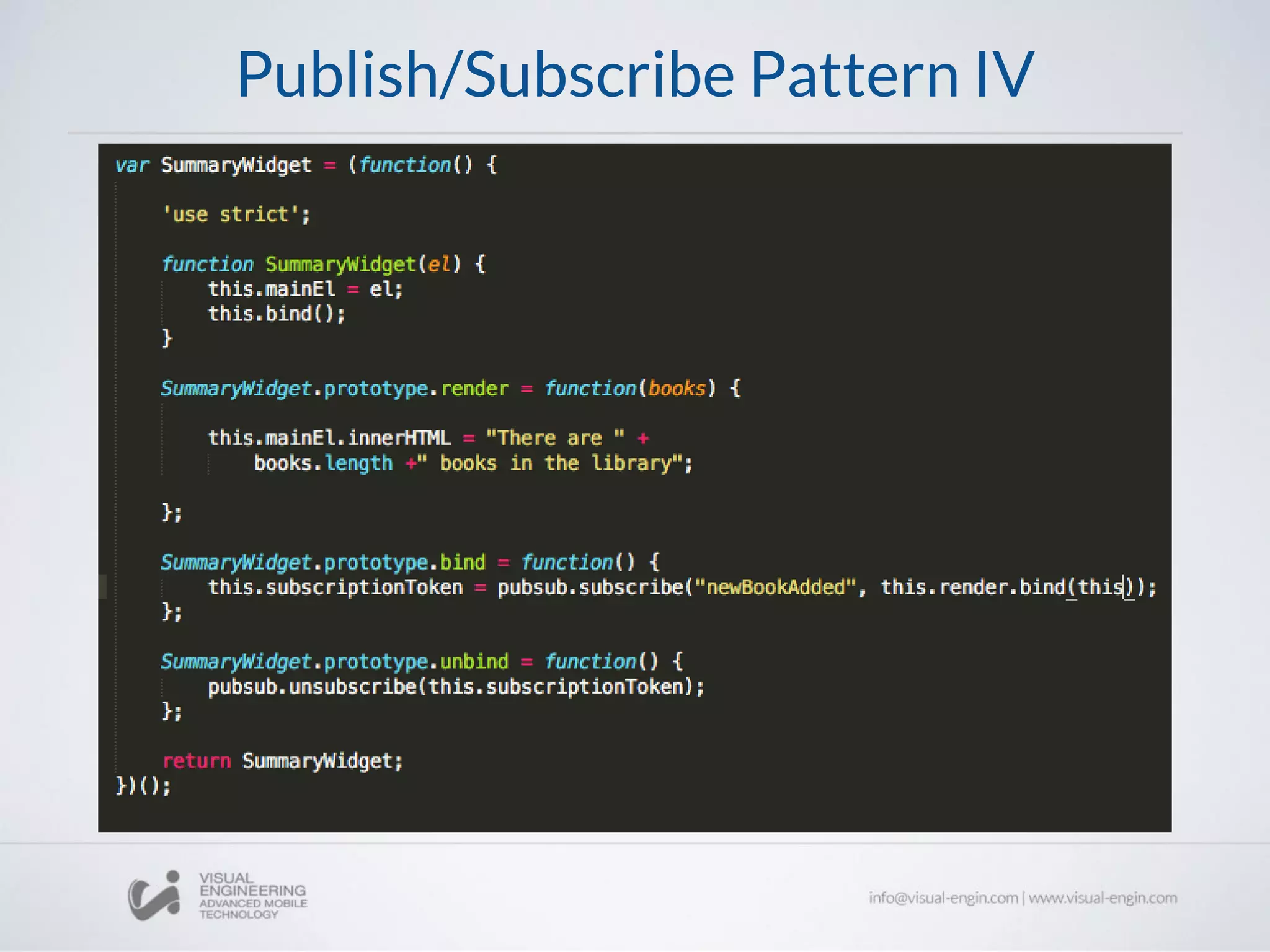

30. Publish/Subscribe Pattern IV

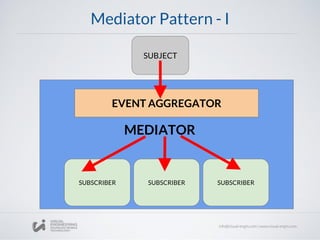

32. Mediator Pattern - I
SUBJECT
SUBSCRIBER
EVENT AGGREGATOR
SUBSCRIBER SUBSCRIBER
MEDIATOR

33. Mediator Pattern - II

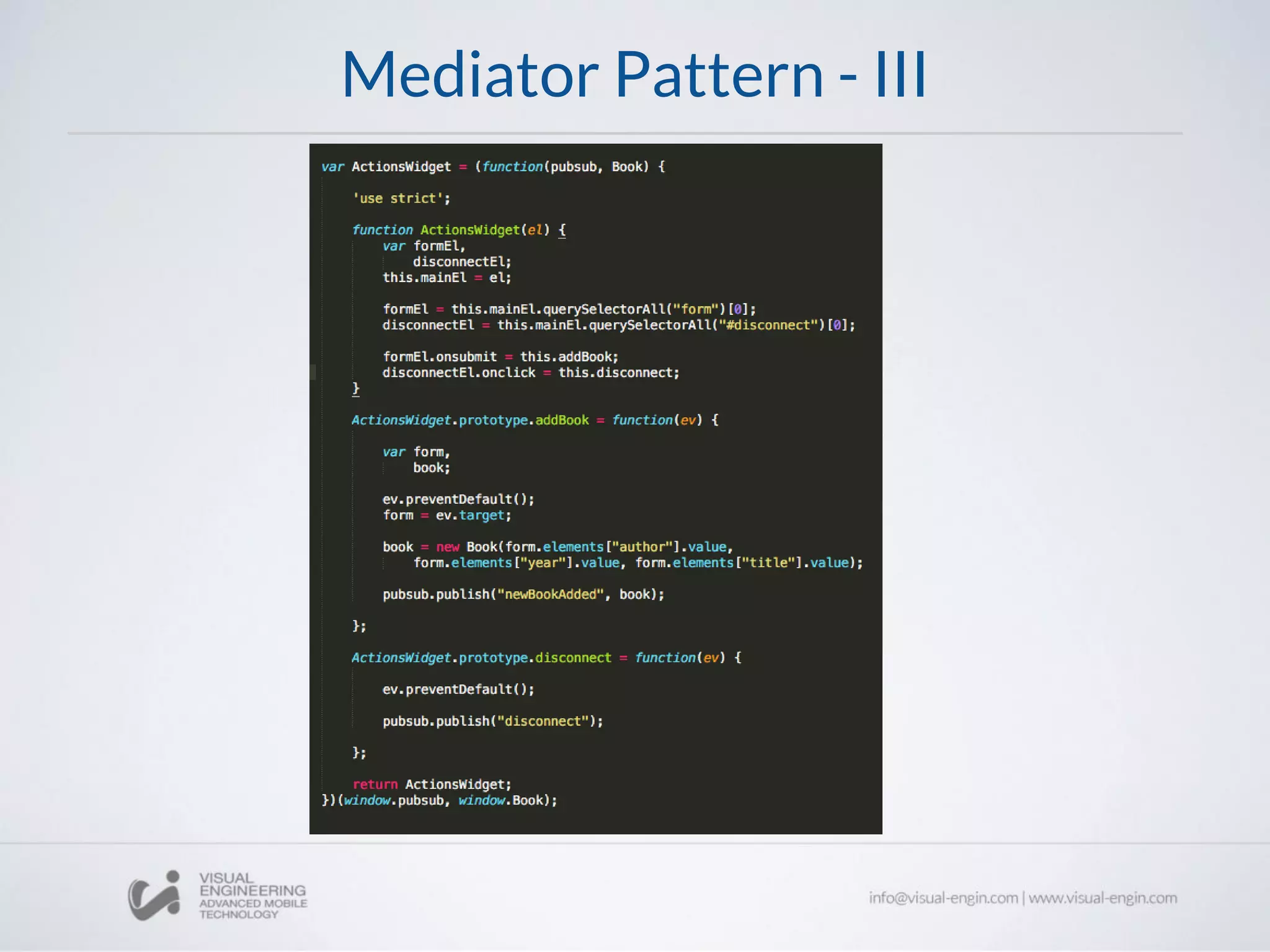

34. Mediator Pattern - III

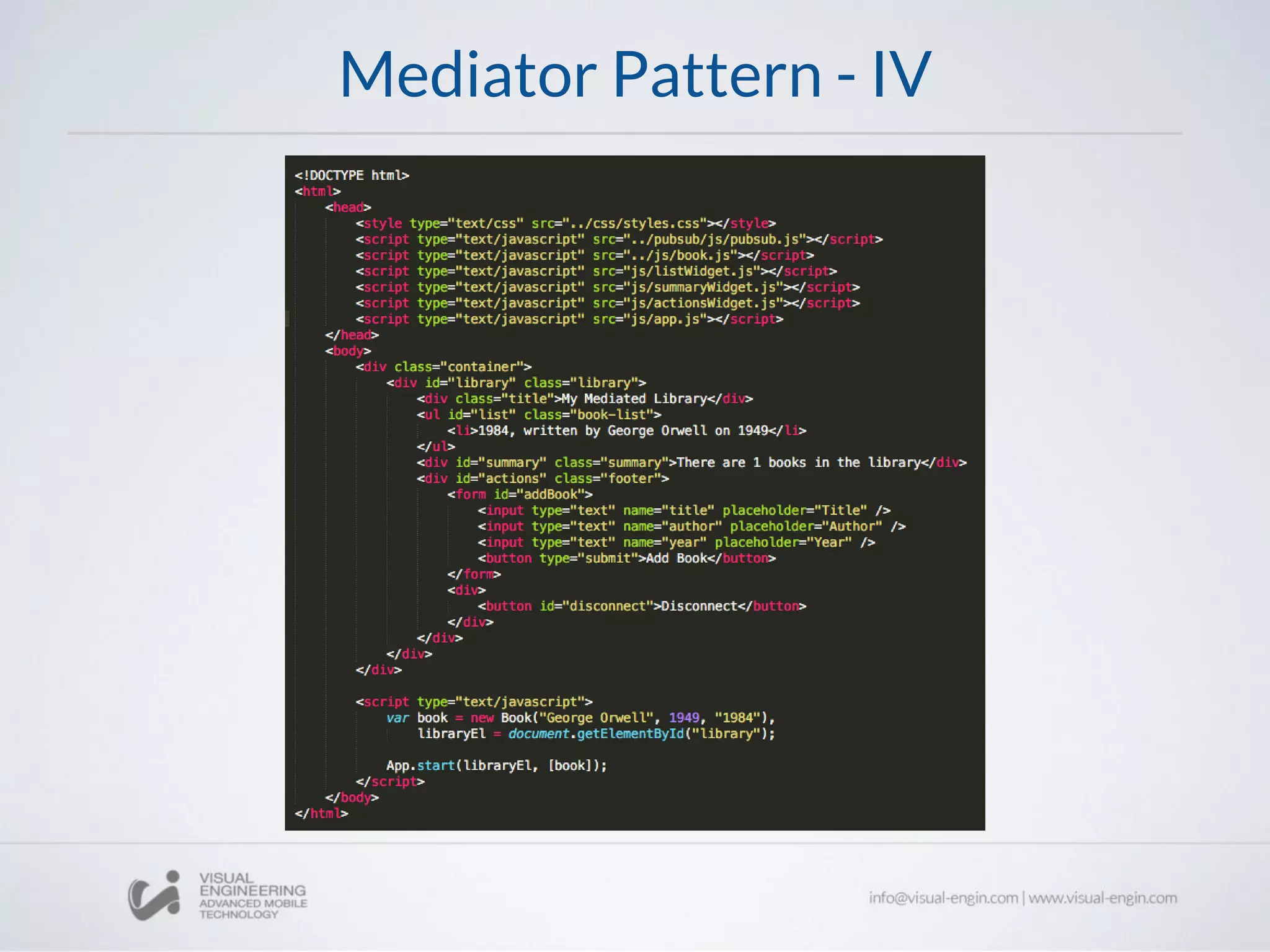

35. Mediator Pattern - IV

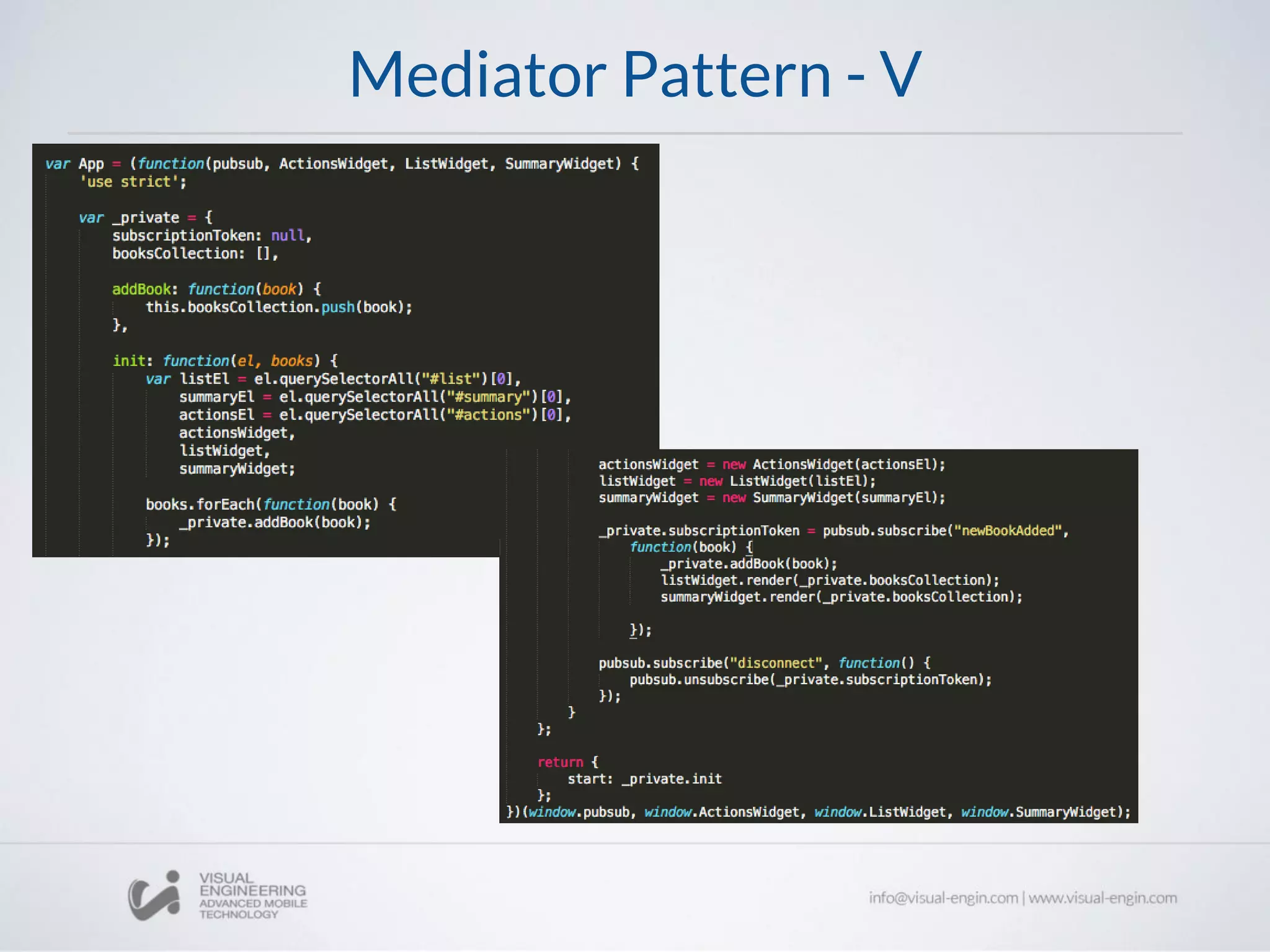

36. Mediator Pattern - V

37. Modern Modular JavaScript Design
Patterns

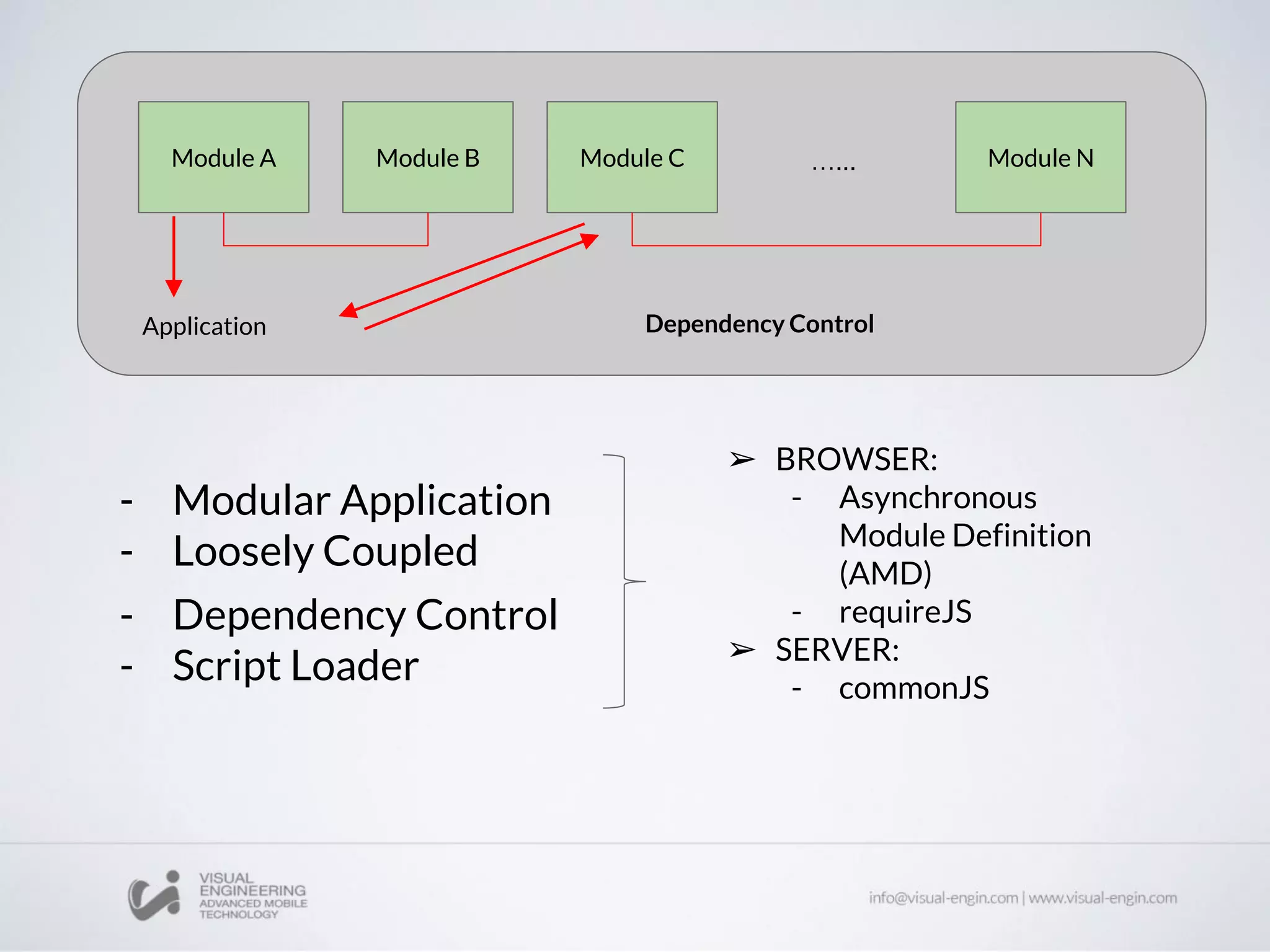

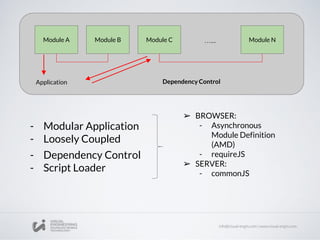

38. Module A Module B Module C Module N…...
Application
- Modular Application
- Loosely Coupled
- Dependency Control
- Script Loader
➢ BROWSER:
- Asynchronous
Module Definition
(AMD)
- requireJS
➢ SERVER:
- commonJS
Dependency Control

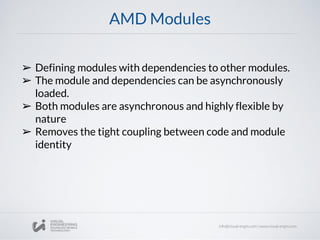

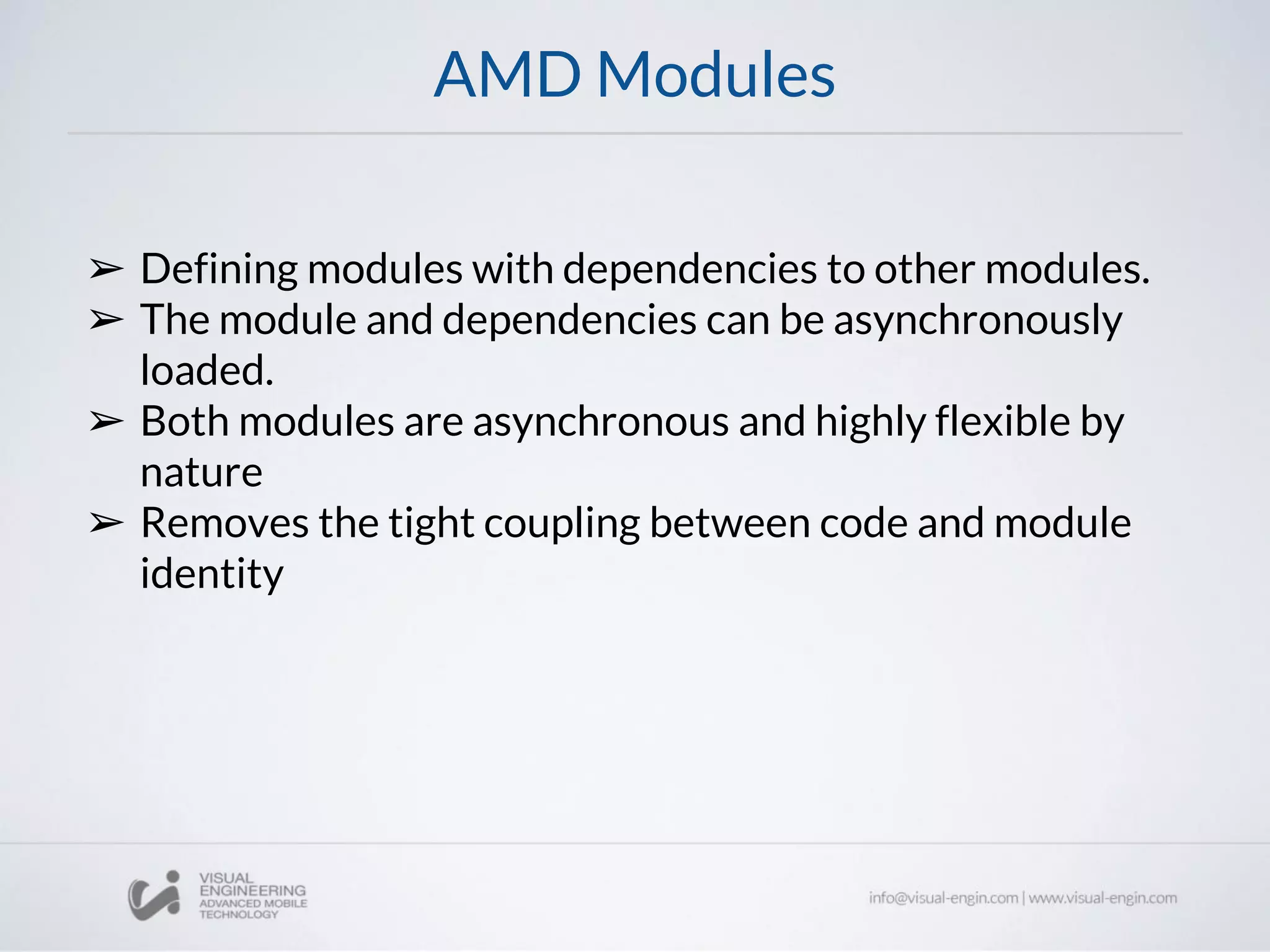

39. AMD Modules
➢ Defining modules with dependencies to other modules.
➢ The module and dependencies can be asynchronously
loaded.
➢ Both modules are asynchronous and highly flexible by
nature
➢ Removes the tight coupling between code and module
identity

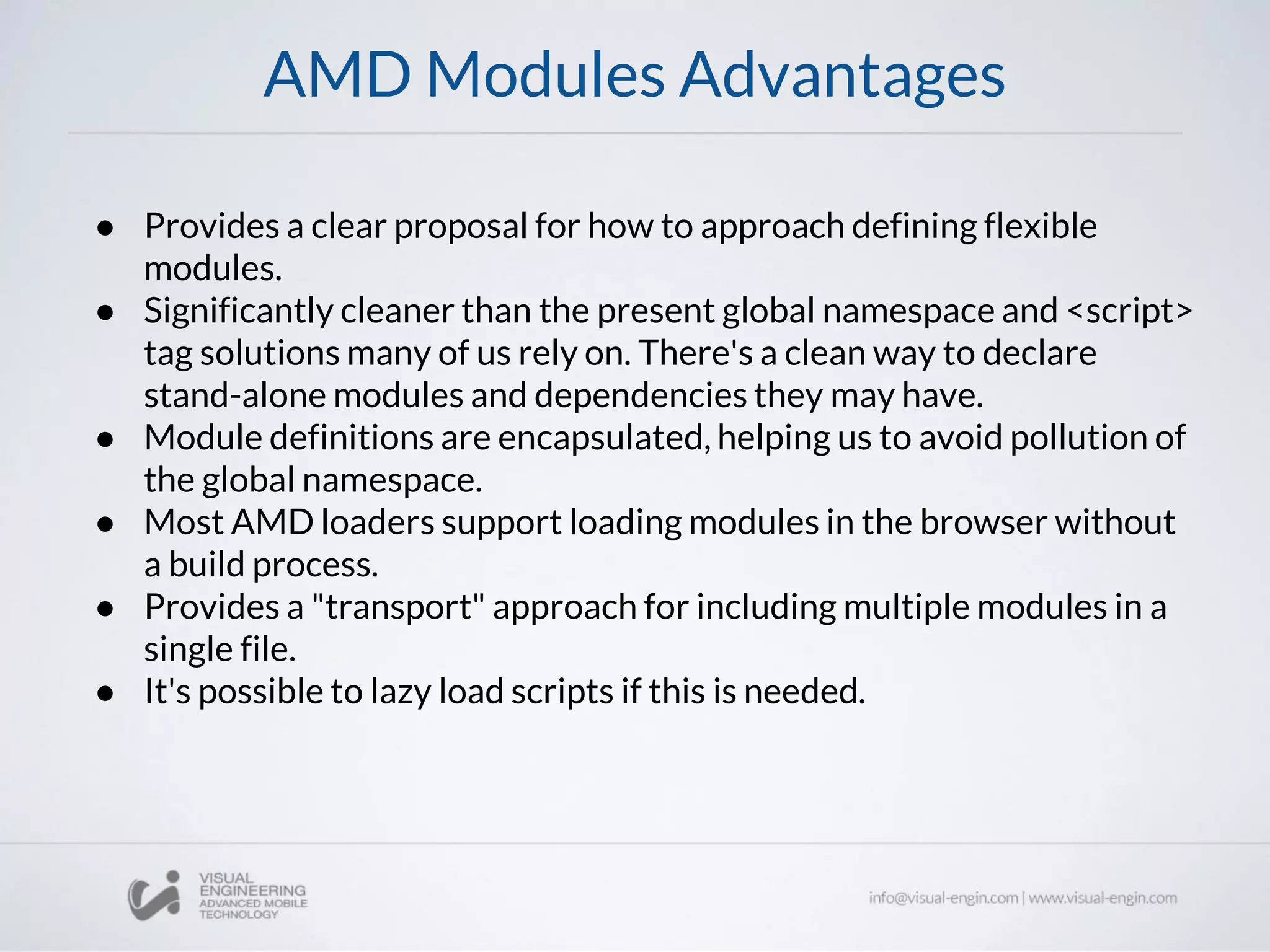

40. AMD Modules Advantages
● Provides a clear proposal for how to approach defining flexible
modules.
● Significantly cleaner than the present global namespace and <script>
tag solutions many of us rely on. There's a clean way to declare
stand-alone modules and dependencies they may have.
● Module definitions are encapsulated, helping us to avoid pollution of
the global namespace.
● Most AMD loaders support loading modules in the browser without
a build process.
● Provides a "transport" approach for including multiple modules in a
single file.
● It's possible to lazy load scripts if this is needed.

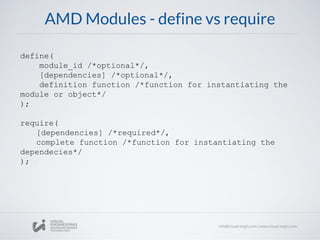

41. AMD Modules - define vs require
define(
module_id /*optional*/,
[dependencies] /*optional*/,
definition function /*function for instantiating the
module or object*/
);
require(
[dependencies] /*required*/,
complete function /*function for instantiating the
dependecies*/
);

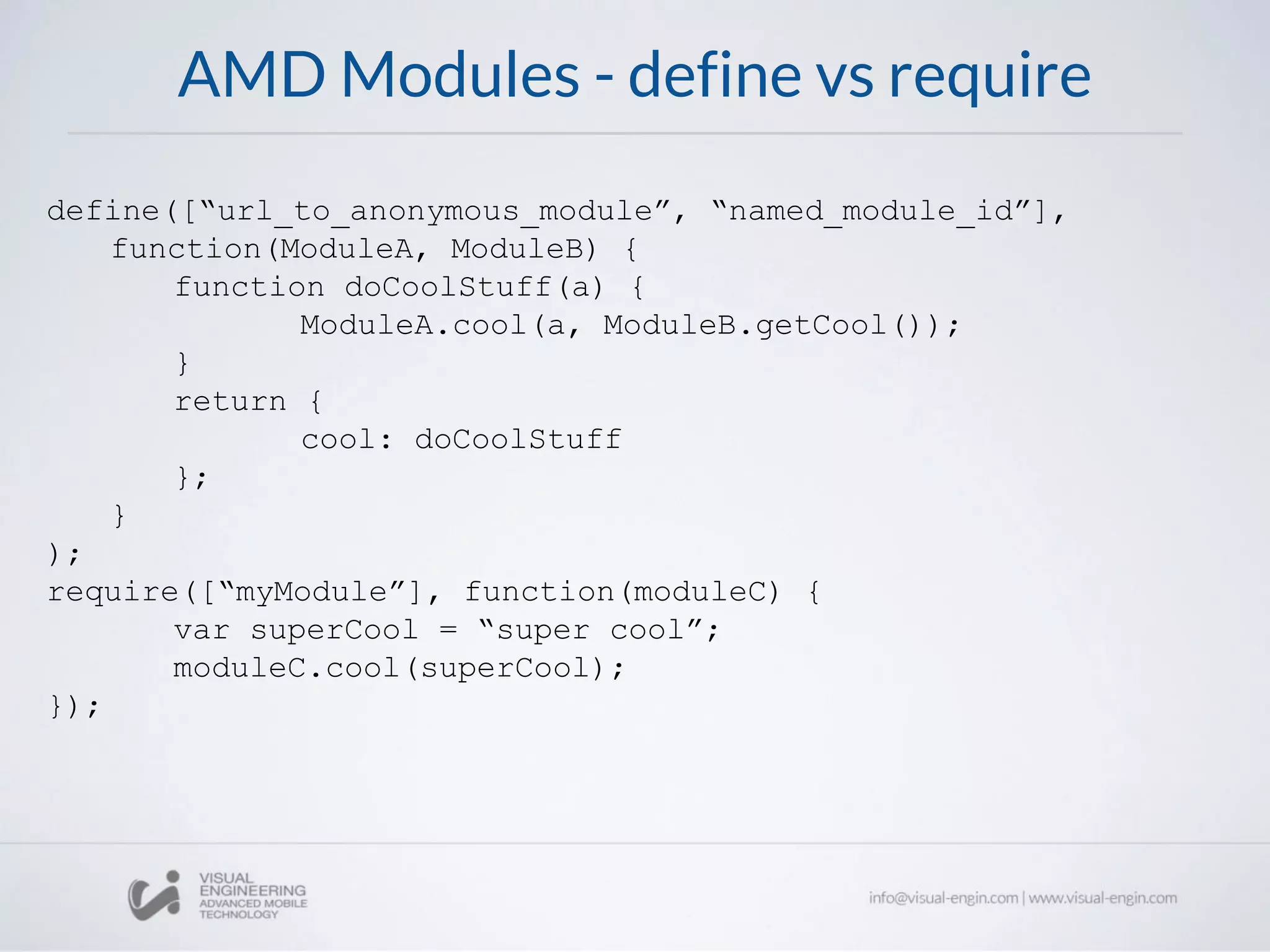

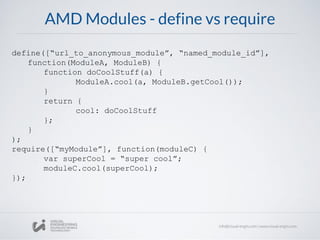

42. AMD Modules - define vs require
define([“url_to_anonymous_module”, “named_module_id”],
function(ModuleA, ModuleB) {
function doCoolStuff(a) {
ModuleA.cool(a, ModuleB.getCool());
}
return {
cool: doCoolStuff
};
}
);
require([“myModule”], function(moduleC) {
var superCool = “super cool”;
moduleC.cool(superCool);
});

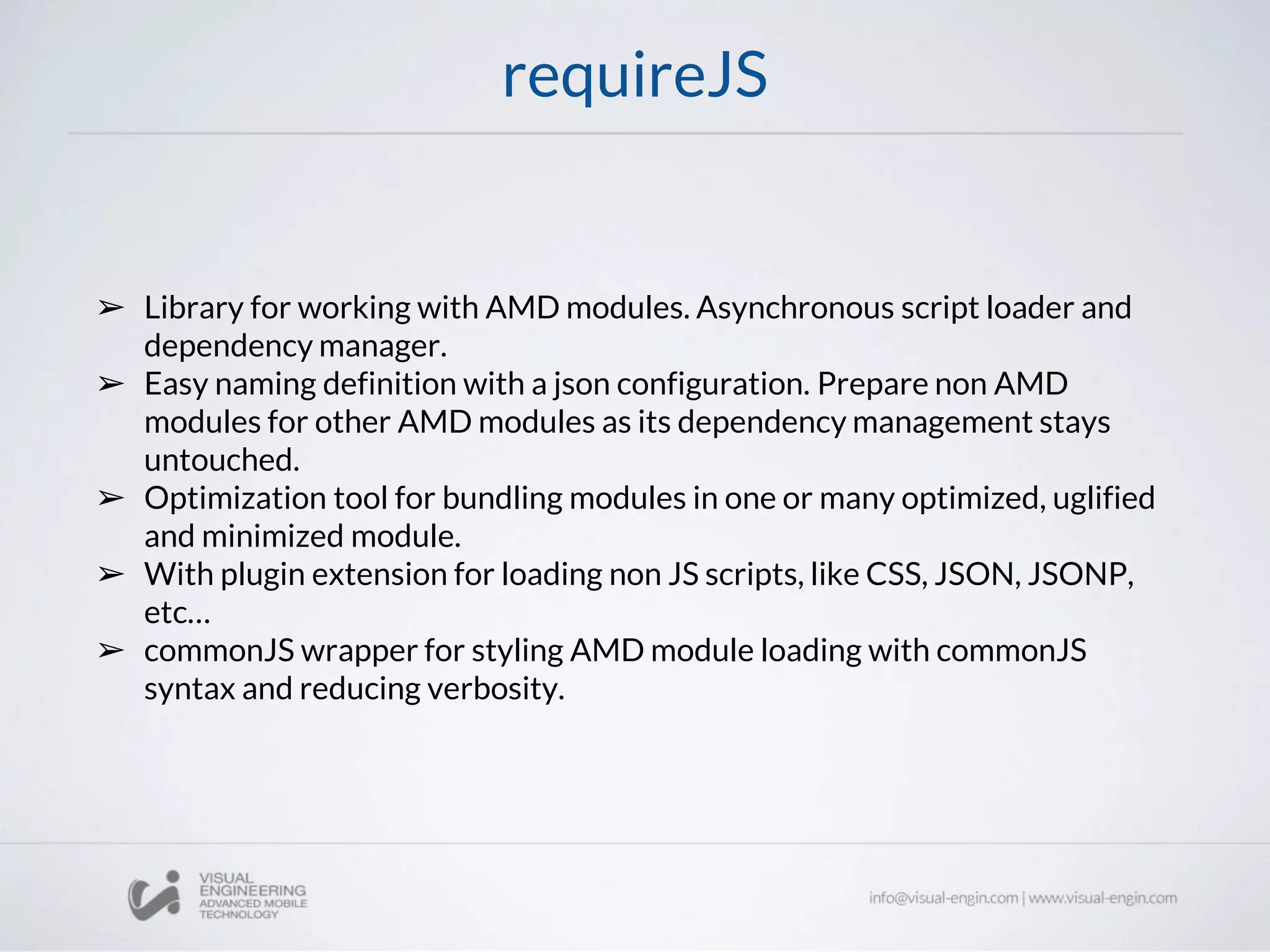

43. requireJS
➢ Library for working with AMD modules. Asynchronous script loader and
dependency manager.
➢ Easy naming definition with a json configuration. Prepare non AMD
modules for other AMD modules as its dependency management stays
untouched.
➢ Optimization tool for bundling modules in one or many optimized, uglified
and minimized module.
➢ With plugin extension for loading non JS scripts, like CSS, JSON, JSONP,
etc…
➢ commonJS wrapper for styling AMD module loading with commonJS
syntax and reducing verbosity.

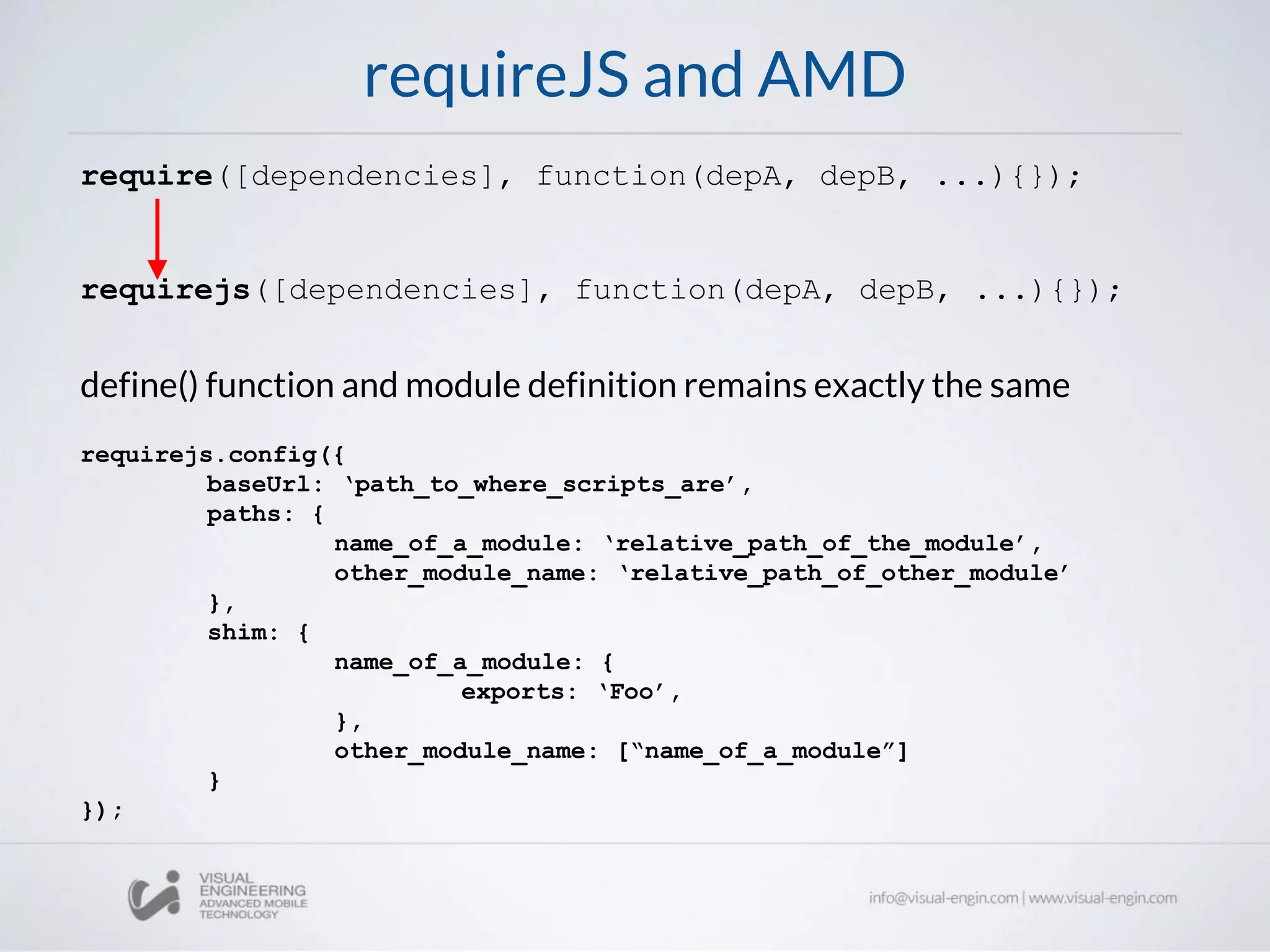

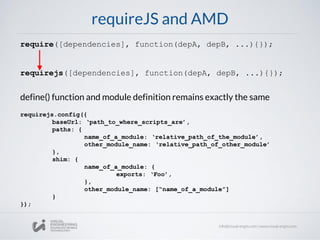

44. requireJS and AMD
require([dependencies], function(depA, depB, ...){});
requirejs([dependencies], function(depA, depB, ...){});
define() function and module definition remains exactly the same
requirejs.config({
baseUrl: ‘path_to_where_scripts_are’,
paths: {
name_of_a_module: ‘relative_path_of_the_module’,
other_module_name: ‘relative_path_of_other_module’
},
shim: {
name_of_a_module: {
exports: ‘Foo’,
},
other_module_name: [“name_of_a_module”]
}
});

45. requireJS and HTML
<html>
<head></head>
<body>
<script data-main="js/app.js"
src="js/require.js"></script>
<script type=”text/javascript”>
requirejs([“app”], function(app) {
app.start();
});
</script>
</body>
</html>

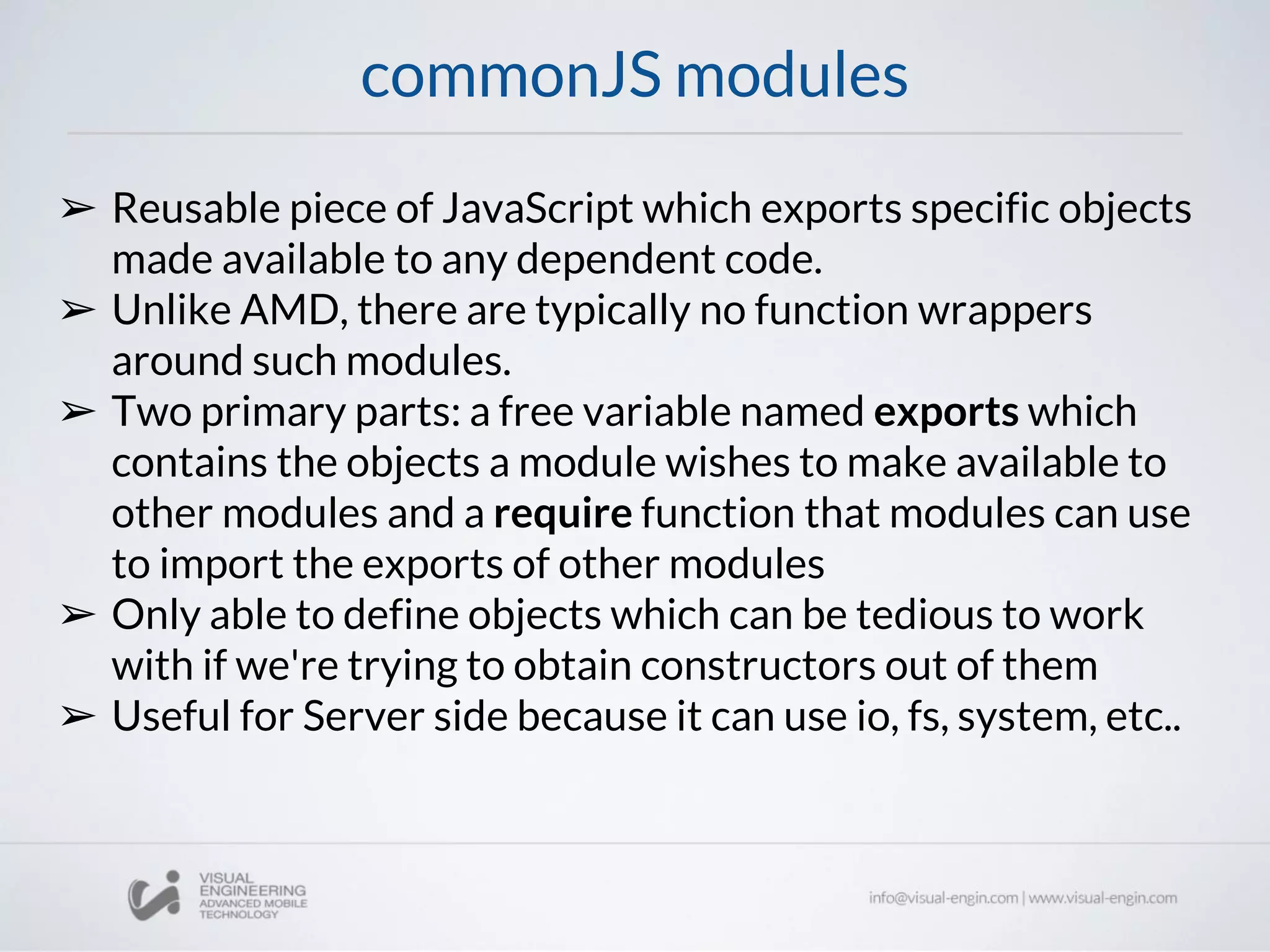

46. commonJS modules
➢ Reusable piece of JavaScript which exports specific objects
made available to any dependent code.
➢ Unlike AMD, there are typically no function wrappers
around such modules.
➢ Two primary parts: a free variable named exports which
contains the objects a module wishes to make available to
other modules and a require function that modules can use
to import the exports of other modules
➢ Only able to define objects which can be tedious to work
with if we're trying to obtain constructors out of them
➢ Useful for Server side because it can use io, fs, system, etc..

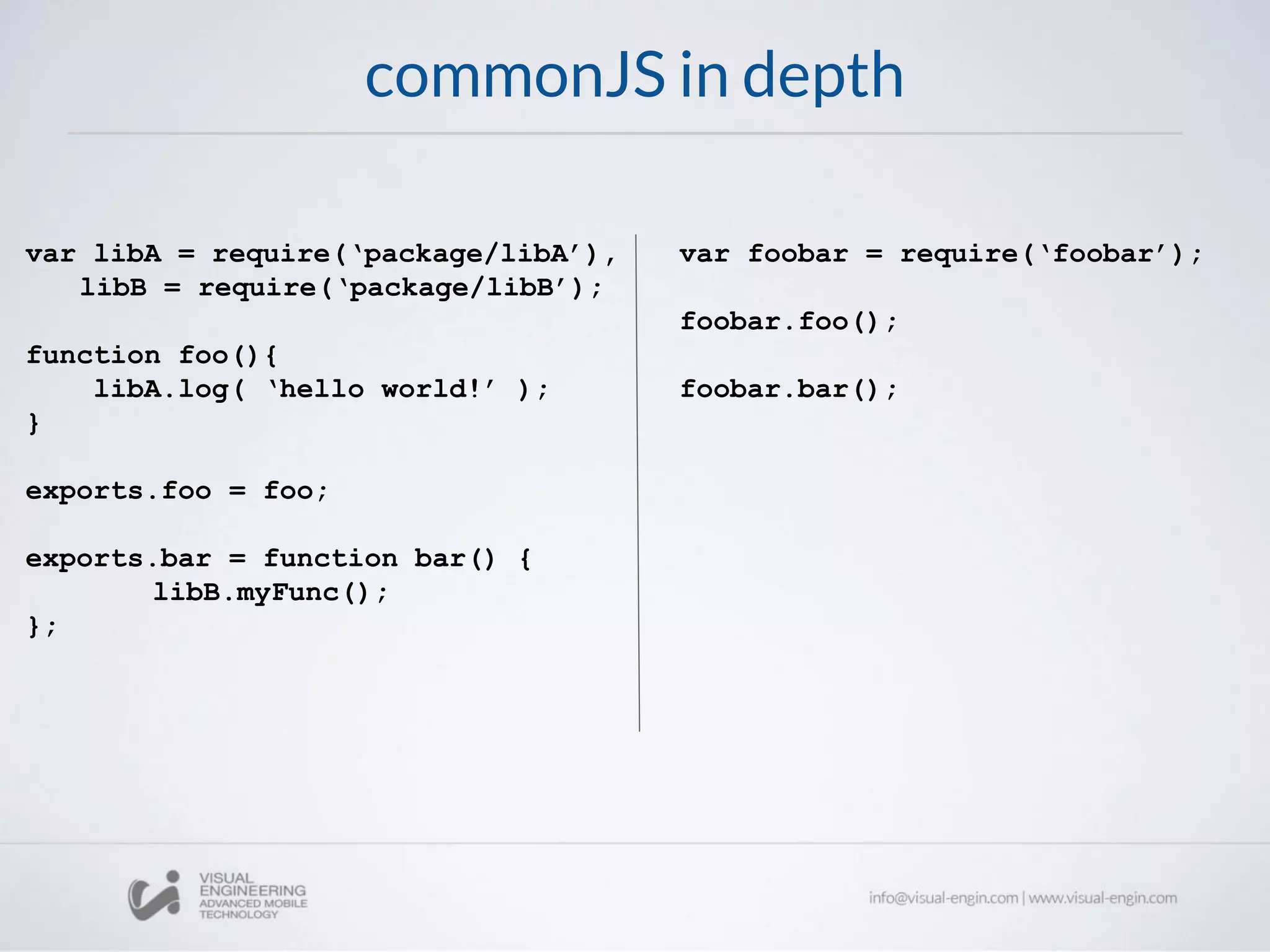

47. commonJS in depth
var libA = require(‘package/libA’),
libB = require(‘package/libB’);
function foo(){
libA.log( ‘hello world!’ );
}
exports.foo = foo;
exports.bar = function bar() {
libB.myFunc();
};
var foobar = require(‘foobar’);
foobar.foo();
foobar.bar();

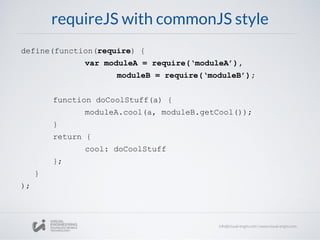

48. requireJS with commonJS style
define(function(require) {
var moduleA = require(‘moduleA’),
moduleB = require(‘moduleB’);
function doCoolStuff(a) {
moduleA.cool(a, moduleB.getCool());
}
return {
cool: doCoolStuff
};
}
);

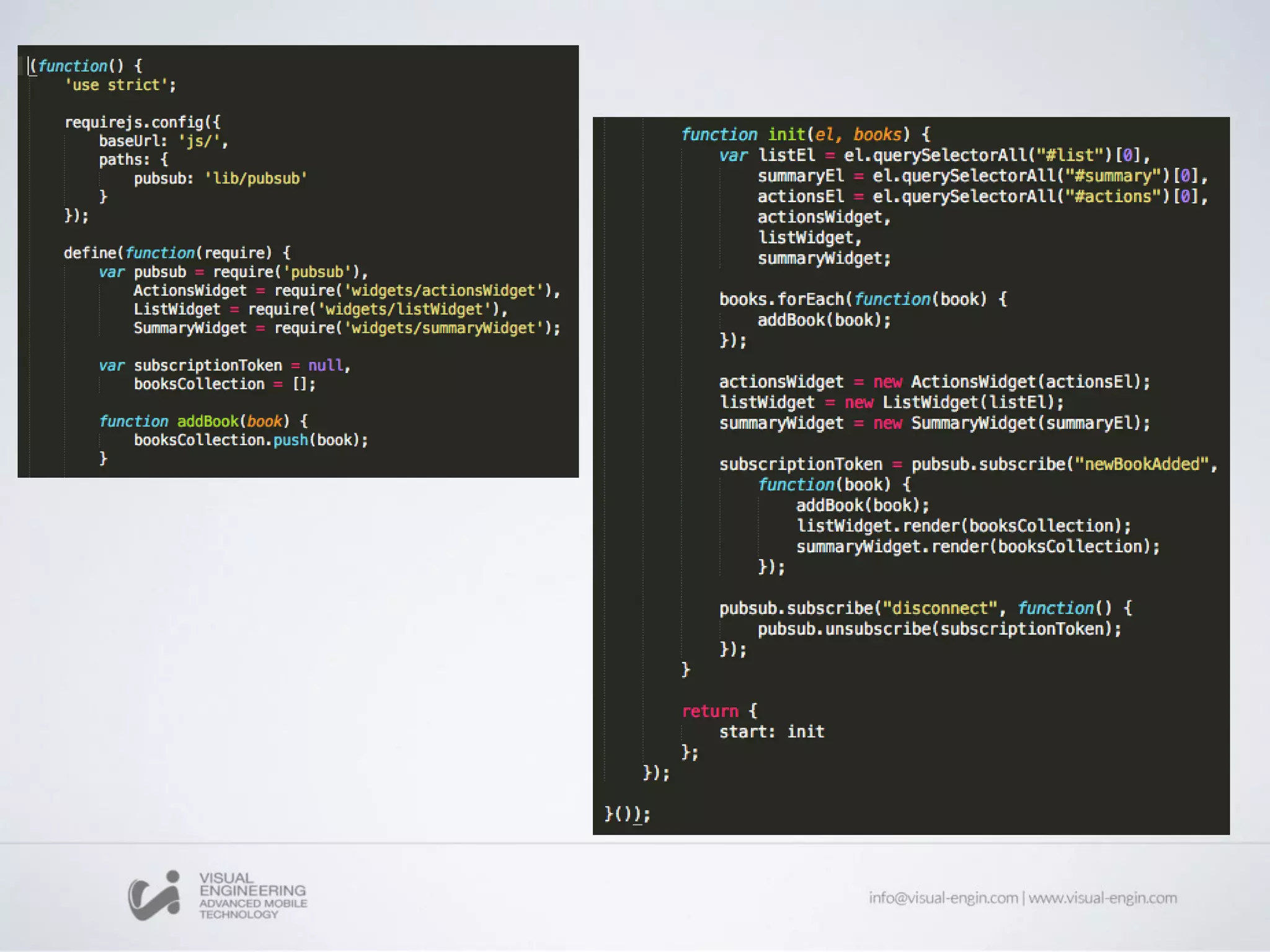

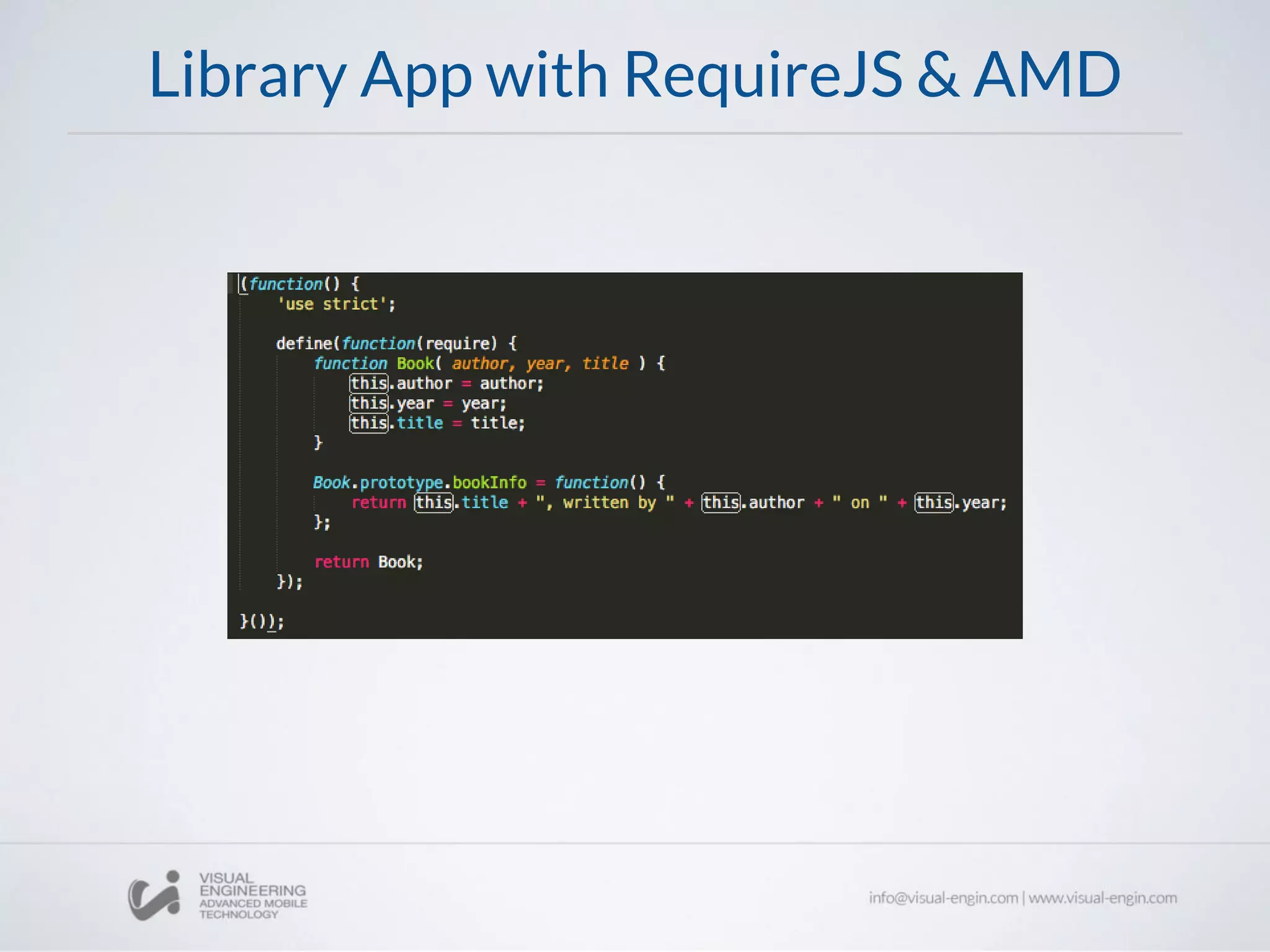

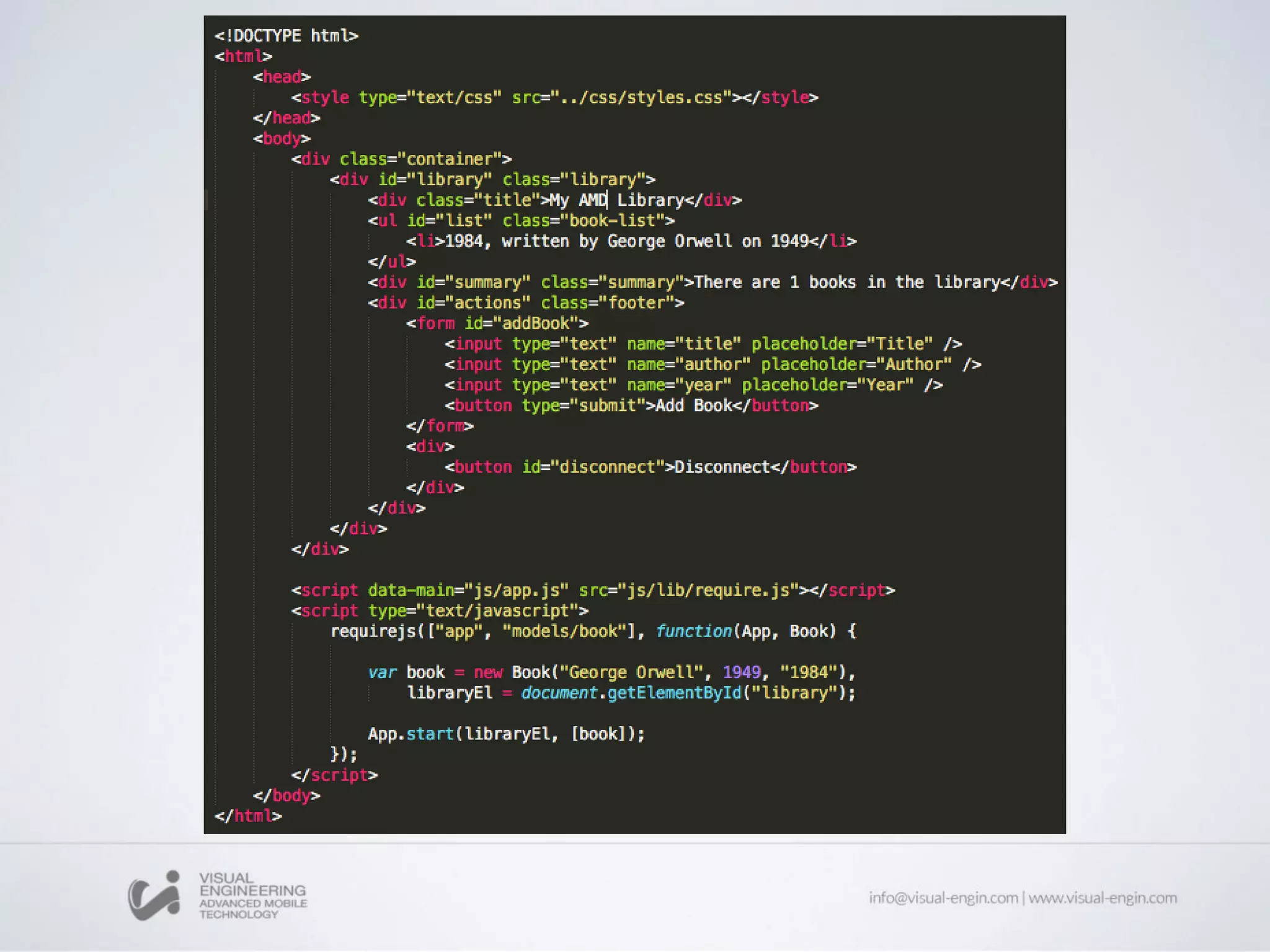

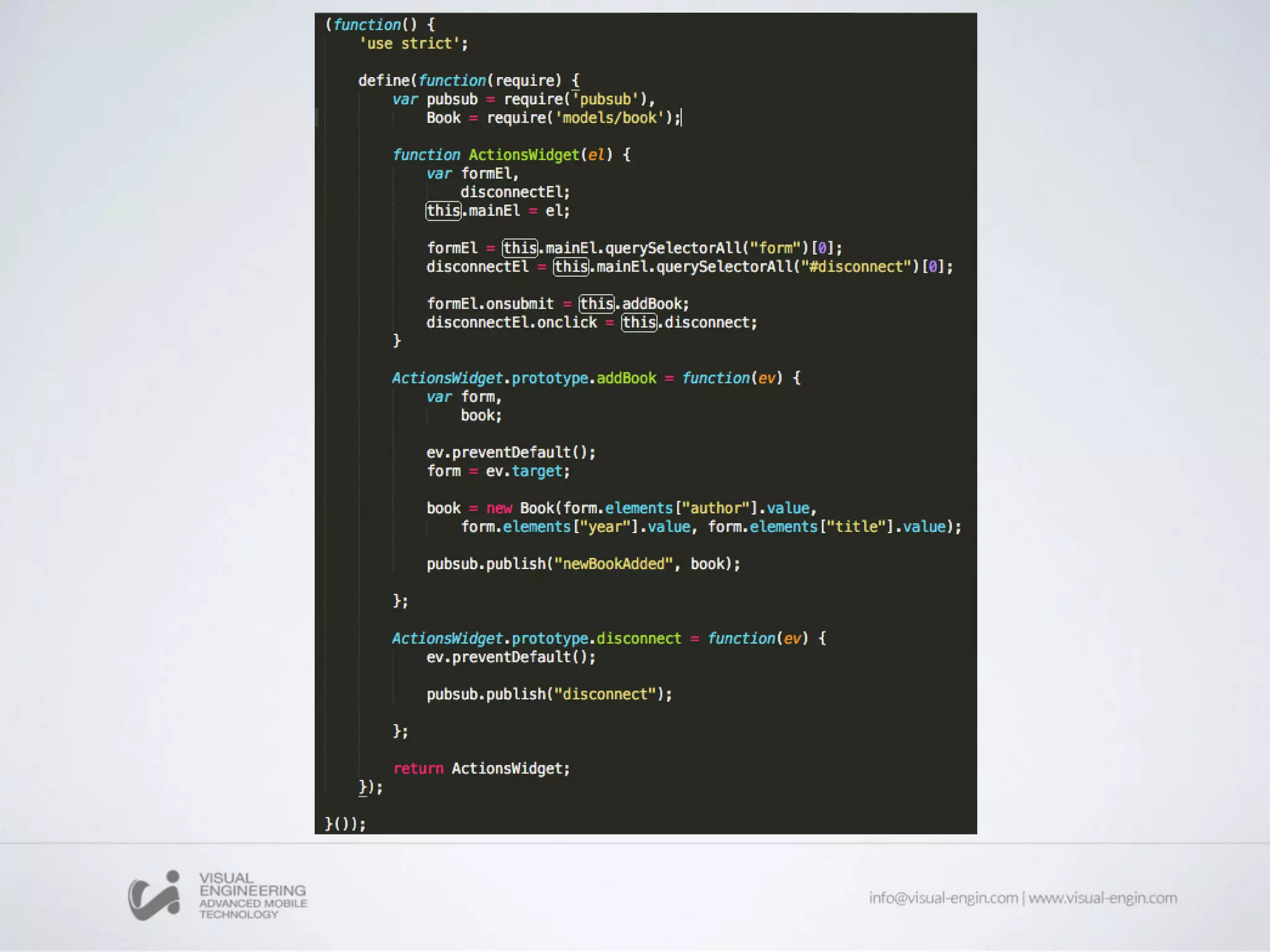

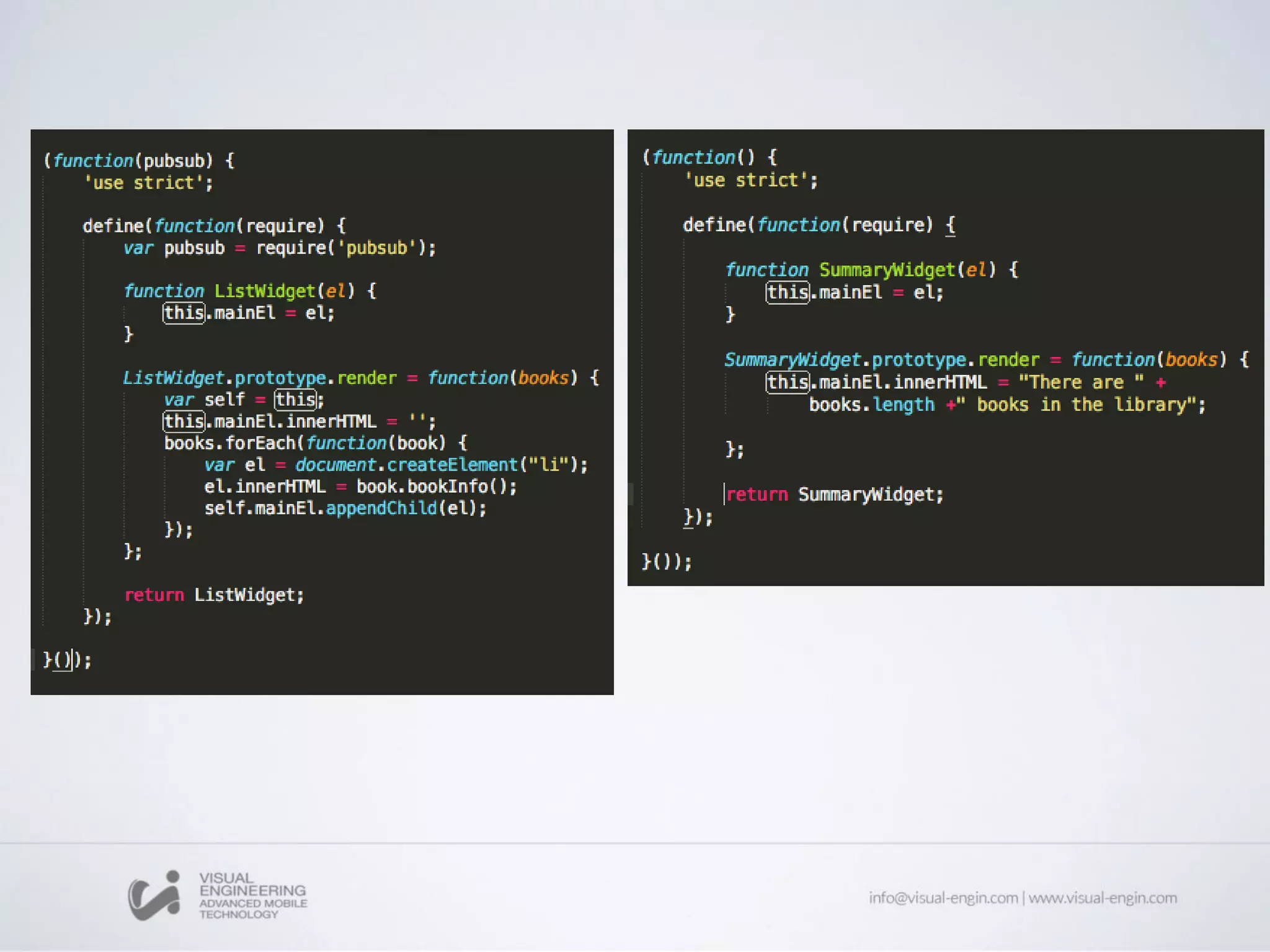

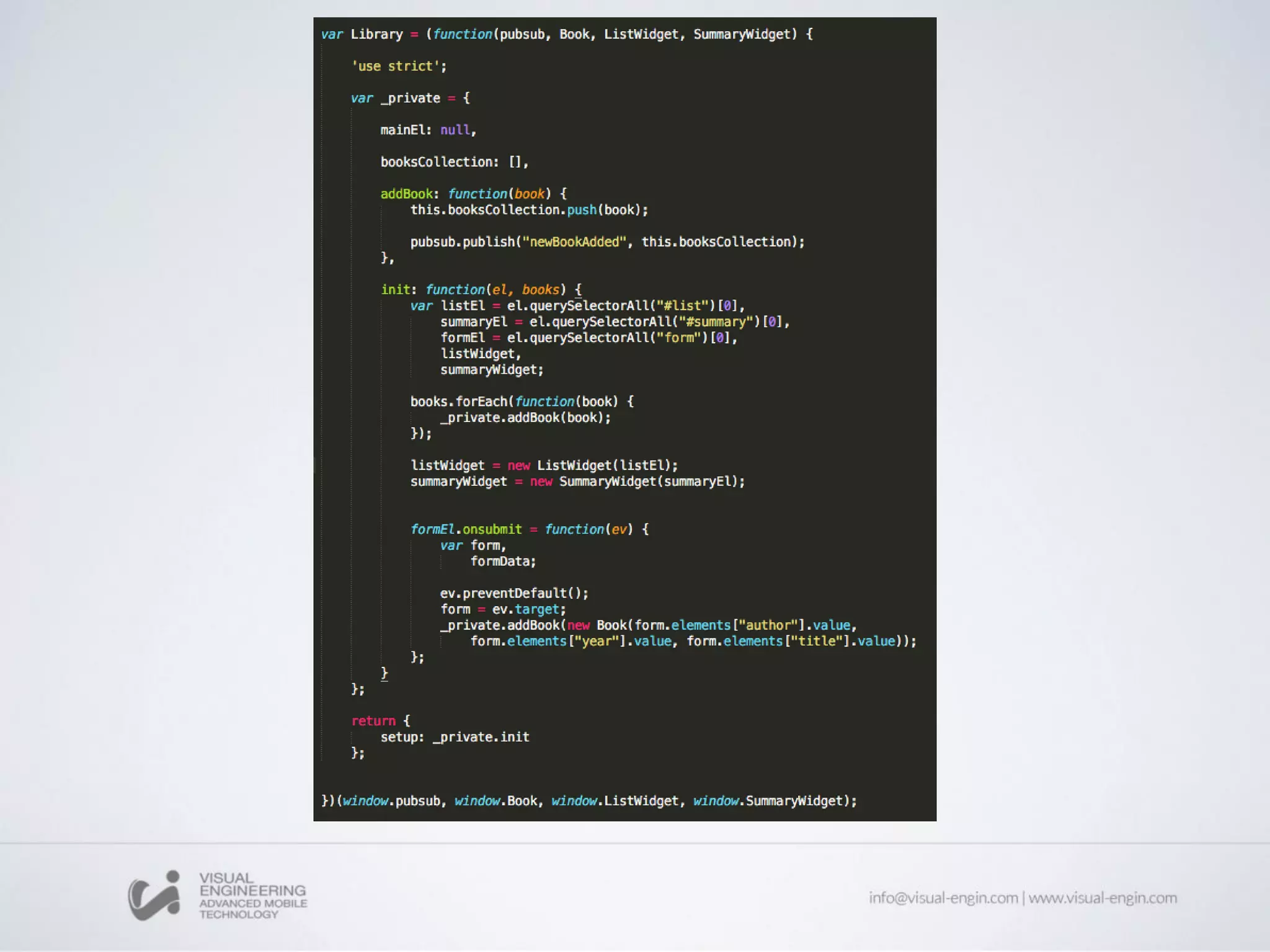

49. Library App with RequireJS & AMD

55. Thanks for your attention!
Leave your questions on the comments section
