The document discusses strategies for working with legacy code, which is code inherited from previous developers or older versions that often lacks tests and good documentation. It defines legacy code and outlines challenges like poor structure, dependencies, and lack of tests. It then provides approaches for modifying legacy code like identifying what to change and test, breaking dependencies, writing tests, and refactoring code in small, tested increments. Specific tactics are presented like using seams, sprouting methods, and interfaces to break dependencies and allow testing legacy code. The importance of understanding the system and increasing test coverage before making changes is emphasized.

1. Working with legacy code
Andrea Polci

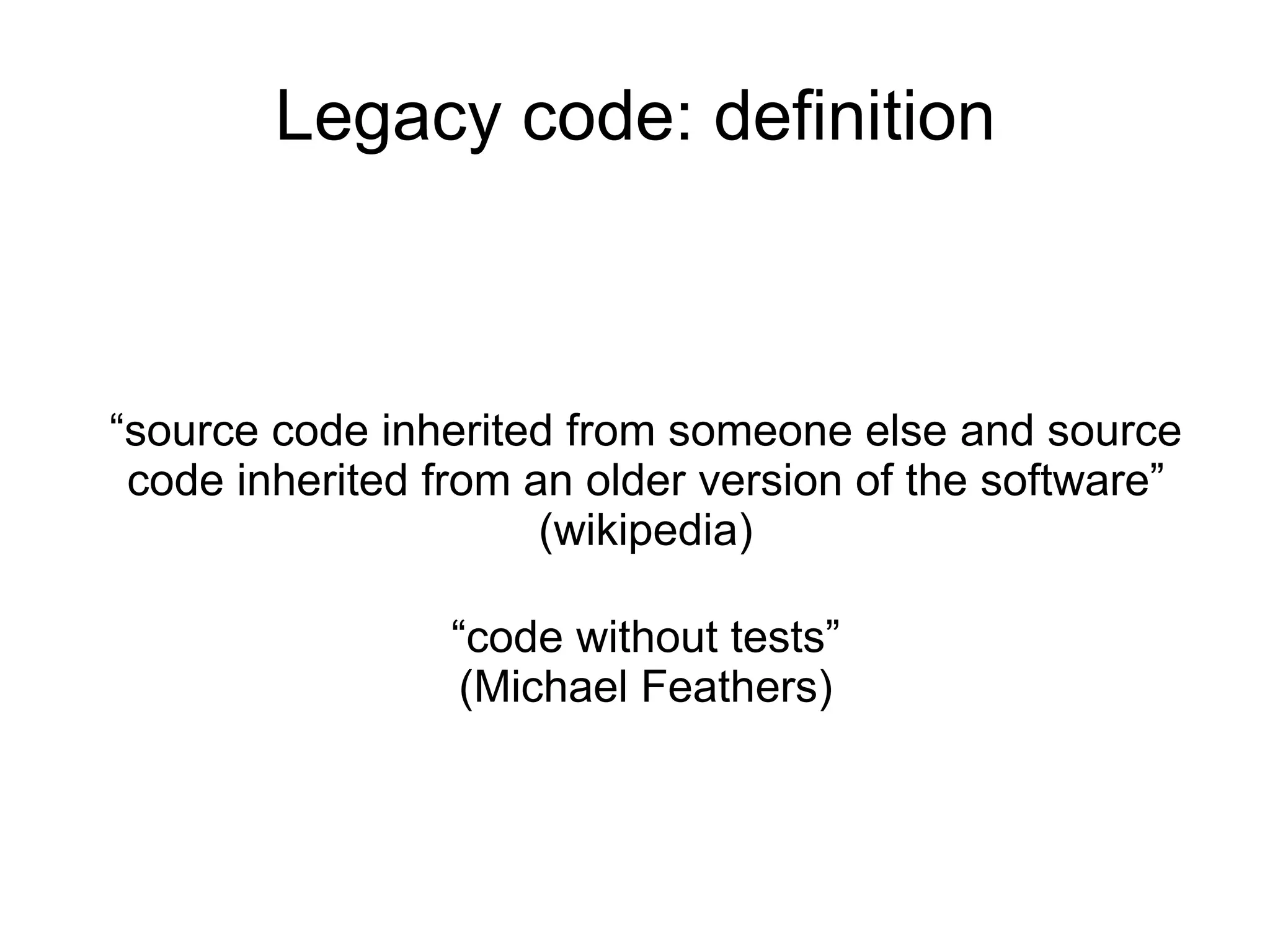

2. Legacy code: definition
“source code inherited from someone else and source
code inherited from an older version of the software”
(wikipedia)
“code without tests”
(Michael Feathers)

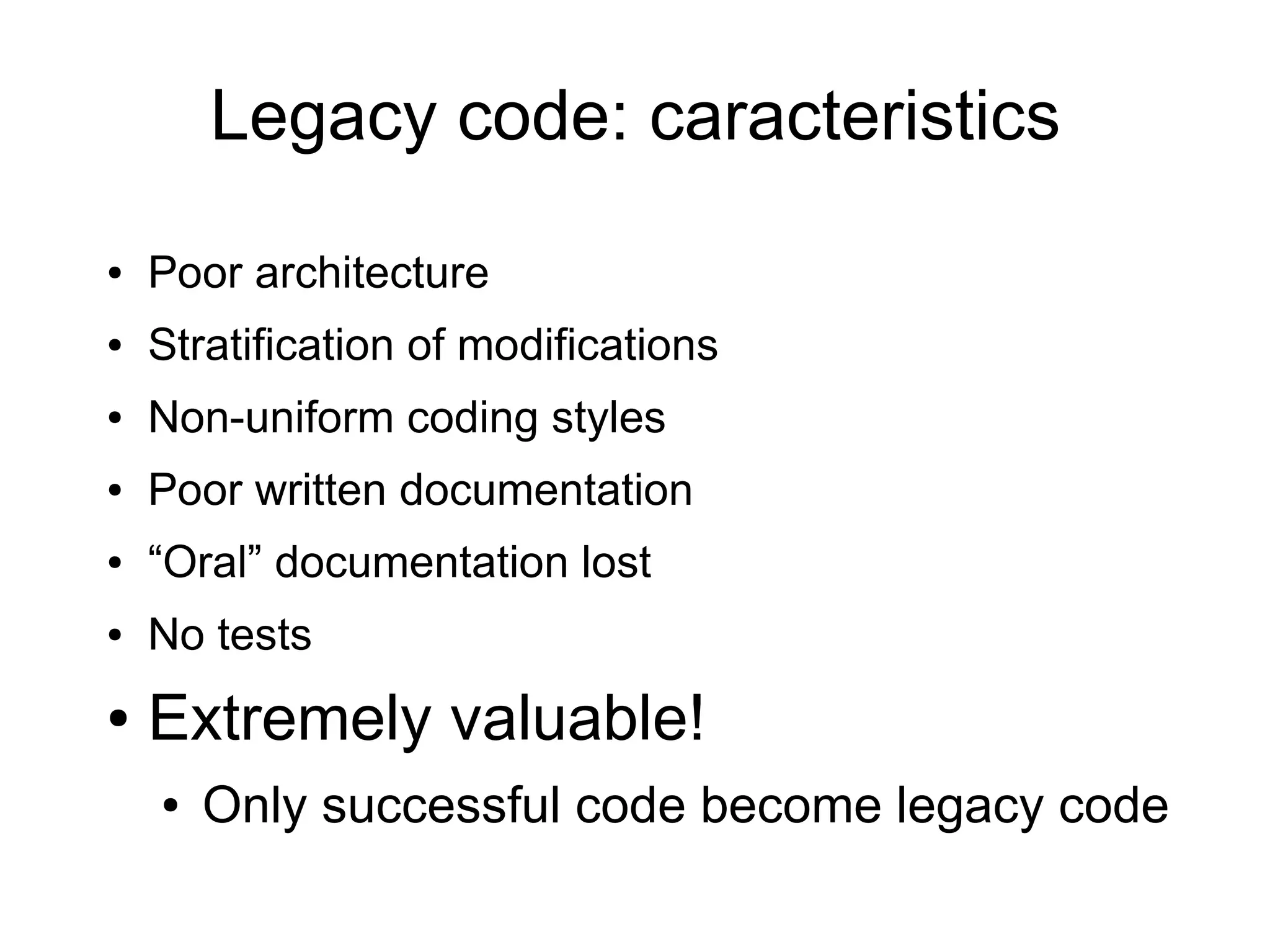

3. Legacy code: caracteristics
● Poor architecture
● Stratification of modifications
● Non-uniform coding styles
● Poor written documentation
● “Oral” documentation lost
● No tests
● Extremely valuable!
● Only successful code become legacy code

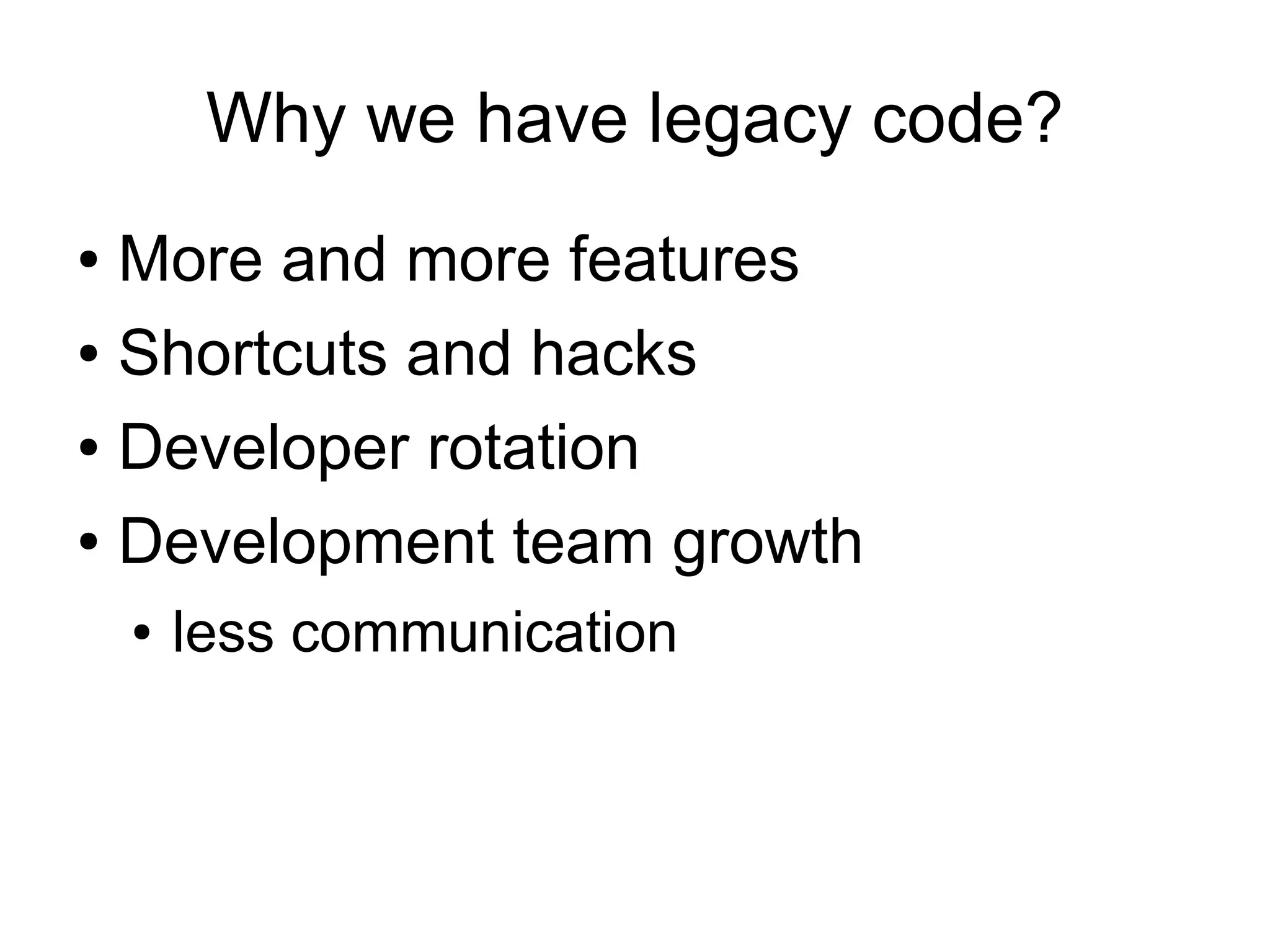

4. Why we have legacy code?
● More and more features
● Shortcuts and hacks
● Developer rotation
● Development team growth
● less communication

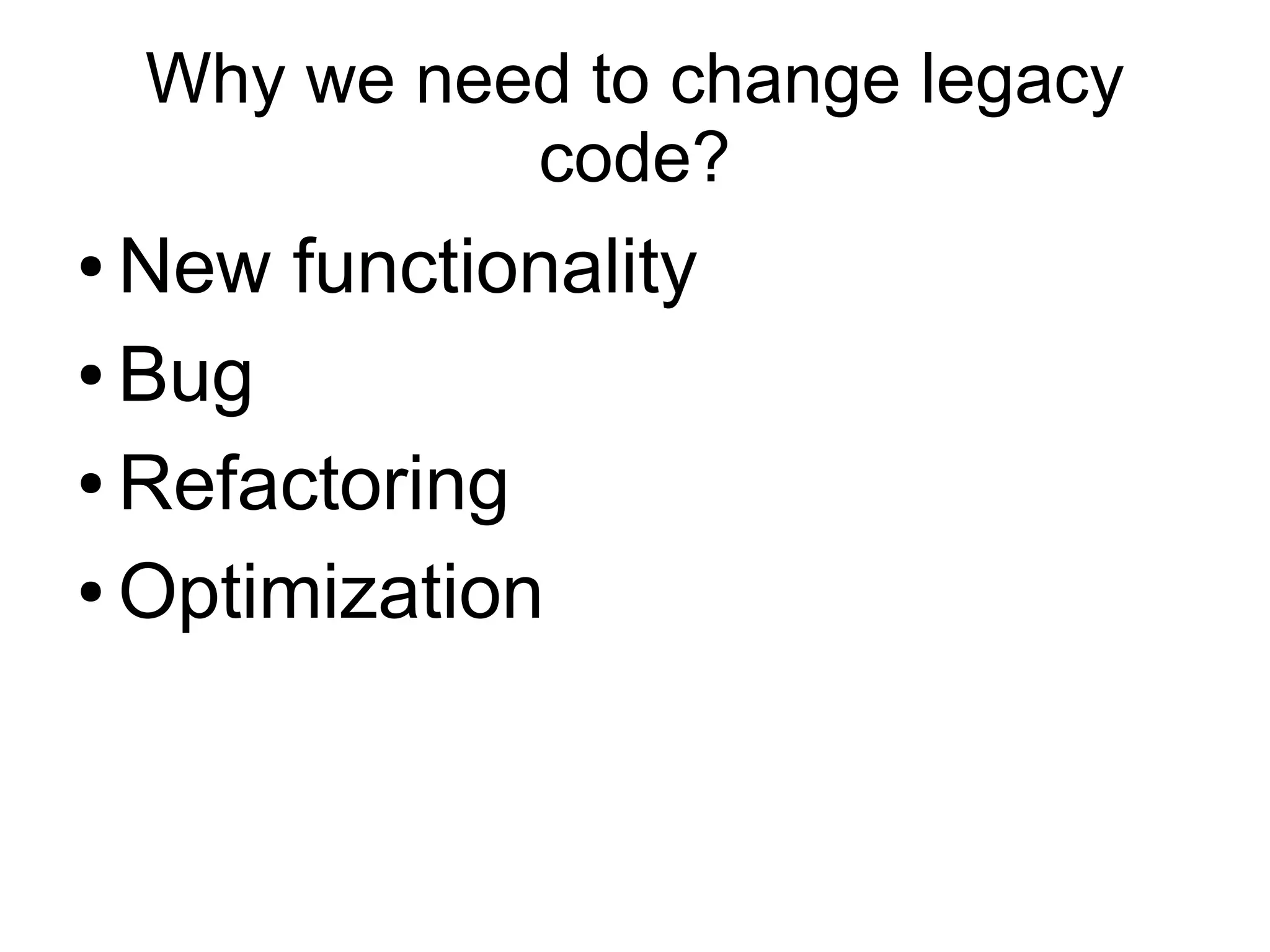

5. Why we need to change legacy
code?
● New functionality
● Bug
● Refactoring
● Optimization

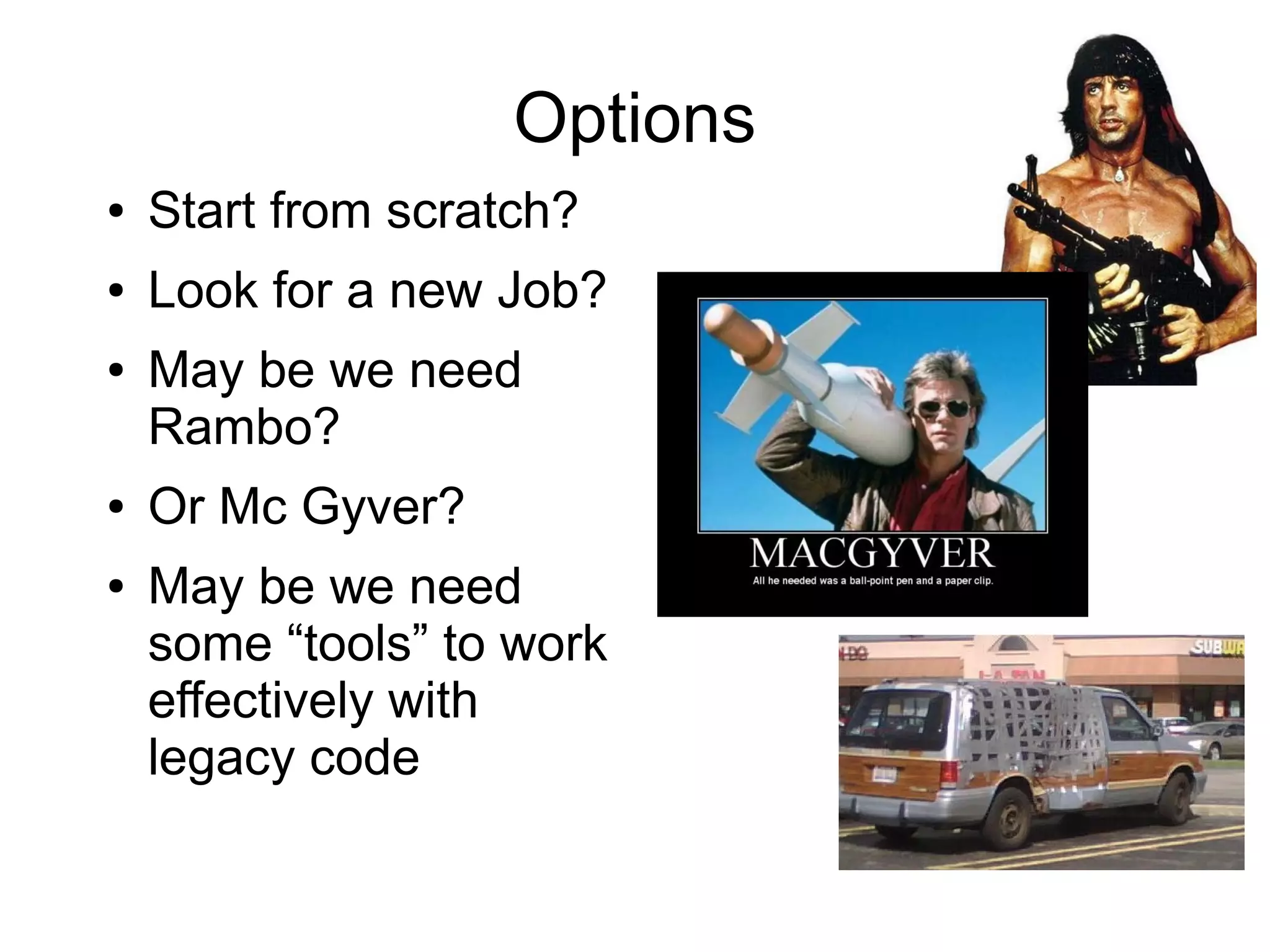

6. Options
● Start from scratch?
● Look for a new Job?
● May be we need
Rambo?
● Or Mc Gyver?
● May be we need
some “tools” to work
effectively with
legacy code

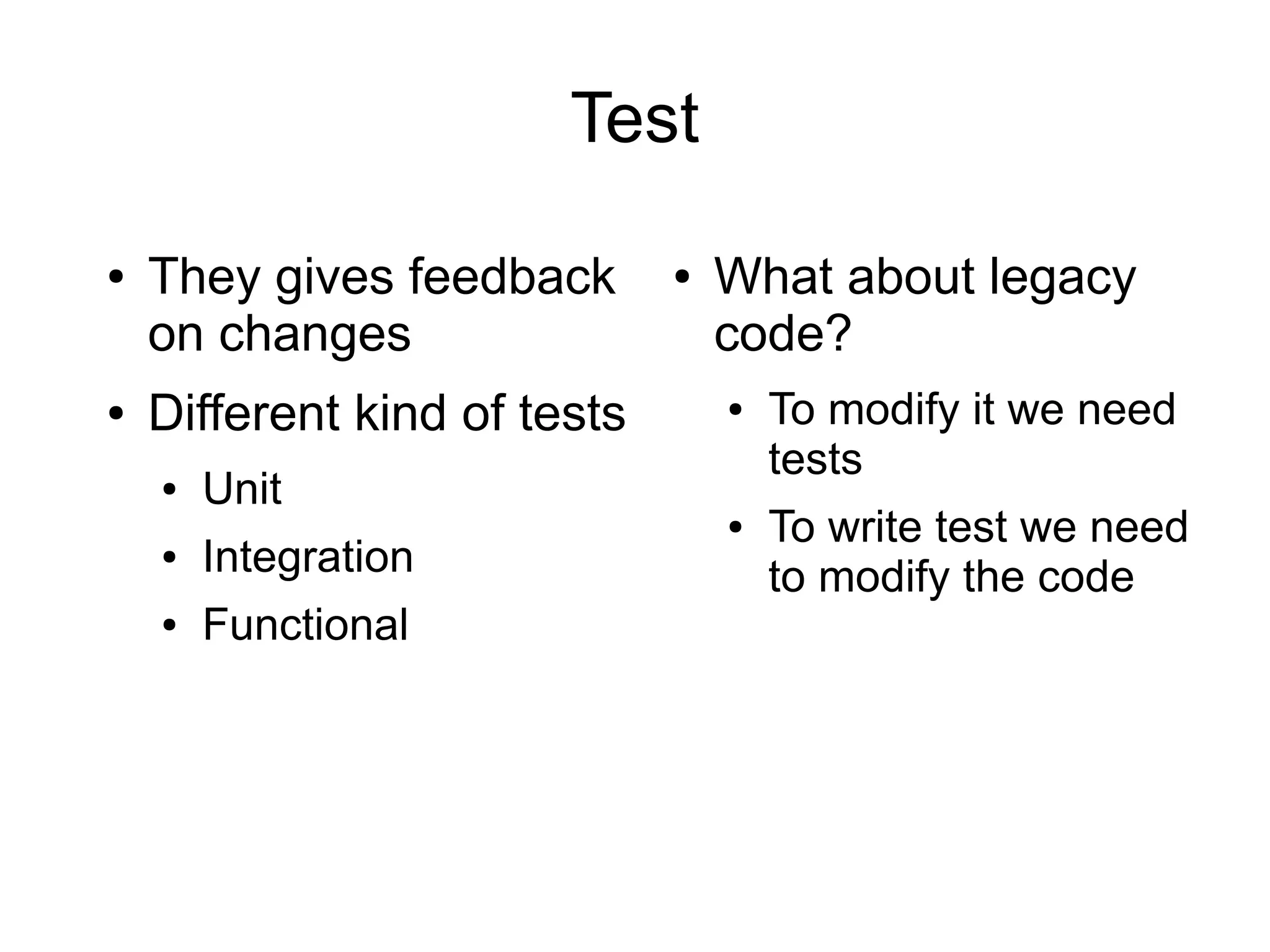

7. Test
● They gives feedback ● What about legacy
on changes code?
● Different kind of tests ● To modify it we need
tests
● Unit
● To write test we need
● Integration to modify the code
● Functional

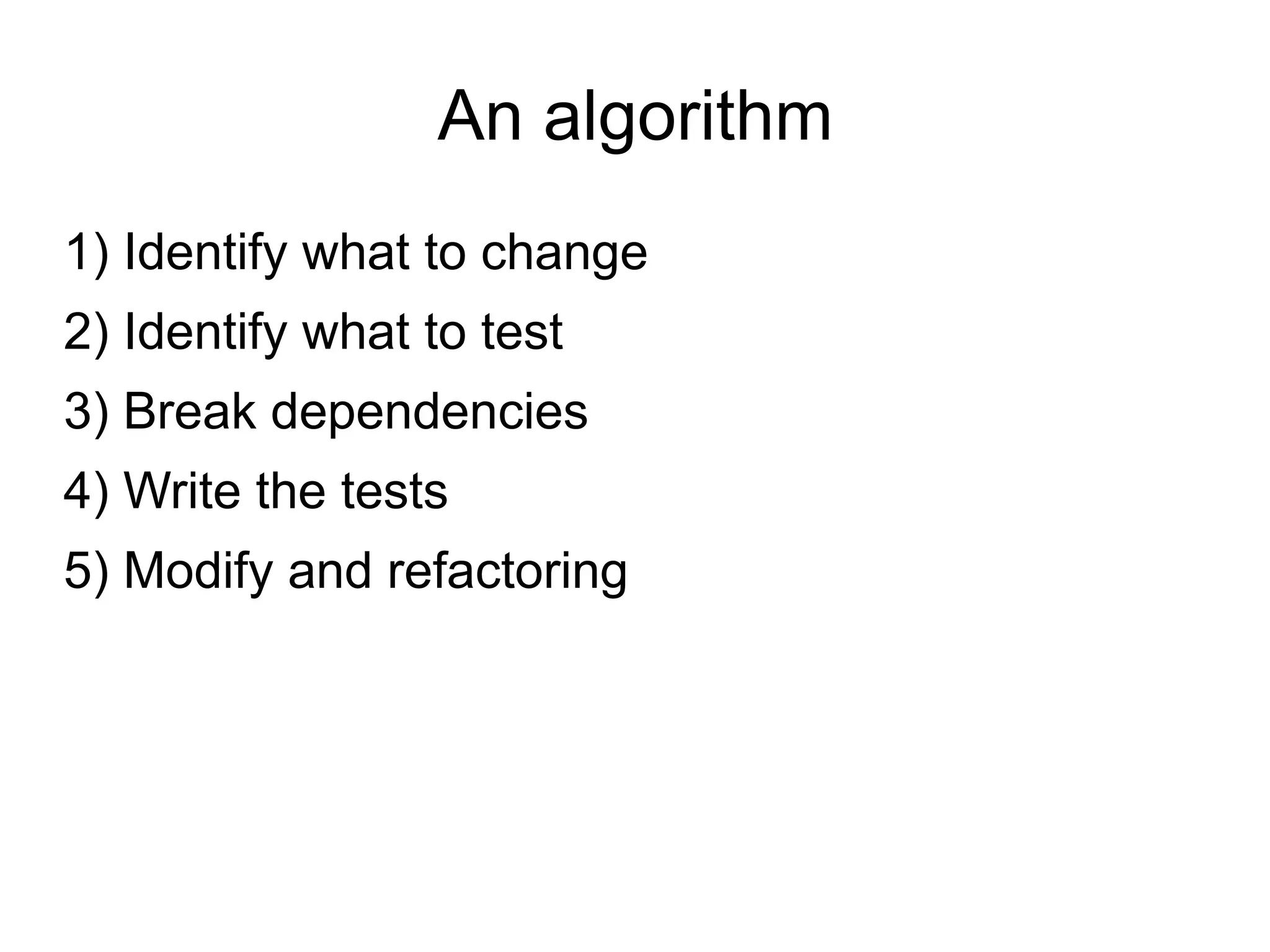

8. An algorithm
1) Identify what to change
2) Identify what to test
3) Break dependencies
4) Write the tests
5) Modify and refactoring

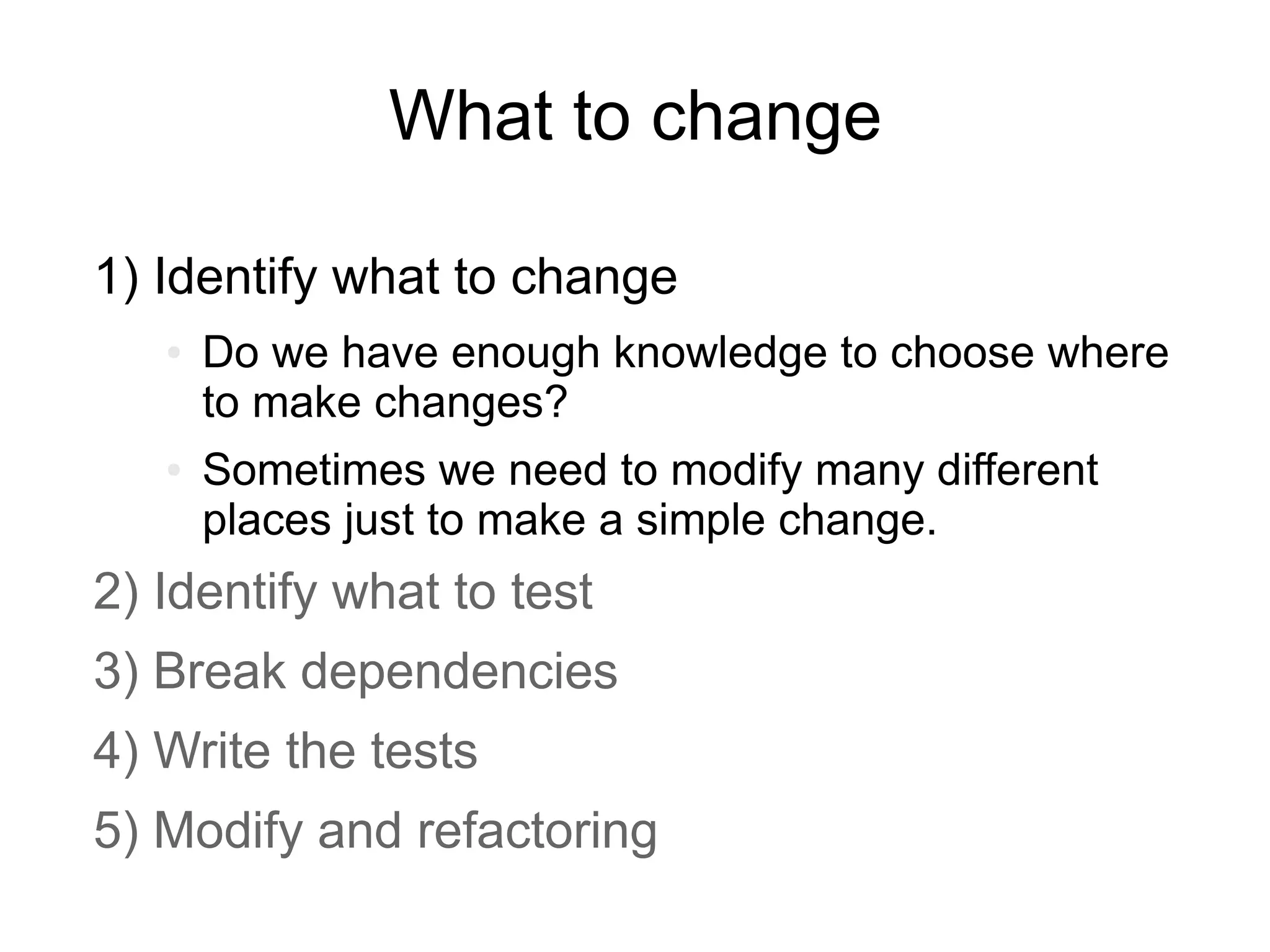

9. What to change
1) Identify what to change
● Do we have enough knowledge to choose where
to make changes?
● Sometimes we need to modify many different
places just to make a simple change.
2) Identify what to test
3) Break dependencies
4) Write the tests
5) Modify and refactoring

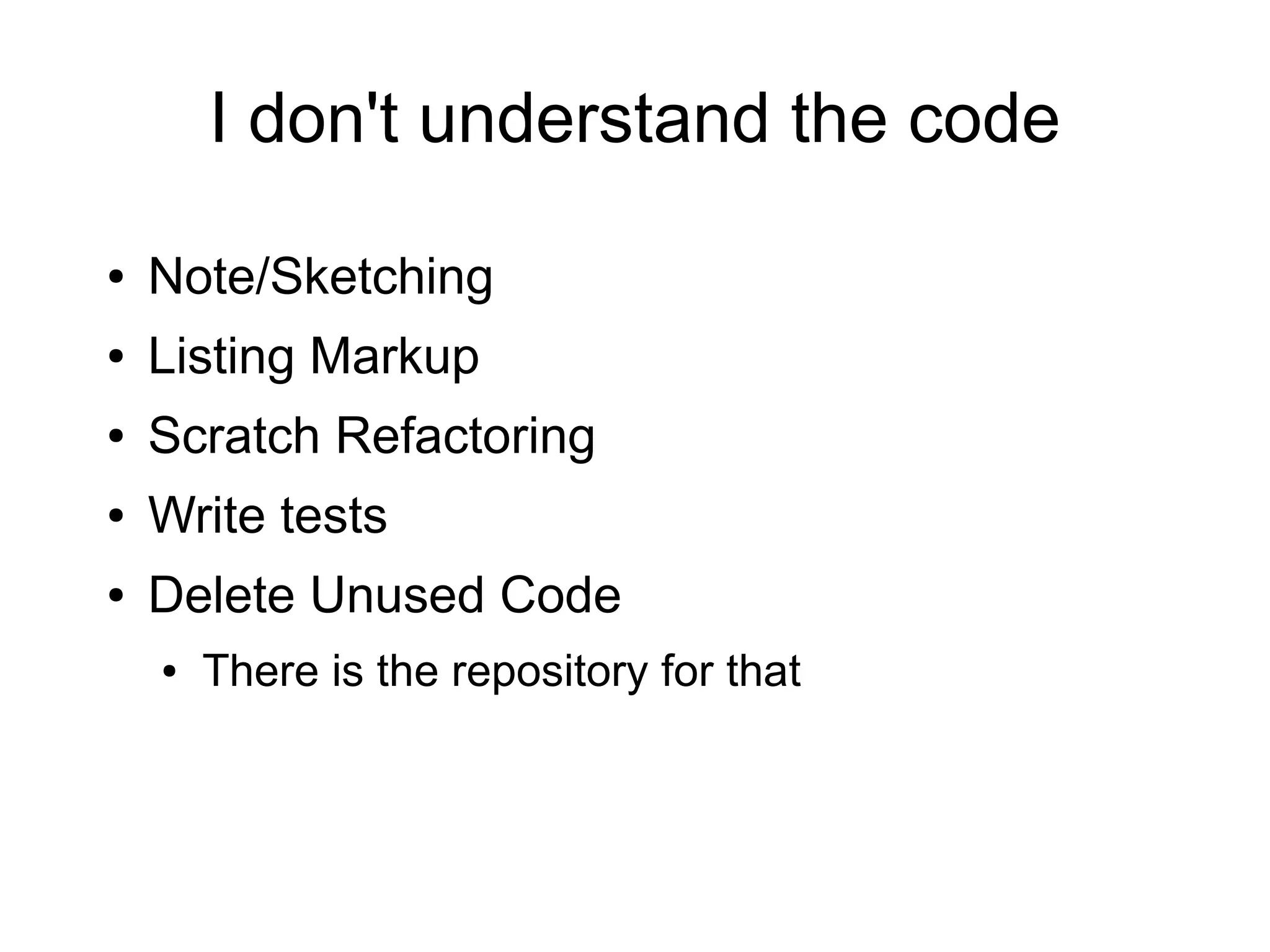

10. I don't understand the code
● Note/Sketching
● Listing Markup
● Scratch Refactoring
● Write tests
● Delete Unused Code
● There is the repository for that

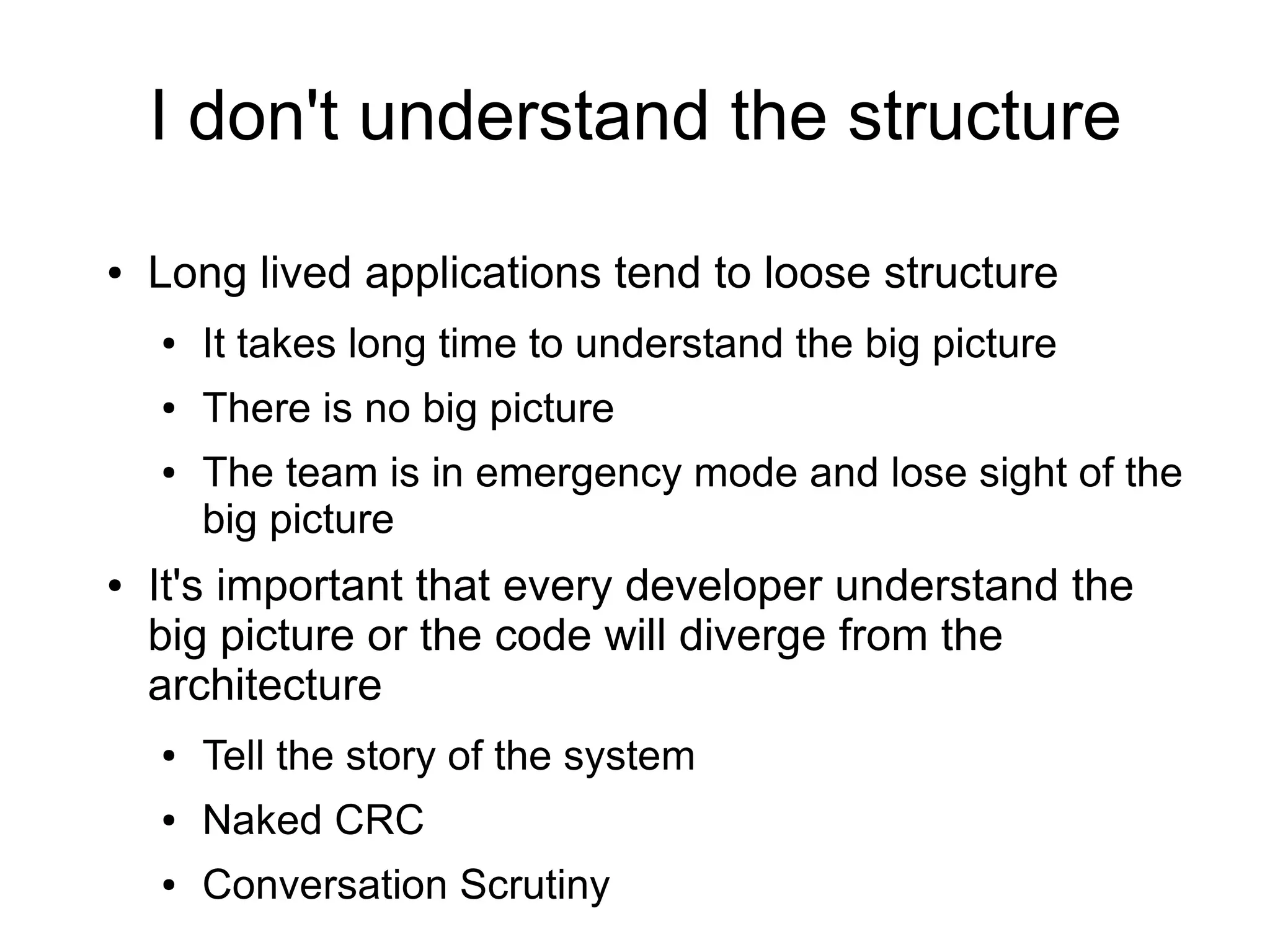

11. I don't understand the structure
● Long lived applications tend to loose structure
● It takes long time to understand the big picture
● There is no big picture
● The team is in emergency mode and lose sight of the
big picture
● It's important that every developer understand the
big picture or the code will diverge from the
architecture
● Tell the story of the system
● Naked CRC
● Conversation Scrutiny

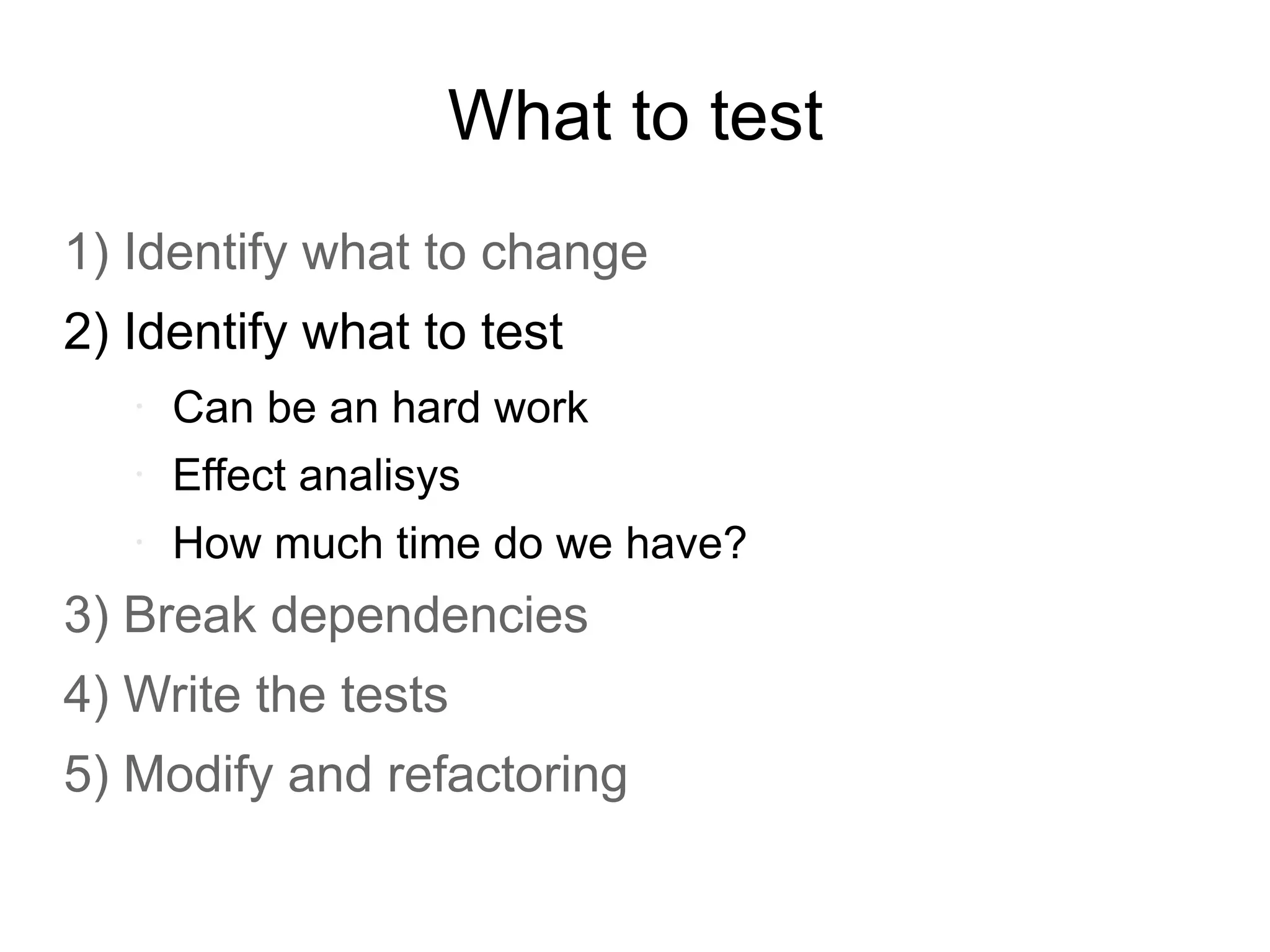

12. What to test
1) Identify what to change
2) Identify what to test
• Can be an hard work
• Effect analisys
• How much time do we have?
3) Break dependencies
4) Write the tests
5) Modify and refactoring

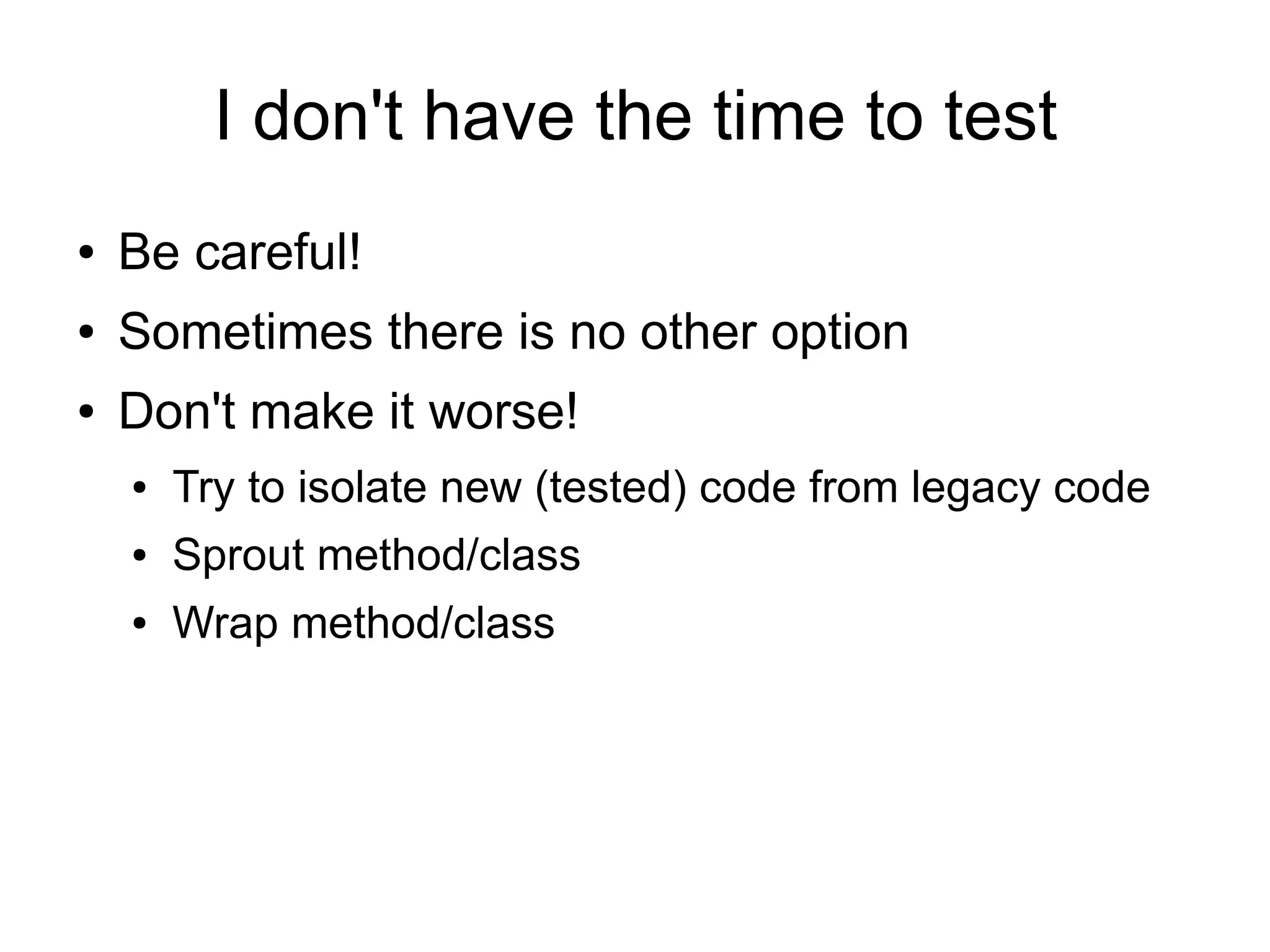

13. I don't have the time to test
● Be careful!
● Sometimes there is no other option
● Don't make it worse!
● Try to isolate new (tested) code from legacy code
● Sprout method/class
● Wrap method/class

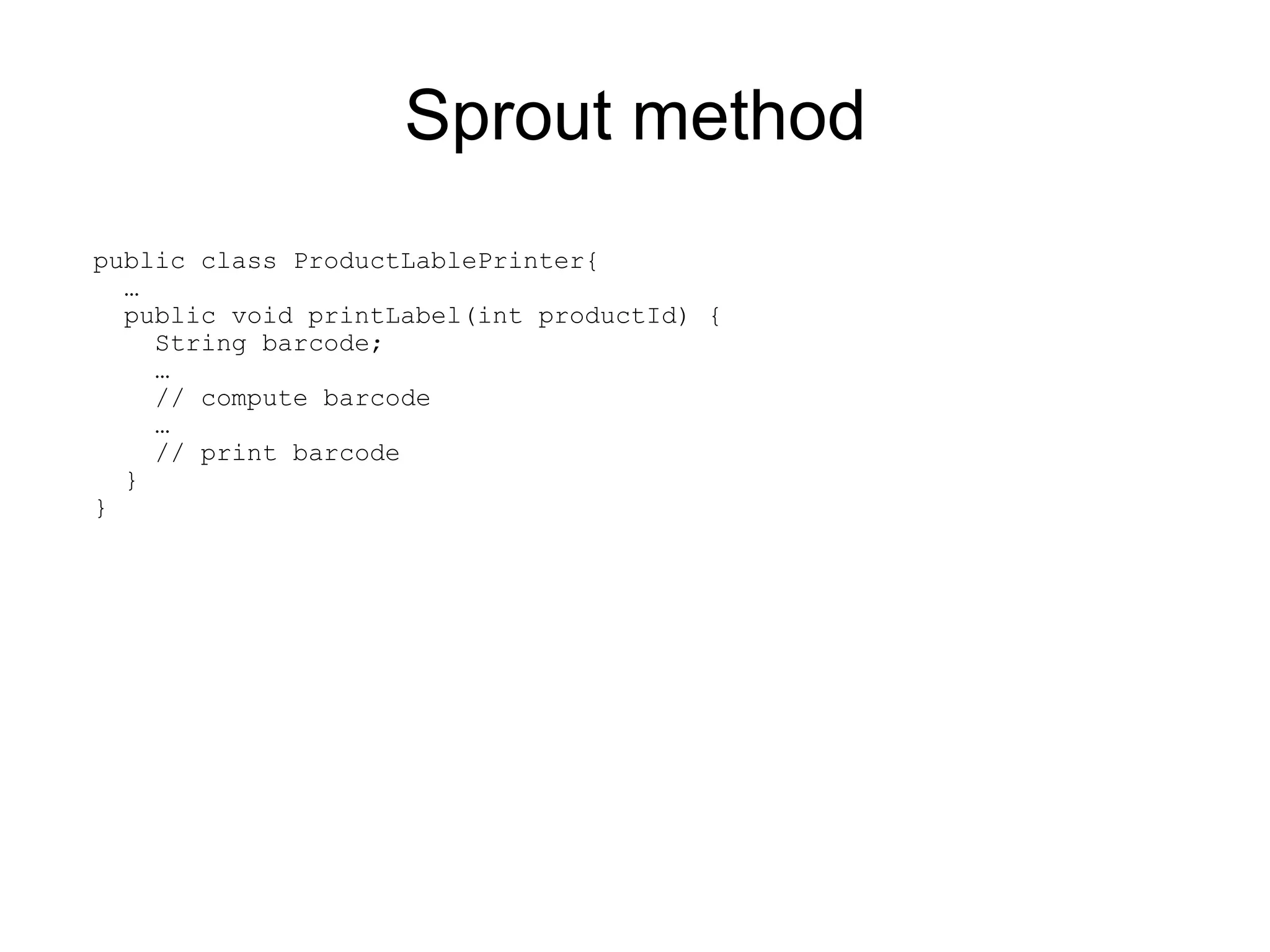

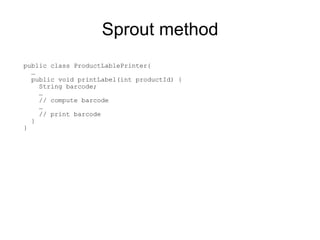

14. Sprout method
public class ProductLablePrinter{
…
public void printLabel(int productId) {
String barcode;
…
// compute barcode
…
// print barcode
}
}

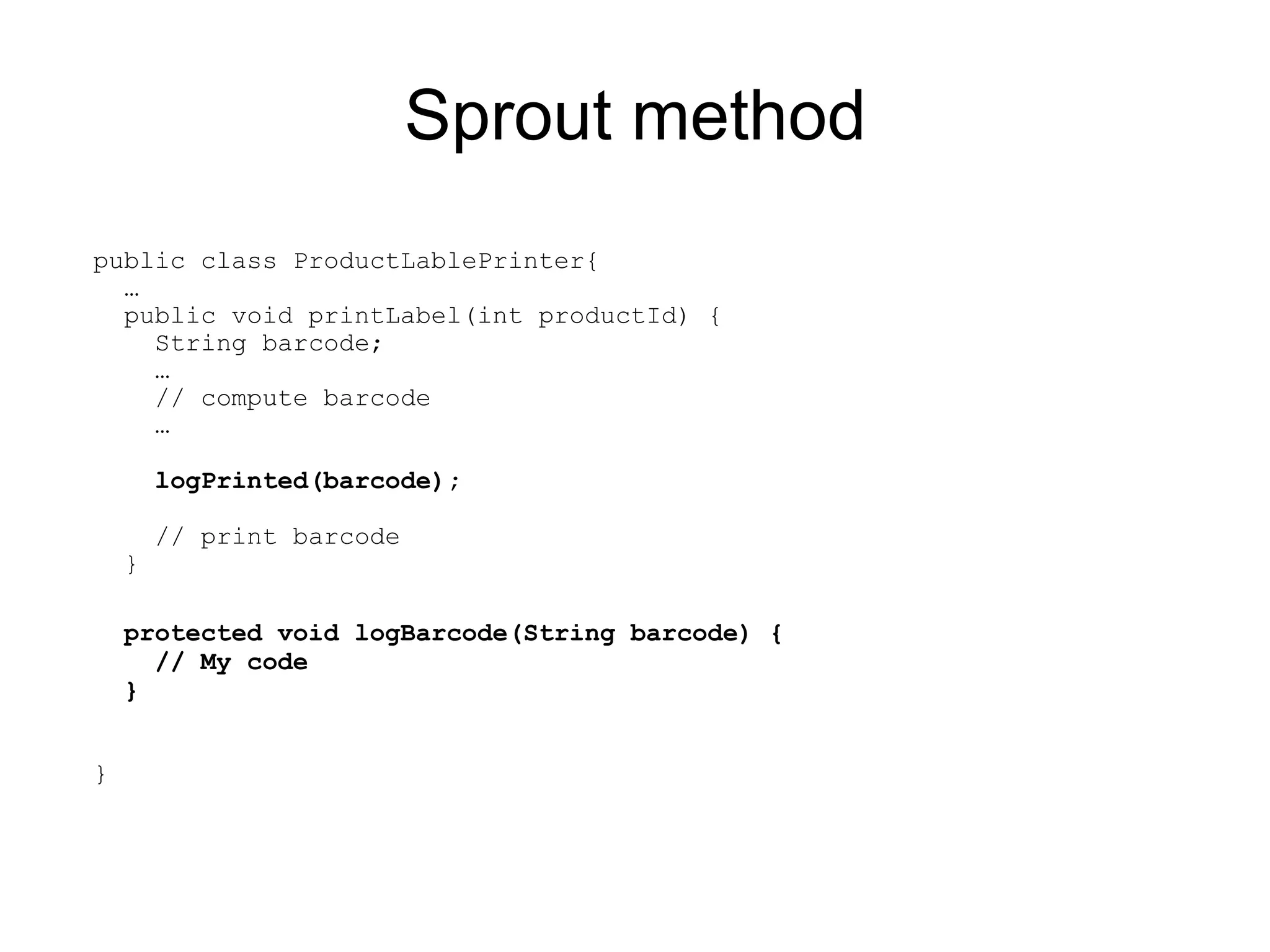

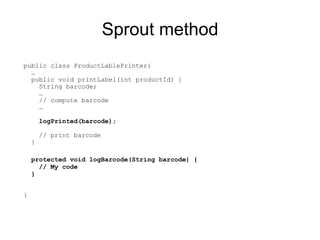

15. Sprout method
public class ProductLablePrinter{
…
public void printLabel(int productId) {
String barcode;
…
// compute barcode
…
logPrinted(barcode);
// print barcode
}
protected void logBarcode(String barcode) {
// My code
}
}

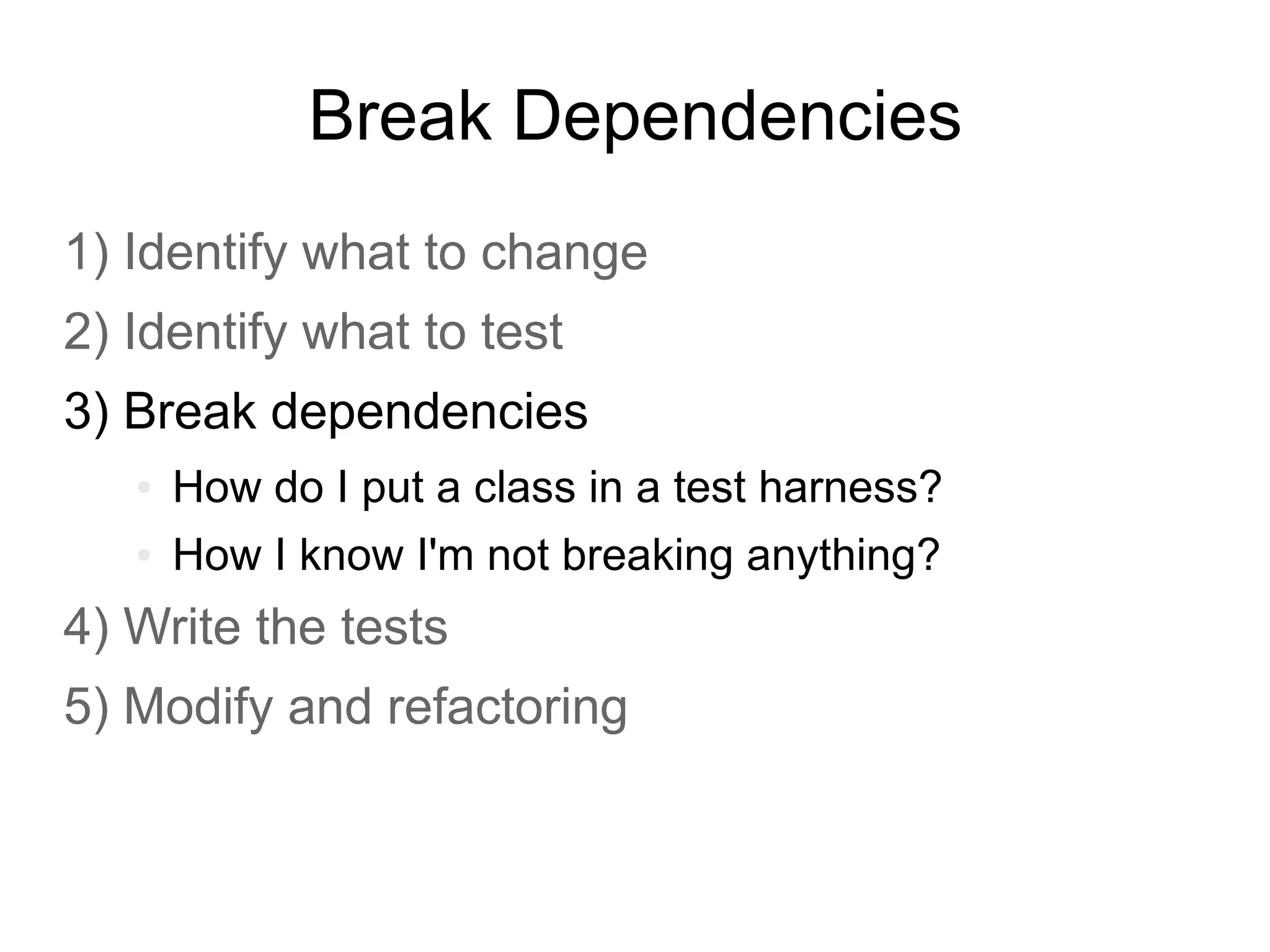

16. Break Dependencies
1) Identify what to change
2) Identify what to test
3) Break dependencies
● How do I put a class in a test harness?
● How I know I'm not breaking anything?
4) Write the tests
5) Modify and refactoring

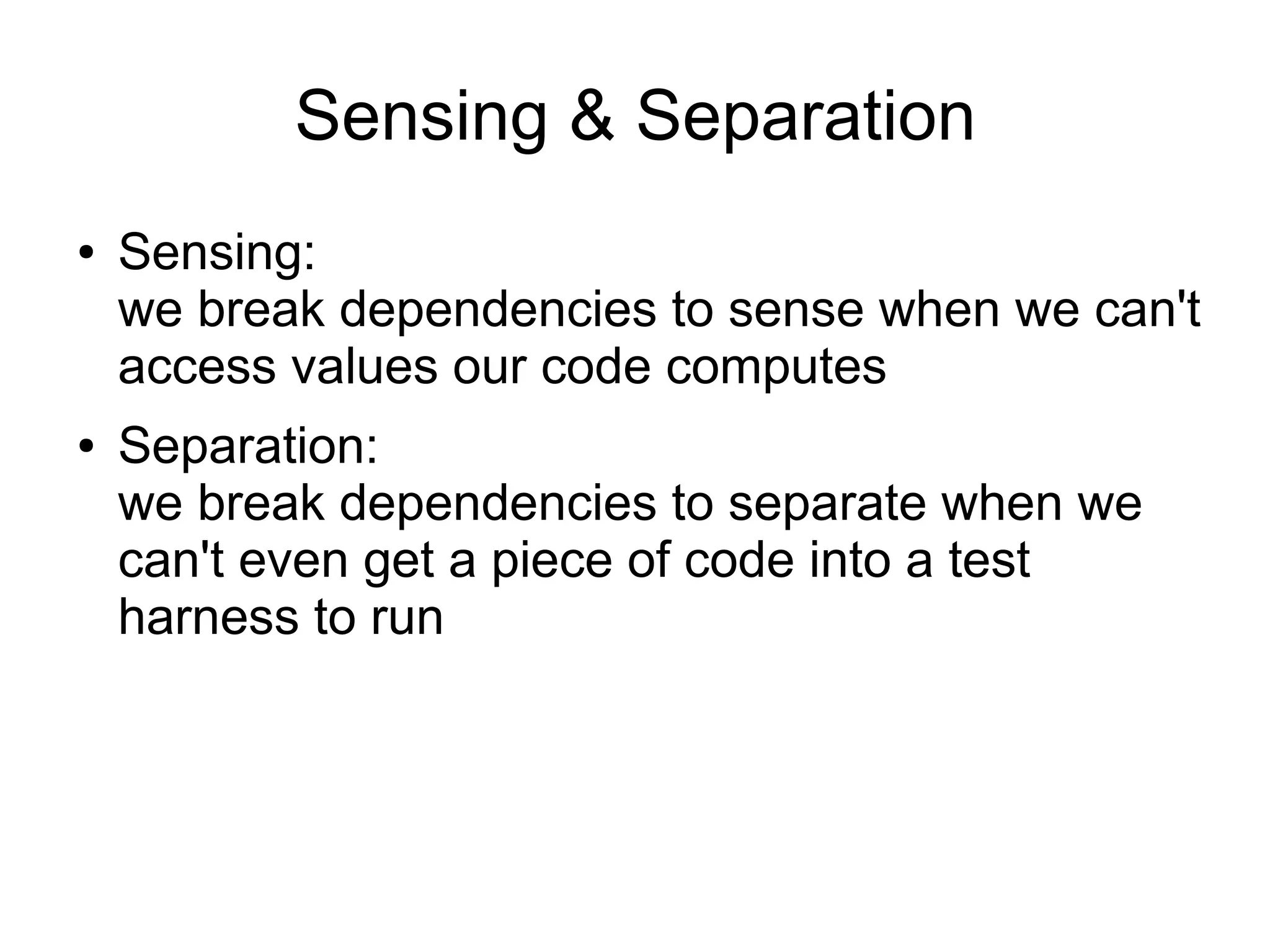

17. Sensing & Separation
● Sensing:
we break dependencies to sense when we can't
access values our code computes
● Separation:
we break dependencies to separate when we
can't even get a piece of code into a test
harness to run

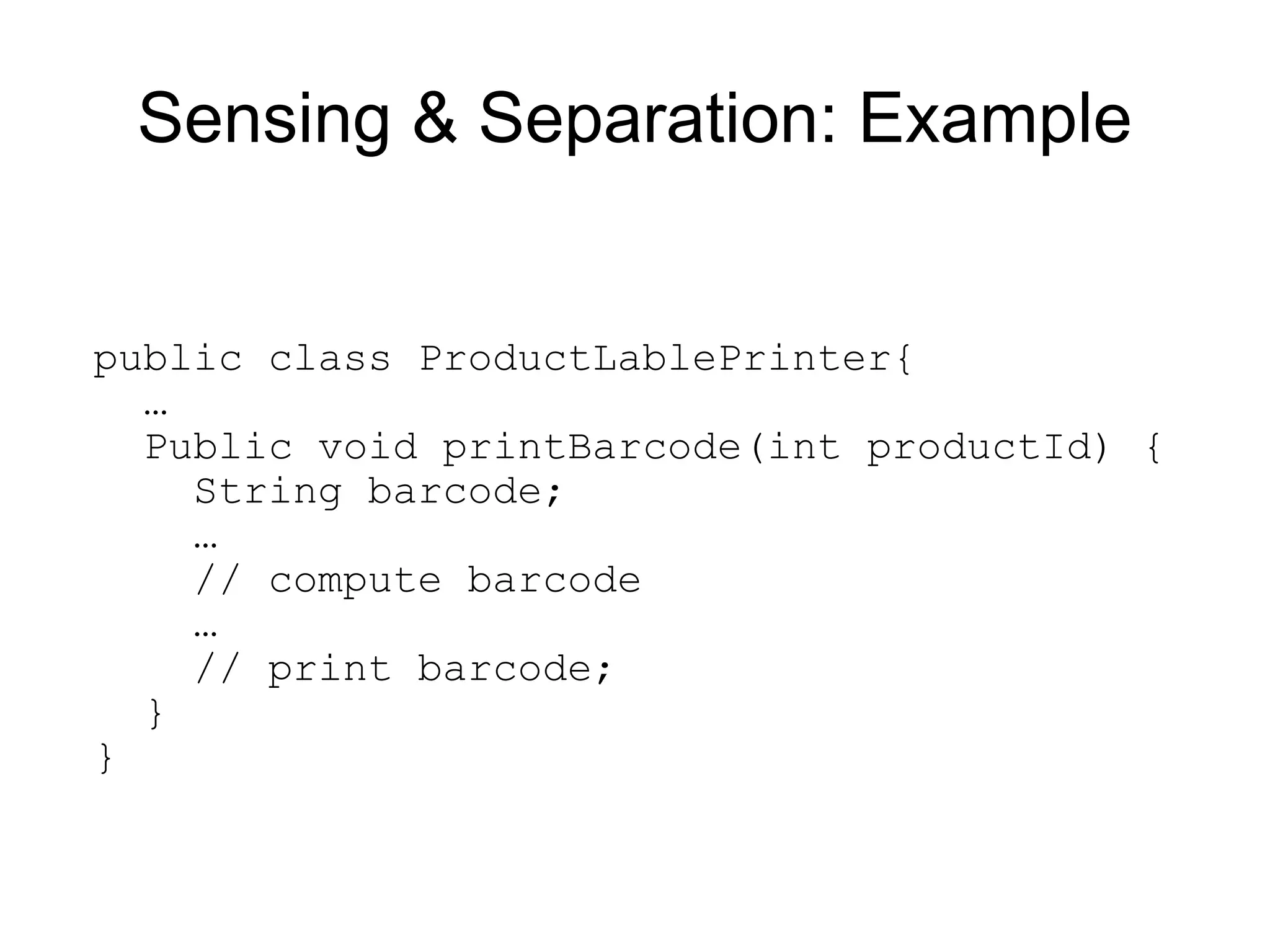

18. Sensing & Separation: Example
public class ProductLablePrinter{
…
Public void printBarcode(int productId) {
String barcode;
…
// compute barcode
…
// print barcode;
}
}

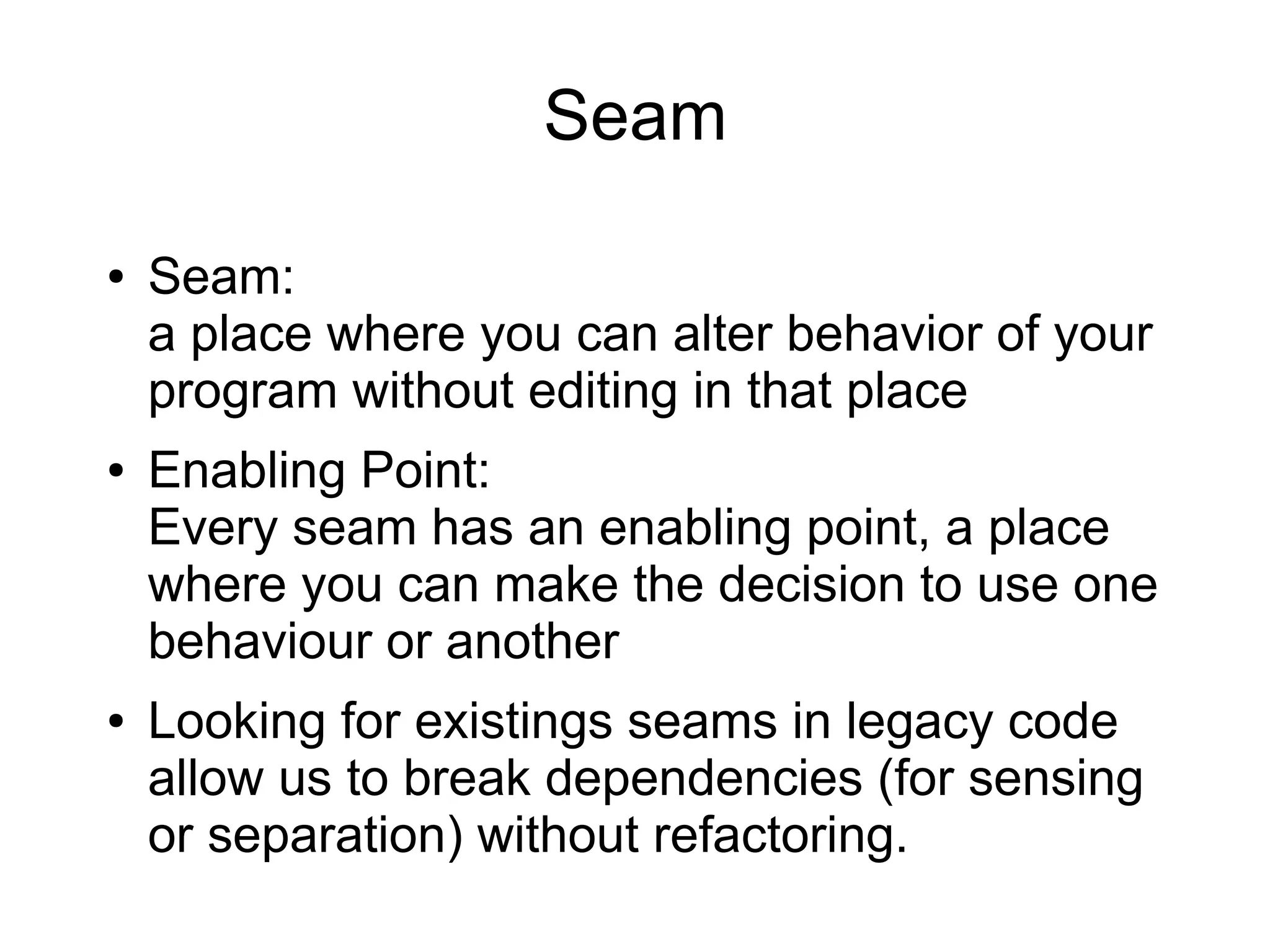

19. Seam
● Seam:
a place where you can alter behavior of your
program without editing in that place
● Enabling Point:
Every seam has an enabling point, a place
where you can make the decision to use one
behaviour or another
● Looking for existings seams in legacy code
allow us to break dependencies (for sensing
or separation) without refactoring.

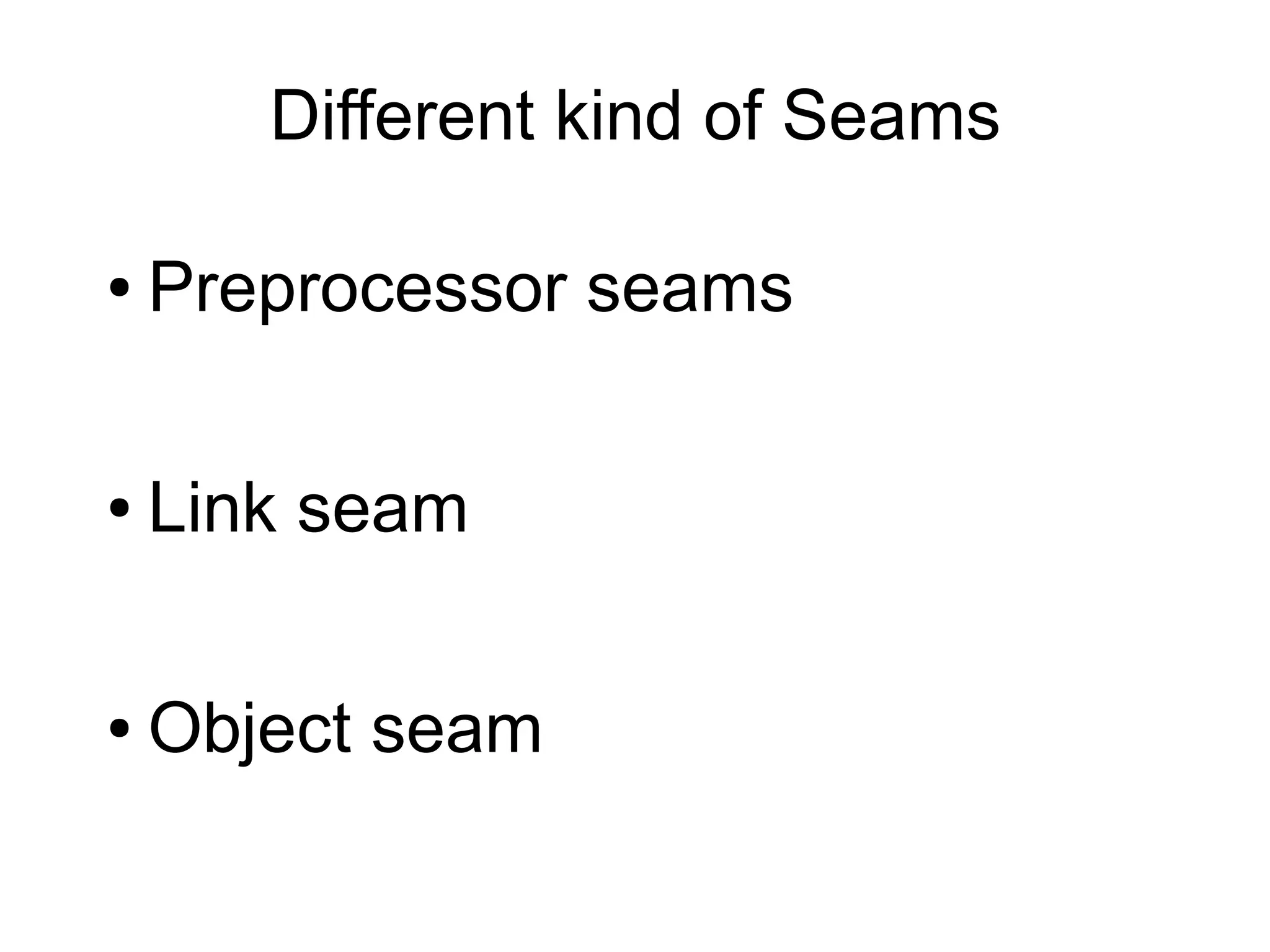

20. Different kind of Seams
● Preprocessor seams
● Link seam
● Object seam

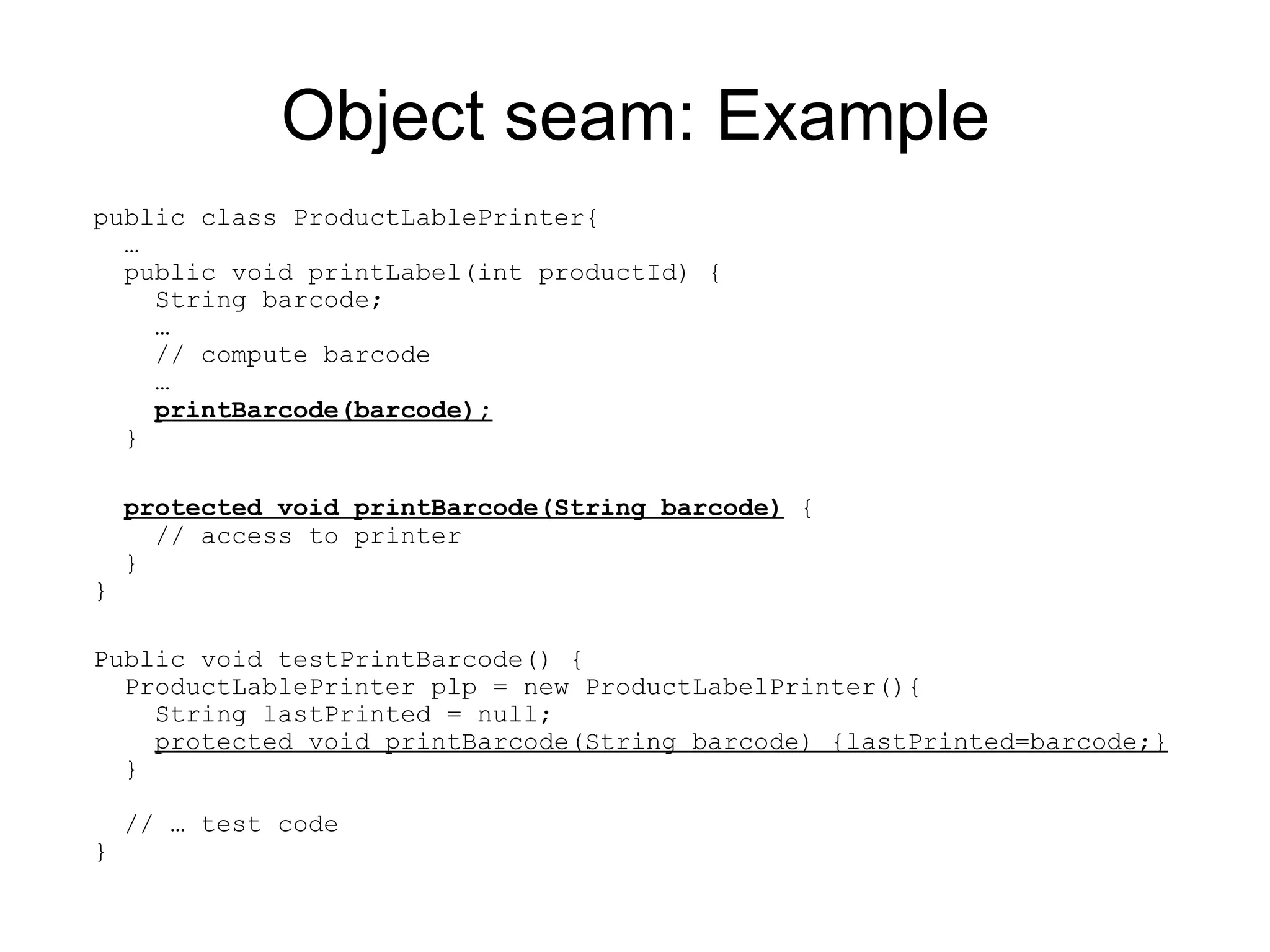

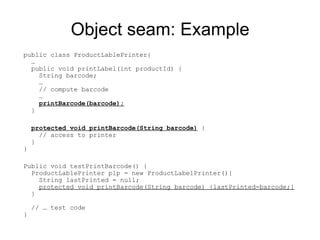

21. Object seam: Example
public class ProductLablePrinter{
…
public void printLabel(int productId) {
String barcode;
…
// compute barcode
…
printBarcode(barcode);
}
protected void printBarcode(String barcode) {
// access to printer
}
}
Public void testPrintBarcode() {
ProductLablePrinter plp = new ProductLabelPrinter(){
String lastPrinted = null;
protected void printBarcode(String barcode) {lastPrinted=barcode;}
}
// … test code
}

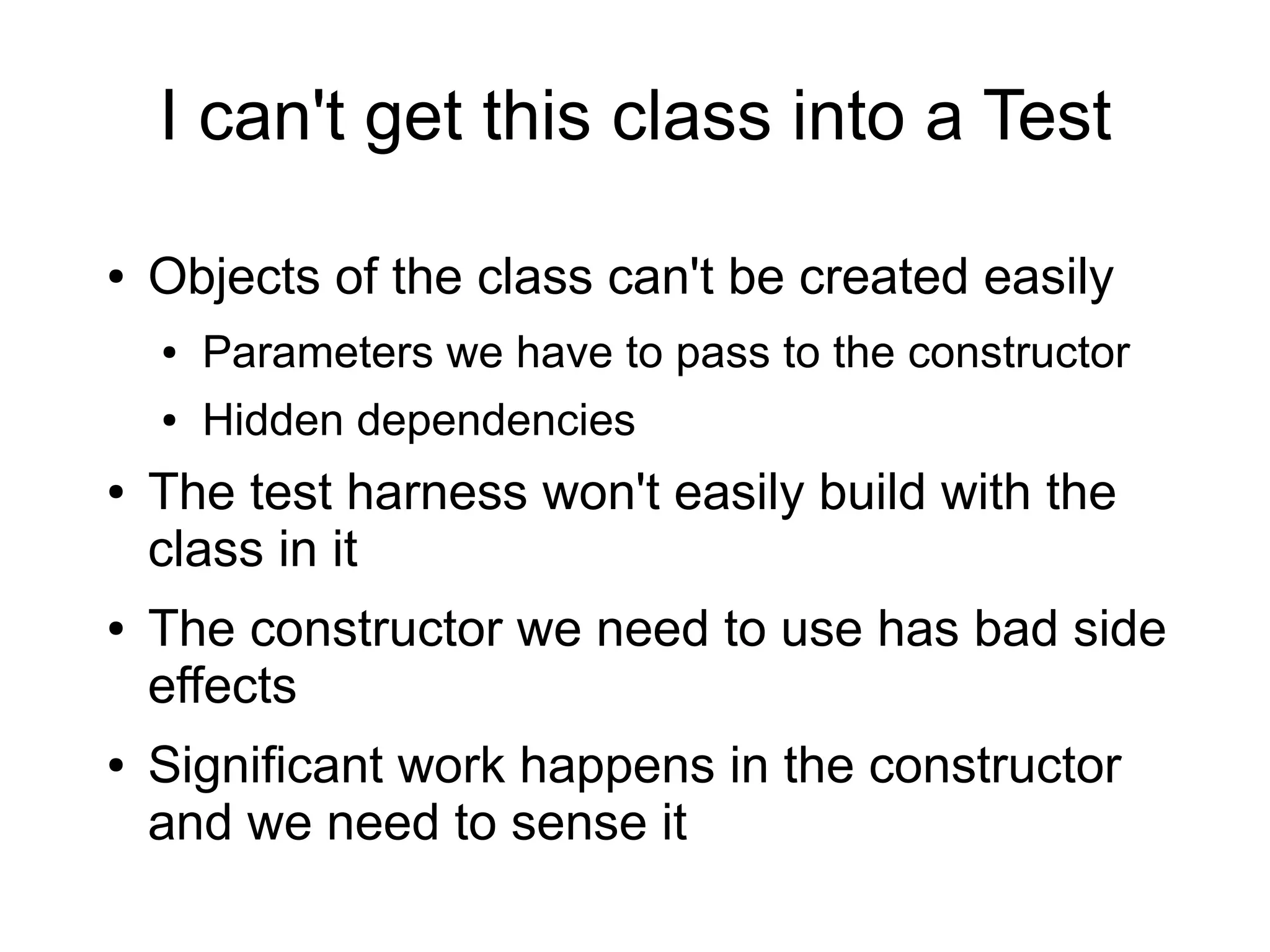

22. I can't get this class into a Test
● Objects of the class can't be created easily
● Parameters we have to pass to the constructor
● Hidden dependencies
● The test harness won't easily build with the
class in it
● The constructor we need to use has bad side
effects
● Significant work happens in the constructor
and we need to sense it

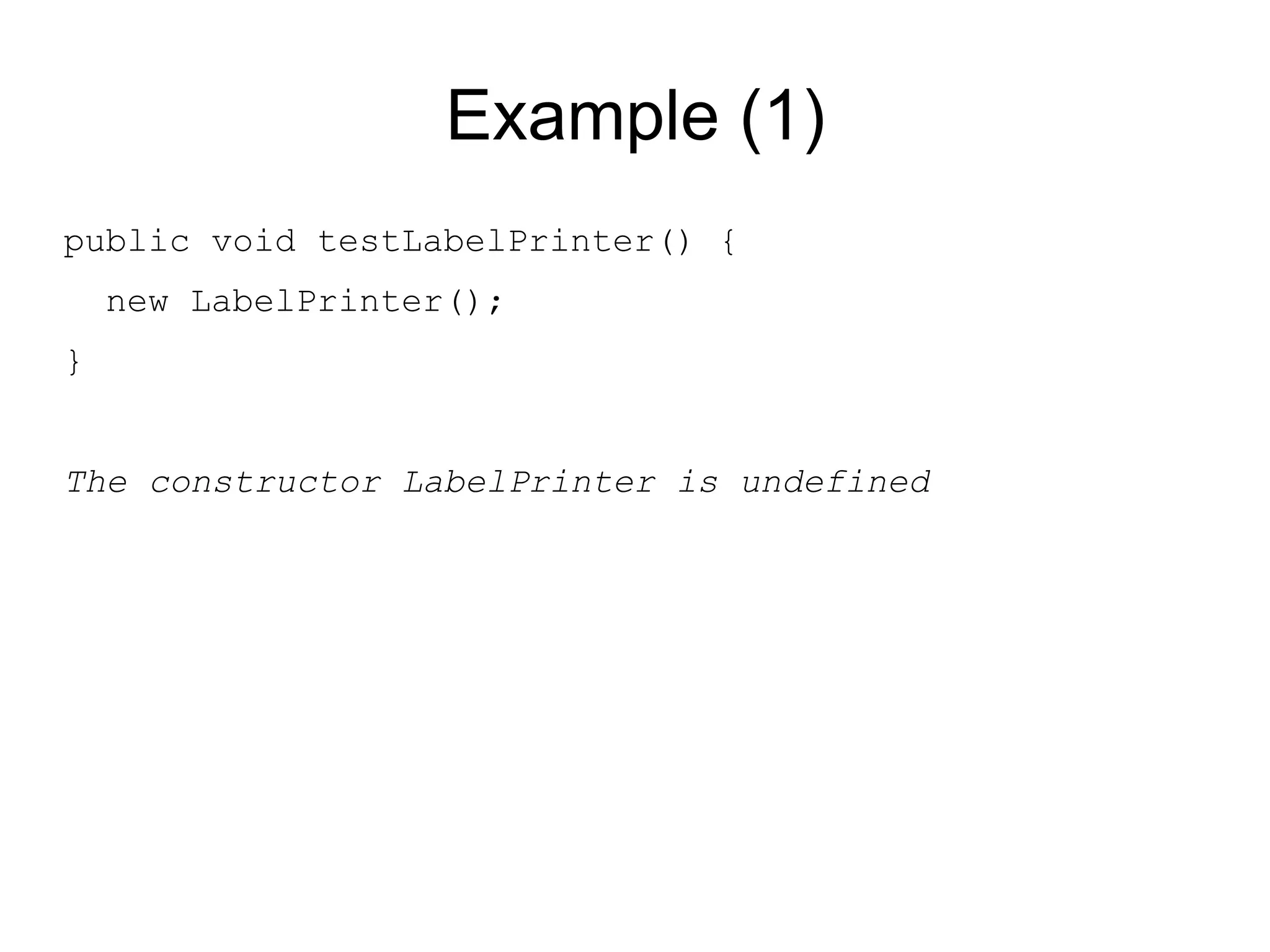

23. Example (1)
public void testLabelPrinter() {
new LabelPrinter();
}
The constructor LabelPrinter is undefined

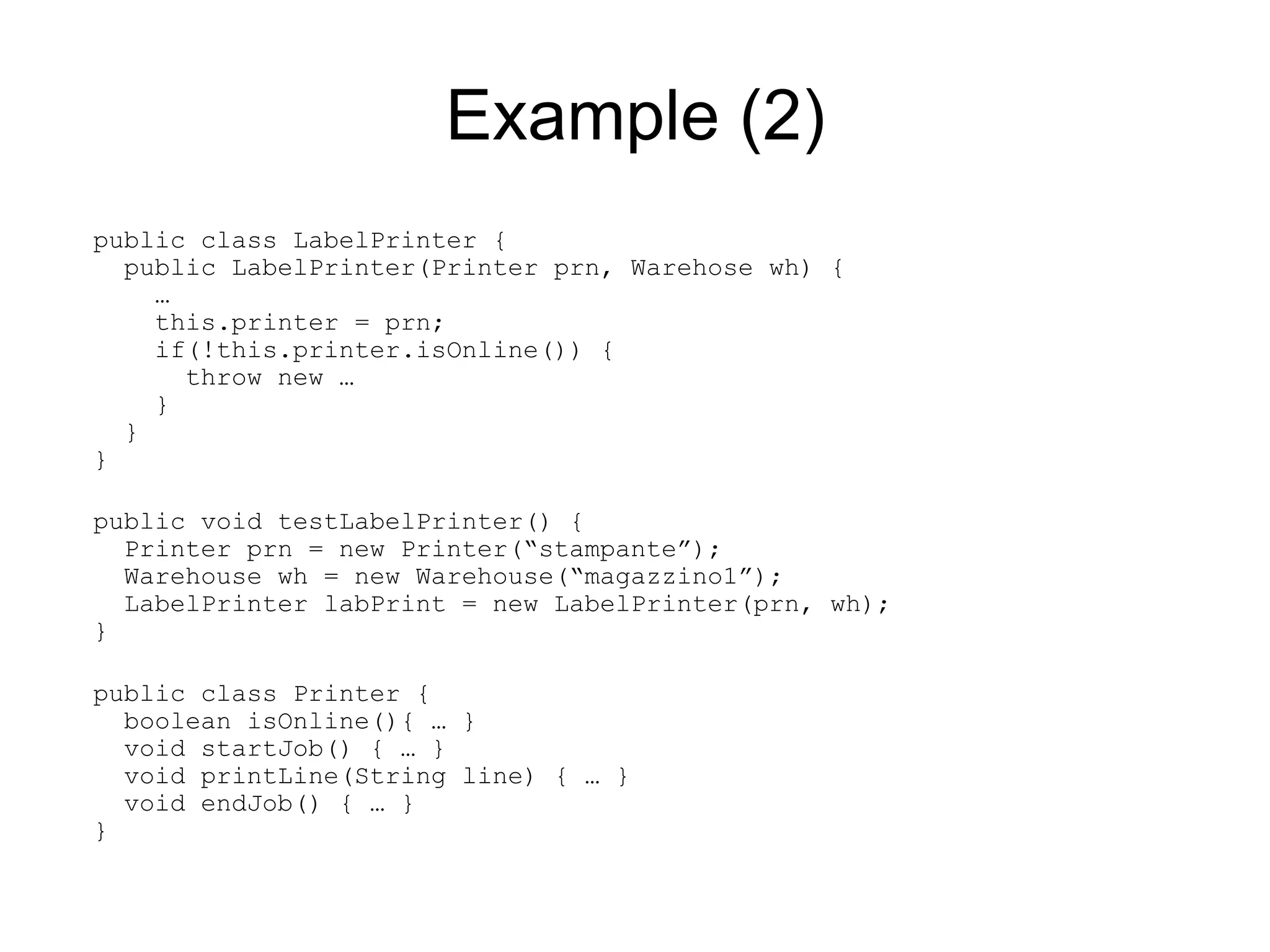

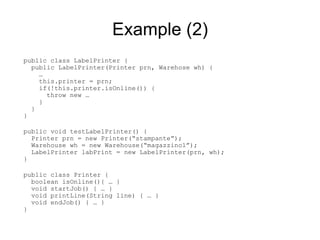

24. Example (2)
public class LabelPrinter {
public LabelPrinter(Printer prn, Warehose wh) {
…
this.printer = prn;
if(!this.printer.isOnline()) {
throw new …
}
}
}
public void testLabelPrinter() {
Printer prn = new Printer(“stampante”);
Warehouse wh = new Warehouse(“magazzino1”);
LabelPrinter labPrint = new LabelPrinter(prn, wh);
}
public class Printer {
boolean isOnline(){ … }
void startJob() { … }
void printLine(String line) { … }
void endJob() { … }
}

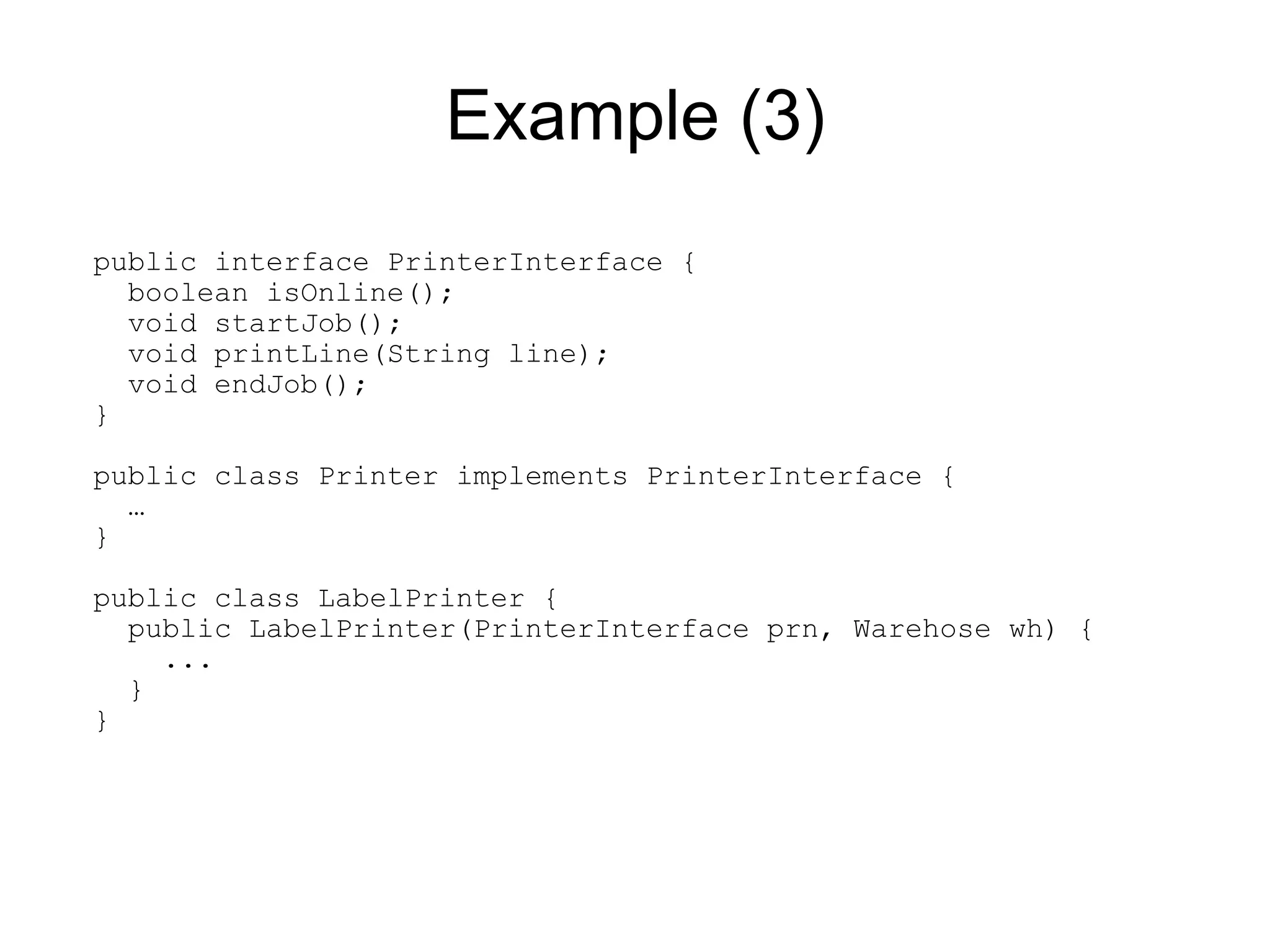

25. Example (3)
public interface PrinterInterface {
boolean isOnline();
void startJob();
void printLine(String line);
void endJob();
}
public class Printer implements PrinterInterface {
…
}
public class LabelPrinter {
public LabelPrinter(PrinterInterface prn, Warehose wh) {
...
}
}

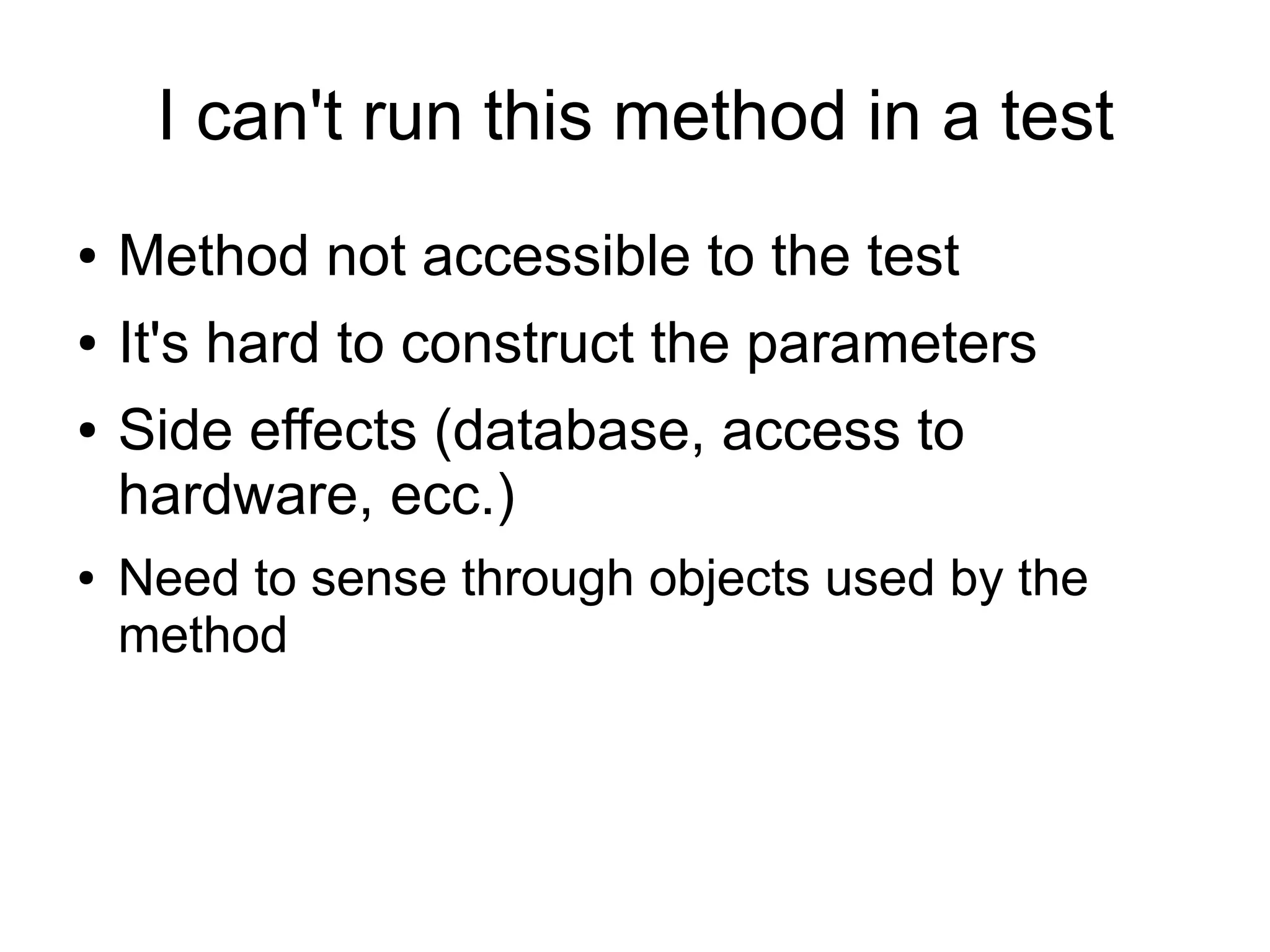

26. I can't run this method in a test
● Method not accessible to the test
● It's hard to construct the parameters
● Side effects (database, access to
hardware, ecc.)
● Need to sense through objects used by the
method

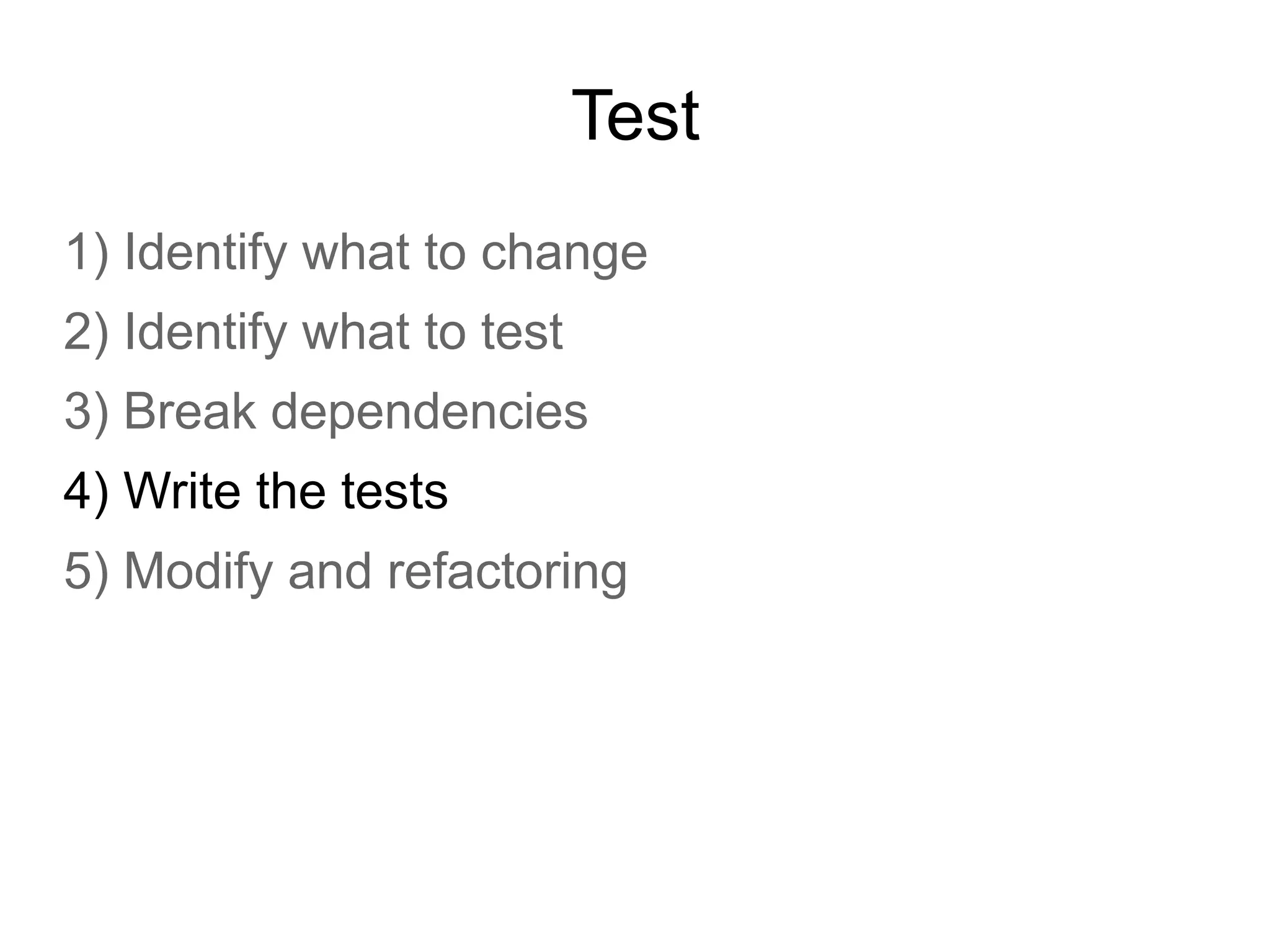

27. Test
1) Identify what to change
2) Identify what to test
3) Break dependencies
4) Write the tests
5) Modify and refactoring

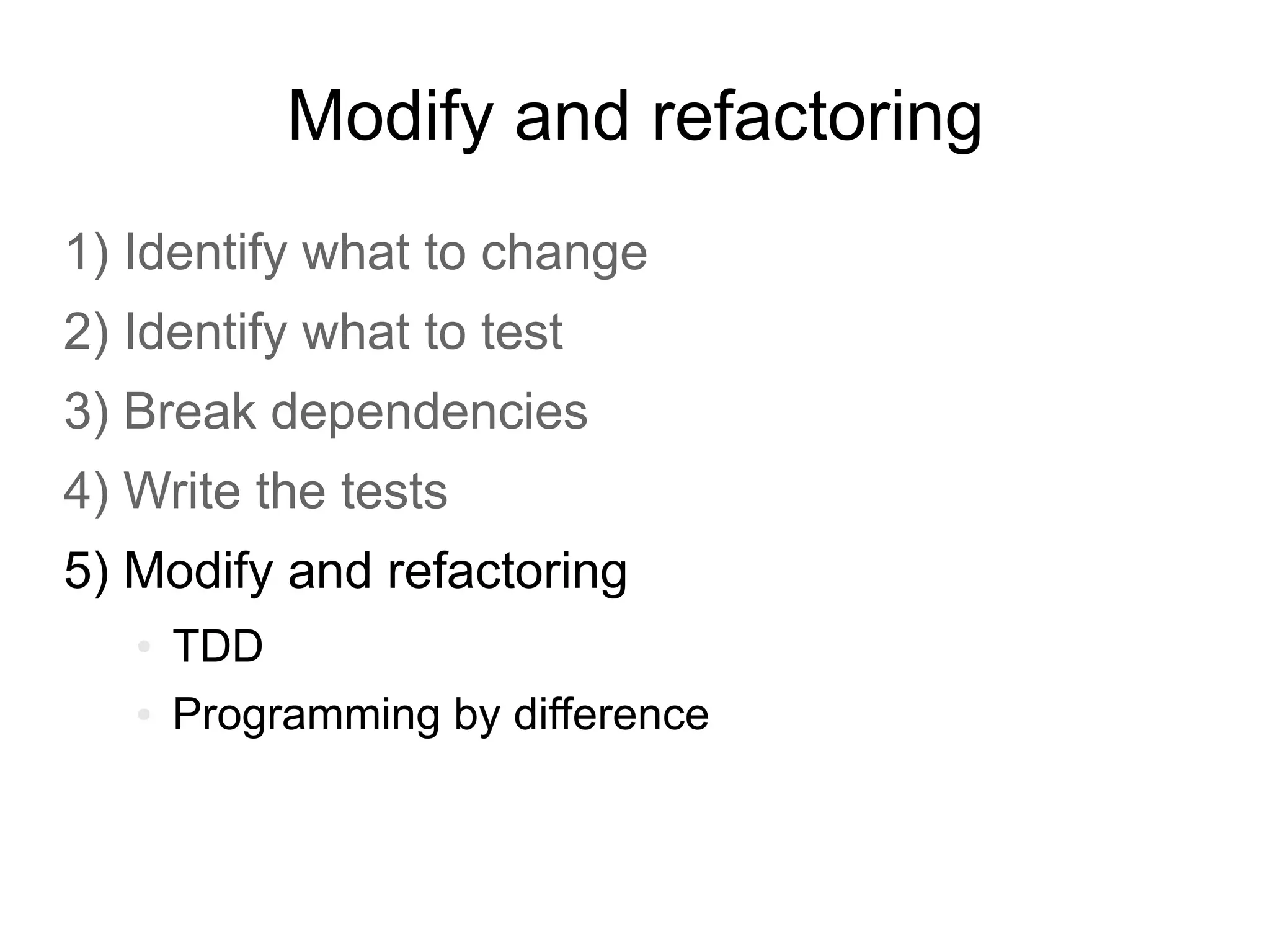

28. Modify and refactoring
1) Identify what to change
2) Identify what to test
3) Break dependencies
4) Write the tests
5) Modify and refactoring
● TDD
● Programming by difference

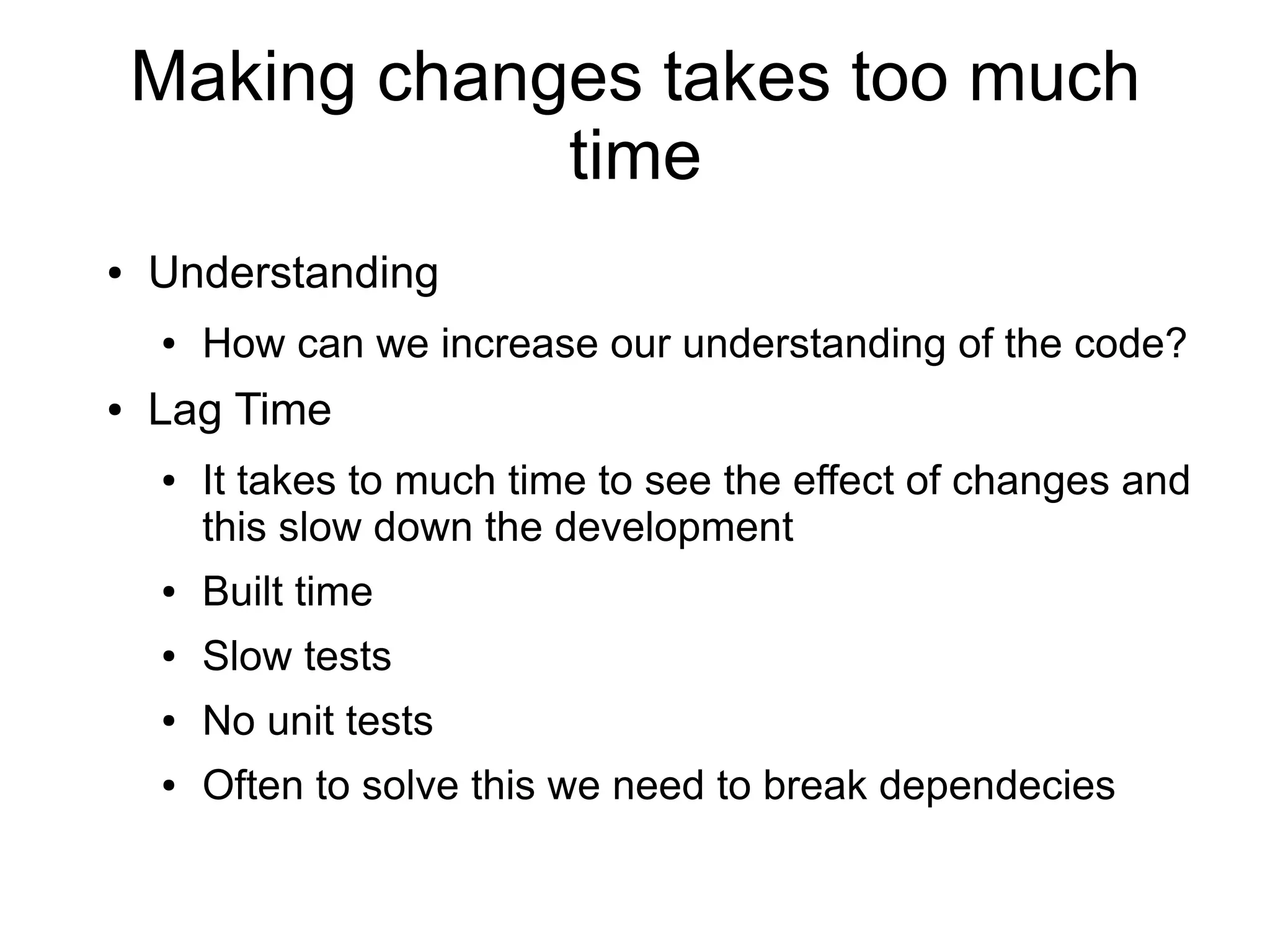

29. Making changes takes too much
time
● Understanding
● How can we increase our understanding of the code?
● Lag Time
● It takes to much time to see the effect of changes and
this slow down the development
● Built time
● Slow tests
● No unit tests
● Often to solve this we need to break dependecies

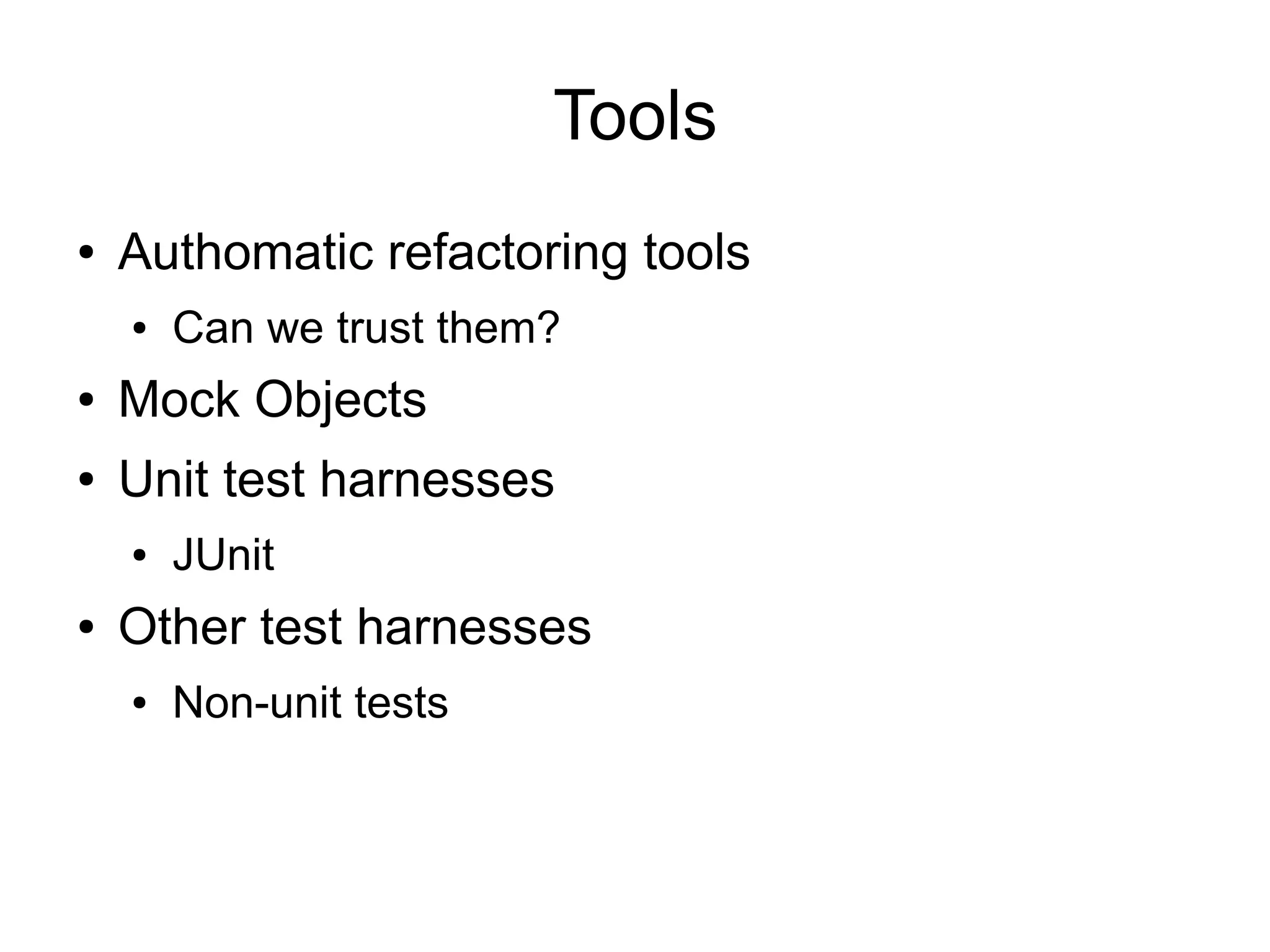

30. Tools
● Authomatic refactoring tools
● Can we trust them?
● Mock Objects
● Unit test harnesses
● JUnit
● Other test harnesses
● Non-unit tests

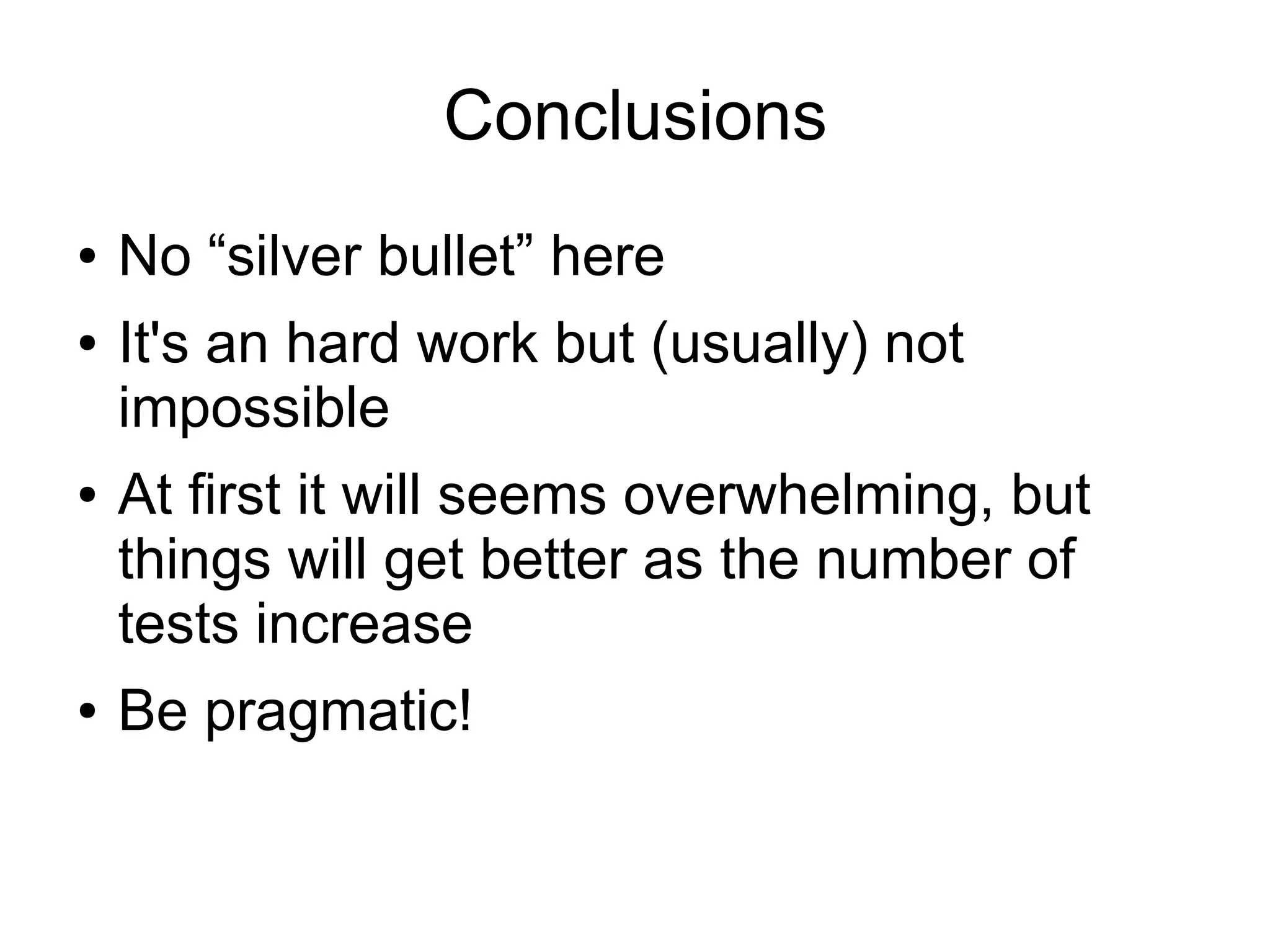

31. Conclusions
● No “silver bullet” here
● It's an hard work but (usually) not
impossible
● At first it will seems overwhelming, but
things will get better as the number of
tests increase
● Be pragmatic!

32. Questions?

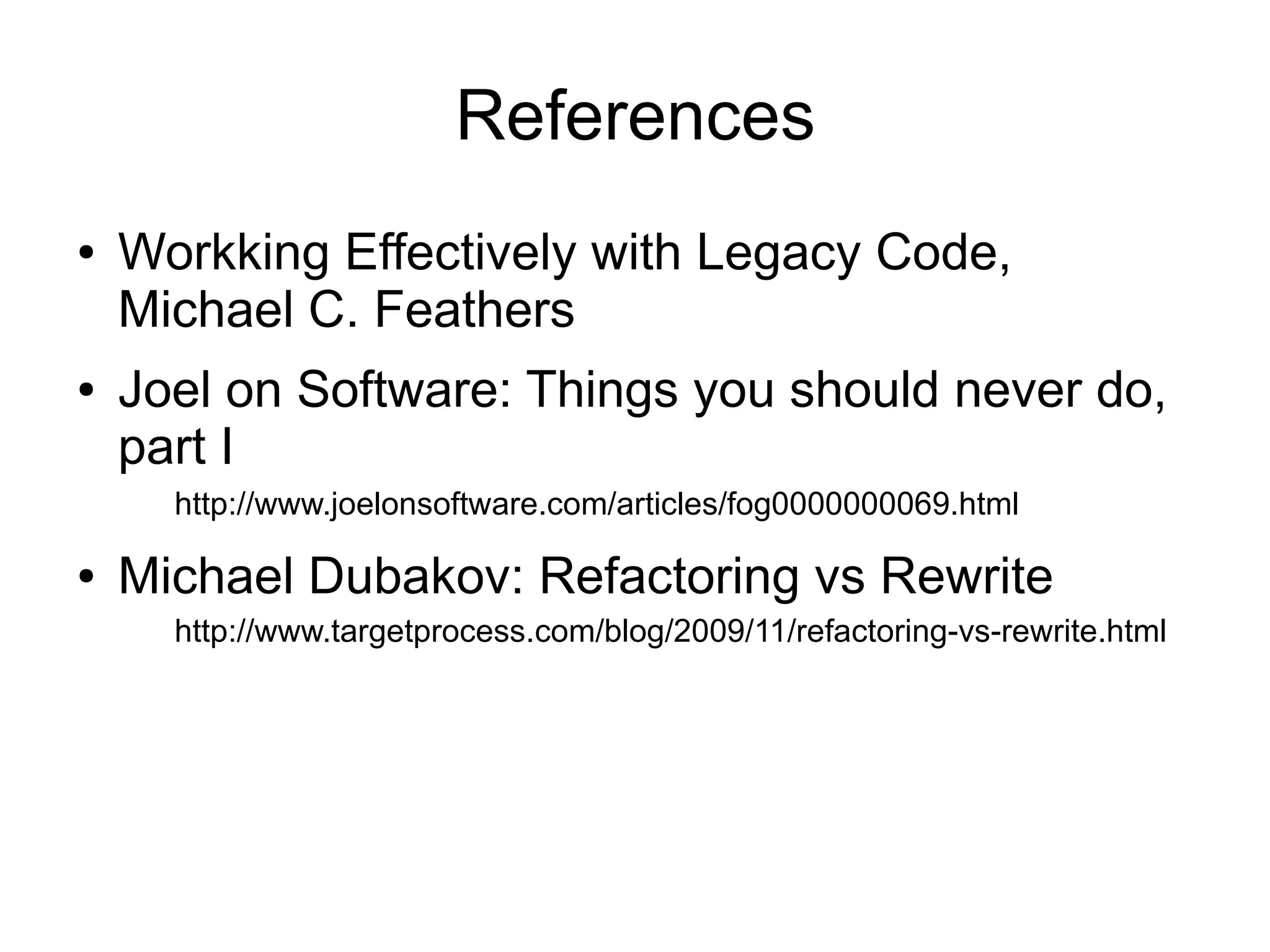

33. References
● Workking Effectively with Legacy Code,
Michael C. Feathers
● Joel on Software: Things you should never do,
part I
http://www.joelonsoftware.com/articles/fog0000000069.html
● Michael Dubakov: Refactoring vs Rewrite
http://www.targetprocess.com/blog/2009/11/refactoring-vs-rewrite.html
