Wohler Summer-fall 2011 Catalog

New Product Guide 2011

Summer | Fall

TABLE OF CONTENTS Signal Management & Confidence Monitoring Solutions

Loudness Page 3 « Pandora
Check out Wohler’s newest solution for loudness monitoring and logging,
the Pandora™ Loudness Analyzer. Compliance with loudness regulations
is becoming a global concern and with standards revisions coming fast and
furious, updatability is critical. Pandora offers easy downloads from the
iTunes® App Store to help keep pace with the most current standards revisions.

Audio Monitors Page 3-5 « MADI-8

Wohler is still both the first and last word in audio confidence monitoring and « AMP2-16V
signal management solutions with a broad range of products that support « AMP1-D8 Series
every format—now including MADI capability. Check out the latest enhance- « AMP2-D8 Series
ments to our state-of-the-art AMP2-16V, as well as our newest offerings for
cost-effective monitoring—the D8 Series with Dolby® AC-3.

Captioning & Ancillary Data Management Page 6-7 « HDCC Series

Following up on the successful introduction of our HDCC card for OP47 caption- « openGear
ing and subtitling management, Wohler is proud to announce a complete line of
ancillary data management solutions that address applications for data
insertion/extraction, as well as providing captions and subtitles for OP47,
CEA-608/CEA-708, and ARIB-B37 standards.

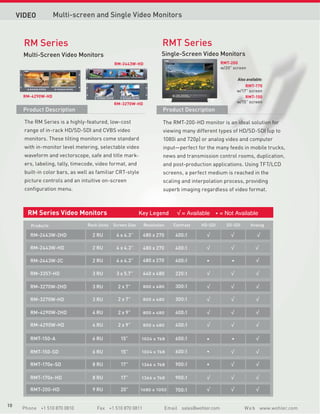

Video Monitors Page 8-10 « HD Multiviewer

Yes, Wohler does video! Our high quality, affordably priced line of video moni- « HD Quad Split
tors has been expanded to include the award-winning Presto™ Video Switcher « DVM-2443
and a brand new line-up of modular and expandable HD multi-viewers and « Presto
quad split monitors. On top of these new offerings, Wohler announces the « RM Series
introduction of our first MPEG-capable monitor—the DVM-2443. « RMT Series

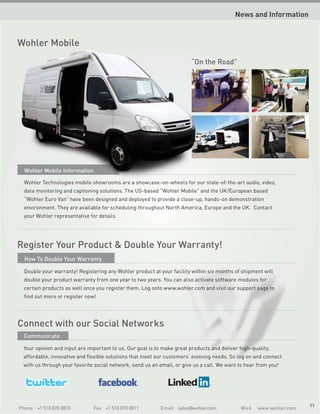

News & Information Page 11 « Wohler Mobile Showrooms

Learn more about our new mobile showrooms now touring the US, UK and
« Double Your Warranty

Europe, as well as our newest initiatives to connect with you—our favorite and « Get Social with Wohler

most valued customer. Exchange ideas and share your needs and concerns.
Our goal is to design innovative products to help you meet the challenges of a
rapidly evolving technology and regulatory landscape.

visit wohler.com to view complete product lines and product specifications

2
Phone +1 510 870 0810 Fax +1 510 870 0811 Email sales@wohler.com www.wohler.com

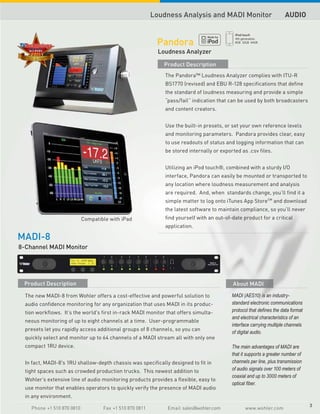

Loudness Analysis and MADI Monitor AUDIO

Pandora
Loudness Analyzer

Product Description
The Pandora™ Loudness Analyzer complies with ITU-R
BS1770 (revised) and EBU R-128 specifications that define
the standard of loudness measuring and provide a simple
“pass/fail” indication that can be used by both broadcasters
and content creators.

Use the built-in presets, or set your own reference levels
and monitoring parameters. Pandora provides clear, easy
to use readouts of status and logging information that can
be stored internally or exported as .csv files.

Utilizing an iPod touch®, combined with a sturdy I/O
interface, Pandora can easily be mounted or transported to
any location where loudness measurement and analysis
are required. And, when standards change, you’ll find it a
simple matter to log onto iTunes App StoreSM and download
the latest software to maintain compliance, so you’ll never
Compatible with iPad find yourself with an out-of-date product for a critical
application.

MADI-8
8-Channel MADI Monitor

Product Description About MADI

The new MADI-8 from Wohler offers a cost-effective and powerful solution to MADI (AES10) is an industry-
audio confidence monitoring for any organization that uses MADI in its produc- standard electronic communications
tion workflows. It’s the world's first in-rack MADI monitor that offers simulta- protocol that defines the data format
and electrical characteristics of an
neous monitoring of up to eight channels at a time. User-programmable
interface carrying multiple channels
presets let you rapidly access additional groups of 8 channels, so you can
of digital audio.
quickly select and monitor up to 64 channels of a MADI stream all with only one
compact 1RU device. The main advantages of MADI are
that it supports a greater number of
In fact, MADI-8's 1RU shallow-depth chassis was specifically designed to fit in channels per line, plus transmission
tight spaces such as crowded production trucks. This newest addition to of audio signals over 100 meters of
coaxial and up to 3000 meters of
Wohler’s extensive line of audio monitoring products provides a flexible, easy to
optical fiber.
use monitor that enables operators to quickly verify the presence of MADI audio
in any environment.
3

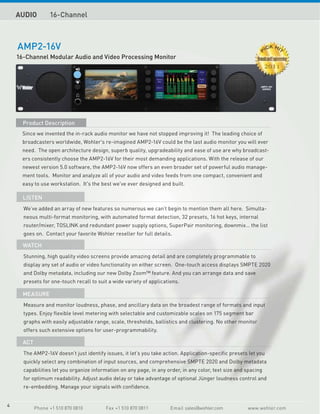

AUDIO 16-Channel

AMP2-16V
16-Channel Modular Audio and Video Processing Monitor

Product Description
Since we invented the in-rack audio monitor we have not stopped improving it! The leading choice of
broadcasters worldwide, Wohler's re-imagined AMP2-16V could be the last audio monitor you will ever
need. The open architecture design, superb quality, upgradeability and ease of use are why broadcast-
ers consistently choose the AMP2-16V for their most demanding applications. With the release of our
newest version 5.0 software, the AMP2-16V now offers an even broader set of powerful audio manage-
ment tools. Monitor and analyze all of your audio and video feeds from one compact, convenient and
easy to use workstation. It's the best we've ever designed and built.

LISTEN
We’ve added an array of new features so numerous we can’t begin to mention them all here. Simulta-
neous multi-format monitoring, with automated format detection, 32 presets, 16 hot keys, internal
router/mixer, TOSLINK and redundant power supply options, SuperPair monitoring, downmix… the list
goes on. Contact your favorite Wohler reseller for full details.

WATCH
Stunning, high quality video screens provide amazing detail and are completely programmable to
display any set of audio or video functionality on either screen. One-touch access displays SMPTE 2020
and Dolby metadata, including our new Dolby Zoom™ feature. And you can arrange data and save
presets for one-touch recall to suit a wide variety of applications.

MEASURE
Measure and monitor loudness, phase, and ancillary data on the broadest range of formats and input
types. Enjoy flexible level metering with selectable and customizable scales on 175 segment bar
graphs with easily adjustable range, scale, thresholds, ballistics and clustering. No other monitor
offers such extensive options for user-programmability.

ACT
The AMP2-16V doesn’t just identify issues, it let’s you take action. Application-specific presets let you
quickly select any combination of input sources, and comprehensive SMPTE 2020 and Dolby metadata
capabilities let you organize information on any page, in any order, in any color, text size and spacing
for optimum readability. Adjust audio delay or take advantage of optional Jünger loudness control and
re-embedding. Manage your signals with confidence.

4

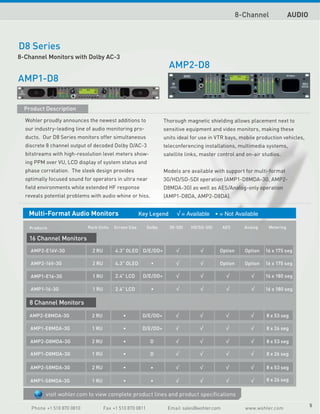

8-Channel AUDIO

D8 Series
8-Channel Monitors with Dolby AC-3
AMP2-D8
AMP1-D8

Product Description

Wohler proudly announces the newest additions to Thorough magnetic shielding allows placement next to
our industry-leading line of audio monitoring pro- sensitive equipment and video monitors, making these
ducts. Our D8 Series monitors offer simultaneous units ideal for use in VTR bays, mobile production vehicles,
discrete 8 channel output of decoded Dolby D/AC-3 teleconferencing installations, multimedia systems,
bitstreams with high-resolution level meters show- satellite links, master control and on-air studios.
ing PPM over VU, LCD display of system status and
phase correlation. The sleek design provides Models are available with support for multi-format
optimally focused sound for operators in ultra near 3G/HD/SD-SDI operation (AMP1-D8MDA-3G, AMP2-
field environments while extended HF response D8MDA-3G) as well as AES/Analog-only operation
reveals potential problems with audio whine or hiss. (AMP1-D8DA, AMP2-D8DA).

Multi-Format Audio Monitors Key Legend $YDLODEOH 1RW $YDLODEOH

Products Rack Units Screen Size Dolby 3G-SDI HD/SD-SDI AES Analog Metering

16 Channel Monitors
AMP2-E16V-3G 2 RU 4.3” OLED D/E/DD+ Option Option 16 x 175 seg

AMP2-16V-3G 2 RU 4.3” OLED Option Option 16 x 175 seg

AMP1-E16-3G 1 RU 2.4” LCD D/E/DD+ 16 x 180 seg

AMP1-16-3G 1 RU 2.4” LCD 16 x 180 seg

8 Channel Monitors

AMP2-E8MDA-3G 2 RU D/E/DD+ 8 x 53 seg

AMP1-E8MDA-3G 1 RU D/E/DD+ 8 x 26 seg

AMP2-D8MDA-3G 2 RU D 8 x 53 seg

AMP1-D8MDA-3G 1 RU D 8 x 26 seg

AMP2-S8MDA-3G 2 RU 8 x 53 seg

AMP1-S8MDA-3G 1 RU 8 x 26 seg

5

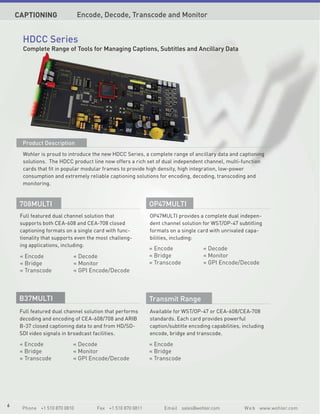

CAPTIONING Encode, Decode, Transcode and Monitor

HDCC Series
Complete Range of Tools for Managing Captions, Subtitles and Ancillary Data

Product Description
Wohler is proud to introduce the new HDCC Series, a complete range of ancillary data and captioning
solutions. The HDCC product line now offers a rich set of dual independent channel, multi-function
cards that fit in popular modular frames to provide high density, high integration, low-power
consumption and extremely reliable captioning solutions for encoding, decoding, transcoding and
monitoring.

708MULTI OP47MULTI
Full featured dual channel solution that OP47MULTI provides a complete dual indepen-
supports both CEA-608 and CEA-708 closed dent channel solution for WST/OP-47 subtitling
captioning formats on a single card with func- formats on a single card with unrivaled capa-
tionality that supports even the most challeng- bilities, including:
ing applications, including:
« Encode « Decode
« Encode « Decode « Bridge « Monitor
« Bridge « Monitor « Transcode « GPI Encode/Decode
« Transcode « GPI Encode/Decode

B37MULTI Transmit Range
Full featured dual channel solution that performs Available for WST/OP-47 or CEA-608/CEA-708
decoding and encoding of CEA-608/708 and ARIB standards. Each card provides powerful
B-37 closed captioning data to and from HD/SD- caption/subtitle encoding capabilities, including
SDI video signals in broadcast facilities. encode, bridge and transcode.

« Encode « Decode « Encode
« Bridge « Monitor « Bridge
« Transcode « GPI Encode/Decode « Transcode

6
Phone +1 510 870 0810 Fax +1 510 870 0811 Email sales@wohler.com W e b www.wohler.com

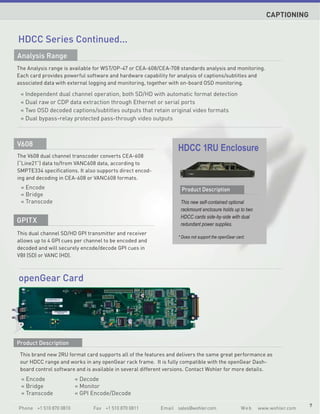

CAPTIONING

HDCC Series Continued...
Analysis Range
The Analysis range is available for WST/OP-47 or CEA-608/CEA-708 standards analysis and monitoring.
Each card provides powerful software and hardware capability for analysis of captions/subtitles and
associated data with external logging and monitoring, together with on-board OSD monitoring.

« Independent dual channel operation, both SD/HD with automatic format detection
« Dual raw or CDP data extraction through Ethernet or serial ports
« Two OSD decoded captions/subtitles outputs that retain original video formats
« Dual bypass-relay protected pass-through video outputs

V608
HDCC 1RU Enclosure
The V608 dual channel transcoder converts CEA-608
(“Line21”) data to/from VANC608 data, according to
SMPTE334 specifications. It also supports direct encod-
ing and decoding in CEA-608 or VANC608 formats.
« Encode Product Description
« Bridge
« Transcode This new self-contained optional
rackmount enclosure holds up to two
HDCC cards side-by-side with dual
GPITX redundant power supplies.
This dual channel SD/HD GPI transmitter and receiver
* Does not support the openGear card.
allows up to 4 GPI cues per channel to be encoded and
decoded and will securely encode/decode GPI cues in
VBI (SD) or VANC (HD).

openGear Card

Product Description
This brand new 2RU format card supports all of the features and delivers the same great performance as
our HDCC range and works in any openGear rack frame. It is fully compatible with the openGear Dash-
board control software and is available in several different versions. Contact Wohler for more details.
« Encode « Decode
« Bridge « Monitor
« Transcode « GPI Encode/Decode

7
Phone +1 510 870 0810 Fax +1 510 870 0811 Email sales@wohler.com We b www.wohler.com

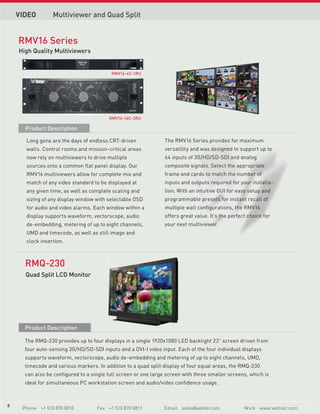

VIDEO Multiviewer and Quad Split

RMV16 Series
High Quality Multiviewers
RMV-160

RMV16-4C-1RU

RMV-360

RMV16-16C-3RU

Product Description

Long gone are the days of endless CRT-driven The RMV16 Series provides for maximum
walls. Control rooms and mission-critical areas versatility and was designed to support up to
now rely on multiviewers to drive multiple 64 inputs of 3G/HD/SD-SDI and analog
sources onto a common flat panel display. Our composite signals. Select the appropriate
RMV16 multiviewers allow for complete mix and frame and cards to match the number of
match of any video standard to be displayed at inputs and outputs required for your installa-
any given time, as well as complete scaling and tion. With an intuitive GUI for easy setup and
sizing of any display window with selectable OSD programmable presets for instant recall of
for audio and video alarms. Each window within a multiple wall configurations, the RMV16
display supports waveform, vectorscope, audio offers great value. It’s the perfect choice for
de-embedding, metering of up to eight channels, your next multiviewer.
UMD and timecode, as well as still image and
clock insertion.

RMQ-230
Quad Split LCD Monitor

Product Description

The RMQ-230 provides up to four displays in a single 1920x1080 LED backlight 23” screen driven from
four auto-sensing 3G/HD/SD-SDI inputs and a DVI-I video input. Each of the four individual displays
supports waveform, vectorscope, audio de-embedding and metering of up to eight channels, UMD,
timecode and various markers. In addition to a quad split display of four equal areas, the RMQ-230
can also be configured to a single full screen or one large screen with three smaller screens, which is
ideal for simultaneous PC workstation screen and audio/video confidence usage.

6
8

MPEG Monitor and SDI Switcher VIDEO

DVM-2443
MPEG Video Monitor

Product Description PID Table Detail

Wohler proudly announces the DVM-2443 CRT-style image calibration controls, and a full
broadcast quality video monitor that decodes compliment of industry-standard I/O.
and displays MPEG 4 and MPEG 2 video streams
with the ability to browse the MPEG PID tables In addition to MPEG and dual input SDI with
including video and audio PIDs for each selected loop-thru, the DVM-2443 will also accommodate
stream. DVI, component and composite video with audio
level meters, GPI, tally, built-in speakers and
The DVM-2443 features four high resolution 4.3” headphone jack included. Needless to say, like all
LCD screens that are also capable of displaying of Wohler’s industry-leading signal management
3G/HD/SD-SDI video in addition to MPEG, and and confidence monitoring solutions, our newest
provide in-picture level metering, video wave- MPEG-capable monitor brings a lot to the party at
form and vectorscope display with classic a surprisingly economical price point.

Presto
16 x 1 SDI Video Switcher

Product Description
Presto is a simple, intuitive, yet high performance solution for organizing, managing and monitoring
multiple SDI video streams in broadcast applications. It accepts up to sixteen 3G/HD/SD-SDI inputs
and displays video on screens that are themselves buttons. Pressing one button switches that input,
both video and associated audio, to a pair of re-clocked outputs for routing and/or monitoring on a
larger device.


9

VIDEO Multi-screen and Single Video Monitors

RM Series RMT Series
Multi-Screen Video Monitors Single-Screen Video Monitors
RM-2443W-HD RMT-200
w/20” screen

Also available:
RMT-170
w/17” screen
RM-4290W-HD RMT-150
RM-3270W-HD w/15” screen
Product Description Product Description

The RM Series is a highly-featured, low-cost The RMT-200-HD monitor is an ideal solution for
range of in-rack HD/SD-SDI and CVBS video viewing many different types of HD/SD-SDI (up to
monitors. These tilting monitors come standard 1080i and 720p) or analog video and computer
with in-monitor level metering, selectable video input—perfect for the many feeds in mobile trucks,
waveform and vectorscope, safe and title mark- news and transmission control rooms, duplication,
ers, labeling, tally, timecode, video format, and and post-production applications. Using TFT/LCD
built-in color bars, as well as familiar CRT-style screens, a perfect medium is reached in the
picture controls and an intuitive on-screen scaling and interpolation process, providing
configuration menu. superb imaging regardless of video format.

RM Series Video Monitors Key Legend $YDLODEOH 1RW $YDLODEOH

Products Rack Units Screen Size Resolution Contrast HD-SDI SD-SDI Analog

RM-2443W-2HD 2 RU 4 x 4.3” 480 x 270 400:1

RM-2443W-HD 2 RU 4 x 4.3” 480 x 270 400:1

RM-2443W-2C 2 RU 4 x 4.3” 480 x 270 400:1

RM-3357-HD 3 RU 3 x 5.7” 640 x 480 220:1

RM-3270W-2HD 3 RU 2 x 7” 800 x 480 300:1

RM-3270W-HD 3 RU 2 x 7” 800 x 480 300:1

RM-4290W-2HD 4 RU 2 x 9” 800 x 480 400:1

RM-4290W-HD 4 RU 2 x 9” 800 x 480 400:1

RMT-150-A 6 RU 15” 1024 x 768 600:1

RMT-150-SD 6 RU 15” 1024 x 768 600:1

RMT-170e-SD 8 RU 17” 1366 x 768 900:1

RMT-170e-HD 8 RU 17” 1366 x 768 900:1

RMT-200-HD 9 RU 20” 1680 x 1050 700:1

10

News and Information

Wohler Mobile
“On the Road”

Wohler Mobile Information

Wohler Technologies mobile showrooms are a showcase-on-wheels for our state-of-the-art audio, video,
data monitoring and captioning solutions. The US-based “Wohler Mobile” and the UK/European based
“Wohler Euro Van” have been designed and deployed to provide a close-up, hands-on demonstration
environment. They are available for scheduling throughout North America, Europe and the UK. Contact
your Wohler representative for details.

Register Your Product & Double Your Warranty!
How To Double Your Warranty

Double your warranty! Registering any Wohler product at your facility within six months of shipment will
double your product warranty from one year to two years. You can also activate software modules for
certain products as well once you register them. Log onto www.wohler.com and visit our support page to
find out more or register now!

Connect with our Social Networks
Communicate

Your opinion and input are important to us. Our goal is to make great products and deliver high-quality,
affordable, innovative and flexible solutions that meet our customers’ evolving needs. So log on and connect
with us through your favorite social network, send us an email, or give us a call. We want to hear from you!

11

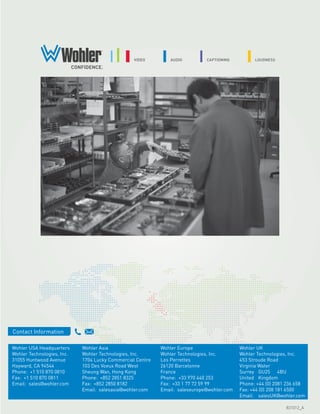

Contact Information

Wohler USA Headquarters Wohler Asia Wohler Europe Wohler UK
Wohler Technologies, Inc. Wohler Technologies, Inc. Wohler Technologies, Inc. Wohler Technologies, Inc.
31055 Huntwood Avenue 1704 Lucky Commercial Centre Les Perrettes 453 Stroude Road
Hayward, CA 94544 103 Des Voeux Road West 26120 Barcelonne Virginia Water
Phone: +1 510 870 0810 Sheung Wan, Hong Kong France Surrey GU25 4BU
Fax: +1 510 870 0811 Phone: +852 2851 8325 Phone: +33 970 440 253 United Kingdom
Email: sales@wohler.com Fax: +852 2850 8182 Fax: +33 1 77 72 59 99 Phone: +44 (0) 2081 236 658
Email: salesasia@wohler.com Email: saleseurope@wohler.com Fax: +44 (0) 208 181 6500
Email: salesUK@wohler.com

831012_A

Wohler Summer-fall 2011 Catalog

More Related Content

What's hot

Similar to Wohler Summer-fall 2011 Catalog

More from Radikal Ltd.

Recently uploaded

Wohler Summer-fall 2011 Catalog
