Max Levy | Oracle Consulting | ERP Senior Cloud Analyst
Withholding Tax in the Cloud
Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted2

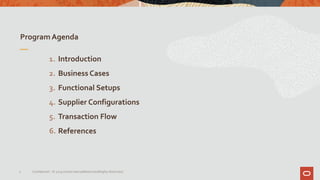

Program Agenda
3 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
1. Introduction
2. Business Cases
3. Functional Setups
4. Supplier Configurations
5. Transaction Flow
6. References

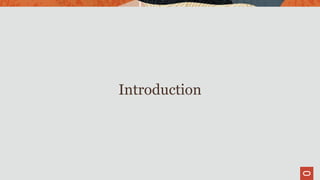

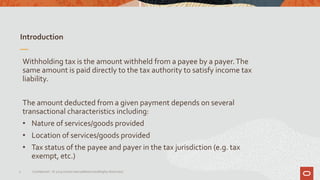

Introduction
Introduction
5 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
Withholding tax is the amount withheld from a payee by a payer.The
same amount is paid directly to the tax authority to satisfy income tax
liability.
The amount deducted from a given payment depends on several
transactional characteristics including:
• Nature of services/goods provided
• Location of services/goods provided
• Tax status of the payee and payer in the tax jurisdiction (e.g. tax
exempt, etc.)
Business Cases

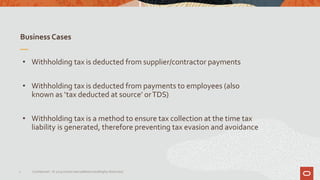

Business Cases
7 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• Withholding tax is deducted from supplier/contractor payments
• Withholding tax is deducted from payments to employees (also
known as ‘tax deducted at source’ orTDS)
• Withholding tax is a method to ensure tax collection at the time tax
liability is generated, therefore preventing tax evasion and avoidance
Functional Setups

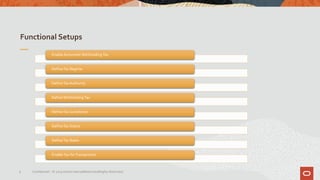

Functional Setups
9 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
EnableAutomaticWithholdingTax
DefineTax Regime
DefineTax Authority
DefineWithholdingTax
DefineTax Jurisdiction
DefineTax Status
DefineTax Rates
EnableTax forTransactions
Enable Automatic WithholdingTax
10 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• Withholding tax is enabled via ‘ManageTax Reporting and
WithholdingTax Options’
• Withholding can be enabled for prepayment and standard invoice
event classes
• Tax calculation point can be set to either ‘Invoice’ or ‘Payment’
• Tax invoices can be generated either at the time of invoicing or at the
time of payment
Navigation:
Setup &
Maintenance >
ManageTax
Reporting and
WithholdingTax
Options

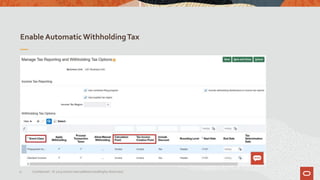

Enable Automatic WithholdingTax
11 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

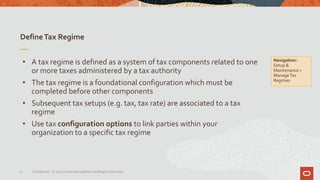

DefineTax Regime
12 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• A tax regime is defined as a system of tax components related to one
or more taxes administered by a tax authority
• The tax regime is a foundational configuration which must be
completed before other components
• Subsequent tax setups (e.g. tax, tax rate) are associated to a tax
regime
• Use tax configuration options to link parties within your
organization to a specific tax regime
Navigation:
Setup &
Maintenance >
ManageTax
Regimes

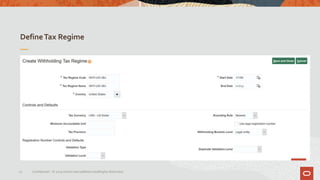

DefineTax Regime
13 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

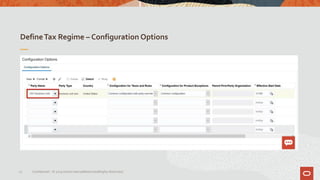

DefineTax Regime – Configuration Options
14 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

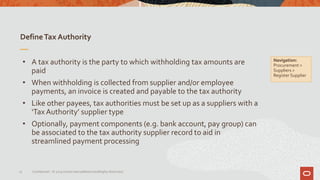

DefineTax Authority
15 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• A tax authority is the party to which withholding tax amounts are
paid
• When withholding is collected from supplier and/or employee
payments, an invoice is created and payable to the tax authority
• Like other payees, tax authorities must be set up as a suppliers with a
‘Tax Authority’ supplier type
• Optionally, payment components (e.g. bank account, pay group) can
be associated to the tax authority supplier record to aid in
streamlined payment processing
Navigation:
Procurement >
Suppliers >
Register Supplier

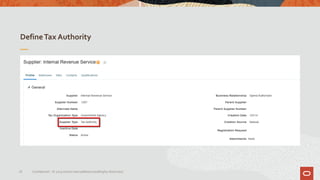

DefineTax Authority
16 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

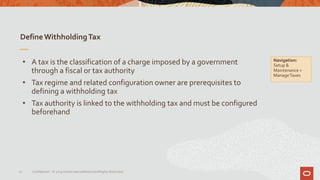

DefineWithholdingTax
17 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• A tax is the classification of a charge imposed by a government
through a fiscal or tax authority
• Tax regime and related configuration owner are prerequisites to
defining a withholding tax
• Tax authority is linked to the withholding tax and must be configured
beforehand
Navigation:
Setup &
Maintenance >
ManageTaxes

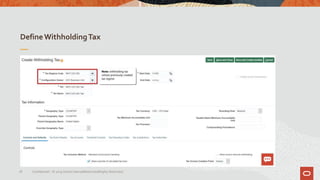

DefineWithholdingTax
18 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

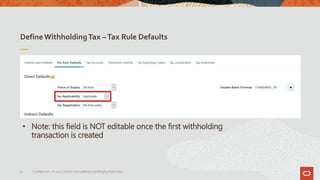

DefineWithholdingTax –Tax Rule Defaults
19 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• Note: this field is NOT editable once the first withholding
transaction is created

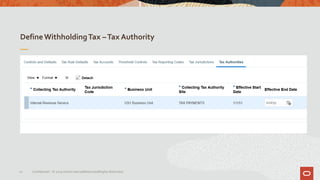

DefineWithholdingTax –Tax Authority
20 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

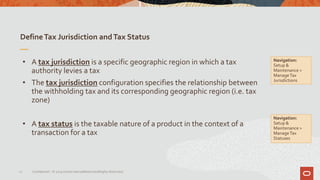

DefineTax Jurisdiction andTax Status
21 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• A tax jurisdiction is a specific geographic region in which a tax
authority levies a tax
• The tax jurisdiction configuration specifies the relationship between
the withholding tax and its corresponding geographic region (i.e. tax
zone)
• A tax status is the taxable nature of a product in the context of a
transaction for a tax
Navigation:
Setup &
Maintenance >
ManageTax
Jurisdictions
Navigation:
Setup &
Maintenance >
ManageTax
Statuses

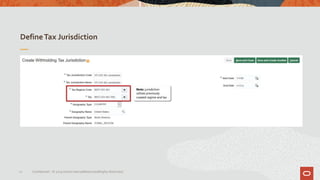

DefineTax Jurisdiction
22 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
DefineTax Status
23 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
DefineTax Rates
24 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• A withholding tax rate is the percentage rate applied to a transaction
amount to determine the amount withheld
• A withholding tax code is the name assigned to a specific withholding
tax rate
• Setup of withholding tax rates depends on preceding regime-to-rate
setup tasks including:
• Tax Regime
• Tax
• Tax Status
Navigation:
Setup &
Maintenance >
ManageTax Rates
andTax Recovery
Rates

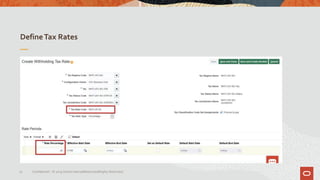

DefineTax Rates
25 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
DefineTax Rates
26 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

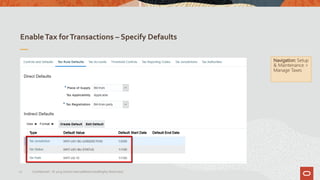

EnableTax forTransactions – Specify Defaults
27 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
Navigation: Setup
& Maintenance >
Manage Taxes

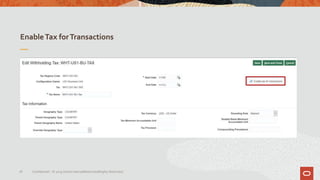

EnableTax forTransactions
28 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

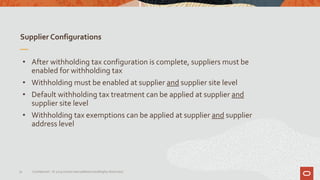

Supplier Configurations
Supplier Configurations
30 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• After withholding tax configuration is complete, suppliers must be
enabled for withholding tax
• Withholding must be enabled at supplier and supplier site level
• Default withholding tax treatment can be applied at supplier and
supplier site level
• Withholding tax exemptions can be applied at supplier and supplier
address level

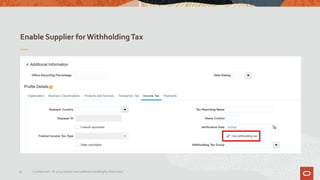

Enable Supplier for WithholdingTax
31 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

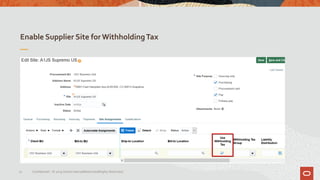

Enable Supplier Site for WithholdingTax
32 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
Transaction Flow

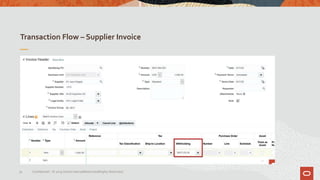

Transaction Flow – Supplier Invoice
34 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

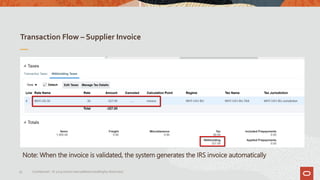

Transaction Flow – Supplier Invoice
35 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
Note: When the invoice is validated, the system generates the IRS invoice automatically

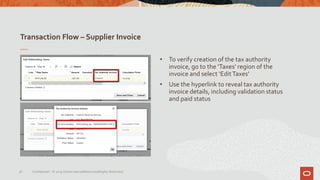

Transaction Flow – Supplier Invoice
36 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• To verify creation of the tax authority
invoice, go to the ‘Taxes’ region of the
invoice and select ‘EditTaxes’
• Use the hyperlink to reveal tax authority
invoice details, including validation status
and paid status

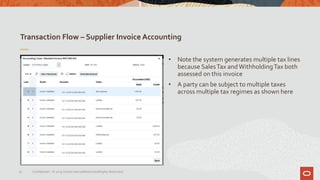

Transaction Flow – Supplier Invoice Accounting
37 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
• Note the system generates multiple tax lines
because SalesTax andWithholdingTax both
assessed on this invoice
• A party can be subject to multiple taxes
across multiple tax regimes as shown here
Transaction Flow –Tax Authority Invoice
38 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted

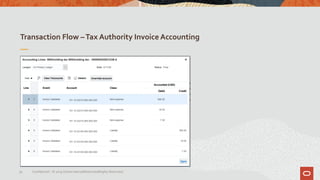

Transaction Flow –Tax Authority Invoice Accounting
39 Confidential – © 2019 Oracle Internal/Restricted/Highly Restricted
Thank You
