![Hybrid Infrastructure & Management Launch | 27 October 2016 | Malaysia
Cloud-scale
fundamentals

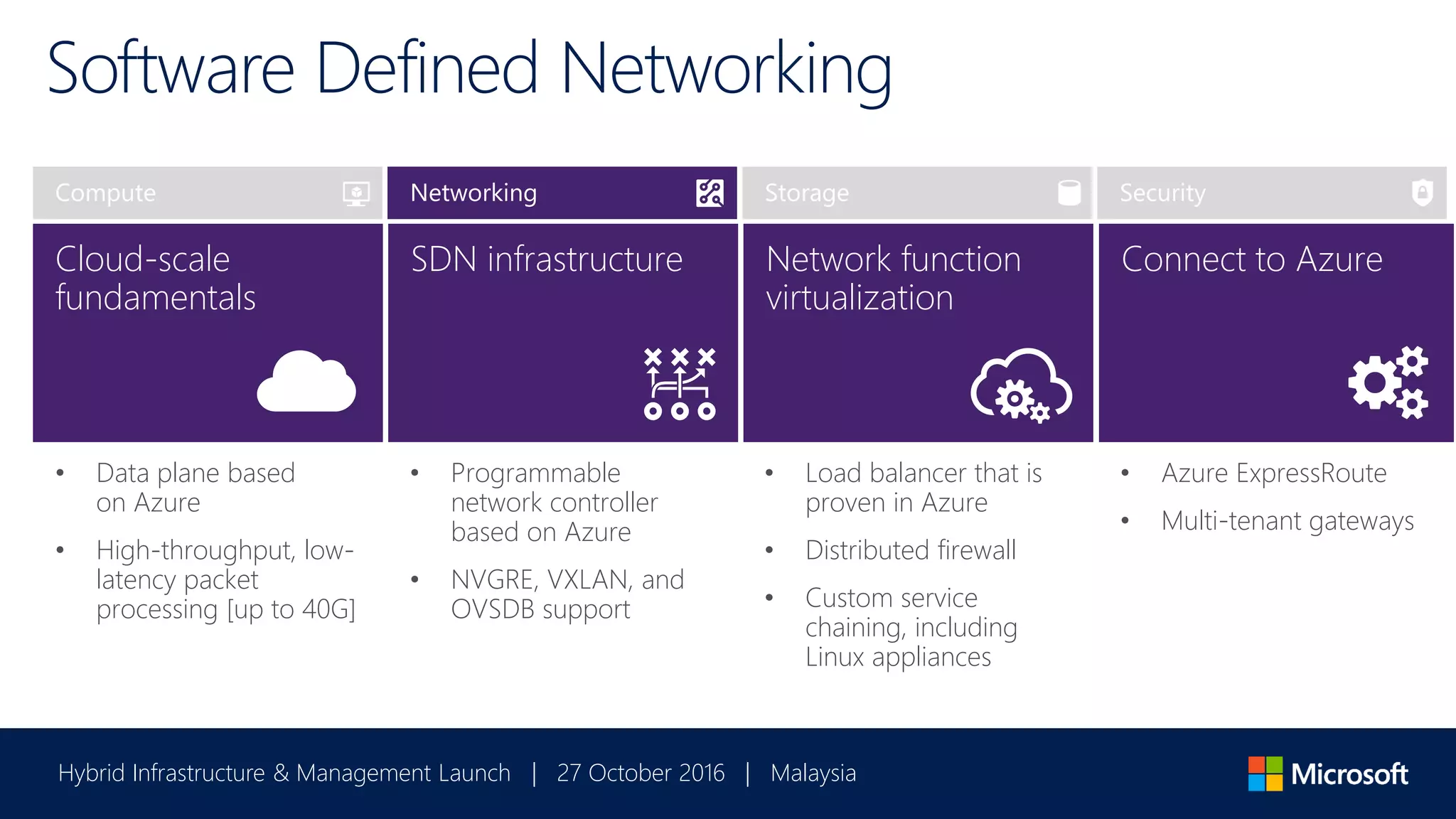

SDN infrastructure
Software Defined Networking
Connect to AzureNetwork function
virtualization
• Data plane based
on Azure
• High-throughput, low-
latency packet
processing [up to 40G]
• Programmable
network controller
based on Azure
• NVGRE, VXLAN, and
OVSDB support
• Load balancer that is
proven in Azure
• Distributed firewall
• Custom service
chaining, including
Linux appliances
• Azure ExpressRoute
• Multi-tenant gateways](https://image.slidesharecdn.com/windowsserver2016overview-thebeginningofahybridcloudinspiredjourney-theankeongkwan-200228151433/75/Windows-server-2016_overview-the_beginning_of_a_hybrid_cloud_inspired_journey-thean_keong_kwan-12-2048.jpg)
More Related Content
Similar to Windows server 2016_overview-the_beginning_of_a_hybrid_cloud_inspired_journey-thean_keong_kwan
Windows server 2016_overview-the_beginning_of_a_hybrid_cloud_inspired_journey-thean_keong_kwan

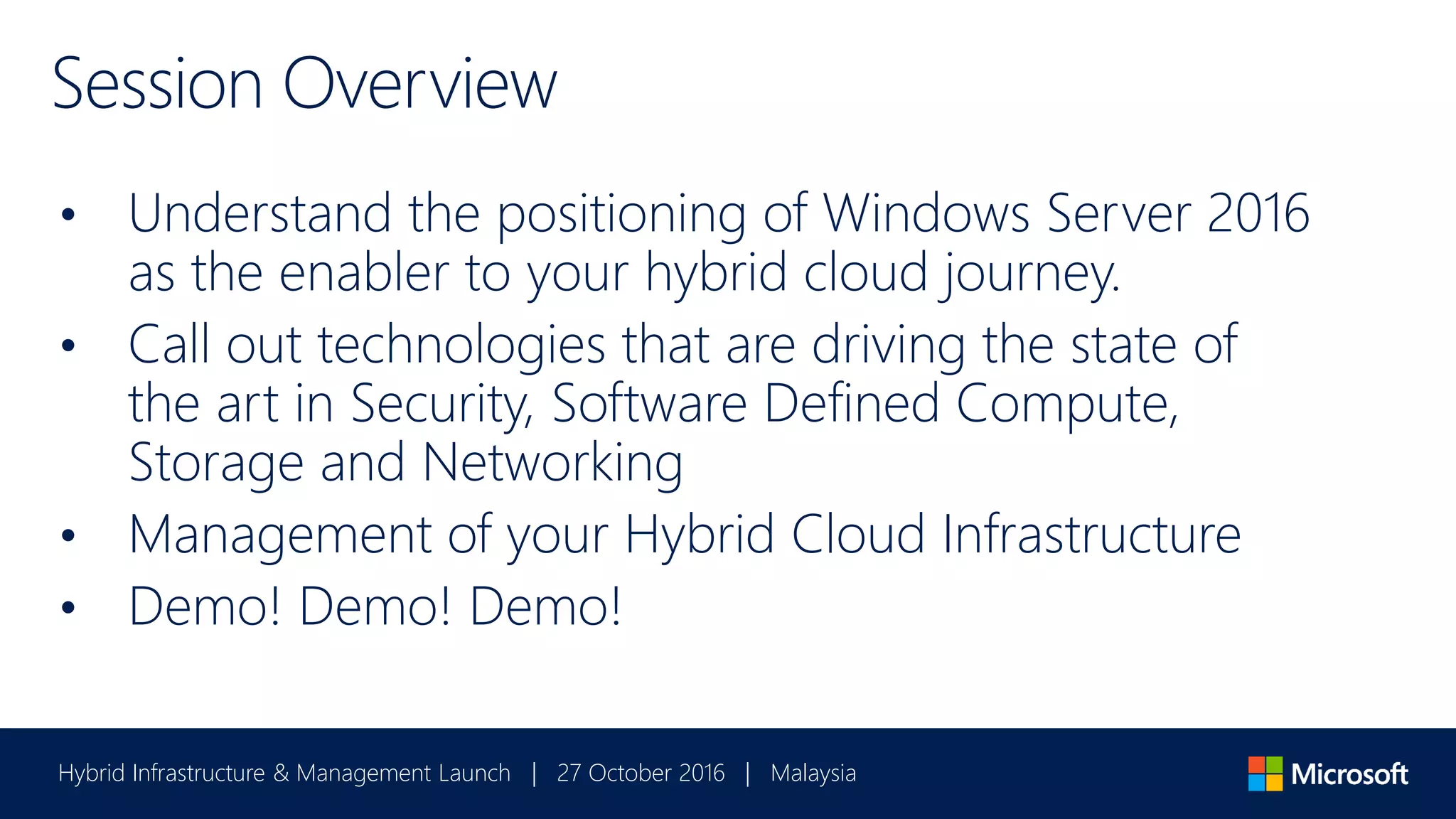

- 2. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Session Overview • Understand the positioning of Windows Server 2016 as the enabler to your hybrid cloud journey. • Call out technologies that are driving the state of the art in Security, Software Defined Compute, Storage and Networking • Management of your Hybrid Cloud Infrastructure • Demo! Demo! Demo!
- 3. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia A Unified Cloud Strategy Compute/storage/network Compute/storage/network • flexible development • unified management • common identity • integrated virtualization • complete data platform

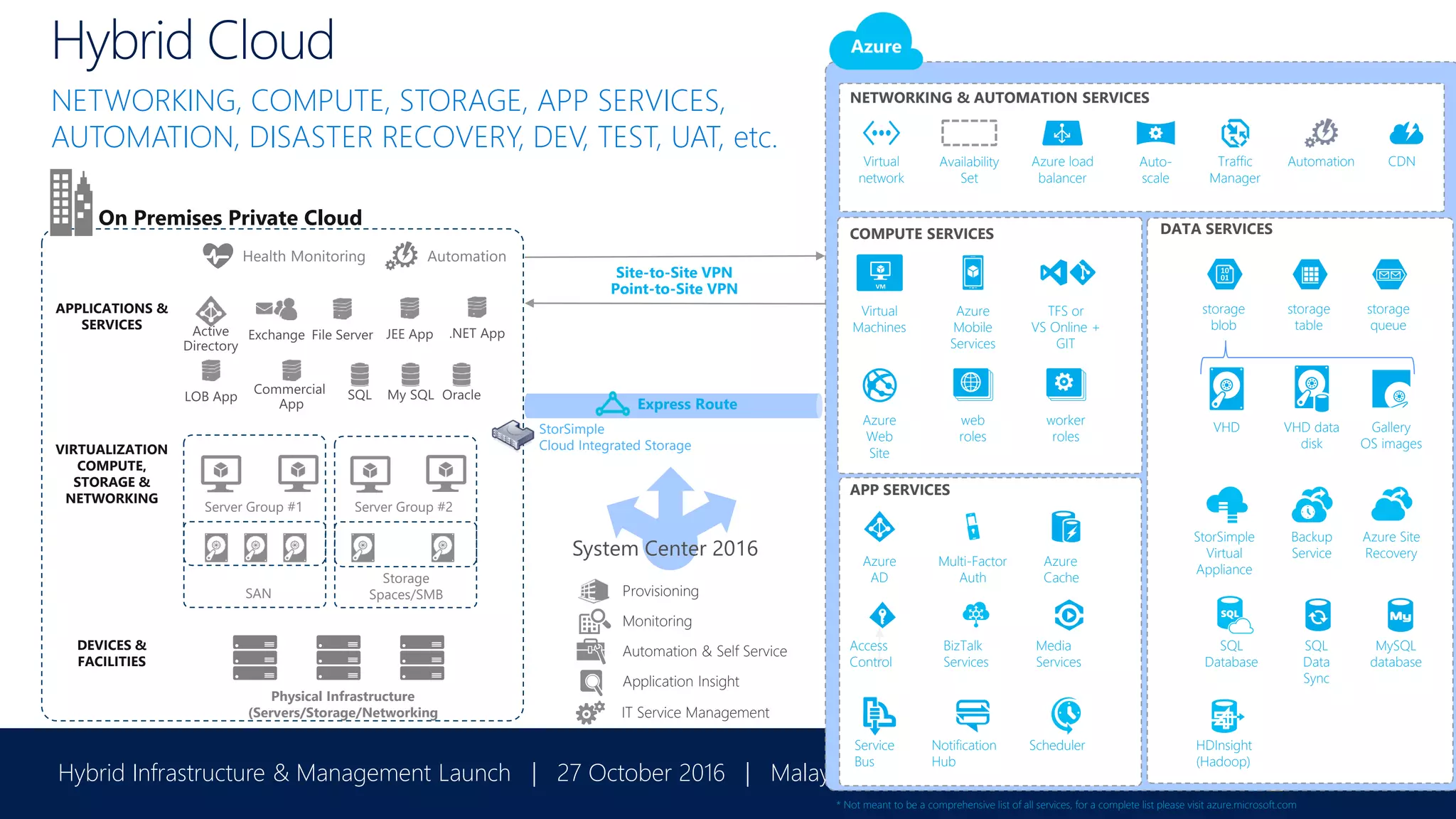

- 4. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia * Not meant to be a comprehensive list of all services, for a complete list please visit azure.microsoft.com APP SERVICES NETWORKING & AUTOMATION SERVICES COMPUTE SERVICES DATA SERVICES Hybrid Cloud On Premises Private Cloud AutomationHealth Monitoring Site-to-Site VPN Point-to-Site VPN Express Route Azure Web Site web roles worker roles Virtual Machines Azure Mobile Services TFS or VS Online + GIT Azure AD Multi-Factor Auth Azure Cache Access Control BizTalk Services Media Services Service Bus Notification Hub Scheduler SAN Storage Spaces/SMB Server Group #1 Server Group #2 VIRTUALIZATION COMPUTE, STORAGE & NETWORKING Physical Infrastructure (Servers/Storage/Networking DEVICES & FACILITIES NETWORKING, COMPUTE, STORAGE, APP SERVICES, AUTOMATION, DISASTER RECOVERY, DEV, TEST, UAT, etc. StorSimple Cloud Integrated Storage Azure Site Recovery StorSimple Virtual Appliance Backup Service Gallery OS images VHD VHD data disk MySQL database SQL Database SQL Data Sync HDInsight (Hadoop) storage queue storage blob storage table Virtual network Automation CDNAvailability Set Azure load balancer Auto- scale Traffic Manager APPLICATIONS & SERVICES Provisioning Monitoring Automation & Self Service Application Insight IT Service Management
- 5. What can youdo with the Microsoft Cloud Platform?

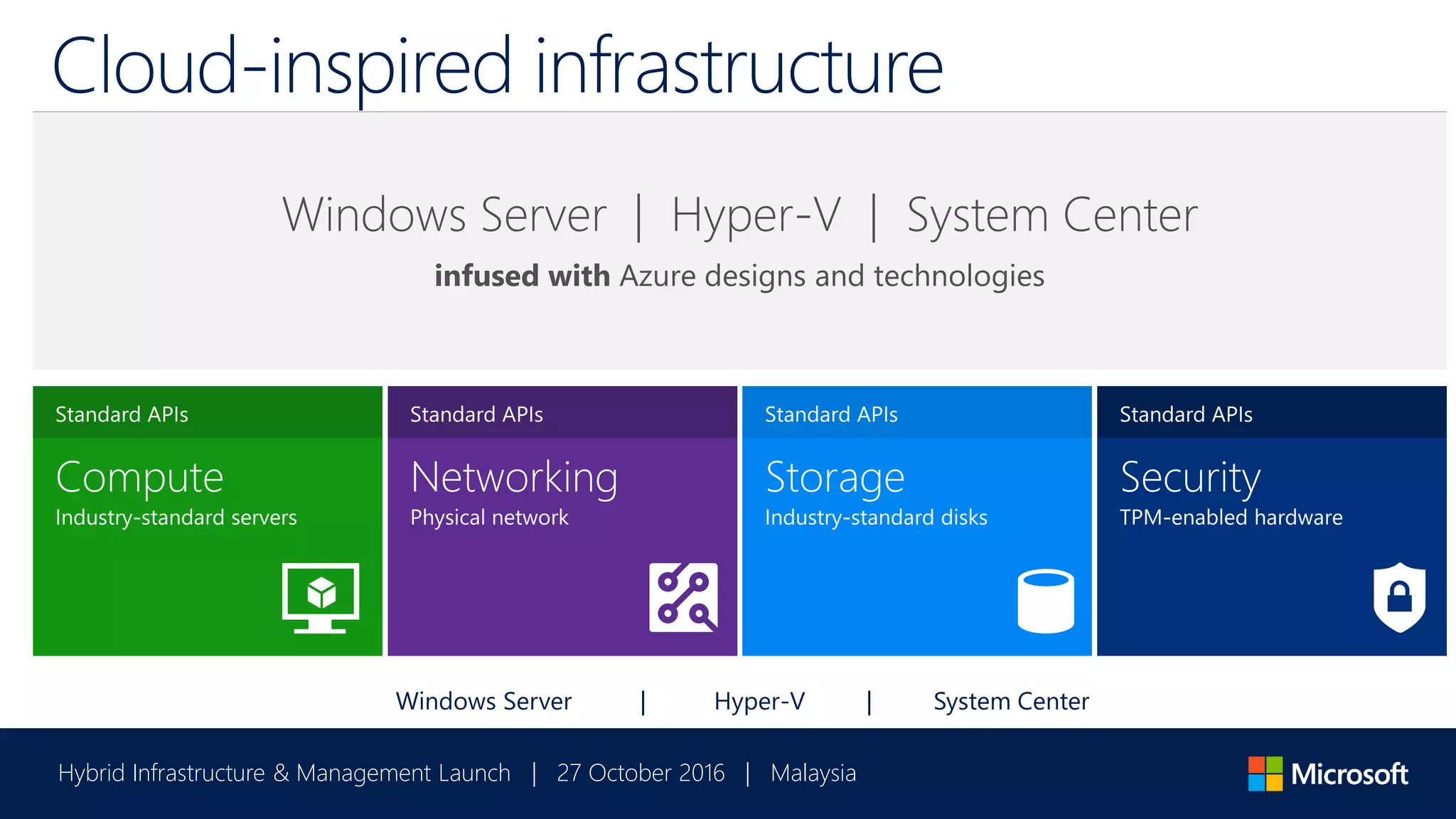

- 6. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Compute cluster Virtual machines Storage cluster File servers Security controller Shielded VMs Windows Server | Hyper-V | System Center Network controller Virtual networks Provisioning and operations Windows Server | Hyper-V | System Center infused with Azure designs and technologies Cloud-inspired infrastructure

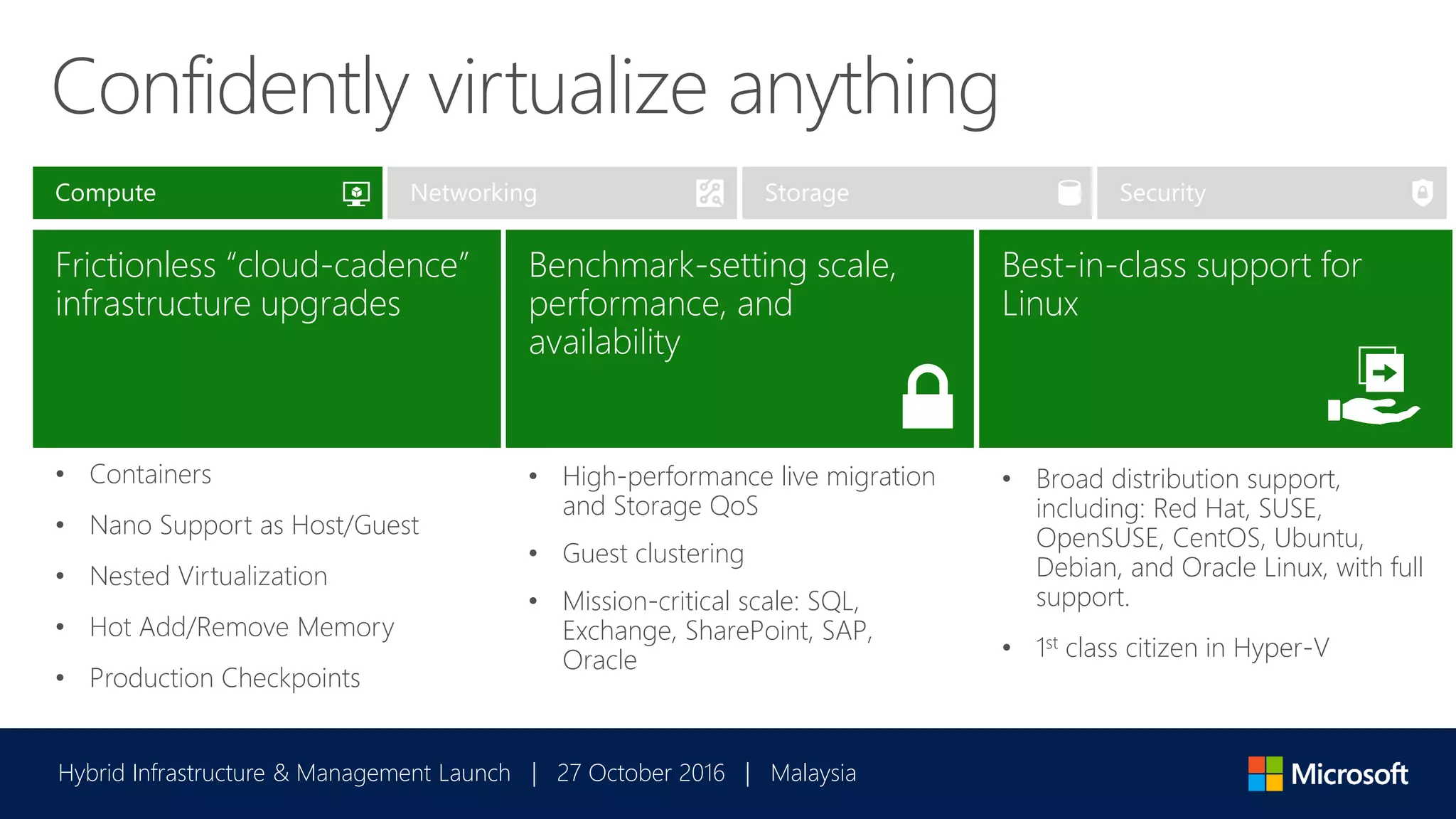

- 7. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Frictionless “cloud-cadence” infrastructure upgrades Benchmark-setting scale, performance, and availability Best-in-class support for Linux Confidently virtualize anything • High-performance live migration and Storage QoS • Guest clustering • Mission-critical scale: SQL, Exchange, SharePoint, SAP, Oracle • Broad distribution support, including: Red Hat, SUSE, OpenSUSE, CentOS, Ubuntu, Debian, and Oracle Linux, with full support. • 1st class citizen in Hyper-V

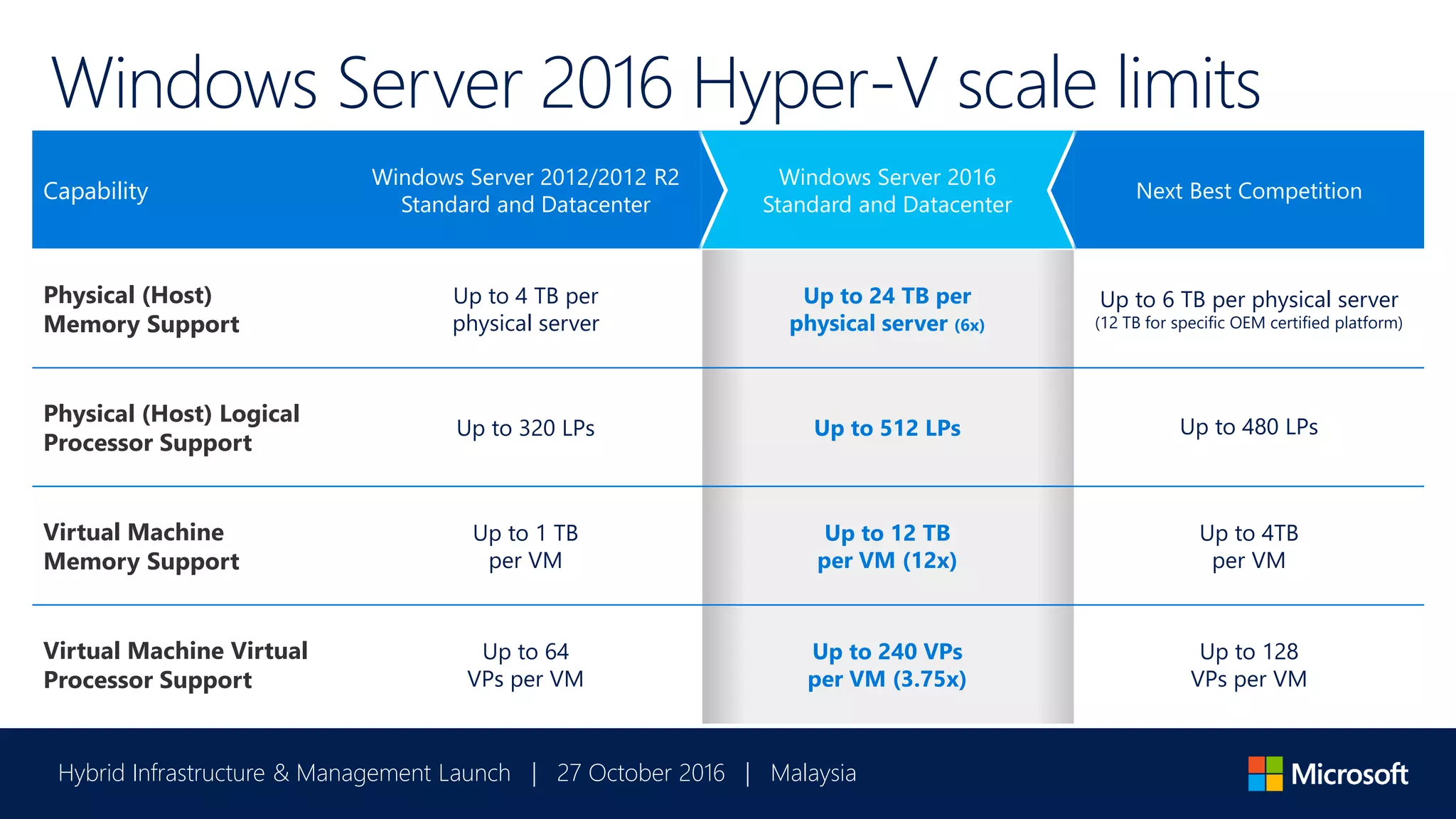

- 8. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Windows Server 2016 Hyper-V scale limits Capability Windows Server 2012/2012 R2 Standard and Datacenter Windows Server 2016 Standard and Datacenter Next Best Competition Physical (Host) Memory Support Up to 4 TB per physical server Up to 24 TB per physical server (6x) Up to 6 TB per physical server (12 TB for specific OEM certified platform) Physical (Host) Logical Processor Support Up to 320 LPs Up to 512 LPs Up to 480 LPs Virtual Machine Memory Support Up to 1 TB per VM Up to 12 TB per VM (12x) Up to 4TB per VM Virtual Machine Virtual Processor Support Up to 64 VPs per VM Up to 240 VPs per VM (3.75x) Up to 128 VPs per VM

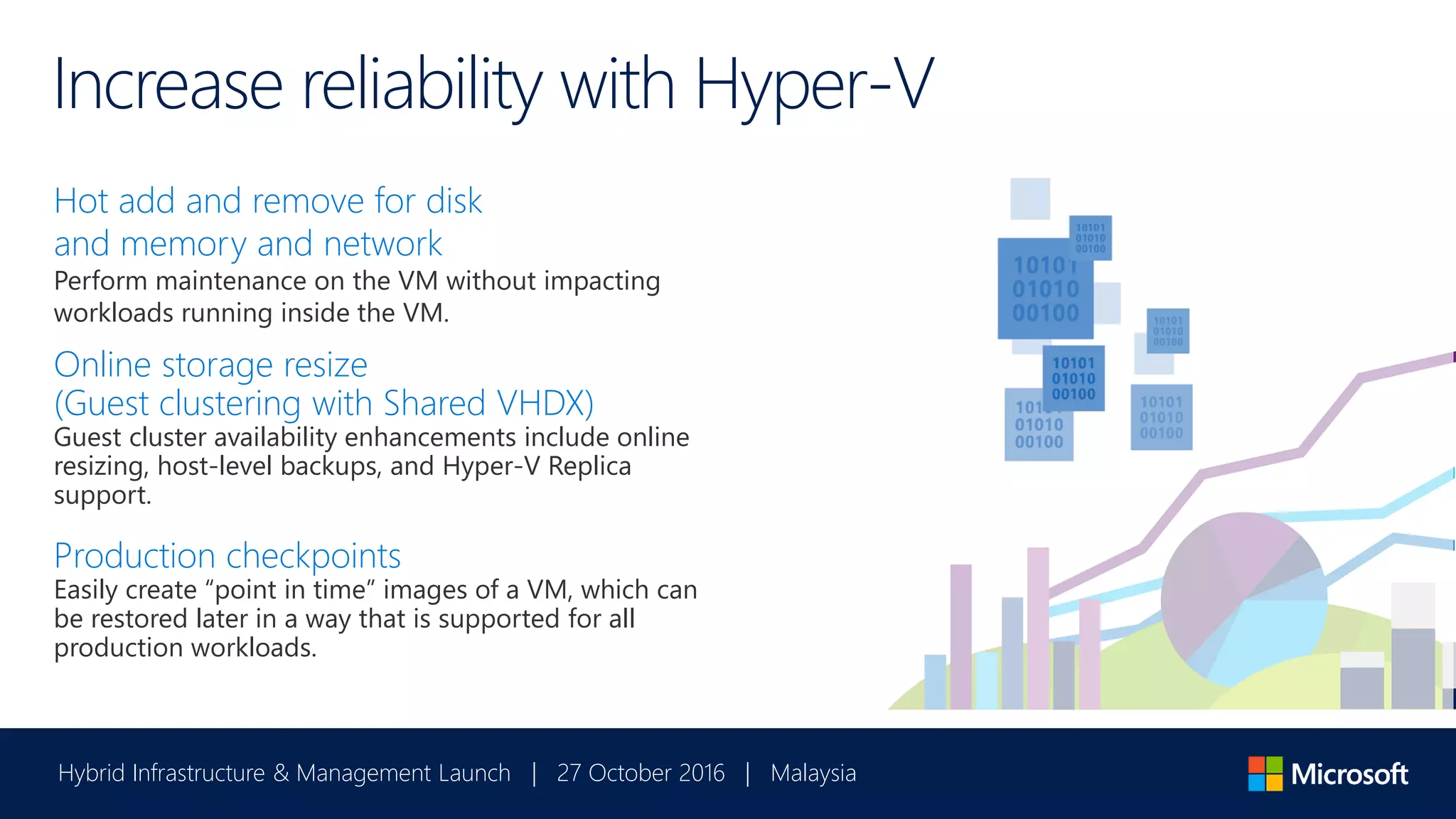

- 9. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Increase reliability with Hyper-V Hot add and remove for disk and memory and network Perform maintenance on the VM without impacting workloads running inside the VM. Online storage resize (Guest clustering with Shared VHDX) Guest cluster availability enhancements include online resizing, host-level backups, and Hyper-V Replica support. Production checkpoints Easily create “point in time” images of a VM, which can be restored later in a way that is supported for all production workloads.

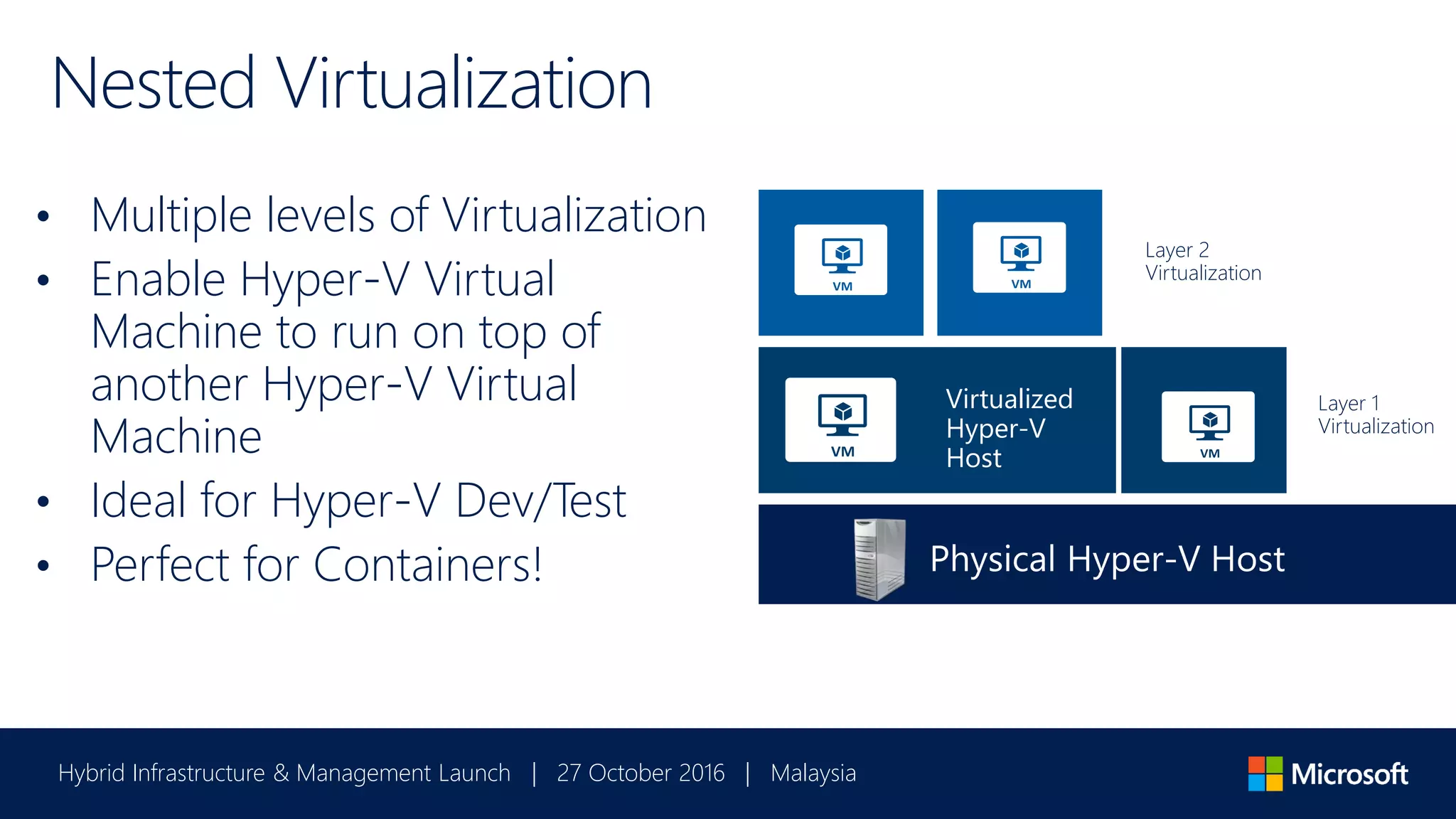

- 10. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Nested Virtualization • Multiple levels of Virtualization • Enable Hyper-V Virtual Machine to run on top of another Hyper-V Virtual Machine • Ideal for Hyper-V Dev/Test • Perfect for Containers! Virtualized Hyper-V Host Layer 1 Virtualization Layer 2 Virtualization
- 12. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Cloud-scale fundamentals SDN infrastructure Software Defined Networking Connect to AzureNetwork function virtualization • Data plane based on Azure • High-throughput, low- latency packet processing [up to 40G] • Programmable network controller based on Azure • NVGRE, VXLAN, and OVSDB support • Load balancer that is proven in Azure • Distributed firewall • Custom service chaining, including Linux appliances • Azure ExpressRoute • Multi-tenant gateways
- 13. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia SDN Capabilities in WS 2016 Network controller Central control plane Fault tolerant Network monitoring Virtual Networking BYO address space Distributed routing VXLAN and NVGRE Network Security Distributed Firewall Network Security Groups BYO Virtual Appliances • M:N availability model • Multi-tenancy for all modes of operation • BGP Transit Routing • L4 load balancing (N-S and E-W) with DSR • NAT • For tenants and cloud based infrastructure • Performance: 10G, 40G and beyond! • RDMA over Virtual Switch Consistency with Azure in UI, API and Services

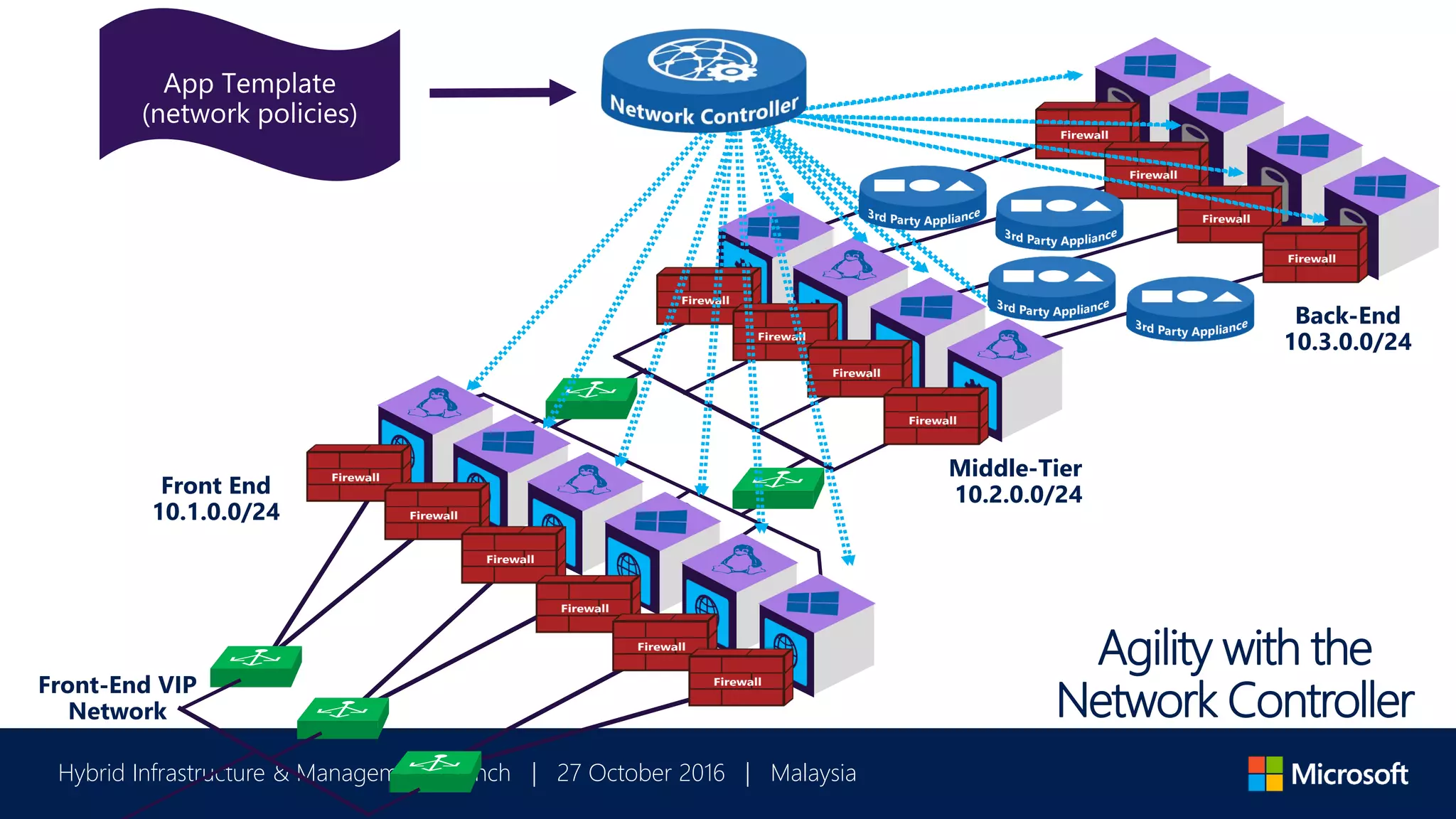

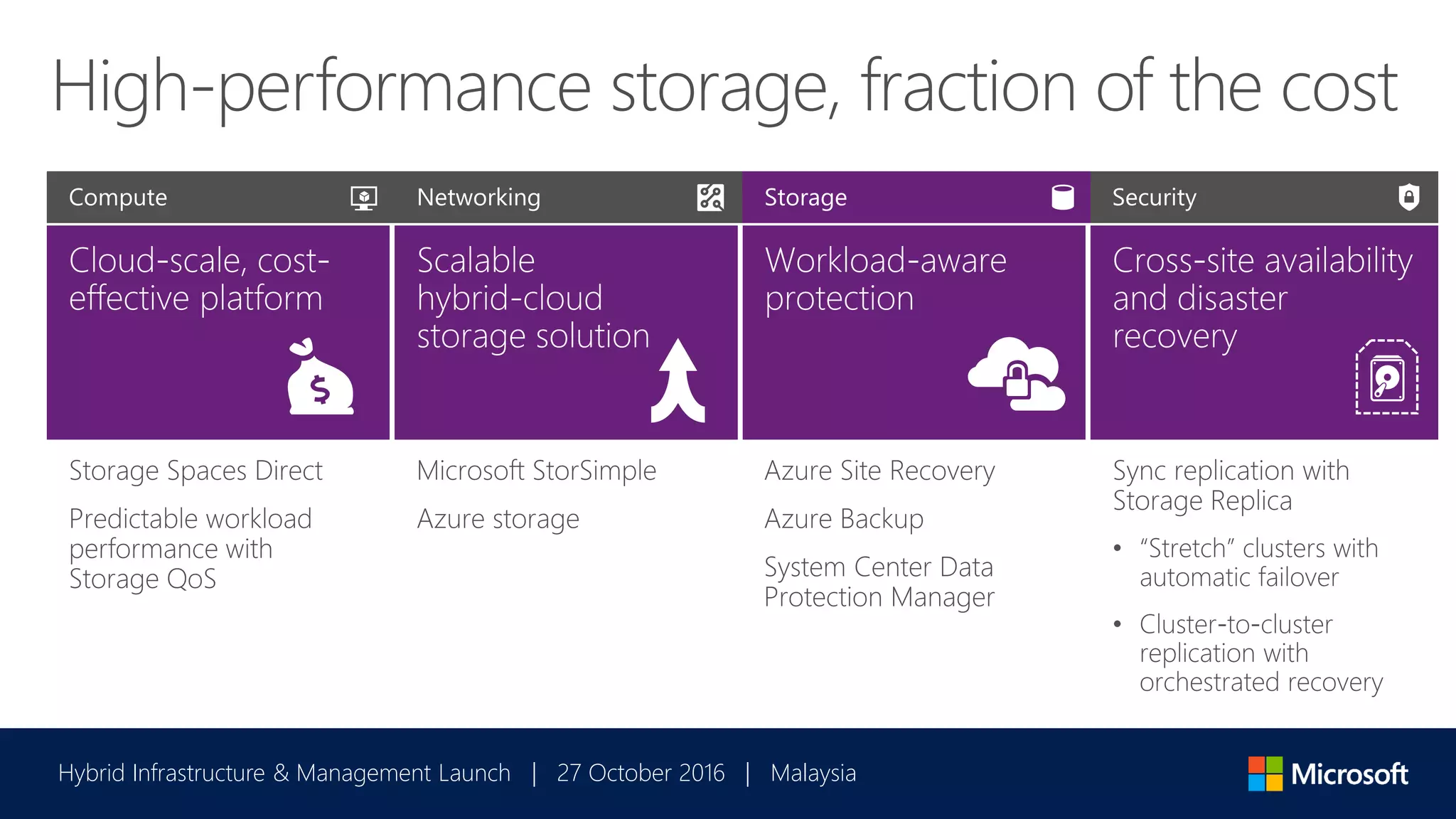

- 14. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Front End 10.1.0.0/24 Middle-Tier 10.2.0.0/24 Front-End VIP Network 204.79.0.0/24 Back-End 10.3.0.0/24 Agility with the Network Controller
- 15. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia
- 16. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Reimagine storage Lower cost than traditional storage infrastructure
- 17. Industry-standard servers withinternal drives

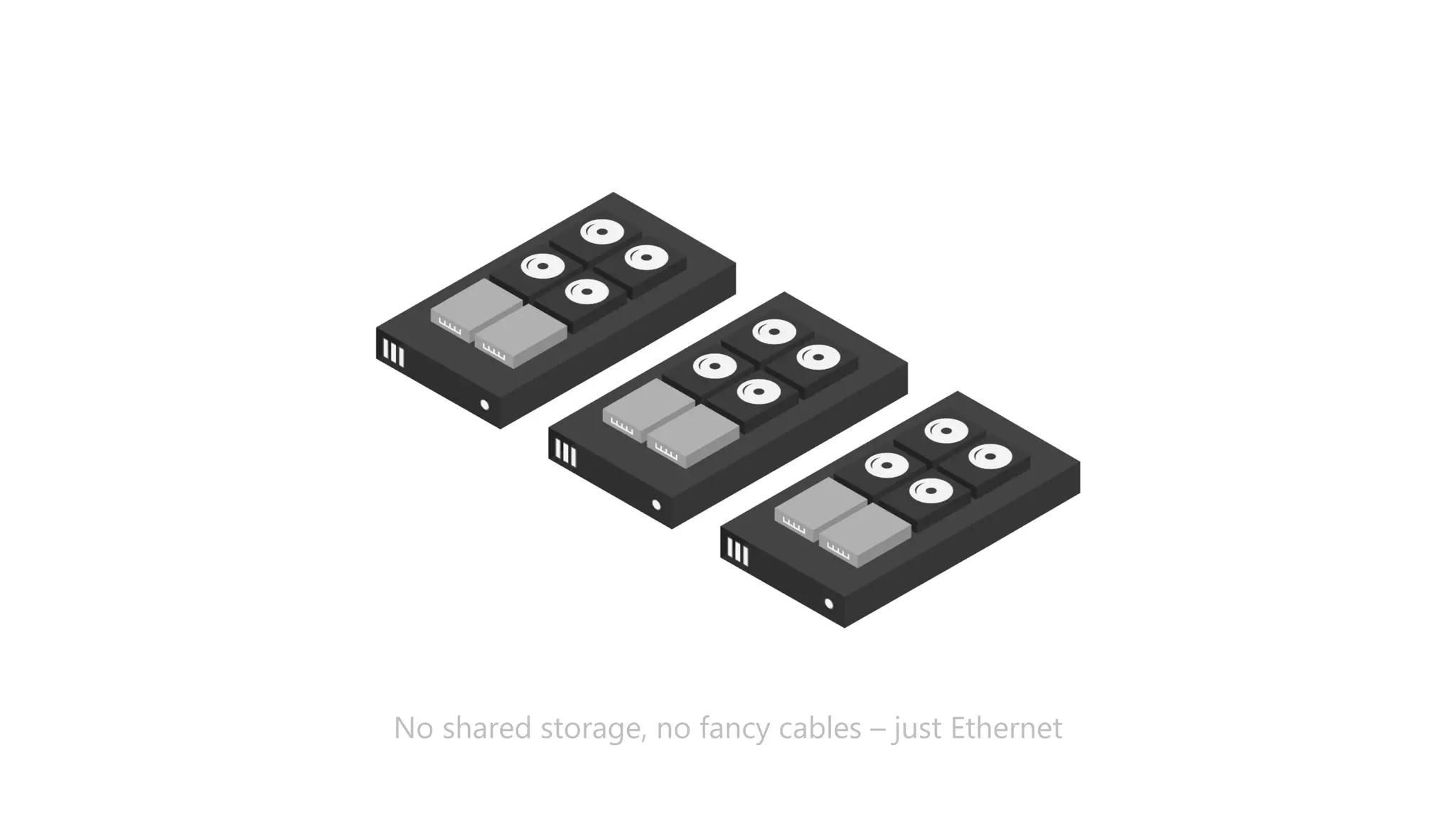

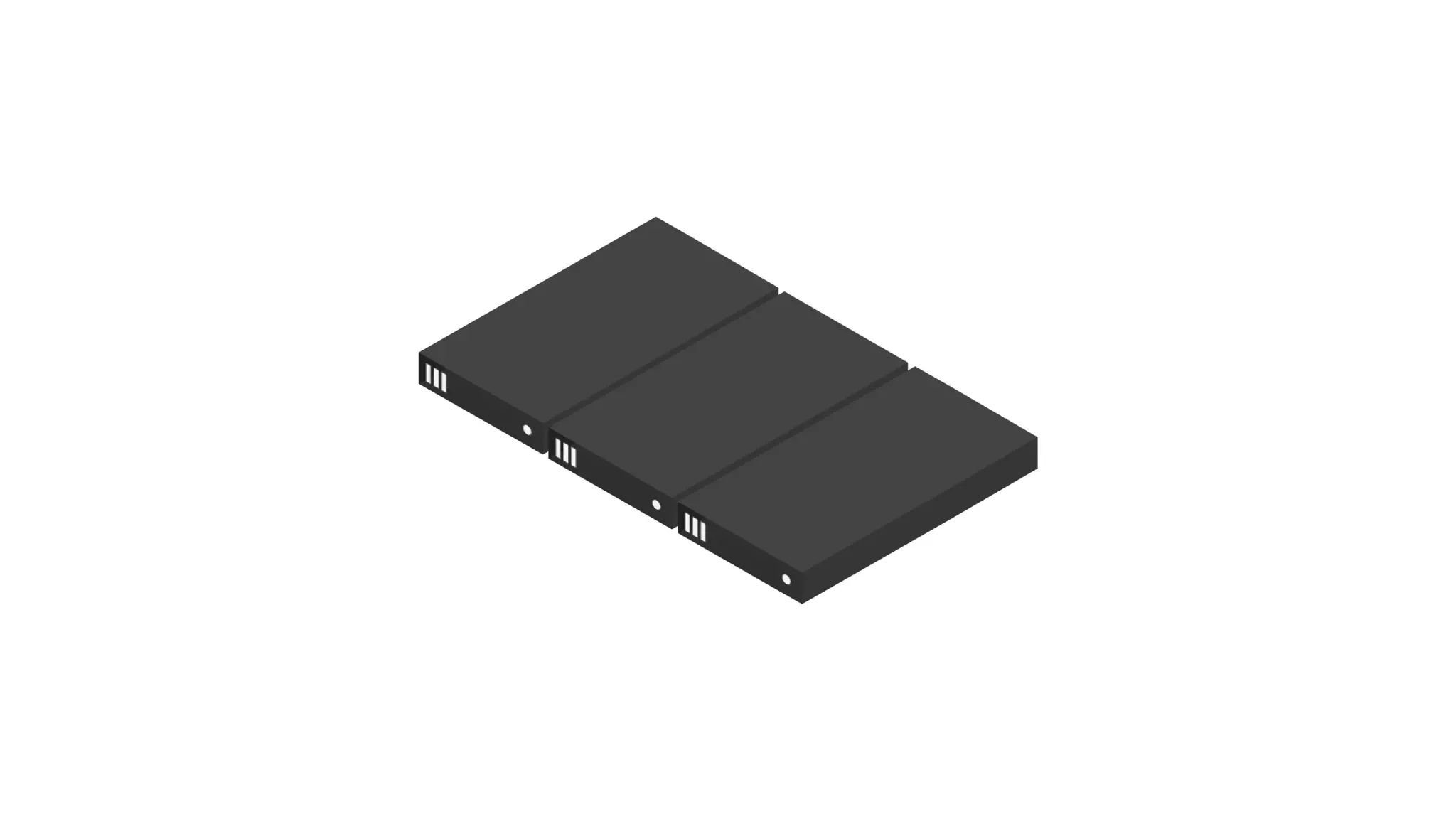

- 18. No shared storage,no fancy cables – just Ethernet

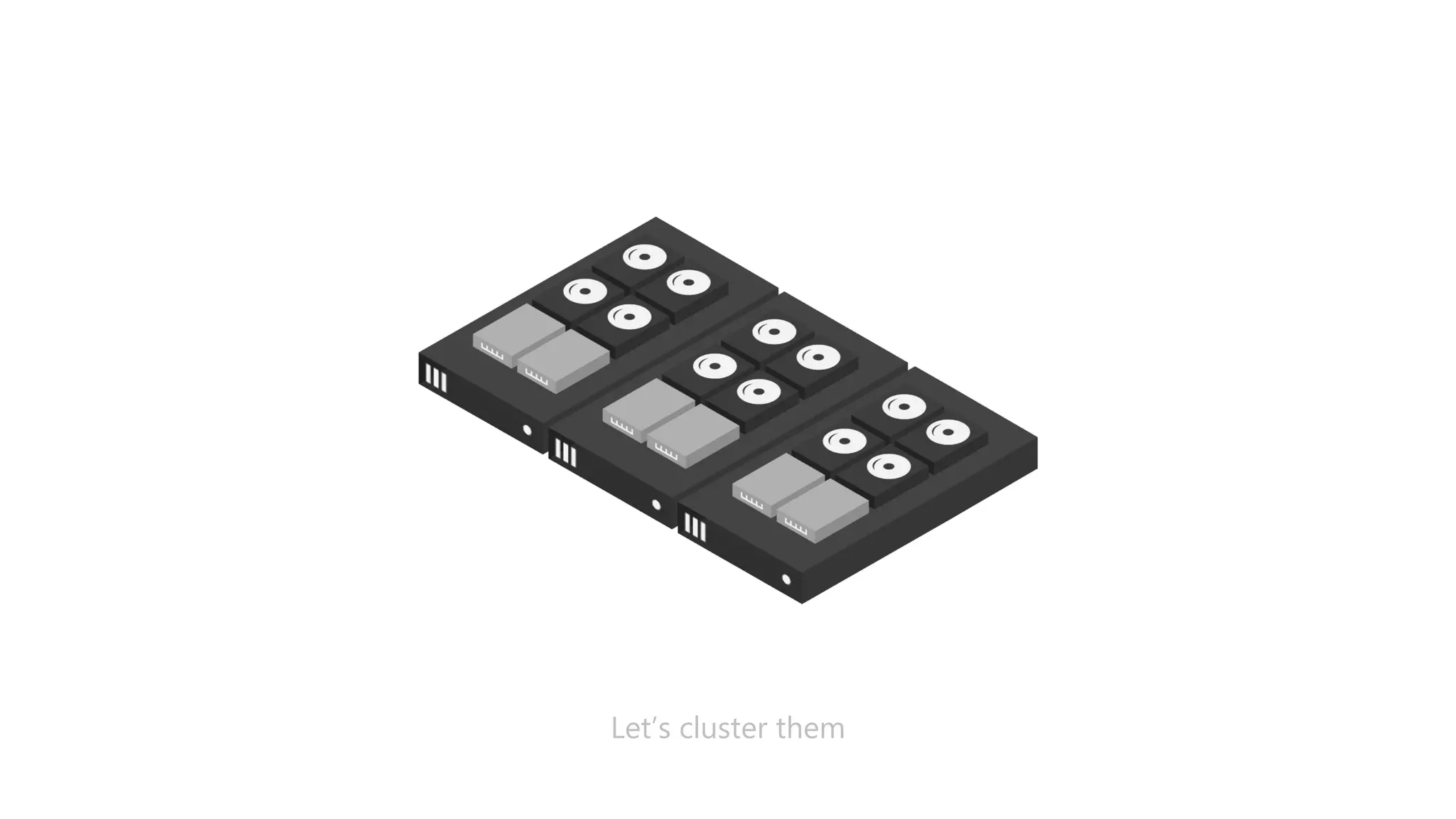

- 20.

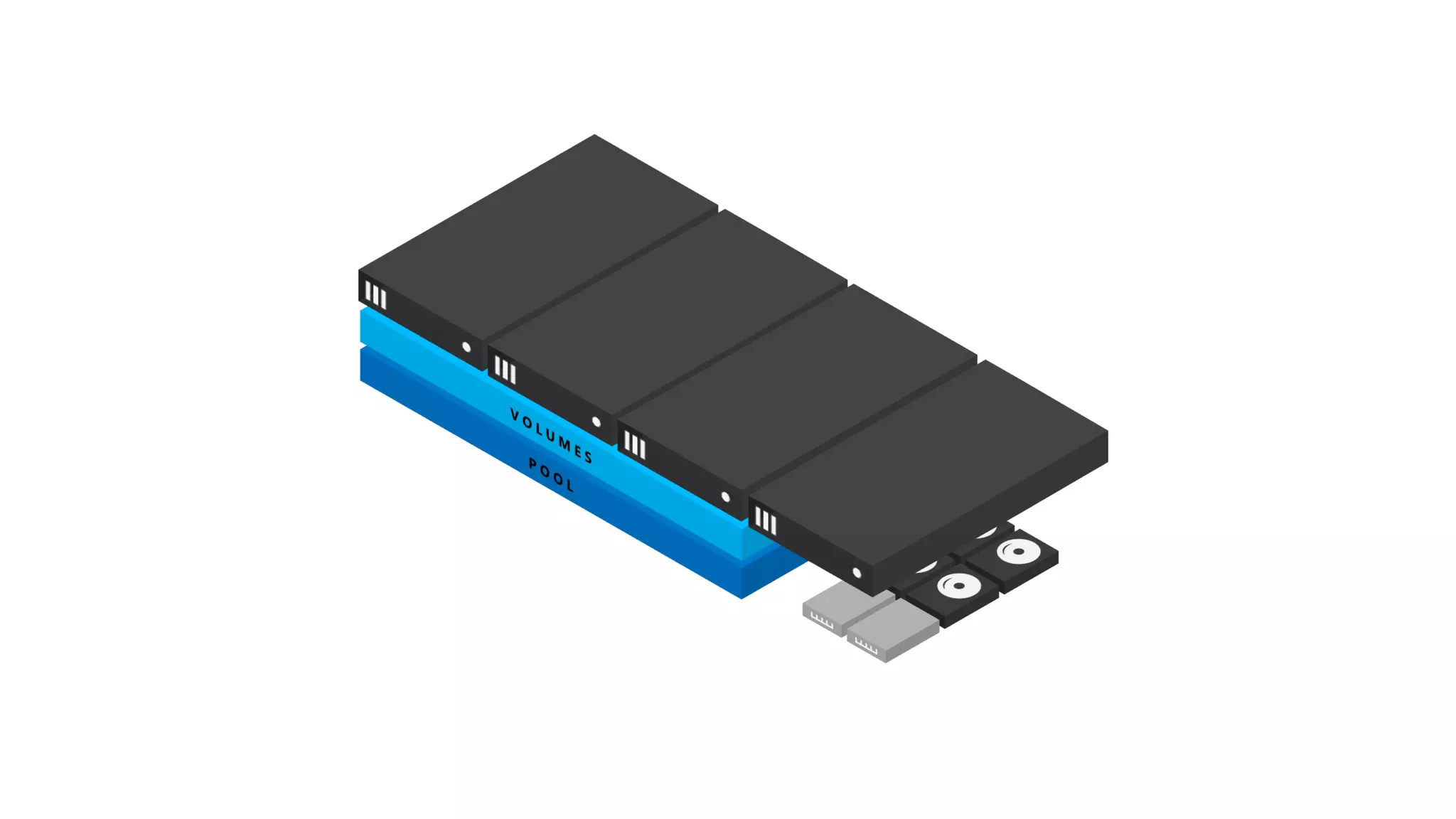

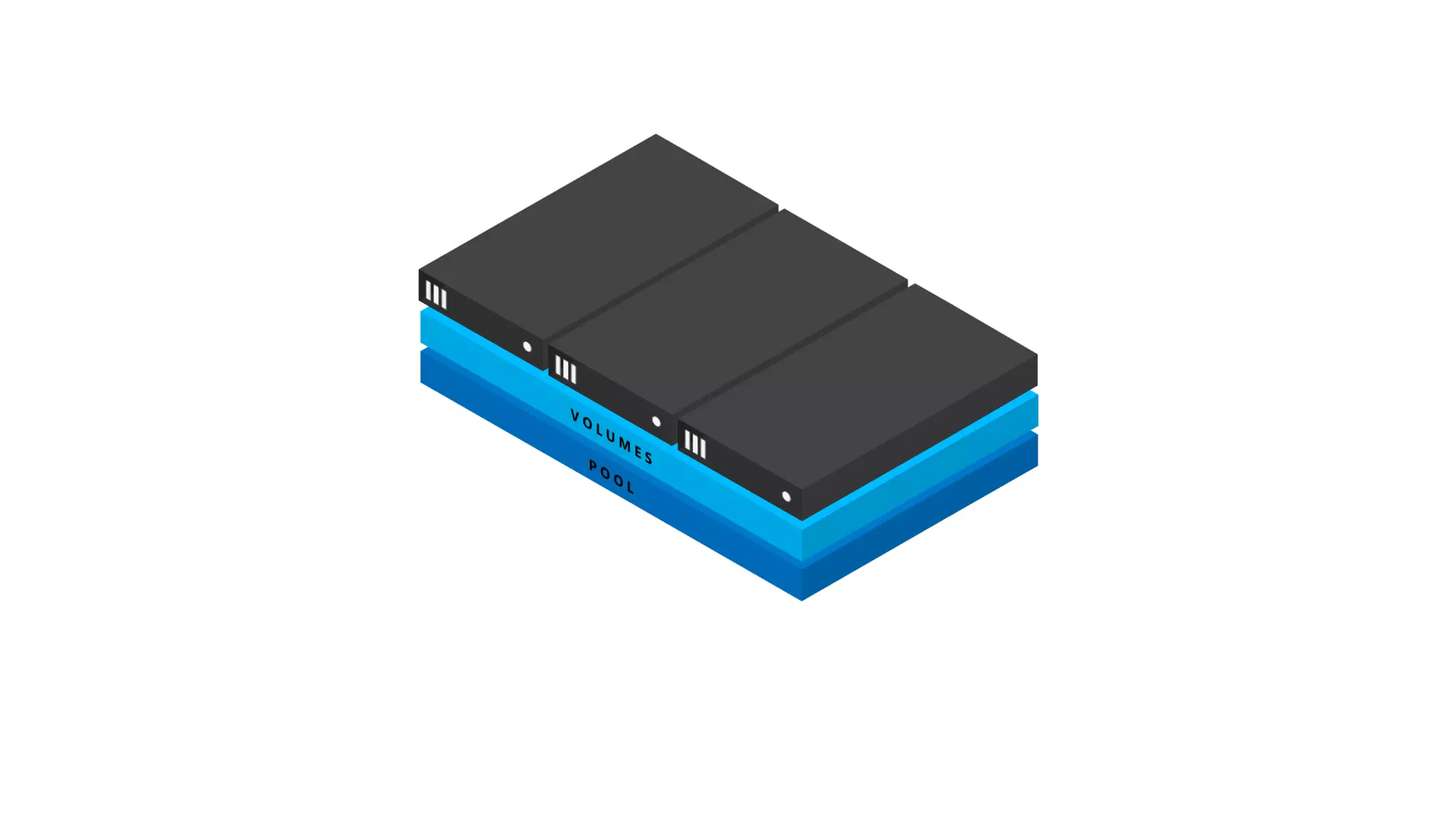

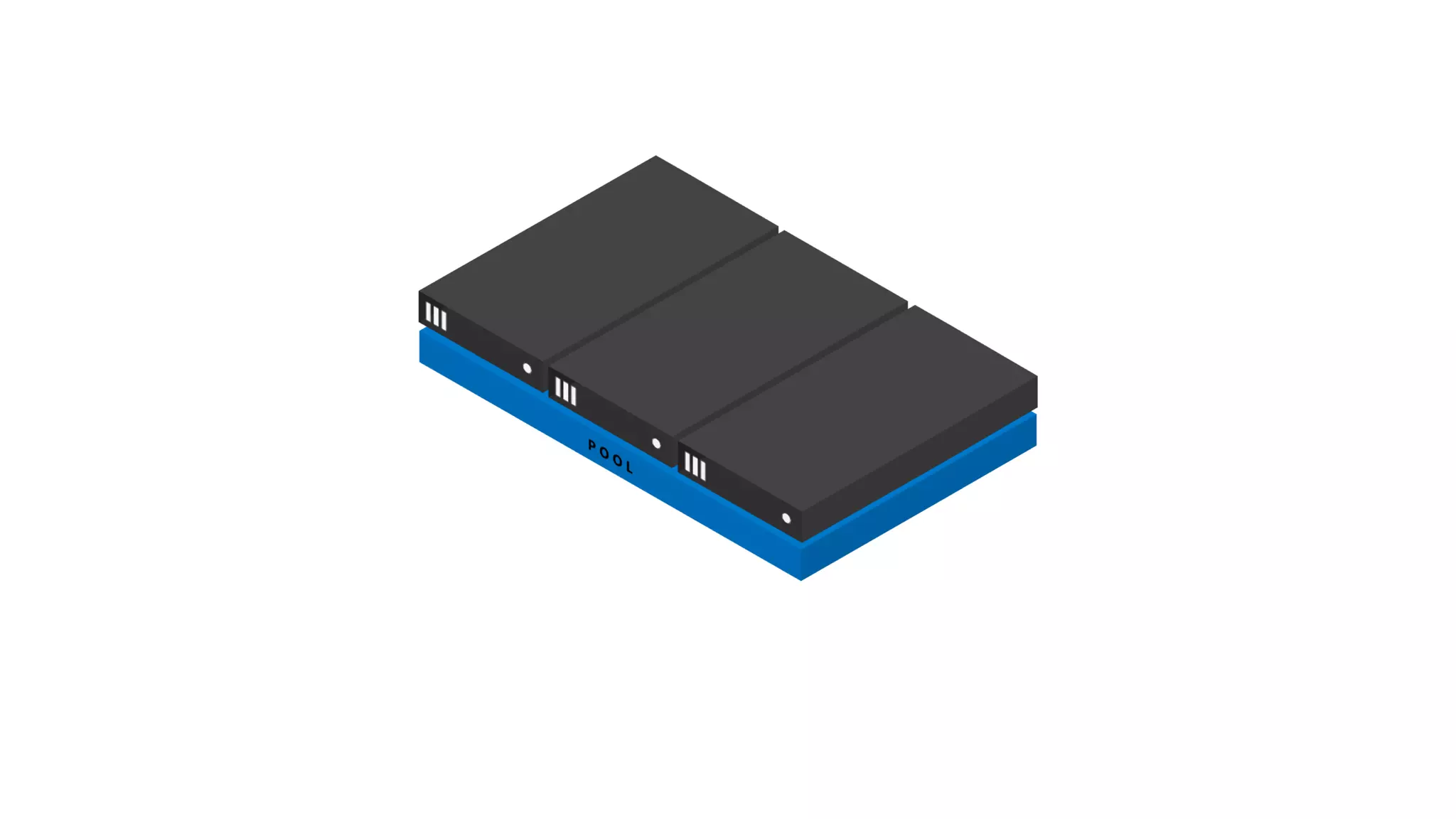

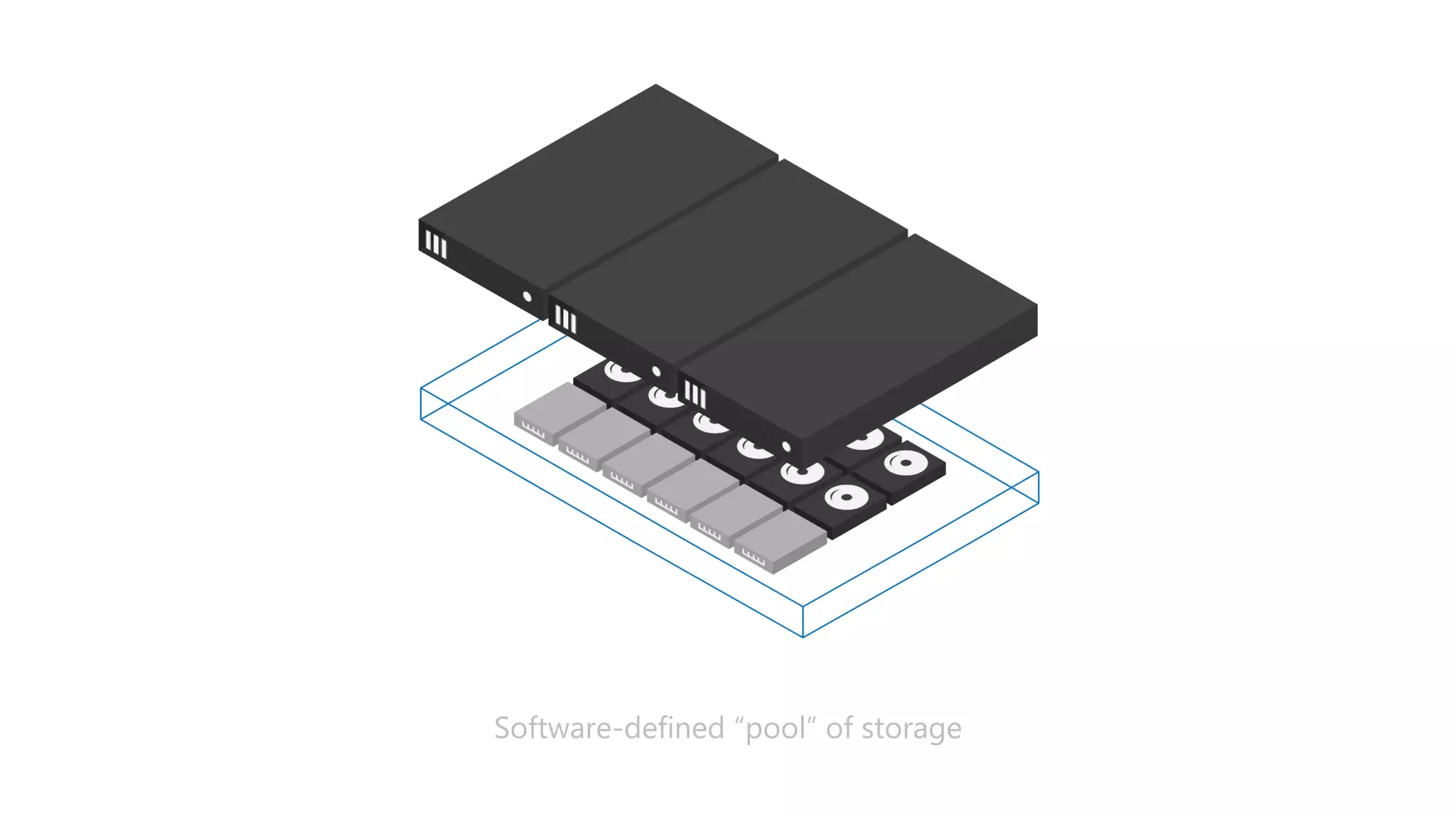

- 22. Software-defined “pool” ofstorage
- 24. We’re ready tocreate volumes!

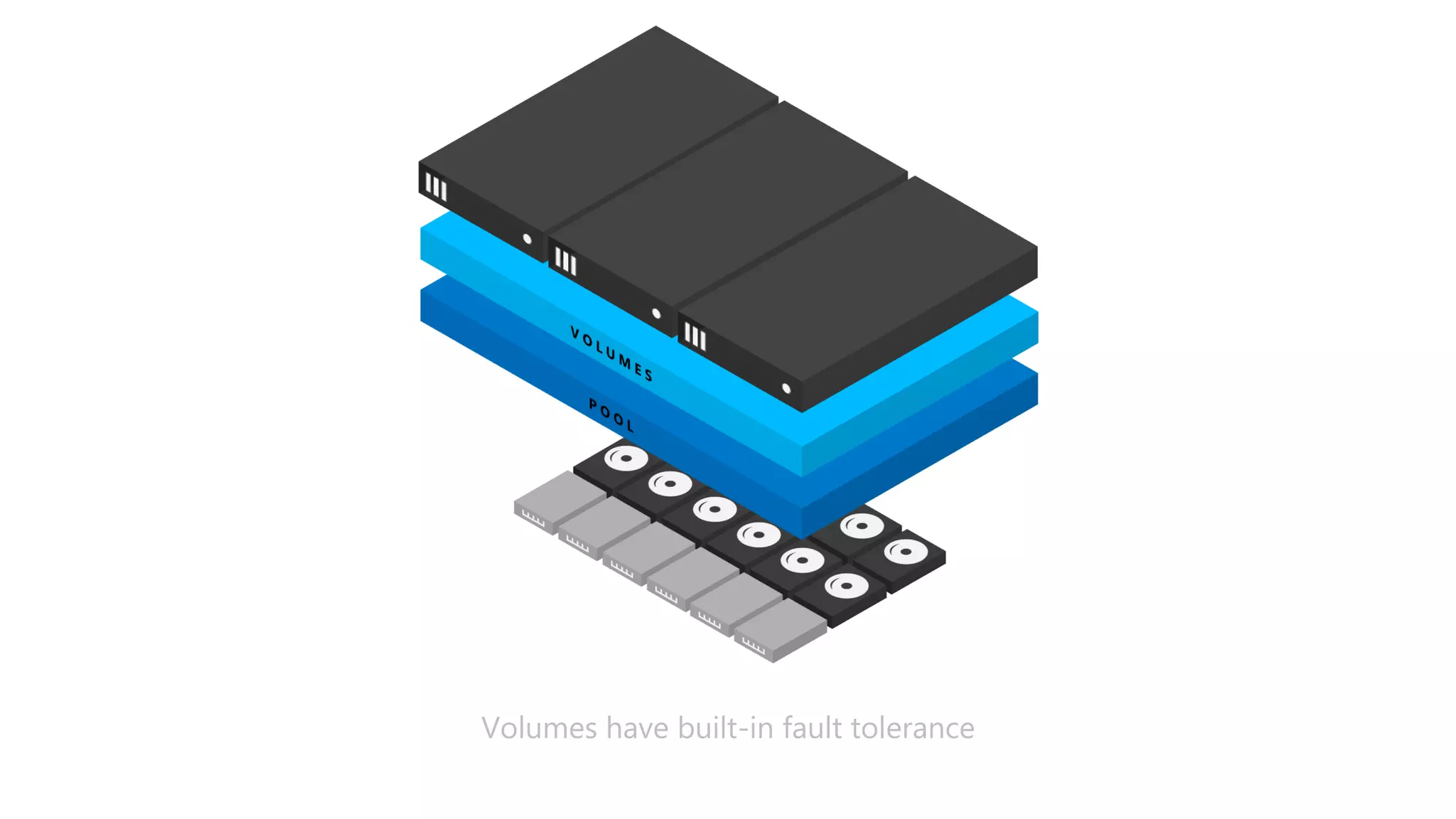

- 26. Volumes have built-infault tolerance
- 27.

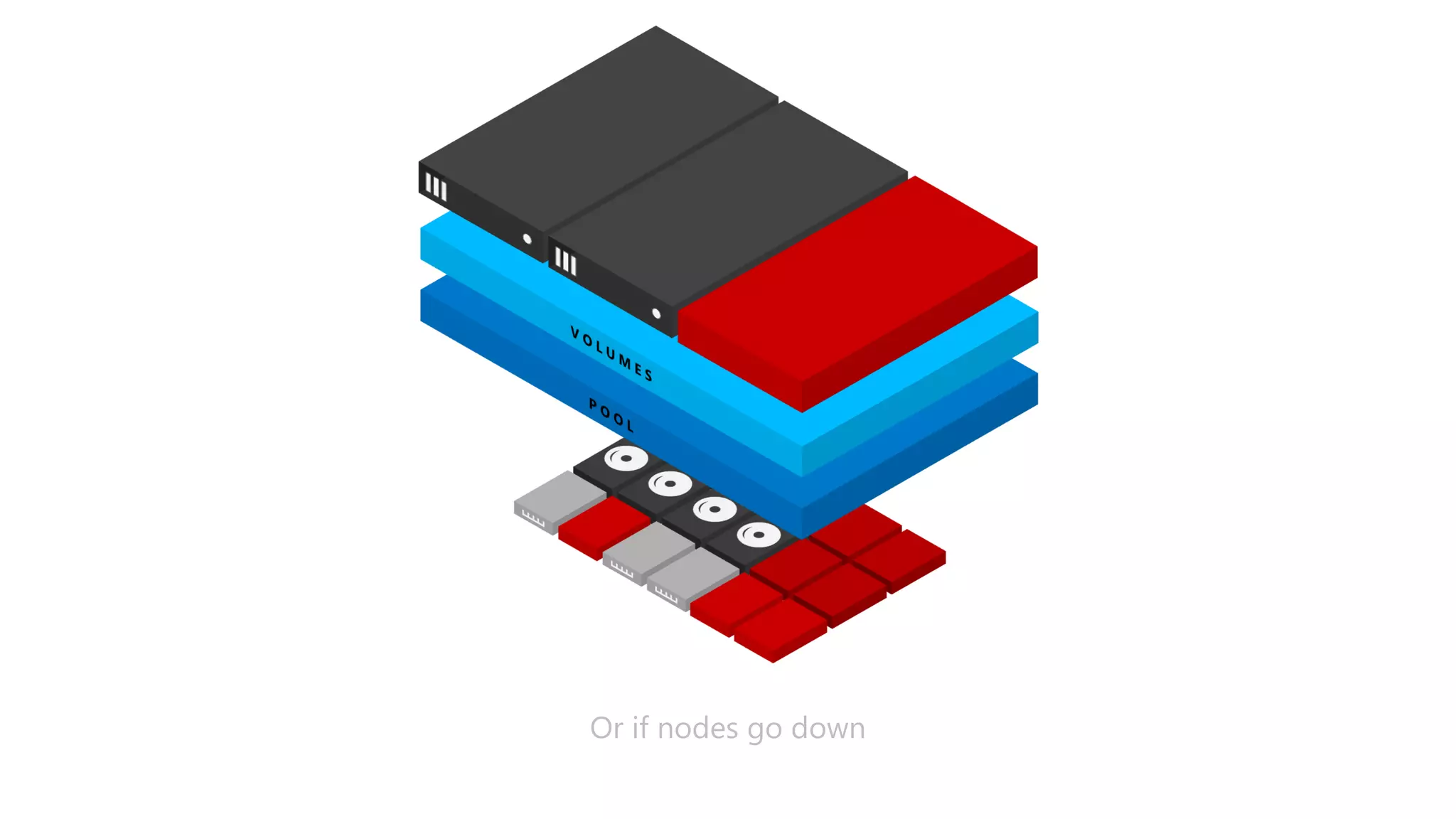

- 28. Or if nodesgo down

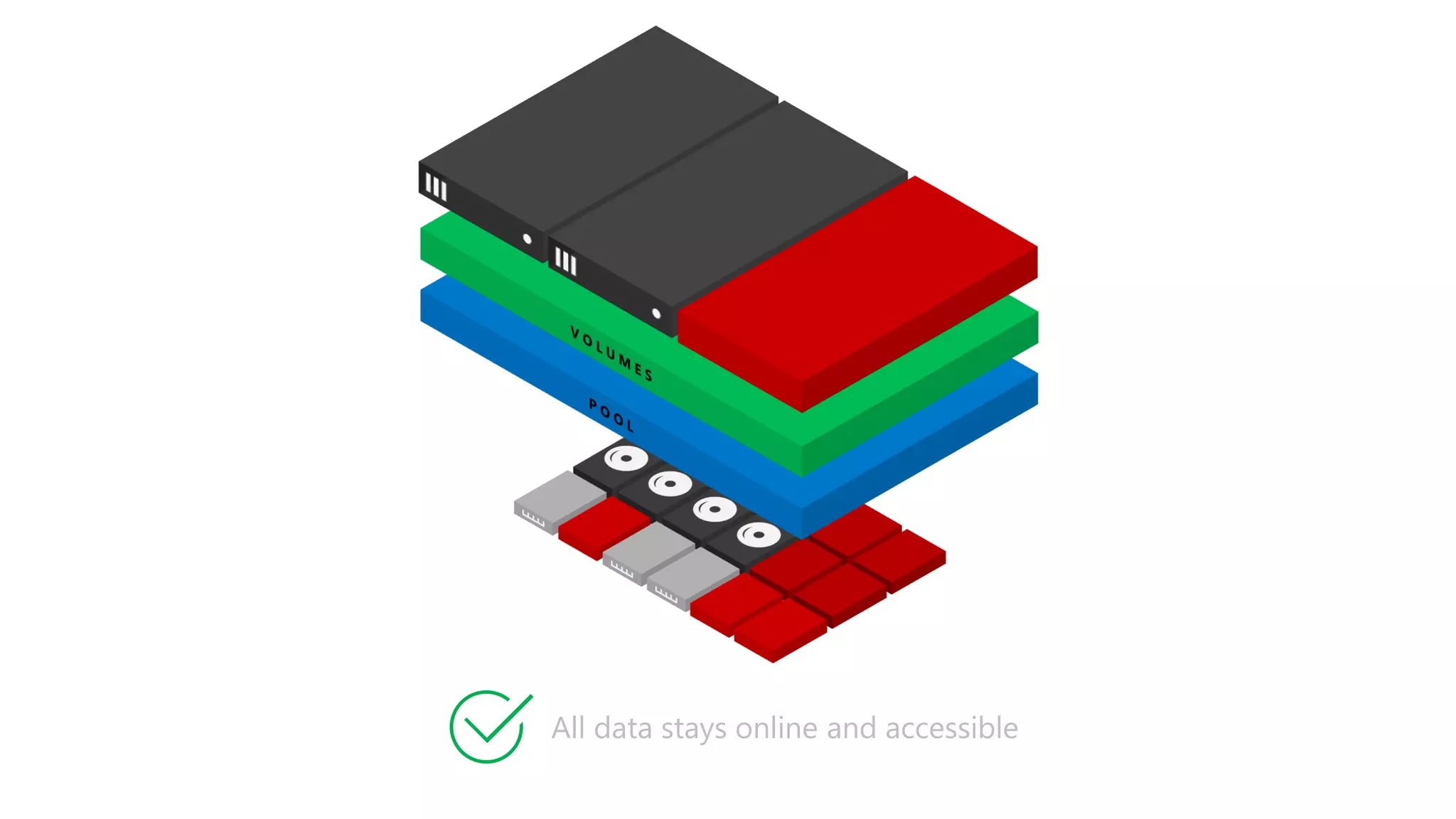

- 29. All data staysonline and accessible

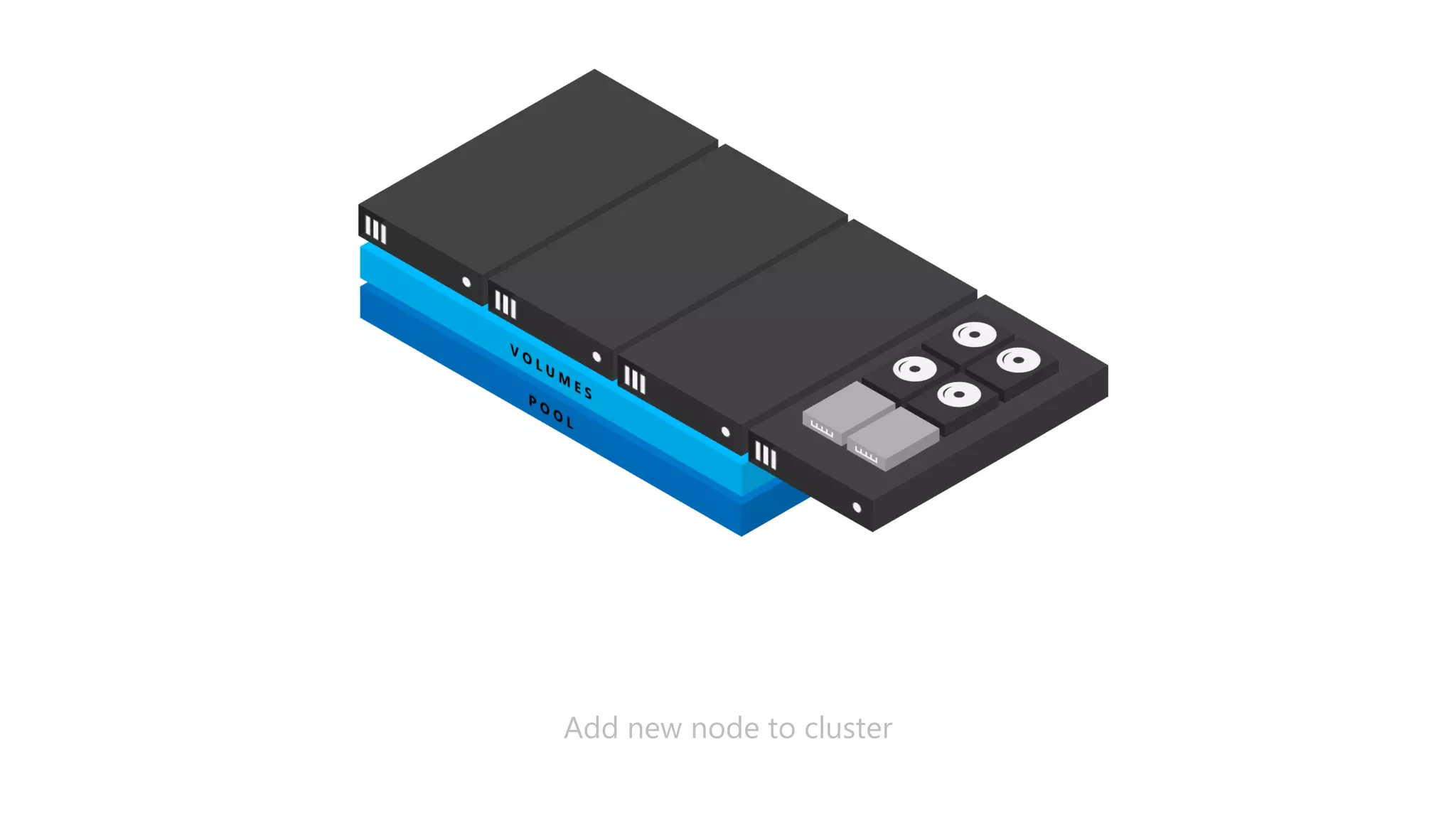

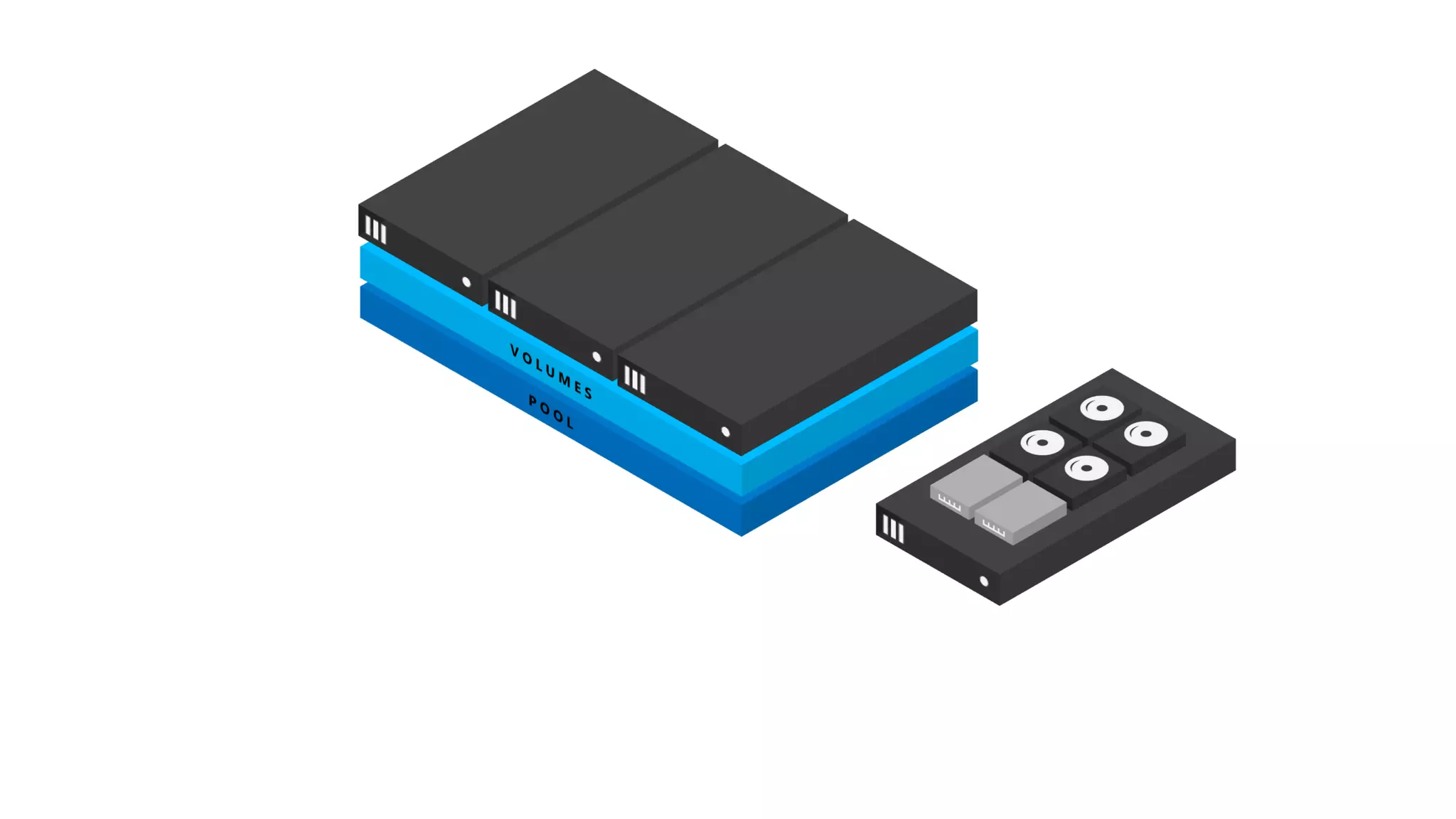

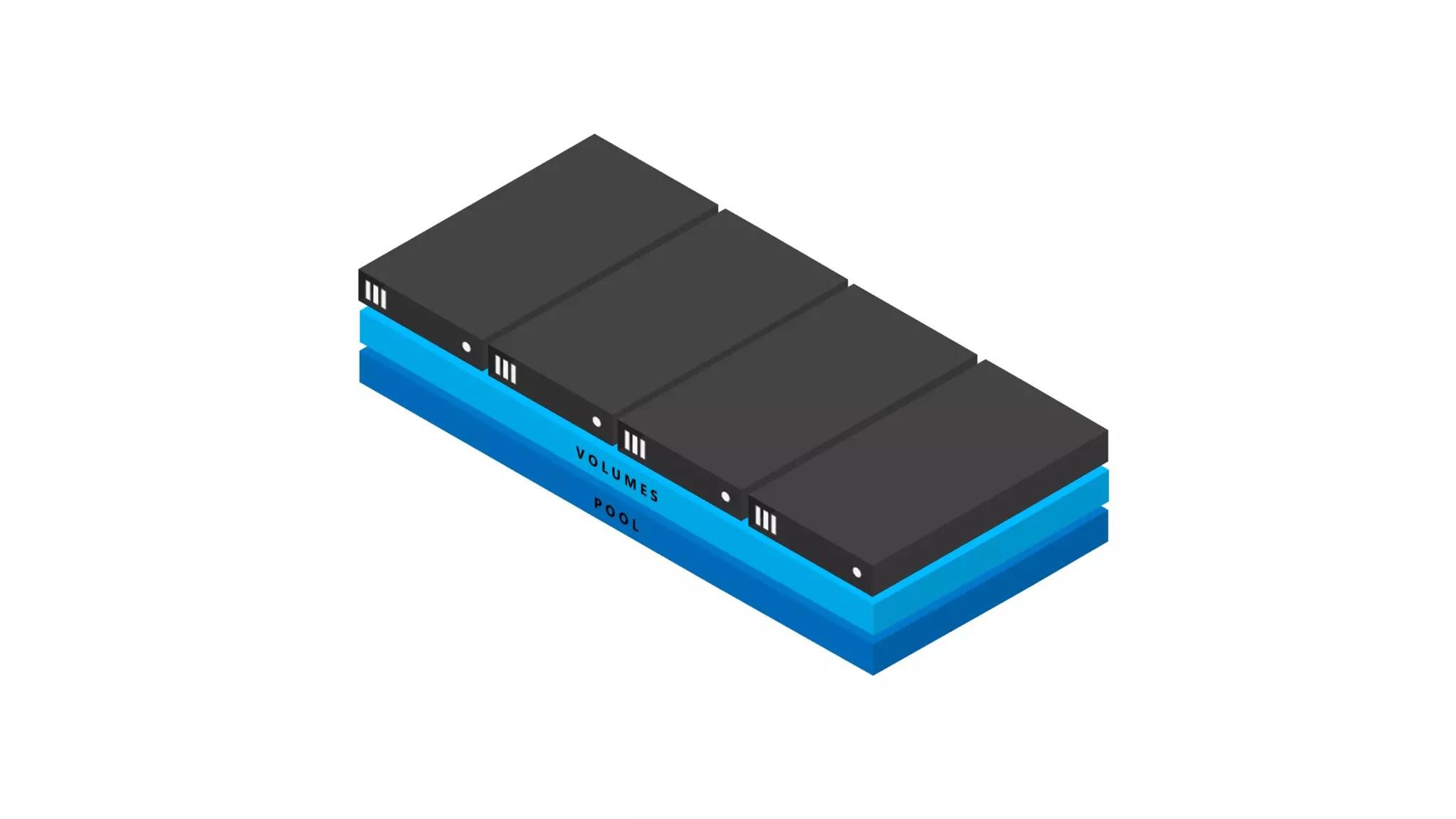

- 32. Add new nodeto cluster
- 35. Deployment Modes SMB3 FileShares Hyper-Converged Scale-Out File Server (SoFS)

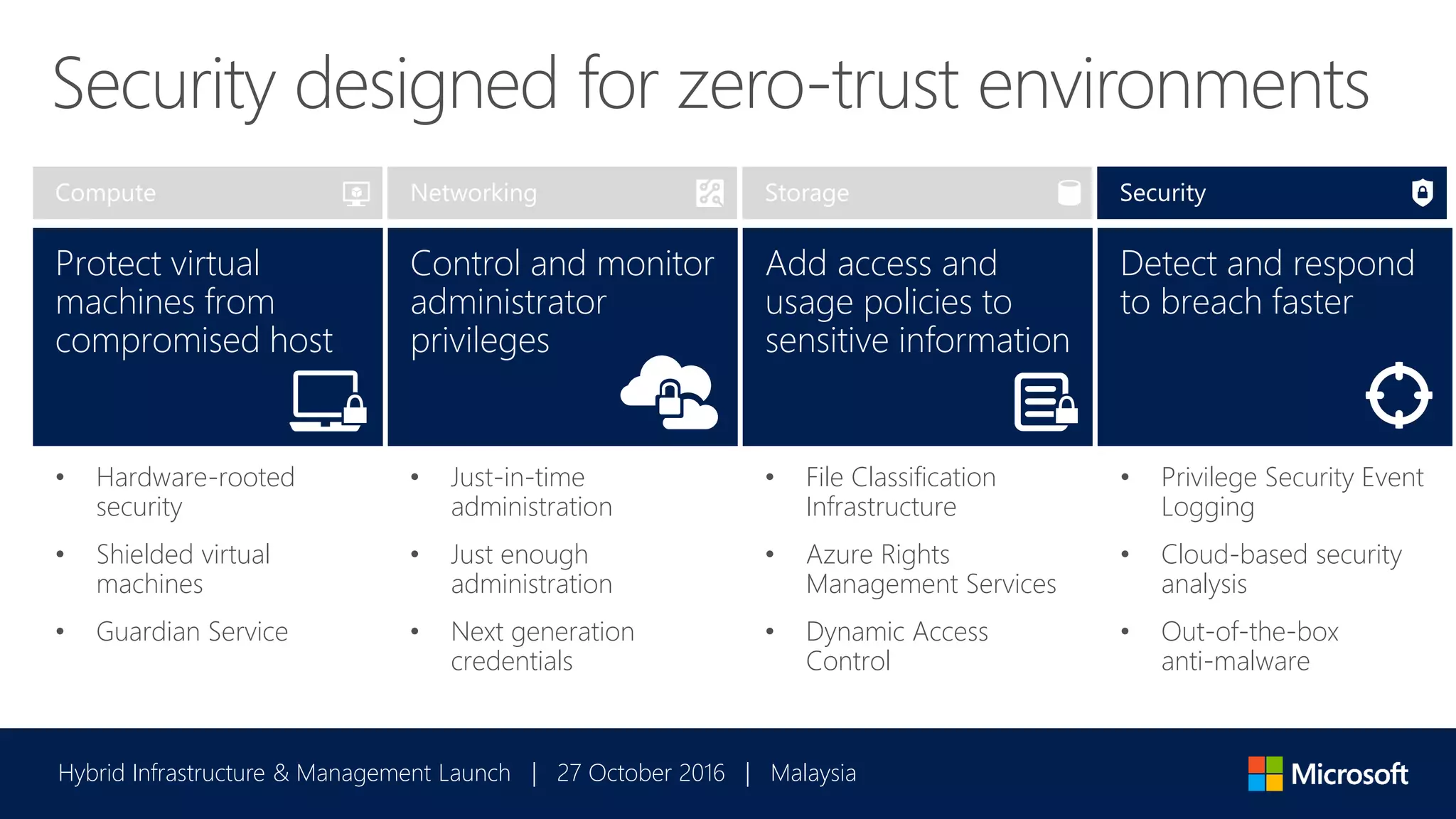

- 37. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Security designed for zero-trust environments Control and monitor administrator privileges Detect and respond to breach faster Add access and usage policies to sensitive information Protect virtual machines from compromised host • Hardware-rooted security • Shielded virtual machines • Guardian Service • Just-in-time administration • Just enough administration • Next generation credentials • File Classification Infrastructure • Azure Rights Management Services • Dynamic Access Control • Privilege Security Event Logging • Cloud-based security analysis • Out-of-the-box anti-malware

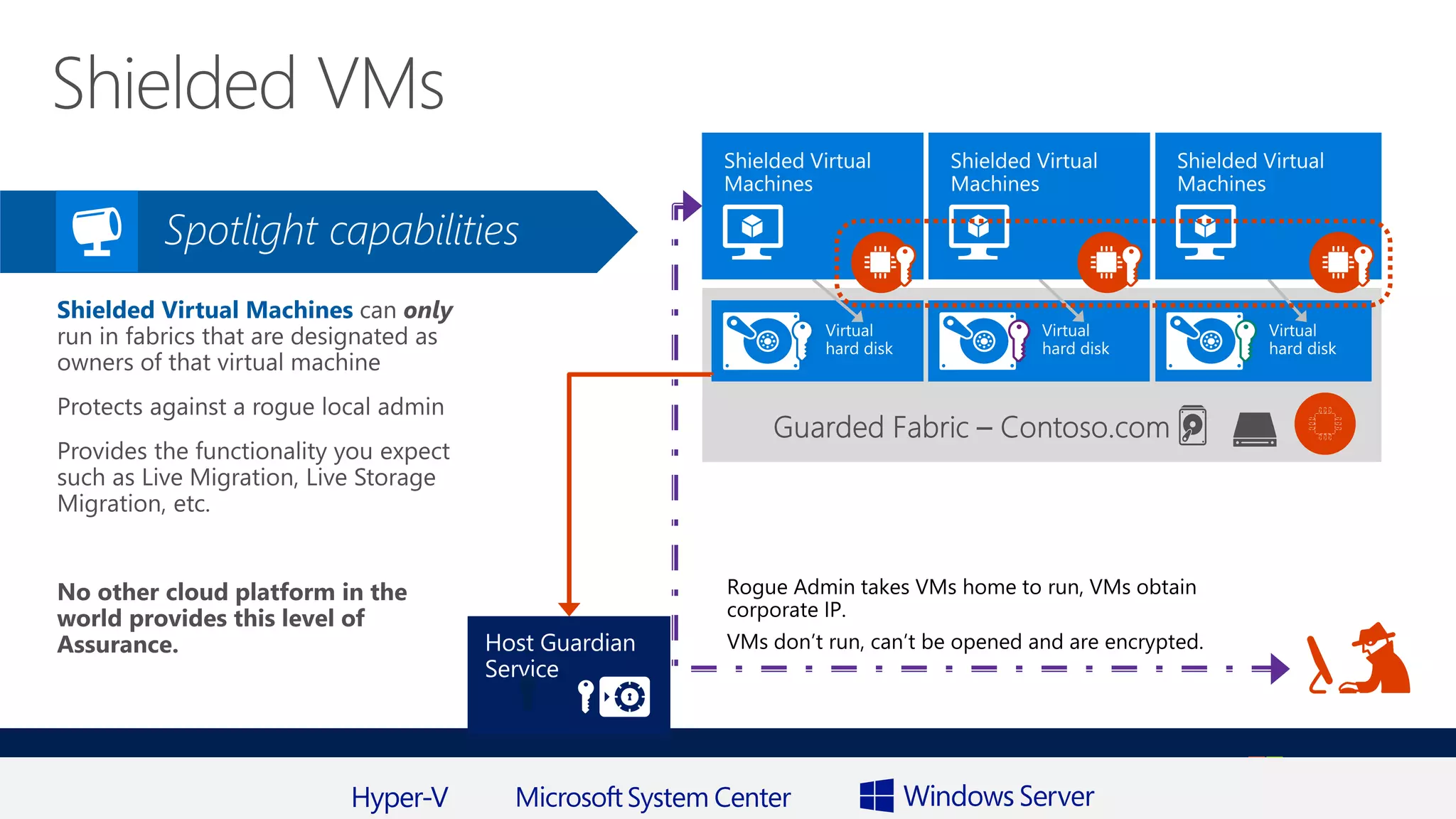

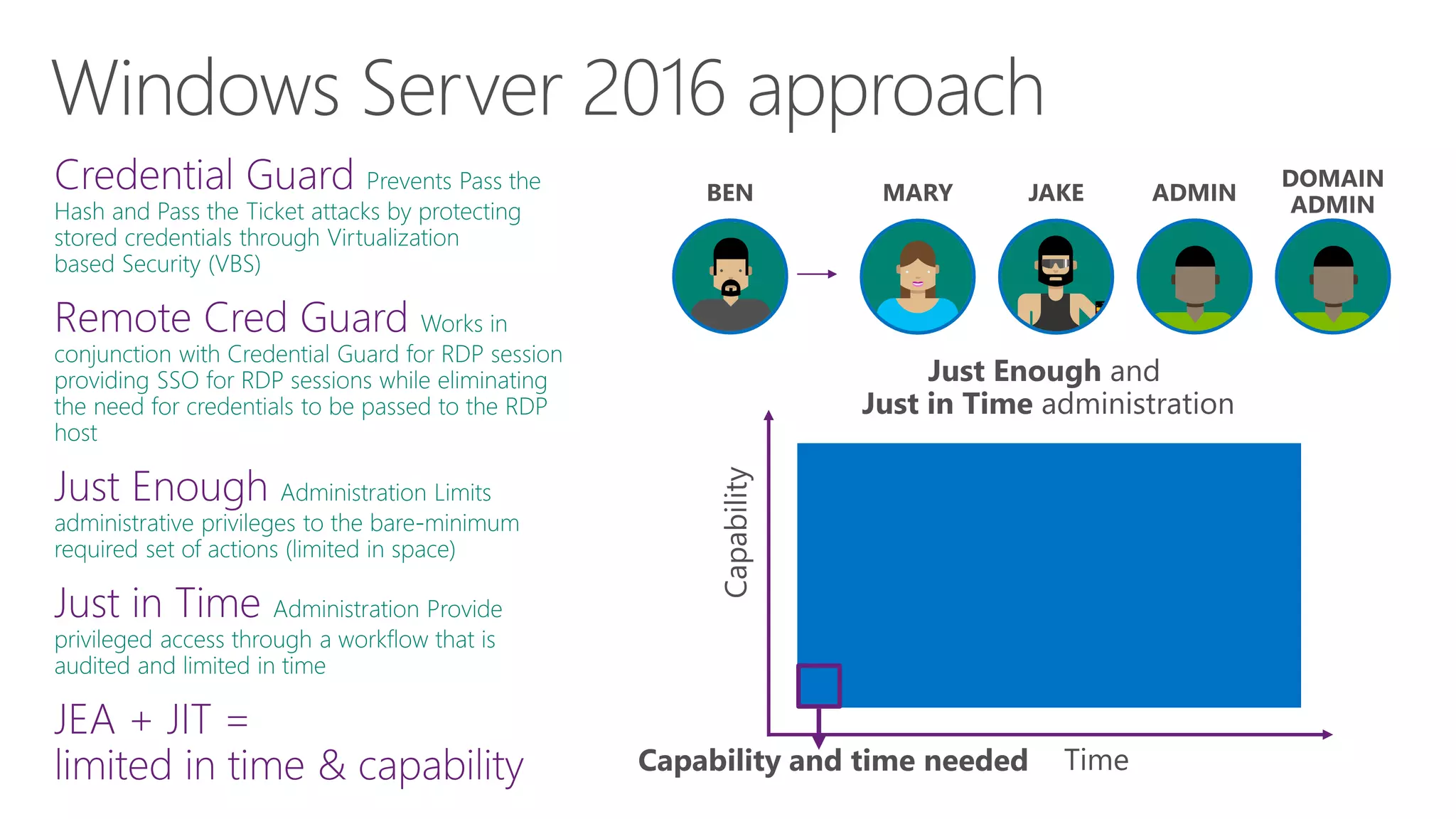

- 41. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Rogue Admin takes VMs home to run, VMs obtain corporate IP. VMs don’t run, can’t be opened and are encrypted.

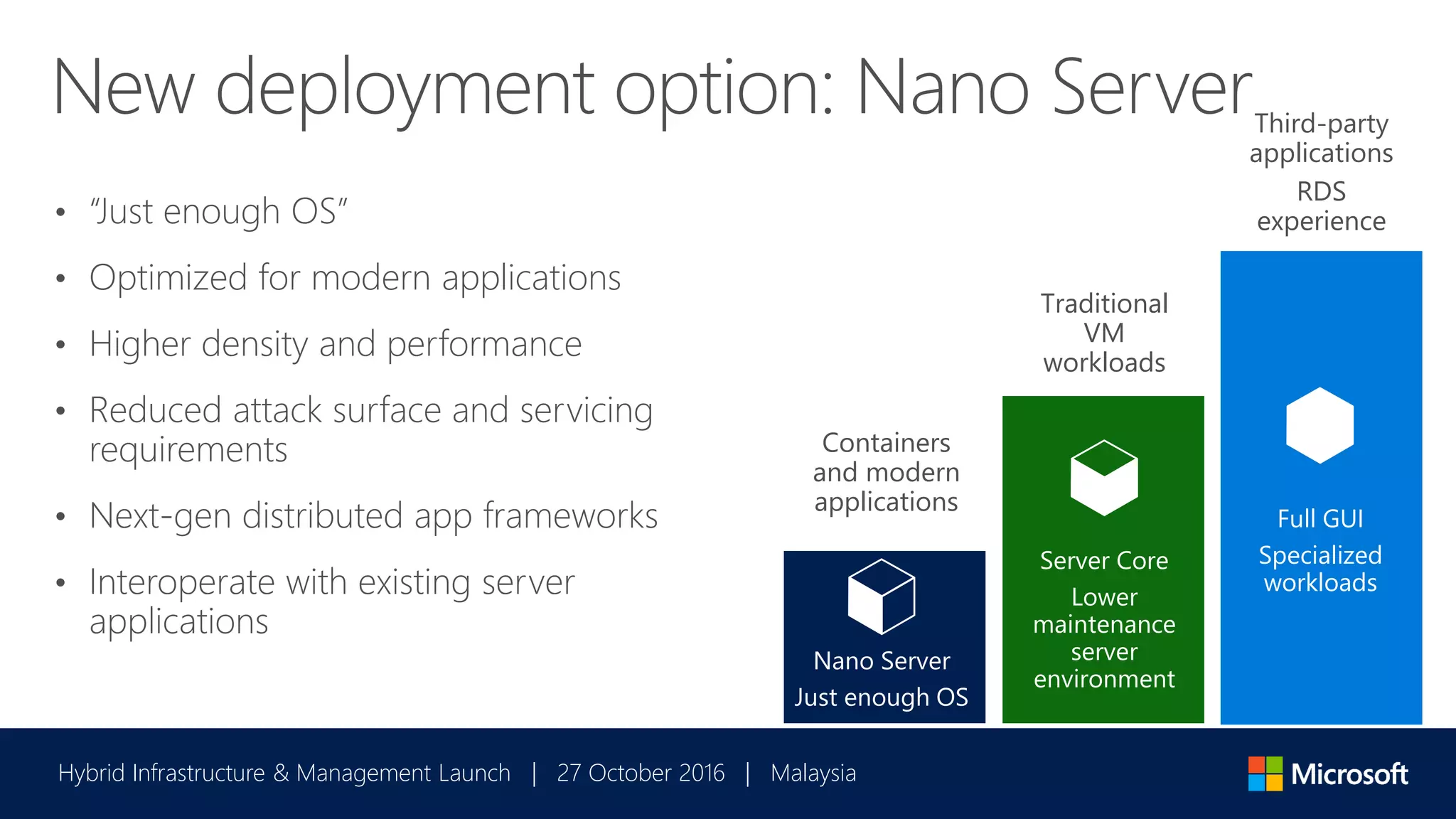

- 43. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia New deployment option: Nano Server • “Just enough OS” • Optimized for modern applications • Higher density and performance • Reduced attack surface and servicing requirements • Next-gen distributed app frameworks • Interoperate with existing server applications Containers and modern applications Full GUI Specialized workloads Third-party applications RDS experience Server Core Lower maintenance server environment Traditional VM workloads Nano Server Just enough OS

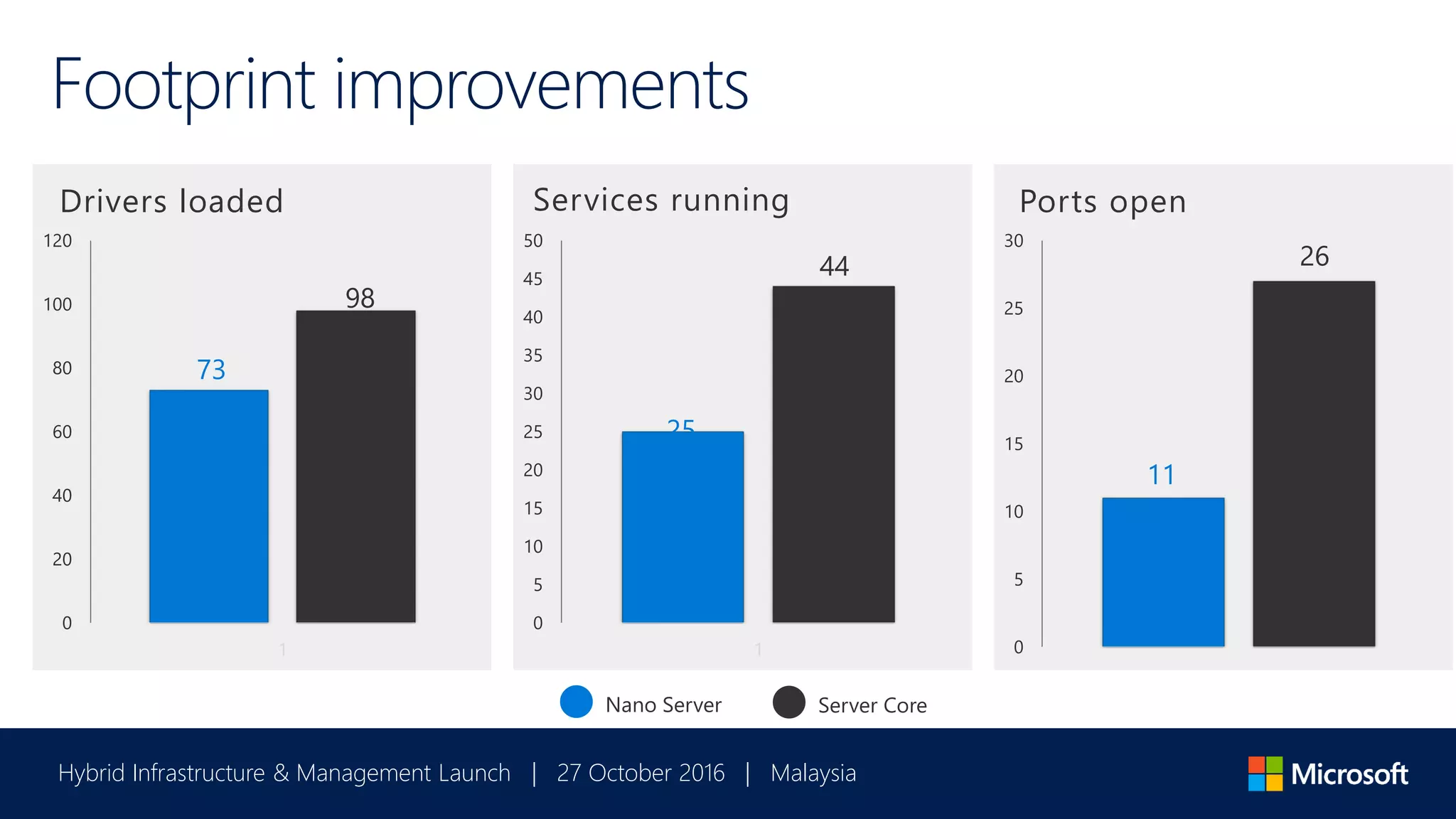

- 44. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Footprint improvements 0 5 10 15 20 25 30 Ports open 0 5 10 15 20 25 30 35 40 45 50 1 Services running 0 20 40 60 80 100 120 1 Drivers loaded 11 26 25 44 73 98 Nano Server Server Core

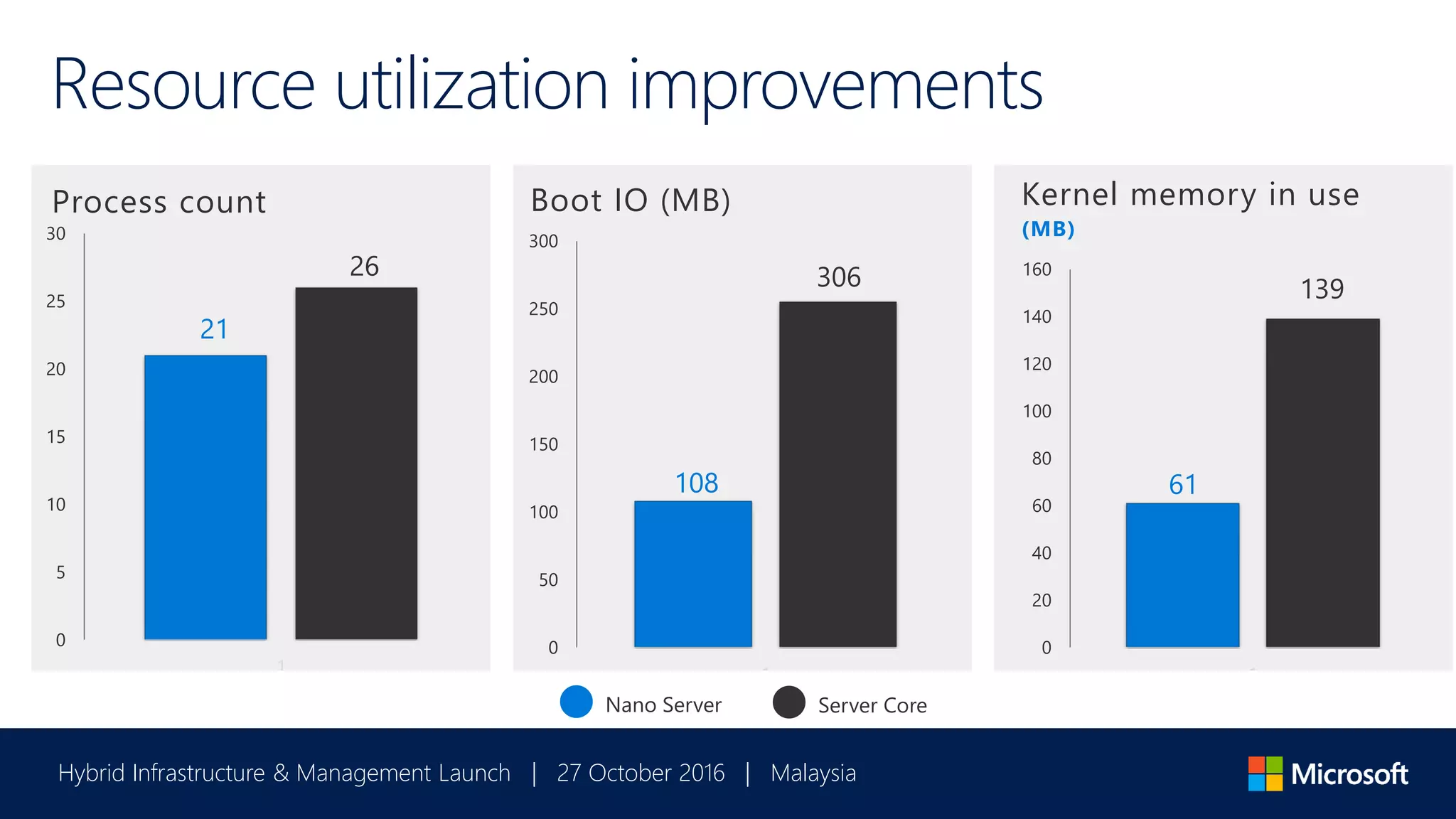

- 45. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia 0 50 100 150 200 250 300 1 Boot IO (MB) Resource utilization improvements 0 5 10 15 20 25 30 1 Process count 0 20 40 60 80 100 120 140 160 1 Kernel memory in use (MB) 26 21 61 139 108 306 Nano Server Server Core

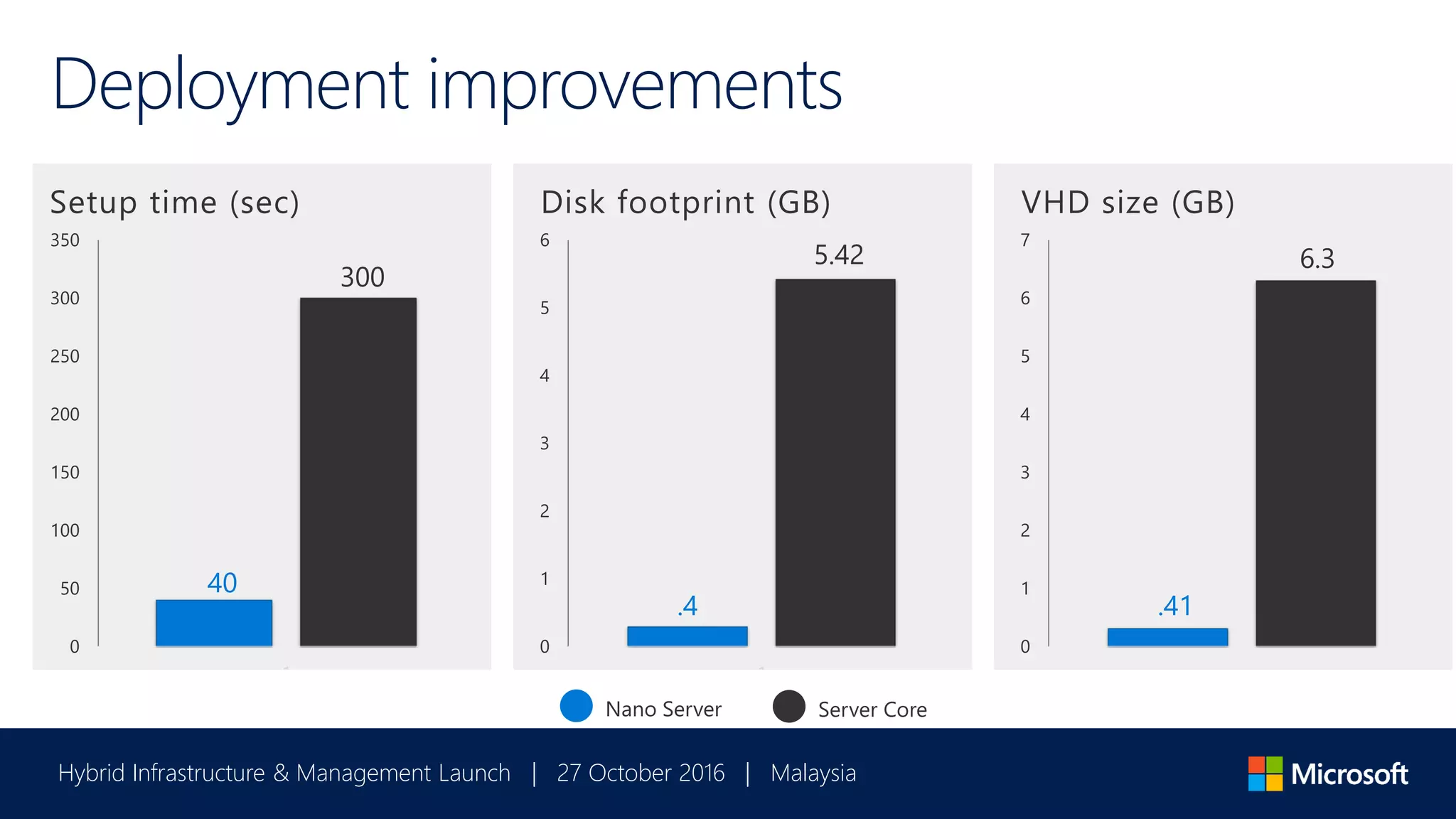

- 46. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia 0 50 100 150 200 250 300 350 1 Setup time (sec) 0 1 2 3 4 5 6 1 Disk footprint (GB) Deployment improvements 0 1 2 3 4 5 6 7 VHD size (GB) .41 6.3 40 300 5.42 .4 Nano Server Server Core

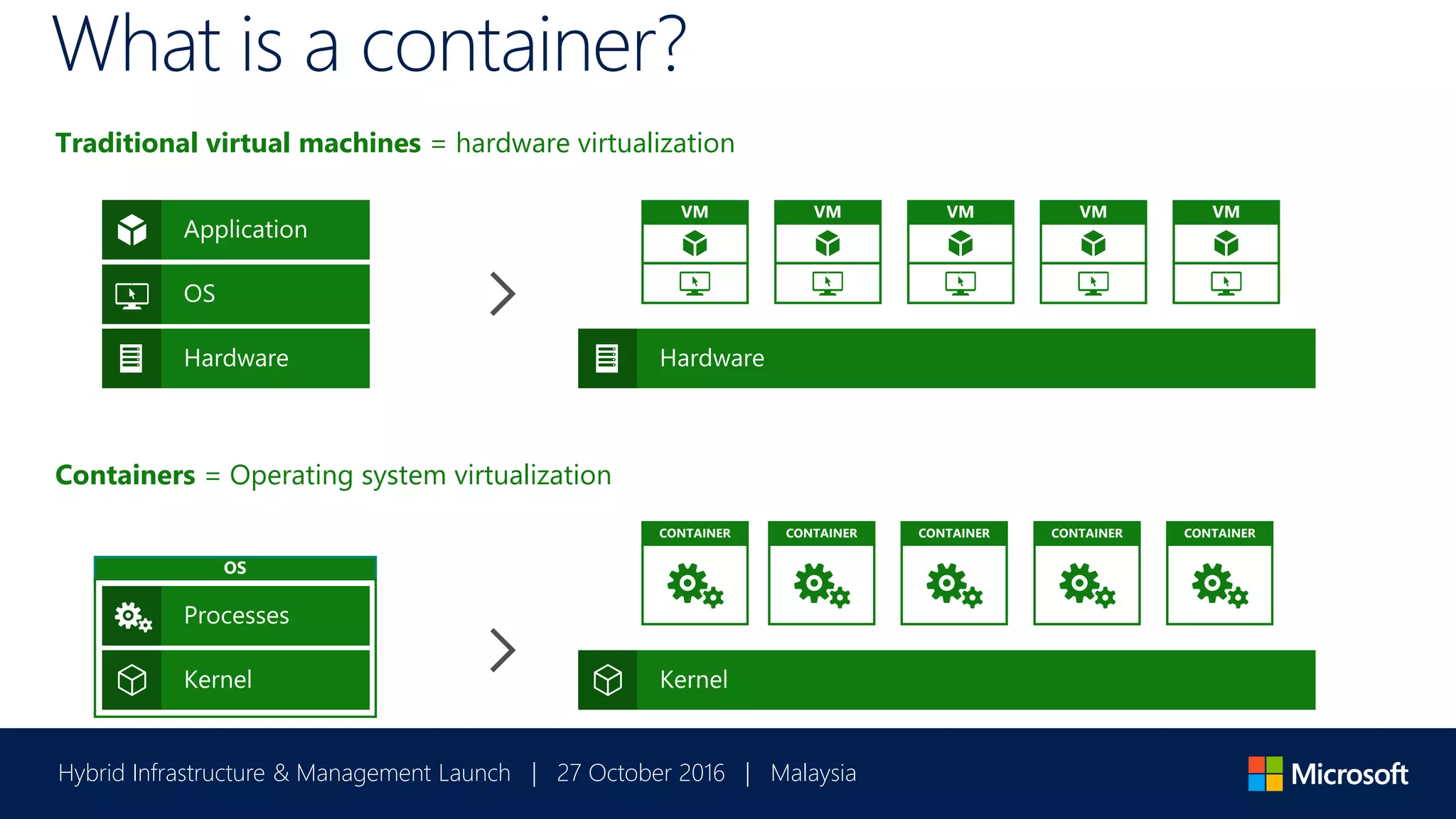

- 48. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia What is a container? Traditional virtual machines = hardware virtualization VM VM VM VM VM Containers = Operating system virtualization CONTAINER CONTAINER CONTAINER CONTAINER CONTAINER OS

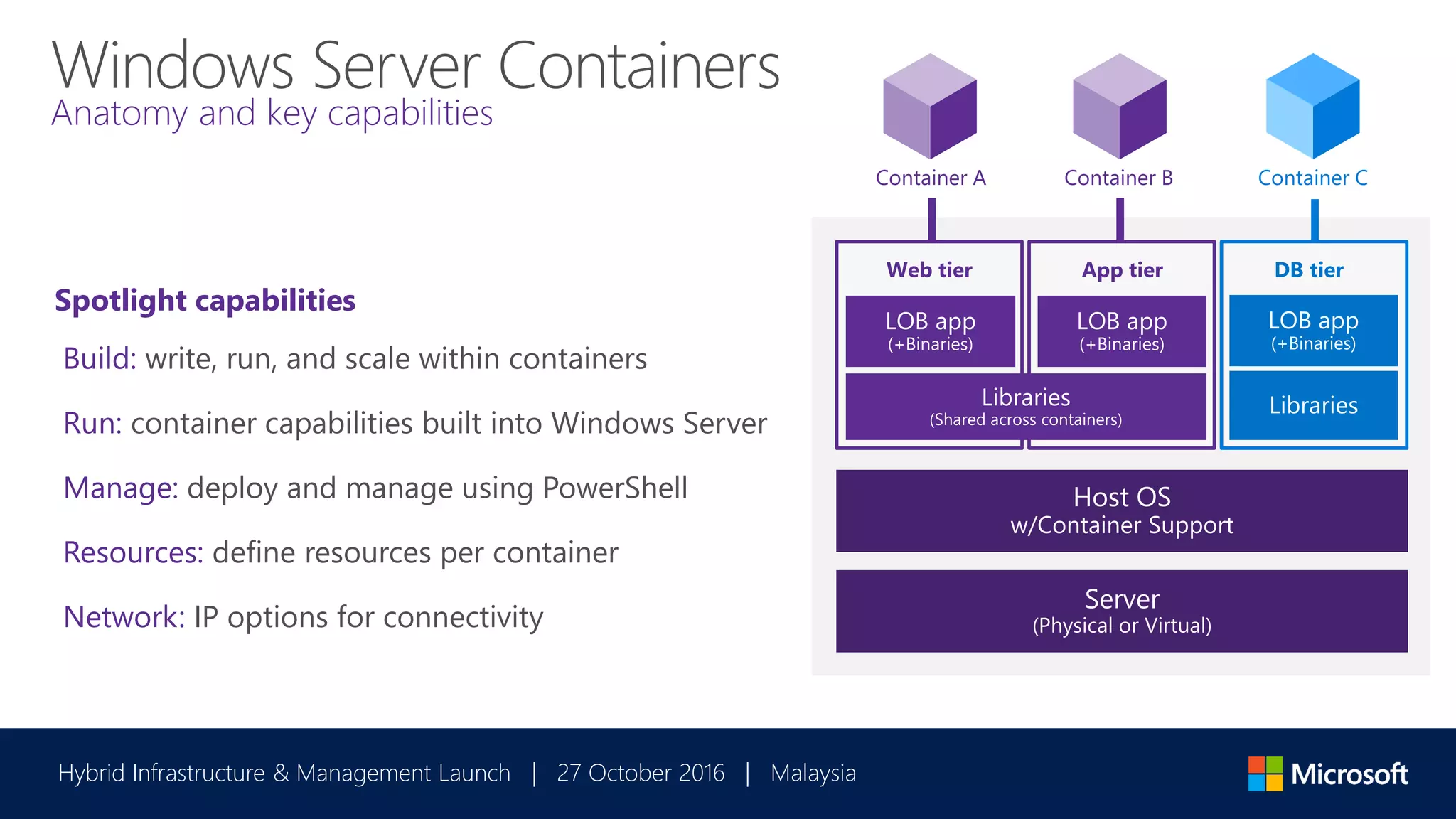

- 49. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Windows Server Containers Anatomy and key capabilities Build: write, run, and scale within containers Run: container capabilities built into Windows Server Manage: deploy and manage using PowerShell Resources: define resources per container Network: IP options for connectivity Spotlight capabilities Web tier App tier DB tier Container A Container B Container C

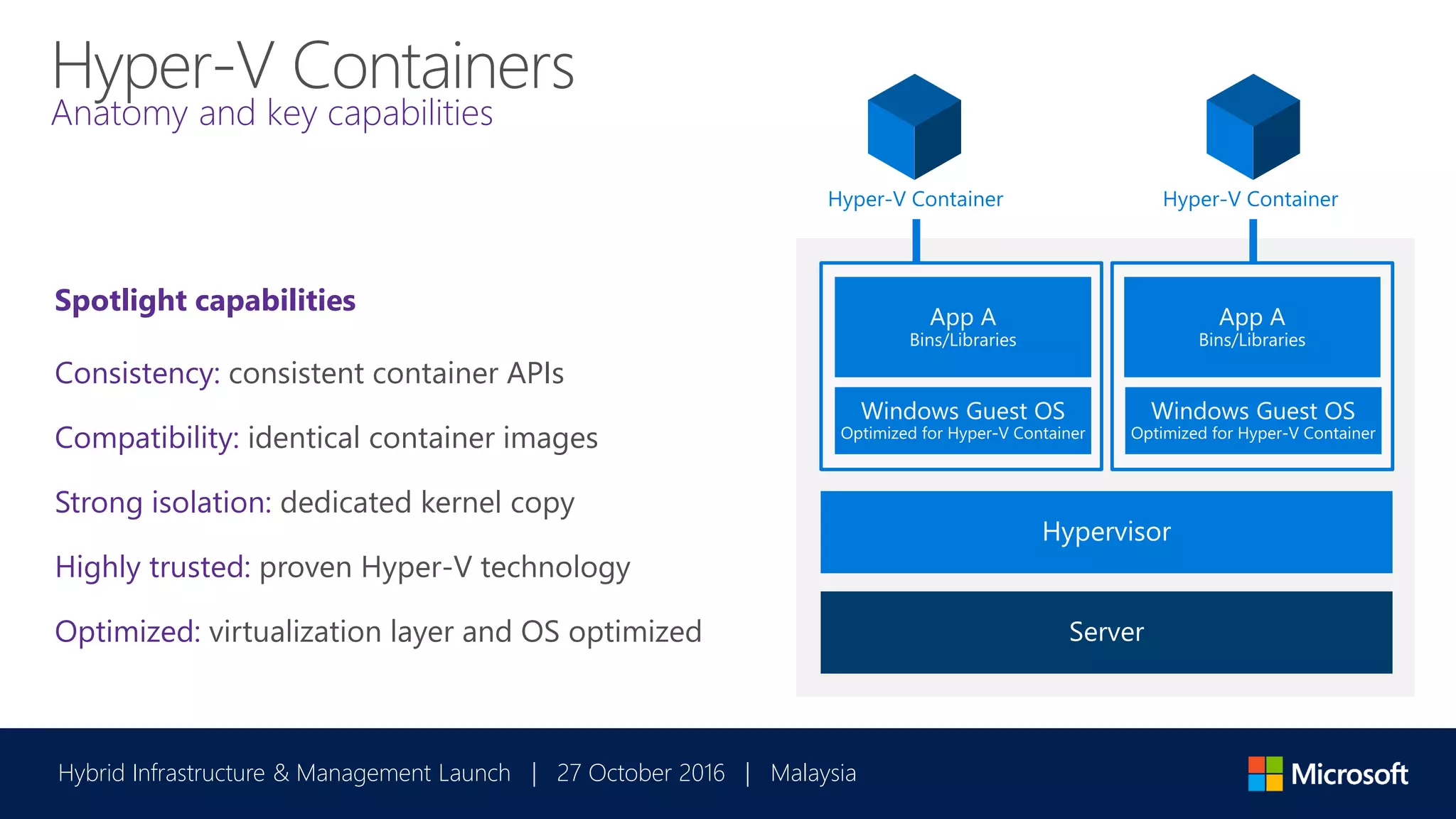

- 50. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Hyper-V Containers Anatomy and key capabilities Consistency: consistent container APIs Compatibility: identical container images Strong isolation: dedicated kernel copy Highly trusted: proven Hyper-V technology Optimized: virtualization layer and OS optimized Spotlight capabilities Hyper-V Container Hyper-V Container

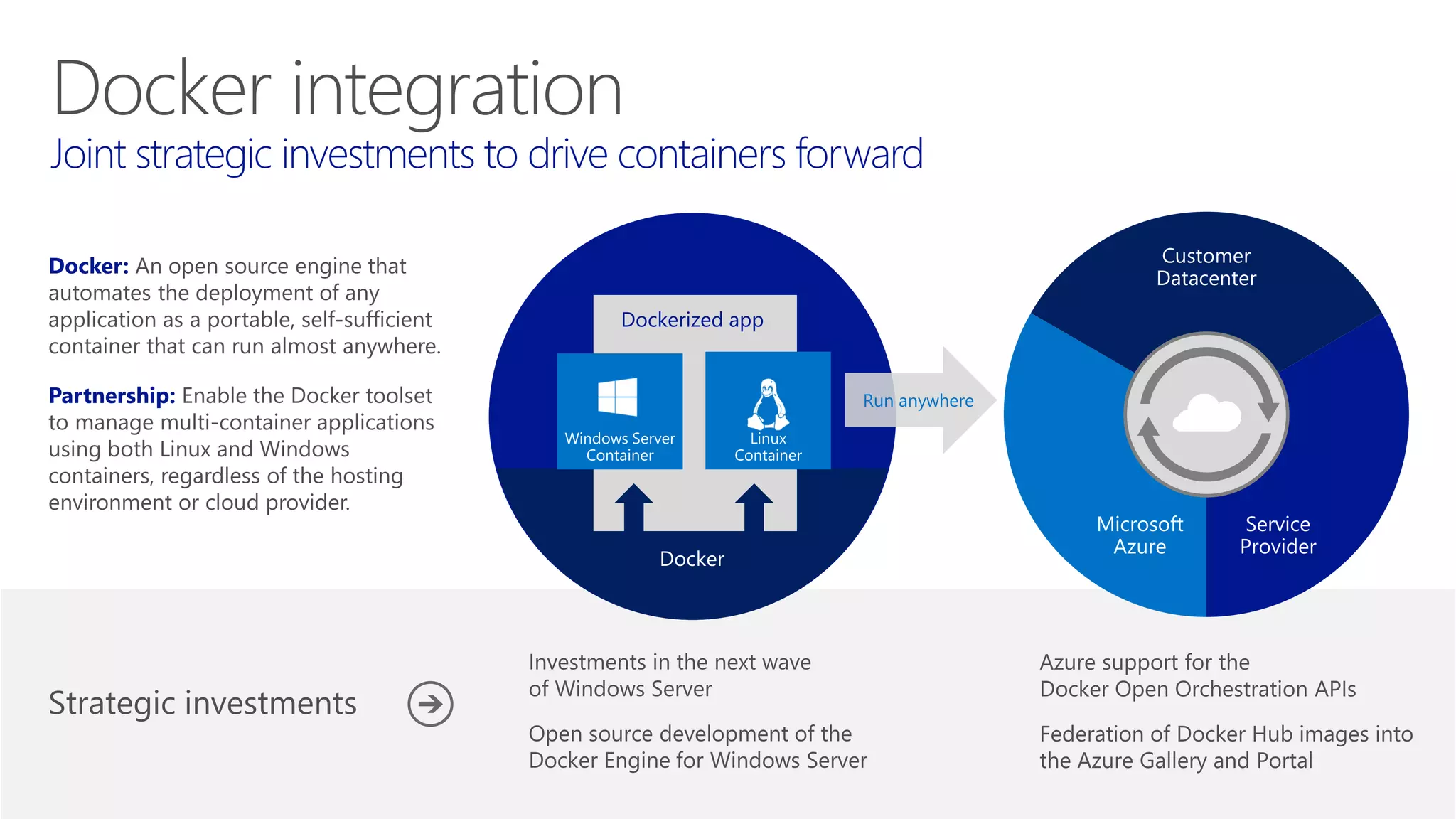

- 51.

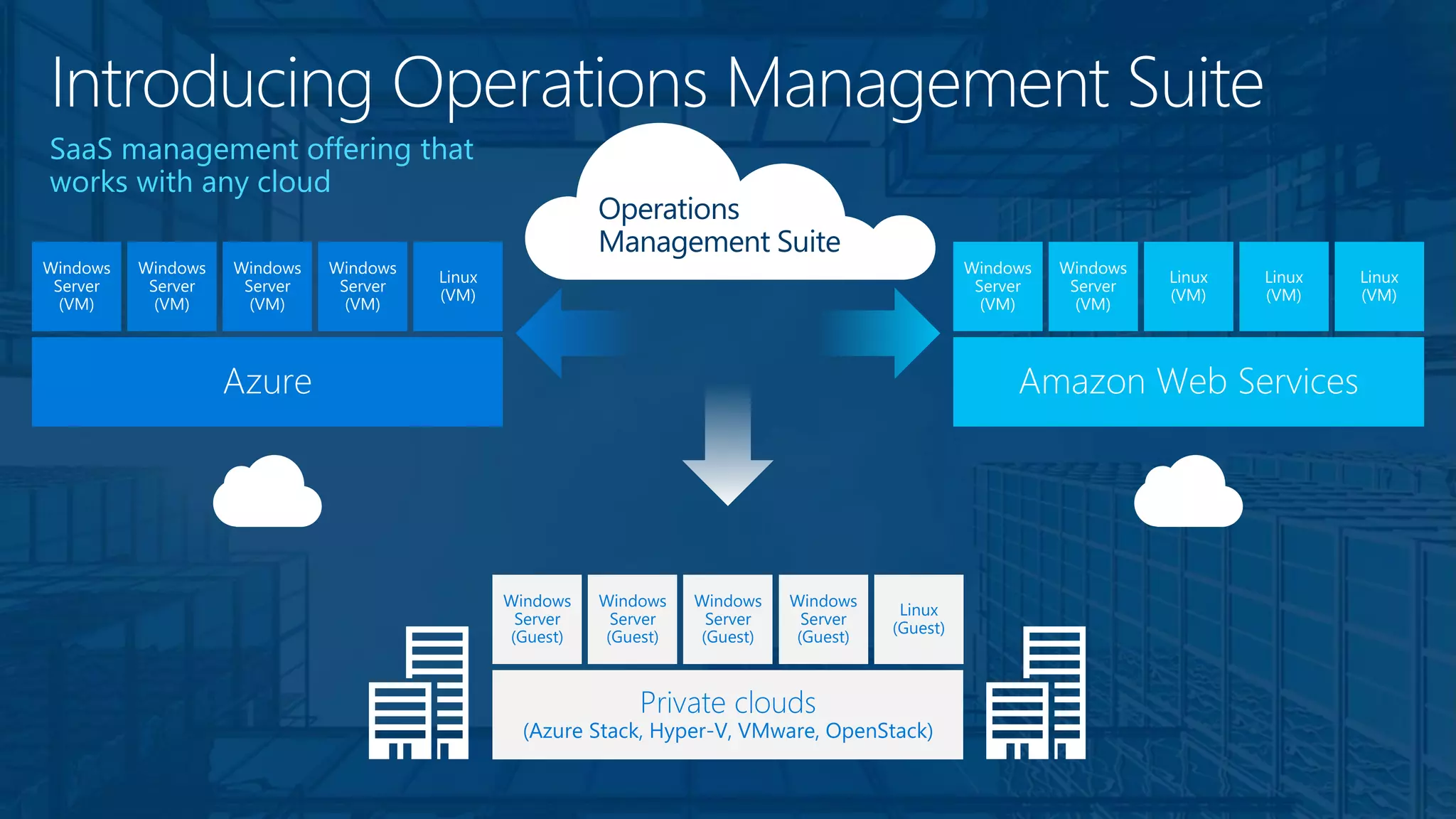

- 53. Private clouds (Azure Stack,Hyper-V, VMware, OpenStack) Windows Server (Guest) Windows Server (Guest) Windows Server (Guest) Windows Server (Guest) Linux (Guest) Operations Management Suite

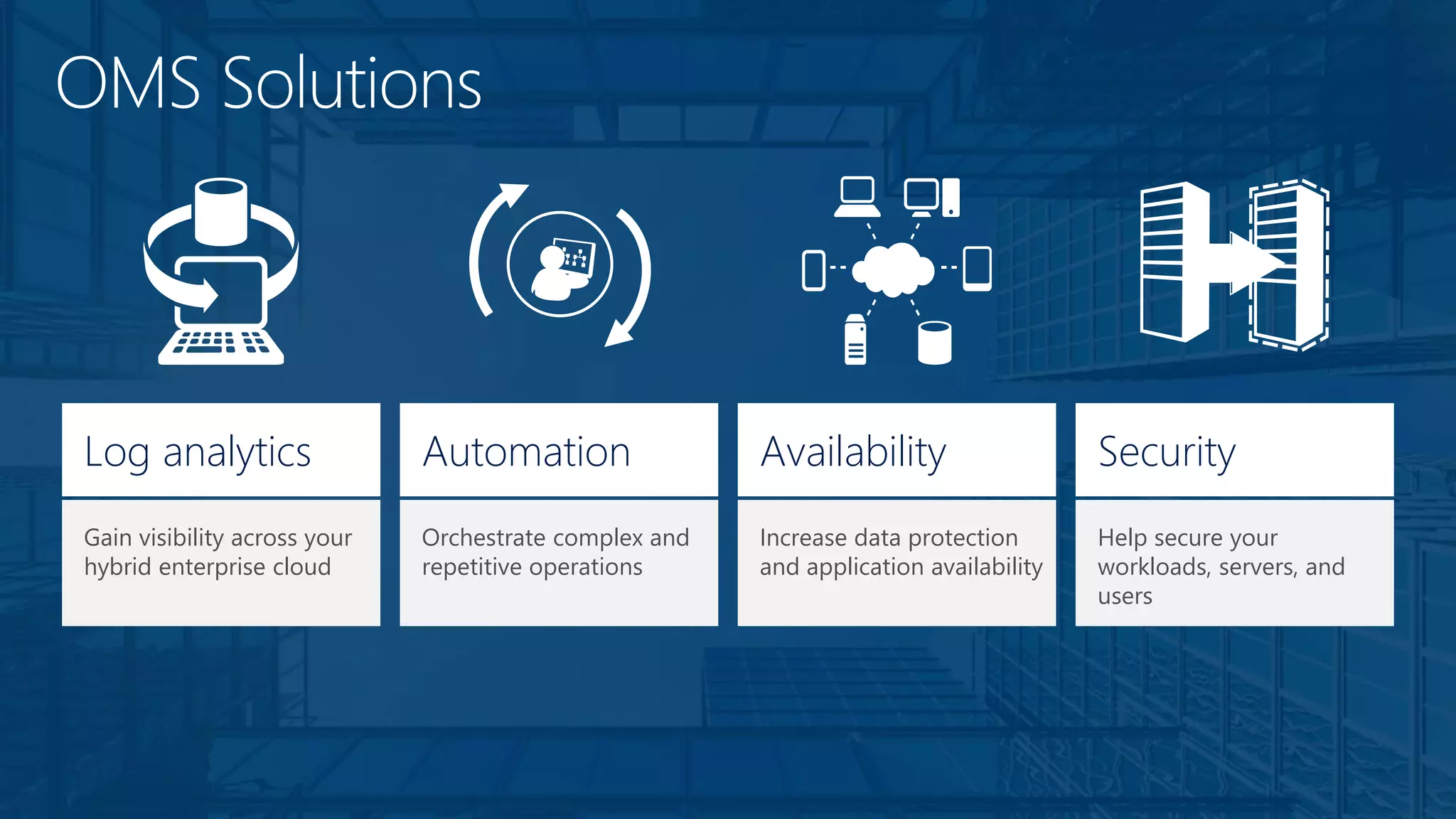

- 54. Gain visibility acrossyour hybrid enterprise cloud Log analytics Automation Orchestrate complex and repetitive operations Availability Increase data protection and application availability Security Help secure your workloads, servers, and users

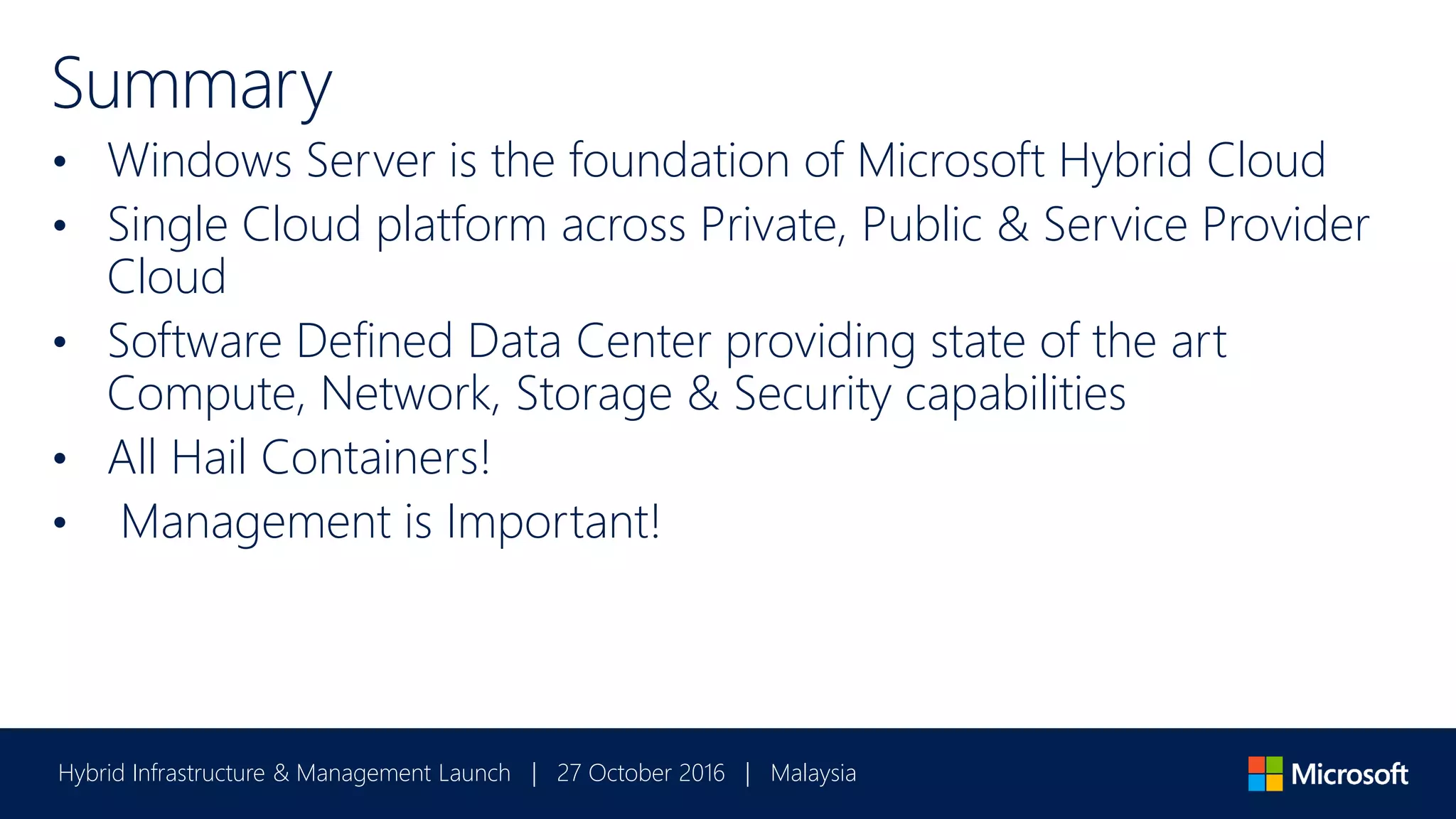

- 56. Hybrid Infrastructure &Management Launch | 27 October 2016 | Malaysia Summary • Windows Server is the foundation of Microsoft Hybrid Cloud • Single Cloud platform across Private, Public & Service Provider Cloud • Software Defined Data Center providing state of the art Compute, Network, Storage & Security capabilities • All Hail Containers! • Management is Important!
