Wim factory introduction

IoT Platform for Smart Factories -
WimFactory Introduction

Copyrightⓒ2016 e2Communications Inc. All rights reserved.
ulalaLAB Introduction
(LEFT) KT CEO (Changgyu Hwang) is introducing a ulalaLAB's
smart sensor (WICON) to Li Keqiang, Prime Minister in China,
(RIGHT)
(RIGHT) ulalaLAB CEO, Anthony Kang, is explaining
a ulalaLAB product (IoT for pets) to KT CEO
(Changgyu Hwang) (LEFT)
KTH and ulalaLAB MoU
ulalaLAB is a small but strong IoT research business
ulalaLAB is expanding our business using self-developed smart sensor,
WICON and researching IoT platforms, its services and IoT-related business
models.
ulalaLAB is a partner of KT (Korea Telecom) and is trying to do a joint
enterprise with KTH (Korea Telecom Hitel).
Shanghai MWC Participation (Mobile World Congress) in 2015
2

We, ulalaLAB, are a strategy group that creates a new value of IoT platform based on things, animals and
people’s communication, that shares experiences and that researches happy IoT expanding possibilities.
The IoT research team investigating happier lives_ ulalaLAB
Company ulalaLAB (affiliated to E2communications)
CEO Anthony Kang
Foundation Aug, 2011
Capital 0.2 Millions ($)
Member 7
Main Business Software development & supply
Address
Unit 505, 5th floor, 11-41, Simin-daero 327beon-gil, Dongan-
gu, Anyang-si, Gyeonggi-do, Korea (14055)
Website www.ulalalab.com
3

IoT means that connected devices with wired or wireless network communicate each other, exchange
information from sensors without people’s help and deal with work
An IoT era in which devices are connected each
other and they perform on their own without people
“ ”
Internet of Things
4

Smart Sensor Module WICON
5

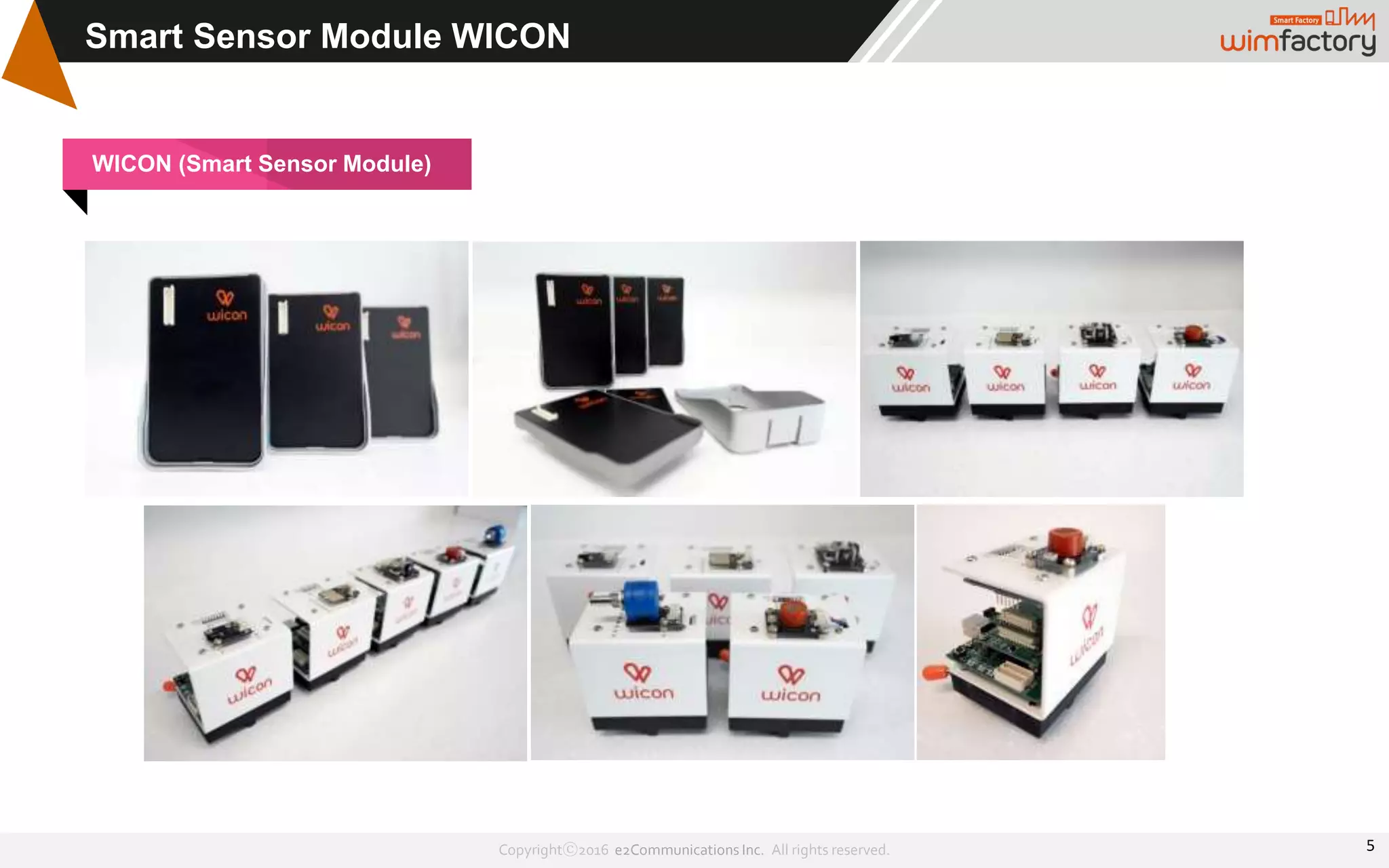

WICON (Smart Sensor Module)

6

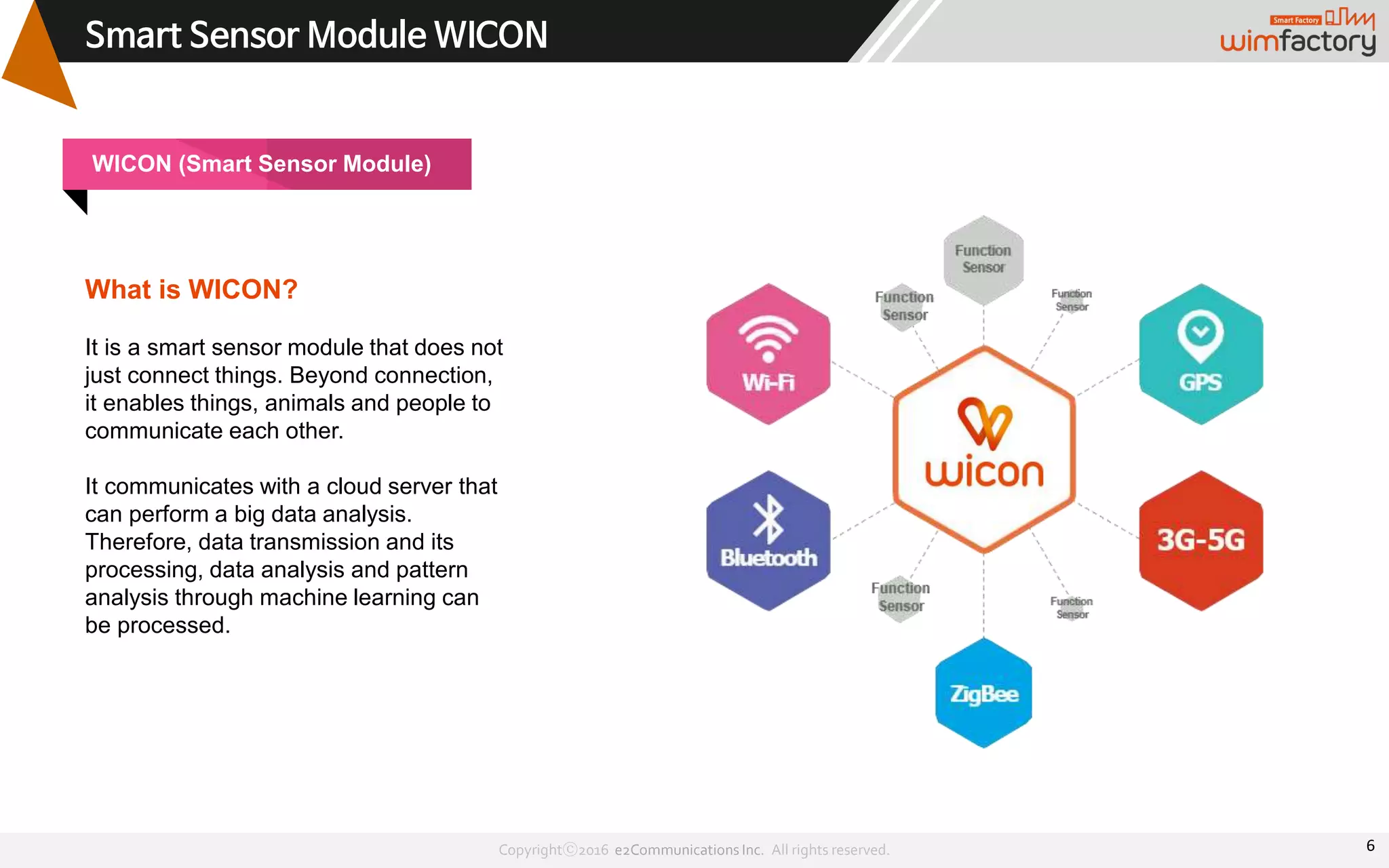

What is WICON?
It is a smart sensor module that does not
just connect things. Beyond connection,
it enables things, animals and people to
communicate each other.
It communicates with a cloud server that
can perform a big data analysis.
Therefore, data transmission and its
processing, data analysis and pattern
analysis through machine learning can
be processed.

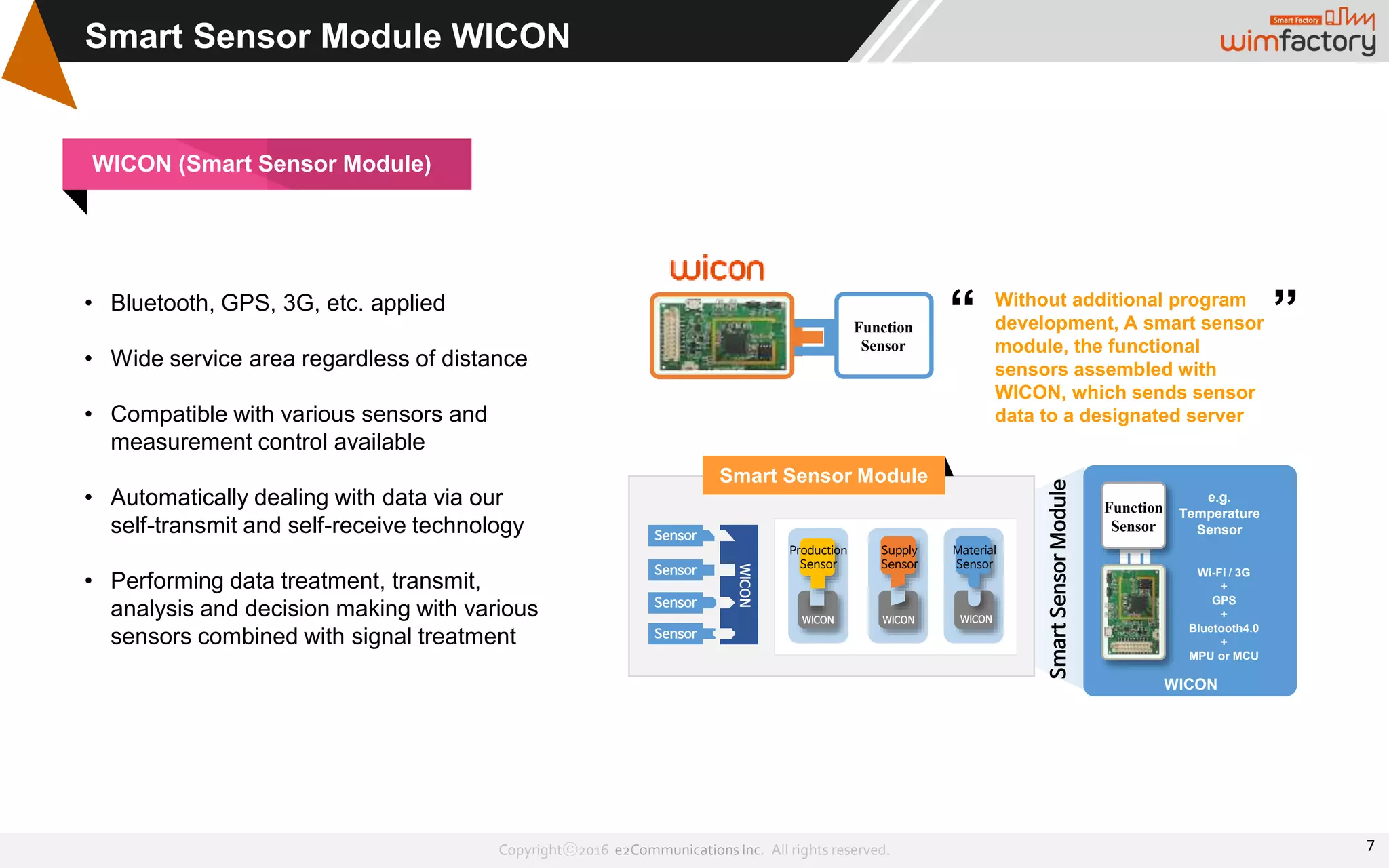

7
Sensor
Sensor
Sensor
Sensor
WICON
Smart Sensor Module
Production
Sensor
Supply
Sensor
Material
Sensor
WICON WICON WICON
Function
Sensor
SmartSensorModule
e.g.
Temperature
Sensor
WICON
Wi-Fi / 3G
+
GPS
+
Bluetooth4.0
+
MPU or MCU
Without additional program
development, A smart sensor
module, the functional
sensors assembled with
WICON, which sends sensor
data to a designated server
“ ”
• Bluetooth, GPS, 3G, etc. applied
• Wide service area regardless of distance
• Compatible with various sensors and
measurement control available
• Automatically dealing with data via our
self-transmit and self-receive technology
• Performing data treatment, transmit,
analysis and decision making with various
sensors combined with signal treatment
Function
Sensor

8

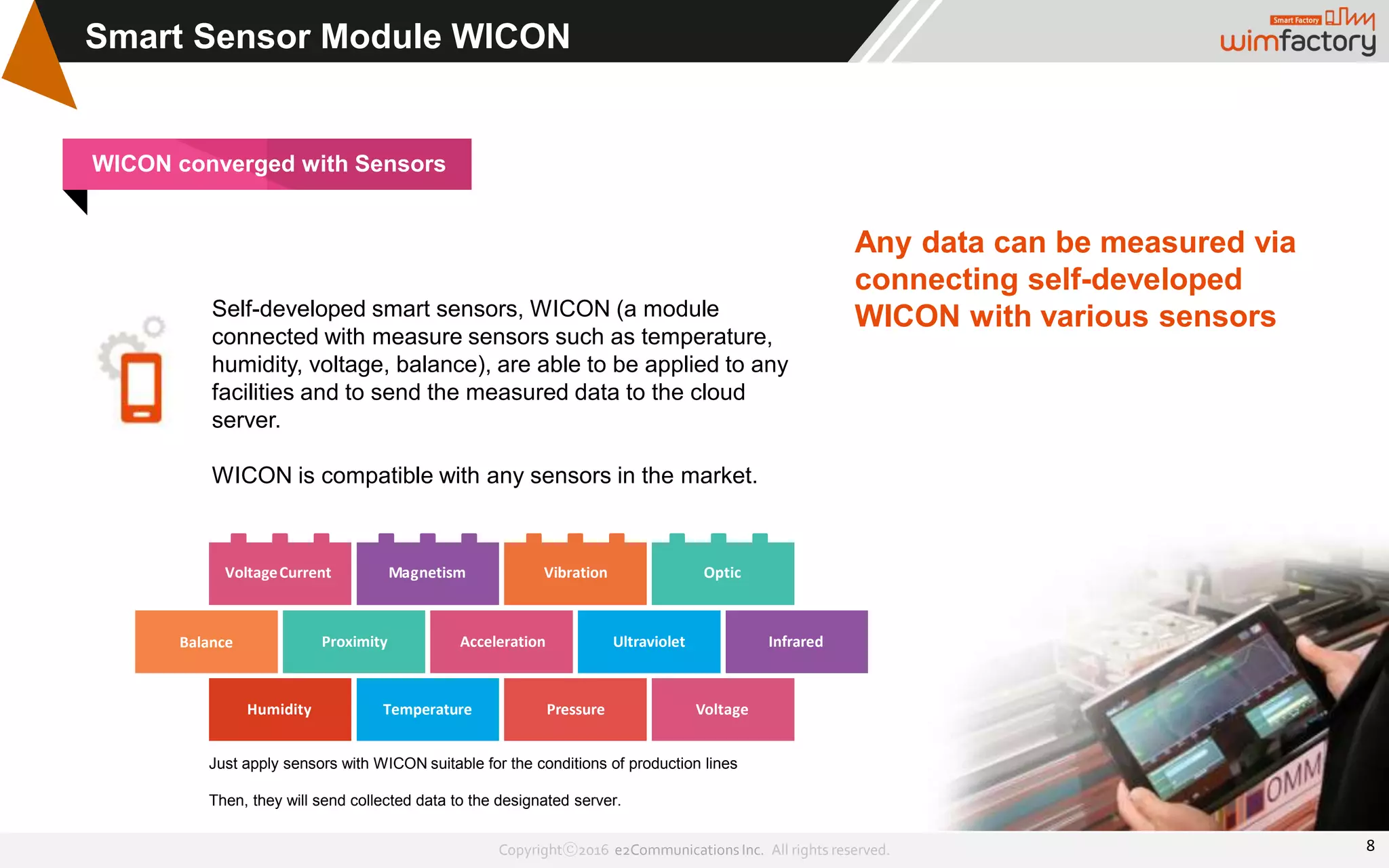

Any data can be measured via
connecting self-developed
WICON with various sensorsSelf-developed smart sensors, WICON (a module
connected with measure sensors such as temperature,
humidity, voltage, balance), are able to be applied to any
facilities and to send the measured data to the cloud
server.
WICON is compatible with any sensors in the market.
Just apply sensors with WICON suitable for the conditions of production lines
Then, they will send collected data to the designated server.
WICON converged with Sensors
VoltageCurrent Magnetism Vibration Optic
Humidity Temperature Pressure Voltage
Balance Proximity Acceleration Ultraviolet Infrared

F-S205
(Smart Sensor Control Module)

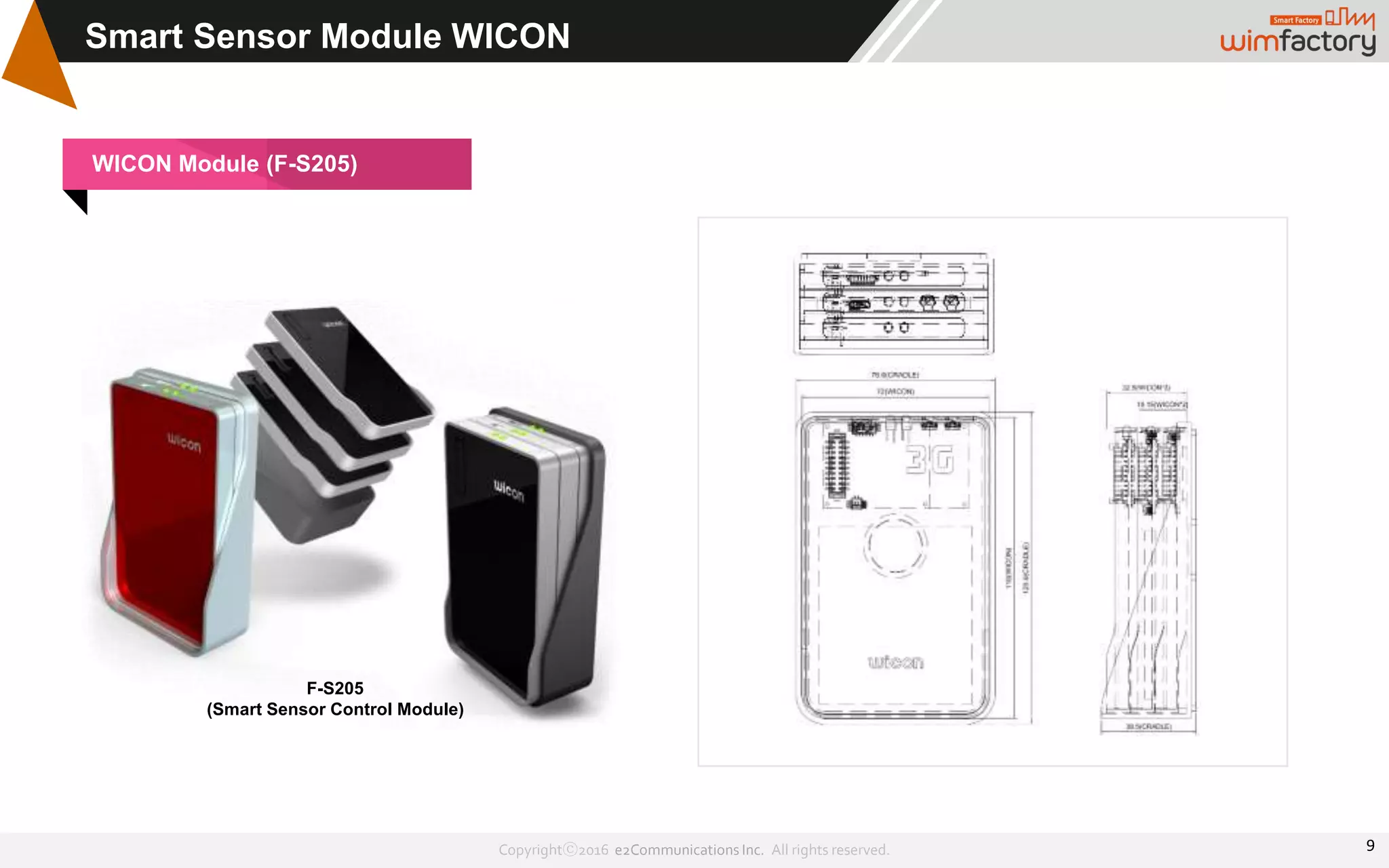

WICON Module (F-S205)
9

1. The power cable always connected and emergency battery loaded
2. When network problem, it stores the data for 10 hours (100ms Sampling)
3. Sending signals if WICON malfunction detected
4. Sensor compatibility : 13 measuring sensor compatibility : 170 derived usage
Div. Spec. Etc.
Communication Interface Wi-Fi, 3G-5G, BLE, ZigBee, Lora (in progress)
WiFi
802.11b/g/n Radio, Baseband, and Medium Access Control,
4MByte Flash
BLE
2.4 GHz RF Transceiver Compatible With Bluetooth Low Energy, Supports Over-
The-Air Upgrade
Battery Li-Polymer, 3.7V 2050mA
Module Ext Connector
20Pin, GPIO, UART
Magnet is mounted Cradle
LED Comm
Module : 2 LED – Multi
(Power, Communication, Check)
Environment Operating Temperature : - 30 ~ + 80°C

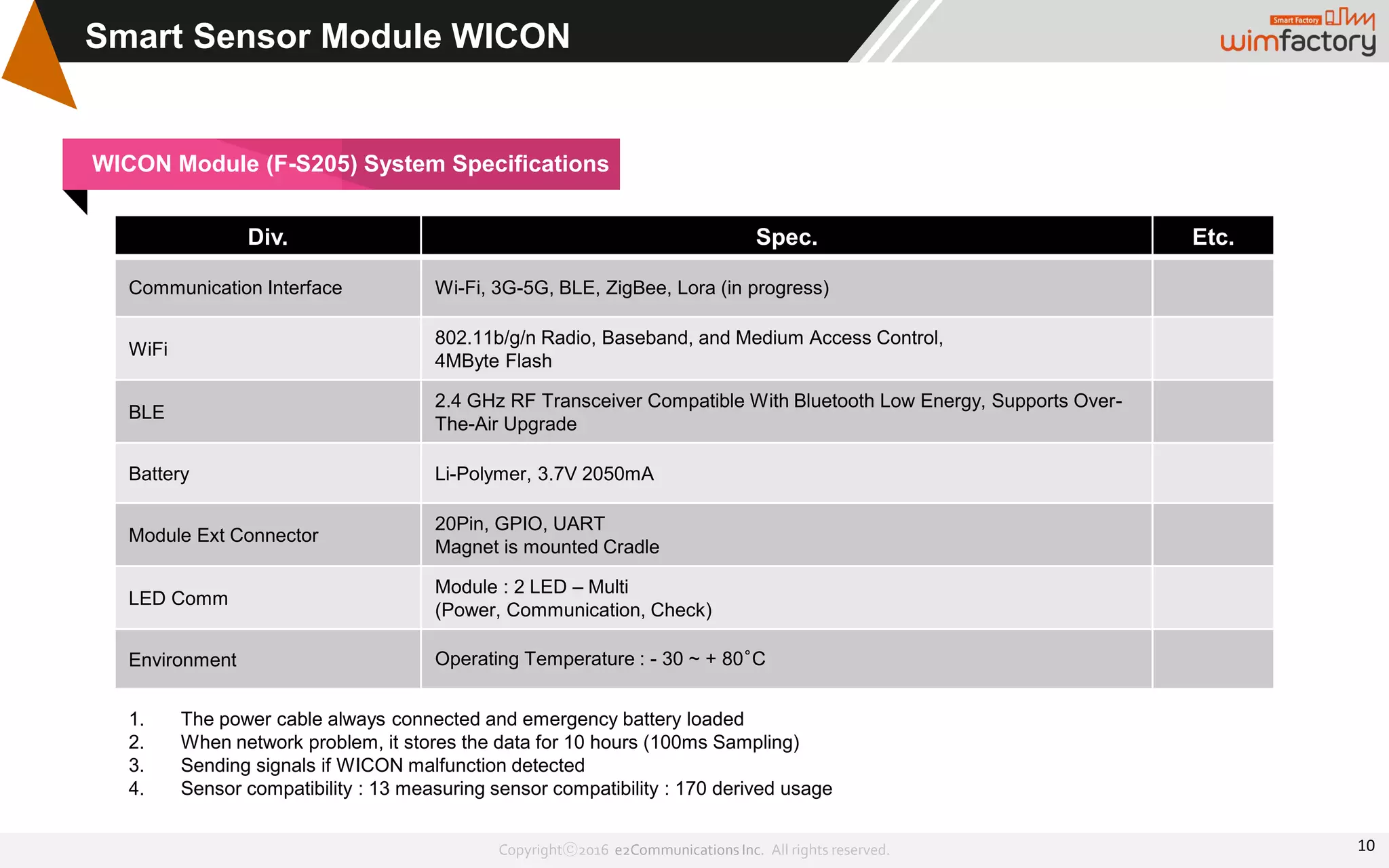

WICON Module (F-S205) System Specifications
10

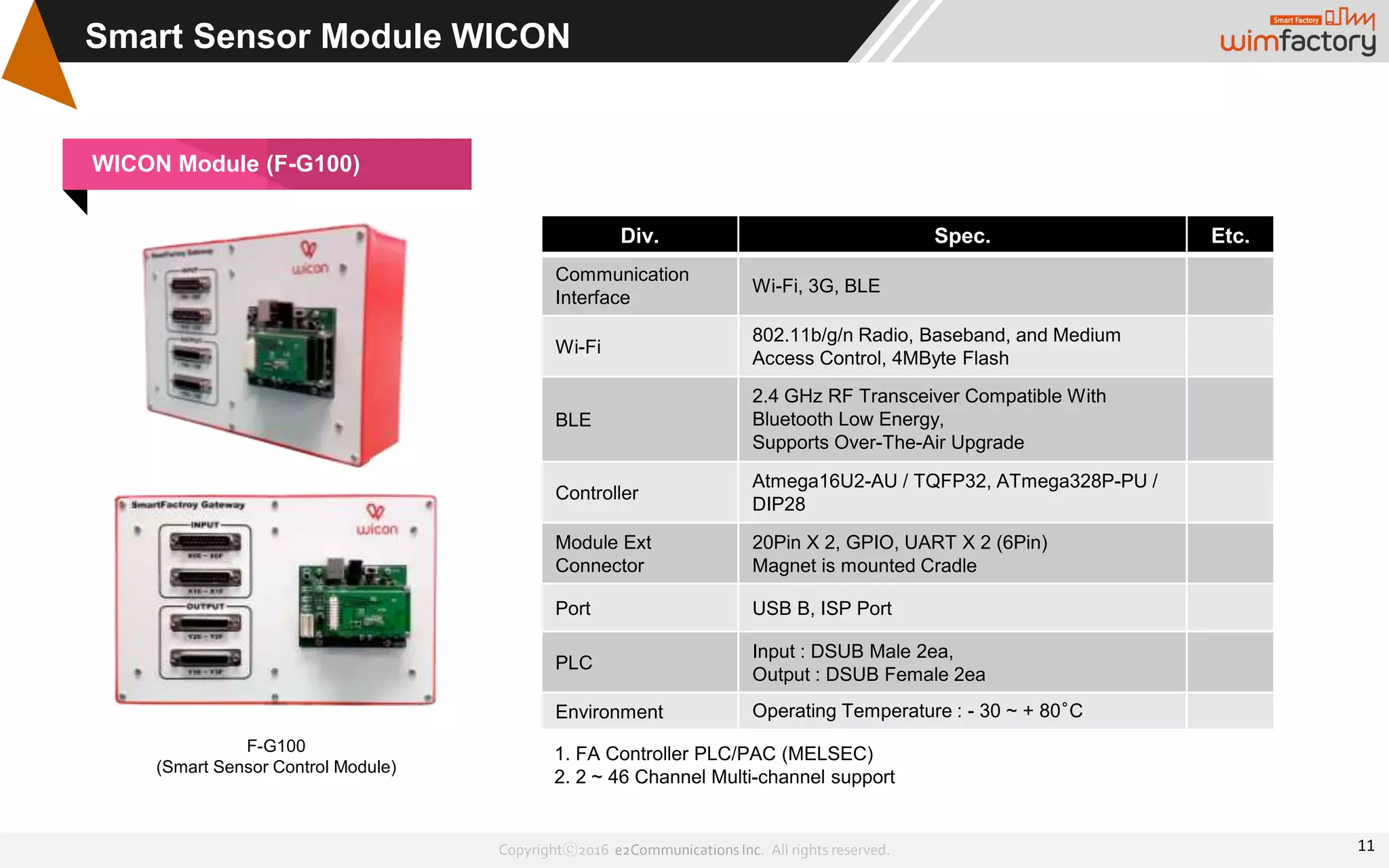

F-G100
(Smart Sensor Control Module)
1. FA Controller PLC/PAC (MELSEC)
2. 2 ~ 46 Channel Multi-channel support
Div. Spec. Etc.
Communication
Interface
Wi-Fi, 3G, BLE
Wi-Fi
802.11b/g/n Radio, Baseband, and Medium
Access Control, 4MByte Flash
BLE
2.4 GHz RF Transceiver Compatible With
Bluetooth Low Energy,
Supports Over-The-Air Upgrade
Controller
Atmega16U2-AU / TQFP32, ATmega328P-PU /
DIP28
Module Ext
Connector
20Pin X 2, GPIO, UART X 2 (6Pin)
Magnet is mounted Cradle
Port USB B, ISP Port
PLC
Input : DSUB Male 2ea,
Output : DSUB Female 2ea
Environment Operating Temperature : - 30 ~ + 80°C
WICON Module (F-G100)
11

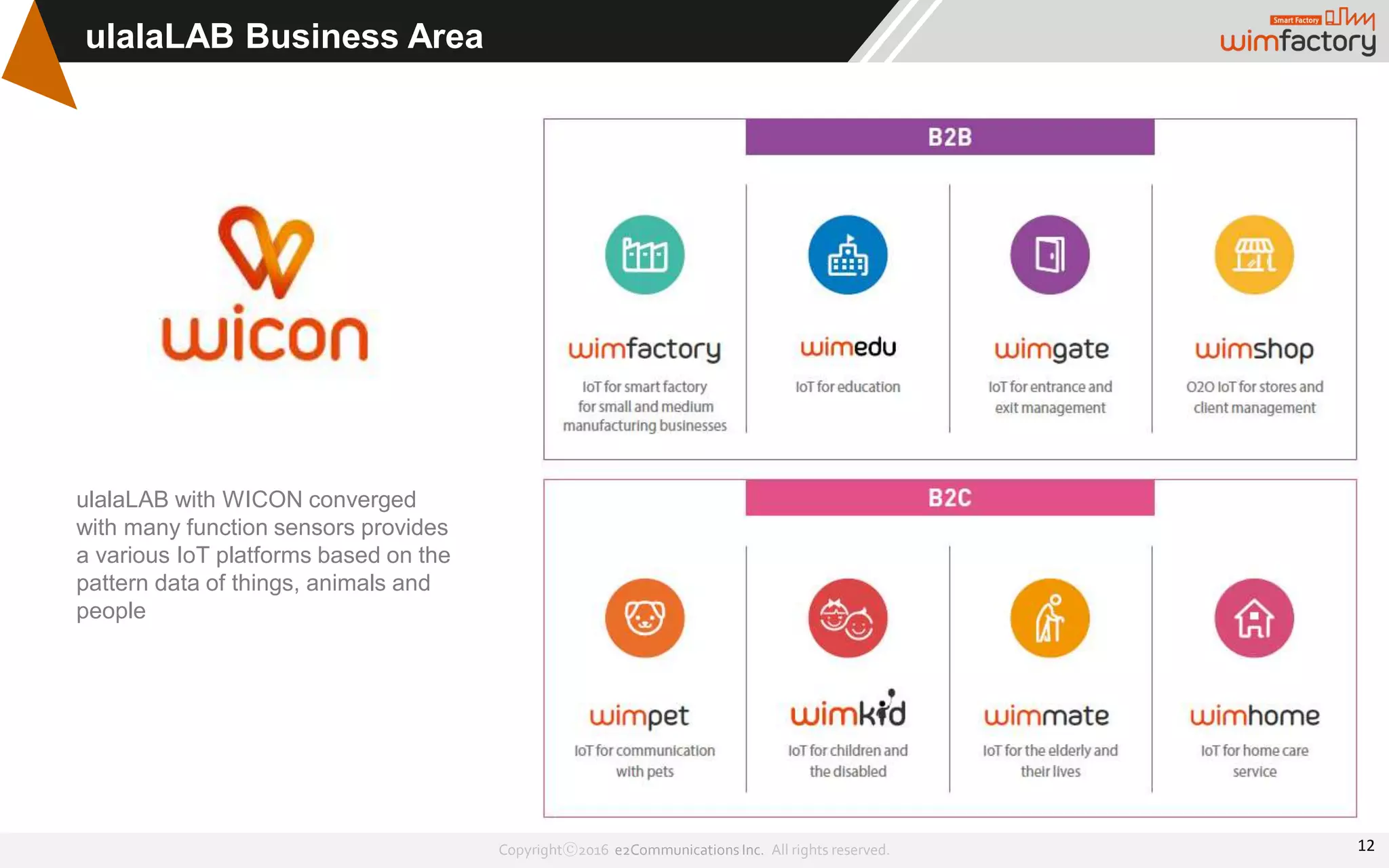

ulalaLAB Business Area
12
ulalaLAB with WICON converged
with many function sensors provides
a various IoT platforms based on the
pattern data of things, animals and
people

WimFactory Overview
At least, an alarm on smart
phones when malfunction
and production lines stop
1
Immediate operation
without training employees
2 3
What if log reports and operation
conditions on production lines,
facilities and devices are
automatically provided!
4
Applicable without
changing the current
production lines and
facilities
5
Application and
operation cost
minimized
Always stay on observed
on the facilities
Hand writing about
production and operation
Check on the production
lines through CCTVs
Needs
Manual work

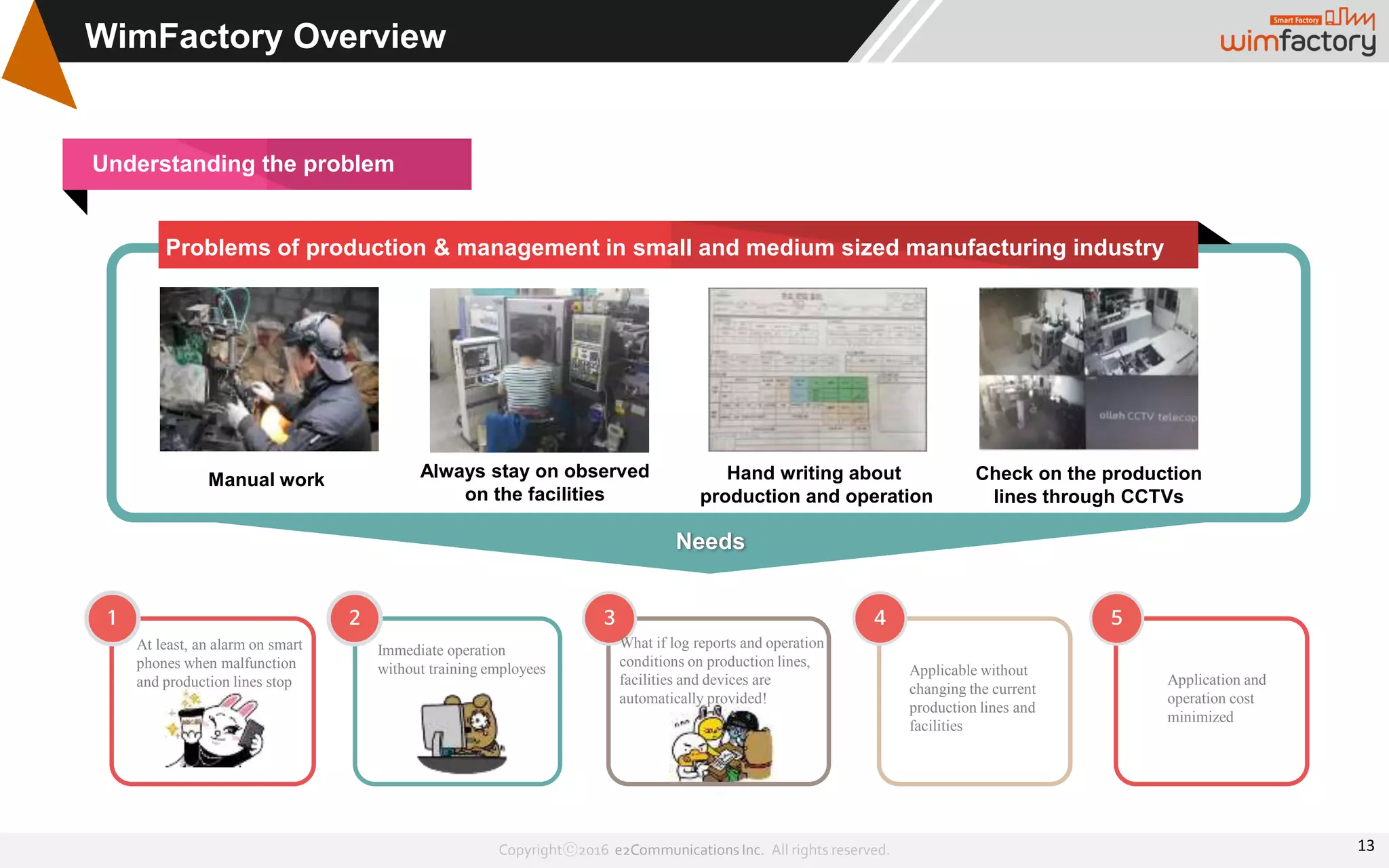

Problems of production & management in small and medium sized manufacturing industry
Understanding the problem
13

WimFactory Overview
⚠ Manager!
There is an increase
in temperature at the
Mold
(2 Production line)
Check
WimFactory, an IoT smart factory
platform for small and medium sized
manufacturing businesses
WimFactory, a Smart Factory IoT platform,
using smart sensors called ‘WICON’ is able
to apply to production facilities
under any environment with
an easy and efficient application.
Resolving the problem
14

WimFactory Overview
Inexpensive, easy, effective
smart factory platform for small and
medium manufacturing industry{ }

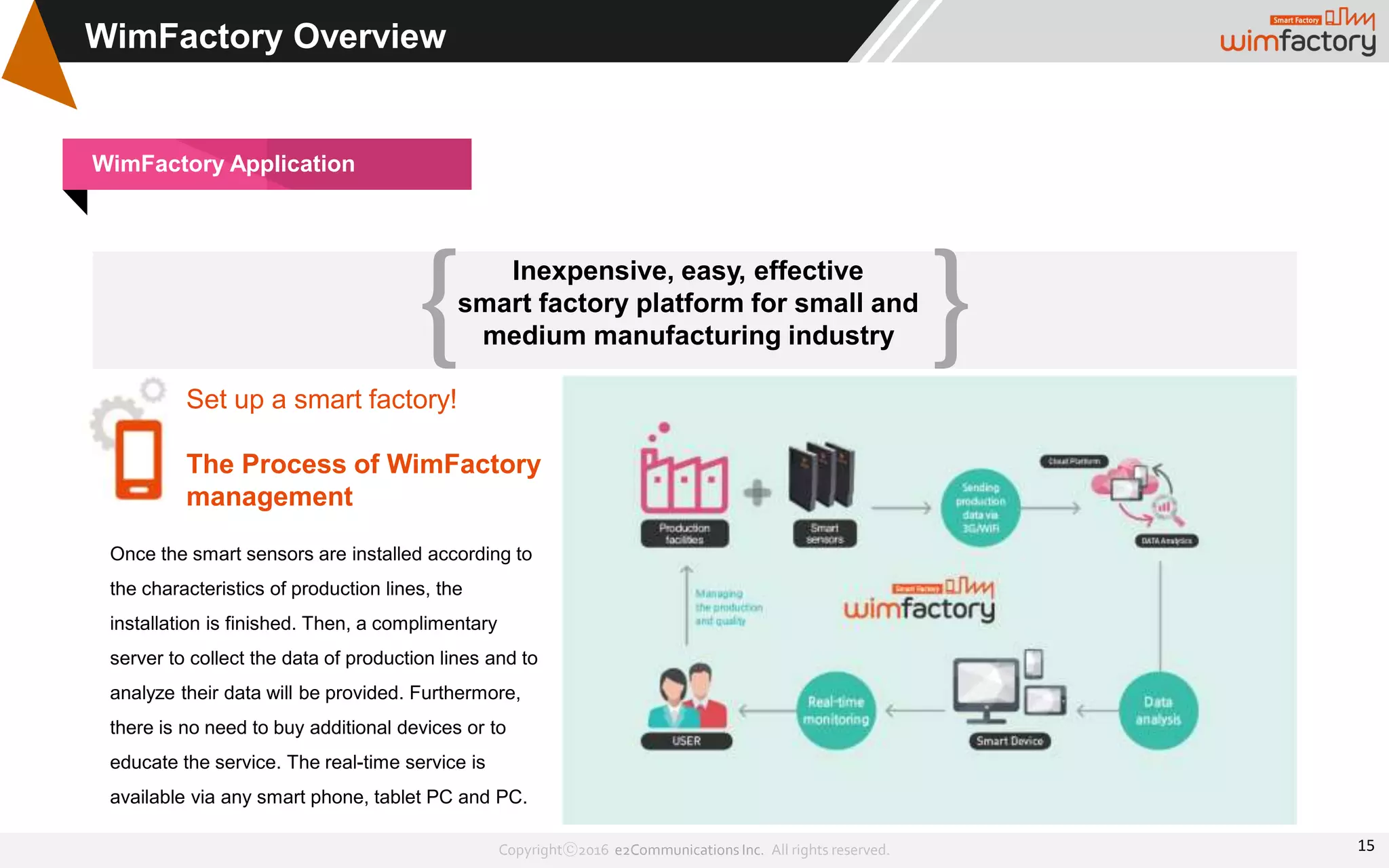

Once the smart sensors are installed according to
the characteristics of production lines, the
installation is finished. Then, a complimentary
server to collect the data of production lines and to
analyze their data will be provided. Furthermore,
there is no need to buy additional devices or to
educate the service. The real-time service is
available via any smart phone, tablet PC and PC.
Set up a smart factory!
The Process of WimFactory
management
WimFactory Application
15

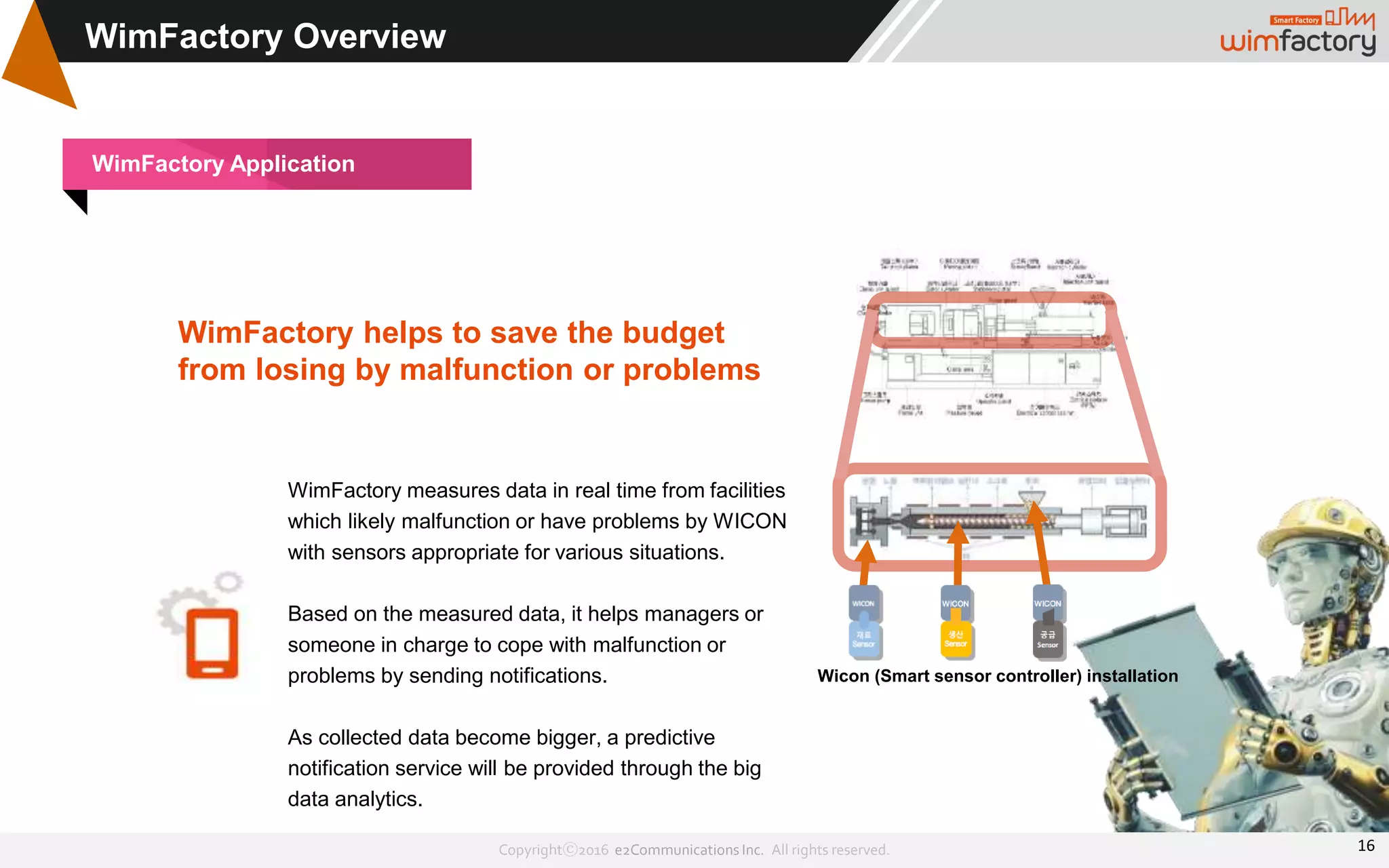

Wicon (Smart sensor controller) installation
WimFactory measures data in real time from facilities
which likely malfunction or have problems by WICON
with sensors appropriate for various situations.
Based on the measured data, it helps managers or
someone in charge to cope with malfunction or
problems by sending notifications.
As collected data become bigger, a predictive
notification service will be provided through the big
data analytics.
WimFactory helps to save the budget
from losing by malfunction or problems
WimFactory Overview
16
WimFactory Application

WimFactory provides the
optimized techniques for
smart factory
Based on WICON technique,
WimFactory provides the optimized
smart factory IoT platform including a
smart sensor technique, cloud platform,
big data analysis, machine learning
technique and multi-device support.

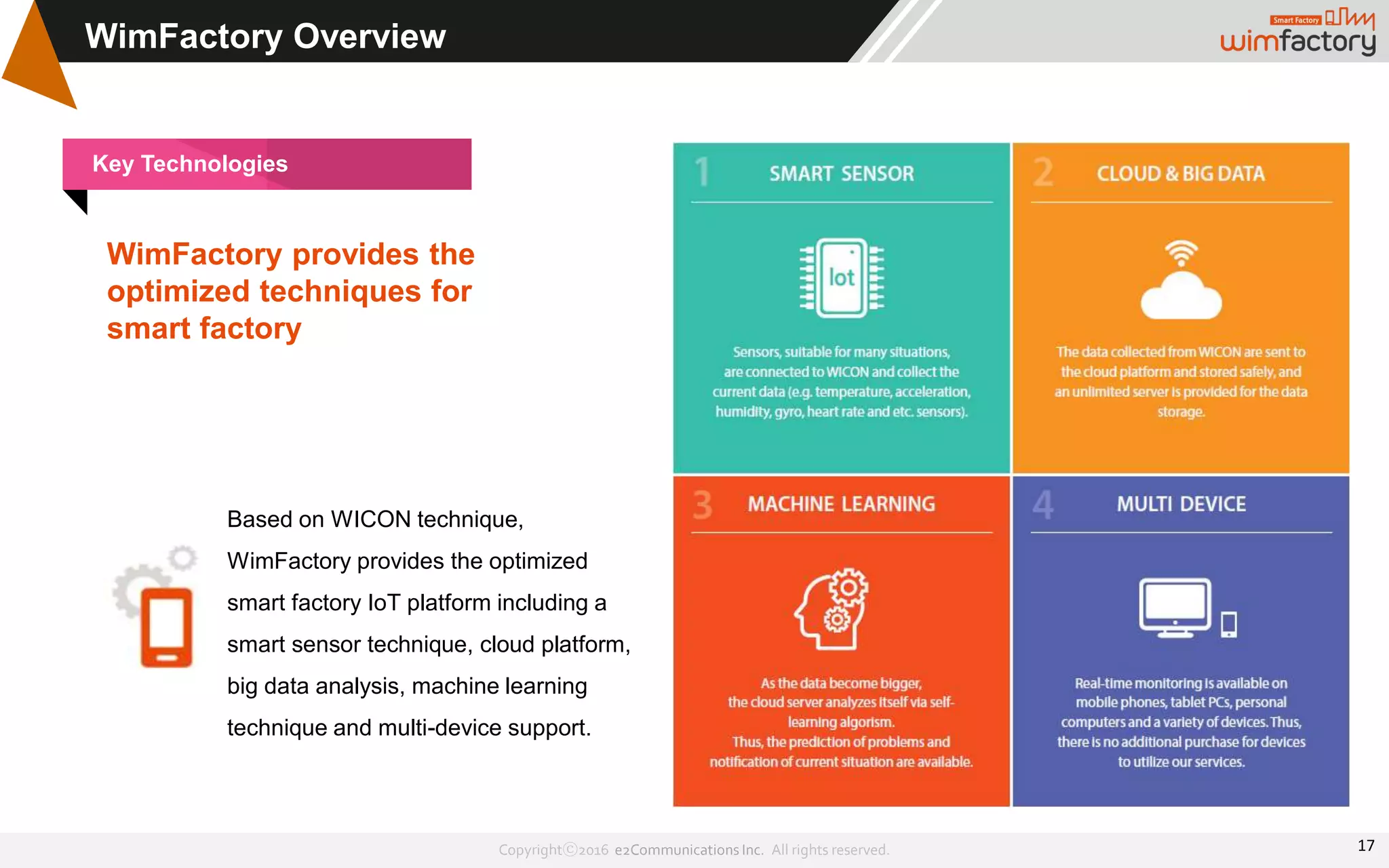

Key Technologies
WimFactory Overview
17

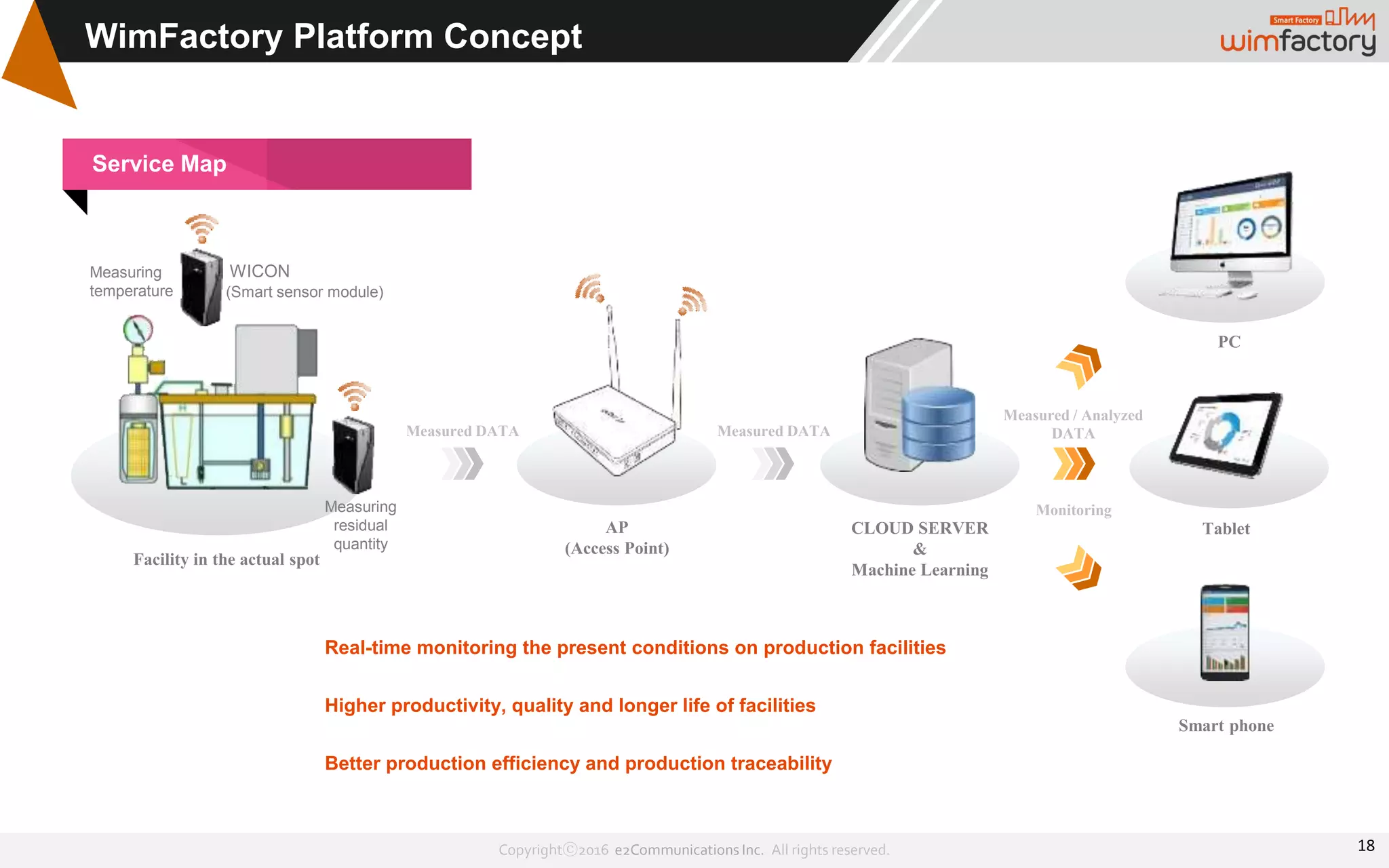

WimFactory Platform Concept
Real-time monitoring the present conditions on production facilities
Higher productivity, quality and longer life of facilities
Better production efficiency and production traceability
Measuring
residual
quantity
Measuring
temperature
Facility in the actual spot
AP
(Access Point)
WICON
(Smart sensor module)
CLOUD SERVER
&
Machine Learning
PC
Tablet
Smart phone
Measured DATA Measured DATA
Measured / Analyzed
DATA
Monitoring
Service Map
18

WimFactory Introduction

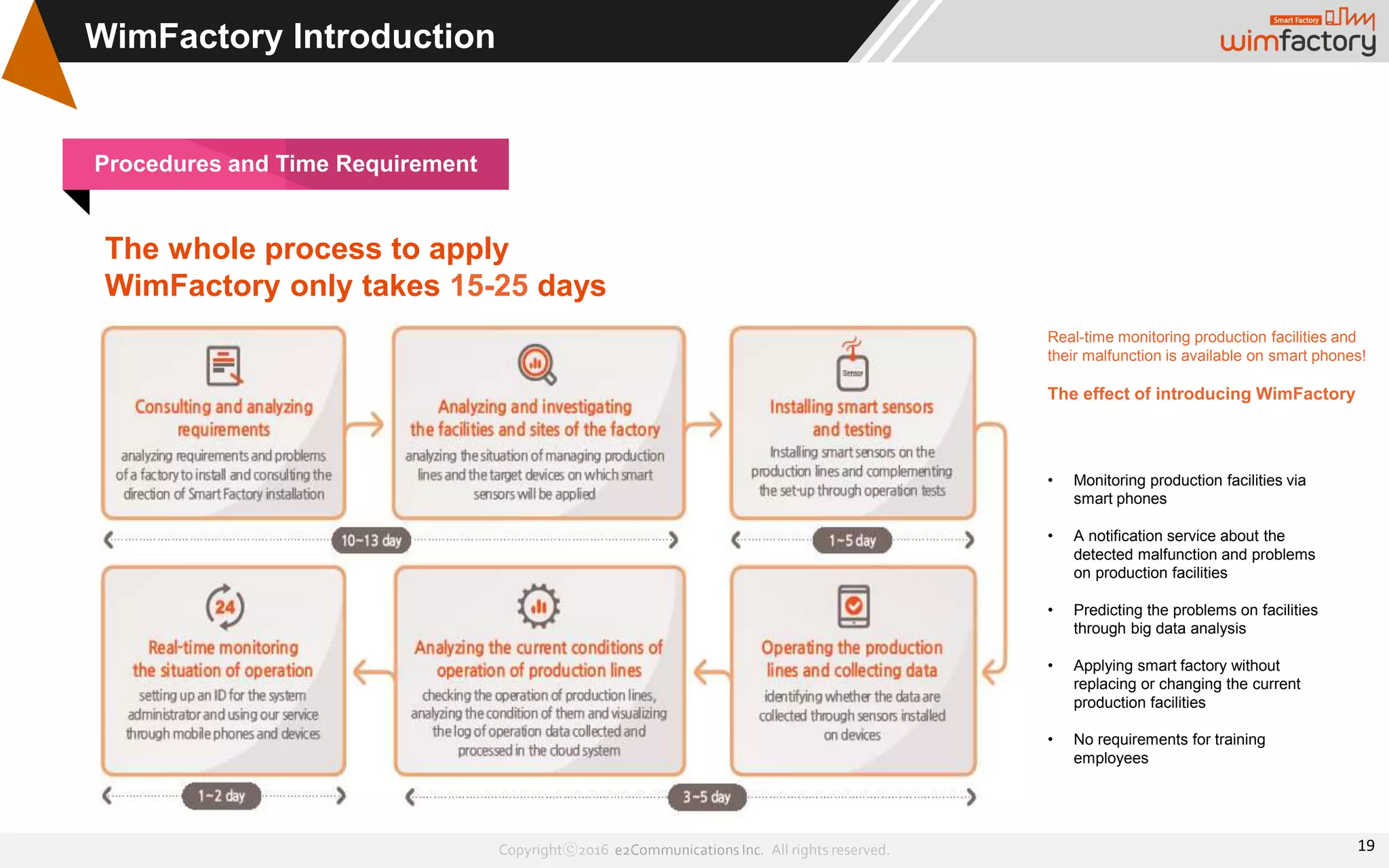

Procedures and Time Requirement
19
The whole process to apply
WimFactory only takes 15-25 days
Real-time monitoring production facilities and
their malfunction is available on smart phones!
The effect of introducing WimFactory
• Monitoring production facilities via
smart phones
• A notification service about the
detected malfunction and problems
on production facilities
• Predicting the problems on facilities
through big data analysis
• Applying smart factory without
replacing or changing the current
production facilities
• No requirements for training
employees

Customer Benefits
20

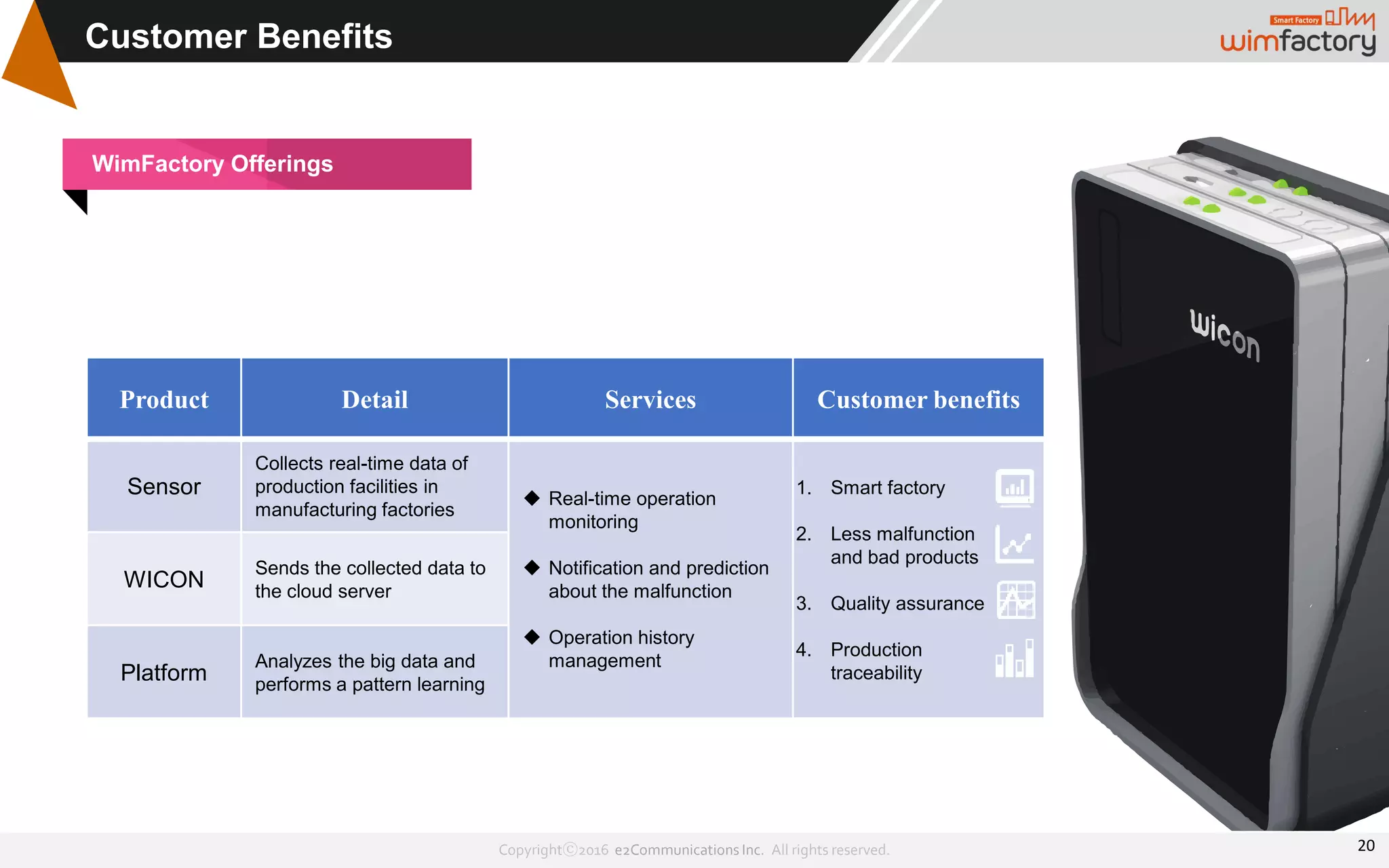

WimFactory Offerings
Product Detail Services Customer benefits
Sensor
Collects real-time data of
production facilities in
manufacturing factories
 Real-time operation
monitoring
 Notification and prediction
about the malfunction
 Operation history
management
WICON
Sends the collected data to
the cloud server
Platform
Analyzes the big data and
performs a pattern learning
1. Smart factory
2. Less malfunction
and bad products
3. Quality assurance
4. Production
traceability

Our Partners
We, ‘ulalaLAB’, are with reliable partners!
ulalaLAB is a partner of KT (Korea Telecom) and is trying to do a joint business with KTH (Korea Telecom Hitel).
Furthermore, we are selected by NIPA (National IT Industry Promotion Agency) as a 2015 IoT leading company
and are in (CCEI) Gyeonggi Center for Creative Economy and Innovation
21

COPYRIGHT 2016 E2COMMUICATIONS INC. ALL RIGHTS RESERVED.
THANK YOU
We, ulalaLAB, are a strategy group that creates a new value of IoT platform based on things, animals and people’s
communication, that shares experiences and that researches happy IoT expanding possibilities.
22
