1. Wieldy remote apis with
Kekkonen:ClojureD 2016
Tommi Reiman & JuhoTeperi
@ikitommi & @JuhoTeperi

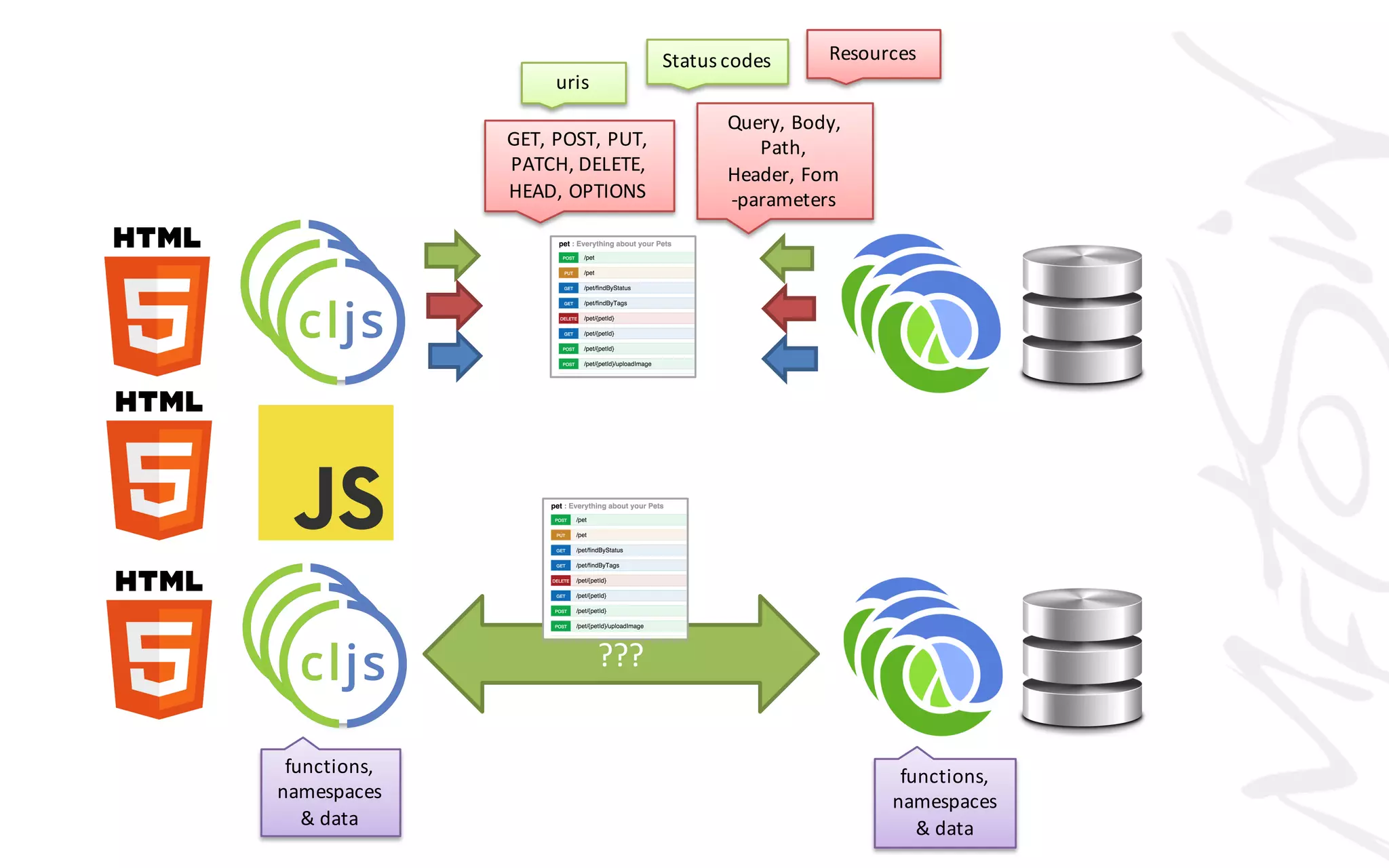

2. ???
Query, Body,
Path,
Header, Fom
-parameters
Status codes
GET, POST, PUT,
PATCH, DELETE,
HEAD, OPTIONS
uris
Resources
functions,
namespaces
& data
functions,
namespaces
& data

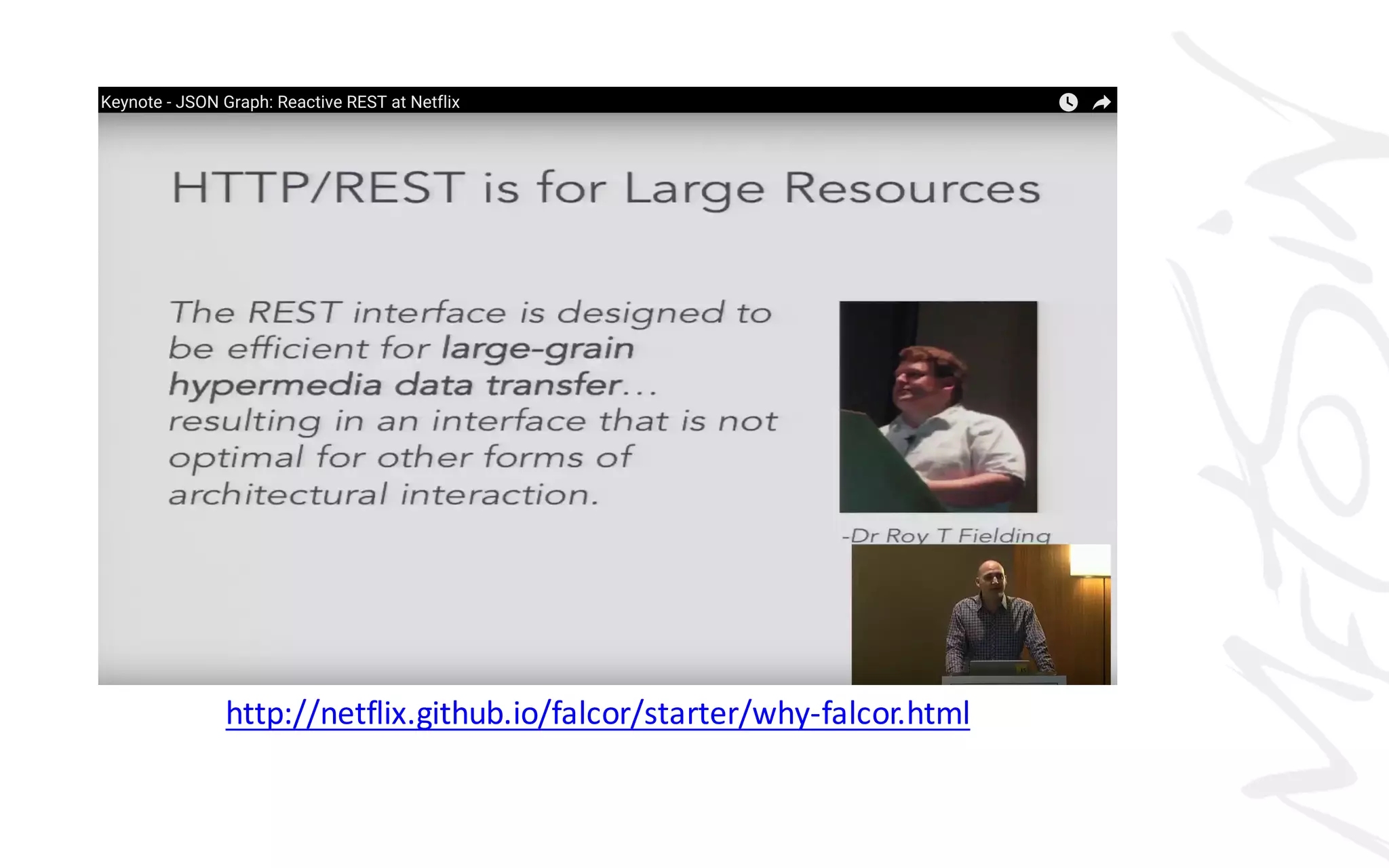

3. http://netflix.github.io/falcor/starter/why-falcor.html

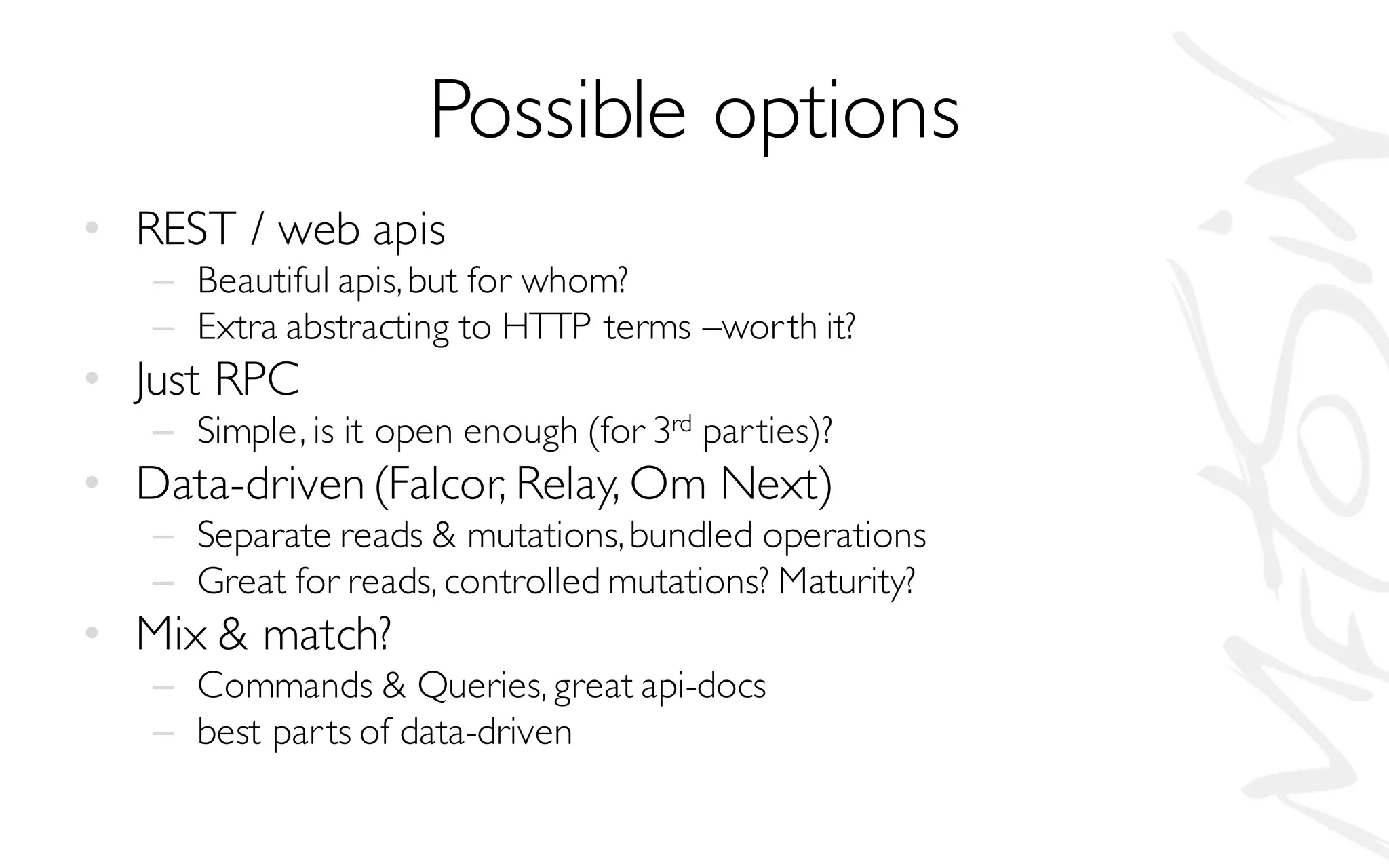

4. Possible options
• REST / web apis
– Beautiful apis,but for whom?
– Extra abstracting to HTTP terms –worth it?
• Just RPC
– Simple, is it open enough (for 3rd parties)?
• Data-driven(Falcor, Relay, Om Next)
– Separate reads & mutations,bundled operations
– Great for reads, controlled mutations? Maturity?
• Mix & match?
– Commands & Queries, great api-docs
– best parts of data-driven

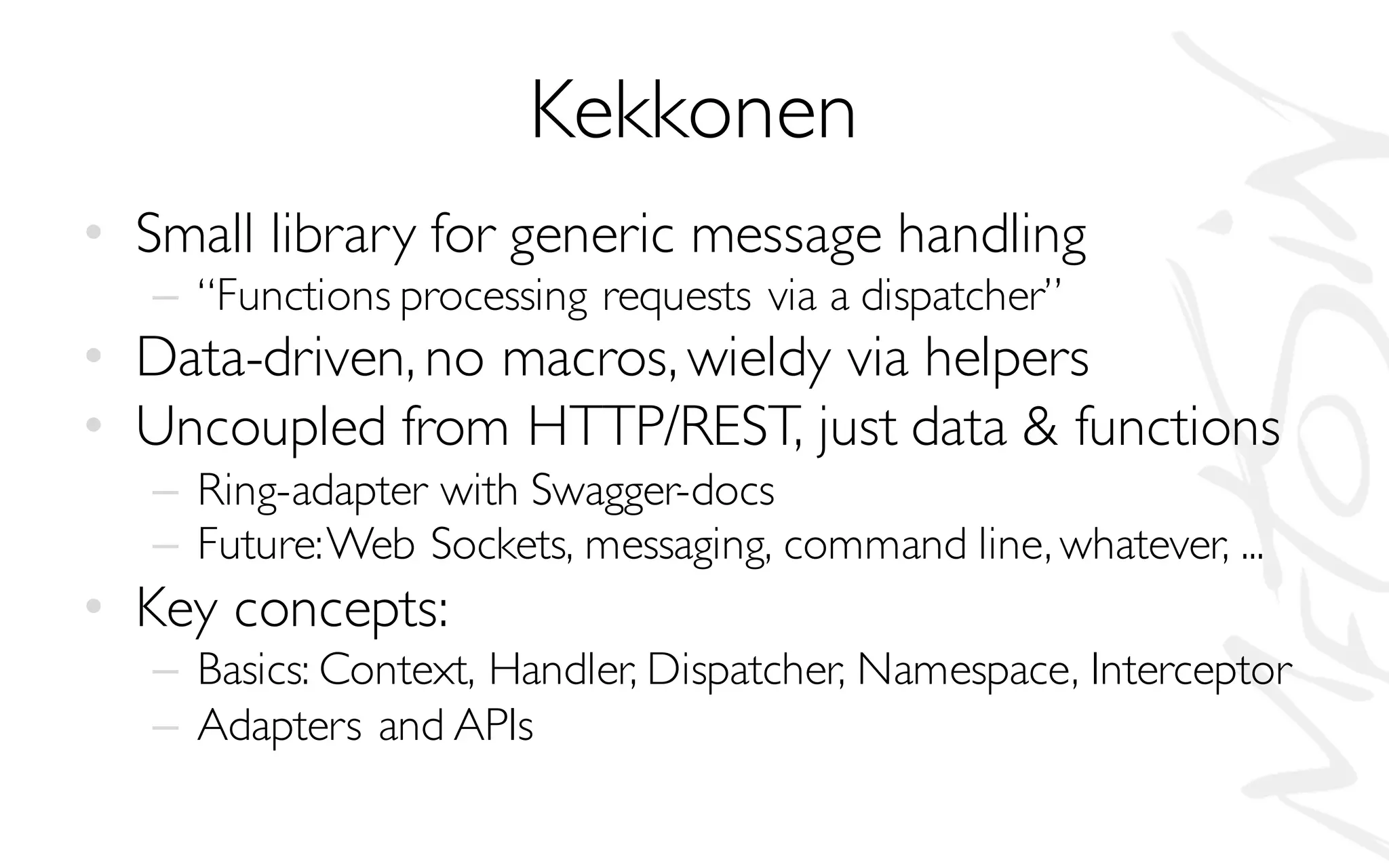

5. Kekkonen
• Small library for generic message handling
– “Functions processing requests via a dispatcher”
• Data-driven, no macros, wieldy via helpers
• Uncoupled from HTTP/REST, just data & functions
– Ring-adapter with Swagger-docs
– Future:Web Sockets, messaging, command line, whatever, ...
• Key concepts:
– Basics: Context, Handler, Dispatcher, Namespace, Interceptor
– Adapters and APIs

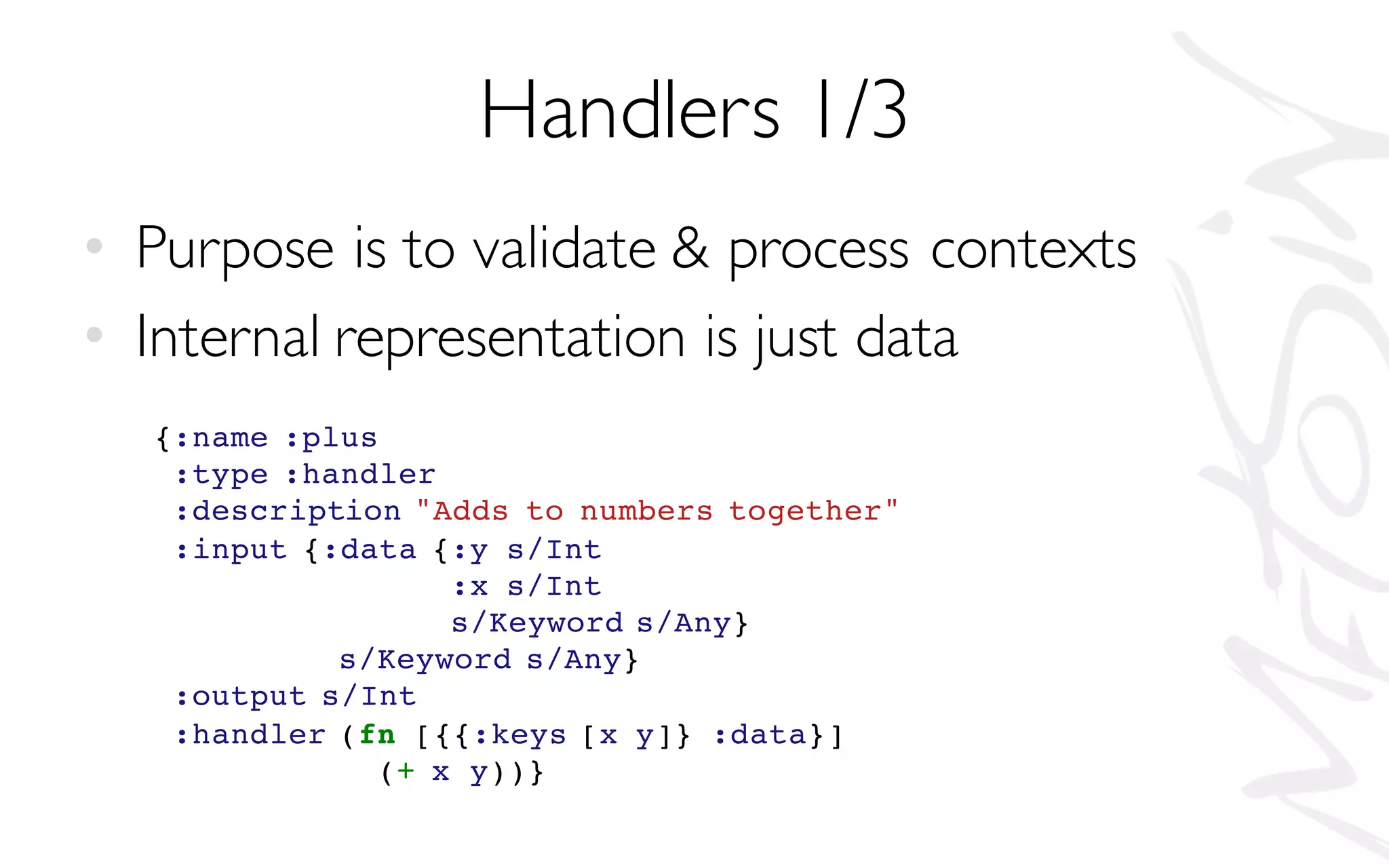

6. Handlers 1/3
• Purpose is to validate & process contexts
• Internal representation is just data
{:name :plus
:type :handler
:description "Adds to numbers together"
:input {:data {:y s/Int
:x s/Int
s/Keyword s/Any}
s/Keyword s/Any}
:output s/Int
:handler (fn [{{:keys [x y]} :data}]
(+ x y))}

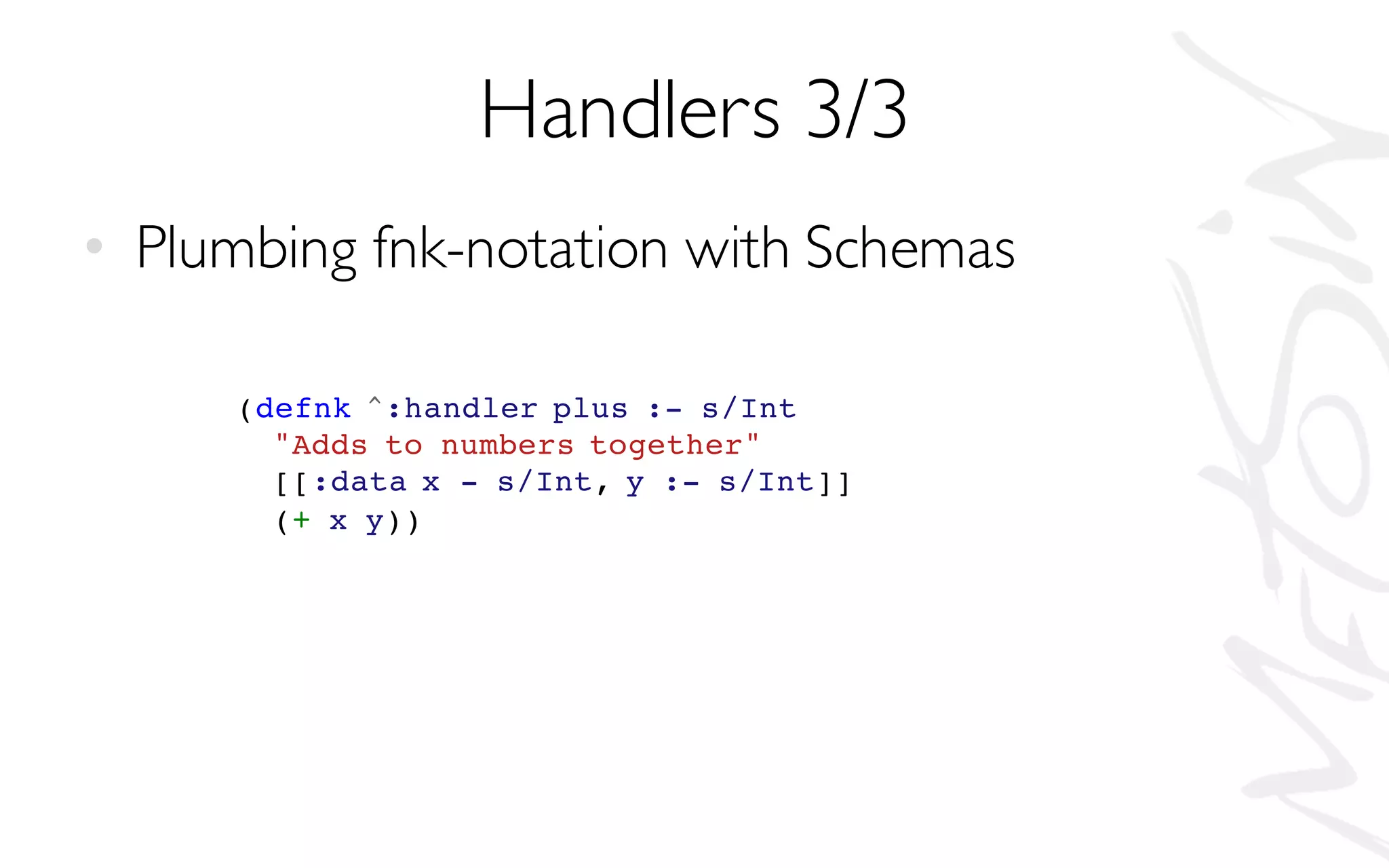

7. Handlers 3/3
• Plumbing fnk-notation with Schemas
(defnk ^:handler plus :- s/Int
"Adds to numbers together"
[[:data x - s/Int, y :- s/Int]]
(+ x y))

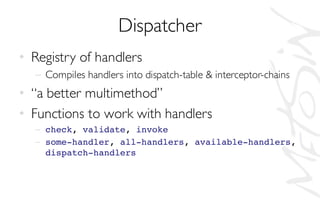

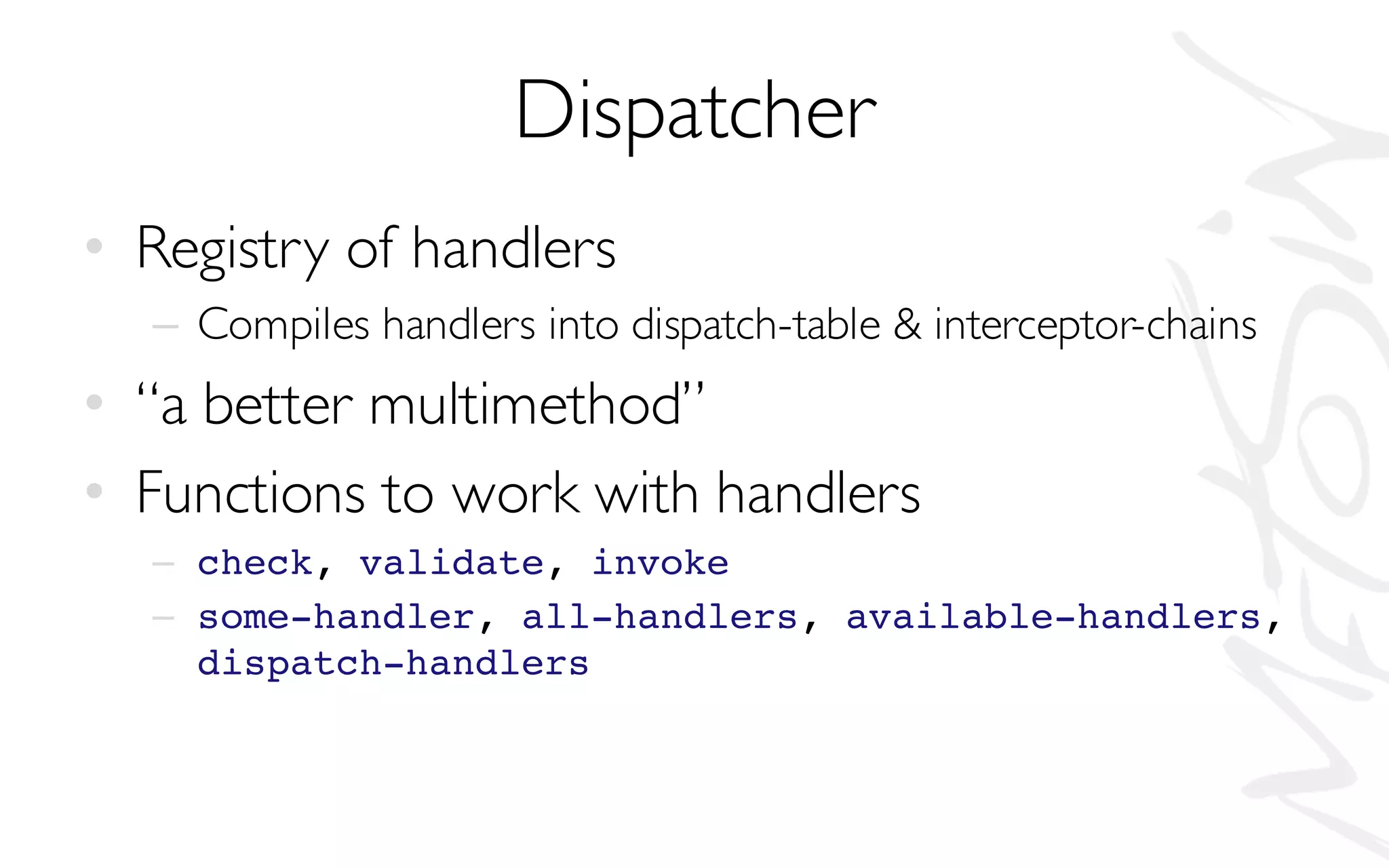

8. Dispatcher
• Registry of handlers
– Compiles handlers into dispatch-table & interceptor-chains
• “a better multimethod”
• Functions to work with handlers
– check, validate, invoke
– some-handler, all-handlers, available-handlers,
dispatch-handlers

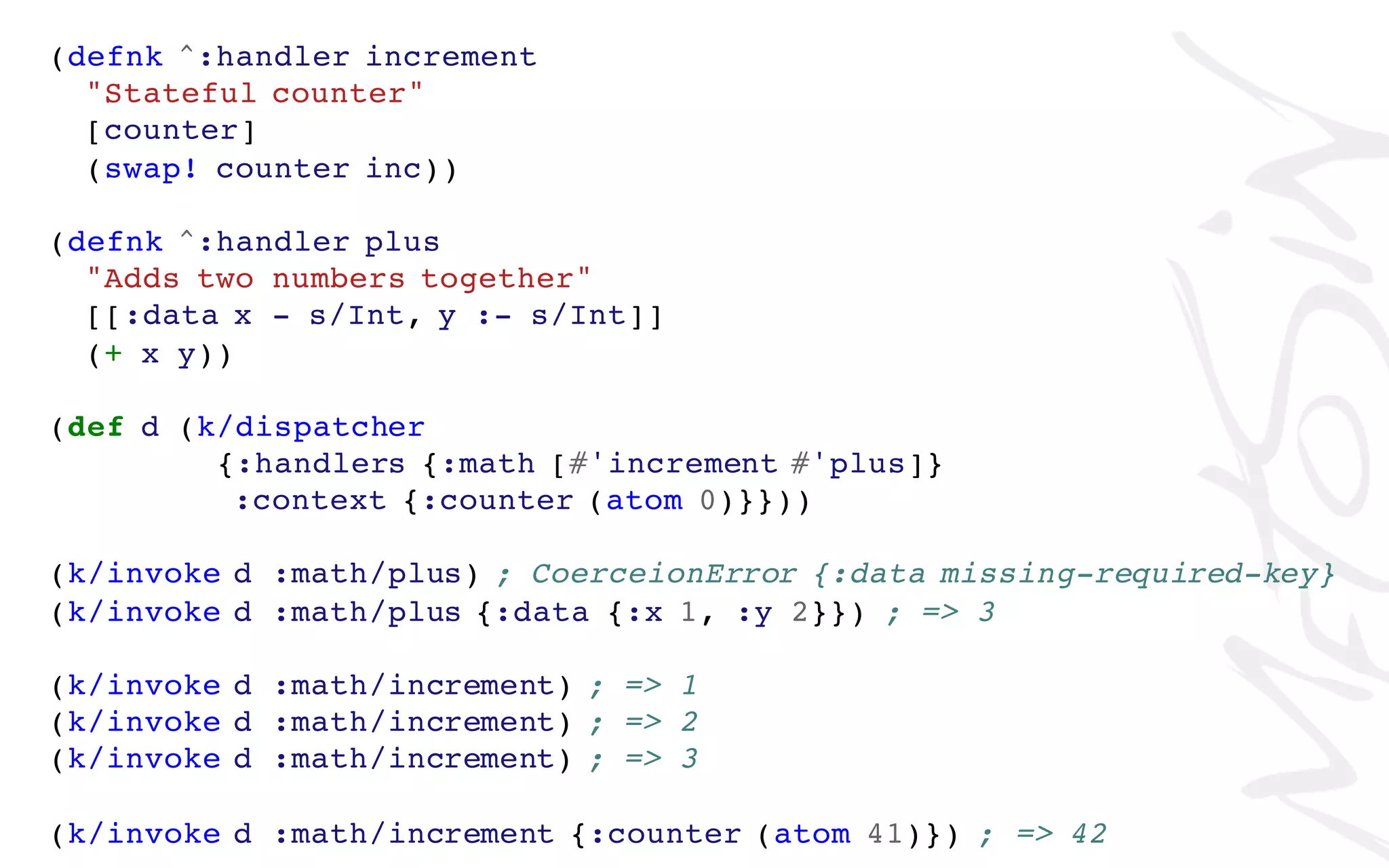

9. (defnk ^:handler increment
"Stateful counter"
[counter]
(swap! counter inc))
(defnk ^:handler plus
"Adds two numbers together"
[[:data x - s/Int, y :- s/Int]]
(+ x y))
(def d (k/dispatcher
{:handlers {:math [#'increment #'plus]}
:context {:counter (atom 0)}}))
(k/invoke d :math/plus) ; CoerceionError {:data missing-required-key}
(k/invoke d :math/plus {:data {:x 1, :y 2}}) ; => 3
(k/invoke d :math/increment) ; => 1
(k/invoke d :math/increment) ; => 2
(k/invoke d :math/increment) ; => 3
(k/invoke d :math/increment {:counter (atom 41)}) ; => 42

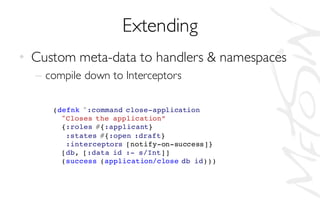

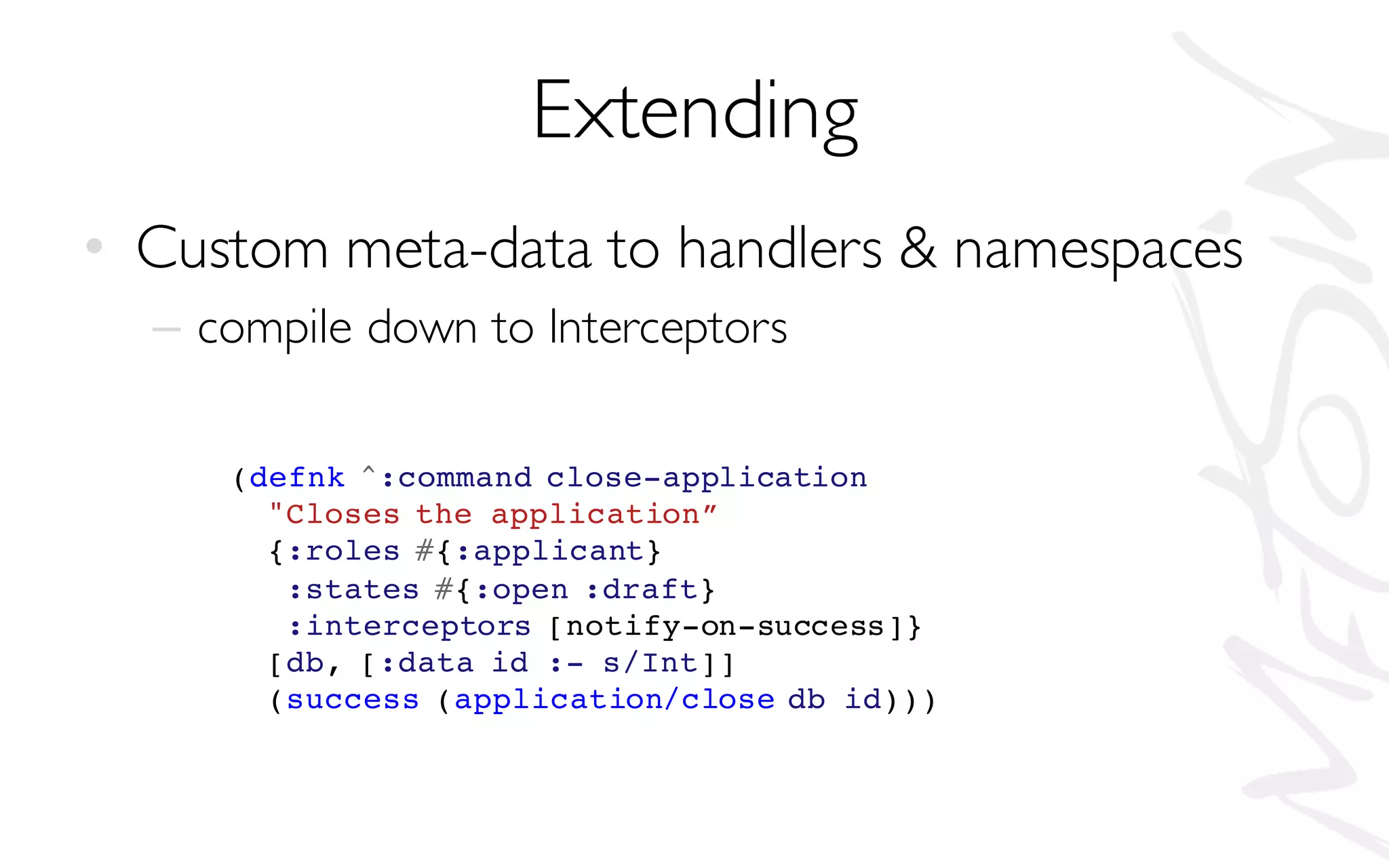

10. Extending
• Custom meta-data to handlers & namespaces
– compile down to Interceptors
(defnk ^:command close-application
"Closes the application”
{:roles #{:applicant}
:states #{:open :draft}
:interceptors [notify-on-success]}
[db, [:data id :- s/Int]]
(success (application/close db id)))

11. But where’s my
WEB APIs?

12. Kebab time!

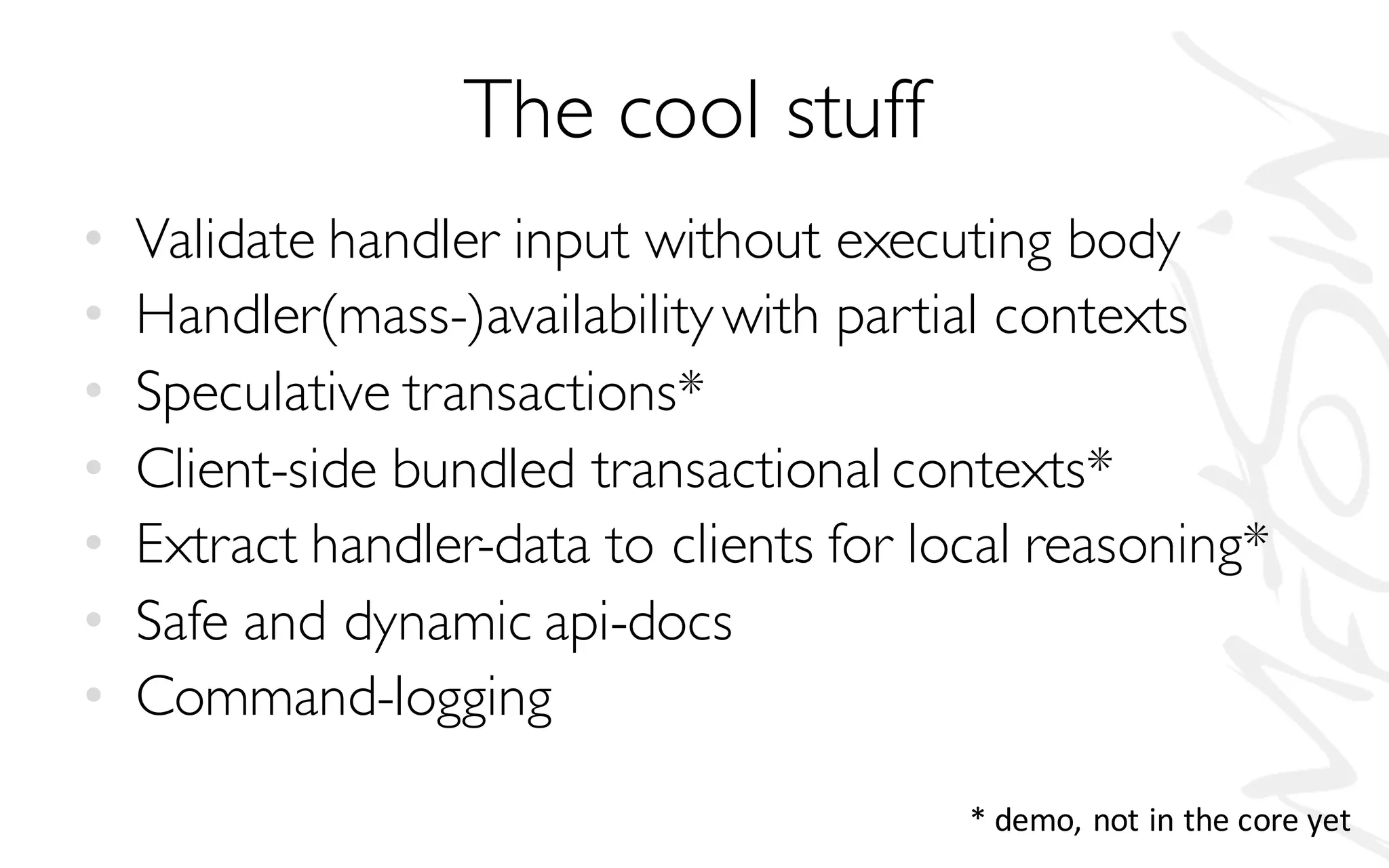

13. The cool stuff
• Validate handler input without executing body
• Handler(mass-)availabilitywith partial contexts
• Speculative transactions*
• Client-side bundled transactional contexts*
• Extract handler-data to clients for local reasoning*
• Safe and dynamic api-docs
• Command-logging
* demo, not in the core yet

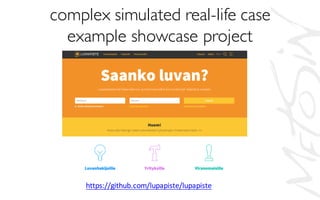

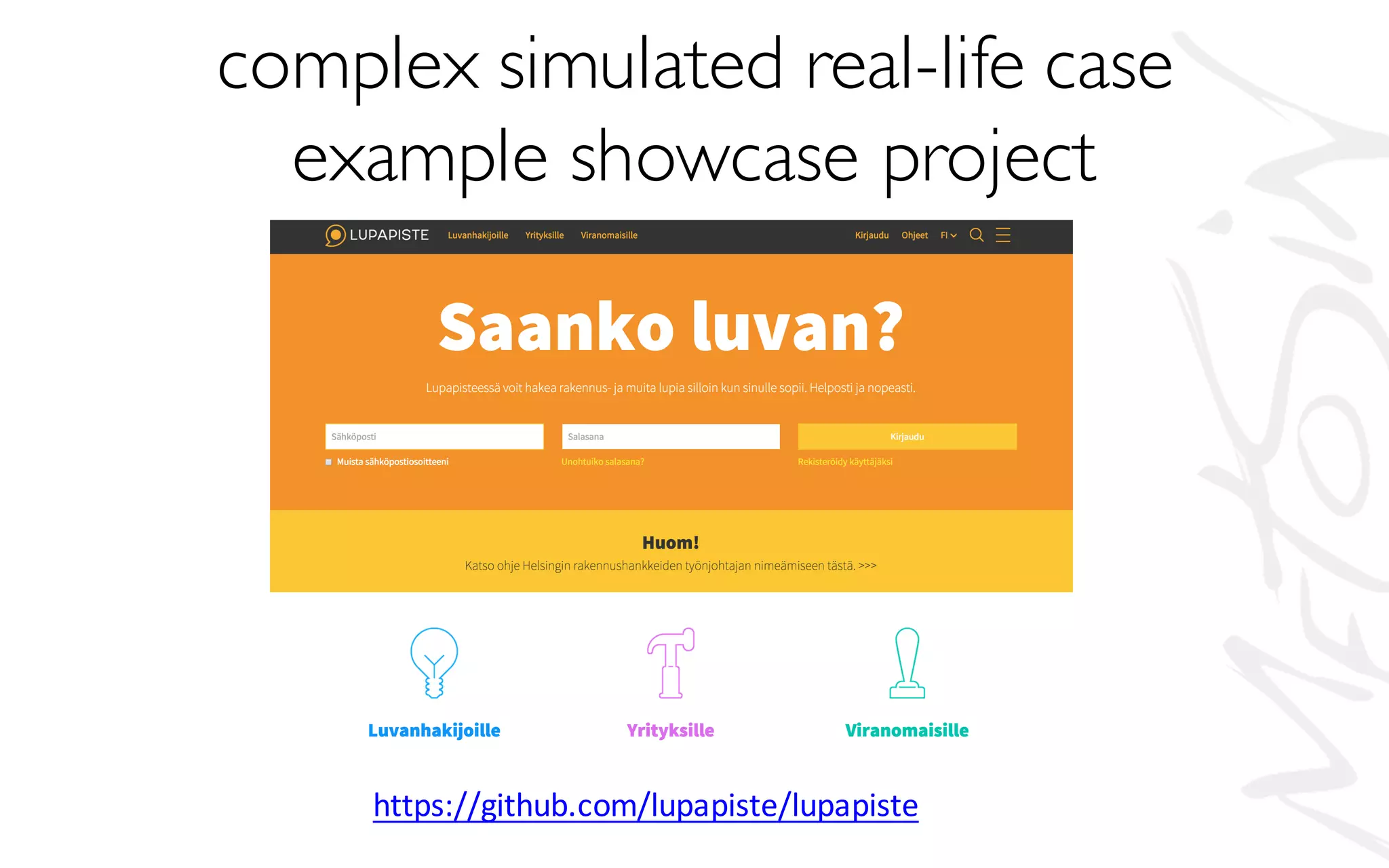

14. complex simulated real-life case
example showcase project
https://github.com/lupapiste/lupapiste

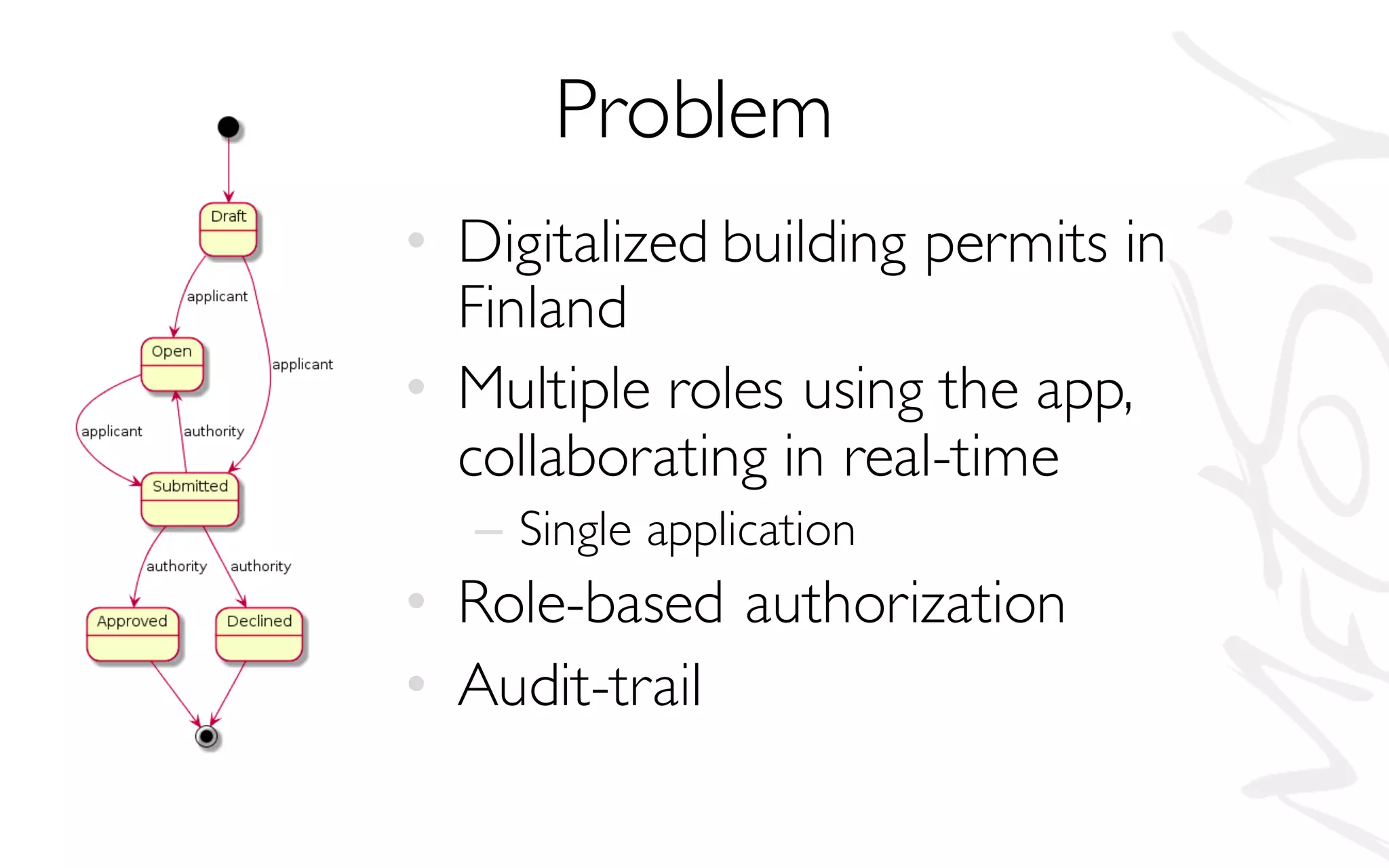

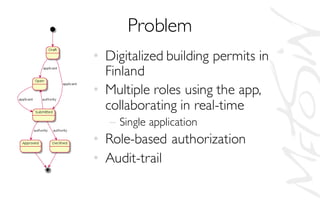

15. Problem
• Digitalized building permits in
Finland
• Multiple roles using the app,
collaborating in real-time
– Single application
• Role-based authorization
• Audit-trail

16. UI DEMO

17. Actions DEMO

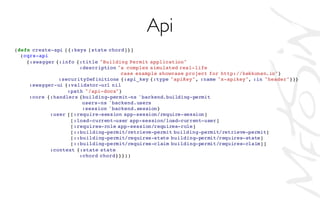

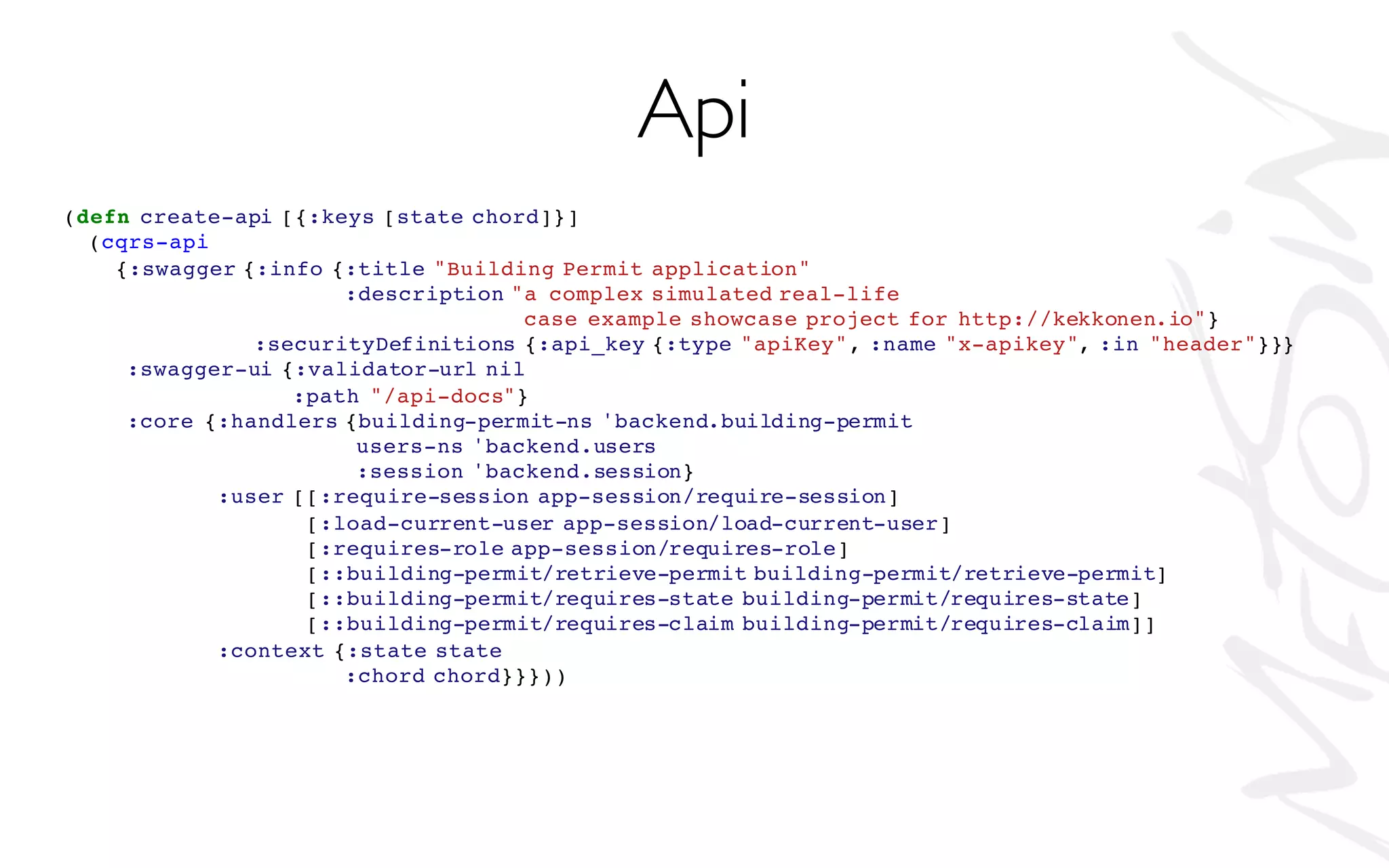

18. (defn create-api [{:keys [state chord]}]
(cqrs-api
{:swagger {:info {:title "Building Permit application"
:description "a complex simulated real-life
case example showcase project for http://kekkonen.io"}
:securityDefinitions {:api_key {:type "apiKey", :name "x-apikey", :in "header"}}}
:swagger-ui {:validator-url nil
:path "/api-docs"}
:core {:handlers {building-permit-ns 'backend.building-permit
users-ns 'backend.users
:session 'backend.session}
:user [[:require-session app-session/require-session]
[:load-current-user app-session/load-current-user]
[:requires-role app-session/requires-role]
[::building-permit/retrieve-permit building-permit/retrieve-permit]
[::building-permit/requires-state building-permit/requires-state]
[::building-permit/requires-claim building-permit/requires-claim]]
:context {:state state
:chord chord}}}))
Api

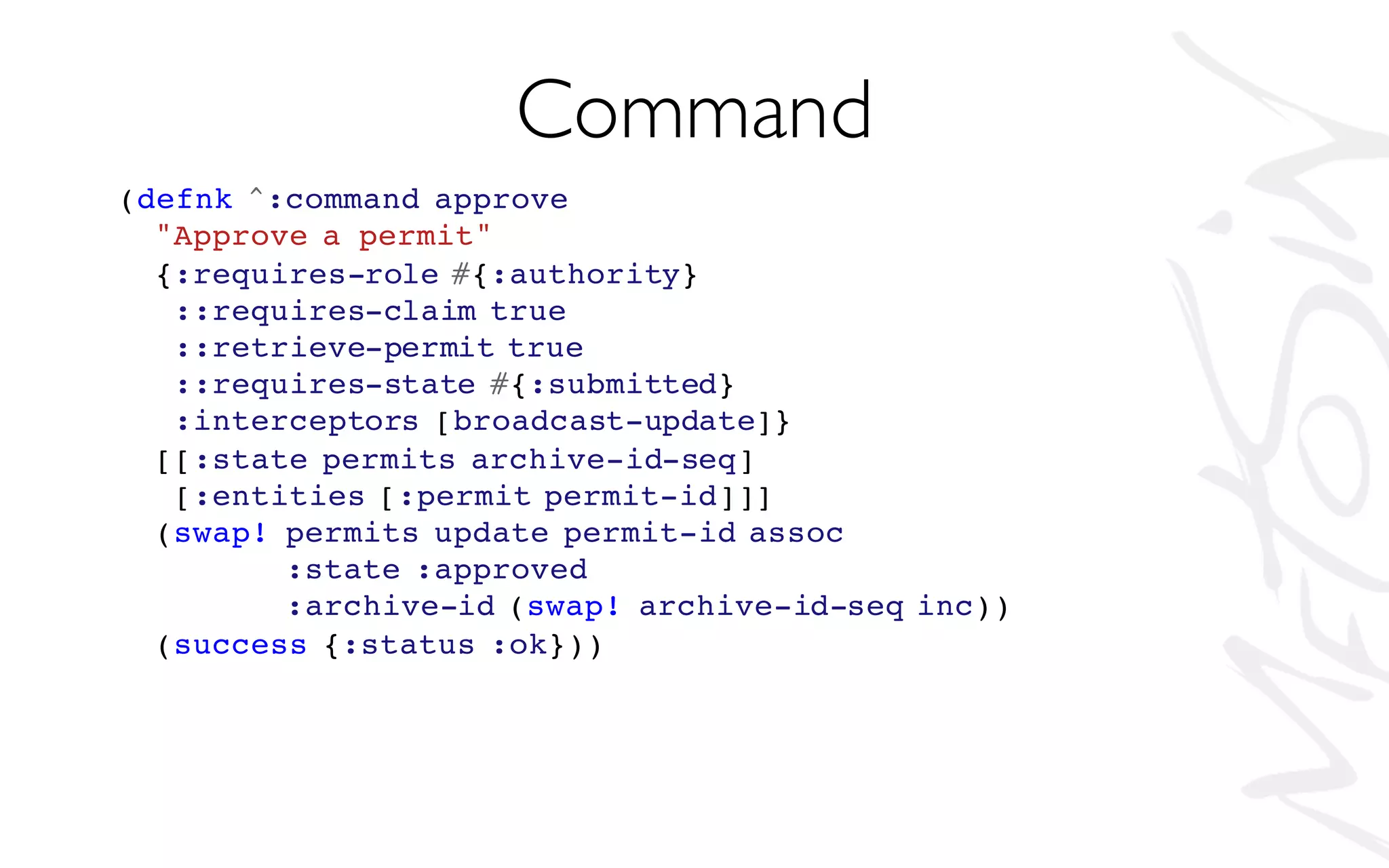

19. (defnk ^:command approve
"Approve a permit"
{:requires-role #{:authority}
::requires-claim true
::retrieve-permit true
::requires-state #{:submitted}
:interceptors [broadcast-update]}
[[:state permits archive-id-seq]
[:entities [:permit permit-id]]]
(swap! permits update permit-id assoc
:state :approved
:archive-id (swap! archive-id-seq inc))
(success {:status :ok}))
Command

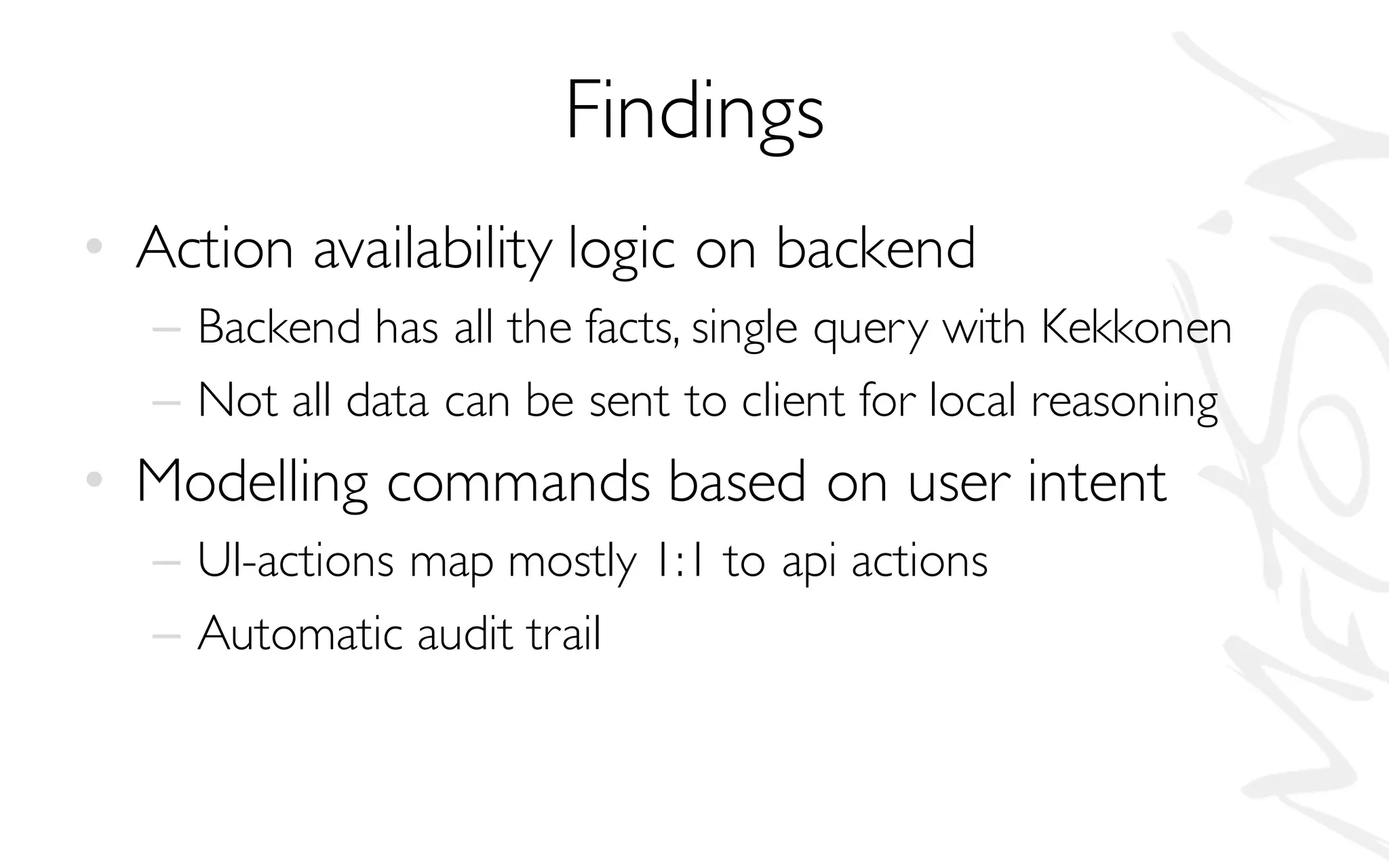

20. Findings
• Action availability logic on backend
– Backend has all the facts, single query with Kekkonen
– Not all data can be sent to client for local reasoning
• Modelling commands based on user intent
– UI-actions map mostly 1:1 to api actions
– Automatic audit trail

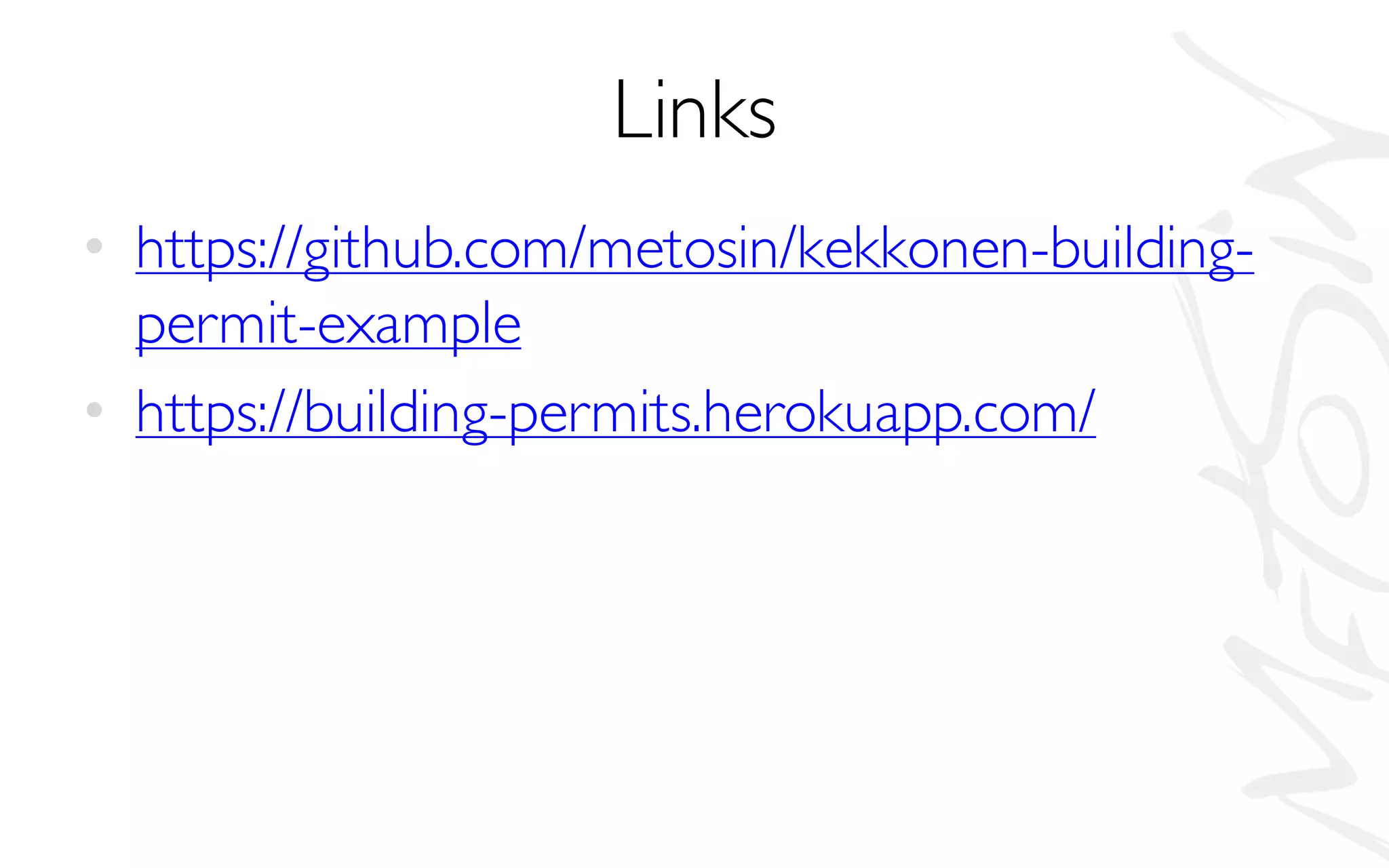

21. Links
• https://github.com/metosin/kekkonen-building-
permit-example
• https://building-permits.herokuapp.com/

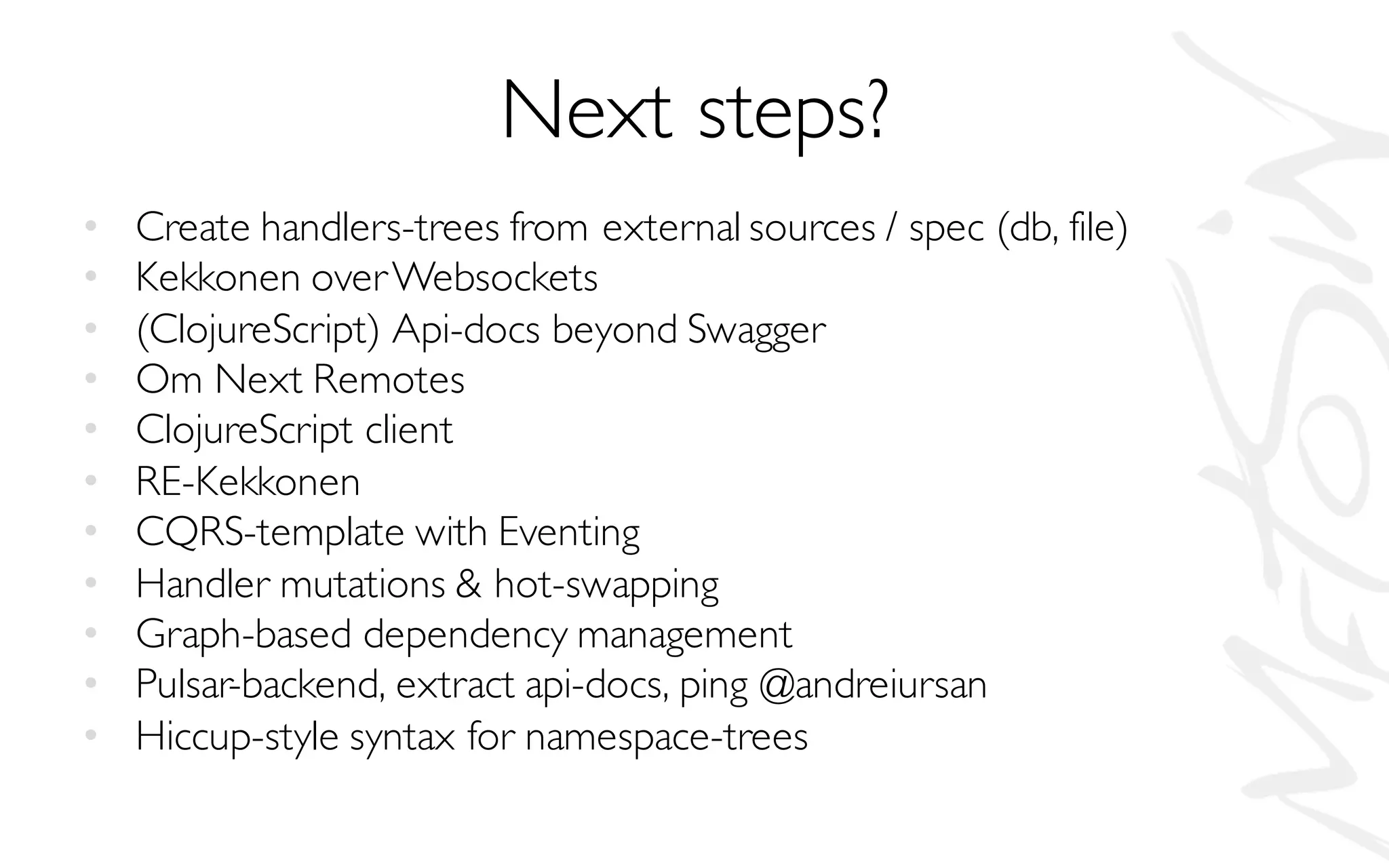

22. Next steps?
• Create handlers-trees from external sources / spec (db, file)
• Kekkonen overWebsockets
• (ClojureScript) Api-docs beyond Swagger
• Om Next Remotes
• ClojureScript client
• RE-Kekkonen
• CQRS-template with Eventing
• Handler mutations & hot-swapping
• Graph-based dependency management
• Pulsar-backend, extract api-docs, ping @andreiursan
• Hiccup-style syntax for namespace-trees

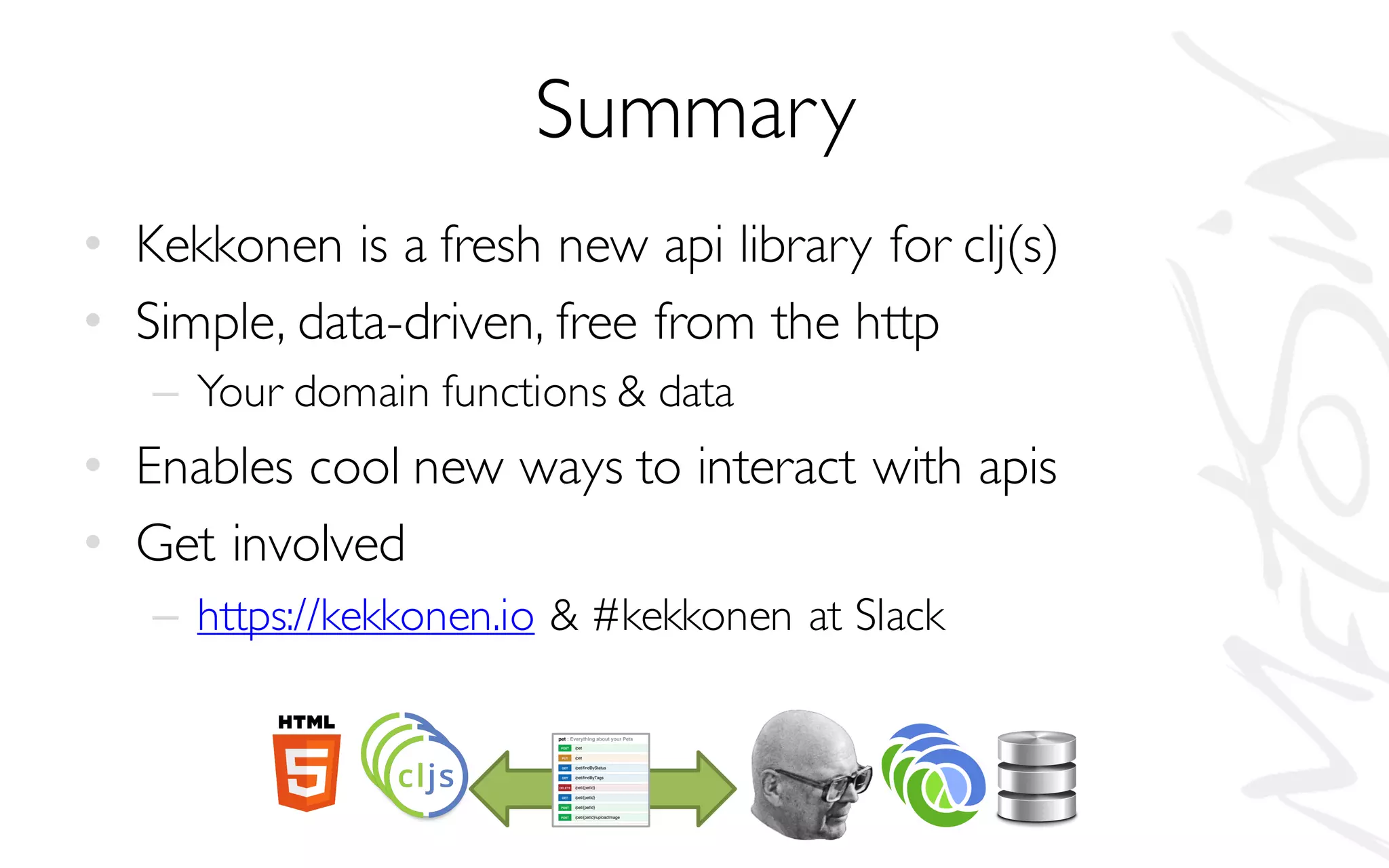

23. Summary
• Kekkonen is a fresh new api library for clj(s)
• Simple, data-driven, free from the http
– Your domain functions & data
• Enables cool new ways to interact with apis
• Get involved
– https://kekkonen.io & #kekkonen at Slack

24. Special thanks to
• Prismatic Schema & Plumbing
• Pedestal for Interceptors
• Elegance of fnhouse
• Ring-swagger
• Best parts of compojure-api
• Schema-tools
• Kebabs

25. Q&Ahttp://kekkonen.io
#kekkonen at Slack
@metosin at Twitter
join@metosin.fi

26. Extra slides

27. https://www.youtube.com/watch?v=3oQTSP4FngY
Zach Tellman - Always Be Composing

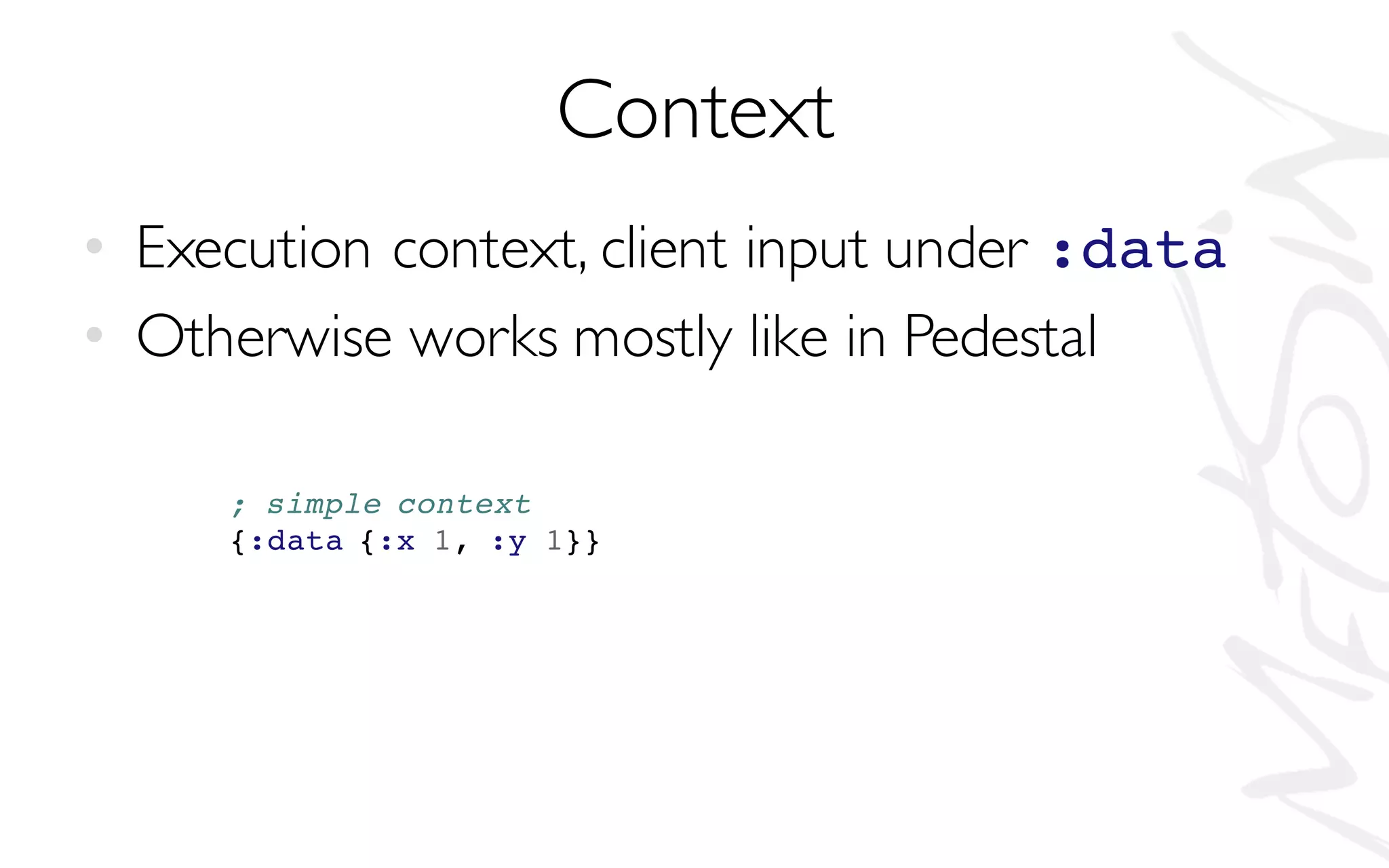

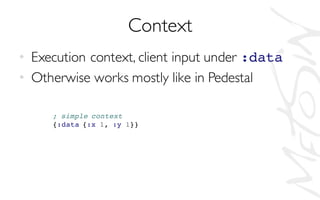

28. Context
• Execution context, client input under :data
• Otherwise works mostly like in Pedestal
; simple context
{:data {:x 1, :y 1}}

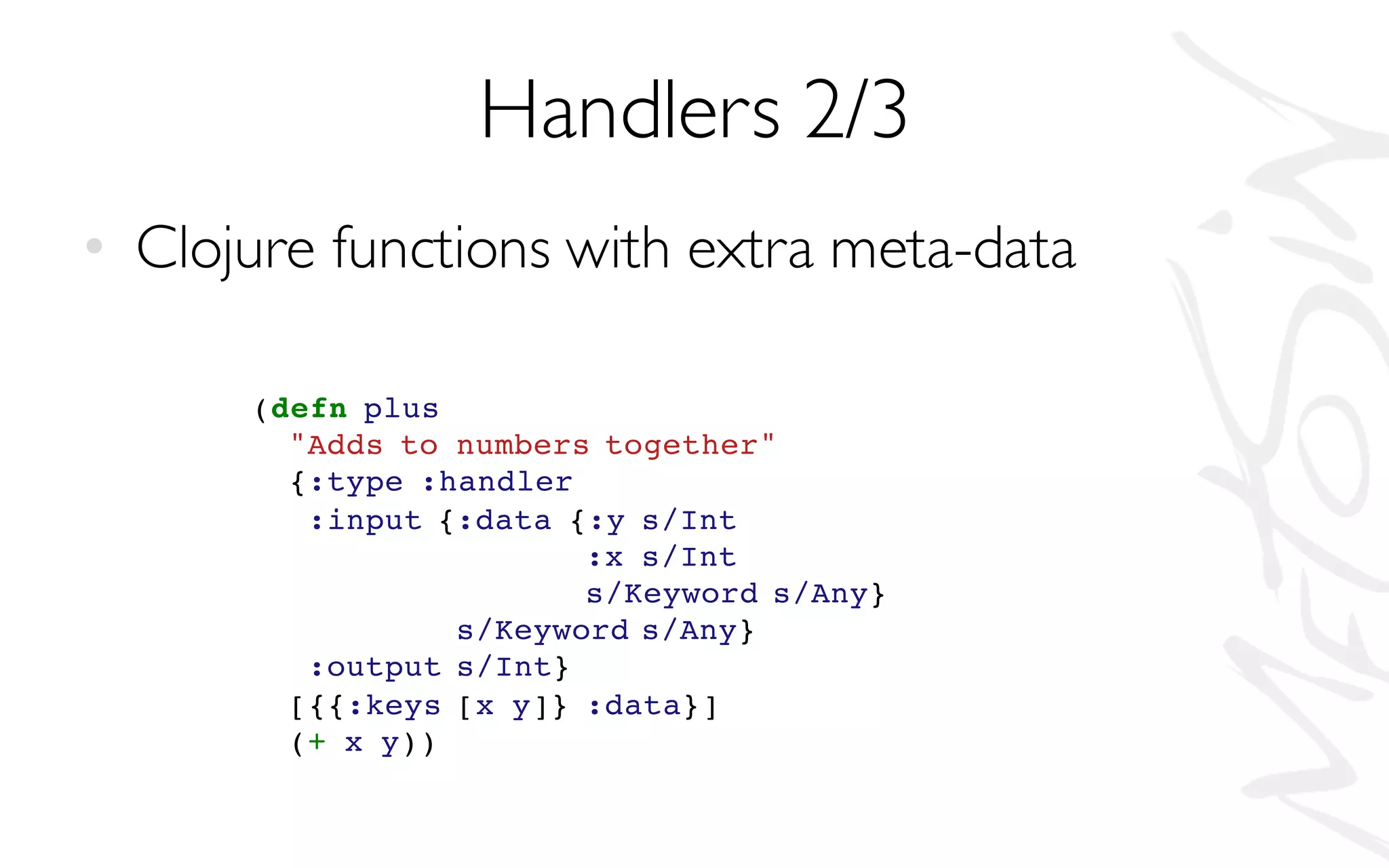

29. Handlers 2/3
• Clojure functions with extra meta-data
(defn plus
"Adds to numbers together"
{:type :handler
:input {:data {:y s/Int
:x s/Int
s/Keyword s/Any}
s/Keyword s/Any}
:output s/Int}
[{{:keys [x y]} :data}]
(+ x y))

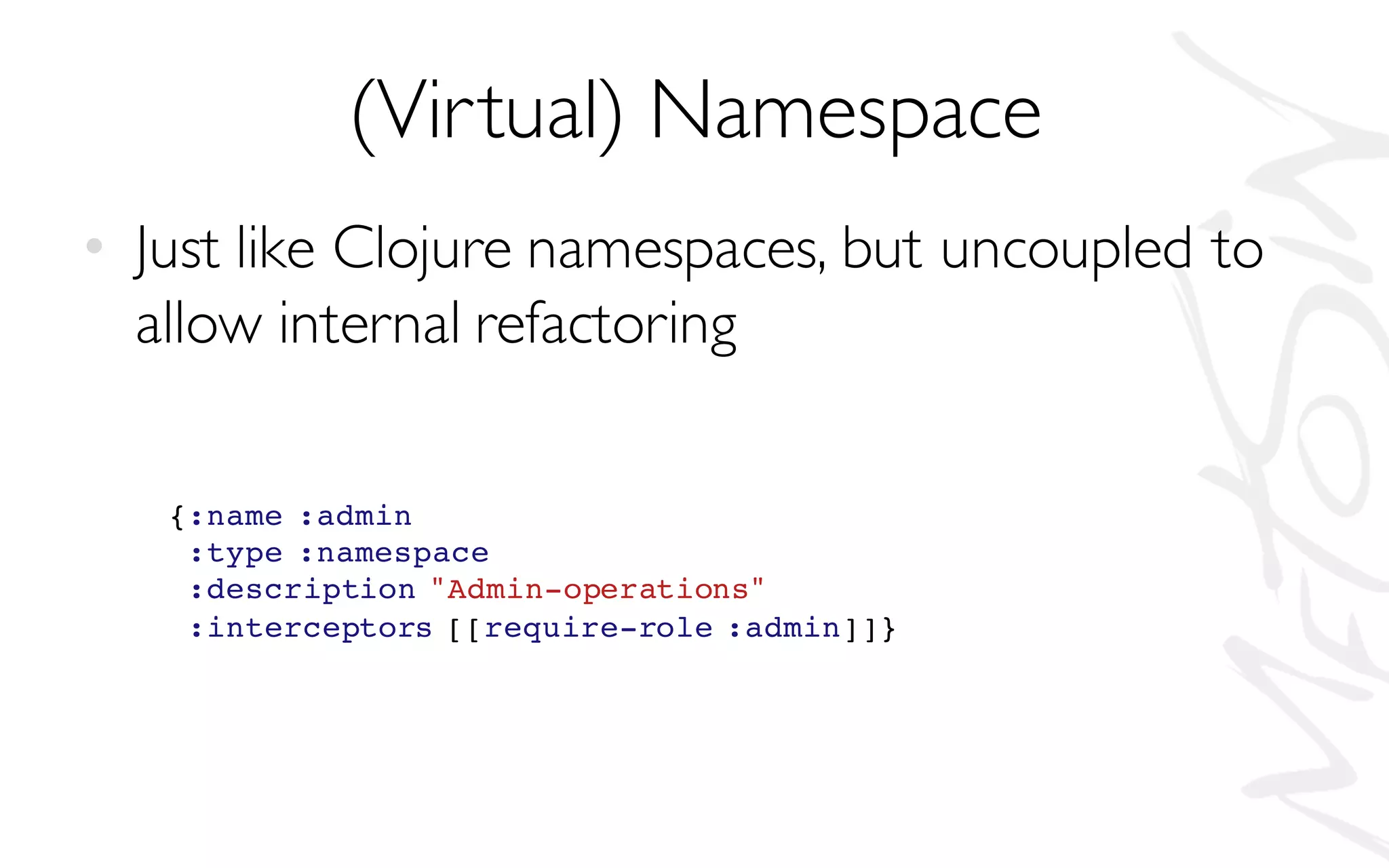

30. (Virtual) Namespace
• Just like Clojure namespaces, but uncoupled to
allow internal refactoring
{:name :admin
:type :namespace
:description "Admin-operations"
:interceptors [[require-role :admin]]}

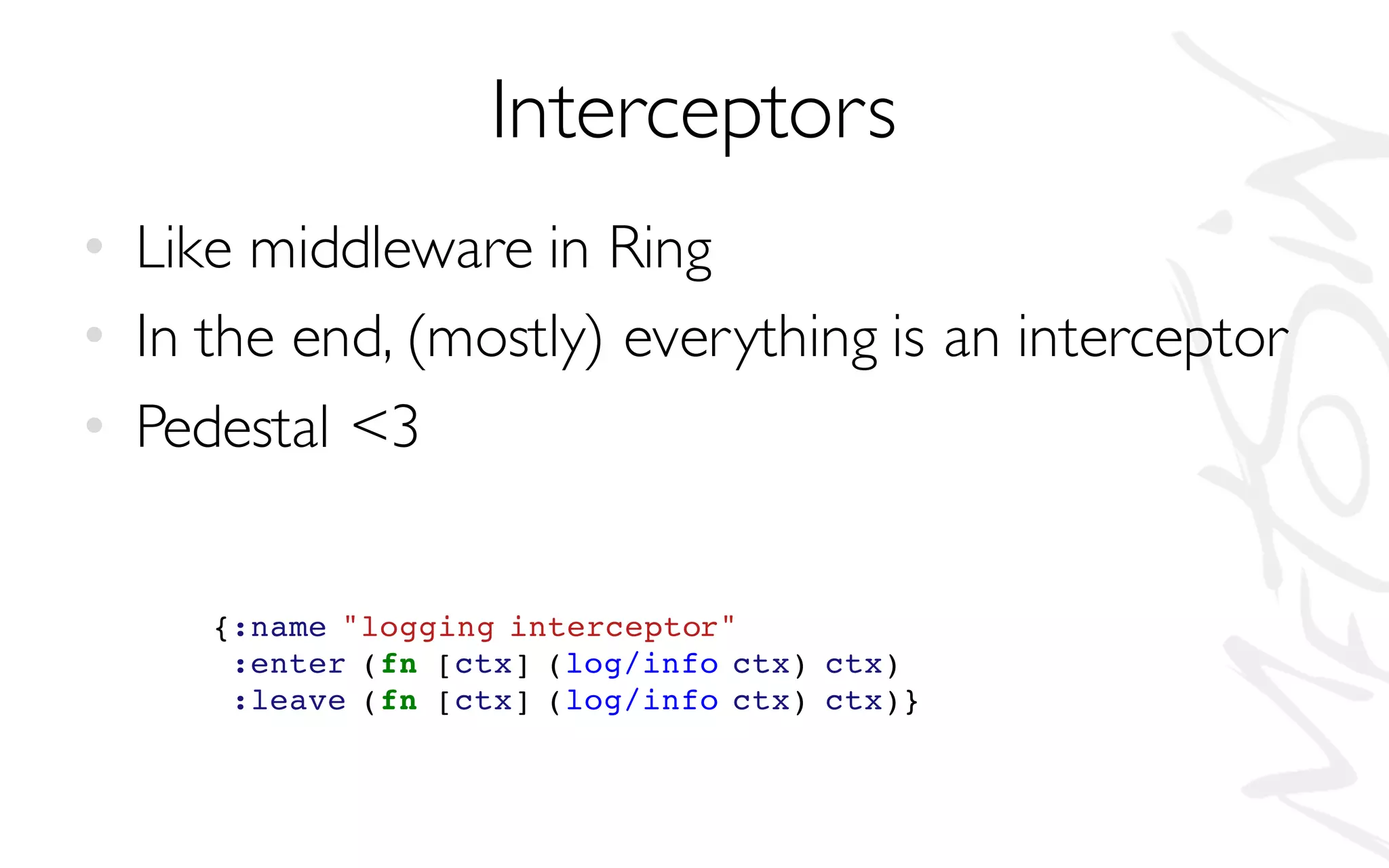

31. Interceptors
• Like middleware in Ring
• In the end, (mostly) everything is an interceptor
• Pedestal <3
{:name "logging interceptor"
:enter (fn [ctx] (log/info ctx) ctx)
:leave (fn [ctx] (log/info ctx) ctx)}

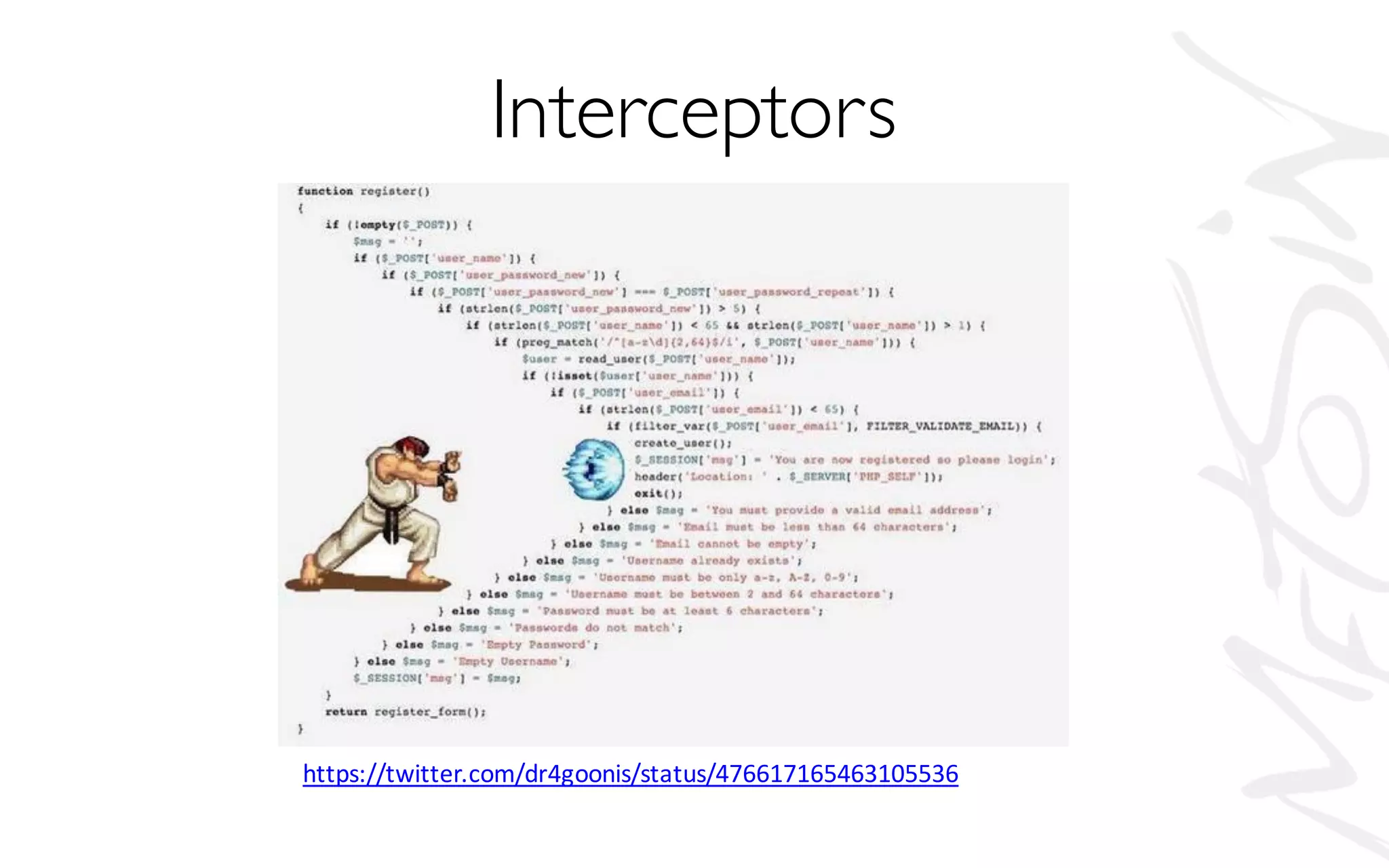

32. https://twitter.com/dr4goonis/status/476617165463105536
Interceptors

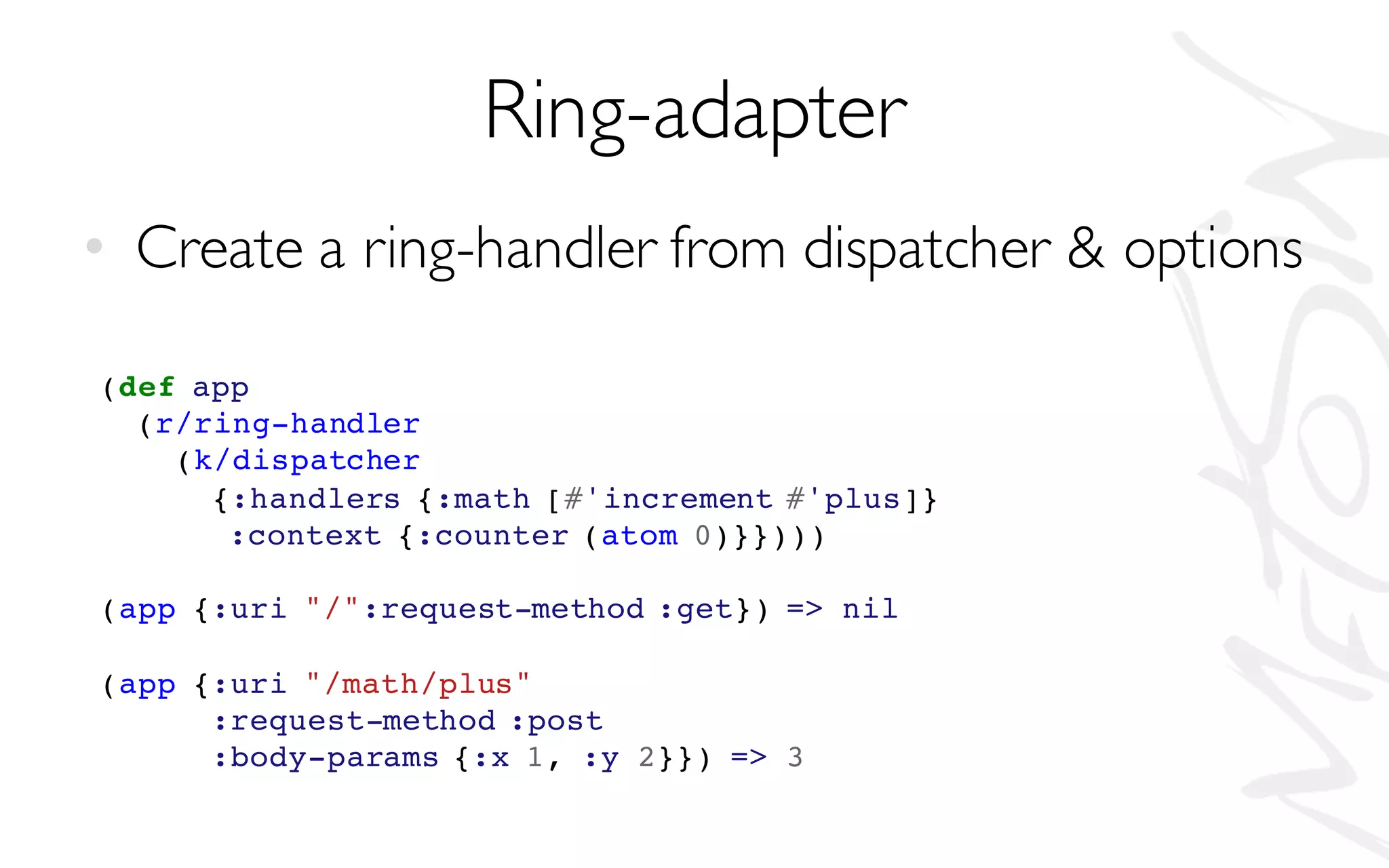

33. Ring-adapter
• Create a ring-handler from dispatcher & options
(def app
(r/ring-handler
(k/dispatcher
{:handlers {:math [#'increment #'plus]}
:context {:counter (atom 0)}})))
(app {:uri "/":request-method :get}) => nil
(app {:uri "/math/plus"
:request-method :post
:body-params {:x 1, :y 2}}) => 3

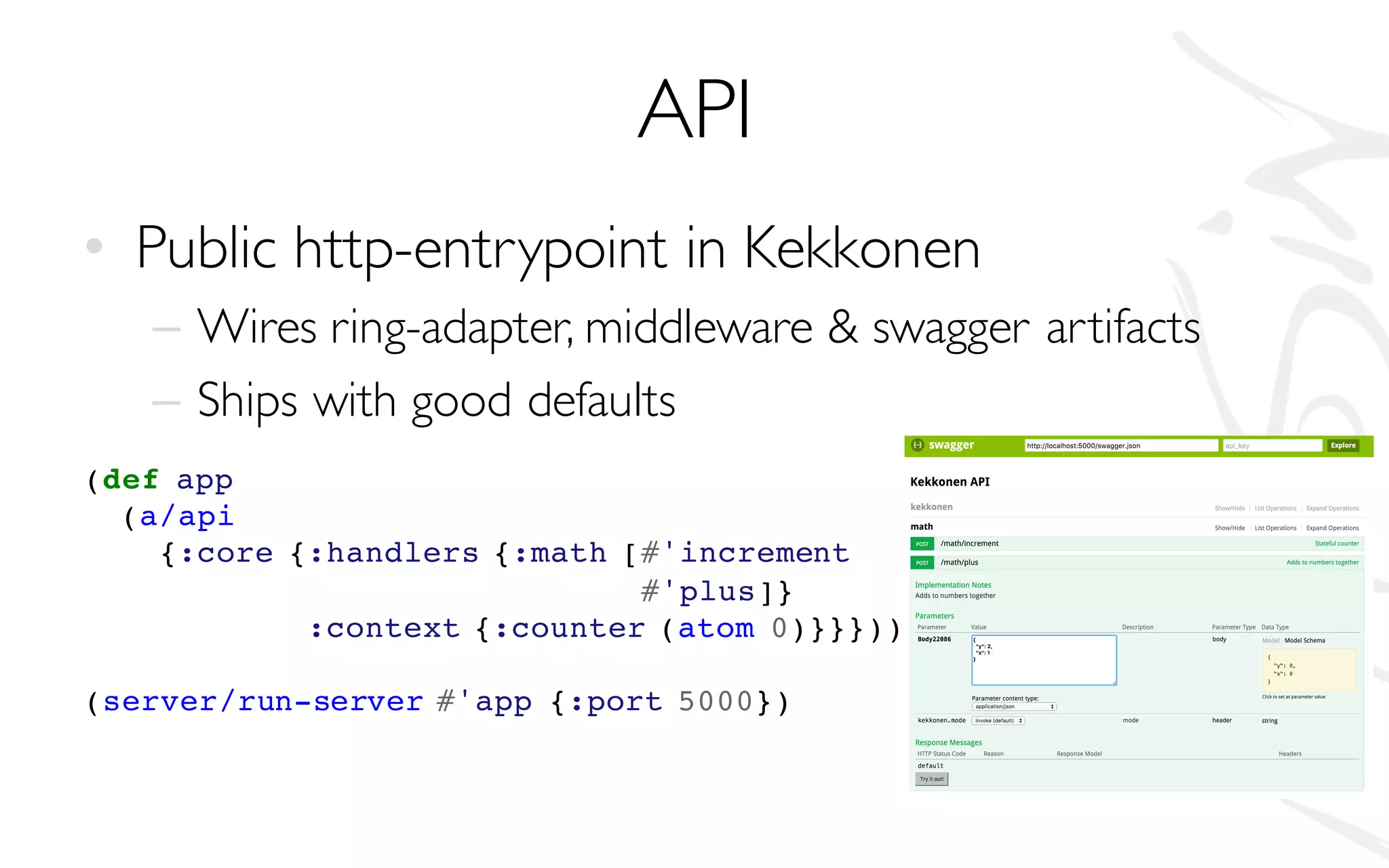

34. API
• Public http-entrypoint in Kekkonen
– Wires ring-adapter, middleware & swagger artifacts
– Ships with good defaults
(def app
(a/api
{:core {:handlers {:math [#'increment
#'plus]}
:context {:counter (atom 0)}}}))
(server/run-server #'app {:port 5000})

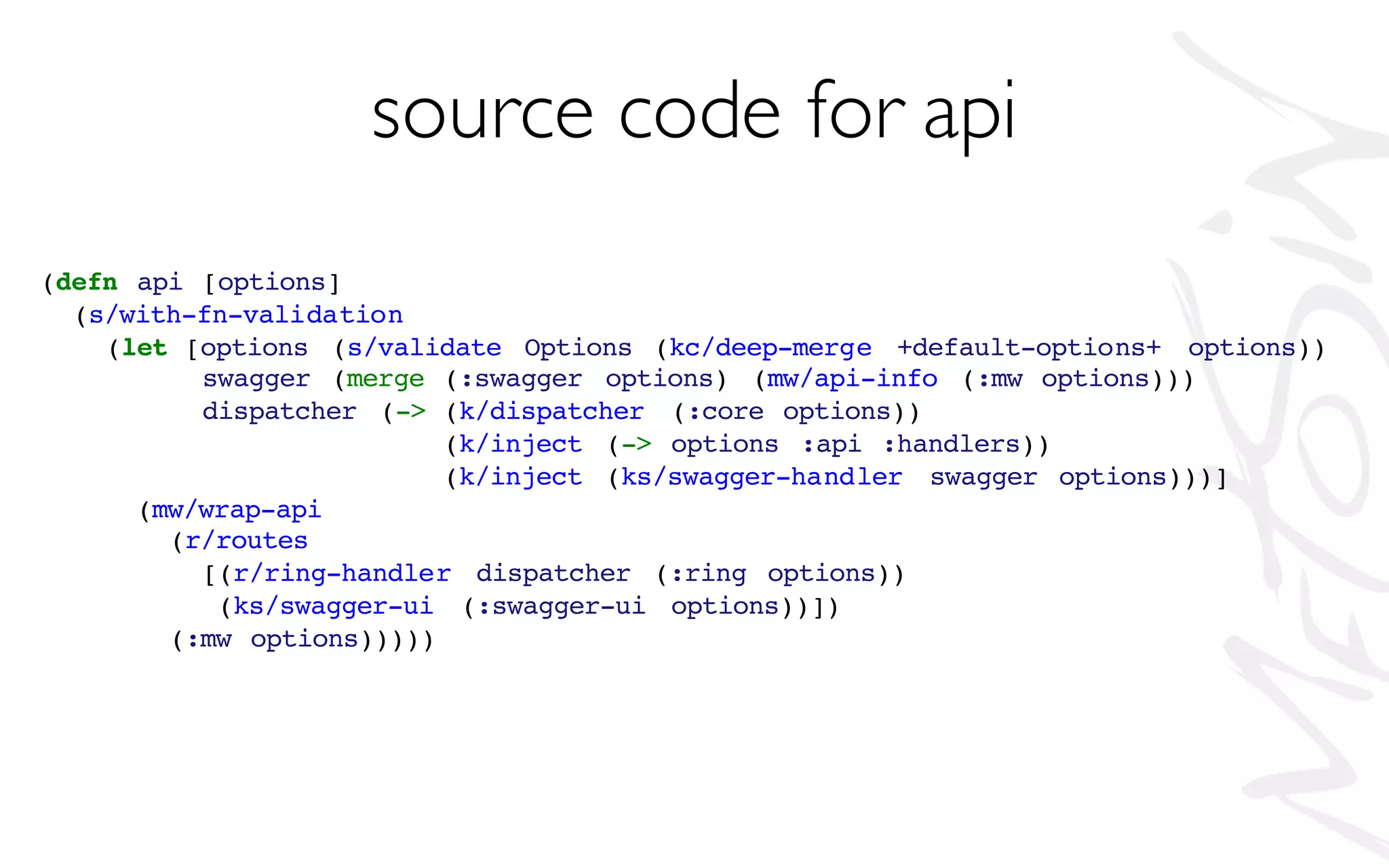

35. source code for api
(defn api [options]
(s/with-fn-validation
(let [options (s/validate Options (kc/deep-merge +default-options+ options))
swagger (merge (:swagger options) (mw/api-info (:mw options)))
dispatcher (-> (k/dispatcher (:core options))
(k/inject (-> options :api :handlers))
(k/inject (ks/swagger-handler swagger options)))]
(mw/wrap-api
(r/routes
[(r/ring-handler dispatcher (:ring options))
(ks/swagger-ui (:swagger-ui options))])
(:mw options)))))

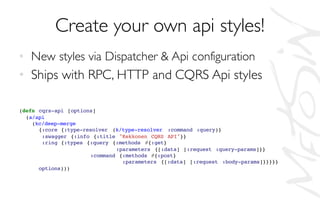

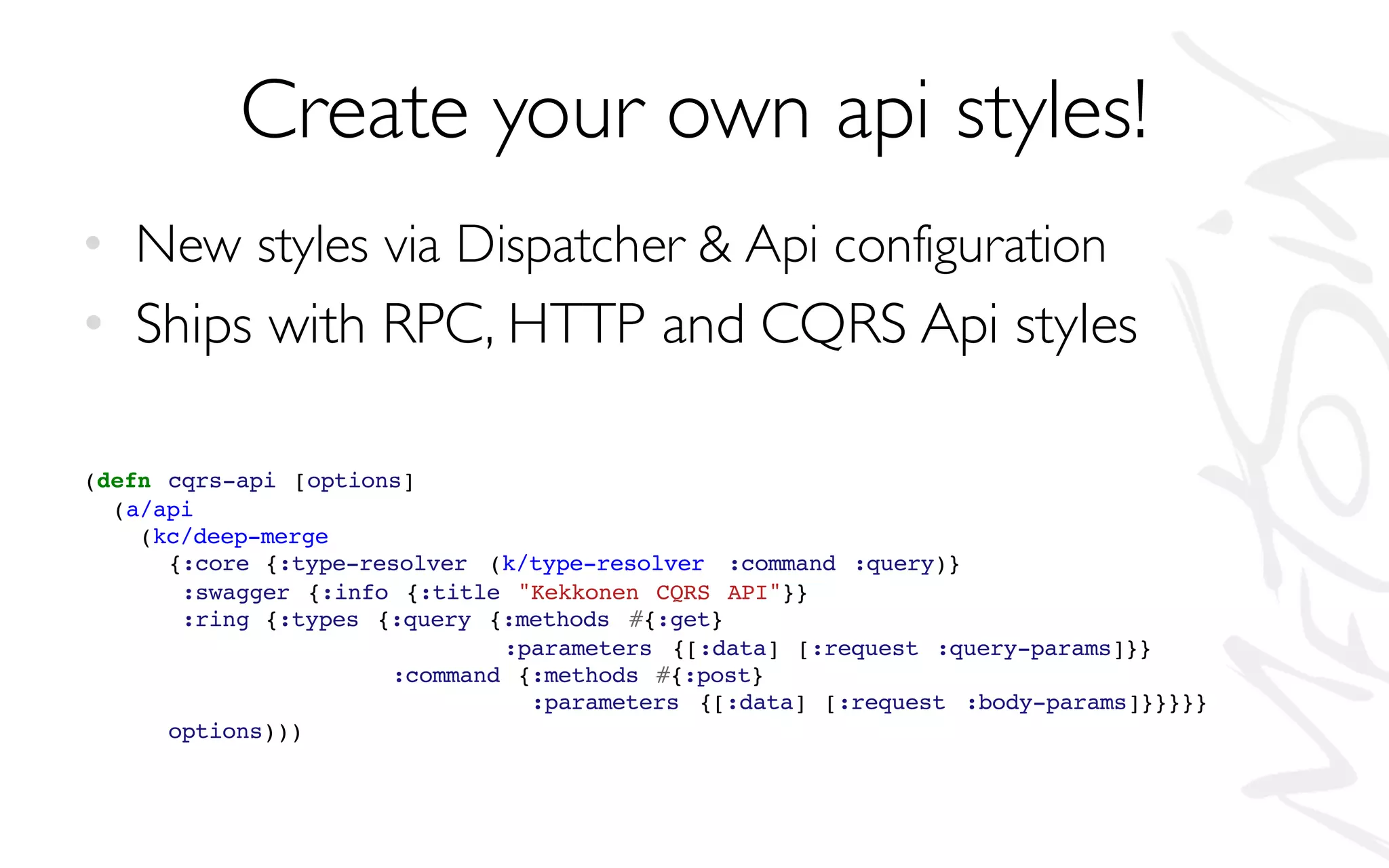

36. Create your own api styles!
• New styles via Dispatcher & Api configuration
• Ships with RPC, HTTP and CQRS Api styles
(defn cqrs-api [options]
(a/api
(kc/deep-merge
{:core {:type-resolver (k/type-resolver :command :query)}
:swagger {:info {:title "Kekkonen CQRS API"}}
:ring {:types {:query {:methods #{:get}
:parameters {[:data] [:request :query-params]}}
:command {:methods #{:post}
:parameters {[:data] [:request :body-params]}}}}}
options)))

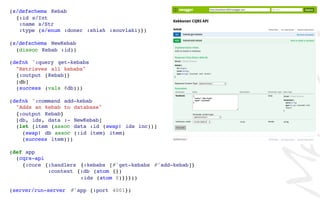

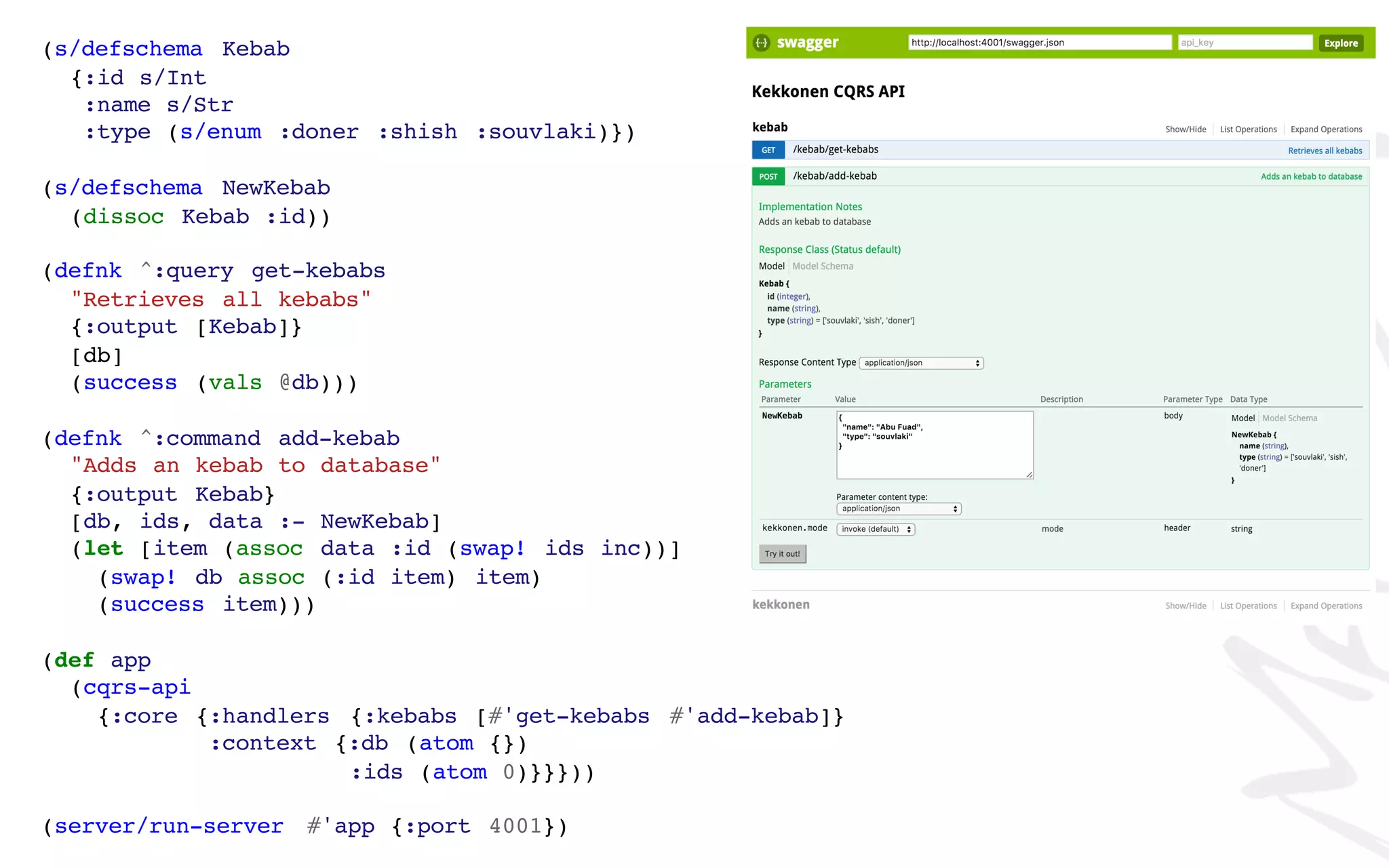

37. (s/defschema Kebab
{:id s/Int
:name s/Str
:type (s/enum :doner :shish :souvlaki)})
(s/defschema NewKebab
(dissoc Kebab :id))
(defnk ^:query get-kebabs
"Retrieves all kebabs"
{:output [Kebab]}
[db]
(success (vals @db)))
(defnk ^:command add-kebab
"Adds an kebab to database"
{:output Kebab}
[db, ids, data :- NewKebab]
(let [item (assoc data :id (swap! ids inc))]
(swap! db assoc (:id item) item)
(success item)))
(def app
(cqrs-api
{:core {:handlers {:kebabs [#'get-kebabs #'add-kebab]}
:context {:db (atom {})
:ids (atom 0)}}}))
(server/run-server #'app {:port 4001})
