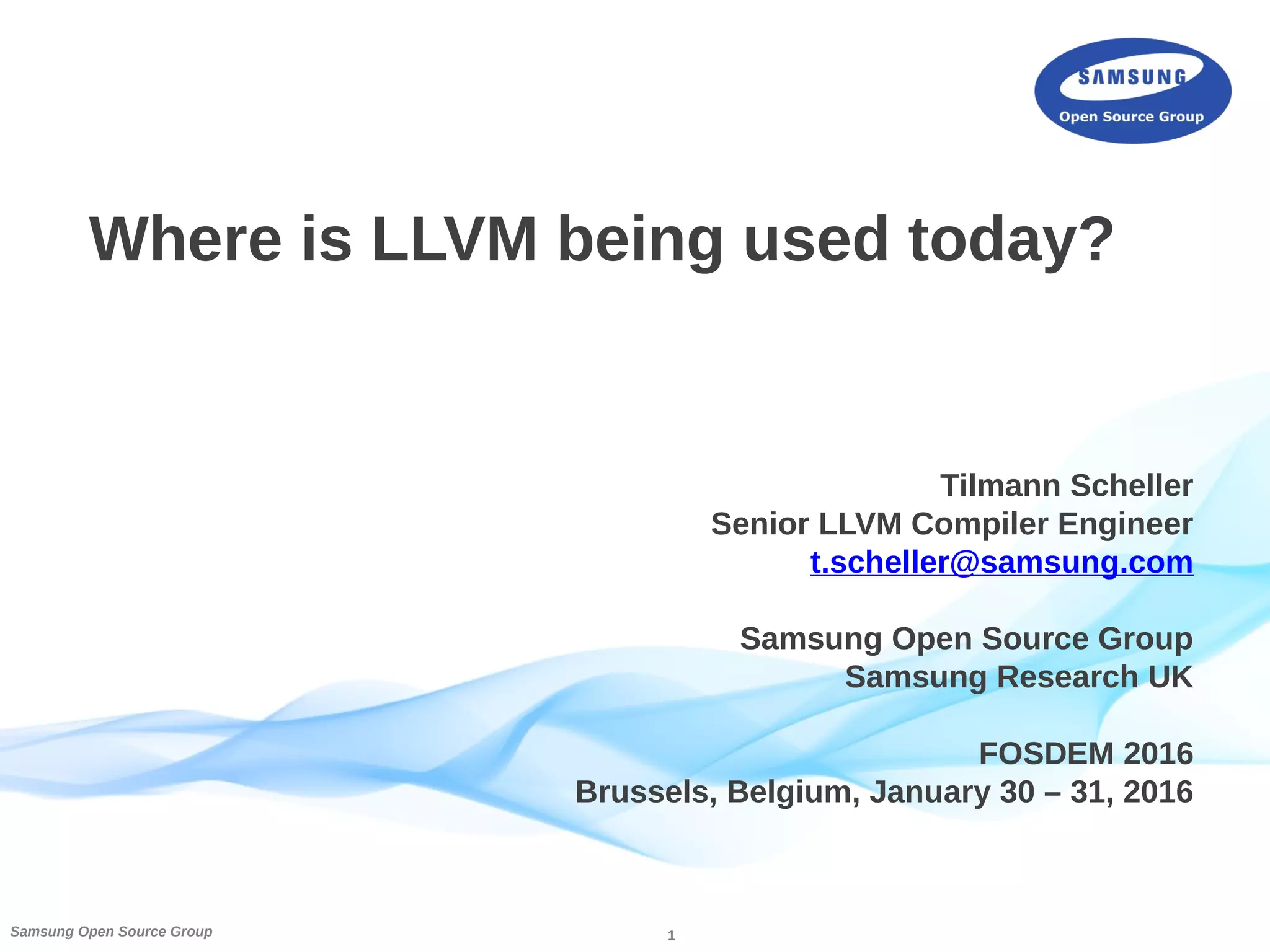

1. 1Samsung Open Source Group
Where is LLVM being used today?
Tilmann Scheller
Senior LLVM Compiler Engineer
t.scheller@samsung.com
Samsung Open Source Group
Samsung Research UK
FOSDEM 2016
Brussels, Belgium, January 30 – 31, 2016

2. 2Samsung Open Source Group
Overview
● Introduction
● LLVM Overview
● Projects
● Summary

3. 3Samsung Open Source Group
Introduction

4. 4Samsung Open Source Group

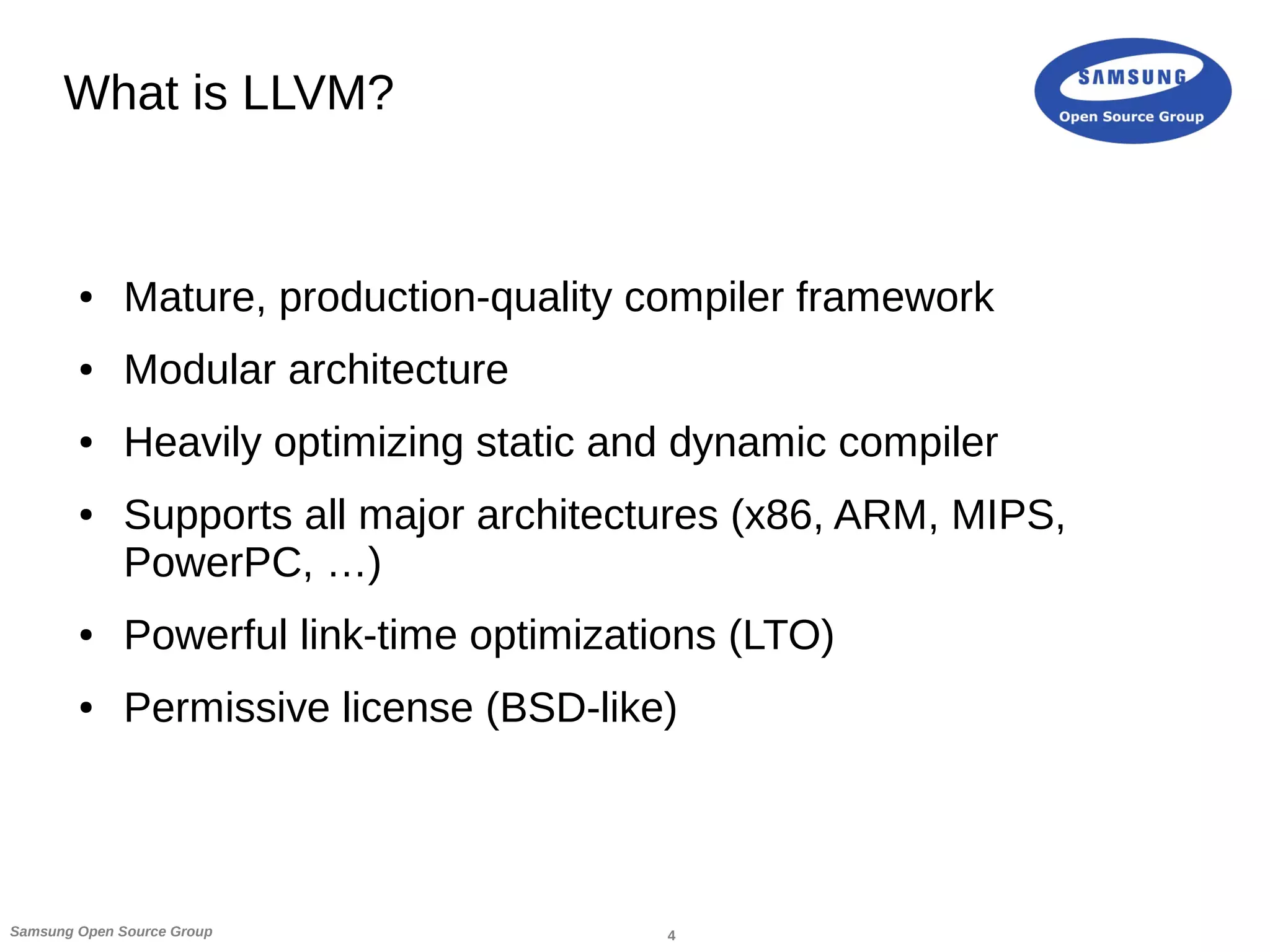

What is LLVM?
● Mature, production-quality compiler framework
● Modular architecture
● Heavily optimizing static and dynamic compiler
● Supports all major architectures (x86, ARM, MIPS,
PowerPC, …)
● Powerful link-time optimizations (LTO)
● Permissive license (BSD-like)

5. 5Samsung Open Source Group
Which companies are contributing?
®

6. 6Samsung Open Source Group

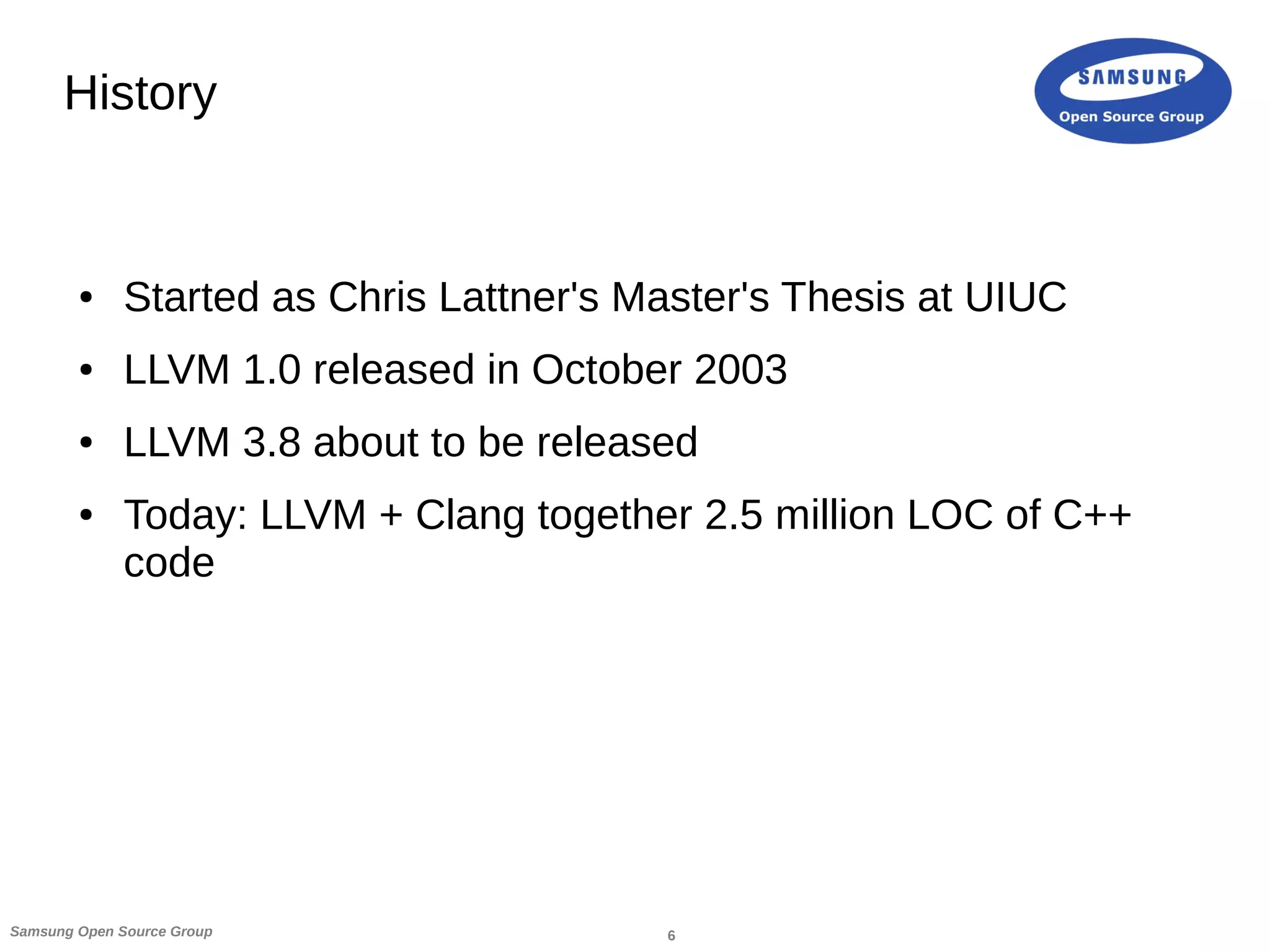

History
● Started as Chris Lattner's Master's Thesis at UIUC
● LLVM 1.0 released in October 2003
● LLVM 3.8 about to be released
● Today: LLVM + Clang together 2.5 million LOC of C++
code

7. 7Samsung Open Source Group

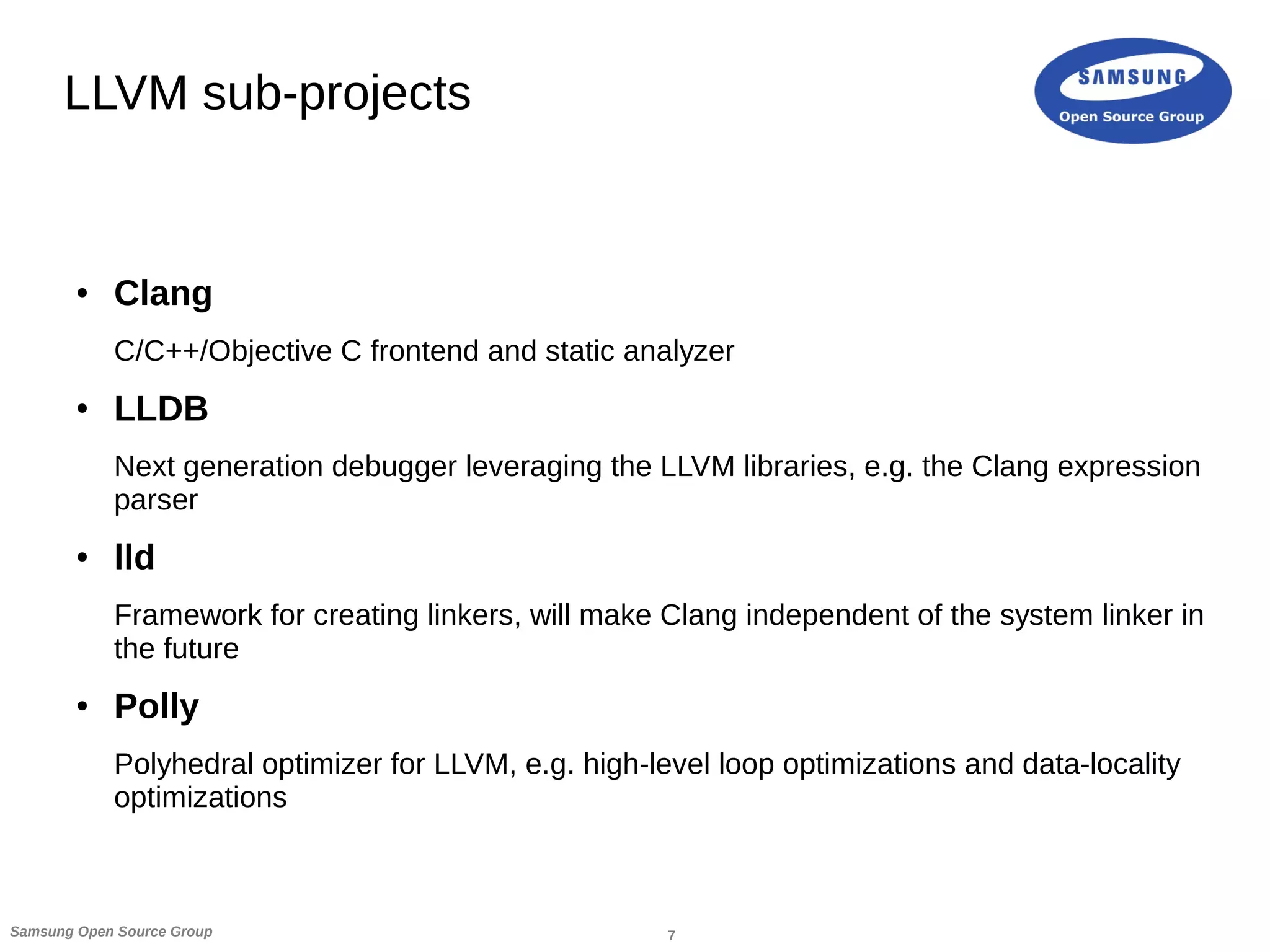

LLVM sub-projects
● Clang
C/C++/Objective C frontend and static analyzer
● LLDB
Next generation debugger leveraging the LLVM libraries, e.g. the Clang expression
parser
● lld
Framework for creating linkers, will make Clang independent of the system linker in
the future
● Polly
Polyhedral optimizer for LLVM, e.g. high-level loop optimizations and data-locality
optimizations

8. 8Samsung Open Source Group
LLVM Overview

9. 9Samsung Open Source Group

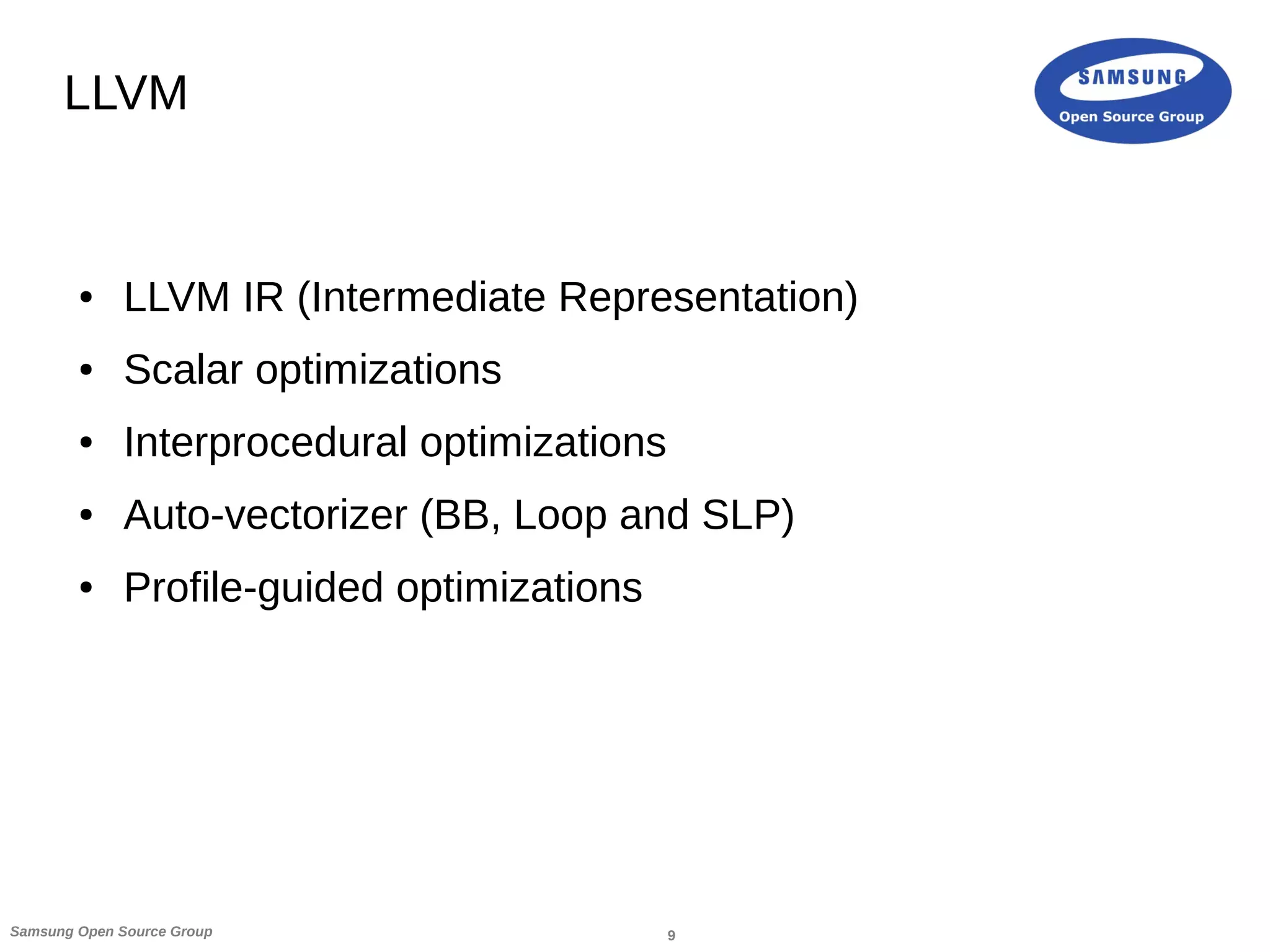

LLVM
● LLVM IR (Intermediate Representation)
● Scalar optimizations
● Interprocedural optimizations
● Auto-vectorizer (BB, Loop and SLP)
● Profile-guided optimizations

10. 10Samsung Open Source Group

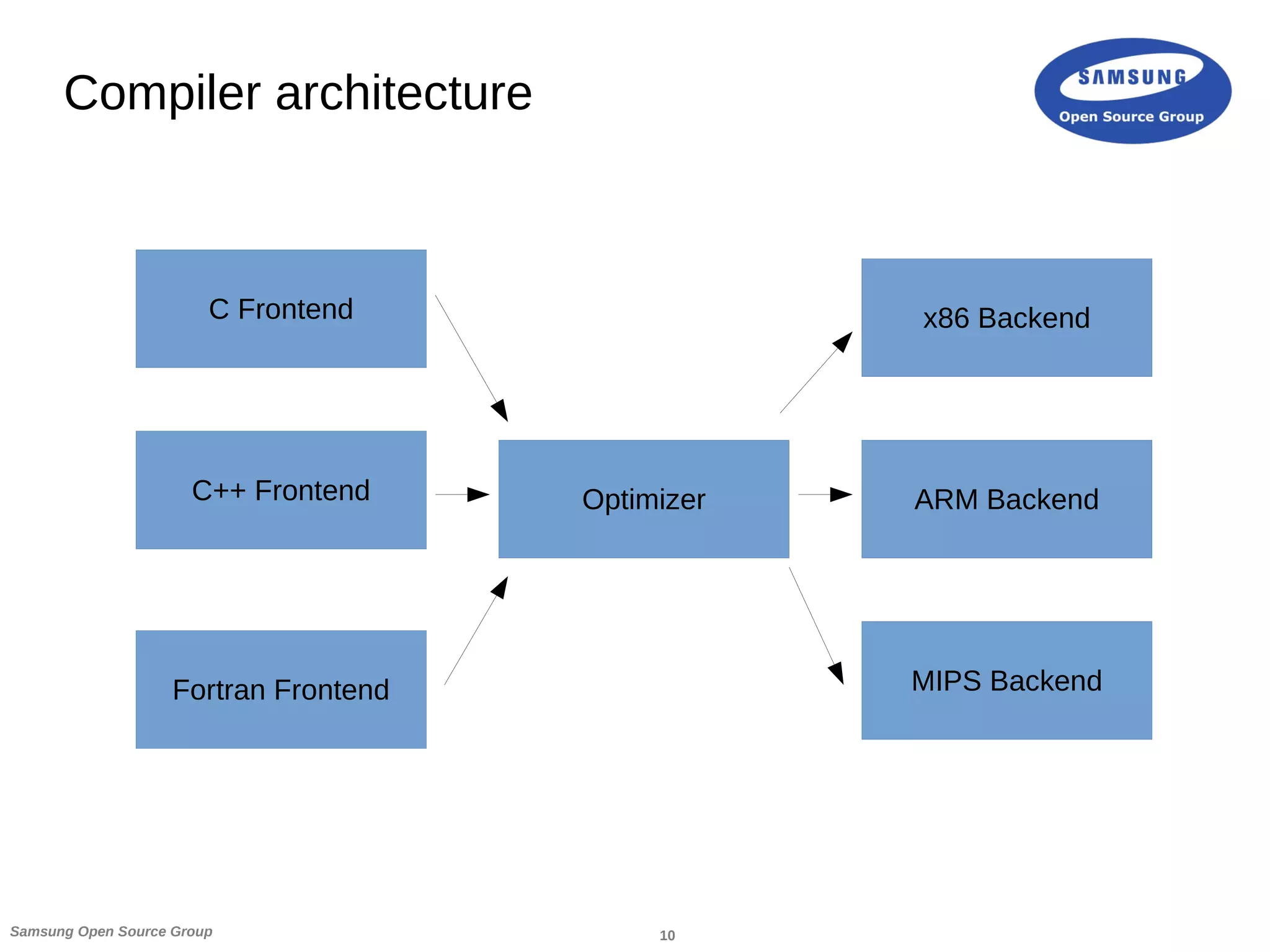

Compiler architecture
C Frontend
C++ Frontend
Fortran Frontend
Optimizer
x86 Backend
ARM Backend
MIPS Backend

11. 11Samsung Open Source Group

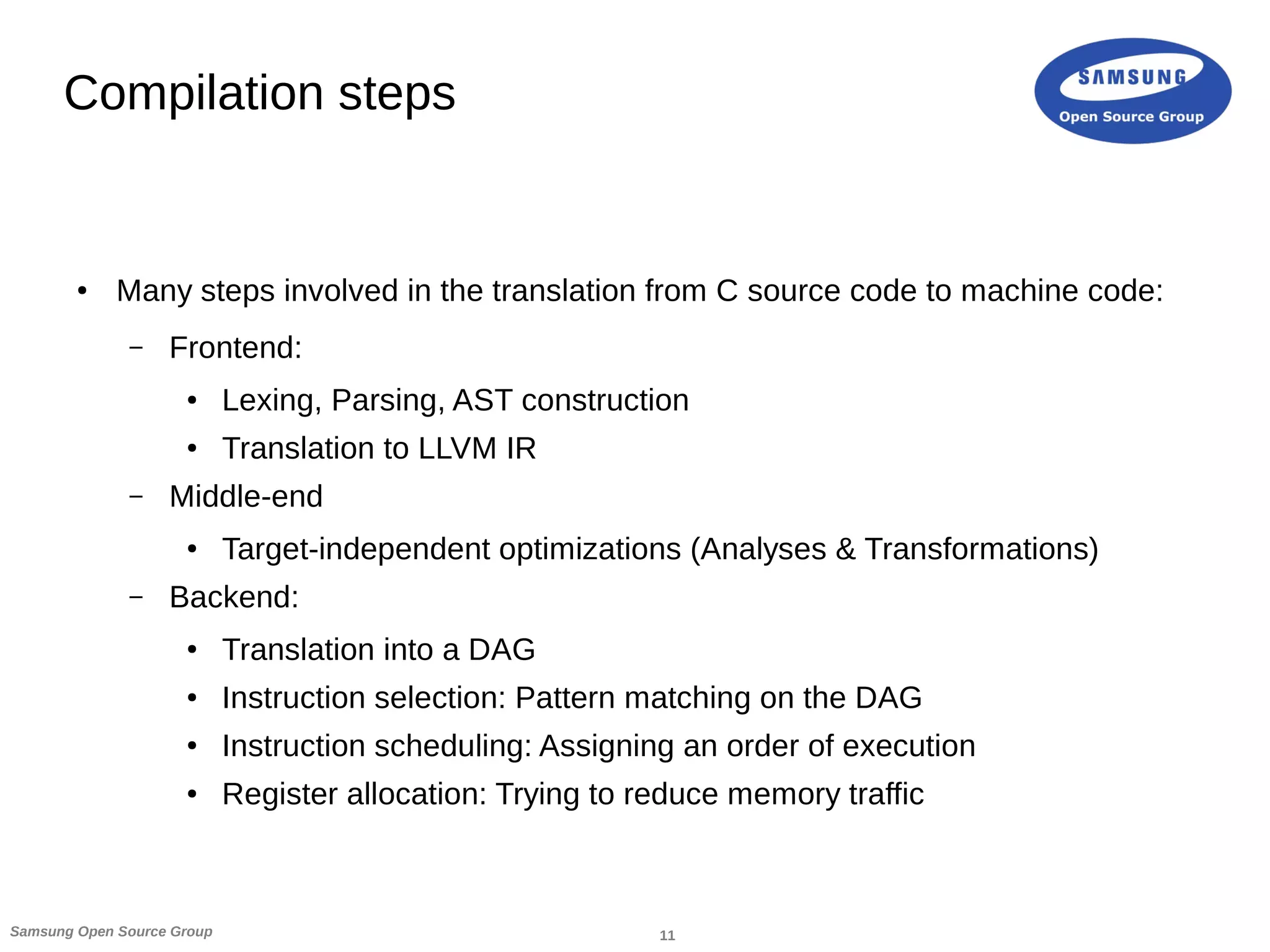

Compilation steps
● Many steps involved in the translation from C source code to machine code:
– Frontend:
● Lexing, Parsing, AST construction
● Translation to LLVM IR
– Middle-end
● Target-independent optimizations (Analyses & Transformations)
– Backend:
●
Translation into a DAG
●
Instruction selection: Pattern matching on the DAG
● Instruction scheduling: Assigning an order of execution
● Register allocation: Trying to reduce memory traffic

12. 12Samsung Open Source Group

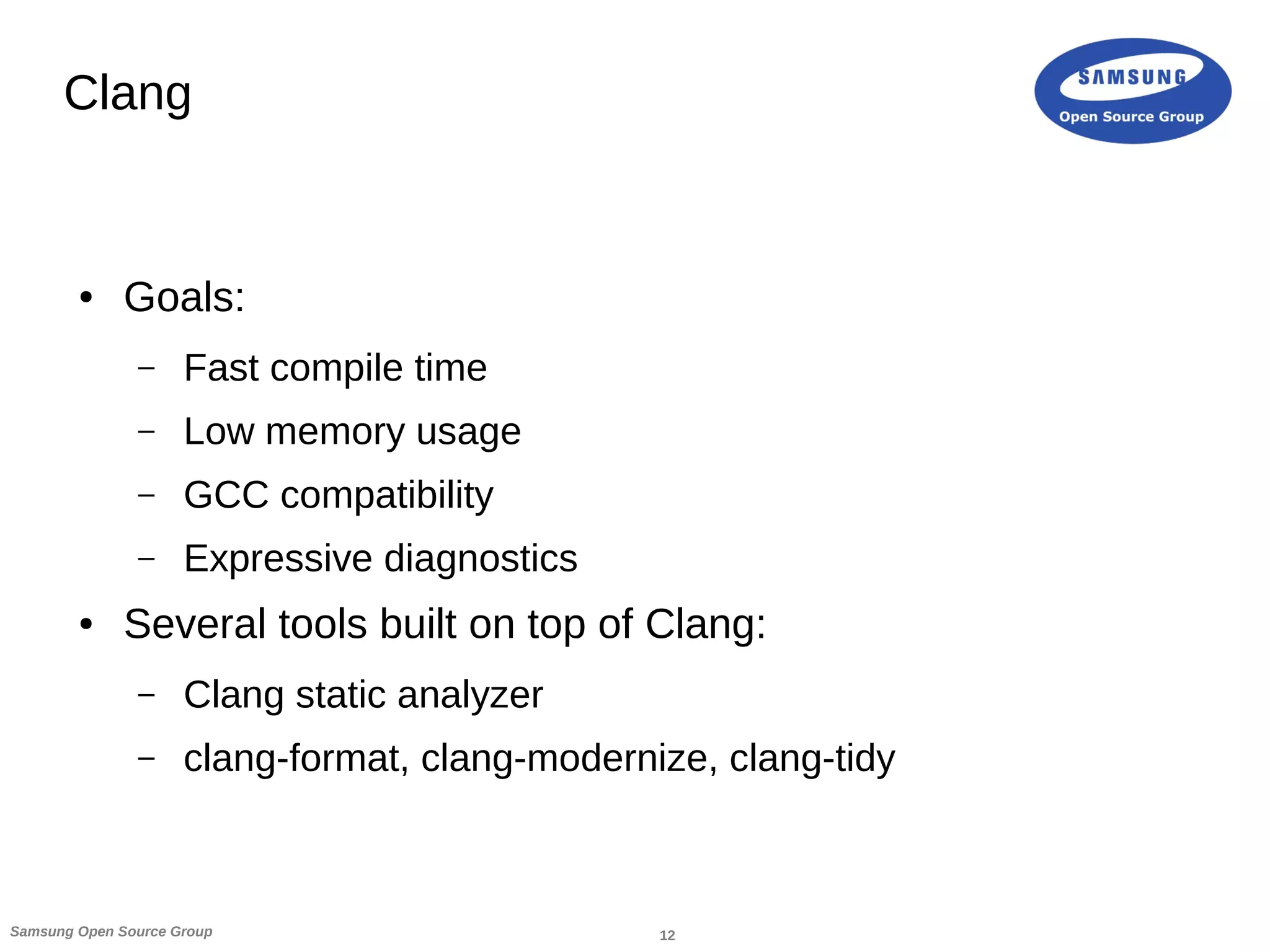

Clang
● Goals:
– Fast compile time
– Low memory usage
– GCC compatibility
– Expressive diagnostics
● Several tools built on top of Clang:
– Clang static analyzer
– clang-format, clang-modernize, clang-tidy

13. 13Samsung Open Source Group
Projects

14. 14Samsung Open Source Group

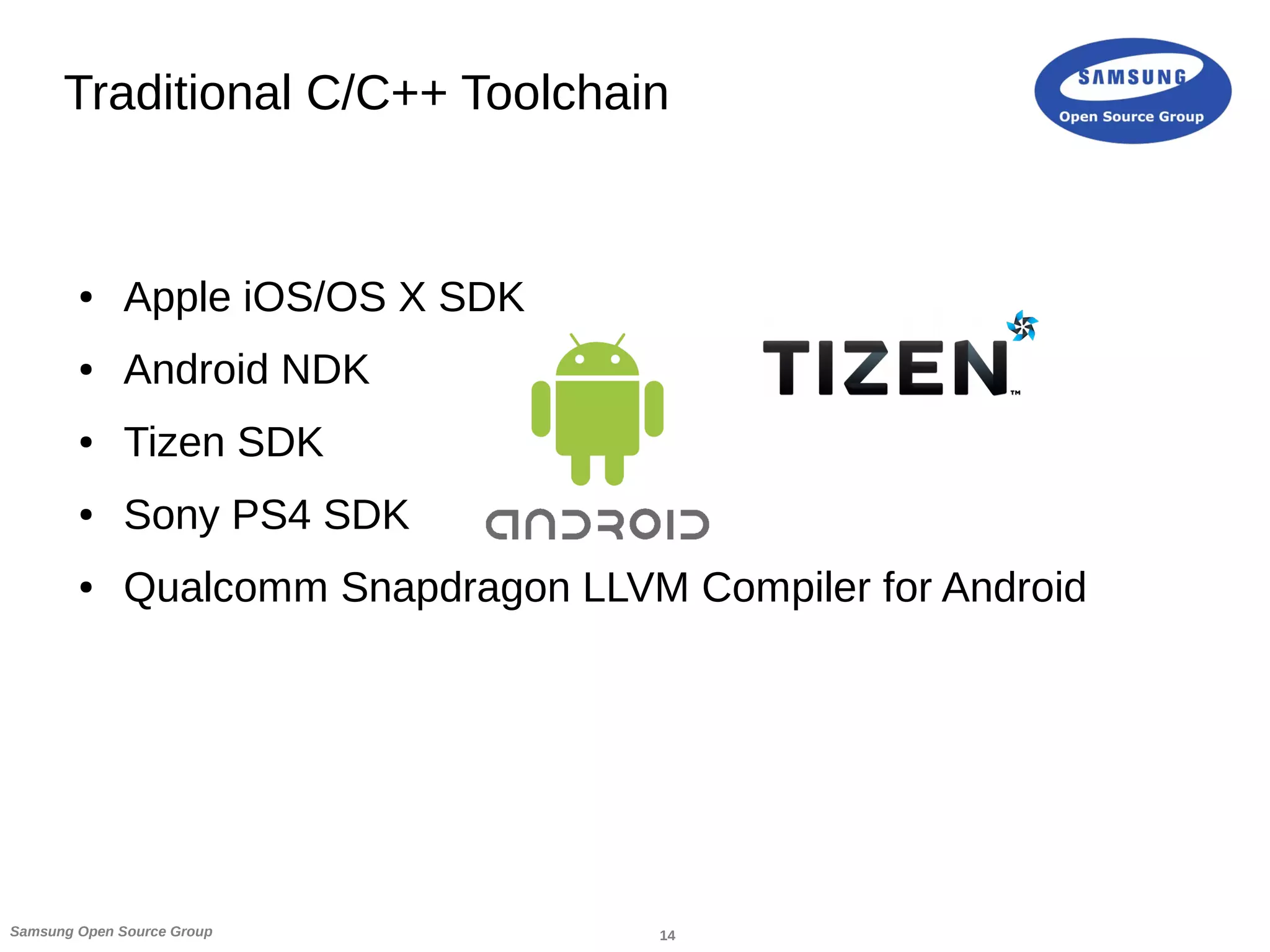

Traditional C/C++ Toolchain
● Apple iOS/OS X SDK
● Android NDK
● Tizen SDK
● Sony PS4 SDK
● Qualcomm Snapdragon LLVM Compiler for Android

15. 15Samsung Open Source Group

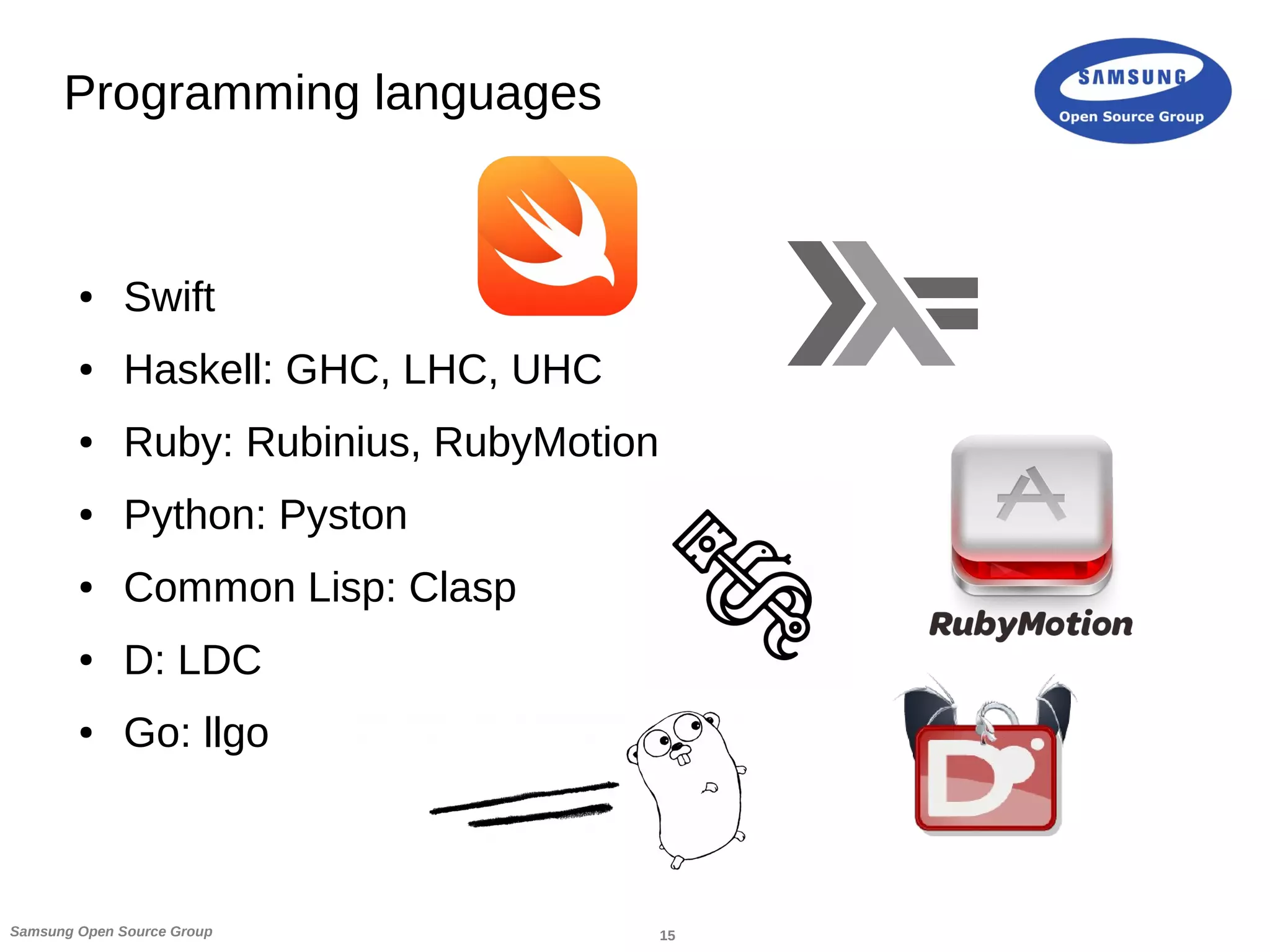

Programming languages
● Swift
● Haskell: GHC, LHC, UHC
● Ruby: Rubinius, RubyMotion
● Python: Pyston
● Common Lisp: Clasp
● D: LDC
● Go: llgo

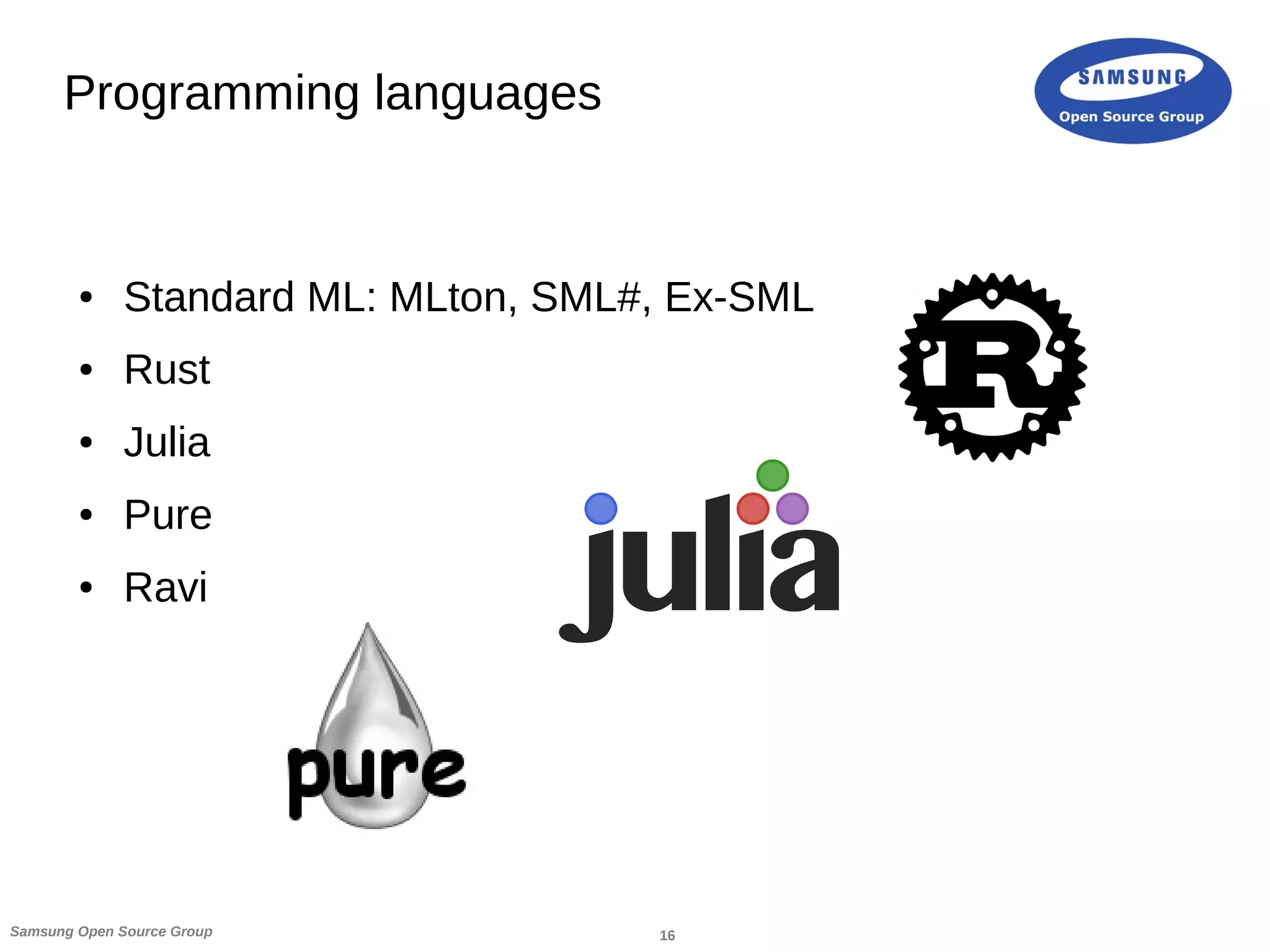

16. 16Samsung Open Source Group
Programming languages
● Standard ML: MLton, SML#, Ex-SML
● Rust
● Julia
● Pure
● Ravi

17. 17Samsung Open Source Group

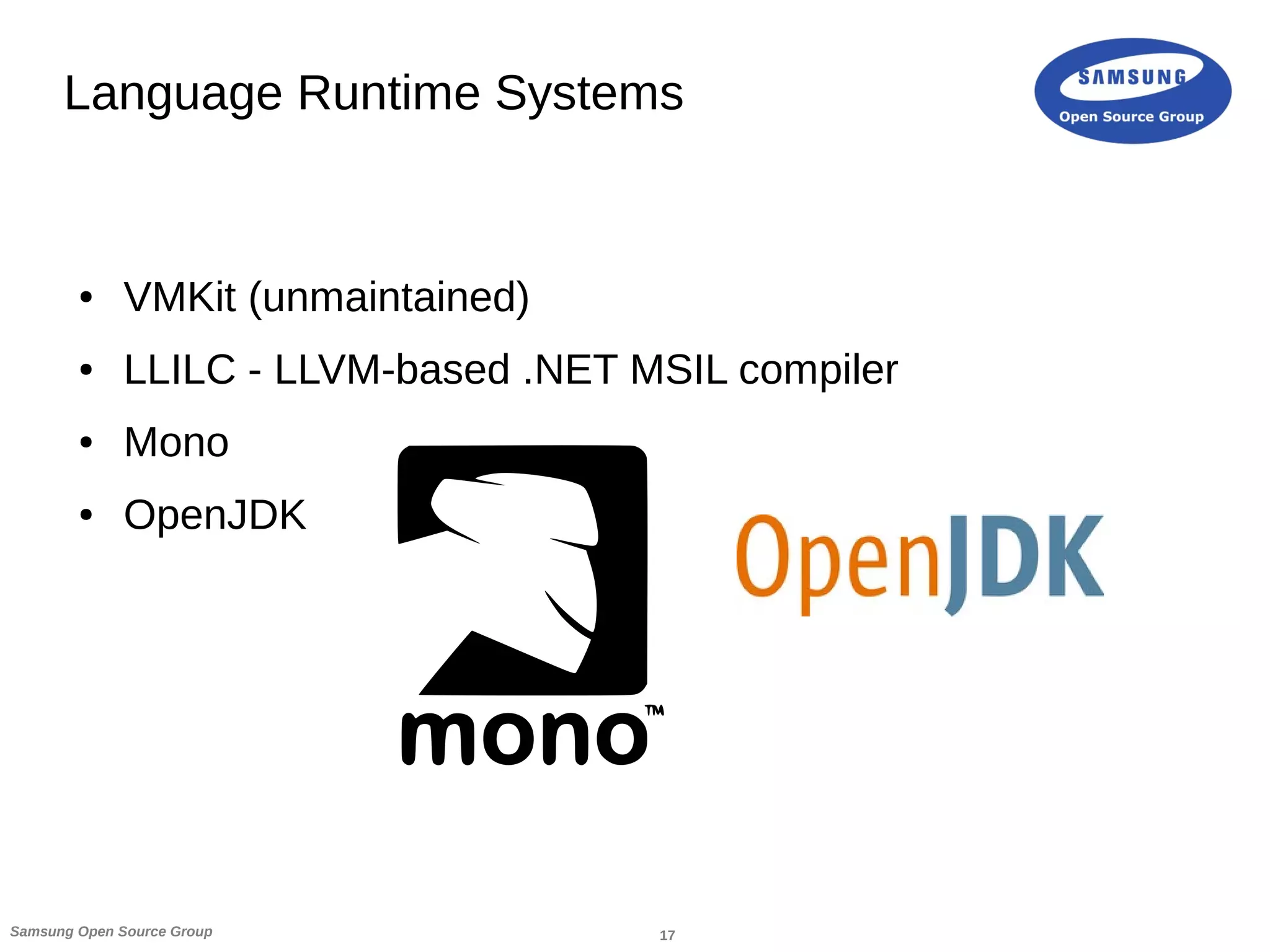

Language Runtime Systems
● VMKit (unmaintained)
● LLILC - LLVM-based .NET MSIL compiler
● Mono
● OpenJDK

18. 18Samsung Open Source Group

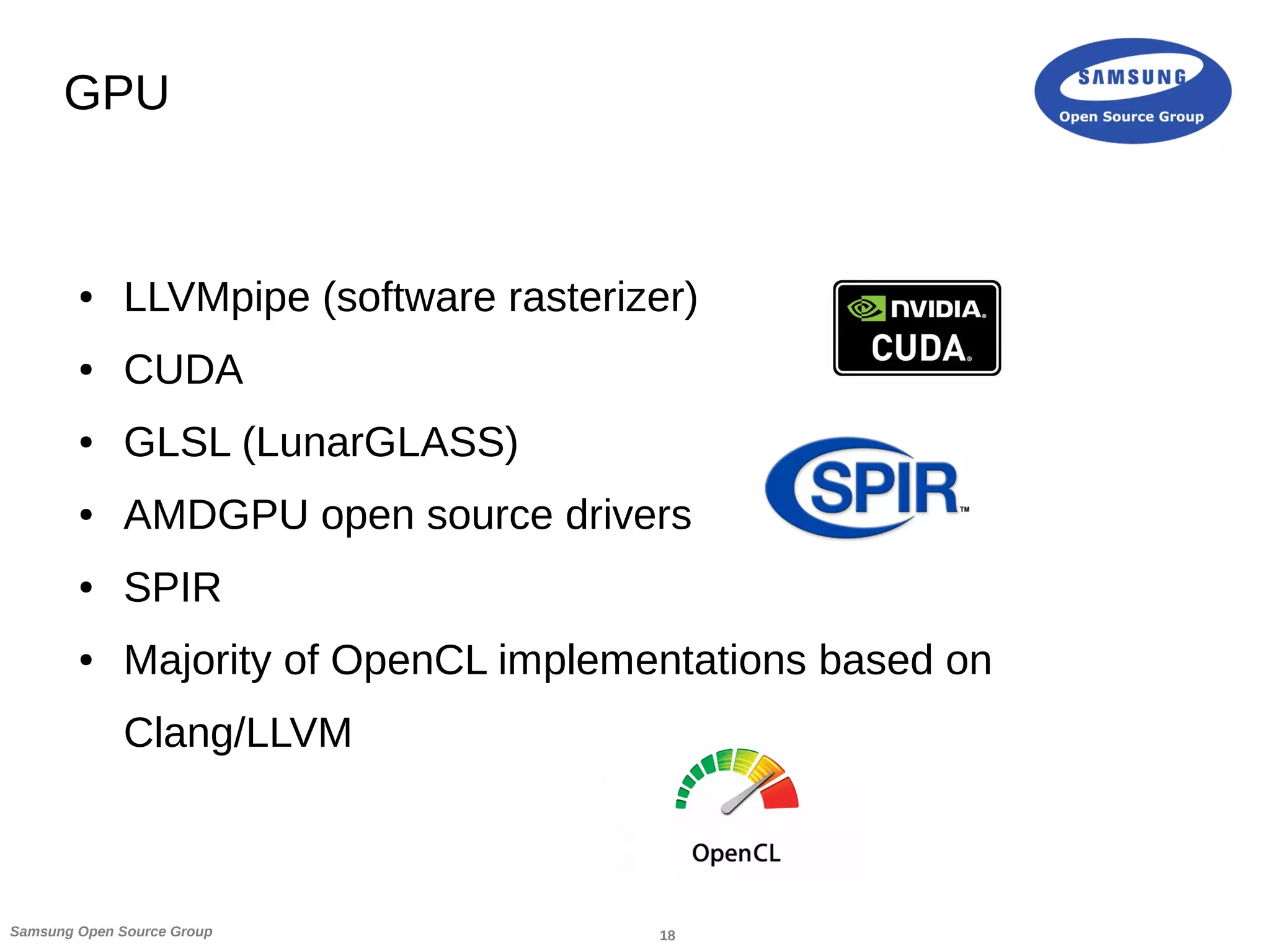

GPU
● LLVMpipe (software rasterizer)
● CUDA
● GLSL (LunarGLASS)
● AMDGPU open source drivers
● SPIR
● Majority of OpenCL implementations based on
Clang/LLVM

19. 19Samsung Open Source Group

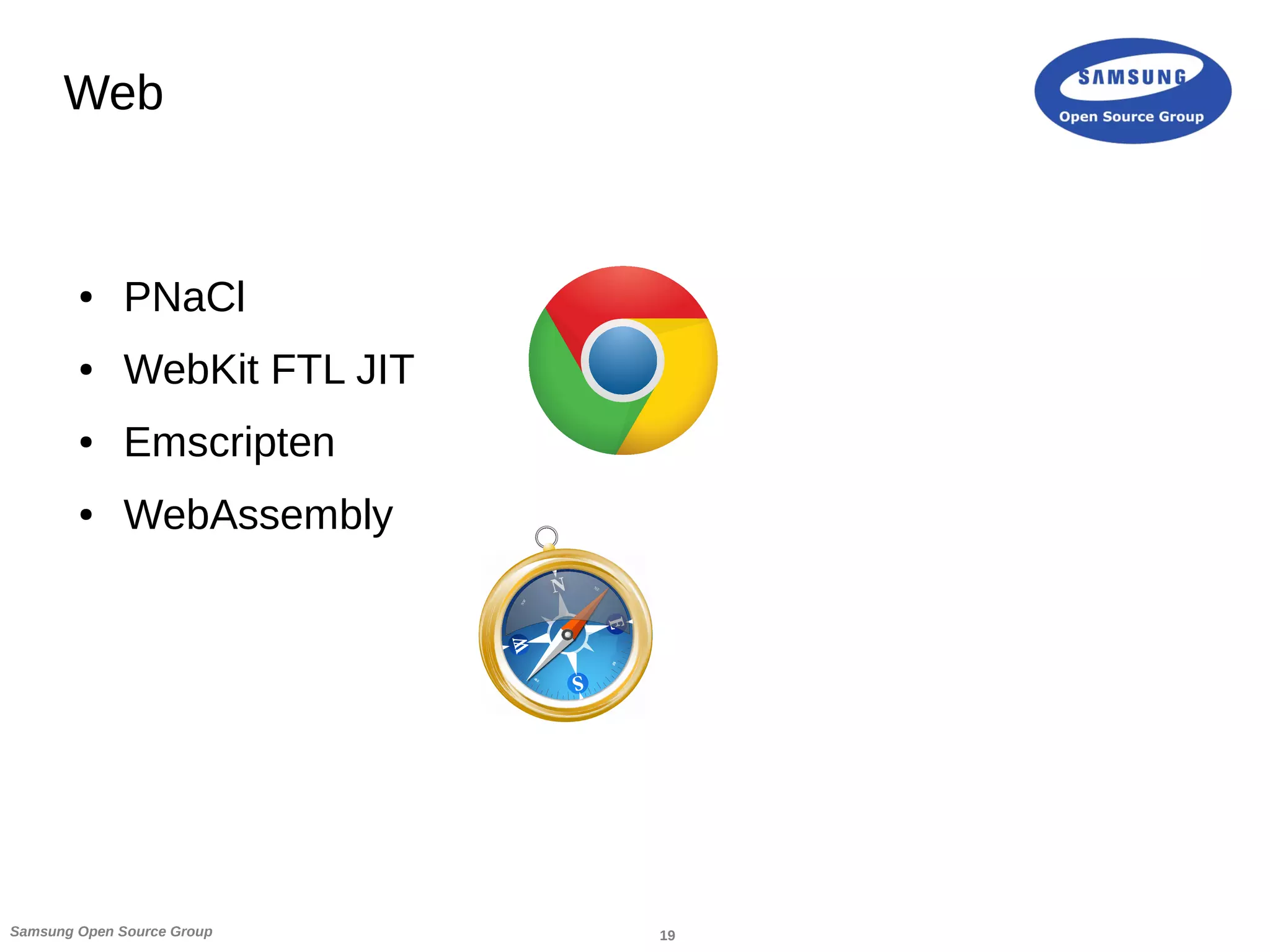

Web
● PNaCl
● WebKit FTL JIT
● Emscripten
● WebAssembly

20. 20Samsung Open Source Group

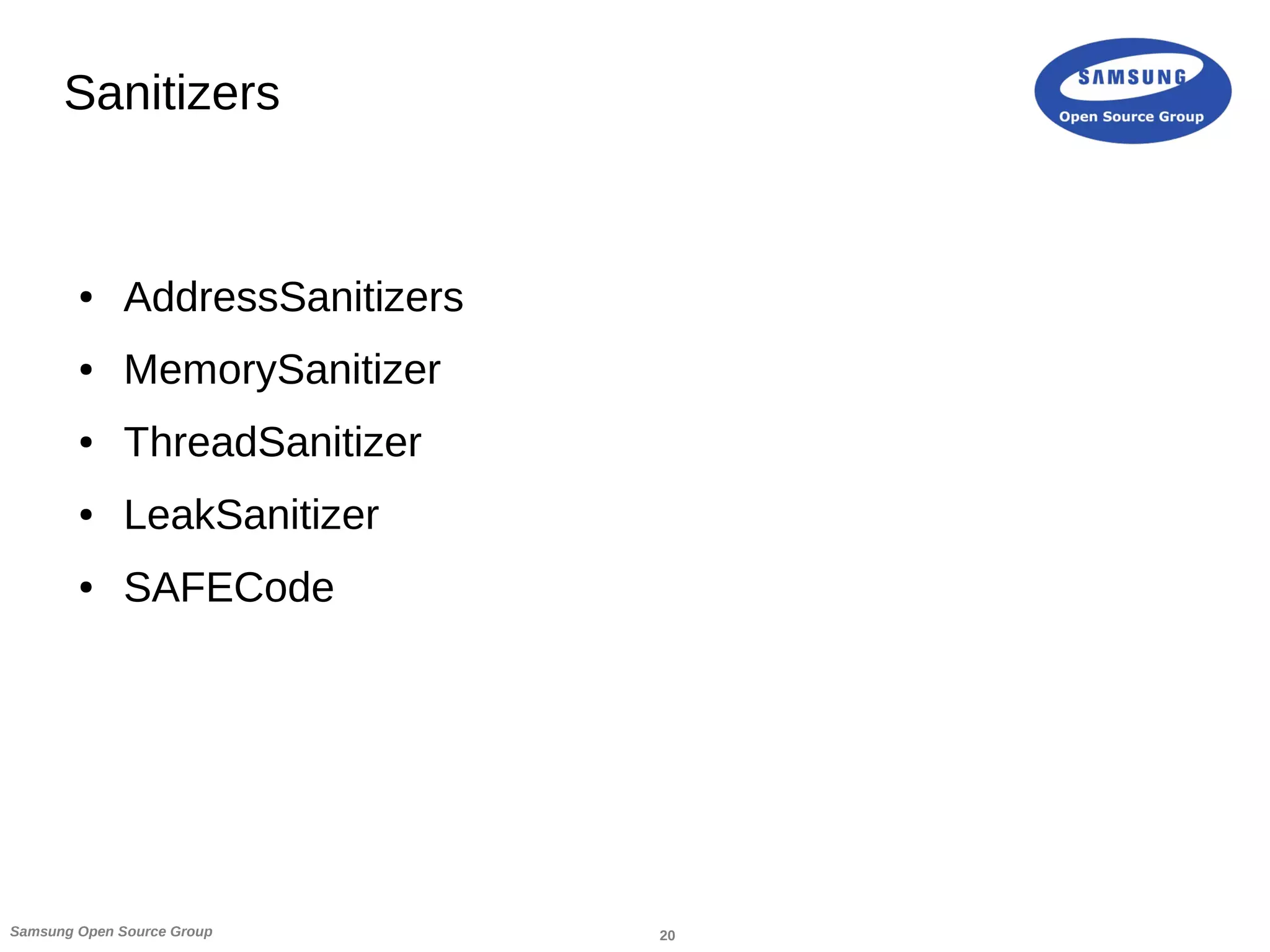

Sanitizers
● AddressSanitizers
● MemorySanitizer
● ThreadSanitizer
● LeakSanitizer
● SAFECode

21. 21Samsung Open Source Group

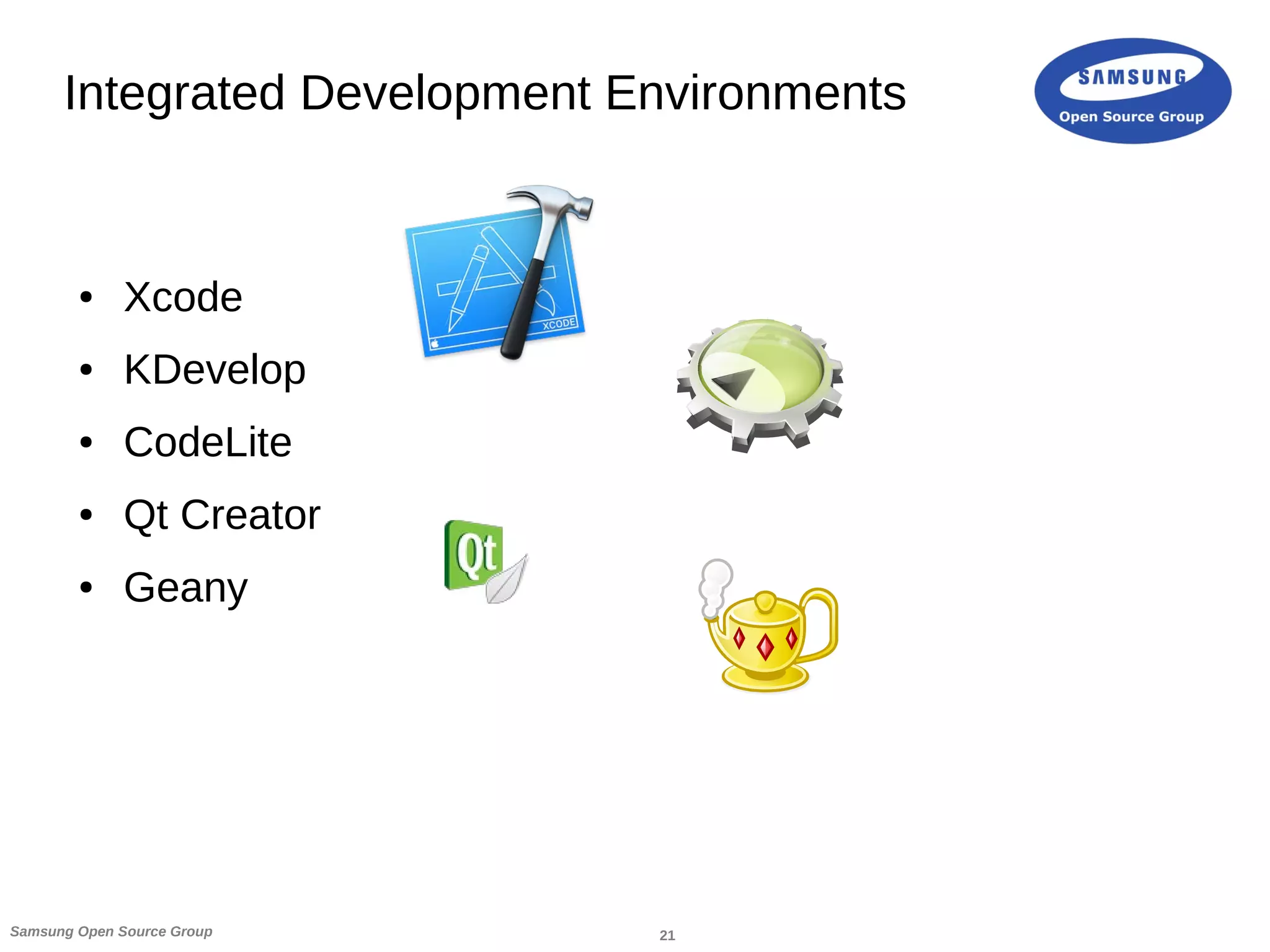

Integrated Development Environments
● Xcode
● KDevelop
● CodeLite
● Qt Creator
● Geany

22. 22Samsung Open Source Group

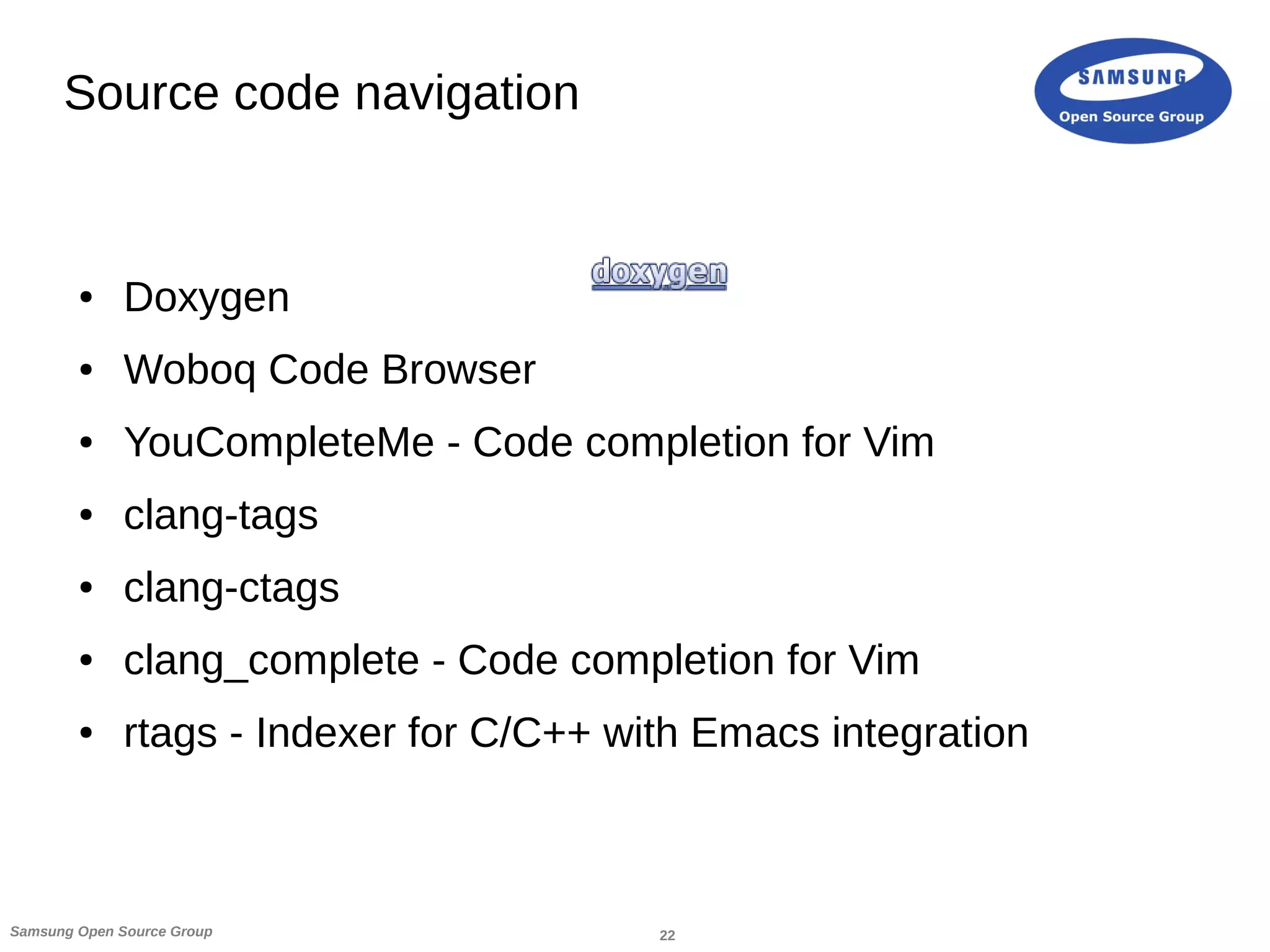

Source code navigation
● Doxygen
● Woboq Code Browser
● YouCompleteMe - Code completion for Vim
● clang-tags
● clang-ctags
● clang_complete - Code completion for Vim
● rtags - Indexer for C/C++ with Emacs integration

23. 23Samsung Open Source Group

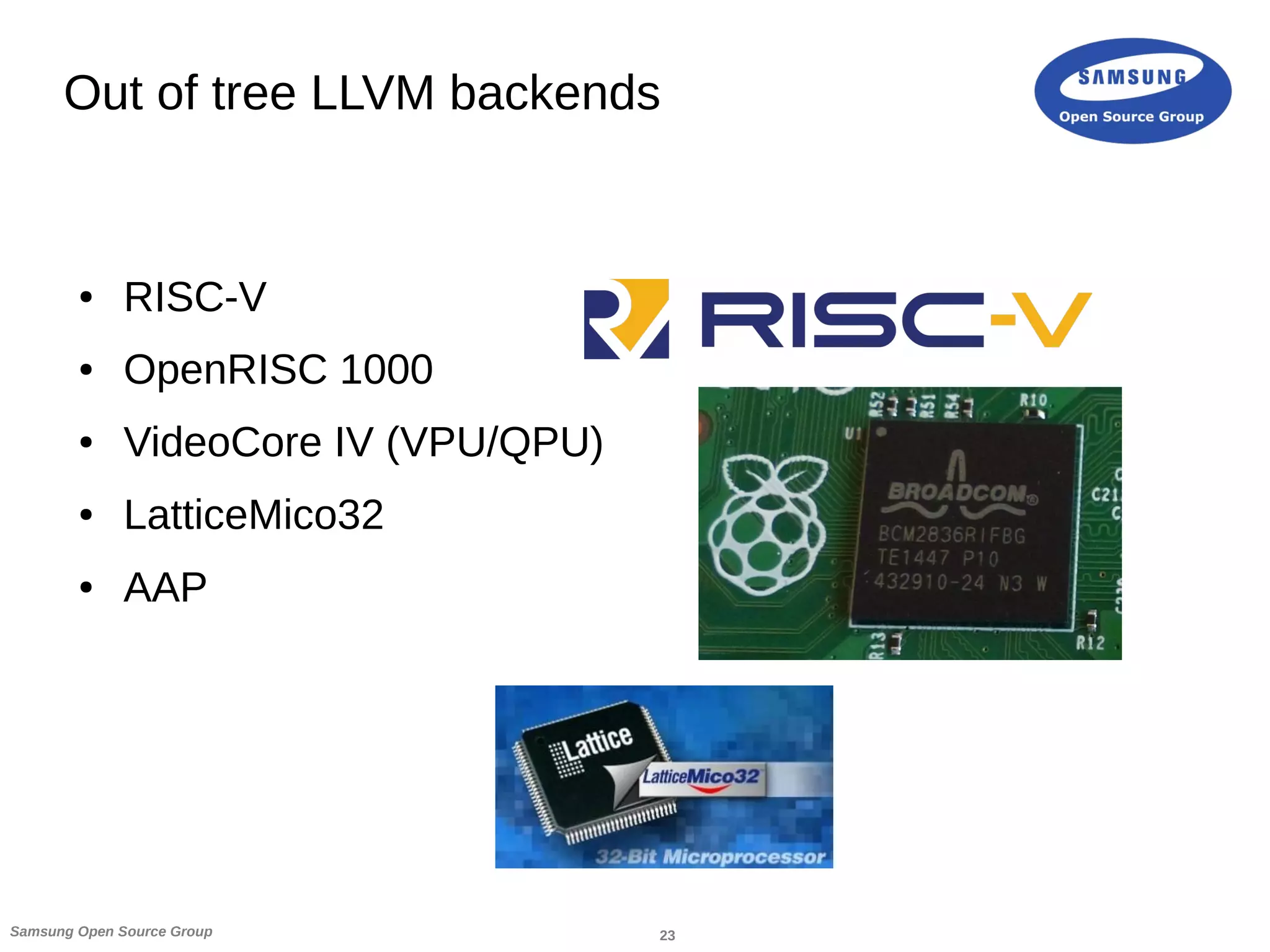

Out of tree LLVM backends
● RISC-V
● OpenRISC 1000
● VideoCore IV (VPU/QPU)
● LatticeMico32
● AAP

24. 24Samsung Open Source Group

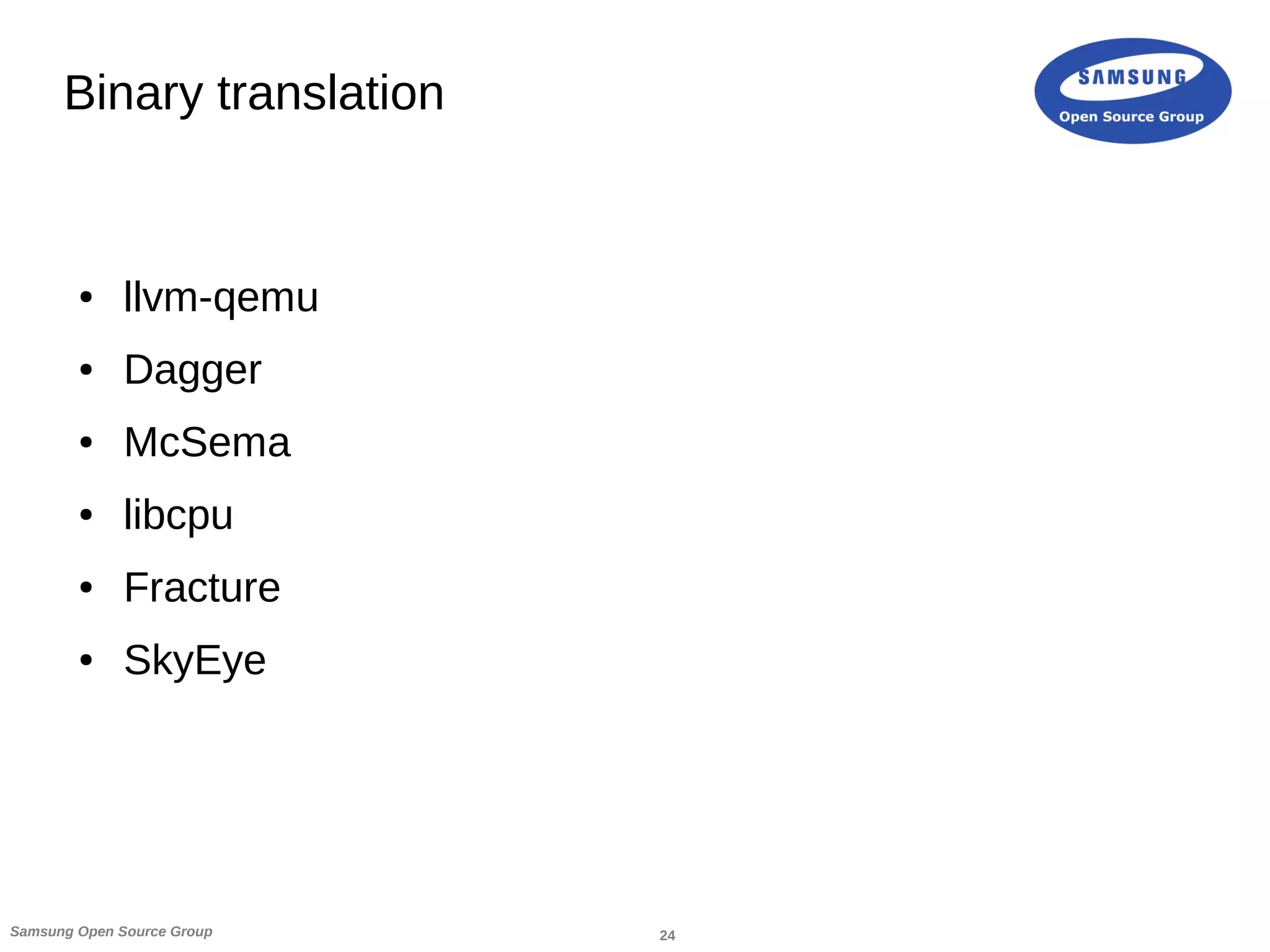

Binary translation
● llvm-qemu
● Dagger
● McSema
● libcpu
● Fracture
● SkyEye

25. 25Samsung Open Source Group

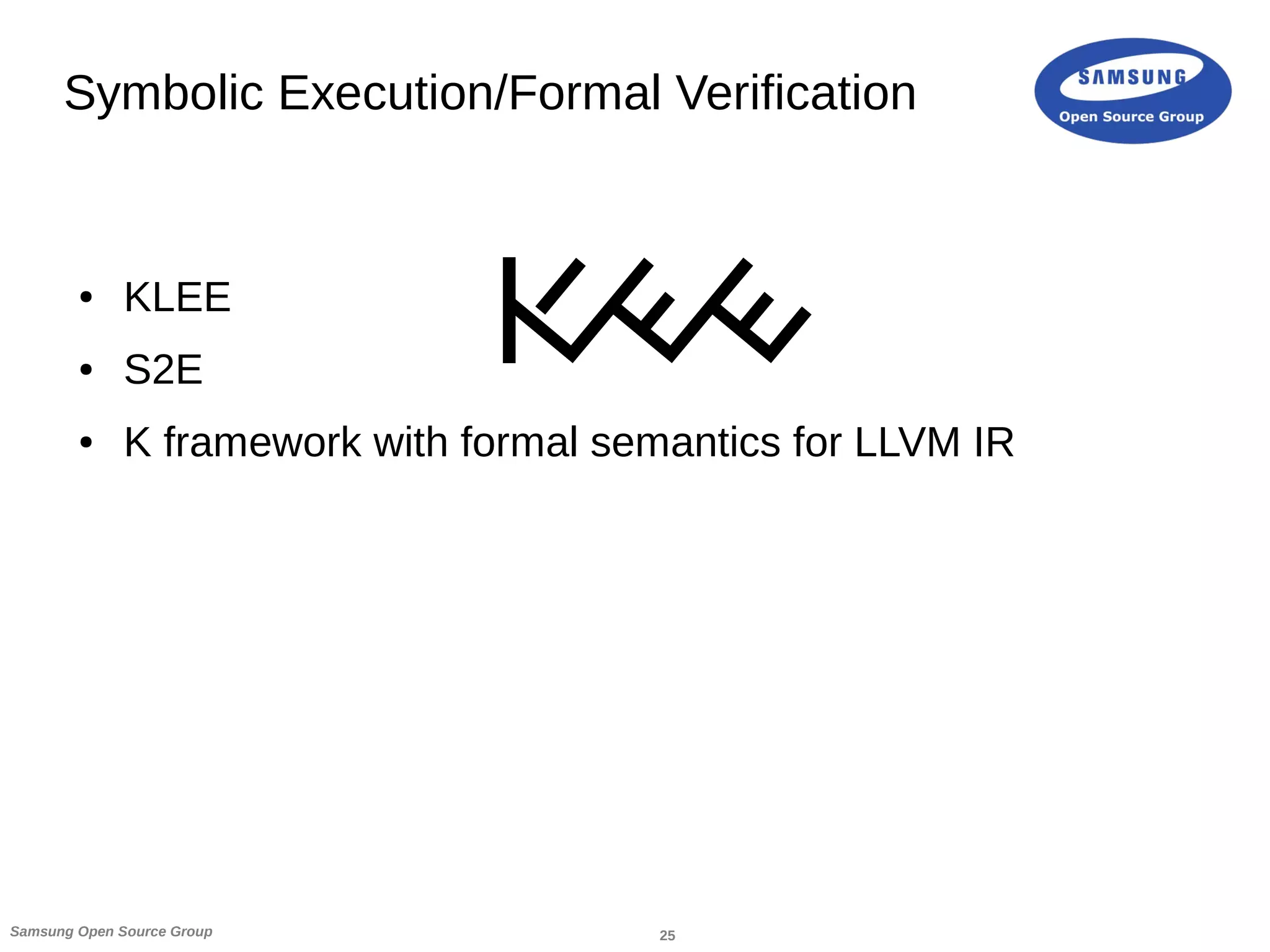

Symbolic Execution/Formal Verification
● KLEE
● S2E
● K framework with formal semantics for LLVM IR

26. 26Samsung Open Source Group

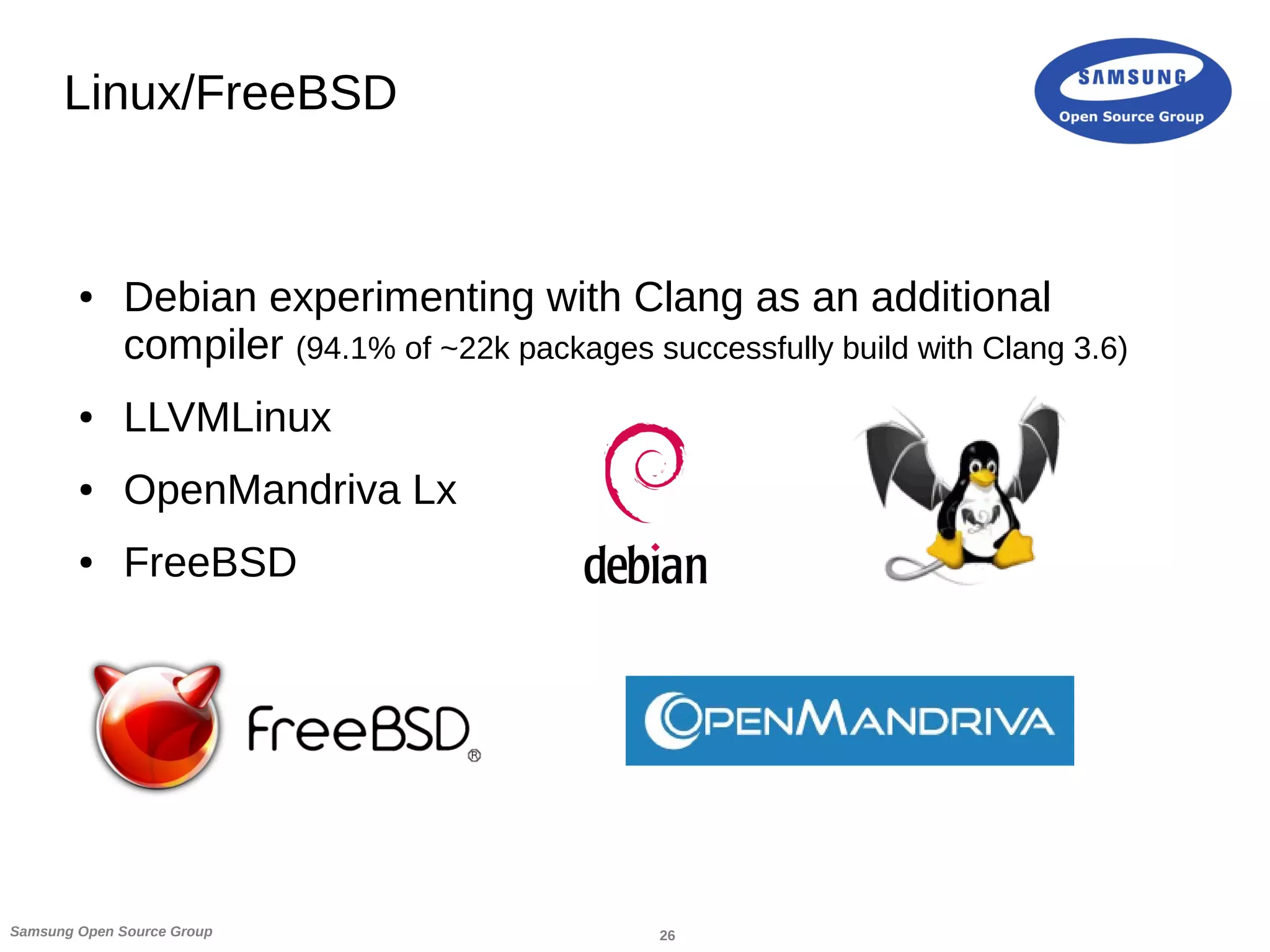

Linux/FreeBSD
● Debian experimenting with Clang as an additional
compiler (94.1% of ~22k packages successfully build with Clang 3.6)
● LLVMLinux
● OpenMandriva Lx
● FreeBSD

27. 27Samsung Open Source Group

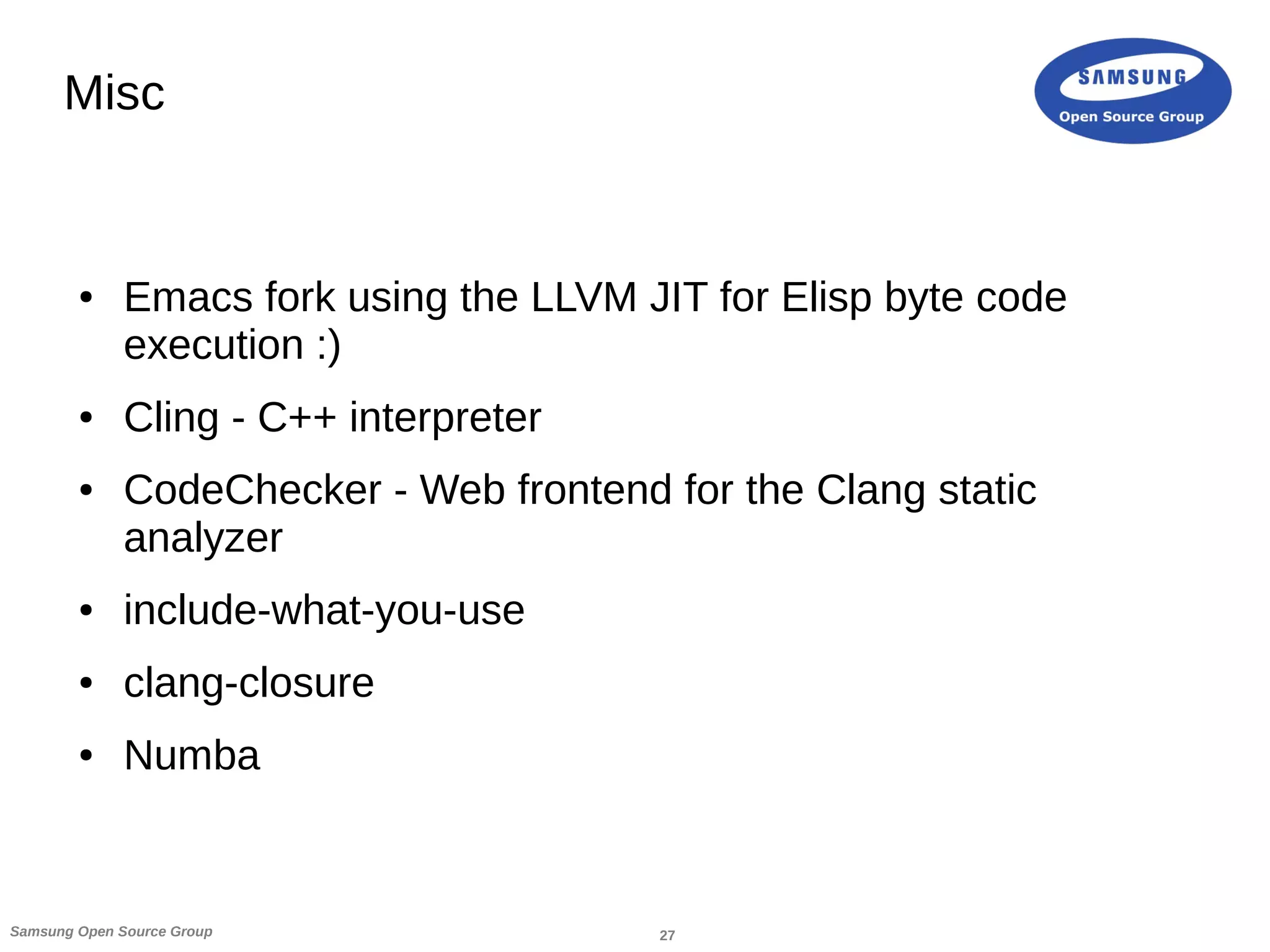

Misc
● Emacs fork using the LLVM JIT for Elisp byte code
execution :)
● Cling - C++ interpreter
● CodeChecker - Web frontend for the Clang static
analyzer
● include-what-you-use
● clang-closure
● Numba

28. 28Samsung Open Source Group
Summary

29. 29Samsung Open Source Group
Summary
● Wide range of different projects
● New frontends being written constantly
● Great compiler infrastructure
● Fast C/C++ compiler with expressive diagnostics

30. 30Samsung Open Source Group

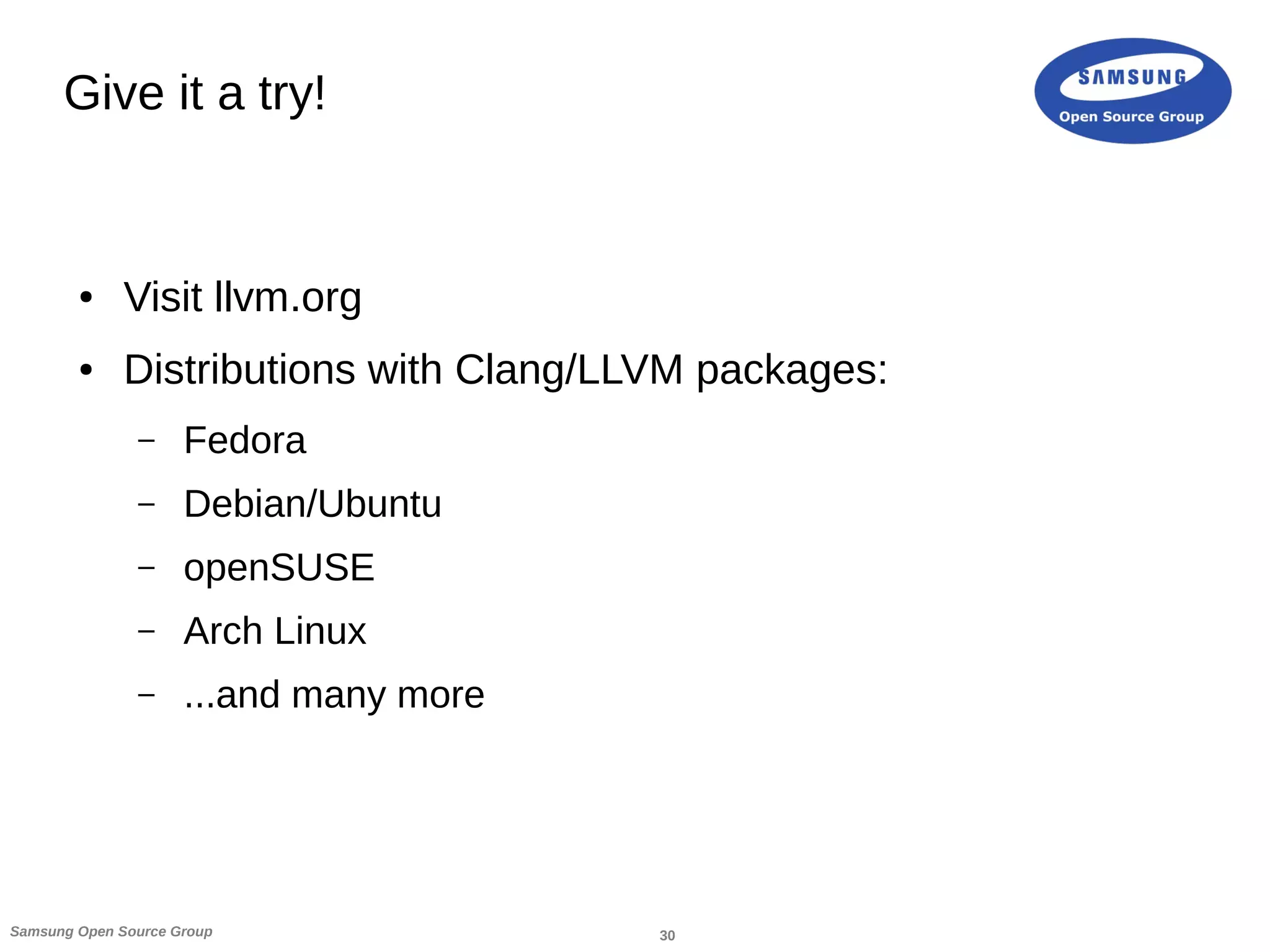

Give it a try!
● Visit llvm.org
● Distributions with Clang/LLVM packages:
– Fedora
– Debian/Ubuntu
– openSUSE
– Arch Linux
– ...and many more

31. Thank you.
31Samsung Open Source Group

32. 32Samsung Open Source Group

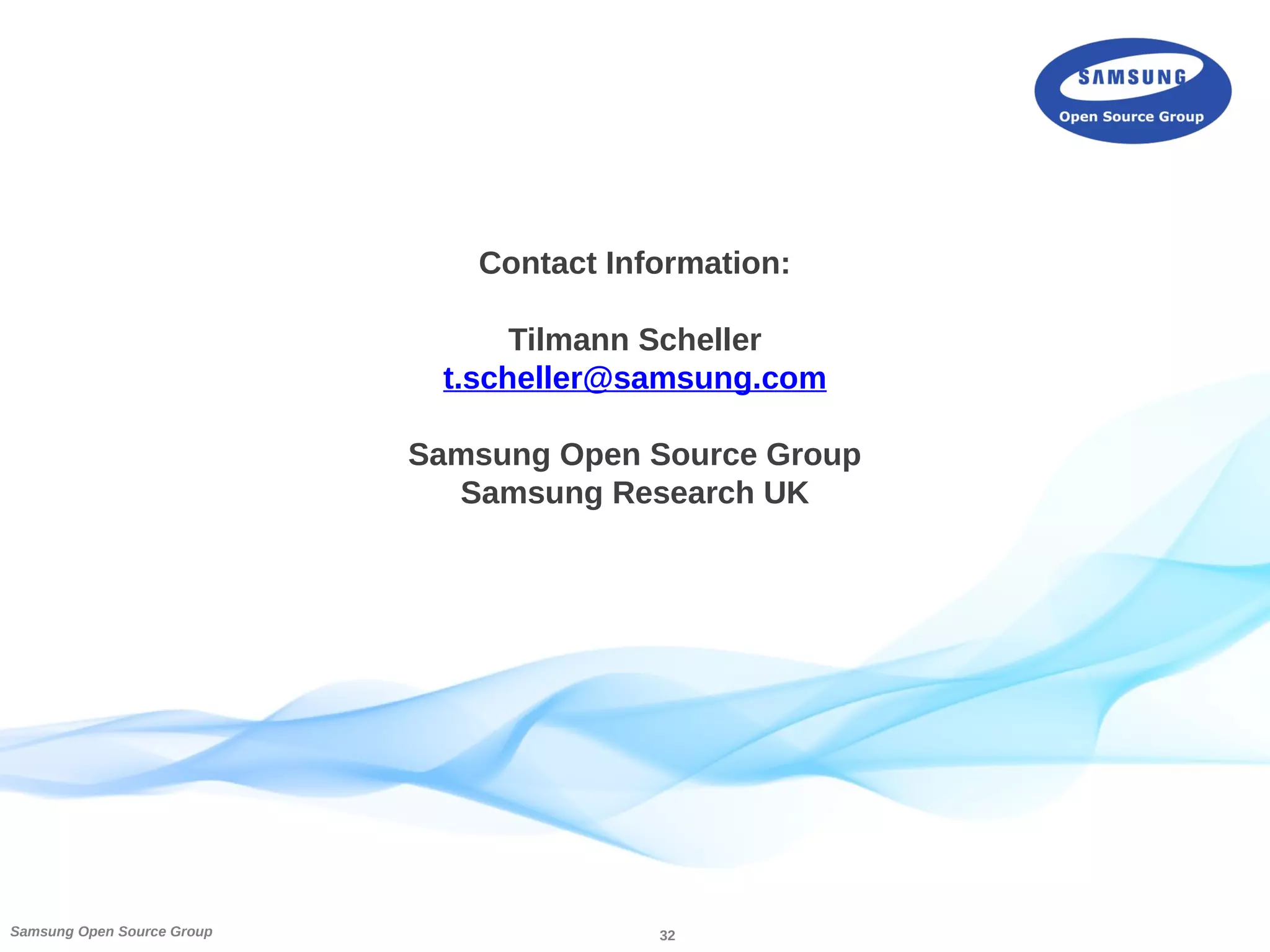

Contact Information:
Tilmann Scheller
t.scheller@samsung.com
Samsung Open Source Group
Samsung Research UK
