What’s New in the Integrated Architecture® System Hardware

3Copyright © 2018 Rockwell Automation, Inc. All Rights Reserved. 2018 Rockwell Automation TechED™ Event #ROKTechEDPUBLIC

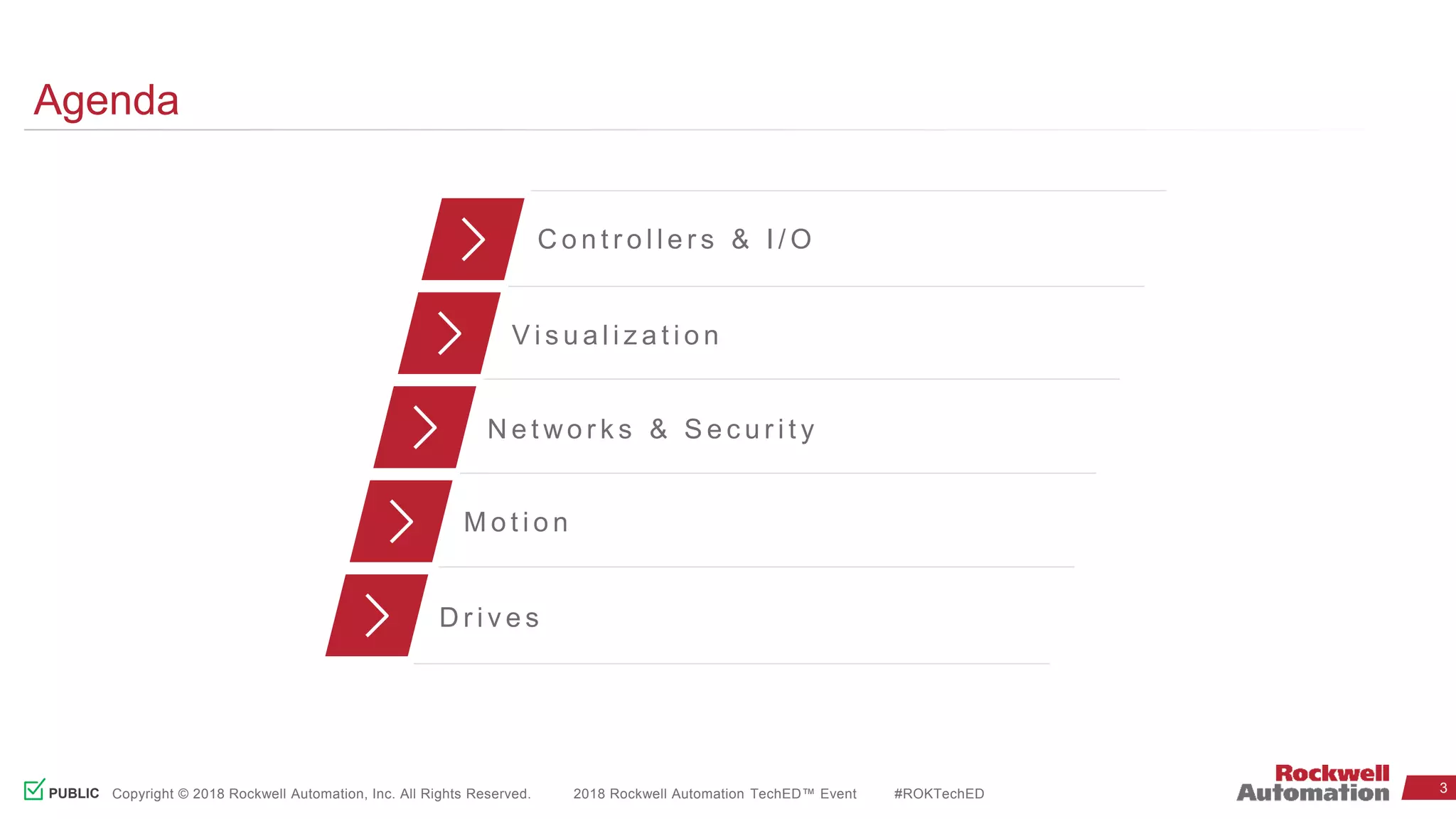

Agenda
C o n t r o l l e r s & I / O
V i s u a l i z a t i o n
N e t wo r k s & S e c u r i t y
M o t i o n
D r i v e s

PUBLIC Copyright © 2018 Rockwell Automation, Inc. All Rights Reserved. 4Rockwell Automation TechED 2018 @ROKTechED #ROKTechED
x
Smart.
Automation system with
intelligence that just works.
Productive.
Simple integrated development resulting in improved
real-time operations and expedited maintenance.
Secure.
End-to-end security.
IntegratedArchitectureA HIGH PERFORMANCE ARCHITECTURE
Copyright © 2016 Rockwell Automation, Inc. All Rights Reserved.

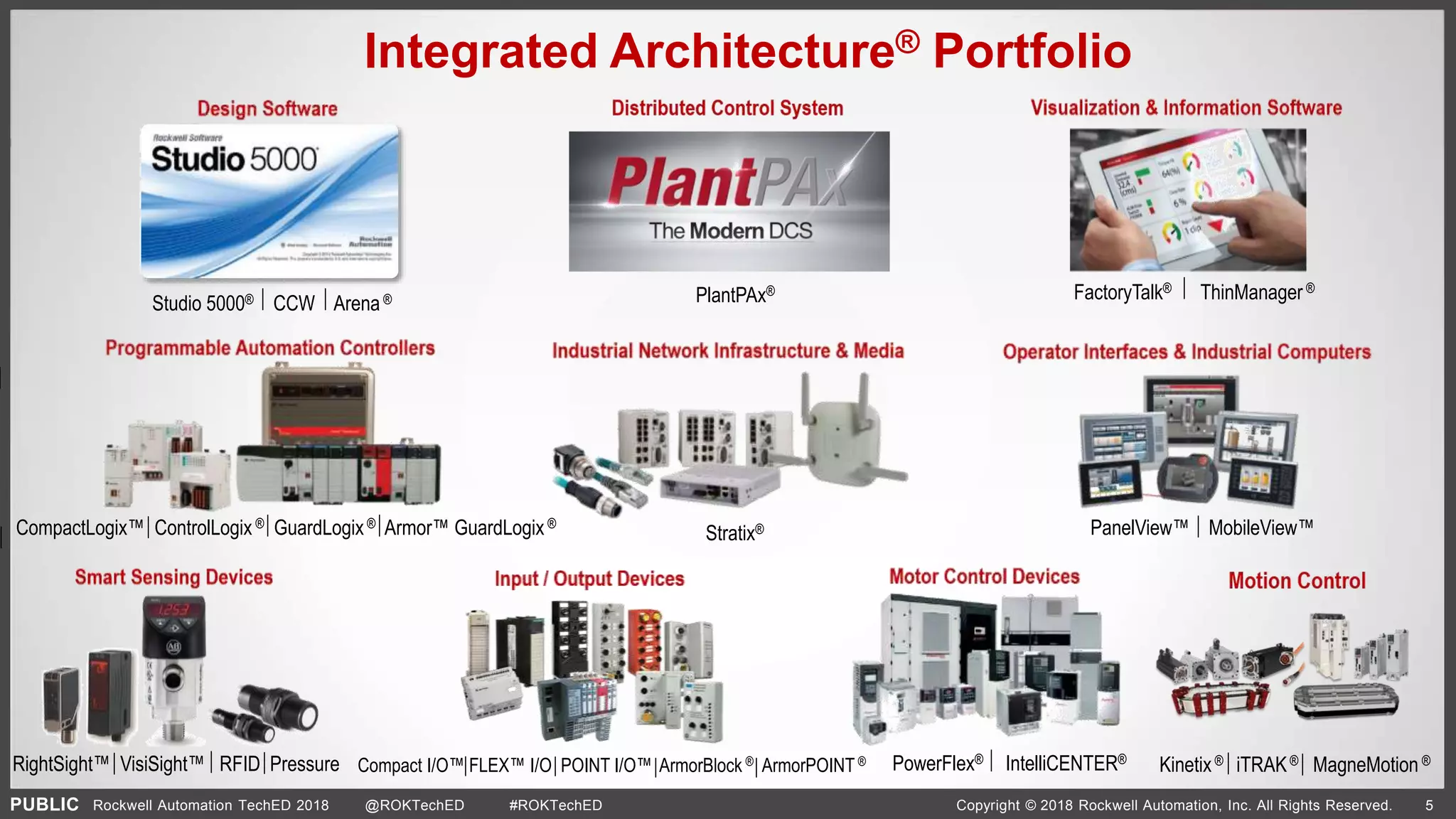

Integrated Architecture® Portfolio
Studio 5000® CCW Arena ® PlantPAx® FactoryTalk® ThinManager ®
CompactLogix™ ControlLogix ® GuardLogix® Armor™ GuardLogix ®
Stratix® PanelView™ MobileView™
RightSight™ VisiSight™ RFID Pressure Compact I/O™ FLEX™ I/O POINT I/O™ ArmorBlock ® ArmorPOINT ® PowerFlex® IntelliCENTER®
Kinetix® iTRAK® MagneMotion ®

CONTROLLERS

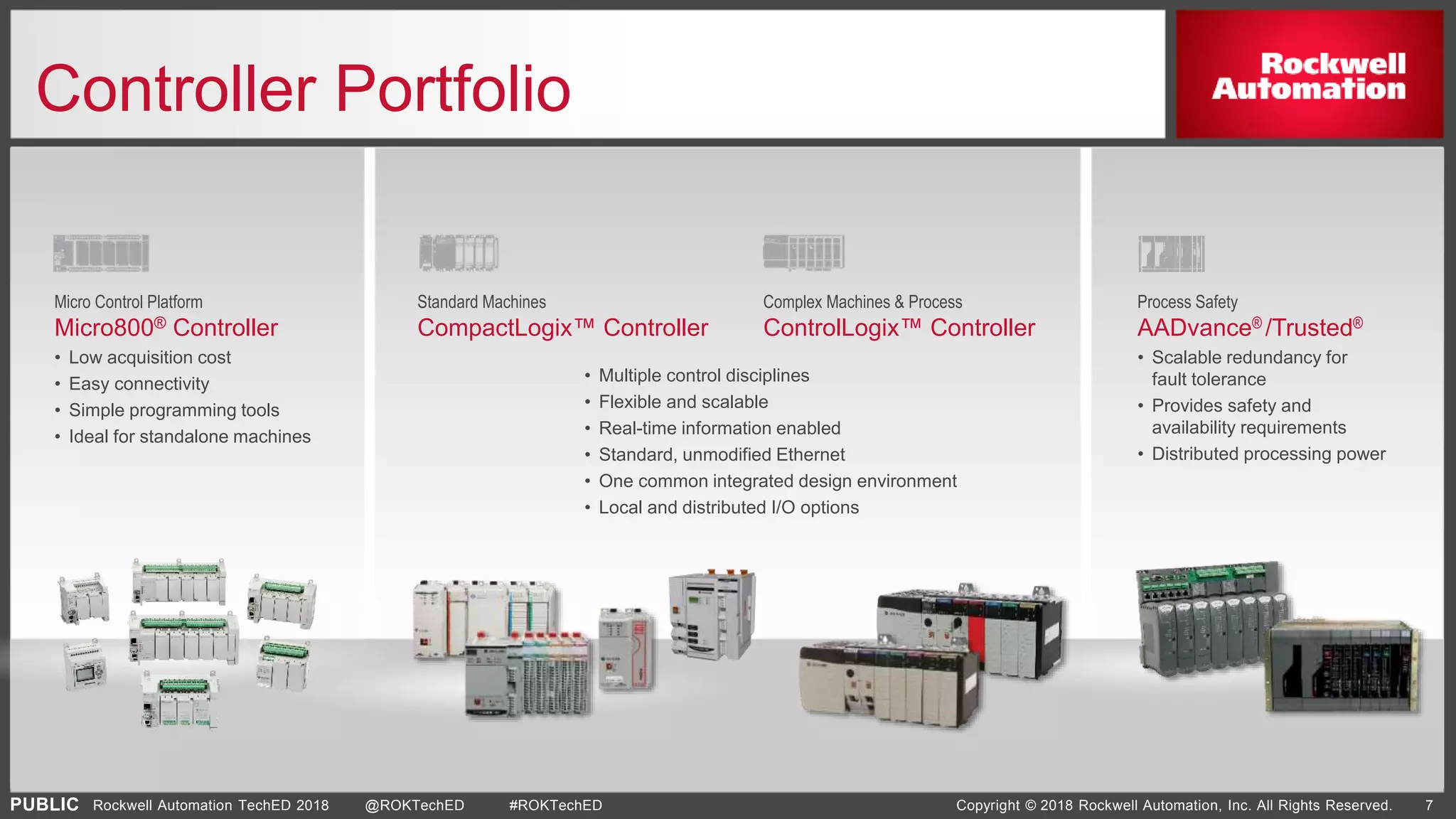

Controller Portfolio
Micro Control Platform
Micro800® Controller
• Low acquisition cost
• Easy connectivity
• Simple programming tools
• Ideal for standalone machines
Standard Machines
CompactLogix™ Controller
Complex Machines & Process
ControlLogix™ Controller
Process Safety
AADvance® /Trusted®
• Scalable redundancy for
fault tolerance
• Provides safety and
availability requirements
• Distributed processing power
• Multiple control disciplines
• Flexible and scalable
• Real-time information enabled
• Standard, unmodified Ethernet
• One common integrated design environment
• Local and distributed I/O options

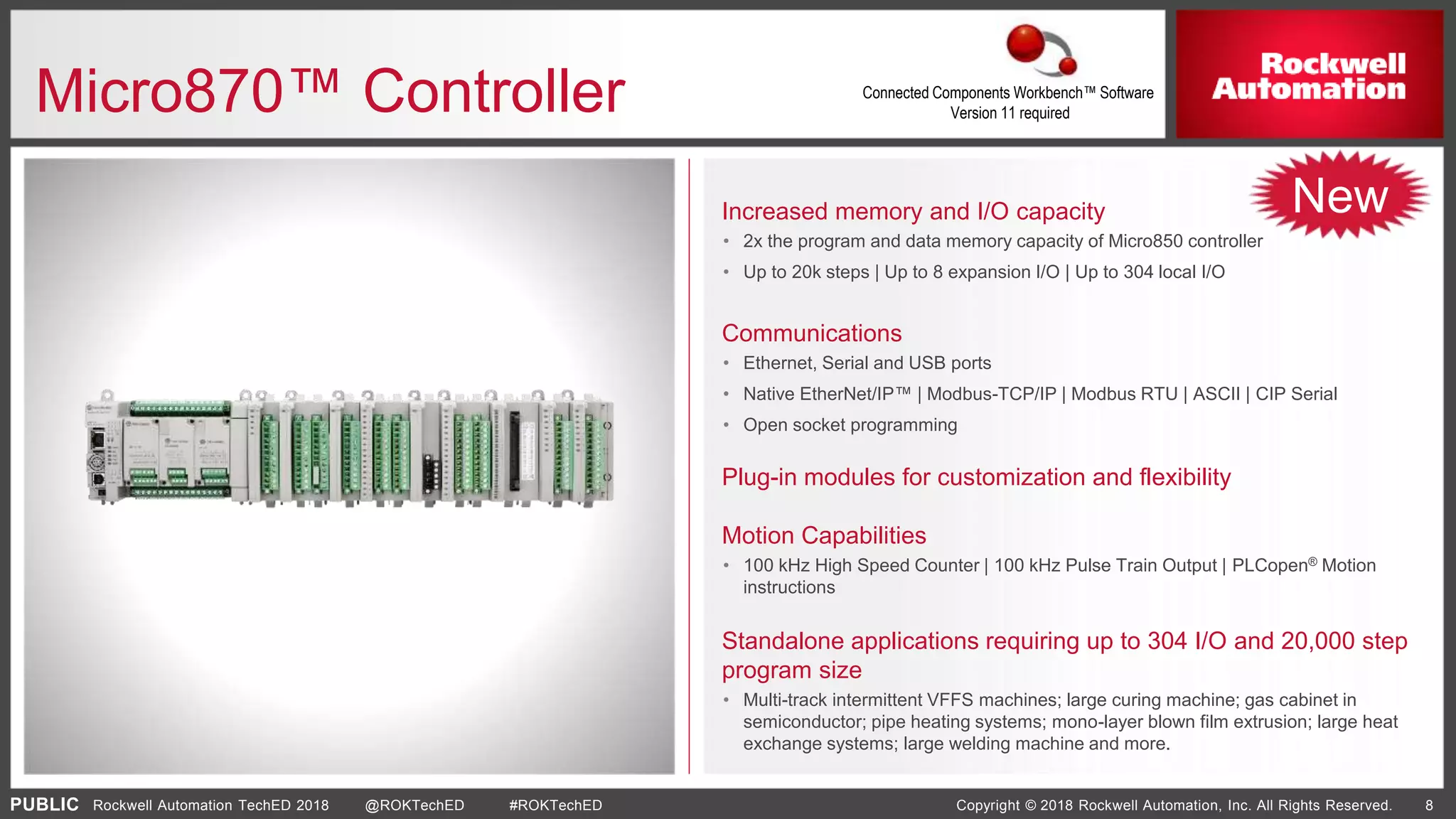

Micro870™ Controller
Increased memory and I/O capacity
• 2x the program and data memory capacity of Micro850 controller
• Up to 20k steps | Up to 8 expansion I/O | Up to 304 local I/O
Communications
• Ethernet, Serial and USB ports
• Native EtherNet/IP™ | Modbus-TCP/IP | Modbus RTU | ASCII | CIP Serial
• Open socket programming
Plug-in modules for customization and flexibility
Motion Capabilities
• 100 kHz High Speed Counter | 100 kHz Pulse Train Output | PLCopen® Motion
instructions
Standalone applications requiring up to 304 I/O and 20,000 step
program size
• Multi-track intermittent VFFS machines; large curing machine; gas cabinet in
semiconductor; pipe heating systems; mono-layer blown film extrusion; large heat
exchange systems; large welding machine and more.
New
Connected Components Workbench™ Software
Version 11 required

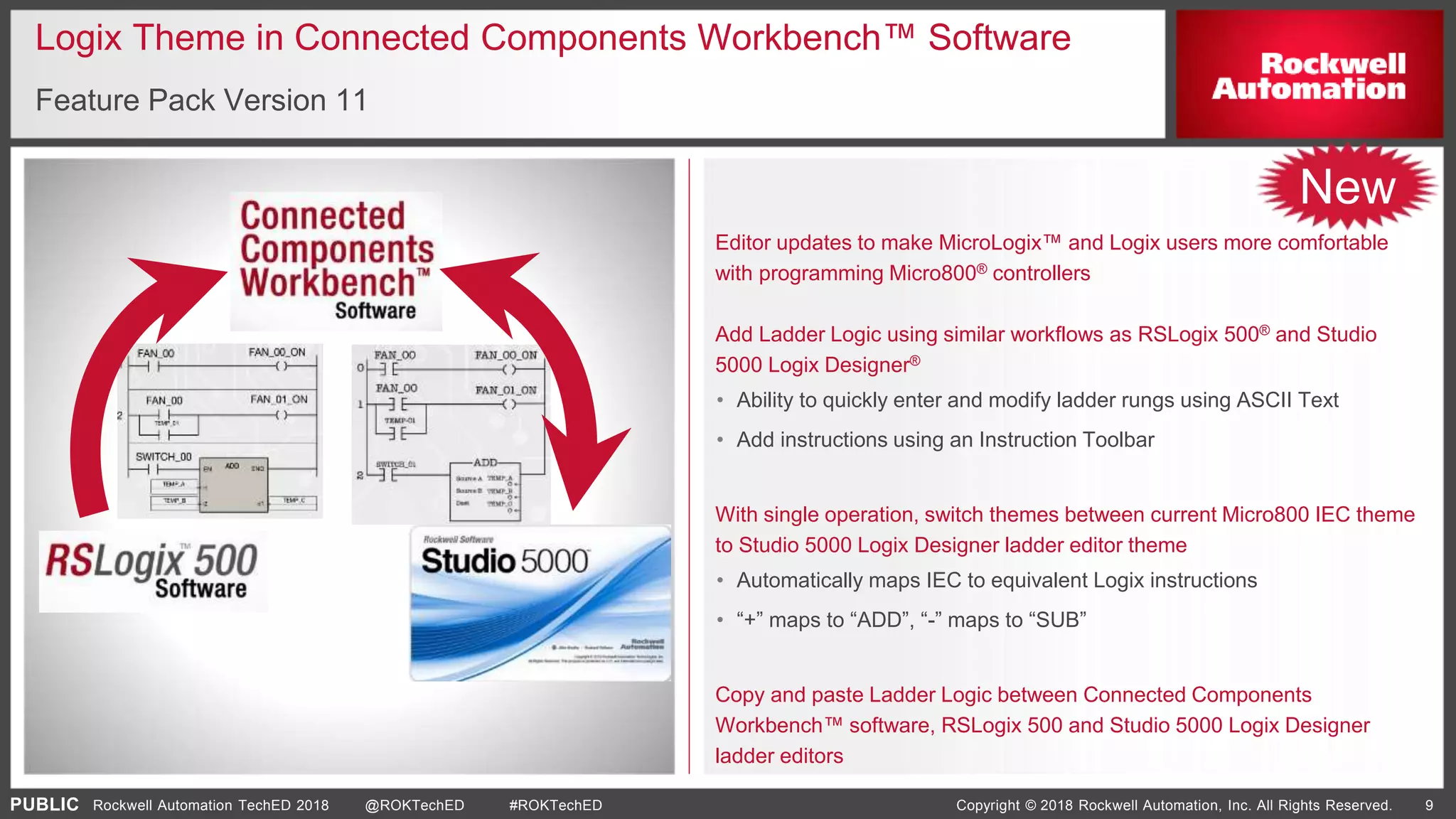

Logix Theme in Connected Components Workbench™ Software
Feature Pack Version 11
New
Editor updates to make MicroLogix™ and Logix users more comfortable
with programming Micro800® controllers
Add Ladder Logic using similar workflows as RSLogix 500® and Studio
5000 Logix Designer®
• Ability to quickly enter and modify ladder rungs using ASCII Text
• Add instructions using an Instruction Toolbar
With single operation, switch themes between current Micro800 IEC theme
to Studio 5000 Logix Designer ladder editor theme
• Automatically maps IEC to equivalent Logix instructions
• “+” maps to “ADD”, “-” maps to “SUB”
Copy and paste Ladder Logic between Connected Components
Workbench™ software, RSLogix 500 and Studio 5000 Logix Designer
ladder editors

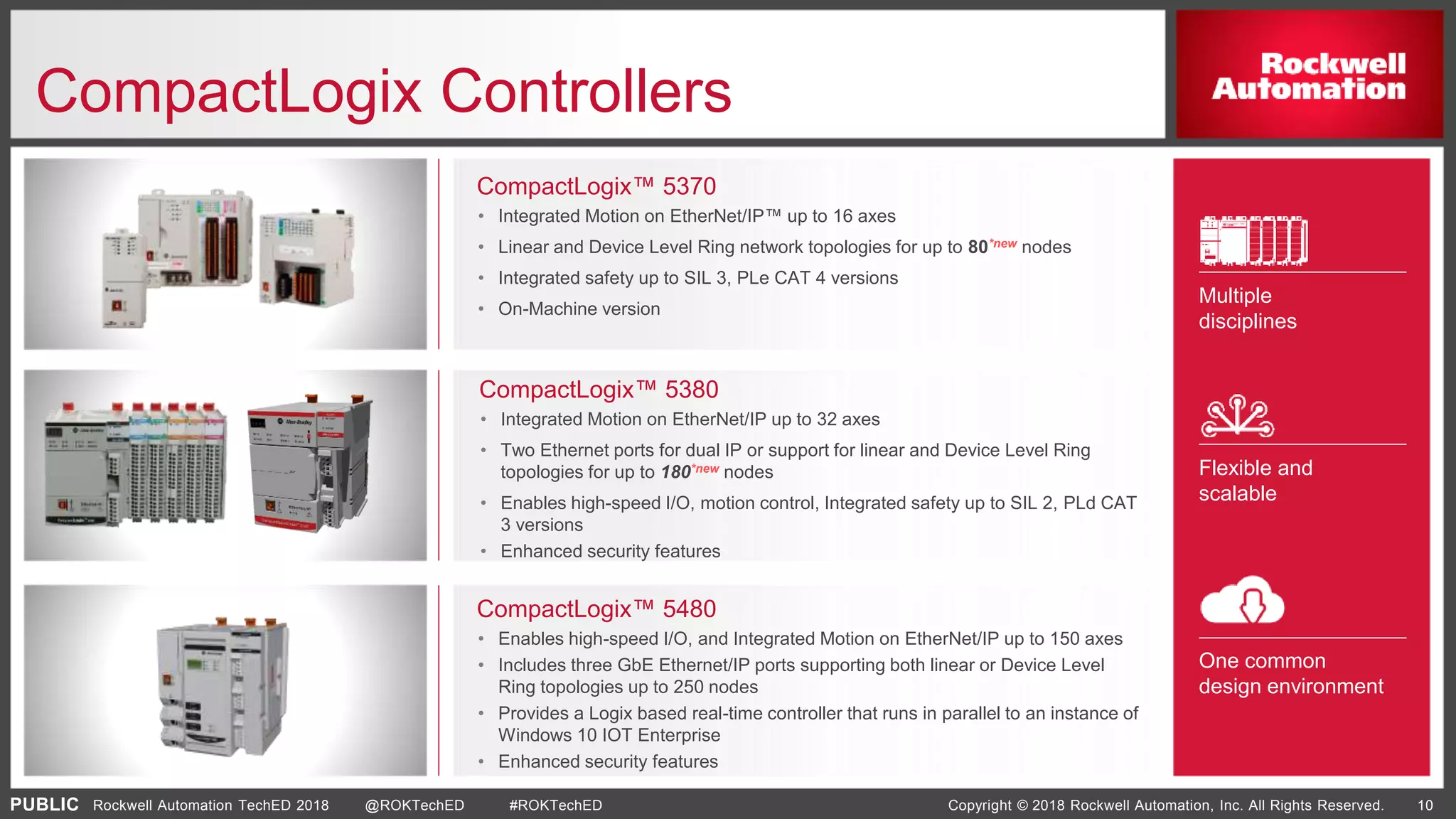

CompactLogix™ 5370
• Integrated Motion on EtherNet/IP™ up to 16 axes
• Linear and Device Level Ring network topologies for up to 80*new nodes
• Integrated safety up to SIL 3, PLe CAT 4 versions
• On-Machine version
CompactLogix Controllers
• Integrated Motion on EtherNet/IP up to 32 axes
• Two Ethernet ports for dual IP or support for linear and Device Level Ring
topologies for up to 180*new nodes
• Enables high-speed I/O, motion control, Integrated safety up to SIL 2, PLd CAT
3 versions
• Enhanced security features

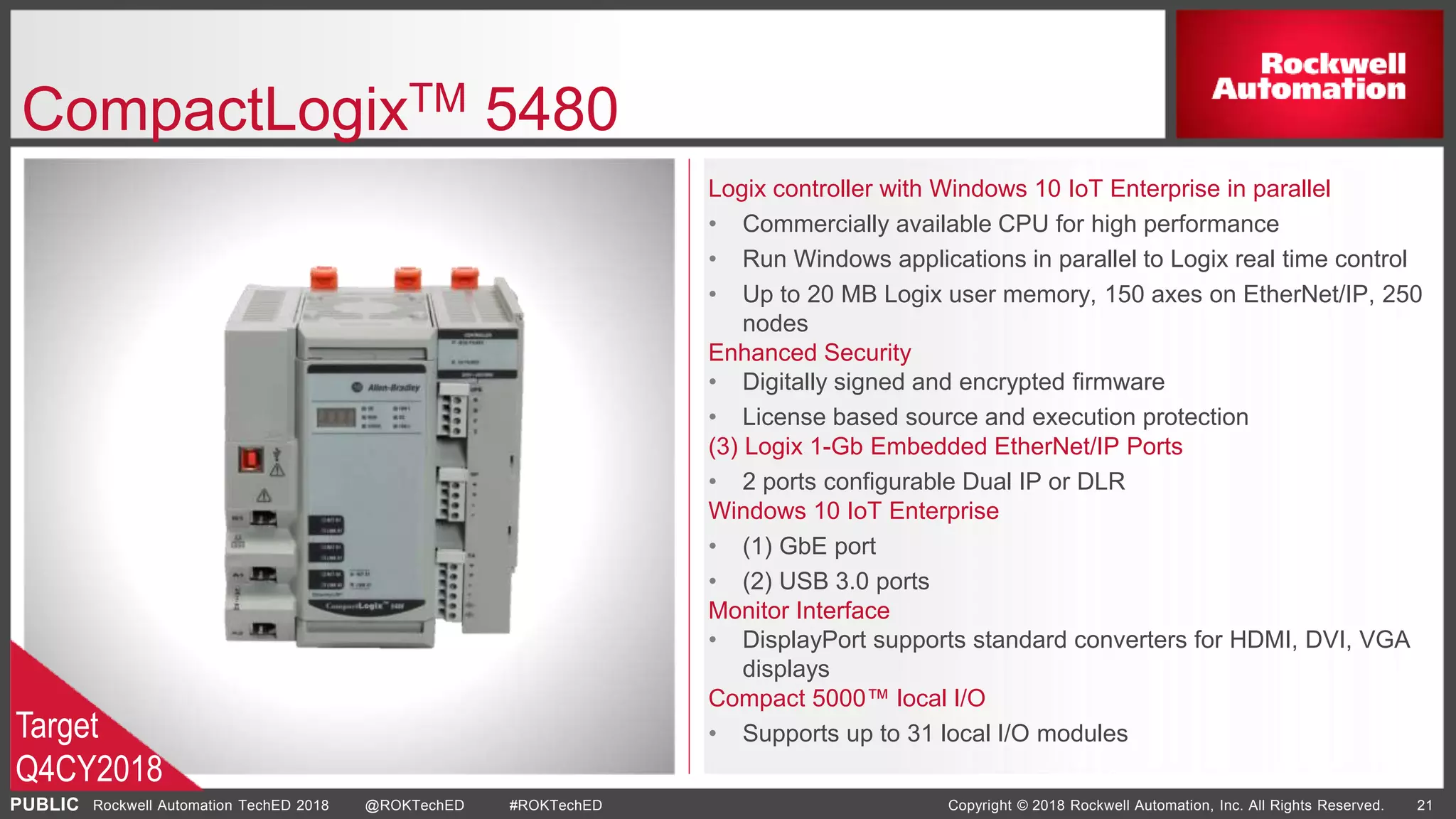

• Enables high-speed I/O, and Integrated Motion on EtherNet/IP up to 150 axes
• Includes three GbE Ethernet/IP ports supporting both linear or Device Level
Ring topologies up to 250 nodes
• Provides a Logix based real-time controller that runs in parallel to an instance of
Windows 10 IOT Enterprise
Multiple
disciplines
Flexible and
scalable
One common
design environment

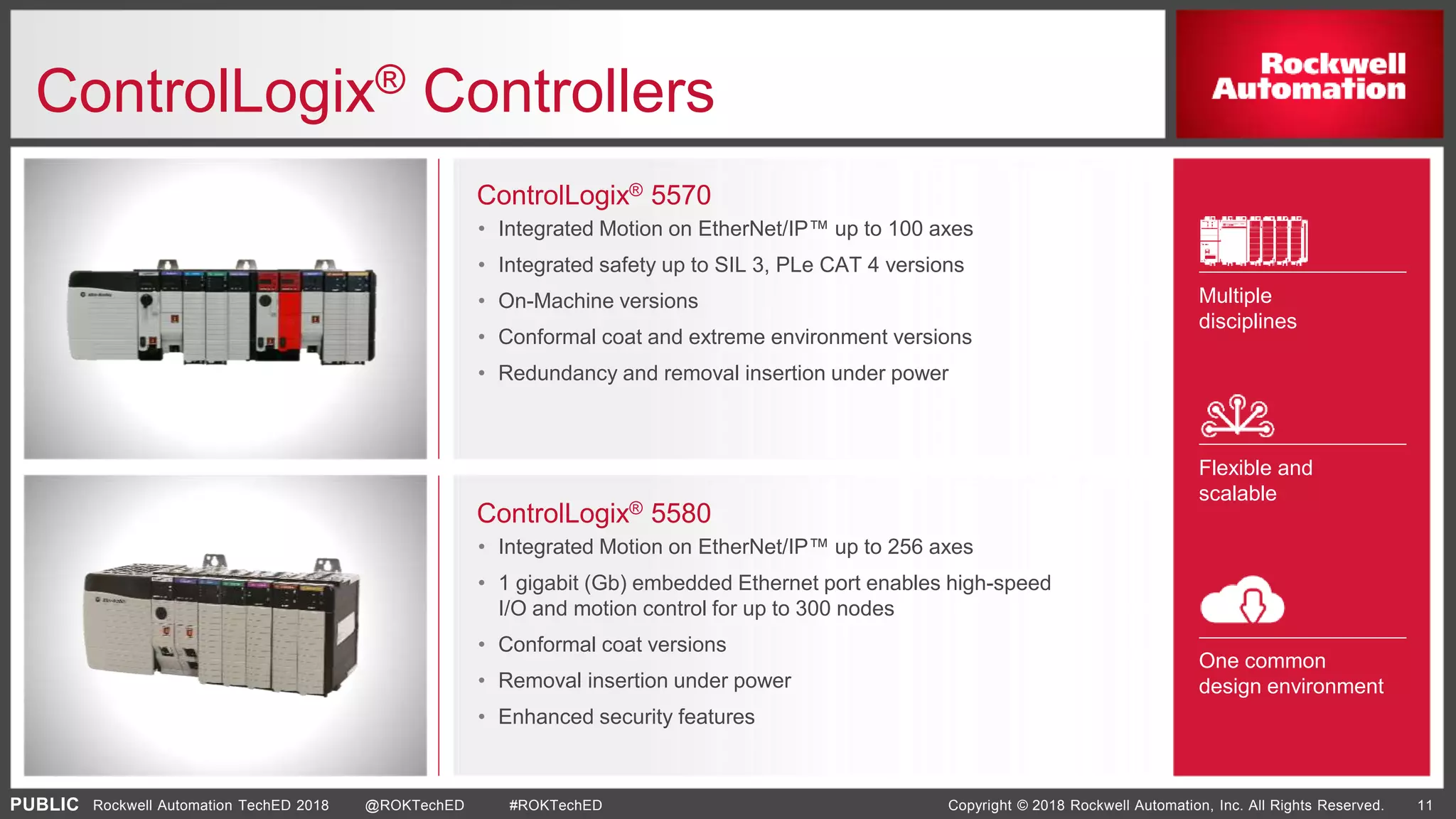

ControlLogix® Controllers
ControlLogix® 5570
• Integrated safety up to SIL 3, PLe CAT 4 versions
• On-Machine versions
• Conformal coat and extreme environment versions
• Redundancy and removal insertion under power
ControlLogix® 5580
• 1 gigabit (Gb) embedded Ethernet port enables high-speed
I/O and motion control for up to 300 nodes
• Conformal coat versions
• Removal insertion under power
Multiple
disciplines
Flexible and
scalable
One common
design environment

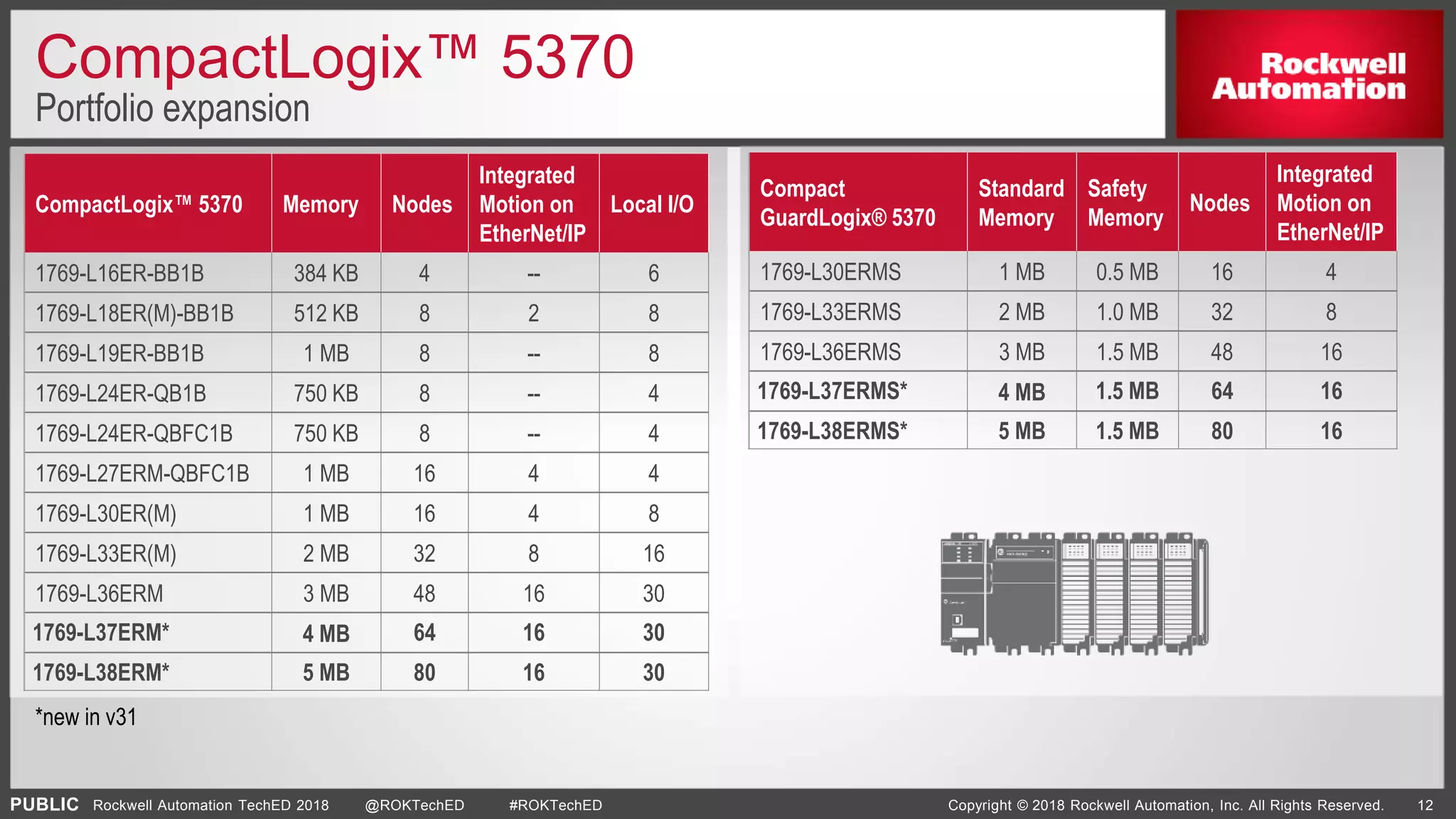

Portfolio expansion
CompactLogix™ 5370 Memory Nodes
Integrated
Motion on
EtherNet/IP
Local I/O
1769-L16ER-BB1B 384 KB 4 -- 6
1769-L18ER(M)-BB1B 512 KB 8 2 8
1769-L19ER-BB1B 1 MB 8 -- 8
1769-L24ER-QB1B 750 KB 8 -- 4
1769-L24ER-QBFC1B 750 KB 8 -- 4
1769-L27ERM-QBFC1B 1 MB 16 4 4
1769-L30ER(M) 1 MB 16 4 8
1769-L33ER(M) 2 MB 32 8 16
1769-L36ERM 3 MB 48 16 30
1769-L37ERM* 4 MB 64 16 30
1769-L38ERM* 5 MB 80 16 30
Compact
GuardLogix® 5370
Standard
Memory
Safety
Memory
Nodes
Integrated
Motion on
EtherNet/IP
1769-L30ERMS 1 MB 0.5 MB 16 4
1769-L33ERMS 2 MB 1.0 MB 32 8
1769-L36ERMS 3 MB 1.5 MB 48 16
1769-L37ERMS* 4 MB 1.5 MB 64 16
1769-L38ERMS* 5 MB 1.5 MB 80 16
*new in v31

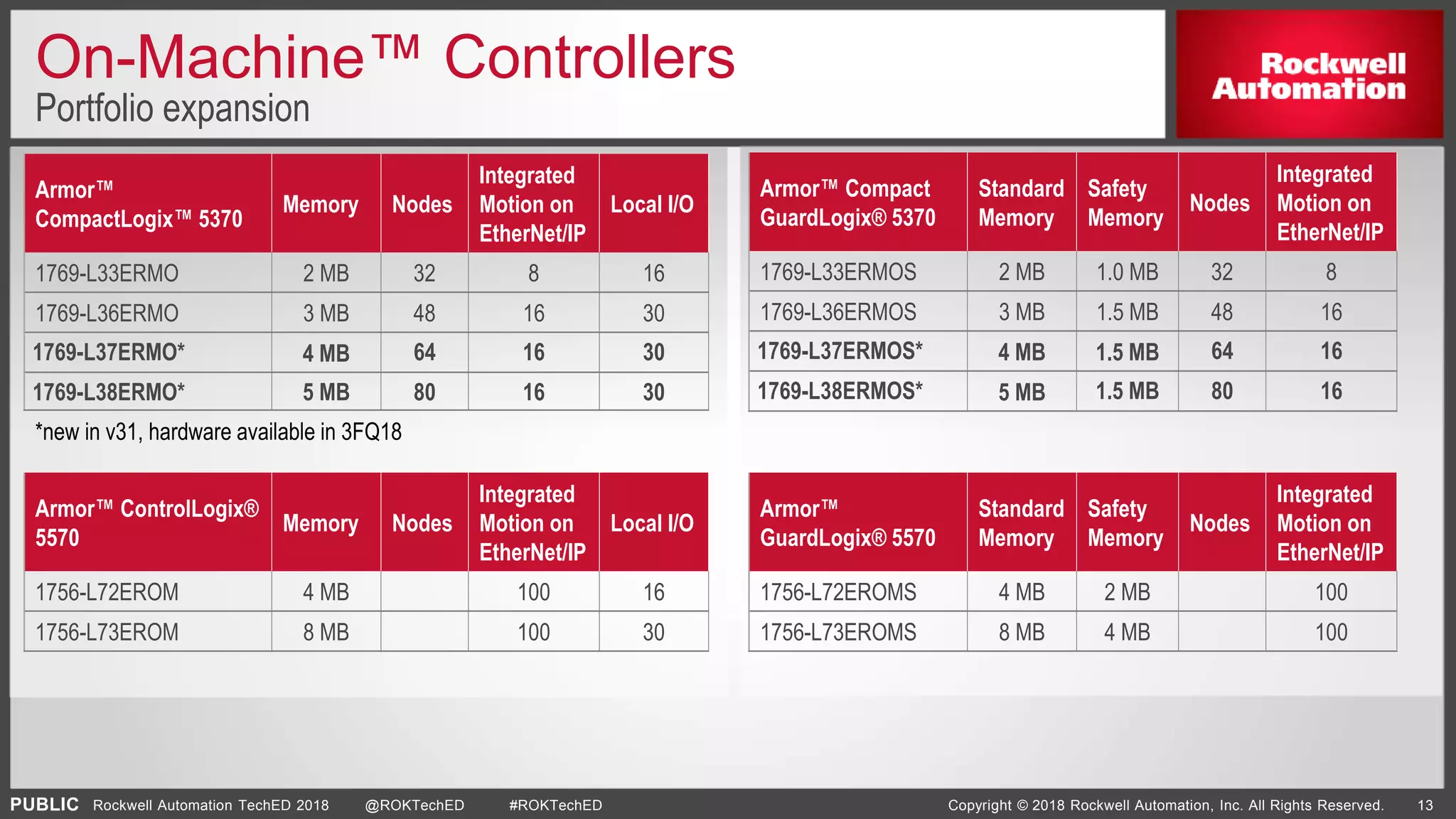

On-Machine™ Controllers
Portfolio expansion
Armor™
Memory Nodes
Integrated
Motion on
EtherNet/IP
Local I/O
1769-L33ERMO 2 MB 32 8 16
1769-L36ERMO 3 MB 48 16 30
1769-L37ERMO* 4 MB 64 16 30
1769-L38ERMO* 5 MB 80 16 30
Armor™ Compact
GuardLogix® 5370
Standard
Memory
Safety
Memory
Nodes
Integrated
Motion on
EtherNet/IP
1769-L33ERMOS 2 MB 1.0 MB 32 8
1769-L36ERMOS 3 MB 1.5 MB 48 16
1769-L37ERMOS* 4 MB 1.5 MB 64 16
1769-L38ERMOS* 5 MB 1.5 MB 80 16
*new in v31, hardware available in 3FQ18
Armor™ ControlLogix®
5570
Memory Nodes
Integrated
Motion on
EtherNet/IP
Local I/O
1756-L72EROM 4 MB 100 16
1756-L73EROM 8 MB 100 30
Armor™
GuardLogix® 5570
Standard
Memory
Safety
Memory
Nodes
Integrated
Motion on
EtherNet/IP
1756-L72EROMS 4 MB 2 MB 100
1756-L73EROMS 8 MB 4 MB 100

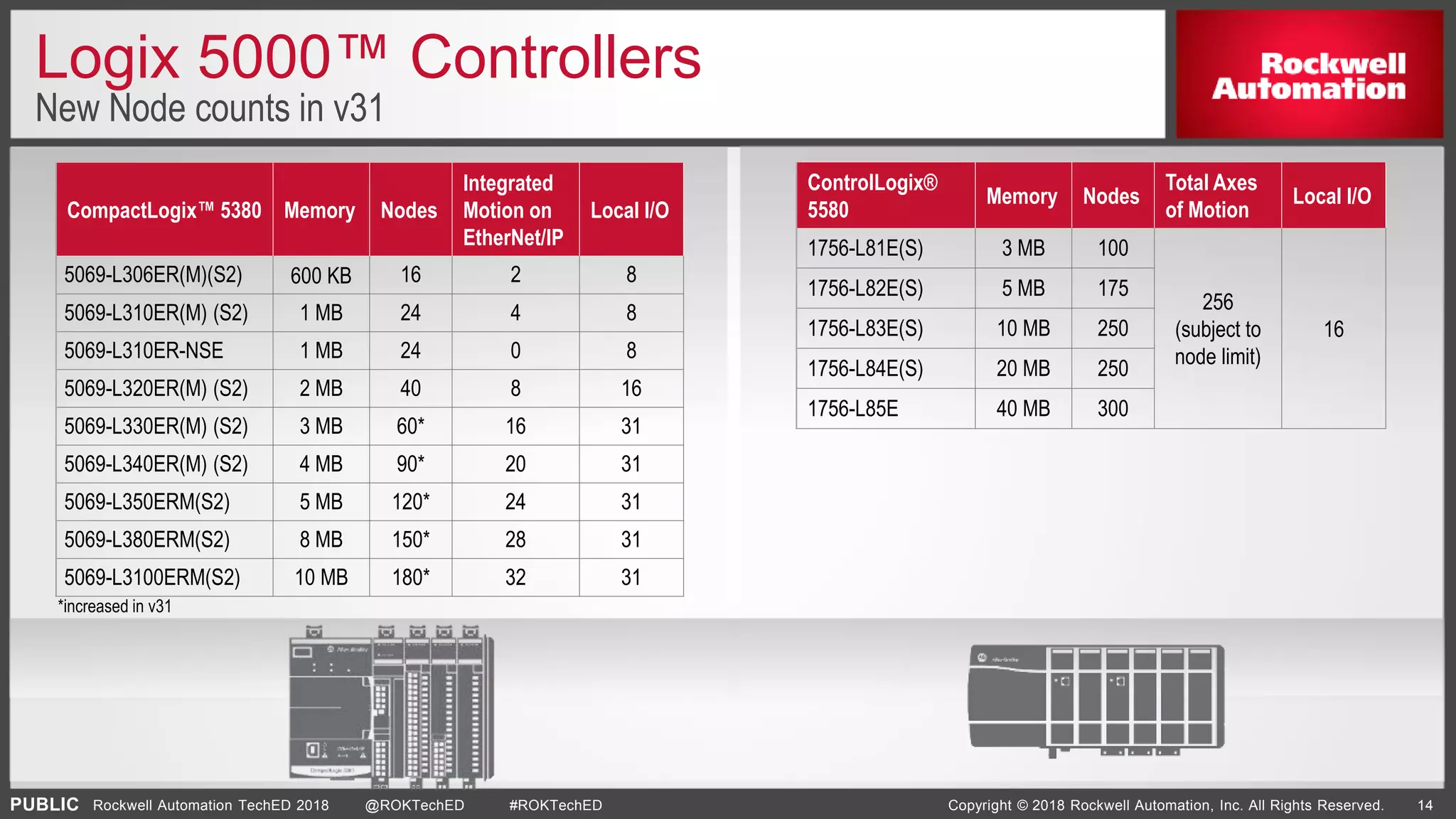

Logix 5000™ Controllers
New Node counts in v31
CompactLogix™ 5380 Memory Nodes
Integrated
Motion on
EtherNet/IP
Local I/O
5069-L306ER(M)(S2) 600 KB 16 2 8
5069-L310ER(M) (S2) 1 MB 24 4 8
5069-L310ER-NSE 1 MB 24 0 8
5069-L320ER(M) (S2) 2 MB 40 8 16
5069-L330ER(M) (S2) 3 MB 60* 16 31
5069-L340ER(M) (S2) 4 MB 90* 20 31
5069-L350ERM(S2) 5 MB 120* 24 31
5069-L380ERM(S2) 8 MB 150* 28 31
5069-L3100ERM(S2) 10 MB 180* 32 31
*increased in v31
ControlLogix®
5580
Memory Nodes
Total Axes
of Motion
Local I/O
1756-L81E(S) 3 MB 100
256
(subject to
node limit)
16
1756-L82E(S) 5 MB 175
1756-L83E(S) 10 MB 250
1756-L84E(S) 20 MB 250
1756-L85E 40 MB 300

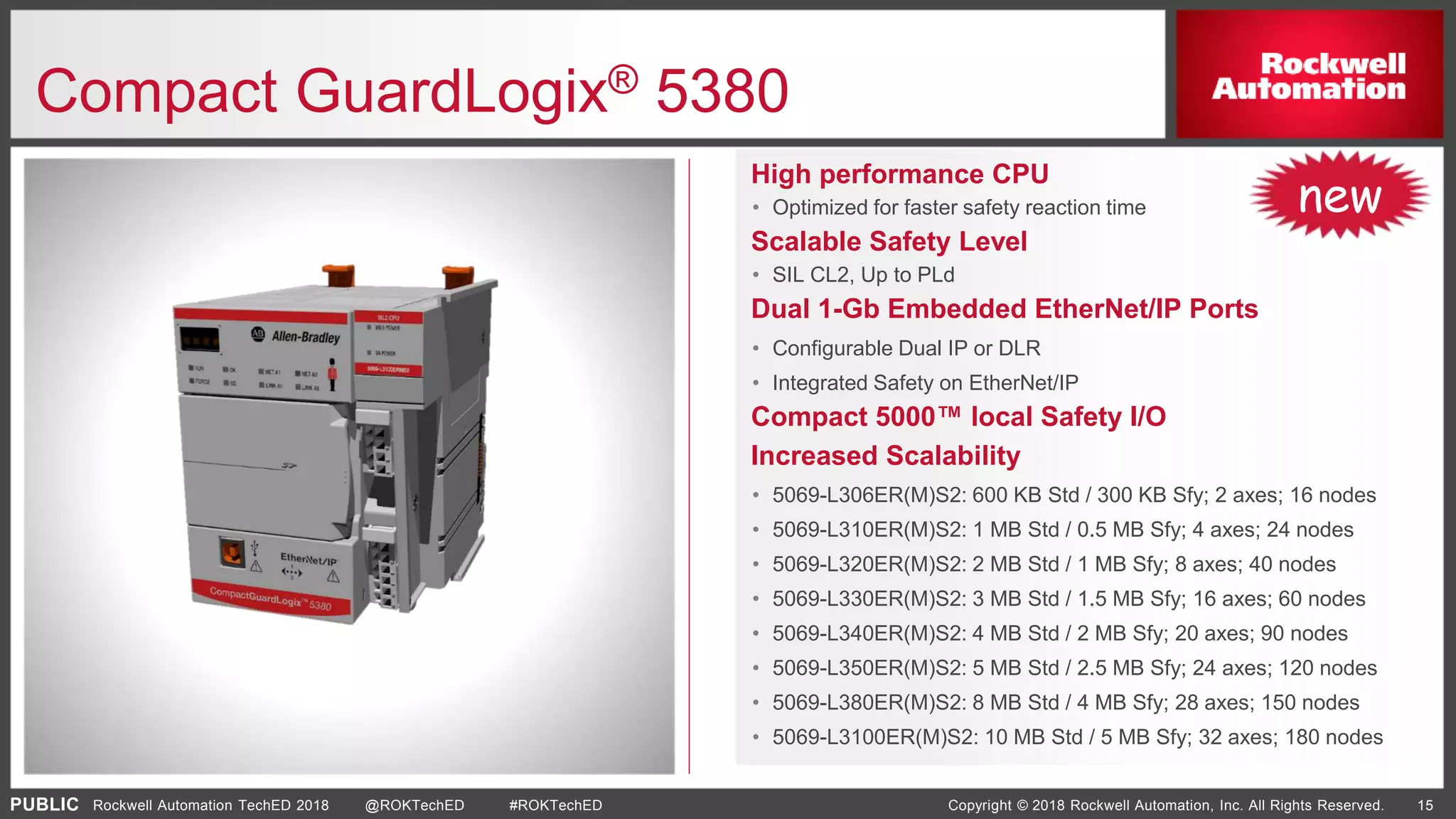

Compact GuardLogix® 5380
High performance CPU
• Optimized for faster safety reaction time
Scalable Safety Level
• SIL CL2, Up to PLd
Dual 1-Gb Embedded EtherNet/IP Ports
• Configurable Dual IP or DLR
• Integrated Safety on EtherNet/IP
Compact 5000™ local Safety I/O
Increased Scalability
• 5069-L306ER(M)S2: 600 KB Std / 300 KB Sfy; 2 axes; 16 nodes
• 5069-L310ER(M)S2: 1 MB Std / 0.5 MB Sfy; 4 axes; 24 nodes
• 5069-L320ER(M)S2: 2 MB Std / 1 MB Sfy; 8 axes; 40 nodes
new

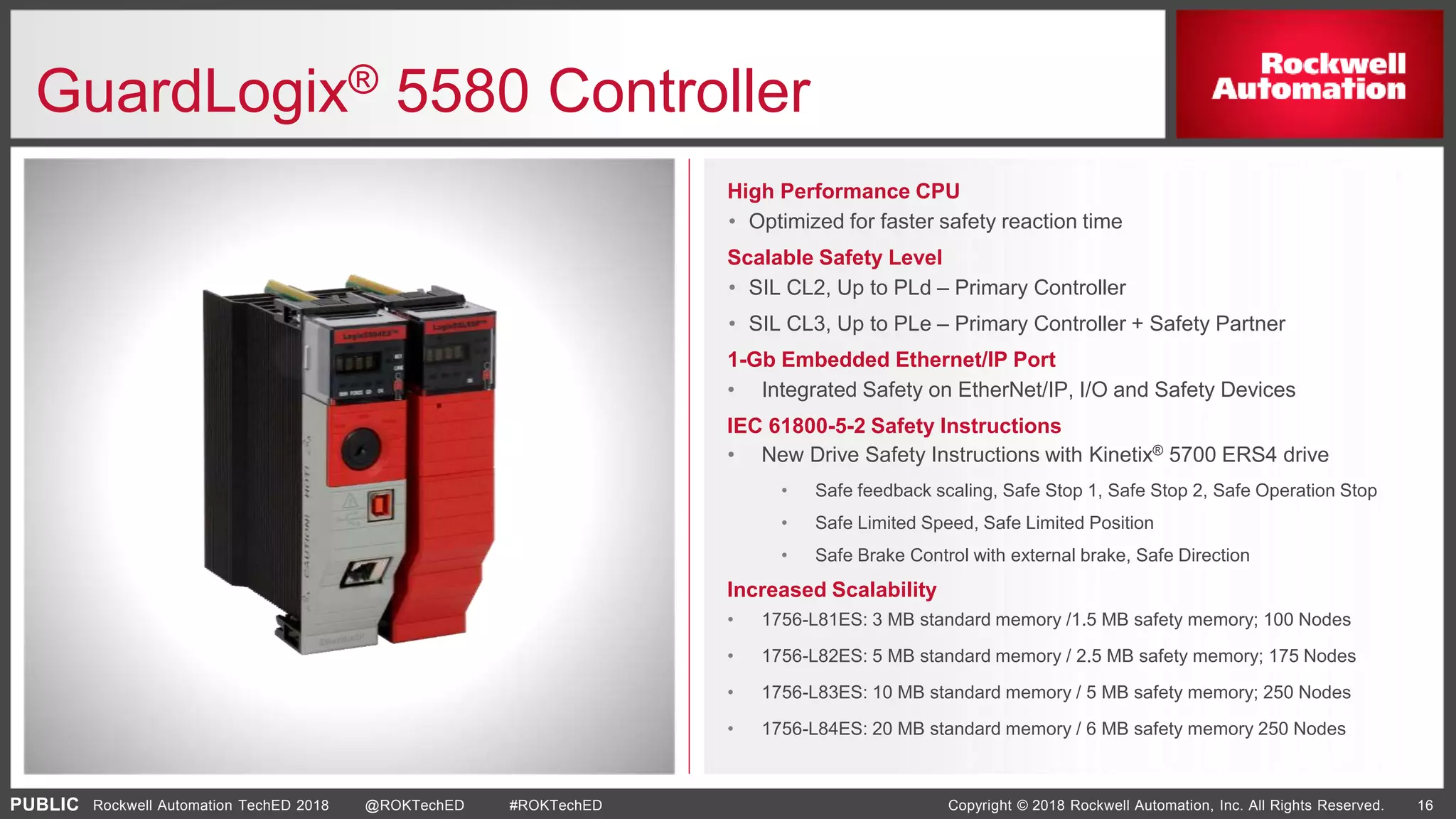

High Performance CPU
• Optimized for faster safety reaction time
Scalable Safety Level
• SIL CL2, Up to PLd – Primary Controller
• SIL CL3, Up to PLe – Primary Controller + Safety Partner
1-Gb Embedded Ethernet/IP Port
• Integrated Safety on EtherNet/IP, I/O and Safety Devices
IEC 61800-5-2 Safety Instructions
• New Drive Safety Instructions with Kinetix® 5700 ERS4 drive
• Safe feedback scaling, Safe Stop 1, Safe Stop 2, Safe Operation Stop
• Safe Limited Speed, Safe Limited Position
• Safe Brake Control with external brake, Safe Direction
Increased Scalability
• 1756-L81ES: 3 MB standard memory /1.5 MB safety memory; 100 Nodes
• 1756-L82ES: 5 MB standard memory / 2.5 MB safety memory; 175 Nodes
• 1756-L83ES: 10 MB standard memory / 5 MB safety memory; 250 Nodes
• 1756-L84ES: 20 MB standard memory / 6 MB safety memory 250 Nodes
GuardLogix® 5580 Controller

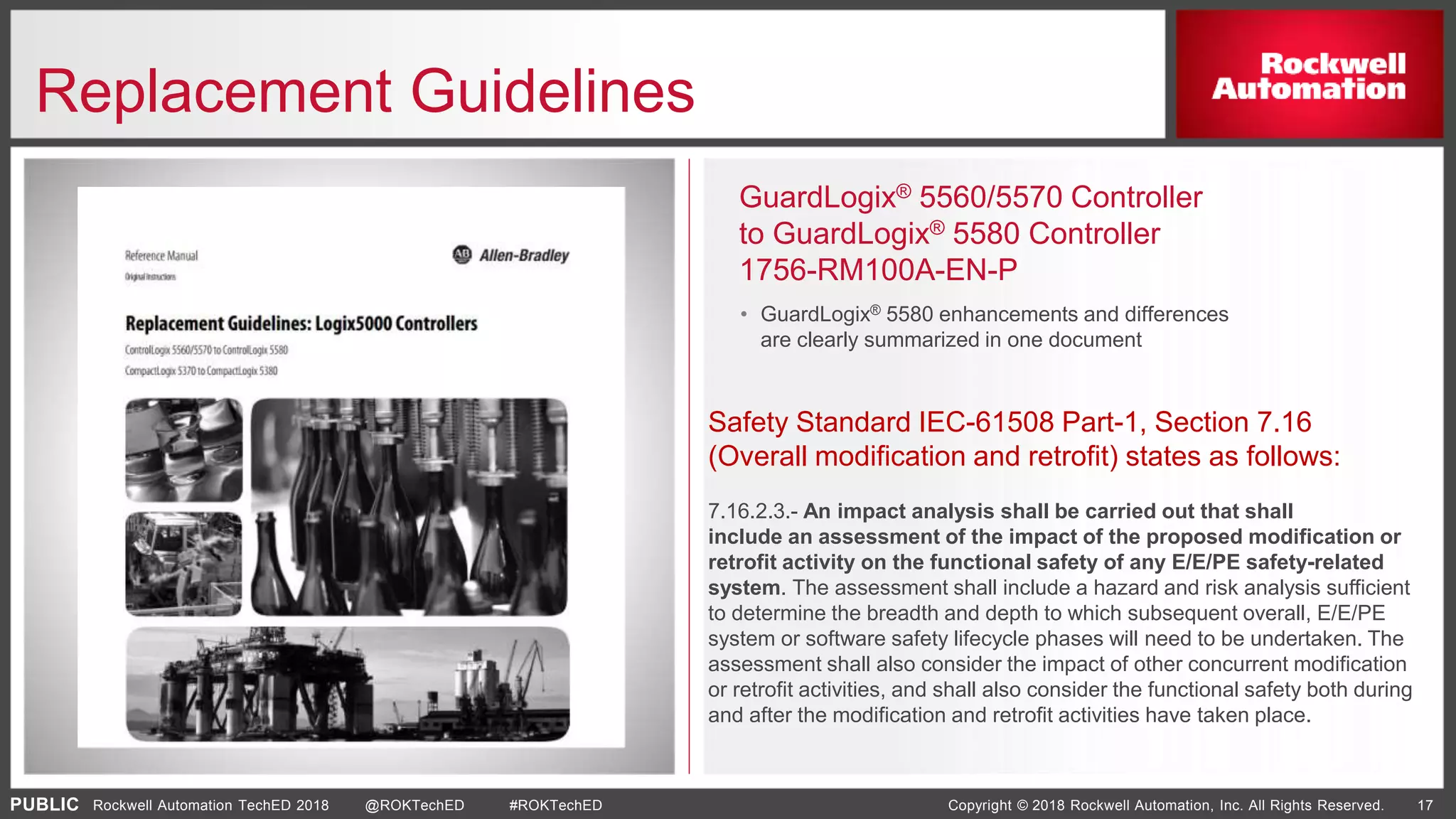

Replacement Guidelines
GuardLogix® 5560/5570 Controller
to GuardLogix® 5580 Controller
1756-RM100A-EN-P
• GuardLogix® 5580 enhancements and differences
are clearly summarized in one document
Safety Standard IEC-61508 Part-1, Section 7.16
(Overall modification and retrofit) states as follows:
7.16.2.3.- An impact analysis shall be carried out that shall
include an assessment of the impact of the proposed modification or
retrofit activity on the functional safety of any E/E/PE safety-related
system. The assessment shall include a hazard and risk analysis sufficient
to determine the breadth and depth to which subsequent overall, E/E/PE
system or software safety lifecycle phases will need to be undertaken. The
assessment shall also consider the impact of other concurrent modification
or retrofit activities, and shall also consider the functional safety both during
and after the modification and retrofit activities have taken place.

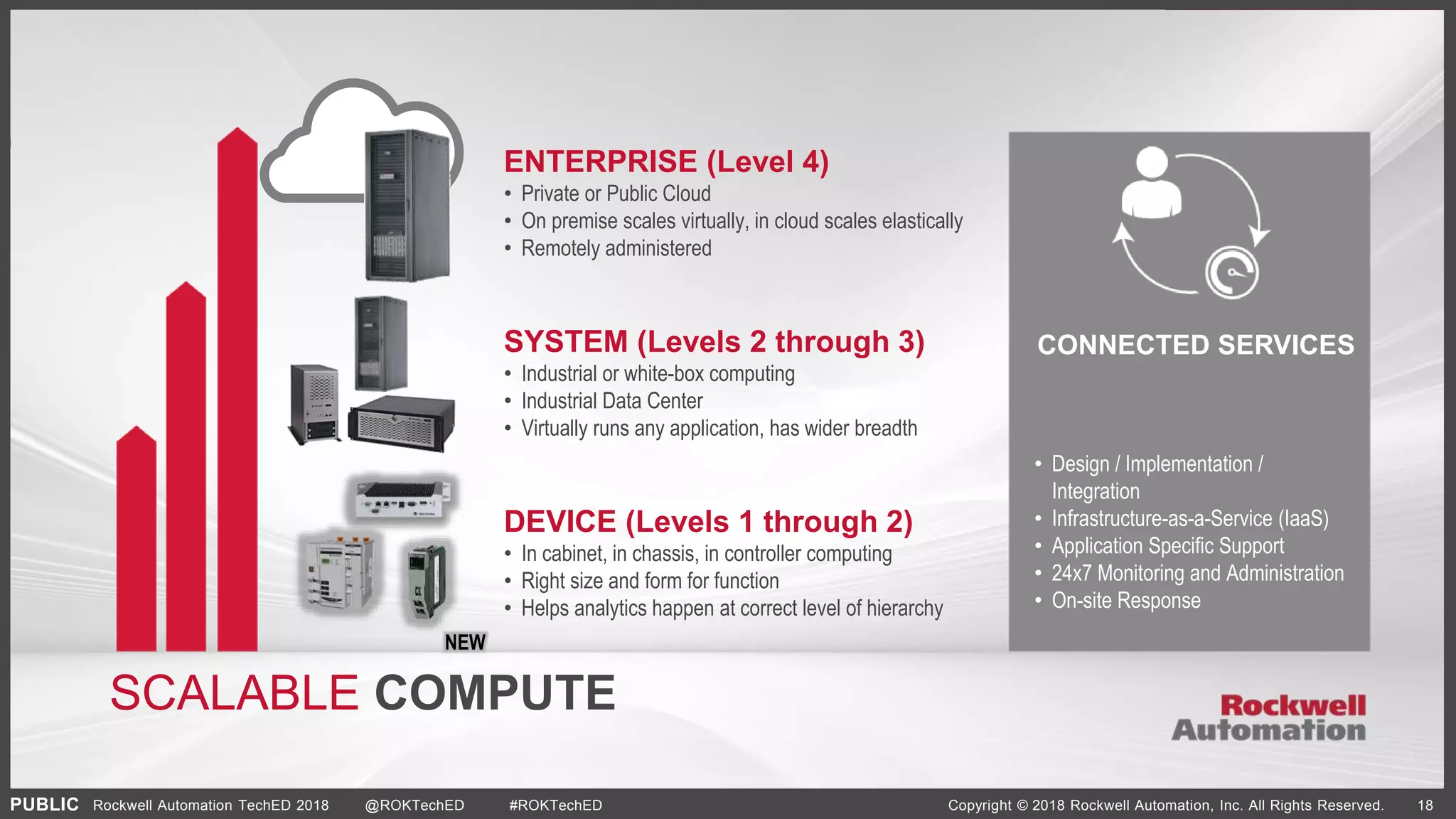

SCALABLE COMPUTE
CONNECTED SERVICES
ENTERPRISE (Level 4)
• Private or Public Cloud
• On premise scales virtually, in cloud scales elastically
• Remotely administered
SYSTEM (Levels 2 through 3)
• Industrial or white-box computing
• Industrial Data Center
• Virtually runs any application, has wider breadth
DEVICE (Levels 1 through 2)
• In cabinet, in chassis, in controller computing
• Right size and form for function
• Helps analytics happen at correct level of hierarchy
• Design / Implementation /
Integration
• Infrastructure-as-a-Service (IaaS)
• Application Specific Support
• 24x7 Monitoring and Administration
• On-site Response
NEW

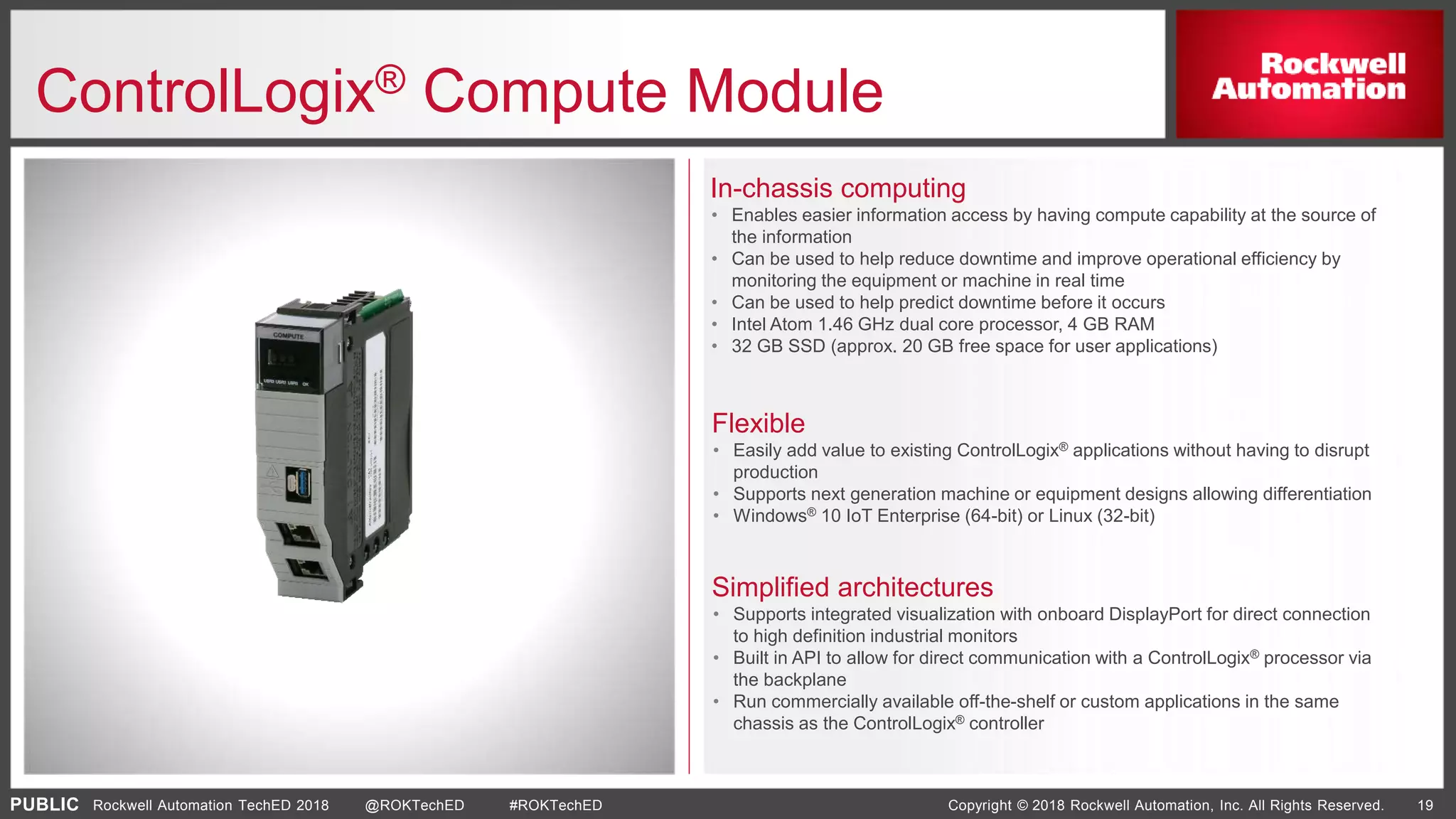

ControlLogix® Compute Module
In-chassis computing
• Enables easier information access by having compute capability at the source of
the information
• Can be used to help reduce downtime and improve operational efficiency by
monitoring the equipment or machine in real time
• Can be used to help predict downtime before it occurs
• Intel Atom 1.46 GHz dual core processor, 4 GB RAM
• 32 GB SSD (approx. 20 GB free space for user applications)
In-chassis computing
Flexible
Simplified architectures
Flexible
• Easily add value to existing ControlLogix® applications without having to disrupt
production
• Supports next generation machine or equipment designs allowing differentiation
• Windows® 10 IoT Enterprise (64-bit) or Linux (32-bit)
• Supports integrated visualization with onboard DisplayPort for direct connection
to high definition industrial monitors
• Built in API to allow for direct communication with a ControlLogix® processor via
the backplane
• Run commercially available off-the-shelf or custom applications in the same
chassis as the ControlLogix® controller

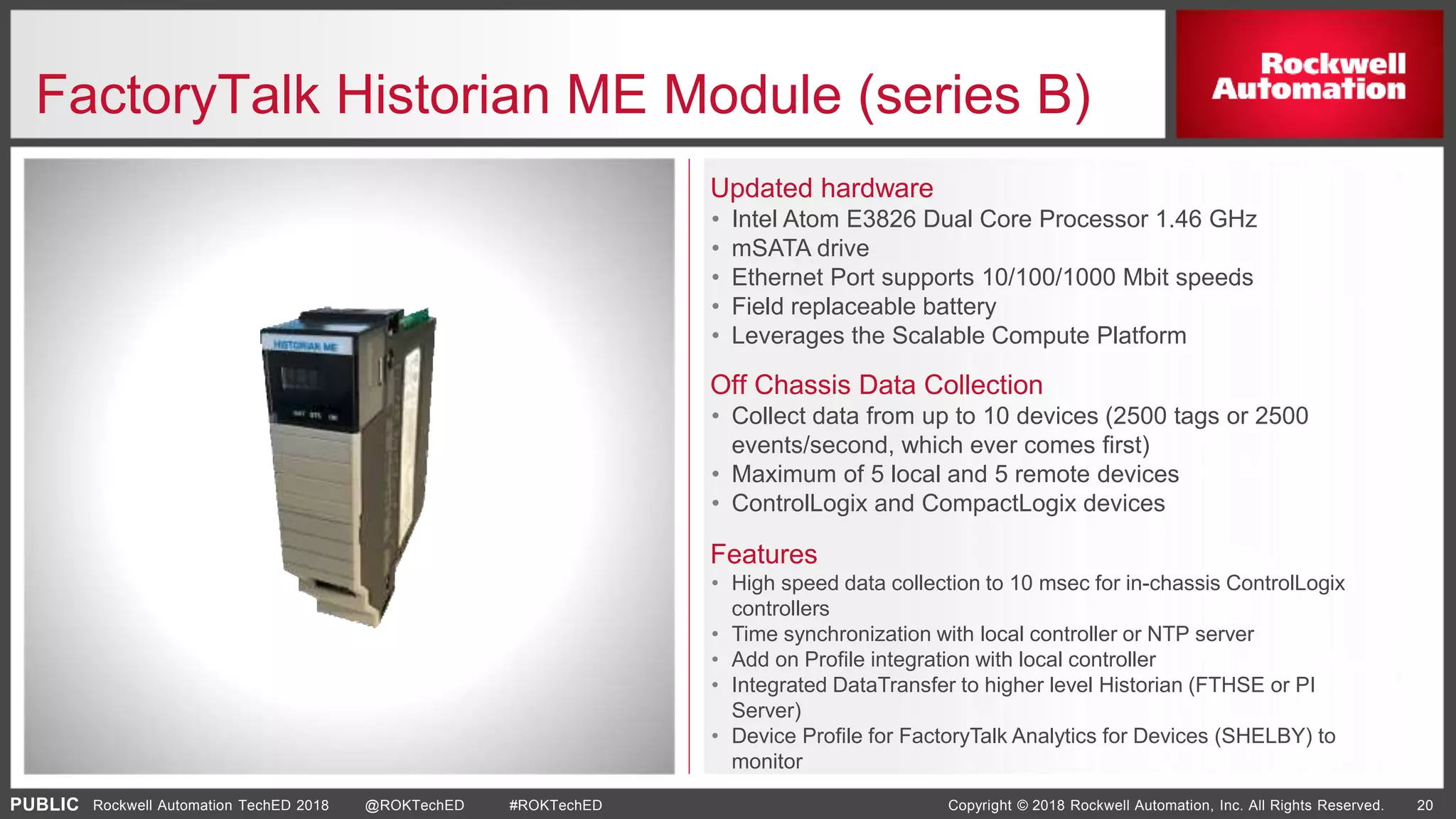

FactoryTalk Historian ME Module (series B)
Updated hardware
• Intel Atom E3826 Dual Core Processor 1.46 GHz
• mSATA drive
• Ethernet Port supports 10/100/1000 Mbit speeds
• Field replaceable battery
• Leverages the Scalable Compute Platform
chassis computing
Flexible
Off Chassis Data Collection
• Collect data from up to 10 devices (2500 tags or 2500
events/second, which ever comes first)
• Maximum of 5 local and 5 remote devices
• ControlLogix and CompactLogix devices
Features
• High speed data collection to 10 msec for in-chassis ControlLogix
controllers
• Time synchronization with local controller or NTP server
• Add on Profile integration with local controller
• Integrated DataTransfer to higher level Historian (FTHSE or PI
Server)
• Device Profile for FactoryTalk Analytics for Devices (SHELBY) to
monitor

CompactLogixTM 5480
Logix controller with Windows 10 IoT Enterprise in parallel
• Commercially available CPU for high performance
• Run Windows applications in parallel to Logix real time control
• Up to 20 MB Logix user memory, 150 axes on EtherNet/IP, 250
nodes
Enhanced Security
• Digitally signed and encrypted firmware
• License based source and execution protection
(3) Logix 1-Gb Embedded EtherNet/IP Ports
• 2 ports configurable Dual IP or DLR
Windows 10 IoT Enterprise
• (1) GbE port
• (2) USB 3.0 ports
Monitor Interface
• DisplayPort supports standard converters for HDMI, DVI, VGA
displays
Compact 5000™ local I/O
• Supports up to 31 local I/O modulesTarget
Q4CY2018

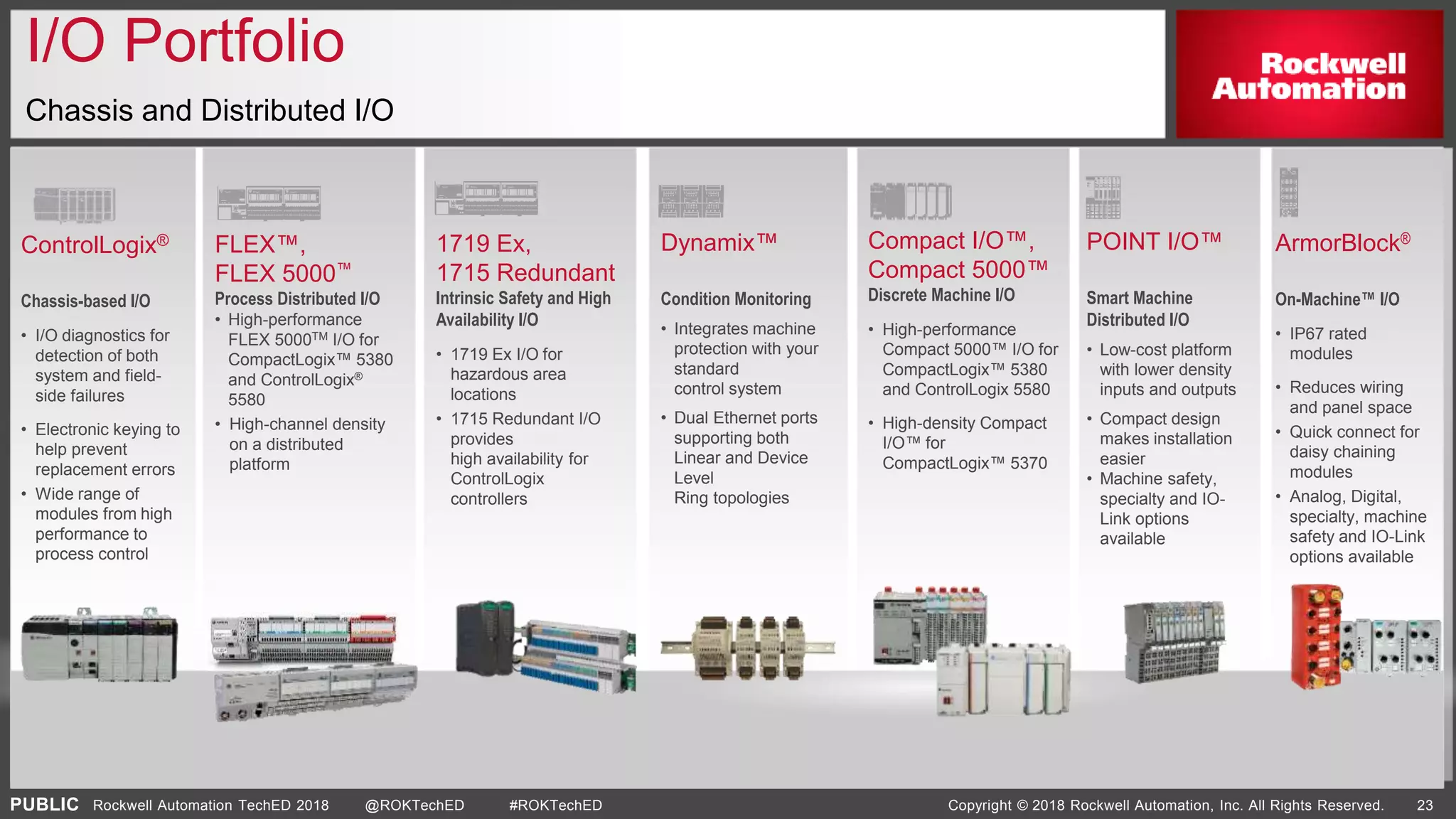

I/O

I/O Portfolio
Chassis and Distributed I/O
ControlLogix®
Chassis-based I/O
• I/O diagnostics for
detection of both
system and field-
side failures
• Electronic keying to
help prevent
replacement errors
• Wide range of
modules from high
performance to
process control
ArmorBlock®
On-Machine™ I/O
• IP67 rated
modules
• Reduces wiring
and panel space
• Quick connect for
daisy chaining
modules
• Analog, Digital,
specialty, machine
safety and IO-Link
options available
1719 Ex,
1715 Redundant
Intrinsic Safety and High
Availability I/O
• 1719 Ex I/O for
hazardous area
locations
• 1715 Redundant I/O
provides
high availability for
ControlLogix
controllers
Compact I/O™,
Compact 5000™
Discrete Machine I/O
• High-performance
Compact 5000™ I/O for
and ControlLogix 5580
• High-density Compact
I/O™ for
POINT I/O™
Smart Machine
Distributed I/O
• Low-cost platform
with lower density
inputs and outputs
• Compact design
makes installation
easier
• Machine safety,
specialty and IO-
Link options
available
Dynamix™
Condition Monitoring
• Integrates machine
protection with your
standard
control system
• Dual Ethernet ports
supporting both
Linear and Device
Level
Ring topologies
FLEX™,
FLEX 5000™
Process Distributed I/O
• High-performance
FLEX 5000TM I/O for
and ControlLogix®
5580
• High-channel density
on a distributed
platform

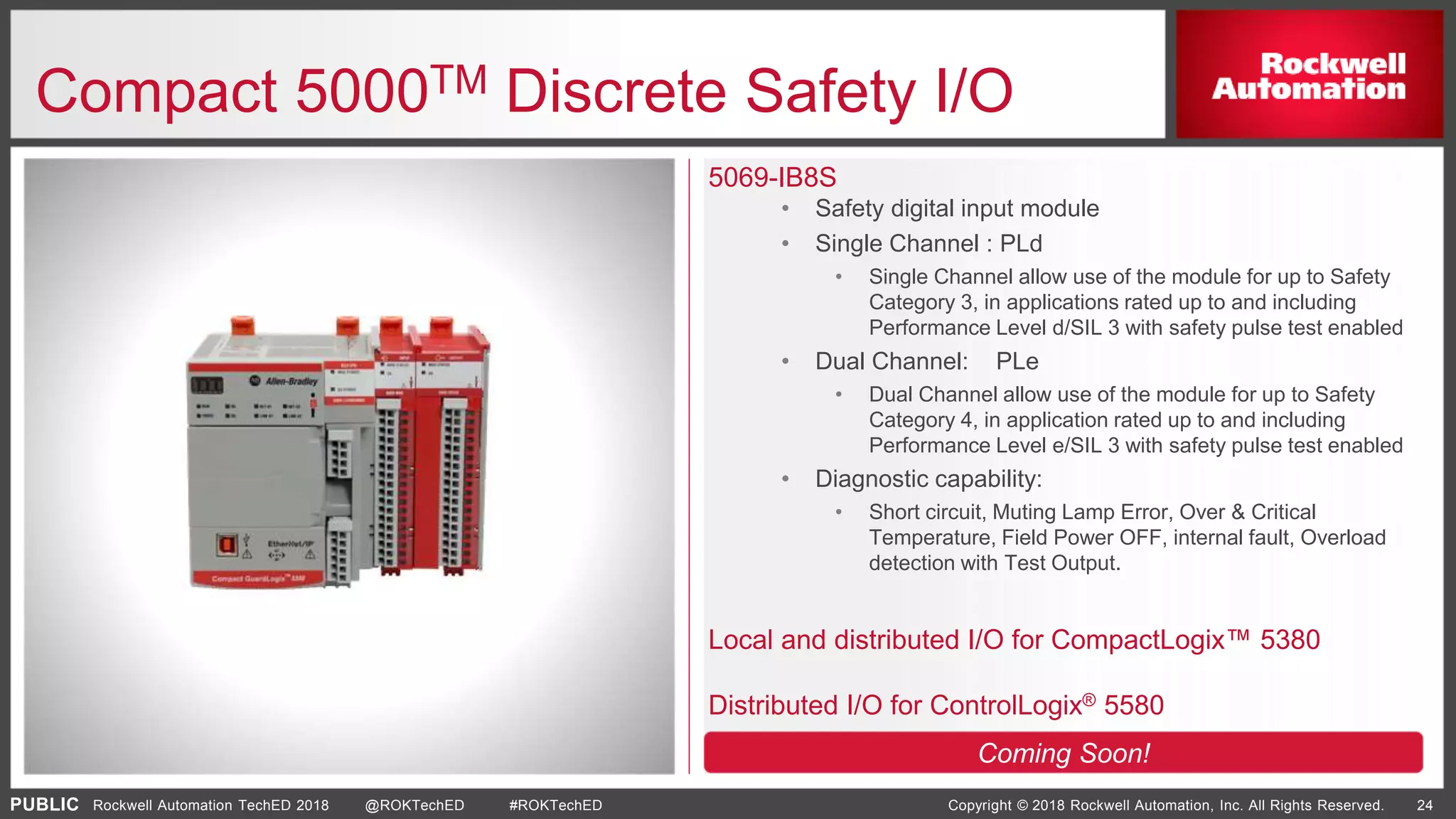

Compact 5000TM Discrete Safety I/O
5069-IB8S
• Safety digital input module
• Single Channel : PLd
• Single Channel allow use of the module for up to Safety
Category 3, in applications rated up to and including
Performance Level d/SIL 3 with safety pulse test enabled
• Dual Channel: PLe
• Dual Channel allow use of the module for up to Safety
Category 4, in application rated up to and including
Performance Level e/SIL 3 with safety pulse test enabled
• Diagnostic capability:
• Short circuit, Muting Lamp Error, Over & Critical
Temperature, Field Power OFF, internal fault, Overload
detection with Test Output.
Local and distributed I/O for CompactLogix™ 5380
Distributed I/O for ControlLogix® 5580
Coming Soon!

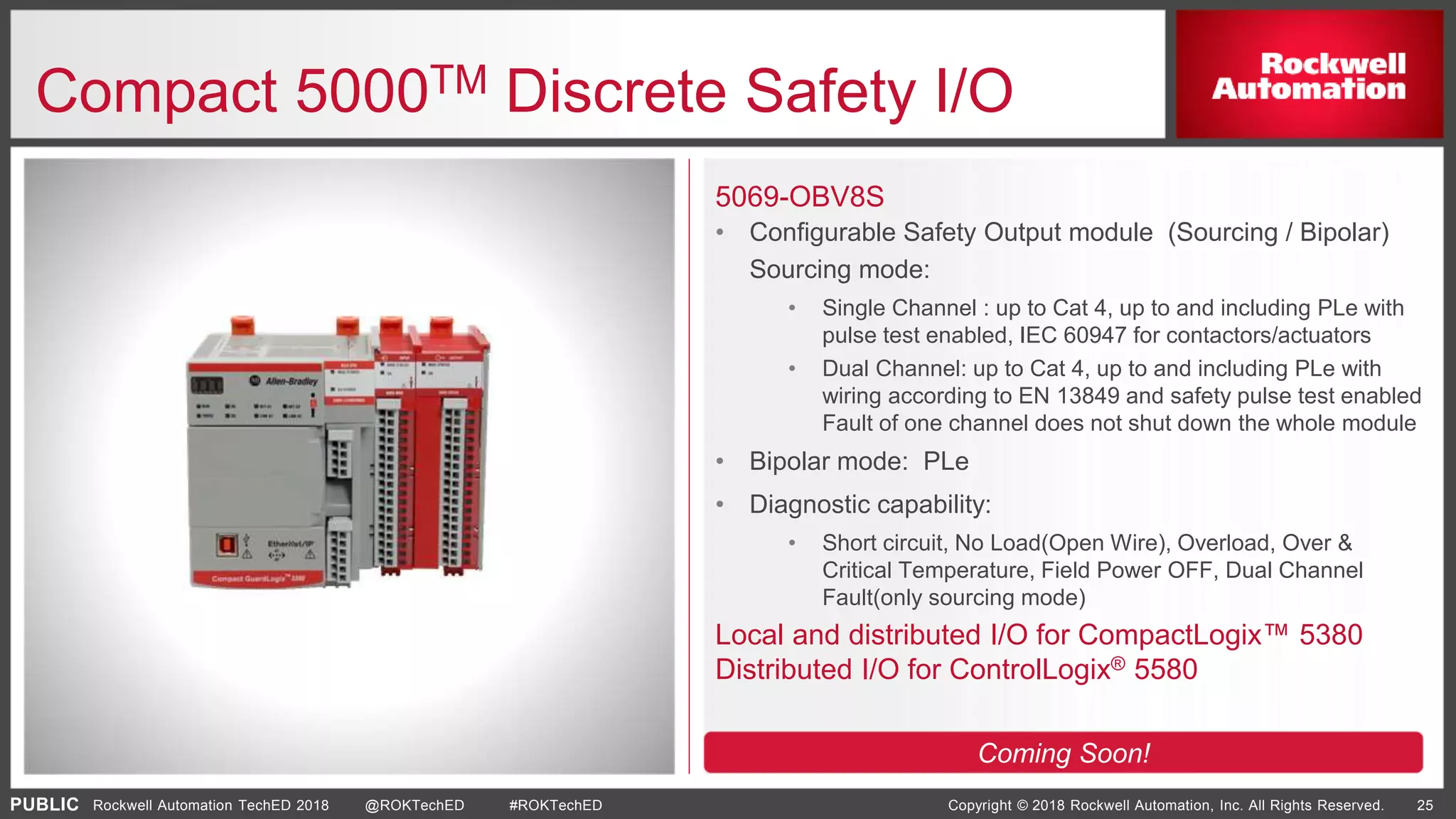

Compact 5000TM Discrete Safety I/O
5069-OBV8S
• Configurable Safety Output module (Sourcing / Bipolar)
Sourcing mode:
• Single Channel : up to Cat 4, up to and including PLe with
pulse test enabled, IEC 60947 for contactors/actuators
• Dual Channel: up to Cat 4, up to and including PLe with
wiring according to EN 13849 and safety pulse test enabled
Fault of one channel does not shut down the whole module
• Bipolar mode: PLe
• Diagnostic capability:
• Short circuit, No Load(Open Wire), Overload, Over &
Critical Temperature, Field Power OFF, Dual Channel
Fault(only sourcing mode)
Local and distributed I/O for CompactLogix™ 5380
Distributed I/O for ControlLogix® 5580
Coming Soon!

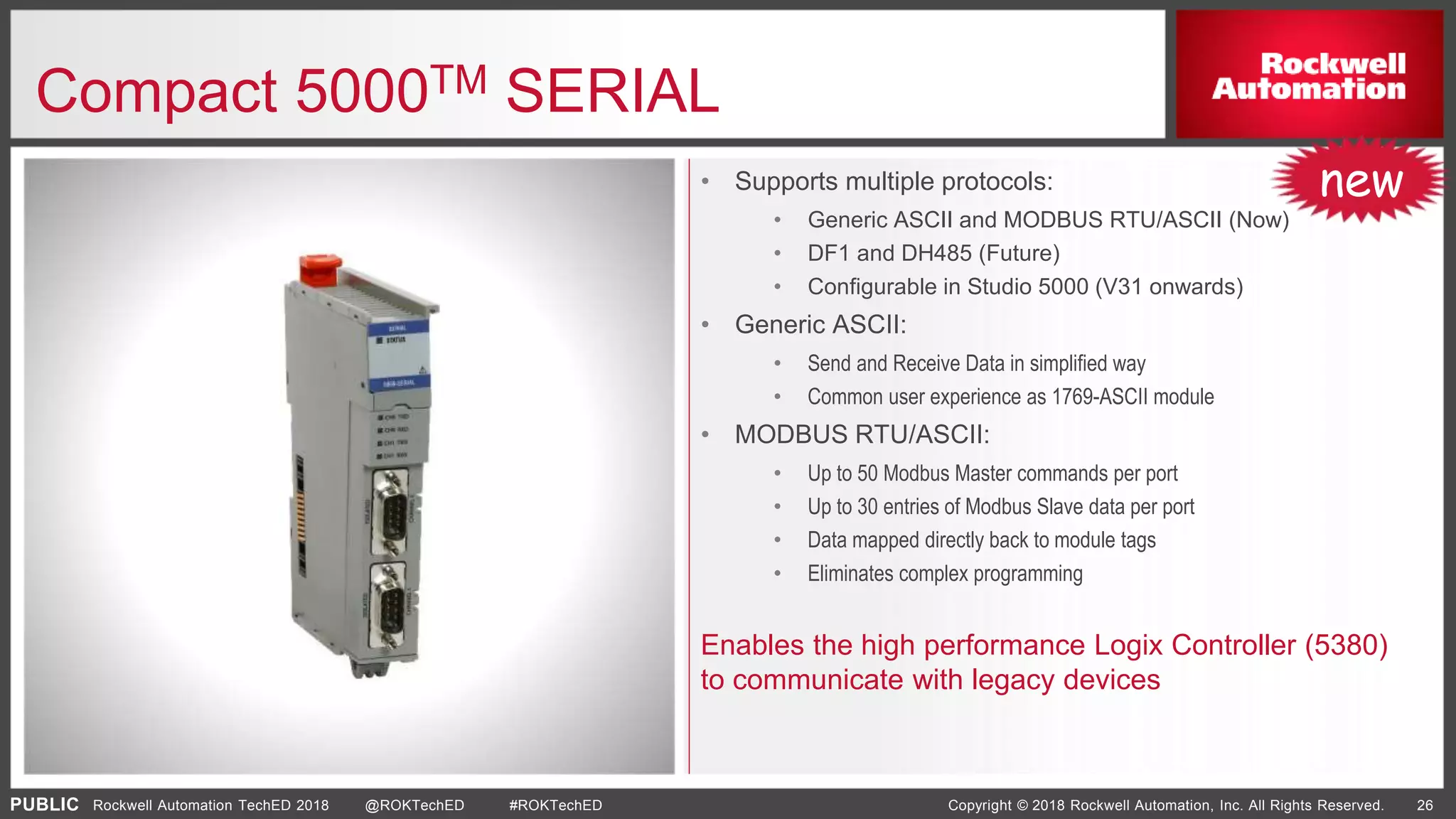

Compact 5000TM SERIAL
• Supports multiple protocols:
• Generic ASCII and MODBUS RTU/ASCII (Now)
• DF1 and DH485 (Future)
• Configurable in Studio 5000 (V31 onwards)
• Generic ASCII:
• Send and Receive Data in simplified way
• Common user experience as 1769-ASCII module
• MODBUS RTU/ASCII:
• Up to 50 Modbus Master commands per port
• Up to 30 entries of Modbus Slave data per port
• Data mapped directly back to module tags
• Eliminates complex programming
Enables the high performance Logix Controller (5380)
to communicate with legacy devices
new

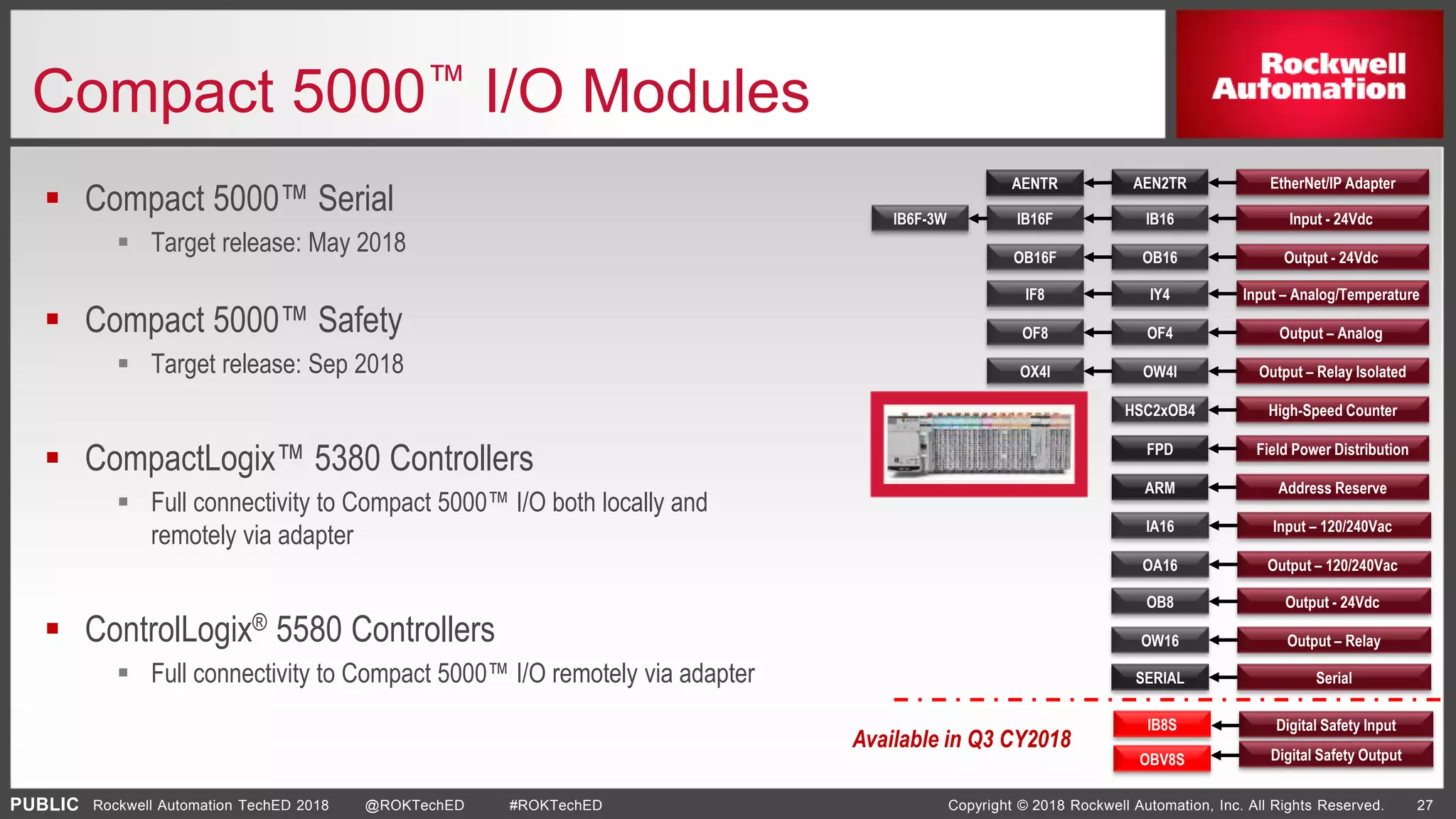

Compact 5000™ I/O Modules
 Compact 5000™ Serial
 Target release: May 2018
 Compact 5000™ Safety
 Target release: Sep 2018
 CompactLogix™ 5380 Controllers
 Full connectivity to Compact 5000™ I/O both locally and
remotely via adapter
 ControlLogix® 5580 Controllers
 Full connectivity to Compact 5000™ I/O remotely via adapter
Output - 24Vdc
Input – Analog/Temperature
Output – Analog
Output – Relay Isolated
EtherNet/IP Adapter
Field Power Distribution
ARM
IB16F
OB16F
IY4
OF4
OW4I
AEN2TR
FPD
OF8
Address Reserve
IF8
IB6F-3W
OX4I
High-Speed CounterHSC2xOB4
IB16
OB16
Input - 24Vdc
Output – 120/240Vac
Output - 24VdcOB8
AENTR
IA16
OA16
Input – 120/240Vac
Output – RelayOW16
SerialSERIAL
Available in Q3 CY2018
Digital Safety Input
Digital Safety Output
IB8S
OBV8S

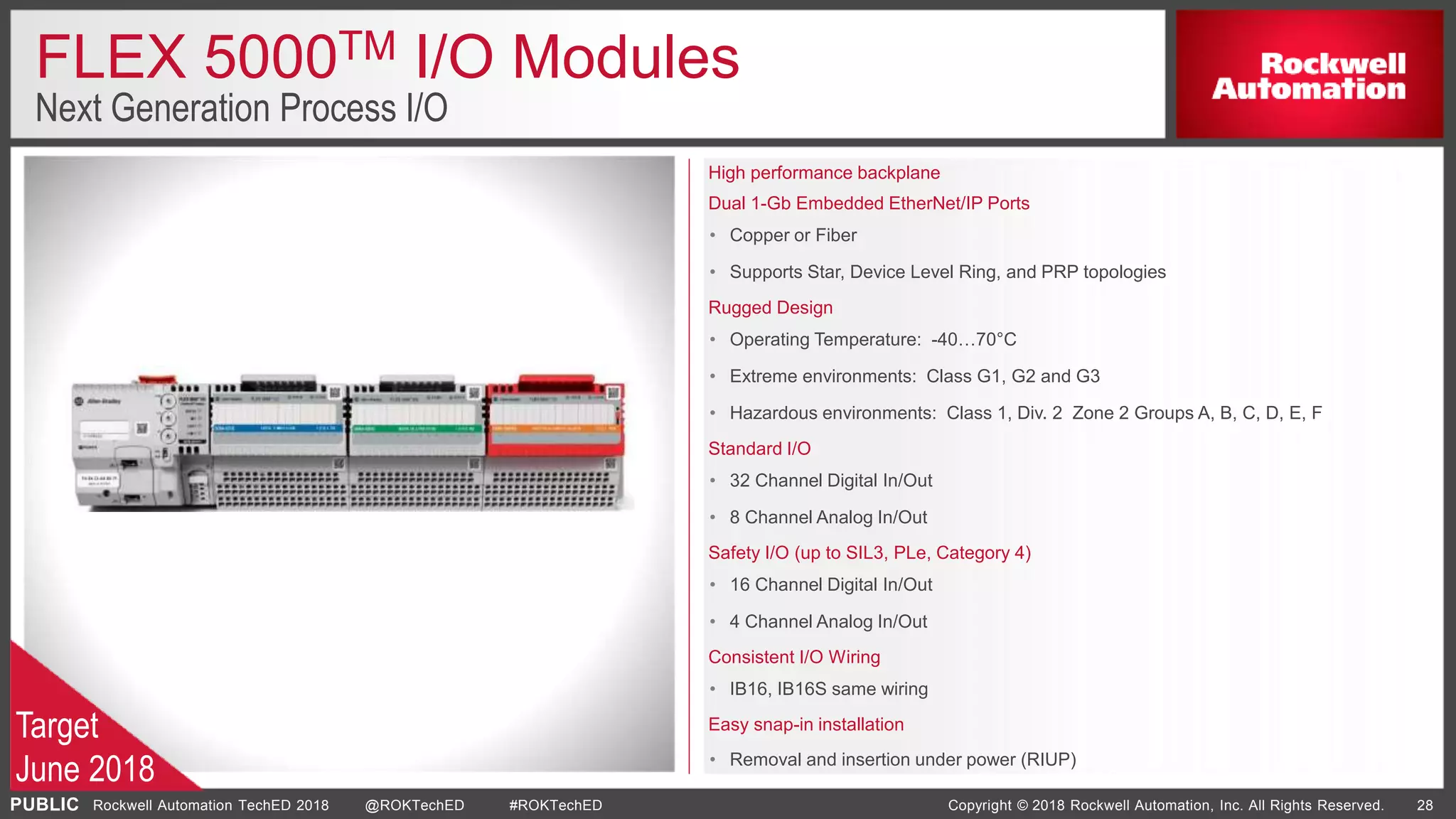

FLEX 5000TM I/O Modules
Next Generation Process I/O
High performance backplane
Dual 1-Gb Embedded EtherNet/IP Ports
• Copper or Fiber
• Supports Star, Device Level Ring, and PRP topologies
Rugged Design
• Operating Temperature: -40…70°C
• Extreme environments: Class G1, G2 and G3
• Hazardous environments: Class 1, Div. 2 Zone 2 Groups A, B, C, D, E, F
Standard I/O
• 32 Channel Digital In/Out
• 8 Channel Analog In/Out
Safety I/O (up to SIL3, PLe, Category 4)
• 16 Channel Digital In/Out
• 4 Channel Analog In/Out
Consistent I/O Wiring
• IB16, IB16S same wiring
Easy snap-in installation
• Removal and insertion under power (RIUP)
Target
June 2018

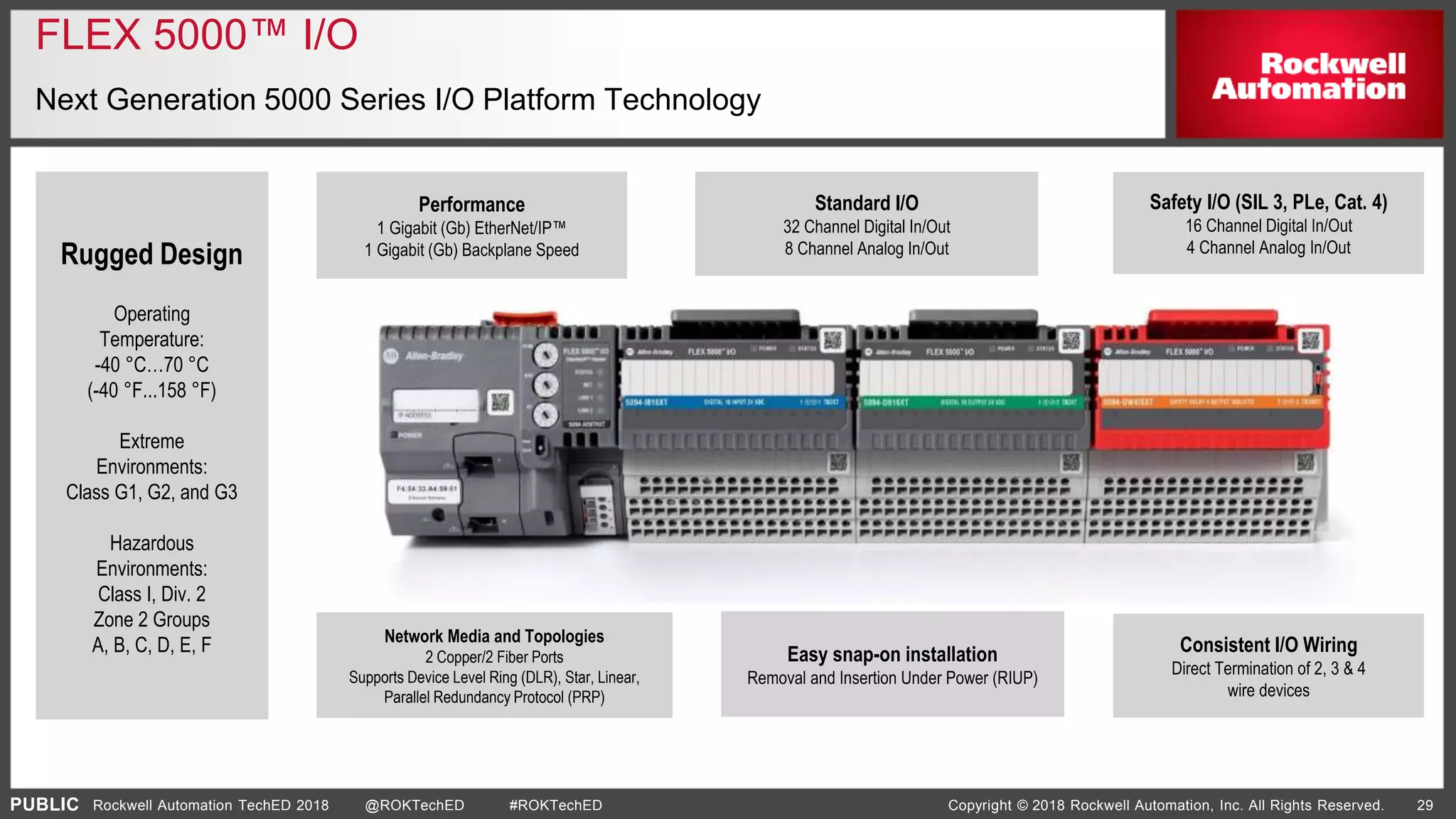

Performance
1 Gigabit (Gb) EtherNet/IP™
1 Gigabit (Gb) Backplane Speed
Easy snap-on installation
Removal and Insertion Under Power (RIUP)
Network Media and Topologies
2 Copper/2 Fiber Ports
Supports Device Level Ring (DLR), Star, Linear,
Parallel Redundancy Protocol (PRP)
Standard I/O
32 Channel Digital In/Out
8 Channel Analog In/Out
Consistent I/O Wiring
Direct Termination of 2, 3 & 4
wire devices
Safety I/O (SIL 3, PLe, Cat. 4)
16 Channel Digital In/Out
4 Channel Analog In/Out
Rugged Design
Operating
Temperature:
-40 °C…70 °C
(-40 °F...158 °F)
Extreme
Environments:
Class G1, G2, and G3
Hazardous
Environments:
Class I, Div. 2
Zone 2 Groups
A, B, C, D, E, F
FLEX 5000™ I/O
Next Generation 5000 Series I/O Platform Technology

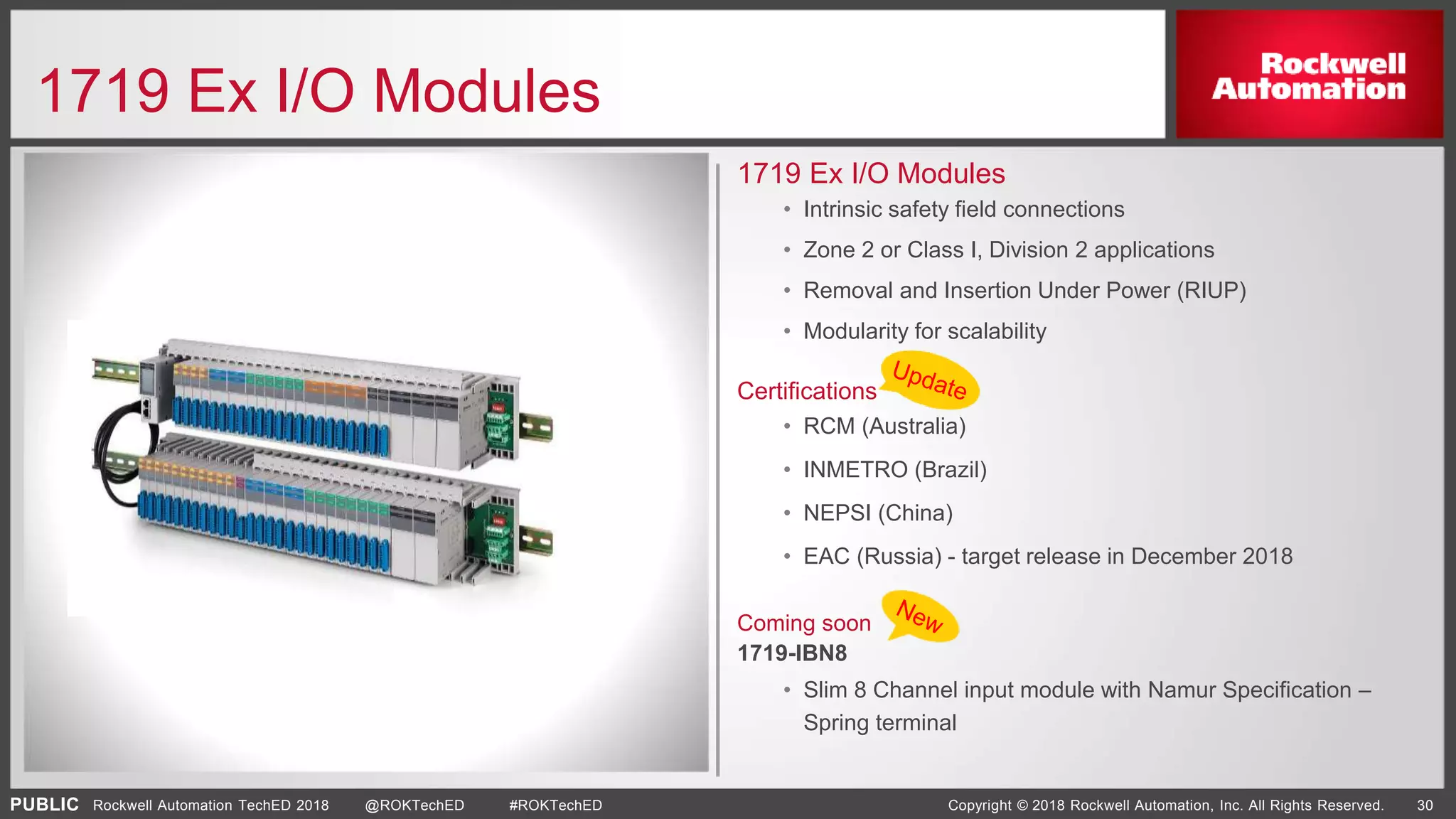

1719 Ex I/O Modules
1719 Ex I/O Modules
• Intrinsic safety field connections
• Zone 2 or Class I, Division 2 applications
• Removal and Insertion Under Power (RIUP)
• Modularity for scalability
Certifications
• RCM (Australia)
• INMETRO (Brazil)
• NEPSI (China)
• EAC (Russia) - target release in December 2018
Coming soon
1719-IBN8
• Slim 8 Channel input module with Namur Specification –
Spring terminal

VISUALIZATION

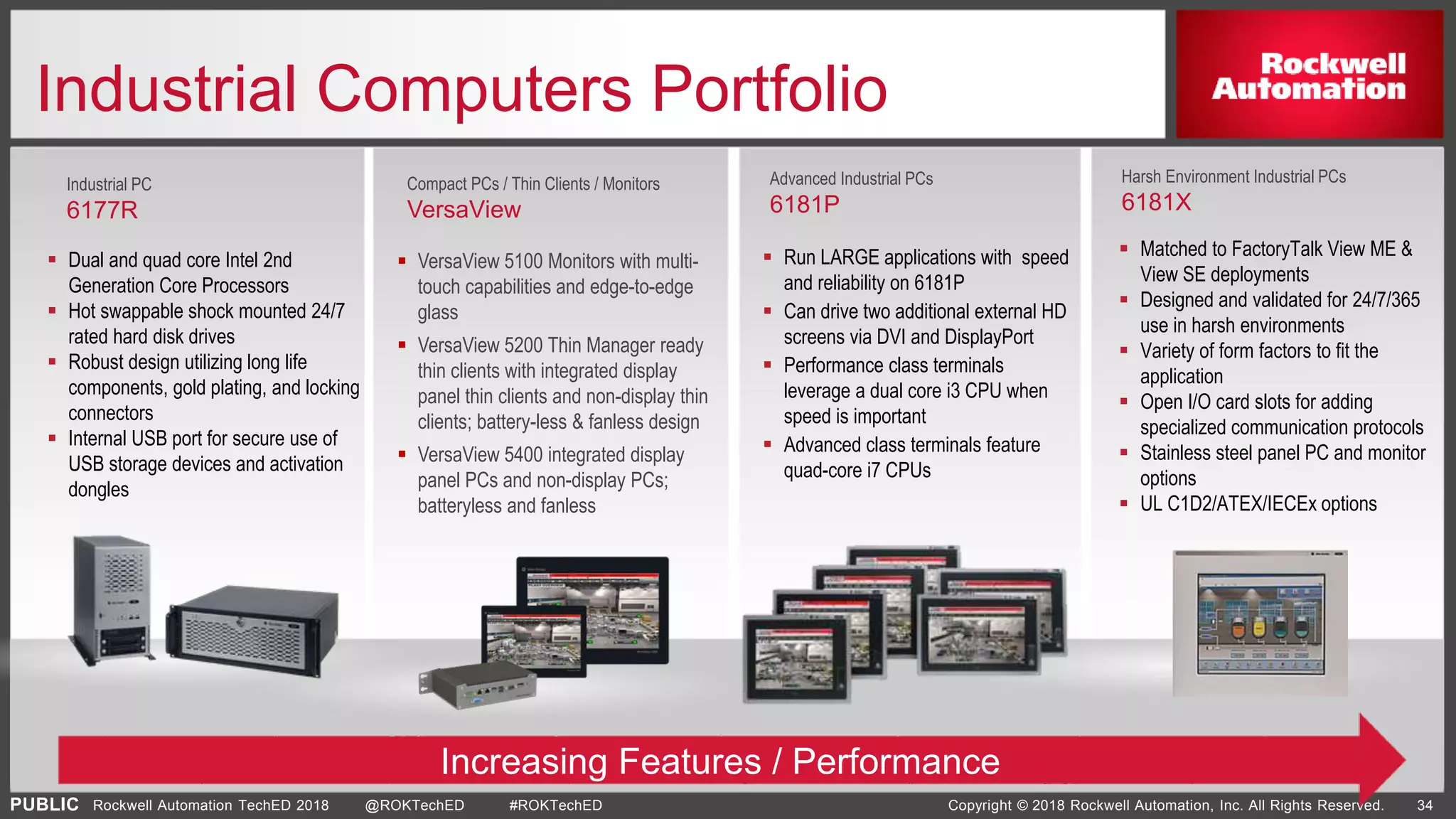

Industrial Computers Portfolio
Industrial PC
6177R
Advanced Industrial PCs
6181P
Compact PCs / Thin Clients / Monitors
VersaView
Harsh Environment Industrial PCs
6181X
 Run LARGE applications with speed
and reliability on 6181P
 Can drive two additional external HD
screens via DVI and DisplayPort
 Performance class terminals
leverage a dual core i3 CPU when
speed is important
 Advanced class terminals feature
quad-core i7 CPUs
 VersaView 5100 Monitors with multi-
touch capabilities and edge-to-edge
glass
 VersaView 5200 Thin Manager ready
thin clients with integrated display
panel thin clients and non-display thin
clients; battery-less & fanless design
 VersaView 5400 integrated display
panel PCs and non-display PCs;
batteryless and fanless
 Dual and quad core Intel 2nd
Generation Core Processors
 Hot swappable shock mounted 24/7
rated hard disk drives
 Robust design utilizing long life
components, gold plating, and locking
connectors
 Internal USB port for secure use of
USB storage devices and activation
dongles
 Matched to FactoryTalk View ME &
View SE deployments
 Designed and validated for 24/7/365
use in harsh environments
 Variety of form factors to fit the
application
 Open I/O card slots for adding
specialized communication protocols
 Stainless steel panel PC and monitor
options
 UL C1D2/ATEX/IECEx options
Increasing Features / Performance

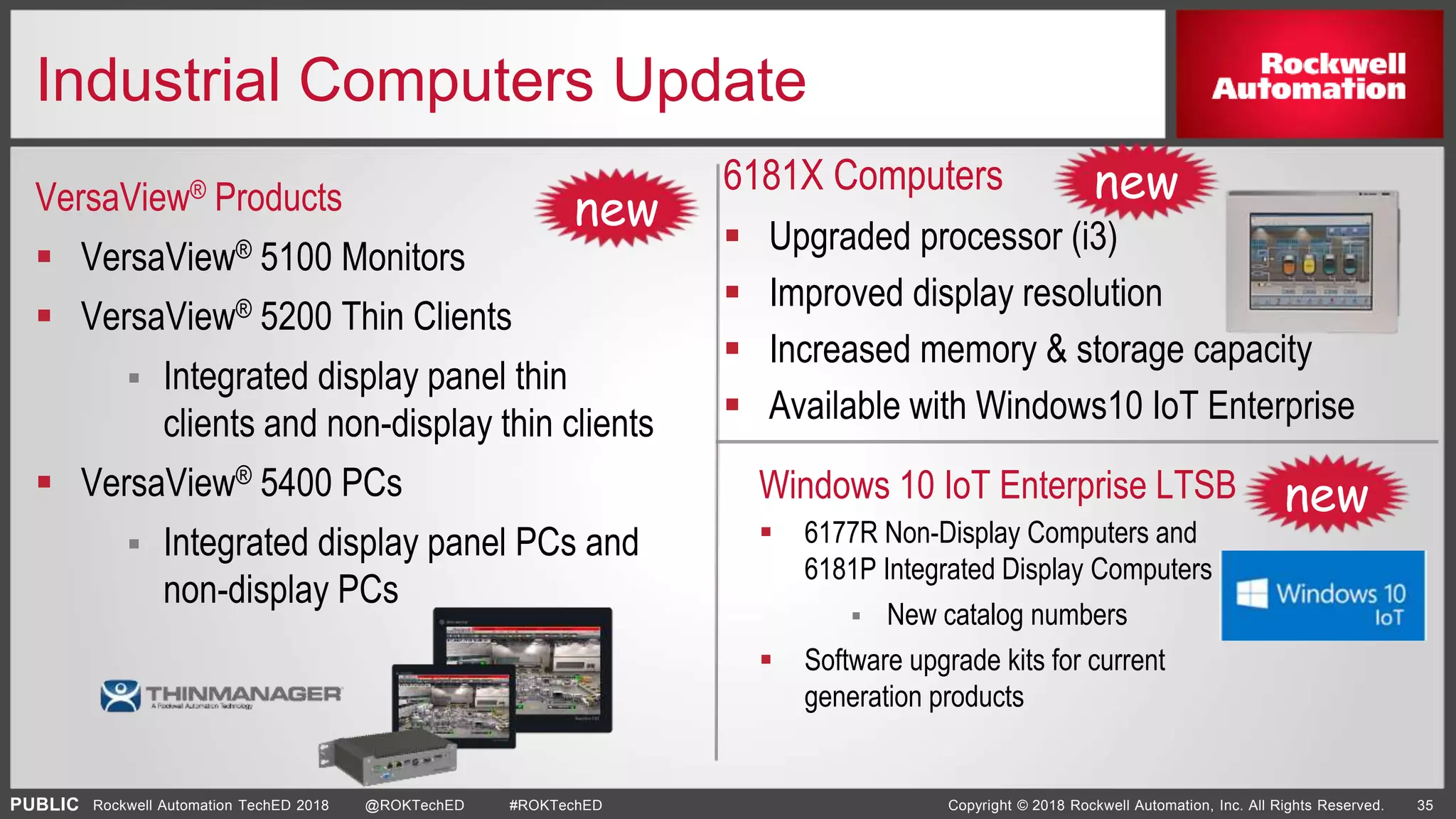

Industrial Computers Update
VersaView® Products
6181X Computers
 Upgraded processor (i3)
 Improved display resolution
 Increased memory & storage capacity
 Available with Windows10 IoT Enterprise
 VersaView® 5100 Monitors
 VersaView® 5200 Thin Clients
 Integrated display panel thin
clients and non-display thin clients
 VersaView® 5400 PCs
 Integrated display panel PCs and
non-display PCs
Windows 10 IoT Enterprise LTSB
 6177R Non-Display Computers and
6181P Integrated Display Computers
 New catalog numbers
 Software upgrade kits for current
generation products
new
new
new

 Dual external display support
(DisplayPort)
 Small form factor
 Multiple mounting options

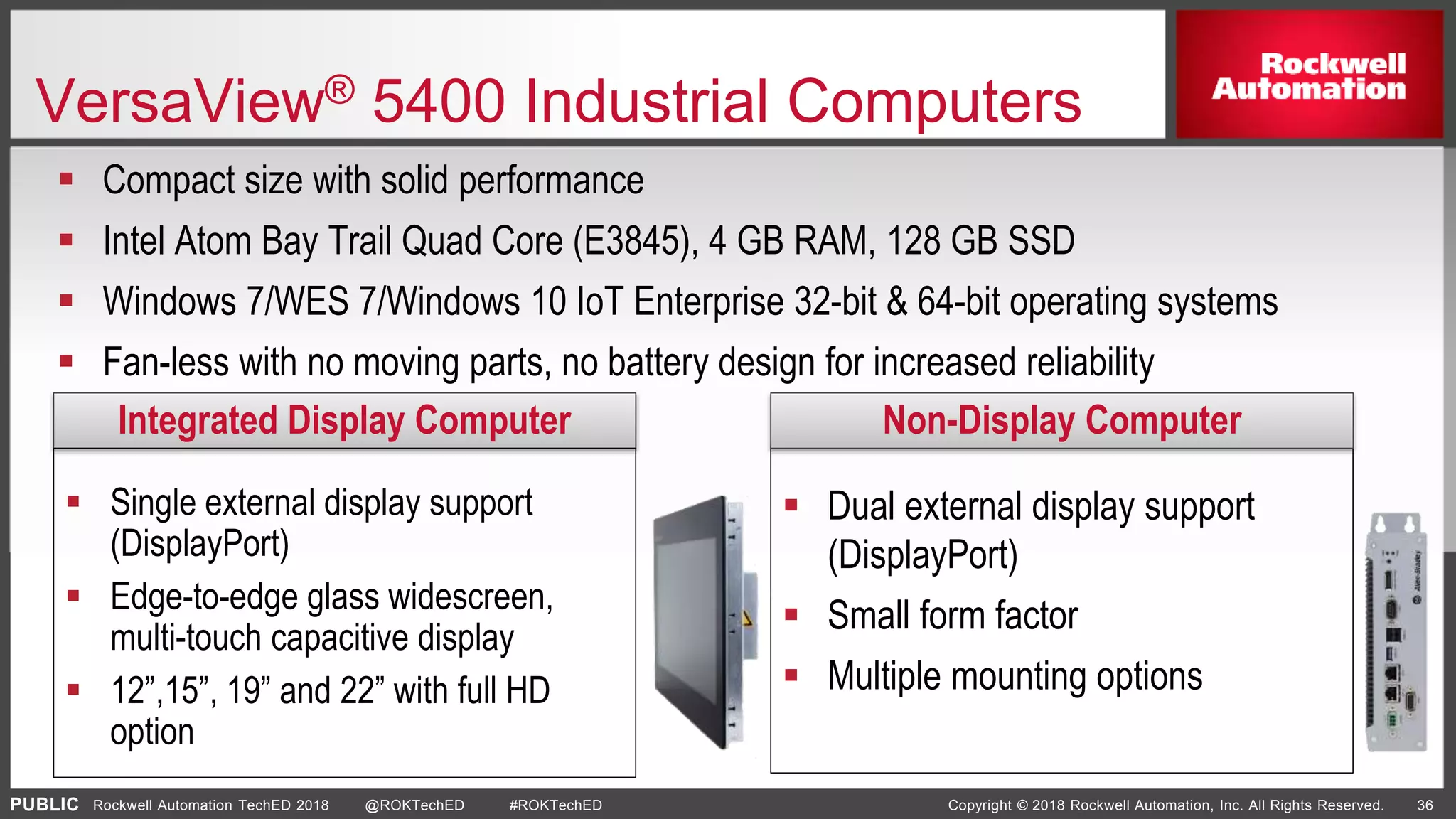

VersaView® 5400 Industrial Computers
 Compact size with solid performance
 Intel Atom Bay Trail Quad Core (E3845), 4 GB RAM, 128 GB SSD
 Windows 7/WES 7/Windows 10 IoT Enterprise 32-bit & 64-bit operating systems
 Fan-less with no moving parts, no battery design for increased reliability
Integrated Display Computer Non-Display Computer
 Single external display support
(DisplayPort)
 Edge-to-edge glass widescreen,
multi-touch capacitive display
 12”,15”, 19” and 22” with full HD
option

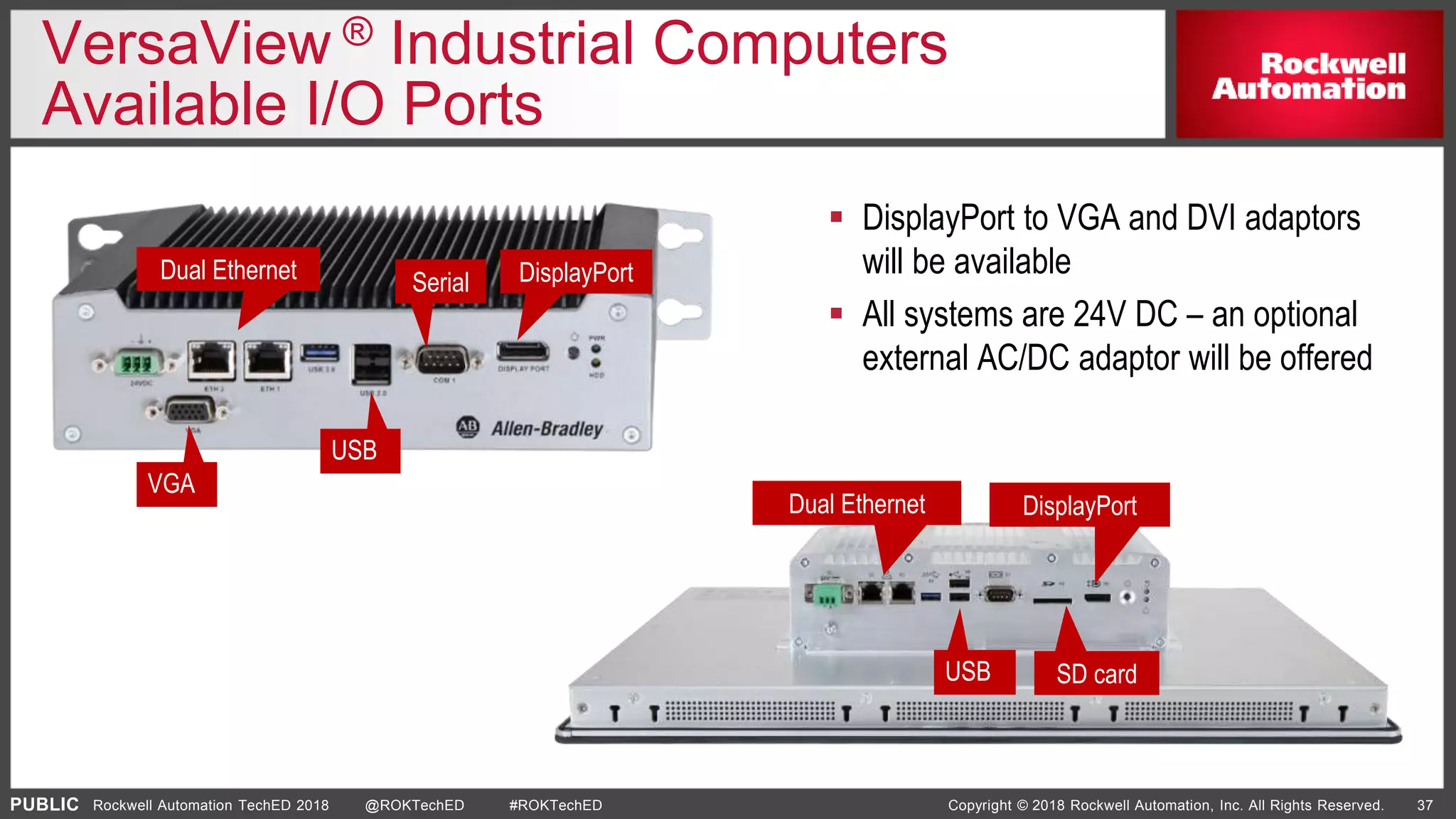

VersaView ® Industrial Computers
Available I/O Ports
USB
Dual Ethernet
SD card
DisplayPort
Dual Ethernet
VGA
Serial DisplayPort
USB
 DisplayPort to VGA and DVI adaptors
will be available
 All systems are 24V DC – an optional
external AC/DC adaptor will be offered

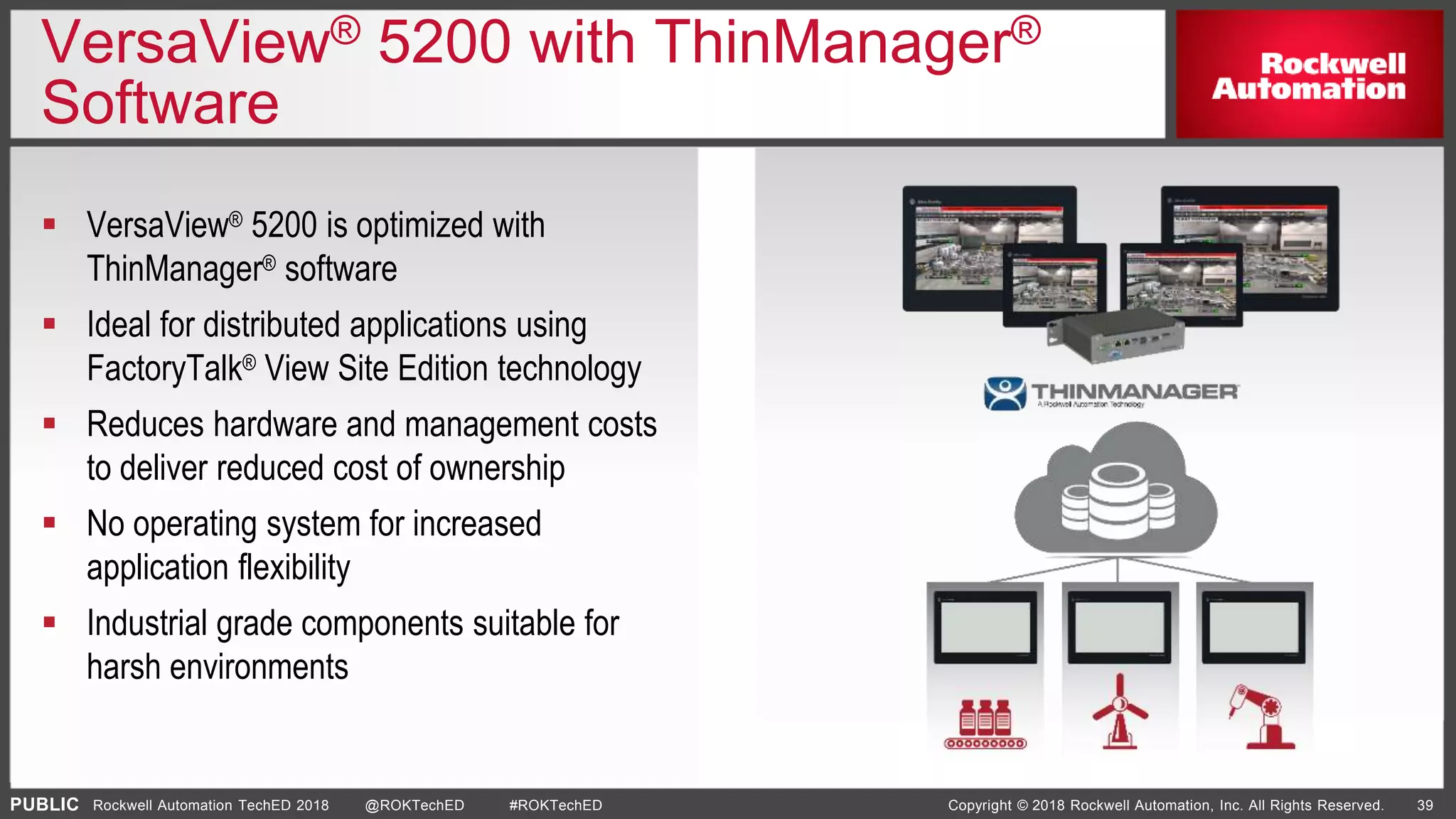

VersaView® 5200 with ThinManager®
Software
 VersaView® 5200 is optimized with
ThinManager® software
 Ideal for distributed applications using
FactoryTalk® View Site Edition technology
 Reduces hardware and management costs
to deliver reduced cost of ownership
 No operating system for increased
application flexibility
 Industrial grade components suitable for
harsh environments

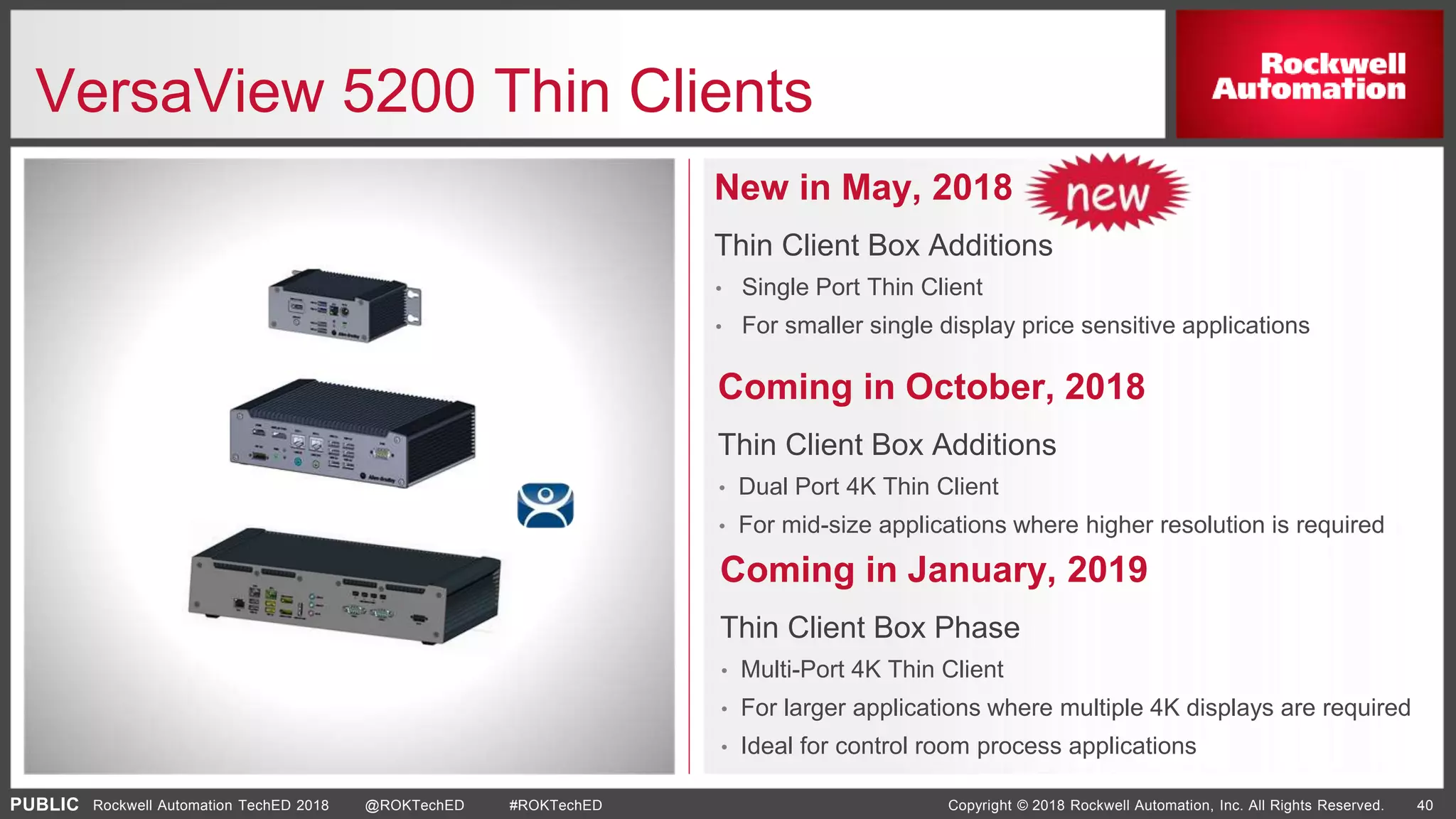

VersaView 5200 Thin Clients
New in May, 2018
Thin Client Box Additions
• Single Port Thin Client
• For smaller single display price sensitive applications
Coming in January, 2019
Thin Client Box Phase
• Multi-Port 4K Thin Client
• For larger applications where multiple 4K displays are required
• Ideal for control room process applications
Coming in October, 2018
Thin Client Box Additions
• Dual Port 4K Thin Client
• For mid-size applications where higher resolution is required

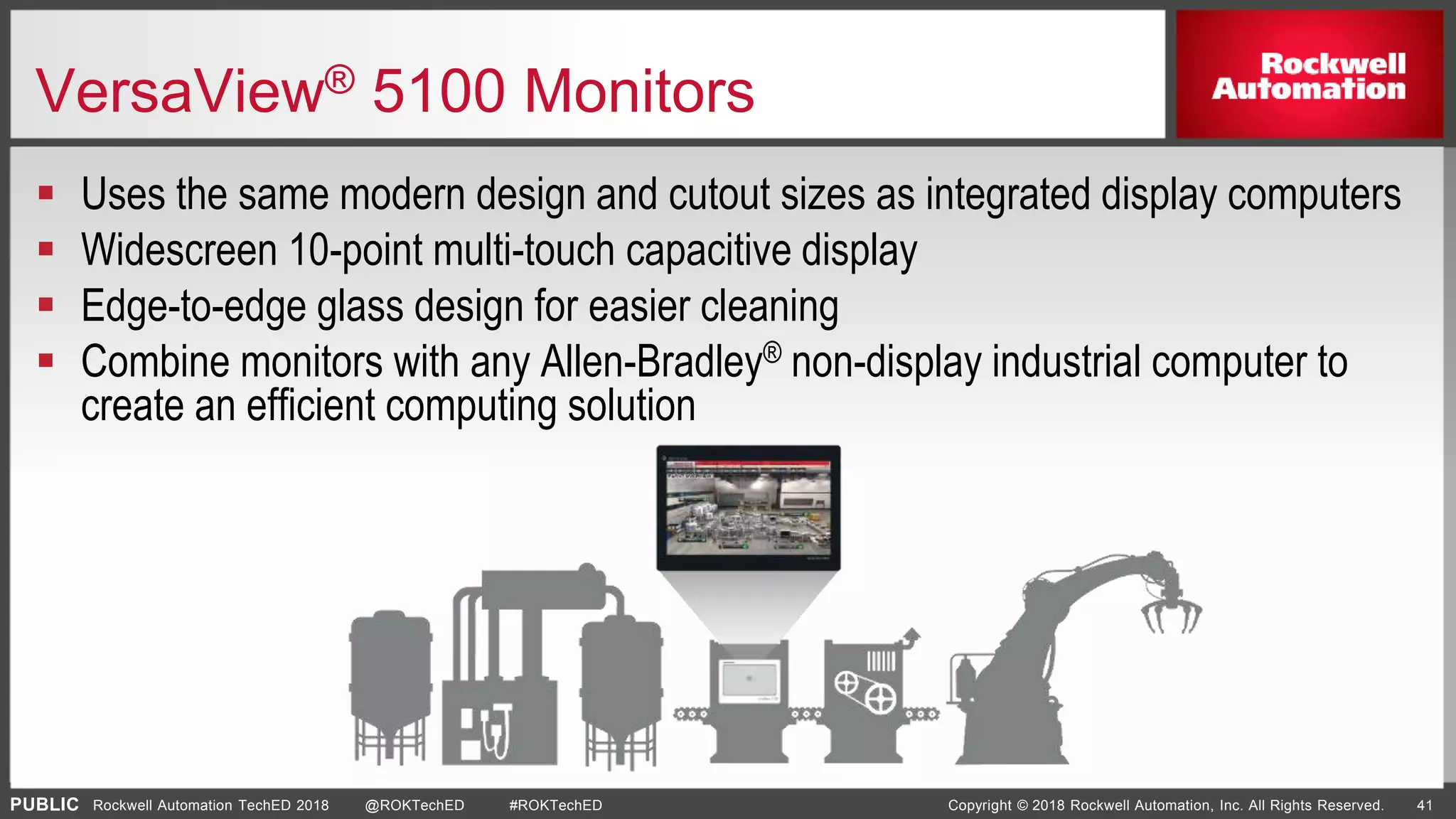

VersaView® 5100 Monitors
 Uses the same modern design and cutout sizes as integrated display computers
 Widescreen 10-point multi-touch capacitive display
 Edge-to-edge glass design for easier cleaning
 Combine monitors with any Allen-Bradley® non-display industrial computer to
create an efficient computing solution

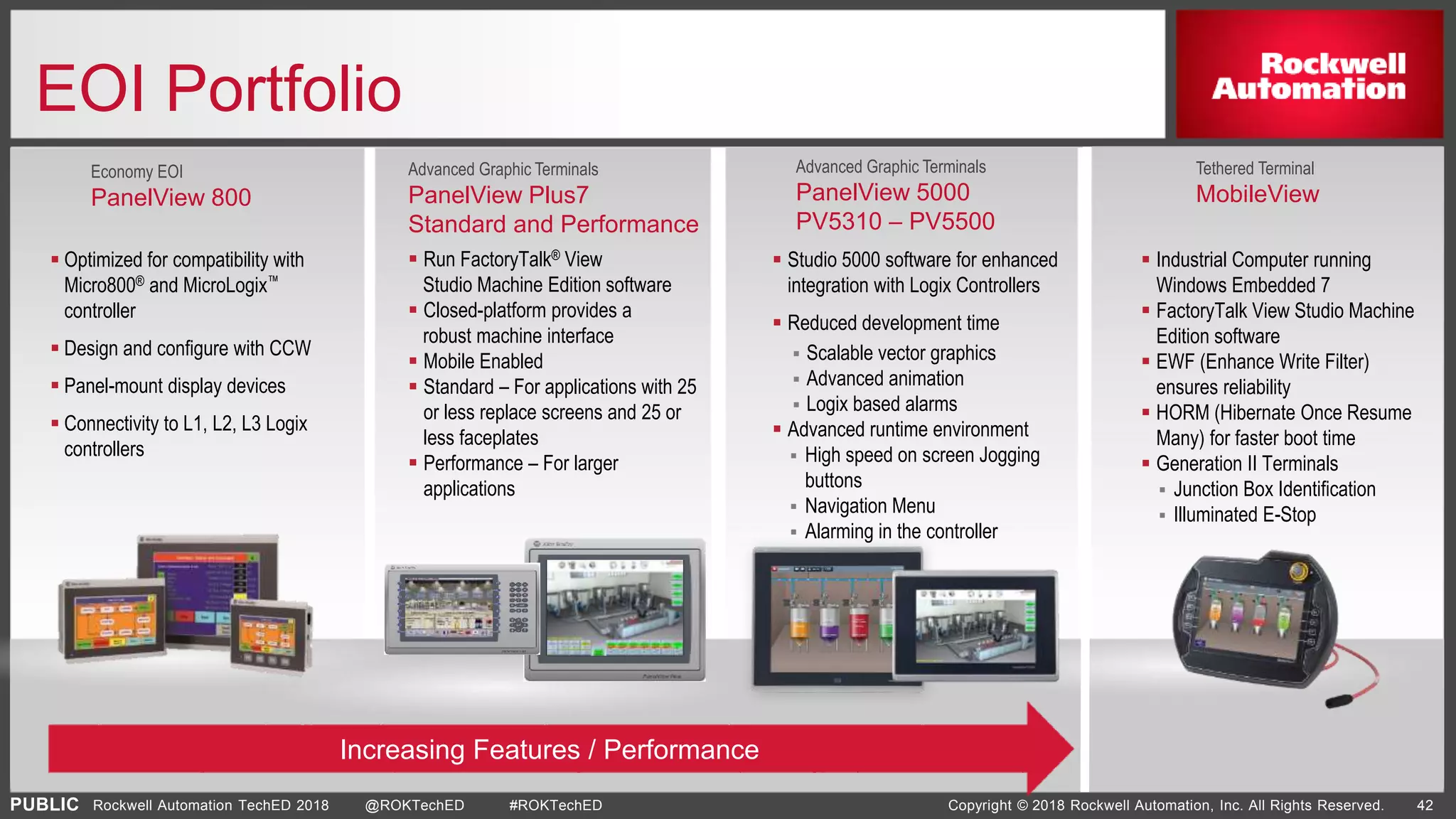

EOI Portfolio
Economy EOI
PanelView 800
Advanced Graphic Terminals
PanelView Plus7
Standard and Performance
Tethered Terminal
MobileView
Advanced Graphic Terminals
PanelView 5000
PV5310 – PV5500
 Run FactoryTalk® View
Studio Machine Edition software
 Closed-platform provides a
robust machine interface
 Mobile Enabled
 Standard – For applications with 25
or less replace screens and 25 or
less faceplates
 Performance – For larger
applications
 Studio 5000 software for enhanced
integration with Logix Controllers
 Reduced development time
 Scalable vector graphics
 Advanced animation
 Logix based alarms
 Advanced runtime environment
 High speed on screen Jogging
buttons
 Navigation Menu
 Alarming in the controller
 Industrial Computer running
Windows Embedded 7
 FactoryTalk View Studio Machine
Edition software
 EWF (Enhance Write Filter)
ensures reliability
 HORM (Hibernate Once Resume
Many) for faster boot time
 Generation II Terminals
 Junction Box Identification
 Illuminated E-Stop
 Optimized for compatibility with
Micro800® and MicroLogix™
controller
 Design and configure with CCW
 Panel-mount display devices
 Connectivity to L1, L2, L3 Logix
controllers
Increasing Features / Performance

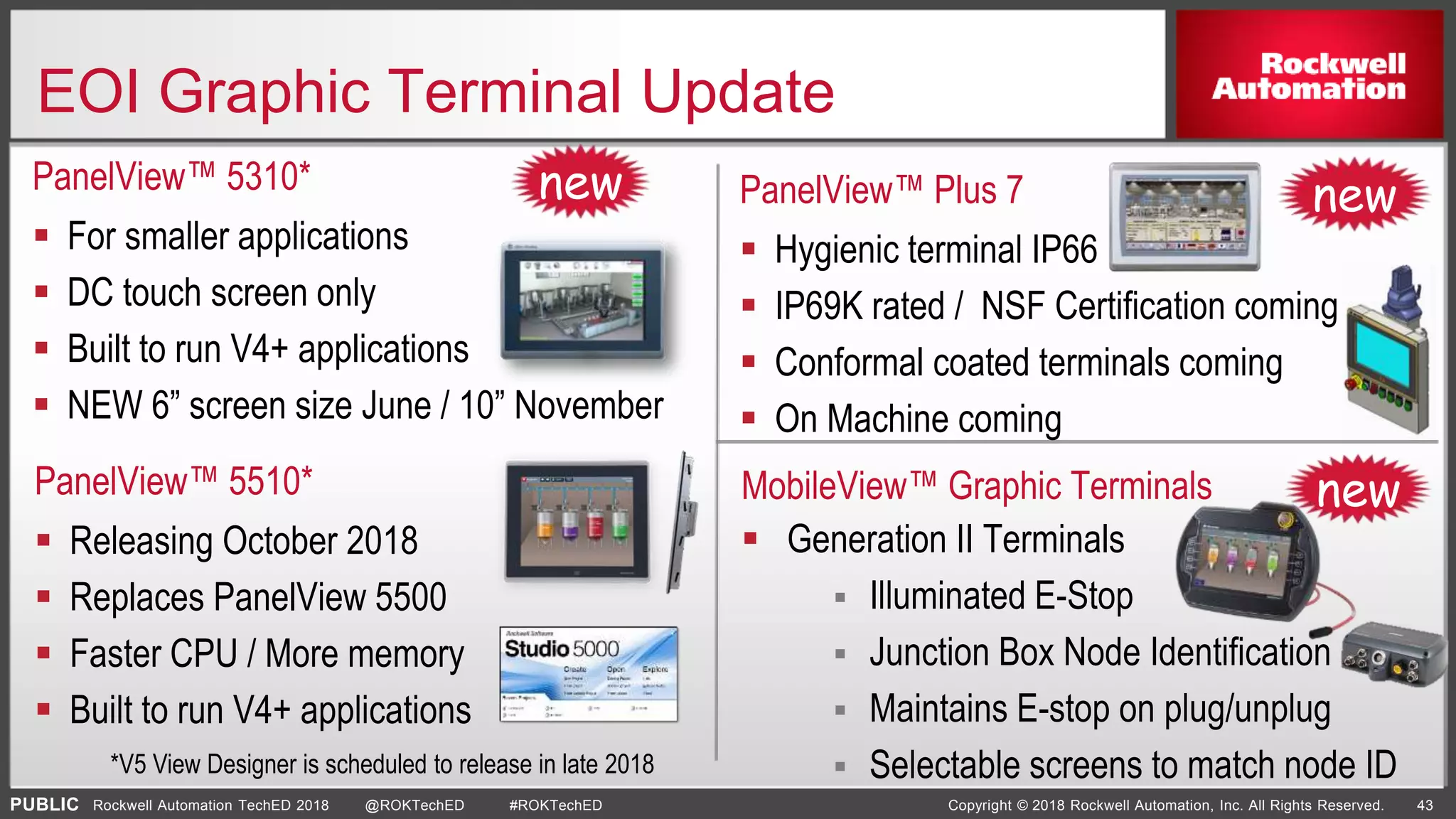

EOI Graphic Terminal Update
MobileView™ Graphic Terminals
 Generation II Terminals
 Illuminated E-Stop
 Junction Box Node Identification
 Maintains E-stop on plug/unplug
 Selectable screens to match node ID
PanelView™ 5510*
 Releasing October 2018
 Replaces PanelView 5500
 Faster CPU / More memory
 Built to run V4+ applications
new
PanelView™ 5310*
 For smaller applications
 DC touch screen only
 Built to run V4+ applications
 NEW 6” screen size June / 10” November
new
*V5 View Designer is scheduled to release in late 2018
PanelView™ Plus 7
 Hygienic terminal IP66
 IP69K rated / NSF Certification coming
 Conformal coated terminals coming
 On Machine coming
new

 High performance solution for all applications
PanelView 5500PanelView 5310
 Scalable solution for smaller applications

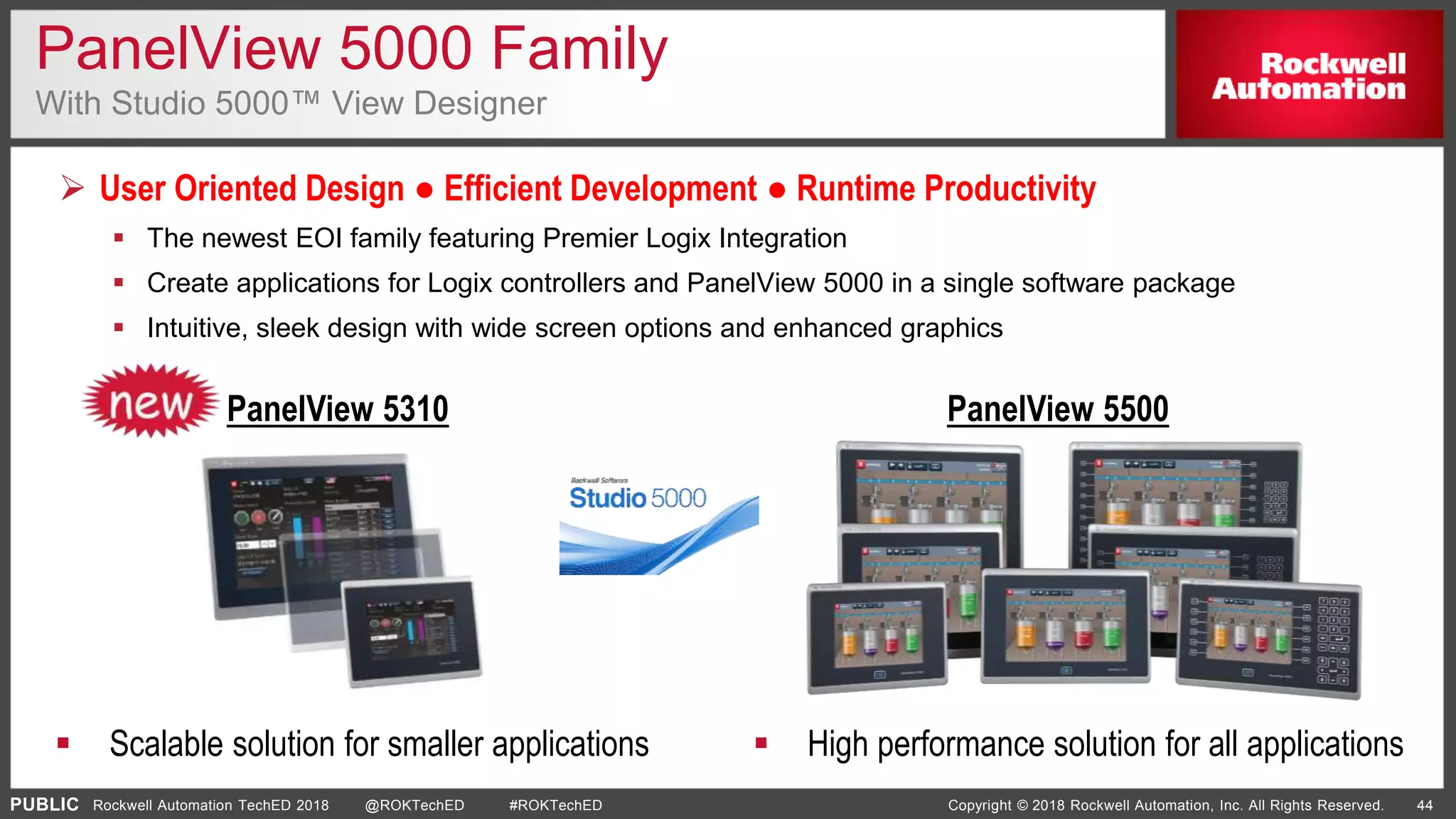

PanelView 5000 Family
With Studio 5000™ View Designer
 User Oriented Design ● Efficient Development ● Runtime Productivity
 The newest EOI family featuring Premier Logix Integration
 Create applications for Logix controllers and PanelView 5000 in a single software package
 Intuitive, sleek design with wide screen options and enhanced graphics

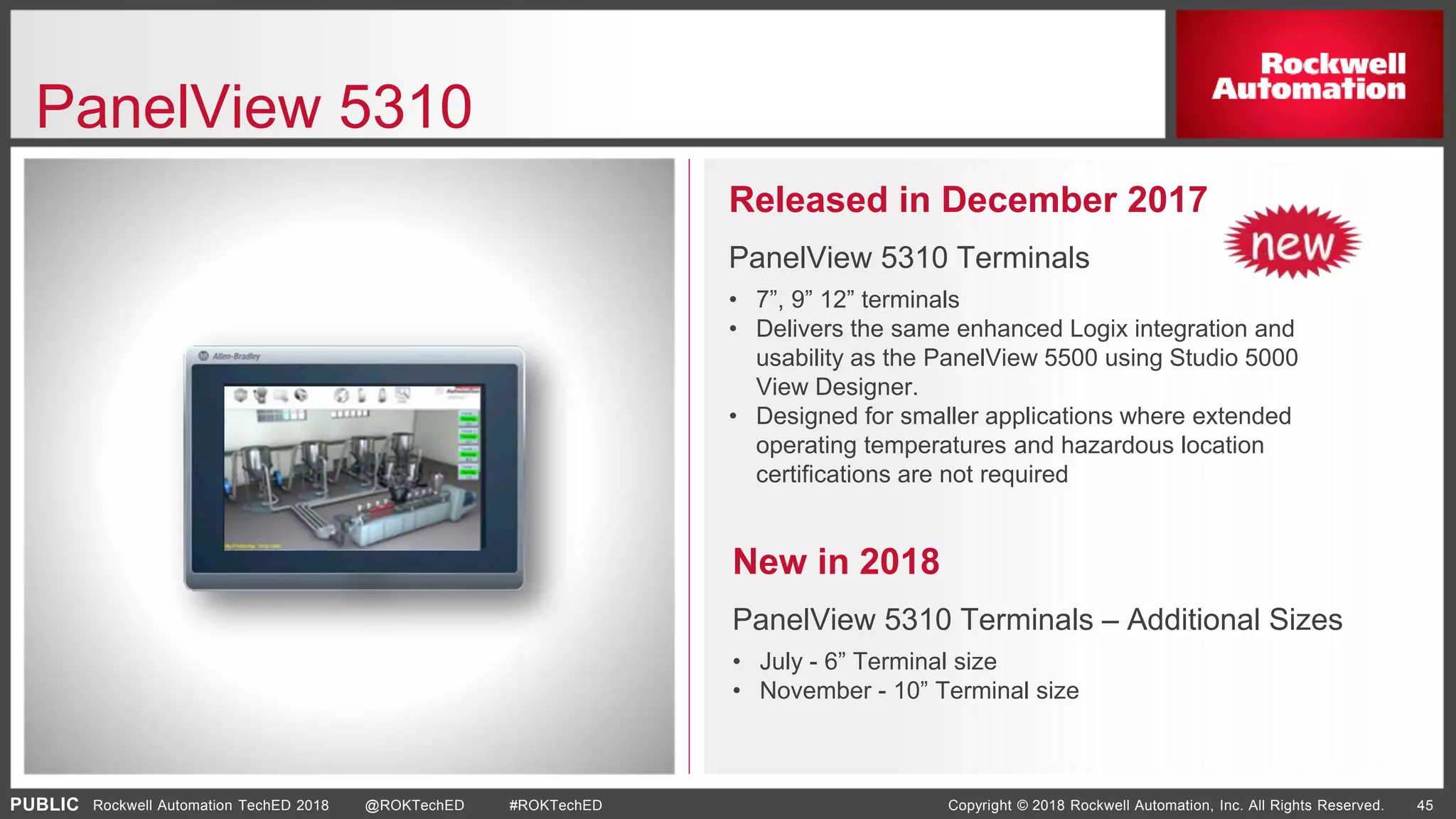

PanelView 5310
Released in December 2017
PanelView 5310 Terminals
• 7”, 9” 12” terminals
• Delivers the same enhanced Logix integration and
usability as the PanelView 5500 using Studio 5000
View Designer.
• Designed for smaller applications where extended
operating temperatures and hazardous location
certifications are not required
New in 2018
PanelView 5310 Terminals – Additional Sizes
• July - 6” Terminal size
• November - 10” Terminal size

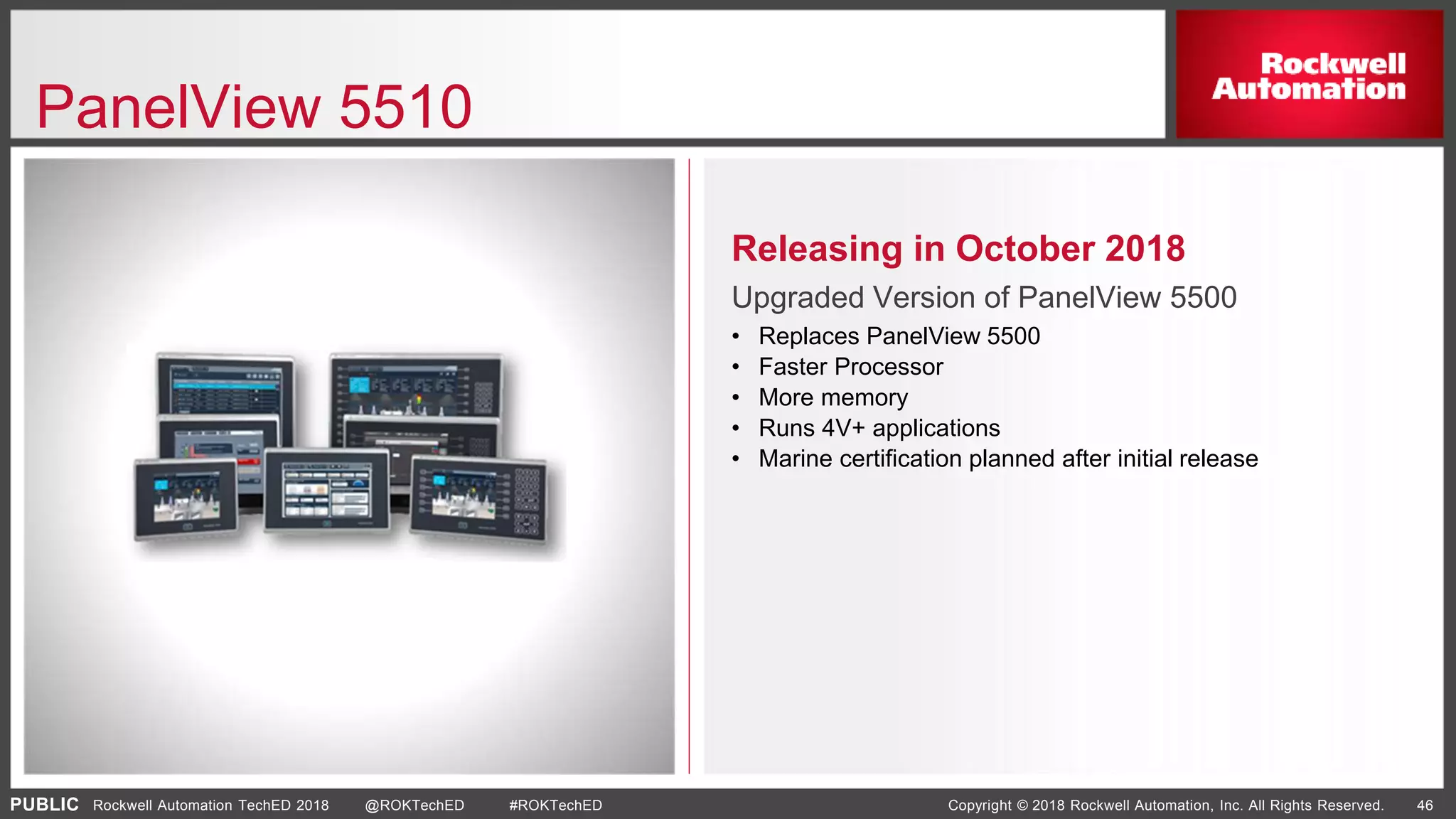

PanelView 5510
Releasing in October 2018
Upgraded Version of PanelView 5500
• Replaces PanelView 5500
• Faster Processor
• More memory
• Runs 4V+ applications
• Marine certification planned after initial release

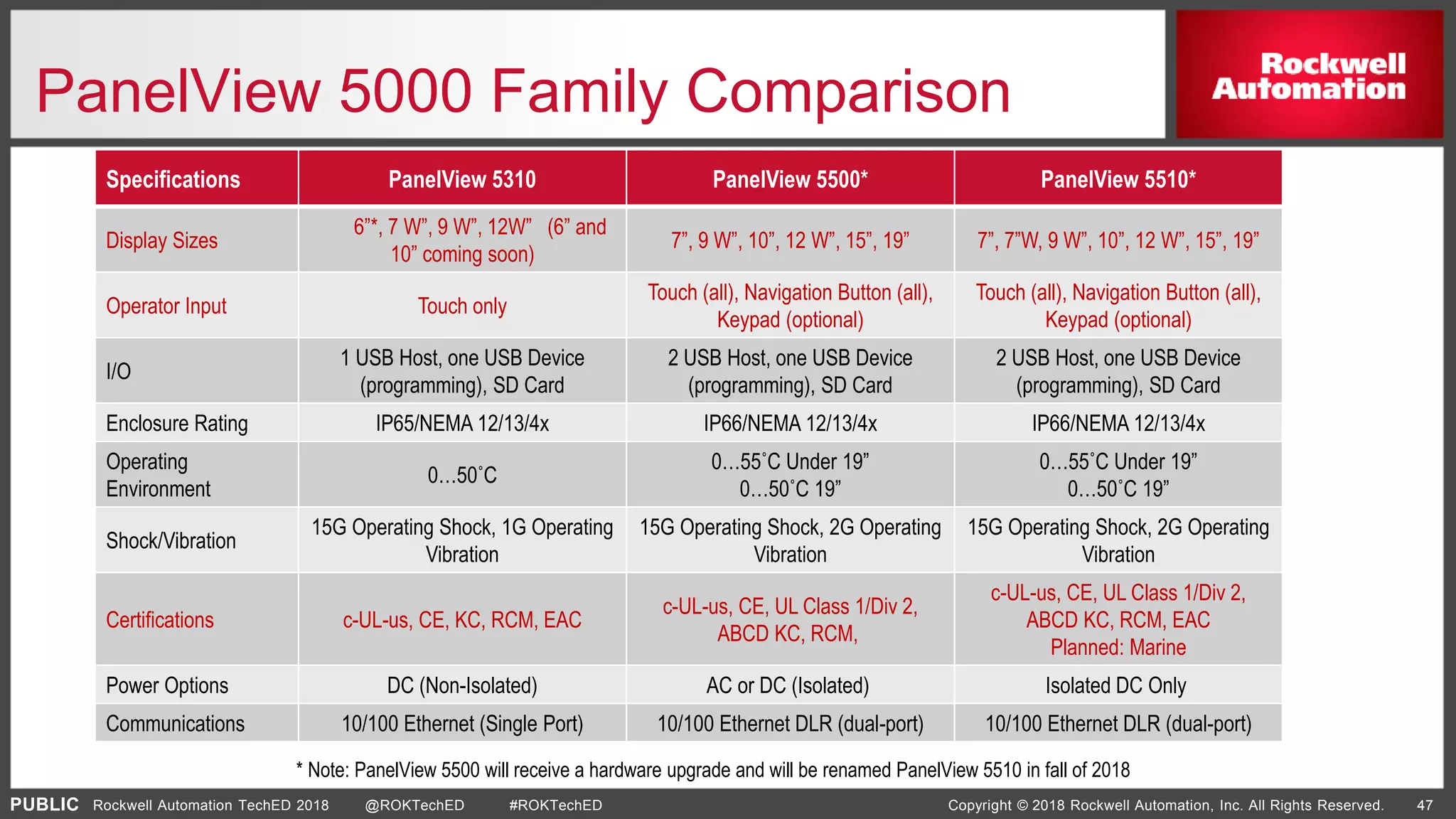

Specifications PanelView 5310 PanelView 5500* PanelView 5510*
Display Sizes
6”*, 7 W”, 9 W”, 12W” (6” and
10” coming soon)
7”, 9 W”, 10”, 12 W”, 15”, 19” 7”, 7”W, 9 W”, 10”, 12 W”, 15”, 19”
Operator Input Touch only
Touch (all), Navigation Button (all),
Keypad (optional)
Touch (all), Navigation Button (all),
Keypad (optional)
I/O
1 USB Host, one USB Device
(programming), SD Card
Enclosure Rating IP65/NEMA 12/13/4x IP66/NEMA 12/13/4x IP66/NEMA 12/13/4x
Operating
Environment
0…50˚C
0…55˚C Under 19”
0…50˚C 19”
0…55˚C Under 19”
0…50˚C 19”
Shock/Vibration
15G Operating Shock, 1G Operating
Vibration
Vibration
Vibration
Certifications c-UL-us, CE, KC, RCM, EAC
c-UL-us, CE, UL Class 1/Div 2,
ABCD KC, RCM,
c-UL-us, CE, UL Class 1/Div 2,
ABCD KC, RCM, EAC
Planned: Marine
Power Options DC (Non-Isolated) AC or DC (Isolated) Isolated DC Only
Communications 10/100 Ethernet (Single Port) 10/100 Ethernet DLR (dual-port) 10/100 Ethernet DLR (dual-port)
PanelView 5000 Family Comparison
* Note: PanelView 5500 will receive a hardware upgrade and will be renamed PanelView 5510 in fall of 2018

Specifications PanelView 5310 PanelView 5500* PanelView 5510*
Multi-Version Support
(Ability to install and run multiple versions
of configuration software side by side)
Yes Yes
Yes
Application Limits with V4
1 controller, 50 screens, 1000
alarms
alarms
alarms
Resize Application on
Download
Yes Yes
Yes
ControlLogix® Controller
Compatibility
ControlLogix® 5570 (v27+) / 5580 (v29+)
CompactLogix™ Controller
Compatibility
CompactLogix™ 5370 (v27+) / 5380 (v29+) / 5480 (v31+)

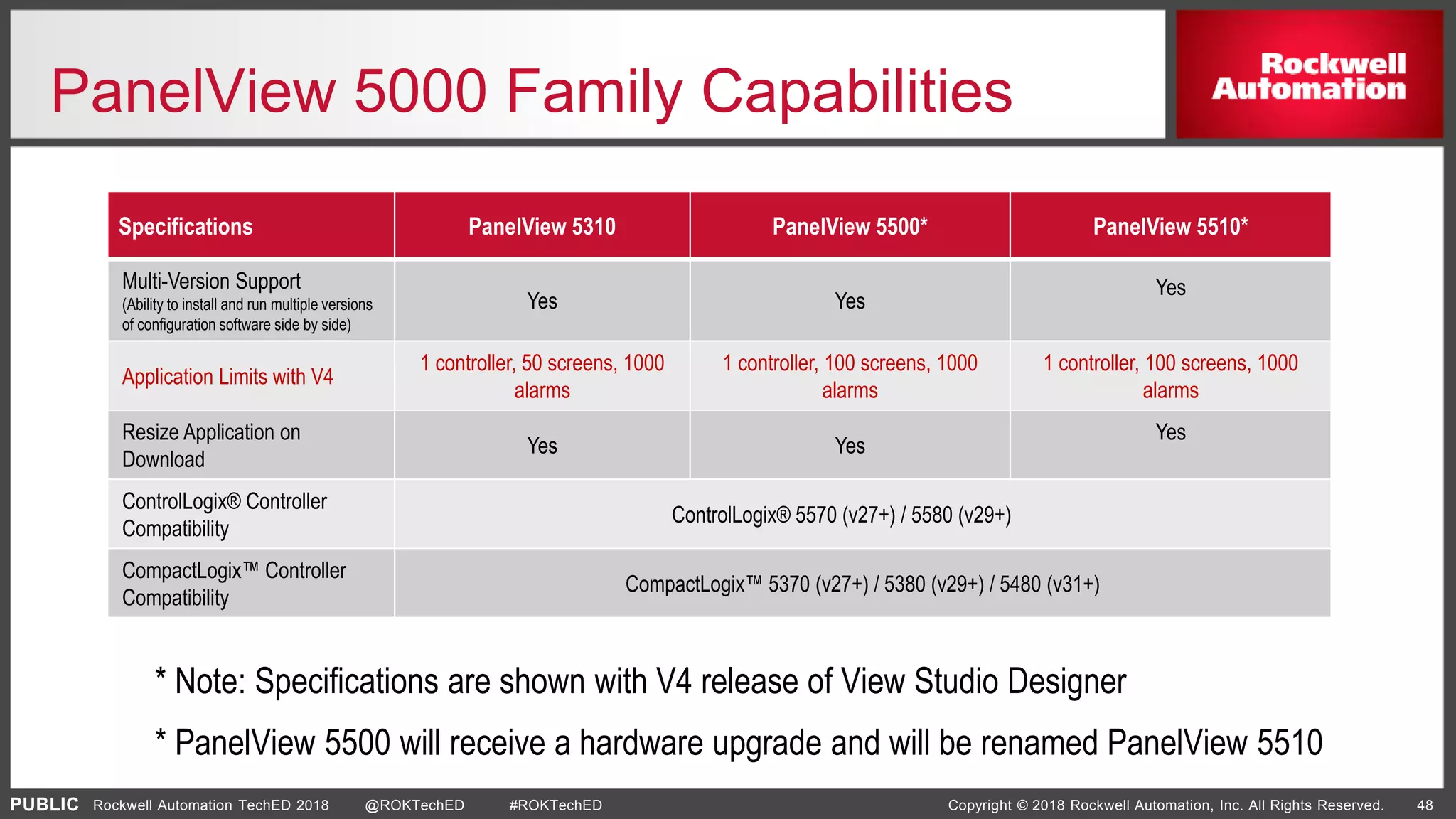

PanelView 5000 Family Capabilities
* Note: Specifications are shown with V4 release of View Studio Designer
* PanelView 5500 will receive a hardware upgrade and will be renamed PanelView 5510

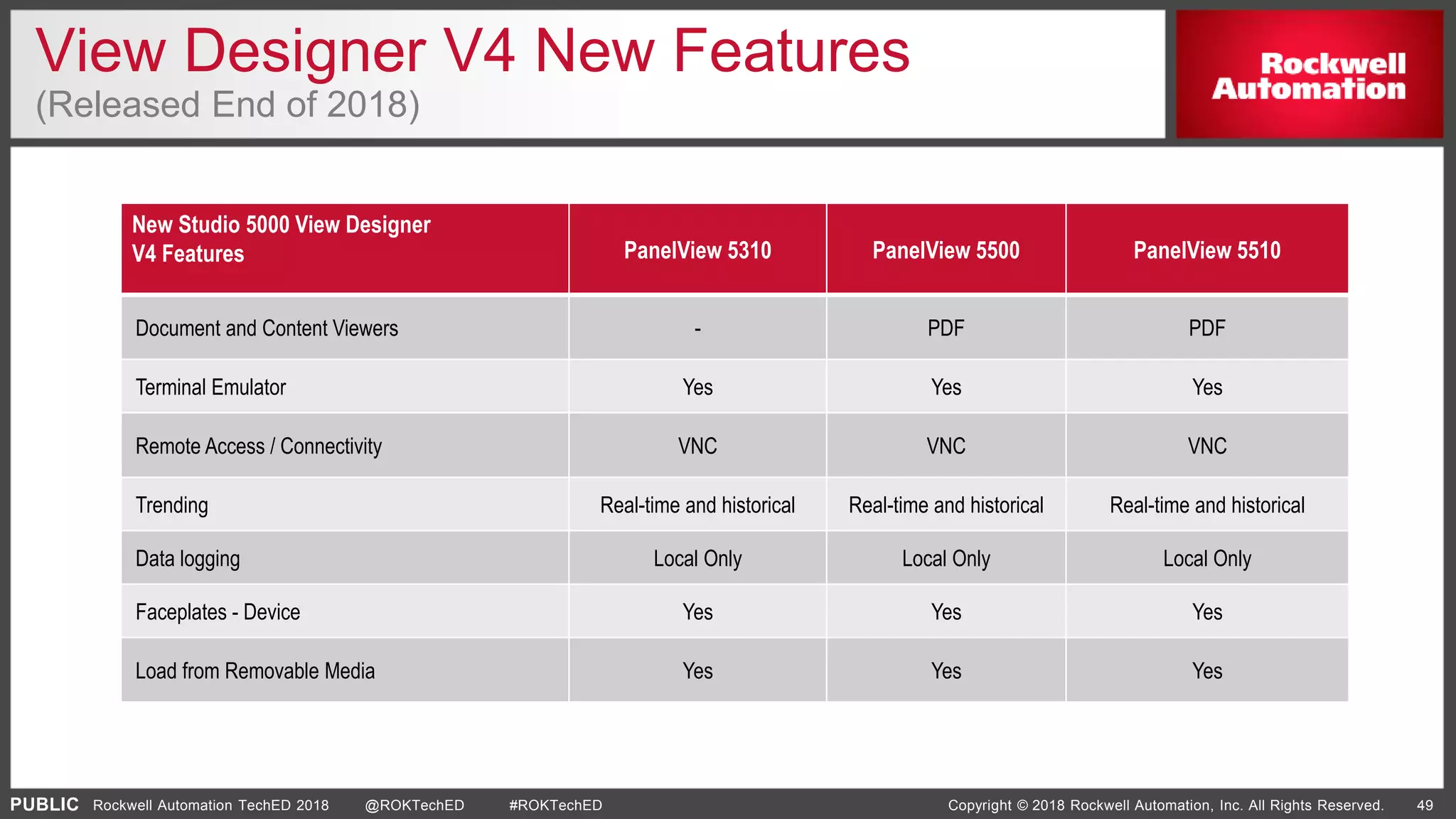

New Studio 5000 View Designer
V4 Features PanelView 5310 PanelView 5500 PanelView 5510
Document and Content Viewers - PDF PDF
Terminal Emulator Yes Yes Yes
Remote Access / Connectivity VNC VNC VNC
Trending Real-time and historical Real-time and historical Real-time and historical
Data logging Local Only Local Only Local Only
Faceplates - Device Yes Yes Yes
Load from Removable Media Yes Yes Yes
View Designer V4 New Features
(Released End of 2018)

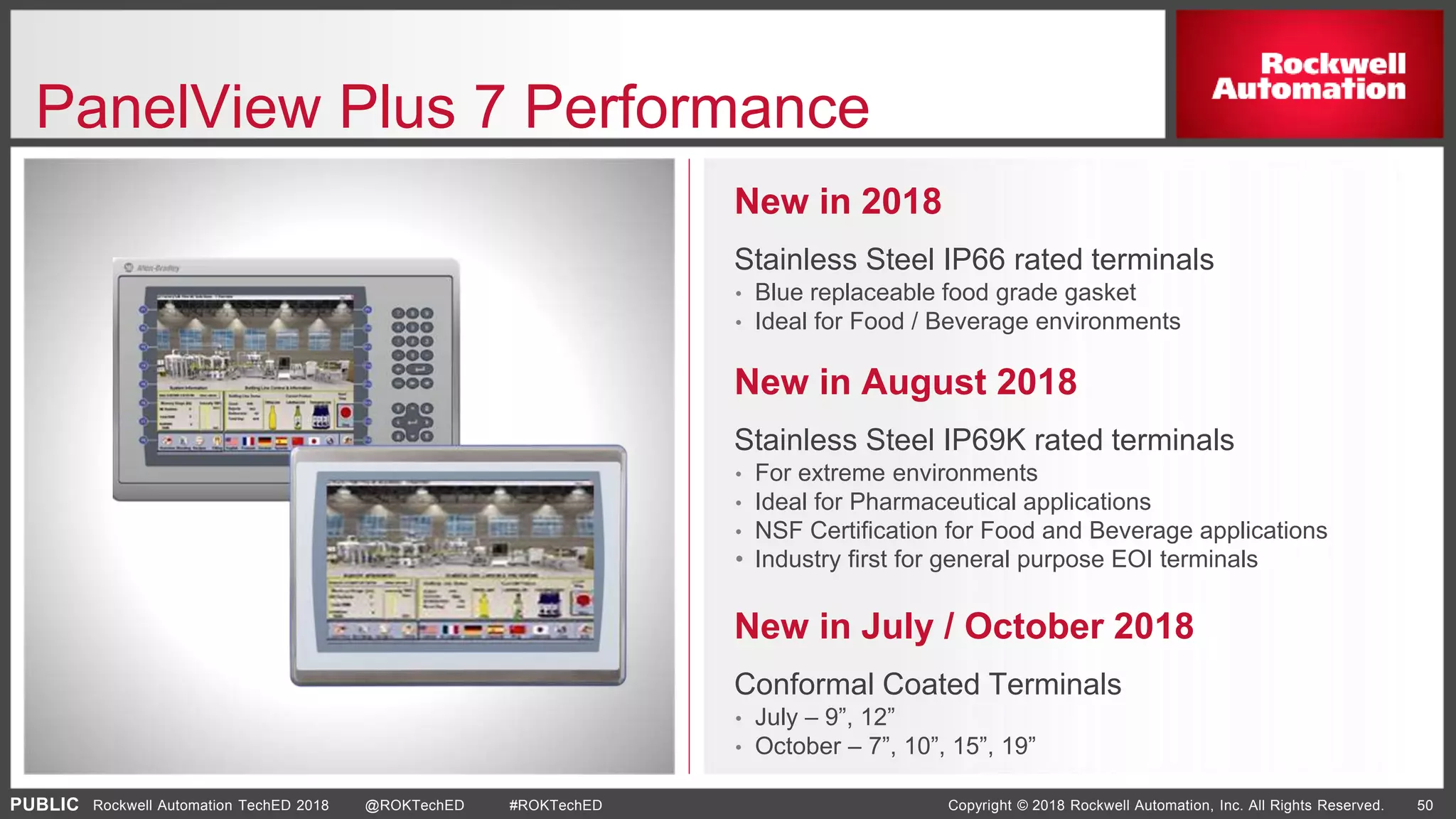

PanelView Plus 7 Performance
New in July / October 2018
Conformal Coated Terminals
• July – 9”, 12”
• October – 7”, 10”, 15”, 19”
New in August 2018
Stainless Steel IP69K rated terminals
• For extreme environments
• Ideal for Pharmaceutical applications
• NSF Certification for Food and Beverage applications
• Industry first for general purpose EOI terminals
New in 2018
Stainless Steel IP66 rated terminals
• Blue replaceable food grade gasket
• Ideal for Food / Beverage environments

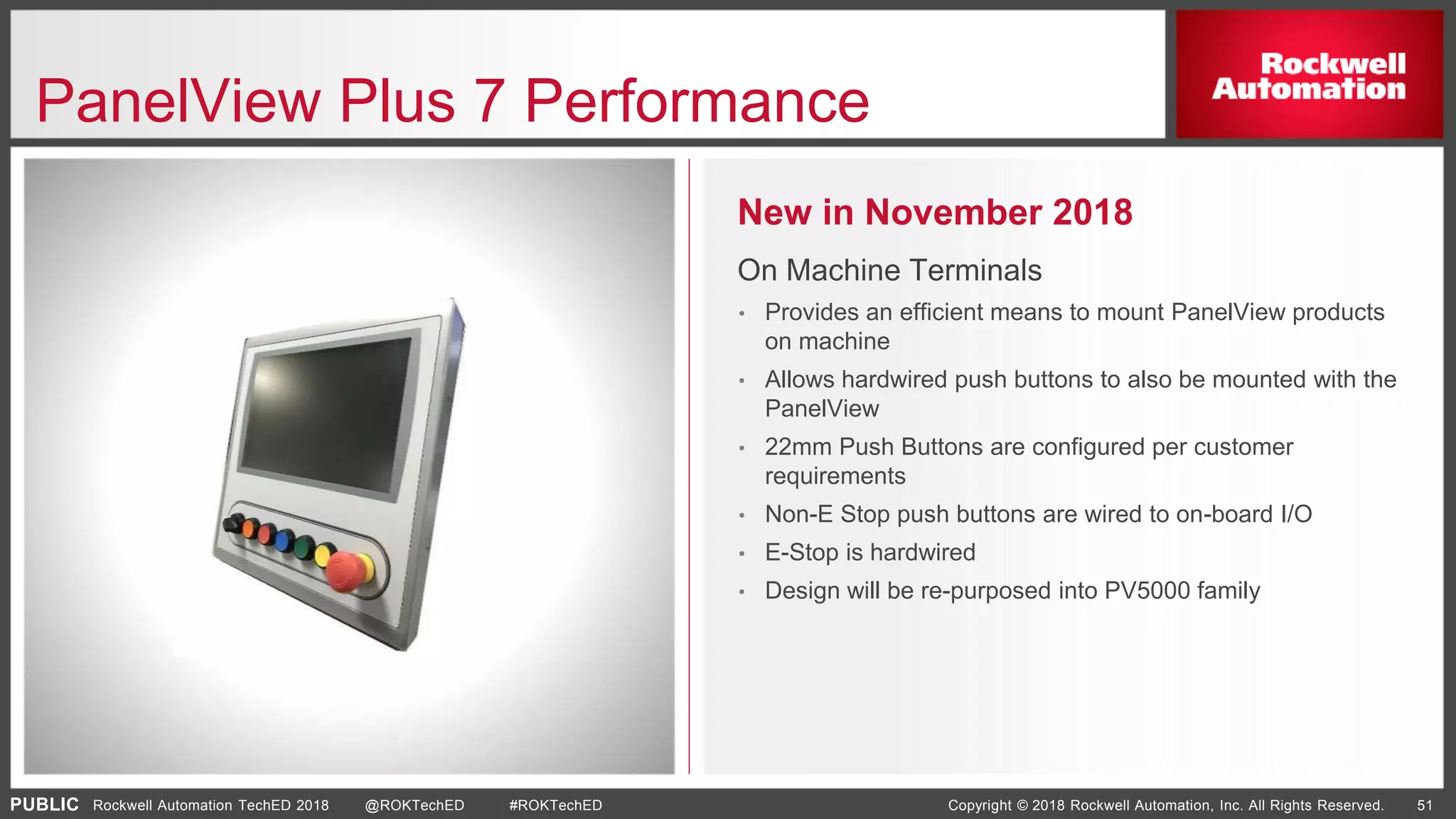

PanelView Plus 7 Performance
New in November 2018
On Machine Terminals
• Provides an efficient means to mount PanelView products
on machine
• Allows hardwired push buttons to also be mounted with the
PanelView
• 22mm Push Buttons are configured per customer
requirements
• Non-E Stop push buttons are wired to on-board I/O
• E-Stop is hardwired
• Design will be re-purposed into PV5000 family

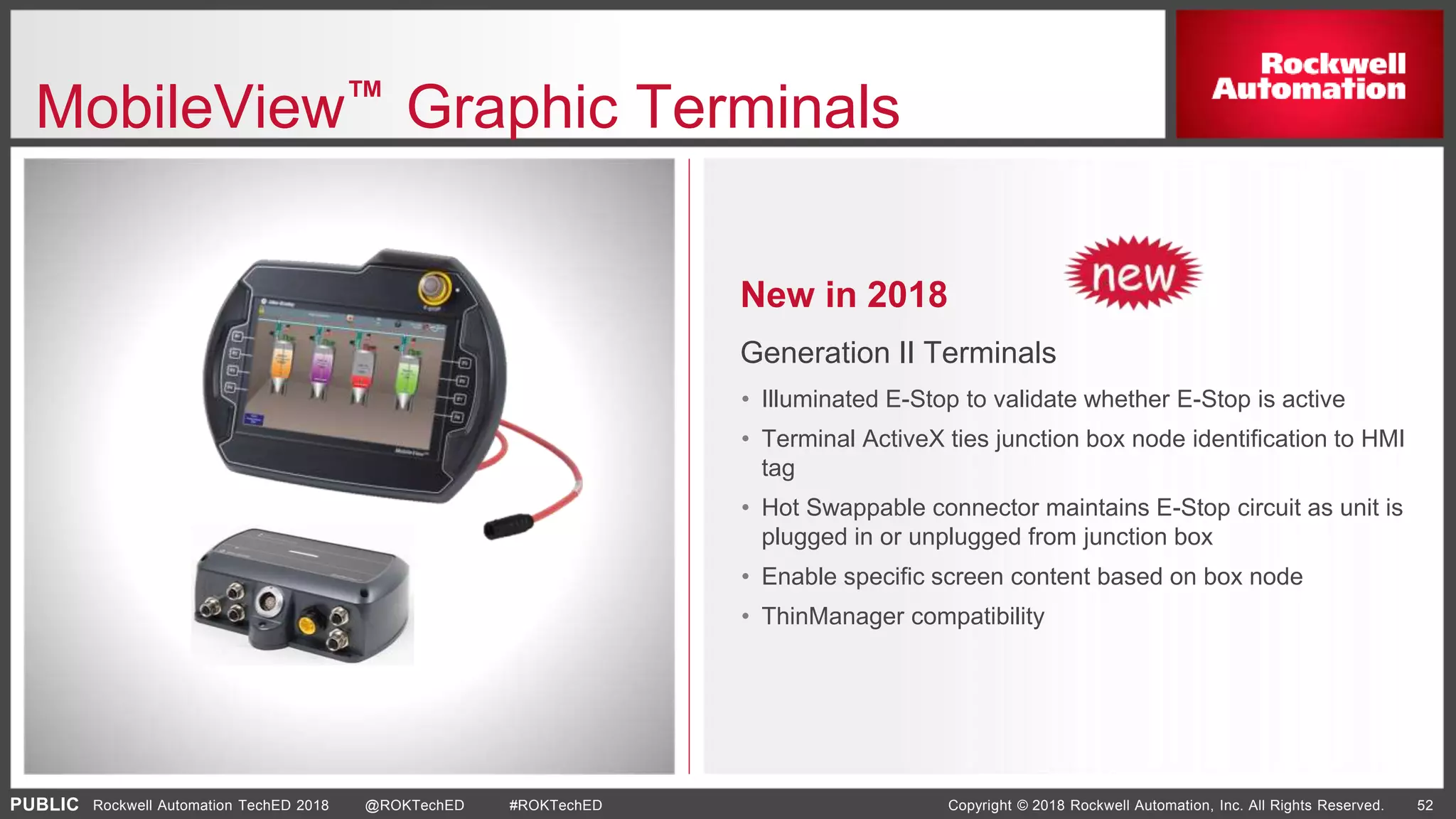

MobileView™ Graphic Terminals
New in 2018
Generation II Terminals
• Illuminated E-Stop to validate whether E-Stop is active
• Terminal ActiveX ties junction box node identification to HMI
tag
• Hot Swappable connector maintains E-Stop circuit as unit is
plugged in or unplugged from junction box
• Enable specific screen content based on box node
• ThinManager compatibility

NETWORKS & SECURITY

Managed Switches
Stratix®
• Access switches &
distribution switches
• High Performance
switching up to 10 GB
• Integrated Network
Address Translation
• Integrated DLR with
3 ring support
• IT and OT configuration
and support tools
Unmanaged,
Stratix®
• Low-cost,
compact solutions
• Automatically
negotiates speed and
duplex settings
• No configuration
required
Security Appliances
Stratix®
• Secure real-time control
communication
• Intrusion prevention
using Deep Packet
Inspection capabilities
• Routing and firewall
capabilities
• Access control lists
Communication Modules
1756
• Communication links
between devices and
ControlLogix controller
• Can use EtherNet/IP,
ControlNet, and
DeviceNet network
protocols
• Supports real-time I/O
& exchange messaging
Embedded Switch &
Linking Devices
• Connects control
networks to device level
networks
• Leverages existing
network structures
for migrations

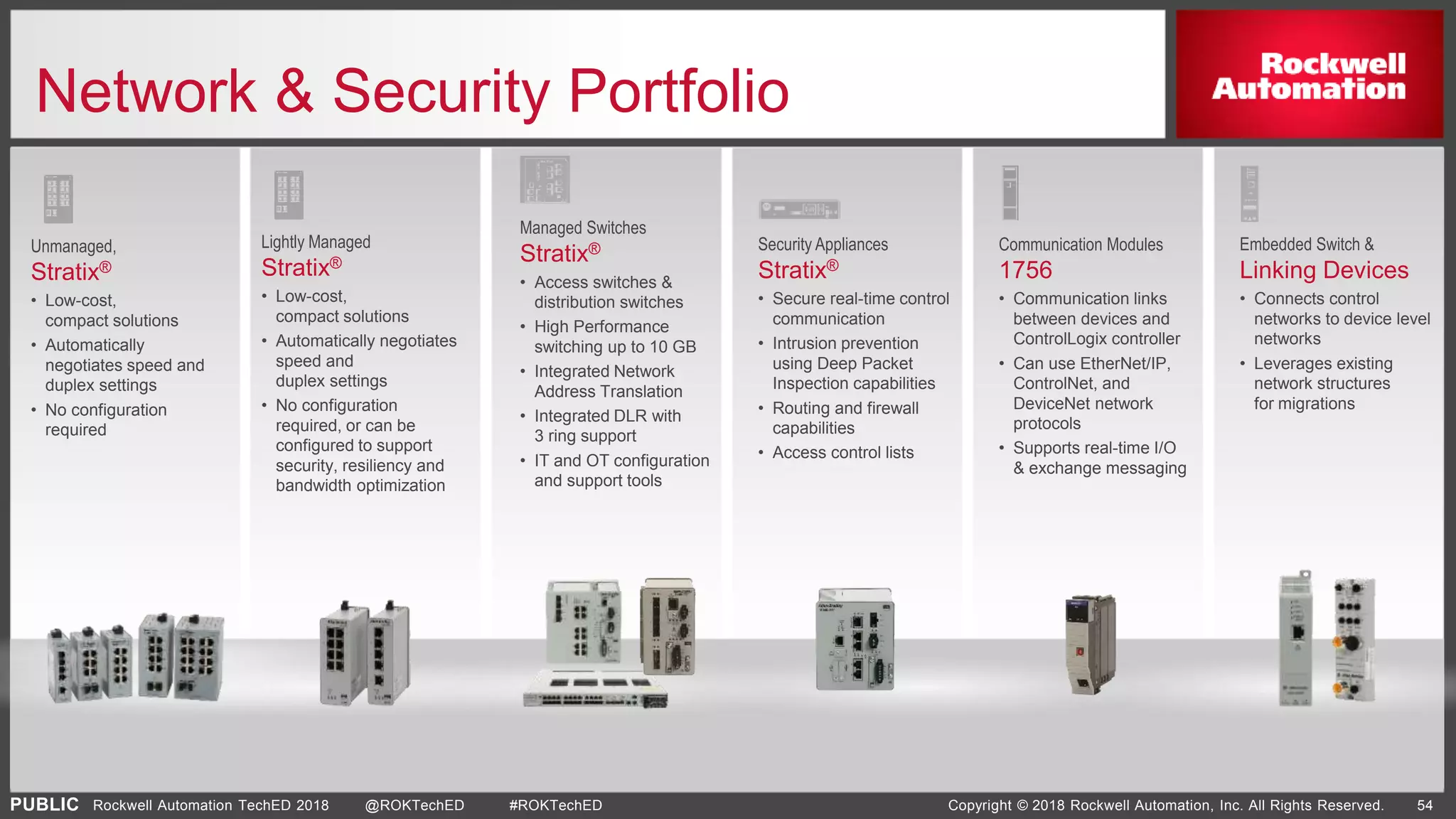

Network & Security Portfolio
Lightly Managed
Stratix®
• Low-cost,
compact solutions
• Automatically negotiates
speed and
duplex settings
• No configuration
required, or can be
configured to support
security, resiliency and
bandwidth optimization

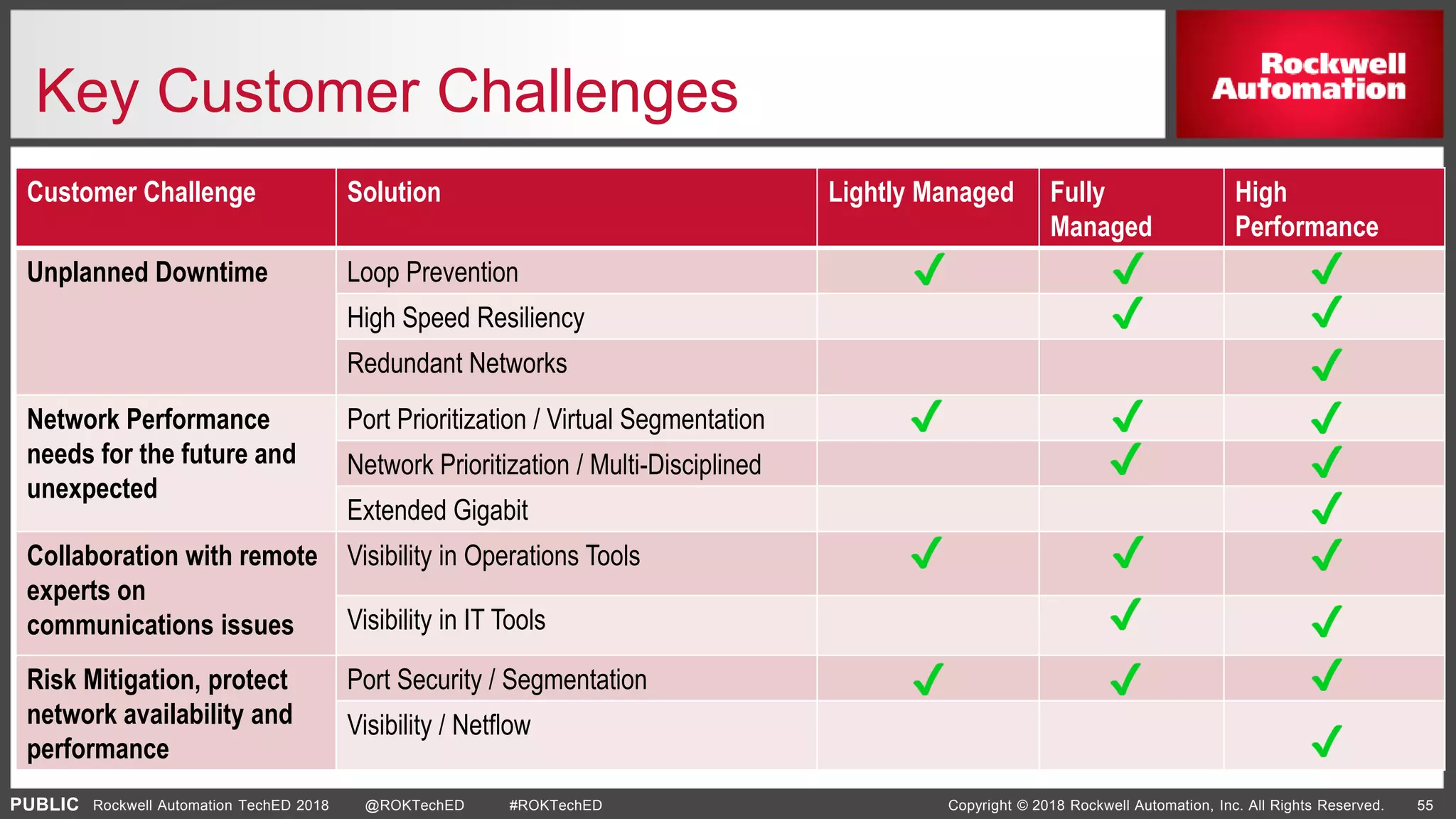

Key Customer Challenges
Customer Challenge Solution Lightly Managed Fully
Managed
High
Performance
Unplanned Downtime Loop Prevention
High Speed Resiliency
Redundant Networks
Network Performance
needs for the future and
unexpected
Port Prioritization / Virtual Segmentation
Network Prioritization / Multi-Disciplined
Extended Gigabit
Collaboration with remote
experts on
communications issues
Visibility in Operations Tools
Visibility in IT Tools
Risk Mitigation, protect
network availability and
performance
Port Security / Segmentation
Visibility / Netflow

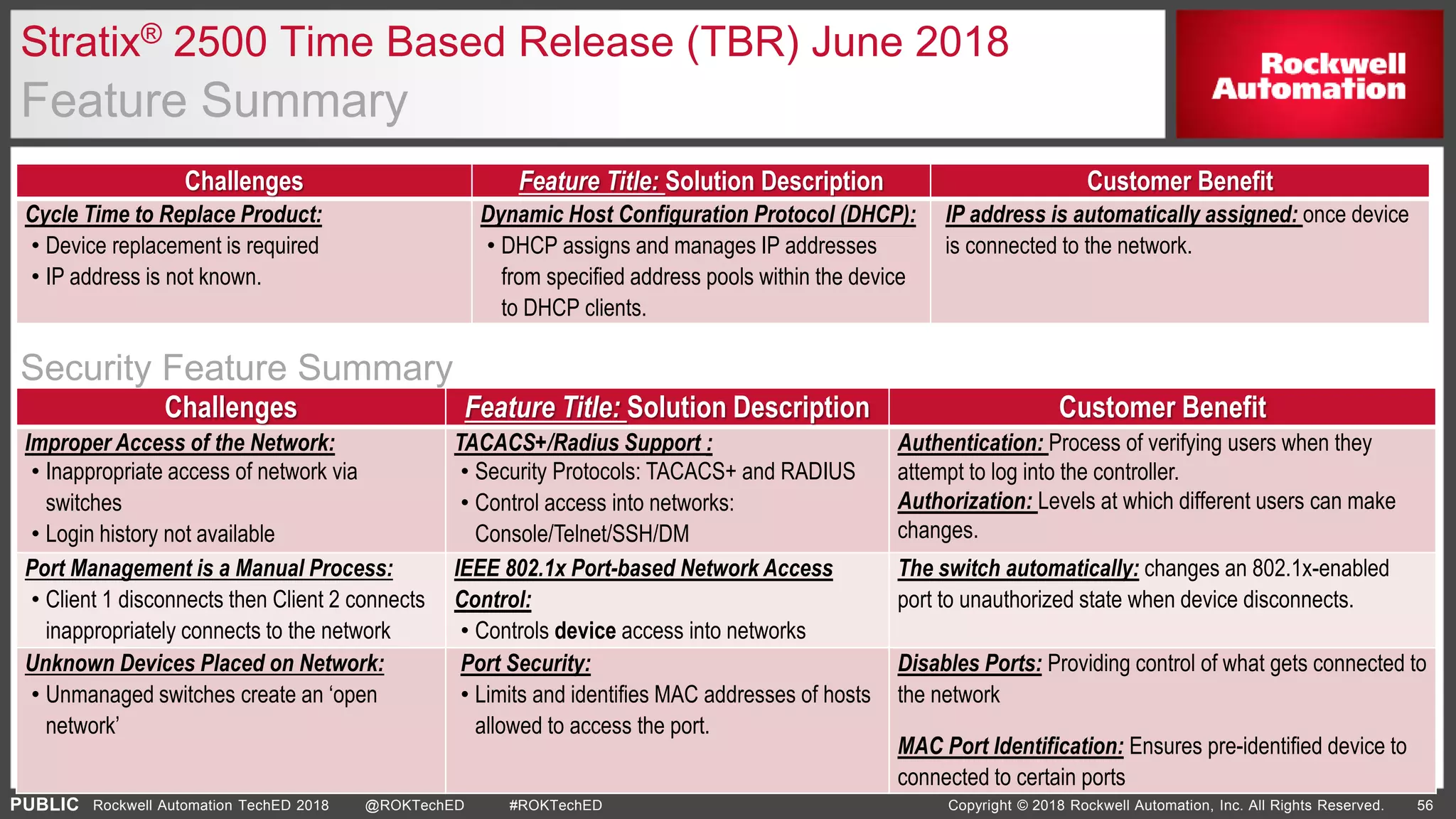

Stratix® 2500 Time Based Release (TBR) June 2018
Feature Summary
Challenges Feature Title: Solution Description Customer Benefit
Improper Access of the Network:
• Inappropriate access of network via
switches
• Login history not available
TACACS+/Radius Support :
• Security Protocols: TACACS+ and RADIUS
• Control access into networks:
Console/Telnet/SSH/DM
Authentication: Process of verifying users when they
attempt to log into the controller.
Authorization: Levels at which different users can make
changes.
Port Management is a Manual Process:
• Client 1 disconnects then Client 2 connects
inappropriately connects to the network
IEEE 802.1x Port-based Network Access
Control:
• Controls device access into networks
The switch automatically: changes an 802.1x-enabled
port to unauthorized state when device disconnects.
Unknown Devices Placed on Network:
• Unmanaged switches create an ‘open
network’
Port Security:
• Limits and identifies MAC addresses of hosts
allowed to access the port.
Disables Ports: Providing control of what gets connected to
the network
MAC Port Identification: Ensures pre-identified device to
connected to certain ports
Security Feature Summary
Cycle Time to Replace Product:
• Device replacement is required
• IP address is not known.
Dynamic Host Configuration Protocol (DHCP):
• DHCP assigns and manages IP addresses
from specified address pools within the device
to DHCP clients.
IP address is automatically assigned: once device
is connected to the network.

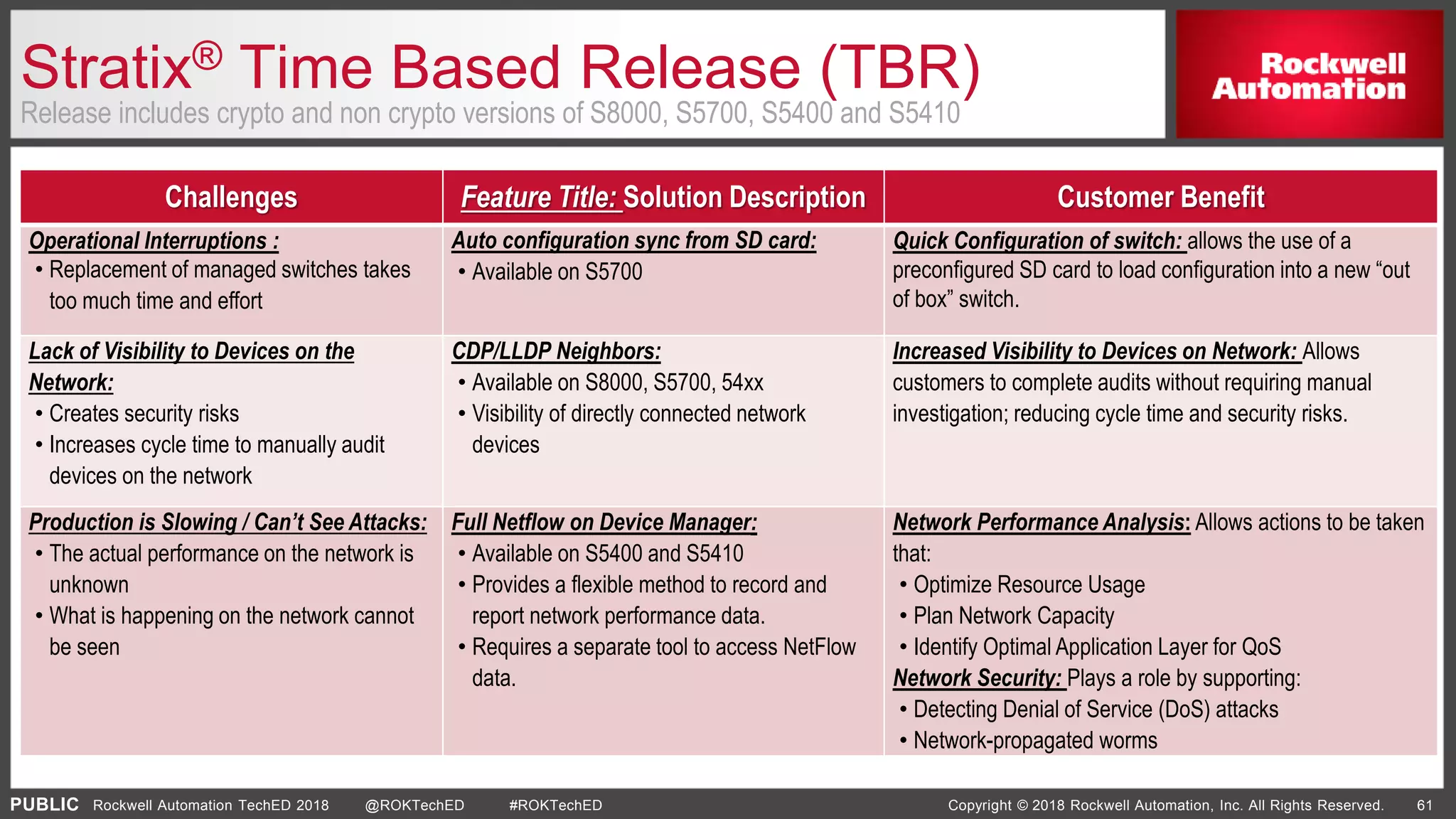

Stratix® Time Based Release (TBR)
Release includes crypto and non crypto versions of S8000, S5700, S5400 and S5410
Operational Interruptions :
• Replacement of managed switches takes
too much time and effort
Auto configuration sync from SD card:
• Available on S5700
Quick Configuration of switch: allows the use of a
preconfigured SD card to load configuration into a new “out
of box” switch.
Lack of Visibility to Devices on the
Network:
• Creates security risks
• Increases cycle time to manually audit
devices on the network
CDP/LLDP Neighbors:
• Available on S8000, S5700, 54xx
• Visibility of directly connected network
devices
Increased Visibility to Devices on Network: Allows
customers to complete audits without requiring manual
investigation; reducing cycle time and security risks.
Production is Slowing / Can’t See Attacks:
• The actual performance on the network is
unknown
• What is happening on the network cannot
be seen
Full Netflow on Device Manager:
• Available on S5400 and S5410
• Provides a flexible method to record and
report network performance data.
• Requires a separate tool to access NetFlow
data.
Network Performance Analysis: Allows actions to be taken
that:
• Optimize Resource Usage
• Plan Network Capacity
• Identify Optimal Application Layer for QoS
Network Security: Plays a role by supporting:
• Detecting Denial of Service (DoS) attacks
• Network-propagated worms

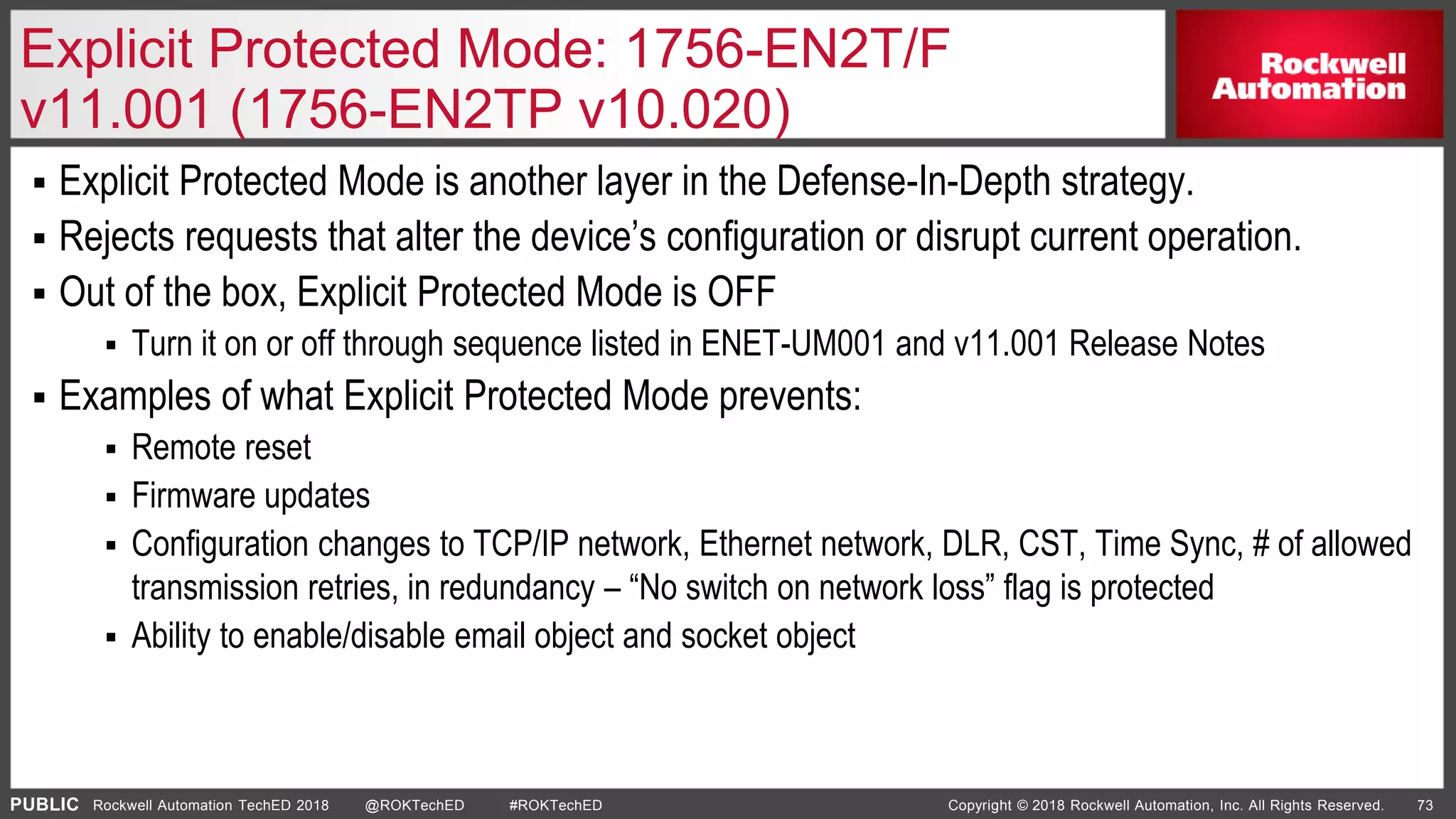

Explicit Protected Mode: 1756-EN2T/F
v11.001 (1756-EN2TP v10.020)
 Explicit Protected Mode is another layer in the Defense-In-Depth strategy.
 Rejects requests that alter the device’s configuration or disrupt current operation.
 Out of the box, Explicit Protected Mode is OFF
 Turn it on or off through sequence listed in ENET-UM001 and v11.001 Release Notes
 Examples of what Explicit Protected Mode prevents:
 Remote reset
 Firmware updates
 Configuration changes to TCP/IP network, Ethernet network, DLR, CST, Time Sync, # of allowed
transmission retries, in redundancy – “No switch on network loss” flag is protected
 Ability to enable/disable email object and socket object

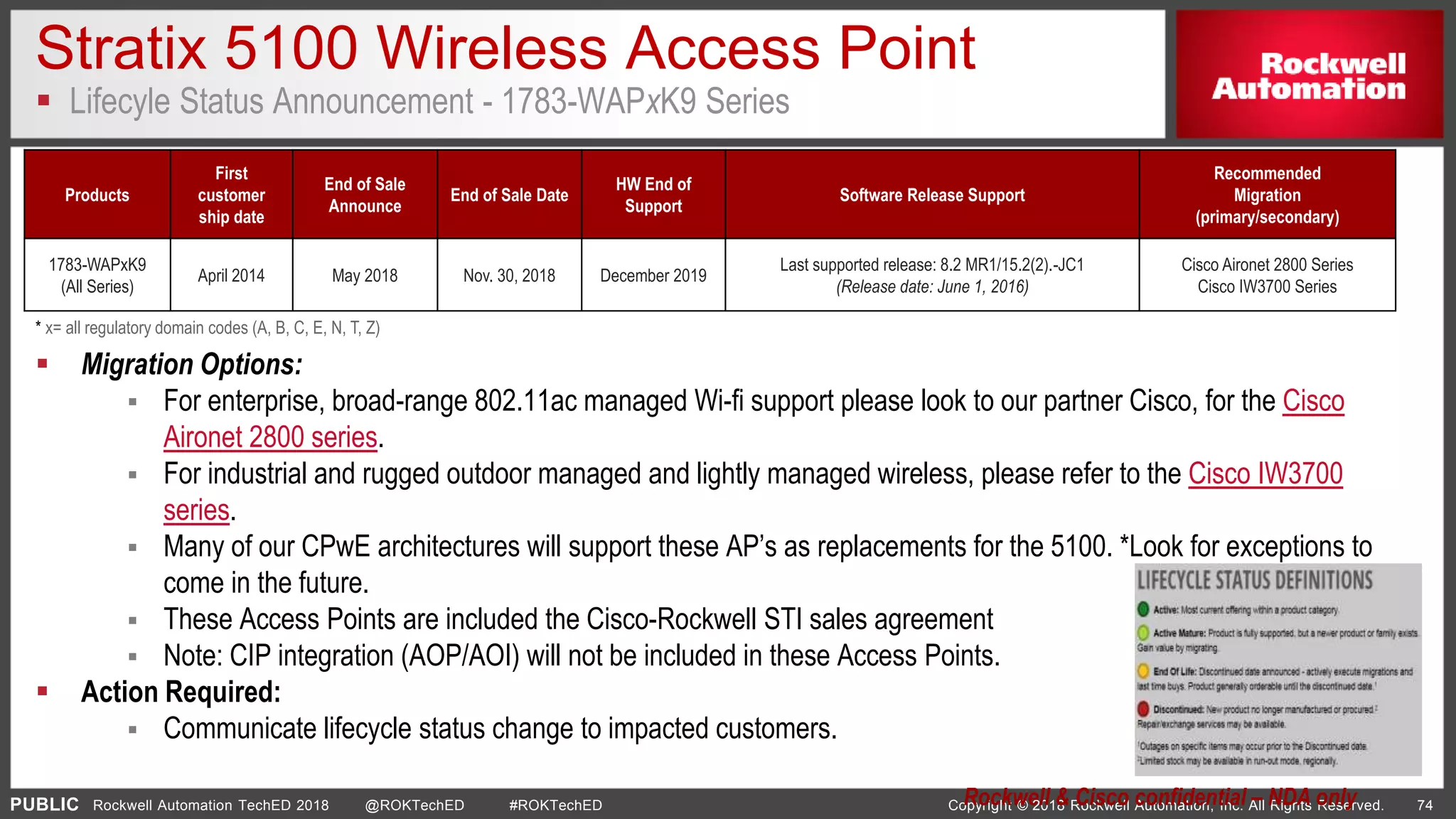

Stratix 5100 Wireless Access Point
 Lifecyle Status Announcement - 1783-WAPxK9 Series
Products
First
customer
ship date
End of Sale
Announce
End of Sale Date
HW End of
Support
Software Release Support
Recommended
Migration
(primary/secondary)
1783-WAPxK9
(All Series)
April 2014 May 2018 Nov. 30, 2018 December 2019
Last supported release: 8.2 MR1/15.2(2).-JC1
(Release date: June 1, 2016)
Cisco Aironet 2800 Series
Cisco IW3700 Series
Rockwell & Cisco confidential – NDA only
* x= all regulatory domain codes (A, B, C, E, N, T, Z)
 Migration Options:
 For enterprise, broad-range 802.11ac managed Wi-fi support please look to our partner Cisco, for the Cisco
Aironet 2800 series.
 For industrial and rugged outdoor managed and lightly managed wireless, please refer to the Cisco IW3700
series.
 Many of our CPwE architectures will support these AP’s as replacements for the 5100. *Look for exceptions to
come in the future.
 These Access Points are included the Cisco-Rockwell STI sales agreement
 Note: CIP integration (AOP/AOI) will not be included in these Access Points.
 Action Required:
 Communicate lifecycle status change to impacted customers.

MOTION

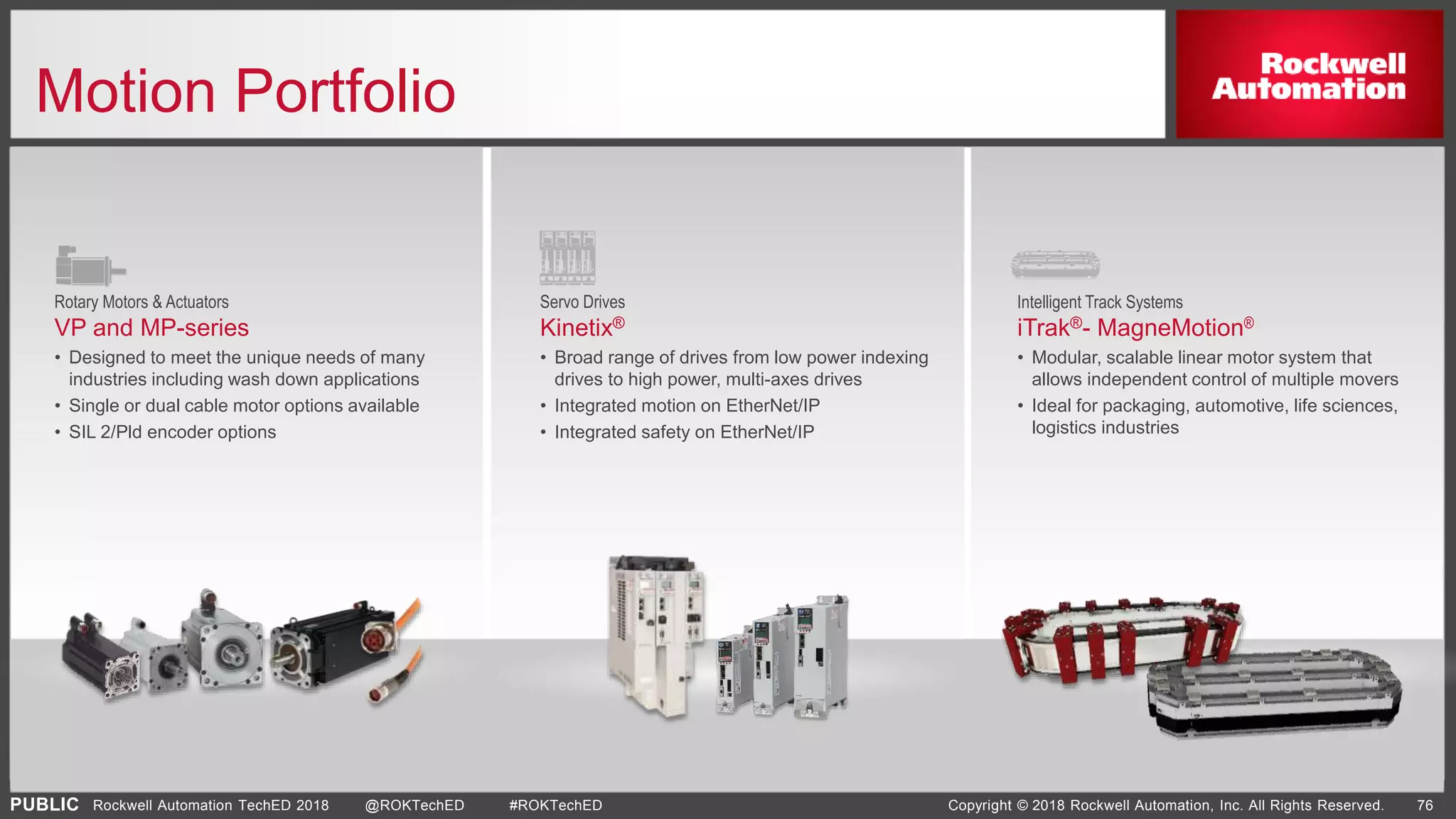

Motion Portfolio
Rotary Motors & Actuators
VP and MP-series
• Designed to meet the unique needs of many
industries including wash down applications
• Single or dual cable motor options available
• SIL 2/Pld encoder options
Servo Drives
Kinetix®
• Broad range of drives from low power indexing
drives to high power, multi-axes drives
• Integrated motion on EtherNet/IP
• Integrated safety on EtherNet/IP
Intelligent Track Systems
iTrak®- MagneMotion®
• Modular, scalable linear motor system that
allows independent control of multiple movers
• Ideal for packaging, automotive, life sciences,
logistics industries

Kinetix® AFE & 112kW expansion
 DC bus regulation across wide input
voltage & low harmonic operation
 Expanding Kinetix 5700 family feature set
to 112 kW
Motion Update
Kinetix® 5700 ERS4 Advanced
Safety Servo Drive
 New embedded safety functions
 SS1, SS2, SOS, SLS, SDI, SLP
 Perform machine adjustments without
shutting the machine down
 Faster line re-start after safety
demand is executed
 Use of VPx servo motors with SIL
CL2 encoders simplifies safety
function implementation by up to 83%
Independent Cart & Linear
 Higher payload capability & bearing
improvement
 VPAR/S – ETO today, project funded

Kinetix VPC
Servo Motor
2018 Engineers’ Choice Awards
Winner: Motion Control

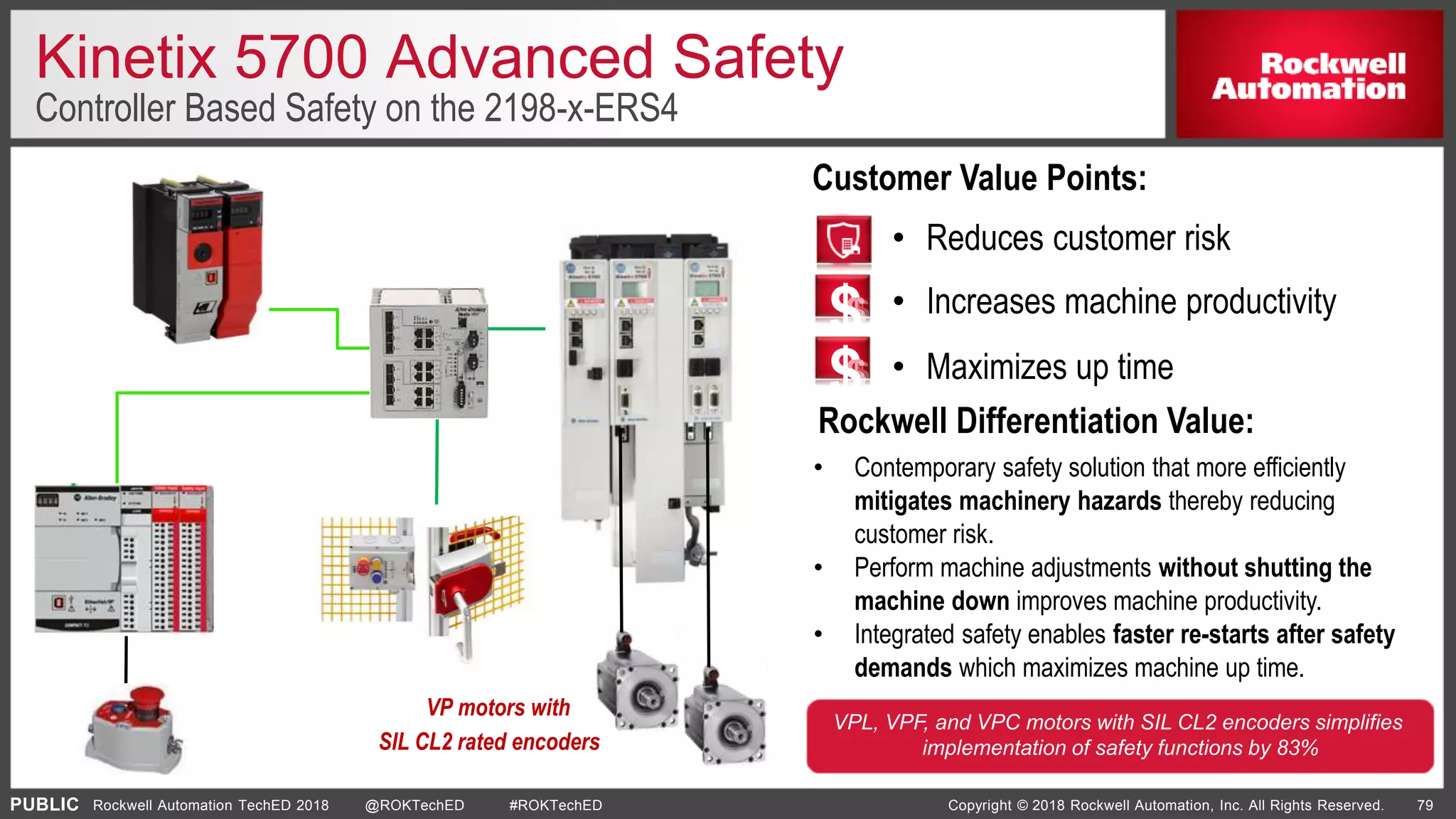

Kinetix 5700 Advanced Safety
Rockwell Differentiation Value:
• Contemporary safety solution that more efficiently
mitigates machinery hazards thereby reducing
customer risk.
• Perform machine adjustments without shutting the
machine down improves machine productivity.
• Integrated safety enables faster re-starts after safety
demands which maximizes machine up time.
$
• Reduces customer risk
Customer Value Points:
• Increases machine productivity
• Maximizes up time$
VPL, VPF, and VPC motors with SIL CL2 encoders simplifies
implementation of safety functions by 83%SIL CL2 rated encoders
VP motors with
Controller Based Safety on the 2198-x-ERS4

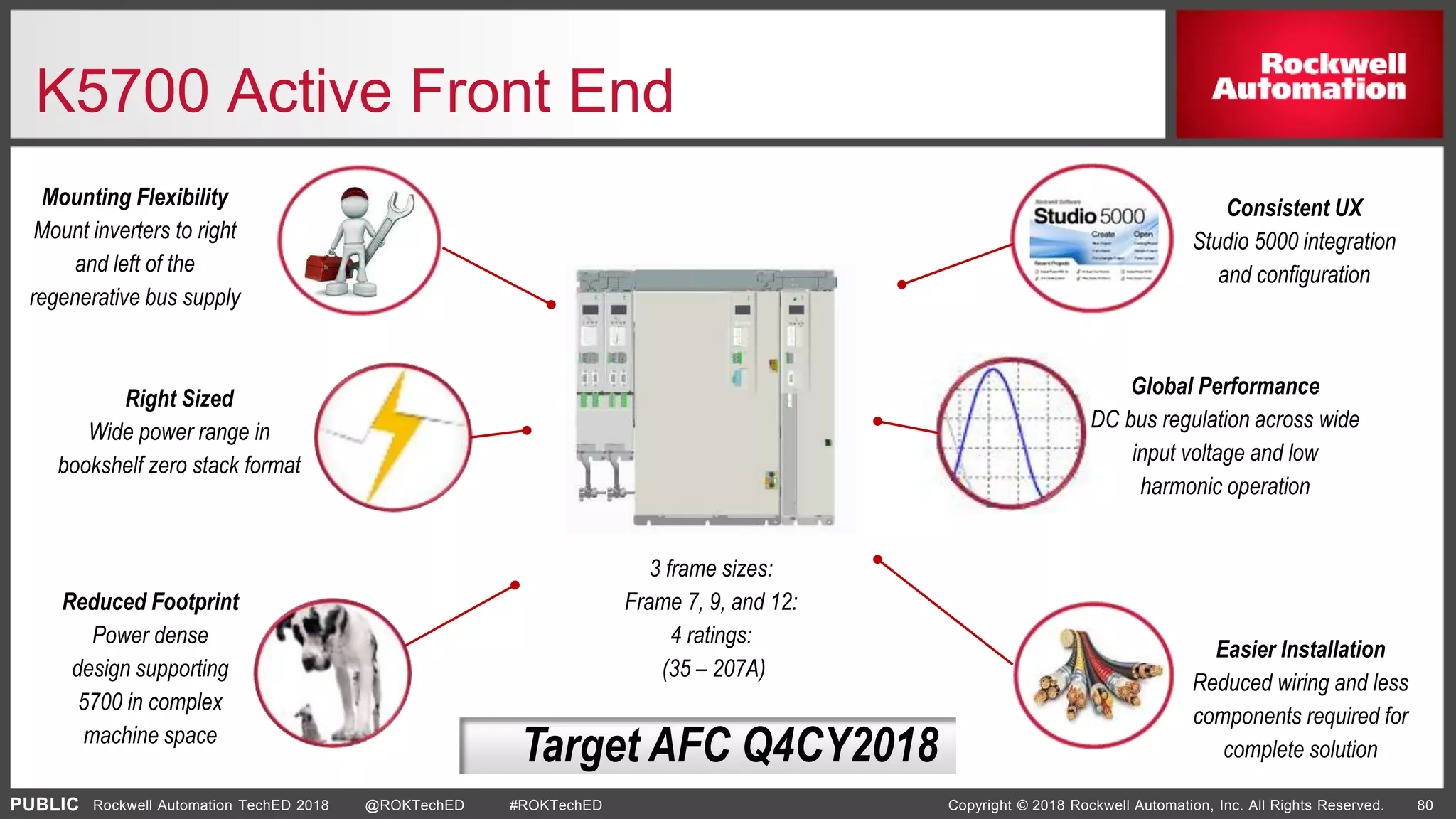

K5700 Active Front End
Reduced Footprint
Power dense
design supporting
5700 in complex
machine space
Mounting Flexibility
Mount inverters to right
and left of the
regenerative bus supply
3 frame sizes:
Frame 7, 9, and 12:
4 ratings:
(35 – 207A)
Right Sized
Wide power range in
bookshelf zero stack format
Easier Installation
Reduced wiring and less
components required for
complete solution
Consistent UX
Studio 5000 integration
and configuration
Global Performance
DC bus regulation across wide
input voltage and low
harmonic operation
Target AFC Q4CY2018

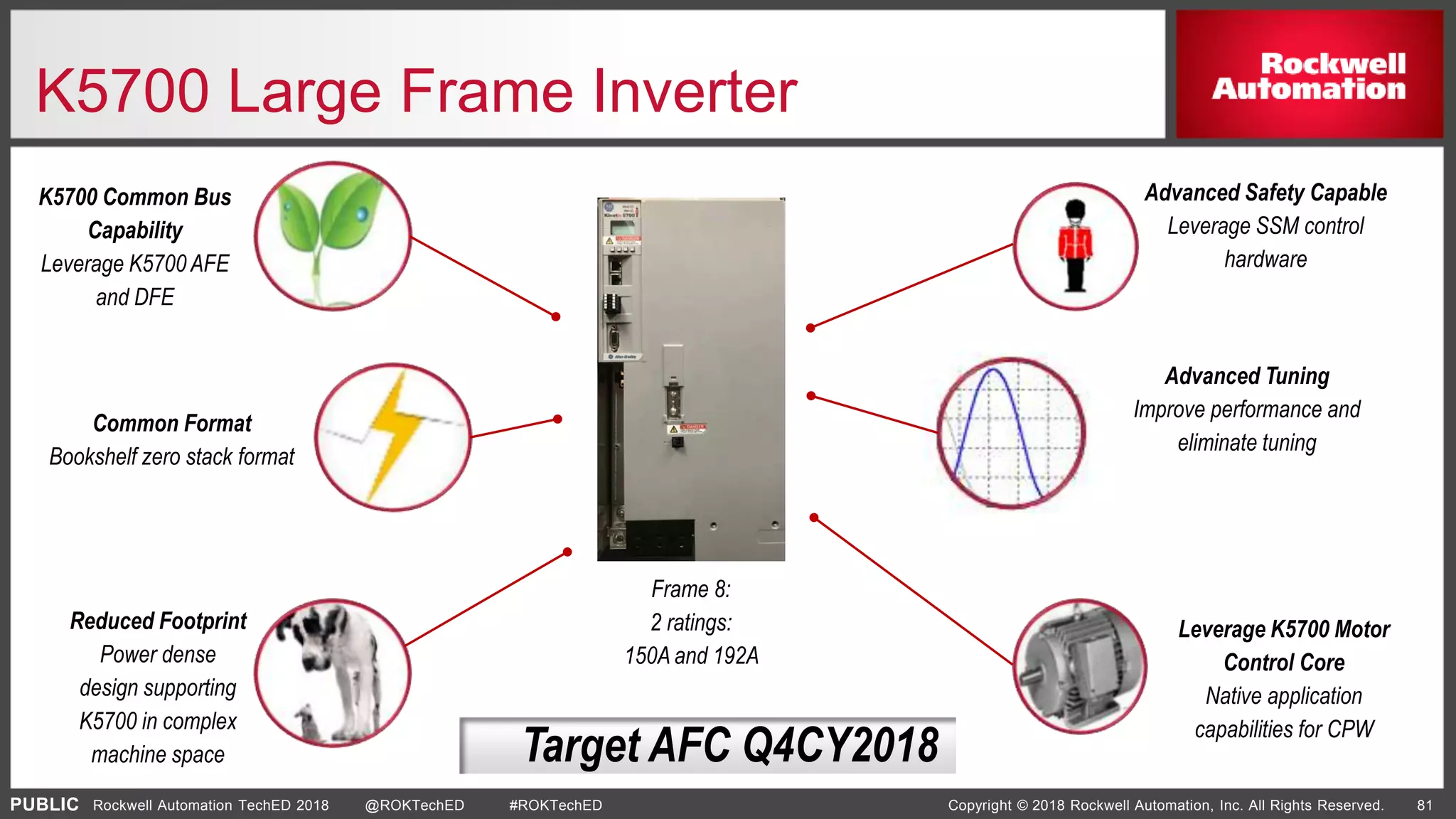

K5700 Large Frame Inverter
Reduced Footprint
Power dense
design supporting
K5700 in complex
machine space
K5700 Common Bus
Capability
Leverage K5700 AFE
and DFE
Frame 8:
2 ratings:
150A and 192A
Common Format
Bookshelf zero stack format
Leverage K5700 Motor
Control Core
Native application
capabilities for CPW
Advanced Safety Capable
Leverage SSM control
hardware
Advanced Tuning
Improve performance and
eliminate tuning
Target AFC Q4CY2018

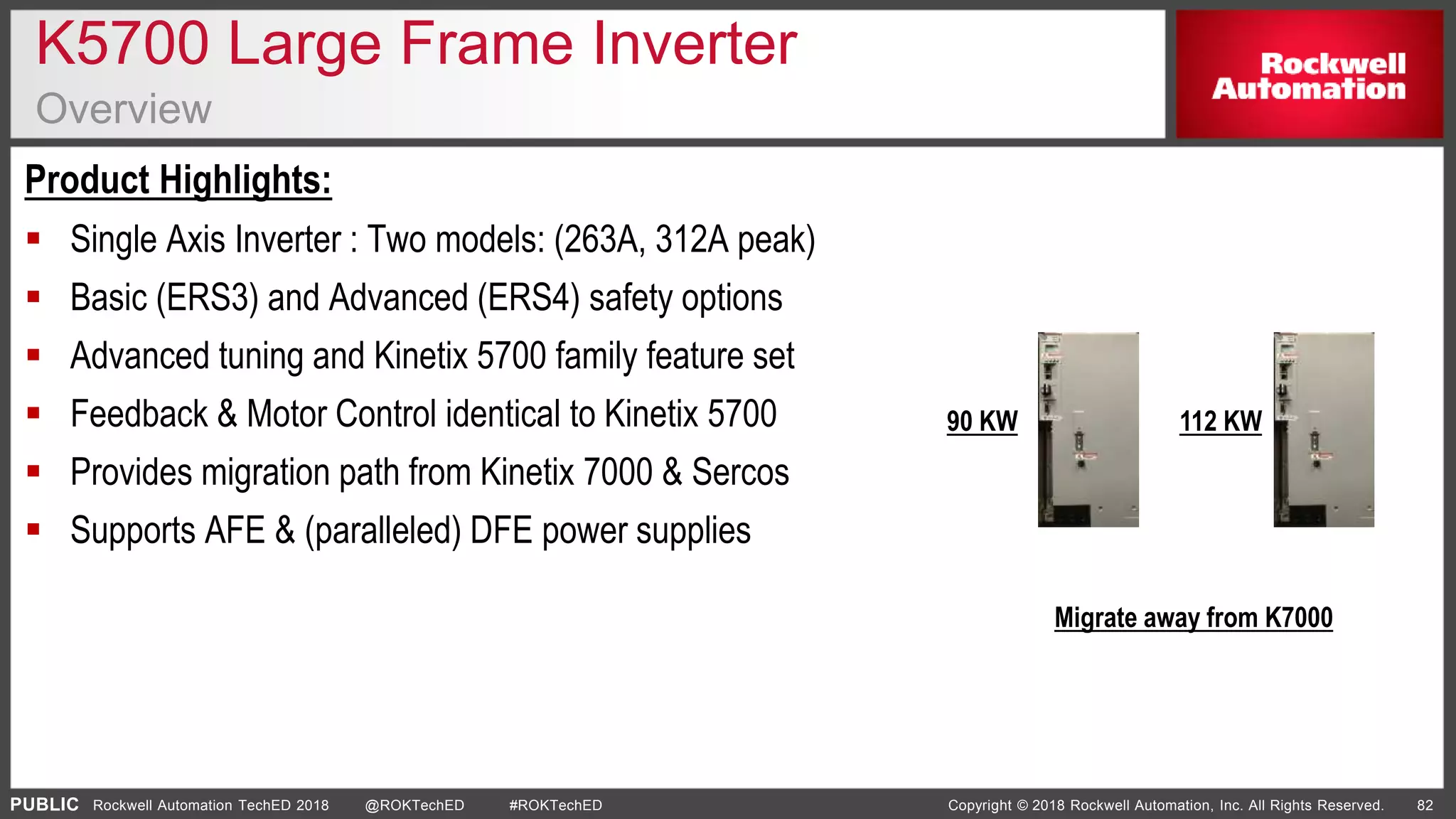

K5700 Large Frame Inverter
Overview
Product Highlights:
 Single Axis Inverter : Two models: (263A, 312A peak)
 Basic (ERS3) and Advanced (ERS4) safety options
 Advanced tuning and Kinetix 5700 family feature set
 Feedback & Motor Control identical to Kinetix 5700
 Provides migration path from Kinetix 7000 & Sercos
 Supports AFE & (paralleled) DFE power supplies
90 KW 112 KW
Migrate away from K7000

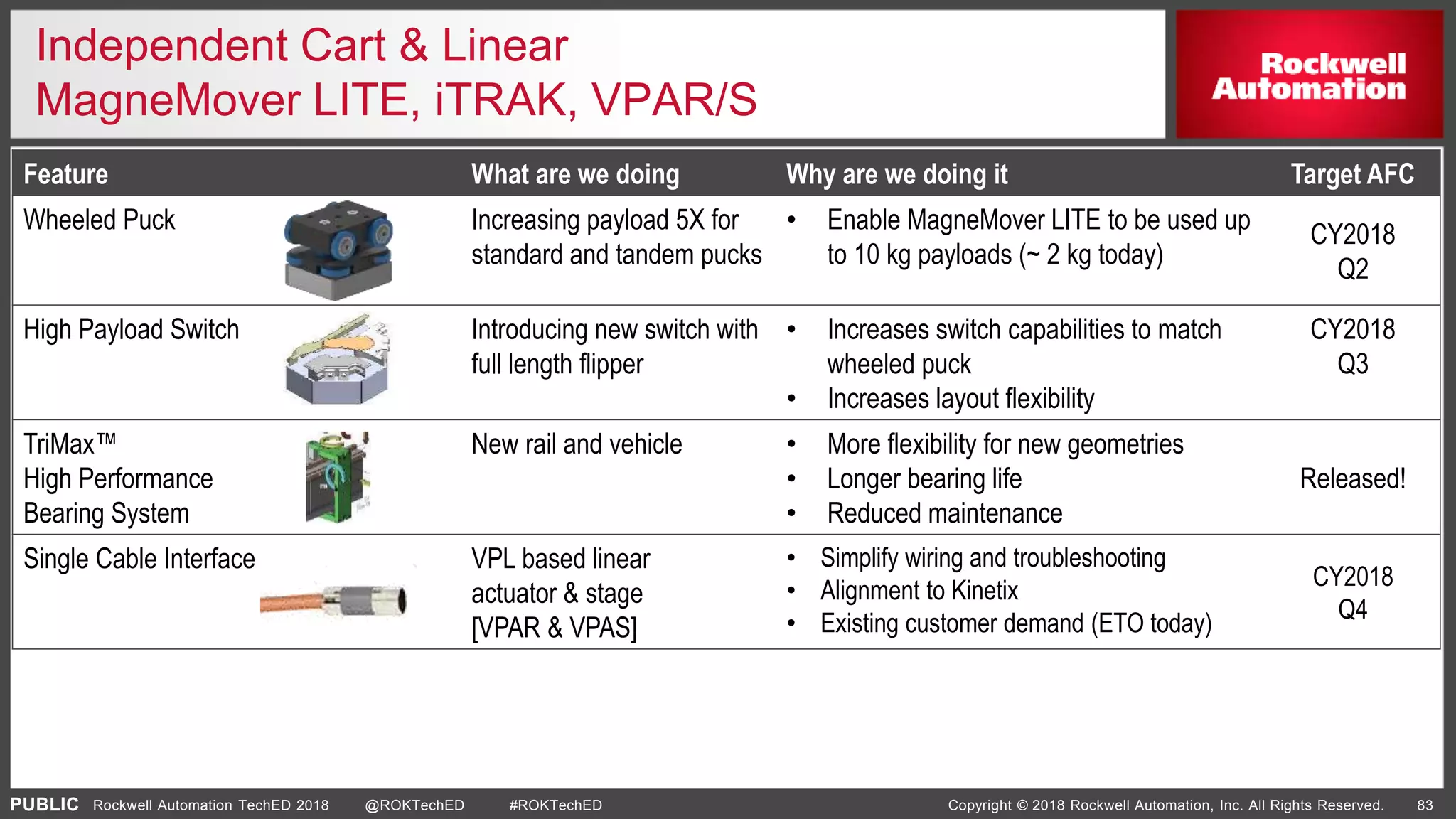

Independent Cart & Linear
MagneMover LITE, iTRAK, VPAR/S
Feature What are we doing Why are we doing it Target AFC
Wheeled Puck Increasing payload 5X for
standard and tandem pucks
• Enable MagneMover LITE to be used up
to 10 kg payloads (~ 2 kg today)
CY2018
Q2
High Payload Switch Introducing new switch with
full length flipper
• Increases switch capabilities to match
wheeled puck
• Increases layout flexibility
CY2018
Q3
TriMax™
High Performance
Bearing System
New rail and vehicle • More flexibility for new geometries
• Longer bearing life
• Reduced maintenance
Released!
Single Cable Interface VPL based linear
actuator & stage
[VPAR & VPAS]
• Simplify wiring and troubleshooting
• Alignment to Kinetix
• Existing customer demand (ETO today)
CY2018
Q4

R2 – Project UX and Workflow | May ‘18
• Completely Redesigned User Experience for
Ease of Use and Navigation
• New Quick Access Project Explorer
• New Profile Editor Support for Application
Templates
• Motion Profile Import
• Advanced Motion Segments
• Performance Enhancements
R3.1 – Tools and Utilities | CY Q4 ‘18
• Kinetix 5700 AFE Sizing
• DC Bus Workflow Improvement
• Enhanced Power Analysis
Improve User Experience, Workflow, Utilities, Technologies, and Performance

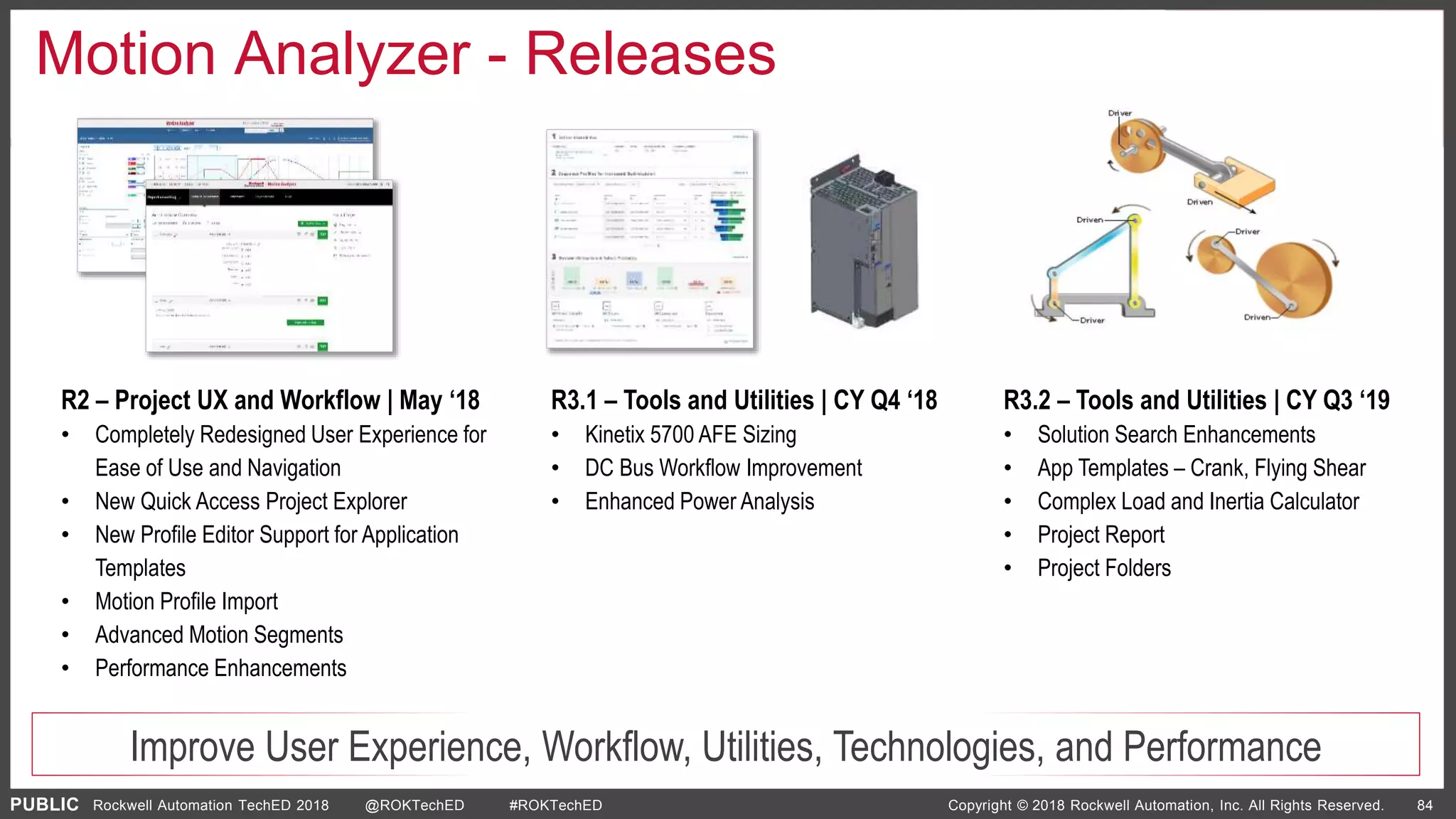

Motion Analyzer - Releases
R3.2 – Tools and Utilities | CY Q3 ‘19
• Solution Search Enhancements
• App Templates – Crank, Flying Shear
• Complex Load and Inertia Calculator
• Project Report
• Project Folders

User Experience (UX) and Workflow
 Optimized User Experience
 Intuitive Navigation and In-Workflow Product Selection
 Faster Axis Definition and Sizing
 Redesigned Solution Search and Configure
Components
New Features
 Application Template Profile Support
 Motion Profile Import from 7.2
 Redesigned Component Filters

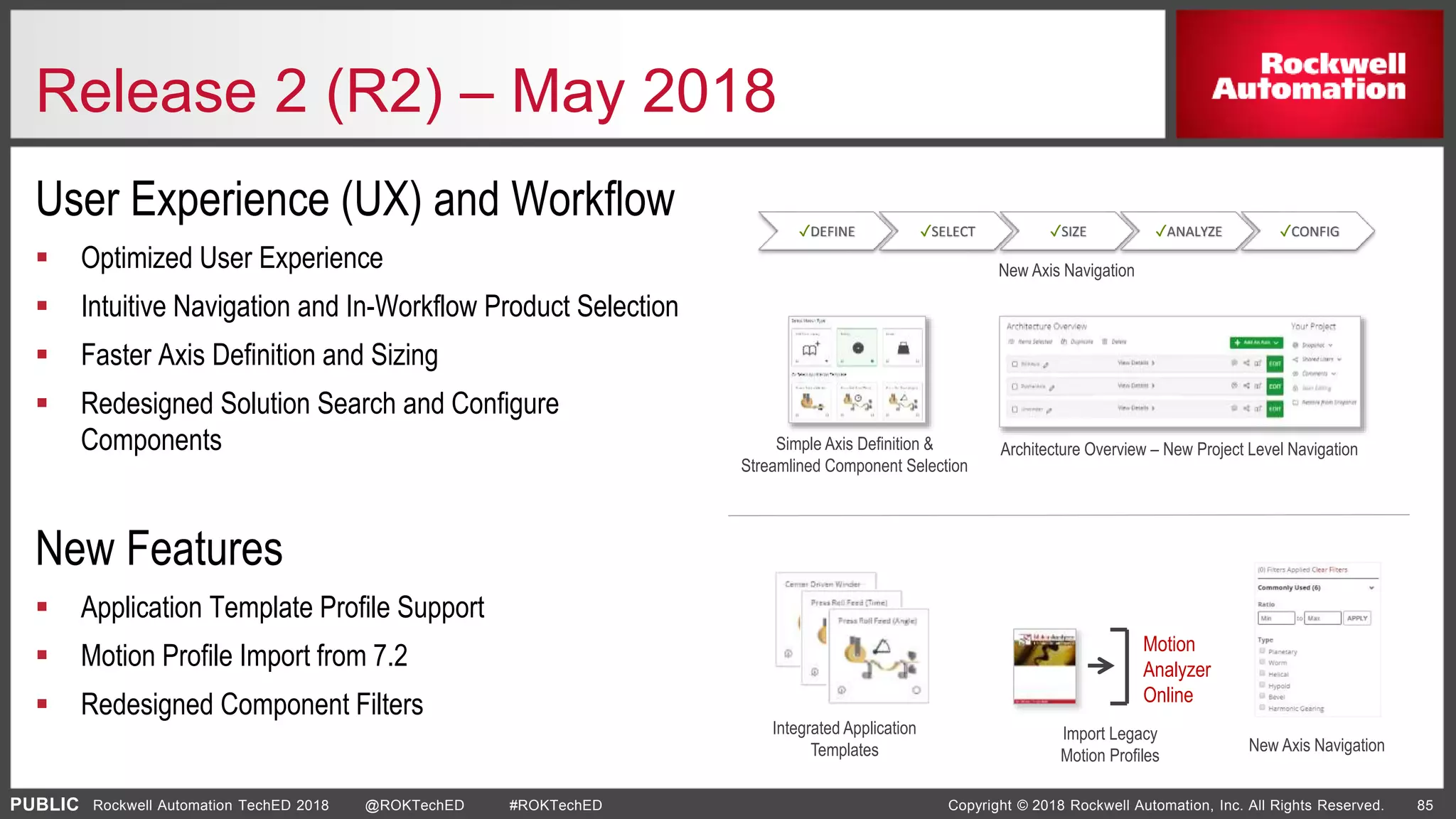

Release 2 (R2) – May 2018
✓DEFINE ✓SELECT ✓SIZE ✓ANALYZE ✓CONFIG
Motion
Analyzer
Online
New Axis Navigation
Architecture Overview – New Project Level NavigationSimple Axis Definition &
Streamlined Component Selection
Integrated Application
Templates
Import Legacy
Motion Profiles
New Axis Navigation

DRIVES

PowerFlex® 755 PowerFlex® 755TR PowerFlex® 755TMPowerFlex® 755TL
PowerFlex® 753PowerFlex® 400
PowerFlex® 4M PowerFlex® 523 PowerFlex® 527PowerFlex® 525 ArmorStart
COMPACT
Simple Applications / Low Power
Speed control
STANDARD
General Purpose
Speed and Torque control
PREMIUM
High Performance / High Power
Speed, Torque and Position control
PowerFlex® 70

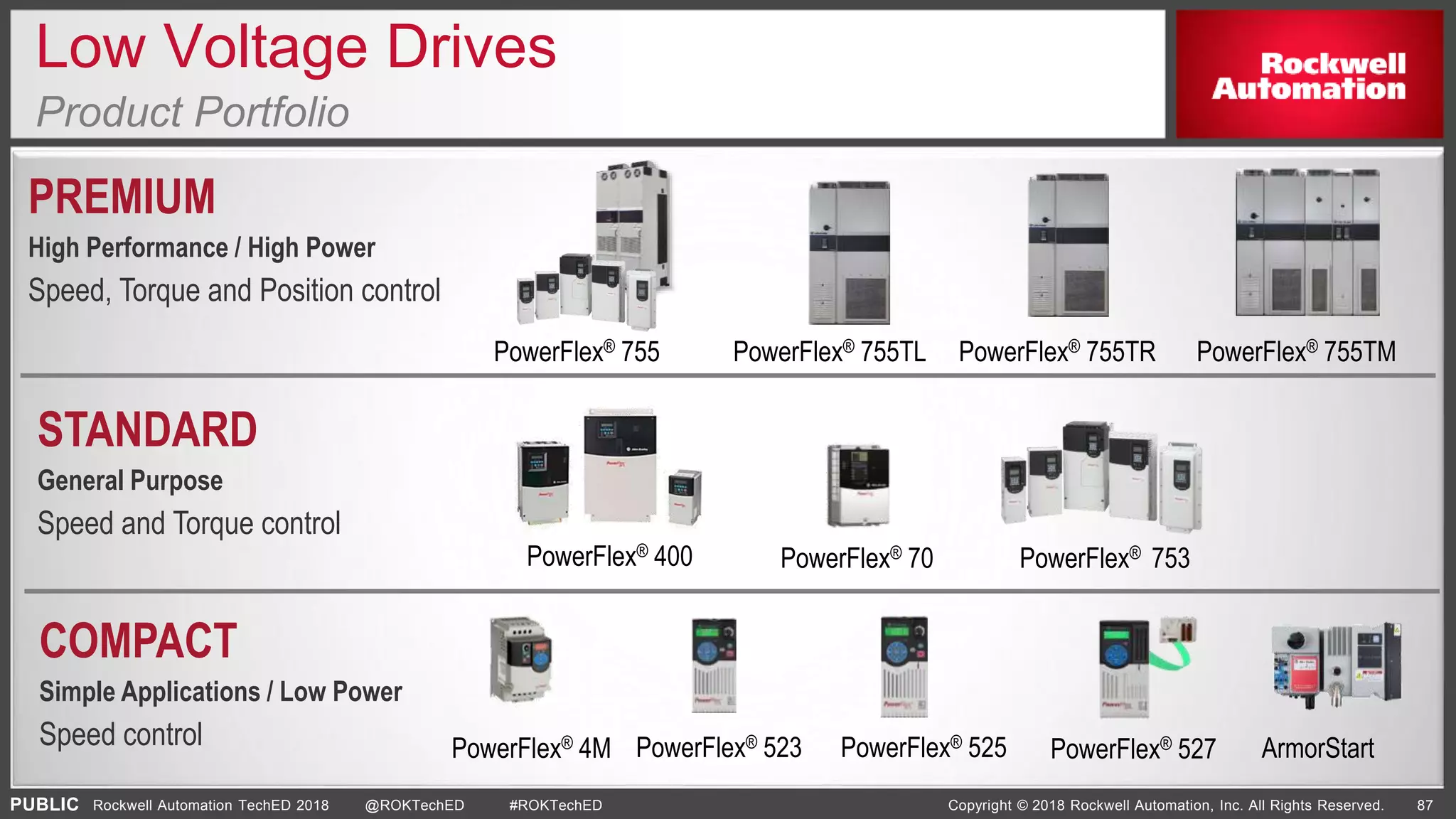

Low Voltage Drives
Product Portfolio

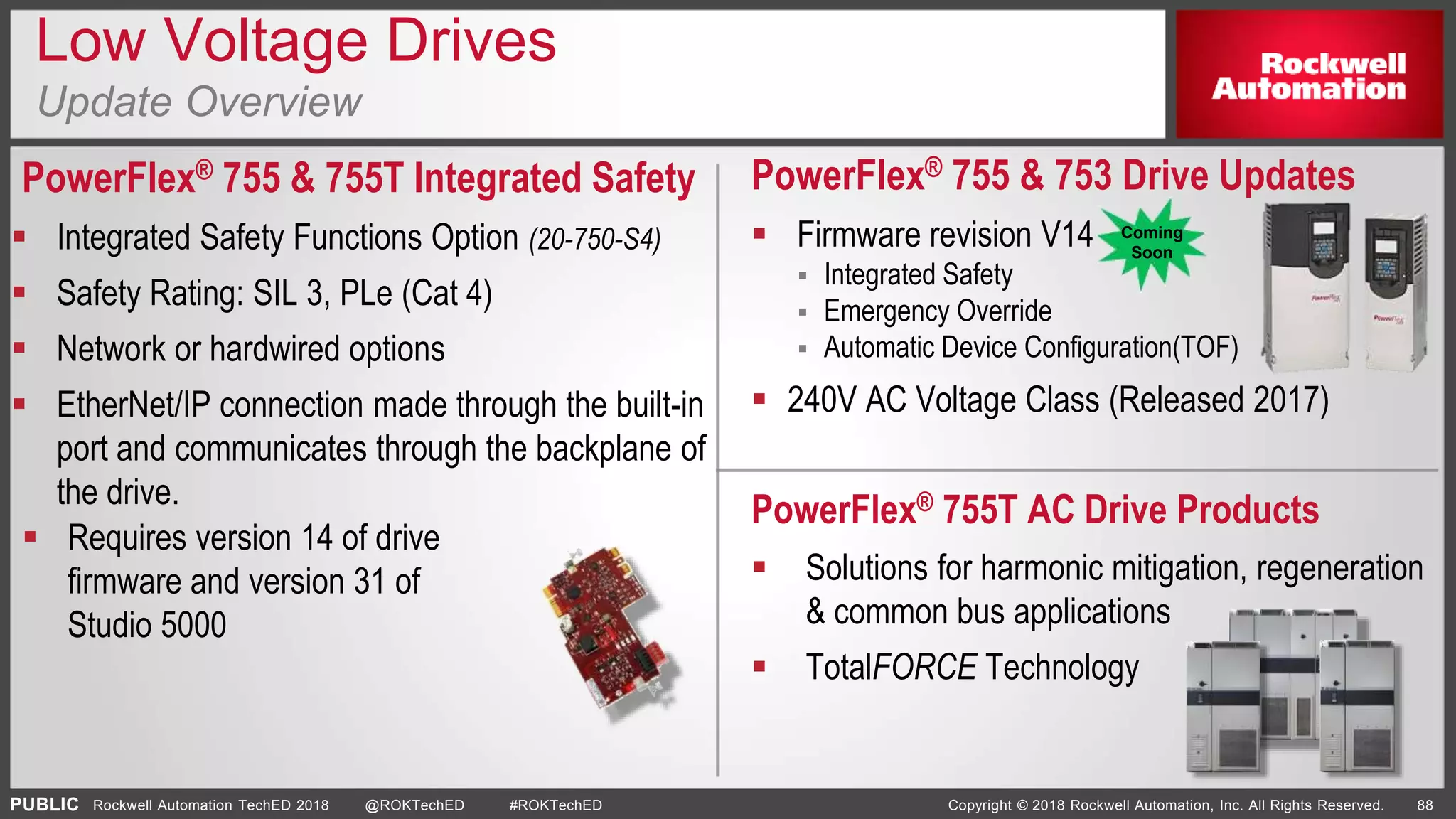

Low Voltage Drives
Update Overview
PowerFlex® 755 & 755T Integrated Safety
 Integrated Safety Functions Option (20-750-S4)
 Safety Rating: SIL 3, PLe (Cat 4)
 Network or hardwired options
 EtherNet/IP connection made through the built-in
port and communicates through the backplane of
the drive.
PowerFlex® 755 & 753 Drive Updates
 Firmware revision V14
 Integrated Safety
 Emergency Override
 Automatic Device Configuration(TOF)
 240V AC Voltage Class (Released 2017)

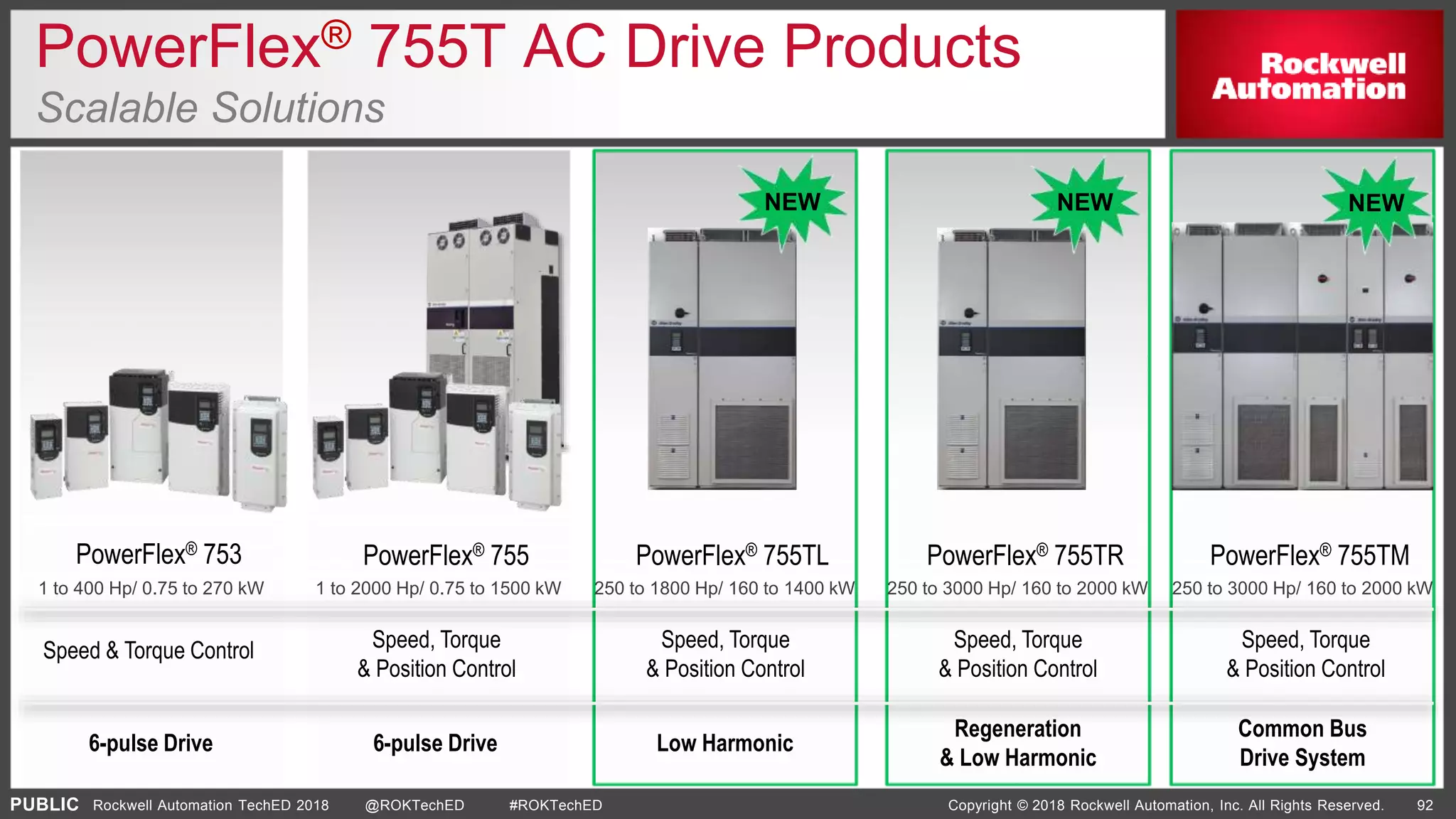

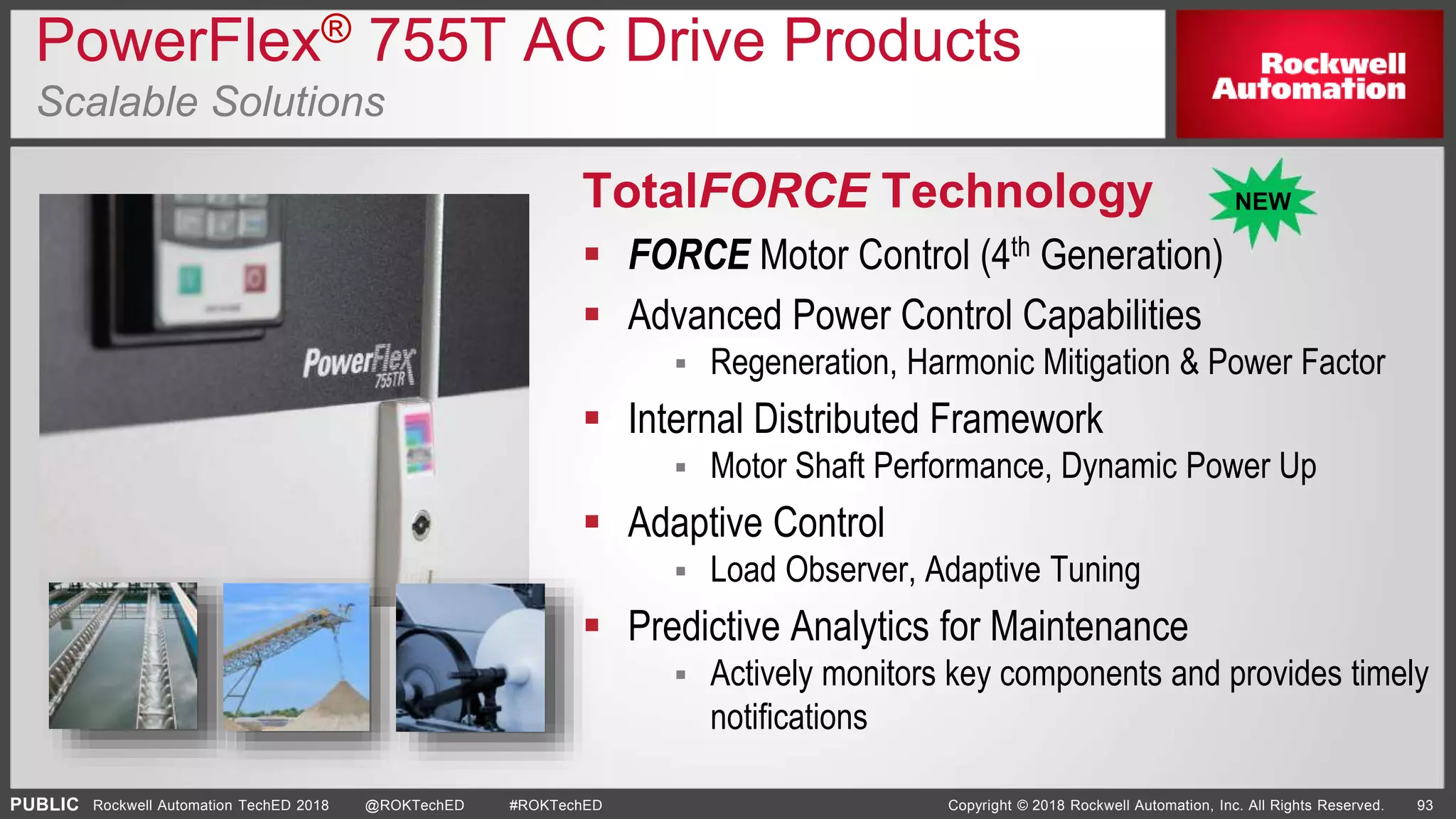

PowerFlex® 755T AC Drive Products
 Solutions for harmonic mitigation, regeneration
& common bus applications
 TotalFORCE Technology
 Requires version 14 of drive
firmware and version 31 of
Studio 5000
Coming
Soon

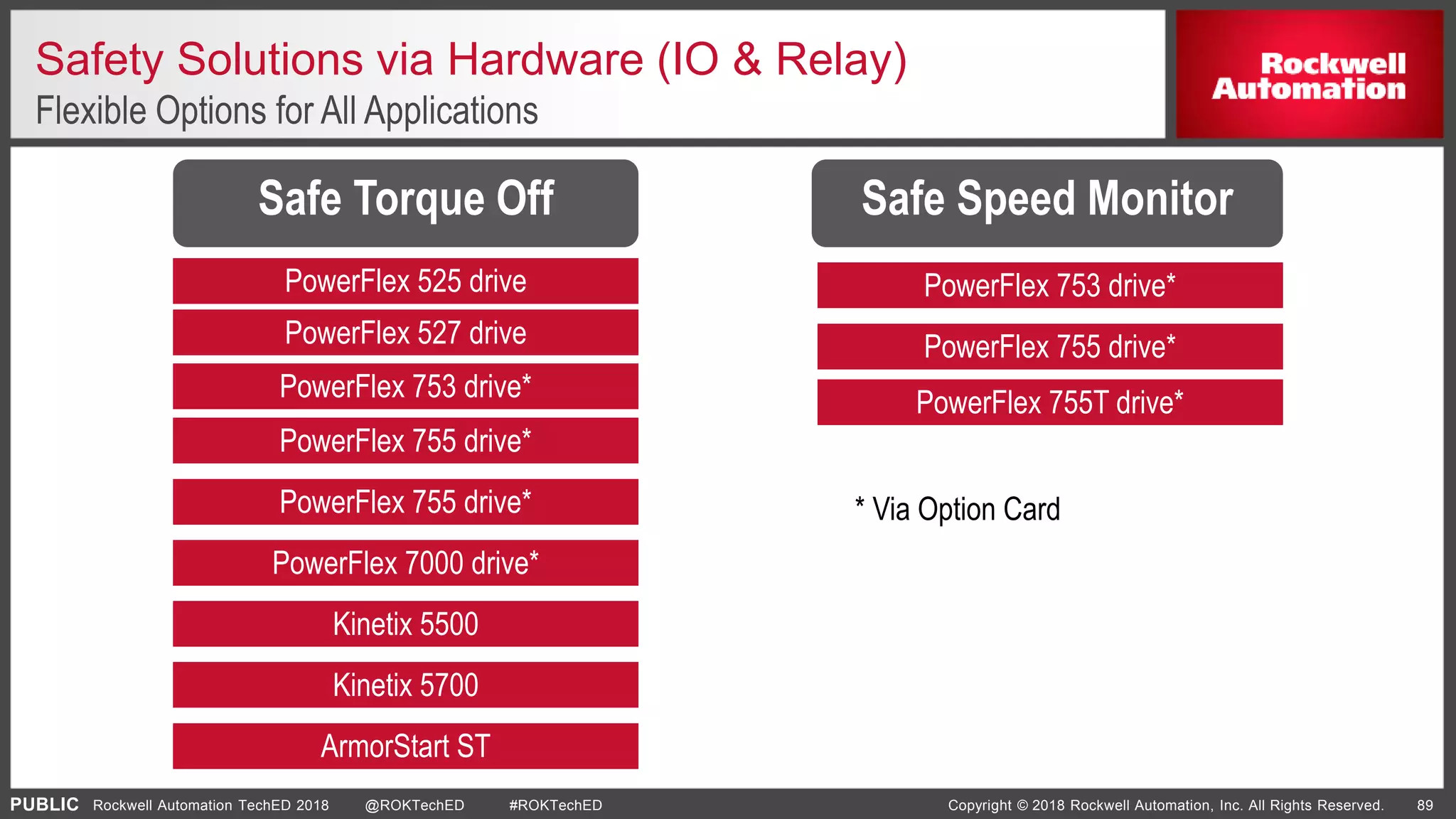

Safety Solutions via Hardware (IO & Relay)
Flexible Options for All Applications
Safe Torque Off Safe Speed Monitor
PowerFlex 525 drive
PowerFlex 527 drive
PowerFlex 755 drive*
Kinetix 5500
ArmorStart ST
Kinetix 5700
* Via Option Card
PowerFlex 755T drive*

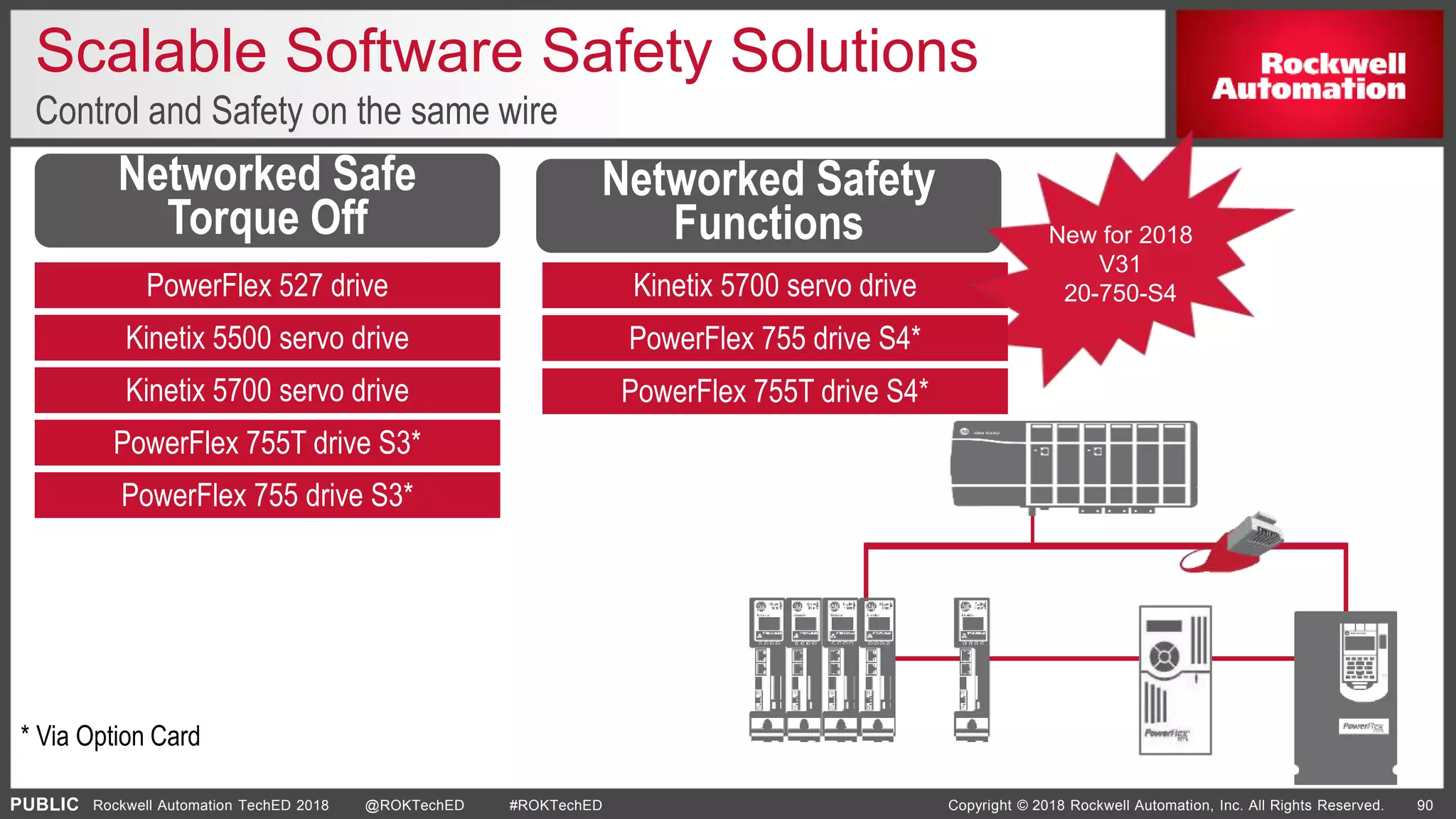

Scalable Software Safety Solutions
Control and Safety on the same wire
PowerFlex 527 drive
Kinetix 5500 servo drive
PowerFlex 755T drive S3*
PowerFlex 755 drive S3*
Networked Safe
Torque Off
* Via Option Card
Networked Safety
Functions
New for 2018
V31
20-750-S4
PowerFlex 755 drive S4*
PowerFlex 755T drive S4*

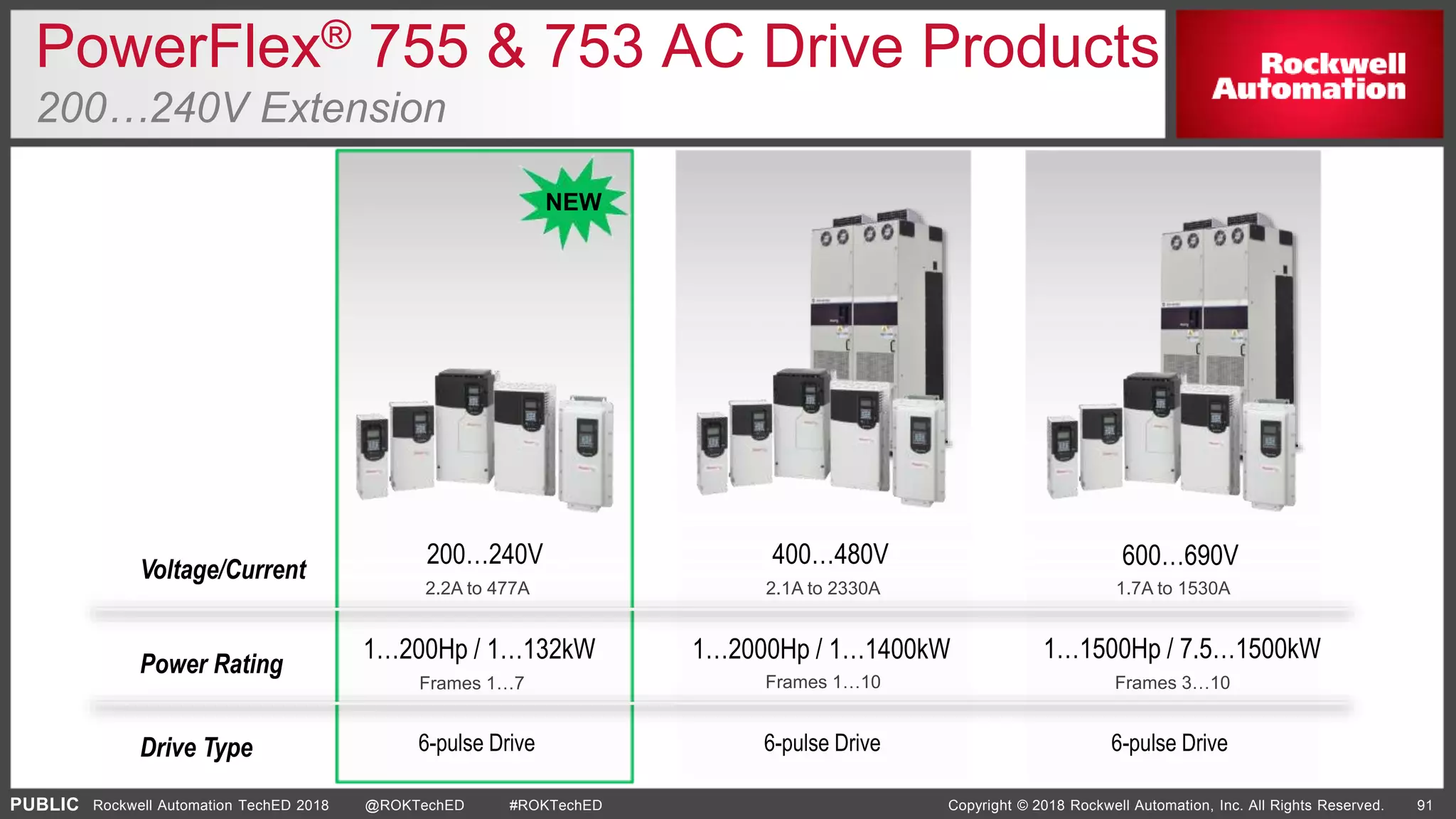

PowerFlex® 755 & 753 AC Drive Products
200…240V Extension
400…480V 600…690V
2.1A to 2330A 1.7A to 1530A
6-pulse Drive6-pulse Drive
200…240V
2.2A to 477A
6-pulse Drive
1…200Hp / 1…132kW
Frames 1…7
1…2000Hp / 1…1400kW
Frames 1…10
1…1500Hp / 7.5…1500kW
Frames 3…10
Voltage/Current
Power Rating
Drive Type
NEW

Scalable Solutions
PowerFlex® 753 PowerFlex® 755 PowerFlex® 755TR PowerFlex® 755TMPowerFlex® 755TL
1 to 400 Hp/ 0.75 to 270 kW
Regeneration
& Low Harmonic
Common Bus
Drive System
Low Harmonic
Speed & Torque Control
1 to 2000 Hp/ 0.75 to 1500 kW 250 to 1800 Hp/ 160 to 1400 kW
Speed, Torque
& Position Control
250 to 3000 Hp/ 160 to 2000 kW 250 to 3000 Hp/ 160 to 2000 kW
6-pulse Drive
Speed, Torque
& Position Control
Speed, Torque
& Position Control
Speed, Torque
& Position Control
6-pulse Drive
NEW NEW NEW

Scalable Solutions
TotalFORCE Technology
 FORCE Motor Control (4th Generation)
 Advanced Power Control Capabilities
 Regeneration, Harmonic Mitigation & Power Factor
 Internal Distributed Framework
 Motor Shaft Performance, Dynamic Power Up
 Adaptive Control
 Load Observer, Adaptive Tuning
 Predictive Analytics for Maintenance
 Actively monitors key components and provides timely
notifications
NEW

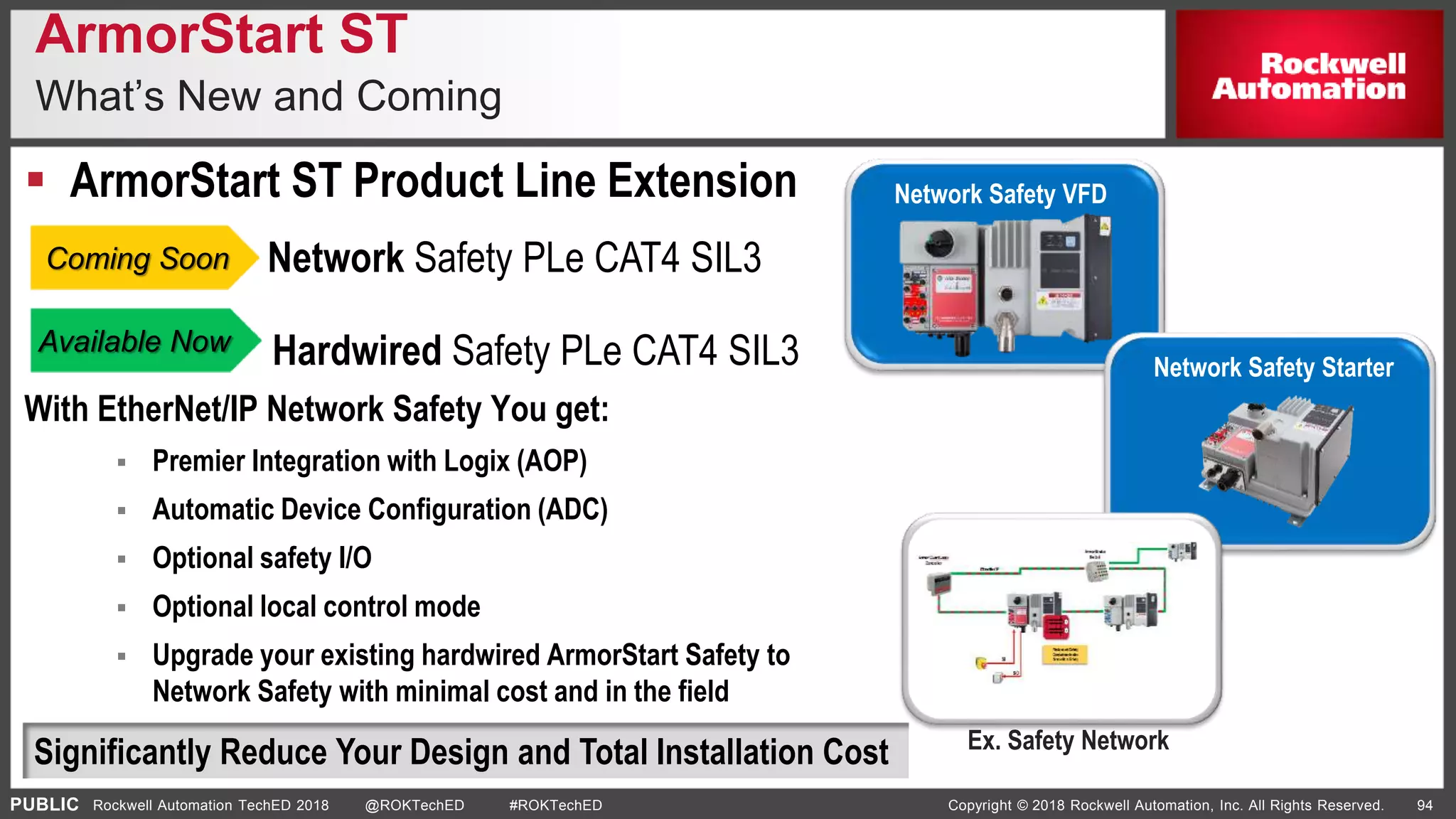

 ArmorStart ST Product Line Extension
With EtherNet/IP Network Safety You get:
 Premier Integration with Logix (AOP)
 Automatic Device Configuration (ADC)
 Optional safety I/O
 Optional local control mode
 Upgrade your existing hardwired ArmorStart Safety to
Network Safety with minimal cost and in the field
ArmorStart ST
What’s New and Coming
Network Safety VFD
Network Safety Starter
Coming Soon
Available Now
Network Safety PLe CAT4 SIL3
Hardwired Safety PLe CAT4 SIL3
Ex. Safety Network
Significantly Reduce Your Design and Total Installation Cost

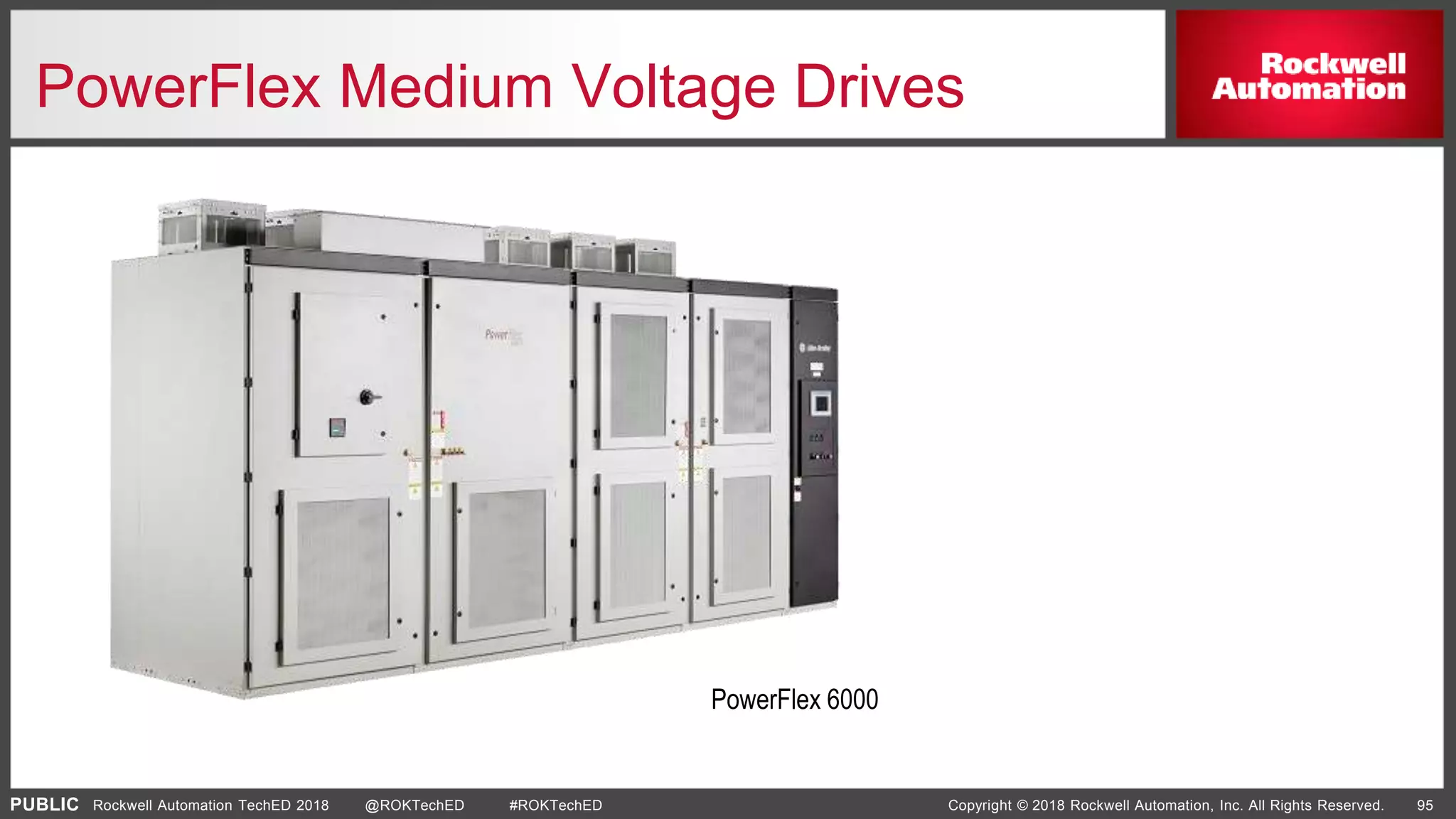

PowerFlex Medium Voltage Drives

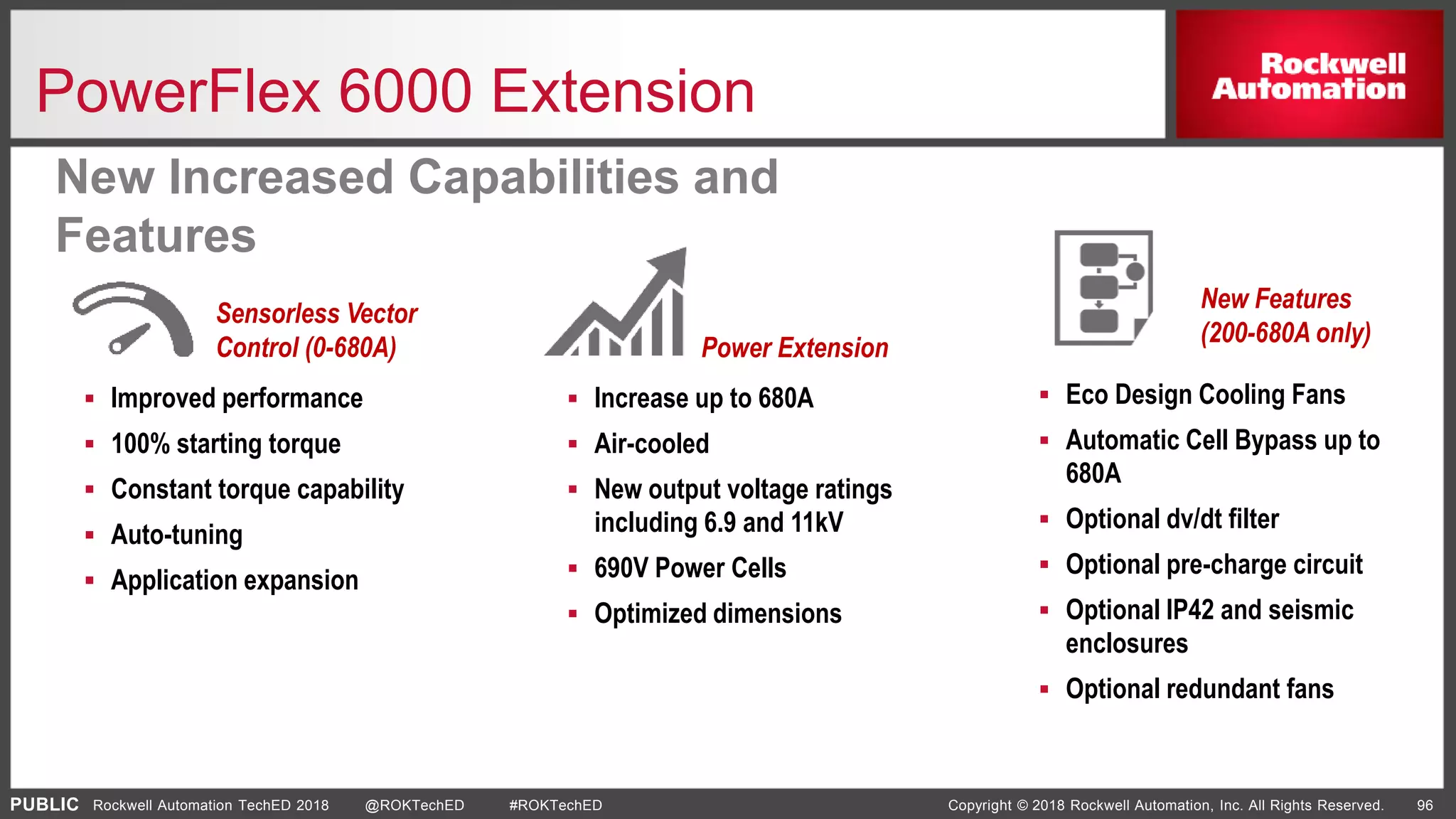

PowerFlex 6000

Sensorless Vector
Control (0-680A) Power Extension
New Features
(200-680A only)
 Improved performance
 100% starting torque
 Constant torque capability
 Auto-tuning
 Application expansion
 Eco Design Cooling Fans
 Automatic Cell Bypass up to
680A
 Optional dv/dt filter
 Optional pre-charge circuit
 Optional IP42 and seismic
enclosures
 Optional redundant fans
 Increase up to 680A
 Air-cooled
 New output voltage ratings
including 6.9 and 11kV
 690V Power Cells
 Optimized dimensions
New Increased Capabilities and
Features
PowerFlex 6000 Extension

Share your Feedback
Please complete a session survey on the mobile app
 Download the Rockwell Automation Events App
 Select Rockwell Automation TechED and login
 Click on Session Surveys or Schedule in the main
menu
 Select the session you are attending
 Click on the survey tab
 Complete the survey and submit

www.rockwellautomation.com
PUBLICPUBLIC Copyright © 2018 Rockwell Automation, Inc. All Rights Reserved. 2018 Rockwell Automation TechED™ Event #ROKTechED
#ROKTechED
What’s New in the Integrated Architecture® System Hardware

What's new in the integrated architecture hardware

More Related Content

Similar to What's new in the integrated architecture hardware

More from IntelligentManufacturingInstitute

Recently uploaded

What's new in the integrated architecture hardware

Editor's Notes
