The TNSNAMES.ORA file Networking Tips

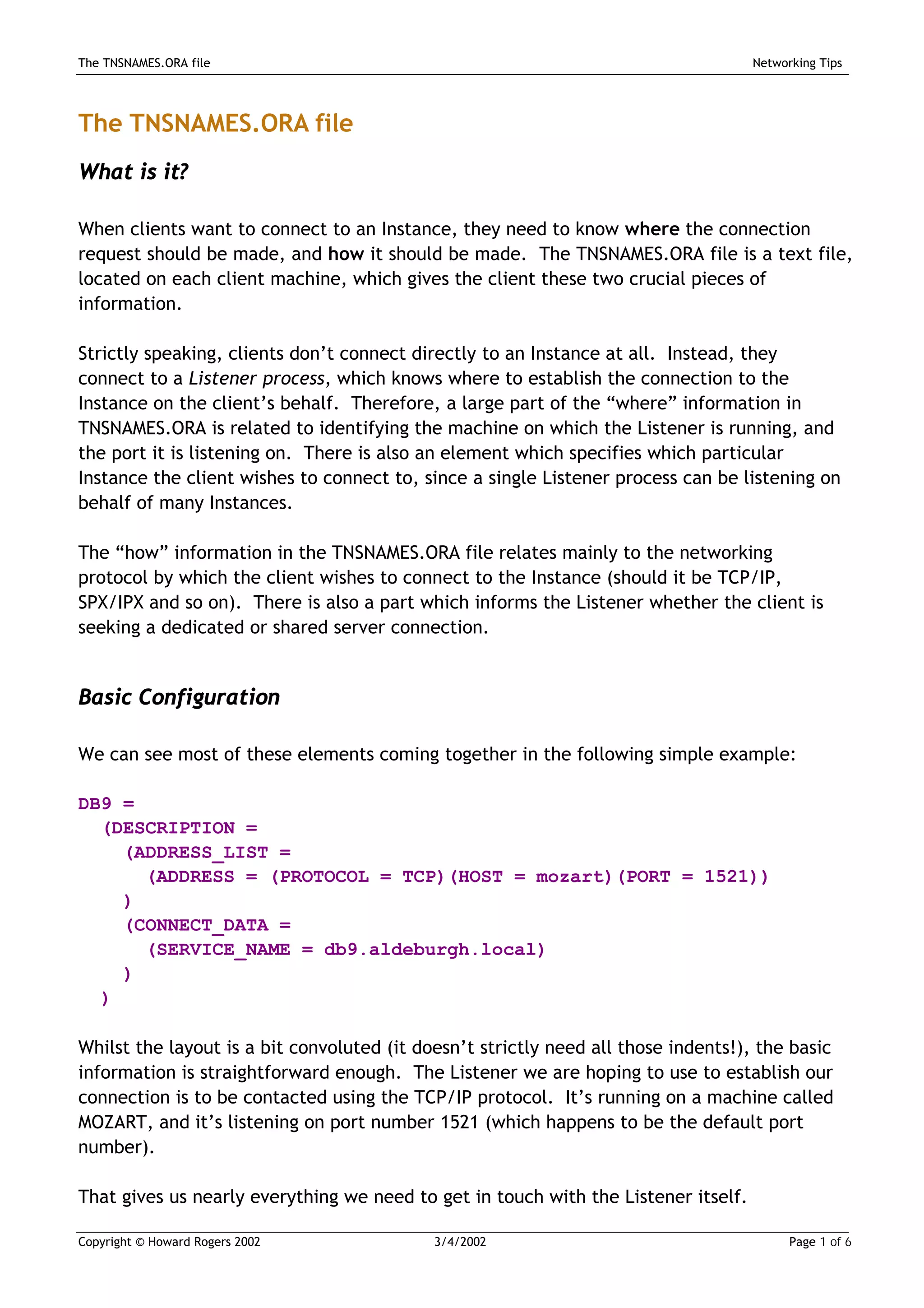

The TNSNAMES.ORA file
What is it?

When clients want to connect to an Instance, they need to know where the connection
request should be made, and how it should be made. The TNSNAMES.ORA file is a text file,
located on each client machine, which gives the client these two crucial pieces of
information.

Strictly speaking, clients don’t connect directly to an Instance at all. Instead, they
connect to a Listener process, which knows where to establish the connection to the
Instance on the client’s behalf. Therefore, a large part of the “where” information in
TNSNAMES.ORA is related to identifying the machine on which the Listener is running, and
the port it is listening on. There is also an element which specifies which particular
Instance the client wishes to connect to, since a single Listener process can be listening on
behalf of many Instances.

The “how” information in the TNSNAMES.ORA file relates mainly to the networking
protocol by which the client wishes to connect to the Instance (should it be TCP/IP,
SPX/IPX and so on). There is also a part which informs the Listener whether the client is
seeking a dedicated or shared server connection.

Basic Configuration

We can see most of these elements coming together in the following simple example:

DB9 =
(DESCRIPTION =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = TCP)(HOST = mozart)(PORT = 1521))
)
(CONNECT_DATA =
(SERVICE_NAME = db9.aldeburgh.local)
)
)

Whilst the layout is a bit convoluted (it doesn’t strictly need all those indents!), the basic
information is straightforward enough. The Listener we are hoping to use to establish our
connection is to be contacted using the TCP/IP protocol. It’s running on a machine called
MOZART, and it’s listening on port number 1521 (which happens to be the default port
number).

That gives us nearly everything we need to get in touch with the Listener itself.

Copyright © Howard Rogers 2002 3/4/2002 Page 1 of 6

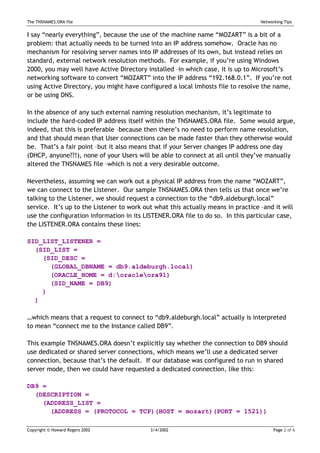

I say “nearly everything”, because the use of the machine name “MOZART” is a bit of a
problem: that actually needs to be turned into an IP address somehow. Oracle has no
mechanism for resolving server names into IP addresses of its own, but instead relies on
standard, external network resolution methods. For example, if you’re using Windows
2000, you may well have Active Directory installed –in which case, it is up to Microsoft’s
networking software to convert “MOZART” into the IP address “192.168.0.1”. If you’re not
using Active Directory, you might have configured a local lmhosts file to resolve the name,
or be using DNS.

In the absence of any such external naming resolution mechanism, it’s legitimate to
include the hard-coded IP address itself within the TNSNAMES.ORA file. Some would argue,
indeed, that this is preferable –because then there’s no need to perform name resolution,
and that should mean that User connections can be made faster than they otherwise would
be. That’s a fair point –but it also means that if your Server changes IP address one day
(DHCP, anyone??!), none of your Users will be able to connect at all until they’ve manually
altered the TNSNAMES file –which is not a very desirable outcome.

Nevertheless, assuming we can work out a physical IP address from the name “MOZART”,
we can connect to the Listener. Our sample TNSNAMES.ORA then tells us that once we’re
talking to the Listener, we should request a connection to the “db9.aldeburgh.local”
service. It’s up to the Listener to work out what this actually means in practice –and it will
use the configuration information in its LISTENER.ORA file to do so. In this particular case,
the LISTENER.ORA contains these lines:

SID_LIST_LISTENER =
(SID_LIST =
(SID_DESC =
(GLOBAL_DBNAME = db9.aldeburgh.local)
(ORACLE_HOME = d:oracleora91)
(SID_NAME = DB9)
)
)

…which means that a request to connect to “db9.aldeburgh.local” actually is interpreted
to mean “connect me to the Instance called DB9”.

This example TNSNAMES.ORA doesn’t explicitly say whether the connection to DB9 should
use dedicated or shared server connections, which means we’ll use a dedicated server
connection, because that’s the default. If our database was configured to run in shared
server mode, then we could have requested a dedicated connection, like this:

DB9 =
(DESCRIPTION =
(ADDRESS_LIST =



)
(CONNECT_DATA =
(SERVER=DEDICATED)
)
)

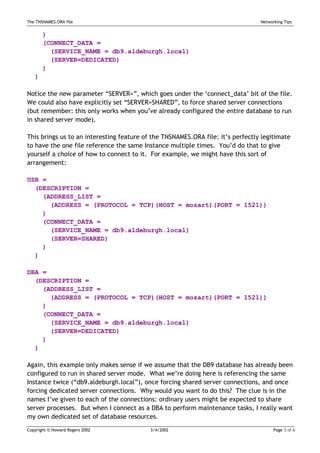

Notice the new parameter “SERVER=”, which goes under the ‘connect_data’ bit of the file.
We could also have explicitly set “SERVER=SHARED”, to force shared server connections
(but remember: this only works when you’ve already configured the entire database to run
in shared server mode).

This brings us to an interesting feature of the TNSNAMES.ORA file: it’s perfectly legitimate
to have the one file reference the same Instance multiple times. You’d do that to give
yourself a choice of how to connect to it. For example, we might have this sort of
arrangement:

USR =
(DESCRIPTION =
(ADDRESS_LIST =
)
(CONNECT_DATA =
(SERVER=SHARED)
)
)

DBA =
(DESCRIPTION =
(ADDRESS_LIST =
)
(CONNECT_DATA =
(SERVER=DEDICATED)
)
)

Again, this example only makes sense if we assume that the DB9 database has already been
configured to run in shared server mode. What we’re doing here is referencing the same
Instance twice (“db9.aldeburgh.local”), once forcing shared server connections, and once
forcing dedicated server connections. Why would you want to do this? The clue is in the
names I’ve given to each of the connections: ordinary users might be expected to share
server processes. But when I connect as a DBA to perform maintenance tasks, I really want
my own dedicated set of database resources.

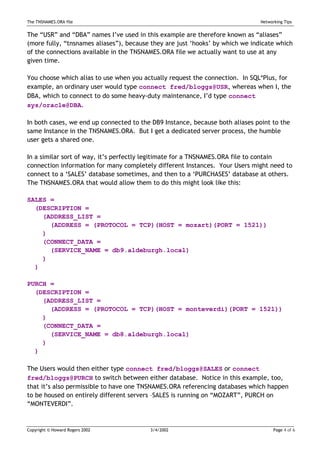

The “USR” and “DBA” names I’ve used in this example are therefore known as “aliases”
(more fully, “tnsnames aliases”), because they are just ‘hooks’ by which we indicate which
of the connections available in the TNSNAMES.ORA file we actually want to use at any
given time.

You choose which alias to use when you actually request the connection. In SQL*Plus, for
example, an ordinary user would type connect fred/bloggs@USR, whereas when I, the
DBA, which to connect to do some heavy-duty maintenance, I’d type connect
sys/oracle@DBA.

In both cases, we end up connected to the DB9 Instance, because both aliases point to the
same Instance in the TNSNAMES.ORA. But I get a dedicated server process, the humble
user gets a shared one.

In a similar sort of way, it’s perfectly legitimate for a TNSNAMES.ORA file to contain
connection information for many completely different Instances. Your Users might need to
connect to a ‘SALES’ database sometimes, and then to a ‘PURCHASES’ database at others.
The TNSNAMES.ORA that would allow them to do this might look like this:

SALES =
(DESCRIPTION =
(ADDRESS_LIST =
)
(CONNECT_DATA =
)
)

PURCH =
(DESCRIPTION =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = TCP)(HOST = monteverdi)(PORT = 1521))
)
(CONNECT_DATA =
)
)

The Users would then either type connect fred/bloggs@SALES or connect
fred/bloggs@PURCH to switch between either database. Notice in this example, too,
that it’s also permissible to have one TNSNAMES.ORA referencing databases which happen
to be housed on entirely different servers –SALES is running on “MOZART”, PURCH on
“MONTEVERDI”.

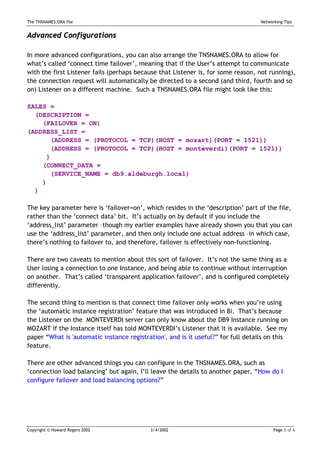

Advanced Configurations

In more advanced configurations, you can also arrange the TNSNAMES.ORA to allow for
what’s called ‘connect time failover’, meaning that if the User’s attempt to communicate
with the first Listener fails (perhaps because that Listener is, for some reason, not running),
the connection request will automatically be directed to a second (and third, fourth and so
on) Listener on a different machine. Such a TNSNAMES.ORA file might look like this:

SALES =
(DESCRIPTION =
(FAILOVER = ON)
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = TCP)(HOST = monteverdi)(PORT = 1521))
)
(CONNECT_DATA =
)
)

The key parameter here is ‘failover=on’, which resides in the ‘description’ part of the file,
rather than the ‘connect data’ bit. It’s actually on by default if you include the
‘address_list’ parameter –though my earlier examples have already shown you that you can
use the ‘address_list’ parameter, and then only include one actual address –in which case,
there’s nothing to failover to, and therefore, failover is effectively non-functioning.

There are two caveats to mention about this sort of failover. It’s not the same thing as a
User losing a connection to one Instance, and being able to continue without interruption
on another. That’s called ‘transparent application failover’, and is configured completely
differently.

The second thing to mention is that connect time failover only works when you’re using
the ‘automatic instance registration’ feature that was introduced in 8i. That’s because
the Listener on the MONTEVERDI server can only know about the DB9 Instance running on
MOZART if the Instance itself has told MONTEVERDI’s Listener that it is available. See my
paper “What is 'automatic instance registration', and is it useful?” for full details on this
feature.

There are other advanced things you can configure in the TNSNAMES.ORA, such as
‘connection load balancing’ but again, I’ll leave the details to another paper, “How do I
configure failover and load balancing options?”

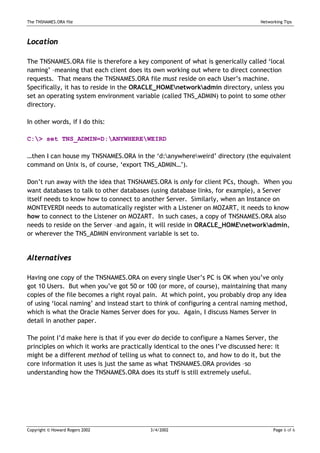

Location

The TNSNAMES.ORA file is therefore a key component of what is generically called ‘local
naming’ –meaning that each client does its own working out where to direct connection
requests. That means the TNSNAMES.ORA file must reside on each User’s machine.
Specifically, it has to reside in the ORACLE_HOMEnetworkadmin directory, unless you
set an operating system environment variable (called TNS_ADMIN) to point to some other
directory.

In other words, if I do this:

C:> set TNS_ADMIN=D:ANYWHEREWEIRD

…then I can house my TNSNAMES.ORA in the ‘d:anywhereweird’ directory (the equivalent
command on Unix is, of course, ‘export TNS_ADMIN…’).

Don’t run away with the idea that TNSNAMES.ORA is only for client PCs, though. When you
want databases to talk to other databases (using database links, for example), a Server
itself needs to know how to connect to another Server. Similarly, when an Instance on
MONTEVERDI needs to automatically register with a Listener on MOZART, it needs to know
how to connect to the Listener on MOZART. In such cases, a copy of TNSNAMES.ORA also
needs to reside on the Server –and again, it will reside in ORACLE_HOMEnetworkadmin,
or wherever the TNS_ADMIN environment variable is set to.

Alternatives

Having one copy of the TNSNAMES.ORA on every single User’s PC is OK when you’ve only
got 10 Users. But when you’ve got 50 or 100 (or more, of course), maintaining that many
copies of the file becomes a right royal pain. At which point, you probably drop any idea
of using ‘local naming’ and instead start to think of configuring a central naming method,
which is what the Oracle Names Server does for you. Again, I discuss Names Server in
detail in another paper.

The point I’d make here is that if you ever do decide to configure a Names Server, the
principles on which it works are practically identical to the ones I’ve discussed here: it
might be a different method of telling us what to connect to, and how to do it, but the
core information it uses is just the same as what TNSNAMES.ORA provides –so
understanding how the TNSNAMES.ORA does its stuff is still extremely useful.
