An electromagnetic relay is an electrically operated switch that is used to control a circuit by an electromagnetic mechanism. It consists of a coil of wire, a movable armature, and one or more sets of contacts. When a current flows through the coil, it creates a magnetic field that activates the armature and moves it to open or close the contacts, allowing or interrupting the flow of current in the circuit. Electromagnetic relays are commonly used in control systems and electrical circuits to isolate, amplify, and switch electrical signals.

1. What Is
Electromagnetic
Relay and Its
Types?

2. What Is an Electromagnetic
Relay?
Today, you’ll
be able to:
What Are the Uses of
Electromagnetic Relay?
What Are the Types of
Electromagnetic Relay?

3. What Is an
Electromagnetic
Relay?
An electromagnetic relay is an electrically operated
switch that is used to control a circuit by an
electromagnetic mechanism. It consists of a coil of
wire, a movable armature, and one or more sets of
contacts. When a current flows through the coil, it
creates a magnetic field that activates the armature
and moves it to open or close the contacts, allowing or
interrupting the flow of current in the circuit

4. What Are the Uses of Electromagnetic Relay?
Electromagnetic relays are used in a wide variety of applications, including electrical and electronic circuits.
Some of the most common uses of electromagnetic relays include the following:
• Control circuits: Electromagnetic relays are often used in control circuits, where they are used to switch
electrical signals on and off in response to a control signal. For example, an electromagnetic relay might
be used to control the flow of electricity to a motor, allowing it to start and stop in response to a signal
from a controller.
• Protection circuits: Electromagnetic relays are also used in protection circuits, where they are used to
interrupt the flow of electricity in the event of an overcurrent or other fault condition. This helps to prevent
damage to electrical equipment and prevent accidents.
• Amplification: Electromagnetic relays can be used to amplify electrical signals by switching them on and
off rapidly. This is often used in radio and other communication systems, where the relay can be used to
switch between different antennae or transmitters.
• Timing: Electromagnetic relays can be used in timing circuits, where they are used to switch circuits on
and off at specific intervals. This can be used in a variety of applications, such as controlling the timing of
streetlights or other electrical devices.

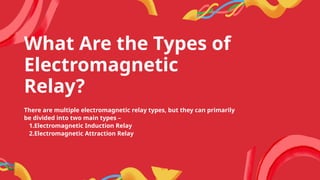

5. What Are the Types of
Electromagnetic
Relay?
There are multiple electromagnetic relay types, but they can primarily
be divided into two main types –
1.Electromagnetic Induction Relay
2.Electromagnetic Attraction Relay

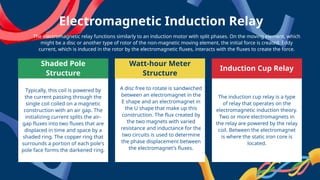

6. Shaded Pole
Structure
Watt-hour Meter
Structure
Induction Cup Relay
Typically, this coil is powered by
the current passing through the
single coil coiled on a magnetic
construction with an air gap. The
initializing current splits the air-
gap fluxes into two fluxes that are
displaced in time and space by a
shaded ring. The copper ring that
surrounds a portion of each pole's
pole face forms the darkened ring.
A disc free to rotate is sandwiched
between an electromagnet in the
E shape and an electromagnet in
the U shape that make up this
construction. The flux created by
the two magnets with varied
resistance and inductance for the
two circuits is used to determine
the phase displacement between
the electromagnet's fluxes.
The electromagnetic relay functions similarly to an induction motor with split phases. On the moving element, which
might be a disc or another type of rotor of the non-magnetic moving element, the initial force is created. Eddy
current, which is induced in the rotor by the electromagnetic fluxes, interacts with the fluxes to create the force.
Electromagnetic Induction Relay
The induction cup relay is a type
of relay that operates on the
electromagnetic induction theory.
Two or more electromagnets in
the relay are powered by the relay
coil. Between the electromagnet
is where the static iron core is
located.

7. Balanced Beam
Relay
Hinged Armature
Relay
By comparing two values because
the electromagnetic force it
develops changes with the square
of the ampere-turn. Such relays
have a low operating current ratio.
The relay will tend to overshoot on
a quick operation if it is configured
for fast operation.
By including a permanent
magnet, the sensitivity of the
relay can be raised for DC
operation. The polarized moving
relay is another name for this
relay.
The armature of this relay is drawn to the magnet's pole. The moving element is subjected to an electromagnetic
force that is proportional to the square of the current flowing through the coil. Both the alternating and direct
currents are handled by this relay.
Electromagnetic Attraction Relay
