This document summarizes strategies for improving the performance of SPARQL queries against a large dataset of European public procurement notices. The strategies include: rewriting queries to match triples from specific to general and add filters early; using the LIMIT clause; splitting enhanced queries into simple subqueries; and parallelizing query execution. Applying these techniques, especially parallelization, reduced query execution time from over 20 seconds to under 12 seconds in tests using an 11 million triple dataset.

1. Query Expansion Methods and
Performance Evaluation
for
Reusing Linking Open Data of the
European Public Procurement Notices
José María Álvarez Rodríguez
WESO-Universidad de Oviedo
http://purl.org/weso/moldeas/
Tecnologías de Linked Data y sus aplicaciones en España (TLDE)
CAEPIA 2011-Tenerife (Spain)
8th of November, 2011
Code: TSI-020100-2010-919

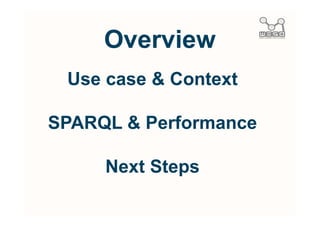

2. Overview
Use case & Context
SPARQL & Performance
Next Steps

3. Objective
Creation of a pan-european
e-procurement platform

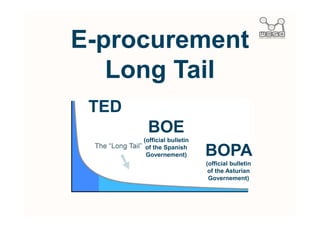

4. E-procurement
Long Tail
TED
BOE
(official bulletin
of the Spanish
Governement) BOPA
(official bulletin
of the Asturian
Governement)

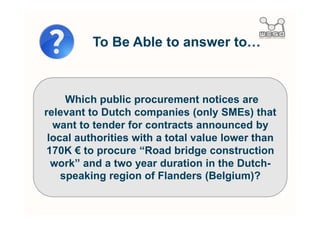

5. To Be Able to answer to…
Which public procurement notices are
relevant to Dutch companies (only SMEs) that
want to tender for contracts announced by
local authorities with a total value lower than
170K € to procure “Road bridge construction
work” and a two year duration in the Dutch-
speaking region of Flanders (Belgium)?

6. Structuring public procurement notices
d
Providing new semantic-
based services
yD Z ^
^
^
D D
K W
KW LOD
enrichment
K
W ^
Ws Z
Easing the access to the
published data using the
Ehd^ LOD approach
Transforming government classifications

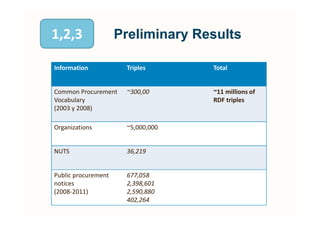

7. Preliminary Results
/ d d
W
s Z
K
Ehd^
W

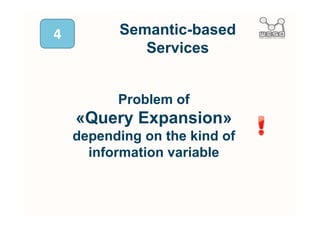

8. Semantic-based
Services
Problem of
«Query Expansion»
depending on the kind of
information variable

9. Methods of«Query
Expansion»
/ '
d Z
E
'
^ ^ h ,
^
Z

10. Remembering…
Which public procurement notices are
relevant to Dutch companies (only SMEs) that
want to tender for contracts announced by
local authorities with a total value lower than
170K € to procure “Road bridge construction
work” and a two year duration in the Dutch-
speaking region of Flanders (Belgium)?

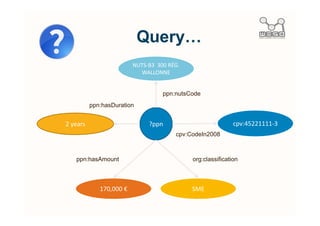

11. cpv:45221111-3
NL
Query…
Ehd^ Z'
t KEE
ppn:nutsCode
ppn:hasDuration
cpv:CodeIn2008
ppn:hasAmount org:classification
^D

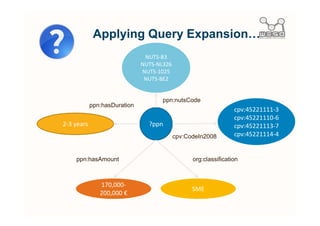

12. cpv:45221111-3
NL
Applying Query Expansion…
Ehd^
Ehd^ E
Ehd^
Ehd^
ppn:nutsCode
ppn:hasDuration
cpv:CodeIn2008
ppn:hasAmount org:classification
^D

13. Example of SPARQL
query
SELECT DISTINCT * WHERE {
?ppn rdf:type http://purl.org/weso/ppn/def#ppn.
?ppn ppn:nutsCode ?nutsCode.
?ppn cpv:codeIn2008 ?cpvCode.
?ppn ppn:hasDuration ?duration
?ppn dc:identifier ?id.
?ppn dc:date ?date .
? ppn ppn:hasAmount ?amount.
FILTER(? cpvCode = cpv:45221111-3 ... ) .
FILTER (
(xsd:double(?amount) = xsd:long(170,000))
(xsd:double(?amount) = xsd:long(200,000)) ).
. FILTER(?nutsCode = nuts:B3 ... ) .
FILTER (
(xsd:long(?duration) = xsd:long(2))
(xsd:long(?duration) = xsd:long(3)) ).
}

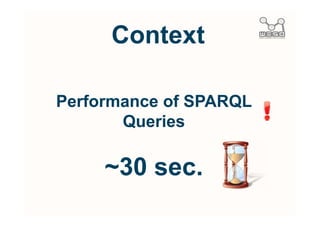

14. Context
Performance of SPARQL
Queries
~30 sec.

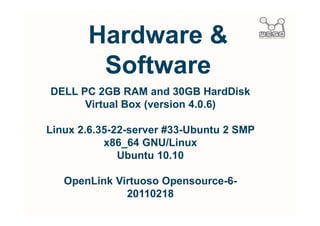

15. Hardware
Software
DELL PC 2GB RAM and 30GB HardDisk
Virtual Box (version 4.0.6)
Linux 2.6.35-22-server #33-Ubuntu 2 SMP
x86_64 GNU/Linux
Ubuntu 10.10
OpenLink Virtuoso Opensource-6-
20110218

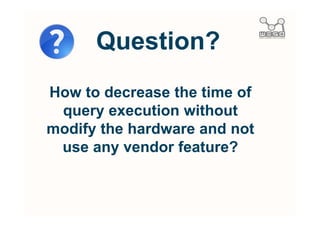

16. Question?
How to decrease the time of
query execution without
modify the hardware and not
use any vendor feature?

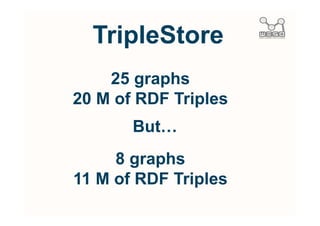

17. TripleStore
25 graphs
20 M of RDF Triples
But…
8 graphs
11 M of RDF Triples

18. Focus on..
The generation of SPARQL
queries

19. Let’s start…
9 SPARQL Queries
3 executions

20. d ^ /D/d /dZ 'Z W,^ ^ W d
d
d
d
d
d
d
d
d
d
d
d
d
d
d
d

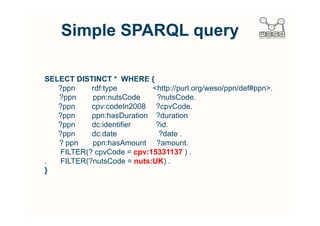

21. Simple SPARQL query
SELECT DISTINCT * WHERE {
?ppn rdf:type http://purl.org/weso/ppn/def#ppn.
?ppn ppn:nutsCode ?nutsCode.
?ppn cpv:codeIn2008 ?cpvCode.
?ppn ppn:hasDuration ?duration
?ppn dc:identifier ?id.
?ppn dc:date ?date .
? ppn ppn:hasAmount ?amount.
FILTER(? cpvCode = cpv:15331137 ) .
. FILTER(?nutsCode = nuts:UK) .
}

22. Simple Query
1 CPV Code
1 NUTS Code
Time: ~3,29 sec.

23. T1
Rewrite SPARQL queries:
Match triples from specific to
general
Filter as soon as possible

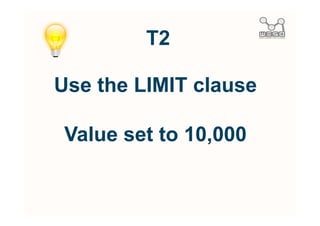

24. T2
Use the LIMIT clause
Value set to 10,000

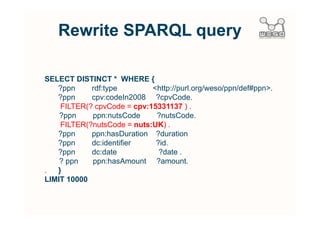

25. Rewrite SPARQL query
SELECT DISTINCT * WHERE {
?ppn rdf:type http://purl.org/weso/ppn/def#ppn.
?ppn cpv:codeIn2008 ?cpvCode.
FILTER(? cpvCode = cpv:15331137 ) .
?ppn ppn:nutsCode ?nutsCode.
FILTER(?nutsCode = nuts:UK) .
?ppn ppn:hasDuration ?duration
?ppn dc:identifier ?id.
?ppn dc:date ?date .
? ppn ppn:hasAmount ?amount.
. }
LIMIT 10000

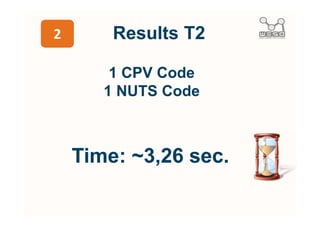

26. Results T2
1 CPV Code
1 NUTS Code
Time: ~3,26 sec.

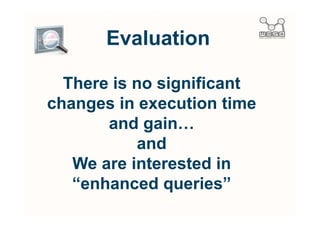

27. Evaluation
There is no significant
changes in execution time
and gain…
and
We are interested in
“enhanced queries”

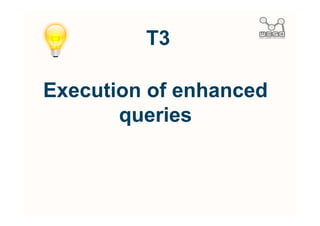

28. T3
Execution of enhanced
queries

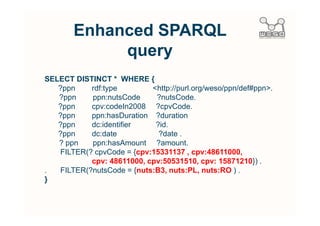

29. Enhanced SPARQL
query
SELECT DISTINCT * WHERE {
?ppn rdf:type http://purl.org/weso/ppn/def#ppn.
?ppn ppn:nutsCode ?nutsCode.
?ppn cpv:codeIn2008 ?cpvCode.
?ppn ppn:hasDuration ?duration
?ppn dc:identifier ?id.
?ppn dc:date ?date .
? ppn ppn:hasAmount ?amount.
FILTER(? cpvCode = {cpv:15331137 , cpv:48611000,
cpv: 48611000, cpv:50531510, cpv: 15871210}) .
. FILTER(?nutsCode = {nuts:B3, nuts:PL, nuts:RO ) .
}

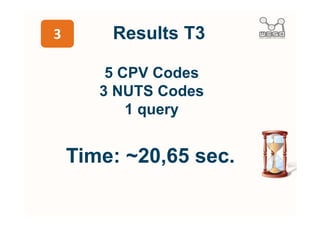

30. Results T3
5 CPV Codes
3 NUTS Codes
1 query
Time: ~20,65 sec.

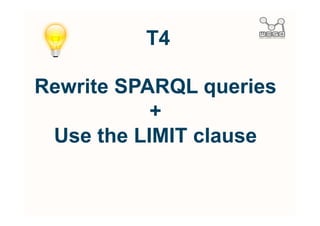

31. T4
Rewrite SPARQL queries
+
Use the LIMIT clause

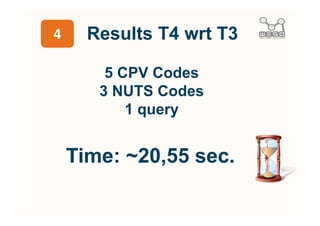

32. Results T4 wrt T3
5 CPV Codes
3 NUTS Codes
1 query
Time: ~20,55 sec.

33. Info
8 graphs
11 M of RDF Triples

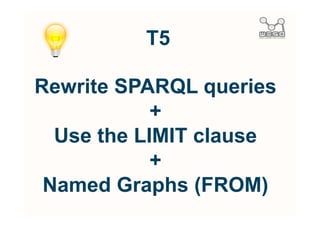

34. T5
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Named Graphs (FROM)

35. Results T5 wrt T3
5 CPV Codes
3 NUTS Codes
1 query
Time: ~20,65 sec.

36. T6
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Named Graphs (FROM)
+
Split into simple queries

37. Results T6 wrt T3
5 CPV Codes
3 NUTS Codes
4 Graphs
4 simple queries
Time: ~20,60 sec.

38. T6-1
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Named Graphs (FROM)
+
Split enhance query into simple queries
+
Parallelization of query execution
(ad-hoc map/reduce)

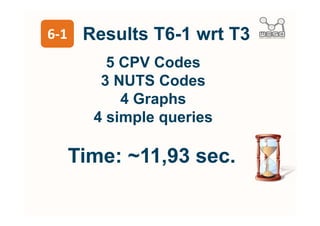

39. Results T6-1 wrt T3
5 CPV Codes
3 NUTS Codes
4 Graphs
4 simple queries
Time: ~11,93 sec.

40. T7
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Split enhance query into simple queries

41. Results T7 wrt T3
1 CPV Code (5)
3 NUTS Code
5 simple queries
Time: ~15,81 sec.

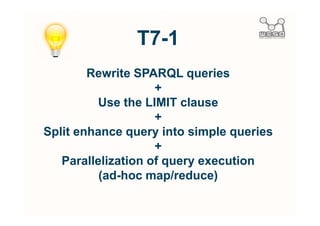

42. T7-1
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Split enhance query into simple queries
+
Parallelization of query execution
(ad-hoc map/reduce)

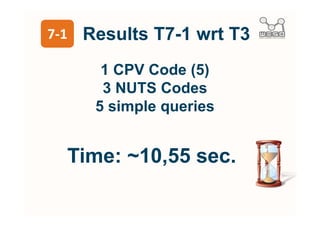

43. Results T7-1 wrt T3
1 CPV Code (5)
3 NUTS Codes
5 simple queries
Time: ~10,55 sec.

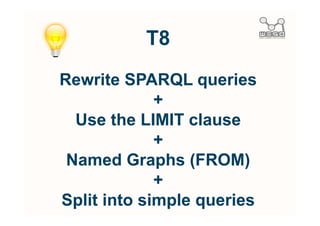

44. T8
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Named Graphs (FROM)
+
Split into simple queries

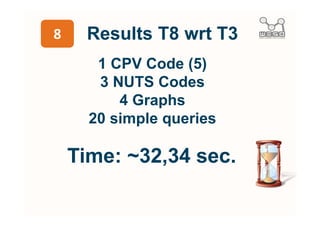

45. Results T8 wrt T3
1 CPV Code (5)
3 NUTS Codes
4 Graphs
20 simple queries
Time: ~32,34 sec.

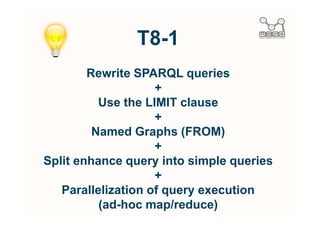

46. T8-1
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Named Graphs (FROM)
+
Split enhance query into simple queries
+
Parallelization of query execution
(ad-hoc map/reduce)

47. Results T8-1 wrt T3
1 CPV Code (5)
3 NUTS Codes
4 Graphs
20 simple queries
Time: ~18,45 sec.

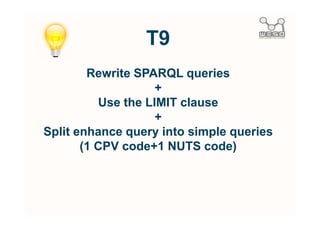

48. T9
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Split enhance query into simple queries
(1 CPV code+1 NUTS code)

49. Results T9 wrt T3
1 CPV Code (5)
1 NUTS Code (3)
15 simple queries
Time: ~22,462 sec.

50. T9-1
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Split enhance query into simple queries
(1 CPV code+1 NUTS code)
+
Parallelization of query execution
(ad-hoc map/reduce)

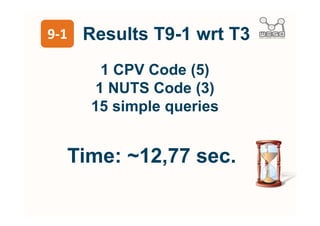

51. Results T9-1 wrt T3
1 CPV Code (5)
1 NUTS Code (3)
15 simple queries
Time: ~12,77 sec.

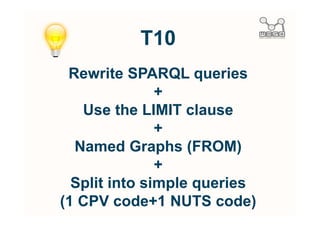

52. T10
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Named Graphs (FROM)
+
Split into simple queries
(1 CPV code+1 NUTS code)

53. Results T10 wrt T3
1 CPV Code (5)
1 NUTS Code (3)
4 Graphs
60 simple queries
Time: ~71,17 sec.

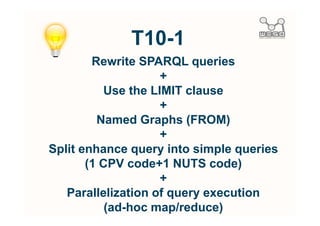

54. T10-1
Rewrite SPARQL queries
+
Use the LIMIT clause
+
Named Graphs (FROM)
+
Split enhance query into simple queries
(1 CPV code+1 NUTS code)
+
Parallelization of query execution
(ad-hoc map/reduce)

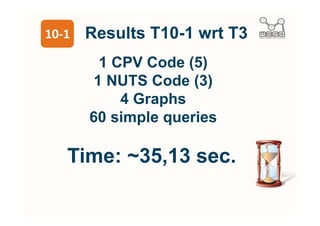

55. Results T10-1 wrt T3
1 CPV Code (5)
1 NUTS Code (3)
4 Graphs
60 simple queries
Time: ~35,13 sec.

56. d Table of Results
d '
d E
d
d E
d
d
d
d
d
d
d
d
d
d
d
d

57. Discussion
• The number of queries is a key-factor
• The number of CPV codes implies more
execution time
• The parallelization improves execution
time
• T7-1 is the best execution in terms of
time
• Rewrite SPARQL queries
• Use the LIMIT clause
• Split enhance query into simple queries
• Parallelization of query execution

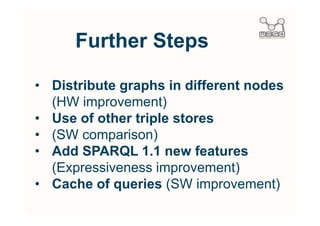

58. Further Steps
• Distribute graphs in different nodes
(HW improvement)
• Use of other triple stores
• (SW comparison)
• Add SPARQL 1.1 new features
(Expressiveness improvement)
• Cache of queries (SW improvement)

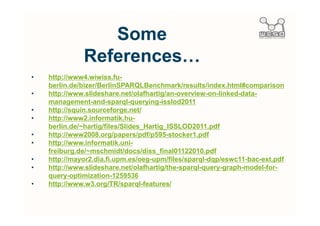

59. Some
References…
• http://www4.wiwiss.fu-
berlin.de/bizer/BerlinSPARQLBenchmark/results/index.html#comparison
• http://www.slideshare.net/olafhartig/an-overview-on-linked-data-
management-and-sparql-querying-isslod2011
• http://squin.sourceforge.net/
• http://www2.informatik.hu-
berlin.de/~hartig/files/Slides_Hartig_ISSLOD2011.pdf
• http://www2008.org/papers/pdf/p595-stocker1.pdf
• http://www.informatik.uni-
freiburg.de/~mschmidt/docs/diss_final01122010.pdf
• http://mayor2.dia.fi.upm.es/oeg-upm/files/sparql-dqp/eswc11-bac-ext.pdf
• http://www.slideshare.net/olafhartig/the-sparql-query-graph-model-for-
query-optimization-1259536
• http://www.w3.org/TR/sparql-features/
