This document discusses exposing auto-generated Swagger 2.0 documents from IBM Liberty. It provides an overview of the API economy and how REST APIs are increasingly being used as a bridge in IoT applications. It then introduces Swagger as an industry-leading specification for defining REST APIs and provides a YAML sample. The document outlines how Liberty helps with challenges in using Swagger, including merging documentation from annotations and files, providing a UI for development and testing, exploring available APIs, and generating code. It demonstrates how Liberty supports auto-discovery of APIs and pushing assets to API Connect.

1. Exposing auto-generated Swagger 2.0
documents from Liberty
Arthur De Magalhaes
Dave Sudlik

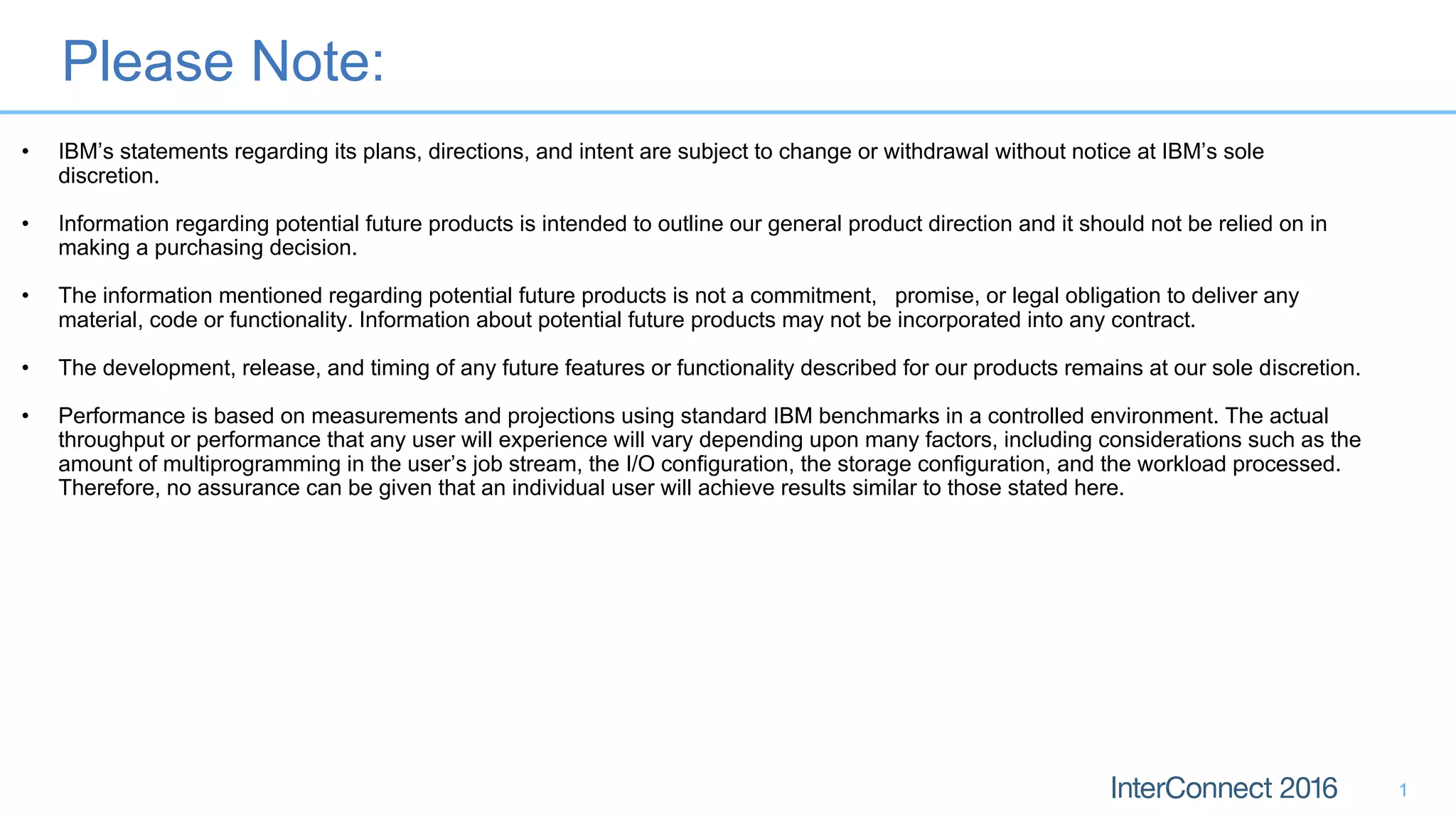

2. Please Note:
1
• IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole
discretion.
• Information regarding potential future products is intended to outline our general product direction and it should not be relied on in
making a purchasing decision.
• The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any
material, code or functionality. Information about potential future products may not be incorporated into any contract.
• The development, release, and timing of any future features or functionality described for our products remains at our sole discretion.
• Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual
throughput or performance that any user will experience will vary depending upon many factors, including considerations such as the
amount of multiprogramming in the user’s job stream, the I/O configuration, the storage configuration, and the workload processed.
Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.

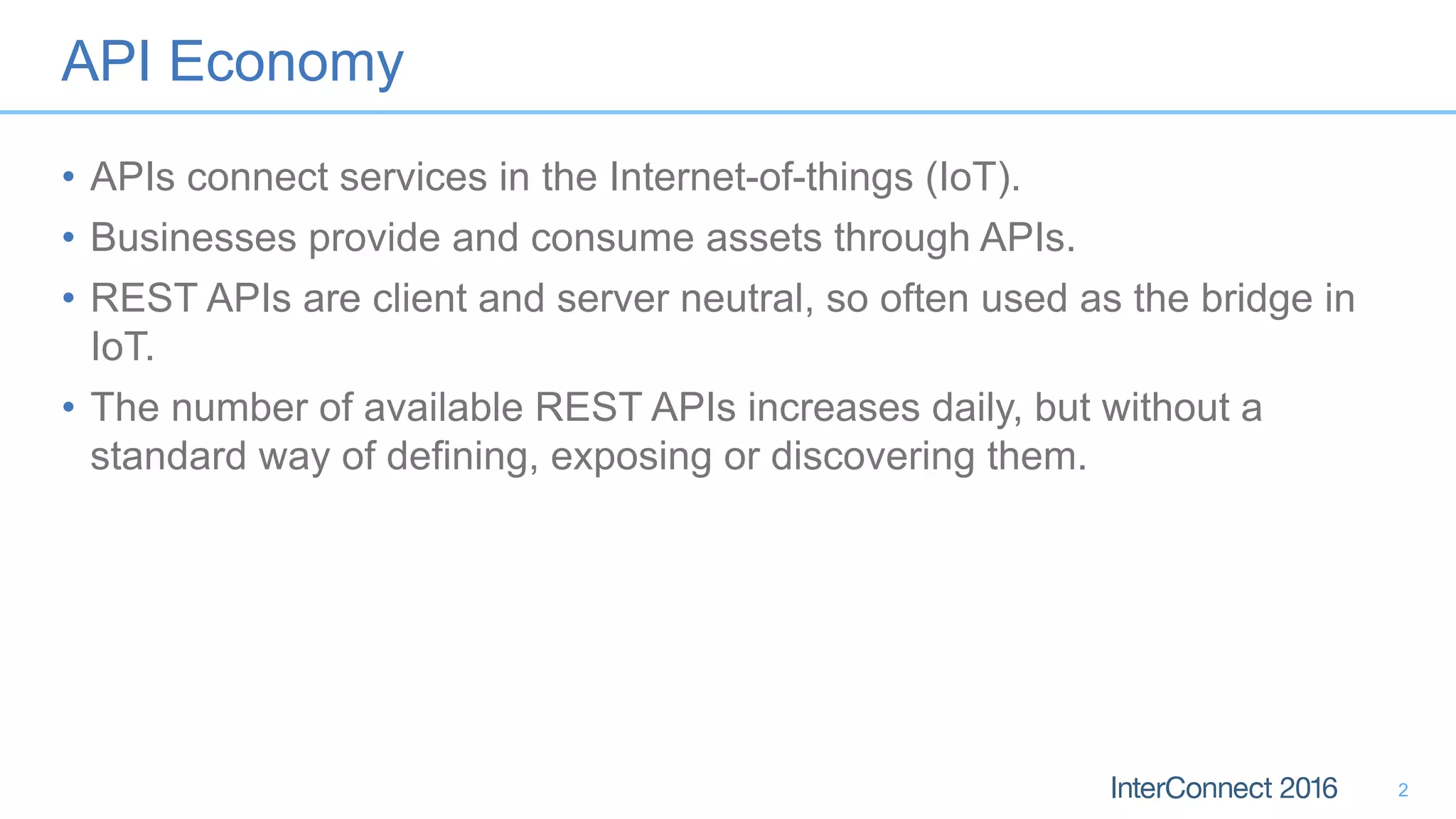

3. API Economy
• APIs connect services in the Internet-of-things (IoT).
• Businesses provide and consume assets through APIs.
• REST APIs are client and server neutral, so often used as the bridge in
IoT.
• The number of available REST APIs increases daily, but without a
standard way of defining, exposing or discovering them.
2

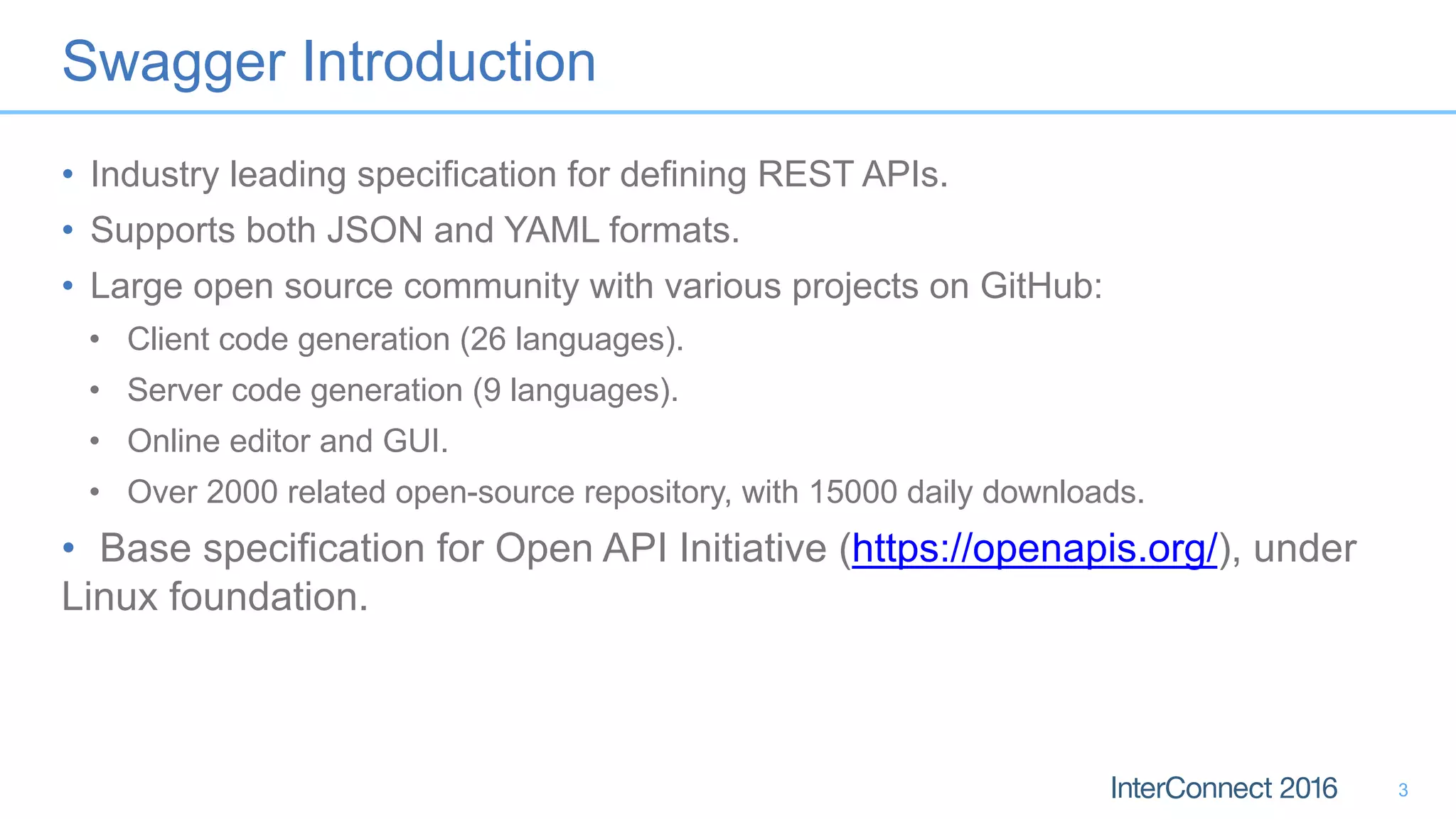

4. Swagger Introduction
• Industry leading specification for defining REST APIs.
• Supports both JSON and YAML formats.
• Large open source community with various projects on GitHub:
• Client code generation (26 languages).
• Server code generation (9 languages).
• Online editor and GUI.
• Over 2000 related open-source repository, with 15000 daily downloads.
• Base specification for Open API Initiative (https://openapis.org/), under
Linux foundation.
3

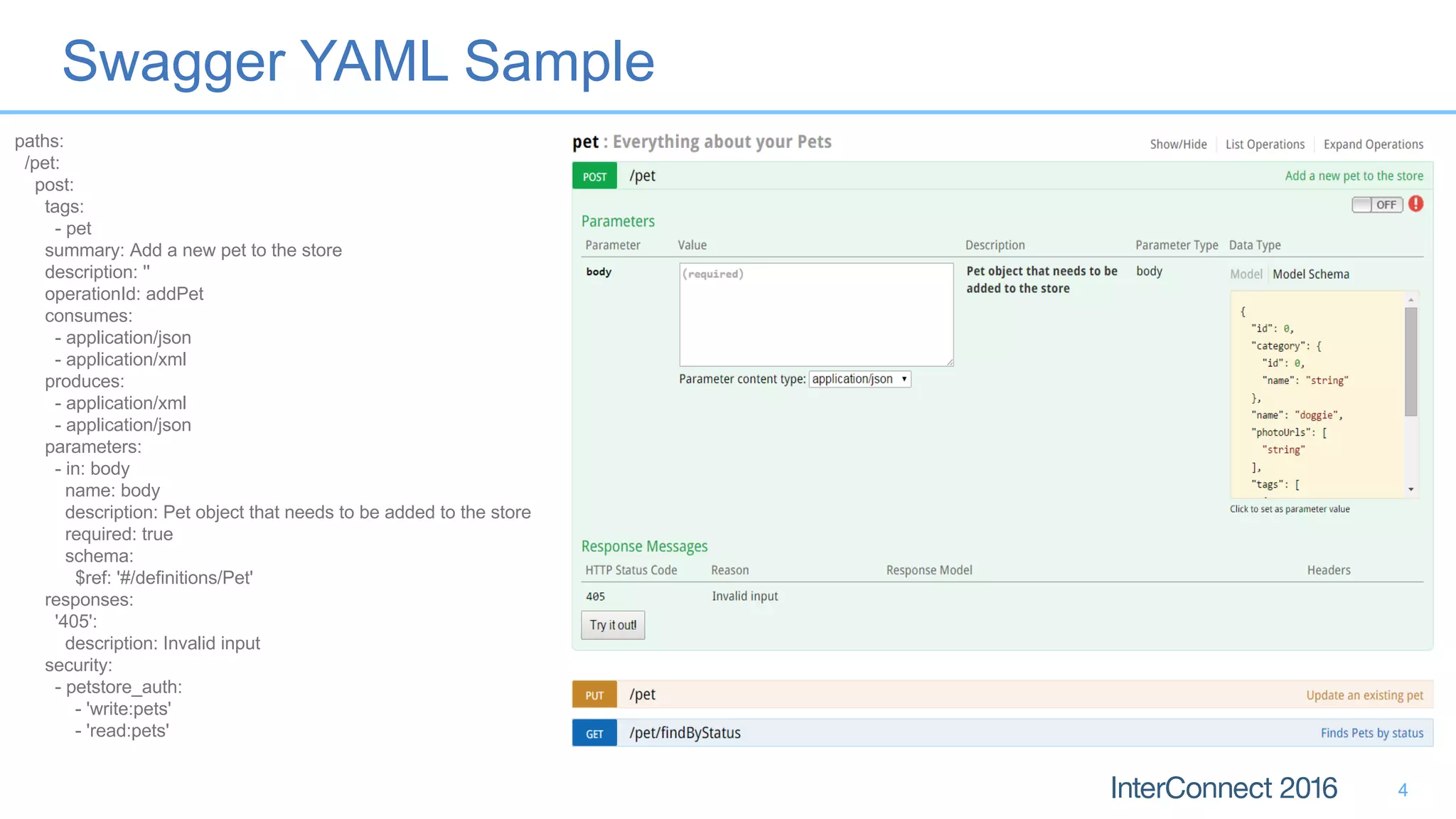

5. Swagger YAML Sample
4
paths:
/pet:
post:
tags:
- pet
summary: Add a new pet to the store
description: ''
operationId: addPet
consumes:
- application/json
- application/xml
produces:
- application/xml
- application/json
parameters:
- in: body
name: body
description: Pet object that needs to be added to the store
required: true
schema:
$ref: '#/definitions/Pet'
responses:
'405':
description: Invalid input
security:
- petstore_auth:
- 'write:pets'
- 'read:pets'

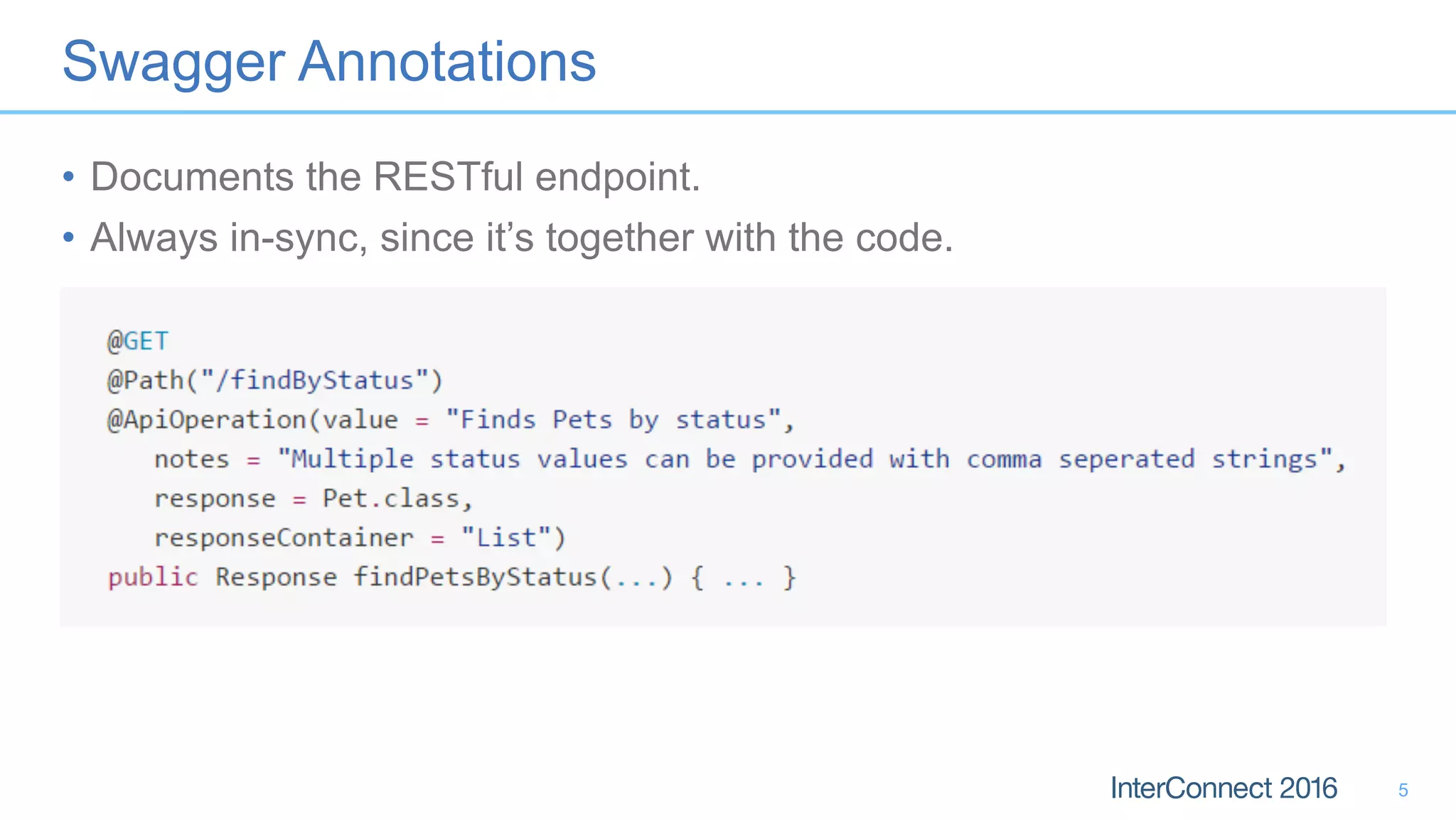

6. Swagger Annotations
• Documents the RESTful endpoint.
• Always in-sync, since it’s together with the code.
5

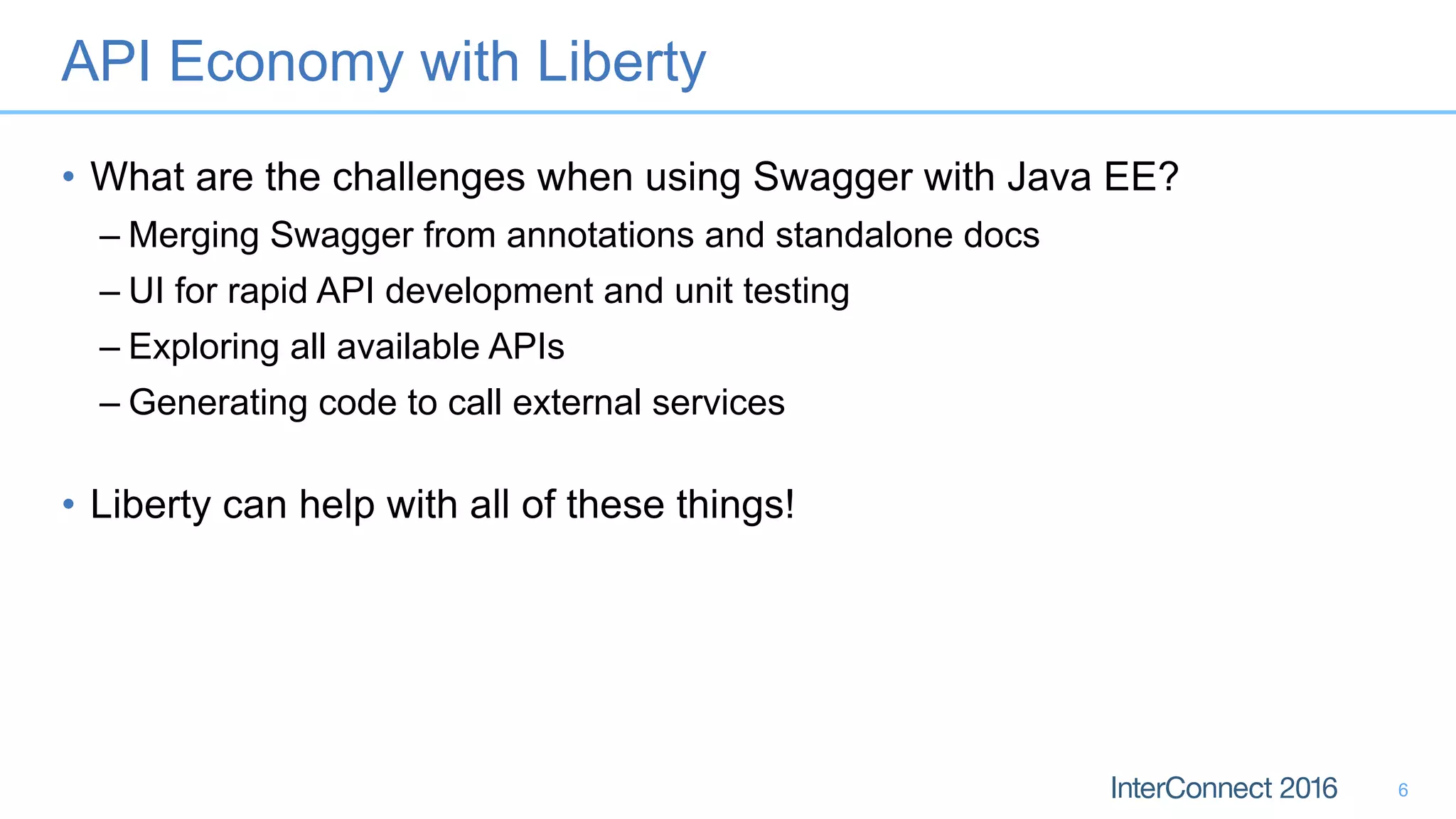

7. API Economy with Liberty
• What are the challenges when using Swagger with Java EE?
– Merging Swagger from annotations and standalone docs
– UI for rapid API development and unit testing
– Exploring all available APIs
– Generating code to call external services
• Liberty can help with all of these things!
6

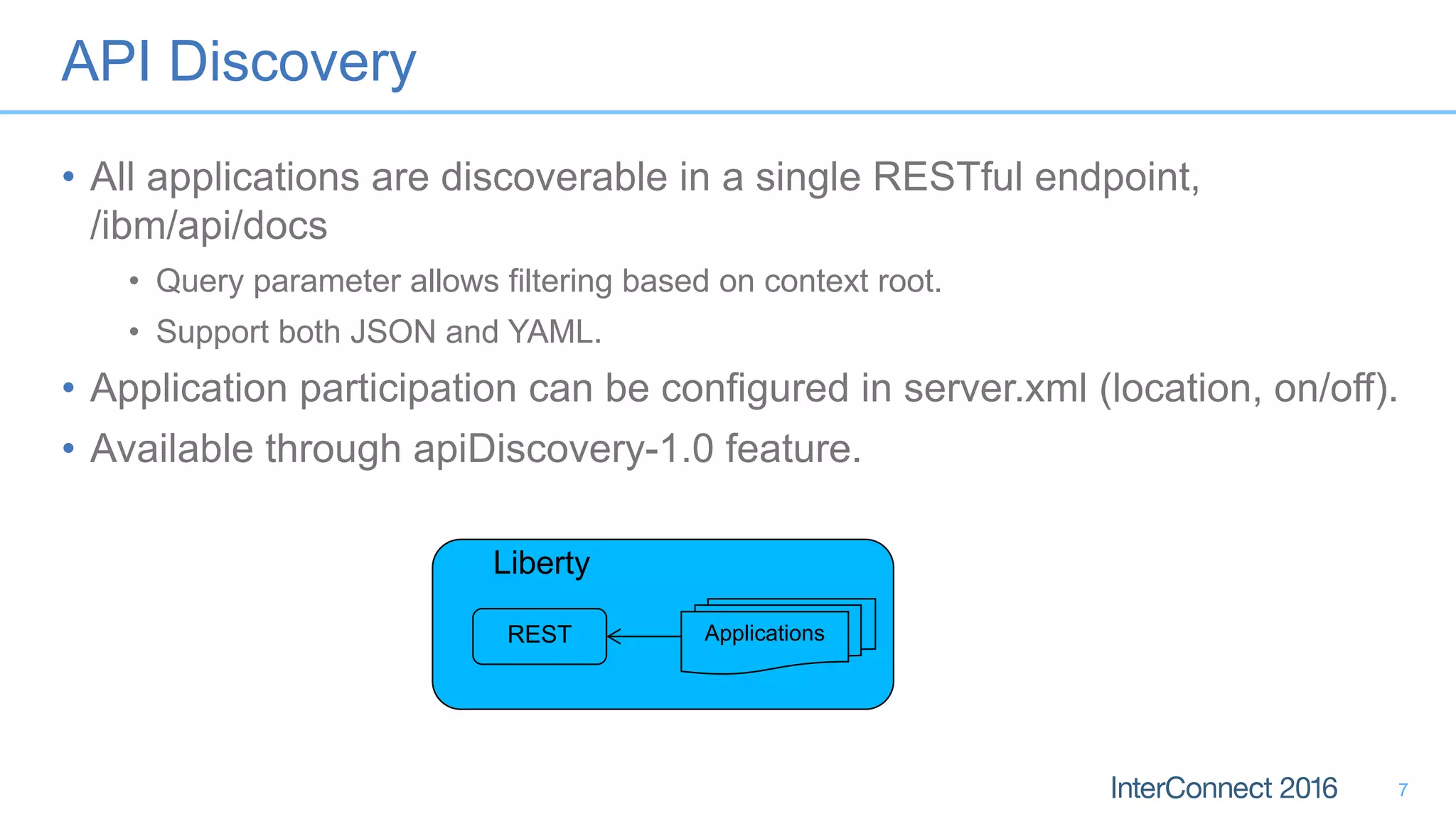

8. API Discovery
• All applications are discoverable in a single RESTful endpoint,
/ibm/api/docs
• Query parameter allows filtering based on context root.
• Support both JSON and YAML.
• Application participation can be configured in server.xml (location, on/off).
• Available through apiDiscovery-1.0 feature.
7
Applications
Liberty
REST

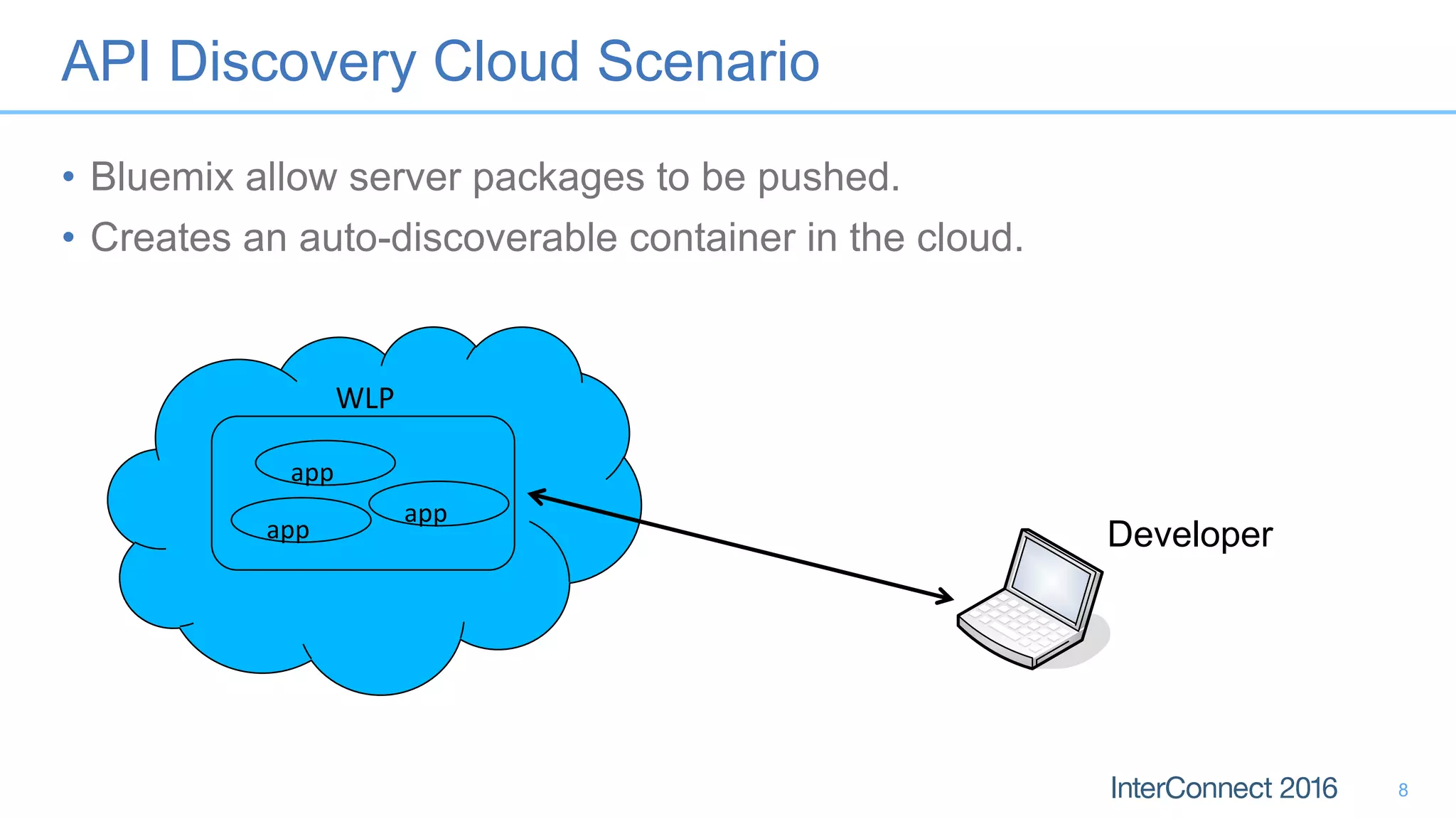

9. API Discovery Cloud Scenario
• Bluemix allow server packages to be pushed.
• Creates an auto-discoverable container in the cloud.
8
app
app
app
WLP
Developer

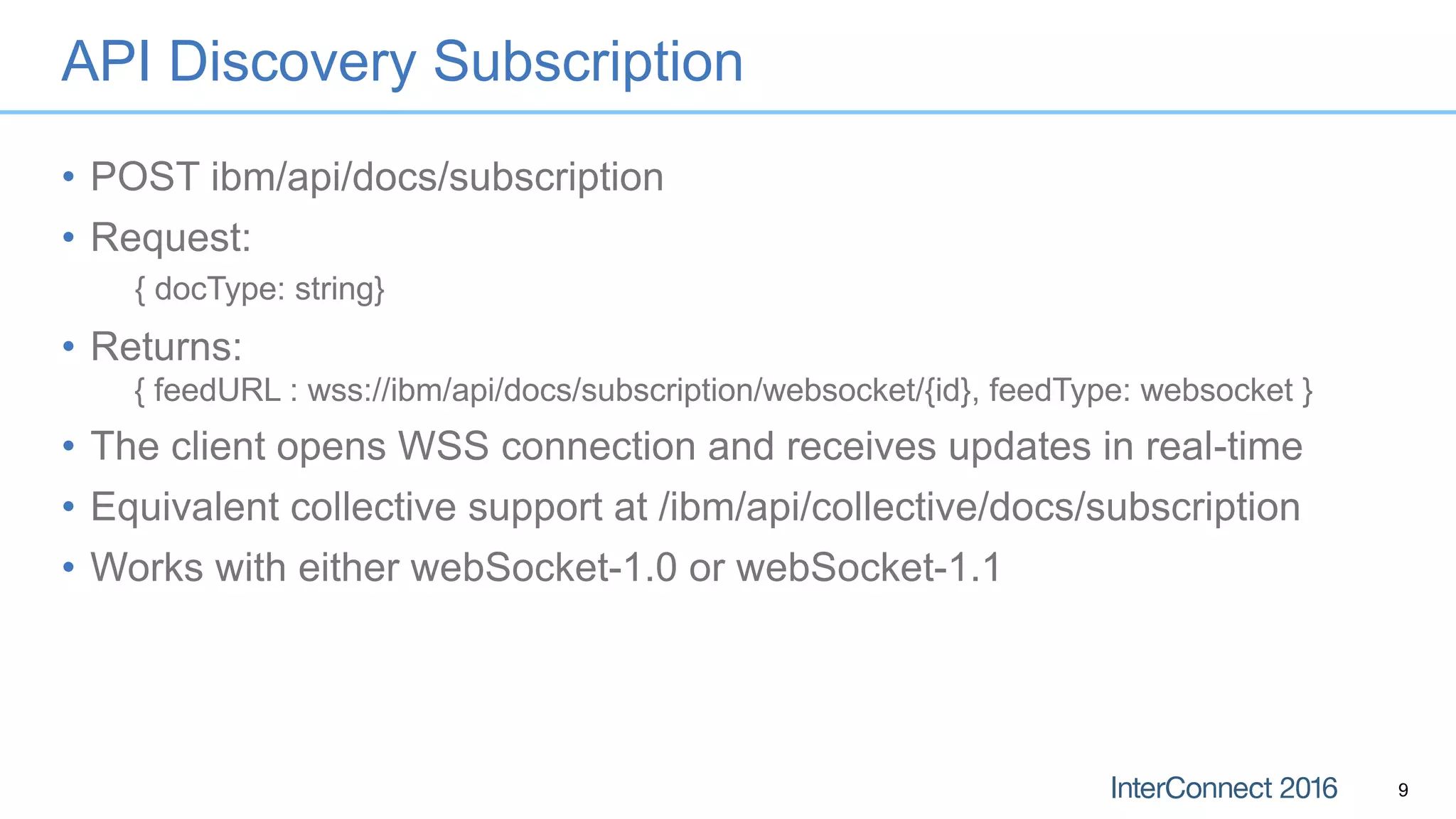

10. API Discovery Subscription
• POST ibm/api/docs/subscription
• Request:
{ docType: string}
• Returns:
{ feedURL : wss://ibm/api/docs/subscription/websocket/{id}, feedType: websocket }
• The client opens WSS connection and receives updates in real-time
• Equivalent collective support at /ibm/api/collective/docs/subscription
• Works with either webSocket-1.0 or webSocket-1.1
9

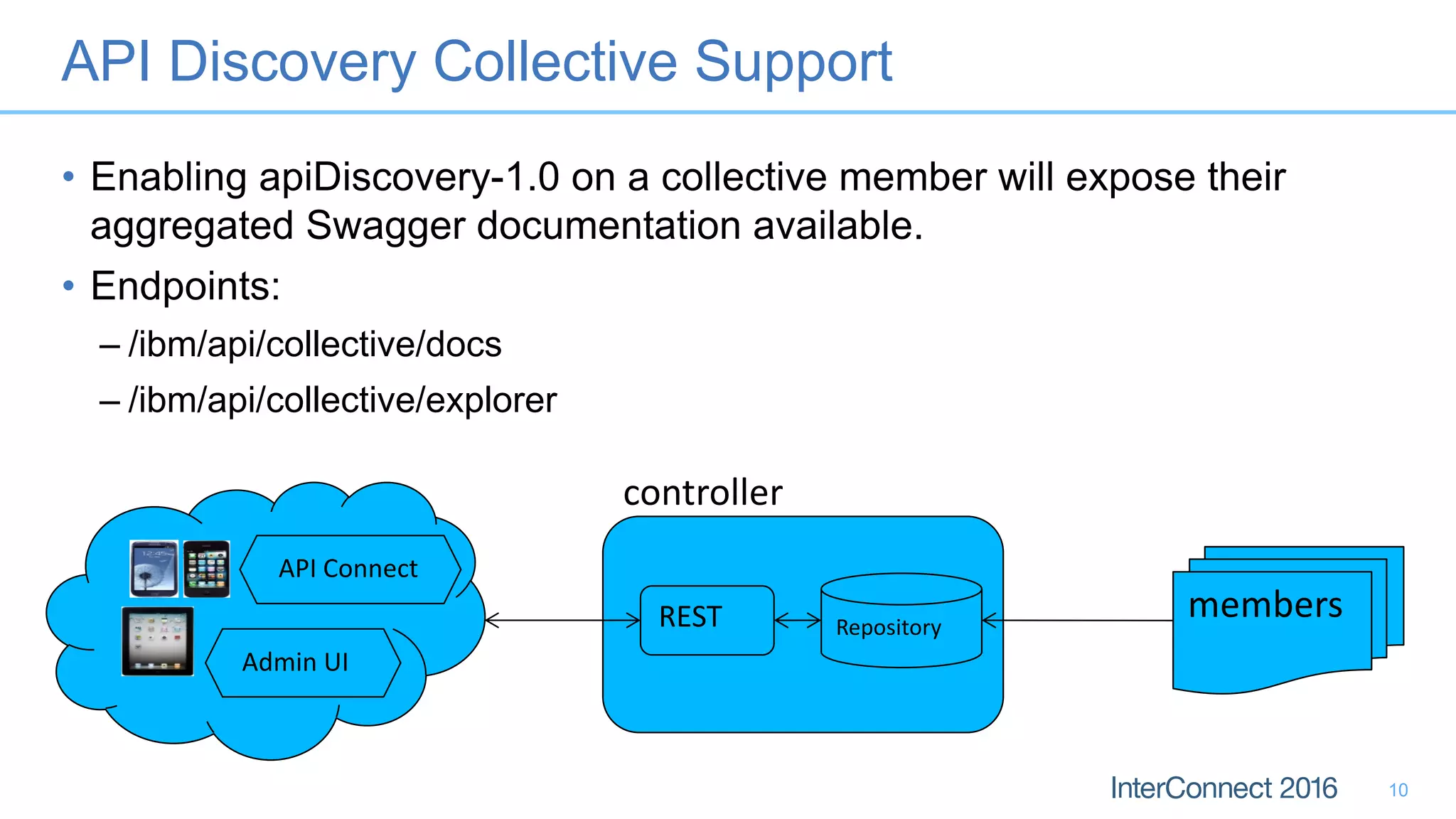

11. API Discovery Collective Support
• Enabling apiDiscovery-1.0 on a collective member will expose their
aggregated Swagger documentation available.
• Endpoints:
– /ibm/api/collective/docs
– /ibm/api/collective/explorer
10
Admin UI
Repository
membersREST
controller
API Connect

12. C
M
M

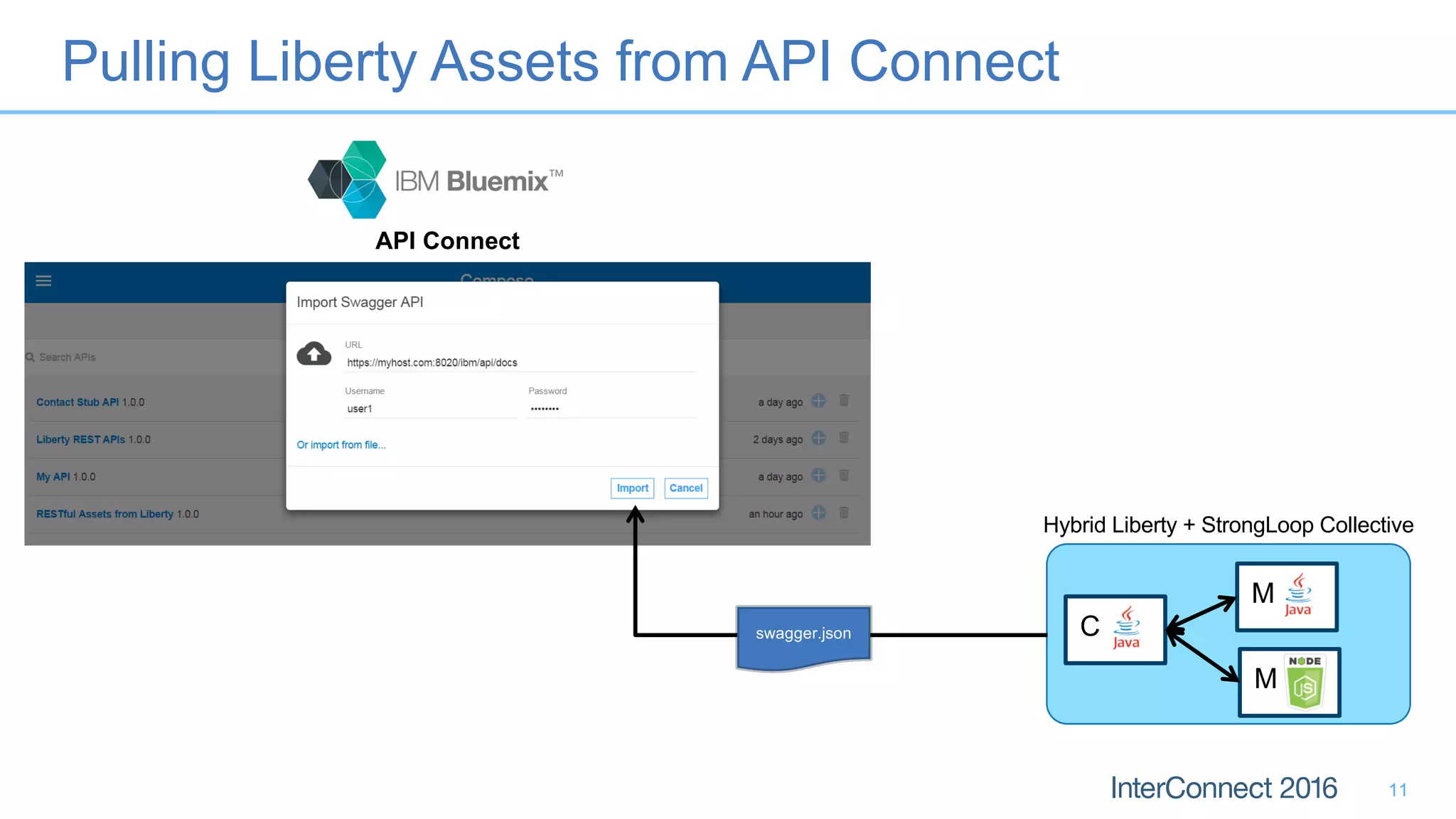

Pulling Liberty Assets from API Connect
11
API Connect
Hybrid Liberty + StrongLoop Collective
swagger.json

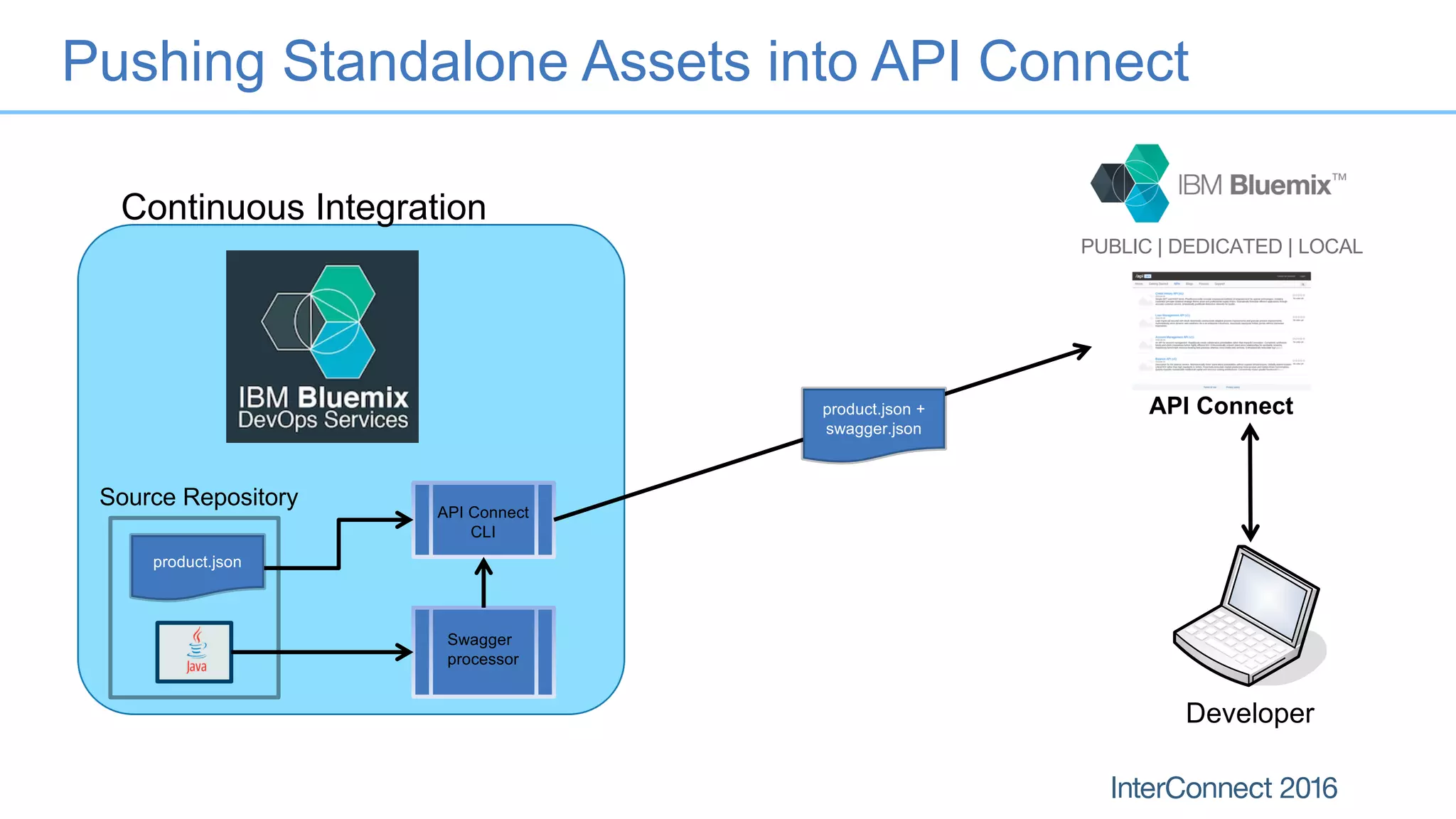

13. Pushing Standalone Assets into API Connect
Continuous Integration
product.json
Source Repository
Swagger
processor
API Connect
CLI
PUBLIC | DEDICATED | LOCAL
API Connectproduct.json +
swagger.json
Developer

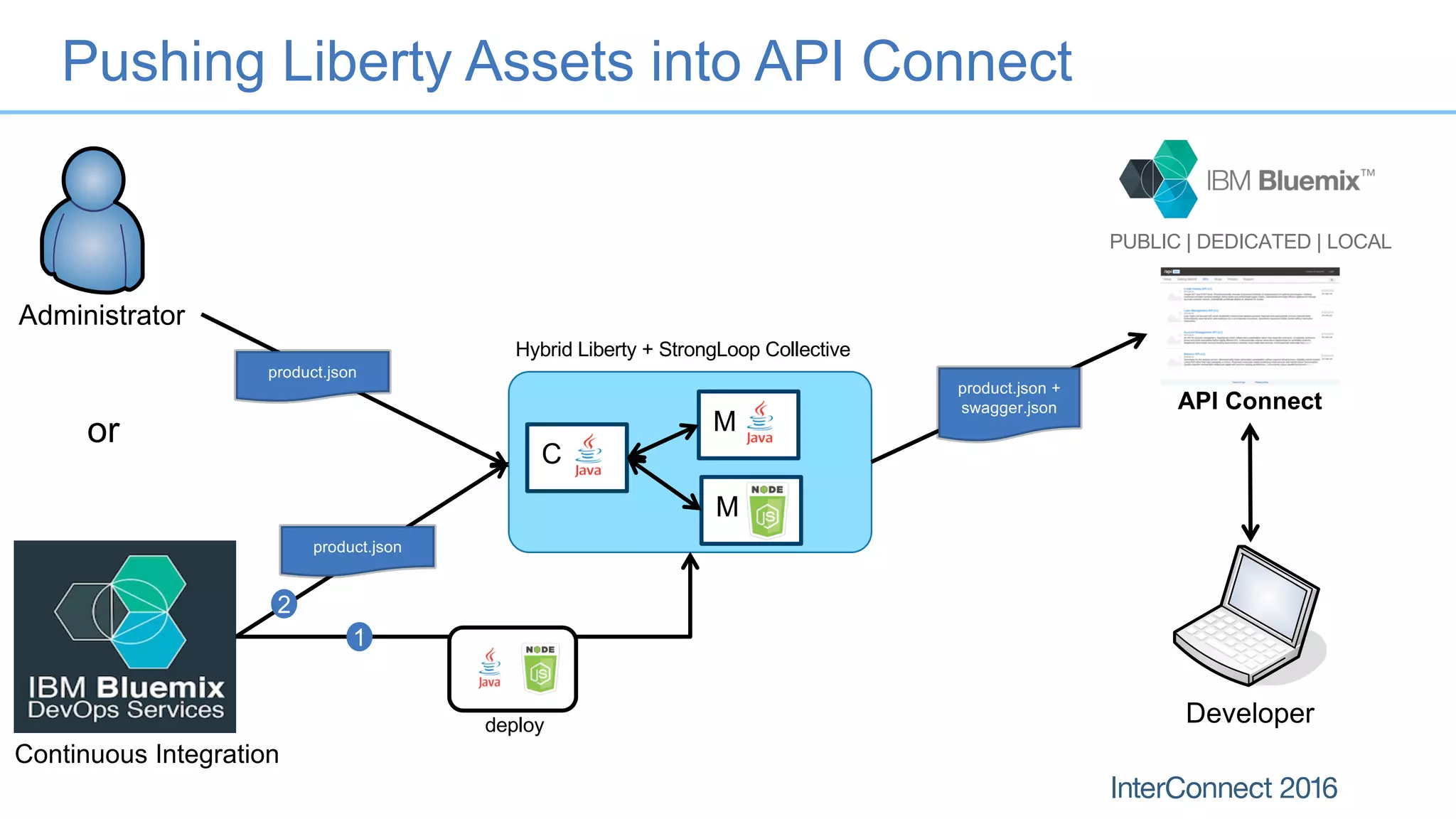

14. Pushing Liberty Assets into API Connect
Hybrid Liberty + StrongLoop Collective
PUBLIC | DEDICATED | LOCAL
API Connect
Administrator
product.json
product.json
C
M
M
or
product.json +
swagger.json
Developer
Continuous Integration
deploy
1
2

15. Demonstration

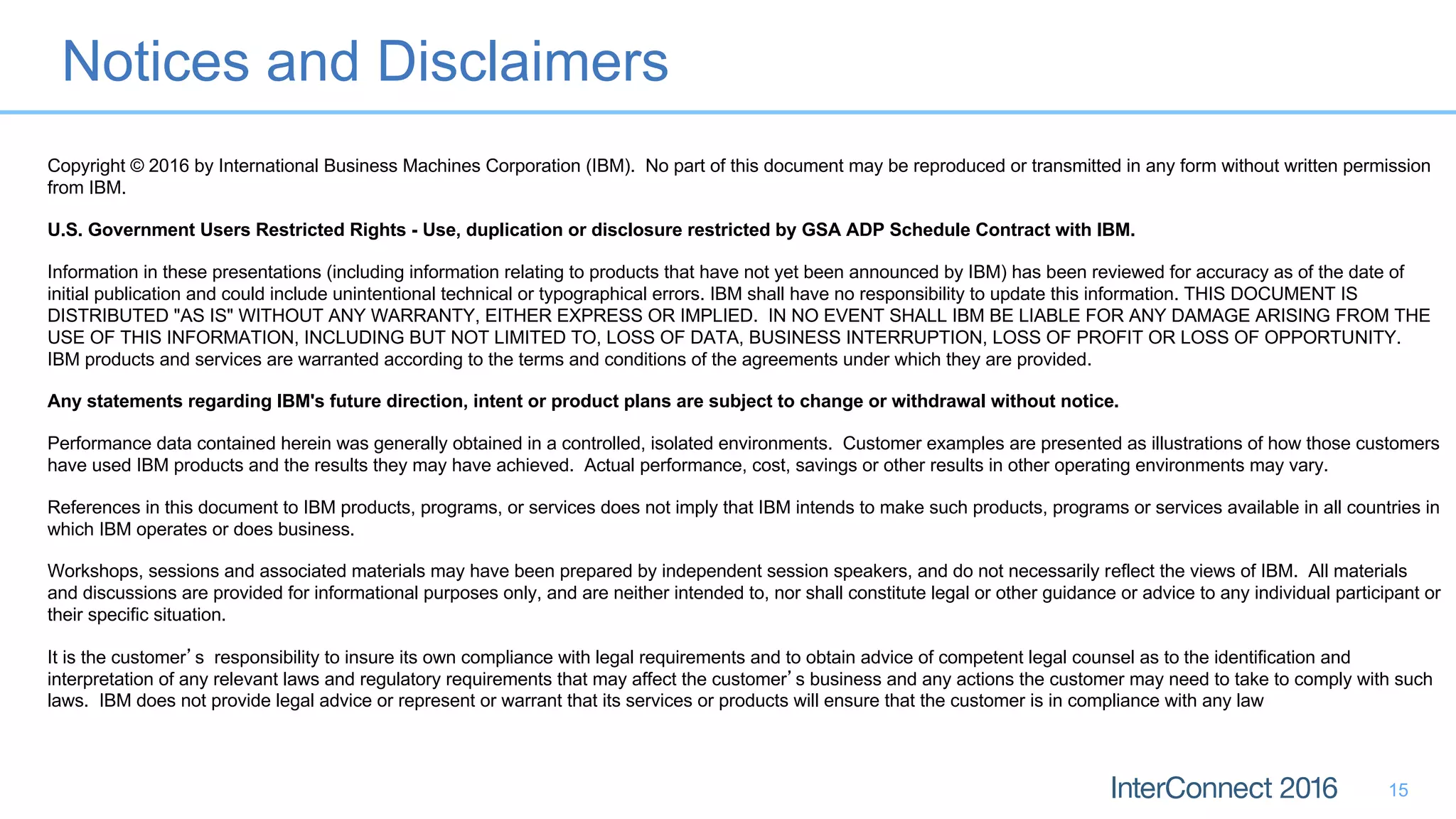

16. Notices and Disclaimers
15
Copyright © 2016 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission
from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of
initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS DOCUMENT IS
DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE
USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT OR LOSS OF OPPORTUNITY.
IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers
have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in
which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials
and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or
their specific situation.
It is the customer s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and
interpretation of any relevant laws and regulatory requirements that may affect the customer s business and any actions the customer may need to take to comply with such
laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance with any law

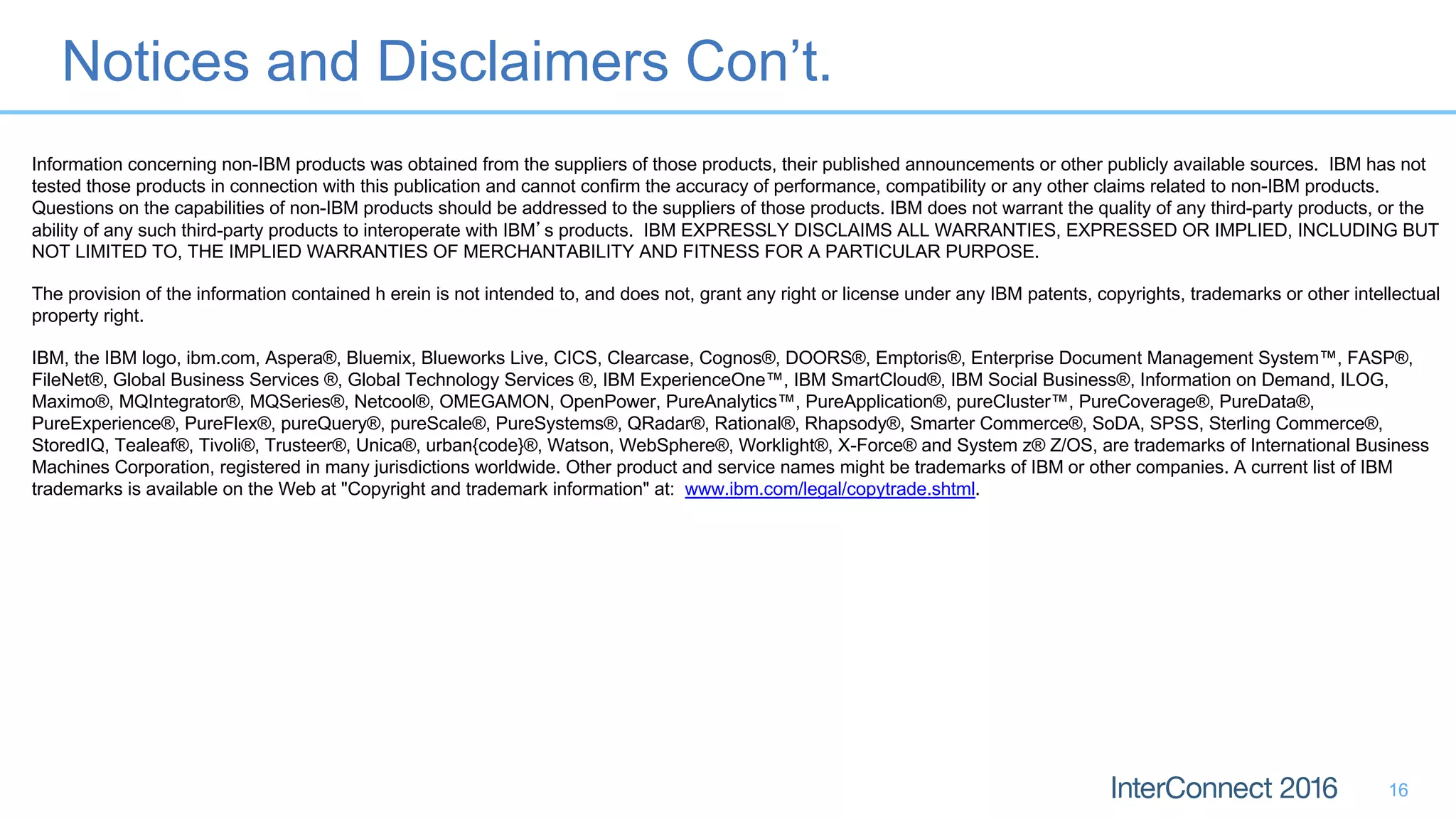

17. Notices and Disclaimers Con’t.
